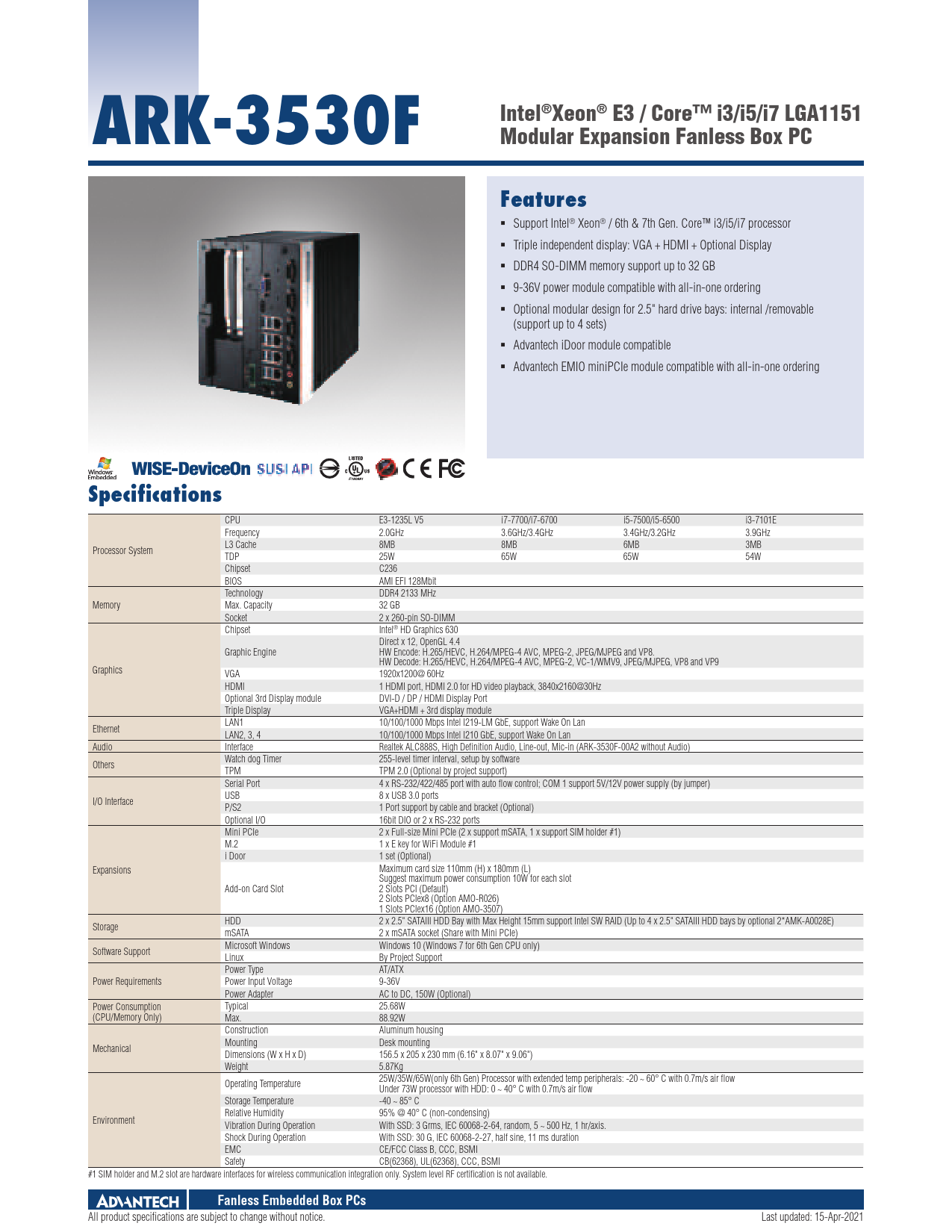

Advantech ARK-3530F Modular Expansion Fanless Box PC

Intel® Xeon® E3 / Core™ i3/i5/i7 LGA1151

Features

Support for Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processors
Triple independent display capability: VGA + HDMI + Optional Display
DDR4 SO-DIMM memory support up to 32 GB
9-36V power module compatibility for all-in-one ordering
Optional modular design for 2.5" hard drive bays (internal/removable, supporting up to 4 sets)
Advantech iDoor module compatibility
Advantech EMIO miniPCIe module compatibility for all-in-one ordering

Specifications

Processor System

Parameter	Value
CPU	E3-1235L V5 / i7-7700/i7-6700 / i5-7500/i5-6500 / i3-7101E
Frequency	2.0GHz / 3.6GHz/3.4GHz / 3.4GHz/3.2GHz / 3.9GHz
L3 Cache	8MB / 8MB / 6MB / 3MB
TDP	25W / 65W / 65W / 54W
Chipset	C236
BIOS	AMI EFI 128Mbit

Memory

Parameter	Value
Technology	DDR4 2133 MHz
Max. Capacity	32 GB
Socket	2 x 260-pin SO-DIMM

Graphics

Parameter	Value
Chipset	Intel® HD Graphics 630
Graphic Engine	DirectX 12, OpenGL 4.4
Hardware Acceleration	HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9.
VGA	1920x1200@60Hz
HDMI	1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz
Optional 3rd Display module	DVI-D / DP / HDMI Display Port
Triple Display	VGA+HDMI + 3rd display module

Interface

Parameter	Value
Ethernet	LAN1: 10/100/1000 Mbps Intel I219-LM GbE, support Wake On LAN. LAN2, 3, 4: 10/100/1000 Mbps Intel I210 GbE, support Wake On LAN.
Audio	Realtek ALC888S, High Definition Audio, Line-out, Mic-in (ARK-3530F-00A2 without Audio)
Others	Watchdog Timer: 255-level timer interval, setup by software. TPM: TPM 2.0 (Optional by project support).
Serial Port	4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper).
USB	8 x USB 3.0 ports.
P/S2	1 Port support by cable and bracket (Optional).

Expansions

Parameter	Value
Optional I/O	16bit DIO or 2 x RS-232 ports.
Mini PCIe	2 x Full-size Mini PCIe (2 x support mSATA, 1 x support SIM holder #1).
M.2	1 x E key for WiFi Module #1.
iDoor	1 set (Optional).
Add-on Card Slot	Maximum card size 110mm (H) x 180mm (L). Suggest maximum power consumption 10W for each slot. Options: 2 Slots PCI (Default), 2 Slots PCIex8 (Option AMO-R026), 1 Slot PCIex16 (Option AMO-3507).

Storage

Parameter	Value
HDD	2 x 2.5" SATAIII HDD Bay with Max Height 15mm support Intel SW RAID (Up to 4 x 2.5" SATAIII HDD bays by optional 2*AMK-A0028E).
mSATA	2 x mSATA socket (Share with Mini PCIe).

Software Support

Parameter	Value
Microsoft Windows	Windows 10 (Windows 7 for 6th Gen CPU only).
Linux	By Project Support.

Power Requirements

Parameter	Value
Power Type	AT/ATX.
Power Input Voltage	9-36V.
Power Adapter	AC to DC, 150W (Optional).
Power Consumption (CPU/Memory Only)	Typical: 25.68W, Max: 88.92W.

Mechanical

Parameter	Value
Construction	Aluminum housing.
Mounting	Desk mounting.
Dimensions (W x H x D)	156.5 x 205 x 230 mm (6.16" x 8.07" x 9.06").
Weight	5.87Kg.

Environment

Parameter	Value
Operating Temperature	-20 ~ 60°C with 0.7m/s air flow (for 25W/35W/65W processors with extended temp peripherals); 0 ~ 40°C with 0.7m/s air flow (for under 73W processor with HDD).
Storage Temperature	-40 ~ 85°C.
Relative Humidity	95% @ 40°C (non-condensing).
Vibration During Operation	With SSD: 3 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis.
Shock During Operation	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration.

EMC & Safety

Parameter	Value
EMC	CE/FCC Class B, CCC, BSMI.
Safety	CB(62368), UL(62368), CCC, BSMI.

Product Image

Image of the Advantech ARK-3530F fanless box PC, showcasing its compact, industrial design with front panel ports and rear ventilation.

Dimensions

Diagram showing the external dimensions of the ARK-3530F, with measurements for width (156.5 mm), height (205 mm), and depth (230 mm).

Front Panel External I/O Mechanical Layout/Drawing

Front panel layout diagram illustrating the placement of ports: Optional Display connector, VGA, HDMI, USB 7/8, LAN4, iDoor, USB 5/6, LAN3, USB 3/4, LAN2, USB 1/2, LAN1, DC in, Power on/off. Also shows COM4, COM3, COM2, COM1, MIC in, Line out, and HDD LED indicators. Note: The ARK-3530F-00A2 model lacks Mic in and Line out functions.

Ordering Information

Part No.	CPU	DDR4	Gbe	VGA	HDMI	Option 3rd display module	RS-232/422/485	USB 3.0	MiniPCIe	Audio	SIM	M.2	DC Input	Expansion
ARK-3530F-00A1	LGA1151 Socket Type	Up to 32GB	4	1	1	1	4	8	2	Mic in, Line out	1	1	9-36V	2 x PCI
ARK-3530F-00A2	LGA1151 Socket Type	Up to 32GB	4	1	1	1	4	8	2	N/A	1	1	9-36V	2 x PCI

Note: CPU/Memory/Storage and operating system bundled by request.

Packing List

ARK-3530F Unit
User Manual (Simplified Chinese)
China RoHS
Desk mounting kit

Embedded OS Options

Part Number	Description
20706WX9HS0023	WIN10 IoT LTSC 64bit for Xeon and Core i7
20706WX9VS0026	WIN10 IoT LTSC 64bit for Core i3/i5 and Celeron

Optional Items

Optional Item for Default SKU

Part Number	Description
96PSA-A150W19P4-3	AC-to-DC Adapter, DC19V 150W, 0 ~ 40 °C
96PSA-A230W24P4-3	AC to DC adapter, DC 24V 230W, -20 ~ 60 °C
1700028547-01	16bit DIO Cable
1700028548-01	COM5/6 Cable
1702002600	Power cable 3-pin 183cm, USA type
1702002605	Power cable 3-pin 183cm, EU type
1702031801	Power cable 3-pin 183cm, UK type
1700000237	Power cable, 3-Pin 183cm, PSE type

Optional MOS modules for iDoor Expansion

Part Number	Description
MOS-2230-Z1201E	CANBus module, 2-Ch, USB I/F
MOS-2220-X1101E	Parallel LPT module, 1-Ch, USB I/F.
MOS-2220-Z1101E	High Speed Com USB module, 2-Ch, PCIe I/F
MOS-2120-Z1101E	Giga LAN Ethernet module, 1-Ch, PCIe I/F.
MOS-1120Y-0202E	Isolated RS-232, 2-Ch, DB9, PCIe I/F
MOS-1121Y-0202E	Isolated RS-422/485, 2-Ch, DB9, PCIe I/F
MOS-1120Y-1402E	Non-Isolated RS-232, DB37, 4-Ch, PCIe I/F
MOS-1121Y-1402E	Non-Isolated RS-422/485, DB37, 4-Ch, PCIe I/F
MOS-1130Y-0201E	Isolated CANBus, 2-Ch, DB9, PCIe I/F
MOS-1110Y-0101E	Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F
MOS-2110Z-1201E	USB module, 2-Ch, PCIe I/F
MOS-2120-Z1201	Dual Intel I210 GbE LAN iDoor, 2-Ch, PCIe I/F

*Please noted ARK-3530F can support only 1 iDoor.

ARK-3530F Optional HDD expansion Kit (Support up to 2 sets)

Part Number	Description
AMK-A0028E	1 x internal HDD Kit (Max Height 15mm)

Optional Display Module

Part Number	Description
AMO-D001E	DVI-D module (1920x1080)
AMO-D002E	DP module (3840x2160@60Hz)
AMO-D003E	HDMI module (3840x2160@30Hz)

Optional Riser Expansion

Part Number	Description
AMO-R026	2 x PCIex8
AMO-3507	1 x PCIex16 + Fan kit
