Power and Backup Batteries
Connect the power cable to a wall outlet. Install 2x AAA batteries in the compartment (11) for backup power to retain settings during outages. The projector and display are not active on backup power.
ℹ️ Document Conversion Notice:
This page was converted from the original file for easier reading. Diagrams/images may appear only in the original PDF below.
File info: application/pdf · 6 pages · 3.50MB

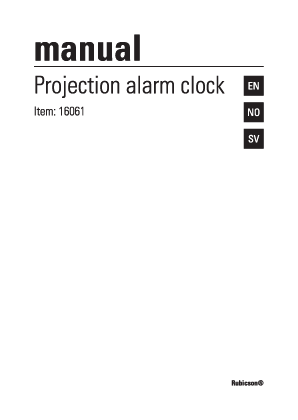

Rubicson Projection Alarm Clock
Model: 16061
Overview
This projection alarm clock combines time display, radio, alarm functions, and a projector. It is powered by a mains adapter, with backup batteries (2x AAA) available to retain settings during power outages. Note: Projector and display are not active on backup power.
Key Components:
- 1. Time set/Preset: For setting time and saving radio presets.
- 2. Hour/Tun-: Adjusts hour, tunes radio down, selects presets.
- 3. Min/Tun+: Adjusts minute, tunes radio up, selects presets.
- 4. Projection on/off: Controls the projector.
- 5. Nap/dimmer / sleep / snooze: Activates nap/sleep timer, adjusts display brightness, snoozes alarm.
- 6. 180° flip: Rotates projected image.
- 7. Alarm on/off: Activates/deactivates Alarm 1 and radio alarm.
- 8. AL1/ Vol-: Sets Alarm 1, decreases volume, tunes radio down.
- 9. AL2/ Vol+: Sets Alarm 2, increases volume, tunes radio up.
- 10. Time project/focus: Adjusts projector focus.
- 11. Battery compartment: For backup batteries.
- 12. Antenna: For radio reception.
- 13. Power cable: Connects to power outlet.
Specifications
| Parameter | Value |
|---|---|
| Voltage | 230 V~ |
| Cable length | 1.5 m |
| Backup batteries | 2x AAA |
| Time format | 24 h |
| Radio | FM (87.5-108 MHz) |
| Size | 150x70x62 mm |
Operation
Setting the Time
Press and hold button 1 for 3 seconds until digits flash. Use buttons 2 (Hour/Tun-) and 3 (Min/Tun+) to set hours and minutes. Press button 1 to confirm.
Listening to the Radio
With the unit on, press button 7 to activate the radio. Use buttons 2 and 3 to tune frequency. Press and hold 2 or 3 for auto scan. Adjust volume with buttons 8 (AL1/Vol-) and 9 (AL2/Vol+).
Radio Presets
- Select a radio station manually or automatically.
- Navigate to the desired frequency. Press and hold button 1; "P01" will blink.
- Use buttons 2 and 3 to select a preset number (P01-P10).
- Press button 1 to save.
- Repeat for additional presets.
- Press button 1 repeatedly to cycle through and listen to saved presets.
Setting the Alarm
To set Alarm 1: With the radio off, press button 8. Digits will blink. Use buttons 2 and 3 to set alarm time. Press button 8 to confirm (activates buzzer alarm). Press button 8 again for radio alarm tone. Press button 8 a final time to deactivate.
Alarm 2 uses button 9 with the same procedure. Alarm volume increases gradually.
Turning the Alarm Off
When the alarm sounds, press snooze button (5) for a 9-minute pause. Press button 7 to turn the alarm off completely.
Wake & Nap Modes (Sleep Timer)
To wake up after 10-90 minutes, press button 5 repeatedly when the unit is off. If the radio is on, this functions as a sleep timer, turning the radio off automatically after the set duration.
Dimmer
Press and hold button 5 to adjust display brightness (high/low).
The Projector
Press button 4 to turn the projector on/off. Press button 6 to rotate the projection 180°. Adjust focus using the focus dial (10).
Safety Information
For indoor use in mild climates only. Do not expose to moisture (dripping/splashing). Do not place liquid-filled objects (e.g., vases) or open flames (e.g., candles) on the apparatus. The AC plug is the primary disconnect device and must remain accessible. Replace batteries only with the same or equivalent type. Dispose of used batteries at designated recycling points.
