POWER RATINGS STANDBY PRIME Gaseous Fuel kW kVA kW kVA LPG 192.0 240.0 175.0 218.8 Natural Gas (NG) 300.0 375.0 260.0 325.0 Amperage 0.8 PF 480V 451 391
ENGINE SPECIFICATION: Manufacturer. PSI. Model. D14.6L. Emissions. US EPA Certified. Engine speed (rpm). 1800. Max. HP Power 1800 rpm. 459 per ISO3046.

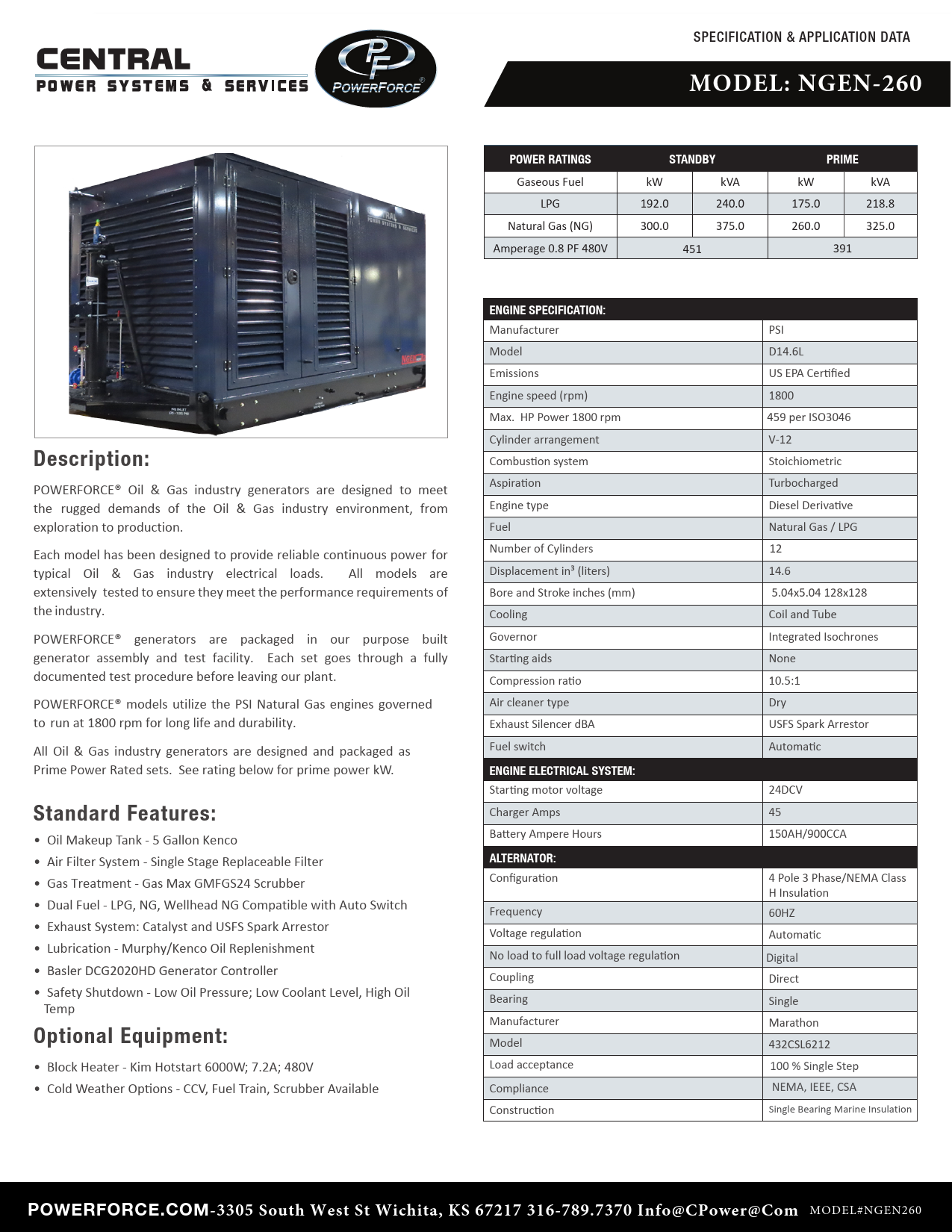

SPECIFICATION & APPLICATION DATA MODEL: NGEN-260 POWER RATINGS Gaseous Fuel LPG Natural Gas (NG) Amperage 0.8 PF 480V STANDBY kW kVA 192.0 240.0 300.0 375.0 451 PRIME kW kVA 175.0 218.8 260.0 325.0 391 Description: POWERFORCE® Oil & Gas industry generators are designed to meet the rugged demands of the Oil & Gas industry environment, from exploration to production. Each model has been designed to provide reliable continuous power for typical Oil & Gas industry electrical loads. All models are extensively tested to ensure they meet the performance requirements of the industry. POWERFORCE® generators are packaged in our purpose built generator assembly and test facility. Each set goes through a fully documented test procedure before leaving our plant. POWERFORCE® models utilize the PSI Natural Gas engines governed to run at 1800 rpm for long life and durability. All Oil & Gas industry generators are designed and packaged as Prime Power Rated sets. See rating below for prime power kW. Standard Features: · Oil Makeup Tank - 5 Gallon Kenco · Air Filter System - Single Stage Replaceable Filter · Gas Treatment - Gas Max GMFGS24 Scrubber · Dual Fuel - LPG, NG, Wellhead NG Compatible with Auto Switch · Exhaust System: Catalyst and USFS Spark Arrestor · Lubrication - Murphy/Kenco Oil Replenishment · Basler DCG2020HD Generator Controller · Safety Shutdown - Low Oil Pressure; Low Coolant Level, High Oil Temp Optional Equipment: · Block Heater - Kim Hotstart 6000W; 7.2A; 480V · Cold Weather Options - CCV, Fuel Train, Scrubber Available ENGINE SPECIFICATION: Manufacturer Model Emissions Engine speed (rpm) Max. HP Power 1800 rpm Cylinder arrangement Combustion system Aspiration Engine type Fuel Number of Cylinders Displacement in³ (liters) Bore and Stroke inches (mm) Cooling Governor Starting aids Compression ratio Air cleaner type Exhaust Silencer dBA Fuel switch ENGINE ELECTRICAL SYSTEM: Starting motor voltage Charger Amps Battery Ampere Hours ALTERNATOR: Configuration Frequency Voltage regulation No load to full load voltage regulation Coupling Bearing Manufacturer Model Load acceptance Compliance Construction PSI D14.6L US EPA Certified 1800 459 per ISO3046 V-12 Stoichiometric Turbocharged Diesel Derivative Natural Gas / LPG 12 14.6 5.04x5.04 128x128 Coil and Tube Integrated Isochrones None 10.5:1 Dry USFS Spark Arrestor Automatic 24DCV 45 150AH/900CCA 4 Pole 3 Phase/NEMA Class H Insulation 60HZ Automatic Digital Direct Single Marathon 432CSL6212 100 % Single Step NEMA, IEEE, CSA Single Bearing Marine Insulation POWERFORCE.COM-3305 South West St Wichita, KS 67217 316-789.7370 Info@CPower@Com MODEL#NGEN260 CONTROL PANEL: DGC-2020HD, DIGITAL GENSET CONTROLLER Warranty/Disclaimer: Except as may be expressly covered under applicable manufacturer(s) parts/product warranty, Central Power Systems & Services (CPS&S) liability arising out of service, repairs, or workmanship shall not exceed the cost of the original repair or service. Further, under no circumstances shall CPS&S be liable for incidental, consequential or other economic loss damages to customer. This includes but may not be limited to loss of use of equipment or vehicle, down time, inconvenience, cargo damage, overtime or any other costs or expenses resulting from services, repairs or workmanship. The DGC-2020HD is a is equipped with a proven generator digital controller for rugged environments such as C&I applications, drill platforms, pump jack sites, and landfills. The premium control box has the capability to control the generator set manually, remotely or automatically. · NFPA-110 compliant · User friendly, fully-configurable, programmable, microprocessor based logic controller · Off-line Simulator Best-logic TM helps identify and troubleshoot the logic · High contrast display is easy to read outdoors LUBRICATING SYSTEM: Total lubricating capacity quarts (Liter) 32.75/31.0 Recommended lubricating oil grade SAE 15W-40 Low Ash NG Engine Oil Oil Pressure Minimum 1800RPM psi (bars) 25.0/1.72 Maximum Allowable Oil Temperature F (C) 250/121 COOLING SYSTEM FOR OPERATING AT 120º AMBIENT: Cooling System Radiator CAC Combo Engine Coolant Capacity Gallons (Liters) 28/127 Fan Pusher Radiator PSI Cooling Air Flow 30,000 ARRANGEMENT: Coupling Flexible Enclosure Yes Base arrangement Generator and Containment Spill containment 100% DIMENSIONS, WEIGHTS & SOUND LEVELS FUEL DATA Type Consumptions (cu. Ft./hour) Natural Gas/LPG 2760 NG GENERATOR SET ENCLOSURE DIMENSIONS * (ALL DIMENSIONS ARE IN INCHES AND ARE APPROXIMATED) Length Width Height Weight lbs dBA Inches Feet Inches Feet 164.28" 89.36" 7.44' 118.4" 9.86' 10,060 dry 81 All data subject to change without notice. The information in this white-page specification is believed to be accurate but all recommendations are made without warranty, since the conditions of use are beyond Central Power Systems & Services control. Central Power Systems & Services disclaims any liability in connection with the use of this information, and does not warrant against infringement by reason of the use of any of its products in combination with other material or in any process. Central Power Systems & Services warrants only that the product complies with specifications agreed to in contracts of sale. Central Power Systems & Services reserves the right to change any of the technical information and data detailed in this paper. POWERFORCE.COM-3305 South West St Wichita, KS 67217 316-789.7370 Info@CPower@Com MODEL# NGEN260Adobe InDesign 15.0 (Macintosh) Adobe PDF Library 15.0
