3020 SMD SMT LED Product Information
Product Overview
This document provides specifications and details for the 3020 SMD SMT LED series. These components are characterized by high brightness, a wide viewing angle, low thermal resistance, and an ultra-low light decay process, ensuring a long operational life.
Specifications

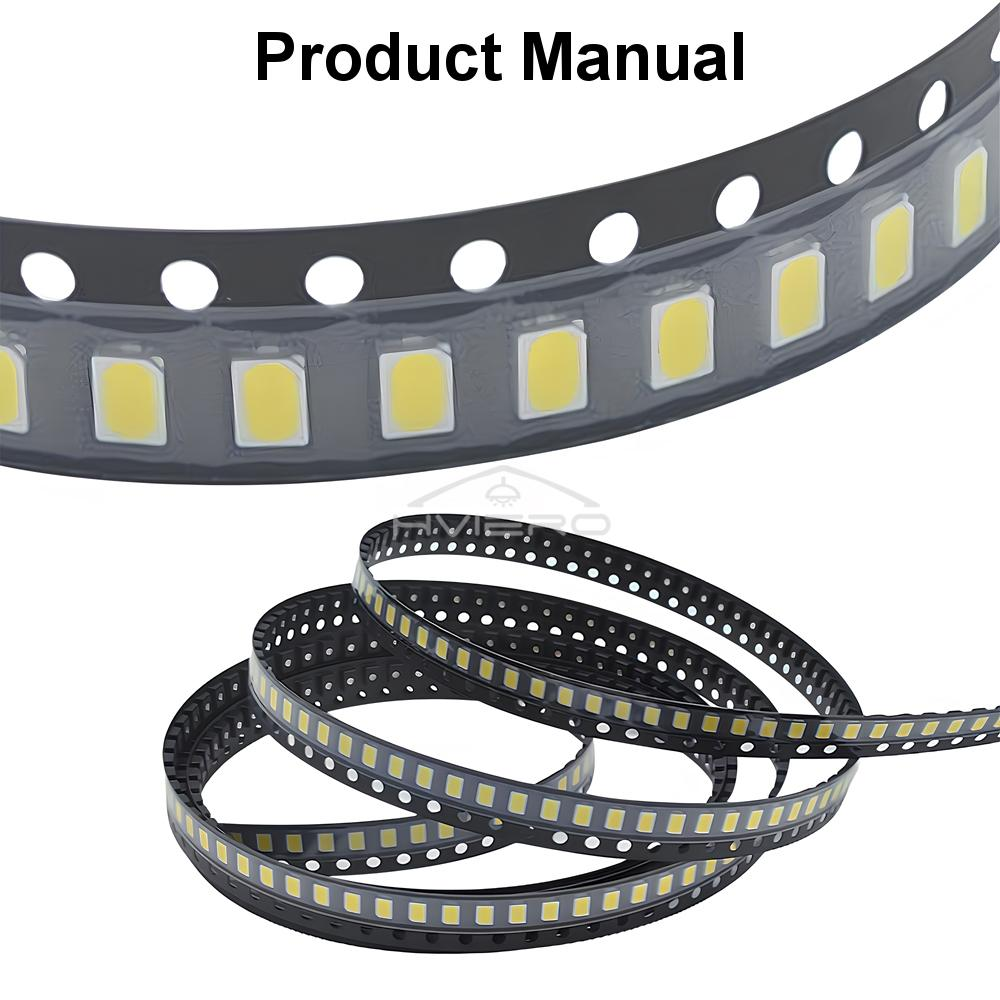

3020 SMD SMT Specification (one roll 3000pcs)
| Colour | Voltage (V) | Luminance (mcd) | Wave band (nm,k) |
|---|---|---|---|
| Blue | 3.2~3.4 | 220~250mcd | 460~465nm |
| Green | 3.0~3.4 | 600~800mcd | 517~520nm |
| Red | 2.0~2.2 | 200~220mcd | 620~625nm |
| White | 3.0~3.2 | 7-8LM | 6000~6500k |
| Yellow | 2.0~2.2 | 600~800mcd | 590~593nm |
Detailed Product Parameters
| Model | 3020 SMD SMT |
|---|---|
| Lens Type | Water clear |
| SIZE | 3.0 x 2.0 x 1.3 mm |
| Reverse Voltage | 5.0 V |
| DC Forward Current | 20mAh |
| Viewing Angle | 100-130degree |
| Lead Soldering Temp | 260°C for 5 seconds |
| Light color | Blue/Green/Red/White/Yellow |
Component Dimensions and Polarity
The physical dimensions of the 3020 SMD LED are 3.0 mm in length, 2.0 mm in width, and 1.3 mm in height. The component features a cathode mark. Polarity is indicated by two terminals: terminal 1 is the cathode, and terminal 2 is the anode.
Application Range
These LEDs are suitable for a wide range of lighting applications, including:
- Tube Lamps
- Panel Lamps
- Down Lamps
- Bulb Lamps
- Mining Lamps
- Par Lamps
