Manual installation instructions updated and table of manual Modbus addresses added ... parameter at a time so the blink rate is almost constant.

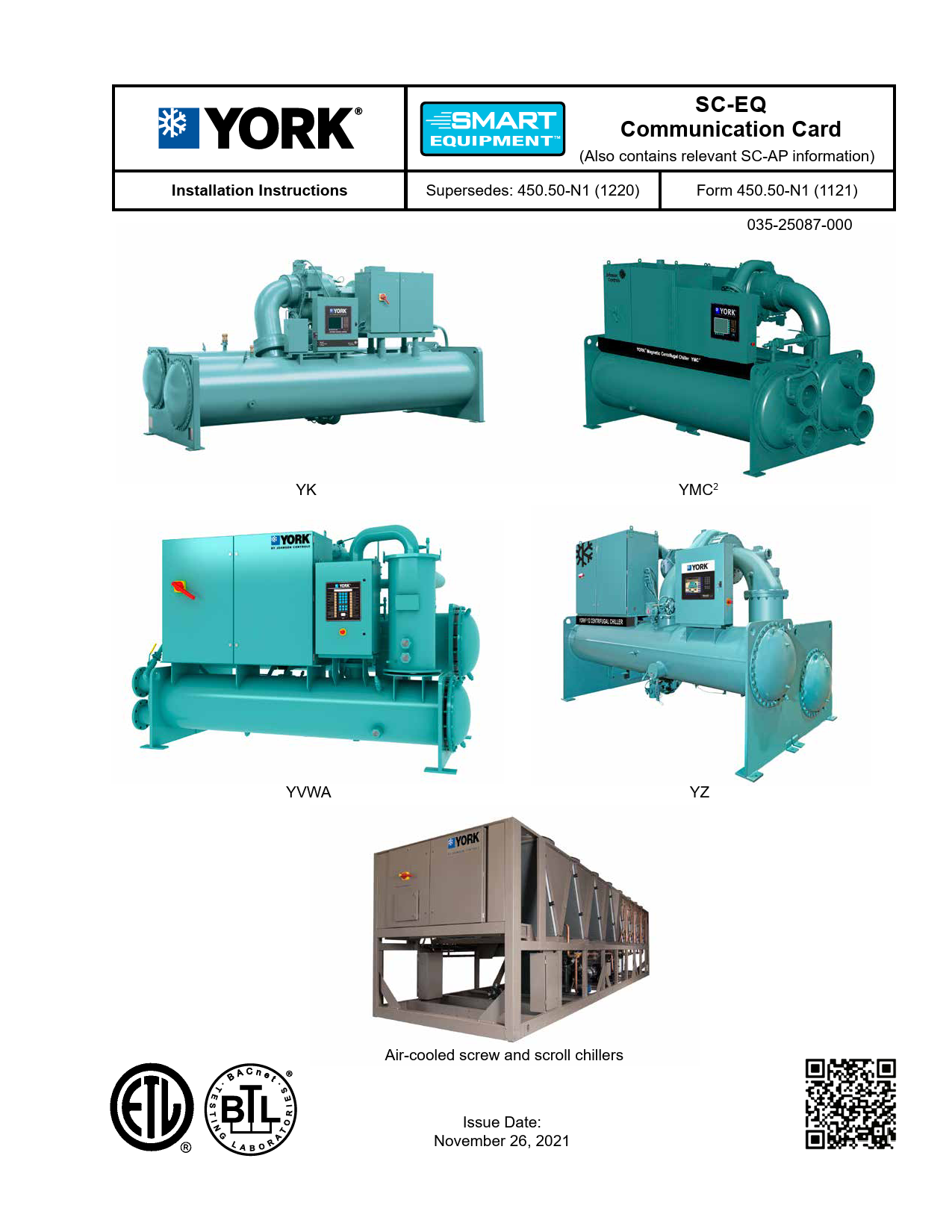

Installation Instructions SC-EQ Communication Card (Also contains relevant SC-AP information) Supersedes: 450.50-N1 (1220) Form 450.50-N1 (1121) 035-25087-000 YK YMC2 YVWA YZ Air-cooled screw and scroll chillers Issue Date: November 26, 2021 Form 450.50-N1 Issue date: 11/26/2021 Important! Read before proceeding! General safety guidelines This equipment is a relatively complicated apparatus. During rigging, installation, operation, maintenance, or service, individuals may be exposed to certain components or conditions including, but not limited to: heavy objects, refrigerants, materials under pressure, rotating components, and both high and low voltage. Each of these items has the potential, if misused or handled improperly, to cause bodily injury or death. It is the obligation and responsibility of rigging, installation, and operating/service personnel to identify and recognize these inherent hazards, protect themselves, and proceed safely in completing their tasks. Failure to comply with any of these requirements could result in serious damage to the equipment and the property in which it is situated, as well as severe personal injury or death to themselves and people at the site. This document is intended for use by owner-authorized rigging, installation, and operating/service personnel. It is expected that these individuals possess independent training that will enable them to perform their assigned tasks properly and safely. It is essential that, prior to performing any task on this equipment, this individual shall have read and understood the on-product labels, this document and any referenced materials. This individual shall also be familiar with and comply with all applicable industry and governmental standards and regulations pertaining to the task in question. Safety symbols The following symbols are used in this document to alert the reader to specific situations: Indicates a possible hazardous situation which will result in death or serious injury if proper care is not taken. '$1*(5 &$87,21 Identifies a hazard which could lead to damage to the machine, damage to other equipment and/or environmental pollution if proper care is not taken or instructions and are not followed. :$51,1* Indicates a potentially hazardous situation which will result in possible injuries or damage to equipment if proper care is not taken. Highlights additional information useful to the technician in completing the work being performed properly. 127( :$51,1* External wiring, unless specified as an optional connection in the manufacturer's product line, is not to be connected inside the control cabinet. Devices such as relays, switches, transducers and controls and any external wiring must not be installed inside the micro panel. All wiring must be in accordance with Johnson Controls' published specifications and must be performed only by a qualified electrician. Johnson Controls will NOT be responsible for damage/problems resulting from improper connections to the controls or application of improper control signals. Failure to follow this warning will void the manufacturer's warranty and cause serious damage to property or personal injury. 2 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Changeability of this document In complying with Johnson Controls' policy for continuous product improvement, the information contained in this document is subject to change without notice. Johnson Controls makes no commitment to update or provide current information automatically to the manual or product owner. Updated manuals, if applicable, can be obtained by contacting the nearest Johnson Controls Service office or accessing the Johnson Controls Knowledge Exchange website at https:// docs.johnsoncontrols.com/chillers/. It is the responsibility of rigging, lifting, and operating/ service personnel to verify the applicability of these documents to the equipment. If there is any question regarding the applicability of these documents, rigging, lifting, and operating/service personnel should verify whether the equipment has been modified and if current literature is available from the owner of the equipment prior to performing any work on the chiller. Revision notes Revisions made to this document are indicated in the following table. These revisions are to technical information, and any other changes in spelling, grammar, or formatting are not included. Affected pages 9 13 18 20 2021 2122 22 23 2324 32 3334 3940 41 44 45 46 50 51 57 Description SC-EQ product code numbers table updated YORK equipment models table updated Figure captions corrected YVWE, YVWH, and YGWH installation procedure updated to include YGWH YEWS and YGWE installation procedure updated Installation procedure added for YSPA Installation procedure added for YR (SmartView) Installation procedure added for YEWS-D, YEWS-D1, and YEWS-E (XS-08) Installation procedure added for absorption chillers with large and small panels SC-EQ communication card to OptiViewTM equipment connections figure updated Note about voltage added to figures Procedures for updating the firmware and software corrected Note on SC-AP OptiView mounting added E-Link replacement section updated Manual installation instructions updated and table of manual Modbus addresses added Manually selecting chiller model figure updated Installation summary and Additional support sections added Screw panel LON ProtoNode mounting location figure added Note added to BAS wiring connections section Associated literature Manual description SMART Chiller Access Portal Installation Guide SMART Chiller Access Portal Quick Start Guide Form number Part No. 24-10737-75 Part No. 24-10737-83 JOHNSON CONTROLS 3 Form 450.50-N1 Issue date: 11/26/2021 THIS PAGE INTENTIONALLY LEFT BLANK. 4 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Table of contents SECTION 1 - INTRODUCTION...............................................................................................................................9 Overview........................................................................................................................................................... 9 Emissions compliance..................................................................................................................................... 10 SECTION 2 - INSTALLATION............................................................................................................................... 11 Wiring.............................................................................................................................................................. 11 Protection of communication ports ................................................................................................................. 11 High noise environments................................................................................................................................. 12 Electrical noise mitigation to equipment ......................................................................................................... 12 Electrical noise mitigation SC-EQ to BAS....................................................................................................... 12 Types of communication ports......................................................................................................................... 12 Network termination........................................................................................................................................ 12 Media access control (MAC) address............................................................................................................. 13 BAS network wiring......................................................................................................................................... 14 Mounting ......................................................................................................................................................... 15 OptiViewTM panel installation........................................................................................................................... 15 Small tonnage panel installation...................................................................................................................... 16 YMAA, YCAE, and YCWE-E panel installation............................................................................................... 17 YVWE, YVWH, and YGWH panel installation................................................................................................. 20 YEWS and YGWE panel installation............................................................................................................... 20 YSPA panel installation................................................................................................................................... 21 YR (SmartView) panel installation................................................................................................................... 22 YEWS-D, YEWS-D1, and YEWS-E (XS-08) panel installation....................................................................... 23 Absorption UL, CE, GB, and JIS large panel installation................................................................................ 23 Absorption UL, CE, GB, and JIS small panel installation................................................................................ 24 Other chiller panel installation......................................................................................................................... 25 Mounting on a micro panel.............................................................................................................................. 25 Wall mounting.................................................................................................................................................. 26 Applying power................................................................................................................................................ 26 Equipment configuration.................................................................................................................................. 28 Setting the rotary switch on chiller panels ...................................................................................................... 28 Commissioning checklist ................................................................................................................................ 36 SECTION 3 - TROUBLESHOOTING....................................................................................................................37 LED indicators................................................................................................................................................. 37 Multimeter checks of the BAS port.................................................................................................................. 38 Updating the firmware and the software.......................................................................................................... 39 Repair information........................................................................................................................................... 40 SECTION 4 - SC-AP GATEWAY...........................................................................................................................41 SC-AP OptiViewTM mounting .......................................................................................................................... 41 Using the SC-AP for troubleshooting.............................................................................................................. 43 E-Link replacement......................................................................................................................................... 44 Manually setting the chiller model................................................................................................................... 45 JOHNSON CONTROLS 5 Form 450.50-N1 Issue date: 11/26/2021 Table of contents (cont'd) SECTION 5 - TECHNICAL SPECIFICATIONS....................................................................................................47 SECTION 6 - LON PROTONODE.........................................................................................................................49 Overview......................................................................................................................................................... 49 Installation summary....................................................................................................................................... 50 Additional support............................................................................................................................................ 50 Installation....................................................................................................................................................... 51 ProtoNode LED functionality........................................................................................................................... 54 Binding the points using the .xif file................................................................................................................. 54 Technical specifications................................................................................................................................... 55 6 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 List of figures FIGURE 1 - Grounding label 11 FIGURE 2 - RS-485 EOL switches13 FIGURE 3 - Three-wire BAS14 FIGURE 4 - Two-wire BAS14 FIGURE 5 - 100 ohm resistor installation14 FIGURE 6 - SC-EQ installed in OptiViewTM (all chillers except YMC2) 15 FIGURE 7 - SC-EQ installed in YMC2 OptiViewTM 15 FIGURE 8 - SC-EQ OptiViewTM installation kit (all chillers) (YORK P/N 331-03607-000) 16 FIGURE 9 - SC-EQ screw chiller installation kit (P/N 392-41228-000) 16 FIGURE 10 - SC-EQ scroll chiller installation kit (P/N 392-41230-001) 16 FIGURE 11 - Scroll chiller panel installation17 FIGURE 12 - SC-EQ installed in YMAA and YMPA18 FIGURE 13 - SC-EQ installed in YCAE and YVAE18 FIGURE 14 - SC-EQ installed in YCWE-E18 FIGURE 15 - SC-EQ connected in YMAA and YMPA18 FIGURE 16 - SC-EQ connected in YCAE, YVAE, and YCWE-E18 FIGURE 17 - SC-EQ to YMAA, YCAE, and YCWE connections19 FIGURE 18 - SC-EQ installed in YVWE, YVWH, and YGWH20 FIGURE 19 - SC-EQ to YVWE, YVWH, and YGWH connections20 FIGURE 20 - SC-EQ installed in YEWS single 100-200 and YGWE single 100-200 21 FIGURE 21 - SC-EQ installed in YEWS single 230-355 and YGWE single 230-355 21 FIGURE 22 - SC-EQ installed in YEWS tandem21 FIGURE 23 - SC-EQ installed in YGWE tandem21 FIGURE 24 - SC-EQ to YEWS single, YEWS tandem, and YGWE single connections 21 FIGURE 25 - SC-EQ to YGWE tandem connections21 FIGURE 26 - SC-EQ installed in YSPA22 FIGURE 27 - SC-EQ to YSPA connections22 FIGURE 28 - SC-EQ installed in YR SmartView22 FIGURE 29 - SC-EQ to YR SmartView connections22 FIGURE 30 - SC-EQ installed in YEWS-D, YEWS-D1, and YEWS-E (XS-08) 23 FIGURE 31 - SC-EQ to YEWS-D, YEWS-D1, and YEWS-E (XS-08)23 FIGURE 32 - SC-EQ installed in absorption CE, UL, GB, and JIS with large panel 24 FIGURE 33 - SC-EQ connected in absorption24 FIGURE 34 - SC-EQ installed in absorption CE, UL, GB, and JIS with small panel 24 FIGURE 35 - SC-EQ connected in absorption24 FIGURE 36 - Mounting on the equipment25 FIGURE 37 - Wall mounting26 FIGURE 38 - SC-EQ in enclosure26 FIGURE 39 - SC-EQ component locations27 FIGURE 40 - Micropanel rotary switch28 FIGURE 41 - SC-EQ communication card to YORKTalk II equipment connections 29 FIGURE 42 - SC-EQ communication card to YORKTalk II equipment connections 30 FIGURE 43 - SC-EQ communication card to YORKTalk II equipment connections 31 FIGURE 44 - SC-EQ communication card to OptiViewTM equipment connections 32 FIGURE 45 - SC-EQ communication card connections for chillers with the 02478 microboard YCAV/YCIV/YVAA/YVWA 33 FIGURE 46 - SC-EQ communication card connections for chillers with the 03478 microboard YCAV/YCIV/YVAA/YVWA/YVFA 33 FIGURE 47 - SC-EQ communication card connections for chillers with the 02550 microboard YCAL/YCUL/YLAA/YLPA/YCWL/YCRL/YSAA 34 FIGURE 48 - SC-EQ communication card connections to YPAL (EC02) 34 FIGURE 49 - SC-EQ communication card connections to YEWS-D/YEWS-D1/YEWS-E-XS-08/YEAS/YGAS 35 FIGURE 50 - SC-EQ LEDs and USB37 FIGURE 51 - BAS bus meter checks39 JOHNSON CONTROLS 7 List of figures (cont'd) Form 450.50-N1 Issue date: 11/26/2021 FIGURE 52 - DIN rail end block41 FIGURE 53 - SC-AP mounted41 FIGURE 54 - SC-AP Velcro pads41 FIGURE 55 - SC-EQ to SC-AP cable42 FIGURE 56 - SC-AP cable ty-wraps42 FIGURE 57 - SC-AP and SC-EQ installed42 FIGURE 58 - SC-AP device list43 FIGURE 59 - SC-EQ port status and lock in43 FIGURE 60 - SC-AP device list 44 FIGURE 61 - Device instance mode 44 FIGURE 62 - Invalid points offline 44 FIGURE 63 - Unreliable remote setpoints45 FIGURE 64 - No chiller model type detected46 FIGURE 65 - Manually selecting chiller model46 FIGURE 66 - LON ProtoNode front view 49 FIGURE 67 - OptiViewTM LON ProtoNode mounting location51 FIGURE 68 - Screw panel LON ProtoNode mounting location 51 FIGURE 69 - ProtoNode to SC-EQ RS485 wiring52 FIGURE 70 - ProtoNode power wiring52 FIGURE 71 - ProtoNode LON network connection53 FIGURE 72 - ProtoNode service pin (cover removed)53 FIGURE 73 - ProtoNode neuron ID53 FIGURE 74 - ProtoNode power wiring54 List of tables TABLE 1 - SC-EQ product code numbers9 TABLE 2 - YORK equipment models13 TABLE 3 - OptiViewTM wiring - SC-EQ port J715 TABLE 4 - BAS wiring - SC-EQ port J1215 TABLE 5 - BOM of YMAA SC-EQ kit (371W06163-001)18 TABLE 6 - BOM of YCAE SC-EQ kit (371W06163-002)18 TABLE 7 - BOM of YCWE-E SC-EQ kit (371W08244-301)18 TABLE 8 - Manual Modbus addresses45 TABLE 9 - Technical specifications47 TABLE 10 - LON ProtoNode product code numbers51 TABLE 11 - Jumper settings51 TABLE 12 - Switch settings51 TABLE 13 - Power connections52 TABLE 14 - Diagnostic LEDs54 TABLE 15 - Technical specifications55 8 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 1 - Introduction 1 Overview The SC-EQUIP (SC-EQ) Communication Card supersedes the E-Link Gateway and provides BAS network connectivity for Johnson Controls® and YORK® mechanical equipment, such as chillers and rooftop units. It is designed with four active serial ports: The J12 BAS (RS-485) port, the J7 Equipment (RS-232) port, the J8 Equipment (RS-485) port and the J11 CS port which allows equipment data to be sent to the Johnson Controls Remote Operation Center for remote chiller monitoring and diagnostics. To simplify the installation and setup, the SC-EQ Comm Card automatically determines the BAS protocol and Baud rate and the model of the connected chiller or rooftop unit. The only user setting is the MAC address for the SC-EQ on the BAS network. Several SC-EQ Comm Card models are available for connection to various types of input voltage and equipment. For chillers using the OptiViewTM 02430 or 03630 microboards, the SC-EQ Comm Card consists of a single circuit board attached to four studs inside the Micro Panel, using the accessory mounting kit. The microboard supplies 12 VDC input power, eliminating the need for an external power supply. The SC-EQ plug J10-COM needs a ground wire to ground the lug on the panel. For screw compressor chillers using the 02478 or 03478 microboards, the SC-EQ Comm Card is installed inside the Micro Panel, using the accessory mounting kit. The microboard supplies 12 VDC input power, eliminating the need for an external power supply. For scroll compressor chillers using the 02050 or 02550 microboards, the SC-EQ Comm Card is installed inside the Micro Panel and requires an additional transformer to supply power to the SC-EQ Comm Card. The transformer is included in the SC-EQ Scroll Chiller Installation Kit. For other types of chillers, the SC-EQ Comm Card is packaged in its own enclosure. In addition to the SCEQ circuit board, a transformer is included inside the enclosure that converts a 120 VAC or 240 VAC input to 24 VAC power. Table 1 - SC-EQ product code numbers Description Product code numbers SC-EQ with Serial Outputs (BACnet MS/TP, Modbus Remote Terminal Unit [RTU], and N2) SE-SCC1001-1 (031-03610-000) SC-EQ with Serial Outputs in Enclosure YK-SCCPNL-0 SC-EQ OptiViewTM Panel Installation Kit 331-03607-000 SC-EQ Screw Chiller Panel Installation Kit 392-41228-000 SC-EQ Scroll Chiller Panel Installation Kit 392-41230-001 SC-EQ YEWS/YGWE Panel Kit 371W06953-132 SC-EQ YEWS-D/D1/E Panel Kit 371W06953-133 SC-EQ YVWE/YVWH/YGWH Panel Kit 392-41228-010 SC-EQ YMAA Panel Kit 371W06163-001 SC-EQ YCAE Panel Kit 371W06163-002 SC-EQ YCWE-E Panel Kit 371W08244-301 SC-EQ YSPA Panel Kit 392W35327-500 SC-EQ YR (SmartView) Panel Kit 392W15907-193 The SC-EQ product code numbers in Table 1 includes the SC-EQ board and related installation accessories. The OptiViewTM kit does not include the SC-EQ board. JOHNSON CONTROLS 9 Section 1 - Introduction Emissions compliance United States This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user is required to correct the interference at his/her own expense. Form 450.50-N1 Issue date: 11/26/2021 Canada This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. 10 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 2 - Installation The SC-EQ is supplied as a circuit board that can be installed directly into the equipment's enclosure, or can be supplied pre-mounted in an enclosure ready for line voltage. Accessory mounting kits are used to mount the SC-EQ Comm Card directly into OptiViewTM, Latitude, and IPU-II based Micro Panels. &$87,21 Do not install the SC-EQ Comm Card directly into an equipment's enclosure without the use of an approved installation kit. Wiring :$51,1* Risk of Electric Shock. Disconnect or isolate all power supplies before making electrical connections. More than one disconnect or isolation may be required to completely de-energize equipment. Contact with components carrying hazardous voltage can cause electric shock and may result in severe personal injury or death. &$87,21 Risk of Property Damage. Do not apply power to the system before checking all wiring connections. Short circuited or improperly connected wires may result in permanent damage to the equipment. Important: Make all wiring connections in accordance with local, national, and regional regulations. Install the wiring so it does not cause a hazard, and is protected against electrical and mechanical damage. Power The SC-EQ circuit board is powered from either a 12 VDC, or a 24 VAC, Class 2 power source. When used with an OptiViewTM chiller, the Micro Panel supplies low-voltage power via a power harness supplied by the OptiViewTM installation kit. If the SC-EQ circuit board is installed in its own enclosure, a transformer is included in the enclosure. Line voltage may be supplied using an external power source, or drawn from the input voltage terminal strip inside the chiller panel. Be sure the capacity of the power conductors supplying the equipment is rated for the additional power (VA) required by the SC-EQ Comm Card. Use a wire that is one size larger than required for the amperage draw (maximum 400 mA) to connect the line voltage feed 2 to the SC-EQ Comm Card. For the line voltage power source, use a dedicated line (with a separate fuse) that is isolated (using a control transformer) from other equipment in the plant room that may generate electromagnetic interference (EMI). Grounding For the enclosure style, a ground wire must be connected directly to the enclosure supply power ground lug at the point of entry. A label (Figure 1 on page 11) identifies this grounding point. This ground wire must be connected through a continuous ground circuit to the incoming ground at the source transformer. GRD Figure 1 - Grounding label LD20000 Besides providing safety protection, the ground connection plays an extremely important part in the operation of the communication circuitry. 127( :$51,1* Risk of Electric Shock. Ground the SC-EQ Enclosure according to local, national, and regional regulations. Failure to ground the SC-EQ Enclosure may result in electric shock and severe personal injury or death. Protection of communication ports When using RS-485 technology, it is possible that electrical disturbances, such as voltage spikes, can damage a circuit board. The SC-EQ Comm Card includes resettable fuses and other devices on each RS-485 port to protect against damaging electrical spikes and stray voltage. The equipment panel must also be equipped with protection against electrical disturbances. Whereas OptiViewTM Micro Panels are equipped with onboard tranzorbs, other equipment panels may require the addition of an external board. Refer to the equipment documentation for details. The BAS Port J12 of the SC-EQ Comm Card is also electrically isolated, providing a means of mitigating common mode voltage induced problems. JOHNSON CONTROLS 11 Section 2 - Installation High noise environments Electrical equipment that employs high speed switching circuits (Variable Speed Drives [VSD], Solid State Starters [SSS], and computing equipment) generates EMI noise and Radio Frequency Interference (RFI), which can generate transient voltage between ground points in the communication wiring. The RS-485 circuitry is designed to withstand some low transient voltage, but if this difference exceeds certain limits, it can permanently damage the RS-485 circuitry. Ensure that the Micro Panel and the SC-EQ Comm Card are powered from a source with a true earth ground. :$51,1* Important: Do not run communication cables in close proximity to, or parallel with, high-voltage power cables. Maintain at least 457.2 mm (18 in.) of separation, or use a grounded metal conduit. Electrical noise mitigation to equipment The likelihood of transient voltage is greatly reduced if the SC-EQ Comm Card is close-coupled to the Micro Panel. Close-coupling requires that the SC-EQ Enclosure and Micro Panel share the same line voltage power source and are physically close to one another. Typically, the SC-EQ Enclosure is mounted on the Micro Panel enclosure. This scenario ensures a short communication cable, which is usually protected entirely within the two enclosures. Electrical noise mitigation SC-EQ to BAS When the SC-EQ is used in an electrically hostile environment (for example, with VSD-enabled equipment), a double-shielded cable must be used to help mitigate the adverse effects electrical noise can have on the system. The double-shielded cable must connect the SC-EQ's BAS port (J12) to the next controllers in the daisy-chained network. The outer shield of the double-shielded cable must be grounded directly at the low noise end (the end most distant from the VSD), and ideally, indirectly through an appropriate capacitor at the high noise end (the end closest to the VSD). If a capacitor is not available, the outer shield may be left unconnected, or tied directly to ground. The best results on the site determine the specific termination strategy employed. Form 450.50-N1 Issue date: 11/26/2021 The inner shield of the double-shielded cable must be grounded directly at the low noise end (the end most distant from the VSD), and left open at the high noise end (the end closest to the VSD). Types of communication ports The SC-EQ Comm Card uses two electrical communication protocols to connect to other devices: RS-485 which is used for multi-drop networking, and RS-232, which is primarily used for point-to-point connectivity. RS-485 The RS-485 standard uses three conductors to connect network nodes: two signal wires and a third called COM which is the reference. The SC-EQ Comm Card uses either a third wire for the reference or the building's infrastructure. The wiring method depends on the port being used: an electrically isolated RS-485 BAS Port J12 typically uses a third wire, whereas the RS-485 Equipment Port J8 and the RS-485 Connected Services Port J11 normally use chassis or building ground for the reference. For BAS systems that use a 2-wire RS-485 network, connect a 100 ohm 1W resistor between SC-EQ J12 COM and J10 COM with a wire that then runs to Ground in 127( the panel. See Figure 4 and Figure 5. RS-232 The RS-232 Standard also uses three conductors to connect network nodes: two signal wires and a third called COM which is the reference. RS-232 is more susceptible to noise interference than RS-485 so proper shielding and wire routing is essential for proper operation. The RS-232 Standard limits the cable run to a maximum of 50 ft. The OptiViewTM panels use RS-232 to communicate with the SC-EQ. Network termination Terminate all End-of-Line (EOL) devices at each end of the RS-485 bus (that connect to only one set of RS-485 network wires). EOL termination provides biasing of the network, and assists in returning the signal to a normal state in the event of voltage transients. If the SC-EQ Comm Card happens to be an end-of-line device on the Building Automation System network, terminate the network by setting the BAS EOL switch S2 to ON. 12 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 BAS Port J12 O1 N O1 N RS485 RS485 Port EOL Port EOL Not Terminated Terminated Figure 2 - RS-485 EOL switches LD20001 Important: Ensure that the EOL switches are not set to the ON position for controllers that are not at the end of the BAS RS-485 network. Media access control (MAC) address The SC-EQ Comm Card's network hardware address is set on a single 8-way DIP switch. Switch 8 is not used. The switches are binary weighted allowing the setting of addresses from 1 to 127. The address must be provided by the BAS contractor. If an address is not provided at chiller commissioning, leave the MAC address set to 0 (all switches OFF) and leave a copy of the last page of this manual taped on the chiller panel for the controls contractor. The last page explains how to set the MAC address. The SC-EQ automatically determines what BAS protocol is present and what chiller is connected. Older YorkTalk2 chillers require that the chiller model manually be set using a SMART Chiller Access Portal (SC-AP) as explained in Section 4 - SCAP gateway on page 41. This should eliminate the need for a chiller technician to have to return to site after the chiller has been commissioned just to set the BAS Network MAC Address. Important: The SC-EQ Comm Card is intended to provide an input to equipment under normal operating conditions. Use this SC-EQ Comm Card only as an operating control. Where failure or malfunction of the SC-EQ Comm Card could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the control system. Incorporate and maintain other devices, such as supervisory or alarm systems or safety or limit controls, intended to warn of, or protect against, failure or malfunction of the SC-EQ Comm Card. JOHNSON CONTROLS Section 2 - Installation Table 2 - YORK equipment models Microboard number SC-EQ/install kit Equipment model 031-02550 03102050 392-41230-001 Kit includes SC-EQ YCWL, YCUL, YCAL, YLAA, YCRL, YLPA, YSAA 2 031-01095 YK-SCCPNL-0 N/A YCAS, YCWS, YCRS 031-02478 031- 392-41228-000 YVWA,YVAA, YCIV, 03478 Kit includes SC-EQ YCAV, YVFA 031-01065 YK-SCCPNL-0 N/A YIA, YPC, YG, YB 031-02430 031-03610-000 YK, YT, YS, YR, YST, YD, YK-EP, YMC2 031-03630 331-03607-000 YK, YT, YS, YR, YST, YD, YK-EP, YMC2 331-02496 YK-SCCPNL-0 N/A YPAL 025W43786-022 031-03610-000 YEWS (XS09 Display BD) 371W06953-138 Single,YEWS250-E 025W43786-025 031-03610-000 YEWS Tandem (XS09 Display BD) 371W06953-138 025W45462-079 031-03610-000 YGWE Single (XS09 Display BD) 371W06953-138 331W03325-107 031-03610-000 YGWE Tandem 371W06953-138 331W03325-106 031-03610-000 YVWE 392W41228-020 331W03325-110 (IPU3 BD) 031-03610-000 YVWH, YGWH 392W41228-020 331W03325-101 031-03610-000 YMAA, YMPA 371W06163-101 331W03325-104 031-03610-000 YCAE130C, YCAE130D 371W06163-102 331W03325-105 031-03610-000 YCAE130XH 371W06163-102 331W03325-103 031-03610-000 YCWE-E 371W08244-302 331W03325-109 031-03610-000 YCAE-X, YCAE-G-0B 371W06163-102 (Tier2), YVAE-X-0B 025W43786-024 YSPA YE/HE(XS-09) 025W43786-552 031-03610-000 YSPA YE/HE(XS-08-02) 025W43786-646 392W35327-510 YSPA SE-B 025W45462-082 YSPA YE/HE-B 025W39747-000 YEWS-D 024W33789-801 031-03610-000 YEWS-D1 025W43786-515 371W06953-138 YEWS-E(XS-08-01) 025W43786-110 YEWS-E(XS-08-02) 025W42574-000 031-03610-000 YR (SmartView) 392W15907-192 Notes: 1. The installing technician must verify the microboard number in the unit before installation. 2. Models with native communications do not require a SC-EQ or SC-AP when only connecting to a BAS and Connected Services is NOT installed. 3. OM and Competitive Retrofit available in future release 13 Section 2 - Installation BAS network wiring BAS SYSTEM SC-EQ #1 SC-EQ #2 Form 450.50-N1 Issue date: 11/26/2021 SC-EQ #3 SHLD COM + SHLD COM + SHLD COM + SHLD COM + Ground Screw Figure 3 - Three-wire BAS LD29264 NoteS: 1. The shield terminal on the SC-EQ is not connected to ground. It provides a convenient place to connect shields in two daisy chain segments. 2. Do not set the EOL switch ON if the unit is not at the end of the segments. 3. Set the EOL switch to ON for the right end of the unit. 4. Ground only one end of the shielded cable. BAS SYSTEM SC-EQ #1 SC-EQ #2 SHLD + SHLD COM + SHLD COM + Ground Screw 100 1W See Figure 5 Figure 4 - Two-wire BAS Notes: 1. Set the EOL switch to ON for the right end of the unit. 2. Ground only one end of the shielded cable. SHLD COM + 24 VAC J10 J12 100 Resistor Figure 5 - 100 ohm resistor installation Notes: 1. Ground all SC-EQs. 2. Only two-wire BAS need 100 ohm resistor. LD29328 100 1W See Figure 5 LD29326 14 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Mounting Risk of electric shock. Disconnect or isolate all power supplies before making electrical connections. More than one disconnect or isolation may be required to :$51,1* completely de-energize equipment. Contact with components carrying hazardous voltage can cause electric shock and may result in severe personal injury or death. OptiViewTM panel installation 1. Attach the SC-EQ Comm Card board to the studs provided inside the chiller enclosure, using the four screws and washers provided in the OptiViewTM/Latitude installation kit. See Figure 6 or Figure 7. 2. Connect the appropriate communications cable (included with the kit) based on the SC-EQ mounting location, from Port J7 (RS-232) on the SC-EQ Comm Card to J2 on the OptiViewTM Micro Panel. Ensure that wires are connected according to Table 3 on page 15. 3. Check for stray wire strands, which could cause short circuits, and ensure all components are secure. 4. Connect the BAS network to J12 (RS-485) on the SC-EQ board. For BAS systems with two-wire RS-485 network cables, you must install the 100 ohm resistor as shown in Figure 4 and Figure 5. 127( 5. Connect the appropriate length of power harness from J9 on the SC-EQ Comm Card to J21 on the OptiViewTM Micro Panel. The power harness is included with the kit. See Figure 8 on page 16). 6. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the OptiViewTM panel are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This may take up to 120 seconds. Table 3 - OptiViewTM wiring - SC-EQ port J7 SC-EQ port J7 OptiViewTM port J2 Wire color RX GTX Black TX GRX Red REF N/A Shield/Drain JOHNSON CONTROLS Section 2 - Installation SC-EQ Comm Card 2 U35 U38 Washer Screw OptiView Micro Panel LD19583 Figure 6 - SC-EQ installed in OptiViewTM (all chillers except YMC2) SC-EQ Gateway 371-05619-xxx 371-06698-xxx 371-06986-xxx Panel SC-EQ Gateway 371-05568-xxx 371-06985-xxx Panel U35 U38 U38 U35 Washer Screw OptiView Micro Panel Screw Washer LD19582a Figure 7 - SC-EQ installed in YMC2 OptiViewTM Table 4 - BAS wiring - SC-EQ port J12 SC-EQ port J12 BAS Wire color + + White - - Blue REF REF Black :$51,1* When replacing an E-Link with a SCEQ, the BAS wiring must be changed because the plug terminal locations are not the same. 15 Section 2 - Installation Power Harness (OptiView) 4 Position Connector Communication Cable (OptiView / Latitude) 4 #8 Nylon Washers (OptiView / Lattitude) 3/8 in. Screw 8 x32 (OptiView) Primary Power Wiring Harness Form 450.50-N1 Issue date: 11/26/2021 Primary 120 VAC Secondary 24 VAC 24 VAC Power Transformer YMC2 Power Harness (OptiView) 4 Position Connector YMC2 Communication Cable (OptiView) 100 OHM Resistor LD20002 Figure 8 - SC-EQ OptiViewTM installation kit (all chillers) (YORK P/N 331-03607-000) 100 OHM Power Harness (Latitude) 2 Position Connector 4 Position Connector Resister Tie Wrap Communication Wiring Harness Sheet Metal Screw Expansion Expansion Nut Nut Screw LD20003 Figure 9 - SC-EQ screw chiller installation kit (P/N 392-41228-000) 100 OHM Resister Tie Wrap Secondary Power Wiring Harness Communication Wiring Harness Sheet Metal Screw Expansion Expansion Nut Nut Screw LD20004 Figure 10 - SC-EQ scroll chiller installation kit (P/N 392-41230-001) Small tonnage panel installation 1. Attach the SC-EQ Comm Card board to the panel in the upper right side of the enclosure using the four expansion screws and nuts provided in the IPU-II Panel Installation Kit (see Figure 11 on page 17). 2. Attach the 24 VAC transformer to the panel to the left of the SC-EQ board using two screws (Figure 10 on page 16). 3. Connect the communications cable (included with the kit) between the SC-EQ board J8 (RS485) and the IPU-II Micro board TB1. 4. Connect the transformer to the terminal block. 5. Connect the transformer to SC-EQ J10 and secure the wiring with tie-wraps. 6. For RS-485 2-wire operation, connect a 100 ohm 1W resistor between SC-EQ J12 COM and J10 COM with a wire then run to Ground in the panel. See Figure 4 on page 14 and Figure 5 on page 14. 16 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 7. Connect the communications cable shielded ground to the ground screw. 8. Set the required BAS network address for the SCEQ using the SW-1 MAC Address Switches. Primary Power Wiring Harness Section 2 - Installation When the SC-EQ and the control panel are powered up, the SC-EQ automatically sets itself to the BAS pro- tocol, baud rate, and chiller model. This may take up to 120 seconds. 2 Sheet Metal Screw Expansion Nut Expansion Nut Screw 24 VAC Transformer SC-EQ Terminal block location The Resister is used for BAS for YCAL-C, YCWL, RS485 2 Wire Connection. and YCUL-C. Connect one end of the Resistor to the COM of TB5 (24 VAC) and the other to Port 1 COM. Use this resistor only if the BAS Transformer wiring utilizes a 2 Wire communication trunk Secondary Ground Secondary Power Wiring Harness Communication Wiring Harness: Connect to Micro Board TB1 as Follows: Wire Color / Terminal TB1 RS485 SHLD REF - + Red / + Black / - TB2 TB5 Tie Wrap TB5 Resistor TB1 Communication Wiring Harness Com Ground MicroBoard TB5 TB2 Figure 11 - Scroll chiller panel installation Terminal Block Location For YCAL-D, YCAL-E, and YLAA. LD20005 YMAA, YCAE, and YCWE-E panel installation To install the SC-EQ on YMAA, YCAE, or YCWE-E chillers, complete the following steps: 1. Install the SC-EQ to the bracket using a plastic support. Attach the bracket to the studs provided inside the chiller enclosure. See Figure 12, Figure 13, or Figure 14. 2. Install the 12 VDC switch power supply to the bracket using M3 screws. Attach the bracket to the studs provided inside the chiller enclosure. This step is only for YCAE and YCWE-E chillers. See Figure 13 or Figure 14. 3. Connect the appropriate communications cable based on the SC-EQ mounting location, from Port J8 (RS-485) on the SC-EQ to CON205 on the YMAA, YCAE, or YCWE-E control board. Ensure that wires are correct. See Figure 15, Figure 16, or Figure 17. JOHNSON CONTROLS 4. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 5. Connect the BAS network to J12 (RS-485) on the SC-EQ board. 6. Connect the appropriate length of power harness from J9 on the SC-EQ to XTB2, as shown in Figure 15, or to 12 VDC switch power supply, as shown in Figure 16. The power harness is included in the kit. 7. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This can take up to 120 seconds. 17 Section 2 - Installation SC-EQ Grounding screw Plastic support Panel Form 450.50-N1 Issue date: 11/26/2021 Switch power supply and bracket Plastic support SC-EQ Bracket Control board XTB2 LD29244a Figure 12 - SC-EQ installed in YMAA and YMPA Table 5 - BOM of YMAA SC-EQ kit (371W06163-001) Level Item P/N Description Qty 1 1 031-03610-000 Gateway SC-EQ Board 1 1 10 371W06163-101 Kit, Installation, SC-EQ, YMPA 1 Plastic support Panel SC-EQ Switch power supply and bracket Bracket Control board Grounding screw Figure 14 - SC-EQ installed in YCWE-E Panel LD29246a Table 7 - BOM of YCWE-E SC-EQ kit (371W08244301) Level Item P/N Description Qty 1 1 031-03610-000 Gateway SCEQ Board 1 Kit, Installation, 1 10 371W08244-302 SC-EQ, 1 YCWE-E A CON205 AV2 AMB OV2 B B2 XTB2 12 V+ 12 V- J8 + - EQ485 COM port SHD + - 1 J9 COM 2 12 VDC SHD J12 BAS See SC-EQ manual LD29247 Figure 15 - SC-EQ connected in YMAA and YMPA Bracket Control Grounding Figure 13 - board SC-EQ installed screw in YCAE and YVAELD29245a Table 6 - BOM of YCAE SC-EQ kit (371W06163-002) Level Item P/N Description Qty 1 1 031-03610-000 Gateway SCEQ Board 1 Kit, Installation, 1 10 371W06163-102 SC-EQ, 1 YCAE-X CON205 (-AMB) A2 OV2 B2 A B J8 + - EQ485 COM port SHD + XTB2 LC N32 PWR L+ N- 12VDC 12 V+ 12 V- - 1 J9 COM 2 12 VDC SHD J12 GND BAS See SC-EQ manual LD29248 Figure 16 - SC-EQ connected in YCAE, YVAE, and YCWE-E 18 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 2 - Installation 2 SC-EQ EQ485 Port J8 + - COM SHLD BLACK RED RED (OPEN) SHIELD BLACK GRD Figure 17 - SC-EQ to YMAA, YCAE, and YCWE connections JOHNSON CONTROLS LD29249 19 Section 2 - Installation YVWE, YVWH, and YGWH panel installation To install the SC-EQ on YVWE, YVWH, or YGWH chillers, complete the following steps: 1. Attach the SC-EQ on the door inside of the control panel using M3 screws. See Figure 18. 2. Connect the appropriate communications cable from Port J8 (RS-485) on the SC-EQ to XTB3, which has been connected to the control board in the panel factory. Ensure all wires are correct. See Figure 19. 3. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 4. Connect the BAS network to J12 (RS-485) on the SC-EQ board. 5. Connect the appropriate length of power harness from J10 on the SC-EQ to XTB3. See Figure 19. The power harness is included in the kit. 6. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This can take up to 120 seconds. SC-AP Control board Panel HMI SC-EQ Grounding screw XTB3 LD29250a Figure 18 - SC-EQ installed in YVWE, YVWH, and YGWH Form 450.50-N1 Issue date: 11/26/2021 Modbus (Connect to AMB) XTB3 A4 B4 0V4 24 VDC XTB3 85 86 A4 J8 + B4 - COM SHD J10 85 HOT 86 COM 24 V BAS EQ485 + COM SHD J12 BAS See SC-EQ manual (BACnet) LD29251 Figure 19 - SC-EQ to YVWE, YVWH, and YGWH connections YEWS and YGWE panel installation To install the SC-EQ on YEWS or YGWE chillers, complete the following steps: 1. Install the switch power supply to the DIN35 lead rail. See Figure 20, Figure 21, Figure 22, or Figure 23. 2. Install the SC-EQ on the standoffs of the panel using M3 screws. See Figure 20, Figure 21, Figure 22, or Figure 23. 3. Connect the appropriate communications cable from Port J8 (RS-485) on the SC-EQ to XTB (A1/ B1 or A4/B4), which is connected to the XS-09 display (RS485-1, only for the unit using YORK -003 board) or IPU3 control board (A4/B4) first in the panel. Ensure that all wires are correct. See Figure 24 and Figure 25. 4. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 5. Connect the BAS network to J12 (RS-485) on the SC-EQ board. 6. Connect the appropriate length of power harness from J9 on the SC-EQ to 12 VDC terminals of switch power supply. See Figure 20 or Figure 25. 7. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This can take up to 120 seconds. 20 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 XT Panel XS09 display Panel Control board Section 2 - Installation 2 Switch power SC-EQ LD31271 Figure 20 - SC-EQ installed in YEWS single 100-200 and YGWE single 100-200 Switch XT power XS09 display XTB Switch power SC-EQ LD29254a Figure 23 - SC-EQ installed in YGWE tandem A1 A B XT B1 PWR N PE PE V+ N N V- 12 V+ 12 V- XT L L L SC-EQ (-AMGB) J8 + COM SHD J9 HOT COM 12 VDC BAS EQ485 + COM SHD J12 BAS See SC-EQ manual (BACnet) LD29255a Figure 24 - SC-EQ to YEWS single, YEWS tandem, and YGWE single connections SC-EQ Panel LD29252a Figure 21 - SC-EQ installed in YEWS single 230-355 and YGWE single 230-355 XS09 display A4 A XTB B B4 PWR PE PE V+ 2 N N V- 12 V+ 12 V- XTB 4 L L SC-EQ (-AMGB) J8 + - COM SHD J9 HOT COM 12 VDC BAS EQ485 + COM SHD J12 BAS See SC-EQ manual (BACnet) LD31272 Figure 25 - SC-EQ to YGWE tandem connections XT Switch SC-EQ Panel power LD29253a Figure 22 - SC-EQ installed in YEWS tandem YSPA panel installation To install the SC-EQ on YSPA chillers, complete the following steps: 1. Attach the SC-EQ on the door inside of the control panel using M3 screws. See Figure 26. 2. Connect the appropriate communications cable from Port J8 (RS-485) on the SC-EQ to J2 on the XS09 board in the panel. Ensure that wires are correct. See Figure 27. JOHNSON CONTROLS 21 Section 2 - Installation 3. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 4. Connect the BAS network to J12 (RS-485) on the SC-EQ board. 5. Connect the appropriate length of power harness from J10 on the SC-EQ to the transformer. The power harness is included in the kit. See Figure 27. 6. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This can take up to 120 seconds. Form 450.50-N1 Issue date: 11/26/2021 2. Connect the appropriate communications cable from Port J8 (RS-485) on the SC-EQ to RS485-1 on the microboard in the panel. Ensure that wires are correct. See Figure 29. 3. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 4. Connect the BAS network to J12 (RS-485) on the SC-EQ board. 5. Connect the appropriate length of power harness from J10 on the SC-EQ to the TB1 terminals. The power harness is included in the kit. See Figure 29. 6. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This may take up to 120 seconds. SC-EQ comm card 031-03610-000 YSPA YE-B/HE-B Figure 26 - SC-EQ installed in YSPA YSPA YE/HE and YSPA SE-B LD31273 (-ADIS) RS485 A1 J2 B1 0V1 24 V/1.6 AC24V 0 V/1.6 A1 B1 24 V 0 V SC-EQ J8 J12 + + J8 RS485 - - GND COM SHD HOT J10 COM Customer BAS See SC-EQ manual LD31274 Figure 27 - SC-EQ to YSPA connections YR (SmartView) panel installation To install the SC-EQ on YR chillers, complete the following steps: 1. Attach the SC-EQ board to the studs provided inside the chiller enclosure, using four M3 screws and washers. See Figure 28. Washer Screw Microboard LD31275 Figure 28 - SC-EQ installed in YR SmartView SmartView panel TB1 162 162 5 5 -Microboard A1RS485 1 A1+ BLK RED HOT COM SC-EQ J10 24 VAC + J12 COM SHD J8 + EQ485 Customer BAS See SC-EQ manual SCR LD31276 Figure 29 - SC-EQ to YR SmartView connections 22 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 YEWS-D, YEWS-D1, and YEWS-E (XS-08) panel installation To install the SC-EQ on YEWS chillers, complete the following steps: 1. Install the switch power supply to the DIN35 lead rail. See Figure 30. 2. Install the SC-EQ on the standoffs of the panel using M3 screws. See Figure 30. 3. Connect the appropriate communications cable from Port J8 (RS-485) on the SC-EQ to XT (A1/ B1), which is connected to the XS-08 display (RS485-1, only for the unit using YORK-003 board) first in the panel. Ensure that the wires are correct. See Figure 31. 4. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 5. Connect the BAS network to J12 (RS-485) on the SC-EQ board. 6. Connect the appropriate length of power harness from J9 on the SC-EQ to the 12 VDC terminals of the switch power supply. See Figure 30. 7. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This may take up to 120 seconds. LD31277 Figure 30 - SC-EQ installed in YEWS-D, YEWS-D1, and YEWS-E (XS-08) JOHNSON CONTROLS Section 2 - Installation SC-EQ (-AMGB) J8 2 EQ485 A1 A B XT + - COM B1 SHD 12 VDC BAS PWR PE PE V+ N N N V- 12 V+ 12 V- J9 HOT COM + COM SHD BAS See SC-EQ manual XT LL L J12 (BACnet) LD31278 Figure 31 - SC-EQ to YEWS-D, YEWS-D1, and YEWS-E (XS-08) Absorption UL, CE, GB, and JIS large panel installation Version V4.1.0.9 adds support for YORK and Hitachi absorption models YHAU (YORK) and HAU (Hitachi). Note that the SC-EQ is only compatible with the following PLC software versions: · TK0ALAR11 · DX11010R16 (RTU) · DF019000001R05 · DX301313973R12 (RTU) · DX13101R12 (RTU) · DX03201R05 (RTU) · DX03101R26 (RTU) To install the SC-EQ on absorption chillers with large panels, complete the following steps: 1. Attach the SC-EQ to the PLC cover using the plastic support. See Figure 32. 2. Connect the appropriate communications cable based on the SC-EQ mounting location from Port J8 (RS-485) on the SC-EQ to Port COM2 (RS485) on the HMI. See Figure 33. 3. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 4. Connect the COM2 network to J12 (RS-485) on the SC-EQ board. 5. Connect the appropriate length of power harness from J10 on the SC-EQ to the 24 VAC switch power supply. The power harness is included in the kit. 23 Section 2 - Installation 6. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This may take up to 120 seconds. SC-EQ Plastic support PLC cover LD31280 Figure 32 - SC-EQ installed in absorption CE, UL, GB, and JIS with large panel Form 450.50-N1 Issue date: 11/26/2021 3. Check for stray wire strands, which could cause short circuits. Ensure that all components are secure. 4. Connect the COM2 network to J12 (RS-485) on the SC-EQ board. 5. Connect the appropriate length of power harness from J10 on the SC-EQ to the 24 VAC switch power supply. The power harness is included in the kit. 6. Set the required BAS network address for the SCEQ using the SW-1 MAC address switches. When the SC-EQ and the control board are powered up, the SC-EQ automatically sets itself to the BAS protocol, baud rate, and chiller model. This may take up to 120 seconds. SC-EQ 1 2 SHLD COM + 1 2 SHLD COM + HMI RS-485 EQ485 J8 J9 SC-EQ J12 J1 CS RJ P24 N24 HMI COM2 D-SUB 9-PIN PIN Signal 1 RDA 2 RDB 3 SDA 7 SDB 5 SG 4 ERA 8 CSA 9 ERB 6 CSB shell FG RS-485 SC-EQ J8 EQ485 Phoenix 4-PIN PIN Signal 1 TX 2 RX 3 COM 4 SHD 24 VDC Figure 33 - SC-EQ connected in absorption LD31281 Absorption UL, CE, GB, and JIS small panel installation To install the SC-EQ on absorption chillers with small panels, complete the following steps: 1. Attach the SC-EQ to the junction box using the plastic support. See Figure 3. 2. Connect the appropriate communications cable based on the SC-EQ mounting location from Port J8 (RS-485) on the SC-EQ to Port COM2 (RS485) on the HMI. See Figure 4. 24 Plastic support LD31282 Figure 34 - SC-EQ installed in absorption CE, UL, GB, and JIS with small panel HMI RS-485 EQ485 J8 J9 SC-EQ J12 J1 CS RJ P24 N24 HMI COM2 D-SUB 9-PIN PIN Signal 1 RDA 2 RDB 3 SDA 7 SDB 5 SG 4 ERA 8 CSA 9 ERB 6 CSB shell FG RS-485 SC-EQ J8 EQ485 Phoenix 4-PIN PIN Signal 1 TX 2 RX 3 COM 4 SHD 24 VDC Figure 35 - SC-EQ connected in absorption LD31281 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Other chiller panel installation For all other applications, the SC-EQ Comm Card includes an optional enclosure. The optional enclosure does not include communication cables due to the variety of types and lengths that may be required. Never install the SC-EQ Comm Card outside the confines of a building unless within another enclosure rated IP 65/NEMA 4x or higher. The SC-EQ Comm Card can be mounted as a standalone enclosure either on the outside surface of the chiller Micro Panel (close coupled), or on a smooth surface within close proximity of the chiller panel enclosure. For mounting on a Micro Panel, the line voltage power is supplied by a power source in the Micro Panel. Important: Make sure that the cover is securely fastened to the enclosure and the internal ground wire is attached before placing the SC-EQ in operation. These steps help to minimize RFI from being generated and picked up. Mounting on a micro panel Risk of Electric Shock. Disconnect or isolate all power supplies before making electrical connections. More than one disconnect or isolation may be required to :$51,1* completely de-energize equipment. Contact with components carrying hazardous voltage can cause electric shock and may result in severe personal injury or death. Important: When attaching the SC-EQ Enclosure to a Micro Panel, ensure the SC-EQ Enclosure does not impede access to other components. To mount the SC-EQ Enclosure on a Micro Panel, complete the following steps: 1. Disconnect power to the chiller Micro Panel. 2. Make sure the SC-EQ Enclosure fits properly and that no obstructions, such as internal boards, switches, or external conduit, prevent mounting or servicing of the panel. See Figure 24 on page 21 for examples of good mounting locations. 3. Locate and remove the two plastic caps in the bottom of the SC-EQ Enclosure. Section 2 - Installation 4. Mark an appropriate place on the enclosure for a matching set of knock out holes. Mark and drill, or punch, two holes in the Micro Panel. Using two bulkhead pipe couplers, attach the SC-EQ Enclo- 2 sure to the Micro Panel. 5. Complete wiring as described in the Applying Power section in this document. Important: Be careful not to damage the SC-EQ or Micro Panel's circuit boards during the installation. Protect all circuit boards from metal chips, which may cause short circuits if left on the boards at startup. Use of bulkhead pipe couplers provides sufficient clearance to allow removal of the SC-EQ Encloser cover. 127( SC-EQ Enclosure ISN MicroGateway YORK Chiller Micro Panel 177.8mm (7 in.) Drill or punch 19mm (3/4 in.) Diamerter 2x MicroGateway ISN ISN MicroGateway Alternative Mounting Locations LD20006 Figure 36 - Mounting on the equipment JOHNSON CONTROLS 25 Section 2 - Installation Wall mounting To mount the SC-EQ Enclosure on a wall, complete the following steps: When wall mounting, make sure there is no interference with other components in the near vicinity. Use appropriate conduit to connect the power and communications 127( wiring. 1. Check for proper clearances for the necessary electrical and communications cable runs. 2. Ensure that power and communications wiring is in compliance with all local, national, and regional codes, and customer requirements. 3. Select a suitable location and mark the anchor points. Ensure that the enclosure is level. See Figure 37 on page 26 for an example. 4. Drill the appropriate holes in accordance with the type of wall anchor used. 5. Install the enclosure on the wall. 6. Check that the mounting is secure and the wiring connections are correct and tight. Check that no loose wire strands or other metal objects that could cause a short circuit are on the circuit board. 7. Complete wiring as described in the Applying power section. YORK Chiller Mirco Panel Conduit Form 450.50-N1 Issue date: 11/26/2021 Applying power When using an enclosure type of SC-EQ, power can be supplied from either a separate power supply or the main terminal strip in the chiller panel. Locate the power source within 0.9 m (3 ft) of the SC-EQ Enclosure, and protect it with a suitable fuse or circuit breaker. Ensure the power is supplied from a dedicated source and not controlled by a programmed switch. If the enclosure is mounted on a wall, the wiring from the power source to the SC-EQ Enclosure must always run in a suitable conduit. To obtain the best Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) performance, ensure that the conduit is bonded to the metal of both enclosures. Scraping the paint around the knockouts usually helps provide a better electrical connection between the joining parts. :$51,1* Risk of Electric Shock. Disconnect or isolate all power supplies before making electrical connections. More than one disconnect or isolation may be required to completely de-energize equipment. Contact with components carrying hazardous voltage can cause electric shock and may result in severe personal injury or death. 120 VAC or 240 VAC Power ISN MicroGateway SC-EQ Enclosure Template for Mounting on a wall 241.3mm (9-1/2 in.) 136.5mm (5-3/8 in.) Figure 37 - Wall mounting LD20007 J10 24 VAC Power Figure 38 - SC-EQ in enclosure LD19996 26 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 &$87,21 Risk of Property Damage. Do not apply power to the system before checking all wiring connections. Short circuited or improperly connected wires may result in permanent damage to the equipment. 1. Connect a 1.29 mm to 1.02 mm (16-18 AWG) wire from a reliable ground reference to the SCEQ Gateway's incoming power ground lug. Do not remove the existing wire that connects the ground lug to the enclosure cover. 24 VAC Power Section 2 - Installation 2. On 120 VAC applications, connect the Hot wire to TB-BLK and the Neutral wire to TB-WHT. Connect the ground wire to the ground lug. On 240 VAC applications, connect the Hot wire to 2 TB-YEL and the Neutral wire to TB-WHT. Connect the ground wire to the ground lug. Important: Use copper conductors only. Make all wiring connections in accordance with local, national, and regional regulations. Do not exceed the SC-EQ Gateway's electrical ratings. MAC Address Switch +12 VDC Power BAS Port J12 EQ 485 Port + - COM SHD EQ 232 Port TX RX COM SHD LEDs Power CS BUS BS BUS EQ BUS Fault USB Port Equipment RX Equipment TX BAS RX BAS TX BAS RJ Figure 39 - SC-EQ component locations JOHNSON CONTROLS Connected Service Port J11 CS RJ LD19992a 27 Section 2 - Installation Equipment configuration Different pieces of equipment sometimes require a specific hardware configuration (jumper, switch or software setting) to enable communication with the SCEQ Communication Card. Refer to the equipment's installation literature for details on the proper configuration settings. The following diagrams summarize what these requirements are and the wiring interfaces for each of the different types of microboards. Chiller Rotary Switch 1234 0 5 9876 YT Address = Rotary Switch +1 Figure 40 - Micropanel rotary switch LD20009 Form 450.50-N1 Issue date: 11/26/2021 Setting the rotary switch on chiller panels Some Micro Panels use a rotary switch to set their YORK Talk II address (YORK Talk address = Rotary Switch setting + 1). Since the SC-EQ uses a one-toone relationship with the chiller panel, this switch is normally set to 0 (YORK Talk address 1). However, when two microboards are used in a BACnet MS/TP configuration, set the master microboard rotary switch to 0, and the subordinate microboard is set to 1. If the chiller microboard is not equipped with a rotary switch, the YORK Talk address is set using the Micro Panel keypad and display. In most cases, you can configure the setting, but some models are fixed and cannot be changed. Refer to the equipment documentation for specific details. 28 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 2 - Installation SC-EQ EQ 485 Port J8 2 COM SHLD S1 1234 0 5 9876 U17 TB7 GND BLACK + RED EPROM 031-01065-xxx JP58 JP56 MODEM EMS (Open) RED RS485 SHIELD RS232 Equipment Cable York Talk 2 RS485 (1200 baud) BLACK GRD Rotary Switch (Chiller ID=0) Jumper SC-EQ EQ 485 Port J8 COM SHLD + 031-01314-000 V25 TB1 SHD GND RED RED (Open) BLACK SHIELD BLACK GRD Note: If the EPROM used in the board is dated prior to 11/2000, the chiller ID is fixed at 0. If the EPROM used is dated after 11/2000, the chiller ID is software selectable through the micro panel. Equipment Cable York Talk 2 RS485 (1200/4800 baud) SC-EQ EQ 485 Port J8 COM SHLD + 031-02050-000 TB6 SHD GND V25 TB1 SHD GND BLUE BLUE WHITE WHITE SHIELD Equipment Cable York Talk 2 RS485 (4800 baud) GRD SC-EQ EQ 485 Port J8 COM SHLD Note: The chiller ID is software-selectable through the micro panel keypad. Set the Chiller + ID to 0 to make network address to 1. Note: See Table 2 on page 13 for board cross-reference. Figure 41 - SC-EQ communication card to YORKTalk II equipment connections JOHNSON CONTROLS LD20010 29 Section 2 - Installation Form 450.50-N1 Issue date: 11/26/2021 SC-EQ EQ 485 Port J8 COM SHLD + Rotary switch (Chiller ID=0) Jumper S1 1234 0 5 9876 031-01095-xxx (Master) BAS + TB7 BAS GND JP19 RS485 SHLD 485 - RS232 485 + BAS + TB8 Red Red (Open) Black Shield Black GRD Equipment cable YorkTalk 2 RS485 SC-EQ EQ 485 Port J8 (4800 baud) COM SHLD + Rotary switch (Chiller ID=0) Jumper Rotary switch (Chiller ID=0) Jumper S1 1234 0 5 9876 031-01095-xxx (Master) BAS + TB7 BAS GND JP19 RS485 SHLD 485 - RS232 485 + BAS + TB8 S1 1234 0 5 9876 031-01095-xxx (Subordinate) BAS + TB7 BAS GND JP19 RS485 SHLD 485 - RS232 485 + BAS + TB8 Red Red (Open) Black Shield Black GRD RED Equipment cable YorkTalk 2 RS485 (4800 baud) Equipment subordinate micro board cable COM SHLD SC-EQ EQ 485 Port J8 + Black Red Shield Red COM SHLD SC-EQ EQ 485 Port J8 + 031-01793-000 or 031-02050-000 (Subordinate) TB6 SHD GND V25 TB1 SHD GND Black Shield Red Black Note: The 1793 subordinate chiller ID is always set to the master address +1. Rotary switch (Chiller ID=0) S1 1234 0 5 9876 031-01095-xxx (Master) BAS + TB7 BAS GND JP19 RS485 SHLD 485 - RS232 485 + Equipment subordinate micro board cable Black Red (Open) Shield Black GRD Equipment cable YorkTalk 2 RS485 (4800 baud) BAS + Red TB8 Jumper Note: See Table 2 on page 13 for board cross-reference. LD20011a Figure 42 - SC-EQ communication card to YORKTalk II equipment connections 30 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 2 - Installation P4 Hard DRV SC-EQ EQ 485 Port J8 COM SHLD P3 Keypad I/O COM DC Power Floppy DRV Temp Sensor P10 COM 1 P11 + COM 2 BLACK RED 2 P6 Keyboard Frick Q2 Board J90 J64 1- 2+ J89 P12 3 4 5 6 7 8 RED (Open) SHIELD BLACK GRD F1 BAT P1 Jumper Equipment Cable York Talk 2 RS485 (4800 baud) 640D0061H01 DP1 1 Open 8 P2 DIAG P6 P5 DISP P4 VR1 INV P3 KYPD P2 DC POW VGA HEAT SINK Frick Q3 Board PL20 COM 1 PL18 P12 PL7 FLASH MEMORY SOCKET P1 COM2 RS232 COM1 COM2 CCOOMM33 LK19 BAT PL7 8 1 COM SHLD SC-EQ EQ 485 Port J8 + BLACK RED (Open) BLACK RED SHIELD GRD Equipment Cable York Talk 2 Jumpers RS485 (4800 baud) SC-EQ EQ 485 Port J8 COM SHLD + Port 2 Port 1 U5 U4 RED RED +RX 4 -RX 5 +TX 8 (Open) BLACK -RX 9 GND 3 BLACK SHIELD GRD 1 Jumpers 6 2 Jumpers Equipment Cable York Talk 2 SC-EQ 7 RS485 EQ 485 Port J8 COM SHLD Connect to Port 1 (9 Pin Connector) (4800 baud) RWBII Rev. B and Lower + Frick RWBII Plus Note: Requires ISN EPROMs in locations U4 and U5. The transfer rate on the chiller must be set to 4800 baud. Note: See Table 2 on page 13 for board cross-reference. GND RED RED +RX (Open) BLACK Jumpers SHIELD BLACK GRD Connect to Port 1 (5 Pin Connector) RWBII Rev. C and Higher Equipment Cable York Talk 2 RS485 (4800 baud) LD20012 Figure 43 - SC-EQ communication card to YORKTalk II equipment connections JOHNSON CONTROLS 31 Section 2 - Installation Form 450.50-N1 Issue date: 11/26/2021 J7 J22 J6 J5 J8 OptiView Microboard 031-02430-XXX J9 F2 JP27 J1 J10 J21 FLASH CARD LEDS F1 J11 J12 J13 EPROM BIOS BRAM 1 23 4 SW1 Program Switches Program Download Connector BOOT-UP LED Status Display J18 J4 J2 LEDS J15 J19 J20 J2 NC GND GND GTX GRX DTR1 TXD1 RXD1 DSR1 NC Equipment Cable York Talk 3 RS232 BLACK (Open) RED SHIELD SC_EQ RS232 TX RX COMSHLD BLACK RED (Open) RED SHIELD Power Harness (+12 VDC) BLACK GRD SC-EQ J9 +12 VDC SC-EQ EQ 232 Port J7 TX RXCOMSHLD OPEN J22 J6 J5 J18 J9 OptiView Microboard 031-03630-XXX J21 SMARC CARD LEDS SW1 F2 J1 J10 F1 J11 J12 J13 OPEN 1 23 4 BOOT-UP LED Status Display Program Switches J2 LED J15 J19 J20 Note: There is no JP27 jumper to set Com 4 port to RS-232. On the 03630 this port is dedicated to RS-232. J2 GND GTX GRX DTR TX1 RX1 DSR GND Equipment Cable York Talk 3 RS232 BLACK (Open) RED SHIELD SC_EQ RS232 J7 TX RX COMSHLD BLACK RED (Open) RED SHIELD Power Harness (+12 VDC) BLACK GRD SX-EQ J9 +12 VDC SC-EQ EQ 232 Port J7 TX RX COMSHLD LD28299a Figure 44 - SC-EQ communication card to OptiViewTM equipment connections 32 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 2 - Installation Note: JP1 on the 031-02478-xxx board must be set to the RS485 position when the SC-EQ BAS communication is required. 031-02478-xxx Equipment Cable York Talk 2 2 RS485 (4800 baud) SC-EQ SC-EQ J9 EQ 485 Port J8 +12 VDC J16 + - COM SHLD SC-EQ Power Power Harness (+12 VDC) Shld GND P3+ P3+5V 543 2 1 JP1 RS485 GRD SC-EQ EQ 485 Port J8 + - COM SHLD SHIELD RED BLACK (Open) BLACK RED Note: LD20014b 1.Enabling any part of Print functions disrupts BAS/SC-EQ communications. Refer to YORK Equipment form 201.21-NMx in the Installation, Operation and Maintenance (IOM) air-cooled screw liquid chillers manual for more information. 2.Measure DC Volts on EQ485 + to - and check that the voltage is between 0.3 VDC and 1.0 VDC. Use the EOL switch = On if voltage read- ing is greater than 1.0 VDC, which drops the voltage to approximately 0.45 VDC. The low voltage provides more stability with the controller. Figure 45 - SC-EQ communication card connections for chillers with the 02478 microboard YCAV/YCIV/YVAA/ YVWA + - COM SHLD 031-03478-xxx RS485 1 2 Shld GND + +5V 543 J16 SC-EQ Power TB3 Native Comms Equipment Cable York Talk 2 RS485 (4800 baud) SC-EQ J9 +12 VDC SC-EQ EQ 485 Port J8 + - COM SHLD Power Harness (+12v DC) GRD SC-EQ EQ 485 Port J8 + - COM SHLD SHIELD TB2 RED BLACK (Open) BLACK RED Note: LD20015a 1.The default settings of the 03478 allow the board to communicate with the SC-EQ. If communication does not occur, check the chiller panel settings to ensure that Port 2 (TB-2) is set for DE Instance = -1 and Chiller ID set = 0. 2.Measure DC Volts on EQ485 + to - and check that the voltage is between 0.3 VDC and 1.0 VDC. Use the EOL switch = On if voltage read- ing is greater than 1.0 VDC, which drops the voltage to approximately 0.45 VDC. The low voltage provides more stability with the controller. Figure 46 - SC-EQ communication card connections for chillers with the 03478 microboard YCAV/YCIV/YVAA/ YVWA/YVFA JOHNSON CONTROLS 33 Section 2 - Installation Form 450.50-N1 Issue date: 11/26/2021 031-02550-xxx (I/O Board) 031-02630-xxx (IPU II Board) TB1 RS485 + - REF SHLD Red SC-EQ EQ 485 Port J8 + - COM SHLD Black Red (Open) SHIELD Black GRD Communication Wiring Harnes (Part of Installation Kit) Wired from SC-EQ EQ 485 Port to Microboard TB1 (RS-485, 4800 baud) IPU-ll P1 Setup for York Talk 2: DE Modifier Address set to -1. LD20016 DE Modifier Offset set to -1. P1 Protocol set to API. P1 Manual MAC Address set to -1. Some panel programs may not allow the -1 setting in which case it should be set to 0. P1 Baud Rate set to 4800. P1 Parity set to Odd. Cycle power to the IPU-ll Note: 1.The IPU ll Chiller address defaults to 0, which is the YorkTalk equivalent of an ID of 1. Do not change this default ID. If you believe this has been modified, reset it to 0. Also, set the Chiller Local/Remote setting to Remote to send commands to the chiller. 2.Measure DC Volts on EQ485 + to - and check that the voltage is between 0.3 VDC and 1.0 VDC. Use the EOL switch = On if voltage read- ing is greater than 1.0 VDC, which drops the voltage to approximately 0.45 VDC. The low voltage provides more stability with the controller. Figure 47 - SC-EQ communication card connections for chillers with the 02550 microboard YCAL/YCUL/YLAA/ YLPA/YCWL/YCRL/YSAA YPAL 031-02497-xxx (I/O Board) P3 + J4 P3- GND +5V 331-02496-101 (IPU I Board) 543 2 1 Equipment Cable BACnet MS/TP (38400 baud) SC-EQ EQ 485 Port J8 + - COM SHLD RED RED (Open) BLACK SHIELD BLACK GRD SC-EQ EQ 485 Port J8 + - COM SHLD YPAL Setup for MS/TP Bus: DE Modifier Address set to 50. DE Modifier Offset set to -1. LD20017a P1 Protocol set to BACnet. P1 Manual MAC Address set to -1. P1 Baud Rate set to 38400. P1 Parity set to None. P1 Stop Bits set to 1. MAC Address Switch (SW2) set 1 ON, all others OFF. Note: Do not set the Chiller address and the SC-EQ address to the same value. This causes a conflict on the MS/TP Bus resulting in no com- munication between the chiller IPU I board and the E-Link Gateway. Figure 48 - SC-EQ communication card connections to YPAL (EC02) 34 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 2 - Installation 0V 10-24V OV B1 A1 B0 A0 2 XS08-10 Black Green Yellow Red Equipment Cable MODBUS RTU (9600 baud) SC-EQ EQ 485 Port J8 + - COM SHLD White Blue (Open) Shield GRD Green Black SC-EQ EQ 485 Port J8 + - COM SHLD + 220 VAC 50 Hz YORK-003 System-1 For node address setting, please refer to Chiller Installation Manual A B 12V - A B 12V - Green Black YORK-003 System-2 + 220 VAC 50 Hz LD20018 Figure 49 - SC-EQ communication card connections to YEWS-D/YEWS-D1/YEWS-E-XS-08/YEAS/YGAS JOHNSON CONTROLS 35 Section 2 - Installation Commissioning checklist 1. Install the SC-EQUIP (SC-EQ) board in the chiller panel. See the SC-EQ communication card installation instructions in Section 2 - Installation of Form 450.50-N1. This document is shipped with each SCEQ installation kit (if applicable)................................ 2. Install the SC-AP MAP 1850 Gateway on the inside or outside of the chiller panel. For optimal installation, mount the SC-AP on the outside of the chiller panel. Refer to the SMART Chiller Access Portal Installation Guide (Part No. 241073775) for guidance. This document is shipped with each SC-AP installation kit............................................................ 3. Install the modem. For North America installs, refer to the Intwine Connect 4GR QuickStart Guide. This document is shipped with each modem. Verify the signal strength........................................................... 4. Log on to the MAP Gateway (SC-AP). Refer to the SMART Chiller Access Portal Gateway Quick Start Guide (Part No. 24-10737-83). This document is shipped with each SC-AP MAP 1850 Gateway. This document includes a unique set of logon credentials that is needed for each device.................................. 5. Set up and establish the Internet connection on the MAP Gateway. To complete the setup, on the MAP Settings page, navigate to either the Ethernet or Wi-Fi client page. Refer to the SMART Chiller Access Portal Installation Guide (Part No. 241073775) for guidance....................................... Form 450.50-N1 Issue date: 11/26/2021 6. On the MAP Gateway, from the MAP Settings page, navigate to the Remote Services Connection page and enter the Account ID and Account Password. Refer to the SMART Chiller Access Portal Installation Guide (Part No. 241073775) for guidance............................................................. 7. Validate the SC-AP Gateway status on the MAP Status page. If you have a successful connection to the cloud, Authentication succeeded appears in the Authentication Status area and Online appears in the Connection Status area. Refer to the SMART Chiller Access Portal Installation Guide (Part No. 241073775) for guidance....................... 8. Verify that the chiller point values appear on the menu of the SC-Equip App for your device. The point values appear on the SC-EQUIP Data page. Refer to the SMART Chiller Access Portal Gateway Quick Start Guide (Part No. 24-10737-83) and the SMART Chiller Access Portal Installation Guide (Part No. 241073775) for guidance....................... 9. Log on to the Connected Equipment portal and verify that the data is populated in the dashboard................................................................. 10. Call the Connected Offerings Support team at 14145245000 options 6, 1, 8, 6 to confirm that is communicating to the cloud...................................... 36 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 3 - Troubleshooting LED indicators There are nine LEDs on the SC-EQ Comm Card that indicate the operational status of the SC-EQ and the three communication ports. To help diagnose communication problems, monitor the LEDs on the SC-EQ and the related communication LEDs on the chiller microboard. LEDs/ USB Figure 50 - SC-EQ LEDs and USB LD19992a Power A Green LED that is ON whenever power is applied to the SC-EQ Comm Card either by the 24 VAC (20.4 to 30 VAC) input or the +12 VDC (+12 VDC ±10%) input. The Power LED should always be illuminated. If not, then a digital multimeter should be used to verify the power source to the SC-EQ is present or not. If the power source is present at the SC-EQ power terminals (J9 +12 VDC [Red wire + Black wire - ] or J10 24 VAC as applicable) and the Power LED is not illuminated then the SC-EQ is faulty. Connected services network CS BUS - A Green LED that indicates the communication activity on the Connected Services communication port. It blinks ON and OFF every 500ms to indicate that communications is established with the SC-AP. The LED is ON solid when there are no communications established with the SC-AP and the SCEQ CS port is polling for a Master. If the LED is OFF continuously then the SC-EQ is waiting for the SC-AP to start polling the SC-EQ. BAS network BS BUS - A Green LED that indicates the communication activity on the BAS communication port. The LED illumination has two variations depending upon 3 the protocol present on the BAS port. BACnet MS/TP - The LED is OFF when there are no active BACnet communications on the network. It is also OFF when it is initially auto-bauding and waiting for a master device to poll on the network. The LED illuminates ON when the SC-EQ sees any communications on the network. N2 and Modbus RTU - SC-EQ receives a request from the Master to the SC-EQ network address. The LED then illuminates while the SC-EQ is transmitting the response message. There are two additional LEDs on the BAS Port to aid in diagnosing BAS Network Integration problems. BRX - A Green LED that illuminates when the SC-EQ is Receiving data on the BAS Network Port. BTX - A Red LED that illuminates when the SC-EQ is Transmitting data on the BAS Network Port. Normal Sequence - The Green BRX LED illuminates whenever there is a data packet sent on the BAS network to any address. If this LED illuminates for a short period of time, then it indicates that the BAS Port RS-485 receive circuitry is functioning. If the BRX illuminates solid, then the + and - RS-485 wires are probably swapped and must be corrected. If the data message address matches the SC-EQ address, then the SC-EQ responds with the requested data and the Red BTX LED illuminates during the response. If the BAS system is polling the SC-EQ but the SC-EQ is not responding, check the MAC address to see if it is set to the preferred address. JOHNSON CONTROLS 37 Section 3 - Troubleshooting Equipment network EQ BUS - A Green LED that indicates the communication activity between the SC-EQ and the chiller Microboard. The SC-EQ acts as the Master in this network and issues data requests to the chiller Microboard. The EQ BUS LED blinks as it receives a valid response from the chiller Microboard. The data is requested one parameter at a time so the blink rate is almost constant. There are two additional LEDs on the Equipment Port to aid in diagnosing communication problems with the microboard. ERX - A Green LED that illuminates when the SC-EQ is Receiving data from the microboard. ETX - A Red LED that illuminates when the SC-EQ is Transmitting data to the microboard. Normal Sequence - The Red ETX LED is illuminated when the SC-EQ sends a request for data to the chiller microboard. The microboard Receive LED should then illuminate. The microboard should then illuminate its Transmit LED as it sends the requested data and the Green ERX LED on the SC-EQ should illuminate. If the SC-EQ ETX light illuminates and the micoboard Receive LED illuminates but no response is transmitted from the microboard check that the chiller address is set to 1. For microboards with a rotary switch set to 0 which is interpreted as a 1. If the address is set in the software, then it should be set to 1. Fault A red LED that indicates a problem with the SC-EQ Firmware or indicates the status during a program update. Power-Up - The LED blinks while the SC-EQ is initializing and performing self checks. Normal Operation - The LED should normally be OFF. Firmware Update - The LED blinks at a 100 ms cycle while the Firmware is updating. Unable to Load Firmware - The LED blinks at a 500 ms cycle to indicate that the SC-EQ could not load a firmware update. Try loading the firmware update on to another USB thumb drive and perform the update again. Firmware Validation Failure - The LED blinks at a 1 second cycle whenever the SC-EQ fails to validate the firmware at intial power up or after a firmware upgrade. Try cycling power to the SC-EQ and updating the firmware again. Form 450.50-N1 Issue date: 11/26/2021 Firmware Programming Required - If the LED is ON solid, then no firmware is present. Complete a firmware update to remedy this. Multimeter checks of the BAS port If the SC-EQ board is connected to a BAS bus but the BS BUS LED is off continuously, then the SC-EQ board is not likely seeing any valid communications occurring on the BAS bus. Simple voltage measurements with a DC voltmeter can be made on the SC-EQ board and the BAS communication bus to help diagnose the problem. 1. Remove the BAS plug from the SC-EQ J12. 2. Note the position of the BAS End Of Line (EOL) Switch S2. If the SC-EQ is not the EOL device, the EOL switch must be OFF. If it is the EOL then set the EOL to ON temporarily for these tests. 3. Measure the voltage between the + and pins on the BAS Bus Terminal Block as shown in the top portion of Figure 51 on page 39. The positive lead of the voltmeter should be on the + pin of the block and the negative lead of the voltmeter on the pin of the block. The voltage reading can fall in the range of (0.38 VDC to 0.47 VDC). The reading should be steady and only changing by a couple of millivolts at the most. If the reading is within the range of (+0.38 VDC to +0.47 VDC) that is an indication that the BAS transceiver on the SC-EQ board is not damaged. If the voltage reading is out of the range given by a large amount, the transceiver or its associated circuitry may be damaged. Again verify that switch S2 (BAS EOL) is in the "ON" position during the measurement otherwise the voltage readings are out of the given range. 4. If the reading in step 3 is within the given voltage range then return switch S2 (BAS EOL) to its proper position and connect the BAS terminal block plug back into the BAS terminal block J12 on the SC-EQ board. Take another VDC voltage reading now on the BAS plug between the + and wire connections as shown in the bottom portion of Figure 51 on page 39. If the BAS bus is connected to a JCI BAS bus with proper EOL terminations set then the voltage range should be steady and in the (0.38 VDC to 0.47 VDC) voltage range if NO 38 JOHNSON CONTROLS SHLD COM - + - COM SH LD Form 450.50-N1 Issue date: 11/26/2021 communications are occurring on the BAS bus. If the voltage reading is steady but out of the (0.38 VDC to 0.47 VDC) voltage range then the issue could be improper EOL terminations, issues with wiring, or some other issue. If the BAS trunk is connected to a third party BAS then the voltage readings could be acceptable anywhere between (0.25 VDC to 0.5 VDC). 5. If communications are occurring on the BAS Bus then the voltage measured in step 4 should fluctuate generally in the range of (0.1 VDC to 0.5 VDC) if the bus is properly terminated. The voltage readings may vary somewhat out of this range depending on bus loading and the type of voltmeter used. If the voltage readings are fluctuating in the approximate range of (1.5 VDC to 3.5 VDC), then it is likely there is no End of Line (EOL) termination set on the bus and that must be corrected at the EOL device. + BAS Bus Terminal Block - V+ - V+ BAS Bus Terminal Block Plug LD19997 Figure 51 - BAS bus meter checks The meter checks detailed for the BAS port can also be used for the CS and EQ ports. 127( Section 3 - Troubleshooting Updating the firmware and the software When new chiller data maps become available, you must update the SC-EQ firmware and software. To perform a firmware and software update, complete the steps in the following procedure. Updating the firmware 3 To update the firmware, complete the following steps: 1. Format the USB thumb drive to FAT32. 2. Copy the current x.x.x.x.SCCUSB.pkg from the CHASE site. There cannot be other files on the USB thumb drive. 127( 3. Download the current x.x.x.x.SCCUSB.pkg file. See Note 1. If the chiller is running, put it in the local mode, so the SC-EQ does not affect the chiller operation during the firmware update. 4. Insert the USB thumb drive into the J3 port on the SC-EQ board. The firmware update starts automatically and the fault LED flashes quickly during the update process. 5. If it does not start automatically, cycle power to the SC-EQ board by removing and reconnecting the power plug on the SC-EQ board. 6. When firmware update is completed, the SC-EQ reboots. All LEDs go out and then on again. A typical firmware update can take 15 to 20 minutes. 7. When the SC-EQ Fault LED is off for 30 seconds, the firmware upgrade is complete. The USB thumb drive can be removed. Note 1: When updating an SC-EQ with firmware installed before 3.1, you must install both files. The files must be installed in the following order: 1. x.x.x.x.SCCUSB_Firmware.pkg file 2. x.x.x.x.SCCUSB.pkg file For an SC_EQ that was previously updated to 3.1 or later, you only need to install x.x.x.x.SCCUSB.pkg file. JOHNSON CONTROLS 39 Section 3 - Troubleshooting Updating the software To update the software, complete the following steps: 1. Format the USB thumb drive to FAT32. 2. Copy the current x.x.x.x.SCCUSB.pkg file on a USB thumb drive. There cannot be other files on the USB thumb drive. 127( 3. Download the current x.x.x.x.SCCUSB.pkg file. If the chiller is running, put it in the local mode, so the SC-EQ does not affect the chiller operation during the software update. 4. Insert the USB thumb drive into the J3 port on the SC-EQ board. The software update starts automatically and the fault LED flashes quickly during the update process. 5. If it does not start automatically, cycle power to the SC-EQ board by removing and reconnecting the power plug on the SC-EQ board. Form 450.50-N1 Issue date: 11/26/2021 6. When the software update is completed, the SCEQ reboots. All LEDs go out and then on again. A typical software update can take 15 to 20 minutes. 7. When the SC-EQ Fault LED is off for 30 seconds, the software upgrade is complete. The USB thumb drive can be removed. Note 1: When updating an SC-EQ with firmware installed before 3.1, you must install both files. The files must be installed in the following order: 1. x.x.x.x.SCCUSB_Firmware.pkg file 2. x.x.x.x.SCCUSB.pkg file For an SC_EQ that was previously updated to 3.1 or later, you only need to install x.x.x.x.SCCUSB.pkg file. Repair information There are no user replaceable parts in the SC-EQ. If the SC-EQ Comm Card fails to operate within its specifications, replace the unit. For a replacement SC-EQ Comm Card, contact the nearest Johnson Controls representative. 40 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 4 - SC-AP gateway SC-AP OptiViewTM mounting The SC-AP Installation Kit (P/N 331-03608-000) contains all of the materials needed to install the SCAP into the OptiViewTM chiller control panel using a DIN rail in new panels or Velcro for older panels. For the best Wi-Fi signal, mount the 4 SCAP on the outside of the chiller con- trol panel. 127( OptiViewTM DIN rail panel mount 1. New production panels have a 3 in. piece of DIN rail installed to mount the SC-AP. The SC-AP installation kit contains two DIN rail end blocks to hold the SC-AP in place on the DIN rail. 2. Install one end block (P/N 025-29189-000) to the back end of the DIN rail, as shown in Figure 52. 3. Pull the SC-AP case bottom mounting bracket clip outwards from the case. 4. Hang the SC-AP on the DIN rail and push the bottom mounting bracket clip upwards to secure the SC-AP to the DIN rail. 5. Install the second Din rail end block (P/N 02529189-000) to the front end of the DIN rail, as shown in Figure 53 on page 41. OptiViewTM Velcro panel mount 1. On older panels that do not have a DIN rail mounted, mount the SC-AP using the Velcro parts of the Installation Kit. 2. Install the four round Velcro fasteners (P/N 02547586-000) to the four mounting holes on the back of the mounting bracket using four screws (P/N 021-34098-000), as shown in Figure 54 on page 41. 3. Stick one of the four square Velcro pieces (P/N 025-47587-000) on to each of the four round Velcro fasteners. 4. Remove the protective backing from the square Velcro pieces, and carefully stick the SC-AP in the preferred mounting location. Figure 52 - DIN rail end block Figure 53 - SC-AP mounted Figure 54 - SC-AP Velcro pads LD20431 LD20432 LD20433 JOHNSON CONTROLS 41 Section 4 - SC-AP gateway OptiViewTM Velcro panel mount (Cont'd) 5. Install one cable ty-wrap mount (P/N 025-25155000) above the ribbon cables and one below to retain the coiled cable using two ty-wraps (P/N 02518167-000), as shown in Figure 56 on page 42. 6. Install the coiled SC-AP cable by plugging one end into the SC-EQ CS RJ Port J1 and the other end into the SC-AP 6-pin RJ-12 connector. Caution: Do not plug the SC-AP cable in to the SC-EQ BAS RJ jack as this exposes the wrong equipment to the SC-AP. 7. Install the two ty-wraps in the ty-wrap mounts to hold the coiled cable, loosely tighten the ty-wrap and trim off the excess ty-wrap ends. 8. The installed SC-AP and SC-EQ should look similar to Figure 57 on page 42 Form 450.50-N1 Issue date: 11/26/2021 Figure 56 - SC-AP cable ty-wraps LD20434 SC-EQ (TOP VIEW) BAS RJ Jack CS RJ Jack NOTE: DO NOT CONNECT SC-AP TO BAS RJ JACK CS RJ Jack SC-AP (TOP VIEW) Figure 55 - SC-EQ to SC-AP cable LD21043 42 LD20435 Figure 57 - SC-AP and SC-EQ installed JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Using the SC-AP for troubleshooting The SC-AP is a device that interfaces with Johnson Controls Connected Chillers service. This device can also be used to troubleshoot connectivity issues. If an SC-AP is installed as part of a Connected Services installation, or if an SC-AP is available otherwise, connecting it to the SC-EQ allows the technician to view the port activity to aid in communication problem diagnosis. It is also required to manually set the Chiller Model on older YorkTalk2 chillers that do not auto-discover. See page 45 for instructions on how to manually set the chiller model. For more detailed information on the SC-AP, refer to SMART Chiller Access Portal Installation Guide (Part No. 24-1073775) and SMART Chiller Access Portal Gateway Quick Start Guide (Part No. 24-10737-83). The first screen displayed on the SC-AP after logon is the Device List screen, as shown in Figure 58 on page 43). The example shows two devices, the SC- Section 4 - SC-AP gateway AP, and the SC-EQ, as well as their MAC address. The SC-AP is always MAC address three. In the example below, the SC-EQ has MAC address four. The Device List can be used to help troubleshoot issues where the BAS is not connecting to the SC-EQ. Selecting the SC-EQ Data tab displays the data for the SC-EQ. Four of the parameters in the SC-EQ Data tab display the three communication port settings and the 4 Online/Offline status of the ports. Refer to Figure 59 on page 43. The SC-EQ Port Status shows that the Equipment Port is communicating using YorkTalk 3 and the BAS uses Modbus. The CS port is always BACnet MSTP. If either the BAS or the EQ port are not active for a short period of time, the status is displayed as "Offline." If the communications is not present for a few minutes, the status is displayed as "No Protocol." The SC-EQ continually tries to connect to the absent ports. Figure 58 - SC-AP device list LD19990 Figure 59 - SC-EQ port status and lock in JOHNSON CONTROLS LD29237 43 Section 4 - SC-AP gateway To change the device instance The SC-EQ automatically creates the Device Instance as 5000 plus the MAC Address switch setting. For example, if the MAC address DIP switches are set to a value of 6, the Device Instance is 5006. Some customers require the Device Instance to be something other than the automatically generated 5000 series address. The SC-AP can be used to change the Device Instance to the customer desired address. Connect the SC-AP to the SC-EQ and log on to the SC-AP using a WiFi interface either from a Smartphone, a Laptop, or Tablet PC. Refer to SMART Chiller Access Portal Installation Guide (Part No. 24-1073775) and SMART Chiller Access Portal Gateway Quick Start Guide (Part No. 2410737-83) for more information on the SC-AP. Note that any MAP 4.0 device may be used to connect to the SC-EQ to change the Device Instance and to also look at the communication port status. It is not able to communicate with the Cloud though. When you first click on a MAP 4.0 device, the Home page loads and displays a "spinner" that never stops since it is looking to connect to a Simplicity SE or a RTU controller and cannot find them. The user must just proceed to click on a menu item on the left-hand side to view information. The MAP1810 device uses two MAC address of 2. So a temporary change of the SC-EQ mac/node address 2 allows a CS port port mac/node# change as shown in Figure 60. The virtual MAC address is separate from BMS. When it finishes, the address can return to 2. 1. Select the SC-EQ Device then select the SC-EQ Data tab. Figure 60 - SC-AP device list LD29329 A list of parameters is shown on the right side of your WiFi Smartphone or PC screen. 2. Select the BACNET DEVICE INSTANCE MODE and change it from AUTO to MANUAL. Then select SAVE. 44 Form 450.50-N1 Issue date: 11/26/2021 Figure 61 - Device instance mode LD29330 3. Next, select the SC-EQUIP BACNET INSTANCE ID and change it to the desired value. This must be a number from 1 to 4914302. LD19998 E-Link replacement In the BACnet auto-discovery (within Metasys), in order to keep most of existing FQRs, check for the extended name of the E-Link that is being replaced first. Then delete the E-Link device. Using the MAP SC-AP, access the SC-EQ name and use the extended name in the field, or rediscover the SC-EQ and use that same extended name within Metasys. This then rebinds the Metasys programs that had bindings to the E-Link on version K switch setup used for OptiView panel installs. On non-OptiView panels, the Version J switch setup on E-Links also keep the binding The E-Link transferred a list of all possible chiller parameters to the BAS, even ones that did not apply. For example, if you had an electromechanical starter, the parameters for a VSD starter were shared by the ELink and auto-discovered by the BAS. The SC-EQ discovers what type of chiller is connected and the chiller features and then exposes only the relevant points to the BAS. If an E-Link is replaced by an SC-EQ, the BAS shows the points that were nonrelevant previously as Offline. To resolve this, you either need to delete the E-Link and re-discover the SC-EQ or delete each of the inappropriate Offline points. Figure 62 - Invalid points offline LD19994 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 4 - SC-AP gateway BAS commands Points that are commandable show as Unreliable until the BAS sends the setpoints. Figure 63 - Unreliable remote setpoints LD19993 Manually setting the chiller model Chillers that communicate through the EQ port of the SC-EQ by either YorkTalk-2 (YT2) or Modbus-subordinate protocols can be manually selected during commissioning. The manual selection steps for YT2 chillers no longer requires the loading of the Generic chiller model. Instead, the user selection directly causes the chiller model to load into the SC-EQ operating memory. Likewise, the Modbus chillers are included within the list of Manually Selected chillers. Manual installation instructions Some of the older YorkTalk2 chillers do not have programming in place to tell the SC-EQ their chiller model. In these instances, a SC-AP needs to be used to tell the SC-EQ what chiller is present. On the SC-AP SC-EQUIP DATA screen, when the Auto Detected Chiller Protocol is displayed as YorkTalk2 but the Auto Detected Chiller Model is NONE: This condition only applies when a YorkTalk2 chiller is actively attached to the SC-EQ. Some of the Modbus chillers do not identify their model type over the Modbus protocol. When that occurs, then the MANUALLY SELECTED CHILLER MODEL selection can be used to load the appropriate Modbus chiller model into the SC-EQ. See Figure 64 on page 46. Clicking on this field allows the user to select the chill- er model that the SC-EQ is connected to. See Figure 65 on page 46. A few seconds after the selection is applied, the SC-EQ begins to reprogram, the Current- ly Loaded Equipment Model. This may take up to 8 minutes to complete. Upon completion of this manual chiller selection, the SC-EQ reboots and then begins to run using the chiller model as the Currently Loaded Chiller Model Number. 4 The EQ Port Locked Protocol allows manual EQ Port starting point after a power loss. The SC-EQ has a Generic selection for YorkTalk-2 chillers within the Manually Selected Chiller Model list (Enum-set 2017). The V4.0 project for the SCEQ includes manually selected Modbus chillers into this same Manually Selected Chiller Model list. The Generic entry could be confused as either applied to YorkTalk-2 or Modbus. The Generic selection is intended for Generic YorkTalk2 chillers only and not Modbus chillers. 127( Whenever the Modbus address of the chiller is modified, then the SC-EQ fails to retrieve point data and continues to use the old/invalid Modbus address. The SC-EQ never times out and then attempts to rediscover the new Modbus address of the previously connected chiller. After changing the address of the BAS or SC-EQ connected devices, it is recommended to reboot the SCEQ. Use Table 8 for manual Modbus addresses. Table 8 - Manual Modbus addresses Point name BACnet BACnet Instance ID Mode BV65000 BACnet Instance ID AV65000 BACnet Encoding Type BACnet Device Name Units Manual Select Chiller Model (YT2 only) MV65003 SV65000 MV65001 MV65002 Modbus n/a n/a n/a n/a 65001 65002 N2 n/a n/a n/a n/a ADI 201 ADI 202 Description 0 = Auto, 1 = Manual Write the preferred value with Mode set to Manual 0 = ISO (UCS-2), 1 = ASCII Write the preferred value for BAS system 0 = Imperial, 1 = Metric Refer to SI0371. Note: Modbus addresses 65001 and 65002 are Scaled X1 and Unsigned. JOHNSON CONTROLS 45 Section 4 - SC-AP gateway Form 450.50-N1 Issue date: 11/26/2021 Figure 64 - No chiller model type detected LD29331 Figure 65 - Manually selecting chiller model 46 LD31148 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 5 - Technical specifications Table 9 - Technical specifications Power Requirements External to Equipment (Inside Enclosure): 120/240 VAC Primary 50/60 Hz, 24 VAC Secondary Transformer (+10%/-15%), 400 mA, Nominal 12 VA Internal to Equipment SC-EQ Comm Card Assembly: 24 VAC (±15%), 50/60 Hz, 400 mA, Nominal 12 VA, 12 VDC (+50%/-2%), 400 mA, Nominal 12 VA Addressing is selectable by the MAC Address Switch 8 Position DIP Switch using Switches 1 through 7. Addressing · BACnet MS/TP Addressing Range 1 to 127 · Modbus RTU Addressing Range 1 to 127 · N2 Addressing Range1 to 127 5 Installation Environment Protected, Dry Ambient Operating Conditions Temperature: -40°C to 65°C; (-40°F to 149°F) Humidity: 0% to 95% Noncondensing Ambient Storage Conditions Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 0% to 95% RH, Noncondensing Power External to Equipment (Inside Enclosure): One 3-Position Terminal Block for 120/240 VAC Supply Power Internal to Equipment SC-EQ Comm Card Assembly: Removable Terminal Plug for 24 VAC Supply Power and Removable Terminal Plug for 12 VDC Supply Power BAS Protocol is automatically detected B AS Port J12: RS-485 BAS Port Supporting BACnet MS/TP, Modbus RTU and N2 Protocols With Available EOL Termination Switch Communication Wiring Terminations Equipment Protocol and Model are automatically detected E Q 485 Port J8: RS-485 Equipment Port Supporting BACnet MS/TP and YORK Talk II Protocols with Available EOL Termination Switch EQ 232 Port J7: RS-232 Equipment Port Supporting YORK Talk 3 Protocol Connected Services C S Port J11: RS-485 BAS Port Supporting BACnet MS/TP Protocol With Available EOL Termination Switch Wiring Network Cable: 0.51 mm (24 AWG) (3 Cores Plus Shield) Power Cable: 1.02 mm (18 AWG) Copper Wire Rated for 10 Amperes Per Core at 250 VAC Materials External to Equipment: Metal Enclosure with Removable Lid, SC-EQ Comm Card Assembly, Power Transformer Internal to Equipment E-Link Board Assembly: SC-EQ Comm Card Assembly Mounting External to Equipment: Screw Mount Enclosure Internal to Equipment: SC-EQ OptiViewTM/Latitude and IPU-II installation kit Dimensions External to Equipment: 241.3 mm x 136.5 mm x 63 mm (9 1/2 in. x 5 3/8 in. x 2 1/2 in.) Internal to Equipment: 102 mm x 152 mm x 25.4 mm (4 in. x 6 in. x 1 in.) Shipping Weight External to Equipment: 2 kg (4.5 lb) Internal to Equipment: 227 g (8 oz) Compliance United States UL Listed 916/FCC Part 15 Conducted and Radiated Europe CE Mark - Johnson Controls, Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. BTL B-ASC (BTL-24317) Note: The performance specifications are nominal and conform to acceptable industry standards. For application of conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. JOHNSON CONTROLS 47 Form 450.50-N1 Issue date: 11/26/2021 THIS PAGE INTENTIONALLY LEFT BLANK. 48 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 6 - LON ProtoNode Overview The LON ProtoNode in conjunction with the SC-EQ communication interface card provides YORK® chillers LON network connectivity. It is designed with two active serial ports: · A LON port, which is used to connect to a LON FTT10 network. · An RS485 port, which connects to the BACnet MS/TP BAS port J12 on the SC-EQ. The ProtoNode also contains an Ethernet port that can be used for troubleshooting or to update the ProtoNode firmware, if needed. To simplify the installation and setup, the LON ProtoNode comes preconfigured. The switches and internal jumpers are preset at the factory for the correct node ID, baud rate, and configuration file type. There are no user switch settings required in the field. The ProtoNode polls the SC-EQ and chiller micro board to determine what model chiller and what points are available. This is based upon the options installed and configuration of the chiller. The ProtoNode then dynamically creates the LON points list. One ProtoNode part number covers all the various chiller models. If a firmware update is needed, the user can add the new ProtoNode firmware through the Ethernet port. A LON interface file named fserver.xif is also available from this port. The .xif file allows the LON Integrator to engineer and bind the chiller points offline. This file is automatically generated based upon the chiller 6 model and options installed. The LON ProtoNode consists of a single module mounted inside the chiller control panel. In most cases, the chiller control panel supplies 24 VAC input power, eliminating the need for an external power supply. For YS OptiViewTM panels, 24 VAC is not provided. For YS OptiViewTM panels the +12 VDC power to the SC-EQ board is extended to the ProtoNode. LONWORKS SERVICE PIN ETHERNET PORT Figure 66 - LON ProtoNode front view JOHNSON CONTROLS RS-485 24 VAC POWER LD29256 49 Section 6 - LON ProtoNode Installation summary A LON administrator is required to be present to install the LON ProtoNode. This must be a coordinated visit for Step 4. 1. Wire the SC-EQ and ProtoNode devices as defined in installation instructions, Form 450.50.N1. 2. Verify chiller communication with the SC-EQ: a. Connect the SC-EQ's EQ port to the chiller. b. Temporarily plug in the SC-AP MAP 1850/1810 device into the BAS jack on the SC-EQ. c. Connect your wireless network to the SCAP MAP 1850/1810 device and lock in the MS/TP master, that is, BACnet. d. Verify that the LEDs are blinking (BAS TX, BAS RX, BS BUS) on the SC-EQ. e. Remove the SC-AP MAP 1850/1810 device from the BAS jack. 3. Choose the appropriate connection method: · If you are using Connected Offerings, connect the SC-AP MAP 1850 to the SC-EQ's CS jack. Connected Offerings requires the MAP 1850. · If you are not using Connected Offerings, the SC-AP MAP 1850 is not required. 4. Provide JCI ProtoNode instructions to the LON commissioning agent. Refer to ProtoNode FPCN35 Start-up Guide for Interfacing Johnson Controls Smart Chiller to building automation systems by SMC. 5. The LON commissioning agent logs into the ProtoNode and presses Configure as instructed. 6. The LON commissioning agent enters the LON service pin, for example, Neuron ID. Make sure not to break the service pin. For more support, contact Product Technical Support (PTS), Field Support Center (FSC), or SMC. See the following Additional Support process. Form 450.50-N1 Issue date: 11/26/2021 Additional support Johnson Controls provides first tier customer support through PTS and FSC as follows: 1. Johnson Controls sells the ProtoNode. 2. The ProtoNode ships to the field. 3. First tier support is through PTS and FSC. 4. Check the wiring, device and controller, and ProtoNode settings. 5. If all checks out, contact SMC support for instructions on how to capture a diagnostic log using FieldServer Toolbox. This is available from the SMC website. 6. Send the diagnostic log to SMC for further support: smc-support@msasafety.com SMC provides second tier customer support as follows (Call (408) 964-4444): 1. SMC works directly with the representative or integrator, and remains in contact with Johnson Controls. 2. When the log is received, SMC takes responsibility for solving the issue. 3. SMC recommends or sends a fix to the customer. · If the issue is not fixed, the customer takes a new log and repeats Step 1. · If the issue is fixed, the support incident is closed. 50 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Installation The LON ProtoNode can be installed directly into the chiller control panel of indoor and outdoor chillers. The ambient operating range is -40°F to 167°F, 5% to 90% RH Non-Condensing. An accessory mounting kit, P/N 371-06580-001, is used to mount the LON ProtoNode directly into the chiller control panel. Table 10 - LON ProtoNode product code numbers Description Part number LON ProtoNode 025-46015-000 OptiViewTM panel installation kit 371-06580-001 Air-cooled chiller installation kit :$51,1* Disconnect or isolate all power supplies before making electrical connections. More than one disconnect or isolation may be required to completely de-energize the equipment. Contact with components carrying hazardous voltage can cause electric shock and result in severe personal injury or death. :$51,1* Make all wiring connections in accordance with local, national, and regional regulations. Install the wiring, so it does not cause a hazard and is protected against electrical and mechanical damage. Section 6 - LON ProtoNode OPTIVIEW MICROPANEL WASHER 6 LD29257 Figure 67 - OptiViewTM LON ProtoNode mounting location To install the ProtoNode into the chiller control panel, complete the following steps: 1. All switch and jumper settings must remain at the factory settings shown in Table 11 and Table 12. The unit ships with a label covering the externally accessible switches. This label indicates the settings shown below. No user settings are required for any of the switches or jumpers and the default settings are included only for informational purposes. Table 11 - Jumper settings Bias Termination A B OFF OFF Pin 1 and Pin 2 2. Attach the LON ProtoNode to the location shown in Figure 67 using the adhesive fasteners, P/N 025-47587-000, included in the installation kit. LD31149 Figure 68 - Screw panel LON ProtoNode mounting location 3. Connect the LON ProtoNode to the BAS port J12 on the SC-EQ using the communications cable, P/N 571-06580-402, included in the installation kit. Connect the wires as shown in Figure 69. Trim the cable to the required length. Table 12 - Switch settings A0 A1 A2 A3 A4 A5 A6 A7 B0 ON ON OFF OFF OFF OFF OFF OFF ON B1 B2 B3 S0 S1 S2 S3 ON OFF ON OFF OFF OFF OFF JOHNSON CONTROLS 51 Section 6 - LON ProtoNode PROTONODE Form 450.50-N1 Issue date: 11/26/2021 SC-EQ WHITE BLACK RED Figure 69 - ProtoNode to SC-EQ RS485 wiring 4. For all OptiViewTM panels (except on YS chillers), complete the following steps: 1. Connect the power harness from the + PWR and PWR terminals on the JCI LON ProtoNode to the locations as shown in Table 13. The power harness, P/N 571-06580-401, is included in the installation kit. 2. Connect the Frame GND on the ProtoNode to a ground using the green/yellow wire, P/N 571-06580-403, included in the installation kit. 3. Trim each of the cables to the required length. 4. Secure the power and communication cables using wire ties and adhesive mounts provided in the installation kit. Table 13 - Power connections Chiller model PWR+ YK OptiViewTM TB6-162 YZ OptiViewTM TB7-162 YMC2 OptiViewTM TB7-162 YD OptiViewTM TB6-118 YKEP OptiViewTM TB6-118 YT OptiViewTM TB1-162 YR OptiViewTM TB1-162 YST OptiViewTM TB7-321 PWRTB6-5 TB7-5 TB7-5 TB6-5 TB6-5 TB6-5 TB6-5 TB7-322 LD29258 For YS OptiViewTM panels, complete the following steps: 1. Remove the power cable installed between the micro board and the SC-EQ board. 2. Install the cable, P/N 571-08936-001, as follows: · Connect P21 to J21 on the micro board · Connect P9 to J9 on the SC-EQ board · Connect the wire end to the ProtoNode (red wire to PWR+, black wire to PWR-) 3. Trim the cable to the required length at the ProtoNode end, if needed. 4. Install the Frame GND wire as described previously in step 4. PWR+ PWR- Figure 70 - ProtoNode power wiring GND LD29259 52 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 5. Connect the ProtoNode to the LON FTT10 network using the non-shielded twisted pair network cable. There is no polarity on the LON FTT10 network, so you can connect either wire to either terminal. Section 6 - LON ProtoNode SERVICE PIN 6 LD29261 Figure 72 - ProtoNode service pin (cover removed) NETWORK CONNECTION LD29260 Figure 71 - ProtoNode LON network connection 7. Use the unique 12 character LON Neuron ID in lieu of the service pin to bind the ProtoNode to the network. The ID address is printed on a label on the back of the ProtoNode. 6. To discover the ProtoNode automatically, complete the following steps: f. Power up the chiller panel and the ProtoNode. g. Insert a small screwdriver into the Service Pin hole. h. Tilt the screwdriver towards the LonWorks connector to depress the Service Pin switch. The Service Pin switch faces towards the LON port connector as shown in Figure 72. Figure 73 - ProtoNode neuron ID LD29262 JOHNSON CONTROLS 53 Section 6 - LON ProtoNode ProtoNode LED functionality The ProtoNode LEDs indicate functionality as shown in the following figure and table. Form 450.50-N1 Issue date: 11/26/2021 DIAGNOSTIC LEDS Figure 74 - ProtoNode power wiring LD29263 Table 14 - Diagnostic LEDs Tag Description SPL The SPL LED lights up if the unit is not getting a response from one or more of the configured devices. For LonWorks units, LED lights up until the unit is commissioned on the LonWorks network. RUN The RUN LED starts flashing 20 seconds after the power indicates normal operation. ERR The SYS ERR LED lights up 15 seconds after powering up. It turns off after 5 seconds. A steady red light indicates if there is a system error on the unit. If this occurs, immediately report the related system error shown in the error screen of the GUI to support for evaluation. RX If the socket protocol is serial, the RX LED flashes when the host port receives a message. If the socket protocol is Ethernet, the RX LED is not used. TX If the socket protocol is serial, the TX LED flashes when a message is sent on the host port. If the socket protocol is Ethernet, the TX LED is not used. PWR THE PWR LED is the power light and shows steady green at all times when the unit is powered. Binding the points using the .xif file If you want to bind the points using the .XIF file, complete the following steps the retrieve it from the ProtoNode: 1. Connect a CAT 5 Ethernet cable (Straight-Thru or Cross-Over) from the PC to the ProtoNode. 2. Turn off the Wi-Fi on the PC, so it does not try to connect to a network. 3. Set the PC to a static IP address 192.168.1.11, Subnet Mask 255.255.255.0. 4. Open the Internet Browser and navigate to the ProtoNode address for the .xif file: 192.168.1.24/ fserver.xif. 5. Save the .xif file to the PC. 54 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Section 6 - LON ProtoNode Technical specifications Table 15 - Technical specifications Electrical Connections One 6-pin Phoenix connector, one RS-485 +/- ground port, power +/- frame ground port One Ethernet 10/100 BaseT port, One FTT-10 LonWorks port Approvals CE Certified; TUV approved to UL 916, EN 60950-1, EN 50491-3 and CSA C22-2 standards; FCC Class A Part 15; DNP3 Conformance Tested; RoHS Compliant; CSA 205 Approved LonMark Certified Power Requirements 9 VDC to 30 VDC or 12 VAC to 24 VAC Physical Dimensions (Lenght x Width x Height) 11.5 cm x 8.3 cm x 4.1 cm (4.5 in. x 3.2 in. x 1.6 in.) Weight 0.2 kg (0.4 lb) Operating Temperature 40°C to 75°C (-40°F to 167°F) Surge Supression EN61000-4-2 ESD EN61000-4-3 EMC EN61000-4-4 EFT 6 Humidity 5% to 90% RH (non-condensing) Note: Specifications subject to change without notice. JOHNSON CONTROLS 55 Form 450.50-N1 Issue date: 11/26/2021 THIS PAGE INTENTIONALLY LEFT BLANK. 56 JOHNSON CONTROLS Form 450.50-N1 Issue date: 11/26/2021 Note: The information below can be shared with the technician responsible for the BAS network. Instructions for the BAS contractor The SC-EQ Communication Card has the ability to automatically determine the BAS network protocol and communication parameters and set its communication parameters to match the installed BAS system. If the chiller was already commissioned, there is no need for a chiller technician to return to the site to connect the BAS wiring and set the MAC address since these are standard tasks that a BAS contractor routinely performs. The instructions on this page assist you with these steps. BAS wiring connections The BAS port J12 is the blue pluggable connector shown below. It is an RS-485 port with + - COM and SHLD marked. The SHLD (shield) terminal is not connected to any circuitry or ground and provides a convenient location to connect the shields of two daisychained segments. On some BAS systems the COM is called REF. The J12 blue plug is used for the BACnet, Modbus, or N2 connection for the BMS (Building Management System). 127( Setting the MAC address The SC-EQ Communication Card Media Access Control (MAC) network hardware address is set on a single 8-way DIP switch. Switch 8 is not used. The switches are binary weighted allowing the setting of addresses from 1 to 127. Once the DIP switches are set for the correct MAC address, cycle the power to the SC-EQ by momentarily unplugging the 24 VAC or +12 VDC power plug (depending upon how the SC-EQ is being powered). The SC-EQ Communication Card then boots up and establish communications. This may take up to 120 seconds. JOHNSON CONTROLS 57 5000 Renaissance Drive, New Freedom, Pennsylvania USA 17349 Copyright © by Johnson Controls 2021 Form 450.50-N1 (1121) Issue Date: November 26, 2021 Supersedes: 450.50-N1 (1220) 1-800-524-1330 www.johnsoncontrols.com Subject to change without notice. Printed in USA ALL RIGHTS RESERVEDAdobe PDF Library 15.0 Adobe InDesign CC 13.1 (Windows)
