Floating-Point IP Cores User Guide
File info: application/pdf · 117 pages · 1.73MB
Floating-Point IP Cores User Guide

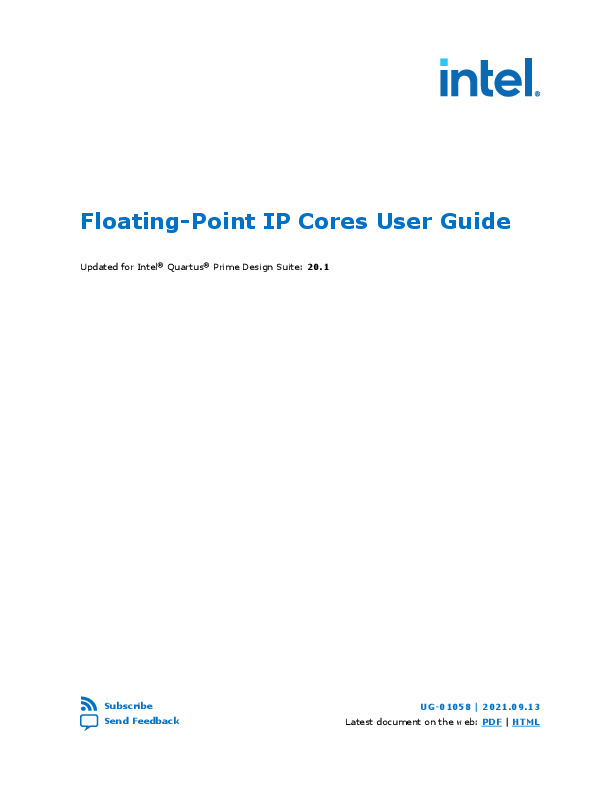

Updated for Intel Quartus Prime Design Suite: 20.1. This user guide describes the functional description, steps to generate, and guidelines to design floating-point Intel FPGA IP cores in all Intel FPGA devices.
Floating-point, IP cores, DSP, primitive, Single-precision, Double-precision
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Floating-Point IP Cores User Guide Updated for Intel� Quartus� Prime Design Suite: 20.1 Subscribe Send Feedback UG-01058 | 2021.09.13 Latest document on the web: PDF | HTML Contents Contents 1. About Floating-Point IP Cores.........................................................................................6 1.1. List of Floating-Point IP Cores..................................................................................6 1.2. Installing and Licensing Intel FPGA IP Cores.............................................................. 8 1.3. Design Flow.......................................................................................................... 9 1.3.1. IP Catalog and Parameter Editor.................................................................. 9 1.3.2. Specifying the IP Core Parameters and Options (Intel Quartus Prime Pro Edition).................................................................................................. 11 1.3.3. Generating IP Cores (Intel Quartus Prime Standard Edition)...........................15 1.4. Upgrading IP Cores.............................................................................................. 15 1.4.1. Migrating IP Cores to a Different Device...................................................... 19 1.5. Floating-Point IP Cores General Features.................................................................20 1.6. IEEE-754 Standard for Floating-Point Arithmetic.......................................................20 1.6.1. Floating-Point Formats..............................................................................21 1.6.2. Special Case Numbers.............................................................................. 22 1.6.3. Rounding................................................................................................ 22 1.7. Non-IEEE-754 Standard Format............................................................................. 23 1.8. Floating-Points IP Cores Output Latency..................................................................23 1.9. Floating-Point IP Cores Design Example Files........................................................... 23 1.10. VHDL Component Declaration.............................................................................. 25 1.11. VHDL LIBRARY-USE Declaration........................................................................... 25 2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Core.................................................................................................................... 26 2.1. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Features.......................................................................................................26 2.2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Output Latency............................................................................................. 26 2.3. FP_ACC_CUSTOM Intel FPGA IP Resource Utilization and Performance.........................26 2.4. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Signals........................................................................................................ 27 2.5. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Parameters...................................................................................................29 3. ALTFP_ADD_SUB IP Core.............................................................................................. 30 3.1. ALTFP_ADD_SUB Features.....................................................................................30 3.2. ALTFP_ADD_SUB Output Latency........................................................................... 30 3.3. ALTFP_ADD_SUB Truth Table................................................................................. 30 3.4. ALTFP_ADD_SUB Resource Utilization and Performance............................................. 31 3.5. ALTFP_ADD_SUB Design Example: Addition of Double-Precision Format Numbers......... 32 3.5.1. ALTFP_ADD_SUM Design Example: Understanding the Simulation Results........32 3.6. ALTFP_ADD_SUB Signals...................................................................................... 33 3.7. ALTFP_ADD_SUB Parameters.................................................................................34 4. ALTFP_DIV IP Core....................................................................................................... 36 4.1. ALTFP_DIV Features............................................................................................. 36 4.2. ALTFP_DIV Output Latency....................................................................................36 4.3. ALTFP_DIV Truth Table..........................................................................................37 4.4. ALTFP_DIV Resource Utilization and Performance..................................................... 37 4.5. ALTFP_DIV Design Example: Division of Single-Precision........................................... 38 Floating-Point IP Cores User Guide 2 Send Feedback Contents 4.5.1. ALTFP_DIV Design Example: Understanding the Simulation Results.................38 4.6. ALTFP_DIV Signals............................................................................................... 39 4.7. ALTFP_DIV Parameters......................................................................................... 41 5. ALTFP_MULT IP Core.................................................................................................... 42 5.1. ALTFP_MULT IP Core Features................................................................................42 5.2. ALTFP_MULT Output Latency..................................................................................42 5.3. ALTFP_MULT Truth Table....................................................................................... 42 5.4. ALTFP_MULT Resource Utilization and Performance................................................... 43 5.5. ALTFP_MULT Design Example: Multiplication of Double-Precision Format Numbers........ 44 5.5.1. ALTFP_MULT Design Example: Understanding the Simulation Waveform.......... 44 5.6. Parameters......................................................................................................... 45 5.7. ALTFP_MULT Signals.............................................................................................45 6. ALTFP_SQRT................................................................................................................. 47 6.1. ALTFP_SQRT Features...........................................................................................47 6.2. Output Latency....................................................................................................47 6.3. ALTFP_SQRT Truth Table....................................................................................... 48 6.4. ALTFP_SQRT Resource Utilization and Performance................................................... 48 6.5. ALTFP_SQRT Design Example: Square Root of Single-Precision Format Numbers.......... 49 6.5.1. ALTFP_SQRT Design Example: Understanding the Simulation Results.............. 49 6.6. ALTFP_SQRT Signals.............................................................................................50 6.7. ALTFP_SQRT Parameters....................................................................................... 51 7. ALTFP_EXP IP Core....................................................................................................... 52 7.1. ALTFP_EXP Features............................................................................................. 52 7.2. Output Latency....................................................................................................52 7.3. ALTFP_EXP Truth Table..........................................................................................52 7.4. ALTFP_EXP Resource Utilization and Performance..................................................... 53 7.5. ALTFP_EXP Design Example: Exponential of Single-Precision Format Numbers..............53 7.5.1. ALTFP_EXP Design Example: Understanding the Simulation Results................ 53 7.6. ALTFP_EXP Signals............................................................................................... 55 7.7. ALTFP_EXP Parameters......................................................................................... 56 8. ALTFP_INV IP Core....................................................................................................... 57 8.1. ALTFP_INV Features............................................................................................. 57 8.2. Output Latency....................................................................................................57 8.3. ALTFP_INV Truth Table..........................................................................................57 8.4. ALTFP_INV Resource Utilization and Performance..................................................... 58 8.5. ALTFP_INV Design Example: Inverse of Single-Precision Format Numbers ...................58 8.5.1. ALTFP_INV Design Example: Understanding the Simulation Results.................58 8.6. Ports.................................................................................................................. 60 8.7. Parameters......................................................................................................... 60 9. ALTFP_INV_SQRT IP Core.............................................................................................62 9.1. ALTFP_INV_SQRT Features....................................................................................62 9.2. Output Latency....................................................................................................62 9.3. ALTFP_INV_SQRT Truth Table................................................................................ 62 9.4. ALTFP_INV_SQRT Resource Utilization and Performance............................................ 63 9.5. ALTFP_INV_SQRT Design Example: Inverse Square Root of Single-Precision Format Numbers .........................................................................................................63 9.5.1. ALTFP_INV_SQRT Design Example: Understanding the Simulation Results ...... 63 Send Feedback Floating-Point IP Cores User Guide 3 Contents 9.6. Ports.................................................................................................................. 65 9.7. Parameters......................................................................................................... 65 10. ALTFP_LOG................................................................................................................. 67 10.1. ALTFP_LOG Features...........................................................................................67 10.2. Output Latency.................................................................................................. 67 10.3. ALTFP_LOG Truth Table....................................................................................... 67 10.4. ALTFP_LOG Resource Utilization and Performance................................................... 68 10.5. ALTFP_LOG Design Example: Natural Logarithm of Single-Precision Format Numbers . 68 10.5.1. ALTFP_LOG Design Example: Understanding the Simulation Results.............. 69 10.6. Signals............................................................................................................. 70 10.7. Parameters....................................................................................................... 71 11. ALTFP_ATAN IP Core.................................................................................................. 72 11.1. Output Latency.................................................................................................. 72 11.2. ALTFP_ATAN Features......................................................................................... 72 11.3. ALTFP_ATAN Resource Utilization and Performance..................................................72 11.4. Ports................................................................................................................ 72 11.5. ALTFP_ATAN Parameters..................................................................................... 73 12. ALTFP_SINCOS IP Core............................................................................................... 74 12.1. ALTFP_SINCOS Features..................................................................................... 74 12.2. Output Latency.................................................................................................. 74 12.3. ALTFP_SINCOS Resource Utilization and Performance..............................................74 12.4. ALTFP_SINCOS Signals....................................................................................... 75 12.5. ALTFP_SINCOS Parameters..................................................................................75 13. ALTFP_ABS IP Core..................................................................................................... 77 13.1. ALTFP_ABS Features...........................................................................................77 13.2. ALTFP_ABS Output Latency................................................................................. 77 13.3. ALTFP_ABS Resource Utilization and Performance................................................... 77 13.4. ALTFP_ABS Design Example: Absolute Value of Multiplication Results........................ 78 13.4.1. ALTFP_ABS Design Example: Understanding the Simulation Results.............. 78 13.5. ALTFP_ABS Signals.............................................................................................79 13.6. ALTFP_ABS Parameters....................................................................................... 80 14. ALTFP_COMPARE IP Core............................................................................................ 82 14.1. ALTFP_COMPARE Features................................................................................... 82 14.2. ALTFP_COMPARE Output Latency..........................................................................82 14.3. ALTFP_COMPARE Resource Utilization and Performance........................................... 82 14.4. ALTFP_COMPARE Design Example: Comparison of Single-Precision Format Numbers... 83 14.4.1. ALTFP_COMPARE Design Example: Understanding the Simulation Results ..... 83 14.5. ALTFP_COMPARE Signals..................................................................................... 84 14.6. ALTFP_COMPARE Parameters............................................................................... 85 15. ALTFP_CONVERT IP Core............................................................................................ 86 15.1. ALTFP_CONVERT Features................................................................................... 86 15.2. ALTFP_CONVERT Conversion Operations................................................................86 15.3. ALTFP_CONVERT Output Latency.......................................................................... 87 15.4. ALTFP_CONVERT Resource Utilization and Performance........................................... 87 15.5. ALTFP_CONVERT Design Example: Convert Double-Precision Floating-Point Format Numbers............................................................................................... 89 15.5.1. ALTFP_CONVERT Design Example: Understanding the Simulation Results.......89 Floating-Point IP Cores User Guide 4 Send Feedback Contents 15.6. ALTFP_CONVERT Signals..................................................................................... 90 15.7. ALTFP_CONVERT Parameters............................................................................... 92 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core............94 16.1. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Features........ 96 16.2. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Output Latency........................................................................................................... 96 16.3. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Target Frequency........................................................................................................ 96 16.4. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Combined Target..............................................................................................................96 16.5. FP_FUNCTIONS Intel FPGA IP Resource Utilization and Performance..........................97 16.6. FP_FUNCTIONS Intel FPGA IP Signals..................................................................110 16.7. FP_FUNCTIONS Intel FPGA IP Parameters............................................................ 111 17. Floating-Point IP Cores User Guide Document Archives............................................ 115 18. Document Revision History for the Floating-Point IP Cores User Guide.....................116 Send Feedback Floating-Point IP Cores User Guide 5 UG-01058 | 2021.09.13 Send Feedback 1. About Floating-Point IP Cores Attention: Intel has discontinued the support for the following IPs: � ALTERA_FP_MATRIX_INV IP core � ALTERA_FP_MATRIX_MULT IP core Therefore, Intel does not recommend use of these IPs in new designs. For more information about Intel's current IP offering, refer to Intel's Intellectual Property website. The Intel floating-point IP cores enable you to perform floating-point arithmetic in FPGAs through optimized parameterizable functions for Intel device architectures. You can customize the IP cores by configuring various parameters to accommodate your needs. Related Information � Floating-Point IP Cores User Guide Document Archives on page 115 Provides a list of user guides for previous versions of the Floating-Point IP Cores. � Digital Signal Processing Overview 1.1. List of Floating-Point IP Cores Table 1. This table lists the floating-point IP cores. IP Cores Available in Intel� Quartus� Prime Standard Edition Software IP Core Name ALTFP_ADD_SUB ALTFP_DIV ALTFP_MULT ALTFP_SQRT Function Overview Operator Functions Adder/Subtractor Divider Multiplier Square Root Supported Device Arria� II GZ, Arria V, Arria V GZ, Intel� Cyclone� 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix� V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 IP Core Name ALTFP_EXP ALTFP_INV ALTFP_INV_SQRT ALTFP_LOG ALTFP_ATAN ALTFP_SINCOS ALTFP_ABS ALTFP_COMPARE ALTFP_CONVERT FP_ACC_CUSTOM Intel FPGA IP FP_FUNCTIONS Intel FPGA IP Function Overview Algebraic and Transcendental Functions Exponential Inverse Inverse Square Root Natural Logarithm Trigonometric Functions Arctangent Trigonometric Sine/Cosine Other Functions Absolute value Comparator Converter An application specific accumulator A collection of floating-point functions. Supported Device Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Arria II GX, Cyclone IV GX, Stratix V, and Stratix IV Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Intel Arria 10, Arria II GX, Cyclone IV GX, Stratix V, Stratix IV, and Intel MAX� 10 Arria II GZ, Arria V, Arria V GZ, Intel Cyclone 10 LP, Cyclone IV E, Cyclone V, Intel Arria 10, Arria II GX, Cyclone IV GX, Stratix V, Stratix IV, and Intel MAX 10 Send Feedback Floating-Point IP Cores User Guide 7 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Table 2. IP Cores Available in Intel Quartus� Prime Pro Edition Software IP Core Name Floating Point Functions Intel FPGA IP Floating Point Custom Accumulator Intel FPGA IP Function Overview A collection of floating-point functions. This IP core replaces all other floating- point IP cores listed in the Quartus Prime Standard Edition table for devices available in Intel Quartus� Prime Pro Edition software. An application specific accumulator Supported Device Intel Stratix 10, Intel Arria 10, Intel Cyclone 10 GX, and Intel AgilexTM Intel Cyclone 10 GX and Intel Arria 10 Related Information � Introduction to Intel FPGA IP Cores Provides more information about Intel FPGA IP Cores � Generating a Combined Simulator Setup Script (Intel Quartus Prime Pro Edition) Create simulation scripts that do not require manual updates for software or IP version upgrades. 1.2. Installing and Licensing Intel FPGA IP Cores The Intel Quartus Prime software installation includes the Intel FPGA IP library. This library provides many useful IP cores for your production use without the need for an additional license. Some Intel FPGA IP cores require purchase of a separate license for production use. The Intel FPGA IP Evaluation Mode allows you to evaluate these licensed Intel FPGA IP cores in simulation and hardware, before deciding to purchase a full production IP core license. You only need to purchase a full production license for licensed Intel IP cores after you complete hardware testing and are ready to use the IP in production. The Intel Quartus Prime software installs IP cores in the following locations by default: Figure 1. IP Core Installation Path intelFPGA(_pro) quartus - Contains the Intel Quartus Prime software ip - Contains the Intel FPGA IP library and third-party IP cores altera - Contains the Intel FPGA IP library source code <IP name> - Contains the Intel FPGA IP source files Table 3. IP Core Installation Locations Location <drive>:\intelFPGA_pro\quartus\ip\altera Software Intel Quartus Prime Pro Edition <drive>:\intelFPGA\quartus\ip\altera Intel Quartus Prime Standard Edition <home directory>:/intelFPGA_pro/quartus/ip/altera Intel Quartus Prime Pro Edition <home directory>:/intelFPGA/quartus/ip/altera Intel Quartus Prime Standard Edition Platform Windows* Windows Linux* Linux Note: The Intel Quartus Prime software does not support spaces in the installation path. Floating-Point IP Cores User Guide 8 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 1.3. Design Flow Use the IP Catalog and parameter editor to define and instantiate complex IP cores. Using the GUI ensures that you set all IP core ports and parameters properly. If you are an expert user, and choose to configure the IP core directly through parameterized instantiation in your design, refer to the port and parameter details. The details of these ports and parameters are hidden in the parameter editor. 1.3.1. IP Catalog and Parameter Editor The IP Catalog displays the IP cores available for your project, including Intel FPGA IP and other IP that you add to the IP Catalog search path. Use the following features of the IP Catalog to locate and customize an IP core: � Filter IP Catalog to Show IP for active device family or Show IP for all device families. If you have no project open, select the Device Family in IP Catalog. � Type in the Search field to locate any full or partial IP core name in IP Catalog. � Right-click an IP core name in IP Catalog to display details about supported devices, to open the IP core's installation folder, and for links to IP documentation. � Click Search for Partner IP to access partner IP information on the web. The parameter editor prompts you to specify an IP variation name, optional ports, and output file generation options. The parameter editor generates a top-level Intel Quartus Prime IP file (.ip) for an IP variation in Intel Quartus Prime Pro Edition projects. This file represents the IP variation in the project, and stores parameterization information.(1) (1) The parameter editor generates a top-level Quartus IP file (.qip) for an IP variation in Intel Quartus Prime Standard Edition projects. Send Feedback Floating-Point IP Cores User Guide 9 Figure 2. Example IP Parameter Editor 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Specify IP Parameters Generate IP Testbench, Template, or Example Design Parameter Presets for Specific Applications Generate IP HDL 1.3.1.1. The Parameter Editor The parameter editor helps you to configure IP core ports, parameters, and output file generation options. The basic parameter editor controls include the following: � Use the Presets window to apply preset parameter values for specific applications (for select cores). � Use the Details window to view port and parameter descriptions, and click links to documentation. � Click Generate Generate Testbench System to generate a testbench system (for select cores). � Click Generate Generate Example Design to generate an example design (for select cores). � Click Validate System Integrity to validate a system's generic components against companion files. (Platform Designer systems only) � Click Sync All System Info to validate a system's generic components against companion files. (Platform Designer systems only) The IP Catalog is also available in Platform Designer (View IP Catalog). The Platform Designer IP Catalog includes exclusive system interconnect, video and image processing, and other system-level IP that are not available in the Intel Quartus Prime IP Catalog. Refer to Creating a System with Platform Designer or Creating a System with Platform Designer (Standard) for information on use of IP in Platform Designer (Standard) and Platform Designer, respectively. Floating-Point IP Cores User Guide 10 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Related Information � Creating a System with Platform Designer � Creating a System with Platform Designer (Standard) 1.3.2. Specifying the IP Core Parameters and Options (Intel Quartus Prime Pro Edition) Quickly configure Intel FPGA IP cores in the Intel Quartus Prime parameter editor. Double-click any component in the IP Catalog to launch the parameter editor. The parameter editor allows you to define a custom variation of the IP core. The parameter editor generates the IP variation synthesis and optional simulation files, and adds the .ip file representing the variation to your project automatically. Follow these steps to locate, instantiate, and customize an IP core in the parameter editor: 1. Create or open an Intel Quartus Prime project (.qpf) to contain the instantiated IP variation. 2. In the IP Catalog (Tools IP Catalog), locate and double-click the name of the IP core to customize. To locate a specific component, type some or all of the component's name in the IP Catalog search box. The New IP Variation window appears. 3. Specify a top-level name for your custom IP variation. Do not include spaces in IP variation names or paths. The parameter editor saves the IP variation settings in a file named <your_ip>.ip. Click OK. The parameter editor appears. Figure 3. IP Parameter Editor (Intel Quartus Prime Pro Edition) Send Feedback Floating-Point IP Cores User Guide 11 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 4. Set the parameter values in the parameter editor and view the block diagram for the component. The Parameterization Messages tab at the bottom displays any errors in IP parameters: � Optionally, select preset parameter values if provided for your IP core. Presets specify initial parameter values for specific applications. � Specify parameters defining the IP core functionality, port configurations, and device-specific features. � Specify options for processing the IP core files in other EDA tools. Note: Refer to your IP core user guide for information about specific IP core parameters. 5. Click Generate HDL. The Generation dialog box appears. 6. Specify output file generation options, and then click Generate. The synthesis and simulation files generate according to your specifications. 7. To generate a simulation testbench, click Generate Generate Testbench System. Specify testbench generation options, and then click Generate. 8. To generate an HDL instantiation template that you can copy and paste into your text editor, click Generate Show Instantiation Template. 9. Click Finish. Click Yes if prompted to add files representing the IP variation to your project. 10. After generating and instantiating your IP variation, make appropriate pin assignments to connect ports. Note: Some IP cores generate different HDL implementations according to the IP core parameters. The underlying RTL of these IP cores contains a unique hash code that prevents module name collisions between different variations of the IP core. This unique code remains consistent, given the same IP settings and software version during IP generation. This unique code can change if you edit the IP core's parameters or upgrade the IP core version. To avoid dependency on these unique codes in your simulation environment, refer to Generating a Combined Simulator Setup Script. 1.3.2.1. IP Core Generation Output (Intel Quartus Prime Pro Edition) The Intel Quartus Prime software generates the following output file structure for individual IP cores that are not part of a Platform Designer system. Floating-Point IP Cores User Guide 12 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Figure 4. Individual IP Core Generation Output (Intel Quartus Prime Pro Edition) <Project Directory> <your_ip>.ip - Top-level IP variation file <your_ip> - IP core variation files <your_ip>.bsf - Block symbol schematic file <your_ip>.cmp - VHDL component declaration <your_ip>.ppf - XML I/O pin information file <your_ip>.qip - Lists files for IP core synthesis <your_ip>.spd - Simulation startup scripts <your_ip>_bb.v - Verilog HDL black box EDA synthesis file * <your_ip>_generation.rpt - IP generation report <your_ip>_inst.v or .vhd - Lists file for IP core synthesis <your_ip>.qgsimc - Simulation caching file (Platform Designer) <your_ip>.qgsynthc - Synthesis caching file (Platform Designer) sim - IP simulation files <your_ip>.v or vhd - Top-level simulation file <simulator vendor> - Simulator setup scripts <simulator_setup_scripts> synth - IP synthesis files <your_ip>.v or .vhd - Top-level IP synthesis file <IP Submodule>_<version> - IP Submodule Library sim- IP submodule 1 simulation files <HDL files> synth - IP submodule 1 synthesis files <HDL files> <your_ip>_tb - IP testbench system * <your_testbench>_tb.qsys - testbench system file <your_ip>_tb - IP testbench files your_testbench> _tb.csv or .spd - testbench file sim - IP testbench simulation files * If supported and enabled for your IP core variation. Table 4. Output Files of Intel FPGA IP Generation File Name Description <your_ip>.ip Top-level IP variation file that contains the parameterization of an IP core in your project. If the IP variation is part of a Platform Designer system, the parameter editor also generates a .qsys file. <your_ip>.cmp The VHDL Component Declaration (.cmp) file is a text file that contains local generic and port definitions that you use in VHDL design files. <your_ip>_generation.rpt IP or Platform Designer generation log file. Displays a summary of the messages during IP generation. continued... Send Feedback Floating-Point IP Cores User Guide 13 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 File Name Description <your_ip>.qgsimc (Platform Designer systems only) Simulation caching file that compares the .qsys and .ip files with the current parameterization of the Platform Designer system and IP core. This comparison determines if Platform Designer can skip regeneration of the HDL. <your_ip>.qgsynth (Platform Designer systems only) Synthesis caching file that compares the .qsys and .ip files with the current parameterization of the Platform Designer system and IP core. This comparison determines if Platform Designer can skip regeneration of the HDL. <your_ip>.qip Contains all information to integrate and compile the IP component. <your_ip>.csv Contains information about the upgrade status of the IP component. <your_ip>.bsf A symbol representation of the IP variation for use in Block Diagram Files (.bdf). <your_ip>.spd Input file that ip-make-simscript requires to generate simulation scripts. The .spd file contains a list of files you generate for simulation, along with information about memories that you initialize. <your_ip>.ppf The Pin Planner File (.ppf) stores the port and node assignments for IP components you create for use with the Pin Planner. <your_ip>_bb.v Use the Verilog blackbox (_bb.v) file as an empty module declaration for use as a blackbox. <your_ip>_inst.v or _inst.vhd HDL example instantiation template. Copy and paste the contents of this file into your HDL file to instantiate the IP variation. <your_ip>.regmap If the IP contains register information, the Intel Quartus Prime software generates the .regmap file. The .regmap file describes the register map information of master and slave interfaces. This file complements the .sopcinfo file by providing more detailed register information about the system. This file enables register display views and user customizable statistics in System Console. <your_ip>.svd Allows HPS System Debug tools to view the register maps of peripherals that connect to HPS within a Platform Designer system. During synthesis, the Intel Quartus Prime software stores the .svd files for slave interface visible to the System Console masters in the .sof file in the debug session. System Console reads this section, which Platform Designer queries for register map information. For system slaves, Platform Designer accesses the registers by name. <your_ip>.v <your_ip>.vhd HDL files that instantiate each submodule or child IP core for synthesis or simulation. mentor/ Contains a msim_setup.tcl script to set up and run a ModelSim* simulation. aldec/ Contains a Riviera-PRO* script rivierapro_setup.tcl to setup and run a simulation. /synopsys/vcs /synopsys/vcsmx Contains a shell script vcs_setup.sh to set up and run a VCS* simulation. Contains a shell script vcsmx_setup.sh and synopsys_sim.setup file to set up and run a VCS MX simulation. /cadence Contains a shell script ncsim_setup.sh and other setup files to set up and run an NCSim simulation. /xcelium Contains an Xcelium* Parallel simulator shell script xcelium_setup.sh and other setup files to set up and run a simulation. /submodules Contains HDL files for the IP core submodule. <IP submodule>/ Platform Designer generates /synth and /sim sub-directories for each IP submodule directory that Platform Designer generates. Floating-Point IP Cores User Guide 14 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 1.3.3. Generating IP Cores (Intel Quartus Prime Standard Edition) This topic describes parameterizing and generating an IP variation using a legacy parameter editor in the Intel Quartus Prime Standard Edition software. Figure 5. Legacy Parameter Editors Note: 1. In the IP Catalog (Tools IP Catalog), locate and double-click the name of the IP core to customize. The parameter editor appears. 2. Specify a top-level name and output HDL file type for your IP variation. This name identifies the IP core variation files in your project. Click OK. Do not include spaces in IP variation names or paths. 3. Specify the parameters and options for your IP variation in the parameter editor. Refer to your IP core user guide for information about specific IP core parameters. 4. Click Finish or Generate (depending on the parameter editor version). The parameter editor generates the files for your IP variation according to your specifications. Click Exit if prompted when generation is complete. The parameter editor adds the top-level .qip file to the current project automatically. For devices released prior to Intel Arria 10 devices, the generated .qip and .sip files must be added to your project to represent IP and Platform Designer systems. To manually add an IP variation generated with legacy parameter editor to a project, click Project Add/Remove Files in Project and add the IP variation .qip file. 1.4. Upgrading IP Cores Any Intel FPGA IP variations that you generate from a previous version or different edition of the Intel Quartus Prime software, may require upgrade before compilation in the current software edition or version. The Project Navigator displays a banner indicating the IP upgrade status. Click Launch IP Upgrade Tool or Project Upgrade IP Components to upgrade outdated IP cores. Send Feedback Floating-Point IP Cores User Guide 15 Figure 6. IP Upgrade Alert in Project Navigator 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Icons in the Upgrade IP Components dialog box indicate when IP upgrade is required, optional, or unsupported for an IP variation in the project. Upgrade IP variations that require upgrade before compilation in the current version of the Intel Quartus Prime software. Note: Upgrading IP cores may append a unique identifier to the original IP core entity names, without similarly modifying the IP instance name. There is no requirement to update these entity references in any supporting Intel Quartus Prime file, such as the Intel Quartus Prime Settings File (.qsf), Synopsys* Design Constraints File (.sdc), or Signal Tap File (.stp), if these files contain instance names. The Intel Quartus Prime software reads only the instance name and ignores the entity name in paths that specify both names. Use only instance names in assignments. Table 5. IP Core Upgrade Status IP Core Status IP Upgraded Description Indicates that your IP variation uses the latest version of the Intel FPGA IP core. IP Component Outdated Indicates that your IP variation uses an outdated version of the IP core. IP Upgrade Optional IP Upgrade Required Indicates that upgrade is optional for this IP variation in the current version of the Intel Quartus Prime software. You can upgrade this IP variation to take advantage of the latest development of this IP core. Alternatively, you can retain previous IP core characteristics by declining to upgrade. Refer to the Description for details about IP core version differences. If you do not upgrade the IP, the IP variation synthesis and simulation files are unchanged and you cannot modify parameters until upgrading. Indicates that you must upgrade the IP variation before compiling in the current version of the Intel Quartus Prime software. Refer to the Description for details about IP core version differences. continued... Floating-Point IP Cores User Guide 16 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 IP Core Status Description IP Upgrade Unsupported IP End of Life Indicates that upgrade of the IP variation is not supported in the current version of the Intel Quartus Prime software due to incompatibility with the current version of the Intel Quartus Prime software. The Intel Quartus Prime software prompts you to replace the unsupported IP core with a supported equivalent IP core from the IP Catalog. Refer to the Description for details about IP core version differences and links to Release Notes. Indicates that Intel designates the IP core as end-of-life status. You may or may not be able to edit the IP core in the parameter editor. Support for this IP core discontinues in future releases of the Intel Quartus Prime software. IP Upgrade Mismatch Warning Provides warning of non-critical IP core differences in migrating IP to another device family. IP has incompatible subcores Indicates that the current version of the Intel Quartus Prime software does not support compilation of your IP variation, because the IP has incompatible subcores Compilation of IP Not Supported Indicates that the current version of the Intel Quartus Prime software does not support compilation of your IP variation. This can occur if another edition of the Intel Quartus Prime software, such as the Intel Quartus Prime Standard Edition, generated this IP. Replace this IP component with a compatible component in the current edition. Send Feedback Floating-Point IP Cores User Guide 17 Note: 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Beginning with the Intel Quartus Prime Pro Edition software version 19.1, IP upgrade supports migration of IP released within one year of the Intel Quartus Prime Pro Edition software version, as the following chart defines: Figure 7. Intel Quartus Prime Pro Edition IP Version Upgrade Paths Upgrade IP from Intel Quartus Prime Version Directly to Version 18.0 18.1 19.1 18.0 18.1 19.1 19.2 18.1 19.1 19.2 19.3 18.1 19.1 19.2 19.3 19.4 19.1 19.2 19.3 19.4 20.1 19.2 19.3 19.4 20.1 20.2 19.3 19.4 20.1 20.2 20.3 19.4 20.1 20.2 20.3 20.4 20.1 20.2 20.3 20.4 21.1 20.2 20.3 20.4 21.1 21.2 20.3 20.4 21.1 21.2 21.3 Follow these steps to upgrade IP cores: 1. In the latest version of the Intel Quartus Prime software, open the Intel Quartus Prime project containing an outdated IP core variation. The Upgrade IP Components dialog box automatically displays the status of IP cores in your project, along with instructions for upgrading each core. To access this dialog box manually, click Project Upgrade IP Components. 2. To upgrade one or more IP cores that support automatic upgrade, ensure that you turn on the Auto Upgrade option for the IP cores, and click Auto Upgrade. The Status and Version columns update when upgrade is complete. Example designs that any Intel FPGA IP core provides regenerate automatically whenever you upgrade an IP core. 3. To manually upgrade an individual IP core, select the IP core and click Upgrade in Editor (or simply double-click the IP core name). The parameter editor opens, allowing you to adjust parameters and regenerate the latest version of the IP core. Floating-Point IP Cores User Guide 18 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Figure 8. Upgrading IP Cores (Intel Quartus Prime Pro Edition Example) Opens Parameter Editor for Manual IP Upgrade Generates/Updates Combined Simulation Setup Script for IP Runs "Auto Upgrade" on all Outdated Cores Note: Intel FPGA IP cores older than Intel Quartus Prime software version 12.0 do not support upgrade. Intel verifies that the current version of the Intel Quartus Prime software compiles the previous two versions of each IP core. The Intel FPGA IP Core Release Notes reports any verification exceptions for Intel FPGA IP cores. Intel does not verify compilation for IP cores older than the previous two releases. Related Information Intel FPGA IP Release Notes 1.4.1. Migrating IP Cores to a Different Device Migrate an Intel FPGA IP variation when you want to target a different (often newer) device. Most Intel FPGA IP cores support automatic migration. Some IP cores require manual IP regeneration for migration. A few IP cores do not support device migration, requiring you to replace them in the project. The Upgrade IP Components dialog box identifies the migration support level for each IP core in the design. 1. To display the IP cores that require migration, click Project Upgrade IP Components. The Description field provides migration instructions and version differences. 2. To migrate one or more IP cores that support automatic upgrade, ensure that the Auto Upgrade option is turned on for the IP cores, and click Perform Automatic Upgrade. The Status and Version columns update when upgrade is complete. 3. To migrate an IP core that does not support automatic upgrade, double-click the IP core name, and click OK. The parameter editor appears. If the parameter editor specifies a Currently selected device family, turn off Match project/default, and then select the new target device family. Send Feedback Floating-Point IP Cores User Guide 19 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 4. Click Generate HDL, and confirm the Synthesis and Simulation file options. Verilog HDL is the default output file format. If you specify VHDL as the output format, select VHDL to retain the original output format. 5. Click Finish to complete migration of the IP core. Click OK if the software prompts you to overwrite IP core files. The Device Family column displays the new target device name when migration is complete. 6. To ensure correctness, review the latest parameters in the parameter editor or generated HDL. Note: IP migration may change ports, parameters, or functionality of the IP variation. These changes may require you to modify your design or to reparameterize your IP variant. During migration, the IP variation's HDL generates into a library that is different from the original output location of the IP core. Update any assignments that reference outdated locations. If a symbol in a supporting Block Design File schematic represents your upgraded IP core, replace the symbol with the newly generated <my_ip>.bsf. Migration of some IP cores requires installed support for the original and migration device families. Related Information Intel FPGA IP Release Notes 1.5. Floating-Point IP Cores General Features All Intel FPGA floating-point IP cores offer the following features: � Support for floating-point formats. � Input support for not-a-number (NaN), infinity, zero, and normal numbers. � Optional asynchronous input ports including asynchronous clear (aclr) and clock enable (clk_en). � Support for round-to-nearest-even rounding mode. � Compute results of any mathematical operations according to the IEEE-754 standard compliance with a maximum of 1 unit in the last place (u.l.p.) error. This assumption is applied to all floating-point IP cores. Intel FPGA floating-point IP cores do not support denormal number inputs. If the input is a denormal value, the IP core forces the value to zero and treats the value as a zero before going through any operation. Related Information FFT IP Core: User Guide Intel also offers the single-precision floating-point option in the FFT IP core. 1.6. IEEE-754 Standard for Floating-Point Arithmetic The floating-point IP cores implement the following representations in the IEEE-754 standard: Floating-Point IP Cores User Guide 20 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 � Floating-point numbers � Special values (zero, infinity, denormal numbers, and NaN bit combinations) � Single-precision, double-precision, and single-extended precision formats for floating-point numbers 1.6.1. Floating-Point Formats All floating-point formats have binary patterns. In the following figure, S represents a sign bit, E represents an exponent field, and M is the mantissa (part of a logarithm, or fraction) field. For a normal floating-point number, a leading 1 is always implied, for example, binary 1.0011 or decimal 1.1875 is stored as 0011 in the mantissa field. This format saves the mantissa field from using an extra bit to represent the leading 1. However, the leading bit for a denormal number can be either 0 or 1. For zero, infinity, and NaN, the mantissa field does not have an implied leading 1 nor any explicit leading bit. Figure 9. IEEE-754 Floating-Point Format This figure shows a floating-point format. S E M 1.6.1.1. Single-Precision Format The single-precision format contains the following binary patterns: � The MSB holds the sign bit. � The next 8 bits hold the exponent bits. � 23 LSBs hold the mantissa. The total width of a floating-point number in the single-precision format is 32 bits. The bias for the single-precision format is 127. Figure 10. Single-Precision Representation This figure shows a single-precision representation. 31 30 23 22 0 S E M 1.6.1.2. Double-Precision Format The double-precision format contains the following binary patterns: � The MSB holds the sign bit. � The next 11 bits hold the exponent bits. � 52 LSBs hold the mantissa. The total width of a floating-point number in the double-precision format is 64 bits. The bias for the double-precision format is 1023. Send Feedback Floating-Point IP Cores User Guide 21 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Figure 11. Double-Precision Representation This figure shows a double-precision representation. 63 62 52 51 0 S E M 1.6.1.3. Single-Extended Precision Format The single-extended precision format contains the following binary patterns: � The MSB holds the sign bit. � The exponent and mantissa fields do not have fixed widths. � The minimum exponent field width is 11 bits and must be less than the width of the mantissa field. � The width of the mantissa field must be a minimum of 31 bits. The sum of the widths of the sign bit, exponent field, and mantissa field must be a minimum of 43 bits and a maximum of 64 bits. The bias for the single-extended precision format is unspecified in the IEEE-754 standard. In these IP cores, a bias of 2(WIDTH_EXP�1)�1 is assumed for the single-extended precision format. 1.6.2. Special Case Numbers The following table lists the special case numbers defined by the IEEE-754 standard and the data bit representations. Table 6. Special Case Numbers in IEEE-754 Representation Meaning Zero Positive Denormalized Negative Denormalized Positive Infinity Negative Infinity Not-a-Number (NaN) Sign Field Don't care 0 1 0 1 Don't care Exponent Field All 0's All 0's All 0's All 1's All 1's All 1's Mantissa Field All 0's Non-zero Non-zero All 0's All 0's Non-zero 1.6.3. Rounding The IEEE-754 standard defines four types of rounding modes, which are: � round-to-nearest-even � round-toward-zero � round-toward-positive-infinity � round-toward-negative-infinity Floating-Point IP Cores User Guide 22 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Intel floating-point IP cores support only the most commonly used rounding mode, which is the round-to-nearest-even mode (TO_NEAREST). With round-to-nearesteven, the IP core rounds the result to the nearest floating-point number. If the result is exactly halfway between two floating-point numbers, the IP core rounds the result so that the LSB becomes a zero, which is even. 1.7. Non-IEEE-754 Standard Format Only the ALTFP_CONVERT and FP_FUNCTIONS Intel FPGA IP (when the convert function is selected) support the fixed point format. The fixed-point data type is similar to the conventional integer data type, except that the fixed-point data carries a predetermined number of fractional bits. If the width of the fraction is 0, the data becomes a normal signed integer. The notation for fixed-point format numbers in this user guide is Qm.f, where Q designates that the number is in Q format notation, m is the number of bits used to indicate the integer portion of the number, and f is the number of bits used to indicate the fractional portion of the number. For example, Q4.12 describes a number with 4 integer bits and 12 fractional bits in a 16-bit word. The following figures show the difference between the signed-integer format and the fixed-point format for a 32-bit number. Figure 12. Signed-Integer Format 31 Sbiigt n 0 Integer bits Figure 13. Fixed-Point Format 31 Sbiigt n Integer bits 0 Fraction bits 1.8. Floating-Points IP Cores Output Latency The IP cores measure the output latency in clock cycles and is different for each IP core. In some IP cores, the precision modes determine the number of clock cycles between the input and output result. When you select a mode, the options for latency are fixed for that mode. For specific details about latency options, refer to the Output Latency section of your selected IP core in this user guide. 1.9. Floating-Point IP Cores Design Example Files The design examples for each IP core in this user guide use the IP Catalog and parameter editor to define custom IP variations. Send Feedback Floating-Point IP Cores User Guide 23 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 Simulate the designs in the ModelSim - Intel FPGA Edition software to generate a waveform display of the device behavior. You must be familiar with the ModelSim Intel FPGA Edition software before trying out the design examples. Table 7. Design Files for Floating-Point IP Cores Floating-Point IP Cores ALTFP_ADD_SUB Design Files � altfp_add_sub_DesignExample.zip (Intel Quartus Prime design files) � altfp_add_sub_ex_msim.zip (ModelSim - Intel FPGA Edition files) ALTFP_DIV ALTFP_MULT � altfp_div_DesignExample.zip (Intel Quartus Prime design files) � altfp_div_ex_msim.zip (ModelSim - Intel FPGA Edition files) � altfp_mult_DesignExample.zip (Intel Quartus Prime design files) � altfp_mult_ex_msim.zip (ModelSim - Intel FPGA Edition files) ALTFP_SQRT � altfp_sqrt_DesignExample.zip (Intel Quartus Prime design files) � altfp_sqrt_ex_msim.zip (ModelSim - Intel FPGA Edition files) ALTFP_EXP ALTFP_INV � altfp_exp_DesignExample.zip (Intel Quartus Prime design files) � altfp_exp_ex_msim.zip (ModelSim - Intel FPGA Edition files) � altfp_inv_DesignExample.zip (Intel Quartus Prime design files) � altfp_inv_ex_msim.zip (ModelSim - Intel FPGA Edition files) ALTFP_INV_SQRT ALTFP_LOG � altfp_inv_sqrt_DesignExample.zip (Intel Quartus Prime design files) � altfp_inv_sqrt_ex_msim.zip (ModelSim - Intel FPGA Edition files) � altfp_log_DesignExample.zip (Intel Quartus Prime design files) � altfp_log_ex_msim.zip (ModelSim - Intel FPGA Edition files) ALTFP_ATAN ALTFP_SINCOS ALTFP_ABS ALTFP_COMPARE Not Available Not Available � altfp_mult_abs_DesignExample.zip (Intel Quartus Prime design files) � altfp_mult_abs_ex_msim.zip (ModelSim - Intel FPGA Edition files) � altfp_compare_DesignExample.zip (Intel Quartus Prime design files) � altfp_compare_ex_msim.zip (ModelSim - Intel FPGA Edition files) ALTFP_CONVERT � altfp_convert_DesignExample.zip (Intel Quartus Prime design files) � altfp_convert_float2int_msim.zip (ModelSim - Intel FPGA Edition files) FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Not Available Not Available Related Information � ALTFP_ADD_SUB Design Example: Addition of Double-Precision Format Numbers on page 32 � ALTFP_DIV Design Example: Division of Single-Precision on page 38 � ALTFP_MULT Design Example: Multiplication of Double-Precision Format Numbers on page 44 � ALTFP_SQRT Design Example: Square Root of Single-Precision Format Numbers on page 49 Floating-Point IP Cores User Guide 24 Send Feedback 1. About Floating-Point IP Cores UG-01058 | 2021.09.13 � ALTFP_EXP Design Example: Exponential of Single-Precision Format Numbers on page 53 � ALTFP_INV Design Example: Inverse of Single-Precision Format Numbers on page 58 � ALTFP_INV_SQRT Design Example: Inverse Square Root of Single-Precision Format Numbers on page 63 � ALTFP_LOG Design Example: Natural Logarithm of Single-Precision Format Numbers on page 68 � ALTFP_ABS Design Example: Absolute Value of Multiplication Results on page 78 � ALTFP_COMPARE Design Example: Comparison of Single-Precision Format Numbers on page 83 � ALTFP_CONVERT Design Example: Convert Double-Precision Floating-Point Format Numbers on page 89 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 1.10. VHDL Component Declaration The VHDL component declaration is located in the <Intel Quartus Prime installation directory>\libraries\vhdl\altera_mf \altera_mf_components.vhd 1.11. VHDL LIBRARY-USE Declaration The VHDL LIBRARY-USE declaration is not required if you use the VHDL Component Declaration. LIBRARY altera_mf; USE altera_mf.altera_mf_components.all; Send Feedback Floating-Point IP Cores User Guide 25 UG-01058 | 2021.09.13 Send Feedback 2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Core This IP core performs floating-point accumulation and allows you to restrict the range of inputs and maximum accumulated value to save resources. The core uses device latency models to generate RTL to meet a target FMax at the cost of latency. Table 8. Floating Point Custom Accumulator Intel FPGA IP Release Information Item Description Version 19.1 Intel Quartus Prime Version 20.1 Release Date 2020.04.13 2.1. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Features The FPACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP core offers the following features: � Supports frequency driven cores. � Supports VHDL RTL generation. � Supports customization of the required range of the input and output values. 2.2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Output Latency The amount of latency is driven by the target frequency and the selected device family. You must set the desired frequency and the target device before generating the IP core. The IP core reports the latency when you set the parameters and when you generate the IP core. Then, use the reported latency to incorporate the IP core into your design. 2.3. FP_ACC_CUSTOM Intel FPGA IP Resource Utilization and Performance Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Core UG-01058 | 2021.09.13 Table 9. FP_ACC_CUSTOM Intel FPGA IP Resource Utilization and Performance This table lists the resource utilization and performance information for the FP_ACC_CUSTOM Intel FPGA IP core. The information was derived using the Intel Quartus Prime software version 13.1. Device Input Data Family Floatin g Point Forma t MaxM SBX Accumulator Size MSBA LSBA Target Latenc Freque y ncy (MHz) ALMs DSP Blocks Logic Registers Primar Secon y dary M10K M20K fMAX Arria Doubl 24 40 -52 270 15 866 0 1,166 106 0 V e (5AGX FB3H4 F40C5 ) -- 265 Cyclon Doubl 24 40 -52 230 15 830 0 1,102 32 0 -- 198 e V e (5CGX FC7D6 F31C7 ) Strati Doubl 24 40 -52 400 15 968 0 1,655 27 -- x V e (5SGX EA7K2 F40C2 ) 0 426 Arria Single 12 20 -26 270 12 337 0 588 52 0 -- 309 V (5AGX FB3H4 F40C5 ) Cyclon Single 12 20 -26 230 12 383 0 494 28 0 -- 225 e V (5CGX FC7D6 F31C7 ) Strati Single 12 x V (5SGX EA7K2 F40C2 ) 20 -26 400 13 475 0 903 20 -- 0 450 Related Information Fitter Resources Reports Provides information about Intel Quartus Prime resource utilization 2.4. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Signals Send Feedback Floating-Point IP Cores User Guide 27 2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Core UG-01058 | 2021.09.13 Figure 14. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP FP_ACC_CUSTOM Intel FPGA IP clk r areset xo x n xu ao en Table 10. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Input Ports Port Name Required Description clk Yes All input signals, otherwise explicitly stated, must be synchronous to this clock areset Yes Asynchronous active-high reset. Deassert this signal synchronously to the input clock to avoid metastability issues. en No Global enable signal. This port is optional. x Yes Data input port. n Yes Boolean port which signals the beginning of a new data set to be accumulated. This should go high together with the first element in the new data set and should go low the next cycle. The data sets may be of variable length and a new data set may be started at any time. The accumulation result for an input is available after the reported latency. Table 11. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Output Ports Port Name r Required Yes Description The running value of the accumulation. xo Yes The overflow flag for port x. The signal goes high when the exponent of the input x is larger than maxMSBX. The signal remains high for the entire data set. This flag invalidates port r. You should consider increasing maxMSBX. This flag also indicate infinity and NaN. xu Yes The underflow flag for port x. The signal goes high when the exponent of the input x is smaller than LSBA. The signal remains high for the entire data set. This flag does not invalidate port r. You should consider lowering LSBA. ao Yes The overflow flag for Accumulator. The signal goes high when the exponent of the accumulated value is larger than MSBA. The signal remains high for the entire data set. This flag invalidates port r. You should consider increasing MSBA. Floating-Point IP Cores User Guide 28 Send Feedback 2. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Core UG-01058 | 2021.09.13 2.5. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Parameters Table 12. FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP Parameters Category Input Data Accumulator Size Required Performance Optional Report Parameter Values Description Floating point format single, double Choose the floating point format of the input data values. The output data values of the accumulator is in the same format. The default is single. maxMSBX -- The maximum weight of the MSB of an input. For example, when adding probabilities in the 0 to 1 range set this weight to ceil(log2(1))=0. The xo output signal goes high when the MSB of an input value has a weight larger than maxMSBX. The result of the accumulation is then invalid. If you are unsure about the range of the inputs, then set the maxMSBX parameter to MSBA, at the possible expense of increased resource usage. The default value is 12. MSBA -- The weight of the MSB of the accumulator. For example, in a financial simulation, if the value of a stock cannot exceed 100,000 dollars, use a value of ceil(log2(100000))=17. In a circuit simulation where the circuit adds numbers in the 0 to 1 range, for one year, at 400 MHz, use a value of ceil(log2(365 x 60 x 60 x 24 x 400 x 106))=54. The ao output signal goes high when the MSB of the accumulated value has a weight larger than MSBA. The result of the accumulation is then invalid. Intel recommends adding a few guard bits to avoid possible accumulator overflow. A few guard bits have little impact on the accumulator size. The default value is 20. LSBA -- The weight of the LSB of the accumulator and the accuracy of the accumulator. Because an N term accumulation can invalidate the log2(N) LSBs of the accumulator, you must consider the length of the accumulation and the range of the inputs when setting this parameter. For example, if a 2-30 accuracy is required over an accumulation of 1024 numbers, then set the LSBA to: (-30 - log2(1024)) = -40. Any input 2e�1.F, where F is the mantissa and e is less than the LSBA will be shifted out of the accumulator. The au output signal goes high to indicate this situation. The default value is -26. Target frequency Any positive integer value. Choose the frequency in MHz at which this core is expected to run. This together with the target device family determines the amount of pipelining in the core. The default value is 200 MHz. Generate an enable port -- Choose if the accumulator should have an enable signal. This parameter is disabled by default. -- -- Reports the latency of the device, which is the number of cycles it takes for an accumulation to propagate through the block from input to output. Send Feedback Floating-Point IP Cores User Guide 29 UG-01058 | 2021.09.13 Send Feedback 3. ALTFP_ADD_SUB IP Core This IP core allows you to perform floating-point addition or subtraction between two inputs dynamically. 3.1. ALTFP_ADD_SUB Features The ALTFP_ADD_SUB IP core offers the following features: � Dynamically configurable adder and subtracter functions. � Optional exception handling output ports such as zero, overflow, underflow, and nan. � Optimization of speed and area. 3.2. ALTFP_ADD_SUB Output Latency The output latency options for the ALTFP_ADD_SUB IP core are the same for all three precision formats--single, double, and single-extended. The options available are 7, 8, 9, 10, 11, 12, 13, and 14 clock cycles. 3.3. ALTFP_ADD_SUB Truth Table Table 13. Truth Table for Addition/Subtraction Operations DATAA[] DATAB[] SIGN BIT RESULT[] Overflow Underflow Normal Normal 0 Zero 0 0 Normal Normal 0/1 Normal 0 0 Normal Normal 0/1 Denormal 0 1 Normal Normal 0/1 Infinity 1 0 Normal Denormal 0/1 Normal 0 0 Normal Zero 0/1 Normal 0 0 Normal Infinity 0/1 Infinity 1 0 Normal NaN X NaN 0 0 Denormal Normal 0/1 Normal 0 0 Denormal Denormal 0/1 Normal 0 0 Denormal Zero 0/1 Zero 0 0 Denormal Infinity 0/1 Infinity 1 0 Zero 1 0 1 0 0 0 0 0 0 0 1 0 NaN 0 0 0 0 0 0 0 1 0 0 0 0 continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 3. ALTFP_ADD_SUB IP Core UG-01058 | 2021.09.13 DATAA[] Denormal Zero Zero Zero Zero Zero Infinity Infinity Infinity Infinity Infinity NaN NaN NaN NaN NaN DATAB[] NaN Normal Denormal Zero Infinity NaN Normal Denormal Zero Infinity NaN Normal Denormal Zero Infinity NaN SIGN BIT X 0/1 0/1 0/1 0/1 X 0/1 0/1 0/1 0/1 X X X X X X RESULT[] NaN Normal Zero Zero Infinity NaN Infinity Infinity Infinity Infinity NaN NaN NaN NaN NaN NaN Overflow 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0 Underflow 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Zero 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 NaN 1 0 0 0 0 1 0 0 0 0 1 1 1 1 1 1 3.4. ALTFP_ADD_SUB Resource Utilization and Performance The following lists the resource utilization and performance information for the ALTFP_ADD_SUB IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 14. ALTFP_ADD_SUB Resource Utilization and Performance for the Stratix Series of Devices Device Family Stratix IV Precision Optimization Output latency single speed 7 14 area 7 14 double speed 7 14 area 7 14 Adaptive Look-Up Tables (ALUTs) 594 674 576 596 1,198 997 1,106 904 Dedicated Logic Registers (DLRs) 376 686 345 603 687 1,607 630 1,518 Adaptive Logic Modules (ALMs) 385 498 375 421 824 1,080 762 1,013 fMAX (MHz) 228 495 227 484 187 398 189 265 Send Feedback Floating-Point IP Cores User Guide 31 3. ALTFP_ADD_SUB IP Core UG-01058 | 2021.09.13 3.5. ALTFP_ADD_SUB Design Example: Addition of Double-Precision Format Numbers This design example uses the ALTFP_ADD_SUB IP core to perform the addition of double-precision format numbers using the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 3.5.1. ALTFP_ADD_SUM Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. Figure 15. ALTFP_ADD_SUB Simulation Waveform This design example implements a floating-point adder for the addition of doubleprecision format numbers. All the optional input ports (clk_en and aclr) and optional output ports (overflow, underflow, zero, and nan) are enabled. In this example, the output latency of the multiplier is set to 7 clock cycles. Every addition result appears at the result[] port 7 clock cycles after the input values are captured on the dataa[] and datab[] ports. The following lists the inputs and corresponding outputs obtained from the simulation waveform. Table 15. Summary of Input Values and Corresponding Outputs Time Event 0 ns, start-up dataa[] value: 0000 0000 0000 0000h datab[] value: 7FF0 0000 0000 0000h Output value: All values seen on the output port before the 7th clock cycle are merely due to the behavior of the system during startup and should be disregarded. 4250 ns Output value: 7FF0 0000 0000 0000h Exception handling ports: overflow asserts The addition of zero at the input port dataa[], and infinity value at the input port datab[] results in infinity value. 40,511 ns dataa[] value: 0000 0000 0000 0000h continued... Floating-Point IP Cores User Guide 32 Send Feedback 3. ALTFP_ADD_SUB IP Core UG-01058 | 2021.09.13 Time 43,750 ns Event datab[] value: 0000 0000 1000 0123h The is the addition of a zero and a denormal value. Output value: 0000 0000 0000 0000h Exception handling ports: zero remains asserted. Denormal inputs are not supported and are forced to zero before addition takes place.This results in a zero. 3.6. ALTFP_ADD_SUB Signals Figure 16. ALTFP_ADD_SUB ALTFP_ADD_SUB dataa[] result[] datab[] overflow add_sub underflow zero clk_en nan clock aclr inst Table 16. ALTFP_ADD_SUB Input Ports Port Name aclr Required No Description Asynchronous clear input for floating-point adder or subtractor. The source is asynchronously reset when the aclr signal is asserted high. add_sub No Optional input port to enable dynamic switching between the adder and subtractor functions. The add_sub port must be used when the DIRECTION parameter is set to VARIABLE. When the add_sub port is high, result[] = dataa[] + datab[], otherwise, result[] = dataa[] - datab[]. clk_en clock No Clock enable to the floating-point adder or subtractor. This port allows addition or subtraction to occur when asserted high. When asserted low, no operations occur and the outputs are unchanged. Yes Clock input to the IP core. dataa[] datab[] Yes Data input to the floating-point adder or subtractor. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa bits. The size of this port is the total width of the sign bit, the exponent bits, and the mantissa bits. Yes Data input to the floating-point adder or subtractor. This port is configured in the same way as dataa[]. Send Feedback Floating-Point IP Cores User Guide 33 3. ALTFP_ADD_SUB IP Core UG-01058 | 2021.09.13 Table 17. ALTFP_ADD_SUB Output Ports Port Name nan overflow Required Yes Yes Description NaN exception output. Asserted when an illegal addition or subtraction occurs, such as infinity minus infinity. When an invalid addition or subtraction occurs, a NaN value is output to the result[] port. Any adding or subtracting involving NaN values also produces a NaN value. Overflow exception port. Asserted when the result of the addition or subtraction, after rounding, exceeds or reaches infinity. Infinity is defined as a number in which the exponent exceeds 2 WIDTH_EXP -1. result[] underflow zero Yes Floating-point output result. Like the input values, the MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits, and mantissa bits. Yes Underflow port for the adder or subtractor. Asserted when the result of the addition or subtraction, after rounding, the value is zero and the inputs are not equal. The underflow port is also asserted when the result is a denormalized number. No Zero port for the adder or subtractor. Asserted when the result[] port is zero. 3.7. ALTFP_ADD_SUB Parameters Table 18. ALTFP_ADD_SUB Parameters Parameter Name DIRECTION Type String Required Yes PIPELINE ROUNDING OPTIMIZE WIDTH_EXP Integer No String Yes String No Integer No Description Specifies addition or subtraction operations. Values are ADD, SUB, or VARIABLE. If this parameter is not specified, the default is ADD. When the value is VARIABLE, the add_sub port determines whether the operation is addition or subtraction. The add_sub port must be connected if the DIRECTION parameter is set to VARIABLE. If the value is ADD or SUB, the add_sub port is ignored. Specifies the latency in clock cycles used in the ALTFP_ADD_SUB IP core. The PIPELINE parameter supports values of 7 through 14. If this parameter is not specified, the default value is 11. In general, a higher pipeline value produces better fMAX performance. Specifies the rounding mode. The default value is TO_NEAREST. Other rounding modes are currently not supported. Defines the design preference, whether the design is optimized for speed (faster fMAX), or optimized for area (lower resource count). Values are SPEED and AREA. If this parameter is not specified, the default is SPEED. Specifies the precision of the exponent. The bias of the exponent is always set to 2 (WIDTH_EXP-1) -1 (that is, 127 for single-precision format and 1023 for double-precision format). The WIDTH_EXP parameter must be 8 for the single-precision mode and 11 for the double-precision mode, or a minimum of 11 for the single-extended precision mode. The WIDTH_EXP parameter must be less than the continued... Floating-Point IP Cores User Guide 34 Send Feedback 3. ALTFP_ADD_SUB IP Core UG-01058 | 2021.09.13 Parameter Name WIDTH_MAN Type Integer Required No Description WIDTH_MAN parameter. The sum of WIDTH_EXP and the WIDTH_MAN parameters must be less than 64. If this parameter is not specified, the default is 8. Specifies the precision of the mantissa. The WIDTH_MAN parameter must be 23 (to comply with the IEEE-754 standard for the single-precision mode) when the WIDTH_EXP parameter is 8. Otherwise, the WIDTH_MAN parameter must have a value that is greater than or equal to 31. The WIDTH_MAN parameter must be greater than the WIDTH_EXP parameter. The sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. If this parameter is not specified, the default is 23. Send Feedback Floating-Point IP Cores User Guide 35 UG-01058 | 2021.09.13 Send Feedback 4. ALTFP_DIV IP Core This IP core performs floating-point division operation. 4.1. ALTFP_DIV Features The ALTFP_DIV IP core offers the following features: � Division functions. � Optional exception handling output ports such as zero, division_by_zero, overflow, underflow, and nan. � Optimization of speed and area. � Low latency option. 4.2. ALTFP_DIV Output Latency The output latency options for the ALTFP_DIV IP core differs depending on the precision selected, the width of the mantissa, or both. You have the choice of selecting the smaller figures of clock cycles delay in your design if the low latency option is desired. Table 19. Latency Options for Each Operation Precision Single Double Single Extended Mantissa Width 23 52 31 � 32 33 � 34 35 � 36 37 � 38 39 � 40 41 42 43 � 44 45 � 46 47 � 48 49 � 50 51 � 52 Latency (in clock cycles) 6, 14, 33 10, 24, 61 8, 18, 41 8, 18, 43 8, 18, 45 8, 18, 47 8, 18, 49 10, 24, 41 10, 24, 51 10, 24, 53 10, 24, 55 10, 24, 57 10, 24, 59 10, 24, 61 Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 4. ALTFP_DIV IP Core UG-01058 | 2021.09.13 4.3. ALTFP_DIV Truth Table Table 20. Truth Table for Division Operations DATAA[] DATAB[] SIGN BIT RESULT[] Overflow Underflow Normal Normal 0/1 Normal 0 0 Normal Normal 0/1 Denormal 0 0 Normal Normal 0/1 Infinity 1 0 Normal Normal 0/1 Zero 0 1 Normal Denormal 0/1 Infinity 0 0 Normal Zero 0/1 Infinity 0 0 Normal Infinity 0/1 Zero 0 0 Normal NaN X NaN 0 0 Denormal Normal 0/1 Zero 0 0 Denormal Denormal 0/1 NaN 0 0 Denormal Zero 0/1 NaN 0 0 Denormal Infinity 0/1 Zero 0 0 Denormal NaN X NaN 0 0 Zero Normal 0/1 Zero 0 0 Zero Denormal 0/1 NaN 0 0 Zero Zero 0/1 NaN 0 0 Zero Infinity 0/1 Zero 0 0 Zero NaN X NaN 0 0 Infinity Normal 0/1 Infinity 0 0 Infinity Denormal 0/1 Infinity 0 0 Infinity Zero 0/1 Infinity 0 0 Infinity Infinity 0/1 NaN 0 0 Infinity NaN X NaN 0 0 NaN Normal X NaN 0 0 NaN Denormal X NaN 0 0 NaN Zero X NaN 0 0 NaN Infinity X NaN 0 0 NaN NaN X NaN 0 0 Zero 0 1 0 1 0 0 1 0 1 0 0 1 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 Divisionby-zero 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 NaN 0 0 0 0 0 0 0 1 0 1 1 0 1 0 1 1 0 1 0 0 0 1 1 1 1 1 1 1 4.4. ALTFP_DIV Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_DIV IP core. The information was derived using the Quartus II software version 10.0. Send Feedback Floating-Point IP Cores User Guide 37 4. ALTFP_DIV IP Core UG-01058 | 2021.09.13 Table 21. ALTFP_DIV Resource Utilization and Performance for Stratix IV Devices Device family Precision Optimizati on Output latency Stratix IV Single Speed 33 Area 33 Double Speed 61 Area 61 Low Latency Option Stratix IV Single -- 6 -- 14 Double -- 10 -- 24 Adaptive Look-Up Tables (ALUTs) 3,593 1,646 13,867 5,125 Logic Usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 3,351 2,500 2,074 1,441 13,143 10,196 7,360 4,842 fMAX(MHz) 18-bit DSP -- 313 -- 308 -- 292 -- 267 207 304 212 16 154 253 638 385 16 358 714 1,077 779 44 151 765 2,488 1,397 44 238 4.5. ALTFP_DIV Design Example: Division of Single-Precision This design example uses the ALTFP_DIV IP core to implement a floating-point divider for the division of single-precision format numbers with low latency. This example uses the parameter editor to define the core. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 4.5.1. ALTFP_DIV Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. Figure 17. ALTFP_DIV Simulation Waveform This figure shows the expected simulation results in the ModelSim - Intel FPGA Edition software. This design example implements a floating-point divider for the division of singleprecision numbers with a low latency option. The output latency is 6, hence every division generates the output result 6 clock cycles later. Floating-Point IP Cores User Guide 38 Send Feedback 4. ALTFP_DIV IP Core UG-01058 | 2021.09.13 Table 22. Summary of Input Values and Corresponding Outputs This table lists the inputs and corresponding outputs obtained from the simulation in the waveform. Time Event 0 ns, start-up dataa[] value: 0000 0000h datab[] value: 0000 0000h Output value: The undefined value is seen on the result[] port, which is ignored. All values seen on the output port before the 6th clock cycle are merely due to the behavior of the system during start-up and should be disregarded. 17600 ns Output value: 7FC0 0000h Exception handling ports: nan asserts The division of zeros result in a NaN. 2000 ns dataa[] value: 2D0B 496Ah datab[] value: 3A5A FC26h Both inputs hold normal values. 20800 ns Output result: 321F 6EC6h Exception output ports: nan deasserts The division of two normal value results in a normal value. 11000 ns dataa[] value: 046E 78BCh datab[] value: 6798 698Bh Both inputs hold normal values. 27200 ns Output value: 0h Exception handling ports: underflow and zero asserts The division of the two normal values results in a denormal value. As denormal values are not supported, the result is zero and the underflow port asserts. The zero port is also asserted to indicate that the result is zero. 2600 ns dataa[] value: 0D72 54A8h datab[] value: 0070 0000h The input port dataa[] holds a normal value while the input port datab[] holds a denormal value. 36800 ns Output value: 7F80 0000h Exception handling ports: division_by_zero asserts Denormal numbers are forced-zero values, therefore, attempts to divide a normal value with a zero result in an infinity value. 4.6. ALTFP_DIV Signals Send Feedback Floating-Point IP Cores User Guide 39 Figure 18. ALTFP_DIV Signals ALTFP_DIV dataa[] datab[] clk_en result[] overflow underflow zero nan division_by_zero clock 4. ALTFP_DIV IP Core UG-01058 | 2021.09.13 aclr inst Table 23. ALTFP_DIV Input Signals Port Name aclr Required No Description Asynchronous clear input for the floating-point divider. The source is asynchronously reset when the aclr signal is asserted high. clock clk_en dataa[] datab[] Yes Clock input to the IP core. No Clock enable to the floating-point divider. This port enables division. This signal is active high. When this signal is low, no division takes place and the outputs remain the same. Yes Numerator data input. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits and mantissa bits. Yes Denominator data input.The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits and mantissa bits. Table 24. ALTFP_DIV Output Signals Port Name result[] overflow underflow zero division_by_zero Required Yes No No No No Description Divider output port. The division result (after rounding). As with the input values, the MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits, and mantissa bits. Overflow port for the divider. Asserted when the result of the division (after rounding) exceeds or reaches infinity. Infinity is defined as a number in which the exponent exceeds 2WIDTH_EXP�1. Underflow port for the divider. Asserted when the result of the division (after rounding) is zero even though neither of the inputs to the divider is zero, or when the result is a denormalized number. Zero port for the divider. Asserted when the value of result[] is zero. Division-by-zero output port for the divider. Asserted when the value of datab[] is a zero. nan No NaN port. Asserted when an invalid division occurs, such as infinity dividing infinity or zero dividing zero. A NaN value appears as output at the result[] port. Any division of a NaN value causes the nan output port to be asserted. Floating-Point IP Cores User Guide 40 Send Feedback 4. ALTFP_DIV IP Core UG-01058 | 2021.09.13 4.7. ALTFP_DIV Parameters Table 25. ALTFP_DIV Parameters Parameter Name WIDTH_EXP Type Integer Required Yes WIDTH_MAN Integer Yes ROUNDING OPTIMIZE PIPELINE String Yes String No Integer No Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to (2 ^ (WIDTH_EXP - 1)) - 1, that is, 127 for single precision and 1023 for double precision. The value of WIDTH_EXP must be 8 for single precision, 11 for double precision, and a minimum of 11 for single extended precision. The value of WIDTH_EXP must be less than the value of WIDTH_MAN, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the precision of the mantissa. If this parameter is not specified, the default is 23. When WIDTH_EXP is 8 and the floating-point format is the single-precision format, the WIDTH_MAN value must be 23. Otherwise, the value of WIDTH_MAN must be a minimum of 31. The value of WIDTH_MAN must be greater than the value of WIDTH_EXP, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the rounding mode. The default value is TO_NEAREST. The floating-point divider does not support other rounding modes. Specifies whether to optimize for area or for speed. Values are AREA and SPEED. A value of AREA optimizes the design using less total logic utilization or resources. A value of SPEED optimizes the design for better performance. If this parameter is not specified, the default value is SPEED. Specifies the number of clock cycles needed to produce the result. For the single-precision format, the latency options are 33, 14 or 6. For the double-precision format, the latency options are 61, 24 or 10. For the single-extended precision format, the value ranges from a minimum of 41 to a maximum of 61. For the lowlatency option, the latency is determined from the mantissa width. For a mantissa width of 31 to 40 bits, the value is 8 or 18. For a mantissa width of 41 bits or more, the value is 10 or 24. Send Feedback Floating-Point IP Cores User Guide 41 UG-01058 | 2021.09.13 Send Feedback 5. ALTFP_MULT IP Core This IP core performs floating-point multiplication operation. 5.1. ALTFP_MULT IP Core Features The ALTFP_MULT IP core offers the following features: � Multiplication functions. � Optional exception handling output ports such as zero, overflow, underflow, and nan. � Optional dedicated multiplier circuitries in Cyclone and Stratix series. 5.2. ALTFP_MULT Output Latency The output latency options for the ALTFP_MULT IP core are similar for all precisions. Table 26. Latency Options for Each Precision Format Precision Mantissa Width Single 23 Double 52 Single-Extended 31�52 Latency (in clock cycles) 5, 6, 10,11 5, 6, 10,11 5, 6, 10,11 5.3. ALTFP_MULT Truth Table Table 27. Truth Table for Multiplier Operations DATAA[] Normal Normal Normal Normal Normal Normal Normal Normal DATAB[] Normal Normal Normal Normal Denormal Zero Infinity NaN RESULT[] Normal Denormal Infinity Zero Zero Zero Infinity NaN Overflow 0 0 1 0 0 0 1 0 Underflow 0 1 0 1 0 0 0 0 Zero 0 1 0 1 1 1 0 0 NaN 0 0 0 0 0 0 0 1 continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 5. ALTFP_MULT IP Core UG-01058 | 2021.09.13 DATAA[] Denormal Denormal Denormal Denormal Denormal Zero Zero Zero Zero Zero Infinity Infinity Infinity Infinity Infinity NaN NaN NaN NaN NaN DATAB[] Normal Denormal Zero Infinity NaN Normal Denormal Zero Infinity NaN Normal Denormal Zero Infinity NaN Normal Denormal Zero Infinity NaN RESULT[] Zero Zero Zero NaN NaN Zero Zero Zero NaN NaN Infinity NaN NaN Infinity NaN NaN NaN NaN NaN NaN Overflow 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 0 Underflow 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Zero 1 1 1 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 NaN 0 0 0 1 1 0 0 0 1 1 0 1 1 0 1 1 1 1 1 1 5.4. ALTFP_MULT Resource Utilization and Performance The following tables list the resource utilization and performance information for the ALTFP_MULT IP core. The information was derived using the Quartus II software version 10.0. Table 28. ALTFP_MULT Resource Utilization and Performance for Stratix IV Devices with Dedicated Multiplier Circuitry Device Family Precision Stratix IV Single Double Output latency 5 11 5 11 Adaptive Look-Up Tables (ALUTs) 138 185 306 419 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 148 100 301 190 367 272 523 348 18-bit DSP fMAX (MHz) 4 274 4 445 10 255 10 395 Send Feedback Floating-Point IP Cores User Guide 43 5. ALTFP_MULT IP Core UG-01058 | 2021.09.13 5.5. ALTFP_MULT Design Example: Multiplication of DoublePrecision Format Numbers This design example uses the ALTFP_MULT IP core to compute the multiplication results of two double-precision format numbers. This example uses the parameter editor GUI to define the core. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 5.5.1. ALTFP_MULT Design Example: Understanding the Simulation Waveform The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. Figure 19. ALTFP_MULT Simulation Waveform This figure shows the expected simulation results in the ModelSim - Intel FPGA Edition software. This design example implements a floating-point multiplier for the multiplication of double-precision format numbers. All the optional input ports (clk_en and aclr) and output ports (overflow, underflow, zero, and nan) are enabled. In this example, the latency is set to 6 clock cycles. Therefore, every multiplication result appears at the result port 6 clock cycles later. Table 29. Summary of Input Values and Corresponding Outputs This table lists the inputs and corresponding outputs obtained from the simulation in the waveform. Time Event 0 ns, start-up dataa[] value: 0000 0000 0000 0000h datab[] value: 4037 742C 3C9E ECC0h Output value: All values seen on the output port before the 6th clock cycle are merely due to the behavior of the system during start-up and should be disregarded. 110 ns Output value: 0000 0000 0000 0000h continued... Floating-Point IP Cores User Guide 44 Send Feedback 5. ALTFP_MULT IP Core UG-01058 | 2021.09.13 Time 600 ns 710 ns Event Exception handling ports: zero asserts The multiplication of zero at the input port dataa[], and a non-zero value at the input port datab[] results in a zero. dataa[] value: 7FF0 0000 0000 0000h datab[] value: 4037 742C 3C9E ECC0h This is the multiplication of an infinity value and a normal value. Output value: 7FF0 0000 0000 0000h Exception handling ports: overflow asserts The multiplication of an infinity value and a normal value results in infinity. All multiplications with an infinity value results in infinity except when infinity is multiplied with a zero. 5.6. Parameters Table 30. ALTFP_MULT Intel FPGA IP core Parameters Parameter Name WIDTH_EXP WIDTH_MAN DEDICATED_MULTIPLIER_ CIRCUITRY PIPELINE Type Integer Integer String Integer Required No No No No Description Specifies the value of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always 2(WIDTH_EXP - 1)-1 (that is, 127 for the singleprecision format and 1023 for the double-precision format). WIDTH_EXP must be 8 for the single-precision format or a minimum of 11 for the double-precision format and the single-extended precision format. WIDTH_EXP must less than WIDTH_MAN. The sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the value of the mantissa. If this parameter is not specified, the default is 23. When WIDTH_EXP is 8 and the floating-point format is single-precision, the WIDTH_MAN value must be 23; otherwise, the value of WIDTH_MAN must be a minimum of 31. The WIDTH_MAN value must always be greater than the WIDTH_EXP value. The sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies whether to use dedicated multiplier circuitry. Values are AUTO, YES, or NO. If this parameter is not specified, the default is AUTO. If a device does not have dedicated multiplier circuitry, the DEDICATED_MULTIPLIER_CIRCUITRY parameter has no effect and defaults to NO. Specifies the number of clock cycles needed to produce the multiplied result. Values are 5, 6, 10, and 11. If this parameter is not specified, the default is 5. 5.7. ALTFP_MULT Signals Send Feedback Floating-Point IP Cores User Guide 45 5. ALTFP_MULT IP Core UG-01058 | 2021.09.13 Table 31. ALTFP_MULT IP Core Input Signals Port Name clock Required Yes Clock input to the IP core. Description clk_en aclr No Clock enable. Allows multiplication to take place when asserted high. When signal is asserted low, no multiplication occurs and the outputs remain unchanged. No Synchronous clear. Source is asynchronously reset when asserted high. dataa[] datab[] Yes Floating-point input data input to the multiplier. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of sign bit, exponent bits, and mantissa bits. Yes Floating-point input data to the multiplier. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of sign bit, exponent bits, and mantissa bits. Table 32. ALTFP_MULT IP Core Output Signals Port Name result[] overflow underflow zero nan Required Yes No No No No Description Output port for the multiplier. The floating-point result after rounding. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. Overflow port for the multiplier. Asserted when the result of the multiplication, after rounding, exceeds or reaches infinity. Infinity is defined as a number in which the exponent exceeds 2WIDTH_EXP-1. Underflow port for the multiplier. Asserted when the result of the multiplication (after rounding) is 0 while none of the inputs to the multiplication is 0, or asserted when the result is a denormalized number. Zero port for the multiplier. Asserted when the value of result[] is 0. NaN port for the multiplier. This port is asserted when an invalid multiplication occurs, such as the multiplication of infinity and zero. In this case, a NaN value is the output generated at the result[] port. The multiplication of any value and NaN produces NaN. Floating-Point IP Cores User Guide 46 Send Feedback UG-01058 | 2021.09.13 Send Feedback 6. ALTFP_SQRT This IP core performs square root calculation based on the input provided. You can use the ports and parameters available to customize the ALTFP_SQRT IP core according to your application. 6.1. ALTFP_SQRT Features The ALTFP_SQRT IP core offers the following features: � Square root functions. � Optional exception handling output ports such as zero, overflow, and nan. 6.2. Output Latency The output latency options for the ALTFP_SQRT IP core differs depending on the precision selected, the width of the mantissa, or both. Table 33. Latency Options for Each Precision Format Precision Mantissa Width Single 23 Double 52 Single-extended 31 32 33 34 35 36 37 38 39 40 41 42 43 Latency (in clock cycles) 16, 28 30, 57 20, 36 20, 37 21, 38 21, 39 22, 40 22, 41 23, 42 23, 43 24, 44 24, 45 25, 46 25, 47 26, 48 continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 6. ALTFP_SQRT UG-01058 | 2021.09.13 Precision Mantissa Width 44 45 46 47 48 49 50 51 Latency (in clock cycles) 26, 49 27, 50 27, 51 28, 52 28, 53 29, 54 29, 55 30, 56 6.3. ALTFP_SQRT Truth Table Truth Table for Square Root Operations DATA[] Normal Denormal Positive Infinity Negative Infinity Positive NaN Negative NaN Zero Normal SIGN BIT 0 0/1 0 1 0 1 0/1 1 RESULT[] Normal Zero Infinity All 1's All 1's All 1's Zero All 1's NaN 0 0 0 1 1 1 0 1 Overflow 0 0 1 0 0 0 0 0 Zero 0 1 0 0 0 0 1 0 6.4. ALTFP_SQRT Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_SQRT IP core. The information was derived using the Quartus II software version 10.0. Table 34. ALTFP_SQRT Resource Utilization and Performance for Stratix IV Devices Device Family Stratix IV Precision Output latency Single 28 Double 57 Adaptive Look-Up Tables (ALUTs) 502 2,177 Logic usage Dedicated Login Registers (DLRs) Adaptive Logic Modules (ALMs) 932 528 3,725 2,202 fMAX (MHz) 472 366 Floating-Point IP Cores User Guide 48 Send Feedback 6. ALTFP_SQRT UG-01058 | 2021.09.13 6.5. ALTFP_SQRT Design Example: Square Root of Single-Precision Format Numbers This design example uses the ALTFP_SQRT IP core to compute the square root of single-precision format numbers. This example uses the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 6.5.1. ALTFP_SQRT Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. These figures show the expected simulation results in the ModelSim - Intel FPGA Edition software. Figure 20. ALTFP_SQRT Simulation Waveform (Input Data) Figure 21. ALTFP_SQRT Simulation Waveform (Output Data) This design example implements a floating-point square root function for singleprecision format numbers with all the exception output ports instantiated. The output ports include overflow, zero, and nan. The output latency is 28 clock cycles. Every square root computation generates the output result 28 clock cycles later. Table 35. Summary of Input Values and Corresponding Outputs This table lists the inputs and corresponding outputs obtained from the simulation in the waveforms. Time Event 0 ns, start-up Output value: All values seen on the output port before the 28th clock cycle are merely due to the behavior of the system during start-up and should be disregarded. 2 000 ns data[] value: 2D0B 496Ah continued... Send Feedback Floating-Point IP Cores User Guide 49 6. ALTFP_SQRT UG-01058 | 2021.09.13 Time 84 000 ns 14 000 ns 96 000 ns 23 000 ns 105 000 ns Event The data input is a normal number. Output value: 363C D4EBh The square root computation of a normal input results in a normal output. data[] value: 0000 0000h Output value: 0000 0000h Exception handling ports: zero asserts The square root computation of zero results in a zero. data[] value: 7F80 0000h The input is infinity. Output value: 7F80 0000h Exception handling ports: overflow asserts 6.6. ALTFP_SQRT Signals Figure 22. ALTFP_SQRT Signals ALTFP_SQRT data[] clk_en clock result[] overflow zero nan aclr inst Table 36. ALTFP_SQRT IP Core Input Signals Port Name Required Description clock Yes Clock input to the IP core. clk_en No Clock enable that allows square root operations when the port is asserted high. When the port is asserted low, no operation occurs and the outputs remain unchanged. aclr No Asynchronous clear. When the aclr port is asserted high, the function is asynchronously reset. Yes Floating-point input data. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of sign bit, exponent bits, and mantissa bits. Floating-Point IP Cores User Guide 50 Send Feedback 6. ALTFP_SQRT UG-01058 | 2021.09.13 Table 37. ALTFP_SQRT IP Core Output Signals Port Name result[] overflow Required Yes Yes Description Square root output port for the floating-point result. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits, and mantissa bits. Overflow port. Asserted when the result of the square root (after rounding) exceeds or reaches infinity. Infinity is defined as a number in which the exponent exceeds 2WIDTH_EXP -1. zero Yes Zero port. Asserted when the value of the result[] port is 0. nan Yes NaN port. Asserted when an invalid square root occurs, such as negative numbers or NaN inputs. 6.7. ALTFP_SQRT Parameters Table 38. ALTFP_SQRT Parameters Parameter Name WIDTH_EXP Type Integer Required Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP -1) -1, that is, 127 for the singleprecision format and 1023 for the double-precision format. The value of the WIDTH_EXP parameter must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of the WIDTH_EXP parameter must be less than the value of the WIDTH_MAN parameter, and the sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. WIDTH_MAN ROUNDING Integer String Yes Specifies the value of the mantissa. If this parameter is not specified, the default is 23. When the WIDTH_EXP parameter is 8 and the floating-point format is single-precision, the WIDTH_MAN parameter value must be 23. Otherwise, the value of the WIDTH_MAN parameter must be a minimum of 31. The value of the WIDTH_MAN parameter must be greater than the value of the WIDTH_EXP parameter. The sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. Yes Specifies the rounding mode. The default value is TO_NEAREST. Other rounding modes are not supported. PIPELINE Integer Yes Specifies the number of clock cycles for the square root results of the result[] port. Values are WIDTH_MAN + 5 and ((WIDTH_MAN + 5/2)+2) as specified by truncating the radix point. Send Feedback Floating-Point IP Cores User Guide 51 UG-01058 | 2021.09.13 Send Feedback 7. ALTFP_EXP IP Core This IP core performs exponential calculation based on the input provided. 7.1. ALTFP_EXP Features The ALTFP_EXP IP core offers the following features: � Exponential value of a given input. � Optional exception handling output ports such as zero, overflow, underflow, and nan. 7.2. Output Latency The output latency options for the ALTFP_EXP IP core differs depending on the precision selected, the width of the mantissa, or both. Precision Single Double Single-extended Mantissa Width 23 52 31 � 38 39 � 52 Latency (in clock cycles) 17 25 22 25 7.3. ALTFP_EXP Truth Table Table 39. Truth Table for Exponential Operations DATAA[] Normal Normal Normal (numbers of small magnitude) Normal (negative numbers of large magnitude) Calculation edata edata edata edata RESULT[] Normal Infinity 1 0 NaN 0 0 0 0 Overflow 0 1 0 0 Underflow 0 0 1 Zero 0 0 0 1 0 continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 7. ALTFP_EXP IP Core UG-01058 | 2021.09.13 DATAA[] Denormal Zero Infinity (+) Infinity (-) NaN Calculation e0 e0 e+ e-- RESULT[] 1 1 Infinity 0 NaN NaN 0 0 0 0 1 Overflow 0 0 0 0 0 Underflow 0 0 0 0 0 Zero 0 0 0 1 0 7.4. ALTFP_EXP Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_EXP IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 40. ALTFP_EXP Resource Utilization and Performance for Stratix IV Devices Device Family Stratix IV Precision Single Double Output Latency 17 25 Adaptive Look-Up Tables (ALUTs) 631 4,104 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 521 448 2,007 2,939 18-bit DSP fMAX (MHz) 19 284 46 279 7.5. ALTFP_EXP Design Example: Exponential of Single-Precision Format Numbers This design example uses the ALTFP_EXP IP core to compute the exponential value of single-precision format numbers. This example uses the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 7.5.1. ALTFP_EXP Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. These figures show the expected simulation results in the ModelSim - Intel FPGA Edition software. (2) Any denormal input is treated as a zero before going through the exponential process. Send Feedback Floating-Point IP Cores User Guide 53 Figure 23. ALTFP_EXP Simulation Waveform (Input Data) 7. ALTFP_EXP IP Core UG-01058 | 2021.09.13 Figure 24. ALTFP_EXP Simulation Waveform (Output Data) This design example implements a floating-point exponential for the single-precision format numbers. The optional input ports (clk_en and aclr) and all four exception handling output ports (nan, overflow, underflow, and zero) are enabled. For single-precision format numbers, the latency is fixed at 17 clock cycles. Therefore, every exponential operation outputs the results 17 clock cycles later. Table 41. Summary of Input Values and Corresponding Outputs This table lists the inputs and corresponding outputs obtained from the simulation in the waveforms. Time Event 0 ns, start-up data[] value: 1A03 568Ch Output value: An undefined value is seen on the result[] port, which is ignored. All values seen on the output port before the 17th clock cycle are merely due to the behavior of the system during startup and should be disregarded. 82.5 ns Output value: 3F80 0000h As the input value of 1A03568Ch is a very small number, it is seen as a value that is approaching zero, and the result approaches 1 (which is represented by 3F800000). Exponential operations carried out on numbers of very small magnitudes result in a 1 and assert the underflow flag. Exception handling ports: underflow asserts 30 ns data[] value: F3FC DEFFh This is a normal negative value of a very large magnitude. 112.5 ns Output value: 0000 0000h The outcome of exponential operations on negative numbers of very large magnitudes approaches zero. Exception handling ports: underflow remains asserted 60 ns data[] value: 7F80 0000h This is a positive infinite value. 142.5 ns Output value: 7F80 0000h The operation on positive infinite values results in infinity. Exception handling ports: underflow deasserts, overflow asserts 90 ns data[] value: 7FC0 0000h This is a NaN. 172.5 ns Output value: 7FC0 0000h continued... Floating-Point IP Cores User Guide 54 Send Feedback 7. ALTFP_EXP IP Core UG-01058 | 2021.09.13 Time 120 ns 202.5 ns The exponential of a NaN results in a NaN. Exception handling ports: nan asserts data[] value: C1D4 49BAh This is a normal value. Output value: 2C52 5981h The result is a normal value. Exception handling ports: nan deasserts Event 7.6. ALTFP_EXP Signals Figure 25. ALTFP_EXP Signals ALTFP_EXP data[] result[] clk_en clock underflow zero nan underflow aclr inst Table 42. ALTFP_EXP IP Core Input Signals Port Name Required Description aclr No Asynchronous clear. When the aclr port is asserted high the function is asynchronously reset. clk_en No Clock enable. When the clk_en port is asserted high, an exponential value operation takes place. When this signal is asserted low, no operation occurs and the outputs remain unchanged. clock Yes Clock input to the IP core. data[] Yes Floating-point input data. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of the sign bit, exponent bits, and mantissa bits. Send Feedback Floating-Point IP Cores User Guide 55 7. ALTFP_EXP IP Core UG-01058 | 2021.09.13 Table 43. ALTFP_EXP IP Core Output Signals Port Name result[] overflow underflow zero Required Yes No No No Description The floating-point exponential result of the value at data[]. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits, and mantissa bits. Overflow exception output. Asserted when the result of the operation (after rounding) is infinite. Underflow exception output. Asserted when the result of the exponential approaches 1 (from numbers of very small magnitude), or when the result approaches 0 (from negative numbers of very large magnitudes). Zero exception output. Asserted when the value in the result[] port is zero. nan No NaN exception output. Asserted when an invalid operation occurs. Any operation involving NaN also asserts the nan port. 7.7. ALTFP_EXP Parameters Table 44. ALTFP_EXP IP Core Parameters Parameter Name WIDTH_EXP Type Integer Required Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP -1) -1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of the WIDTH_EXP parameter must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of the WIDTH_EXP parameter must be less than the value of the WIDTH_MAN parameter, and the sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. WIDTH_MAN Integer Yes Specifies the value of the mantissa. If this parameter is not specified, the default is 23. When the WIDTH_EXP parameter is 8 and the floating-point format is single-precision, the WIDTH_MAN parameter value must be 23. Otherwise, the value of the WIDTH_MAN parameter must be a minimum of 31. The value of the WIDTH_MAN parameter must be greater than the value of the WIDTH_EXP parameter. The sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. PIPELINE ROUNDING Integer String Yes Specifies the amount of latency, expressed in clock cycles, used in the ALTFP_EXP IP core. Acceptable pipeline values are 17, 22, and 25 cycles of latency. Create the ALTFP_EXP IP core with the MegaWizard Plug-In Manager to calculate the value for this parameter. Yes Specifies the rounding mode. The default value is TO_NEAREST. Other rounding modes are not supported. Floating-Point IP Cores User Guide 56 Send Feedback UG-01058 | 2021.09.13 Send Feedback 8. ALTFP_INV IP Core This IP core performs the function of 1/a where a is the given input. 8.1. ALTFP_INV Features The ALTFP_INV IP core offers the following features: � Inverse value of a given input. � Optional exception handling output ports such as zero, division_by_zero, underflow, and nan. 8.2. Output Latency The output latency options for the ALTFP_INVIP core differs depending on the precision selected, the width of the mantissa, or both. Precision Single Double Single Extended Mantissa Width 23 52 31 � 39 40 � 52 Latency (in clock cycles) 20 27 20 27 8.3. ALTFP_INV Truth Table Table 45. Truth Table for Inverse Operations DATA[] SIGN BIT RESULT[] Underflow Normal 0/1 Normal 0 Normal 0/1 Denormal 1 Normal 0/1 Infinity 0 Normal 0/1 Zero 1 Denormal 0/1 Infinity 0 Zero 0 1 0 1 0 Division_by_z ero 0 0 0 0 1 NaN 0 0 0 0 0 continued... (3) Any calculated or computed denormal output is replaced by a zero and asserts the zero and underflow flags. Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 8. ALTFP_INV IP Core UG-01058 | 2021.09.13 DATA[] Zero Infinity NaN SIGN BIT 0/1 0/1 X RESULT[] Infinity Zero NaN Underflow 0 0 0 Zero 0 1 0 Division_by_z ero 1 0 0 NaN 0 0 1 8.4. ALTFP_INV Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_INV IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 46. ALTFP_INV Resource Utilization and Performance for Stratix IV Devices Device Family Stratix IV Precision Output Latency Single 20 Double 27 Adaptive Look-Up Tables (ALUTs) 401 939 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 616 373 1,386 912 18-Bit DSP fMAX (MHz) 16 412 48 203 8.5. ALTFP_INV Design Example: Inverse of Single-Precision Format Numbers This design example uses the ALTFP_INV IP core to compute the inverse of singleprecision format numbers. This example uses the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 8.5.1. ALTFP_INV Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. These figures show the expected simulation results in the ModelSim - Intel FPGA Edition software. (4) Any denormal input is treated as a zero before going through the inverse process. Floating-Point IP Cores User Guide 58 Send Feedback 8. ALTFP_INV IP Core UG-01058 | 2021.09.13 Figure 26. ALTFP_INV Simulation Waveform (Input Data) Figure 27. ALTFP_INV Simulation Waveform (Output Data) This design example implements a floating-point inverse for single-precision format numbers. The optional input ports (clk_en and aclr) and all four exception handling output ports (division_by_zero, nan, zero, and underflow) are enabled. The latency is fixed at 20 clock cycles; therefore, every inverse operation outputs results 20 clock cycles later. This table lists the inputs and corresponding outputs obtained from the simulation in the waveforms. Table 47. Summary of Input Values and Corresponding Outputs Time 0 ns, start-up 97.5 ns 10 ns 107.5 ns 60 ns 157.5 ns 70 ns 167.5 ns Event data[] value: 34A2 E42Fh Output value: An undefined value is seen on the result[] port, which is ignored. All values seen on the output port before the 20th clock cycle are merely due to the behavior of the system during startup and should be disregarded. Output value: 4A49 2A2Fh Exception handling ports: division_by_zero deasserts The inverse of a normal number results in a normal value. data[] value: 7F80 0000h This is an infinity value. Output value: 0000 0000h Exception handling ports: zero asserts The inverse of an infinity value produces a zero. data[] value: 7FC0 0000h This is a NaN. Output value: 7FC0 0000h Exception handling ports: nan asserts The inverse of a NaN results in a NaN data[] value: 0000 1000h This is a denormal number. Output value: 7F80 0000h continued... Send Feedback Floating-Point IP Cores User Guide 59 8. ALTFP_INV IP Core UG-01058 | 2021.09.13 Time 8.6. Ports Event Exception handling ports: nan deasserts, division_by_zero asserts Denormal numbers are forced-zero values, therefore, the inverse of a zero results in infinity. Table 48. ALTFP_INV IP core Input Ports Port Name aclr clk_en Required No No clock Yes Description Asynchronous clear. When the aclr port is asserted high, the function is asynchronously cleared. Clock enable. When the clk_en port is asserted high, an inversion value operation takes place. When signal is asserted low, no operation occurs and the outputs remain unchanged. Clock input to the IP core. data[] Yes Floating-point input data. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of the sign bit, exponent bits, and mantissa bits. Table 49. ALTFP_INV IP core Output Ports Port Name result[] underflow zero division_by_zero nan Required Yes No No No No Description The floating-point inverse result of the value at the data[]input port. The MSB is the sign, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits, and mantissa bits. Underflow exception output. Asserted when the result of the inversion (after rounding) is a denormalized number. Zero exception output. Asserted when the value at the result[] port is a zero. Division-by-zero exception output. Asserted when the denominator input is a zero. NaN exception output. Asserted when an invalid inversion occurs, such as the inversion of NaN. In this case, a NaN value is output to the result[] port. Any operation involving NaN also asserts the nan port. 8.7. Parameters Table 50. ALTFP_INV IP core Parameters Parameter Name WIDTH_EXP Type Integer Required Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP -1) -1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of the WIDTH_EXP parameter must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of the WIDTH_EXP continued... Floating-Point IP Cores User Guide 60 Send Feedback 8. ALTFP_INV IP Core UG-01058 | 2021.09.13 Parameter Name WIDTH_MAN PIPELINE ROUNDING Type Integer Integer String Required Yes Yes No Description parameter must be less than the value of the WIDTH_MAN parameter, and the sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. Specifies the value of the mantissa. If this parameter is not specified, the default is 23. When the WIDTH_EXP parameter is 8 and the floating-point format is single-precision, the WIDTH_MAN parameter value must be 23. Otherwise, the value of the WIDTH_MAN parameter must be a minimum of 31. The value of the WIDTH_MAN parameter must be greater than the value of the WIDTH_EXP parameter. The sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. Specifies the amount of latency in clock cycles used in the ALTFP_INV IP core. Create the ALTFP_INV IP core to calculate the value for this parameter. Specifies the rounding mode. The default value is TO_NEAREST. Other rounding modes are not supported. Send Feedback Floating-Point IP Cores User Guide 61 UG-01058 | 2021.09.13 Send Feedback 9. ALTFP_INV_SQRT IP Core This IP core performs inverse square root value of a given input. 9.1. ALTFP_INV_SQRT Features The ALTFP_INV_SQRT IP core offers the following features: � Inverse square root value of a given input. � Optional exception handling output ports such as zero, division_by_zero, and nan. 9.2. Output Latency The output latency options for the ALTFP_INV_SQRT IP core differs depending on the precision selected, the width of the mantissa, or both. Table 51. Latency Options for Each Precision Format Precision Mantissa Width Single 23 Double 52 Single-Extended 31� 39 40 � 52 Latency (in clock cycles) 26 36 26 36 9.3. ALTFP_INV_SQRT Truth Table Table 52. Truth Table for Inverse Square Root Operations DATA[] SIGN BIT RESULT[] Zero Division_by_zero Normal 0 Normal 0 0 Normal 1 NaN 0 0 Denormal 0/1 Infinity 0 1 NaN 0 1 0 continued... (5) Any denormal input is treated as a zero before going through the inverse process. Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 9. ALTFP_INV_SQRT IP Core UG-01058 | 2021.09.13 DATA[] Zero Infinity NaN SIGN BIT 0/1 0/1 X RESULT[] Infinity Zero NaN Zero 0 1 0 Division_by_zero 1 0 0 NaN 0 0 1 9.4. ALTFP_INV_SQRT Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_INV_SQRT IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 53. ALTFP_INV_SQRT Resource Utilization and Performance for Stratix IV Devices Device Family Stratix IV Precision Single Double Output Latency 26 36 Adaptive Look-up Tables (ALUTs) 502 1,324 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 658 430 1,855 1,209 18-Bit DSP fMAX (MHz) 22 413 78 209 9.5. ALTFP_INV_SQRT Design Example: Inverse Square Root of Single-Precision Format Numbers This design example uses the ALTFP_INV_SQRT IP core to compute the inverse square root of single-precision format numbers. This example uses the parameter editor GUI to define the core. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 9.5.1. ALTFP_INV_SQRT Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. These figures show the expected simulation results in the ModelSim - Intel FPGA Edition software. Send Feedback Floating-Point IP Cores User Guide 63 9. ALTFP_INV_SQRT IP Core UG-01058 | 2021.09.13 Figure 28. ALTFP_INV_SQRT Simulation Waveform (Input Data) Figure 29. ALTFP_INV_SQRT Simulation Waveform (Output Data) This design example implements a floating-point inverse square root for singleprecision format numbers. The optional input ports (clk_en and aclr) and all three exception handling output ports (division_by_zero, nan, and zero) are enabled. The latency is fixed at 26 clock cycles. Therefore, every inverse square root operation outputs the results 26 clock cycles later. This table lists the inputs and corresponding outputs obtained from the simulation in the waveforms. Table 54. Summary of Input Values and Corresponding Outputs Time Event 0 ns, start-up data[] value: 05AE 470Bh Output value: An undefined value is seen on the result[] port, which can be ignored. All values seen on the output port before the 26th clock cycle are merely due to the behavior of the system during start-up and should be disregarded. 127.5 ns Output value: 5C5B 64CEh The inverse square root of a normal number results in a normal value. 10 ns data[] value: E8A7 E93Dh This is a negative normal value. 137.5 ns Output value: FFC0 0000h Exception handling ports: nan asserts The inverse square root of a negative value produces a NaN. 20 ns data[] value: 0000 0004h The is a denormal value. 147.5 ns Output value: 7F80 0000h Denormal numbers are forced-zero values, therefore the inverse square root of zero results in infinity. Exception handling ports: nan deasserts, division_by_zero asserts 50 ns data[] value: 7F80 0000h This is an infinity value. 177.5 ns Output value: 0000 0000h The inverse square root of an infinity value produces a zero. Exception handling ports: zero asserts Floating-Point IP Cores User Guide 64 Send Feedback 9. ALTFP_INV_SQRT IP Core UG-01058 | 2021.09.13 9.6. Ports Figure 30. ALTFP_INV_SQRT Signals ALTFP_INV_SQRT data[] result[] clk_en clock zero nan division_by_zero aclr inst Table 55. ALTFP_INV_SQRT IP Core Input Signals Port Name Required Description aclr No Asynchronous clear. When the aclr port is asserted high, the function is asynchronously cleared. clk_en No Clock enable. When the clk_en port is asserted high, an inversion value operation takes place. When signal is asserted low, no operation occurs and the outputs remain unchanged. clock Yes Clock input to the IP core. data[] Yes Floating-point input data. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of the sign bit, exponent bits, and mantissa bits. Table 56. ALTFP_INV_SQRT IP Core Output Signals Port Name Required Description result[] Yes The floating-point inverse result of the value at the data[] input port. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. The size of this port is the total width of the sign bit, exponent bits, and mantissa bits. zero No Zero exception output. Asserted when the value at the result[] port is a zero. division_by_zero nan No Division-by-zero exception output. Asserted when the denominator input is a zero. No NaN exception output. Asserted when an invalid inversion of square root occurs, such as the square root of a negative number. In this case, a NaN value is output to the result[] output port. Any operation involving a NaN produces a NaN. 9.7. Parameters Send Feedback Floating-Point IP Cores User Guide 65 9. ALTFP_INV_SQRT IP Core UG-01058 | 2021.09.13 Table 57. ALTFP_INV_SQRT IP core Parameters Parameter Name WIDTH_EXP WIDTH_MAN PIPELINE ROUNDING Type Integer Integer Integer String Required Yes Yes Yes No Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP -1) -1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of the WIDTH_EXP parameter must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of the WIDTH_EXP parameter must be less than the value of the WIDTH_MAN parameter, and the sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. Specifies the value of the mantissa. If this parameter is not specified, the default is 23. When the WIDTH_EXP parameter is 8 and the floating-point format is single-precision, the WIDTH_MAN parameter value must be 23. Otherwise, the value of the WIDTH_MAN parameter must be a minimum of 31. The value of the WIDTH_MAN parameter must be greater than the value of the WIDTH_EXP parameter. The sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. Specifies the amount of latency, expressed in clock cycles, used in the ALTFP_INV_SQRT IP core. Create the ALTFP_INV_SQRT IP core to calculate the value for this parameter. Specifies the rounding mode. The default value is TO_NEAREST. Other rounding modes are not supported. Floating-Point IP Cores User Guide 66 Send Feedback UG-01058 | 2021.09.13 Send Feedback 10. ALTFP_LOG This IP core performs natural logarithm function. You can use the ports and parameters available to customize the ALTFP_LOG IP core according to your application. 10.1. ALTFP_LOG Features The ALTFP_LOG IP core offers the following features: � Natural logarithm functions. � Optional exception handling output ports such as zero and nan. 10.2. Output Latency The output latency options for the ALTFP_LOG IP core differs depending on the precision selected, the width of the mantissa, or both. Table 58. Latency Options for Each Precision Format Precision Mantissa Width Single 23 Double 52 Single Extended 31�36 37�42 43�48 49�52 Latency (in clock cycles) 21 34 25 28 31 34 10.3. ALTFP_LOG Truth Table This table lists the truth table for the natural logarithm operation. Table 59. Truth Table for Natural Logarithm Operations DATA[] SIGN BIT RESULT[] Normal 0 Normal Normal 1 NaN (6) Zero 0 0 NaN 0 1 continued... (6) The natural logarithm of a negative value is invalid. Therefore, the output produced is a NaN. Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 10. ALTFP_LOG UG-01058 | 2021.09.13 DATA[] 1 (7) Denormal (8) Zero (9) Infinity NaN SIGN BIT 0 0 0/1 0 X RESULT[] Zero Negative Infinity Negative Infinity Positive Infinity NaN Zero 1 0 0 1 0 10.4. ALTFP_LOG Resource Utilization and Performance NaN 0 0 0 0 1 This table lists the resource utilization and performance information for the ALTFP_LOG IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 60. ALTFP_LOG Resource Utilization and Performance for Stratix IV Devices Device Family Stratix IV Precision Output Latency Single 21 Double 34 Adaptive Look-Up Tables (ALUTs) 1,950 5,451 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 1,864 1,378 6,031 4,151 18-Bit DSP fMAX (MHz) 8 385 64 211 10.5. ALTFP_LOG Design Example: Natural Logarithm of SinglePrecision Format Numbers This design example uses the ALTFP_LOG IP core to compute the natural logarithm of single-precision format numbers. This example uses the parameter editor GUI to define the core. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores (7) The "1" in this case is equivalent to In 1. (8) The value of positive denormalized numbers is a value that approximates zero, and the output produced is a negative infinity number. (9) The zero in this case represents zero special case of the IEEE standard. It is not equivalent to In 0, but instead approximates to it. Floating-Point IP Cores User Guide 68 Send Feedback 10. ALTFP_LOG UG-01058 | 2021.09.13 10.5.1. ALTFP_LOG Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. These figures show the expected simulation results in the ModelSim - Intel FPGA Edition software. Figure 31. ALTFP_LOG Simulation Waveform (Input Data) Figure 32. ALTFP_LOG Simulation Waveform (Output Data) This design example includes the input of special cases to show the exception handling of the IP core, such as the smallest valid input and the input value of "1". In this example, the output delay is set to 21 clock cycles. Therefore, the result is only shown at the output port after the 21st clock cycle at 102.5 ns. Table 61. Summary of Input Values and Corresponding Outputs This table lists the inputs and corresponding outputs obtained from the simulation in the waveforms. Time Event 0 ns, start-up data[] value: 0000 0000h Output value: An undefined value is seen on the result[] port, which is ignored. All values seen on the output port before the 21st clock cycle are merely due to the behavior of the system during startup and should be disregarded. 102.5 ns Output value: FF80 0000h The natural logarithm of zero is negative infinity. 5 ns data[] value: 8000 0000h This is a negative number. 107.5 ns Output value: FFC0 0000h Exception handling ports: nan asserts The natural logarithm of a negative value is invalid. Therefore, the output produced is a NaN. 30 ns data[] value: 0040 0000h The is a denormal value. 132.5 ns Output value: FF80 0000h continued... Send Feedback Floating-Point IP Cores User Guide 69 10. ALTFP_LOG UG-01058 | 2021.09.13 Time 45 ns 147.5 ns 60 ns 152.5 ns Event As denormal numbers are not supported, the input is forced to zero before going through the logarithm function. The natural logarithm of zero is negative infinity. data[] value: 0080 0000h This is the smallest valid input. All the input bits are 0 except the LSB of the exponent field. Output value: C2AE AC50h data[] value: 3F80 0000h The input value 3F80 0000h is equivalent to the actual value, 1.0 � 20 = 1. Output value: 0000 0000h Exception handling ports: zero asserts Since In 1 results in zero, it produces an output of zero. 10.6. Signals Figure 33. ALTFP_LOG Signals ALTFP_LOG data[] clk_en clock result[] zero nan aclr inst Table 62. ALTFP_LOG IP Core Input Signals Port Name Required Description aclr No Asynchronous clear. When the aclr port is asserted high, the function is asynchronously cleared. clk_en No Clock enable. When the clk_en port is asserted high, a natural logarithm operation takes place. When signal is asserted low, no operation occurs and the outputs remain unchanged. Deasserting clk_en halts operation until it is asserted again. Assert the clk_en signal for the number of clock cycles equivalent to the required output latency (PIPELINE parameter value) for the results to be shown at the output. clock Yes Clock input to the IP core. data[] Yes Floating-point input data. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of the sign bit, exponent bits, and mantissa bits. continued... Floating-Point IP Cores User Guide 70 Send Feedback 10. ALTFP_LOG UG-01058 | 2021.09.13 Port Name Required Description For single precision, the width is fixed to 32 bits. For double precision, the width is fixed to 64 bits. For single extended precision, you can choose a width in the range from 43 to 64 bits. Table 63. ALTFP_LOG IP Core Output Signals Port Name Required Description result[] Yes The natural logarithm of the value on input data. The natural logarithm of the data[] input port, shown in floating-point format. The widths of the result[] output port and data[] input port are the same. zero No Zero exception output. Asserted when the exponent and mantissa of the output port are zero. This occurs when the actual input value is 1 because ln 1 = 0. nan No NaN exception output. Asserted when the exponent and mantissa of the output port are all 1's and non-zero, respectively. This occurs when the input is a negative number or NaN. 10.7. Parameters Table 64. ALTFP_LOG IP core Parameters Parameter Name WIDTH_EXP WIDTH_MAN Type Integer Integer Required Yes Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP -1) -1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of the WIDTH_EXP parameter must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of the WIDTH_EXP parameter must be less than the value of the WIDTH_MAN parameter, and the sum of the WIDTH_EXP and WIDTH_MAN parameters must be less than 64. Specifies the precision of the mantissa. If this parameter is not specified, the default is 23. The value of WIDTH_MAN must be 23 for the single-precision format, and 52 for the double-precision format. For the single-extended precision format, the valid value ranges from 31 to 52. The value of WIDTH_MAN must be greater than the value of WIDTH_EXP, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. PIPELINE Integer Yes Specifies the amount of latency in clock cycles used in the ALTFP_LOG IP core. Create the ALTFP_LOG IP core to calculate the value for this parameter. Send Feedback Floating-Point IP Cores User Guide 71 UG-01058 | 2021.09.13 Send Feedback 11. ALTFP_ATAN IP Core This IP core performs arctangent calculation. You can use the ports and parameters available to customize the ALTFP_ATAN IP core according to your application. 11.1. Output Latency The output latency option for the ALTFP_ATAN Intel FPGA IP core have a fixed latency level for single-precision format. Table 65. Latency Option Trigonometric Function Arctangent Precision Single Mantissa Width 23 Latency (in clock cycles) 34 11.2. ALTFP_ATAN Features The ALTFP_ATAN IP core offers the following features: � Arctangent value of a given angle, in unit radian. � Support for single-precision floating point format. � Support for optional input ports such as asynchronous clear (aclr) and clock enable (clk_en) ports. 11.3. ALTFP_ATAN Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_ATAN IP core. The information was derived using the Intel Quartus Prime software version 11.0. Table 66. ALTFP_ATAN Resource Utilization and Performance Device Family Function Precision Stratix V ArcTangent Single Output Latency 36 Adaptive Look-Up Tables (ALUTs) 2,454 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) fMAX (MHz) 18-Bit DSP 1,010 1,303 27 255.49 11.4. Ports Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 11. ALTFP_ATAN IP Core UG-01058 | 2021.09.13 Table 67. ALTFP_ATAN IP core Input Ports Port Name aclr clk_en clock Required No No Yes Description Asynchronous clear. When the aclr port is asserted high, the function is asynchronously cleared. Clock enable. When the clk_en port is asserted high, division takes place. When the signal is deasserted, no operation occurs and the outputs remain unchanged. Clock input to the IP core. data[] Yes Floating-point input data. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of the sign bit, exponent bits, and mantissa bits. Port Name result[] Required Yes Description The result of the trigonometric function in floating-point format. The widths of the result[] output port and data[] input port are the same. 11.5. ALTFP_ATAN Parameters Table 68. ALTFP_ATAN Parameters Parameter Name Type Required Description WIDTH_EXP Integer Yes Specifies the precision of the exponent. The bias of the exponent is always set to 2(WIDTH_EXP-1) -1 (that is, 127 for single-precision format). The value of WIDTH_EXP must be 8 for single-precision format. The default value for WIDTH_EXP is 8. WIDTH_MAN Integer Yes Specifies the precision of the mantissa. The value of WIDTH_MAN must be 23 when WIDTH_EXP is 8. The default value for WIDTH_MAN is 23. PIPELINE Integer Yes The number of pipeline is fixed for the mantissa width and some internal parameter. For the correct settings, refer to Table 12�1 on page 12�2. ROUNDING Integer No Specifies the rounding mode. The default value is TO_NEAREST. Other rounding modes are not supported. Send Feedback Floating-Point IP Cores User Guide 73 UG-01058 | 2021.09.13 Send Feedback 12. ALTFP_SINCOS IP Core This IP core perform trigonometric Sine/Cosine functions. You can use the ports and parameters available to customize the ALTFP_SINCOS IP core according to your application. 12.1. ALTFP_SINCOS Features The ALTFP_SINCOS IP core offers the following features: � Implements sine and cosine calculations. � Support for single-precision floating point format. � Support for optional input ports such as asynchronous clear (aclr) and clock enable (clk_en) ports. 12.2. Output Latency The output latency options for the ALTFP_SINCOS IP core have a fixed latency level for sine and cosine functions. Trigonometric Function Sine Cosine Precision Single Single Mantissa Width 23 23 Latency (in clock cycles) 36 36 Related Information ALTFP_SINCOS Parameters on page 75 12.3. ALTFP_SINCOS Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_SINCOS IP core. The information was derived using the Intel Quartus Prime software version 10.1. Table 69. ALTFP_SINCOS Resource Utilization and Performance Device Family Stratix IV Function Precision Sine Cosine Single Single Output Latency 36 35 Adaptive Look-Up Tables (ALUTs) 2,859 2,753 Logic usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) fMAX (MHz) 18-Bit DSP 2,190 1,830 16 292.96 2,041 1,745 16 258.26 Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 12. ALTFP_SINCOS IP Core UG-01058 | 2021.09.13 12.4. ALTFP_SINCOS Signals Figure 34. ALTFP_SINCOS Signals ALTFP_SINCOS data[31..0] result[31..0] clock clk_en aclr Table 70. ALTFP_SINCOS IP Core Input Signals Port Name aclr clk_en clock data[] Required Description No Asynchronous clear. When the aclr port is asserted high, the function is asynchronously cleared. No Clock enable. When the clk_en port is asserted high, sine or cosine operation takes place. When the signal is asserted low, no operation occurs and the outputs remain unchanged. Yes Clock input to the Intel FPGA IP core. Yes Floating-point input data. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of the sign bit, exponent bits, and mantissa bits. Table 71. ALTFP_SINCOS IP Core Output Signals Port Name result[] Required Description Yes The trigonemetric of the data[] input port in floating-point format. The widths of the result[] output port and data[] input port are the same. 12.5. ALTFP_SINCOS Parameters Send Feedback Floating-Point IP Cores User Guide 75 12. ALTFP_SINCOS IP Core UG-01058 | 2021.09.13 Table 72. ALTFP_SINCOS IP Core Parameters Parameter Name WIDTH_EXP WIDTH_MAN Type Integer Integer Required Yes Yes Description Specifies the precision of the exponent. The bias of the exponent is always set to 2(WIDTH_EXP-1) -1 (that is, 127 for single-precision format). The value of WIDTH_EXP must be 8 for single-precision format and must be less than WIDTH_MAN. The available value for WIDTH_EXP is 8. Specifies the precision of the mantissa. The value of WIDTH_MAN must be 23 when WIDTH_EXP is 8. Otherwise, WIDTH_MAN must be a minimum of 31. The value of WIDTH_MAN must be greater than WIDTH_EXP. The available value for WIDTH_MAN is 23. PIPELINE Integer Yes The number of pipeline is fixed for the mantissa width and some internal parameter. For the correct settings, refer to Output Latency. Related Information Output Latency on page 74 Floating-Point IP Cores User Guide 76 Send Feedback UG-01058 | 2021.09.13 Send Feedback 13. ALTFP_ABS IP Core This IP core performs absolute value calculation for the given input. 13.1. ALTFP_ABS Features The ALTFP_ABS IP core offers the following features: � Absolute value of a given input. � Optional exception handling output ports such as zero, division_by_zero, overflow, underflow, and nan. � Carry-through exception ports from other floating-point modules that act as inputs to the ALTFP_ABS IP core. 13.2. ALTFP_ABS Output Latency The output latency options for the ALTFP_ABS IP core are the same for all three precision formats--single, double, and single-extended. The options available are zero without pipeline, and 1 clock cycle. 13.3. ALTFP_ABS Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_ABS IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 73. ALTFP_ABS Resource Utilization and Performance for the Stratix III Device Family Precision Single Double Output Latency 0 1 0 1 Adaptive Look-Up Tables (ALUTs) 0 0 0 0 Logic usage Dedicated Logic Registers (DLRs) 18-Bit DSP 0 0 36 0 0 0 68 0 Memory fMAX (MHz) 0 The fMAX of this IP core 0 depends on the speed of the 0 selected device 0 Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 13. ALTFP_ABS IP Core UG-01058 | 2021.09.13 13.4. ALTFP_ABS Design Example: Absolute Value of Multiplication Results This design example uses the ALTFP_ABS IP core to compute the absolute value of the multiplication result of single-precision format numbers. This example incorporates the ALTFP_MULT IP core and uses the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 13.4.1. ALTFP_ABS Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. Figure 35. ALTFP_ABS Simulation Waveform This design example produces a floating-point absolute value function for the multiplication results of single-precision format numbers. All the optional input ports (clk_en and aclr) and optional output ports (overflow, underflow, zero, division_by_zero, and nan) are enabled. In this example, the latency of the multiplier is set to five clock cycles, while none is being set for the absolute value function. Thus, the absolute value result only appears at the result[] port five cycles after the input values are captured on the input ports. The dataa[] and datab[] values in the simulation waveform above portray the two input values that are being fed to the multiplier. The value in the result[] port depicts the multiplication result that has gone through the absolute value operation. This table lists the inputs and corresponding outputs obtained from the simulation. Table 74. Summary of Input Values and Corresponding Outputs Time 0 ns, start-up dataa[] value: C080 0000h datab[] value: 4000 0000h Event continued... Floating-Point IP Cores User Guide 78 Send Feedback 13. ALTFP_ABS IP Core UG-01058 | 2021.09.13 Time 22.5 ns 20 ns 42.5 ns Event Output value: All values seen on the output port before the 5th clock cycle are merely due to the behavior of the system during start-up and should be disregarded. Output value: 4100 0000h The multiplication of a negative number with a positive number results in a negative number. The absolute value of the result is reflected on the result[] port. dataa[] value: 579D F479h datab[] value: 7F80 0000h The value of dataa[] is normal while the value of datab[] is infinity. Output value: 7F80 0000h Exception handling ports: overflow asserts The multiplication of a normal value with infinity results in infinity and sets the overflow port in the multiplier. The absolute value of the output is infinity and the overflow port is also set as this assertion of the port is being carried through from the corresponding overflow port in the multiplier. 13.5. ALTFP_ABS Signals Figure 36. ALTFP_ABS Signals ALTFP_ABS data[] overflow_in result[] overflow nan_in nan underflow_in underflow zero_in zero division_by_zero_in division_by_zero clk_en clock aclr inst Table 75. ALTFP_ABS Input Signals aclr Port Name clk_en clock Required No No Yes Description Asynchronous clear. When the aclr port is asserted high, the function is asynchronously cleared. Clock enable. When the clk_en port is asserted high, an absolute value operation takes place. When the signal is asserted low, no operation occurs and the outputs remain unchanged. Clock input to the IP core. data[] Yes Floating-point input data. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of sign bit, exponent bits, and mantissa bits. continued... Send Feedback Floating-Point IP Cores User Guide 79 13. ALTFP_ABS IP Core UG-01058 | 2021.09.13 Port Name zero_in nan_in overflow_in underflow_in division_by_zero_in Required No No No No No Description Zero exception input. Carry-through exception input port from other floatingpoint modules. NaN exception input. Carry-through exception input port from other floatingpoint modules. Overflow exception input. Carry-through exception input port from other floating-point modules. Underflow exception input. Carry-through exception input port from other floating-point modules. Division-by-zero exception input. Carry-through exception input port from other floating-point modules. Table 76. ALTFP_ABS Output Signals Port Name Required Description result[] Yes The absolute value result of the input data. The size of this port corresponds to the size of the input data[] port. zero No Zero exception output carried from the input. Asserted if the corresponding carry-through port from the input is asserted. nan No NaN output carried from the input. Asserted if the corresponding carry-through port from the input is asserted. overflow No Overflow exception output carried from the input. Asserted if the corresponding carry-through port from the input is asserted. underflow No Underflow exception output carried from the input. Asserted if the corresponding carry-through port from the input is asserted. division_by_zero No Division-by-zero exception output carried from the input. Asserted if the corresponding carry-through port from the input is asserted. 13.6. ALTFP_ABS Parameters Table 77. ALTFP_ABS Parameters Port Name WIDTH_EXP Type Integer WIDTH_MAN Integer Required Yes Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP - 1) - 1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of WIDTH_EXP must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of WIDTH_EXP must be less than the value of WIDTH_MAN, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the precision of the mantissa. If this parameter is not specified, the default is 23. When WIDTH_EXP is 8 and the floating-point format is single-precision, the WIDTH_MAN value must be 23. Otherwise, the value of WIDTH_MAN must be a continued... Floating-Point IP Cores User Guide 80 Send Feedback 13. ALTFP_ABS IP Core UG-01058 | 2021.09.13 Port Name PIPELINE Type Integer Required Yes Description minimum of 31. The value of WIDTH_MAN must be greater than the value of WIDTH_EXP, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the amount of latency, expressed in clock cycles, used in the ALTFP_ABS IP core. Create the ALTFP_ABS IP core with the parameter editor to calculate the value for this parameter. Send Feedback Floating-Point IP Cores User Guide 81 UG-01058 | 2021.09.13 Send Feedback 14. ALTFP_COMPARE IP Core This IP core performs comparison functions between two inputs. 14.1. ALTFP_COMPARE Features The ALTFP_COMPARE IP core offers the following features: � Comparison functions between two inputs. � Seven status output ports: -- aeb (input A is equal to input B). -- aneb (input A is not equal to input B). -- agb (input A is greater than input B). -- ageb (input A is greater than or equal to input B). -- alb (input A is less than input B). -- aleb (input A is less than or equal to input B). -- unordered (used as an output to flag if one or both input ports are NaN). 14.2. ALTFP_COMPARE Output Latency The output latency options for the ALTFP_COMPARE IP core are the same for all three precision formats--single, double, and single-extended. The options available are 1, 2, and 3 clock cycles. 14.3. ALTFP_COMPARE Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_COMPARE IP core. The information was derived using the Intel Quartus Prime software version 10.0. Table 78. ALTFP_COMPARE Resource Utilization and Performance for Stratix IV Devices Device Family Precision Stratix IV single double Output Latency 3 3 Adaptive Look-Up Tables (ALUTs) 68 121 Logic Usage Dedicated Logic Registers (DLRs) 33 47 Adaptive Look-Up Modules (ALMs) 47 87 fMAX (MHz) 794 680 Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 14. ALTFP_COMPARE IP Core UG-01058 | 2021.09.13 14.4. ALTFP_COMPARE Design Example: Comparison of SinglePrecision Format Numbers This design example uses the ALTFP_COMPARE IP core to implement the comparison of single-precision format numbers using the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 14.4.1. ALTFP_COMPARE Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. This figure shows the expected simulation results in the ModelSim - Intel FPGA Edition software. Figure 37. ALTFP_COMPARE Simulation Waveform This design example implements a floating-point comparator for single-precision numbers. Both optional input ports (clk_en and aclr) and all seven output ports (ageb, aeb, agb, aneb, alb, aleb, and unordered) are enabled. The chosen output latency is 3. Therefore, the comparison operation generates the output result 3 clock cycles later. This table lists the inputs and corresponding outputs obtained from the simulation in the waveform. Table 79. Summary of Input Values and Corresponding Outputs Time Event 0 ns, start-up dataa[] value: 619B CE11h datab[] value: 9106 CA22h Output value: An undefined value is seen on the result[] port, which is ignored. All values seen on the output port before the 3rd clock cycle are merely due to the behavior of the system during start-up and should be disregarded. 25 ns Output ports: ageb, aneb, and agb assert 350 ns dataa[] value: 0060 0000h continued... Send Feedback Floating-Point IP Cores User Guide 83 14. ALTFP_COMPARE IP Core UG-01058 | 2021.09.13 Time 375 ns 460 ns 495.5 ns Event datab[] value: 0070 0000h Both input values are denormal numbers. Output ports: aeb, ageb, and aleb assert Denormal inputs are not supported and are forced to zero before comparison takes place, which results in the dataa[] value being equal to datab[]. The aclr signal is set for 1 clock cycle. The comparisons of subsequent data inputs are performed 3 clock cycles after the aclr signal deasserts. 14.5. ALTFP_COMPARE Signals Figure 38. ALTFP_COMPARE Signals ALTFP_COMPARE dataa[] aeb datab[] aneb agb clk_en ageb alb clock aleb unordered aclr inst Table 80. ALTFP_COMPARE Input Signals Port Name aclr Required No Description Asynchronous clear. The source is asynchronously reset when asserted high. clk_en clock No Clock enable. When this port is asserted high, a compare operation takes place. When signal is asserted low, no operation occurs and the outputs remain unchanged. Yes Clock input to the IP core. dataa[] datab[] Yes Data input. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of sign bit, exponent bits, and mantissa bits. Yes Data input. The MSB is the sign bit, the next MSBs are the exponent, and the LSBs are the mantissa. This input port size is the total width of sign bit, exponent bits, and mantissa bits. Floating-Point IP Cores User Guide 84 Send Feedback 14. ALTFP_COMPARE IP Core UG-01058 | 2021.09.13 Table 81. ALTFP_COMPARE Output Signals Port Name aeb Required Yes Description Output port for the comparator. Asserted if the value of the dataa[] port equals the value of the datab[] port. agb Yes Output port for the comparator. Asserted if the value of the dataa[] port is greater than the value of the datab[] port. ageb Yes Output port for the comparator. Asserted if the value of the dataa[] port is greater than or equal to the value of the datab[] port. alb Yes Output port for the comparator. Asserted if the value of the dataa[] port is less than the value of the datab[] port. aleb Yes Output port for the comparator. Asserted if the value of the dataa[] port is less than or equal to the value of the datab[] port. aneb unordered Yes Output port for the comparator. Asserted if the value of the dataa[] port is not equal to the value of the datab[] port. Yes Output port for the comparator. Asserted when either the dataa[] port and the datab[] port is set to NaN, or if both the dataa[] port and the datab[] port are set to NaN. 14.6. ALTFP_COMPARE Parameters Table 82. ALTFP_COMPARE Parameters Port Name WIDTH_EXP Type Integer Required Yes WIDTH_MAN PIPELINE Integer Yes Integer Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP - 1) - 1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of WIDTH_EXP must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the singleextended precision format. The value of WIDTH_EXP must be less than the value of WIDTH_MAN, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the precision of the mantissa. If this parameter is not specified, the default is 23. When WIDTH_EXP is 8 and the floating-point format is single-precision, the WIDTH_MAN value must be 23. Otherwise, the value of WIDTH_MAN must be a minimum of 31. The value of WIDTH_MAN must be greater than the value of WIDTH_EXP, and the sum of WIDTH_EXP and WIDTH_MAN must be less than 64. Specifies the latency in clock cycles used in the ALTFP_COMPARE IP core. The pipeline values are 1, 2, and 3 latency in clock cycles. Send Feedback Floating-Point IP Cores User Guide 85 UG-01058 | 2021.09.13 Send Feedback 15. ALTFP_CONVERT IP Core This IP core performs conversion functions for various formats. 15.1. ALTFP_CONVERT Features The ALTFP_CONVERT IP core offers the following features: � Conversion functions for the following formats: -- Integer-to-Float -- Float-to-Integer -- Float-to-Float -- Fixed-to-Float -- Float-to-Fixed � Support for signed and unsigned integer � Optional exception handling output ports such as overflow, underflow, and nan Table 83. Supported Operations and Exception Ports Operation Integer-to-Float Float-to-Integer Float-to-Float Supported Exception Ports Not supported overflow, underflow, and nan overflow, underflow, and nan Fixed-to-Float Float-to-Fixed Not supported overflow, underflow, and nan 15.2. ALTFP_CONVERT Conversion Operations This table lists the features of each conversion operation. Table 84. ALTFP_CONVERT Conversion Operations Operation Integer-to-Float Conversion Float-to-Integer Conversion Features � Converts integers to the IEEE-754 standard floating-point representation. � Supports conversions of signed integers to floating-point numbers in single, double, and single-extended precision formats. � Converts IEEE-754 standard floating-point representations to the integer-bit format. � Supports conversions of single, double, and single-extended precision formats to signed integers. continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 Operation Float-to-Float Conversion Fixed-to-Float Conversion Float-to-Fixed Conversion Features � Converts between IEEE-754 standard floating-point representations. � Supports conversions of between single double, and single-extended precision formats. � This operation offers the following modes: -- Single-precision format to single-extended precision format or doubleprecision format. -- Double-precision format to single-precision format or single-extended precision format. -- Single-extended precision format to single-precision or double-precision format. � Converts fixed-point format data to the IEEE-754 standard floating-point representation. � Supports conversions of fixed-point format data to floating-point numbers in single, double, and single-extended precision formats. � Converts IEEE-754 standard floating-point representations to the fixed-point format. � Supports conversion of floating-point numbers in single, double, and singleextended precision formats. 15.3. ALTFP_CONVERT Output Latency The output latency options for the all the conversion operations in the ALTFP_CONVERT IP core are fixed, except for the Float-to-Float operation. Table 85. Latency Options for Each Operation Operation Conversion From Integer-to-Float N/A Float-to-Integer N/A Float-to-Float Single-precision format Double-precision format Single-extended precision format Fixed-to-Float N/A Float-to-Fixed N/A Latency (in clock cycles) 6 6 2 3 3 6 6 15.4. ALTFP_CONVERT Resource Utilization and Performance This table lists the resource utilization and performance information for the ALTFP_CONVERT IP core. The information was derived using the Intel Quartus Prime software version 10.0. Send Feedback Floating-Point IP Cores User Guide 87 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 Table 86. ALTFP_CONVERT Resource Utilization and Performance for Stratix III Devices Operation Format Pipeline Integer to- 32-bit integer 6 Float to single- precision 32-bit integer 6 to double- precision 64-bit integer 6 to single- precision 64-bit integer 6 to single- precision Float-to- Single- 6 Integer precision to 32-bit integer Single- 6 precision to 64-bit integer Double- 6 precision to 32-bit integer Double- 6 precision to 64-bit integer Float-to-Float Single- 2 precision to double- precision Double- 3 precision to single-precision Fixed-to-Float 16.16 fixed- 6 point to double- precision 16.16 fixed- 6 point to double- precision 32.32 fixed- 6 point to single- precision 32.32 fixed- 6 point to single- precision Adaptive Look-Up Tables (ALUTs) 182 Logic Usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 238 157 fMAX (MHz) 515 150 139 123 510 385 371 296 336 393 461 344 336 256 255 176 455 417 361 257 311 406 387 273 409 535 480 362 309 44 73 40 868 103 140 89 520 182 238 155 519 150 139 122 513 384 371 296 334 393 461 336 333 continued... Floating-Point IP Cores User Guide 88 Send Feedback 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 Operation Format Pipeline Float-to-Fixed Single- 6 precision to 16.16 fixed- point Single- 6 precision to 32.32 fixed- point Double- 6 precision to 16.16 fixed- point Double- 6 precision to 32.32 fixed- point Adaptive Look-Up Tables (ALUTs) 319 Logic Usage Dedicated Logic Registers (DLRs) Adaptive Logic Modules (ALMs) 261 210 fMAX (MHz) 438 469 367 288 315 579 393 402 365 695 486 474 306 15.5. ALTFP_CONVERT Design Example: Convert Double-Precision Floating-Point Format Numbers This design example uses the ALTFP_CONVERT IP core to convert double-precision floating-point format numbers to 64-bit integers. This design example uses the parameter editor in the Intel Quartus Prime software. Related Information � Floating-Point IP Cores Design Example Files on page 23 � Floating-Point IP Cores Design Examples Provides the design example files for the Floating-Point IP cores 15.5.1. ALTFP_CONVERT Design Example: Understanding the Simulation Results The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim - Intel FPGA Edition software to see the complete simulation waveforms. This figure shows the expected simulation results in the ModelSim - Intel FPGA Edition software. Figure 39. ALTFP_CONVERT Simulation Waveform Send Feedback Floating-Point IP Cores User Guide 89 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 This design example implements a float-to-integer converter for converting doubleprecision floating-point format numbers to 64-bit integers. In this operation, the optional exception ports of overflow, underflow, and nan are available apart from the result[] port. The latency for the float-to-integer operation is six clock cycles. Therefore, each conversion generates the output result six clock cycles after receiving the input value. This table lists the inputs and corresponding outputs obtained from the simulation in the waveform. Table 87. Summary of Input Values and Corresponding Outputs Time Event 0 ns, start-up dataa[] value: C394 AD22 761B 9EE5h Output value: The result[] port displays 0 regardless of what the input value is. This value seen on the output port before the 6th clock cycle is merely due to the behavior of the system during start-up and should be disregarded. 55 ns Output value: FAD4 B762 7918 46C0h 150 ns dataa[] value: 000F 0000 5555 1111h This value is a denormal number. 205 ns Denormal inputs are not supported and are forced to zero before conversion takes place. 300 ns dataa[] value: 5706 40CF OEC6 1176h 355 ns Output value: 7FFF FFFF FFFF FFFFh Exception handling ports: overflow asserts. The overflow flag is triggered because the width of the resulting integer is more than the maximum width allowed, and the value seen on the result[] port is the standard value used to represent a positive overflow number. 350 ns dataa[] value: C728 3147 8444 1F75h 405 ns Output value: 8000 0000 0000 0000h Exception handling ports: overflow remains asserted. This is a standard value to represent a negative overflow number. 400 ns dataa[] value: 145A 257C 895A B309h 455 ns Output value: 0000 0000h Exception handling ports: underflow asserts. The input value triggers the underflow port because the exponent of the input value is less than the exponent bias of 1023. 500 ns dataa[] value: FFFF 0000 DDDD 5555h This value is a NaN. 555 ns Output value: 0000 0000h Exception handling ports: nan asserts. 15.6. ALTFP_CONVERT Signals Floating-Point IP Cores User Guide 90 Send Feedback 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 Figure 40. ALTFP_CONVERT Signals ALTFP_CONVERT dataa[] result[] clk_en clock overflow underflow nan aclr inst Table 88. ALTFP_CONVERT Input Signals Port Name clock Required Yes Description The clock input to the ALTFP_CONVERT IP core. clk_en aclr dataa[] No Clock enable that allows conversions to take place when asserted high. When asserted low, no operation occurs and the outputs are unchanged. No Asynchronous clear. The source is asynchronously reset when the aclr signal is asserted high. Yes Data input. The size of this input port depends on the WIDTH_DATA parameter value. If the operation mode value is INT2FLOAT or FIXED2FLOAT, the data on the input bus is an integer. If the operation mode value is FLOAT2INT or FLOAT2FIXED, the input bus is the IEEE floating-point representation. In the single-precision format, the input bus width value is 32. In the double-precision format, the input bus width value is 64. In the single-extended precision format, the input bus range is from 43 to 64. If the operation mode value is FLOAT2FLOAT, the input bus value is the IEEE floating-point representation. In the single-precision format, the input bus width value is 32. In the double-precision format, the input bus width value is 64. In the single-extended precision format, the input bus range is from 43 to 64. Table 89. ALTFP_CONVERT Output Signals Port Name Required Description result[] Yes Output for the floating-point converter. The size of this output port depends on the WIDTH_RESULT parameter value. If the operation mode value is FLOAT2INT or FLOAT2FIXED, the output bus is an IEEE floating-point representation. If the operation mode is FLOAT2INT, the output bus is an integer representation. If the selected precision is the single-precision format, the output bus width value is 32. If the selected precision is the double-precision format, the output bus width value is 64. If the selected precision is the single-extended precision format, the input bus range is from 43 to 64. continued... Send Feedback Floating-Point IP Cores User Guide 91 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 Port Name overflow underflow nan Required No No No Description If the operation mode value is FLOAT2FLOAT, the output bus is an IEEE floating-point representation. If the selected precision is the single-precision format, the output bus is in the 64-bit double-precision format. If the selected precision is the double-precision format, the output bus is in the 32-bit single-precision format. If the selected precision is the singleextended precision format, the output bus ranges from 43 to 64. Optional overflow exception output. This port is available only when the operation mode values are FLOAT2FIXED, FLOAT2INT, or FLOAT2FLOAT. Asserted when the result of the conversion (after rounding), exceeds the maximum width of the result[] port, or when the dataa[] input is infinity. Optional underflow exception output. This port is available only when the operation mode values are FLOAT2FIXED, FLOAT2INT, or FLOAT2FLOAT. Asserted when the result of the conversion, after rounding, is fractional. In FLOAT2INT operations, this port is asserted when the exponent value of the floatingpoint input is smaller than the exponent bias. In FLOAT2FLOAT operations, this port is asserted when the floating-point input has a value smaller than the lowest exponent limit of the target floating-point format. Optional NaN exception output. This port is available only when the operation mode values are FLOAT2INT, FLOAT2FLOAT, or FLOAT2FIXED. Asserted when the input port is a NaN representation. If the operation mode value is FLOAT2INT or FLOAT2FIXED, the result[] port is set to zero. If the operation mode value is FLOAT2FLOAT, the result[] port is set to a NaN representation. 15.7. ALTFP_CONVERT Parameters Table 90. ALTFP_CONVERT Parameters Port Name WIDTH_EXP_INPUT Type Integer Required Yes Description Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP 1) - 1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of WIDTH_EXP_INPUT must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of WIDTH_EXP_INPUT must be less than the value of WIDTH_MAN_INPUT, and the sum of WIDTH_EXP_INPUT and WIDTH_MAN_INPUT must be less than 64. These settings apply only to the FLOAT2FIXED, FLOAT2INT, and FLOAT2FLOAT operation modes. WIDTH_MAN_INPUT Integer Yes Specifies the precision of the mantissa. If this parameter is not specified, the default is 23. When WIDTH_EXP_INPUT is 8 and the floating-point format is single-precision, the WIDTH_MAN_INPUT value must be 23. Otherwise, the value of WIDTH_MAN_INPUT must be a minimum of 31. The value of WIDTH_MAN_INPUT must be greater than the value of WIDTH_EXP_INPUT, and the sum of WIDTH_EXP_INPUT and WIDTH_MAN_INPUT must be less than 64. These settings apply only to the FLOAT2FIXED, FLOAT2INT, and FLOAT2FLOAT operation modes. WIDTH_INT Integer Yes Specifies the integer width. If the operation is FIXED2FLOAT or INT2FLOAT, this parameter defines the integer width on the input side. If the operation is FLOAT2INT or FLOAT2FIXED, this parameter defines the result width on the output side. The available settings are 32 bits, 64 bits or n bits. For n bits settings, the range is from 4 bits to 64 bits. continued... Floating-Point IP Cores User Guide 92 Send Feedback 15. ALTFP_CONVERT IP Core UG-01058 | 2021.09.13 Port Name WIDTH_DATA WIDTH_EXP_OUTPUT WIDTH_MAN_OUTPUT WIDTH_RESULT ROUNDING OPERATION Type Integer Integer Integer Integer Integer Integer Required Yes Yes Yes Yes Yes Yes Description If unspecified, the default setting for WIDTH_INT is 32 bits. Specifies the input data width. If the operation is INT2FLOAT, the WIDTH_DATA is also WIDTH_INT. If the operation is FIXED2FLOAT, the data width value is WIDTH_INT + fractional width. If the operation is FLOAT2FIXED, FLOAT2INT or FLOAT2FLOAT, the data width value is WIDTH_EXP_INPUT + WIDTH_MAN_INPUT + 1. The available settings are 32 bits, 64 bits or n bits. For n bits settings, the range is from 4 bits to 64 bits. If unspecified, the default setting for WIDTH_DATA is 32 bits. Specifies the precision of the exponent. If this parameter is not specified, the default is 8. The bias of the exponent is always set to 2 (WIDTH_EXP 1) - 1, that is, 127 for the single-precision format and 1023 for the double-precision format. The value of WIDTH_EXP_OUTPUT must be 8 for the single-precision format, 11 for the double-precision format, and a minimum of 11 for the single-extended precision format. The value of WIDTH_EXP_OUTPUT must be less than the value of WIDTH_MAN_OUTPUT, and the sum of WIDTH_EXP_OUTPUT and WIDTH_MAN_OUTPUT must be less than 64. These settings apply only to the FLOAT2FIXED, FLOAT2INT, and FLOAT2FLOAT operation modes. Specifies the precision of the mantissa. If this parameter is not specified, the default is 23. When WIDTH_EXP_OUTPUT is 8 and the floating point format is single-precision, the WIDTH_MAN_OUTPUT value must be 23. Otherwise, the value of WIDTH_MAN_OUTPUT must be a minimum of 31. The value of WIDTH_MAN_OUTPUT must be greater than the value of WIDTH_EXP_OUTPUT, and the sum of WIDTH_EXP_OUTPUT and WIDTH_MAN_OUTPUT must be less than 64. These settings apply only to the FLOAT2FIXED, FLOAT2INT, and FLOAT2FLOAT operation modes. Specifies the width of the output result. In an INT2FLOAT, FLOAT2FLOAT, or FIXED2FLOAT operation, the result width is WIDTH_EXP_OUTPUT + WIDTH_MAN_OUTPUT + 1. In a FLOAT2INT operation, the result width is the value of the WIDTH_INT parameter. In a FLOAT2FIXED operation, this parameter is the result width. The available settings are 32 bits, 64 bits or n bits. For n bits settings, the range is from 4 bits to 64 bits. Specifies the rounding mode. The default value is TO_NEAREST. Other modes are not supported. Specifies the operating mode. Values are INT2FLOAT, FLOAT2INT, FLOAT2FLOAT, FLOAT2FIXED, and FIXED2FLOAT. If this parameter is not specified, the default value is INT2FLOAT. When set to INT2FLOAT, the conversion of an integer input to an IEEE floating-point representation output takes place. When set to FLOAT2INT, the conversion of an IEEE floating-point representation input to an integer output takes place. When set to FLOAT2FLOAT, the conversion between IEEE floating-point representations input and output takes place. When set to FIXED2FLOAT, the conversion of a fixed point input to an IEEE floating-point representation output takes place. When set to FLOAT2FIXED, the IEEE floating-point input conversion to fixed point representation output takes place. Send Feedback Floating-Point IP Cores User Guide 93 UG-01058 | 2021.09.13 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core This IP core replaces all the functions supported by the existing floating point IP cores shown in the previous chapters in this document for devices in the Intel Quartus Prime Pro Edition software. Table 91. Floating Point Functions Intel FPGA IP Release Information Item Description Version 19.1 Intel Quartus Prime Version 20.1 Release Date 2020.04.13 Table 92. List of Functions Supported by FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Arithmetic Add Sub Add/Sub Function Multiply Divide Reciprocal Absolute Scalar Product Multiply-Accumulate Accumulate Multiply-Add Description Two input addition Two input subtraction Two input addition and or subtraction supporting two configurations. By default, the IP core computes both the sum (output port q) and the difference (output port s) of the two inputs. You may also select to generate an IP core that provides a single shared output for both the sum and the difference of inputs. In this configuration an additional input port (opSel) allows you to select the desired operation at runtime. When opSel is low (0), the IP core computes the sum of the two inputs. When opSel is high (1), it computes their difference. Enable this configuration by turning on Use Select Signal. Two input multiplication Two input division Performs the function of 1/a where a is the input. Note: This function replaces the ALTFP_INV IP core in Intel Arria 10 devices. Generates absolute value of the input Performs the scalar product between two vectors with the dimensions that you set Two input multiplication followed by a single cycle accumulation Perform single input accumulation in a single cycle Performs two input multiplication followed by addition continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Function Complex-Multiply Roots Square Root Reciprocal Square Root Cube Root 3D Hypotenuse Conversions Fixed-Point to Floating-Point Floating-Point to Fixed-Point Floating to Floating Point Comparisons Minimum Maximum Less Than Less Than or Equal Equal Greater Than Greater Than or Equal Not Equal Exp/Log/Pow Exponent Exponent base 2 Exponent base 10 Log Log2 Log10 Log(1+x) Power LdExp Trigonometry Sin Cos Tan Description Performs multiplication of two complex values Performs square root to the input value Performs the function of 1/a where a is the input Note: This function replaces the ALTFP_INV_SQRT IP core in Intel Arria 10 devices. Performs cube root to the input value Performs the function of Q=(a^2+b^2+c^2) Converts a fixed point input to floating point representation Converts a floating-point input to fixed point representation Converts a floating-point input to floating-point representation of a different precision Compares and produces the smallest value of two inputs Compares and produces the biggest value of two inputs Compares and returns true if input a is less than input b Compares and returns true if input a is less than or equal to input b Compares and returns true if input a is equal to input b Compares and returns true if input a is greater than input b Compares and returns true if input a is greater than or equal to input b Compares and returns true if input a is not equal to input b Performs the function of ea where a is the input Performs the function of 2a where a is the input Performs the function of 10a where a is the input Performs the function of loge(a) where a is the input Performs the function of log2(a) where a is the input Performs the function of log10(a) where a is the input Performs the function of loge(1+a) where a is the input Sets the exponential value of a floating-point input Performs the function a * 2^b where a is a floating-point input and b is an integer input. You specify both the format of input a and the width of input b Performs sine function of a single input Performs cosine function of a single input Performs tangent function of a single input continued... Send Feedback Floating-Point IP Cores User Guide 95 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Arcsin Arccos Arctan Arctan2 Function Description Performs arc sine function of a single input Performs arc cosine function of a single input Performs arc tangent function of a single input Performs the function of arctan (b/a) where a and b are the inputs 16.1. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Features The FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP core offers the following features: � Supports both latency and frequency driven cores. � Supports VHDL code generation. 16.2. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Output Latency If you require a specific latency, follow these steps: 1. In the FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP parameter editor, click the Basic tab. 2. Under the Performance category, in the Goal option, select latency. 3. In the Target field, set your desired latency (cycles). 4. Then, click Check Performance. 16.3. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Target Frequency If you require a specific frequency, follow these steps: 1. In the FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP parameter editor, click Basic tab. 2. Under the Performance category, in the Goal option, select frequency. 3. In the Target field, set your desired frequency (MHz). 4. The IP core reports the latency for the instance that it generates in the Report category. Note: You must verify the frequency by running the Timing Analyzer. 16.4. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Combined Target If you require a combined target of latency and frequency, follow these steps: Floating-Point IP Cores User Guide 96 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 1. In the FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP parameter editor, click the Basic tab. 2. Under the Performance category, in the Goal option, select Combined. 3. In the Target field, set your desired frequency (MHz). 4. In the Target field, set your desired latency (cycles). 5. Then, click Finish. 16.5. FP_FUNCTIONS Intel FPGA IP Resource Utilization and Performance These tables list the resource utilization and performance information for the FP_Functions Intel FPGA IP core. The information was derived using the Intel Quartus Prime software version 14.1. The frequency target was set to 200 MHz. Table 93. Family Arithmetic Function Precision Latency fMAX Arria V Abs (5AGXFB 3H4F40 C5) Add AddSubtract Cube Root Divide Exp base 10 Arria V (5AGXFB 3H4F40 C5) Exp base 2 Exp base e Reciprocal Reciprocal Square Root LDExp Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double 0 -- 0 -- 9 233.1 12 251.95 9 249.31 12 252.46 9 275.18 24 185.77 18 249 35 185.29 16 212.72 31 185.77 7 236.41 21 185.84 14 217.96 28 185.87 12 253.16 30 185.29 7 267.52 20 185.74 2 367.92 2 359.32 ALMs 33 65 360 886 477 1161 132 634 456 1409 547 2194 345 932 718 2134 210 877 118 539 69 100 M10K M20K DSP Blocks Logic Registers Primary Seconda ry 0 -- 0 0 0 0 -- 0 0 0 0 -- 0 507 29 0 -- 0 1064 61 0 0 0 651 63 0 0 0 1713 91 6 -- 2 132 20 17 -- 10 1297 58 5 -- 4 771 100 39 -- 15 3035 138 3 -- 2 675 18 0 -- 10 2626 56 0 -- 2 214 19 0 -- 10 1324 51 0 -- 2 597 46 0 -- 10 2398 46 4 -- 3 294 26 9 -- 14 1764 105 4 -- 2 141 14 13 -- 9 1210 52 0 -- 0 85 0 0 -- 0 146 0 continued... Send Feedback Floating-Point IP Cores User Guide 97 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Latency fMAX Arria V (5AGXFB 3H4F40 C5) Log base 10 Arria V (5AGXFB 3H4F40 C5) Log(1+x) Log base 2 Log base e Multiply Arria V (5AGXFB 3H4F40 C5) Power Square Root Subtract Cyclone Abs V (5CGXFC 7D6F31 C7) Add AddSubtract Cube Root Divide Cyclone V (5CGXFC 7D6F31 C7) Exp base 10 Exp base 2 Exp base e Reciprocal Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double 16 250 34 186.12 21 222.77 43 185.94 16 232.29 37 185.32 16 248.57 35 185.84 5 281.14 7 186.01 45 201.82 82 185.43 8 261.92 21 185.94 9 232.67 12 257.07 0 -- 0 -- 12 225.94 20 208.99 12 224.67 20 211.55 10 230.47 34 212.49 20 232.61 51 201.01 20 217.58 52 212.77 9 211.33 36 219.3 17 207.68 50 198.85 14 230.95 44 207.43 ALMs 379 1,380 766 2,361 350 1,342 379 1,422 156 339 1,347 4,195 119 548 363 884 33 65 403 932 509 1,197 131 890 466 1,782 552 2,317 352 1,128 698 2,309 245 1,201 M10K M20K DSP Blocks Logic Registers Primary Seconda ry 4 -- 3 622 65 40 -- 11 3,025 143 4 -- 40 -- 4 -- 13 -- 4 -- 40 -- 0 -- 0 -- 11 -- 20 -- 3 -- 8 -- 0 -- 0 -- 0 -- 0 -- 0 -- 0 -- 0 -- 0 -- 6 -- 17 -- 5 -- 41 -- 3 -- 0 -- 0 -- 0 -- 0 -- 0 -- 4 -- 9 -- 3 1,171 82 14 4,702 183 3 584 64 17 3,156 121 3 616 57 13 3,066 147 1 152 6 4 549 13 14 2,410 165 38 8,149 266 2 174 13 9 1,225 44 0 505 32 0 1,064 61 0 0 0 0 0 0 0 562 35 0 1,813 72 0 805 65 0 2,647 120 2 213 11 10 1,991 54 4 991 62 15 4,317 165 2 905 32 10 4,287 122 2 314 13 10 2,364 87 2 860 31 10 4,300 126 3 378 26 14 2,694 94 continued... Floating-Point IP Cores User Guide 98 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Latency fMAX Reciprocal Square Root Cyclone V (5CGXFC 7D6F31 C7) LDExp Log base 10 Log(1+x) Log base 2 Cyclone V (5CGXFC 7D6F31 C7) Log base e Multiply Power Square Root Subtract Stratix V Abs (5SGXE A7K2F40 C2) Add AddSubtract Cube Root Divide Exp base 10 Stratix V (5SGXE A7K2F40 C2) Exp base 2 Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double 9 233.37 30 250 2 346.02 3 357.91 22 203.33 49 196.97 29 191.5 62 168.27 20 202.1 54 194.21 22 181.42 50 196.27 6 268.6 11 205.17 62 181.19 127 186.53 8 219.15 31 250 12 232.07 20 204.25 0 -- 0 -- 5 364.83 7 329.49 5 354.74 7 338.41 8 420.17 20 277.7 13 363.5 23 270.86 11 292.4 22 271.74 5 387.3 17 279.56 ALMs 137 782 69 104 486 1,888 944 3,012 413 1,898 482 1,941 159 431 1,778 5,411 126 822 399 918 33 65 366 834 489 1,106 114 520 377 1,091 486 2,033 351 897 M10K M20K DSP Blocks Logic Registers Primary Seconda ry 4 -- 2 223 25 13 -- 9 1,932 46 0 -- 0 87 1 0 -- 0 215 0 4 -- 3 1,066 47 40 -- 11 4,483 153 4 -- 3 1,844 105 40 -- 14 6,899 210 4 -- 3 918 50 13 -- 17 4,732 151 4 -- 3 1,058 45 40 -- 13 4,611 197 0 -- 1 223 2 0 -- 4 970 18 11 -- 14 3,562 154 22 -- 38 12,361 325 3 -- 2 205 12 8 -- 9 2,056 55 0 -- 0 566 42 0 -- 0 1,839 60 -- 0 0 0 0 -- 0 0 0 0 -- 0 0 299 19 -- 0 0 801 53 -- 0 0 411 29 -- 0 0 1,039 134 -- 5 2 124 11 -- 11 10 997 17 -- 3 4 591 71 -- 20 15 2,274 120 -- 3 2 417 12 -- 0 10 1,761 48 -- 0 2 160 1 -- 0 10 995 27 continued... Send Feedback Floating-Point IP Cores User Guide 99 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Latency fMAX Exp base e Reciprocal Reciprocal Square Root LDExp Log base 10 Stratix V (5SGXE A7K2F40 C2) Log(1+x) Log base 2 Log base e Multiply Power Square Root Subtract Arria 10 Abs (10AX11 5H4F34I 3SP) Add AddSubtract Cube Root Divide Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double 8 284.09 23 268.38 9 279.33 22 241.31 6 420.52 17 271.37 0 -- 0 717.36 11 359.58 23 271.96 15 338.64 27 280.98 11 340.37 27 258.33 11 351.86 23 270.49 3 399.52 4 250.75 31 261.23 60 267.81 6 393.7 17 274.12 5 320.41 7 338.52 0 -- 0 -- 4 296.4 7 296.3 5 319.39 7 289.77 10 432.9 24 282.09 16 347.34 30 258.26 ALMs 653 2,043 199 764 105 449 67 99 358 1,077 748 1,911 304 1,053 359 1,071 136 312 1,171 3,555 112 458 360 835 33 65 49 840 483 1,106 126 594 394 1,208 M10K M20K DSP Blocks Logic Registers Primary Seconda ry -- 0 2 350 18 -- 0 10 1,710 44 -- 3 3 211 13 -- 9 14 1,391 49 -- 3 2 129 9 -- 8 9 1,009 47 -- 0 0 0 0 -- 0 0 66 0 -- 3 3 443 29 -- 20 11 2,252 101 -- 3 3 905 55 -- 20 13 3,301 122 -- 3 3 392 15 -- 8 16 2,241 110 -- 3 3 439 35 -- 20 13 2,210 94 -- 0 1 72 1 -- 0 4 237 5 -- 8 12 1,492 83 -- 13 37 5,347 244 -- 3 2 129 7 -- 8 9 1,019 41 -- 0 0 299 14 -- 0 0 801 51 -- 0 0 0 0 -- 0 0 0 0 -- 0 1 0 0 -- 0 0 779 67 -- 0 0 408 37 -- 0 0 1,006 156 -- 5 2 121 0 -- 11 10 1,155 29 -- 3 4 561 66 -- 20 15 2,175 136 continued... Floating-Point IP Cores User Guide 100 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Latency fMAX Exp base 10 Arria 10 (10AX11 5H4F34I 3SP) Exp base 2 Exp base e Reciprocal Reciprocal Square Root LDExp Log base 10 Log(1+x) Arria 10 (10AX11 5H4F34I 3SP) Log base 2 Log base e Multiply Power Square Root Subtract Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double Single Double 14 271.37 29 242.42 7 317.86 22 251.45 26 365.36 28 260.42 12 278.94 27 260.89 8 418.94 22 243.43 0 -- 0 -- 15 293.69 28 272.03 18 301.3 32 251.95 14 275.79 32 271.96 29 378.07 29 256.54 3 288.4 5 288.35 40 262.12 73 237.7 8 432.9 22 249.25 4 296.9 7 296.82 ALMs 502 2,185 370 906 298 2,156 225 824 117 523 68 99 364 1,158 747 2,018 316 1,173 297 1,219 49 312 1,335 3,957 124 539 49 842 M10K M20K DSP Blocks Logic Registers Primary Seconda ry -- 3 2 432 40 -- 0 10 1,683 90 -- 0 2 124 9 -- 0 10 1,172 47 -- 3 6 137 11 -- 0 10 1,724 93 -- 3 3 172 3 -- 9 14 1,448 100 -- 3 2 130 1 -- 8 9 950 37 -- 0 0 0 0 -- 0 0 66 0 -- 3 3 441 42 -- 20 11 2,095 214 -- 3 3 882 79 -- 20 13 3,019 248 -- 3 3 402 3 -- 8 16 2,372 132 -- 3 9 315 6 -- 20 13 2,338 152 -- 0 1 0 0 -- 0 4 236 26 -- 8 14 1,523 127 -- 13 37 5,362 305 -- 3 2 118 8 -- 8 9 1,000 34 -- 0 1 0 0 -- 0 0 783 76 Table 94. Trigonometry Family Function Precision Arria V (5AGX Arccos Single Single Scale Latency fMAX ALMs M10K M20K DSP By Pi Blocks 0 35 217.7 768 9 -- 8 7 1 39 216.4 819 9 -- 9 5 Logic Registers Primary Secondary 1,289 94 1,383 92 continued... Send Feedback Floating-Point IP Cores User Guide 101 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision FB3H4 F40C5 ) Double Double Arcsin Single Single Double Double Arctan Single Single Double Double Arria V (5AGX FB3H4 F40C5 ) Arctan2 Single Single Double Double Cos Single Single Double Double Arria Sin V (5AGX FB3H4 F40C5 ) Single Single Double Double Tan Single Scale Latency fMAX ALMs M10K M20K DSP By Pi Blocks 0 76 185.7 2,91 27 -- 37 7 1 83 184.2 3,12 27 -- 40 0 0 29 215.8 652 9 -- 8 1 34 222.3 747 9 -- 9 2 0 66 185.3 2,76 29 -- 41 2 2 1 72 184.1 2,96 29 -- 44 6 3 0 27 232.2 603 7 -- 6 9 1 31 230.7 664 7 -- 7 3 0 65 185.7 2,04 23 -- 31 7 1 71 185.6 2,22 23 -- 34 9 0 43 230.2 1,01 11 -- 9 3 1 43 230.2 1,01 11 -- 9 3 0 92 184.2 3,19 44 -- 43 5 1 92 184.2 3,19 44 -- 43 5 0 25 205.3 768 5 -- 6 1 12 242.1 490 0 -- 3 3 0 45 184.2 2,87 34 -- 33 9 1 29 185.8 1,71 0 -- 13 7 9 0 26 223.5 964 5 -- 6 1 1 12 240.5 585 0 -- 3 6 0 46 184.1 3,01 36 -- 33 6 9 1 29 185.7 1,74 0 -- 14 7 8 0 38 221.7 1,36 12 -- 12 8 8 Logic Registers Primary Secondary 6,489 230 6,899 198 1,069 93 1,178 80 6,365 171 6,696 200 937 77 1,034 89 4,535 164 4,854 174 1,719 128 1,719 128 6,822 285 6,822 285 1,563 120 475 36 5,973 244 2,499 92 1,439 110 563 66 6,308 249 2,699 92 2,625 163 continued... Floating-Point IP Cores User Guide 102 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Single Double Double Cyclon e V (5CGX FC7D6 F31C7 ) Arccos Single Single Double Double Arcsin Single Single Double Double Arctan Single Single Double Double Cyclon e V (5CGX FC7D6 F31C7 ) Arctan2 Single Single Double Double Cos Single Single Double Double Scale Latency fMAX ALMs M10K M20K DSP By Pi Blocks 1 25 231.4 1,29 4 -- 10 3 7 0 68 185.5 5,21 56 -- 65 6 1 1 52 184.1 3,87 26 -- 43 6 4 0 42 217.2 857 9 -- 8 1 47 196.2 943 9 -- 9 7 0 113 196.5 3,95 31 -- 37 7 1 123 210.1 4,21 31 -- 40 7 8 0 35 222.6 757 9 -- 8 2 1 40 215.1 844 9 -- 9 9 0 101 201.6 3,81 31 -- 41 5 6 1 112 197.7 4,04 31 -- 44 1 6 0 33 227.5 706 7 -- 6 8 1 38 206.3 787 7 -- 7 1 0 98 188.7 2,92 24 -- 31 9 0 1 109 180.4 3,19 24 -- 34 1 6 0 51 206.1 1,15 11 -- 9 4 3 1 51 206.1 1,15 11 -- 9 4 3 0 144 191.1 4,58 46 -- 43 7 9 1 144 191.1 4,58 46 -- 43 7 9 0 32 174.6 959 5 -- 6 7 1 15 212.9 517 0 -- 3 9 0 75 182.7 3,75 34 -- 33 5 1 1 50 212.6 1,98 0 -- 13 8 5 Logic Registers Primary Secondary 1,512 140 10,670 530 6,896 238 1,701 107 1,887 104 9,739 343 10,353 333 1,464 65 1,627 111 9,709 334 10,383 260 1,266 92 1,434 90 7,154 297 7,875 297 2,013 149 2,013 149 10,740 417 10,740 417 2,258 110 702 25 9,177 352 3,914 169 continued... Send Feedback Floating-Point IP Cores User Guide 103 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Sin Single Single Double Double Tan Single Single Double Double Strati x V (5SGX EA7K2 F40C2 ) Arccos Single Single Double Double Arcsin Single Single Double Double Arctan Single Single Double Double Arctan2 Single Single Double Scale Latency fMAX ALMs M10K M20K DSP By Pi Blocks 0 33 191.6 1,08 5 -- 6 1 6 1 14 207.8 579 0 -- 3 1 0 75 196.3 3,78 38 -- 33 9 7 1 49 206.5 2,16 0 -- 14 3 5 0 46 185.7 1,65 12 -- 12 4 5 1 29 205.4 1,28 4 -- 10 7 3 0 112 194.7 7,05 58 -- 65 2 1 89 197.2 5,32 26 -- 43 4 7 0 23 291.4 753 -- 9 8 6 1 27 288.4 823 -- 9 9 3 0 53 247.4 2,38 -- 27 37 6 0 1 58 233.1 2,57 -- 27 40 5 0 0 20 290.6 598 -- 9 8 1 1 23 294.9 678 -- 9 9 9 0 47 237.2 2,23 -- 27 40 5 5 1 52 240.3 2,41 -- 27 43 3 1 0 20 293.6 544 -- 6 6 1 23 290.7 620 -- 6 7 0 47 241.7 1,83 -- 18 30 2 7 1 52 247.3 2,00 -- 18 33 4 2 0 31 288.3 890 -- 9 9 5 1 31 288.3 890 -- 9 9 5 0 69 239.2 2,98 -- 29 42 3 3 Logic Registers Primary Secondary 2,394 132 783 39 9,545 284 4,336 177 3,738 200 2,142 102 16,793 607 11,741 376 801 34 891 27 4,435 145 4,717 121 698 19 800 21 4,407 89 4,621 134 646 53 715 50 3,424 145 3,654 126 1,277 71 1,277 71 5,530 212 continued... Floating-Point IP Cores User Guide 104 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Strati Cos x V (5SGX EA7K2 F40C2 ) Sin Tan Arria 10 (10AX 115H4 F34I3 SP) Arccos Arcsin Arctan Double Single Single Double Double Single Single Double Double Single Single Double Double Single Single Double Double Single Single Double Double Single Single Scale Latency fMAX ALMs M10K M20K DSP By Pi Blocks 1 69 239.2 2,98 -- 29 42 3 3 0 17 267.0 711 -- 5 6 2 1 8 364.8 452 -- 0 3 3 0 33 242.2 2,52 -- 17 31 5 9 1 21 275.4 1,60 -- 0 13 8 8 0 18 309.6 856 -- 5 6 9 1 8 317.4 538 -- 0 3 6 0 34 257.6 2,71 -- 19 31 7 4 1 22 260.8 1,86 -- 0 14 9 4 0 27 272.2 1,31 -- 11 12 6 2 1 17 295.6 1,16 -- 3 10 8 4 0 52 268.3 4,61 -- 30 60 8 2 1 41 260.8 3,88 -- 13 43 9 6 0 28 270.4 703 -- 9 8 2 1 31 261.2 705 -- 9 9 3 0 63 257.8 2,62 -- 27 37 6 1 69 255.6 2,81 -- 27 40 2 3 0 25 249.6 665 -- 9 8 3 1 28 254.1 673 -- 9 9 9 0 57 255.6 2,44 -- 29 40 2 0 1 62 251.5 2,59 -- 29 43 1 6 0 26 271.3 600 -- 6 6 1 29 274.2 594 -- 6 7 Logic Registers Primary Secondary 5,530 212 890 48 368 20 4,510 187 1,799 54 917 74 382 10 4,766 229 1,898 104 1,675 117 1,175 65 8,152 264 5,294 193 656 29 624 19 4,917 241 5,127 268 659 18 649 30 4,750 213 4,985 190 578 32 583 22 continued... Send Feedback Floating-Point IP Cores User Guide 105 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Function Precision Double Double Arctan2 Single Single Double Double Arria Cos 10 (10AX 115H4 F34I3 SP) Single Single Double Double Sin Single Single Double Double Tan Single Single Double Double Scale Latency fMAX ALMs M10K M20K DSP By Pi Blocks 0 57 254.1 1,86 -- 22 30 3 6 1 63 258.3 2,04 -- 22 33 3 3 0 40 248.1 1,00 -- 9 9 4 2 1 40 248.1 1,00 -- 9 9 4 2 0 84 255.1 3,02 -- 33 42 5 1 84 255.1 3,02 -- 33 42 5 0 21 336.9 786 -- 5 6 3 1 11 310.3 512 -- 0 3 7 0 39 263.9 2,70 -- 17 33 2 2 1 29 242.1 1,69 -- 0 13 9 8 0 22 311.3 876 -- 5 6 3 1 11 279.0 585 -- 0 3 2 0 41 265.2 2,79 -- 19 33 5 1 1 29 259.6 1,91 -- 0 14 1 8 0 34 265.6 1,35 -- 11 12 9 1 23 265.8 1,26 -- 3 10 9 8 0 64 248.1 5,10 -- 30 65 4 7 1 53 251.7 4,00 -- 17 43 2 Logic Registers Primary Secondary 3,654 171 3,726 253 1,258 85 1,258 85 5,675 328 5,675 328 979 154 297 22 3,697 375 2,030 62 1,003 116 330 19 3,902 334 1,943 72 1,756 155 1,065 94 7,578 458 5,619 343 Table 95. FPFXP Family Input Output Output Latency Precisio Width Fraction n fMAX ALMs Arria V Single 32 0 (5AGXF B3H4F4 32 16 0C5) 32 32 2 277.93 168 2 266.1 169 2 277.93 168 M10K 0 0 0 M20K ---- DSP Blocks Logic Registers Primary Second ary 0 75 1 0 75 0 0 75 1 continued... Floating-Point IP Cores User Guide 106 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Input Output Output Latency Precisio Width Fraction n fMAX ALMs 64 0 64 16 64 32 Double 32 0 32 16 32 32 64 0 64 16 64 32 Cyclone Single 32 0 V (5CGXF 32 16 C7D6F3 1C7) 32 32 64 0 64 16 64 32 Double 32 0 32 16 32 32 64 0 64 16 64 32 Stratix Single 32 0 V (5SGXE 32 16 A7K2F4 0C2) 32 32 64 0 64 16 64 32 Double 32 0 32 16 32 32 64 0 64 16 64 32 Arria 10 Single 32 0 (10AX1 15H4F3 3 226.4 291 3 226.4 291 3 226.4 291 3 332.12 197 3 344.12 197 3 332.12 197 3 256.28 326 3 256.28 326 3 256.28 326 3 245.04 171 3 245.04 171 3 245.04 171 4 190.62 244 4 190.62 244 4 190.62 244 4 291.63 209 4 302.94 209 4 291.63 209 5 207.25 329 5 207.25 329 5 207.25 329 0 717.36 168 0 717.36 168 0 717.36 168 0 717.36 304 0 717.36 304 0 717.36 304 0 717.36 204 0 717.36 204 0 717.36 204 2 456 329 2 456 329 2 456 329 0 -- 168 M10K 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -------------- M20K ---------------------0 0 0 0 0 0 0 0 0 0 0 0 0 DSP Blocks Logic Registers Primary Second ary 0 172 0 0 172 0 0 172 0 0 115 0 0 115 0 0 115 0 0 205 4 0 205 4 0 205 4 0 110 0 0 110 0 0 110 0 0 269 0 0 269 0 0 269 0 0 160 1 0 160 1 0 160 1 0 347 2 0 347 2 0 347 2 0 38 0 0 38 0 0 38 0 0 70 0 0 70 0 0 70 0 0 38 0 0 38 0 0 38 0 0 134 1 0 134 1 0 134 1 0 38 0 continued... Send Feedback Floating-Point IP Cores User Guide 107 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Input Output Output Latency Precisio Width Fraction n fMAX ALMs 4I3SP) 32 16 32 32 64 0 64 16 64 32 Double 32 0 32 16 32 32 64 0 64 16 64 32 0 -- 168 0 -- 168 0 -- 304 0 -- 304 0 -- 304 0 -- 203 0 -- 203 0 -- 203 2 407.33 328 2 407.33 328 2 407.33 328 M10K ------------ M20K 0 0 0 0 0 0 0 0 0 0 0 DSP Blocks Logic Registers Primary Second ary 0 38 0 0 38 0 0 70 0 0 70 0 0 70 0 0 38 0 0 38 0 0 38 0 0 134 0 0 134 0 0 134 0 Table 96. FXPFP Family Input Input Output Latency Width Fraction Precisio n fMAX ALMs Arria V 32 (5AGXF B3H4F4 32 0C5) 32 32 32 32 64 64 64 64 64 64 Cyclone 32 V (5CGXF 32 C7D6F3 1C7) 32 32 32 32 64 0 Single 6 283.61 154 0 Double 5 328.19 165 16 Single 6 283.61 154 16 Double 5 328.19 165 32 Single 6 293 152 32 Double 5 336.59 159 0 Single 7 282.01 217 0 Double 7 256.48 330 16 Single 7 282.01 217 16 Double 7 256.48 330 32 Single 7 282.01 217 32 Double 7 256.48 330 0 Single 8 230.04 168 0 Double 7 292.74 180 16 Single 8 230.04 168 16 Double 7 292.74 180 32 Single 8 237.14 166 32 Double 7 268.6 179 0 Single 9 248.51 219 M10K 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 M20K -------------------- DSP Blocks Logic Registers Primary Second ary 0 195 14 0 180 17 0 195 14 0 180 17 0 193 13 0 180 16 0 297 16 0 451 18 0 297 16 0 451 18 0 297 16 0 451 18 0 264 21 0 258 23 0 264 21 0 258 23 0 262 20 0 258 29 0 391 18 continued... Floating-Point IP Cores User Guide 108 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Input Input Output Latency Width Fraction Precisio n fMAX ALMs 64 64 64 64 64 Stratix 32 V (5SGXE 32 A7K2F4 0C2) 32 32 32 32 64 64 64 64 64 64 Arria 10 32 (10AX1 15H4F3 32 4I3SP) 32 32 32 32 64 64 64 64 64 64 0 Double 10 176.87 338 16 Single 9 248.51 219 16 Double 10 176.87 338 32 Single 9 248.51 219 32 Double 10 176.87 338 0 Single 3 579.71 148 0 Double 2 547.95 161 16 Single 3 550.66 148 16 Double 2 536.19 160 32 Single 3 558.66 145 32 Double 2 496.28 154 0 Single 3 454.55 194 0 Double 3 434.22 304 16 Single 3 454.55 194 16 Double 3 434.22 304 32 Single 3 454.55 194 32 Double 3 434.22 304 0 Single 3 464.9 147 0 Double 2 458.93 161 16 Single 3 464.9 147 16 Double 2 432.15 160 32 Single 3 451.67 145 32 Double 2 419.99 154 0 Single 3 417.54 193 0 Double 3 407.33 305 16 Single 3 417.54 193 16 Double 3 407.33 305 32 Single 3 417.54 193 32 Double 3 407.33 305 M10K 0 0 0 0 0 ------------------------- M20K -----0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 DSP Blocks Logic Registers Primary Second ary 0 648 18 0 391 18 0 648 18 0 391 18 0 648 18 0 97 1 0 72 1 0 97 1 0 72 0 0 96 1 0 72 1 0 125 0 0 194 3 0 125 0 0 194 3 0 125 0 0 194 3 0 97 0 0 72 0 0 97 0 0 72 0 0 96 0 0 72 0 0 124 3 0 193 3 0 124 3 0 193 3 0 124 3 0 193 3 Family Input Precisio n Output Precisio n Latency fMAX ALMs Arria V Single Double 2 371.61 93 (5AGXFB 3H4F40 Double Single 2 370.64 127 C5) M10K 0 0 M20K -- -- DSP Blocks 0 0 Logic Registers Primary Seconda ry 71 0 74 1 continued... Send Feedback Floating-Point IP Cores User Guide 109 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Family Input Output Latency Precisio Precisio n n fMAX ALMs Cyclone Single Double 2 346.14 93 V (5CGXFC Double Single 3 349.9 126 7D6F31 C7) Stratix V Single Double 0 -- 76 (5SGXEA 7K2F40C Double Single 0 717.36 126 2) Arria 10 Single Double 0 (10AX11 5H4F34I Double Single 0 3SP) -- 75 -- 126 M10K 0 0 -- -- -- -- M20K -- -- DSP Blocks 0 0 Logic Registers Primary Seconda ry 72 1 111 2 0 0 0 0 0 0 34 0 0 0 0 0 0 0 34 0 16.6. FP_FUNCTIONS Intel FPGA IP Signals Figure 41. FP_FUNCTIONS Intel FPGA IP Signals FP_FUNCTIONS Intel FPGA IP clk q (1) areset a (1) b (1), (2) 1) The floating point and fixed point data widths determine the port width of this port. 2) This port is not relevant for convert and square root functions. Table 97. FP_FUNCTIONS Intel FPGA IP Input Signals Port Name clk Required Yes Description All input signals must be synchronous to this clock. areset en a Yes Asynchronous active-high reset. Deassert this signal synchronously to the input clock to avoid metastability issues. No Optional port. Allow calculation to take place when asserted. When deasserted, no operation will take place and the outputs are unchanged. Yes Data input signal. continued... Floating-Point IP Cores User Guide 110 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Port Name b s c Required Yes Yes Yes Description Data input signal (where applicable). Select port for Add/Sub function. Data port for integer exponent port for LDExp function. Table 98. FP_Functions Intel FPGA IP Output Signals Port Name q Required Yes Data output signal. Description 16.7. FP_FUNCTIONS Intel FPGA IP Parameters These tables list the FP_FUNCTIONS Intel FPGA IP parameters. Table 99. FP_FUNCTIONS Intel FPGA IP Parameters: Functionality Tab Parameter Function Family Name Values � All � Arithmetic � Comparisons � Conversions � Exp/Log/Pow � Roots � Trigonometry � Add � Subtract � Add/Sub � Multiply � Divide � Reciprocal � Absolute � Scalar Product � Multiply Accumulate � Accumulate � Multiply Add � Complex Multiply � Sin � Cos � Tan � Arcsin � Arccos � Arctan � Arctan2 � Exponent � Exponent base 2 � Exponent base 10 � Log � Log2 � Log10 � Log(1+x) Descriptions Allows you to chose which functions to be displayed in the Function Name Parameter list. The default value is All. Allows you to choose your desired function. Note: This parameter only displays the options you have selected from the Family Parameter. continued... Send Feedback Floating-Point IP Cores User Guide 111 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Parameter Use Select Signal Values � Power � Square Root � Reciprocal Square Root � Cube Root � 3D Hypotenuse � Minimum � Maximum � Less Than � Less Than or Equal � Equal � Not Equal � Greater Than � Greater Than or Equal � Fixed to Floating Point � Floating Point to Fixed � Floating to Floating Point -- Represent angle -- as multiple of Pi Inputs are -- within range -2pi to +2pi Floating Point Data Format Single Double Custom Exponent 5 to 11 Mantissa 10 to 52 Input Vector Dimension Input Format Integer Single Double Custom Input Exponent Integer Input Mantissa Integer Descriptions Select this option to generate a Select signal. Use the Select signal to choose the option to use both addition and subtraction functions or either one of the functions. Select this option to represent angles as multiple of Pi. Note: Not available for Arctan2 function. Select this option to disable range reduction. Note: Only available for Sin and Cos function. Allows you to choose the floating point format of the data values. The default value is single. Allows you to specify the width of the exponent. This parameter is only available when the Format parameter is set to custom. The default value is 8. Allows you to specify the width of the mantissa. This parameter is only available when the Format parameter is set to custom. The default value is 23. Provide the desired the number of inputs to compute the vector dimension. Allows you to choose the floating point format of the input data values. The default value is single. Note: Only available for Floating to Floating Point function. Allows you to specify the width of the input exponent. This parameter is only available when the Format parameter is set to custom. The default value is 8. Note: Only available for Floating to Floating Point function. Allows you to specify the width of the mantissa. This parameter is only available when the Format parameter is set to custom. The default value is 23. Note: Only available for Floating to Floating Point function. continued... Floating-Point IP Cores User Guide 112 Send Feedback 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Parameter Output Format Output Exponent Single Double Custom Integer Values Output Mantissa Integer Fixed Point Data Width 16 to 128 Fraction -128 to 128 Sign Signed , Unsigned Rounding Mode � nearest with tie breaking to even Relax rounding -- to round up or down to reduce resource usage Ports Generate Enable -- Port Descriptions Allows you to choose the floating point format of the output data values. The default value is single. Allows you to specify the width of the output exponent. This parameter is only available when the Format parameter is set to custom. The default value is 8. Note: Only available for Floating to Floating Point function. Allows you to specify the width of the mantissa. This parameter is only available when the Format parameter is set to custom. The default value is 23. Note: Only available for Floating to Floating Point function. The bit width of the fixed point data port. This parameter is only available when the Name parameter is set to Fixed to Floating Point. The default value is 32. The bit width of the fraction. This parameter is only available when the Name parameter is set to Fixed to Floating Point. Choose if the fixed point data is signed or unsigned. This parameter is only available when the Name parameter is set to Convert. The default value is signed. The rounding mode. Choose if the nearest rounding mode should be relaxed to faithful rounding, where the result may be rounded up or down, to reduce resource usage. Only available for arithmetic functions Choose if the FP_FUNCTIONS Intel FPGA IP core should have an enable signal. Table 100. FP_FUNCTIONS Intel FPGA IP Parameters: Performance Tab Parameter Values Descriptions Target Goal � Frequency � Latency � Combined � Manually Specify DSP Registers If the Goal is the frequency, then the Target is the desired frequency in MHz. This, together with the target device family, determines the amount of pipelining. If the Goal is Combined then two Targets are displayed, one is the desired frequency in MHz, one is the target latency in cycles. When you set the Goal parameter to frequency, the default value is 200 MHz When you set the Goal parameter to latency, the default value is 2. If the Goal is Latency, then the Target is the desired latency. The report generates the achievable latency if it can't meet target latency. continued... Send Feedback Floating-Point IP Cores User Guide 113 16. FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Core UG-01058 | 2021.09.13 Parameter Values Target Any Positive Integer Report Latency on Arria 10 is <x> cycles -- Resource Estimates: -- � Multiplies � LUTs � Memory Bits � Memory Blocks Check Performance -- Descriptions If the Goal is set to Manually Specify DSP Registers, you can manually select the register and function subblocks within the DSP IP core. Specify your target frequency and latency. This report shows the latency of the function. This report shows the number of multipliers, LUTs, memory bits, and memory blocks utilized by the IP core. Click this to check if the design can achieve the target latency. Note: Only available when Goal is set to Latency. Floating-Point IP Cores User Guide 114 Send Feedback UG-01058 | 2021.09.13 Send Feedback 17. Floating-Point IP Cores User Guide Document Archives IP versions are the same as the Intel Quartus Prime Design Suite software versions up to v19.1. From Intel Quartus Prime Design Suite software version 19.2 or later, IP cores have a new IP versioning scheme. If an IP core version is not listed, the user guide for the previous IP core version applies. Intel Quartus Prime Version IP Core Version User Guide 16.1 16.1 Floating-Point IP Cores User Guide 15.0 15.0 Floating-Point IP Cores User Guide Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered UG-01058 | 2021.09.13 Send Feedback 18. Document Revision History for the Floating-Point IP Cores User Guide Document Version 2021.09.13 2021.03.12 2020.06.22 Intel Quartus Prime Version 20.1 20.1 20.1 Changes Updated List of Functions Supported by FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP Updated the supported device for FP_FUNCTIONS Intel FPGA IP to include Intel Arria 10 devices in Table: IP Cores Available in Intel Quartus Prime Standard Edition Software. � Added IP Cores Available in Intel Quartus Prime Standard Edition Software and IP Cores Available in Intel Quartus Prime Pro Edition Software tables. � Removed information about the ALTERA_FP_MATRIX_INV and ALTERA_FP_MATRIX_MULT_IP cores. These cores are no longer supported in versions 20.1 and later. � Rebranded the entire document as per Intel standards. � Renamed ALTERA_FP_ACC_CUSTOM IP Core to FP_ACC_CUSTOM Intel FPGA IP or Floating Point Custom Accumulator Intel FPGA IP. � Renamed ALTERA_FP_FUNCTIONS IP Core to FP_FUNCTIONS Intel FPGA IP or Floating Point Functions Intel FPGA IP. � Added Floating Point Custom Accumulator Intel FPGA IP Release Information and Floating Point Functions Intel FPGA IP Release Information tables. � Updated the VHDL LIBRARY-USE Declaration topic to correct the VHDL Library declaration example from USE altera_mf_altera_mf_components.all; to USE altera_mf.altera_mf_components.all;. Date December 2016 July 2015 December 2014 Document Version Changes Made 2016.12.09 � Added simple description about the IP core on each introduction page. � Added descriptions for each function supported by ALTERA_FP_FUNCTIONS IP core. � Clarified that ALTERA_FP_FUNCTIONS IP core replaces all ALTFP IP cores in Arria 10 devices. � Added new parameters in ALTERA_FP_FUNCTIONS Parameter: Functionality Tab table. � Clarified the functionality of en signal for ALTERA_FP_FUNCTIONS. 2015.07.30 � Updated link to Floating-Point IP Cores Design Examples. � Updated Memory Blocks numbers in ALTERA_FP_MATRIX_MULT Resource Utilization and Performance for the Arria 10 and Stratix V Devices table. � Added notes on default settings for WIDTH_INT and WIDTH_DATA. 2014.12.19 � Remove all references to the complex mode in ALTFP_MATRIX_MULTIPLY. � Updated ALTERA_FP_MATRIX_MULT and ALTERA_FP_FUNCTIONS sections. continued... Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 18. Document Revision History for the Floating-Point IP Cores User Guide UG-01058 | 2021.09.13 Date November 2013 November 2011 May 2011 January 2011 July 2010 November 2009 March 2009 Document Version Changes Made 7.0 � Added "ALTERA_FP_FUNCTIONS" on page 3�1. � Added "ALTERA_FP_ACC_CUSTOM" on page 2�1. � Updated Table 1�1 on page 1�1 to list ALTERA_FP_FUNCTIONS and ALTERA_FP_ACC_CUSTOM. � Updated the "ALTFP_MATRIX_INV" on page 17�1 section to include 4 x 4 and 6 x 6 dimensions. � Updated "Rounding" on page 1�4 to clarify that the code for round-tonearest-even mode is TO_NEAREST. � Removed Design Example section for "ALTFP_MATRIX_MULT" on page 18�1. � Removed device family support for HardCopy III, HardCopy IV, Stratix II, and Stratix II GX devices from "Device Family Support" on page 1� 2. 6.0 Updated "General Features" on page 1�2. 5.0 Added "ALTFP_ATAN" on page 12�1. 4.0 Added "ALTFP_SINCOS" on page 13�1. 3.0 � Updated architecture information for the following sections: ALTFP_MATRIX_MULT ALTFP_MATRIX_INV. � Added specification information in all sections. 2.0 � Updated resource utilization information for the following sections: ALTFP_ADD_SUB ALTFP_DIV ALTFP_MULT ALTFP_SQRT ALTFP_EXP ALTFP_INV ALTFP_INV_SQRT ALTFP_LOG ALTFP_COMPARE ALTFP_CONVERT ALTFP_MATRIX_MULT � Added the ALTFP_MATRIX_INV section. � Updated the Ports and Parameters section for all floating-point megafunctions. 1.0 Initial release. Send Feedback Floating-Point IP Cores User Guide 117
