190-01532-00 u

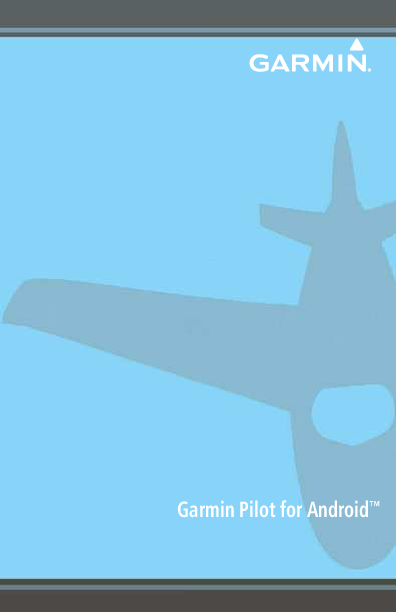

Garmin Pilot for AndroidTM

Copyright © 2012-2021 Garmin Ltd. or its subsidiaries. All rights reserved.
This manual reflects the operation of Software version 7.7 or later. Some differences in operation may be observed when comparing the information in this manual to earlier or later software versions. Some differences may also be observed when comparing the information in this manual to your device.
Garmin International, Inc., 1200 East 151st Street, Olathe, Kansas 66062, U.S.A. Contact Garmin Product Support at fly.garmin.com
Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A. Contact Garmin Product Support at fly.garmin.com
Garmin (Europe) Ltd., Liberty House, Hounsdown Business Park Southampton, Hampshire SO40 9LR U.K. Contact Garmin Product Support at fly.garmin.com
Garmin Corporation, No. 68, Zhangshu 2nd Road, Xizhi District, New Taipei City, Taiwan Contact Garmin Product Support at fly.garmin.com
Web Site Address: flygarmin.com
Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express written permission of Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Garmin®, SafeTaxi®, FliteCharts®, and VIRB® are registered trademarks of Garmin Ltd. or its subsidiaries. Garmin PilotTM, D2TM, D2 AirTM & MarqTM are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
Jeppesen® is a registered trademark of Jeppesen, Inc. NavDataTM is a trademark of Jeppesen, Inc. AndroidTM is a trademark of Google, Inc.
Canadian Radar is provided by Environment Canada.
©2021 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Other trademarks and trade names are those of their respective owners.

Warnings, Cautions & Notes
WARNING: Do not rely solely upon the indicators shown on the Panel Display Pane to maneuver the aircraft.
WARNING: The altitude displayed by Garmin PilotTM on the Panel Page is geometric height above Mean Sea Level and could vary significantly from the altitude displayed by pressure altimeters. Always use pressure altitude displayed by the aircraft altimeter when determining or selecting aircraft altitude.
WARNING: Do not use outdated database information. Databases used in the Garmin PilotTM must be updated regularly in order to ensure the information remains current. Pilots using any outdated database do so entirely at their own risk.
WARNING: To aid in device security, use a properly supported device that is dedicated to the aircraft and not shared with personal use.
WARNING: To reduce the risk of unsafe operation, carefully review and understand all aspects of Garmin PilotTM User documentation and the Pilot's Operating Handbook of the aircraft. Thoroughly practice basic operation prior to actual use. During flight operations, carefully compare indications from Garmin PilotTM to all available navigation sources, including the information from other NAVAIDs, visual sightings, charts, etc. For safety purposes, always resolve any discrepancies before continuing navigation.
WARNING: Garmin PilotTM has a very high degree of functional integrity. However, the pilot must recognize that providing monitoring and/or self-test capability for all conceivable failures is not practical. Although unlikely, it may be possible for erroneous operation to occur without a fault indication shown by Garmin PilotTM. It is thus the responsibility of the pilot to detect such an occurrence by means of cross-checking with all redundant or correlated information available in the cockpit.
WARNING: For safety reasons, Garmin PilotTM operational procedures must be learned on the ground.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Warnings, Cautions & Notes
WARNING: The United States government operates the Global Positioning System and is solely responsible for its accuracy and maintenance. The GPS system is subject to changes which could affect the accuracy and performance of all GPS equipment. Portions of Garmin PilotTM utilize GPS as a precision electronic NAVigation AID (NAVAID). Therefore, as with all NAVAIDs, information presented by Garmin PilotTM can be misused or misinterpreted and, therefore, can become unsafe.
WARNING: Do not use basemap (land and water data) information for primary navigation. Basemap data is intended only to supplement other approved navigation data sources and should be considered as an aid to enhance situational awareness.
WARNING: Do not use the indicated data link weather product age to determine the age of the weather information shown by the data link weather product. Due to time delays inherent in gathering and processing weather data for data link transmission, the weather information shown by the data link weather product may be significantly older than the indicated weather product age.
WARNING: Do not use data link weather information for maneuvering in, near, or around areas of hazardous weather. Information contained with in data link weather products may not accurately depict current weather conditions.
WARNING: Do not rely solely upon the display of traffic information for collision avoidance maneuvering. The traffic display does not provide collision avoidance resolution advisories and does not under any circumstances or conditions relieve the pilot's responsibility to see and avoid other aircraft
WARNING: Do not rely solely upon the display of traffic information to accurately depict all of the traffic within range of the aircraft. Due to lack of equipment, poor signal reception, and/or inaccurate information from aircraft or ground stations, traffic may be present that is not represented on the display.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Warnings, Cautions & Notes
WARNING: Use of an unapproved wireless device inserted into the SD card slot of your Garmin navigator may induce a malfunction, may cause damage to the unit, will void the Garmin warranty, and may nullify the airworthiness approval of the installation. The only wireless device currently certified for use in a compatible Garmin avionics system SD card slot is the Garmin Flight Stream 510. Do not insert an unapproved wireless device into the SD card slot of your Garmin avionics system.
NOTE: All visual depictions contained within this document, including screen images of Garmin PilotTM panel and displays, are subject to change and may not reflect the most current Garmin PilotTM software and aviation databases.
NOTE: Temporary Flight Restriction (TFR) data is provided by the FAA and may not be updated outside of normal business hours. Confirm data currency through alternate sources and contact your local FSS for interpretation of TFR data.
NOTE: The navigation databases used in Garmin navigation systems contain Special Procedures. Prior to flying these procedures, pilots must have specific FAA authorization, training, and possession of the corresponding current, and legitimately-sourced chart (approach plate, etc.). Inclusion of the Special Procedure in the navigation database DOES NOT imply specific FAA authorization to fly the procedure.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Software License Agreement
SOFTWARE LICENSE AGREEMENT
BY USING THE DEVICE, COMPONENT OR SYSTEM MANUFACTURED OR SOLD BY GARMIN ("THE GARMIN PRODUCT"), YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries ("Garmin") grants you a limited license to use the software embedded in the Garmin Product (the "Software") in binary executable form in the normal operation of the Garmin Product. Title, ownership rights, and intellectual property rights in and to the Software remain with Garmin and/or its third-party providers. You acknowledge the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge the structure, organization, and code of the Software are valuable trade secrets of Garmin and/or its third-party providers and the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to reproduce, decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Rev

Date

Change Summary

A December, 2012 Initial Release

B January, 2013 Updated for Application version 2.3: Airport Information Page updates Chart Next Cycle Downloads

May, 2013 Updated for Application version 2.4:

Added Scratch Pad

Added Split-screen Traffic

Updated Trip Planning

July, 2013 Updated for Application version 2.5 and 2.6

Added Airspace Widget

Added combined Map Layers

Changed Trip Planning to File & Brief

Added Routes to File & Brief

Added Display Time Format

Added Tools Menu for configuring time/distance alerts

Added Custom Own Ship Icons.

E November, 2013 Updated for Application version 2.7 Added Proposed Routes Added Keep Screen on Added Decoded TAFs Added D2® Watch support

F January, 2014 Updated for Application version 2.8 Added support for the GDL 39 3D and a new attitude indicator display in the navigation panel Added 'right' traffic pattern directions for runways in the airport browser and the airport information widget.

April, 2014 Updated for Application version 3.0

Added support for vector maps that work offline

Added new distance measure tool

Added fuel range rings

Added ownship track vector

Added extended runway centerlines

Added auto-zoom feature

Added map decluttering options

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

RR-7

H August, 2015 Updated for Application version 4.3 Added GDL 39 support Added Connext features Added Flight Stream support Added alternate colors for flight conditions Added Airport Facilities Directory Added support for alternate storage locations, such as SD cards Added G3X Touch support Added GLO support Added Terrain & Obstacles database

J April, 2016

Updated for Application version 5.1 Added support for GTX 345 Revised Trip Planning procedures Added traffic alerts Added support for Leidos Flight Service integration Added descriptions of Chart binder and searching enhancements Added multiple pages for the Scratch Pad Added Screen Lock Added Light and Dark modes Added Night Mode for SafeTaxi Added VIRB integration Added support for Google MapsTM mapping service in Airport Info Added Airport Widget to split-screen setups Added Demo Mode Added warnings for trips with airports below VFR/IFR minimums

K April, 2016

Updated for Application version 5.2.1 Added Connext support for the aera 660. Added altitude to the PIREP map overlay. Personal minimums may now be added to a pilot profile. Chart search on handsets now works like the tablet version. Bookmarked flight plans can be renamed.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

RR-8

L November, 2016 Updated for Application version 5.4.4 Flight Stream 510 Integration Logbook features D2 Bravo and Bravo Titanium pilot support watches Altitude and report age filtering for Map PIREP overlay Sequential chart navigation & chart printing features Best Runway recommendations added to Airport Information and airports widget

M March, 2018

Updated for Application version 6.3 Worldwide Winds Aloft Coverage Icing Forecast Radar and Infrared Satellite Color Palettes Chart Overlays Enhanced Stadium TFRs Glide Range Ring Logbook Tracks Auto-Download Pilot Updates D2 Charlie Series watch support Split Screen Synthetic Vision Checklists GDL 51/51R GDL 52/52R Virb 360 Camera Support Logbook Photos Logbook Auto-Logging FastFind Predictive Waypoint Entry Helicopter Charts Units Preferences Nearest (NRST) navigation functionality Airspace Altitude Labels Highest Point Along Route Synthetic Vision

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

RR-9

N July, 2019

Updated for Application version 7.2 Advanced Aircraft Performance Weight & Balance Storm Cell Movement Area Forecast Discussion D2 Delta PX Support MARQ Aviator Watch Support Weather Imagery Quick Fuel Set Added SiriusXM Lightning, TFRs, Echo Tops, Winds Aloft, & Icing GPS175/GNX375 Support Model Output Statistics (MOS) Base Reflectivity Radar FBO Fees

P November, 2019 Updated for Application version 7.3 Images Refreshed Throughout Bug Fixes Throughout GNC 355 Support Clearance Delivery Phone Numbers Removal of FAA Domestic Filing Form Type to Support The ICAO Filing Mandate. Flight Profile View Enhanced Air Data & Analytics Enhanced Connext Screen

Q February, 2020 Updated for Application version 7.4 Enhanced Air Data & Analytics Emergency Button Chart Annotations GI 275 Support Enhanced Flight Profile View

R July, 2020

Updated for Application version 7.5 European Autorouting

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

RR-10

S October, 2020 Updated for Application version 7.6 D2 Air Support Aera 760 Support Tab Bar Enhanced Demo Mode
T October, 2020 Updated for Application version 7.6.1 Visited Airports Aerial Airport View via Google Maps
U February, 2021 Updated for Application version 7.7 Enhanced Start-up Experience Enhanced Aviation Database via ADB2 Integration Microsoft Flight Sim 2020 Integration Enhanced Data Sync Settings Procedure Selector (SID's & STAR's) Enhanced NOTAM Widget

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

RR-11

Table of Contents
OVERVIEW......................................................................................................................................... 1
Plan File Fly Log ........................................................................................................................ 1 Features ...................................................................................................................................... 1 About This Handbook............................................................................................................... 2
AndroidTM Tricks for Pilots.................................................................................................... 2 Help File .............................................................................................................................. 7 Map Pane Controls............................................................................................................. 22 Map/Chart Selection and Settings....................................................................................... 23 Settings..................................................................................................................................... 26 General.............................................................................................................................. 26 Pilot and Aircraft Info ......................................................................................................... 37 User Content...................................................................................................................... 40 Units.................................................................................................................................. 42 Data Services ..................................................................................................................... 43 GPS ................................................................................................................................... 45 Flight Simulation Integration............................................................................................... 46 Downloads......................................................................................................................... 47 Subscriptions...................................................................................................................... 48 Sync................................................................................................................................... 50 Synthetic Vision (Premium Subscription) .......................................................................... 51 Synthetic Vision Operation.................................................................................................. 52 Logbook .................................................................................................................................... 57 Flight Log Entries ............................................................................................................... 57 Flight Log Fields................................................................................................................. 61 Logbook Photos ................................................................................................................. 62 Logbook Auto-Logging....................................................................................................... 63 Logbook Tracks .................................................................................................................. 64 Endorsements .................................................................................................................... 65 Currency ............................................................................................................................ 67 Reports.............................................................................................................................. 67 Logbook Settings ............................................................................................................... 73 Weight and Balance................................................................................................................ 78 Downloads................................................................................................................................ 79 Chart Updates.................................................................................................................... 83 Checklists.................................................................................................................................. 86
PLAN .................................................................................................................................................. 87
FastFind Predictive Waypoint Entry.................................................................................... 87 Flight Plan................................................................................................................................. 88
Actions Menu..................................................................................................................... 91 Advanced Aircraft Performance......................................................................................... 106 Demo Mode..................................................................................................................... 107 Airport Information ......................................................................................................... 112

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Table of Contents
FILE ................................................................................................................................................... 121
Trip Planning.......................................................................................................................... 121 Preparing to File............................................................................................................... 122 Planning a Trip ................................................................................................................. 124 European Autorouting ...................................................................................................... 128 Navlog............................................................................................................................. 135 Brief................................................................................................................................. 138 File Flight Plan ................................................................................................................. 139
FLY..................................................................................................................................................... 141
Map Page................................................................................................................................ 141 Map Pane Controls........................................................................................................... 142 Map Settings.................................................................................................................... 142 Overlays........................................................................................................................... 149 Radar / IR Color ............................................................................................................... 150 Opacities.......................................................................................................................... 150 Ownship/Route ................................................................................................................ 151 Distance Measuring Tool................................................................................................... 166 Split-Screen...................................................................................................................... 166 Weather Sources .............................................................................................................. 181 Weather Widgets.............................................................................................................. 182 Weather Map Overlays ..................................................................................................... 185 Weather Product Age and Source ..................................................................................... 186 Weather Products............................................................................................................. 186
Data Link Traffic (Optional) ............................................................................................... 211 System Status................................................................................................................... 214 Traffic Description............................................................................................................. 215
Terrain ..................................................................................................................................... 220 Terrain Information........................................................................................................... 221 Obstacle Information........................................................................................................ 224 Terrain and Obstacle Alerts (Premium Subscription) ........................................................... 224
Charts ..................................................................................................................................... 227 Scratch Pad............................................................................................................................. 236
CONNEXT....................................................................................................................................... 238
Status....................................................................................................................................... 238 Situational Data Status..................................................................................................... 238 ADS-B Status ................................................................................................................... 240 SiriusXM Status................................................................................................................ 242
Features .................................................................................................................................. 243 Flight Plan Transfer........................................................................................................... 243 SiriusXM Audio ................................................................................................................ 246 Database Concierge ......................................................................................................... 250

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Table of Contents
Devices .................................................................................................................................... 258 Pairing a Device ............................................................................................................... 258 Troubleshooting a Device.................................................................................................. 258 Garmin Pilot Compatible Watch........................................................................................ 258 Flight Stream ................................................................................................................... 260 GDL 39 ............................................................................................................................ 261 GDL 51/51R..................................................................................................................... 264 GDL 52/52R..................................................................................................................... 264 GLO................................................................................................................................. 264 aera 660/760................................................................................................................... 265 G3X Touch ....................................................................................................................... 265 GTX 345/45R................................................................................................................... 267 GPS 175/GNC 355/GNX 375............................................................................................ 267 GI 275 ............................................................................................................................. 268
SUBSCRIPTIONS ......................................................................................................................... 272
Geo-Referenced FliteCharts ............................................................................................... 272 SafeTaxi................................................................................................................................... 272
APPENDIX A: LICENSE AGREEMENT AND WARRANTY ......................................... 274
Contact Garmin ..................................................................................................................... 274 End-User License Agreement ............................................................................................ 274 AOPA Airport Directory Notice .......................................................................................... 277 SiriusXM Satellite Radio Service Agreement....................................................................... 277 Weather Data Warranty .................................................................................................... 278
INDEX .........................................................................................................................................Index-1
Index ................................................................................................................................... Index-1

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

iii

Overview
OVERVIEW

PLAN FILE FLY LOG
Garmin PilotTM is the most comprehensive suite of tools for the Android designed specifically for general aviation and corporate pilots. Flight planning, DUAT(S) filing, charts, interactive maps, weather briefing resources, navigation capabilities, and a digital logbook; it's all included. The app's intuitive interface closely resemble those on the newest Garmin touchscreen avionics for seamless transition from preflight to in-flight. Plan, file, fly with Garmin Pilot.
FEATURES
· Charts: VFR Sectionals, TAC, low and high IFR en-route, airport diagrams and approach procedures. Automatically generated binders instantly organize charts for the current flight plan.
· Optional geo-referenced Garmin FliteCharts® and Garmin SafeTaxi® both show aircraft position on approach charts or taxiways.
· Weather Maps: Animated radar, AIRMETs, SIGMETs, Lightning, PIREPs, METARs, TAFs, Winds Aloft, TFRs, Lightning, Infrared and Visible Satellite.
· Extensive text products: AIRMETs, SIGMETs, PIREPs, METARs, TAFs, Winds Aloft, and NOTAMs.
· Dynamic weather overlays with the current route displayed on the map
· AOPA Airport Directory and Fuel Prices
· Flight plan filing via a Filing Service Provider
· Comprehensive weather data direct from the National Weather Service and Environment Canada
NOTE: All visual depictions contained within this document, including screen images of Garmin PilotTM, are subject to change and may not reflect the most current Garmin PilotTM software and aviation databases.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
ABOUT THIS HANDBOOK
This operating handbook is designed to provide a comprehensive guide to help with understanding how to use Garmin Pilot for reviewing aviation weather, airport information, creating and filing flight plans, and for viewing charts, maps, and navigation data in-flight.
ANDROIDTM TRICKS FOR PILOTS
Android tablets are offered by a variety of manufactures and features can vary widely. It is important to know the features of a tablet before using Garmin Pilot for navigation. Some tablets are offered with one or two connectivity options; Wi-Fi or Wi-Fi + Cellular. It is also important to know which connectivity option is available before using Garmin Pilot for navigation.
There are also a few things to know about a tablet's basic features and settings that will enhance the Garmin Pilot experience. Some features of this application will vary between handsets and tablets. These features are not hidden, but they may not be immediately apparent. It is recommended to get completely familiar with the tablet and its features by reading the User's Guide for the tablet and/or the User's Guide for the tablet's Android version (Garmin Pilot requires Android 2.3 or later).
GPS
Global Positioning System (GPS) receiving capability is optional on some Android tablets. Garmin Pilot can be used without GPS for flight planning, but the navigation features will be inoperative. If the tablet does not include a GPS receiver, a Garmin GLOTM portable GPS and GLONASS receiver, or a Garmin GDL 39 or GDL 39 3D portable GPS and ADS-B receiver will be required to take advantage of the navigation features of Garmin Pilot. Alternative or third-party GPS sources known to work with Garmin Pilot are: Bad Elf, Dual Electronics XGPS150 Universal Bluetooth GPS, and GNS 5870 MFI Bluetooth GPS receiver. Other portable GPS sources may also work with Garmin Pilot.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
DISPLAY ORIENTATION
Many devices have a default setting that will enable the unit to automatically rotate the display to either portrait or landscape according to which edge of the unit is facing upward. This automatic setting can be quite troublesome in the cockpit as the solidstate accelerometers are very sensitive to movement and can cause the display to rotate unexpectedly.
The primary means of enabling/disabling the rotation lock is via the Settings Menu. Each device may have other options to lock the display orientation, consult the User's Guide.
Locking Display Orientation: 1) On the Android device, touch Settings > Display. 2) Touch When device is rotated. 3) Touch Stay in current orientation.
GLARE REDUCTION
One limitation of some devices in the cockpit, is glare. There are number of ways to mitigate the effects of this glare using aftermarket screen protectors and similar products. However, one can do reasonably well by simply adjusting the display brightness.
Adjusting Display Brightness: 1) On the Android device, touch Settings > Display > Brightness Level. 2) Use the slider control to manually adjust the display brightness. Or: Within Garmin Pilot, touch Home > Brightness under the Tools section and
use the slider control to set the desired display brightness.
NOTE: Some Android devices have an "Automatic brightness" setting. It may be necessary to turn this off to manually adjust the device's screen brightness.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
GENERAL GARMIN PILOT OPERATING GUIDELINES
Garmin Pilot by default will open on the Map Page. If the application has been recently used it will resume on the most recently viewed page. From any page, it is possible to access any desired feature by touching, flicking, and/or dragging a finger on the active areas of the display that appear as buttons, slide controls, flick lists, text fields, or icons. As with most applications, text fields automatically open a QWERTY keyboard for easy text entry.
Also like other applications that use maps, panning is done by "touch-dragging" a finger across the display, and magnifying or zooming is done by double-touching the display, by pinching, or use the button. Reversing the pinch gesture or touching the will de-magnify or zoom out. Additionally, double-touching the screen will increase magnification in 50% intervals and center the map over the area tapped.
Pinch Zoom

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Garmin Pilot can be used in either portrait or landscape orientation and will respond to the Android's automatic orientation feature. The map may be displayed in either full screen or split screen in either orientation. The lower half of the display in portrait orientation or second (non-map) display in landscape orientation has the following functions; Widgets, Panel, Charts, SafeTaxi, Traffic, VIRB, Terrain, Checklist, or Synthetic Vision.
To streamline navigation throughout the app, Garmin Pilot now offers a Tab Bar at the bottom of the screen, which may be used as an alternative to the Home Screen Main Menu.
Displaying Tab Bar:
1) Touch Settings > General.
2) Touch Tab Bar to adjust the Interface Style. Tap Classic to return to the legacy Home Screen Menu interface style.
· Panel Mode is customizable and can be configured to display an instrument panel with virtual instruments to indicate GPS altitude, ground speed, vertical speed, course, and lateral deviation as well as a table with multiple configurable data fields for monitoring navigation data.
· Widget Mode enables a series of customizable data windows called `Widgets' to be displayed. Widgets offer quick access to a variety of aviation weather products (METARs, TAFs, Winds Aloft, NOTAMs, etc...) for nearby or selected airports.
Charts, SafeTaxi, Traffic when viewed in split-screen, have the same function, navigation, and capabilities as the full screen versions of these products, just displayed in half screen. Garmin Pilot requires a data connection for downloading maps and other data prior to departure, but once everything needed for the flight is downloaded, it is ready to navigate. The Downloads Menu in the Garmin Pilot settings options will indicate when new downloadable data products are available upon connection to the Internet.
NOTE: With some of their newer devices, Android is moving away from buttons, both physical or virtual, and replacing their functionality with gesture-based navigation by default. Navigating within Garmin Pilot will differ accordingly througout depending on your device settings.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
GETTING STARTED

Garmin Pilot is fully functional immediately upon installation, but there are a few things that can be set up in order to optimize performance right away. The best place to start is with the highly intuitive Settings Menu, which can be found by momentarily touching the Home Button and then the Settings Icon. The Settings Menu is always available from the Home Button.

Touch Tab to View Info

Touch to View Revision Info

Settings - General

Touch to Adjust General Settings Touch to Adjust Runway Preferences

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
From the Settings Menu it is possible to set up or change the time format, input pilot profile and aircraft information, manage user waypoints, set up the preferred flight plan filing service, manage data subscriptions and much more. All of these and more selections are available by touching the tab associated with the desired function. The show/hide features like the Navigation Information (on the map display) can be accessed in the Map Context Menu ( ) located in the upper right of the navigation bar.
HELP FILE
The content of the User's Guide is mirrored in the in-app help file providing context sensitive instructions for getting the most out of a Garmin Pilot subscription. The help file can be accessed from any page, by touching the Map Context Menu ( ) located in the Navigation Bar and then touching Help in the page sensitive menu. Alternatively, the Help file can be accessed from the Home Button ( ) as well. Navigating within the Help File is as easy as touching any of the hyperlinks.
Accessing the Help File: Touch Menu > Help. The Help File will open to context sensitive content.
USER'S GUIDE
The Full Manual is a PDF formatted User's Guide for Garmin Pilot. The first time the file is accessed, the device will ask to choose a default PDF viewer. The Full Manual has a linked table of contents, index, and Bookmarks for easy navigation. The Full manual can also be downloaded from www.garmin.com.
NOTE: The Full Manual will open to the most recently accessed page. Use the Bookmarks or Page Slider to quickly navigate the file.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Accessing the Full Manual:
1) Touch Menu > Help.
2) Touch Download to download, touch View, to view the manual once downloaded. Anytime an updated manual is available the View button will revert to a Download button.

Accessing the Full Manual at www.garmin.com: 1) Open www.garmin.com in a web browser. 2) In the top right corner of the page hover the pointer over Support. 3) Select Aviation Support. 4) Scroll down and select Aviation Manuals.. 5) Type "Pilot" into the Enter a Product Name or Serial Number search bar. 6) From the next drop down menu select Garmin PilotTM. 7) Select the desired User's Guide to download, i.e. Garmin Pilot for Android
User's Guide.

NAVIGATION BAR

Garmin Pilot's user interface is comprised of icons and active areas that provide access to the various features and functions of the application. The Navigation Bar, located at the top of every page, provides access to many of the basic functions.

Home & Tools Button

Active Flight Plan

Emergency Nearest

Navigation Bar

Direct To

Page Sensitive Menu Button

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
HOME BUTTON
The Home Button ( ) is the primary means of accessing many of the features of Garmin Pilot. The Home Button provides quick access to the various pages within Garmin Pilot (i.e., Map, Active Flight Plan, Trip Planning, Airport Information, Charts, Scratch Pad, Terrain, Syn Vis, Traffic, Logbook, W&B, Checklists, Wx Imagery, Connext, Downloads, & Settings).
Home Button

Home Menu

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

HOME BUTTON ICONS
Touch the following icon to display the associated function:

Map Flight Plan Trip Planning
Airport Info
Charts Scratch Pad Terrain Synthetic Vision

Displays the Map Page, which provides full en-route navigation capabilities on a moving map.
Displays the Active Flight Plan Page, where flight plans can be created, stored, shared, modified, and reversed.
Displays the Trip Planning Page, which manages all of the trip planning details for each trip.
Displays the Airport Information Page, which includes basic airport info, frequencies, runways, procedures, weather, NOTAM's, FBO's, fuel prices/fees, FAA remarks, & Nav Aids.
Displays the Charts Page, where various navigational charts can be viewed when properly downloaded.
Displays the Scratch Pad Page, which allows the pilot to quickly draw or write down information on the device screen.
Displays the Terrain View, which displays altitudes of terrain and obstructions relative to the aircraft position and altitude.
Displays the Synthetic Vision View, which depicts a forwardlooking attitude display of the topography immediately in front of the aircraft.

Traffic
Logbook
Weight & Balance

Displays the Dedicated Traffic Page.
Displays the Logbook Page, which allows the pilot to record pertinent flight information such as currency, endorsements, and photos.
Displays the Weight & Balance, which is calculated to determine if the airplane is properly loaded within CG limits.

Checklists

Displays the Checklists Page where specific aircraft electronic checklists can be viewed to ensure proper flight procedures.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

WX Imagery Connext Downloads Settings

Displays the Weather Imagery Page, providing various meteorological data for both real-time and forecast weather events.
Displays the Connext Page, which allows the wireless sharing of data between devices via Bluetooth®, or, if properly equipped, Wi-Fi.
Displays the Downloads Page, which automatically downloads file updates and next cycles as they become available.
Displays the Settings Page, which includes General, Pilot Info, Aircraft, User Waypoints, Units, Weather Data, GPS, Downloads, Subscrptions, & Sync.
Home Button Icons

TOOLS
The Tools options at the bottom of the Home menu provides access to Demo Mode, Stopwatch, Lock Screen option, Full Screen option, Brightness options, Alerts, and the Help file.
STOPWATCH
The Stopwatch feature changes the title bar to display a standard stopwatch, showing hours, minutes and seconds.
Using the Stopwatch: 1) Touch Home > Stopwatch. 2) Touch the Start/Pause button to start the timer. 3) Touch the Start/Pause button again to pause the timer. 4) Touch the Reset button at any time to reset the timer to zero. 5) Touch Home > Stopwatch to disable the stopwatch and return the title bar
to normal display.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Home Button Start/Pause Button

Reset Button

Touch to Enable Stopwatch Stopwatch Features
LOCK SCREEN
The Lock Screen feature keeps the current map or chart from moving in case the screen is accidentally touched while displaying important information.
Locking the Screen: 1) Touch Home > Lock Screen. The title bar turns gray to show the screen
is locked. A 'Screen Locked' message is displayed if the map or chart is swiped. 2) Touch to unlock the screen and return to normal function. Touch to Unlock Screen

Locked Map Screen

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
FULL SCREEN
The Home Menu provides access to the Full Screen mode. Simply touch Home > Full Screen to activate.
Full Screen Mode Actions 1) Swipe down from the top of the screen to view navigation controls. 2) Swipe in from the left to open the Home Menu. 3) To exit Full Screen Mode, swipe in from the left to open the Home Menu
and un-check the box next to Full Screen Mode.
BRIGHTNESS
The Home Menu provides access to the display brightness control. Simply touch Home > Brightness to display a display brightness slider and set the desired display brightness. Move the slider to the right to increase display brightness or left to decrease brightness.
Touch to View Device Settings
Slide to Adjust Brightness Touch to Change Theme
Brightness Slider
NOTE: To enable the in application brightness settings some Android devices may require disabling the "Automatic brightness" setting for the system brightness.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
ALERTS
Create Alerts based on time or location. Alerts that are based on time, can range from 10 seconds to several hours. Time alerts can also be set to repeat. Location based Alerts can be set At, Before, or After a Flight Plan Waypoint.
Creating a time based alert: 1) Touch Home > Alerts > Add Alert. 2) Touch Time > Tap to Set. 3) Enter the desired count down time (HH:MM:SS). 4) If desired, use the Repeating On/Off switch, to enable/disable repeating. 5) If desired, touch the Alert Message (Optional) button and use the keypad
to enter a custom message. 6) Touch Save.
Creating a location based alert: 1) Touch Home > Alerts > Add Alert. 2) Touch Location. 3) Touch the Relationship field and select Before, At, or After. 4) Touch the Distance field, and use the keypad to set the desired distance in
nautical miles. 5) Touch the Waypoint field, and select the desired waypoint from the list. 6) If desired, touch the Alert Message (Optional) button, and use the keypad
to enter a custom message. 7) Touch Save.

Touch to Add Alert Distance Alert Repeating Time Alert

Alerts - Main

Touch to View Details

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Editing Alerts: 1) Touch Home > Alerts > Edit. 2) Touch the desired alert for the list. 3) Touch the desired field(s) to edit. 4) Touch Save, to save changes.
Deleting Alerts: 1) Touch Home > Alerts > Edit. 2) Touch > Delete to delete the Alert.

Touch to Delete
Deleting Alert
DIRECT-TO
The Direct-To button can be accessed from any page, and provides a quick and easy way to navigate direct to any waypoint (i.e., Flight Plan Waypoint, Nearest Waypoints, or User Waypoints). When Direct-To is active, the user can cancel Direct-To or reactivate Direct-To at any time. Re-activating Direct-To will calculate the direct to from the current position.

Touch to Select

Touch to Filter Info

Direct-to Dialogue

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

NEAREST
The nearest navigation button located on the top menu bar can be accessed from any page, and provides a quick and easy way to locate airports, NAVAIDs, Intersection, User Waypoint, ARTCC, FSS, and Airspace.

Displaying the nearest airport:

1) Touch

> Type > Airport.

2) If including in nearest search, touch to toggle the Private, Military, Seaplane, or Heliport switches ON/OFF, as desired.

3) Touch once to select the Nearest Airport from the list, and touch again to display the airport information.

Touch to View

Touch to View Info

Touch to Display Touch to Change NRST Type
Current Selection Current Location

Nearest Airports

Heading To NRST Distance To NRST Heading From NRST

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Displaying Nearest VOR, NDB, Intersection, VRP, or User Waypoint:

1) Touch

> Type.

2) Touch VOR, NDB, Intersection, VRP, or User Waypoint.

3) Touch the nearest 'VOR', 'NDB', 'Intersection', 'VRP', or 'User Waypoint' from the list to display the navigation information.

Displaying Nearest ARTCC or FSS:

1) Touch

> Type.

2) Touch ARTCC or FSS.

3) Touch the nearest 'ARTCC' or 'FSS' from the list.

4) Touch again to display additional information.

Displaying Nearest Airspace:

1) Touch

> Type.

2) Touch Airspace.

3) Touch the nearest 'Airspace' from the list.

4) Touch again to display additional information.

Setting Nearest Airport Runway Surface Type: 1) Touch Home > > General. 2) Touch Hard, or Hard/Soft in the Runway Surface Type field.

Setting the nearest airport minimum runway length: 1) Touch Home > > General. 2) Touch the Minimum Runway Length field to enter a value.

Touch to View

Settings - Runway Preferences

Touch to Select Touch to Enter Info

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
EMERGENCY MODE
The red Emergency (EMER) button located on the Navigation Bar can be accessed from any page and proveds a quick way to reduce the pilot's workload in an emergency situation. The EMER button will display the following: · The Glide Range Ring using terrain and winds aloft data. · The Emergency checklist in split screen mode if configured.
Touch Exit 'EMER'
Touch to View Distance & Direction to Airport

Glide Range Ring

Nearest Airport

Emergency Mode (EMER) - Glide Range Ring

The EMER button can be configured to be displayed only when in flight.

Setting the EMER button to be displayed only when in flight:

1) Touch Home > > General.

2) Scroll to the Emergency section.

3) Touch

to toggle the Hide EMER When Not Flying button, as desired.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

The Menu Button provides a page-sensitive menu structure. Each page has specific menu options that control, search, navigate, or display page-sensitive menu items. For example, the data bar fields can be displayed on the Map Page by touching the 'Show Navigation Info' checkbox. Touch each data field to change the navigation data displayed.

Navigation Data
Displayed

Touch to Change Data Field

Touch to Display Navigation Data

Map Page Menu (Navigation Data Displayed)
GLIDE RANGE RING
NOTE: To enable the Glide Range Ring on the Map, the User must have a valid premium subscription, an updated terrain database downloaded, and the Glide Ratio setting toggled 'On' for the selected Aircraft in the active Flight Plan.
This feature is an aid to estimate accessible airports and terrain if the aircraft were forced into glide circumstances. The displayed ring updates in real time, derived from the selected aircraft's altitude, speed, and performance details. Since Garmin Pilot supports multiple aircraft, the Glide Range Ring refers to the current active flight plan to determine which aircraft performance details to calculate the ring shape.
The Glide Range Ring requires glide performance details to be specified in Garmin Pilot's settings. This is accessed through Home > > Aircraft. Touch on an aircraft (not aircraft type) to edit its details, and scroll down to the Glide section to specify the Glide Ratio and Best Glide Speed. Refer to the aircraft documentation for these values.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

The Glide Range Buffer setting can be used to shrink the Glide Range Ring in situations where glide performance is expected to be less than ideal, perhaps due to shifting winds. Increasing this setting will decrease the size of the Glide Range Ring. Enabling Shape Glide Ring for Terrain will alter the shape of the Glide Range Ring to show intersection with terrain.
Enabling Shift Glide Ring for Wind will factor in local wind conditions when calculating the Glide Range Ring shape. Note the Glide Range Ring uses the most recent weather data, which may be outdated if Garmin Pilot does not have access to real time weather data over Wi-Fi or with outboard hardware such as a GDL 39.

Enabling/Disabling the Glide Range Ring:

1) Touch > Ownship/Route.

2) Touch

to toggle Display Glide Range Ring, as desired.

Select Ring(s) Distance Touch to Enable Glide Range Ring

Touch Tab to View Info

Slide to Adjust Buffer Touch to Adjust Display

Glide Range Ring

Navigation Data

Description

Altitude The current GPS altitude or geometric height above MSL in feet.

Bearing

The compass direction from the present position to a destination waypoint.

Course

The magnetic direction from the last waypoint to the active waypoint.

Cross Track Error

The distance and direction, left or right, the aircraft is from the desired course in nautical miles.

Distance (Dest) The distance to the destination waypoint in the Active Flight Plan

Distance (Next) The distance to the next waypoint in the Active Flight Plan.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Navigation Data

Description

ETA (Dest)

The estimated time at which the aircraft should reach the destination waypoint, based upon current speed and track.

ETA (Next)

The estimated time at which the aircraft should reach the next waypoint, based upon current speed and track.

ETE (Dest)

The estimated time it takes to reach the destination waypoint from the present position, based upon current ground speed.

ETE (Next)

The estimated time it takes to reach the next waypoint form the present position, based upon current ground speed.

Ground Speed The velocity the aircraft is traveling relative to the ground.

Heart Rate * Heart rate from a wrist or chest heart rate monitor.

Latitude Current latitude.

Longitude Current longitude.

Next Waypoint Next waypoint on the route of flight

Pitch

Current pitch. (GDL 39 3D only)

Pulse Oximeter** Displays the saturation of oxygen in the blood

Roll

Current roll. (GDL 39 3D only)

Time

Current time

Track

The direction of aircraft movement relative to the ground.

Vertical Speed The rate of climb or descent (GPS-derived).

Wx-Wind The wind speed/direction at the nearest weather reporting station.

Wx-Visibility The visibility at the nearest METAR reporting station

Wx-Altimeter The altimeter setting at the nearest METAR reporting station.

Wx-Ceiling The ceiling at the nearest METAR reporting station

*D2 Bravo Titanium, D2 Charlie series, and D2 Delta series.

**D2 Air, D2 Delta PX, MARQ® Aviator series.

Navigation Data Field Options

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

MAP PANE CONTROLS
The Map Pane has a number of buttons that control the Base Map, Map Overlays and center map and split-screen. The table below shows the Map Pane Controls.

Control Map
Settings Center on Aircraft Center on
Route
Zoom In

Icon

Description

Map/Chart Selection/Settings, Map Overlay Selection,

Overlay Opacity Settings, and General Map Settings

Centers the Map Pane on the current location.

Centers the entire route in Map Pane.

Zooms In on the map

Zoom Out
Split-Screen Map
Orientation

Zooms out on the map
Selects full screen map or partial map with Widgets, Panel, Charts, and SafeTaxi.
Toggles map orientation from north up to track up. The Icon is blue when track up is active.
Map Pane Controls

Zoom In/Out

Map Orientation

Center on Aircraft Center on Route
Map Settings
190-01532-00 Rev. U

Map Pane Garmin Pilot for Android User's Guide

Split-Screen 22

Overview

MAP/CHART SELECTION AND SETTINGS
There are three maps and three charts available for display on the Map Page. The following charts are available for viewing in the map area: Sectional TAC, IFR Low, and IFR High. Charts are high-resolution color images that resemble the paper version of the National Aeronautical Navigation Products (AeroNav) published charts. The Roads/ Borders Map is a very basic map showing major roads, bodies of water, boarders and Flight Plan information. Both IFR and VFR maps are vector-based interactive maps that are populated with aeronautical information such as airports, navigation aids, maximum and minimum airspace altitudes, airspaces, and victor airways.

Touch to Display

Touch to Display Touch to Expand

Map/Chart Menu
Selecting a Helicopter Chart Overlay:
NOTE: A chart basemap must be selected to display helicopter overlays.
NOTE: For information on downloading Helicopter Charts, refer to 'Downloads', discussed later in this section. 1) After downloading the desired Helicopter Charts, touch > Map/Chart. 2) Touch a chart basemap (VFR, IFR Low, or IFR High). 3) Touch a Helicopter Overlay (U.S. VFR Helicopter, Gulf VFR Helicopter, or Gulf IFR Helicopter).
Touch Tab to View Info
Touch to Display

Selecting Helicopter Chart Overlay

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

VFR Helicopter Chart Overlay
Accessing Advanced Map Settings: 1) Touch > Map/Chart > Map Name > . 2) Touch General, Airports, Nav Aids, Airspaces, or Cities. 3) Use the sliders and selection buttons to set Visibility Ranges and Label Sizes
for map features. 4) To give the new settings a name, Touch General > Map Name, and use the
keyboard to enter a name. 5) Touch Done to save and exit, or touch Restore Defaults to restore the
default Map Theme setting.
Touch Tab to View Info
Touch to Display

Advanced Map Settings - General

Touch to Enter Text

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Map Setting Categories

Map Item

Topography

General

Map Color Map Type

Map Name

Airports

Visibility Range

Label Size

Nav Aids

Visibility Range

Label Size
Filter All Airspaces

Visibility Range

Airspaces SUA Visibility Range

Label Style

Options

Off, Shade, or On

White, Green, or Brown

IFR, or VFR

User Defined Name

Large Airports Med Airports Small Airports Pvt Airports

Off - 200 nm Off - 50 nm Off - 20 nm Off - 20 nm

Heliports Seaplane Bases SafeTaxi

Off - 20 nm Off - 50 nm Off - 2 nm

Off, Small, Medium, Large

VOR

NDB

Intersection

Off - 100 nm

Off - 50 nm

Off - 10 nm

VRP

Low Airways

High Airways

Off - 10 nm

Off - 100 nm

VOR, NDB, Intersection, VRP

Off, Small, Medium, Large

Hide All Airspaces Above

Smart Airspace

Numerical Entry

On/Off

Class B

Class C

Class D

Off - 200 nm

Off - 100 nm

Class E/TRSA

TMA

Control Area CTA

Off - 100 nm

Off - 200 nm

Off - 100 nm

Control Zone CTR

ATZ/TIZ/MATZ

Euro Airway

Off - 100 nm

Restricted Alert/Warning Parachute Area

MOA

Off - 200 nm Off - 200 nm Off - 100 nm Off - 200 nm

ADIZ

Danger

Other

Off - 100 nm Off - 100 nm Off - 100 nm

Airspace Size

Off, Small, Medium, Large

Airspace Style

Standard, Enhanced

Airspace Color

Standard, Dark

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Cities

Visibility Range
Label Size

Large City Medium City Small City Small Town Off - 500 nm Off - 200 nm Off - 100 nm Off - 50 nm
Large City, Medium City, Small City, Small Town Off, Small, Medium, Large
Advanced Map Settings

SETTINGS

Located under the Home Button, touch the Settings Icon to open the Settings Menu. The Settings Menu tabs customize and manage Garmin Pilot features, subscriptions, Pilot Info, Aircraft Info and much more.
GENERAL
The General Settings tab provides access to settings for Keep Screen On, Theme, Time Format, Flight Condition Colors, Runway Preferences, Navigation, Altert Configuration Setup, Alert Type Setup, Synthetic Vision, & General Data Protections Regulation (GDPR). Touch About to display the current version of the Garmin Pilot Application, copyright information, and contact information (both email and phone) for Garmin Aviation Support. Touch the email address to compose an email and send it directly to Garmin Aviation Support. Sending a support email in this manner will automatically populate the email with information that will greatly aid Garmin in troubleshooting and resolving any issues that may arise.
NOTE: A data connection (i.e., Wi-Fi or cellular) is required to send and receive email.
Touch What's new in this version... to view information about what's new in the latest Garmin Pilot update.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
KEEP SCREEN ON
The Keep Screen On settings provide three options for controlling the device display settings when using Garmin Pilot.
· Auto: The screen will stay on when the device GPS senses a ground speed over 40 kts and when viewing SafeTaxi
· On: The screen will always be on. · Off: Uses the system default display settings.
Configuring Screen Settings: 1) From any page, touch Home > . 2) Touch the General Tab. 3) Touch Auto, On or Off to select the desired Keep Screen On settings.
THEME
The provided alternate themes allow Garmin Pilot to be used in various lighting scenarios. The Light theme uses dark text on a bright background that's easier to see during the day and in direct sunlight. The Dark theme uses bright text on a dark background that's much more comfortable in low-light situations. The Auto option will automatically switch between the two based on the time of day.
Configuring Interface Themes: 1) From any page, touch Home > . 2) Touch the General Tab. 3) Touch Auto, Light or Dark to select the desired setting. Or 1) From any page, touch Home > Brightness. 2) Touch Auto, Light or Dark to select the desired setting.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
INTERFACE STYLE
The Tab Bar, located at the bottom of the screen, when selected, may be used as an alternate means of accessing many of the features of Garmin Pilot. The Tab Bar is configurable and provides quick access to the various pages within Garmin Pilot (Map, Flight Plan, Trip Planning, Airport Info, Charts, Weather Imagery, Scratch Pad, Terrain, Traffic, Checklists, Synthetic Vision, Logbook, Weight and Balance, Connext, Downloads, & Settings).
Adjusting Interface Style: 1) Touch Settings > General. 2) Touch Tab Bar to adjust the Interface Style. 3) Touch Classic to return to the legacy Home Screen Menu interface style.
Touch to View

Settings - General - Interface Style Selection

Touch to Select

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

TAB BAR ICONS
Touch the following icon to display the associated function:

Map Flight Plan Trip Planning Airport Info Charts WX Imagery Scratch Pad Terrain

Displays the Map Page, which provides full enroute navigation capabilities on a moving map.
Displays the Active Flight Plan Page, where flight plans can be created, stored, shared, modified, and reversed.
Displays the Trip Planning Page, which manages all of the trip planning details for each trip.
Displays the Airport Information Page, which includes basic airport info, frequencies, runways, procedures, weather, NOTAM's, FBO's, fuel prices/ fees, FAA remarks, & Nav Aids.
Displays the Charts Page, where various navigational charts can be viewed when properly downloaded.
Displays the Weather Imagery Page, providing various meteorological data for both real-time and forecast weather events.
Displays the Scratch Pad Page, which allows the pilot to quickly draw or write down information on the device screen.
Displays the Terrain View, which displays altitudes of terrain and obstructions relative to the aircraft position and altitude.

Traffic

Displays the Dedicated Traffic Page.

Checklists Synthetic Vision

Displays the Checklists Page where specific aircraft electronic checklists can be viewed to ensure proper flight procedures.
Displays the Synthetic Vision View, which depicts a forward-looking attitude display of the topography immediately in front of the aircraft.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Logbook Weight & Balance Connext Downloads Settings

Displays the Logbook Page, which allows the pilot to record pertinent flight information such as currency, endorsements, & photos.
Displays the Weight & Balance, which is calculated to determine if the airplane is properly loaded within CG limits.
Displays the Connext Page, which allows the wireless sharing of data between devices via Bluetooth®, or, if properly equipped, Wi-Fi.
Displays the Downloads Page, which automatically downloads file updates and next cycles as they become available.
Displays the Settings Page, which includes General, Pilot Info, Aircraft, User Content, Alerts, Units, Downloads, Subscrptions, FltPlan.com, Jeppesen, Documents, Data Services, & Flight Simulation.
Tab Bar Icons

CUSTOMIZE TAB BAR ICONS

The More menu contains the items not visible in the tab bar, which may be reordered or hidden from view. The order of the items in the tab bar may be customized by clicking More > Edit. Long press the desired Tab Bar icon to start customizing, using the drag-and-drop gesture to move icons to their desired location. The item to the right of the horizontal line is dynamic and displays the most recently viewed feature from the More menu.

NOTE: The Tab Bar will show between zero (0) and three (3) recent tabs with the remaining space on the Tab Bar reserved for user selected items which is dependent on screen size and device orientation. In the event a device only has enough space to show three (3) tabs, no recent tabs will be shown, instead the tabs shown will be two (2) user selected items and the More tab.

User Selected Icons

Most Recent

Current Page 190-01532-00 Rev. U

Tab Bar Garmin Pilot for Android User's Guide

Touch to View 30

Overview
Customizing Tab Bar Icons: 1) From anywhere in Garmin Pilot, touch More > Edit to display the Drag
and Drop to Reorder window. 2) The Tab Bar and More Menu icons are displayed. Scroll down to view the
complete list of icons in the More Menu. 3) Long press on the desired icon until the background is highlighted (blue),
then drag and drop the icon in the desried location. 4) If necessary, touch Restore to load the previous selection and sequence of
icons. 5) Touch Save to continue or Cancel to close without saving.
Touch to Customize Tab Bar

Long Press to Drag & Drop

Touch to View

Tab Bar Customization

Touch to Touch to Touch Cancel Restore to Save

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Hiding Tab Bar Icons: 1) From anywhere in Garmin Pilot, touch More > Edit to display the Drag
and Drop to Reorder window. 2) The Tab Bar and More Menu icons are displayed. Scroll down to view the
complete list of icons in the More Menu. 3) Touch to Hide and remove from the available icon(s) on the Tab Bar. 4) If necessary, touch Restore to unhide and load the previous selection and
sequence of icons. 5) Touch Save to continue or Cancel to close without saving.
Touch to Hide

Hidden Icons

Touch to Touch to Touch Cancel Restore to Save Tab Bar Customization - Hidden Icons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

RUNWAY PREFERENCES
Setting Runway Preferences will adjust the Best Runway recommendations made by the Airport Information page and the airport widget. The default Surface Type is Hard/ Soft which will recommend any runway. Changing this to Hard will only recommend asphalt and concrete runways. Setting the Minimum Runway Length will only recommend runways to the specified length or greater.
NOTE: Runway preferences are used by the airport widget summary to show the best runway based on winds.

OBSTACLES

Configuring Helicopter Obstacles:

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch

to toggle Show Helicopter Obstacles as desired.

EMERGENCY

Configuring Hide EMER When Not Flying:

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch

to toggle Hide EMER When Not Flying as desired.

NAVIGATION

Configuring Automatic Safe Taxi:

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch

to toggle Automatic Safe Taxi as desired.

NOTE: With a SafeTaxi subscription and when Automatic SafeTaxi is On, SafeTaxi will launch after landing at the destination airport when ground speed drops below 40 kts.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

ALERT CONFIGURATION SETUP

The Alert Configuration Setup section allows the pilot the ability to toggle Notifications On/Off for vibration settings as well as select a desired ringtone. When Notifications are On, a Garmin Pilot Icon will appear in the device notification area (i.e. the top banner) when the configured alert criteria is met (i.e., time or location).

Configuring Alert Notifications:

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch Notification Ringtone to select a ringtone, or set to None to disable audio notifications.

4) Touch

to toggle Vibrate as desired.

ALERT TYPE SETUP

Configuring Terrain Alerts:

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch

to toggle Terrain Alerts as desired.

Configuring Traffic Alerts (Traffic Device Required):

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch

to toggle Traffic Alerts as desired.

Configuring Audio: 1) From any page, touch Home > . 2) Touch the General Tab. 3) Touch Audio options OFF, MALE, or FEMALE.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Configuring Trip Weather Alerts:

1) From any page, touch Home > .

2) Touch the General Tab.

3) Touch

to toggle Trip Weather Alerts as desired.

NOTE: Trip Weather Alerts are activated when weather for one or more trips goes below minimums set by the User.

SYNTHETIC VISION

Configuring Roll Indication: 1) From any page, touch Home > . 2) Touch the General Tab. 3) Touch Roll Indication options SKY POINTER, or GROUND POINTER.
GENERAL DATA PROTECTION REGULATION (GDPR)
The GDPR is a regulation in the European Union on data protection and privacy for all individual citizens of the European Union and the European Economic Area. It also addresses the transfer of personal data outside the EU and EEA areas. If applicable, touch the Reset button.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Resetting General Data Protection Regulation: 1) From any page, touch Home > . 2) Touch the General Tab. 3) Touch Reset button in the GDPR section, as desired.
NOTE: For additional information, please visit https://eugdpr.org and/or click on Privacy Policy button.

Touch to View

Touch to Toggle On/Off

Settings - General Cont'd

Touch to View
Touch to Toggle On/Off Touch to Select Touch to Toggle On/Off Touch to Select
Touch to Reset Touch to View

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
PILOT AND AIRCRAFT INFO
NOTE: A data connection (i.e., Wi-Fi or cellular) is required to file flight plans.
If a Garmin Pilot account is already signed into the app, Pilot and Aircraft information will automatically be synchronized. To add a new pilot touch Home > > Pilot Info > Add Pilot Information.... Touch in each field and use the on-screen keyboard to enter the requested information (i.e., Name, Address, Telephone, Personal Minimums, and preferred Filing Service). Add aircraft information by touching Home >
> Aircraft > Add Aircraft..., enter aircraft Identifier, Type, Equip Suffix, Home Base, Primary and Secondary Color, TAS, and Fuel information. To link Garmin Pilot with a Filing Service Provider, under Pilot Information, enter username and password information for the preferred provider. By linking to a Filing Service Provider, Garmin Pilot can file flight plans.
Entering Pilot Information:
1) From any page, touch Home > . 2) Touch Pilot Info > Add Pilot Information.... 3) Enter the Pilot Information by touching each field and use the keyboard. 4) Touch Save, to save Pilot Information.

Touch to Input Contact Info

Touch to Input Personal Mins

Touch to Select

Touch to Cancel

Touch to Save

Pilot Information Entry

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
PERSONAL MINIMUMS
Each pilot that's registered on a Garmin Pilot account can specify personalized parameters for VFR, IFR and Wind minimums. These settings are considered by the Garmin Pilot app when planning trips.
Available parameters are: · VFR minimums for ceiling and visibility for day and night flights · IFR minimums for ceiling and visibility for day and night arrivals and departures · Maximum wind speed, wind gusts, and crosswind component for arrival(s) and
departure(s)
Configuring Personal Minimums: 1) From any page, touch Home > . 2) Touch the Pilot Info Tab > Add Pilot Information....
Or: Touch a current Pilot in the list to edit. 3) Touch VFR, IFR or Winds. 4) Enter the preferred ceiling minimums in feet. 5) Enter the preferred visibility minimums in statute miles. 6) Enter the preferred maximum wind speeds in knots. 7) Touch Save.

Touch to Input Info

Touch to Clear Info

Touch to Cancel

Touch to Save

Pilot - Personal Minimums - VFR

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Entering Aircraft Information: 1) From any page, touch Home > . 2) Touch Aircraft > Add Aircraft....
Or: Touch a current Aircraft in the list to edit. 3) Enter Required and/or optional Aircraft Information by touching each field
and use the keyboard. 4) Touch Save, to save Aircraft Information.
Touch to View

Touch to Cancel

Aircraft Information Entry

Touch to Input Info
Touch to Select Touch to Input Info Touch to Select Touch to Save

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

ATC PROPOSED ROUTE NOTIFICATIONS

ATC Proposed Route Notifications are Push notifications, that include a proposed route for departures and destinations for previously filed flight plans. Notifications come in the notification area if Garmin Pilot is not currently active, or as Pop-ups within Garmin Pilot. To accept the proposed route and make it the Flight Plan, ensure Make Flight Plan is set to On, and touch Brief to open the Trip Planning Page. To dismiss the notification and not make it the Flight Plan, ensure Make Flight Plan is set to Off, and touch Dismiss to remove the popup.

Subscribing to ATC Proposed Route Notifications:

1) From any page, touch Home > .

2) Touch the Aircraft Tab.

3) Touch Add Aircraft.

Or: Touch a current Aircraft in the list, to edit.

4) Scroll down & touch

to Subscribe to Proposed Route Notifications.

5) Touch Save, to save Aircraft Information.

USER CONTENT

The User Content Tab provides a quick and easy way to create and view stored user waypoints. User waypoints are synchronized across devices. When creating a new user waypoint, Garmin Pilot provides three ways to specify the precise location.
If Lat/Lon is selected, Garmin Pilot can accept the coordinates in three formats: degrees in decimal (hdd.dddd); degrees and minutes in decimal (hddd.mm.mmmmm'); and degrees, minutes and seconds in decimal (hddd.mm'ss.s").
Rad/Dist can accept locations around a specified VOR station, using a radial and distance.
Rad/Rad can accept locations as the intersection of two radials of two different VOR stations.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Creating/Editing a User Waypoint from User Content Tab: 1) From any page, touch Home > . 2) Touch the User Content Tab.
3) Touch button to display the New User Waypoint dialog box. Or: Touch a current User Waypoint in the list to edit.
4) Enter a name. 5) Define the waypoint location by Lat/Lon, Rad/Dist, or Rad/Rad. 6) Touch Save to save the waypoint, or Cancel to exit.
7) If the waypoint was saved, touch button to view on Google Maps.

Touch to Edit Touch to
View on Map
Touch to Define

Touch to View Info

Touch to Select

Touch to Cancel

Touch to Adjust

Edit User Waypoint

Touch to Clear Info Touch to Save

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

UNITS

The Units Tab can set the displayed units of measure for the following metrics:

· Distance · Velocity · Fluid Volume · Weight

· Weight & Balance · Runway Length · Temperature · Visibility

· Wind Speed · Altimeter · Latitude/Longitude

Adjusting Units Settings: 1) From any page, touch Home > . 2) Touch the Units Tab. 3) Touch the unit of measurement to display options and adjust as desired. 4) If necessary, touch Restore Defaults to revert back to factory settings.

Touch to View

Settings - Units Tab

Touch to Adjust Settings Touch to Restore Default Settings

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

DATA SERVICES

The Data Services Tab provides information about the current source of weather data and the age of Garmin Weather Data items cached on the device. The age and status of weather data for FIS-B-sourced weather is viewable under the corresponding FIS-B Device tab. Weather data is available from three sources, Garmin Weather Data Services, FIS-B weather when connected to a compatible FIS-B device via a Connext link. Garmin Weather Data Services requires a data connection through Wi-Fi or cellular network. FIS-B weather requires additional hardware.

Adjusting Worldwide NOTAM Coverage Settings:

1) From any page, touch Home > .

2) Touch the Data Services Tab.

3) Touch

next to Worldwide NOTAM Coverage to toggle On/Off. This

feature will be automatically enabled with the proper subcription updated

and downloaded.

Adjusting Worldwide Winds Aloft Coverage Settings:

1) From any page, touch Home > .

2) Touch the Data Services Tab.

3) Touch

next to Worldwide Winds Aloft Coverage to toggle On/Off.

The winds aloft forecast data is based on the Global Forecast System (GFS)

weather model and provides detailed coverage for the selected area. This

feature will be automatically enabled with the proper subcription updated

and downloaded.

Adjusting Baron Mobile Link Settings:

1) From any page, touch Home > .

2) Touch the Data Services Tab.

3) Touch

next to Connection Status to toggle On/Off. Baron Mobile

Link provides in-cockpit weather using your XM weather receiver and the

Mobile Link Wi-Fi device.

4) If necessary, touch to view info regarding the current Wi-Fi connection.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Connection Status Touch
to View Connection
Status
Touch to View Info

Settings - Data Services

Touch to Toggle On/Off

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
GPS
Most Android devices are built with an internal GPS receiver. These may work fine in smaller aircraft but often a stronger, external GPS receiver is necessary. If an Android device does not include a GPS receiver, then a Garmin GLOTM portable GPS and GLONASS receiver or a Connext GPS and ADS-B receiver will be required to take advantage of the navigation features of Garmin Pilot. Third party GPS receiver applications are no longer recommended for Garmin Pilot to receive location data.
Adjusting GPS Settings: 1) From any page, touch Home > . 2) Touch the GPS Tab to view and adjust connected devices.
Current GPS Mode
& Status
Touch to View
Settings - GPS Tab

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
FLIGHT SIMULATION INTEGRATION
The Flight Simulation Tab provides information about the status of a flight simulator associated with the current Garmin Pilot account and device. Garmin Pilot can connect to your X-Plane or Microsoft Flight Simulator 2020 (MSFS 2020) software through a Wi-Fi connection. To aid in User accessibility, detailed instructions on how to connect to the desired flight simulator are provided within Garmin Pilot.

NOTE: Garmin Pilot requires X-Plane version 10.30 or higher.

NOTE: The Android device running Garmin Pilot, and the computer with the flight simulator software, should be connected to the same Wi-Fi access point.

Connecting Garmin Pilot to a Flight Simulator:

1) From any page, touch Home > .

2) Touch the Flight Simulation Tab.

3) Touch

to toggle the Use Simulator Data On/Off.

4) Touch How to connect with MSFS 2020.

Or: Touch How to connect with X-Plane.

Touch to View

Touch to Toggle On/Off Touch to View/ Collapse Info

Settings - Flight Simulation - Microsoft Flight Simulator 2020

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
DOWNLOADS
The Downloads Tab allows the User to adjust settings for a multiple items. First, Auto-Download Pilot Updates, which automatically downloads file updates and next cycles as they become available. Second, Allow Mobile Data, which allows Mobile Data for large downloads when Wi-Fi is not availble. Lastly, Enable Download Map, which provides a visual display of certain downloadable areas (if mapping information is available). If disabled, this will show all downloads in list form instead.

NOTE: More details related to the specifics of the Downloads portion of Garmin Pilot are presented in greater detail at later stages of this document.

Adjusting Auto-Download Pilot Updates Settings:

1) From any page, touch Home > .

2) Touch the Downloads Tab.

3) Touch

next to Auto-Download Pilot Updates to toggle On/Off.

NOTE: When toggled 'On', this setting may require additional storage space on the device. Please ensure the device has the proper storage space available.

Adjusting Allow Mobile Data Settings:

1) From any page, touch Home > .

2) Touch the Downloads Tab.

3) Touch

next to Allow Mobile Data to toggle On/Off.

Adjusting Enable Download Map Settings:

1) From any page, touch Home > .

2) Touch the Downloads Tab.

3) Touch

next to Enable Download Map to toggle On/Off.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Touch to Toggle On/Off
Touch to View
Settings - Downloads
SUBSCRIPTIONS
The Subscriptions Tab provides information about the status of any subscription associated with the current Garmin Pilot account and the ability to purchase annual or monthly subscriptions or renew expired subscriptions.
NOTE: With an active subscription, Garmin Pilot can be installed on up to three device at the same time, typically a mobile phone and a tablet device. Viewing/Adjusting Account: 1) From any page, touch Home > . 2) Touch the Subscriptions Tab to view current status. 3) If necessary, touch the expired subscription to download. When properly downloaded, a will be displayed along with an Expiration Date. 4) If necessary, touch the Manage Account button to view current Garmin Pilot subscriptions and the device(s) using these items via fly.garmin.com.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Viewing/Adjusting Subscription Catalog: 1) From any page, touch Home > . 2) Touch the Subscriptions Tab to view current status. 3) If necessary, touch the expired subscription to download. When properly
downloaded, a will be displayed along with an Expiration Date. 4) If necessary, touch the Subscription Catalog button to purchase necessary
items via fly.garmin.com.
Touch to Change Account

Touch to View

Subscription Status & Expiration Date

Touch to Manage Garmin Account

Settings - Subscriptions

Touch to View Subscription Catalog

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
SYNC
The Sync Tab provides information about the sync status of any data associated with the current device. The User can view the Last Attempt (Date & Time) and Status (Synced or Sync Failed) of various pieces of data such as Trips, Aircraft, Pilots, User Waypoints, Stored Flight Plans, Database Concierge, Logbook, Checklists, Performance, and Weight and Balance.
Viewing/Adjusting Sync Status: 1) From any page, touch Home > . 2) Touch the Sync Tab. 3) Touch the SYNC NOW button next to the desired data category. If
successful, "Synced" will be displayed in green text along with the Date (MM:DD) and Time (HH:MM). If unsuccessful, "Not Synced" will be displayed in red text along with the Date (MM:DD) and Time (HH:MM). 4) If necessary, touch the Clear Local Sync Data button.
NOTE: Touching the Clear Local Sync Data button will clear all local sync data and pull down data stored on the cloud. Only perform this action if there are issues with the sync data.
Touch to Sync Data

Touch to View Sync Status Last Sync
190-01532-00 Rev. U

Settings - Sync Garmin Pilot for Android User's Guide

Touch to Clear Data
50

Overview
SYNTHETIC VISION (PREMIUM SUBSCRIPTION)
NOTE: Synthetic Vision requires either a Flight Stream 510/210, GDL 52/52R, GDL 39 3D, GTX 345, GTX 45R, G3X Touch, and a Premium subscription.
Synthetic Vision depicts a forward-looking attitude display of the topography immediately in front of the aircraft. The depicted imagery is derived from the aircraft attitude, heading, GPS three-dimensional position, and databases of terrain, obstacles, and other relevant features.

GPSderived Ground Speed Pitch Scale Zero Pitch
Line Aircraft Symbol
HSI

Roll Pointer Geometric Altitude (MSL)
GPSderived Vertical Speed CDI Scale

Synthetic Vision (with GDL 39 3D)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
The Synthetic Vision terrain display shows land contours (colors are consistent with those of the topographical map display), large water features, towers, and other obstacles over 200' AGL that are included in the obstacle database. Cultural features on the ground such as roads, highways, railroad tracks, cities, and state boundaries are not displayed.
Terrain is integrated within Synthetic Vision to provide visual alerts to indicate the presence of terrain and obstacle threats relevant to the projected flight path. Terrain alerts are displayed in red and yellow shading.
The terrain display is intended for situational awareness only. It may not provide the accuracy or fidelity on which to base decisions and plan maneuvers to avoid terrain or obstacles. Navigation must not be predicated solely upon the use of the terrain or obstacle data displayed by Synthetic Vision.
NOTE: 'No Attitude Information' is displayed in place of the Attitude Indicator when compatible devices are not configured.
SYNTHETIC VISION OPERATION
Synthetic Vision is activated by touching Home > .
Activating night mode: 1) From any page, touch Home > . 2) Touch Menu > Night Mode.
ZERO PITCH LINE
The Zero Pitch Line is drawn completely across the display and represents the aircraft attitude with respect to the horizon. It may not align with the terrain horizon, particularly when the terrain is mountainous or when the aircraft is flown at high altitudes.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
TRAFFIC (OPTIONAL)
When paired with a Flight Stream 510, Flight Stream 210, GDL 52/52R, GDL 39/GDL 39 3D, GTX 345, or GTX 45R Synthetic Vision displays ADS-B traffic information. Traffic symbols are displayed in their approximate locations. Traffic symbols are displayed in three dimensions, appearing larger as they are getting closer, and smaller when they are further away. Traffic within 250 feet laterally of the aircraft will not be displayed. Traffic symbols and coloring are consistent with that used for traffic displayed on the Map Page. If the traffic altitude is unknown, the traffic will not be displayed.

Zero Pitch Line
Traffic

Traffic

Traffic Alert

Synthetic Vision - Traffic

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
RUNWAYS
Runway data provides improved awareness of runway location with respect to the surrounding terrain. All runway thresholds are depicted at their respective elevations as defined in the database. In some situations, where threshold elevations differ significantly, crossing runways may appear to be layered. As the aircraft gets closer to the runway, more detail such as runway numbers and centerlines are displayed.

Runway

Synthetic Vision - Runway

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
SYNTHETIC VISION TERRAIN AND OBSTACLE DATA
Terrain alerting on the synthetic vision display corresponds to the red and yellow X symbols on the Map Page.
In some instances, a terrain or obstacle alert may be issued with no conflict shading displayed on the synthetic vision. In these cases, the conflict is outside the Synthetic Vision field of view.
Obstacles are represented on the synthetic vision display by standard twodimensional tower symbols found on the Inset Map and Navigation Map. Unlike the Map Page, obstacles on the synthetic vision display do not change colors to warn of potential conflict with the aircraft's flight path until the obstacle is associated with an actual terrain alert. Obstacles greater than 1000 feet below the aircraft altitude are not shown.

Synthetic Vision - Terrain

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
It is preferred to download the medium or high resolution terrain data when using Synthetic Vision. The 3D view may not draw correctly with low resolution terrain data.

Synthetic Vision - High Resolution Terrain Data

Synthetic Vision - Low Resolution Terrain Data

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
LOGBOOK

The Garmin Pilot Logbook feature allows the pilot to record pertinent flight information to include the following:
· Generate automatic logbook entries using GPS data collected during the flight.
· Add manual entries or modify auto-entries.
· Notification of auto-generated entries via red badges on Logbook icon.
· Smart Suggestions auto-populates previously used instructor and aircraft information.
· Track currency information including day and night take-offs, night duration, and cross country.
· Enter signed endorsements and generate reports.
· Optional automatic synchronization with the flyGarmin website.
· Adding photographs to logbook entries.
The Garmin Pilot logbook requires at least one aircraft entered in Home > > Aircraft in order to create valid entries. If a logbook entry is created without any aircraft types, the Aircraft Type field will prompt to add an aircraft type.

FLIGHT LOG ENTRIES

Manually Adding Logbook Entry: 1) From any page, touch Home > . 2) If necessary, touch Entries at the top of the page. 3) Touch Add Entry. Garmin Pilot will create a new entry. 4) Touch the desired Flight Log entry field(s) to add flight data. 5) Under the Duration section, use the buttons to copy the value from the
Total field to another field. 6) If the flight included multiple approaches, touch Add Approach for each. 7) If the flight was dual given, the instructor enters the following fields:
Instructor Name, Certificate Number, and Certificate Expiration. a) Touch Add Signature to sign the entry. b) Touch Save.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Entries Tab Add New Entry

Lock Entry
Touch to Adjust Touch to Share Touch to View on Map

Touch to View Flight Log Entries

Touch to Add Photo

Touch to Modify

Logbook Entries

Enabling Automatic Flight Log Entries:

NOTE: The terrain download is recommended for optimum performance of Automatic Flight Logging.

1) From any page, touch Home > > Settings.

2) Scroll down to the Automatic Flight Log Setup fields.

3) Touch

next to Enable Auto Flight Logging.

4) If desired, enter a value for any of the following Automatic Flight Log Setup fields.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

· Enable Flight Tracking · Taxi Time Added

· Include Heliports

· Flying Speed Threshold · Merge Legs Into Single · Manually Accept

Entry

Automatic Logs

· Flying Altitude (AGL) · Max Time Between

Threshold

Legs To Merge

· Vertical Speed Threshold

· Include Seaplane Bases

Automatic Flight Log Setup Fields

Settings Tab Touch to Enable Touch to Enter Data

Automatic Flight Log Setup

Touch to Enter Data Touch to Toggle On/Off

Accepting Automatic Flight Log Entries: 1) From any page, touch Home > > Entries. 2) Touch Auto-Gen Flights.
Optionally, touch Accept All to add all automatic entries to the Logbook. 3) Touch a flight log entry. 4) Touch Accept to add the entry to the logbook.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Deleting Automatic Flight Log Entries: 1) From any page, touch Home > > Entries. 2) Touch Auto-Gen Flights. 3) Touch a flight log entry. 4) Touch Delete.
Entries View Touch to
Accept ALL Auto Entries
New Auto Entry

Touch to Accept or Delete Auto Entry

Flight Log Entry - Automatic

Modifying Flight Log Entry: 1) From any page, touch Home > > Entries. 2) Touch the desired entry to modify. 3) Modify the desired Flight Log entry fields.

Deleting Flight Log Entry: 1) From any page, touch Home > > Entries. 2) Touch and hold the desired entry to delete. 3) If desired, touch additional entries to delete. 4) Touch at the top of the screen to delete or touch

to cancel.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

FLIGHT LOG FIELDS

The order of the Flight Log Fields can be arranged, and each flight log field can be configured ON or Off.

Configuring logbook fields:

1) From any page, touch Home > > Entries.

2) Touch the desired entry to configure or touch Add Entry to create a new entry.

3) Touch Configure Fields.

4) Touch and drag to arrange the fields in the desired order.

5) Touch

next to desired fields to hide or display them.

6) Touch Done.

Entries Tab

Touch to Save & Close Touch to Toggle 'ON/ OFF'

Selected Logbook Entry

Touch & Drag to Arrange Fields

Flight Log Field Configuration

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
LOGBOOK PHOTOS
The Logbook Photos feature allows the pilot to attach unlimited photos to logbook flight entries.
· Logbook photos may be taken while in flight using a device's camera, and are automatically added to the provisional logbook entry.
· Logbook photos can be attached to existing logbook entries from the device's photo library or flyGarmin.
· Logbook photos are securely stored within flyGarmin and can be synced across all devices.
Adding photos to a logbook entry: 1) From any page, touch Home > . 2) Touch Add Entry or an existing logbook entry and select the Add Photo
icon. 3) Take a photo from the device, add one from the device's photo library, or
add a photo from the Virb photo library.

Photos Attached

Logbook Photos

Touch to Enlarge Photo Touch to Add Photo

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
LOGBOOK AUTO-LOGGING
The Logbook Auto-Logging view on the logbook entries tab captures and displays real-time flight data including: · Duration of flight · Time of departure · Distance flown · Average speed · Maximum altitude · Maximum speed
Logbook Auto-Logging also supports taking photos while in flight or attaching images from the device's library to the logbook entry.

Actively Logging Flight Departure Info

Logbook Auto-Logging

Touch to Add Photo

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
LOGBOOK TRACKS
Garmin Pilot automatically creates a track of a flight and attaches the file to the entry in the logbook.
Viewing logbook tracks: 1) From any page, touch Home > . 2) Touch Show on Map on a selected logbook entry.

Logbook Tracks

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Adding logbook widget from split screen mode: 1) From any page, touch Home > > > Widgets. 2) Touch Add Widget and select Logbook Tracks.
Hiding logbook tracks from the map: 1) From any page, touch Home > . 2) Long press on the desired area in the Map Pane until the Radial Menu
appears. 3) Select the Track icon from the radial menu. 4) Touch on the Hide button to remove the track on the map.
ENDORSEMENTS

Viewing Endorsements: 1) From any page, touch Home > 2) Touch the desired endorsement.

> Endorsements.

Endorsement View

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Adding Endorsements: 1) From any page, touch Home > > Endorsements. 2) Touch Add Endorsement. 3) Touch Type. 4) Touch the desired Type from the list. 5) The pilot enters the following Endorsement Fields: First Name, MI, Last
Name; Gender; Pilot Certificate; Certificate Number; Make and Model. 6) Touch Title. 7) Enter a title for the endorsement and touch Done. 8) If desired, enter the FAA Category, date Issued, and date Expires. 9) The instructor enters the following Instructor fields: Instructor Name,
Certificate Number, and Certificate Expiration. a) Touch Add Signature to sign the entry. b) Touch Save.

Endorsements Tab

Touch to Add Endorsements
New Endorsement

Touch to Select Endorsement Type

Endorsements

Deleting an Endorsement:

1) From any page, touch Home > > Entries.

2) Touch and hold the desired endorsement to delete.

3) If desired, touch additional endorsements to delete.

4) Touch at the top of the screen to delete or touch to cancel.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

CURRENCY
To View Currencies, touch Home > > Currency. When the currency type has been met, is displayed as well as the date last met, expiration date, and days remaining. When the currency type has not been met is displayed.

Currency Tab
Touch to Add Currency Type Currency List

Logbook - Currency

Adding a currency type: 1) From any page, touch Home > > Currency. 2) Touch Add Currency Type. 3) Touch the desired Currency Type from the list.

Deleting a currency type: 1) From any page, touch Home > > Currency. 2) Touch and hold the desired currency to delete. 3) If desired, touch additional currencies to delete. 4) Touch at the top of the screen to delete or touch

to cancel.

REPORTS

The Reports tab shows categorized summaries of logbook entries. These summaries are broadly divided into Visited Airports, Entry Fields, Aircraft Types and Characteristics. All four categories can further be organized by time frame, using the lookback options on the left side of the screen. The Reports tab also supports a selectable custom date range. To change the custom date range, touch to display the Custom Dates window.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

The Visited Airports category shows the total number of visits to specific airports from a recorded flight log data. Visited Airports data can be viewed as a List or on the Map. List View displays data in descending order, with the most frequently visited airport at the top, along with the airport I.D., and the total number of visits. Touch the desired Airport Name to view flight details, such as Date, Departure, and Duration.

Viewing Visited Airports - List View: 1) From any page, touch Home > > Reports > Visited Airports.

2) Select the desired Date Range on the lefthand side of the screen.

3) Touch View.

in the bottom, right corner of the screen to display the List

4) Touch the desired Airport Name to view details.

Selected Date Range

Reports Tab Touch to View Info

Touch to View Info

Touch to Filter by Time Frame

Logbook - Reports - Visited Airports - List View

Touch to View on Map

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Viewing Visited Airports - Map View: 1) From any page, touch Home > > Reports > Visited Airports. 2) Select the desired Date Range on the lefthand side of the screen.

3) Touch View.

in the bottom, right corner of the screen to display the Map

4) Touch the desired Airport I.D. to view details.

Selected Date Range

Reports Tab Touch to View Info

Touch to Filter by Time Frame

Touch to View Info

Logbook - Reports - Visited Airports - Map View

Touch to View List

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

The Entry Fields category shows totals of numeric flight log data. This category also includes an Aircraft Types field for narrowing flight log data to aircraft types specified in Logbook Settings. This Aircraft Types field is different than the Aircraft Types category.
Viewing Entry Fields: 1) From any page, touch Home > > Reports > Entry Fields. 2) Select the desired Date Range on the lefthand side of the screen. 3) Touch the All Types field in the upper right corner and adjust to filter data
as desired. 4) Scroll down to view logbook entries categorized by Summary, Flight Data,
Flight Time, General Operations, and IFR Operations.

Selected Date Range

Reports Tab Touch to View Info Touch to Filter by Aircraft Type

Touch to Filter by Time Frame

Logbook - Reports - Entry Fields

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
The Aircraft Types category displays total data specific to aircraft types instead of flights.
Viewing Aircraft Types: 1) From any page, touch Home > > Reports > Aircraft Types. 2) Select the desired Date Range on the lefthand side of the screen. 3) Scroll down to view logbook entries categorized by Aircrafty Type(s) and
Aircraft Identifier(s).

Selected Date Range

Touch to Display Flights/ Hours by Aircraft Type

Touch to Filter by Time Frame

Logbook - Reports - Aircraft Types

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
The Characteristics category displays flight log data pertaining to aircraft characteristics, regardless of aircraft type or flights.
Viewing Characteristics: 1) From any page, touch Home > > Reports > Characteristics. 2) Select the desired Date Range on the lefthand side of the screen. 3) Scroll down to view logbook entries categorized by General Characteristics
(Retractable Landing Gear, Complex, High Performance, etc.), Engine Type, Arcraft Category, Aircraft Class, and Aircraft Manufacturer.

Selected Date Range

Touch to Display Flights/Hours by Aircraft Characteristics

Touch to Filter by Time Frame

Logbook - Reports - Characteristics

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
LOGBOOK SETTINGS
GENERAL SETTINGS
The Settings tab provides options to fine tune Logbook functions. Sync Logbook to flyGarmin will enable or disable storing logbook entries to Garmin's web service. By default, the Logbook shows time values in decimal hours. Touch Duration Field Display Format to change time values to hours + minutes. Logbook Display Order can be used to reverse the order of logbook entries in the other logbook tabs.
Logbook Settings can be accessed by touching > Settings.

Logbook Settings - General

Settings Tab Touch to Manage Aircraft Types Touch to Sync Touch to Adjust

MANAGING AIRCRAFT TYPES

Touch Manage to add, delete and edit aircraft information used in Logbook entries. Aircraft type information here is used in the Entries tab, providing options in the Type fields for new flight log entries. This aircraft information is also separate from the aircraft information found in Home > > Aircraft, which is used for flight planning.

Return to Settings Tab Add Aircraft
Type
View Aircraft Type

Clone Current Aircraft Type Configure Aircraft Type Fields

Logbook Settings - Viewing Aircraft Type

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
Adding Aircraft Type: 1) From any page, touch Home > > Settings > Manage. 2) Touch Add Aircraft Type. Garmin Pilot will create a new aircraft type entry. 3) Touch the desired Aircraft Type entry field(s) to add an entry.
Modifying Aircraft Type: 1) From any page, touch Home > > Settings > Manage. 2) Touch the desired Aircraft Type to modify. 3) Touch the desired Aircraft Type entry field(s) to modify.
Copying Aircraft Type: 1) From any page, touch Home > > Settings > Manage. 2) Touch the desired aircraft type to copy > Clone.
Deleting Aircraft Type: 1) From any page, touch Home > > Settings > Manage. 2) Touch and hold the desired aircraft type to delete. 3) Touch at the top of the screen to delete or touch to cancel.
Configuring Aircraft Type Fields: 1) From any page, touch Home > > Settings > Manage. 2) Touch any aircraft type 3) Touch Configure Fields. 4) Touch and drag to arrange the fields in the desired order. 5) Touch and drag the switch ON/OFF to display the desired fields > Done.

Logbook Settings - Configure Aircraft Type Fields

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Touch & Arrange Type Fields
74

Overview
PILOT INFORMATION
When a new flight log entry or endorsement is created, the Pilot, Gender, Pilot Certificate and Pilot Certificate Number fields will automatically populate with information specified here. This applies to both manual and automatic flight log entries.
Pilot Information Settings can be accessed by touching > Settings.
AUTOFILL FROM TOTAL DURATION
These options will automatically copy the Total Duration value when a new flight log entry is created. This applies to both manual and automatic flight log entries.
Logbook Autofill From Total Duration Settings can be accessed by touching > Settings. Scroll down to adjust as necessary.
Touch to Enter Data

Logbook Settings - Pilot Info & Autofill

Touch to Toggle On/Off

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
CARRYOVER FROM LAST ENTRY
When a new flight log entry is created, Garmin Pilot looks at the previous flight log and fills in these fields based on the previous entry.
Logbook Carryover From Last Entry Settings can be accessed by touching > Settings. Scroll down to adjust as necessary.
Touch to Toggle On/Off
Logbook Settings - Carryover From Last Entry
AUTOMATIC FLIGHT LOG SETUP
NOTE: The terrain download is recommended for optimum performance of Automatic Flight Logging. When Automatic Flight Log is enabled, Garmin Pilot detects takeoff and landing to automatically create a flight log entry. Logbook Automatic Flight Log Setup Settings can be accessed by touching > Settings. Scroll down to adjust as necessary. The settings below allow the pilot to configure the behavior of the flight log function.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Touch to Toggle On/Off Touch to Enter Data

Logbook Settings - Automatic Flight Log Setup

Touch to Toggle On/Off

Enable Auto Flight Logging

Allows Garmin Pilot to automatically create flight logs.

Flying Speed Threshold Flying Altitude (AGL) Threshold Vertical Speed Threshold

Used to optimize the detection of takeoff when terrain is not available. If terrain has been downloaded then it is used to determine when the aircraft is flying.

Taxi Time Added

Automatically added to the total duration to account for taxi time on the ground. Defaults to zero.

Merge Legs Into Single Entry

These parameters control if two flights will be

Max Time Between Legs To Merge automatically merged into one logbook entry.

Include Seaplane Bases Include Heliports

Enable these options if operating out of a seaplane base or heliport.

Manually Accept Automatic Flightlogs

When enabled, the user must manually review and accept all auto-generated flight log entries.

Automatic Flight Log Setup Fields

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
WEIGHT AND BALANCE

Weight and balance is calculated within Garmin Pilot to determine if the airplane is properly loaded within CG limits. Garmin Pilot syncs the current flight plan to incorporate initial fuel and winds aloft data into the weight and balance calculations. Aircraft performance data may be imported from Garmin's aircraft library or manually entered from the aircraft's Pilot Operating Handbook (POH), into Garmin Pilot.

is displayed when the aircraft is loaded within the CG envelope.

is displayed when the aircraft is loaded out of the CG envelope.

Touch to Select Aircraft Out of CG Envelope

Within CG Envelope

Weight and Balance
Entering Weight and Balance data: 1) After adding an aircraft and performance data in , touch Home > . 2) Touch the N-number to select the desired aircraft. 3) Enter the weights for each station. 4) Touch the 'Fuel Load' field and use the weight slider or touch Maximum
Fuel, 30 Minute Reserve, 45 Minute Reserve, or 60 Minute Reserve.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
DOWNLOADS
NOTE: If charts are not downloaded to the device they will not be available for viewing without a data connection. Download all applicable charts for your planned flight including alternates.
NOTE: Chart files can be very large and may take some time to download. It is recommended that downloads be done over Wi-Fi. Additional charges may apply for downloads done over a cellular network.
NOTE: With the availability of electronic charts in Garmin Pilot, it is still advisable to carry another source of charts on board the aircraft.
NOTE: A data connection (i.e., Wi-Fi or cellular) is required to download or update charts.
The Downloads Menu is divided into two sections. The Navigation & Airports section allows for downloading US Navigation Data, Airport Info, and SafeTaxi information. The Procedures & Charts section allows for downloading VFR Sectional Charts, WAC Charts, IFR Low and High Altitude Charts, and Instrument Procedures for the Continental US as well as Alaska and Hawaii.
The Downloads Menu is divided into two columns. The Left column shows items available for download as indicated by the blue down arrows ( ) or blue text. The right column is the Download Queue, shows the download status and a list of queued downloads.
The submenus for VFR Sectional Charts, WAC Charts and IFR Low and High Altitude Charts display the Chart Selection Screen, which is a map showing the charts as outlined areas. To select all available charts touch the file folder in the lower right corner and touch Select All from the list or touch the outlined area for the desired chart(s). After selecting the chart(s) to download touch the Download Arrow in the lower right corner. Terminal Procedure charts can be viewed and downloaded from the Airport Info Page, under the Procedures tab as well.
The Auto-Download Pilot Updates feature, automatically download file updates and next cycles of existing data and charts as they become available.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Configuring Auto-Download Pilot Updates:

1) From any page, touch Home > > Downloads Tab.

2) Touch

next to Auto-Download Pilot Updates, as desired.

Configuring Allow Mobile Data:

1) From any page, touch Home > > Downloads Tab.

2) Touch

next to Allow Mobile Data, as desired.

Configuring Enable Download Map:

1) From any page, touch Home > > Downloads Tab.

2) Touch

next to Enable Download Map, as desired.

Touch to View

Settings - Downloads

Touch to Toggle On/Off

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Downloading US Navigation Data, Airport Info or SafeTaxi: 1) From any page, touch Home > . 2) Touch to begin downloading the desired information.

Downloading Current Cycle Sectional, IFR Low Altitude, or IFR High Altitude Charts:

1) From any page, touch Home > .

2) From the VFR / IFR Enroute Charts list select the submenu for the desired chart.

3) Touch Current.

4) Touch the outlined area on the Chart Selection Screen for the desired chart(s).

5) Touch

Or: Select All >

to download all available charts.

Download All Button Update All
Button
Data Updated
Update Status Data
Available to Download

Update Progress Queued Download Status & Estimated Time Remaining

Device Capacity Info 190-01532-00 Rev. U

Downloads Page Garmin Pilot for Android User's Guide

Touch For Info
81

Overview

Downloading Next Cycle Sectional, IFR Low Altitude, or IFR High Altitude Charts:

NOTE: Sectional Charts are updated individually on the chart schedule and are available for download, typically 5 days prior to their valid date. IFR Low and High Altitude Charts are updated on a 28-day cycle and are available for download typically 5 days prior to their valid date.

1) From any page, touch Home > .

2) From the VFR/IFR Enroute Charts list select the submenu for the desired chart.

3) Touch selected chart type.

4) Touch the outlined area on the Chart Selection Screen for the desired chart(s).

5) Touch

to download the selected chart(s). The download will

begin immediately as shown in the Download Queue.

Or: Touch Select All >

, to download all available charts.

Downloading Current Cycle Instrument Procedures:

1) From any page, touch Home > .

2) From the VFR/IFR Enroute Charts list select the submenu for the desired US Instrument Procedures.

3) Touch Current.

4) Touch the State(s) on the Chart Selection Screen for the desired chart(s).

5) Touch

to download the selected chart(s). The download will

begin immediately as shown in the Download Queue.

Or: Touch Select All >

, to download all available charts.

Downloading Next Cycle Instrument Procedures:

1) From any page, touch Home > .

2) From the Procedures & Charts list select the submenu for US Instrument Procedures.

3) Touch Current.

4) Touch the State(s) on the Chart Selection Screen for the desired chart(s).

5) Touch

to download the selected chart(s).

Or: Select All >

, to download all available charts.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

NOTE: US Instrument Procedures are updated on a 28-day cycle and are available for download typically 5 days prior to their valid date.
CHART UPDATES

NOTE: Electronic Charts are updated frequently. Always ensure the charts saved to the device are up-to-date prior to each flight. With the availability of electronic charts, it is still advisable to carry another source of charts onboard the aircraft.

Garmin Pilot makes it easy to ensure that charts are always up-to-date by taking

advantage of the notification area of the Android device. When Garmin Pilot is started

it automatically checks for charts updates. When updates are available the Garmin Pilot

Icon is displayed in the notification area the device. The number of available updates is

also displayed on the Downloads Page. When updates are available, the

button becomes active. The

button will update all available charts no

matter the chart type.

Downloads Notification

New Downloads Available

US Navigation Data, Airport Info and SafeTaxi are updated on 28-day cycle and are available for download typically 5 days prior to their valid date.
WAC and Sectional Charts are updated individually on the chart schedule and are available for download typically 5 days prior to their valid date.
US Instrument Procedures are updated on a 28-day cycle and are available for download typically 5 days prior to their valid date.
IFR Low and High Altitude Charts are updated on a 28-day cycle and are available for download typically 5 days prior to their valid date.
Charts that have been downloaded to the device are always available for viewing even after their expiration date. If the next cycle chart is downloaded prior to its activation date the current cycle will be used until it expires. After the expiration date the next cycle chart will be used and the old cycle will automatically be removed.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview

Updating Sectional, IFR Low, or IFR High Altitude Charts:

1) From any page, touch Home > . 2) Touch Update All (X) to update all available charts.

Or: 1) Select the desired chart type submenu.

2) From the Chart Selection Screen touch the expired chart(s), shown in red.

3) Touch

to download the selected chart(s). The download will

begin immediately as shown in the Download Queue.

Or:

1) Select the desired chart type submenu.

2) From the Chart Selection Screen touch Select All >

. The

download will begin immediately as shown in the Download Queue.

Data Selection

Download Selected Chart

Chart Selected Chart
Onboard & Current

Chart Available For Download

Deselect All Charts Select All
Charts

U.S. VFR Chart Selectionals

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Chart Validity Delete All Downloads
84

Overview

Updating Instrument Procedures:

1) From any page, touch Home > .

2) From the Procedures & Charts list select the submenu for US Instrument Procedures.

3) From the Chart Selection Screen touch the expired chart(s), shown in red.

4) Touch

to download the selected chart(s). The download will

begin immediately as shown in the Download Queue.

Or: Touch Select All >

, to update any expired charts.

Data Selection

Download Selected Charts

All Charts Selected

Touch to Deselect All

IFR Enroute High Chart Selection (Select All)

Chart Validity

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Overview
CHECKLISTS

Electronic checklists can be viewed in Garmin Pilot to ensure proper flight procedures. Checklists display the item with the preferred state or outcome, along with a green checkmark to confirm the step has been completed. Checklists are fully customizable to meet the pilot's preferences.

Viewing an aircraft checklist:
1) From any page, touch Home > . 2) Touch the desired aircraft model from the Garmin library under Checklist
Binders
Or: Add a new checklist binder by manually entering the information from the aircraft's Pilot Operating Handbook (POH), into Gamin Pilot or flyGarmin. 3) Touch the desired procedure. 4) Touch the appropriate step to indicate that is has been completed. A blue checkmark will indicate the step has been completed. 5) Touch the Clear button to clear all of the completed checklist items in the selected checklist category.

Current Aircraft Touch to Select
Category

Touch to Clear All

Touch to View Checklist

Touch to Select/ Deselect

190-01532-00 Rev. U

Electronic Checklists

Touch to Check Item

Garmin Pilot for Android User's Guide

Plan
PLAN
Garmin Pilot's powerful capabilities start with pre-flight planning, providing pilots with the most comprehensive aviation weather information to make better-informed flight decisions. Pilots can check weather radar, visible and infrared cloud imagery, METARs, TAFs, AIRMETs, SIGMETs, PIREPs, NOTAMs, winds and temperatures aloft, TFRs and lightning data. With Garmin Pilot, weather data can be overlaid on VFR Sectionals, IFR low altitude en route charts, IFR high altitude en route charts, WAC, or a simple map showing major roads and borders to visualize the weather for upcoming flights. Add text-based weather widgets and use the exclusive NavTrack feature to view weather information along the planned route.
FASTFIND PREDICTIVE WAYPOINT ENTRY
When entering a waypoint into the flight plan, FastFind Predictive Waypoint Entry populates airport identifiers and navigation aids nearest your location or previous point in the flight plan.
Begin Typing Waypoint(s) Touch to Add
Waypoint
FastFind

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan
FLIGHT PLAN

The Flight Plan page manages the current flight plan. Flight plans can be created, bookmarked (stored), and reversed from the Flight Plan Page. From the Flight Plan Page, flight plans can be entered in one of two ways. First, touch within the route field and use the keyboard to add waypoints separated by spaces. Second, touch the
Add Waypoint button in the flight plan list and use the keyboard to enter the waypoint identifier, or graphically edit on the map once a departure point is entered. The Flight Plan Page allows for flight plans to be bookmarked or stored for later use. Bookmarked Flight Plans are synchronized through a Garmin Pilot account and are available on any device with Garmin Pilot.

Current Route Touch to Search
For Waypoint

Touch to Bookmark Route Touch to Reverse Route

Expanded Route Details

Touch to Collapse Details
Touch Boxes to Adjust/ View Route Details Touch to Load Route in Trip Planning

Departure Airport

Flight Plan

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan

Creating a Flight Plan: 1) From any page, touch Home > . 2) Touch within the route field to activate the cursor. 3) Use the keyboard to insert waypoints. Separate each waypoint with a
space. Or: 1) Touch the Add Waypoint button. 2) Use the keyboard to input the waypoint identifier. 3) Touch the Add Waypoint button to add additional waypoints. Or: Enter Lat/Lon information in one of the following formats:

Lat/Lon

####N/#####W

N##.#/W##.#

N####/W#####

##.#/-##.#

####/-#####

##.#N/0##.#W

##.#N/##.#W

##.#/-0##.#

N##.#/W0##.#

Spaces are not allowed, slash (/) is required. Any Latitude format can be combined with any longitude format in the same string.

Lat/Lon Formats

Or: Enter Radial/Distance waypoint in one of the following formats:

Radial/Distance

Descriptions

MSP/190/035 or MSP/190/35

Identifier/Radial/Distance

MSP190035

IdentifierRadialDistance

Spaces are not allowed, when slashes (/) are used the leading zero can be left off the radial and/or distance.

Radial/Distance Formats

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan

Or: Enter a waypoint at the intersection of two VOR radials in the following format :

VOR/Radial

Descriptions

OKB100MZB020

VORRadialVORRadial

Radial Intercept Waypoint

Radial Intercept Waypoint
Or: 1) Use one of the above methods to enter a departure point. 2) In the Map View area long-press any location or flight plan leg, to display
the rubber-band, drag the rubber-band to the desired map location. 3) Once the rubber-band is on or near the desired location release the rubber-
band. A list of nearby waypoints is displayed. 4) Select the desired waypoint from the list. Or create a User Waypoint. 5) Repeat steps 2-4 to add additional waypoints.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan

ACTIONS MENU

The Flight Plan List contains a waypoint-sensitive Actions Menu. For example if the selected waypoint is the departure point, the Actions Menu will include an Add/ Remove SID. If the selected point is the final destination, the Actions Menu will include an Add/Remove STAR action item. Or, if the selected waypoint is a valid Airway entry point, the Actions Menu will include a Load Airway action item. The Actions Menu also has Action Items for adding, removing, or changing flight plan waypoints.

Action Menu Options - Airport of Origin

Action

Description

Adds a new line item before the selected waypoint. Places the

Insert Before cursor in the empty line and opens the keyboard for waypoint

identifier entry.

Adds a new line item after the selected waypoint. Places the

Insert After cursor in the empty line and opens the keyboard for waypoint

identifier entry.

Remove Waypoint Removes selected waypoint from the Flight Plan.

Waypoint Info Displays Waypoint information dialog box.

Direct-To Opens the Direct To... dialog box.

Add Departure

Opens the Select a Departure dialog box. Select the desired SID to open the submenu of available transitions or Select on Map.

Change Runway

If a Runway had been previously selected, this opens the Select Runway dialog box.

If a Departure had been previously selected, this opens the

Change Departure Select a Departure dialog box. Select the desired SID to open

the submenu of available transitions or Select on Map.

Remove If a Departure had been previously selected, this removes the

Departure departure from the Flight Plan.

Action Menu Options - Airport of Origin

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan

Action Menu Options - Enroute

Action

Description

Adds a new line item before the selected waypoint. Places the

Insert Before cursor in the empty line and opens the keyboard for waypoint

identifier entry.

Adds a new line item after the selected waypoint. Places the

Insert After cursor in the empty line and opens the keyboard for waypoint

identifier entry.

Remove Waypoint Removes selected waypoint from the Flight Plan.

Waypoint Info Displays Waypoint information.

Direct-To Opens the Direct To... dialog box.

Only available if the selected item is valid airway entry point.

Load Airway

Opens submenu of available Airways. Once an Airway is selected the Select Exit submenu displays a list of available exit

waypoints that can be ordered by distance or alphabetically.

Remove Airway Removes Airway and all associated waypoints.

Change Airway Opens the Change Entry submenu with a list of entry points.

Entry

The submenu can be viewed as an ordered list or alphabetically.

Change Airway Exit

Opens the Change Exit submenu with a list of Airway exit points. The submenu can be viewed as an ordered list or alphabetically.

Activate Leg Actives the selected leg for navigation.

Action Menu Options - Enroute

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan

Action Menu Options - Destination

Action

Description

Adds a new line item before the selected waypoint. Places the

Insert Before cursor in the empty line and opens the keyboard for waypoint

identifier entry.

Adds a new line item after the selected waypoint. Places the

Insert After cursor in the empty line and opens the keyboard for waypoint

identifier entry.

Remove Waypoint Removes selected waypoint from the Flight Plan.

Waypoint Info Displays Waypoint information.

Direct-To Opens the Direct To... dialog box.

If an Arrival had been previously selected, this opens the Edit

Change Arrival

STAR submenu with a list of available STARs. Select the desired STAR to open the submenu of available transitions or Select on

Map.

Remove Arrival

If an Arrival had been previously selected, this removes the STAR and all associated waypoints.

Opens the STAR submenu, listing available STARs. Select the

Add Arrival desired STAR to open the submenu of available transition or

Select on Map..

Activate Leg Actives the selected leg for navigation.

Action Menu Options - Destination

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan

Adding a Standard Instrument Departure (SID) to Flight Plan:

1) From any page, touch

2) Touch the departure point in the Flight Plan List to open the Actions Menu.

3) From the Actions Menu, touch Add Departure.

Touch to Display Actions
Menu

Flight Plan - Origin Airport Actions Menu
4) Touch the desired Departure. 5) Touch the desired Runway. 6) Touch the desired Transition. Or: Touch Select on Map.

Touch to View Departure Procedures

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan 7) Touch the desired Departure.
Touch to View All Departures on Map

Touch to Select Departure Flight Plan - Selecting Departure on Map

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan 8) Touch the desired Transition.

Touch to Select Transition
Flight Plan - Selecting Departure Transition on Map 9) Touch the desired Runway. The Departure, Transition, associated waypoints,
and Runway are added to the flight plan as a single entry that can be expanded to view all waypoints.
Touch to Select Runway

Flight Plan - Selecting Departure Runway on Map

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan
Departure Included in Flight Plan
Departure Waypoints

Touch to View Info

Flight Plan - Viewing Departure Details

Adding a Standard Arrival Route (STAR) to Flight Plan:

1) From any page, touch

2) Touch the destination in the Flight Plan List to open the Actions Menu.

3) From the Actions Menu, touch Add Arrival.

Touch to Display Actions
Menu

Flight Plan - Destination Airport Actions Menu

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Touch to View Arrival Procedures
97

Plan 4) Touch the desired Arrival. 5) Touch the desired Transition. 6) Touch the desired Runway. Or: Touch Select on Map. 7) Touch the desired Arrival.
Touch to View All Arrivals on Map
Touch to Select Arrival

Flight Plan - Selecting Arrival on Map

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan 8) Touch the desired Transition.
Touch to Select Transition
Flight Plan - Selecting Arrival Transition on Map 9) Touch the desired Runway. The Arrival, Transition, and associated waypoints
are added to the flight plan as a single entry that can be expanded to view all waypoints. Once a STAR has been added to a flight plan, no more waypoints can be added.
Touch to Select Runway
Flight Plan - Selecting Arrival Runway on Map

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Plan
Expanding/Collapsing SID, STAR, or Airways in Flight Plan List: 1) From any page, touch Home > . 2) Touch to expand. 3) Touch to collapse any of the expanded fields.
Arrival Included in Flight Plan

Arrival Waypoints

Touch to View Info

Flight Plan - Viewing Arrival Details

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

100

Plan
Adding an Airway to Flight Plan: 1) From any page, touch Home > . 2) Touch a waypoint in the Flight Plan List to open the Actions Menu. 3) If the waypoint is a valid Airway entry point, touch Load Airway in the
Actions Menu. Only valid Airway entry points will have the Load Airway action in the Actions Menu. 4) Touch the desired Airway. 5) Touch the desired Airway exit point from the list. All Airway waypoints from selected entry point to selected exit point will be added to the flight plan list as one entry that can be expanded to show all waypoints.

Touch Waypoint Airway Added to Flight Plan

Actions Menu Touch to Select Desired Action
Touch to Expand

Adding Airway to Flight Plan
Bookmarking Flight Plan: 1) From any page, touch Home > > . 2) Touch Bookmark current route to bookmark the Flight Plan. The Flight
Plan and all associated waypoints are saved.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

101

Plan
Renaming a Flight Plan: 1) From any page, touch Home > > . 2) Touch and hold on any Flight Plan in the list. 3) Touch Rename. 4) Use text entry to give the flight plan a familiar name, or edit the existing
name. 5) Touch Save.
Sorting Stored Flight Plans: 1) From any page, touch Home > or > . 2) Choose to order stored flight plans by either selecting the alphabetical
button or the custom sort button .
Deleting Bookmarked Flight Plans: 1) From any page, touch Home > > . 2) Touch > Remove to delete the selected Flight Plan.
NOTE: Flight Plans deleted from the Bookmarked FPLs list will also be deleted from other devices when the next sync is performed.
Touch to View Stored Routes

Deleting Bookmarked Flight Plan

Touch to Delete Stored Route

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

102

Plan Reversing Flight Plan: 1) From any page, touch Home > . 2) Touch to reverse the Flight Plan.
Route Field

Bookmark Button Reverse Flight Plan Clear Route Field
Touch to Expand

Active Flight Plan Page

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

103

Plan
HIGHEST POINT ALONG ROUTE
In support of Helicopter Emergency Management Services (HEMS), Garmin Pilot identifies the highest obstacle along the planned route of flight.
Touch to Display Settings

Highest Obstacle Highest Elevation

Highest Point Settings

Touch to Set Corridor Width
Select Category Touch to Show on Map

Viewing Highest Point Along Flight Plan: 1) From any page, touch Home > . 2) If necessary, touch to expand the Flight Plan Summary information. 3) Touch Highest Point.
Setting Corridor Width for Highest Point Along Flight Plan: 1) From any page, touch Home > . 2) If necessary, touch to expand the Flight Plan Summary information. 3) Touch Highest Point. 4) Touch and drag the desired width.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

104

Plan

Setting Aircraft Category for Highest Point Along Flight Plan: 1) From any page, touch Home > .
2) If necessary, touch to expand the Flight Plan Summary information. 3) Touch Highest Point. 4) Scroll down if necessary. 5) Touch Airplane or Rotorcraft in the 'Category' field.

Viewing Highest Point Along Flight Plan on Map Page:

1) From any page, touch Home > .

2) If necessary, touch to expand the Flight Plan Summary information. 3) Touch Highest Point. 4) Scroll down if necessary.

5) Touch

next to Show on Map/Profile, as desired.

HAZARD COLORS

Changing the aircraft category as described above will change the color of terrain and obstacle hazard icons on the map.
Aircraft (Terrain and Obstacles) · Red: Terrain/obstacle is above or within 100 ft below the aircraft altitude. · Yellow: Terrain/obstacle is between 100 ft and 1000 ft below the aircraft altitude.
Helicopter (Terrain) · Red: Terrain is more than 250 ft above the aircraft altitude. · Orange: Terrain is between 250 ft and 0 ft above the aircraft altitude. · Yellow: Terrain is between 0 ft and 250 ft below the aircraft altitude.
Helicopter (Obstacles) · Red: Obstacle is at or above current aircraft altitude. · Yellow: Obstacle is between 0 ft and 250 ft below current aircraft altitude.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

105

Plan
ADVANCED AIRCRAFT PERFORMANCE
Garmin Pilot incorporates cruise, climb, and descent performance tables to increase the accuracy of Estimated Time Enroute (ETE) and fuel burn calculations.
Configuring and viewing advanced aircraft performance data: 1) From any page, touch Home > . 2) Touch Add Aircraft and select the aircraft model data from the Garmin
library or manually enter the information from the aircraft's Pilot Operating Handbook (POH). Make sure to enter aircraft data on the Performance and W&B tabs also.
Touch to View

Data Ready For Use

Touch to Input Performance Data.

Touch to Save Settings - Advanced Aircraft Performance
3) Touch Altitude in the flight plan summary to determine the best altitude based on fuel consumption and winds.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

106

Plan
Touch to Select Altitude

Touch to Display Data Touch to Filter Data

Advanced Aircraft Performance (Flight Plan)
DEMO MODE
Demo Mode simulates flight activity allowing the user to preview a trip before takeoff or review a previous flight. There are three Demo modes available, Manual, Flight Plan, and Logbook Track.
NOTE: When entering a value for Vertical Speed, the aircraft will climb and descend at this rate when altitude changes are made. Setting the vertical speed to zero (0) will override this and cause altitude changes to take effect immediately.
NOTE: In order to autolog Demo Flights, Terrain and Obstacle data must be downloaded. Click Home > Downloads to verify and/or download the applicable Obstacle Database & Terrain Database.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

107

Plan

Entering Demo Mode - Manual:

1) If using the Classic Interface style, from any page, touch Home > Demo Mode.

Or: If using the Tab Bar Interface style, from any page, touch More > Demo Mode.

2) Touch the Manual tab.

3) Enter Desired Track, Altitude, Ground Speed, and Vertical Speed.

4) Touch Tap to Set Starting Point and enter waypoint information.

5) Touch Playback Speed to adjust as desired, then touch .

6) Toggle the Autolog Demo Flight button, as desired.

7) From the Map page with the Demo Mode active, touch top of the screen to adjust settings.

at the

Touch to Enter Demo Mode

Entering Demo Mode - Classic & Tab Bar

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

108

Plan
Touch Tab to Display Options

Touch to View Info

Touch to Adjust

Touch to Start Playback Touch to Toggle Autolog

Demo Mode - Manual

Entering Demo Mode - Flight Plan:

1) If using the Classic Interface style, from any page, touch Home > Demo Mode.

Or: If using the Tab Bar Interface style, from any page, touch More > Demo Mode.

2) Touch the Flight Plan tab.

3) Enter Desired Altitude, Ground Speed, and Vertical Speed.

4) The active flight plan loads automatically. Touch Edit Route, if necessary. and enter waypoint information.

5) Touch Playback Speed to adjust as desired, then touch .

6) Toggle the Autolog Demo Flight button, as desired.

7) From the Map page with the Demo Mode active, touch top of the screen to adjust settings.

at the

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

109

Plan

Touch to Adjust Settings

Demo Mode - Flight Plan

Entering Demo Mode - Logbook Track

1) If using the Classic Interface style, from any page, touch Home > Demo Mode.

Or: If using the Tab Bar Interface style, from any page, touch More > Demo Mode.

2) Touch the Logbook Track tab.

3) Slide the blue circle to adjust Playback Settings.

4) Touch the route underneath Logbook Track to view additional route(s) and select desired route.

5) Touch Playback Speed to adjust as desired, then touch .

6) Toggle the Autolog Demo Flight button, as desired.

7) From the Map page with the Demo Mode active, touch top of the screen to adjust settings.

at the

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

110

Plan

Touch to Adjust Settings

Demo Mode - Logbook Track
Exiting Demo Mode: Touch Home > Demo Mode.
Touch to Exit Demo Mode

Exiting Demo Mode - Classic & Tab Bar

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

111

Plan

AIRPORT INFORMATION

Airport information is a downloadable product available free with a Garmin Pilot subscription from the Downloads section of the Settings Menu. Because Garmin Pilot will not automatically remove outdated charts, it is important to always ensure the latest Data Cycle has been downloaded prior to planning a flight. The downloaded cycle number and date range for every map data product is displayed on the Downloads Page.
Finding airport information is easy with Garmin Pilot. The Home Button located at the top of the map page contains the Airport Info icon. Touching the icon will present the Airport Information Page.
The Airport Information Page is divided into two sections. The top of the page under the control bar is a summary of airport information. Immediately below the summary are ten selectable tabs for viewing detailed airport information. View more details for select fields by touching . The summary window contains the basic information for the selected airport such as; elevation, pattern altitude, magnetic variation, sunrise/ sunset times, time offset, and best runway for current weather. There are also three buttons in the summary area for displaying the A/FD, Nearby airports, or SafeTaxi (available for an additional subscription).

Tab
Information
Frequencies Runways Procedures Weather NOTAMs FBOs
Fuel Prices
NAV AIDs Services

Description Traffic pattern altitudes, magnetic variation, Sectional information, Flight Service, Fuel information, hours of operation, types of operations, and pertinent phone numbers. Communication and navigation radio frequencies. Runway numbers, dimensions, composition, and conditions. List of applicable procedures available for the current airport. Current weather conditions including: METAR, TAF, and Winds Aloft. Current navigational/safety info for airports included in the route. Fixed base operations, contact information and services (with fees) available. Fuel prices on field, fuel prices organized by nearest airports, lowest 100LL and lowest Jet fuel, detailed FBO contact information, services, and credit cards accepted. Fuel Prices are provided by AirNav. Nearest navigation aids, frequencies, distances, and radials. Nearby lodging, car rental, transportation, and dining information.
Airport Information Tabs

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

112

Plan
Airport Identifier
Button Touch to Zoom In Touch to Change Octane
Touch to View Airport Info Tabs

Touch to View on Map Touch to View on Google Maps
Airport/Facility Directory Button SafeTaxi Button Nearby Button
Touch to Expand

Airport Info Page

NOTE: Garmin Pilot references the FAA list of Clearance Delivery phone numbers as an option when receiving a clearance, to help improve communication and efficiency. Not all airports will have a Clearance Delivery phone number listed. The phone numbers will be published as they are listed in the chart supplement.

Within the Airport Summary window is an expandable thumbnail image of the airport diagram. Momentarily touching the airport diagram thumbnail will open a larger view of the airport diagram. Touching the image a second time will return the screen to the previous page.

Viewing Airport Using Garmin Pilot Map:

From any page, touch Home > >

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

113

Plan

Viewing Airport Using Google Maps:

NOTE: Google Map functionality requires an active Wi-Fi or cellular connection.

From any page, touch Home > >

From the Airport Information Page, there are multiple ways to search for airport information. The two primary methods of accessing airport search functionality are by touching either the airport identifier or the Menu Button. Touching the airport identifier, on the left side of the airport title bar opens the airport search tool. Touching the Menu Button, in the upper right corner of the display reveals several more search options, including a basic search (same as touching the airport identifier), search for airports near the current location, or airports near the currently selected airport. While on the Airport Info page, the Menu Button also offers quick access to the Airport Information pages for the departure and destination airports in the Flight Plan.

Searching for Airport: 1) From any page, touch Home > . 2) Touch the Airport Identifier Button in the Summary Window. Or: Touch Menu > Search. 3) Select a search criteria.

Search Criteria

Description

Search Airport Information by State, or use the keyboard to input the identifier or city in the search window.

Recent

Opens a list of recently viewed airports. Select desired airport from the list.

Flight Plan

Opens a list of airports used to define the Flight Plan. Departure, Destination and any other airports used as waypoints along the route of flight.

Nearest Opens a list of airports near the GPS location of the aircraft.

Favorites Opens a list of User defined favorite airports.

Airport Search Options

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

114

Plan 4) Select an airport from the Search Results list.
Search Criteria Current Airport

Airport Identifier Search

Airport Info Page Menu

Airport Information Quick Access:
1) From any page, touch Home > .
2) Touch Menu.
3) Select one of the quick access options. (Departure: XXXX, Destination: XXXX, Nearby XXXX, Nearby Me, or Recent Airports, Favorite Airports, Supplemental, or General).
Or: Touch Nearby to view airports near current location or near selected airport. Sort list by Near Me or Near XXXX. Filter airport list by Public or All.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

115

Plan

Viewing NOTAMs: 1) From any page, touch Home > . 2) Touch Menu > Search. 3) Select a search criteria.

Search Criteria

Description

ICAO I.D.

Search by the three letter or four character (alphanumeric) airport code (i.e., KLAX)

Airport Name Search by name (i.e., Los Angeles Intl).

City Name Search by city (i.e., Los Angeles, CA).

Airport Search Options

Or: Select a state from the list and touch the desired airport from the alphabetical list.
Or: Select an airport from the Airports on Route list. 4) Select an airport from the Search Results list. 5) Touch NOTAMs to view the NOTAMs window.

Viewing Nearby Airports:
1) From any page, touch Home > . 2) Touch Nearby to view airports (i.e., Public or All) nearby the currently
selected airport.

Viewing SafeTaxi (Subscription Required):

1) From any page, touch Home > .

2) Touch SafeTaxi to view the SafeTaxi airport diagram.

3) Touch the Back button to return to the Airport Info Page.

4) Touch

to enter or exit split-screen.

Viewing Fuel Prices by Type:

1) From any page, touch Home > .

2) Touch

to cycle through each type of fuel (100LL, Jet, or Mogas).

If the selected fuel type is not available at this location, or if no data is

available for this location, price is displayed as dashes

. The age

of the data is shown just below the fuel type.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

116

Plan

Or: Touch the Fuel Prices tab to view fuel price. Sort fuel prices by Nearest Airports or Lowest Price.
Viewing and Organizing Procedures:

NOTE: Terminal procedures (i.e. SIDs, STARs, instrument approach procedures, airport diagrams, Hot Spots, and Take-off Minimums) are available for selection from the Airport Information Page. Any charts that are not geo-referenced will open in the default PDF document viewer.

1) From any page, touch Home > .

2) Touch the Procedures Tab. All available charts and procedures are shown including; (Airport Diagrams, Approach Procedures, Arrival Procedures, and Departures). Chart titles followed by ,will need to be downloaded. Charts followed by have already been downloaded to the device.

3) Touch the desired chart to view.

Or: To organize charts

4) Touch to create a Chart Binder or add to an existing binder.

5) Touch and enter a Binder Name or select from the list of available binders.

6) Touch for each additional chart to add to a binder.

Chart Downloaded Successfully

Touch to Add/Create Binder

Procedures Tab

Airport Info - Procedures

Touch to Overlay Chart on Map

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

117

Plan
BEST RUNWAY AND RUNWAY WINDS
The Airport Information page recommends runways based on winds and preferences for surface type and runway dimensions. This recommended Best Runway appears in the airport summary section of the Airport Information page. To set the preferred runway surface type and runway length, touch Home > > General.
The Runways tab shows not only the dimensions and surface type of each of the airport's runways, it also shows winds on that runway, sourced from current weather reports. This wind information is shown divided into two components: headwind/ tailwind magnitude, and crosswind direction and magnitude.
NOTE: If Garmin Pilot has not recently connected to weather data services, either over Wi-Fi, cellular, SiriusXM, or using other avionics, weather data my be outdated and unreliable.
Runway Length & Width
Headwind

Tailwind Crosswind Component

Runways Tab

Runway Preferences

Preferred Surface Type Preferred Minimum Runway Length

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

118

Plan
FBO FEES
A coalition of industry leaders, including AOPA, EAA, GAMA, NATA, NBAA and HAI, have called for Fee Transparency, asking FBOs to publish their pricing. FBO fees are displayed on the FBO tab of the Airport Information Page.
Viewing FBO Fees: 1) From any page, touch Home > . 2) Touch the FBOs tab. 3) Touch the desired FBO. 4) Scroll down to the 'FEES' section.

Touch Tab to View Info

Touch For Details

Airport Info - FBO Fees

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

119

Plan
AIRPORTS WIDGET
Airport information is also accessible in the Map page's split-screen widgets, displaying airport info conveniently alongside the moving map. To access the Airports Widget, touch Home > > > Widgets. If necessary, touch Add Widget. Touch the widget type in the upper left of a widget, and select Airports from the list.
The Airports widget has four tabs of airport information. The Summary shows a Best Runway recommendation and brief summaries of multiple types of information. The Freq tab shows ATC, approach and navaid frequencies. The Runways tab shows all runways and details, including runway winds. The Fuel tab shows available fuel vendors and fuel prices.
To select a different airport, touch and drag the Navtrack slider to a different point along the flight plan, or touch the airport selector at the upper right corner of the widget. Touch the icon to view the airport in full in the Airport Information page.

Corresponding Push Pins Widgets Tab

NavTrack Slider

Airports Widget

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Split Screen Button Widget Selector Airport Selector Touch For Airport Info Airports Widget
120

File
FILE
With Garmin Pilot, users can easily enter a flight plan and interactively edit it on the map. Pre-loaded forms makes it quick to save and reuse data for frequently flown routes. And when the flight plan is ready, Garmin Pilot makes it simple to file, cancel or close the flight plan via a Filing Service Provider (Leidos Flight Services, etc.). Garmin Pilot helps European users plan routes for IFR flights quickly via the European Autorouting feature.
TRIP PLANNING
NOTE: A data connection (i.e., Wi-Fi or cellular) is required to receive preflight weather briefings, file, amend, cancel or close flight plans from Garmin Pilot.
The Trip Planning Page manages all of the trip planning details for each trip. When a new trip is created and activated on the Trip Planning Page it becomes the active flight plan. Flight plans created on the Flight Plan Page do not become the active trip plan. The Flight Plan must be imported to become the active trip. Trips created on the Trip Planning Page will default to a direct-to route from departure to destination. Add additional waypoints in the route field by entering fixes, NAVAIDs, airway, departures, arrivals or airports. For Long or complex routes use the Flight Plan page to create the flight plan and then import.
Complete the trip plan by entering pilot information, aircraft information, departure/ arrival times, altitude, airspeed, etc.. Some of the data will be auto-filled based on data from the Garmin Pilot account that's currently logged in. Once all mandatory fields have been completed, Garmin Pilot creates a trip summary, and Navlog. If Garmin Pilot has been linked to a Filing Service Provider, Garmin Pilot will retrieve a Standard Weather Briefing for the route of flight for the Estimate Time of Departure (ETD). Garmin Pilot also uses the Filing Service Provider to file, amend, cancel or close flight plans.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

121

File
Trips can be cloned and/or deleted on the Trip Planning Page. Cloning a trip copies the current trip. Any changes made after the clone is created are not copied. The selected trip can not be deleted. Cloned trips are saved in the Trips List. All trip data is cloned including pilot information, aircraft information, route of flight and all other associated data. Trips that have been cloned are available for use at a future date. Activate a cloned trip, change the date and all applicable data, refresh the briefing, and the trip is ready to be filed.
PREPARING TO FILE
NOTE: Prior to filing the flight plan, ensure that all of the information entered on the Trip Planning Page is correct including the route of flight.
Garmin Pilot provides a quick and easy method to file, close or cancel flight plans. When a flight plan is complete, its route of flight, pilot information, aircraft information, type of flight plan (IFR/VFR), number of persons onboard, fuel onboard, date, estimated time of departure (ETD), altitude, airspeed, and any optional data including alternate, and remarks can be transmitted to the Filing Service Provider. The ETD must be at least 30 minutes in the future or the flight plan will not be transmitted. To file a flight plan with a departure time less than 30 minutes in the future, call the FSS.
Creating an Active Flight Plan: 1) From any page, touch Home > . 2) Touch within the route field to activate the cursor. 3) Use the keyboard to insert waypoints. Separate each waypoint with a
space. Or: 1) Touch the Add Waypoint button. 2) Use the keyboard to input the waypoint identifier. 3) Touch the Add Waypoint button to add additional waypoints. Or: Enter Lat/Lon information. Or: Enter Radial/Distance waypoint in one of the following formats:

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

122

File

Or: 1) Use one of the above methods to enter a departure point. 2) On the Map Page touch Menu > Graphical Route Edit. 3) Long press on the map area to display the rubber-band. Place the rubber-
band on or near the desired location and then release the rubber-band. A list of nearby waypoints is displayed. 4) Select the desired waypoint from the list, or create a User Waypoint. 5) Repeat steps 3 and 4 to add additional waypoints. 6) Touch Save to continue or Cancel to exit without saving.

Current Route

Touch to Edit Route Touch to Clear Route

Touch to Add Waypoint

Flight Plan - Edit Route

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

123

File
PLANNING A TRIP
CREATING A NEW TRIP:
1) From any page, touch Home > . 2) Touch Add Trip. 3) Enter Departure, Routing, and Destination. Or: Enter Departure, Destination and Choose a Preferred ATC Route after the
trip is created. Or: Touch Load Flight Plan to import the Flight Plan. Importing the Flight
Plan will fill the Departure, Routing, and Destination fields. Complete the remaining fields as necessary.
Touch to Add Trip Current
Route
Touch to View

Trip Planning - Load Flight Plan

Touch to Load Route

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

124

File
MINIMUM FLIGHT REQUIREMENT WARNINGS
Garmin Pilot checks the TAFs for the departure and destination airports when a trip is created. If any TAF shows the weather conditions for an airport fall below VFR or IFR minimums, Garmin Pilot displays a Minimum Flight Requirement Warning icon. Minimum Flight Requirement Warning icons appear in the following places to notify of severe weather conditions: Next to the Trip Planning icon in the Home menu; Next to the airport code in the Trip Planning form; and Watermark-style warning in Upcoming trips list
Minimums Warning Minimums Warning in Upcoming Trips

Minimums Warning at Departure Airport Trip Planning - VFR/IFR Minimums Warning

Minimums Warning at Alternate Airport

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

125

File
Choosing Preferred ATC Route: 1) Touch View Planned ATC Routing to view Preferred ATC Routes. 2) Touch Altitude, Aircraft, Date, or Popular to sort the list. 3) Touch the desired route from the list, to add the route to the trip.

Selected Trip Touch to
Filter Data

Touch to View ATC Routing

Preferred ATC Routes

Entering Pilot Information: 1) Touch the Pilot field. 2) Enter pilot's Name, Telephone, Street, City, State and Zip code. Or:
a) Touch Add Pilot.... b) Enter the Required Contact Information by touching each field. A
keyboard will appear to enable typing in each selected field. c) Touch Save. d) Touch the desired Pilot from the list.
Entering Aircraft Information:

NOTE: Performance data is used to create Navlog and to calculate trip parameters.

1) Touch the Aircraft field.

2) Select the desired aircraft from the list.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

126

File
Or: a) Touch Add Aircraft.... b) Enter the Required Aircraft Information by touching each field and using the keyboard. c) Enter optional performance data. d) Touch Save. e) Touch the desired Aircraft from the list.
Enter type of Flight Plan: Touch the Type Button and select IFR or VFR from the drop down menu.
Enter Date, ETD, Altitude, and Airspeed: Touch the applicable field and enter the desired value(s). The Airspeed will be populated with the Cruise TAS (kts) entered for the aircraft. The Altitude selector is auto-populated with fuel, ETE and wind values based on aircraft performance and weather reports.

Selected Trip

Touch to Filter Data

Altitude Selector
Enter Souls Onboard (SOB): Touch the Souls on Board (SOB) field to enter the number of occupants.
Enter Fuel: Touch the Fuel field to enter the number of hours:minutes of fuel onboard. The Fuel field is automatically populated with the Default Fuel/Cruise Burn Rate, but should be adjusted to reflect the actual fuel onboard the aircraft.
Enter Optional Data (SIC, Call Sign, Alternate and Remarks): Touch the applicable field and enter the desired information.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

127

File
EUROPEAN AUTOROUTING
Garmin Pilot allows European Users to quickly find a suitable route for the particular pilot, aircraft, etc. If not already completed, you need to enable your pilot profile in Garmin Pilot to use the proper filing provider for Trip Planning.

European Autoroute

Entering/Updating Pilot Information

1) Touch the Pilot field (i.e. JOE PILOT).

2) Touch the Pencil icon next to the Pilot name.

3) Touch the Gear icon towards the bottom of the Edit Pilot window.

4) Touch Add New.

5) Touch Eurocontrol IFR Filing Service.

6) Touch Add > Done > Save.

7) With the updated Pilot Info saved, touch the Filing Provider field > European Provider.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

128

File

Selected Trip

Trip Planning - European Autoroute - Pilot Touch to Adjust

Touch to View Pilots Touch to Edit Pilot Info Touch to Add New Pilot
Touch to Add

Touch to Select Trip Planning - Edit Pilot - Filing Service Providers
Using European Autorouting:
NOTE: If you already know the route you would like to use, you can manually enter the route by touching Enter Manual IFR Route. After entering data, touch Confirm to continue, or Back to exit without saving.
1) After Entering/Updating Pilot Info, enter required information in Trip Planning (General, Flight Plan, Flight Info & Advanced).
2) Touch Autoroute to view Autorouting Options.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

129

File
Selected Trip

Current Filing Provider

Touch to View Autoroute
Trip Planning - European Autoroute
3) Verify information in the General Data section. 4) Scroll down and adjust the Advanced section, as needed. If necessary, touch
Manage Fly-By Waypoints and adjust. 5) Touch Autoroute to save and continue to Route Proposals

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

130

File
Or: 6) Touch Cancel to close without saving.

Touch to Enter Route

Touch to Toggle/Edit

Touch to View Touch to Exit

Touch to View

Trip Planning - European Autorouting Options

7) Touch to expand/collapse route details, then select the desired route by "checking" the associated box.
8) Touch Show Map to view the route on the Map. Touch Back to return to Route Proposals.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

131

File
9) Touch Next to view the Route Summary. If necessary, touch anywhere in the route to edit manually.

Touch to Select Route

Touch to Expand/ Collapse Info Touch to Edit

Touch to View Route

Touch to View Previous Info

Trip Planning - European Route Proposals

Touch to Save & Continue

10) Touch Confirm to view route in Trip Planning. 11) Verify the information is correct then touch Validate.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

132

File
Using Aircraft Setup Guide:
NOTE: When in Trip Planning, if is visible next to your Aircraft, your aircraft may not be configured correctly (ICAO info, Performance Data, etc.). 1) After Entering/Updating Pilot Info, enter the required information in Trip Planning (General, Flight Plan, Flight Info & Advanced). 2) Touch Autoroute to view Route Summary. 3) Touch Autoroute to view Autorouting Options > Resolve Issues With Aircraft Setup Guide.

Touch to View

European Autorouting Options - Aircraft Issues

4) A brief description of the issue(s) will be displayed. Touch Resolve Issues With Aircraft Setup Guide.
Or:

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

133

File 5) Touch Ignore Issues to continue without fixing issues.
Touch to Resolve Issues

Touch to Ignore & Continue

European Autorouting - Aircraft Setup Guide

6) A brief description of the issue(s) will be displayed, i.e. ICAO Euipment. Touch the underlined text across from the issue to view details.
7) Touch the necessary item(s) to remedy the issue, i.e. VHF with 8.33 kHz spacing > Done. Repeat this process for any additional issues > Continue.

Touch to Resolve Issues

European Autorouting - Aircraft Setup Guide - ICAO

With the issues resolved or ignored, the user is now directed to the Route Proposals window, and can follow steps 5-11 in the Using European Autorouting procedures.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

134

File

NAVLOG
Garmin Pilot generates a navigation log using the Active Flight Plan waypoints, userprovided Trip Plan information, user-provided aircraft performance data, and DUAT -sourced weather data. The Navlog provides navigation information for each leg of the Active Flight Plan. The column values are user selectable, touch each column header to cycle through the available units, or touch a column header to change the column group.

NAVLOG COLUMN OPTIONS:
· Crosswind · Distance End (Dist End) · Distance Leg (Dist Leg) · Distance Flown (Dist Leg) · Distance Remaining (Dist Rem) · ETA · ETE Leg · ETE Flown · ETE Remaining (ETE Rem) · Fuel Burned · Fuel Leg

· Fuel Remaining (Fuel Rem) · Ground Speed (GS (kts)) · Headwind (kt) · Magnetic Course (Mag Crs) · Magnetic Heading (Mag Hdg) · Temperature (Temp (C°)) · True Air Speed (TAS (kts)) · True Course (True Crs) · True Heading (True Hdg) · Wind (kt) · Wind Correction

Viewing Navlog: 1) From any page, touch Home > . 2) Touch Navlog, to view the Garmin Pilot generated Navlog.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

135

File
Changing Navlog Column Values: 1) From any page, touch Home > . 2) Touch a column header to view the column header options menu. 3) Touch the desired value.
Expanding Flight Plan Legs: 1) From any page, touch Home > . 2) Touch Navlog. 3) Touch for flight plan legs containing a Departure, Arrival, or Airway to
expand the leg and view all waypoints for that leg. Touch again to collapse the leg.

Touch to Expand Navlog Column Headers
Flight Plan Leg

NavLog

Expanded Flight Plan Leg

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

136

File
Cloning Trip: 1) From any page, touch Home > . 2) Touch Menu > Clone.
Viewing Cloned Trip: 1) From any page, touch Home > . 2) Touch History to view the list of cloned trips 3) Touch Date, Route, or Aircraft to organize the Trips List by date created,
route of flight, or aircraft used.
Activating Cloned Trip: 1) From any page, touch Home > . 2) Touch History to view the list of cloned trips 3) Touch Date, Route, or Aircraft to organize the Trips List by date created,
route of flight, or aircraft. 4) Touch the desired trip from the Trips List. 5) Touch the Date Field to change the date to the current date. Edit other
desired Trip Plan Fields. 6) Touch Menu > Activate to activate the Trip. Or: Touch Trip Not Active Touch To File > File to activate and file the Trip.
Deleting Trips: 1) From any page, touch Home > . 2) Long press the desired trip from the Trips List. 3) Touch to delete the trip.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

137

File
BRIEF
When a flight plan is complete, Garmin Pilot will retrieve a preflight weather briefing based on the parameters of the Active Flight Plan and Trip Plan. The Brief Tab contains a standard weather briefing for the route of flight including; Weather Synopsis, Severe Weather, SIGMETs, AIRMETs, Center WX Advisories, METARs, PIREPs, Radar Summaries, Terminal Forecasts, Winds Aloft, TFRs, and NOTAMs.
Accessing Preflight Weather Briefing: 1) From any page, touch Home > . 2) Touch Brief, to view the Standard Weather Briefing for the route of flight. 3) Touch Refresh if necessary to update the weather information. 4) Touch to expand individual fields or Expand All. 5) Touch to collapse any of the expanded fields or Collapse All.

Date &Time of Brief
Brief Field

Refresh Data Expand All
Collapse All Full Screen Expand Field

Briefing Tab

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

138

File
FILE FLIGHT PLAN
NOTE: A data connection (i.e., Wi-Fi or cellular) is required to receive preflight weather briefings and to file flight plans.
Once all required information is entered and after reviewing the weather briefing and supplemental weather information, file the flight plan. A notification appears on the Summary Tab stating the status of the flight plan. The notification on the Summary Tab gives the time the flight plan will be transmitted to the appropriate FSS. A confirmation e-mail is also sent giving the time the flight plan will be transmitted to the appropriate FSS. If the flight plan was not successfully transmitted to the Filing Service Provider, a notification window will provide the reason it was not transmitted.
Filing: 1) From any page, touch Home > . 2) Touch the desired Trip in the Trips List. 3) Touch File to file the Trip. The trip status changes from Not Filed to Filed
and a notice appears stating the flight plan was successfully filed.

Filed Flight Plan - Email Confirmation

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

139

File
Amending Filed Flight Plan: 1) From any page, touch Home > . 2) Touch the desired Trip in the Trips List that is marked as Filed. 3) Touch Amend. 4) Make the desired changes on the Trip Planning Page. 5) Touch File, or Revert to cancel changes and use original flight plan.
Canceling Filed Flight Plan: 1) From any page, touch Home > . 2) Touch the desired Trip in the Trips List that is marked as Filed. 3) Touch Cancel. The Trip status displays Not Filed.
Closing Filed Flight Plan: 1) From any page, touch Home > . 2) Touch the desired Trip in the Trips List that is marked as Filed. 3) Touch Close. The trip status displays Closed.

Selected Trip is Filed

Touch to Activate Touch to Cancel Touch to Amend

Trip Planning - Filed Flight Plan

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

140

Fly
FLY
Garmin Pilot provides full en-route navigation capabilities on its moving map. The ability to view navigation data such as ETE, ETA, crosstrack error, and distance information. Touch and hold any location on the map and the Radial Menu provides quick and easy access to navigation information, including airports, navaids, and METARs. The Radial Menu also provides a ready means of navigating direct-to, creating user waypoints or graphically editing the route of flight. After takeoff, pilots can continue to view updated weather information via a compatible FIS-B device (sold separately), by connecting to SiriusXM Weather with a satellite weather receiver (sold separately, subscription required), or using Garmin Weather Data Services which requires a data connection through Wi-Fi or cellular network.
MAP PAGE
The Map Page is comprised of a highly configurable Map Pane which can be displayed in either full or split-screen. The Split-screen option allows the Map Pane to be divided between the Map Pane and either Widgets, Panel, Charts, or SafeTaxi displays.
The Split-screen feature is available in either portrait or landscape screen orientation. In portrait orientation, the screen is split horizontally with the Map Pane always appearing in the upper portion of the screen. In landscape orientation, the screen is split vertically with the Map Pane always appearing to the left.

Zoom In/Out

Map Orientation

Center on Aircraft
Center on Route
Map Settings
190-01532-00 Rev. U

Map Pane Garmin Pilot for Android User's Guide

Split-Screen 141

Fly

MAP PANE CONTROLS
The Map Pane has a number of buttons that control the Base Map, Map Overlays, and center map and split-screen. The table below shows the Map Pane Controls.

Control

Icon

Map Settings

Center on Aircraft
Center on Route

Description Map/Chart Selection/Settings, Map Overlay Selection, Overlay Opacity Settings, and General Map Settings
Centers the Map Pane on the current location.
Centers the entire route in Map Pane.

Zoom In

Zooms In on the map

Zoom Out

Zooms out on the map

Split-Screen
Map Orientation

Selects full screen map or partial map with Widgets, Panel, Charts, and SafeTaxi.
Toggles map orientation from north up to track up. The Icon is blue when track up is active.
Map Pane Controls

MAP SETTINGS
The Map Settings button shown in the table above and located on the lower left corner of the Map Pane opens the Map Settings Menu. The Map Settings Menu contains five tabs titled Map / Charts, Overlays, Opacities, Ownship / Route, and General. Each tab provides access to controls for configuring the various features of the Map Pane display.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

142

Fly
MAP / CHARTS SELECTION AND SETTINGS
There are three maps and four charts available by touching the Map Settings button in the lower left corner of the Map Pane and selecting from the Map/Chart Menu. The three available map selections are Roads/Borders, VFR, and IFR. Many of the symbols and other map features including victor airways shown on the VFR and IFR maps may be added directly to a flight plan using the graphical flight plan editing feature.

Touch to Select Map

Touch to View Map Details

Map/Chart Menu
The following charts are available for viewing in the map pane: Sectional TAC, IFR Low, and IFR High. These charts are high-resolution color images that resemble the paper version of the National Aeronautical Navigation Products (AeroNav) published charts.
Each of the Maps under the Maps column have an adjacent Map Setup button, which provides access to the Map Setup menu. The Map Setup menu consists of five tabs labeled General, Airports, NAVAIDs, Airspaces, and Cities. Under each tab, there are a number of slider controls enabling the map ranges at which the related map features become visible on the map as well as buttons for toggling the individual features off or selecting the size of the label shown on the map: small, medium, or large
Selecting Map or Chart: 1) Touch > Map/Chart. 2) Touch the radio button or Map/Chart title to select a Map/Chart.
Map Panning: 1) From any page, touch Home > . 2) Touch and drag within the Map Pane to pan the map to the desired area. 3) Touch to center the Map Pane over the route of flight 4) Touch to center the Map Pane over the current location.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

143

Fly

Choosing Map Topography: 1) From any page, touch Home > . 2) Touch > Map/Chart. 3) Select one of the three available maps under the Maps column. 4) Select one of the buttons labeled Off, Shade, or On.

Choosing Map Color:

1) From any page, touch Home > .

2) Touch > Map/Chart.

3) Select one of the three available maps under the Maps column.

4) Touch the Map Setup button.

5) Touch one of the buttons labeled White, Green, or Brown.

Touch to Select General Tab

Touch to Adjust Topography

Touch to Adjust Color

Touch to Adjust Type

Map Setup Menu

Touch to Adjust Name

Setting Visibility Range and Label Size for Airports
1) From the Map Setup, touch the Airports Tab.
2) Use the slider controls to select the map range at which selected airports appear. At map ranges greater than the selected figure, the airport symbol will not appear on the map.
3) Scroll to bring the Label Size selections into view.
4) Touch the buttons to the right of the listed items that correspond to the desired label sizes for each.
5) Touch the Done button located in the upper right corner of the Map Setup Menu.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

144

Fly
Touch to Select Airports Tab

Slide to Adjust Display

Map Setup - Airports Menu
Setting Visibility Range and Label Size for NAVAIDs 1) From the Map Setup, touch the Nav Aids Tab. 2) Use the slider controls to select the map range at which selected nav aids
appear. At map ranges greater than the selected figure, the nav aid symbol will not appear on the map. 3) Scroll to bring the Label Size selections into view. 4) Touch the buttons to the right of the listed items that correspond to the desired label sizes for each. 5) Touch the Done button located in the upper right corner of the Map Setup Menu.

Touch to Select Nav
Aids Tab

Slide to Adjust Display

Map Setup - NAVAIDs Menu

Touch to Adjust Label Size

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

145

Fly
Setting Visibility Range for Airspaces 1) From the Map Setup, touch the Airspaces Tab. 2) Use the slider controls to select the map range at which selected airspace
boundaries appear. At map ranges greater than the selected figure, the airspace boundaries will not appear on the map. 3) Touch the Done button located in the upper right corner of the Map Setup Menu.
Slide to Adjust Display Touch to Select Airspaces Tab
Map Setup - Airspaces Menu
Setting Visibility Range and Label Size for Cities 1) From the Map Setup, touch the Cities Tab. 2) Use the slider controls to select the map range at which selected cities
appear. At map ranges greater than the selected figure, the city symbol will not appear on the map. 3) Scroll to bring the Label Size selections into view. 4) Touch the buttons to the right of the listed items that correspond to the desired label sizes for each. 5) Touch the Done button located in the upper right corner of the Map Setup Menu.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

146

Fly

Touch to Select Cities Tab

Slide to Adjust Display

Map Setup Cities Menu

Touch to Adjust Label Size

Selecting Helicopter Chart Overlay:

NOTE: A chart basemap must be selected to display helicopter overlays.
1) After downloading the desired Helicopter Charts, touch > Map/ Chart. NOTE: For information on downloading Helicopter Charts, refer to 'Downloads', discussed later in this section.
2) Touch a chart basemap (VFR, IFR Low, or IFR High). 3) Touch a Helicopter Overlay (U.S. VFR Helicopter, Gulf VFR Helicopter, or
Gulf IFR Helicopter).

VFR Helicopter Chart Overlay

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Touch to Select Overlay
147

Fly

Accessing Advanced Map Settings:
1) Touch > Map/Chart > Map Name > .
2) Touch General, Airports, Nav Aids, Airspaces, or Cities.
3) Use the sliders and selection buttons to set Visibility Ranges and Label Sizes for map features.
4) To give the new settings a name, Touch General > Map Name, and use the keyboard to enter a name.
5) Touch Done to save and exit, or touch Restore Defaults to restore the default Map Theme setting.

Categories General Airports
Nav Aids

Map Item
Topography Map Color Map Type Map Name
Visibility Range
Label Size
Visibility Range
Label Size

Large Airports Off - 200 nm
Heliports Off - 20 nm
VOR Off - 100 nm
VRP Off - 10 nm

Options

Off, Shade, or On

White, Green, or Brown

IFR, or VFR

User Defined Name

Med Airports Small Airports

Off - 50 nm

Off - 20 nm

Seaplane Base

SafeTaxi

Off - 50 nm

Off - 2 nm

Off, Small, Medium, Large

NDB

Off - 50 nm

Low Airways

Off - 100 nm

VOR, NDB, Intersection, VRP

Off, Small, Medium, Large

Pvt Airports Off - 20 nm
Intersection Off - 10 nm High Airways Off - 100 nm

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

148

Fly

Airspaces Cities

Filter All Airspaces
Visibility Range
SUA Visibility Range
Label Style
Visibility Range Label Size

Hide All Airspaces Above

Smart Airspace

Numerical Entry

On/Off

Class B

Class C

Class D

Off - 200 nm

Off - 100 nm

Class E/TRSA

TMA

Control Area CTA

Off - 100 nm

Off - 200 nm

Off - 100 nm

Control Zone CTR

ATZ/TIZ/MATZ

Euro Airway

Off - 100 nm

Restricted

Alert/Warning Parachute Area

MOA

Off - 200 nm Off - 200 nm Off - 100 nm Off - 200 nm

ADIZ

Danger

Other

Off - 100 nm Off - 100 nm Off - 100 nm

Airspace Size

Off, Small, Medium, Large

Airspace Style

Standard, Enhanced

Airspace Color

Standard, Dark

Large City

Medium City

Small City

Small Town

Off - 500 nm Off - 200 nm

Off - 100 nm

Off - 50 nm

Large City, Medium City, Small City, Small Town

Off, Small, Medium, Large

OVERLAYS

Map Overlays provide graphical weather products, graphical TFRs, and Fuel Prices. Multiple Overlays can be selected for display. Some overlays are mutually exclusive such as Radar and Radar (FIS-B), and Clouds. Overlays in the right column, (i.e. PIREPs, Winds Aloft, Fuel Prices, and Weather) are also mutually exclusive.

Touch to Display

Overlay is Displayed

Touch to Expand

Touch to Display

Map - Overlays Menu

Current Selection

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

149

Fly
RADAR / IR COLOR
The radar and infrared color palettes and the color of the intensity returns can be configured.
Viewing radar and infrared satellite color palettes: 1) From any page, touch Home > . 2) Touch > Radar/IR Color. 3) Touch on the top left of the 'Radar Colors' or 'IR Satellite Colors' box to
view the color palettes options. 4) Touch Garmin, NOAA, Alt, or Classic for the desired 'Radar Colors'. Or: Touch Classic, Alt 1, Alt 2, or Alt 3 for the desired 'IR Satellite Colors'.
Touch for Info

Touch to View

Map - Radar / IR Color Menu

OPACITIES
The Opacities menu provides sliders to set the opacity for: Radar, Clouds, Lightning, AIR/SIGMETs, Route, PIREPs, Winds Aloft, Fuel Prices, Weather, TFRs,and Traffic.
Slide to Adjust Display

Map - Opacities Menu

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

150

Fly
OWNSHIP/ROUTE
The Ownship / Route tab provides access to controls for activating and configuring the Track Vector and Range Rings as well as for changing the Ownship Symbol. The Aircraft Symbol is displayed on maps, Geo-referenced FliteCharts, and SafeTaxi diagrams when the application senses movement, otherwise the blue system location symbol is used.
Touch to View Options
Touch to Display

Ownship / Route Menu
Changing Ownship Symbol: 1) From the map pane, touch . 2) Touch the Ownship / Route Tab. 3) Touch Select Ownship Icon. 4) Touch the desired Ownship aircraft symbol from the list.

Ownship Aircraft Symbol Example

System Location Symbol

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

151

Fly

List of Ownship Aircraft Symbols
RANGE RINGS
The Range Rings are rings drawn around and centered on the aircraft's present position and can be configured Off, or as 2/3 Rings. When configured for 2 Rings the range can be set to AUTO, 5/10, 10/20, or 15/30. When configured for 3 Rings the range can be set to AUTO, 5/10/20, 10/20/40, or 15/30/60. When AUTO is selected the Range Rings will dynamically change from as little as 200FT to as much as 1200NM based on the current map range.
EXTENDED CENTERLINES
Extended Centerlines provide a graphical extension of the centerline for each runway for all airports that are part of the Flight Plan. Extended Centerlines can be very helpful when approaching an unfamiliar airport. The Extended Centerlines Visibility slider sets the Map Scale (OFF(default)-5NM) at which the extended centerlines will become visible on the map. Extended Centerlines can be configured as magenta feathers (Feathered), or as dashed light and dark green lines (Dashed Line)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

152

Fly

Extended Runway Centerline Runway Number

Range Rings Current Location

Range Rings & Extended Centerlines
TRACK VECTOR
The Track Vector is a solid blue line segment that extends from the Ownship symbol to a predicted location. The track vector can be configured for a look ahead time (1, 5,10, or 20 minutes) or a look ahead distance (1, 5, 10, or 20 nautical miles). When a look ahead time is selected the length of the vector varies based on ground speed. The track vector is useful in minimizing track angle error and for avoiding traffic, obstacles and terrain.
Enabling/Disabling and Configuring the Track Vector: 1) Touch Home > . 2) Touch > Ownship / Route. 3) Select the Track Vector Mode Off, Time (min), or Distance (NM). 4) Select the Track Vector Length 1, 5, 10 or 20.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

153

Fly

GLIDE RANGE RING

This feature is an aid to estimate accessible airports and terrain if the aircraft were forced into glide circumstances. The displayed ring updates in real time, derived from the selected aircraft's altitude, speed, and performance details. Since Garmin Pilot supports multiple aircraft, the Glide Range Ring refers to the current active flight plan to determine which aircraft performance details to calculate the ring shape.
The Glide Range Ring requires glide performance details to be specified in Garmin Pilot's settings. This is accessed through Home > > Aircraft. Touch on an aircraft (not aircraft type) to edit its details, and scroll down to the Glide section to specify the Glide Ratio and Best Glide Speed. Refer to the aircraft documentation for these values.
The Glide Range Buffer setting can be used to shrink the Glide Range Ring in situations where glide performance is expected to be less than ideal, perhaps due to shifting winds. Increasing this setting will decrease the size of the Glide Range Ring. Enabling Shape Glide Ring for Terrain will alter the shape of the Glide Range Ring to show intersection with terrain. Enabling Shift Glide Ring for Wind will factor in local wind conditions when calculating the Glide Range Ring shape. Note the Glide Range Ring uses the most recent weather data, which may be outdated if Garmin Pilot does not have access to real time weather data over Wi-Fi or with outboard hardware such as a GDL 39.

Enabling/Disabling the Glide Range Ring:

1) Touch

> Ownship/Route.

2) Touch the Display Glide Range Ring switch to On.

Touch to View Details

Touch to Enable Glide Range Ring

Glide Range Ring

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

154

Fly
GENERAL MAP SETTINGS
The General tab provides access to controls for activating/deactivating Night Mode, Auto Zoom, GPS Pulse Animation, map centering on current track, and Map Performance Boost. Additionally, there are controls for displaying and configuring the Nav Bar, displaying Route Icons, User Waypoints, Route Labels, Persistent Map Scale, and Stadium TFRs.
NIGHT MODE
Enabling Night Mode presents the map with a high-contrast background for easy viewing in low light. SafeTaxi charts support Night Mode, however, other charts do not. Night Mode can also be set to Auto to automatically change the map based on time of day.
Enabling/Disabling Night Mode for Map and SafeTaxi: 1) Touch Home > . 2) Touch > General. 3) Select the desired Night Mode: Off, On, or Auto.

Map - Night Mode
AUTO ZOOM
Auto Zoom begins at the departure airport by showing SafeTaxi (subscription and download required) or the smallest range that clearly shows the departure point, and gradually zooms out to the smallest range clearly showing the active waypoint.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

155

Fly

When arriving at the destination Auto Zoom gradually zooms in to show SafeTaxi (subscription and download required) or the smallest range that clearly shows the destination. Auto Zoom only works when the map is centered on aircraft and can be enabled/disabled in the General Map Settings Menu.
NAV BAR
The Nav Bar provides user selectable navigation and weather data displayed at the top of the map pane. Touch any field in the Nav Bar to enable/disable any of the 22 available navigation parameters. Touch and slide the Nav Bar left or right to bring the scroll progress bar and selected parameters into view.

NAV BAR FIELD OPTIONS:

· Altitude

· ETE (Dest)

· Bearing

· ETE (Next)

· Course

· Ground Speed

· Cross Track Error

· Latitude

· Distance (Dest)

· Longitude

· Distance (Next)

· Next Waypoint

· ETA (Dest)

· Time

· ETA (Next)

· Track

· Vertical Speed · Wx-Wind · Wx-Visibility · Wx-Altimeter · Wx-Ceiling · Pitch · Roll

FLIGHT PLAN REVIEW FROM MAP SCREEN
If the Map is displaying an active flight plan, touch the main header at the top of the screen to review the active flight plan's performance details, add and remove waypoints, and change the flight plan routing. The main header turns gray to show the Map is now reviewing the flight plan.
The review primarily shows the active flight plan's airports, waypoints, departures, and arrivals. The review also shows performance statistics for each waypoint, including bearing, distance, ETE and ETA, and fuel statistics. Additionally, the flight plan review shows a Trip Summary with performance information specific to the current aircraft.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

156

Fly

While the aircraft is stationary, the main header shows Flight Plan (Planned), and the flight plan details are calculated based on the current aircraft's performance. While the aircraft is in flight, the main header shows Flight Plan (Actual), and uses the current aircraft's actual ground speed in these calculations. The active flight plan can be edited in both Planned and Actual modes.

Reviewing Active Flight Plan From Map Page: 1) Touch Home > . 2) While the Map is displaying a flight plan, touch the Main Header bar. 3) Touch to exit flight plan review and return to normal Map screen.

Editing Active Flight Plan From Map Page: 1) Touch Home > . 2) While the Map is displaying a flight plan, touch the Main Header bar. 3) Touch Routing to select a suggested ATC route.
Or: Touch to save or recall the flight plan from Stored Flight Plans. Or: Touch in the Manual Entry section to use the on-screen keyboard to type in flight plan waypoints. 4) Touch a flight plan waypoint to insert another waypoint before or after it. 5) Touch Add Waypoint to add another waypoint at the end of the flight plan.

Return to Map Page
Manual Flight Plan
Entry

Change Routing

Save/Recall Flight Plans Reverse Flight Plan
Column Headings

Flight Plan Segment Add Waypoint

Expand/ Collapse Segment
Trip Summary Expand Trip Summary

Flight Plan Review

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

157

Fly
MAP ZOOM
When a more detailed Chart is available, Garmin Pilot automatically switches to the more detailed chart as the zoom increases. For example, if VFR WAC is the current Base Chart, when the zooming in, the base chart detail will automatically change to VFR Sectional scale and detail. Continuing to zoom in over an area that has a TAC chart, Garmin Pilot will continue to zoom in to TAC scale, or the highest level of detail available for that area. When zooming out, the map scale will return to the selected level. For example, when zooming out on a VFR Sectional Base Map, Garmin Pilot will not change to a VFR WAC scale.
Chart Zooming: 1) From any page, touch Home > . 2) Pinch fingers together (zoom out), or pull fingers apart or double-touch
(zoom in). Or: Use the Zoom In/Out Buttons or

Map Pane Showing
TAC Detail & Scale

Sectional Zooming

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

158

Fly

RADIAL MENU

Touch and hold any area on the map to access the Radial Menu. The Radial Menu displays context-sensitive buttons for information found within the inner radius of the menu. The context sensitive buttons provide details for airports, navaids, and weather stations. No matter where the Radial Menu appears, it will always provide the option to navigate direct to the location or create a user waypoint. To reposition the Radial Menu, simply touch-drag it to a new location.

Accessing Radial Menu:
1) From any page, touch Home > . 2) Touch and hold the desired area in the Map Pane until the Radial Menu
appears. 3) Touch anywhere outside of the Radial Menu to exit.

Repositioning Radial Menu: 1) From any page, touch Home > . 2) Touch and hold on the Map Pane until the Radial Menu appears. 3) Touch and drag the Radial Menu to reposition over a new area.

Radial Menu Symbol

Description

Navigate Direct To

Radial Menu Symbol

Description

Public Soft Surface, Serviced Airport

Create User Waypoint

Private Soft Surface, Serviced Airport

Graphically Edit Route
Airways Weather Observation Condition Obstacle Information

Heliport
Solid Surface Airport, No Services VOR/DME
VORTAC

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

159

Fly

Radial Menu Symbol

Description

Radial Menu Symbol

Description

Airspace
Towered, Serviced Airport Towered, Private Airport

VOR NDB/DME NDB

Radial Menu Symbols

Marker/NDB

Direct To
Create User Waypoint
Graphically Edit Route Navaid Info

Airport Info Airspace Info Weather Info

Radial Menu
Viewing Navaid, Airspace, or Weather Information From Radial Menu: 1) From any page, touch Home > . 2) Touch and hold on the desired area in the Map Pane until the Radial Menu
appears. 3) Touch the desired menu icon. 4) Touch outside of the dialog box to close. 5) Touch Done or outside of the Radial Menu to exit.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

160

Fly

Viewing Airport Information From Radial Menu:
1) From any page, touch Home > . 2) Touch and hold near the desired Airport in the Map Pane until the Radial
Menu appears > . 3) The Airport Info window displays multiple tabs for the User to select. As
desired, touch Info, Freq, Rwy, Proc, or Fuel to view more information.
4) Touch to view airport on Google Maps. Touch outside the dialogue box to exit or touch the "back" button to return to the Airport Info window.

NOTE: Google Map functionality requires an active Wi-Fi or cellular connection.

5) To exit the Airport Info window and return to the Map page, touch outside the dialogue box or touch the "back" button.

6) Touch to leave the Map page and view the Airport Information page. Touch the "back" button to return to the Map page.

Touch to View Info

Touch to View Airport on Google Maps

Radial Menu - Airport Info Tabs

Touch to Open Airport Info Page

Navigating Direct-to Using Radial Menu:
1) From any page, touch Home > .
2) Touch and hold on the desired area in the Map Pane until the Radial Menu appears.
3) Touch Direct-to.
4) Within the Direct-to... dialog window, select Map-Touch to create a temporary waypoint at the selected point, or choose one of the nearby Navigation Database features from the list.
Or: Choose a waypoint from one of the other tabs (i.e., Waypoints, Flight Plan, or Nearest).
5) Touch Activate to begin navigation.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

161

Fly
Graphically Edit Route: 1) From any page, touch Home > . 2) In the Map Pane, touch and hold any flight plan waypoint or flight plan leg
until the Radial Menu appears. 3) Touch to graphically edit the flight plan. The Radial Menu disappears
and the Graphical Flight Plan Edit Mode blue banner appears just below the Control Bar. 4) Long press a flight plan leg and drag, the flight plan leg to the desired location. Select a waypoint from the list of nearby navigation database waypoints, or create a User Waypoint. Or: Touch to start a new route. 5) Repeat step four for each flight plan leg to edit. 6) Touch to undo the most recent action. 7) Touch Save to save or Cancel to cancel and exit Graphical Flight Plan Editing Mode.
Graphically Edit Standard Instrument Procedure (SID):
1) From any page, touch . 2) In the Map Pane, touch and hold any flight plan waypoint or flight plan leg
until the Radial Menu appears.

Touch to Graphically Edit Route

Radial Menu - Graphiclally Edit Route - SID

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

162

Fly
3) Touch to graphically edit the flight plan. The Radial Menu disappears and the Graphical Flight Plan Edit Mode blue banner appears just below the Control Bar.

Touch to Cancel
Changes

Touch to Save Changes

Long Press to Change SID

Graphiclally Edit Flight Plan - Map
4) Long press on a SID flight plan leg or waypoint. The Change SID dialog box appears.
5) Touch Delete SID to delete or select an alternate SID from the list and then select the desired transition from the submenu. If the selected flight plan leg is the first leg of a SID, the dialog box has the option to delete the departure point. If the departure point is deleted, the departure point and all waypoints associated with the SID are removed from the flight plan. The first waypoint after the SID becomes the departure point.

Select SID

Touch to Delete Scroll to View Info

Graphiclally Edit Route - Change Standard Instrument Departure (SID)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

163

Fly 6) Select a Departure Runway.

Select Runway
Graphiclally Edit Route - Change SID - Select Runway 7) Select a SID Transition.

Select Transition
Graphiclally Edit Route - Change SID - Select Transition 8) Touch to undo the most recent action. 9) Touch Save to accept changes or Cancel to exit without saving.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

164

Fly Graphically Edit Standard Arrival Route (STAR): 1) From any page, touch . 2) In the Map Pane, touch and hold any flight plan waypoint or flight plan leg until the Radial Menu appears. 3) Touch to graphically edit the flight plan. The Radial Menu disappears and the Graphical Flight Plan Edit Mode blue banner appears just below the Control Bar. 4) Long press on a STAR flight plan leg or waypoint. The Change STAR dialog box appears. 5) Touch Delete STAR to delete or select an alternate STAR from the list and then select the desired transition from the submenu. If the selected flight plan leg is the first leg of a STAR, the dialog box has the option to delete the arrival point. If the arrival point is deleted, the arrival point and all waypoints associated with the STAR are removed from the flight plan.
Touch to Delete
Select STAR
Graphiclally Edit Route - Change Standard Arrival Route (STAR)
6) Touch to undo the most recent action. 7) Touch Save to accept changes or Cancel to exit without saving. SID &
STAR Included in Route

Graphiclally Edit Route - SID & STAR Included

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

165

Fly
DISTANCE MEASURING TOOL
The Distance Measuring Tool provides a quick and easy way to measure the distance between two points on the map. Simply drop two fingers onto the map display at the same time and hold both fingers on the display, a black line with arrow points on either end will appear. While holding both fingers on the map place one arrow point on a point and the other arrow point on another point and then remove both fingers from the map. The line and arrows show distance and to/from bearing information. Touch and drag the arrows to adjust the start and end position of the tool. Touch anywhere else on the display to remove the Distance Tool.

Touch Two Points Simultaneously, Then Adjust Distance Measuring Tool
SPLIT-SCREEN
The split-screen option allows the Map Page to be divided between the Map Pane and one of ten options including Widgets, Panel, Charts, SafeTaxi, Traffic, VIRB, Terrain, Checklists, SynVis, and Flight Profile. The split-screen feature is available in either portrait or landscape screen orientation. When in split-screen the Map Pane and the split pane function independently essentially providing two independent viewing areas. The Map Pane is always visible and will either be displayed on the top or left side of the display depending on the device orientation.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

166

Fly
SPLIT-SCREEN (CHART, TRAFFIC, SAFETAXI)
Charts, SafeTaxi, and Traffic when viewed in split-screen have the same function, navigation, and capabilities as the full screen versions of these products.

Split-Screen - Charts & Checklist
SPLIT-SCREEN (PANEL)
The Panel is only available in split-screen and may be configured to show navigation parameters and virtual instrument gauges in one of four selectable views. Panel configuration selection button/indicators are located at the bottom right of the panel.
Viewing the Panel: 1) From any page, touch Home > . 2) Touch Menu > Split Screen> Panel.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

167

Fly

Configuring Navigation Information in the Panel: 1) From any page, touch Home > . 2) Touch Menu > Split Screen > Panel. 3) Select one of the three panel options with Navigation Data Fields. 4) Touch any one of the fields and select one of the options from the menu.

Navigation Data

Description

Air/Ground State Identifies when the aircraft is either on the ground, or airborne..

Uses barometric altitude information from the aircraft's altimeter

Baro Vertical to compute vertical guidance for the pilot. The specified vertical

Rate

path is typically computed between two waypoints or an angle

from a single way point.

Bearing

The compass direction from the present position to a destination waypoint.

Biometrics

The display of body measurements and calculations related to human characteristics.

Corrected Pressure Alt

The altitude of the aircraft above the standard datum plane.

Course

The magnetic direction from the last waypoint to the active waypoint.

Cross Track Error

The distance and direction, left or right, the aircraft is from the desired course in nautical miles.

Density Altitude Pressure altitude corrected for non-standard temperature.

Distance (Dest) The distance to the destination waypoint in the Active Flight Plan

Distance (Next) The distance to the next waypoint in the Active Flight Plan.

ETA (Dest)

The estimated time at which the aircraft should reach the destination waypoint, based upon current speed and track.

ETA (Next)

The estimated time at which the aircraft should reach the next waypoint, based upon current speed and track.

ETE (Dest)

The estimated time it takes to reach the destination waypoint from the present position, based upon current ground speed.

ETE (Next)

The estimated time it takes to reach the next waypoint form the present position, based upon current ground speed.

GPS Altitude

The current GPS altitude or geometric height above Mean Sea Level (MSL) in feet.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

168

Fly

Navigation Data

Description

GPS Altitude AGL

The current GPS altitude or geometric height Above Ground Level Level (AGL) in feet.

Ground Speed The velocity the aircraft is traveling relative to the ground.

Height Above Terrain

The vertical distance of the aircraft above the terrain.

Horiz Accuracy Displays the accuracy of horizontal guidance.

Indicated Airspeed

The direct instrument reading obtained from the ASI, uncorrected for variations in atmospheric density, installation error, or instrument error.

Latitude Current latitude.

Longitude Current longitude.

Magnetic Heading

Direction relative to magnetic North.

Next Waypoint Next waypoint on the route of flight

OAT (Static) The ambient temperature of the air around the aircraft.

Pitch

Current pitch. (GDL 39 3D only)

Radio Height

The height of the aircraft above the terrain immediately below the aircraft.

Roll

Current roll. (GDL 39 3D only)

Time (Zulu) Current time

Track

The direction of aircraft movement relative to the ground.

True Airspeed

The speed of the aircraft relative to the air mass through which it is flying.

True Heading Direction relative to true North, or the geographic North pole.

Vert Accuracy Displays the accuracty of vertical guidance.

Vertical Speed The rate of climb or descent (GPS-derived).

Wx-Altimeter The altimeter setting at the nearest METAR reporting station.

Wx-Ceiling The ceiling at the nearest METAR reporting station

Wx-Visibility The visibility at the nearest METAR reporting station

Wx-Wind

The wind speed and direction at the nearest weather reporting station.

Wind Direction The direction the wind is coming from.

Wind Speed

The vector difference between the airspeed and the ground speed.

Navigation Data Field Options

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

169

Fly

GPS-derived Airspeed
Touch to Set Max Ground
Speed
Touch to Swap HSI & Attitude
Indicator

Navdata (Portrait)

Classic Panel (Landscape)

Geometric Altitude (MSL)
GPS-derived VSI Panel Select Button/ Indicators

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

170

Fly

Classic Panel (Portrait)

Panel Select Button/ Indicators

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

171

Fly

Virtual HSI

HSI/Attitude Indicator - Navdata (Landscape)

CDI Scale
Navigation Data Fields Panel Select Button/ Indicators

Touch to Swap HSI & Attitude
Indicator

HSI/Attitude Indicator - Navdata (Portrait)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

172

Fly

Virtual HSI

CDI Scale

Panel Select Button/
Indicators HSI/Attitude Indicator - Condensed Navdata (Landscape)

Condensed Navigation Data Fields

Touch to Swap HSI & Attitude
Indicator HSI/Attitude Indicator - Condensed Navdata (Portrait)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

173

Fly
PANEL (OPTIONAL)
NOTE: The Garmin Pilot attitude functionality is only to be used as an aid and should not be used as a primary attitude indicator.
When connected to a compatible device, Garmin Pilot will display a back-up Attitude Indicator on the Panel. 'Pitch' and 'Roll' become available options for the Nav Bar on the Map Pane, and Navigation Data on the Panel.
Attitude Indicator

GPS-derived Ground Speed

Geometric Altitude (MSL)

HSI

GPS-derived VSI

Panel Select Button/ Indicators Panel

Swapping the Attitude Indicator and HSI position: 1) From any page, touch Home > . 2) Touch Menu > Split Screen > Panel. 3) Touch to swap the position of the Attitude Indicator and the HSI.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

174

Fly
BEFORE SWAP

Touch to Swap Attitude
Indicator & HSI

AFTER SWAP

Attitude Indicator/HSI Swap

The leveling adjustments for pitch and tilt angles are performed automatically when the unit is powered on. However, if the unit moves, it may be necessary to command the GDL 39 3D to perform the leveling process.

Leveling the GDL 39 3D:
From the Connext page or with the Panel displayed, touch Menu > Reset Pitch/Roll GDL 39 3D.

SPLIT-SCREEN (SYNTHETIC VISION)

Synthetic Vision can be displayed in split-screen mode for enhanced situational awareness. Split-screen mode can be viewed from either or on the Home Menu.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

175

Fly

Viewing Split-Screen Synthetic Vision From Map Page:

1) From any page, touch Home > .

2) Touch Menu > Split Screen.

Or:

1) Touch

to view the split-screen selector.

2) Touch the Synvis tab.

Viewing Split-Screen Features From SynVis Page:

1) From any page, touch Home > .

2) Touch Menu > Split Screen.

Or:

1) Touch

to view the split-screen selector.

2) Select the desired item to be displayed in the split-screen view.

Touch to View Split-Screen

Touch to View SynVis in Split-Screen

Split-Screen Synthetic Vision

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

176

Fly

SPLIT-SCREEN (FLIGHT PROFILE)

NOTE: When not flying, Profile View will always show FPL mode. When flying without an active flight plan, Profile View will always show Track mode.

The aircraft's flight profile can be displayed in split-screen mode for enhanced situational awareness, viewing your flight plan, winds aloft, airspace, TFR's, cloud layers, ceilings, PIREPs, Traffic, highest point along the route of flight, and much more. Split-screen mode can be viewed from either or on the Home Menu.

Viewing Split-Screen Flight Profile From Map Page: 1) From any page, touch Home > . 2) Touch Menu > Split Screen > Flight Profile. Or:

Touch

> Flight Profile.

Viewing Split-Screen Flight Profile From SynVis Page:

1) From any page, touch Home > .

2) Touch Menu > Split Screen > Flight Profile.

Or:

Touch

> Flight Profile.

Touch to View Flight Profile Terrain Cleaerance

Touch to View Split
Screen

Winds Aloft Current Position

Current Position

Split-Screen Flight Profile

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

177

Fly

Adjusting Flight Profile General Settings. 1) Touch to display the Settings window.

2) Touch the General tab.
3) Scroll to view options and settings for View Mode, Track Mode Vector Length, and Corridor Width.
4) Touch or Slide to adjust settings as desired.

Touch General Tab

Touch to Select

Touch to View Settings

Split-Screen Flight Profile - General Settings

Adjusting Flight Profile Winds Aloft Settings. 1) Touch to display the Settings window. 2) Touch the Winds Aloft tab. 3) Scroll to view options for Display Style & Source. 4) Touch to adjust settings as desired.

Touch Winds Aloft Tab

Touch to Select

Touch to View Settings

Split-Screen Flight Profile - Winds Aloft Settings

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

178

Fly

Adjusting Flight Profile Icing Settings.

1) Touch to display the Settings window.

2) Touch the Icing tab.

3) Slide to change Opacity.

4) Scroll to view options for Display Style.

5) Touch

to adjust settings as desired.

Touch Icing Tab

Touch to Display Slide to Adjust

Split-Screen Flight Profile - Icing Settings

Adjusting Flight Profile Boundaries Settings.

1) Touch to display the Settings window.

2) Touch the Boundaries tab.

3) Touch

to adjust settings as desired.

Touch Winds Aloft Tab

Touch to Display

Touch to View Settings

Split-Screen Flight Profile - Boundaries Settings

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

179

Fly

Adjusting Flight Profile Markers Settings.

1) Touch to display the Settings window.

2) Touch the Markers tab.

3) Scroll to view options for Clouds, PIREP's, and Other.

4) Touch

or Slide to adjust settings as desired.

Touch Markers Tab

Touch to View Settings

Split-Screen Flight Profile - Markers Settings

Adjusting Flight Profile Highlights Settings.

1) Touch to display the Settings window.

2) Touch the Highlights tab.

3) Touch

or Slide to adjust settings as desired.

Touch to Display

Touch Highlights
Tab Touch to View Settings

Split-Screen Flight Profile - Highlights Settings

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Touch to Display Slide to Adjust
180

Fly
WEATHER DATA
Weather data is presented in Widgets (as text), and map overlays. To receive up-todate weather information, the Android device must have access to a data connection (Wi-Fi or cellular), or a compatible external device. However, once downloaded, some weather products will remain available for up to 90 minutes after connection to the Internet is lost.
WEATHER SOURCES
Weather data is available from three sources, Garmin Weather Data Services (Internet), FIS-B weather when connected to a compatible FIS-B device via a Connext link, or SiriusXM weather connected to a compatible SiriusXM device via a Connext link. Garmin Weather Data Services (Internet) requires a data connection through Wi-Fi or cellular network. SiriusXM and FIS-B weather, require additional hardware. SiriusXM weather also requires a subscription to SiriusXM Weather.
DATA LINK WEATHER (FIS-B)
WARNING: Do not use the indicated data link weather product age to determine the age of the weather information shown by the data link weather product. Due to time delays inherent in gathering and processing weather data for data link transmission, the weather information shown by the data link weather product may be significantly older than the indicated weather product age.
WARNING: Do not use data link weather information for maneuvering in, near, or around areas of hazardous weather. Information contained with in data link weather products may not accurately depict current weather conditions.
FIS-B is a subscription-free weather service that is broadcast by Ground Based Transceivers (GBTs) over the 978 MHz UAT frequency band as part of the FAA's Next Generation Air Transportation System (NextGen). To receive FIS-B weather information, the compatible FIS-B device must be within range and line-of-sight of an operating GBT. Reception may be affected by factors including altitude or terrain. FIS-B weather products include METARs, TAFs, NEXRAD (Regional and CONUS), AIRMETs, SIGMETs, PIREPs, Winds and Temperatures Aloft, and NOTAMs.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

181

Fly
Viewing FIS-B Weather product Status:
1) From any page, touch Home > . 2) Touch the associated FIS-B device tab.
Viewing Ground Station Status: 1) From any page, touch Home > . 2) Touch the associated FIS-B device tab.
SIRIUSXM® WEATHER
SiriusXM weather information is shared with Garmin Pilot for installations with a Flight Stream 510, Flight Stream 210, Flight Stream 110, GDL 69/GDL 69A GDL 52/52R, and GDL 51/51R SiriusXM datalink.
WEATHER WIDGETS
Weather Widgets are viewable in the lower portion of the Map Page in split screen. Controls located at the upper left and right corners of each Widget open a menu to select the Widget Type and to choose an airport to which the Widget is applicable.
The NavTrack located at the bottom of the display is used to dynamically change the Widget location to view information related to points on or near the active route. Dragging the slider at the bottom of the widgets pane moves a light blue diamond along the route of flight. As the symbol approaches airports along the active route Colored push-pins correspond to matching colored dots to the left of the airport identifier in the upper right corner of the Widget to indicate the location from which the information contained in the Widget originates.
There are five weather, four navigation, and two pilot utility information products available for selection from the Widget Type flick-list. The weather products available to be displayed as widgets are METAR, TAF, PIREPs, Winds Aloft, and AIRMET/ SIGMETs. The four navigation information products are airports, NOTAMs, airspace, and navigation data fields.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

182

Fly
Sliding a finger left or right over the widgets will bring more widgets or the Add Widget tool into view. The source, product age and relative location will be displayed at the bottom of each widget.
Adding Weather Widget: 1) From any page, touch Home > . 2) Touch Menu > Split Screen > Widgets. 3) Touch the plus button to add a widget. 4) Select a widget from the Select Widget Type menu.
Changing Widget Type: 1) Touch the widget type as displayed in the upper left corner of the widget. 2) Select the desired widget type from the Select Widget Type menu.
Removing Weather Widget: 1) Touch the widget type as displayed in the upper left corner of the widget. 2) Scroll to the bottom of the flick list. 3) Select Delete Widget from the bottom of the menu.
WIDGET NAVTRACK
At the bottom of the widget pane is the NavTrack. Touch-dragging the slider moves a light blue diamond along the route of flight. Colored push-pins appear on the map to indicate locations near the blue diamond that provide information corresponding to selected widgets. In some cases, there may be more than one location near the blue diamond that provides information corresponding to a widget. To view weather information for nearby locations, it may be necessary to touch the inverted white triangle next to the widget location in the widget header bar. This will open a menu of nearby widget information sources.
Touch & Drag

Departure

Widget NavTrack

Arrival

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

183

Fly
Change the Location Associated with a Weather Widget: 1) Drag the NavTrack at the bottom of the widget pane until the blue diamond
corresponds with a colored push-pin on the map display that is near a desired location. 2) If the push-pin does not correspond to the desired location, touch the location indicator at the top right corner of the widget to search for nearby locations. 3) Select the desired location from the Nearby menu.

Corresponding Push Pins Touch to
Change Widget Location Widget Location
Weather Product Source, Age & Relative Location

Widgets

Widget Type Touch to Change Widget Type
Slide NavTrack to Change Data

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

184

Fly
WEATHER MAP OVERLAYS
Viewing weather map overlays: 1) From any page, touch Home > > 2) Touch the desired overlay.

> Overlays.

Touch to Expand Touch to View Currently Displayed
Touch to Display

Map Overlays

Currently Displayed Touch to Display
Touch to Display Storm Cell Movement

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

185

Fly
WEATHER PRODUCT AGE AND SOURCE
When a weather product is active on a map or in a Weather Widget, the age of the data is displayed. The age of the product is based on the time difference between when the data was assembled on the ground and the current GPS time. Garmin Pilot combines the CONUS and Regional Radar into one map overlay, the time shown is for the Regional Radar product only.
Type of Weather
Report

Slide Nav Track to
Change Data

Weather Product Age and Source

Weather Product Source, Age & Relative Location

WEATHER PRODUCTS
RADAR
Weather radar data is collected from radar sites across the United States, Canada, and select overseas locations. It is combined into a mosaic for easier display and analysis.
The radar data displayed is not real-time. The lapsed time between collection, processing, and dissemination of radar images can be significant and may not reflect the current radar synopsis. Due to the inherent delays and the relative age of the data, it should be used for long-range planning purposes only. Never use radar data to penetrate hazardous weather. Rather, use it in an early-warning capacity for predeparture evaluation.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

186

Fly
Composite data is composed of the maximum reflectivity from the individual radar sweeps at different tilt angles of the radar beam with respect to the ground. The display of the information is color-coded to indicate the weather severity level. Colors are used to identify the different echo intensities (reflectivity) measured in dBZ (decibels or Z). "Reflectivity" (designated by the letter Z) is the amount of transmitted power returned to the radar receiver. The dBZ values increase as returned signal strength increases. Precipitation intensity is displayed using colors corresponding to the dBZ values.
Base Reflectivity (the lowest level radar scan) best represents the precipitation falling from the clouds, while composite reflectivity combines the radar from all altitudes into one view.
RADAR ABNORMALITIES
There are possible abnormalities regarding displayed NEXRAD images. Some, but not all, of those include:
· Ground clutter
· Strobes and spurious radar data
· Sun strobes, when the radar antenna points directly at the sun
· Military aircraft deploy metallic dust (chaff) which can cause alterations in radar scans
· Interference from buildings or mountains, which may cause shadows
· Poor reception from Ground Based Transceivers (GBTs) can cause portions of the received radar imagery to not be displayed

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

187

Fly

RADAR LIMITATIONS

Certain limitations exist regarding radar displays. Some, but not all, are listed for the user's awareness:
· Surface precipitation type is estimated with shades of blue for snow and shades of pink for indeterminate types. The actual precipitation type aloft could vary.
· Radar base reflectivity is sampled at the minimum antenna elevation angle. An individual radar site cannot depict high altitude storms at close ranges, and has no information about storms directly over the site.
· Radar coverage in Canada is only available in the southern 1/4 of the country.

Rain

LIGHT
Mix

HEAVY

LIGHT
Snow

HEAVY

LIGHT

HEAVY

Radar Intensity

Viewing Radar Information:
1) From any page, touch Home > .
2) Touch > Overlays. 3) Touch Radar from the Layer Select menu. 4) If necessary, touch , and touch Base (Base Refectivity) or Comp (Composite
Reflectivity. 5) Touch to animate the radar loop. Each frame of the radar loop is time
stamped. The time stamp is just right of the play button.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

188

Fly
STORM CELL MOVEMENT
The radar includes the projected path of a storm cell. A circle and line extends from the storm cell to display the predicted path in 15, 30, 45, and 60 minutes. If hail or tornadic activity is present, the corresponding icon is displayed.
Viewing Storm Cell Movement: 1) With radar animated (see procedure above), touch . 2) Touch the time stamp to step through the animation.
Storm Cell Predicted Path

Storm Cell Movement

Touch to Animate Radar Touch to Display Storm Cell Movement

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

189

Fly
INFRARED SATELLITE (IR SAT)
IR Sat displays infrared composite satellite images of cloud cover taken by geostationary weather satellites.
Viewing Infrared Satellite Information (IR): 1) From any page, touch Home > . 2) Touch > Overlays and select Clouds > IR from the Layer Select menu. 3) Touch to animate the satellite loop. Each frame of the satellite loop is
time stamped. The time stamp is just right of the play button.
Infrared Clouds Overlay

Touch to View

Overlays - Clouds - Infrared (IR)

Touch to Display Touch to Animate

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

190

Fly

Viewing Visible Satellite Information (VIS):

1) From any page, touch Home > .

2) Touch menu.

> Overlays and select Clouds > VIS from the Layer Select

3) Touch to animate the satellite loop. Each frame of the satellite loop is time stamped. The time stamp is just right of the play button.

RADAR AND INFRARED SATELLITE COLOR PALETTES
The radar and infrared color palettes and the color of the intensity returns can be configured on the Map page.

Viewing radar and infrared satellite color palettes:
1) From any page, touch Home > . 2) Touch > Radar/IR Color. 3) Touch on the top left of the 'Radar Colors' or 'IR Satellite Colors' box to
view the color palettes options. 4) Touch Garmin, NOAA, Alt, or Classic for the desired 'Radar Colors'. Or:
Touch Classic, Alt 1, Alt 2, or Alt 3 for the desired 'IR Satellite Colors'.

Touch For Radar Legend

Touch For Satellite Legend
Touch to Close

Touch to Adjust Color Palette Overlays - Radar & Infrared Satellite Color Palettes

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

191

Fly

ICING FORECAST

Icing forecast is a graphical depiction of icing conditions in the United States and Canada. The icing forecast conditions are displayed by Severity+Supercooled Large Drops (SLD) or Probability.

Viewing Icing Forecast data: 1) From any page, touch Home > . 2) Touch > Overlays > Icing. 3) Select between Severity+SLD or Probability. 4) Use the sliders to adjust the time and altitude.

Touch to View Icing Legend

Touch to Select Icing Type

Slide to Change Altitude

Icing Legend

Touch to Change Altitude

Overlays - Icing Types & Legend

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

192

Fly

METAR OVERLAY
The METAR Overlay provides weather icons that graphically display one of 14 parameters typically reported in a METAR. Each icon can be tapped to display the current METAR data in both raw and translated formats. Color coded icons provide a quick visual representation of the current weather conditions. Blue icons indicate VFR conditions, Green icons indicate MVFR conditions, Yellow icons indicate IFR conditions and Red icons indicate LIFR conditions. The color coding applies to Station ID, Flight Conditions, Cloud Ceiling, Visibility, and Cloud Cover.
Wind barbs and wind speed icons are slightly different where color represents wind speed. Colored icons are also used to show dew point spread.

Viewing and Configuring METAR Overlay:
1) From any page, touch Home > . 2) Touch and select Overlays > Weather from the Layer Select menu. 3) Touch the Overlay Control button in the lower left corner. 4) Select the desired option from the list. 5) Touch any of the displayed Weather Icons to view the Raw and translated
METAR information.

Layer

Icons

Description Wind Barb

Station Model

Temperature Visibility
Dewpoint
Cloud Cover

Altimeter Ceiling Airport I.D.

Altimeter

Altimeter setting (in. Hg)

Ceiling

Reported ceiling in hundreds of feet or 'Unl' if there is not a cloud layer that constitutes a ceiling.
Weather Icons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

193

Fly

Layer

Icons

Cloud Cover

Dewpoint
Dewpoint Spread
VFR Visibility Flight MVFR Visibility Conditions IFR Visibility
LIFR Visibility
Observation Age

Overcast

Description

Broken

Scattered Few

Clear

Fog

Dewpoint °C

Dewpoint spread in °C.

Blue indicates spread of 9° C or greater.

Yellow indicates spread of 5° or 8° C.

Red indicates spread of 0° to 4° C.

VFR Ceiling

MVFR Ceiling

IFR Ceiling

LIFR Ceiling

Missing weather information. A split dot with brown indicates partial and/or missing data.
Observation Age in minutes
Weather Icons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

194

Fly Layer
Station ID
Temperature Visibility
Wind Barbs
Wind Gust Wind Speed
Wx Conditions

Icons

Description VFR conditions (Blue) MVFR conditions (Green) IFR conditions (Yellow) LIFR conditions (Red) No Weather or Partial Data (Grey) Temperature °C
Reported Visibility in Statute Miles.
Short Flag = 5 knots Green = 5-9 knots
Long Flag = 10 knots Yellow = 10-19 knots
Solid Triangle = 50 knots Red = 20+ knots
Light & Variable
Calm Reported wind gusts (kts). Light & Variable Reported steady wind speed (kts). Green indicates wind speeds less than 10 knots. Yellow indicates wind speeds less than 20 knots. Red indicates wind speeds 20 knots and greater.
Dynamic black shaded box that displays two letter weather condition codes and qualifiers.
Weather Icons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

195

Fly
STATIC WEATHER IMAGERY
Garmin Pilot provides access to National Weather Service, as well as some international, static aviation weather maps. These weather products are static maps displaying PIREPs, AIRMETs, SIGMETs, winds aloft, radar, IR satellite, METARs, TAFs, surface analysis, icing, turbulence forecasts, and thunderstorm forecasts.
Garmin Pilot also includes some international weather imagery. Radar imagery is available for some parts of Mexico. Icing, Turbulence Forecast, and Thunderstorm Forecast imagery is available for some parts of Europe. METAR, TAF, and Surface Analysis information is available for Canada.
All available weather images are displayed on the main WX Imagery page and can be sorted by selecting from the 'View by Hazard', 'View by Region', or 'View by Product Type' options.
Viewing Static Weather Products:
1) From any page, touch Home > . 2) Touch the desired hazard type, region, or product type from the list. 3) Touch the weather map to enlarge. When enlarged touch the star to save
to Favorites.

Touch

View

Wx Imagery - Static Weather Imagery

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

196

Fly
AIRMETS
An AIRMET (AIRmen's METeorological Information) can be especially helpful for pilots of light aircraft that have limited flight capability or instrumentation. An AIRMET must affect or be forecasted to affect an area of at least 3,000 square miles at any one time. AIRMETs are routinely issued for six-hour periods and are amended as necessary due to changing weather conditions. AIRMETs are displayed as green (IFR/mountain obscuration), orange (turbulence), or blue (icing) shaded areas on the map display.
SIGMETS
A SIGMET (SIGnificant METeorological Information) advises of weather that is potentially hazardous to all aircraft. In the contiguous United States, the following items are covered: severe icing, severe or extreme turbulence, volcanic ash (red), dust storms, and sandstorms that lower visibility to less than three statute miles.
A Convective SIGMET is issued for thunderstorms, isolated severe thunderstorms, embedded thunderstorms, hail at the surface, and tornadoes. A SIGMET is widespread and must affect or be forecast to affect an area of at least 3,000 square miles.
Viewing AIRMETS and SIGMETS: 1) From any page, touch Home > . 2) Touch > Overlays > AIR / SIGMETs from the Layer Select menu. 3) Touch and select the desired type of AIRMET/SIGMET (i.e., Convective,
Icing, IFR/MTN, or Turbulence) to display. 4) Touch within the shaded area for AIRMET/SIGMET details.
Touch to Display

Overlays - Displaying AIRMETs & SIGMETs

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

197

Fly
TEMPORARY FLIGHT RESTRICTIONS (TFRS)
NOTE: Do not rely solely upon data link services to provide Temporary Flight Restriction TFR information. Always confirm TFR information through official sources such as Flight Service Stations or Air Traffic Control.
Temporary Flight Restrictions or TFRs temporarily restrict all aircraft from entering the selected airspace unless a waiver has been issued. TFRs are routinely issued for occurrences such as sporting events, dignitary visits, military depots and forest fires. TFRs are represented as an area outlined in dark blue (special events), green (forest fires), or Red (dignitary visits).
Viewing Temporary Flight Restrictions (TFR): 1) From any page, touch Home > . 2) Touch > Overlays > TFR from the Layer Select menu. 3) Touch within the outlined area for TFR details.

TFR Details - Super Bowl

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

198

Fly
ENHANCED STADIUM TFR ADVISORIES
Stadium TFRs advisories have been enhanced to display the event, hosting venue, and start time along with color coding to represent the active state of the TFR. · Blue TFRs - event occurs one to seven days in the future. · Yellow TFRs - event occurs within the next 24 hours. · Red TFRs - active TFR, one hour before scheduled start time.
Viewing only active Temporary Flight Restrictions (TFRs) or within 24 hours: 1) From any page, touch Home > . 2) Touch > General. 3) Touch the Display Stadium TFRs button Off.

Enhanced Stadium TFR Details
PIREPS
Pilot Weather Reports (PIREPs) provide timely weather information for a particular route of flight. When significant weather conditions are reported or forecast, Air Traffic Control (ATC) facilities are required to solicit PIREPs. A PIREP may contain unforecast adverse weather conditions, such as icing conditions, cloud cover, and turbulence.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

199

Fly PIREPs are represented on the Garmin Pilot map by a small colored icon with a
number. The color and style of the icon signify the type and severity of the reported weather conditions. The number shows the altitude of the reported conditions in flight level notation (i.e., hundreds of feet).
While the Map's PIREP layer is active, two secondary controls appear in the lower right corner of the screen. Touching either of these controls shows a slider that can filter out and declutter PIREP icons based on report age and report altitude.
Viewing PIREPs: 1) From any page, touch Home > . 2) Touch > Overlays > PIREP. 3) Touch a PIREP icon for details.
Touch to Display
Overlays - Displaying PIREPs
Filtering PIREPs By Age: 1) From any page, touch Home > . 2) Touch > Overlays > PIREP. 3) Touch the PIREP age indicator to display the age slider. 4) Touch and drag the slider handle to set the PIREP age display range.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

200

Fly
Filtering PIREPs By Altitude: 1) From any page, touch Home > . 2) Touch > Overlays > PIREP. 3) Touch the PIREP altitude indicator to display the altitude slider. 4) Touch and drag the slider handles to set the PIREP altitude display range.
PIREP Altitude

Touch to View PIREP

PIREP Layer & Report

Touch to Adjust Age Touch to Adjust Altitude

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

201

Fly

Icing PIREPs Negligible Icing
Trace Icing
Trace to Light Icing
Light Icing Light to Moderate Icing Moderate Icing Moderate to Severe Icing Severe Icing

Sky Condition PIREPs Unknown Sky Condition Sky Clear Few Clouds Scattered Clouds Broken Clouds Overcast IMC
PIREP Icons

Turbulence PIREPs Turbulence Negligible or Smooth
Light Turbulence
Light to Moderate Turbulence
Moderate Turbulence
Moderate to Severe Turbulence
Severe Turbulence
Extreme Turbulence

LIGHTNING
Lightning data shows the approximate location of cloud-to-ground lightning strikes. A strike icon represents a strike that has occurred within a two-kilometer region. The exact location of the lightning strike is not displayed.
Viewing Lightning Information: 1) From any page, touch Home > . 2) Touch > Overlays > Lightning. 3) Touch to animate the Lightning loop. Each frame of the Lightning loop
is time stamped. The time stamp is just right of the play button. Lightning information is available in one minute increments for the previous 45 minutes.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

202

Fly

WINDS ALOFT
Winds Aloft data shows the forecasted wind speed and direction at the surface and at selected altitudes. Altitudes can be displayed in 3,000-foot increments up to 42,000 feet MSL. Winds Aloft are displayed using wind barbs. The wind barbs indicate wind speed and direction.
The wind speed is depicted using flags at the end of the wind barb. A short wind flag is 5 knots, a long wind flag is 10 knots, and a filled triangle is 50 knots. Wind barbs are also color coded to indicate wind speed. Wind direction is depicted by the flagged end of the barb. The flagged end indicates the direction from which the wind is coming.

Icons

Description White indicates wind speeds of 20 kts or less. Light blue indicates wind speeds of 21-30 kts. Light yellow indicates wind speeds of 31-40 kts. Yellow indicates wind speeds of 41-50 kts. Orange indicates wind speeds of 51-80 kts. Red indicates wind speeds of 81 kts or greater.
Winds Aloft Barbs

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

203

Fly
Viewing Winds Aloft Information: 1) From any page, touch Home > . 2) Touch > Overlays > Winds Aloft. 3) Touch the Temps button above the Time Stamp > Barbs. 4) Drag the horizontal slider to the right to view forecast winds aloft. 5) Drag the slider up to the desired altitude. Altitudes are displayed in 3,000-
foot increments up to 42,000 feet MSL. Or: Touch any wind barb to view a winds aloft table. Touch the time to view
current/forecasted winds aloft.

Slide to Adjust Altitude

Winds Aloft - CONUS

Touch to Change

TEMPS ALOFT
Temps Aloft data shows the forecasted temperature in degrees Celsius (°C) at the surface and at selected altitudes. Altitudes can be displayed in 3,000-foot increments up to 42,000 feet MSL. Temps Aloft are displayed using a color coded icon along with a numerical value.

Icons

Description Blue indicates temps below freezing in degrees Celsius (-2°C). White indicates the temperature is at freezing (0°C). Orange indicates temps above freezing in degrees Celsius (2°C).
Temps Aloft Icons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

204

Fly
Viewing Temps Aloft Information: 1) From any page, touch Home > . 2) Touch > Overlays > Winds Aloft. 3) Touch the Barbs button above the Time Stamp > Temps. 4) Drag the horizontal slider to the right to view forecast Temps aloft. 5) Drag the slider up to the desired altitude. Altitudes are displayed in 3,000-
foot increments up to 42,000 feet MSL. Or: Touch any temps aloft icon to view a winds aloft table. Touch the time to
view current/forecasted temps aloft.

Temps Aloft - CONUS

Slide to Adjust Altitude Touch to Change

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

205

Fly
METARS AND TAFS
METAR (METeorological Aerodrome Report) is an international code used for reporting weather observations. METARs are updated hourly or as needed. METARs typically contain information about the temperature, dew point, wind, precipitation, cloud cover, cloud heights, visibility, and barometric pressure. They can also contain information on precipitation amounts, lightning, and other critical data.
TAF (Terminal Area Forecast) is the standard format for 24-hour weather forecasts. TAFs may contain some of the same code as METAR data. It typically forecasts significant weather changes, temporary changes, probable changes, and expected changes in weather conditions. METAR and TAF data are displayed as raw and/or decoded text.
Viewing METAR and TAF Information: 1) From any page, touch Home > . 2) Touch Weather > METAR. 3) Touch the METAR or TAF tab, as desired. Or:
1) From any page, touch Home > . 2) Touch the desired airport until the Radial Menu appears > WX. 3) Touch the METAR or TAF tab, as desired.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

206

Fly
MODEL OUTPUT STATISTICS (MOS)
MOS (Model Output Statistics) provides forecast information similar to a TAF (Terminal Area Forecast), that is updated hourly and is valid for 72 hours. The MOS forecast is available for over 2,000 airports in the United States.

MOS (Model Output Statistics) Widget - Map Page

1) From any page, touch Home > >

> Widgets.

2) Touch MOS from the 'Select Widget Type' Menu.

Or:

1) From any page, touch Home > . 2) Touch Weather > MOS tab.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

207

Fly

AREA FORECAST DISCUSSION

AFD (Area Forecast Discussion) is a plain English narrative developed by meteorologists from the National Weather Service. It is designed to provide additional details that go into the preparation of the Terminal Aerodrome Forecast (TAF). The AFD contains both short and long term analysis, with an emphasis on aviation weather.

Viewing ADF Information:

1) From any page, touch Home > .

2) Touch Weather.

3) Touch the Forecast Discussion Tab.

Or:

1) From any page, touch Home > >

> Widgets.

2) If necessary, touch Add Widget.

3) Touch Forecast Discussion from the 'Select Widget Type' Menu.

Touch to View Split Screen

Touch to Select Widgets

Touch to Select Widget Type

Split Screen - Widgets - Forecast Discussion

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

208

Fly

NOTICE TO AIRMEN (NOTAM)
A Notice to Airmen (NOTAM) is a notice containing information essential to personnel concerned with flight operations but not known far enough in advance to be publicized by other means. It states the abnormal status of a component of the National Airspace System (NAS) not the normal status. Various NOTAMs can viewed in a decoded summary, including those related to airspace, obstacles, and NAVAIDs.

Viewing NOTAM Information:

1) From any page, touch Home > .

2) Touch NOTAMs.

Or:

1) From any page, touch Home > >

> Widgets.

2) If necessary, touch Add Widget.

3) Touch NOTAMs from the 'Select Widget Type' Menu.

Touch to View Split Screen

Touch to Select Widgets

Touch to Select Widget Type

Split Screen - Widgets - NOTAMs

Slide to View Info Along Route

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

209

Fly

Airspace NOTAMs use the following color classification:

Color

Details

Upcoming NOTAM - Valid within the next 24 hours.

Restricted/Danger - Prohibited, Restricted, and Danger areas.
Alerts/Warnings - Warning, Military Operational Area (MOA), and Scheduled Exercises (Military).
Flight Data Center (FDC) and Restricted Area Deactivated
Other - Parachute Jumping, Alert, UAS Operation, Tethered Balloon/Kits, Gathering of Aircraft.
Airspace NOTAM Color Classifications

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

210

Fly
DATA LINK TRAFFIC (OPTIONAL)

The GDL 39 / GDL 39 3D is a Bluetooth® enabled receive-only data link radio with on-board GPS, 978 MHz (Universal Access Transceiver frequency band), and 1090 MHz Extended Squitter (1090 ES) receivers. It is designed to receive, process, and output traffic (ADS-B air-to-air, and TIS-B traffic information), and weather (Flight Information Service-Broadcast (FIS-B)) information to Garmin Pilot through Bluetooth.
ADS-B (Automatic Dependent Surveillance-Broadcast) is a surveillance technology deployed across the United States as the cornerstone of the FAA's Next Generation Air Transportation System (NextGen). ADS-B enables improved surveillance services, both air-to-air and air-to-ground, especially in areas where radar is ineffective due to terrain or where it is impractical or cost prohibitive. Initial applications of air-to-air ADS-B are for "advisory" use only, enhancing a pilot's visual acquisition of other nearby ADS-B equipped aircraft either when airborne or on the airport surface.

1090 ES

GPS

UAT

RADAR

Composite

18,000 FT

1090 ES

10,000 FT

Mode A/C

UAT UAT

RADAR

ATC UAT

ADS-B Ground Station

1090 ES

ADS-B System

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

211

Fly

For the purpose of distinguishing between levels of ADS-B service, there are three classifications of aircraft or system capability; ADS-B In, ADS-B Out, and ADS-B participating. ADS-B In refers to the capability to receive ADS-B information. ADS-B Out refers to the capability to transmit ADS-B information. ADS-B participating refers to the capability to both send and receive ADS-B information. Aircraft lacking either ADS-In, ADS-B Out, or both ADS-B capabilities may also be referred to as ADS-B nonparticipating aircraft.

Currently, rule-compliant ADS-B Out capability in the United States requires a TSO'ed SBAS-enabled GPS, such as a Garmin GPS 400W or similar, and one of two possible data links: 1090 ES transponder or a 978 MHz UAT. Either data link system is capable of transmitting the aircraft's position, velocity, identification, and other information every second to compatible aircraft and ground stations called Ground Based Transceivers (GBTs).

Because 1090 ES transponders and UATs operate on different frequencies, aircraft not similarly equipped cannot transmit/receive data link information directly to/from each other. Instead, operation within range of a GBT is required to receive data link information on both frequencies. The GDL 39 / GDL 39 3D is unique in its ADS-B In capability since it can receive data link information from both 1090 ES transponders and UATs.

Thus, the GDL 39 / GDL 39 3D receives traffic information directly from any ADS-B Out aircraft within range as well as the rebroadcast of ADS-B information from any nearby GBT. This rebroadcast is called Automatic Dependent Surveillance-Rebroadcast (ADS-R) and is automatically triggered by the detection of an ADS-B participating aircraft within the service volume of the GBT. As a 978 MHz (UAT frequency) receiver, the GDL 39 / GDL 39 3D can receive both the Traffic Information Service-Broadcast (TIS-B) and Flight Information Service-Broadcast (FIS-B) provided in conjunction with ADS-R services when in range of a GBT.

FIS-B service is provided continuously, but ADS-R including TIS-B will only be broadcast by a GBT when an ADS-B participating aircraft is within the GBT's defined service volume. In this case, a GBT will only rebroadcast TIS-B information relative to the ADS-B participating aircraft. Only traffic that is within 15 nm lateral and 3,500' vertical of the ADS-B participating aircraft is provided in the broadcast. Nonparticipating traffic aircraft located farther than 15 nm laterally and 3,500' vertically from the participating aircraft is are excluded from the information transmitted by the GBT.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

212

Fly
TIS-B traffic information includes non-participating aircraft detected by ATC surveillance radar. As TIS-B data is derived from ATC surveillance radar data, TIS-B traffic position updates typically occur every three to thirteen seconds. Therefore, TIS-B traffic may be displayed with degraded positional accuracy. Aircraft without operating transponders are invisible to TIS-B. Aircraft operating outside of the ATC radar coverage area are also not displayed.
Since the GDL 39 / GDL 39 3D is a receive-only device, even when used onboard an aircraft equipped with a qualifying GPS and 1090 ES transponder, a GBT may not identify it as an ADS-B participating aircraft. The squitter of some 1090 ES transponders, including the Garmin GTX 23ES, must be configured to communicate the aircraft has 978 MHz receive capability in order to be identified as an ADS-B participating aircraft.
WARNING: Do not rely solely upon the display of traffic information for collision avoidance maneuvering. The traffic display does not provide collision avoidance resolution advisories and does not under any circumstances or conditions relieve the pilot's responsibility to see and avoid other aircraft
WARNING: Do not rely solely upon the display of traffic information to accurately depict all of the traffic within range of the aircraft. Due to lack of equipment, poor signal reception, and/or inaccurate information from aircraft or ground stations, traffic may be present that is not represented on the display.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

213

Fly

SYSTEM STATUS
The traffic system status is annunciated in the upper left corner of the Map Page, as well as the lower left corner of the dedicated Traffic Page.

System Status
Receiving Air-To-Air targets from aircraft transmitting ADS-B out on either UAT or 1090 data link. You are receiving TIS-B traffic information for traffic within 15 nm and 3,500' of a rule compliant participating aircraft.
Receiving Air-To-Air targets from aircraft transmitting ADS-B out on either UAT or 1090 data link. You will typically receive TIS-B coverage within a minimum of 3 NM (+/- 1,000 ft) of your current position. Other ADS-B participants not compliant with the latest ADS-B software specifications often trigger full TIS-B uplink services. Performance may very between ground stations.
Receiving Air-To-Air targets from aircraft transmitting ADS-B out on either UAT or 1090 data link. With degraded TIS-B. You may see traffic targets, but the coverage is incomplete and cannot be relied upon.
Not receiving Air-To-Air targets from aircraft transmitting ADS-B out on either UAT or 1090 data link. You are not receiving TIS-B traffic information.
Traffic Modes

Traffic Icon

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

214

Fly

TRAFFIC DESCRIPTION

ADS-B traffic operation is similar to other traffic systems, but ADS-B adds additional symbology. The symbols used to display ADS-B traffic are shown in the table below. The traffic identifier and altitude are displayed below the traffic symbol. A small up or down arrow next to the traffic symbol indicates the traffic is climbing or descending at a rate of at least 500 feet per minute. The vector line that extends beyond the point of the traffic arrow is just further indication of the intruder aircraft track.

Symbol

Description
Non-threat, non-directional airborne traffic
Directional airborne Traffic with track vector. Points in the direction of the aircraft track. Non-directional airborne Proximity Advisory (PA). Proximity Advisories are issued for any traffic within 6 nautical miles and +/- 1,200'. Directional airborne Proximity Advisory (PA) with track vector. Points in the direction of the aircraft track. Proximity Advisories are issued for any traffic within 6 nautical miles and +/- 1,200'.
Non-directional airborne Traffic Advisory (TA)
Non-directional off-scale airborne Traffic Advisory (TA). Displayed at outer range ring at proper bearing. Directional airborne Traffic Advisory (TA) with track vector. Points in the direction of the aircraft track. Directional off-scale airborne Traffic Advisory (TA). Points in the direction of the aircraft track.
ADS-B Traffic Symbology

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

215

Fly

TRAFFIC ADVISORIES (TA)
The GDL 39 / GDL 39 3D automatically adjusts its Traffic Advisory (TA) sensitivity level to reduce the likelihood of nuisance TA alerts during various phases of flight. TAs are issued for traffic when they are predicted to be within a specified volume of airspace around the aircraft in a specified amount of time. The protected volume and time interval varies based on the current geodetic altitude and groundspeed. Thus, the protected volume of airspace increases with altitude and ground speed. Refer to the following table for details.

Altitude (Geodetic) Below 5,000 5,000-10,000 10,000-20,000 20,000-42,000 Above 42,000

Look Ahead Time (sec.)
30 40 45 48

Vertical Separation (ft.)
+/-850 +/-850 +/-850 +/-850

+/-1,200

Traffic Advisories

Horizontal Separation (nm.)
.35 .55 .80 1.10 1.10

Configuring GDL 39 / GDL 39 3D for a Pressurized or Non-Pressurized Aircraft: 1) From any page, touch Home > . 2) Touch the GDL 39 Tab. 3) Touch Pressurized Cabin to select/deselect.
NOTE: Relative altitude information will only be displayed if Pressurized Cabin is not selected.

Enabling/disabling Traffic Data on Map Page: 1) From any page, touch Home > . 2) Touch Menu. 3) Select Show Traffic.

Viewing the Traffic Page:

1) From any page, touch Home > .

2) Touch

to change the range for the traffic rings.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

216

Fly
Changing the altitude range: 1) On the Traffic Page, Touch Altitude Filter. 2) Touch one of the following options:
· Unrestricted: All available traffic is displayed. · Above: Displays non-threat and proximity traffic from 9000 feet above the aircraft to 2700 feet below the aircraft. Typically used during climb phase of flight. · Normal: Displays non-threat and proximity traffic from 2700 feet above the aircraft to 2700 feet below the aircraft. Typically used during enroute phase of flight. · Below: Displays non-threat and proximity traffic from 2700 feet above the aircraft to 9000 feet below the aircraft. Typically used during descent phase of flight.

Altitude Filter & Vector Settings

Selected Traffic Info

Selected Traffic Traffic
Range Ring

Traffic Status

Traffic Page

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Range Ring Selection Buttons
217

Fly

FLIGHT ID DISPLAY AND MOTION VECTOR
The Flight IDs of other aircraft (when available) can be displayed on the Traffic Page. When a flight ID or call sign is received, it will appear below the corresponding traffic symbol when enabled. Traffic ground track is indicated on Garmin Pilot by the Motion Vector, a short line, extending in the direction of target movement or relative movement. The track vector has two settings, TargetTrendTM shown as a green vector, or Absolute shown as a white vector. Absolute vectors extend from the traffic symbol showing the traffic's ground track. TargetTrend traffic vectors are displayed relative to the aircraft's position and ground speed. For example if traffic is ahead and traveling in the same direction but at a slower ground speed, the motion vector would point opposite of its direction of flight, indicating the aircraft is overtaking the traffic. Thus, the TargetTrend motion vector is relative to the current position, where absolute motion vectors are based on the traffic's speed and direction. The end of the Motion Vector represents the predicted absolute or relative location of the traffic, based the traffic's reported track, ground speed and the Vector Duration setting (15, 30, 60, or 120 seconds).

Relative Altitude (in this case 500 Feet
Above Own Aircraft) Aircraft Identification
(Tail Number or Flight ID Number)

Motion Vector (Absolute is Shown in White & TargetTrend is Shown in Green) Altitude Trend (up Arrow Indicates Climbing, Down Arrow Indicates Descending)

Example ADS-B Traffic

NOTE: Traffic Altitude Filters and Motion Vector settings can only be changed on the dedicated Traffic Page. The Altitude Filter and Motion Vector settings from the Traffic Page will be used on the Map Page as well.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

218

Fly
Changing Motion Vector: 1) From any page, touch Home > . 2) Touch the Motion Vector field in the upper left corner of the Traffic Page
and select TargetTrend or Absolute. Changing Vector Duration: 1) From any page, touch Home > . 2) Touch the Vector Duration field in the upper left corner of the Traffic Page
and select 15, 30, 60 or 120 seconds.
Altitude Filter & Vector Settings

TargetTrend Vector
Showing Aircraft is Overtaking
Traffic Traffic Status

TargetTrendTM Vectors

Range Ring Selection Buttons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

219

Fly
TERRAIN

WARNING: Do not use Terrain information for primary terrain avoidance. Terrain information is intended only to enhance situational awareness.
The Terrain function displays altitudes of terrain and obstructions relative to the aircraft position and altitude with reference to a database that may contain inaccuracies. Terrain and obstructions are shown only if they are in the database. Terrain and obstacle information should be used as an aid to situational awareness. They should never be used to navigate or maneuver around terrain. Note that all obstructions may not be available in the terrain and obstacle database. No terrain and obstacle information is shown without a valid 3-D GPS position.
The device or external GPS receiver provides the horizontal position and altitude of the aircraft. Aircraft GPS altitude is derived from satellite position. GPS altitude is then converted to a mean sea level (MSL)-based altitude (GPS-MSL altitude) and is used to determine terrain and obstacle proximity. GPS-MSL altitude accuracy is affected by satellite geometry, but is not subject to variations in pressure and temperature that normally affect pressure altitude sensors. GPS-MSL altitude does not require local altimeter settings to determine MSL altitude. It is a widely-used MSL altitude source.
Terrain and obstacle databases are referenced to MSL. Using the GPS position and altitude, the Terrain feature portrays a 2D picture of the surrounding terrain and obstacles relative to the position and altitude of the aircraft. GPS position and GPSMSL altitude are used to calculate and predict the aircraft's flight path in relation to the surrounding terrain and obstacles. In this way, the pilot can view predicted dangerous terrain and obstacle conditions. Alert windows appear to inform the pilot of proximity to the terrain and obstacles.

Projected Flight Path 100 ft Threshold

2000 ft Threshold

Lighted Obstacle

Red

Terrain above or within 100 feet below the aircraft altitude

Yelllow

Terrain is between 100 feet and 1000 feet below aircraft altitude

Green

Terrain is between 1000 feet and 2000 feet below aircraft altitude

Black

Terrain is at least 2000 feet below aircraft altitude

Terrain Page Altitude/Color Correlation

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

220

Fly
TERRAIN INFORMATION
Two views modes are available on the Terrain Page: the 360° view and the Arc view, which provides a 120° arc outline. The areas of the terrain shaded red are predicted to be within 100 feet below or above the aircraft. The areas in yellow are between 1,000 feet and 100 feet below the aircraft and the areas in green are between 1,000 and 2,000 feet below the aircraft. The black areas are more than 2,000 feet below the aircraft. A projected point of impact is marked with an "X" symbol. The Altitude Selector in the upper right corner can be configured to show, GPS derived AGL or GSL, or SFC ELEV (Surface Elevation) from the Terrain Database.

View Mode

Altitude Selector

Obstacle

Range Ring

Terrain Color Legend

Terrain Page

Range Ring Selection Buttons

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

221

Fly

Appx. 300' AGL

Appx. 1300' AGL

Terrain Page Colors - 360° View

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

222

Fly
TERRAIN COLOR TRANSITION
During the takeoff or landing transition only terrain that is 400ft above the current location is shown in red. This is to prevent from displaying a "sea of red" during takeoffs and landings.
During the takeoff transition, the terrain colors will 'fade in' once the aircraft is airborne and flies through 400' AGL, the aircraft descends more than 25' after takeoff, or more than 60 seconds have passed since the aircraft was on the ground.
During the landing transition, the terrain colors will 'fade out' when the aircraft is within 0.5nm of an airport, the distance is decreasing, and the height above the runway is less than 200'.

Terrain Color Transition - Arc View

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

223

Fly

OBSTACLE INFORMATION
Obstacles are shown on the Terrain Map View, at or below the map range of 12 nm. Obstacles are also shown on the Navigation Map from a range of 200 feet to 5 nm.
Standard aeronautical chart symbols are used for lighted or unlighted obstacles taller than 200 feet Above Ground Level (AGL). Refer to the Obstacle Icons legend below.
When selecting an obstacle with the Map Pointer, each obstacle displays the altitude at the top of the obstacle, or Mean Sea Level (MSL). Each obstacle also lists the actual height of the obstacle, or Above Ground Level (AGL).

Unlighted Obstacle Lighted Obstacle Potential

< 1000' > 1000' < 1000' > 1000' Impact Obstacle Location

AGL

AGL Points

WARNING: Red obstacle is above or within 100' below current aircraft altitude

CAUTION: Yellow obstacle is between 100' and 1000' below current aircraft altitude

Terrain Obstacle Colors and Symbology

TERRAIN AND OBSTACLE ALERTS (PREMIUM SUBSCRIPTION)
Terrain, Obstacle, and Descent Rate pop-up and voice alerts are issued when flight conditions meet parameters that are set within the software algorithms. Terrain alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert is issued, visual annunciations are displayed and when enabled voice alerts are heard.
If the Terrain Page is not displayed, a pop-up alert appears. Touch Dismiss to acknowledge and clear the alert, or touch Show Terrain to view the Terrain Page.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

224

Fly
View Mode

Altitude Mode

Alert Map Scale

Potential Impact Point

Terrain Collision Warning Touch to
Dismiss Alert

Touch to Switch to Terrain Page Terrain Alert Pop-up

Touch to Inhibit Alerts

Alert Type

Voice Message

Terrain Caution

"Caution Terrain"

Obstacle Caution

"Caution Obstacle"

Terrain Ahead Caution "Caution; Terrain Ahead"

Obstacle Ahead Caution "Caution; Obstacle Ahead"

Terrain Warning

"Terrain, Terrain, Pull Up, Pull Up"; *"Pull Up"

Obstacle Warning

"Obstacle, Obstacle, Pull Up, Pull Up"; *"Pull Up"

Sink Rate Caution

"Caution; Sink Rate"

Sink Rate Warning

"Sink Rate, Pull up"; *"Pull Up"

*"Pull Up" is repeated every 5 seconds after the initial alert until alert conditions no longer exists

Terrain and Obstacle Voice Alerts

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

225

Fly

Viewing Terrain Page: 1) From any page touch Home > . 2) Touch or or pinch-zoom to change the range of the terrain rings.
Configuring Terrain Page: 1) From any page touch Home > . 2) Touch VIEW MODE. 3) Touch 360° to view a 360° representation of terrain. Or: Touch Arc to view a forward looking 120° arc of terrain. 4) Touch Altitude > AGL, GSL, or SFC ELEV to format the Altitude display.

Touch to Adjust View Mode

Touch to Adjust Altitude Display

Terrain Color Legend

Terrain - 360° View

Enabling/Disabling Terrain Shading on Map Page: 1) From any page touch Home > . 2) Touch > Overlays > Terrain.
Enabling/Disabling Obstacles on Map Page: 1) From any page touch Home > . 2) Touch > Overlays > Obstacles.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Touch to Adjust Range
226

Fly
CHARTS

NOTE: Geo-referenced FliteCharts and Chart Overlays are available with the 'Premium' add-on subscription.

FliteCharts resemble the paper version of AeroNav Services terminal procedures charts. The charts are displayed with high resolution and in color for applicable charts. Basic FliteCharts are included in the Garmin Pilot subscription, Geo-referenced FliteCharts are also available for an additional paid subscription. Once downloaded, charts can be viewed offline. The geo-referenced portion of the chart is outlined in blue. Refer to the Downloads section for more information on downloading charts. Available data includes:

Arrivals (STAR)

Departure Procedures (DP)

Approaches

Airport Information Charts

Garmin Pilot makes it easy to organize all of the terminal procedures for the route of flight by creating a Binder for the departure and destination airports. Additional binders can also be created and customized by adding individual charts for any airport. Refer to the Downloads Page to ensure the desired charts are onboard the device. Terminal Procedure charts can be viewed and downloaded from the Airport Info Page, under the Procedures tab as well.

NOTE: A data connection (i.e., Wi-Fi or cellular) is required to download and update charts.

Viewing Charts in a Binder: 1) From any page, touch Home > . 2) Touch the desired Binder. 3) Select the desired chart.

NOTE: Any charts that are not geo-referenced will open in the default PDF document viewer.
4) Touch the system back button to return to binder contents. 5) Touch the system back button again to return to the Chart Binders Page.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

227

Fly

While viewing a chart, use the and buttons to navigate to previous and next charts without returning to the binder view.

Current Binder

Touch to Filter Charts

Touch to View Chart

Automatically Generated Chart Binders
Annotating Charts: 1) From any page, touch Home > . 2) Touch any Binder > Chart. 3) Touch the Menu Button > Annotate Chart. 4) Touch to display the Tools Palette. 5) Touch the desired tool (Draw, Highlight, or Erase). 6) Touch the desired color and stroke weight. 7) Annotate Chart as desired. 8) Touch Clear to clear annotations. 9) Touch Close to save annotations and exit Annotate Chart mode.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

228

Fly
NOTE: While annotating a chart, the chart can be zoomed or panned by pinching two fingers together or by pulling two fingers apart. Any other touch or tap will result in annotation.
Touch to Close & Save

Touch Desired Color
Touch to Clear Annotations

Annotate Chart Annotate Chart - Tools Palette

Touch to Display Tools Palette
Touch to Draw Touch to Highlight Touch to Erase
Touch Desired Stroke Weight
Touch to Display Tools Palette

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

229

Fly
Creating a Custom Binder: 1) From any page, touch Home > . 2) Touch New Binder. 3) Using the keyboard enter a name. 4) Touch the new Binder. 5) Touch Search Charts and enter an airport identifier using the keyboard. 6) Touch the chart name to view the it or touch to add the chart to the
binder. Or:
1) From any page, touch Home > . 2) Touch the Procedures Tab. All available charts and procedures are shown
including; (Airport Diagrams, Approach Procedures, Arrival Procedures, and Departures). Chart titles followed by ,will need to be downloaded. Charts followed by have already been downloaded to the device. 3) Touch to create a Chart Binder or add to an existing binder. 4) Touch and enter a Binder Name or select from the list of available binders. 5) Touch for each additional chart to add to a binder.
Searching for Charts: 1) From any page, touch Home > . 2) Touch Search Charts and enter an airport identifier using the keyboard. 3) Touch to create a Chart Binder or add to an existing binder. 4) Touch and enter a Binder Name or select from the list of available
binders. 5) Touch for each additional chart to add to a binder.
Organizing Custom Binders: 1) From any page, touch Home > . 2) Touch the Menu Button and touch Edit / Arrange 3) Drag the Custom Binder and release at the desired location. 4) Touch the blue Edit / Arrange bar when finished to exit.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

230

Fly Filtering Charts Displayed in Binder: 1) From any page, touch Home > . 2) Touch the desired Binder. 3) Touch to filter charts displayed in the Binder.
Touch to Filter Charts
Touch to Display Charts

Chart Binder Filter
Deleting Custom Binders: 1) From any page, touch Home > . 2) Touch Menu > Edit / Arrange. 3) Touch for the associated binder to delete the binder. 4) Touch the blue Edit Mode bar when finished to exit.
Deleting Charts from a Custom Binders: 1) From any page, touch Home > . 2) Touch Menu > Edit / Arrange. 3) Touch for the associated chart to delete the chart. 4) Touch the blue Edit Mode bar when finished to exit.
Printing a Chart: 1) From any page, touch Home > . 2) Touch the desired Binder. 3) Touch the desired chart. 4) Touch the Menu Button and touch Print.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

231

Fly

NOTE: Chart printing requires an Android compatible print facility to be installed. This may involve installing a custom app for a Wi-Fi enabled printer or setting up Google Cloud Print.
Viewing and Organizing Procedures from the Airport Info Page:
1) From any page, touch Home > . 2) Touch the Procedures Tab. All available charts and procedures are shown
including; (Airport Diagrams, Approach Procedures, Arrival Procedures, and Departures). Chart titles followed by ,will need to be downloaded. Charts followed by have already been downloaded to the device. 3) Touch the desired chart to view. 4) Touch to create a Chart Binder or add to an existing binder. 5) Touch and enter a Binder Name or select from the list of available binders. 6) Touch for each additional chart to add to a binder.
NOTE: Terminal procedures (i.e. SIDs, STARs, instrument approach procedures, airport diagrams, Hot Spots, and Take-off Minimums) are available for selection from the Airport Information Page. Any charts that are not geo-referenced will open in the default PDF document viewer.
AUTOMATICALLY GENERATED BINDERS
Garmin Pilot will automatically create three binders for the active flight plan. When the app has an active flight plan, a binder will appear for the departure and destination airports. When the current Direct-to destination is an airport, a binder for that airport will appear. Garmin Pilot will download the charts and procedures for an automaticallygenerated binder the first time the binder is opened.

Auto Generated Binders Created
From Active Flight Plan

Touch to Create New Binder

Automatically Generated Chart Binders

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

232

Fly
CHART OVERLAYS (PREMIUM SUBSCRIPTION)
Garmin Pilot integrates instrument approach procedure charts within the moving map. Garmin Pilot overlays approach charts at the proper position, orientation and scale on the moving map, making approach procedures available alongside moving map features such as flight paths, weather, navaids, airspaces, obstacles, and terrain.
The Chart Overlay will automatically rotate to match the Map page, accommodating both North Up and Track Up map modes.
Chart Overlays are available for any Geo-Referenced instrument approach procedure chart, including most FliteCharts and Jeppesen charts.
Displaying Approach Chart Overlays from Charts Page: 1) From any page, touch Home > . 2) Search for the desired approach chart (orange labels). Or: Touch the Destination binder, or a custom binder, to locate the desired
chart. 3) Touch Show on Map. Garmin Pilot switches to the Map page and displays
the selected chart, overlaid over the moving map.
Touch to Display Chart on Map Touch to Change Chart

Selecting Chart Overlay

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

233

Fly
Displaying Approach Chart Overlay From Map Page:
NOTE: When selecting a Procedure, ensure the is present, indicating the chart is current, downloaded successfully, and ready for use.
1) From any page, touch Home > . 2) Touch and hold the desired Airport in the Map Pane until the Radial Menu
appears > . 3) Touch the Proc tab. 4) Touch the desired approach.

Touch to View Touch to Overlay
Successfully Downloaded
Chart

Touch to View in Google Maps Touch to View Airport Info

Touch to Download
Airport Info - Procedure Tab
Displaying Approach Chart Overlay From Airport Information Page: 1) From any page, touch Home > . 2) Touch the Airport Identifier Button to search for the desired airport. 3) Touch the Procedures tab. 4) Touch Map for the desired approach chart. Garmin Pilot switches to the
Map page and displays the selected chart, overlaid over the moving map.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

234

Fly
While using an active instrument approach procedure overlay, Garmin Pilot will display a settings icon on the upper-left corner of the chart. These settings provide options to change to another chart for the current airport, change the opacity of the overlay (revealing more or less of the moving map below it) and removing the overlay entirely.
Current Chart Selection

Touch to Remove Chart

Chart Overlay Settings

Touch to Adjust Display Slide to Adjust Display

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

235

Fly
SCRATCH PAD
The Scratch Pad, allows the pilot to quickly draw or write down information on the device screen. The Scratch Pad also provides five different tabs with different templates. The first two tabs are blank for general purpose notes. The other three tabs provide templates for ATIS, CRAFT, and PIREP forms.
Using the Scratch Pad: 1) From any page, touch Home > . 2) Touch one of the five tabs to select a template. 3) Touch to view the Tool Palette. 4) Touch the desired tool (Pen, or Highlighter). 5) Touch the desired color and Line Width.
Clearing the Scratch Pad: 1) From any page, touch Home > . 2) Touch one of the five tabs to select a template. 3) Touch to erase small areas. Or: Touch > Yes to clear the entire scratch pad.
Inverting colors on the Scratch Pad: 1) From any page, touch Home > . 2) Touch one of the five tabs to select a template. 3) Touch Menu > Invert Colors.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

236

Fly

Blank Scratch Pad Tab

ATIS Scratch Pad Tab

CRAFT Scratch Pad Tab

PIREP Scratch Pad Tab

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

237

Connext
CONNEXT
Connext allows the wireless sharing of data between devices via BluetoothTM. Touch Home > to access the Connext Page or touch the Quick Access Connext Icon (if connected to a Connext device) to display the Connext Window. The Connext Page displays Connext status, features, and devices that integrate with Garmin Pilot.
Quick Access Connext Icon
Connext Window
Connext Page & Connext Window
STATUS
SITUATIONAL DATA STATUS
When paired with a compatible navigator, Garmin Pilot has access to the same GPS information utilized by the navigator. In addition, the navigator shares attitude information to the Garmin Pilot's Synthetic vision and panel displays.
Viewing the compatible navigator situational data: NOTE: Ensure the compatible navigator is paired to an Android device.
1) From Garmin Pilot, touch Menu > . 2) Touch the Situational Data Tab.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

238

Connext

Situational Data Tab (Connext Page)
AHRS AND ALTITUDE INFORMATION
When connected to a compatible navigator, Garmin Pilot will display GPS derived back-up Attitude Indicator, Altimeter, VSI, HSI, and Ground Speed on the Panel. 'Pitch' and 'Roll' become available Nav Bar options on the Map Pane.
Attitude Indicator

GPS-derived Ground Speed

Geometric Altitude (MSL)

HSI

GPS-derived VSI

Panel (with a compatible navigator connected)

Panel Select Button/ Indicators

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

239

Connext
ADS-B STATUS
Traffic and weather information are available by pairing an Android device directly to a compatible ADS-B device. ADS-B data does not travel from the compatible navigator to Garmin Pilot.
Viewing ADS-B traffic and weather data:
NOTE: Ensure the compatible navigator and the compatible ADS-B device are paired to an Android device. The compatible navigator will not pass ADS-B data to the Garmin Pilot even if the ADS-B device is wired to it.
1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the ADS-B Tab.

ADS-B Tab (Connext Page)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

240

Connext

ADS-B TRAFFIC ALERTS

When Garmin Pilot is paired with a compatible ADS-B unit, the app automatically displays a pop-up window and plays an audible alert to notify users of nearby ADS-B traffic. Traffic alerts can be disabled and configured in Home > .

Configuring Traffic Alerts:

1) From any page, touch Home > > General.

2) Touch

next to Traffic Alerts to disable the Traffic Alerter service. Touch

again to re-enable it.

3) Touch the Audio option to change the Traffic Alert voice that Garmin Pilot emits. Change to Off to receive no audio cue when a Traffic Alert appears.

ADS-B Traffic Alert Pop-up
When a Traffic Alert Pop-up appears, three options are provided to respond to the prompt. Dismiss will clear the pop-up and return to the previous Garmin Pilot screen. Show Traffic will clear the pop-up, and bring Garmin Pilot to the Traffic screen. Inhibit Alerts will clear the pop-up and prevent further Traffic Alert Pop-ups from appearing.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

241

Connext
SIRIUSXM STATUS
SiriusXM weather information is shared with Garmin Pilot for installations with a compatible SiriusXM device. In addition, remote control of SiriusXM satellite radio from Garmin Pilot is available.
Refer to the Weather Data Section for information on accessing SiriusXM weather.

SiriusXM Tab (Connext Page)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

242

Connext
FEATURES
FLIGHT PLAN TRANSFER
Bluetooth is used to transfer flight plan information between Garmin Pilot and a compatible navigator.
Sending a flight plan from Garmin Pilot to a Navigator:
NOTE: Ensure the Garmin Navigator is paired to an Android device. 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the Flight Plan Transfer Tab. 3) Touch Send.

Flight Plan Transfer Tab
Connext - Flight Plan Transfer Tab

Touch to Load Flight Plan From Navigator Touch to Send Flight Plan to Navigator Touch to Show List of Stored Plans

Flight Plan Transfer Tab 190-01532-00 Rev. U

Flight Plan Transfer - Stored Flight Plans Garmin Pilot for Android User's Guide

Touch to Send Stored Flight Plans to Navigator
243

Connext

Or: 1) From anywhere in Garmin Pilot, touch 2) Touch Send To . 3) Sent is displayed.

to display the Connext Window.
Touch to View Connext Window Touch to Send Flight Plan to Navigator

Flight Plan Sent to Navigator Successfully

Connext Window - Sending Flight Plan to Navigator
Loading a flight plan from the Navigator to Garmin Pilot:
NOTE: Ensure the Garmin Navigator is paired to an Android device. 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the Flight Plan Transfer Tab. 3) Touch Load.

Flight Plan Transfer Tab 190-01532-00 Rev. U

Connext - Flight Plan Transfer Tab Garmin Pilot for Android User's Guide

Touch to Load Flight Plan From Navigator
244

Connext

Or: 1) From anywhere in Garmin Pilot, touch 2) Touch Load From . 3) Loaded is displayed.

to display the Connext Window. Touch to View Connext Window

Touch to Load Flight Plan From Navigator

Flight Plan Loaded
Successfully

Flight Plan Loaded From Navigator
Receiving flight plan updates from a Navigator: 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the Flight Plan Transfer Tab. 3) Touch Off, Auto, or Prompt.

Flight Plan Update Notification

Flight Plan Transfer Tab

Connext - Flight Plan Transfer Tab - Update Prompt

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

245

Connext
Activating/Ignoring Flight Plan Updates From Navigator: Touch Ignore or Activate when the Flight Plan Update Window appears.

Flight Plan Update Window
SIRIUSXM AUDIO
SIRIUSXM AUDIO REMOTE CONTROL
NOTE: Ensure a compatible SiriusXM device is paired to the Android device.
Adjusting SiriusXM Volume Using Garmin Pilot: 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the SiriusXM Audio Tab. 3) Touch the volume slider to adjust volume. Or: 1) From anywhere in Garmin Pilot, touch to display the Connext Window. 2) Touch the volume slider to adjust the volume.
Touch to View Connext Window

Connext Window - SiriusXM Audio Volume

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Connext Window Touch to Adjust Volume
246

Connext Selecting SiriusXM Category Using Garmin Pilot: 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the SiriusXM Audio Tab. 3) Touch the Categories Button. 4) Touch the desired category from the list.
SiriusXM Audio Tab (Categories)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

247

Connext
Searching SiriusXM Satellite Radio Using Garmin Pilot: 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the SiriusXM Audio Tab. 3) Touch the Search Button. 4) Enter the artist or song using the keypad. 5) Touch Search on the keypad.

SiriusXM Audio Tab (Search)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

248

Connext
Adding a Channel to Favorites using Garmin Pilot: 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the SiriusXM Audio Tab. 3) Touch the Channels Button. 4) Touch the blue star next to the channel to add to Favorites.

SiriusXM Audio Tab (Favorites)
Viewing Favorites using Garmin Pilot: 1) From anywhere in Garmin Pilot, touch Home > . 2) Touch the SiriusXM Audio Tab. 3) Touch the Favorites Button.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

249

Connext
DATABASE CONCIERGE
NOTE: Database Concierge requires a Flight Stream 510 and a compatible navigator.
Database Concierge is a tool for updating databases for compatible Garmin navigators. Updating databases should be accomplished with the aircraft on the ground. Database Concierge aims to make this task as easy as possible by using the Wi-Fi capabilities of your Android device, as well as integration with a personalized flyGarmin account.
By default, Database Concierge is disabled. This accommodates pilots who wish to use Garmin Pilot without Database Concierge. This is also useful to pilots who use multiple Garmin Pilot devices in the cockpit. Pilots can enable Database Concierge on only one of their Garmin Pilot devices, nominating that device to download and transmit updates to their avionics.
Once set up, the ideal usage of Database Concierge is to allow Garmin Pilot to download updates while connected to the internet. Once Garmin Pilot has downloaded all of its updates, take the Android device to the aircraft. The Android device will connect to the compatible system using the Wi-Fi provided by the Flight Stream 510, and navigator updates will commence.
Adding aircraft to your flyGarmin account: 1) Visit https://fly.garmin.com 2) Enter the email address and password for your Garmin Account. This is the
same information used for Garmin Pilot subscriptions. 3) Click the Aircraft tab. 4) Click Add a new aircraft. 5) Enter the information for the aircraft and click Add Aircraft. 6) Click Add a new aircraft device. 7) Select the Garmin compatible system in the combo box. 8) Enter the System ID for the navigator. Click Where is my System ID? for
assistance locating the system ID. Click Add Device when complete.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

250

Connext
Garmin GTN series navigators use different databases than Garmin Pilot. In other words, subscriptions for Garmin Pilot do not provide databases for GTN navigators. As such, it may be necessary to purchase database subscriptions through the flyGarmin website, if not already done.
NOTE: Ensure the Flight Stream 510 is paired to the Android device. Refer to the 'Flight Stream' section for information on pairing the Flight Stream 510 via Bluetooth or WiFi.
Enabling Database Concierge and Selecting an Aircraft: 1) With the Flight Stream 510 paired to the Android device, touch Home >
> Database Concierge. 2) Touch Enable Database Concierge. 3) Verify that Garmin Pilot is showing the correct aircraft and aircraft device. 4) Touch Continue. 5) If desired, touch to disable Auto-Download Database Updates or Delete
Downloads After Installation. Touch Continue. 6) Touch Accept on the database license agreement. Once Database Concierge has at least one aircraft with a compatible Garmin navigator, it automatically downloads database information. Database Concierge will automatically check for updates when the Garmin Pilot device is connected to the internet.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

251

Connext

Managing database downloads:
From any screen, touch Home > Downloads. Or: From any screen, touch Home >

> Database Concierge > Manage .

Database Concierge

Installing Downloaded Updates on a GTN Navigator: 1) Power on aircraft avionics. 2) The GTN navigator detects Flight Stream 510. The Flight Stream's Wi-Fi
network is shown on the navigator screen. 3) On the Android device, connect to the indicated Wi-Fi network.

4) On the Android device, start Garmin Pilot and touch Home > > Database Concierge.

5) The GTN navigator shows detected updates. Touch the Start button to begin updating.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

252

Connext
Tap to View Wi-Fi Network & Password Database Concierge Updates Available on GTN 750

Flight Stream 510 Wi-Fi Network as Shown On GTN 750

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

253

Connext
Installing Downloaded Updates on G1000 NXi:
NOTE: NXi will only provide a WiFi connection if new databases have been detected for download on Garmin Pilot via a valid Bluetooth connection. If there are no database updates required NXi will not provide a WiFi signal.
NOTE: If the Android device has previously connected to the FS510, and is not connected to another WiFi source, the Android device should connect automatically to the FS510. If the Android device is connected to another WiFi source (i.e. hangar wifi), then the FS510 will not connect automatically.
1) On the Android device, start Garmin Pilot and tap Home > > Database Concierge.
2) Power on aircraft avionics. 3) On the Android device, connect via Bluetooth to the Flight Stream 510. 4) Navigate to AUX page on the MFD. 5) Turn the FMS knob to display the Connext Setup page. Verify the Android
device is connected via Bluetooth. 6) Ensure that WiFi Database Import is Enabled on the Connext Setup page. 7) On the Android device, connect to the indicated SSID Wi-Fi network on the
Aux > Connext Setup page. 8) The G1000 NXi shows detected updates on a pop up box on the lower right
corner of the MFD screen. Press the Update softkey to begin updating. 9) Database update status can be monitored on the Database page on the
MFD by selecting the small MFD knob. 10) Once the database transfers are complete the system will display a prompt
to restart the avionics to finish the database transfer process.
NOTE: The Restart soft key is only enabled when the aircraft is on the ground with engines not running.
11) Press the Restart softkey. Or: Cycle the avionics power.
12) Verify the databases are current on the systems start-up screen or via the Auxiliary Group Databases page.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

254

Connext

Database Concierge Updates Available as shown on G1000 NXi

Installing Downloaded Updates on to G3000/5000 with GDU Software 20.60 or later:
NOTE: G3000/5000 will only provide a WiFi connection if new databases have been detected for download on Garmin Pilot via a valid Bluetooth connection. If there are no database updates required, the G3000/5000 will not provide a WiFi signal.

NOTE: If the Android device has previously connected to the FS510, and is not connected to another WiFi source, the Android device should connect automatically to the FS510. If the Android device is connected to another WiFi source (i.e. hangar wifi), then the FS510 will not connect automatically.
1) Power on aircraft avionics.
2) From MFD Home on the Touchscreen Controller, touch Utilities > Setup > Connext Setup.
3) Touch the Functions tab to ensure the WiFi Database Import is Enabled on the Connext Setup screen.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

255

Connext

Connext Setup Page as Shown on G3000/5000 4) On the Android device, connect via Bluetooth to the Flight Stream 510.

Bluetooth Setup Page as Shown on G3000/5000
5) From MFD Home screen, touch Utilities > Setup > Database Status > Device Databases.
6) Touch the Start Transfer button on the Database Status screen. 7) On the Android device, connect to the indicated SSID Wi-Fi network on the
Connext Setup screen.

WiFi Setup Page as Shown on G3000/5000
8) On the Android device, start Garmin Pilot and tap Home > Connext > Database Concierge.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

256

Connext 9) The database update status will appear in the status window at the top of the page. The load is complete when 'Databases Ready' is displayed.
Database Concierge Updates Available as Shown on G3000/5000 10) A cyan double arrow will appear between the Standby and Active columns
to show which standby databases will be transferred to Active at the next power cycle.
Databases Transfer Complete Status as Shown on G3000/5000 11) Database update status can be monitored on the Database Status screen
or on Database Concierge within the Garmin Pilot app. 12) Once the database transfers are complete, the system will display a prompt
to restart the avionics on the ground to finish the database transfer process. 13) Verify the databases are current on the Database Status screen or on the
Detailed Database Information screen.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

257

Connext
DEVICES

PAIRING A DEVICE
1) Touch Home > . 2) Touch the desired device tab. 3) Touch VIEW INSTRUCTIONS. 4) Follow the instructions to pair the device to the Android.
TROUBLESHOOTING A DEVICE
If a Bluetooth connection cannot be established, it may be necessary to remove the device from the list of available devices on the Android and repeat the pairing instructions.
Removing Device From List of Available Devices: 1) On the Android device, go to Settings > Bluetooth. Ensure Bluetooth is On. 2) In the list of devices, touch the next to the device to be removed. 3) Touch Forget this Device. 4) Repeat the pairing instructions.
GARMIN PILOT COMPATIBLE WATCH
Garmin Pilot can share Flight Plans with a Garmin Pilot compatible watch via Bluetooth connection. When a Garmin Pilot compatible Watch is in 'Share Mode' it will automatically pair with an Android device.

NOTE: Route sharing can be displayed on a Garmin Pilot compatible watch with Android devices that support Bluetooth 4.0 +.

Sending User Waypoints to a Garmin Pilot Compatible Watch:

1) From any page touch Home > > All Devices.
2) Scroll down to the Other Devices section, if necessary, and select the desired watch.
3) Ensure the Garmin Pilot compatible watch is in 'Share Mode'. Touch Send next to the desired waypoint to send. Waypoints that have been shared with the watch will momentarily display a green check mark.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

258

Connext Sending Flight Plans to Garmin Pilot Compatible Watch: From any page touch Home > > Menu > Share Flight Plan. Ensure the
watch is in 'Share Mode' to receive flight plan data. Or: 1) From any page touch Home > > All Devices. 2) Scroll down to the Other Devices section, if necessary, and select the desired Watch. 3) Touch Send next to the desired flight plan to send.
Connext Page (D2 Pilot Watch Tab)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

259

Connext

FLIGHT STREAM
Flight Stream is a wireless Bluetooth gateway that integrates pre-flight and inflight activities by enabling bi-directional communication between Garmin avionics and Garmin Pilot. When Garmin Pilot is paired with a Flight Stream 110/210/510 connected to a compatible ADS-B device, the app will display a pop-up window and play an audible alert to notify users of nearby ADS-B traffic.

Flight Stream & Remote Capabilities GPS (Position, Velocity, and Time) ADS-B Weather and Traffic
SXM Weather SXM Audio Remote Control
Attitude Information Two-way Flight Plan Transfer GDL 88 and GDL 69/69A Compatible GTN Series, GNS 430W/530W, G1000 NXi, and G3000/5000 Compatible
Database Concierge

Flight

Stream 110 Stream 210 Stream 510

Flight Stream 110/210/510 Capabilities

NOTE: Up to four mobile devices can be simultaneously connected to a Flight Stream.
Flight Stream 110 enables the following communication between Garmin avionics and Garmin Pilot: · The GDL 88 shares weather and traffic with Garmin Pilot. · The GDL 69 shares SXM weather with Garmin Pilot. · A compatible GPS Navigator shares GPS information with Garmin Pilot. · Remotely control SiriusXM satellite radio from Garmin Pilot.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

260

Connext
Flight Stream 210 enables all of the previous communications including:
· Flight plan transfer to and from a compatible GPS Navigator.
· Adding of victor airways into flight plans from Garmin Pilot to a compatible GPS Navigator.
· Shares attitude information to the Garmin Pilot's Synthetic Vision and panel displays.
Flight Steam 510 enables all of the above communications including:
· Database Concierge functionality that updates databases for compatible systems, in addition to loading upcoming database cycles for automatic transition as the cycle becomes active.
NOTE: It will be necessary to disconnect from previous Wi-Fi hotspots to connect to a Flight Stream 510 over Wi-Fi.
NOTE: When connected to a Flight Stream 510 over Bluetooth, if new database downloads are available and Garmin Pilot has previously connected to the Flight Stream 510, Garmin Pilot will automatically and temporarily connect over Wi-Fi to download the new databases, then switch back to Bluetooth.
GDL 39
The GDL 39 is a Bluetooth® enabled receive-only data link radio with on-board GPS, 978 MHz (Universal Access Transceiver frequency band), and 1090 MHz Extended Squitter (1090 ES) receivers. It is designed to receive, process, and output traffic (ADS-B air-to-air, and Traffic Information Service-Broadcast (TIS-B) traffic information), and weather (Flight Information Service-Broadcast (FIS-B)) information to Garmin Pilot wirelessly through Bluetooth®. The GDL 39 Tab displays the GDL 39 Bluetooth connection status, GDL 39 firmware version, Pressure and Geometric Altitude. The Traffic information includes the number and source (i.e., ADS-B air-to-air, or TIS-B) of traffic the GDL 39 is currently tracking. The Weather information provides the age of weather products received through (FIS-B). The GDL 39 also has a pressure altitude sensor to aide in displaying the relative altitude of received traffic information.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

261

Connext
NOTE: Update the GDL 39 firmware in order to take advantage of the Bluetooth connectivity improvements in Garmin Pilot.
Updating GDL 39 / GDL 39 3D Firmware: 1) Ensure the tablet and the GDL 39 / GDL 39 3D are connected to a reliable
external power source. 2) From any page, touch Home > . 3) Touch the GDL 39 Tab. 4) Touch Update Firmware. (The 'Update Firmware' button is only displayed
when an update is available.) The Release Notes Window is displayed. 5) After reading the release notes touch Continue.

GDL 39 Release Notes

GDL 39 Firmware Warning

CAUTION: Never remove power from the GDL 39 or power off the Android device during a GDL 39 firmware update. If power is removed from the GDL 39 during a firmware update it will be rendered inoperable and service will be required.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

262

Connext
Configuring the GDL 39 / GDL 39 3D for a Pressurized or NonPressurized Aircraft: 1) From any page, touch Home > . 2) Touch the GDL 39 Tab. 3) Touch Pressurized Cabin to select/deselect.

Connext Page (GDL 39 Tab)
NOTE: When connected to a GDL 39, the device GPS information is replaced with GDL 39 GPS information. The GDL 39 GPS receiver is capable of updating position information at a much higher frequency, thus providing more accurate GPS position information.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

263

Connext
GDL 51/51R
The GDL 51 is a Bluetooth® enabled portable receiver that receives internal WAAS enabled GPS, SiriusXM weather/audio, attitude and pressure information to compatible displays and audio devices via Bluetooth® wireless technology. The GDL 51/51R tab displays the GDL 51 Bluetooth connection status and GDL 51 firmware version. The rechargeable lithium-ion battery in the GDL 51 allows the unit to receive SiriusXM data for up to 7 hours on a single charge.
The GDL 51R remote mount version can be hard wired or be wirelessly connected to G3X Touch, and aera 660/760/795/796, while also wirelessly connecting to Garmin Pilot. These products will request this information over a Connext data connection.

GDL 52/52R
The GDL 52 is a Bluetooth® enabled portable receiver receives internal WAASenabled GPS, SiriusXM weather/audio, ADS-B traffic and weather, attitude and pressure information to compatible displays and audio devices via Bluetooth® wireless technology and/or over wired connections. The GDL 52 receives traffic (ADS-B/ADS-R, air-to-air, or TIS-B) on both Universal Access Transceiver (UAT) frequency band, and 1090 MHz Extended Squitter (1090 ES) receivers. It is designed to receive, process, and output traffic (ADS-B air-to-air, and Traffic Information Service-Broadcast (TIS-B) traffic information), and weather (Flight Information Service-Broadcast (FIS-B)) information to Garmin Pilot wirelessly through Bluetooth®. The GDL 52/52R tab displays the GDL 52 Bluetooth connection status and GDL 52 firmware version. The Traffic information includes the number and source (i.e., ADS-B/ADS-R, air-to-air, or TIS-B) of traffic the GDL 52 is currently tracking. The rechargeable lithium-ion battery in the GDL 52 allows the unit to operate for up to 5 hours on a single charge.
The GDL 52R remote mount version can be hard wired or be wirelessly connected to G3X Touch, and aera 660/760/795/796, while also wirelessly connecting to Garmin Pilot. These products will request this information over a Connext data connection.

GLO

GLO receives position information from both GPS and GLONASS satellite constellations. This allows GLO to connect to up to 24 more satellites and updates its position information up to 10 times more often than devices that rely on GPS alone. As such, when connected to GLO, the Android GPS information is replaced with GLO GPS information.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

264

Connext
AERA 660/760
The aera 660/760 is a handheld touchscreen GPS navigator. Pairing an Android device with an aera 660/760 enables wireless transfer of flight plans to/from an Android device (using Garmin Pilot).
G3X TOUCH
NOTE: Interfacing with Android devices requires a Connext configuration module for proper Bluetooth operation. Without this configuration module the G3X Touch/Garmin Pilot authentication will not complete. Refer to the G3X Touch Installation Manual for more information.
NOTE: In a multiple display G3X Touch system, Connext Bluetooth connections to Garmin Pilot devices should only be made to the PFD1.
The G3X Touch is a large-format flight display with a wireless Bluetooth gateway that can be used to enable bi-directional communication between the G3X Touch and Garmin Pilot.
Pairing an Android device with G3X Touch enables the following communication between G3X Touch and Garmin Pilot: · Wireless transfer of flight plans to/from an Android device (using Garmin Pilot) to
the G3X Touch. · An Android device (with Garmin Pilot) paired with both a G3X Touch and
compatible ADS-B device, shares GPS, attitude, traffic, and weather data.
Connext Bluetooth pairing recommendations: · Only use the Bluetooth interface on PFD1 for Connext data sharing with Android
devices using Garmin Pilot. · Do not attempt to pair the G3X Touch displays to each other in a multiple display
installation. · Turn off any display's Bluetooth transceiver which is not in use.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

265

Connext

NOTE: In general, one or two devices running Garmin Pilot may be connected as shown below. Due to the wide variability of these devices, the best user experience may, in some cases, be limited to a single mobile device connected to the system components.

Connext Bluetooth Supported Configurations

One or two Android or iOS devices may be connected to the G3X Touch

iOS or Android
iOS or Android

G3X Touch

One Android or iOS* device may be connected to both a GDL and a G3X Touch.

iOS or Android
GDL

G3X Touch

A second Android or iOS* device may be connected to either the GDL or the G3X
Touch, but not both.

iOS* or Android
iOS or Android
iOS* or Android
iOS or Android

GDL G3X Touch
GDL

*iOS Garmin Pilot 7.2+ with location data disabled

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

266

Connext
GTX 345/45R
The GTX 345/45R is a Bluetooth® enabled receive-only data link radio with on-board GPS, Universal Access Transceiver, and Extended Squitter (1090 ES) receivers. It is designed to receive, process, and output traffic (ADS-B air-to-air and Traffic Information Service-Broadcast (TIS-B) traffic information) and weather (Flight Information ServiceBroadcast (FIS-B)) information to Garmin Pilot wirelessly through Bluetooth®. The GTX 345/45R Tab displays the Bluetooth connection status, GTX 345/45R firmware version, pressure and geometric altitude. The Traffic information includes the number and source (i.e., ADS-B air-to-air, or TIS-B) of traffic the GTX 345/45R is currently tracking. The Weather information provides the age of weather products received through (FIS-B). The GTX 345/45R also has a pressure altitude sensor to aid in displaying the relative altitude of received traffic information.
NOTE: When connected to a GTX 345/45R, the device GPS information is replaced with GTX 345/45R GPS information. The GTX 345/45R GPS receiver is capable of updating position information at a much higher frequency, thus providing more accurate GPS position information.
GPS 175/GNC 355/GNX 375
The GPS 175, GNC 355, & the GNX 375 are 2" by 6.25" panel mount navigators with full color capacitive touchscreen technology.
The GPS 175 is a GPS/WAAS navigator with en route, terminal, and precision/nonprecision approach capabilities. The GNC 355 combines the functionality of the GPS 175 with a built-in10-watt Comm radio. The GNX 375 combines the functionality of the GPS 175 with a mode S transponder.
Each unit is Bluetooth compatible, providing flight plan, traffic, weather, and position data to an available portable device.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

267

Connext
GI 275
The GI 275 is an electronic flight instrument that directly replaces legacy primary flight instruments in the cockpit. The GI 275 is suitable as a direct replacement for a variety of instruments, including an attitude indicator, attitude directional indicator (ADI), course deviation indicator (CDI), horizontal situation indicator (HSI), multifunction display (MFD) and engine indication system (EIS). Capable of serving as a 4-in-1 flight instrument with attitude, airspeed, altitude, and heading information, the GI 275 can also be installed as a standby to a number of glass flight displays and is available with a 60-minute back-up battery.
The GI 275 boasts a standard 3.125" form factor and rear-mount design that minimizes panel modification. Several variants of the GI 275 are available to meet the needs of many business and general aviation aicraft models. Units can be configured in many different ways to display flight plan, traffic, terrain, weather, and position data to an available portable device thanks to Bluetooth connectivity. For additional information, please refer to the GI 275 Pilot's Guide.
VIRB® ACTION CAMERAS
Garmin Pilot allows the user to remotely control any VIRB® action camera to start and stop video recording as well as take still photos. Videos and photos taken with VIRB® action cameras are stored on the VIRB® device itself, not on the phone or tablet running Garmin Pilot. VIRB® videos and photos can be accessed using the Garmin VIRB app.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

268

Connext
Connecting a VIRB® Action Camera: 1) On the VIRB® camera, select MODE > SETUP > WiFi. 2) Change WiFi to On. The camera's SSID and password will appear on the
camera display. 3) On the Android device, go to Settings > Wi-Fi. Ensure Wi-Fi is On and
select the camera's SSID from the list. 4) On the Android device, enter the password as shown on the camera's
display. 5) In Garmin Pilot, touch Home > Connext > VIRB. 6) Touch Connect.

SSID From VIRB
Camera

Password From VIRB Camera

Connecting To VIRB Over Wi-Fi

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

269

Connext
The Camera Settings provided by Garmin Pilot match the settings available in the Garmin VIRB app, allowing full control of recording without switching apps.
Configuring Camera Settings: 1) From any page touch Home > > VIRB. 2) Touch Configure Camera Settings.
Configuring Auto-Attach VIRB photos to logbook entry: 1) From any page, touch Home > > VIRB Tab. 2) Touch Configure Camera Settings. 3) Touch Auto-Attach VIRB Photos to Logbook Entry switch On.

Touch to Start/Stop Recording

Touch to Take Picture Camera Settings

Connext Page - VIRB Elite Tab

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

270

Connext

Recording using a VIRB® Action Camera: 1) From any page touch Home > > VIRB. 2) Touch Start Recording/Stop Recording.

Taking a photo with a VIRB® Action Camera:

1) From any page touch Home > 2) Touch Take Picture.

> VIRB.

Using the VIRB® Widget in Split Screen Mode: 1) From any page, touch Home > . 2) Touch Menu > . 3) Touch the VIRB tab to access the VIRB Widget.

VIRB Tab

Touch to Start/Stop Recording

VIRB Widget (Split-Screen)

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Touch to Take Photo Camera Settings
271

Subscriptions
SUBSCRIPTIONS
Garmin Pilot offers the ability to purchase two additional subscriptions. First, Georeferenced FliteCharts show aircraft position on over 11,000 approach plates. Second, Garmin's SafeTaxi shows runways, taxiways, FBOs and hangers, geo-referenced with the current location.
GEO-REFERENCED FLITECHARTS
If a FliteCharts subscription has been purchased, ensure that Garmin Pilot log-in information has been entered in the subscriptions tab of the Settings Page. Georeferenced FliteCharts will be active on all available approach charts.

Zoom In/Out

Zoom to Area Center on Aircraft Button

Geo-Referenced FliteCharts

Aircraft Symbol Blue Outline Indicates GeoReferenced Area

SAFETAXI
SafeTaxi is an enhanced feature that gives an airport diagram with greater map detail. SafeTaxi diagrams showing taxiways with identifying letters, runway numbers, airport Hot Spots, and airport landmarks including ramps, buildings, control towers, and other prominent features. Resolution is greater at lower map ranges.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

272

Subscriptions
Designated Hot Spots are recognized at airports with many intersecting taxiways and runways, and/or complex ramp areas. Airport Hot Spots are outlined to caution pilots of areas on an airport surface where positional awareness confusion or runway incursions happen most often. Hot Spots are defined with a red circle or outline around the region of possible confusion.
Viewing SafeTaxi (Subscription Required): 1) From any page, touch Home > . 2) Touch SafeTaxi to view the SafeTaxi airport diagram. 3) Touch the system back button to return Airport Info Page.
Toggle Split Screen

Building Hot Spot
Taxiway Label

Runway Number

SafeTaxi

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

273

Appendix A
APPENDIX A: LICENSE AGREEMENT AND WARRANTY
CONTACT GARMIN
Contact Garmin Product Support at flygarmin.com if you have any questions while using Garmin Pilot.
END-USER LICENSE AGREEMENT
Garmin PilotTM by Garmin application and data (the "Application") are licensed, not sold. The Application is provided under the following license and is subject to the following terms and conditions, which are agreed to by End User ("you" or "your"), on the one hand, and Garmin, International, Inc. and its affiliates (collectively, "Garmin") on the other hand.
IMPORTANT: CAREFULLY READ THIS LICENSE BEFORE USING THIS APPLICATION. USING THIS APPLICATION INDICATES YOUR ACKNOWLEDGMENT THAT YOU HAVE READ THIS LICENSE AND AGREE TO ITS TERMS. IF YOU DO NOT AGREE, THEN YOU MUST NOT USE THE APPLICATION.
LICENSE TERMS AND CONDITIONS Garmin grants you a limited, non-exclusive license to use the Application in accordance with the terms of this Agreement. You agree not to reproduce, copy, modify, decompile, disassemble, reverse engineer or create derivative works of any portion of the Application, and you may not transfer or distribute it in any form, for any purpose. Garmin reserves the right to anonymously collect and report non-personally identifiable information related to your use of the Application, such as the frequency with which you use the Application. Restrictions. You are prohibited from selling, renting or leasing the Application to any other person or third party. You acknowledge the Application should be used only for general information purposes and you should not rely on the Application for any life or death situation. The Application should not be relied upon as a sole source of navigation. No Warranty. This Application is provided to you "as is," and you agree to use it at your own risk. Garmin makes no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, content, quality, accuracy, completeness, effectiveness, reliability, merchantability, fitness for a particular purpose, usefulness, use or results to be obtained from the Application, or the Application will be uninterrupted or error-free.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

274

Appendix A
Advertisements. If the Application is partially or fully supported by advertisements you will receive advertisements on your mobile device when you use the Application. Garmin might also share on an anonymous basis the location of your mobile device with the third party supplier of advertisements so the supplier can provide you with advertisements that are relevant to the location of your device.
Meteo France Weather Data. Weather data provided and/or displayed by Meteo France in connection with the Application, hereafter called "Meteo France Weather Data", only indicates the measurement or the most probable evolution of a set of elements. You therefore acknowledge that Meteo France shall not be liable for the accuracy of Meteo France Weather Data made available to you, whether such data are produced by Meteo France or by third-parties. Meteo France, moreover, cannot be held responsible for events that may result from the interpretation and/or utilization by you, directly or indirectly, of the Meteo France Weather Data made available. Meteo France cannot be held liable for the absence of observation data in the set of Meteo France Weather Data provided to you in the case of absence or delay in availability to Meteo France of data produced and owned by national meteorological services (NMS), via ECOMET or EUMETSAT, or via the Global Transmission System (GTS). Consequently, you refrain from pursuing either Meteo France or Meteo France's own providers for events relating to any interpretation of the information contained in the Meteo France Weather Data made available to you, or for missing data. You acknowledge that you have been fully informed of the restrictions of use of such Meteo France Weather Data, of the exclusions and/or of the limitations of liability regarding such Meteo France Weather Data and of the date of validity of Meteo France Weather Data provided and/or displayed by Meteo France, if any. The Meteo France Weather Data is provided on an "as is" basis, without any warranties or conditions, express or implied, including, but not limited to, any implied warranty arising by law, statute, usage of trade, or course of dealing. You assume all responsibility and risk for the use of the Meteo France Weather Data and Meteo France disclaims all liability for any loss, injury or damage, resulting from the use of the Meteo France Weather Data, whether direct or indirect, and whether or not Meteo France has been advised of or has knowledge of the possibility of such loss, injury or damage. In no event shall Meteo France have any liability to you or any other person or entity for any compensatory, indirect, incidental, special, consequential or exemplary damages whatsoever, including, but not limited to, loss of revenue or profit, or other commercial or economic loss, even if Meteo France has been advised of the possibility of such damages, or they are foreseeable.
Disclaimer of Warranty. GARMIN AND ITS AFFILIATES DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT. NO ORAL OR WRITTEN ADVICE OR INFORMATION PROVIDED BY GARMIN SHALL CREATE A WARRANTY, AND YOU ARE NOT ENTITLED TO RELY ON ANY SUCH ADVICE OR INFORMATION. THIS DISCLAIMER OF WARRANTIES IS AN ESSENTIAL CONDITION OF THIS AGREEMENT. Some States,
Territories and Countries do not allow certain warranty exclusions, so to that extent the above exclusion may not apply to you.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

275

Appendix A
Disclaimer of Liability. GARMIN AND ITS AFFILIATES SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE APPLICATION, ANY DEFECT IN THE APPLICATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF GARMIN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. GARMIN'S AND ITS AFFILIATES' TOTAL AGGREGATE LIABILITY WITH RESPECT TO ITS OBLIGATIONS UNDER THIS AGREEMENT OR OTHERWISE WITH RESPECT TO THE APPLICATION SHALL NOT EXCEED $1.00. Some States, Territories and Countries
do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.
Export Control. You agree not to export from anywhere any part of the Application provided to you or any direct product thereof except in compliance with, and with all licenses and approvals required under, applicable export laws, rules and regulations.
Indemnity. You agree to indemnify, defend and hold Garmin and its affiliates free and harmless from and against any liability, loss, injury (including injuries resulting in death), demand, action, cost, expense, or claim of any kind or character, including but not limited to attorney's fees, arising out of or in connection with any use or possession by you of the Application.
Entire Agreement. These terms and conditions constitute the entire agreement between Garmin and you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.
Governing Law. THE ABOVE TERMS AND CONDITIONS SHALL BE GOVERNED BY THE LAWS OF KANSAS, WITHOUT GIVING EFFECT TO ITS CONFLICT OF LAWS PROVISIONS. YOU AGREE TO SUBMIT TO THE JURISDICTION OF KANSAS FOR ANY AND ALL DISPUTES, CLAIMS AND ACTIONS ARISING FROM OR IN CONNECTION WITH THE APPLICATION PROVIDED TO YOU HEREUNDER.
WARNING: For VFR use only as an aid to prudent navigation. All information is presented for reference only. You assume total responsibility and risk associated with using the AOPA Airport Directory.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

276

Appendix A
AOPA AIRPORT DIRECTORY NOTICE
AOPA MEMBERSHIP PUBLICATIONS, INC. AND ITS RELATED ORGANIZATIONS (HEREINAFTER COLLECTIVELY "AOPA") EXPRESSLY DISCLAIM ALL WARRANTIES, WITH RESPECT TO THE AOPA INFORMATION INCLUDED IN THIS DATA, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE INFORMATION IS PROVIDED "AS IS" AND AOPA DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING ITS ACCURACY, RELIABILITY, OR OTHERWISE. UNDER NO CIRCUMSTANCES INCLUDING NEGLIGENCE, SHALL AOPA BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES THAT RESULT FROM THE USE OR INABILITY TO USE THE SOFTWARE OR RELATED DOCUMENTATION, EVEN IF AOPA OR AN AOPA AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. USER AGREES NOT TO SUE AOPA AND, TO THE MAXIMUM EXTENT ALLOWED BY LAW, TO RELEASE AND HOLD HARMLESS AOPA FROM ANY CAUSES OF ACTION, CLAIMS OR LOSSES RELATED TO ANY ACTUAL OR ALLEGED INACCURACIES IN THE INFORMATION ARISING OUT OF GARMIN'S USE OF THE INFORMATION IN THE DATASETS. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OR EXCLUSION OF IMPLIED WARRANTIES OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
SIRIUSXM SATELLITE RADIO SERVICE AGREEMENT
SiriusXM Satellite Radio Inc.
Hardware and required monthly subscription sold separately. Subscription fee is consumer only. Other fees and taxes, including a one-time activation fee may apply. All programming fees and weather data subject to change. SiriusXM WX weather data displays and individual product availability vary by hardware equipment. Reception of the SiriusXM signal may vary depending on location. Subscriptions subject to Customer Agreement included with the SiriusXM Welcome Kit and available at siriusxm.com. Available only in the 48 contiguous United States. SiriusXM WX is a trademark of SiriusXM Satellite Radio Inc.
Contact SiriusXM Satellite Radio by phone at 800.985.9200 to subscribe to SiriusXM Weather and/or SiriusXM Radio.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

277

Appendix A
WEATHER DATA WARRANTY
THE WEATHER DATA SOFTWARE PRODUCT IS PROVIDED "AS IS." ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR OF NON-INFRINGEMENT ARE HEREBY EXCLUDED.
USER SAFETY
If you use SiriusXM Services it is your responsibility to exercise prudent discretion and observe all safety measures required by law and your own common sense. You assume the entire risk related to your use of the Services. SiriusXM and Garmin assume no responsibility for accidents resulting from or associated with use of the Services. Your Radio Service includes traffic and weather information, and you acknowledge that such information is not for "safety for life", but is merely supplemental and advisory in nature, and therefore cannot be relied upon as safety-critical in connection with any aircraft, sea craft or automobile usage. This information is provided "as is" and SiriusXM and Garmin disclaim any and all warranties, express and implied, with respect thereto or the transmission or reception thereof. SiriusXM and Garmin further do not warrant the accuracy, reliability, completeness or timeliness of the traffic and weather information disclosed on the Radio Service. In no event will SiriusXM and Garmin, their data suppliers, service providers, marketing/distribution, software or Internet partners or hardware manufacturers be liable to you or to any third party for any direct, indirect, incidental, consequential, special, exemplary or punitive damages or lost profits resulting from use of or interruptions in the transmission or reception of the Services.
LIMITS ON OUR RESPONSIBILITY
a) DISCLAIMERS. EXCEPT AS EXPRESSLY PROVIDED HEREIN, WE MAKE NO WARRANTY OR REPRESENTATION, EITHER EXPRESS OR IMPLIED, REGARDING THE RADIO SERVICE. YOUR USE OF THE SERVICE IS AT YOUR SOLE RISK. THE CONTENT AND FUNCTIONALITY OF THE SERVICE IS PROVIDED "AS IS" WITHOUT ANY WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. ALL SUCH WARRANTIES OR REPRESENTATIONS (INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT) ARE HEREBY DISCLAIMED.
b) LIMITATIONS OF LIABILITY. WE ARE NOT RESPONSIBLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR LOSSES RELATING TO THE USE OF THE RADIO SERVICE, WHETHER BASED ON NEGLIGENCE OR OTHERWISE. OUR TOTAL LIABILITY TO YOU AND ANY OTHER PERSONS RECEIVING OUR SERVICES, REGARDLESS OF THE CAUSE, WILL IN NO EVENT EXCEED THE AMOUNTS THAT YOU HAVE PAID TO US FOR THE SERVICE THAT YOU RECEIVED DURING THE SIX (6) MONTH PERIOD IMMEDIATELY PRIOR TO THE SPECIFIC EVENT THAT GAVE RISE TO THE APPLICABLE DAMAGE OR LOSS. THIS ALLOCATION OF RISK IS REFLECTED IN OUR PRICES. YOU MAY HAVE GREATER RIGHTS THAN DESCRIBED ABOVE UNDER YOUR STATE'S LAWS

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

278

Appendix A
This product was developed using DAFIFTM, a product of the National Geospatial-Intelligence Agency.
This product has not been endorsed or otherwise approved by the National Geospatial-Intelligence Agency, or the United States Department of Defense (10 U.S.C. 425)
a. Under 10 U.S.C. 456, no civil action may be brought against the United States on the basis of the content of a navigational aid prepared or disseminated by either the former Defense Mapping Agency (DMA), National Imagery and Mapping Agency (NIMA), or the National Geospatial-Intelligence Agency (NGA).
b. The DAFIFTM product is provided "as is," and no warranty, express or implied, including, but not limited to the implied warranties of merchantability and fitness for particular purpose or arising by statute or otherwise in law or from a course of dealing or usage in trade, is made by NGA as to the accuracy and functioning of the product.
c. Neither NGA nor its personnel will be liable for any claims, losses, or damages arising from or connected with the use of this product. The user agrees to hold harmless the United States National GeospatialIntelligence Agency. The user's sole and exclusive remedy is to stop using the DAFIF product.

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

279

Index

INDEX
A
Accelerometers 3 ADS-B 218 Advanced Map Settings 26 aera 660 265 AHRS 239 Aircraft Information 39 126 127 AIRMETS 197 Airport Information Page 112 Airport Summary 113 Airway 101 Alerts 14 Altimeter 193 Altitude 20 168 169 Amend 140 AOPA 1 Attitude Indicator 174 239 Autoroute 128 129 130 133 Autorouting
121 128 129 131 133 134
B
Base Map 158 Bearing 20 168 Binder 227 Brightness slider 13
C
Cancel 140 Chart Overlays 233 Charts 227 Clone 137 Cloud Cover 194 Connext 238 Course 20 168 Cross Track Error 20 168

D
D2 258 Database Concierge 250 Dewpoint 194 Dewpoint Spread 194 Direct-To 15 Distance (Dest) 20 168 Distance (Next) 20 168
E
ETA (Dest) 21 168 ETA (Next) 21 168 ETE (Dest) 21 168 ETE (Next) 21 168 Eurocontrol 128 European 35 121 128 129 130 13
1 132 133 134
F
FBO 112 File 139 Flight Conditions 194 Flight Plan Transfer 243 Flight Stream 260 Fly-By Waypoints 130 Frequencies 112 FSS 122 139 Fuel Prices 112
G
G3X Touch 265 Garmin Pilot Compatible Watch
258 259 Garmin Weather Data Services
43 141 181 GDL 39 181 211 261 264 267 GDL 51 264 GDL 51/51R 264

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Index-1

Index
GDL 52 264 GDL 52/52R 264 Geo-Referenced FliteCharts 272 GI 275 268 Glide Range Ring 19 154 GLO 264 Google Maps 113 114 161 GPS 175/GNX 375 267 Ground Speed 21 169 GTX 345/45R 267
H
Hot Spots 273
I
Icing 192 Icing forecast 192 IFR 193 Instrument approach procedures
117 232
L
Latitude 21 169 Lat/Lon Formats 89 LICENSE AGREEMENT 274 LIFR 193 Lightning 202 Logbook Auto-Logging 63 Logbook Photos 62 Logbook Tracks 64 Longitude 21 169
M
METAR 193 MVFR 193

N
Nav Aids 112 NavTrack 183 Nearest Navigation 16 Next Waypoint 21 169 NOTAMs 138
O
Observation Age 194 Obstacle 159 224 Ownship 151
P
Panel Mode 5 Performance data 135 Pinch Zoom 4 Pre-flight planning 87 Procedures 112 Push-pins 182
R
Radar 186 Radar and Infrared Satellite Color Pal-
ettes 150 191 Radial Intercept 90 Radial Menu 159 Recent 114 Resolve Issues With Aircraft Setup Guide
133 Rotation lock 3 Route 114 Rubber-band 90 123 Runways 112

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Index-2

Index
S
SafeTaxi 272 Scratch Pad 236 Search 114 Services 112 SID 91 SIGMETS 197 SiriusXM Audio 246 split-screen 22 141 142 166 Stadium TFRs 199 STAR 91 Station ID 195 Stopwatch 11
T
TAC 158 Temperature 195 Terrain 220 Time 21 169 Touch-dragging 4 Track 21 169 Traffic 211 Traffic Alerts 241
U
Units 42 Universal Access Transceiver
211 261 267 User Waypoints 40 US Instrument Procedures 83 US Navigation Data 81 83

V
Vertical Speed 21 169 VFR 193 VFR WAC 83 VIRB 268 Visibility 195 Visited Airports 67 68 69 70 71 72
W
Waypoint identifier 88 Weather 112 Weather Data Tab 43 Weather Synopsis 138 Widgets
5 22 141 142 166 181 182 Wind Barbs 195 203 Wind Gust 195 Winds Aloft 203 204 Wind Speed 195 WX-Altimeter 21 169 Wx Conditions 195 WX-Visibility 21 169 WX-Wind 21 169

190-01532-00 Rev. U

Garmin Pilot for Android User's Guide

Index-3

Garmin International, Inc. 1200 East 151st Street
Olathe, Kansas 66062, U.S.A.
Garmin AT, Inc. 2345 Turner Road SE Salem, OR 97302, U.S.A. Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire SO40 9LR U.K.
Garmin Corporation No. 68, Zhangshu 2nd Road Xizhi District, New Taipei City, Taiwan
flygarmin.com

190-01532-00 Rev. U

References

Adobe InDesign 15.1 (Windows) Adobe PDF Library 15.0
