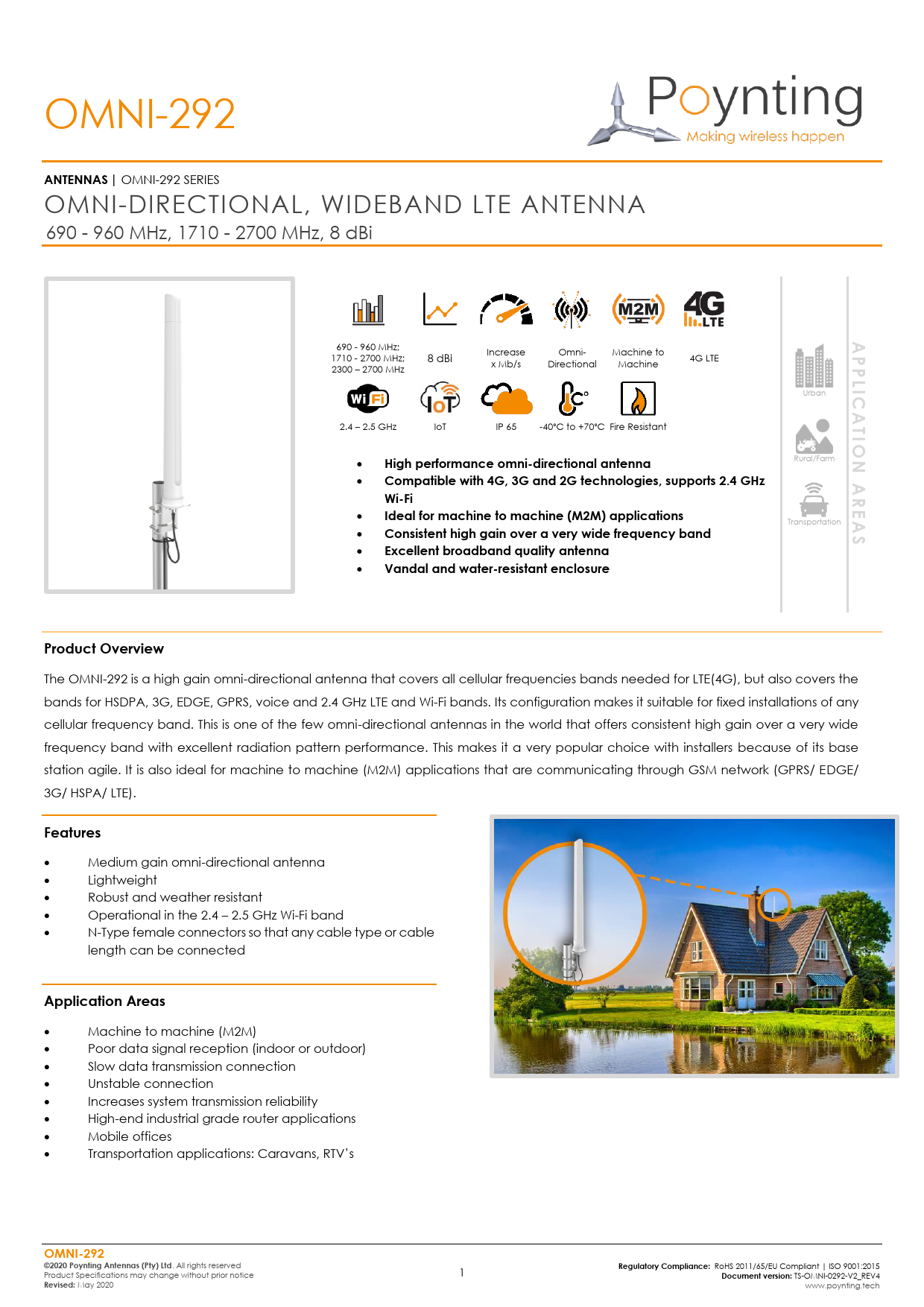

OMNI-292 ANTENNAS | OMNI-292 SERIES OMNI-DIRECTIONAL, WIDEBAND LTE ANTENNA 690 - 960 MHz, 1710 - 2700 MHz, 8 dBi APPLICATION AREAS 690 - 960 MHz; 1710 - 2700 MHz; 2300 � 2700 MHz 8 dBi Increase x Mb/s Omni- Machine to Directional Machine 4G LTE Urban 2.4 � 2.5 GHz IoT IP 65 -40�C to +70�C Fire Resistant � High performance omni-directional antenna Rural/Farm � Compatible with 4G, 3G and 2G technologies, supports 2.4 GHz Wi-Fi � Ideal for machine to machine (M2M) applications � Consistent high gain over a very wide frequency band Transportation � Excellent broadband quality antenna � Vandal and water-resistant enclosure Product Overview The OMNI-292 is a high gain omni-directional antenna that covers all cellular frequencies bands needed for LTE(4G), but also covers the bands for HSDPA, 3G, EDGE, GPRS, voice and 2.4 GHz LTE and Wi-Fi bands. Its configuration makes it suitable for fixed installations of any cellular frequency band. This is one of the few omni-directional antennas in the world that offers consistent high gain over a very wide frequency band with excellent radiation pattern performance. This makes it a very popular choice with installers because of its base station agile. It is also ideal for machine to machine (M2M) applications that are communicating through GSM network (GPRS/ EDGE/ 3G/ HSPA/ LTE). Features � Medium gain omni-directional antenna � Lightweight � Robust and weather resistant � Operational in the 2.4 � 2.5 GHz Wi-Fi band � N-Type female connectors so that any cable type or cable length can be connected Application Areas � Machine to machine (M2M) � Poor data signal reception (indoor or outdoor) � Slow data transmission connection � Unstable connection � Increases system transmission reliability � High-end industrial grade router applications � Mobile offices � Transportation applications: Caravans, RTV's OMNI-292 �2020 Poynting Antennas (Pty) Ltd. All rights reserved Product Specifications may change without prior notice Revised: May 2020 1 Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015 Document version: TS-OMNI-0292-V2_REV4 www.poynting.tech OMNI-292 Frequency Bands The OMNI-292 is an omni-directional antenna that works from 690 - 960 MHz and 1710 - 2700 MHz Indicates the LTE bands on which OMNI-292 works Antenna Overview Ports SISO / MIMO Frequency Bands Polarisation Peak Gain Coax Cable Type Coax Cable Length Connector Type Indicates the WI-FI bands on which OMNI-292 works 1 SISO 690 - 960 MHz 1710 - 2700 MHz Linear Vertical 8 dBi N/A N/A N-Type (F) OMNI-292 �2020 Poynting Antennas (Pty) Ltd. All rights reserved Product Specifications may change without prior notice Revised: May 2020 2 Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015 Document version: TS-OMNI-0292-V2_REV4 www.poynting.tech OMNI-292 Electrical Specifications Frequency bands: Gain: VSWR: Feed power handling: Input impedance: DC short: Product Box Contents Antenna: Mounting bracket: Ordering Information Commercial name: Order product code: EAN number: 690 - 960 MHz 1710 - 2700 MHz 2300� 2700 MHz 6 dBi @ 690 - 960 MHz 7 dBi @ 1710 - 2700 MHz 8 dBi@ 2300� 2700 MHz <2:1 Over 90% of the bands 10 W 50 Ohm (nominal) Mechanical Specifications Product dimensions Packaged dimensions: Weight: Packaged weight: Radome material: Radome colour: Yes Mounting Type: 646 mm x �71 mm (excl. bracket) 700 mm x 95 mm x 90 mm 0.46 kg 1.17 kg ABS (Halogen Free) Pantone � Cool Gray (1C) RAL - 7047 Pole and Walll A-OMNI-0292-V2 Pole up to 50mm diameter wall and Pole mount stainless steel bracket Environmental Specifications, Certification & Approvals Wind Survival: 190 km/h Temperature Range (Operating): -40�C to +70�C Environmental Conditions: Outdoor/Indoor OMNI-292-V2 A-OMNI-0292-V2 0707273469199 Water ingress protection ratio/standard: IP 65 Salt Spray: MIL-STD 810G/ASTM B117 Operating Relative Humidity: Up to 98% Storage Humidity: 5% to 95% - non-condensing Storage Temperature: -40�C to +70�C Enclosure Flammability Rating: UL 94-HB Impact resistance: IK 08 Product Safety & Environmental: Complies with CE and RoHS standards OMNI-292 �2020 Poynting Antennas (Pty) Ltd. All rights reserved Product Specifications may change without prior notice Revised: May 2020 3 Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015 Document version: TS-OMNI-0292-V2_REV4 www.poynting.tech OMNI-292 Antenna Performance Plots Voltage Standing Wave Ratio (VSWR) VSWR is a measure of how efficiently radio-frequency power is transmitted from a power source, through a transmission line, into a load. In an ideal system, 100% of the energy is transmitted which corresponds to a VSWR of 1:1. The OMNI-292 delivers superior performance across all bands with a VSWR of 2:1 or better over 90% of the bands. Gain* in dBi 8 dBi is the peak gain across all bands from 690- 2700 MHz. Gain @ 690 - 960 MHz: Gain @ 1710 - 2700 MHz: Gain @ 2300� 2700 MHz: 6 dBi 7 dBi 8 dBi *Antenna gain measured with polarisation aligned standard antenna Technical Drawings OMNI-292 �2020 Poynting Antennas (Pty) Ltd. All rights reserved Product Specifications may change without prior notice Revised: May 2020 4 Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015 Document version: TS-OMNI-0292-V2_REV4 www.poynting.tech OMNI-292 Radiation Patterns OMNI-292 �2020 Poynting Antennas (Pty) Ltd. All rights reserved Product Specifications may change without prior notice Revised: May 2020 5 Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015 Document version: TS-OMNI-0292-V2_REV4 www.poynting.tech OMNI-292 Mounting Options Pole Mount L-Bracket 316 Stainless Steel � included (for � 30-50mm pole) Wall Mount L-Bracket 316 Stainless Steel � included OMNI-292 �2020 Poynting Antennas (Pty) Ltd. All rights reserved Product Specifications may change without prior notice Revised: May 2020 6 Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015 Document version: TS-OMNI-0292-V2_REV4 www.poynting.tech OMNI-292 Additional Accessories Extension Cables: Up to 15m HDF 195 Various connectors available Installation poles and brackets available See accessories technical specifications on www.poynting.tech Contact Poynting Poynting Antennas (Pty) Ltd - Head Office Unit 4, N1 Industrial Park Landmarks Avenue, Samrand, 0157 South Africa Phone: +27 (0) 12 657 0050 E-mail: sales@poynting.co.za Poynting Europe Regus Business Center Neue Messe Riem Kronstadter Stra�e 4 81677 M�nchen Germany Phone: +49 89 208026538 E-mail: sales-europe@poynting.tech
