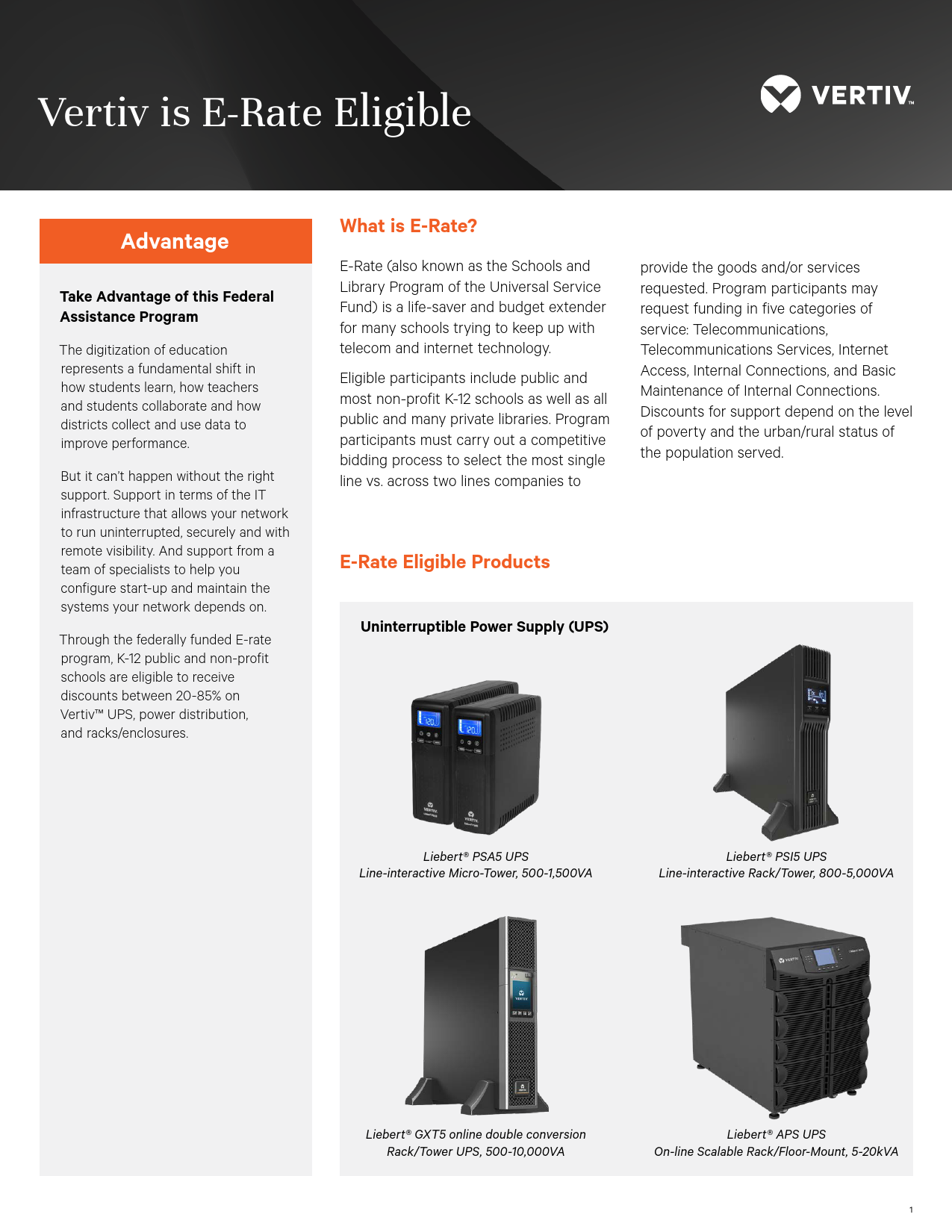

Vertiv is E-Rate Eligible Advantage Take Advantage of this Federal Assistance Program The digitization of education represents a fundamental shift in how students learn, how teachers and students collaborate and how districts collect and use data to improve performance. But it can't happen without the right support. Support in terms of the IT infrastructure that allows your network to run uninterrupted, securely and with remote visibility. And support from a team of specialists to help you configure start-up and maintain the systems your network depends on. Through the federally funded E-rate program, K-12 public and non-profit schools are eligible to receive discounts between 20-85% on VertivTM UPS, power distribution, and racks/enclosures. What is E-Rate? E-Rate (also known as the Schools and Library Program of the Universal Service Fund) is a life-saver and budget extender for many schools trying to keep up with telecom and internet technology. Eligible participants include public and most non-profit K-12 schools as well as all public and many private libraries. Program participants must carry out a competitive bidding process to select the most single line vs. across two lines companies to provide the goods and/or services requested. Program participants may request funding in five categories of service: Telecommunications, Telecommunications Services, Internet Access, Internal Connections, and Basic Maintenance of Internal Connections. Discounts for support depend on the level of poverty and the urban/rural status of the population served. E-Rate Eligible Products Uninterruptible Power Supply (UPS) Liebert� PSA5 UPS Line-interactive Micro-Tower, 500-1,500VA Liebert� PSI5 UPS Line-interactive Rack/Tower, 800-5,000VA Liebert� GXT5 online double conversion Rack/Tower UPS, 500-10,000VA Liebert� APS UPS On-line Scalable Rack/Floor-Mount, 5-20kVA 1 Vertiv is E-Rate Eligible Rack Systems Rack PDU VertivTM VR Rack VertivTM GeistTM Basic Rack PDU VertivTM DCE Rack VertivTM GeistTM Switched Rack PDU VertivTM GeistTM Monitored Rack PDU Power Assurance Package Start-up Services Distribution Assurance Package 5 Year Coverage upSpitoert Existing Equipment P 100% Co Power Assurance Package veraargtes & Labor E2m4exr7gOenn-cy S Power Assurance Package for Liebert� APS, Liebert� GXT5 or Liebert� PSI5 UPS To learn more about the E-rate Program or to apply for the E-rate Program support, visit http://www.usac.org. For more information Vertiv solutions, visit Vertiv.com/eRate or talk to your preferred Vertiv partner. 2 SKUs Eligible for Discount VertivTM Liebert� PSA5 UPS Line-interactive Micro-Tower, 500-1,500 VA Models Power Rating Input Output Input Voltage Voltage Connection PSA5-500MT120 500VA / 300W 120V 120V 6 ft. attached with NEMA 5-15P PSA5-700MT120 700VA / 420W 120V 120V 6 ft. attached with NEMA 5-15P PSA5-1000MT120 1000VA / 600W 120V 120V 6 ft. attached with NEMA 5-15P PSA5-1500MT120 1500VA / 900W 120V 120V 6 ft. attached with NEMA 5-15P Output Receptacle Battery Backed Outlets: (5) NEMA 5-15R Surge Only Outlets: (5) NEMA 5-15R Battery Backed Outlets: (5) NEMA 5-15R Surge Only Outlets: (5) NEMA 5-15R Battery Backed Outlets: (5) NEMA 5-15R Surge Only Outlets: (5) NEMA 5-15R Battery Backed Outlets: (5) NEMA 5-15R Surge Only Outlets: (5) NEMA 5-15R Unit Dimensions (WxDxH) 3.9 x 11.4 x 11 (99 x 289 x 280) 3.9 x 11.4 x 11 (99 x 289 x 280) 3.9 x 11.4 x 11 (99 x 289 x 280) 3.9 x 16.2 x 11 (99 x 412 x 280) Unit Weight (lbs) 14.6 (6.6) 16.8 (7.6) 19.0 (8.6) 28.0 (12.7) VertivTM Liebert� PSI5 UPS, 750-5,000VA Line Interactive AVR, Mini Tower, 1U and 2U Rack/Tower Models Power Rating Input Voltage Output Voltage Efficiency Wiring Unit Dimensions (WxDxH) PSI5-750MT120 750VA / 675W Nominal: 120VAC / 120VAC (100/110/115/125VAC Up to 97% Input: 5-15P; Range: 75-146VAC user-configurable) (Normal Mode) Output: 5 x 5-15R 5.7 x 14.6 x 8.7 PSI5-1100MT120 1,100VA / 990W Nominal: 120VAC / 120VAC (100/110/115/125VAC Up to 97% Input: 5-15P; Range: 75-146VAC user-configurable) (Normal mode) Output: 5 x 5-15R 5.7 x 14.6 x 8.7 PSI5-1500MT120 1,440VA / 1,350W Nominal: 120VAC / 120VAC (100/110/115/125VAC Up to 97% Input: 5-15P; Range: 75-146VAC user-configurable) (Normal mode) Output: 5 x 5-15R 5.7 x 18.9 x 8.7 PSI5-1000RM1201U 1,000VA / 900W Nominal: 120VAC / 120VAC (100/110/115/125VAC Up to 98% Input: 5-15P; Range: 75-146VAC user-configurable) (Normal mode) Output: 5 x 5-15R 17.2 x 17.7 x 1.7 PSI5-1500RM1201U 1,440VA / 1,350W Nominal: 120VAC / 120VAC (100/110/115/125VAC Up to 98% Input: 5-15P; Range: 75-146VAC user-configurable) (Normal mode) Output: 5 x 5-15R 17.2 x 22.4 x 1.7 Unit Weight (lbs) 24.7 lbs 26 lbs 40.1 lbs 36.4 lbs 45.6 lbs Liebert� PSI5 Lithium-Ion UPS Models Power Rating Input Voltage Output Voltage PSI5-1500MT120LI 1500VA / 1350W Nominal: 120VAC / 120VAC (100/110/115 Range: 75 - 146VAC /125VAC user-configurable) PSI5-1500RT120LI 1500VA / 1350kW Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115 /125VAC user-configurable) PSI5-2200RT120LI 1920VA / 1920W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115 /125VAC user-configurable) PSI5-3000RT120LI 3000VA / 2700W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115/ 125VAC user-configurable) Efficiency Wiring Unit Unit Dimensions Weight (WxDxH) (lbs) Up to 97.1% Input: 5-15P; 6.3 x 15.6 x 8.7 (Normal Mode) Output: 6 x 5-15R (158 x 397 x 220) 27.9 Up to 97.1% Input: 5-15P; 17.2 x 16.2 x 3.4 (Normal Mode) Output: 6 x 5-15R (438 x 411 x86) 28.3 Up to 97.1% (Normal Mode) Input: L5-20P; Output: 6 x 5-20R, 1 x L5-20R 17.2 x 20.1 x 3.4 (438 x 510 x 86) 39.5 Up to 97.3% (Normal Mode) Input: L5-30P; Output: 6 x 5-20R, 1 x L5-30R 17.2 x 24.8 x 34 (438 x 630 x 86) 53.5 3 Vertiv is E-Rate Eligible VertivTM Liebert� PSI5 Lithium-Ion UPS bundles with SNMP Card Models Power Rating Input Voltage Output Voltage Efficiency PSI5-1500RT120LIN 1500VA / 1350W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115 /125VAC user-configurable) Up to 97.1% (Normal Mode) PSI5-2200RT120LIN 1920VA / 1920W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115 /125VAC user-configurable) Up to 97.1% (Normal Mode) PSI5-3000RT120LIN 3000VA / 2700W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115/ 125VAC user-configurable) Up to 97.3% (Normal Mode) Wiring Unit Unit Dimensions Weight (WxDxH) (lbs) Input: 5-15P; Output: 17.2 x 16.2 x 3.4 6 x 5-15R (438 x 411 x86) 28.3 Input: L5-20P; Output: 6 x 5-20R, 1 x L5-20R 17.2 x 20.1 x 3.4 (438 x 510 x 86) 39.5 Input: L5-30P; Output: 6 x 5-20R, 1 x L5-30R 17.2 x 24.8 x 34 (438 x 630 x 86) 53.5 Liebert� PSI5 UPS Line-interactive Rack/Tower, 800-5,000 VA Models Power Rating Input Voltage Output Voltage PSI5-800RT120 800VA / 720W 100/110/115/120/125 100/110/115/120/125 PSI5-1100RT120 1100VA / 990W 100/110/115/120/125 100/110/115/120/125 PSI5-1500RT120 1500VA / 1350W 100/110/115/120/125 100/110/115/120/125 PSI5-2200RT120 1920VA / 1920W 100/110/115/120/125 100/110/115/120/125 PSI5-3000RT120 2880VA / 2700W 100/110/115/120/125 100/110/115/120/125 PSI5-5000RT208 4250VA / 3825W 100/110/115/120/125 100/110/115/120/125 Input Connection NEMA 5-15 NEMA 5-15 NEMA 5-15 NEMA L5-20 std 5-20 adapter included NEMA L5-30P NEMA L6-30R Output Receptacle Not controllable: (3) NEMA5-15R Controllable: (3) NEMA5-15R Not controllable: (3) NEMA5-15R Controllable: (3) NEMA5-15R Not controllable: (3) NEMA5-15R Controllable: (3) NEMA5-15R Not controllable: (3) NEMA5-15/20R, (1) NEMAL5-20R Controllable: (3) NEMA5-20R Not controllable: (3) NEMA5-15/20R, (1) NEMAL5-20R Controllable: (3) NEMA5-20R Not controllable: (3) L6-30R Controllable: (1) NEMAL6-30R Unit Dimensions (WxDxH) 17.2 x 16.1 x 3.5 (438 x 410 x 88) 17.2 x 16.1 x 3.5 (438 x 410 x 88) 17.2 x 20 x 3.5 (438 x 510 x 88) 17.2 x 24.8 x 3.5 (438 x 630 x 88) 17.2 x 24.8 x 3.5 (438 x 630 x 88) 17.2 x 24.8 x 3.5 (438 x 630 x 88) Unit Weight (lbs) 28.4 29.5 42.6 59.1 70.8 87.7 Liebert� PSI5 2U UPS bundle with Liebert� IS-UNITY-SNMP Line-interactive Rack/Tower, 800-3,000VA Models Power Rating Input Voltage Output Voltage Efficiency PSI5-800RT120N 800VA / 720W Nominal: 120VAC / 120VAC (100/110/115/125VAC Up to 96% Range: 75-146VAC user-configurable) (Normal Mode) PSI5-1100RT120N PSI5-1500RT120N PSI5-2200RT120N 1100VA / 990W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115/125VAC user-configurable) Up to 96% (Normal Mode) 1500VA / 1350W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115/125VAC user-configurable) Up to 96% (Normal Mode) 2200VA / 1920W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115/125VAC user-configurable) Up to 96% (Normal Mode) PSI5-3000RT120N 3000VA / 2700W Nominal: 120VAC / Range: 75-146VAC 120VAC (100/110/115/125VAC user-configurable) Up to 96% (Normal Mode) Wiring Input: 5-15P; Output: 6 x 5-15R Input: 5-15P; Output: 6 x 5-15R Input: 5-15P; Output: 6 x 5-15R Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R Unit Unit Dimensions Weight (WxDxH) (lbs) 17.2 x 16.1 x 3.5 (438 x 410 x 88) 28.4 17.2 x 16.1 x 3.5 (438 x 410 x 88) 29.5 17.2 x 20 x 3.5 (438 x 510 x 88) 42.6 17.2 x 24.8 x 3.5 (438 x 630 x 88) 59.1 17.2 x 24.8 x 3.5 (438 x 630 x 88 70.8 4 VertivTM Liebert� GXT5 UPS Online double conversion UPS Rack/Tower, 500-3,000 VA Models Power Rating Input Voltage Output Voltage Efficiency GXT5-500LVRT2UXL GXT5-750LVRT2UXL GXT5-1000LVRT2UXL GXT5-1500LVRT2UXL GXT5-2000LVRT2UXL GXT5-3000LVRT2UXL 500VA / 500W Typical: 120V / Range: 60-150V 750VA / 750W Typical: 120V / Range: 60-150V 1000VA / 1000W Typical: 120V / Range: 60-150V 1500VA /1350W Typical: 120V / Range: 60-150V 2000VA / 1800W Typical: 120V / Range: 60-150V 3000VA / 2700W Typical: 120V / Range: 60-150V 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Wiring Unit Dimensions (WxDxH) Input: NEMA 5-15P; Output: 5-15R � 6 16.9 x 15.7 x 3.4 Input: NEMA 5-15P; Output: 5-15R � 6 16.9 x 15.7 x 3.4 Input: NEMA 5-15P; Output: 5-15R � 6 16.9 x 15.7 x 3.4 Input: NEMA 5-15P A; Output: 5-15R � 6 Input: NEMA L5-20P A; Output: L5-20R +5-20R � 6 Input: NEMA L5-30P; Output: L5-30R +5-20R � 6 16.9 x 18.6 x 3.4 16.9 x 18.5 x 3.4 16.9 x 21.3 x 3.4 Unit Weight (lbs) 37 lbs 37 lbs 37 lbs 46.2 lbs 47.5 lbs 66 lbs External Battery Cabinet GXT5-EBC36VRT2U GXT5-EBC48VRT2U GXT5-EBC72VRT2U 16.9 x 15.8 x 3.4 16.9 x 18.6 x 3.4 16.9 x 21.3 x 3.4 48.4 lbs 57.3 lbs 85.8 lbs VertivTM Liebert� GXT5 UPS bundle with Liebert� RDU101 Online double conversion UPS Rack/Tower, 500-3,000 VA Models Power Rating Input Voltage Output Voltage Efficiency GXT5-500LVRT2UXLN 500VA / 500W Typical: 120V / Range: 60-150V GXT5-750LVRT2UXLN 750VA / 750W Typical: 120V / Range: 60-150V GXT5-1000LVRT2UXLN 1000VA / 1000W Typical: 120V / Range: 60-150V GXT5-1500LVRT2UXLN 1500VA /1350W Typical: 120V / Range: 60-150V GXT5-2000LVRT2UXLN 2000VA / 1800W Typical: 120V / Range: 60-150V GXT5-3000LVRT2UXLN 3000VA / 2700W Typical: 120V / Range: 60-150V 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% 110/115/120/125VAC; (user-configurable); �3% Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Up to 98% Active ECO Mode; up to 95% on-line mode Wiring Input: NEMA 5-15P; Output: 5-15R � 6 Input: NEMA 5-15P; Output: 5-15R � 6 Input: NEMA 5-15P; Output: 5-15R � 6 Input: NEMA 5-15P A; Output: 5-15R � 6 Input: NEMA L5-20P A; Output: L5-20R +5-20R � 6 Input: NEMA L5-30P; Output: L5-30R +5-20R � 6 Unit Dimensions (WxDxH) 16.9 x 15.7 x 3.4 16.9 x 15.7 x 3.4 16.9 x 15.7 x 3.4 16.9 x 18.6 x 3.4 16.9 x 18.5 x 3.4 16.9 x 21.3 x 3.4 Unit Weight (lbs) 37 lbs 37 lbs 37 lbs 46.2 lbs 47.5 lbs 66 lbs 5 Vertiv is E-Rate Eligible VertivTM Liebert� GXT5 UPS, 3,000-20,000VA 208VAC UPS Line-interactive Rack/Tower, 800-3,000VA Models Power Rating Input Voltage Output Voltage GXT5-3KL620RT2UXL, Liebert� GXT5 3,000VA / 2,700W 208 VAC nominal; variable based on output load 208 VAC Efficiency Wiring Height Width Depth Weight Up to 98% Active ECO Mode; up to 95% on-line mode Input: L6-20P; Ouput: 2 x L6-15R and 2 x L6-20R 3.4 in 16.9 in 21.3 in 65.1 lb GXT5-3KL630RT2UXL, Liebert� GXT5 3,000VA / 3,000W 208 VAC nominal; variable based on output load 208 VAC Up to 98% Active ECO Mode; up to 95% on-line mode Input: L6-30P; Ouput: 2 x L6-15R and 2 x L6-30R 3.4 in 16.9 in 21.3 in 65.1 lb GXT5-5000MVRT4UXLN, Liebert� GXT5 5,000VA / 5,000W Typical: 208VAC / 208/120VAC Range: 176-280VAC (user- configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out; Optional PODs available 6.8 in 16.9 in 25.6 in 125.6 lb GXT5-6000MVRT4UXLN, Liebert� GXT5 6,000VA / 6,000W Typical: 208VAC / 208/120VAC Range: 176-280VAC (user- configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out; Optional PODs available 6.8 in 16.9 in 25.6 in 125.6 lb GXT5-8000MVRT6UXLN, Liebert� GXT5 8,000VA / 8,000W Typical: 208VAC / 208/120VAC Range: 176-280VAC (user- configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out; Optional PODs available 10.2 in 16.9 in 25.6 in 224.8 lb GXT5-10KMVRT6UXLN, Liebert� GXT5 10,000VA / 10,000W Typical: 208VAC / 208/120VAC Range: 176-280VAC (user- configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out; Optional PODs available 10.2 in 16.9 in 25.6 in 224.8 lb GXT5-15KMVRT11UXLN, VertivTM Liebert� GXT5 UPS | Online UPS Rack/Tower 15,000VA / 15,000W Typical: 208VAC / 208/120VAC Range: 176-280VAC (user-configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out; Optional PODs available 19.0 in 16.9 in 26.7 in 396.6 lbs GXT5-20KMVRT11UXLN, VertivTM Liebert� GXT5 UPS | Online UPS Rack/Tower 20,000VA / 20,000W Typical: 208VAC / 208/120VAC Range: 176-280VAC (user-configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out; Optional PODs available 19.0 in 16.9 in 26.7 in 396.6 lbs GXT5-5000HVRT5UXLN, Liebert� GXT5 5,000VA / 5,000W Typical: 208VAC / Range: 176-288VAC 200/208/220/230/240 VAC (user-configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out + Output: 2x L6-20R, 2 x L6-30R 8.5 in 16.9 in 24.8 in 156.7 lb GXT5-6KL630RT5UXLN, Liebert� GXT5 4,900 VA / 4,600 W Typical: 208VAC / Range: 175-280 VAC 200/208/220/230/240 VAC (user-configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Input: L6-30P; Output: 2 x L6-20R and 2 x L6-30R 8.5 in 16.9 in 23.6 in 149.1 lb GXT5-8000HVRT5UXLN, Liebert� GXT5 8,000VA / 8,000W Typical: 208VAC / Range: 176-288VAC 200/208/220/230/240 VAC (user-configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out + Output: 2 x L6-20R, 2 x L6-30R 8.5 in 16.9 in 24.8 in 164.2 lb GXT5-10KHVRT5UXLN, Liebert� GXT5 10,000VA / 10,000W Typical: 208VAC / Range: 176-288VAC 200/208/220/230/240 VAC (user-configurable) Up to 98% Active ECO Mode; up to 95% on-line mode Hardwired in/ out + Output: 2 x L6-20R, 2 x L6-30R 8.5 in 16.9 in 24.8 in 166.4 lbs GXT5-EBC72VRT2U, Liebert� External Battery for 72V Liebert� GXT5 UPS (3kVA) 3.4 in 16.9 in 15.8 in 48.4 lbs GXT5-EBC144VRT2U, Liebert� External Battery for 144V Liebert� GXT5 UPS 3.4 in 16.9 in 26.8 in 81.6 lbs GXT5-EBC288VRT4U, Liebert� External Battery for 288V Liebert 6.8 in 16.9 in 26.8 in 189.6 lb 6 Liebert� APS Online Scalable Rack/Floor-Mount, 5-20 kVA EPA models Product kVA Rating Input Volts 50 - 60Hz Liebert� APS UPS 200-240V input, 200-240V output Liebert� APS 15 kVA rated, 10 bay Frame, 1PH Transformer-Free Liebert APS 15 kVA rated, 10 bay Frame, 1PH Transformer-Free Liebert APS 15 kVA rated, 10 bay Frame, 1PH Transformer-Free Liebert� APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Free Liebert APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Free Liebert APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Free Liebert APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Free 5 200-240 10 200-240 15 200-240 5 200-240 10 200-240 15 200-240 20 200-240 Power Factor 0.9 0.9 0.9 0.9 0.9 0.9 0.9 Output Power, kW Model Number 4.5 AS1A* or ASAA* 9.0 AS1B* or ASAB* 13.5 AS1C* or ASAC* 4.5 AS2A* or ASBA* 9.0 AS2B* or ASBB* 13.5 AS2C* or ASBC* 18.0 AS2D* or ASBD* Liebert� APS 15 kVA rated, 12 bay Frame, 1PH Transformer-Based 10 200-240 0.9 9.0 Liebert APS 15 kVA rated, 12 bay Frame, 1PH Transformer-Based 15 200-240 0.9 13.5 Liebert� APS UPS 200-240V input, Liebert� APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Based 10 200-240 0.9 9.0 200/100-240/120V output Liebert APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Based 15 200-240 0.9 13.5 Liebert APS 20 kVA rated, 16 bay Frame, 1PH Transformer-Based 20 200-240 0.9 18.0 Liebert� APS 15 kVA rated, 10 bay Frame, 2PH Transformer-Free 5 200-240 0.9 4.5 Liebert APS 15 kVA rated, 10 bay Frame, 2PH Transformer-Free 10 200-240 0.9 9.0 Liebert APS 15 kVA rated, 10 bay Frame, 2PH Transformer-Free 15 200-240 0.9 13.5 Liebert� APS UPS 200/100-240/120V input, Liebert� APS 20 kVA rated, 16 bay Frame, 2PH Transformer-Free 5 200-240 0.9 4.5 200/100-240/120V output Liebert APS 20 kVA rated, 16 bay Frame, 2PH Transformer-Free 10 200-240 0.9 9.0 Liebert APS 20 kVA rated, 16 bay Frame, 2PH Transformer-Free 15 200-240 0.9 13.5 Liebert APS 20 kVA rated, 16 bay Frame, 2PH Transformer-Free 20 200-240 0.9 18.0 AS3B* or ASCB* AS3C* or ASCC* AS4B* or ASDB* AS4C* or ASDC* AS4D* or ASDD* AS5A* or ASEA* AS5B* or ASEB* AS5C* or ASEC* AS6A* or ASFA* AS6B* or ASFB* AS6C* or ASFC* AS6D* or ASFD* Liebert� Foundation Hinged Body Rack Models U Height 202637G2 12 202637G1 12 Height mm (inches) 609.6 (24") 609.6 (24") Width mm (inches) 609.6 (24") 609.6 (24") Depth mm (inches) 609.6 (24") 304.8 (12") 7 Vertiv is E-Rate Eligible VertivTM VR Complete Rack Part Number U VR3100 42 VR3100SP 42 VR3100TAA 42 VR3300 42 VR3300SP 42 VR3300TAA 42 VR3150 42 VR3150SP 42 VR3150TAA 42 VR3350 42 VR3350SP 42 VR3350TAA 42 VR3107 48 VR3107SP 48 VR3107TAA 48 VR3307 48 VR3307SP 48 VR3307TAA 48 VR3157 48 VR3157SP 48 VR3157TAA 48 VR3357 48 VR3357SP 48 VR3357TAA 48 VR3105 45 VR3305 45 Height mm (inches)* 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2000 (78.6") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2265 (89.2") 2131 (83.9") 2131 (83.9") Width mm (inches)* Depth mm (inches)* 600 (23.6") 600 (23.6") 600 (23.6") 600 (23.6") 600 (23.6") 600 (23.6") 800 (31.5") 800 (31.5") 800 (31.5") 800 (31.5") 800 (31.5") 800 (31.5") 600 (23.6") 600 (23.6") 600 (23.6") 600 (23.6") 600 (23.6") 600 (23.6") 800 (31.5") 800 (31.5") 800 (31.5") 800 (31.5") 800 (31.5") 800 (31.5") 600 (23.6") 600 (23.6") 1100 (43.3") 1100 (43.3") 1100 (43.3") 1200 (47.8") 1200 (47.8") 1200 (47.8") 1100 (43.3") 1100 (43.3") 1100 (43.3") 1200 (47.8") 1200 (47.8") 1200 (47.8") 1100 (43.3") 1100 (43.3") 1100 (43.3") 1200 (47.8") 1200 (47.8") 1200 (47.8") 1100 (43.3") 1100 (43.3") 1100 (43.3") 1200 (47.8") 1200 (47.8") 1200 (47.8") 1100 (43.3") 1200 (47.8") * Nominal dimensions, reference submittal drawings for exact dimensions VRXXXXSP ship with 2000 lb. rated shock packaging VRXXXXTAA are TAA Compliant 8 VertivTM DCE Optimized Rack Systems Models E24611 E42611 E42612 E42711 E42712 E42811 E42812 E45611 E45612 E45711 E45712 E45811 E45812 E48611 E48612 E48711 E48712 E48811 E48812 U Height 24U 42U 42U 42U 42U 42U 42U 45U 45U 45U 45U 45U 45U 48U 48U 48U 48U 48U 48U Height (in / mm) 47.2 in / 1200 mm 78.1 in / 2000 mm 78.1 in / 2000 mm 78.1 in / 2000 mm 78.74 in / 2000 mm 78.74 in / 2000 mm 78.74 in / 2000 mm 84 in / 2136 mm 84 in / 2136 mm 84in / 2136mm 84 in / 2136 mm 84 in / 2136 mm 84 in / 2136 mm 89.35 in / 2269 mm 89.35 in / 2269 mm 89.35 in / 2269 mm 89.35 in / 2269 mm 89.35 in / 2269 mm 89.35 in / 2269 mm Width (in / mm) 23.6 in / 600 mm 23.6 in / 600 mm 23.6 in / 600 mm 27.55 in / 700 mm 27.55 in / 700 mm 31.49 in / 800 mm 31.49 in / 800 mm 23.6 in / 600 mm 23.6 in / 600 mm 27.55in / 700mm 27.55 in / 700 mm 31.49 in / 800 mm 31.49 in / 800 mm 23.6 in / 600 mm 23.6 in / 600 mm 27.55 in / 700 mm 27.55 in / 700 mm 31.49 in / 800 mm 31.49 in / 800 mm Depth (in / mm) 43.3 in / 1100 mm 43.3 in / 1100 mm 47.3 in / 1200 mm 43.3 in / 1100 mm 47.24 in / 1200 mm 43.3 in / 1100 mm 47.24 in / 1200 mm 43.3 in / 1100 mm 47.3 in / 1200 mm 43.3in / 1100mm 47.24 in / 1200 mm 43.3 in / 1100 mm 47.3 in / 1200 mm 43.3 in / 1100 mm 47.3 in / 1200 mm 43.3 in / 1100 mm 47.24 in / 1200 mm 43.3 in / 1100 mm 47.3 in / 1200 mm Weight (lbs / kgs) 275 lbs / 125 kgs 398 lbs / 181 kgs 417 lbs / 189 kgs 429 lbs / 194.59 kgs 429 lbs / 194.59 kgs 445 lbs / 201.849 kgs 473 lbs / 214.549 kgs 426 lbs / 193.230 kgs 442 lbs / 200.488 kgs 450 lbs / 204.117 kg 466 lbs / 211.374 kgs 478 lbs / 216.817 lbs 496 lbs / 224.98 kgs 446 lbs / 202.30 kgs 462 lbs / 209.56 kgs 471 lbs / 213.64 kgs 503 lbs / 228.16 kgs 501 lbs / 227.25 kgs 534 lbs / 242.22 kgs 9 Vertiv is E-Rate Eligible VertivTM GeistTM Rack PDU Model VP9562 VP9563 VP9571A VP7541 VP9567 VP8841 VP8832 VP8830 VP8865 VP8866 PDU Type PDU Sub-Type Basic Basic Basic Basic Basic Monitored Monitored Monitored Monitored Monitored Standard Standard Standard Standard Standard Unit Level Unit Level Unit Level Unit Level Unit Level Horizontal / Vertical Volts Amps Max kW H 120V 15A 1.4kW H 120V 20A 1.9kW H 208V 30A 4.9kW V 208V 30A 4.9kW V 120V 15A 1.4kW V 208V 30A 4.9kW V 120V 30A 2.8kW V 120V 20A 1.9kW V 120/208V WYE 30A 8.6kW V 208V DELTA 60A 17.2kW VP8867 Monitored Unit Level V 208V DELTA 60A 17.2kW VP7811B VP8868 VP8941 VP8641 VP8932 VP8930 Monitored Monitored Switched Switched Switched Switched VP4551V Monitored VP5870V Switched VP8965 Switched VP5665V Switched VP8959NA3 Switched Unit Level H Unit Level V Unit Level Monitoring V Outlet Level Monitoring V Unit Level Monitoring V Unit Level Monitoring V Outlet Level V Outlet Level Monitoring V Unit Level Monitoring V Outlet Level Monitoring V Unit Level Monitoring V 208V 30A 208V DELTA 35A 208V 30A 208V 30A 120V 30A 120V 20A 208V Delta 60A 208V 30A 120/208V WYE 30A 208V Delta 30A 208V 20A 4.9kW 10.0kW 4.9kW 4.9kW 2.8kW 1.9kW 17.2kW 4.9kW 8.6kW 8.6kW 3.3kW Plug Type 5-15P 5-20P L6-30P L6-30P 5-15P L6-30P L5-30P L5-20P L21-30P 3P+E (IP44) 3P+E (IP44) L6-30P 3P+E CA L6-30P L6-30P L5-30P L5-20P 3P+E (IP67) L6-30P L21-30P L15-30P L6-20P Receptacle QTY / Type (10) 5-15R (10) 5-20R (12) C13 (20) C13 / (4) C19 (14) 5-15R (36) C13 / (6) C19 (24) 5-20R (24) 5-20R (36) C13 / (6) C19 / (2) 5-20R (12) C13 / (12) C19 Breaker Y Y Y Y Y Y Y Y Y (30) C13 Y (12) C13 / (4) C19 Y (36) C13 / (6) C19 Y (20) U-Lock C13 / (4) U-Lock C19 Y (20) U-Lock C13 / (4) U-Lock C19 Y (24) 5-20R Y (24) 5-20R (12) U-Lock C13 / (12) U-Lock C19 Y (30) U-Lock C13 / (6) U-Lock C19 Y (18) U-Lock C13 / (6) U-Lock C19 Y (30) U-Lock C13 / (6) U-Lock C19 Y (21) U-Lock C13 / (3) U-Lock C19 *Product chart shows limited spec information. For complete product details visit Vertiv.com. Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA � 2021 Vertiv Group Corp. All rights reserved. VertivTM and the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness here, Vertiv Group Corp. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications, rebates and other promotional offers are subject to change at Vertiv's sole discretion upon notice. VR-02550 (R02/21) 10
