Instruction Manual for STIHL models including: MS 194 T Chainsaw, MS 194 T, Chainsaw
2 Top Handle For operating, holding, controlling and carry‐ ing the chainsaw. 3 Spiked Bumper Toothed stop for holding saw steady against wood while cutting.

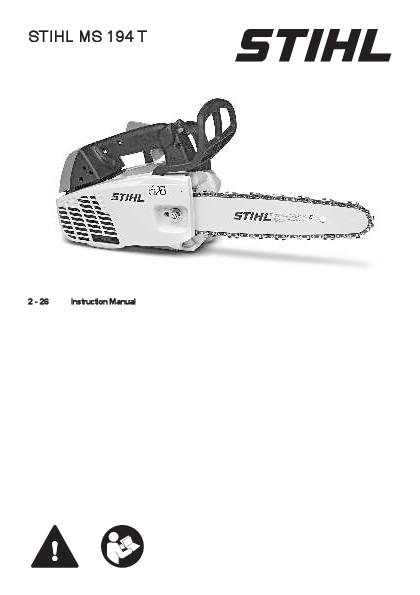

STIHL MS 194 T 2 - 26 Instruction Manual English Contents 1 Introduction................................................. 2 2 Guide to Using this Manual.........................2 3 Overview..................................................... 2 4 Safety Precautions......................................4 5 Preparing the Saw for Operation.............. 10 6 Assembling the Saw................................. 10 7 Engaging and Disengaging the Chain Brake .................................................................. 12 8 Mixing Fuel and Refueling the Chainsaw..12 9 Starting and Stopping the Engine............. 14 10 Checking the Saw..................................... 15 11 Operating the Saw.................................... 17 12 After Finishing Work..................................19 13 Transporting..............................................19 14 Storing.......................................................19 15 Cleaning....................................................19 16 Maintenance............................................. 21 17 Repairing...................................................22 18 Troubleshooting........................................ 22 19 Specifications............................................24 20 Bar and Chain Combinations.................... 25 21 Spare Parts and Accessories....................25 22 Disposal.................................................... 25 23 EC Declaration of Conformity................... 26 1 Introduction Dear Customer, Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme con- ditions. STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support. STIHL expressly commit themselves to a sus- tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product. Dr. Nikolas Stihl IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE. 2 2 Guide to Using this Manual 2.1 Symbols used with warnings in the text WARNING This symbol indicates dangers that can cause serious injuries or death. The measures indicated can avoid serious injuries or death. NOTICE This symbol indicates dangers that can cause damage to property. The measures indicated can avoid damage to property. 2.2 Symbols in Text This symbol refers to a chapter in this instruction manual. 3 Overview 3.1 Chainsaw 2 1 8 76 9 # 3 5 4 10 16 11 13 14 15 12 17 28 18 27 19 26 21 20 25 24 23 22 1 Carburetor Adjusting Screws For tuning the carburetor. 0000-GXX-7572-A0 0458-568-8321-B © ANDREAS STIHL AG & Co. KG 2021 0458-568-8321-B. VA0.C21. Printed on chlorine-free paper Printing inks contain vegetable oils, paper can be recycled. Translation of Original Instruction Manual 0000008722_005_GB 3 Overview 2 Top Handle For operating, holding, controlling and carry- ing the chainsaw. 3 Spiked Bumper Toothed stop for holding saw steady against wood while cutting. 4 Guide Bar Supports and guides the saw chain. 5 Saw Chain Cuts the wood. 6 Tensioning Screw Adjusts chain tension. 7 Chain Sprocket Toothed wheel that drives the chain. 8 Muffler with Spark Arresting Screen Reduces chainsaw noise emissions. 9 Chain Sprocket Cover Covers the chain sprocket and secures the guide bar to the chainsaw. 10 Nut Secures chain sprocket cover to chainsaw. 11 Chain Catcher Reduces risk of operator contact with the chain if it comes off the bar or breaks. 12 Front Hand Guard Helps protect operator's left hand from con- tact with the saw chain, serves to engage the chain brake and activates the chain brake by inertia in certain kickback situations. 13 Master Control Lever For starting, running and stopping the engine. 14 Throttle Lever Controls engine speed. 15 Throttle Trigger Lockout Unlocks the throttle trigger. 16 Shroud Covers the engine. 17 Shroud Lock Secures shroud to chainsaw 18 Air filter Filters the air entering the engine. 19 Ring For hanging up the saw while working in the tree. 20 Spark Plug Boot Connects ignition lead to spark plug 21 Spark Plug Ignites fuel-air mixture in the engine. English 22 Manual Fuel Pump Eases engine starts. 23 Choke Lever Enriches mixture for engine starts. 24 Starter Grip Serves to crank the engine. 25 Handlebar For holding and controlling the chainsaw. 26 Oil Tank Cap Closes the oil tank. 27 Fuel Tank Cap Closes the fuel tank. 28 Chain Scabbard Helps protect user from contact with saw chain. # Serial Number 3.2 Symbols Meanings of symbols that may be on the chain- saw: This symbol marks the fuel tank. This symbol marks the chain oil tank. The chain brake is engaged or disen- gaged in this direction. This symbol shows the direction of rotation of the chain. Rotate in this direction to increase chain tension. This symbol denotes the manual fuel pump. Master Control lever is moved in this direc- tion to stop the engine. Master Control lever is moved to this posi- tion to stop the engine. Engine is operated with the Master Control lever in this position. Engine is started with the Master Control lever in this position. Engine is made ready for start with the choke lever in this position. Engine is started with the choke lever in this position. LWA Guaranteed sound power level accord- ing to directive 2000/14/EC in dB(A) in order to make sound emissions of products comparable. 0458-568-8321-B 3 English 4 Safety Precautions 4.1 Warning Symbols Meanings of warning signs on the chainsaw: Observe safety notices and take the necessary precautions. Read, understand and save the instruction manual. Wear safety glasses, hearing protec- tion and a hard hat. Wear long trousers with cut-retardant inserts and cut-retardant sleeves on both arms. Hold the saw firmly with both hands. Observe safety notices on kickback and take the necessary precautions. Only persons who have been trained in the use of a tree service chainsaw may use this chainsaw. 4.2 Intended Use The STIHL MSA 194 T tree service chainsaw is designed for tree surgery work and cutting in the crown of the standing tree. The chainsaw must not be used for cutting work on the ground. WARNING Using the chainsaw for purposes for which it is not designed may result in serious or fatal inju- ries and damage to property. Use the chainsaw as described in this instruction manual. 4.3 The Operator WARNING Persons who have not been trained in tree surgery and maintenance techniques with a tree service chainsaw cannot recognize or assess the dangers of the chainsaw. The user or other persons may sustain serious or fatal injuries. 4 Safety Precautions Read, understand and save the instruction manual. Only persons who have been trained in the use of a tree service chainsaw may use this chainsaw. If the chainsaw is passed on to another per- son: Always give them the instruction man- ual. Make sure the user meets the following requirements: The user must be rested. The user must be in good physical con- dition and mental health to operate and work with the chainsaw. The user is able to recognize and assess the risks involved in using the chainsaw. The user must be of legal age or is being trained in a trade under supervi- sion in accordance with national rules and regulations. The user has received instruction from a STIHL servicing dealer or other experi- enced user before working with the chainsaw for the first time. The user must not be under the influ- ence of alcohol, medication or drugs. If you have any queries: Contact a STIHL servicing dealer for assistance. The chainsaw's ignition system produces an electromagnetic field. This field may interfere with some pacemakers. This can result in seri- ous or fatal injuries. If the user has a pacemaker: Make sure the pacemaker is not affected. 4.4 Clothing and equipment WARNING Long hair may be pulled into the chainsaw while working. This may result in serious injury to the user. Tie up and confine long hair above your shoulders. Objects can be thrown at high speed during operation. This may result in injury to the user. Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commer- cially with the corresponding mark- ing. STIHL recommends wearing a face mask. Wear a long-sleeved, close fitting top. 4 0458-568-8321-B 4 Safety Precautions English Noise is generated during operation. Noise Make sure that children cannot play with can damage your hearing. the chainsaw. Wear ear protection. Hot exhaust gas is emitted through the muffler while the engine is running. Hot exhaust gas can ignite easily flammable materials and Falling objects can cause head injuries. If objects are likely to fall while work- ing: wear a hard hat. cause a fire. Keep exhaust gas well away from easily flammable materials. 4.6 Safe Condition Dust can be whipped up during operation: 4.6.1 Chainsaw Whipped up dust can damage the respiratory The chainsaw is in a safe condition if the follow- passages and cause allergic reactions. ing points are observed: If dust is whipped up or forms a cloud: The chainsaw is not damaged. Wear a dust respirator mask. There is no fuel leaking from the chainsaw. Unsuitable clothing can snag on wood or The fuel tank and oil tank caps are closed. scrub and may become caught in the chain The chainsaw is clean. saw. Users not wearing suitable clothing are at The chain catcher is fitted and undamaged. risk of serious injury. The chain brake is operating properly. Wear close-fitting clothing. The controls function properly and have not Remove scarves and jewelry. been modified. The user may come into contact with the mov- The chain lubrication is operating properly. ing saw chain while working. This may result Wear marks on the chain sprocket are not in serious injury to the user. deeper than 0.5 mm. Wear long trousers with cut-retard- A combination of guide bar and saw chain rec- ant inserts and cut-retardant sleeves ommended in this User Manual is mounted. on both arms. The guide bar and saw chain are properly The user may cut himself or herself on wood while working. The user may come into con- tact with the saw chain during cleaning or servicing. This may result in injury to the user. Wear work gloves made from resistant material. mounted. The saw chain is properly tensioned. Only original STIHL accessories designed for this chainsaw model are fitted. The accessories are correctly attached. WARNING Wearing unsuitable footwear may cause the user to slip. If the user comes into contact with the moving saw chain, he or she may suffer cuts. This may result in injury to the user. Wear chainsaw boots with cut protection. When working in a tree there is risk of the operator falling. This may result in serious or fatal injury to the user. Use personal fall protection equipment. If not in safe condition, components may no longer operate correctly, safety devices may be disabled and fuel leakage may occur. This may result in serous or fatal injury to people. Work only with an undamaged chainsaw. If fuel is leaking from the chainsaw: Do not use the chainsaw and contact a STIHL dealer for assistance. Close the fuel tank and oil tank caps. 4.5 Work Area and Surroundings If the chainsaw is dirty: Clean the chainsaw. Work only with property fitted and undam- WARNING Bystanders, children and animals are not aware of the dangers of the chainsaw or thrown objects. Innocent bystanders, children and animals may be seriously injured and damage to property may occur. Keep bystanders, children and animals away from the work area. Do not leave the chainsaw unattended. aged chain catcher. Never modify your chainsaw. Exception: Mounting a combination of guide bar and saw chain recommended in this User Man- ual. If the controls do not function properly: Do not use your chainsaw. Only fit original STIHL accessories designed for this chainsaw model. 0458-568-8321-B 5 English Mount the guide bar and saw chain as described in this User Manual. Attach accessories as described in this User Manual or in the User Manual for the accessories. Never insert objects in the chainsaw's openings. Replace worn or damaged labels. If you have any doubts, be sure to consult a STIHL dealer. 4.6.2 Guide Bar The guide bar is in a safe condition if the follow- ing points are observed: Guide bar is not damaged. Guide bar is not deformed. The minimum groove depth is maintained, 19.3. Bar rails are free from burrs. Bar groove is not pinched or splayed. WARNING If the guide bar is not in a safe condition, it can no longer support and guide the saw chain properly. The rotating saw chain can jump off the guide bar. This can result in serious or fatal injuries. Work only with an undamaged guide bar. If the groove depth is less than the mini- mum depth: Mount a new guide bar. Deburr the guide bar every week. If you have any queries: Contact your STIHL servicing dealer. 4.6.3 Saw Chain The saw chain is in a safe condition if the follow- ing points are observed: Chain is not damaged. Chain is properly sharpened. The service marks on the cutters are still visi- ble. WARNING If components do not comply with safety requirements, they will no longer function properly and safety devices may be rendered inoperative. This can result in serious or fatal injuries. Work only with an undamaged saw chain. Sharpen the chain properly. If you have any queries: Contact your STIHL servicing dealer for assistance. 4 Safety Precautions 4.7 Fuel Mixture and Refueling WARNING This chainsaw requires a fuel mixture of gaso- line and two-stroke engine oil. Fuel mixture and gasoline are extremely flammable. If fuel mixture or gasoline make contact with open fire or hot objects, they can cause a fire or explosion. This can result in serious or fatal injuries and damage to property. Protect fuel mixture and gasoline from heat and fire. Do not spill fuel mixture and gasoline. If fuel has been spilled: Wipe up the fuel with a cloth and do not attempt to start the engine until all parts of the saw and the area around it are dry. Do not smoke. Never refuel near a fire. Shut off the engine and allow it to cool down before refueling. Start the engine at least 3 meters from the fueling spot, outdoors only. Inhaling fuel fumes and gasoline fumes can have toxic effects. Avoid inhaling fuel fumes or gasoline fumes. Refuel in a well-ventilated location. The chainsaw becomes hot during operation, or in a very hot environment. Depending on the type of fuel, altitude, ambient temperature and the temperature of the saw, the fuel expands and can cause a pressure build-up in the tank. Fuel may escape as a spray and ignite when the fuel tank cap is opened. This can result in serious injuries and damage to property. Allow the saw to cool down before opening the tank cap. Open the tank cap slowly in stages. Clothing that has been in contact with fuel or gasoline is more easily flammable. This can result in serious or fatal injuries and damage to property. If your clothing comes into contact with fuel or gasoline: Change your clothing. Fuel mix, gasoline and two-stroke engine oil can harm the environment. Do not spill fuel, gasoline or two-stroke engine oil. Dispose of fuel mix, gasoline and twostroke engine oil in accordance with local regulations and environmental require- ments. 6 0458-568-8321-B 4 Safety Precautions Fuel, gasoline or two-stroke engine oil can cause irritation if they come into direct contact with the skin or eyes. Avoid contact with fuel, gasoline and twostroke engine oil. In case of contact with the skin: Wash affected areas with plenty of water and soap. In case of contact with the eyes: Rinse eyes with plenty of water for at least 15 minutes and seek medical advice. The saw's ignition system produces sparks. Unconfined sparks may cause a fire or an explosion in an easily combustible or explo- sive environment. This can result in serious or fatal injuries and damage to property. Use the spark plugs described in this instruction manual. Insert and tighten down the spark plug. Connect the spark plug boot and press it down firmly. The saw can be damaged if it is run on a fuel mixture consisting of unsuitable gasoline or an unsuitable two-stroke engine oil or if an incor- rect mix ratio of gasoline and two-stroke engine oil is used. Mix the fuel as described in this instruction manual. The mixture of gasoline and two-stroke engine oil can separate if it is stored for a long period. The saw can be damaged if it is used with a fuel mix that has separated. Before refueling the saw: Thoroughly mix the fuel. Use a mixture of gasoline and two-stroke engine oil that is not older than 30 days (STIHL MotoMix: 2 years). 4.8 Working 4.8.1 Cutting WARNING Always work within calling distance of others in case help is needed. Make sure than persons outside the work area are within calling distance. If the engine is not started properly, the user may lose control of the chainsaw. This can result in serious injuries. Start the engine as described in this instruc- tion manual. If the saw chain is touching the ground or objects: Do not start the engine. The user cannot concentrate on the work in certain situations. The user can lose control of English the saw, stumble or fall and be seriously injured. Work calmly and carefully. If light and visibility are poor: Do not use your saw. Operate the chainsaw alone. Do not work above shoulder height. Watch out for obstacles. If you begin to feel tired: Take a break. When working in a tree there is risk of the saw falling to the ground. This can result in serious injuries and damage to property. Secure the chainsaw with a rope tied to the ring. Exhaust gas is produced when the engine is running. Breathing in exhaust gas can have toxic effects. Avoid inhaling exhaust gas. Operate the chainsaw is a well ventilated location. In the event of nausea, headache, visual disturbances, problems with hearing or diz- ziness: Stop work and seek medical advice. The user's ability to hear and assess noises is restricted when wearing hearing protection with the engine running. Work calmly and carefully. The user will not be able to control the chain- saw properly if it is operated with the Master Control lever in position . This can result in serious injuries. Check that the Master Control lever is in position during operation. Start the engine as described in this instruc- tion manual. Do not accelerate the engine with the chain brake engaged since this can damage the chain brake. Disengage the chain brake before you start cutting. The rotating saw chain can cut the operator. This can result in serious injuries. Do not touch the rotating saw chain. If the saw chain is blocked by an object: Shut off the engine and engage the chain brake. Then remove the object causing the blockage. The rotating chain becomes hot and expands. If the chain is not lubricated sufficiently or not re-tensioned at regular intervals, it may come off the guide bar or break. This can result in serious injuries and damage to property. Use special chain oil. 0458-568-8321-B 7 English Check oil level in tank regularly during cut- ting work. Before the oil tank runs empty: Fill up with chain oil. Check chain tension regularly during cutting work. If chain tension is insufficient: Ten- sion the chain. If the behavior of the saw changes during operation or feels unusual, it may no longer be in a safe condition. This can result in serious injuries and damage to property. Stop work and contact your STIHL dealer for assistance. Saw vibrations may occur during operation. Wear gloves. Take regular breaks. If signs of circulation problems occur: Seek medical advice. Sparks may occur if the rotating chain makes contact with a hard object. Sparks may cause a fire in an easily combustible location. This can result in serious or fatal injuries and dam- age to property. Do not work in an easily combustible loca- tion. Note that the saw chain continues to rotate for a short period after you release the trigger. The rotating saw chain can cut the user. This can result in serious injuries. Wait for the chain to come to a standstill. WARNING B 2 4 Safety Precautions Parts of the tree being removed and branches can fall on bystanders or objects during the felling operation. This can result in serious or fatal injuries and damage to property. Determine direction of fall so that the area in which the part of the tree being removed falls is clear. Do not allow bystanders, children or ani- mals within 2.5 tree lengths of the work area. 4.9 Reactive Forces 4.9.1 Kickback Kickback can be caused for the following rea- sons: The rotating saw chain in the upper quadrant of the bar nose makes contact with a hard object and is suddenly braked. The rotating saw chain is pinched at the bar nose. The chain brake cannot prevent kickback. WARNING 0000-GXX-7574-A0 0000-GXX-8685-A0 1 A 0000-GXX-7575-A0 The guide bar can be pinched when cutting wood that is under tension. The user can lose control of the saw and be seriously injured. Make a relieving cut (1) in the compression side (A) first, then perform bucking cut (2), offset in direction of trunk, at the tension side (B). 4.8.2 Felling WARNING Inexperienced users cannot assess the dan- gers of felling a tree. This can result in serious or fatal injuries and damage to property. If you have any queries: Do not fell the tree yourself. 8 If kickback occurs, the saw can be thrown up in the direction of the operator. Due to the spe- cial handle design (closely spaced handles) there is a risk of the operator losing control of the chainsaw and sustaining serious or fatal injuries. Hold the saw firmly with both hands. Hold the saw firmly with both hands. Always keep your body out of the plane of the cutting attachment. 0458-568-8321-B 4 Safety Precautions Use the working techniques described in this instruction manual. Do not cut with the upper quadrant of the bar nose. Always cut with a properly sharpened and tensioned saw chain. Use a reduced kickback saw chain. Use a guide bar with a narrow radius nose. Always cut with the chain running at full speed. 4.9.2 Pull-in The saw is pulled away from the operator when the bottom of the bar is used for cutting. WARNING If the rotating chain makes contact with a hard object and is suddenly pinched, the saw is abruptly jerked away from the operator. The operator can lose control of the saw and be seriously or fatally injured. Hold the saw firmly with both hands. Operate the saw as described in this instruction manual. Keep the guide bar straight in the cut. Apply the spiked bumper properly. Always cut with the chain running at full speed. 4.9.3 Pushback The saw is pushed back toward the operator when the top of the bar is used for cutting. WARNING If the rotating chain makes contact with a hard object and is suddenly pinched, the saw can 0458-568-8321-B 0000-GXX-1349-A0 0000-GXX-1348-A0 English be abruptly pushed back toward the operator. The operator can lose control of the saw and be seriously or fatally injured. Hold the saw firmly with both hands. Operate the saw as described in this instruction manual. Keep the guide bar straight in the cut. Always cut with the chain running at full speed. 4.10 Transporting WARNING The saw may turn over or shift during trans- port. This can result in serious injuries and damage to property. Shut off the engine. Engage the chain brake. Fit the scabbard so that it completely cov- ers the guide bar. Secure the chainsaw with lashing straps, belts or a net to prevent it turning over and moving. 0000-GXX-7576-A1 The muffler and engine may be hot after a period of operation. There is a risk of burn injuries. Carry the saw by holding the top handle in your left hand with the guide bar pointing to the rear. 4.11 Storing WARNING Children are not aware of and cannot assess the dangers of a chainsaw and can be seri- ously injured. Shut off the engine. Engage the chain brake. Fit the scabbard so that it completely cov- ers the guide bar. Store the saw out of the reach of children. Dampness can corrode the electrical contacts on the saw and metal components. This can damage the saw. Store the saw in a clean and dry condition. 9 English 4.12 Cleaning, Maintenance and Repair WARNING The saw chain can start up unintentionally if the engine is running during cleaning, mainte- nance or repair operations. This may result in serious injury to people and damage to prop- erty. Shut off the engine. Engage the chain brake. The muffler and engine may be hot after a period of operation. This can result in burn injuries. Wait until the muffler and engine cool down. Aggressive cleaning agents, a water jet or pointed objects can damage the chainsaw, guide bar and saw chain. If the chainsaw, guide bar or saw chain are not cleaned cor- rectly, components may no longer function properly or safety devices may be rendered inoperative. They may cause serious injury to persons. Clean the chainsaw, guide bar and saw chain as described in this user manual. If the chainsaw is not maintained as described in this user manual, components may no lon- ger function properly or safety devices may be rendered inoperative. This may result in serous or fatal injury to people. Service or repair the chainsaw as described in this user manual. If the guide bar and saw chain are not main- tained or repaired as described in this user manual, components may no longer function properly or safety devices may be rendered inoperative. They may cause serious injury to persons. Service or repair the guide bar and saw chain as described in this User Manual. The user may be cut by the sharp cutters while cleaning or servicing the saw chain. This may result in injury to the user. Wear work gloves made from resistant material. 5 Preparing the Saw for Operation 5.1 Preparing the Saw for Opera- tion Perform the following steps before starting work: Make sure the following components are in a safe condition: 5 Preparing the Saw for Operation Chainsaw, 4.6.1. Guide bar, 4.6.2. Saw chain, 4.6.3. Clean the saw, 15.1. Mount the bar and chain, 6.1.1. Tension the saw chain, 6.2. Fill up with chain oil, 6.3. Check the chain brake, 10.4. Refuel the saw, 8.2. Check the controls, 10.5. Check chain lubrication, 10.6. If you cannot carry out these steps: Do not use your chainsaw and contact your STIHL servic- ing dealer for assistance. 6 Assembling the Saw 6.1 Mounting and Removing the Bar and Chain 6.1.1 Mounting the bar and chain The bar and chain combinations that can be used with the chain sprocket are listed in the specifications, 20.1. Shut off the engine and engage the chain brake. 3 2 4 1 Rotate the nut (1) counterclockwise until the chain sprocket cover (2) can be removed. Remove the chain sprocket cover (2). Turn the tensioning screw (3) counterclock- wise until the tensioner slide (4) butts against the left end of the housing. 5 6 78 0000-GXX-7553-A0 0000-GXX-7577-A0 10 0458-568-8321-B 6 Assembling the Saw Fit the guide bar and chain on the saw and check the following points: Collar stud (5) is located in slot in tail of guide bar (6). Peg of tensioner slide (4) engages hole (8) in guide bar (6). The guide bar (6) may be either way round. The logo on the guide bar (6) may also be upside down. English 6.2 Tensioning the Saw Chain The saw chain expands or contracts during cut- ting work. Chain tension changes as a result. Check chain tension regularly during operation and readjust if necessary. Shut off the engine and engage the chain brake. 1 0000-GXX-7555-A0 6 7 Fit the chain on the chain sprocket (7) so that the chain's drive links mesh with the sprock- et's teeth. Fit the chain in the bar groove so that the arrows on the tie straps on the top of the bar point in the direction of rotation. 6 3 Turn the tensioning screw (3) clockwise until the chain fits snugly against the bar. Make sure the drive link tangs engage the bar groove. The guide bar (6) and chain are seated against the saw. Fit the sprocket cover (2) so that it is flush with the saw. Fit and tighten down the nut (1). 6.1.2 Removing the bar and chain Shut off the engine and engage the chain brake. Rotate the nut counterclockwise until the chain sprocket cover can be removed. Remove the sprocket cover. Turn the tensioning screw counterclockwise as far as stop. The chain is now slack. Remove the bar and chain. 0458-568-8321-B 0000-GXX-7554-A0 0000-GXX-7569-A0 a 2 Loosen the nut (1). Disengage the chain brake. Hold the bar nose up and turn the tensioning screw (2) clockwise until the following points apply: Chain sag `a' in the center of the bar is 1 - 2 mm. The chain can still be pulled easily along the bar with two fingers. Keep holding the bar nose up and tighten down the nut (1) firmly. If chain sag `a' in the center of the bar is not 1 - 2 mm: Readjust chain tension. 6.3 Filling Up with Saw Chain Oil The saw chain oil lubricates and cools the rotat- ing chain. STIHL recommends you use a STIHL saw chain oil or an equivalent chain oil approved for chain- saws. Shut off the engine and engage the chain brake. Place your chainsaw on a level surface so that the oil tank cap faces up. Use a damp cloth to clean the oil tank cap and the area around it. Swing the grip on the oil tank cap to the verti- cal position. 11 0000-GXX-2930-A0 English Turn the oil tank cap counterclockwise as far as it will go. Remove the oil tank cap. Fill up with saw chain oil, taking care not to spill any oil and not to overfill the tank. If the grip on the oil tank cap has dropped into the closed position: Raise the grip until it is vertical. 1 1 7 Engaging and Disengaging the Chain Brake 7 Engaging and Disengaging the Chain Brake 7.1 Engaging the Chain Brake The saw is equipped with a chain brake. The chain brake is activated by the inertia of the front hand guard if the kickback force is high enough or it can be engaged by the operator. 0000-GXX-7578-A0 0000-GXX-2931-A0 2 3 Place the oil tank cap in the filler opening so that mark (1) lines up with mark (2). Press the oil tank cap down and rotate it clock- wise as far as it will go. The oil tank cap snaps into place. The mark (1) points to mark (3). Check to see if the oil tank cap can be pulled upwards and off. If the oil tank cap cannot be pulled upwards and off: Fold down the grip on the oil tank cap. The oil tank is closed. If the oil tank cap can be pulled upwards and off, perform the following steps: Place the oil tank cap in the filler opening in any position. Push the hand guard away from the handlebar with your left hand. The hand guard engages with an audible click. The chain brake is engaged. 7.2 Disengaging the Chain Brake 0000-GXX-7579-A0 1 2 Press the oil tank cap down and rotate it clock- wise as far as it will go. Press the oil tank cap down and rotate it coun- terclockwise until mark (1) points to mark (2). Now try again to close the oil tank. If the oil tank still cannot be closed properly: Do not use the chainsaw and contact a STIHL dealer for assistance. The chainsaw is not in a safe condition. 12 0000-GXX-3135-A0 Pull the hand guard back towards the handle with your left hand. The hand guard engages with an audible click. The chain brake is disengaged. 8 Mixing Fuel and Refueling the Chainsaw 8.1 Mixing Fuel This chainsaw requires a fuel mixture of gasoline and two-stroke engine oil in a ratio of 50:1. STIHL recommends you use STIHL MotoMix. If you mix the fuel yourself, use only STIHL twostroke engine oil or another high-performance engine oil in accordance with JASO FB, JASO FC, JASO FD, ISO-L-EGB, ISO-L-EGC or ISO-LEGD. STIHL specifies STIHL HP Ultra two-stroke engine oil or an equivalent high-performance 0458-568-8321-B 8 Mixing Fuel and Refueling the Chainsaw engine oil in order to maintain emission limits throughout the machine's service life. Make sure that the octane number of the gas- oline is at least 90 RON and the ethanol con- tent is not more than 10%. Make sure the two-stroke engine oil you are using meets the requirements. Depending on the required amount of fuel, determine the correct amounts of two-stroke engine oil and gasoline in a mix ratio of 50:1. Examples for fuel mixes: 1 liter gasoline, 20 ml two-stroke engine oil 3 liters gasoline, 60 ml two-stroke engine oil 5 liters gasoline, 100 ml two-stroke engine oil Pour two-stroke engine oil into a clean approved fuel canister first and then add gaso- line. Thoroughly mix the fuel. 8.2 Fueling the Saw Shut off the engine and engage the chain brake. Allow chainsaw to cool down. Place your chainsaw on a level surface so that the fuel tank cap faces up. Use a damp cloth to clean the tank cap and the area around it. Swing the grip on the fuel tank cap to the verti- cal position. English Turn the fuel tank cap about 1/8 of a turn counterclockwise. If the fuel tank is under pressure, you will hear pressure being released. When the tank is no longer under pressure: Turn the tank cap counterclockwise until the marks on the cap and fuel tank are in align- ment. Remove the fuel tank cap. NOTICE Bright light, sunlight and extreme tempera- tures can cause the fuel mix to separate much faster. The saw can be damaged if it is used with a fuel mix that has become separated. Thoroughly mix the fuel. Do not use fuel mix that has been stored for more than 30 days. Fill the tank to within no more than 15 mm of the brim, taking care not to spill any fuel. If the grip on the fuel tank cap has dropped into the closed position: Raise the grip until it is vertical. 1 4 1 0000-GXX-2934-A1 0000-GXX-2935-A1 WARNING The chainsaw becomes hot during operation, or in a very hot environment. Depending on the type of fuel, altitude, ambient temperature and the temperature of the saw, the fuel expands and can cause a pressure build-up in the tank. Fuel may escape as a spray and ignite when the fuel tank cap is opened. This can result in serious injuries and damage to property. Allow the saw to cool down before opening the tank cap. Open the tank cap slowly in stages. 2 3 Place the cap in the filler opening so that mark (1) lines up with mark (2). Press the cap down and rotate it clockwise as far as stop. The cap snaps into place. The mark (1) is in line with mark (4) and points to mark (3). Check to see if the fuel tank cap can be pulled upwards and off. If the fuel tank cap cannot be pulled upwards and off: Fold the grip flush with the top of the cap. The fuel tank is closed. If the fuel tank cap can be pulled upwards and off, perform the following steps: Place the fuel tank cap in the filler opening in any position. 0458-568-8321-B 13 English A B C 1 2 Press the cap down and rotate it clockwise as far as stop. Press the cap down and rotate it counterclock- wise until mark (1) points to mark (2). Now try again to close the fuel tank. If the fuel tank still cannot be closed properly: Do not use the chainsaw and contact a STIHL dealer for assistance. The chainsaw is not in a safe condition. 9 Starting and Stopping the Engine 9.1 Selecting the correct starting procedure When must the engine be prepared for starting? The engine must be prepared for starting if one of the following conditions apply: The engine is at ambient temperature. The engine stopped when accelerated for the first time. The engine stopped because the fuel tank was empty. Prepare engine for start, 9.2 and then start the engine, 9.3. When can the engine be started without prepara- tion? The engine can be started without preparation if it has been running for at least 1 minute and only shut down for a short work break. Starting the engine, 9.3. 9.2 Preparing Engine for Start Select the correct starting procedure. 1 2 3 4 5 6 14 0000-GXX-7580-A0 0000-GXX-7582-A0 0000-GXX-3136-A1 0000-GXX-7581-A0 9 Starting and Stopping the Engine Engage the chain brake (1). Pull off the chain guard (scabbard). Press the manual fuel pump bulb (6) at least ten times. Press down the throttle trigger lockout (3) and hold it there. Pull the throttle trigger (4) and hold it there. Move the Master Control lever (2) to posi- tion . Release the throttle trigger (4) and lockout lever (5). Move the choke lever (5) to position . Stand the saw on a level surface. Hold the saw firmly with your right hand on the top handle wrap your thumb around the han- dle. Press the saw against the ground with your right hand. Hold the saw steady with your right knee on the shroud. Pull the starter grip slowly with your left hand until you feel it engage. Pull the starter grip quickly and allow the starter rope to rewind several times until the engine fires and stops. Move the choke lever (5) to position . 9.3 Starting the Engine Select the correct starting procedure. 1 2 3 4 5 6 Engage the chain brake (1). Pull off the chain guard (scabbard). Move the choke lever (5) to position . Press down the throttle trigger lockout (3) and hold it there. Pull the throttle trigger (4) and hold it there. 0458-568-8321-B 10 Checking the Saw Move the Master Control lever (2) to posi- tion . 9.4 Stopping the engine English 1 2 0000-GXX-7581-A0 0000-GXX-7583-A0 3 Stand the saw on a level surface. Hold the trimmer firmly with your right hand on the top handle wrap your thumb around the handle. Press the saw against the ground with your right hand. Hold the saw steady with your right knee on the shroud. Pull the starter grip slowly with your left hand until you feel it engage. Pull the starter grip quickly and allow the starter rope to rewind several times until the engine runs. Press down the throttle trigger lockout (3) and hold it there. Blip the throttle trigger (4). The Master Control lever (2) springs to posi- tion . The engine runs at idling speed. NOTICE Do not accelerate the engine with the chain brake engaged since this can damage the chain brake. Disengage the chain brake before you start cutting. Disengage the chain brake. Your saw is ready for operation. If the saw chain rotates while the engine is idling: See troubleshooting. Idle speed adjustment is not correct. If the engine does not start: Prepare the engine for the start and then try again to start the engine. Release the throttle trigger (3) and lockout lever (2). The saw chain stops running. Move the Master Control lever (1) to posi- tion . The engine stops and the Master Control lever (1) springs back to position . 10 Checking the Saw 10.1 Checking the Chain Sprocket Shut off the engine. Disengage the chain brake. Remove the chain sprocket cover. Remove the bar and chain. If there are visible wear marks: Do not use the chainsaw and contact your STIHL servicing dealer for assistance. The chain sprocket must be replaced. 10.2 Checking the Guide Bar Shut off the engine and engage the chain brake. Remove the chain and guide bar. 0000-GXX-7568-A0 0000-GXX-1217-A0 0458-568-8321-B 15 English Measure depth of bar groove with scale on STIHL filing gauge. Install a new guide bar if one of the following points applies: Guide bar is damaged. Measured bar groove depth is less than specified minimum depth, 19.3. Bar groove is pinched or splayed. If you have any queries: Contact your STIHL servicing dealer for assistance. 10.3 Checking the Saw Chain Shut off the engine and engage the chain brake. 1 2 0000-GXX-1218-A0 Use a STIHL filing gauge (2) to check the height of the depth gauges (1). The STIHL fil- ing gauge must match the chain pitch. If a depth gauge (1) projects from the filing gauge (2): Lower the depth gauge (1), 16.3. 1 2 3 0000-GXX-1372-A0 4 Make sure the service marks (1 to 4) on the cutters are visible. If one of the service marks is not visible on a cutter: Do not use your chainsaw and contact your STIHL servicing dealer for assistance. Use a STIHL filing gauge to check that a filing angle of 30° has been maintained on all cut- ters. The STIHL filing gauge must match the chain pitch. If a filing angle of 30° has not been main- tained: Resharpen the saw chain. If you have any queries: Contact your STIHL servicing dealer for assistance. 10.4 Testing the Chain Brake Shut off the engine and engage the chain brake. 16 10 Checking the Saw WARNING The chain's cutters are very sharp. There is a risk of cut injuries. Wear work gloves made of durable mate- rial. Try to pull the chain along the guide bar by hand. If the chain cannot be pulled along the bar by hand, the chain brake is functioning. If the chain can be pulled along the bar by hand: Do not use your chainsaw and contact your STIHL servicing dealer for assistance. The chain brake is defective. 10.5 Checking the Controls Throttle trigger lockout and throttle trigger Shut off the engine and engage the chain brake. Attempt to pull the trigger without depressing the lockout lever. If the trigger can be pulled: Do not use the chainsaw and contact your STIHL servicing dealer for assistance. The throttle trigger lockout is defective. Press down the throttle trigger lockout and hold it there. Pull the throttle trigger and release it again. If the throttle trigger is stiff or does not spring back to its idle position: Do not use the chain- saw and contact your STIHL servicing dealer for assistance. The throttle trigger is defective. Stopping the engine Start the engine. Move the Master Control lever (1) to posi- tion . The engine stops and the Master Control lever springs back to position . If the engine does not stop: Move the choke lever to position . The engine stops. Do not use the chainsaw and contact your STIHL servicing dealer for assistance. The Master Control lever is defective. 10.6 Checking Chain Lubrication Start the engine and disengage the chain brake. Hold the guide bar over a light surface. Open the throttle. Chain oil is thrown off the chain and is visible on the light surface. Chain lubrication is oper- ating properly. 0458-568-8321-B 11 Operating the Saw 11 Operating the Saw 11.1 Adjusting Carburetor for Opera- tion at High Altitude If you use the chainsaw at high altitude, the engine will not deliver optimum power. The car- buretor setting can be adjusted to obtain opti- mum engine power. Start the engine and disengage the chain brake. Warm up the engine by opening and closing the throttle for about 1 minute. English NOTICE Engine power may drop noticeably when the chainsaw is subsequently used at tempera- tures above 10°C. Carry out the standard setting. Rotate the low speed screw (L) a quarter turn counterclockwise. If the saw chain runs continuously or the engine stops: Adjust idle speed. 11.3 Holding and Controlling the Chainsaw H 0000-GXX-3132-A0 0000-GXX-7585-A0 NOTICE If the chainsaw is again used at a low altitude, the engine may overheat. Carry out the standard setting. Rotate the high speed screw H clockwise until the engine delivers optimum power. 11.2 Adjusting Carburetor for Cut- ting at Temperatures Below 10°C The engine will not accelerate properly if the chainsaw is used at temperatures below 10°C. The carburetor can be adjusted to obtain normal engine acceleration in such conditions. Start the engine and disengage the chain brake. Warm up the engine by opening and closing the throttle for about 1 minute. L Hold and control your saw with your left hand on the handlebar and your right hand on the top handle. Wrap thumb of left hand around the handlebar and thumb of right hand around the top handle. WARNING The risk of kickback is increased if you use the chainsaw with one hand. If kickback occurs, the saw can be thrown up in the direction of the operator. The operator can lose control of the saw and be seriously or fatally injured. Do not cut with the upper quadrant of the bar nose. Never support yourself on the limb being cut. Never attempt to hold falling limbs. The saw may be used with one hand if the fol- lowing points apply: Two-handed cutting is not possible. One hand is required for support during the cut. The saw can be held firmly with one hand. All parts of your body are clear of the cutting attachment. 0000-GXX-3131-A0 0458-568-8321-B 17 English 11.4 Cutting WARNING If kickback occurs, the saw can be thrown up in the direction of the operator. This can result in serious or fatal injuries. Always cut with the chain running at full speed. Do not cut with the upper quadrant of the bar nose. Begin the cut with the chain running at full speed and keep the guide bar vertical. Engage the spiked bumper and use it as a ful- crum. Guide the full width of the bar into the wood and reposition the spiked bumper as required. Take the weight of the saw at the end of the cut. 11.5 Limbing With the chain running a full speed, pivot the guide bar downward against the limb. 0000-GXX-7586-A0 11.6 11.6.1 11 Operating the Saw Felling Basic information on felling cut 0000-GXX-A332-A0 B A C AB C A Felling notch The felling notch determines the direction of fall. B Hinge The hinge controls the part of the tree being removed as it drops to the ground. The width of the hinge is 1/10 of the trunk diameter. C Felling cut The tree is felled with the felling cut. 11.6.2 Cutting the felling notch The felling notch determines the direction in which the part of the tree being removed falls. Country-specific standards for making the felling notch must be observed. 0000-GXX-A333-A0 B 2 90° 1A 3 Make a relieving cut (1) in the compression side (A) first, then perform a bucking (2) cut at the tension side (B) from above, directly above the first cut. Make the last cut (3) close to the trunk without damaging the bark. 0000-GXX-C575-A0 Position the saw so that the felling notch is at right angles to the direction of fall. Make the horizontal cut. Make the angle cut at 45° to the horizontal cut. 11.6.3 Making the felling cut 0000-GXX-A335-A0 Make horizontal felling cut, taking care not to cut through the hinge. 18 0458-568-8321-B 12 After Finishing Work Shout a warning. Push the part of the tree being removed down- ward over the hinge. The part of the tree to be removed falls. 12 After Finishing Work 12.1 After Finishing Work Shut off the engine and engage the chain brake. Allow chainsaw to cool down. If the saw is wet: Allow the saw to dry. Clean the saw. Clean the air filter. Clean the bar and chain. Loosen nut on the chain sprocket cover. Turn the tensioning screw two full turns coun- terclockwise. The chain is now slack. Tighten down the nut on the chain sprocket cover. Fit the scabbard so that it completely covers the guide bar. 13 Transporting 13.1 Transporting the Chainsaw Shut off the engine and engage the chain brake. Fit the scabbard so that it completely covers the guide bar. Carry the saw by holding the top handle in your left hand with the guide bar pointing to the rear. Transporting the saw in a vehicle: Secure the saw to prevent turnover and movement. 1 1 English Observe the following points when storing the saw: Saw is out of the reach of children. The saw is clean and dry. 15 Cleaning 15.1 Cleaning the Saw Shut off the engine and engage the chain brake. Allow chainsaw to cool down. Clean the saw with a damp cloth or STIHL resin solvent. Clean cooling air slots with a soft brush. 1 2 Rotate the shroud lock (1) a half turn counter- clockwise. Remove the shroud (2). Remove the chain sprocket cover. Use a soft brush, damp cloth or STIHL resin solvent to clean the inside of the shroud. Clean the area around the sprocket with a damp cloth or STIHL resin solvent. Place the shroud (2) in position. Rotate the shroud lock (1) clockwise until you hear a click. The shroud lock (1) is secure. Fit the chain sprocket cover. 15.2 Cleaning the Bar and Chain Shut off the engine and engage the chain brake. Remove the bar and chain. 0000-GXX-7589-A0 1 3 0000-GXX-7588-A0 The chainsaw can be carried by attaching the ring (1) to your waist belt or a rope. 14 Storing 14.1 Storing the Chainsaw Shut off the engine and engage the chain brake. Fit the scabbard so that it completely covers the guide bar. 0458-568-8321-B 3 2 Clean the oil inlet hole (1), oil port (2) and bar groove (3) with a soft brush or STIHL resin solvent. 19 0000-GXX-7565-A0 English Clean the saw chain with a soft brush or STIHL resin solvent. Mount the bar and chain. 15.3 Cleaning the Spark Plug Shut off the engine and engage the chain brake. Allow the chainsaw to cool down. 15 Cleaning 1 3 2 0000-GXX-759829-A0 3 12 Turn the cover lock (2) counterclockwise 1/2 turn. Remove cover (1). Pull off the spark plug boot (3). If the area around the spark plug is soiled: Clean it with a cloth. Unscrew the spark plug. Clean the spark plug with a cloth. If the spark plug is corroded: Replace the spark plug. 3 Insert and tighten down the spark plug. Press the spark plug boot (3) firmly home. Fit the cover (1). Rotate the shroud lock (2) clockwise until you hear a click. The cover lock (2) is secure. 15.4 Cleaning the Air Filter 15.4.1 Cleaning the fabric air filter Shut off the engine and engage the chain brake. 0000-GXX-759819-A0 0000-GXX-759809-A0 Rotate the shroud lock (1) a half turn counter- clockwise. Remove the shroud (2). Remove the air filter (3). Knock out the filter (3). Clean the filter (3) with a soft brush. If the filter (3) is damaged. Install a new filter (3). Blow out the filter with compressed air from the clean air side. WARNING Cleaning agent may cause irritation if it con- tacts the skin or eyes. Observe the information supplied with the cleaning agent. Avoid contact with cleaning agents. In case of contact with the skin: Wash affected areas with plenty of water and soap. In case of contact with the eyes: Rinse eyes with plenty of water for at least 15 minutes and seek medical advice. If the air filter is very dirty: 3 2 1 0000-GXX-759839-A0 Install the filter (3). Place the shroud (2) in position. Rotate the shroud lock (1) clockwise until you hear a click. The shroud lock (1) is secure. 15.4.2 Cleaning the fleece air filter Shut off the engine and engage the chain brake. 20 0458-568-8321-B 16 Maintenance 1 3 2 0000-GXX-759849-A0 Rotate the shroud lock (1) a half turn counter- clockwise. Remove the shroud (2). Remove the air filter (3). Knock out the filter (3). If the filter (3) is damaged. Install a new filter (3). Blow out the filter with compressed air from the clean air side. 3 2 1 0000-GXX-759859-A0 Install the filter (3). Place the shroud (2) in position. Rotate the shroud lock (1) clockwise until you hear a click. The shroud lock (1) is secure. 16 Maintenance 16.1 Maintenance intervals Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance inter- vals: Chain brake Have a STIHL dealer service the chain broke in the following intervals: Full-time use: every three months Part-time use: every six months Occasional use: every year After every 100 hours of operation Replace the spark plug. Weekly Check the chain sprocket. Check and deburr the guide bar. Check and resharpen the saw chain. English Monthly Have the oil tank cleaned by a STIHL dealer. Have the fuel tank cleaned by a STIHL dealer. Have the pickup body in the fuel tank cleaned by a STIHL dealer. Annually Have the pickup body in the fuel tank replaced by a STIHL dealer. 16.2 Deburring the Guide Bar A burr can build up on the outer edge of the guide bar. Remove burr with a flat file or a STIHL guide bar dressing tool. If you have any queries: Contact your STIHL servicing dealer. 16.3 Sharpening the Saw Chain Correctly sharpening saw chains requires a lot of practice. STIHL files, STIHL filing aids, STIHL sharpeners and the brochure "Sharpening STIHL Saw Chains" help you achieve the right results. To obtain the brochure visit http://www.stihl.com/ sharpening-brochure. STIHL recommends you have saw chains resharpened by a STIHL servicing dealer. WARNING The chain's cutters are very sharp. There is a risk of cut injuries. Wear work gloves made of durable mate- rial. File each cutter with a round file so that the following points are observed: Round file matches the chain pitch. File from the inside to the outside of the cut- ter. Hold the file at right angle to the guide bar. Maintain a filing angle of 30°. 0000-GXX-1219-A0 0458-568-8321-B 21 English 17 Repairing File down the depth gauges with a flat file so that they are level with the STIHL filing gauge 18 Troubleshooting 18.1 Troubleshooting Chainsaw 0000-GXX-1220-A1 and parallel to the service mark. The STIHL fil- ing gauge must match the chain pitch. If you have any queries: Contact your STIHL servicing dealer for assistance. 17 Repairing 17.1 Repairing the Chain Saw, Guide Bar and Saw Chain The chain saw, guide bar and saw chain cannot be repaired by the user. If the saw, guide bar or saw chain is damaged: Do not use your saw, guide bar or saw chain, and contact your STIHL servicing dealer. Most malfunctions have the same causes. Perform the following operations: Clean the air filter. Clean or replace the spark plug. Carry out the standard setting. Adjust idle speed. Adjust carburetor for operation at high altitude. Adjust carburetor for cutting at temperatures below 10°C. If the malfunction still exists: Take the action described in the following table. Condition Cause Remedy Engine does not start. Insufficient fuel in the Mix fuel and refuel the chainsaw. tank. Engine is flooded. Clear the combustion chamber. Carburetor is too hot. Allow chainsaw to cool down. If manual fuel pump is fitted: Depress the manual fuel pump at least 10 times before starting the engine. Carburetor is iced up. Allow saw to warm up to +10°C. Engine idles errati- Carburetor is iced up. Allow saw to warm up to +10°C. cally. Engine stops while Carburetor is iced up. Allow saw to warm up to +10°C. idling Poor acceleration The chain is over-ten- Tension the chain properly. sioned. Chain lubrication sys- Do not use the chainsaw and contact your STIHL tem is supplying servicing dealer for assistance. insufficient chain oil. Saw chain does not The chain brake is Disengage the chain brake. rotate when throttle is engaged. opened. The chain is over-ten- Tension the chain properly. sioned. Bar nose sprocket is Clean the bar nose sprocket with STIHL resin solvent. blocked. Engine does not reach maximum power. Spark arresting screen in muffler is dirty. Clean the spark arresting screen. If the park arresting screen is dirty or damaged: Con- tact a STIHL servicing dealer for assistance. 22 0458-568-8321-B 18 Troubleshooting English Condition Cause Remedy Smoke or burning Chain is not properly Sharpen the chain properly. smell while cutting. sharpened. Insufficient chain oil Fill up with chain oil. in the tank. Chain lubrication sys- Do not use the chainsaw and contact your STIHL tem is supplying servicing dealer for assistance. insufficient chain oil. The chain is over-ten- Tension the chain properly. sioned. Chainsaw is not Have correct use explained, then practice. being used properly. 18.2 Standard Setting Shut off the engine and engage the chain brake. H L 0000-GXX-2946-A0 Turn the high speed screw (H) counterclock- wise as far as stop. Turn the low speed screw (L) clockwise as far as stop. Rotate the low speed screw (L) a quarter turn counterclockwise. Turn the idle speed screw (LA) one full turn counterclockwise. Saw chain runs continuously while engine is idling Carry out the standard setting. Start the engine and disengage the chain brake. Warm up the engine by opening and closing the throttle for about 1 minute. Turn the idle speed screw (LA) counterclock- wise until the saw chain stops running. Turn the idle speed screw (LA) one full turn counterclockwise. 18.4 Clearing the Combustion Chamber Engage the chain brake. 18.3 Adjusting Idle Speed 0000-GXX-759809-A0 Engine stops while idling Carry out the standard setting. Start the engine and disengage the chain brake. Warm up the engine by opening and closing the throttle for about 1 minute. If the engine continues to stop while idling: Turn the idle speed screw (LA) half a turn clockwise and restart the engine. Turn the idle speed screw (LA) clockwise until the chain begins to run. 0458-568-8321-B 0000-GXX-2938-A0 3 12 Rotate the shroud lock (2) a half turn counter- clockwise. Remove the shroud (1). Pull off the spark plug boot (3). Unscrew the spark plug. Dry the spark plug. 23 English WARNING Unconfined sparks may occur if the starter grip is pulled after the spark plug boot has been removed. Sparks may cause a fire or an explosion in an easily combustible or explo- sive environment. This can result in serious or fatal injuries and damage to property. Move the Master Control lever to posi- tion and hold it there before pulling the starter grip. Move the Master Control lever to position and hold it there. Pull the starter grip and guide it back several times. The combustion chamber is cleared. Insert and tighten down the spark plug. 3 Press the spark plug boot (3) firmly home. Place the shroud (1) in position. Rotate the shroud lock (2) clockwise until you hear a click. The shroud lock (2) is secure. 18.5 Cleaning Spark Arresting Screen Shut off the engine and engage the chain brake. Wait for the muffler to cool down. 3 2 1 Take out the screw (1). Remove the cover (2). Remove the spark arresting screen (3). Clean the spark arresting screen. If the spark arresting screen is damaged: Install a new spark arresting screen. Install a new spark arresting screen. 0000-GXX-8701-A0 0000-GXX-759819-A0 19 Specifications Fit the cover (2) in position. Insert and tighten down the screw (1) firmly. 19 Specifications 19.1 STIHL MSA 194 T Chainsaw Displacement: 31.8 cm³ Engine power to ISO 7293: 1.4 kW (1.9 bhp) Idle speed to ISO 11681: 3,000 ± 50 rpm Approved spark plug: NGK CMR6H from STIHL Electrode gap: 0.5 mm Dry weight without guide bar and chain 3.3 kg Max. fuel tank capacity: 270 cc (0.27 l) Max. oil tank capacity: 220 cc (0.22 l) 19.2 Chain Sprockets and Chain Speeds The following chain sprockets may be used: 6-tooth for 3/8" P Maximum chain speed according to ISO 11681: 26.0 m/s Chain speed at maximum power: 18.6 m/s 8-Tooth for 1/4" P Maximum chain speed according to ISO 11681: 23.6 m/s Chain speed at maximum power: 16.9 m/s 19.3 Minimum Groove Depth of Guide Bars The minimum groove depth depends on the pitch of the guide bar. 3/8" P: 5 mm 1/4" P: 4 mm 19.4 Sound Values and Vibration Values Sound pressure level LpA measured according to ISO 22868: 100 dB(A). The K value for the sound pressure level is 2 dB(A). Sound power level LwA measured according to ISO 22868: 112 dB(A). K-value (uncertainty) for sound power level is 2 dB(A). Vibration level ahv measured according to ISO 22867: Handlebar: 3.6 m/s². The K value for the vibration level is 2 m/s². Control handle: 3.6 m/s². The K value for the vibration level is 2 m/s². 24 0458-568-8321-B 20 Bar and Chain Combinations English For information on compliance with Employers' Vibration Directive 2002/44/EC see www.stihl.com/vib. 19.5 REACH REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances. For information on compliance with the REACH regulation see www.stihl.com/reach. 19.6 Exhaust Emissions The measured CO2value was determined on a representative engine in accordance with a standardized test procedure under laboratory conditions and does not represent either an explicit or implied guarantee of the performance of a specific engine. The applicable exhaust emission requirements are fulfilled by the intended usage and mainte- nance described in this instruction manual. The type approval expires if the engine is modified in any way. The CO2value measured in the EU type approval procedure is specified at www.stihl.com/co2. 20 Bar and Chain Combinations 20.1 STIHL MSA 194 T Chainsaw Pitch Drive link Length gauge/groove width Guide bar Nose sprocket teeth Number of Saw chain drive links 25 cm Rollomatic E light 39 30 cm Rollomatic E, Rollomatic E light 1.1 mm 7 3/8" P 35 cm Rollomatic E, Rollomatic E light 44 44 61 PMM3 (Type 50 3610) 50 40 cm Rollomatic E 55 30 cm 1.3 mm 35 cm Rollomatic E, Rollomatic E light 9 40 cm 44 63 PD3 (3612) 50 63 PM3 (3636) 55 63 PS3 (3616) 25 cm 56 1/4" P 1.1 mm 30 cm 35 cm Rollomatic E 8 64 71 PM3 (Type 72 3670) 30 cm Carving E 64 The cutting length of a guide bar depends on the chainsaw and the saw chain being used. Actual cut- ting length may be less than the specified length 21 Spare Parts and Accesso- ries Original STIHL spare parts and original STIHL accessories are available from STIHL dealers. 21.1 Spare parts and accessories These symbols indicate original STIHL spare parts and original STIHL acces- sories. STIHL recommends the use of original STIHL spare parts and accessories. Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitabil- ity of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts. 22 Disposal 22.1 Disposing of Chainsaw Information on disposal is available from STIHL servicing dealers. Dispose of the chainsaw, guide bar, saw chain, fuel mix, gasoline, two-stroke engine oil, accessories and packaging in accordance with local regulations and environmental require- ments. 0458-568-8321-B 25 English 23 EC Declaration of Con- formity 23.1 STIHL MS 194 T Chainsaw ANDREAS STIHL AG & Co. KG Badstraße 115 D-71336 Waiblingen Germany declares under our sole responsibility that Category: chainsaw Manufacturer's brand: STIHL Model: MS 194 T serial number: 1137 Displacement: 31.8 cm³ conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manu- factured in compliance with the following stand- ards in the versions valid on the date of produc- tion: EN ISO 116811, EN 55012 and EN 6100061. The EC type examination pursuant to Directive 2006/42/EC Art. 12.3(b) was carried out by DPLF, Deutsche Prüf- und Zertifizierungsstelle für Land- und Forsttechnik GbR (NB 0363), Spremberger Straße 1, 64823 GroßUmstadt, Germany Certification number K-EG 2018/8641 The measured and guaranteed sound power lev- els were determined according to Directive 2000/14/EC, Annex V, using the ISO 9207 standard. Measured sound power level: 112 dB(A) Guaranteed sound power level: 114 dB(A) The technical documents are stored at ANDREAS STIHL AG & Co. KG Produktzulas- sung. The year of manufacture and serial number are applied to the chainsaw. Done at Waiblingen, 03.02.2020 ANDREAS STIHL AG & Co. KG pp Dr. Jürgen Hoffmann, Head of Product Data, Regulations and Licensing 26 23 EC Declaration of Conformity 0458-568-8321-B 23 EC Declaration of Conformity English 0458-568-8321-B 27 www.stihl.com *04585688321B* 0458-568-8321-B *04585688321B* 0458-568-8321-BAH XSL Formatter V6.2 MR12 for Windows (x64) : 6.2.14.22278 (2015/10/30 10:00JST) Antenna House PDF Output Library 6.2.726 (Windows (x64))
