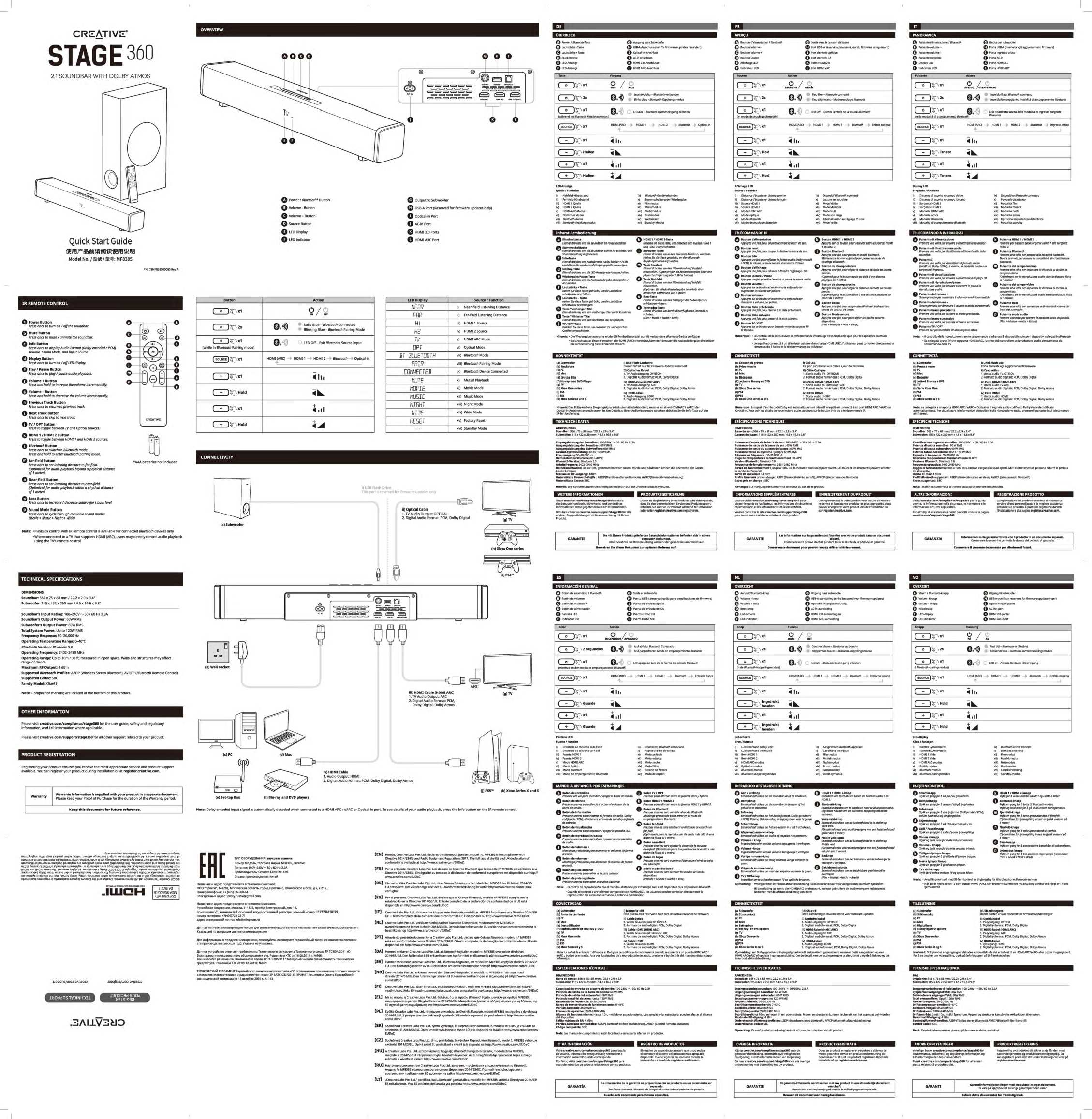

Creative Stage 360 Soundbar
Quick Start Guide and User Information
Introduction
The Creative Stage 360 is a powerful soundbar system designed to enhance your audio experience for movies, music, and gaming. This guide provides essential information for setup and operation.
What's Included
- Creative Stage 360 Soundbar
- Subwoofer
- Remote Control
- Power Adapter for Soundbar
- Power Cable for Subwoofer
- Optical Cable
- HDMI Cable
- User Guide and Warranty Information
Product Overview
Soundbar
The soundbar features a sleek design with integrated speakers. Key controls are located on the top panel: [Power Button], [Volume Up Button], [Volume Down Button], [Bluetooth Button], [Source Button]. Indicator lights on the front show the current status.
Subwoofer
The accompanying subwoofer provides deep bass for an immersive audio experience. It connects to the soundbar via a dedicated cable.
Remote Control
The remote control allows for convenient operation of the soundbar, including power on/off, volume adjustment, source selection, Bluetooth pairing, and playback controls.
Connections
Proper connection is key to optimal performance. Refer to the diagram for visual guidance.
Connecting to Your TV:
- HDMI ARC (Recommended): Connect the included HDMI cable from the soundbar's [HDMI ARC] port to your TV's [HDMI ARC] port. This allows for audio and control signals over a single cable.
- Optical: Connect the included Optical Cable from the soundbar's [Optical In] port to your TV's [Optical Out] port.
Connecting Other Devices:
- Bluetooth: Press the [Bluetooth Button] on the soundbar or remote to enter pairing mode. Select "Creative Stage 360" on your Bluetooth-enabled device.
- AUX: Connect an AUX cable from your device's audio output to the soundbar's [AUX In] port.
Connecting the Subwoofer:
- Connect the included subwoofer cable from the soundbar's [Subwoofer Out] port to the subwoofer's input port.
Power Connection:
- Connect the power adapter to the soundbar's [Power] port and plug it into a wall outlet.
- Connect the subwoofer's power cable to the subwoofer and plug it into a wall outlet.
Diagram Description: A connection diagram shows the soundbar centrally placed. Cables are depicted connecting the soundbar's HDMI ARC port to a TV's HDMI ARC port, and an optical cable from the soundbar's Optical In to a TV's Optical Out. An AUX cable links the soundbar's AUX In to a computer's audio output. A dedicated cable connects the soundbar's Subwoofer Out to the subwoofer. Power cables are shown connecting both the soundbar and subwoofer to wall power outlets.
Operation
Press the [Power Button] on the soundbar or remote to turn the system on or off. Use the [Source Button] to cycle through available inputs (HDMI ARC, Optical, AUX, Bluetooth). Adjust volume using the [Volume Up Button] and [Volume Down Button]. The remote also offers playback controls and EQ presets.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | MF8385 |
| Output Power | 240W Peak Power |
| Frequency Response | 50Hz – 20kHz |
| Connectivity | Bluetooth 5.0, HDMI ARC, Optical, AUX, Subwoofer Out |
| Dolby Atmos Support | Yes |
| Dimensions (Soundbar) | 600 x 70 x 90 mm (23.6 x 2.8 x 3.5 inches) |
| Dimensions (Subwoofer) | 200 x 300 x 250 mm (7.9 x 11.8 x 9.8 inches) |
| Weight (Soundbar) | Approx. 1.5 kg (3.3 lbs) |
| Weight (Subwoofer) | Approx. 4 kg (8.8 lbs) |
Troubleshooting
If you encounter issues, consult the following:
- No Sound: Ensure the soundbar is powered on, volume is not muted or set too low, and the correct input source is selected. Check that all cables are securely connected.
- Bluetooth Connection Issues: Make sure the soundbar is in Bluetooth pairing mode (indicated by a flashing LED). Ensure your device is within range and try clearing previous pairings on your device.
- Remote Control Not Working: Verify the battery is inserted correctly and has sufficient charge. Ensure there are no obstructions between the remote and the soundbar's IR receiver.
- Subwoofer Not Producing Bass: Confirm the subwoofer is powered on and the connection cable to the soundbar is secure. Check if the subwoofer volume setting (if applicable) is appropriate.
Important Safeguards
Please read and follow these safety instructions:
- Read all instructions before using the product.
- Do not expose the product to water or moisture.
- Use only the provided power adapter and cables.
- Ensure adequate ventilation; do not block ventilation openings.
- Keep the product away from heat sources.
- Do not attempt to service the product yourself; refer servicing to qualified personnel.
Regulatory Information
This device complies with relevant regulatory standards. Look for EAC, JWIG, and CE markings on the product.
