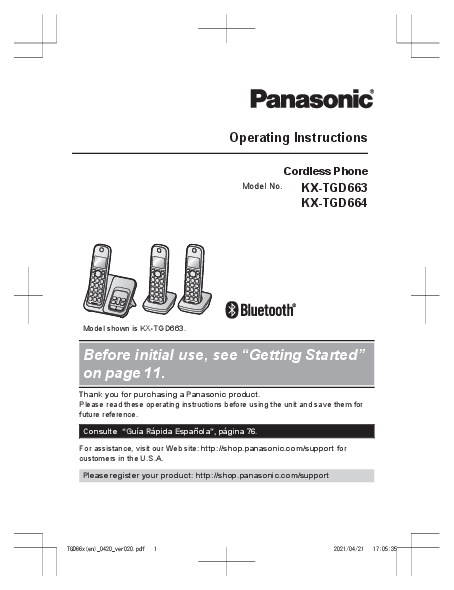

Operating Instructions
Cordless Phone Model No. KX-TGD663
KX-TGD664
Model shown is KX-TGD663.
Before initial use, see "Getting Started" on page 11.
Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference.
Consulte "Guía Rápida Española", página 76.
For assistance, visit our Web site: http://shop.panasonic.com/support for customers in the U.S.A.
Please register your product: http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 1
2021/04/21 17:05:35
Table of Contents
Introduction
Model composition .......................................3 Accessory information ..................................3 Graphical symbols for use on equipment and their descriptions ..........................................6
Important Information
For your safety .............................................7 Important safety instructions ........................8 For best performance ...................................9 Other information .........................................9 Specifications .............................................10
Getting Started
Setting up ...................................................11 Controls ......................................................13 Display icons/Indicators .............................14 Language settings ......................................16 Date and time .............................................16 Recording your greeting message .............16 Other settings .............................................16
Link to Cell
Link to cell feature ......................................18 Pairing a cellular phone ..............................18 Link to cell settings .....................................19
Making/Answering Calls
Making cellular calls ...................................22 Making landline calls ..................................22 Answering calls ..........................................23 Useful features during a call .......................23 Intercom .....................................................26
Call Block
Call block ....................................................28 Storing unwanted callers ............................28
Phonebook
Phonebook .................................................30 Speed dial ..................................................32
Programming
Menu list .....................................................34 Alarm ..........................................................42 Silent mode ................................................42 Baby monitor ..............................................43 Other programming ....................................45 Registering a unit .......................................45
2
Caller ID Service
Using Caller ID service ...............................46 Caller list ....................................................46
Using Bluetooth® Devices
Copying phonebook from a cellular phone (phonebook transfer) ..................................48 Link to Cell app ..........................................49 Text message (SMS) alert .........................50 Alert settings for your DECT phone ...........50 Remote voice assist ...................................50 Using a Bluetooth headset (optional) .........51
Answering System for Landline
Answering system for landline ...................54 Turning the answering system on/off .........54 Greeting message ......................................54 Listening to messages ...............................55 Remote operation .......................................56 Answering system settings .........................57
Useful Information
Voicemail service for landline .....................59 Wall mounting ............................................60 Error messages ..........................................63 Troubleshooting .........................................64 FCC and other information .........................73
Guía Rápida Española
Guía Rápida Española ...............................76
Appendix
Customer services .....................................86 Limited Warranty (ONLY FOR U.S.A.) .......87
Index
Index...........................................................89
TGD66x(en)_0420_ver020.pdf 2
2021/04/21 17:05:35
Model composition
Series
KX-TGD660 series
Model No.
KX-TGD663 KX-TGD664
Base unit Part No. KX-TGD660 KX-TGD660
Handset Part No. KX-TGDA66 KX-TGDA66
Introduction
Quantity 3 4
Accessory information
Supplied accessories
No.
Accessory item/ Part number
A AC adaptor/PNLV226-0X B Telephone line cord/PNJA1186Z C Wall mounting adaptor/PNKL1044Y2 D Rechargeable batteries*1 E Handset cover*2/PNYNTGDA66MR F Charger/PNLC1077ZB
Quantity KX-TGD663
1 1 1 6 3 2
KX-TGD664 1 1 1 8 4 3
*1 See page 4 for replacement battery information. *2 The handset cover comes attached to the handset.
A
B
C
D
E
F
For assistance, please visit http://shop.panasonic.com/support
3
TGD66x(en)_0420_ver020.pdf 3
2021/04/21 17:05:35
Introduction
Additional/replacement accessories
Please contact your nearest Panasonic dealer for sales information (page 86).
Accessory item Rechargeable batteries
Range extender Key detector
Model number/Specifications
HHR-4DPA*1 R To order, please visit http://shop.panasonic.com/support
Battery type: Nickel metal hydride (Ni-MH) 2 x AAA (R03) size for each handset
KX-TGA407*2
KX-TGA20*3
*1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas
where reception was previously not available. This product can be purchased online. Please visit our Web site: http://shop.panasonic.com/support *3 By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key detector is attached. Please visit our Web site: http://www.panasonic.com/tga20
Other information
R Design and specifications are subject to change without notice. R The illustrations in these instructions may vary slightly from the actual product.
Expanding your phone system
Handset (optional): KX-TGDA63/KX-TGDA66
You can expand your phone system by registering optional handsets (6 max.) to a single base unit. R Optional handsets may be a different color
from that of the supplied handsets. R Optional handsets (KX-TGDA63) have a
different key print from that of the supplied handsets. R To order, please visit http:// shop.panasonic.com/support
4
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 4
2021/04/21 17:05:35
Introduction
Bluetooth® devices You can expand your phone system by pairing the following units to a single base unit. Your Bluetooth cellular phone*1: 2 max. (for cellular calls: page 18)
Your Bluetooth headset*1: 1 max. (for a wireless hands-free conversation: page 51)
*1 Your cellular phone and headset must be Bluetooth wireless technology compatible. For more details and the list of compatible cellular phones, please visit our Web site: http://shop.panasonic.com/bluetooth-phone
Trademarks R The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Panasonic Corporation is under license. R iPhone and Siri are registered trademarks of Apple Inc. R Android, Gmail, Google Calendar and Google Assistant are trademarks of Google LLC. R Facebook and Instagram are trademarks of Facebook, Inc. R Twitter is a trademark of Twitter, Inc. R All other trademarks identified herein are the property of their respective owners.
For assistance, please visit http://shop.panasonic.com/support
5
TGD66x(en)_0420_ver020.pdf 5
2021/04/21 17:05:36
Introduction
Graphical symbols for use on equipment and their descriptions
Symbol
Explanation Alternating current (A.C.)
Symbol
Direct current (D.C.)
Explanation
Class P equipment (equipment in which protection against electric shock relies on Double Insulation or Reinforced Insulation)
"ON" (power)
Protective earth
"OFF" (power)
Protective bonding earth
Stand-by (power)
Caution, risk caused by visible radiation
For indoor use only
"ON"/"OFF" (power; push-push)
Caution, risk of electric shock
6
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 6
2021/04/21 17:05:36
Important Information
For your safety
To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product.
WARNING
Power connection
R Use only the power source marked on the product.
R Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock.
R Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
R Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
R Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at http://shop.panasonic.com/support
R Unplug from power outlets and never touch the inside of the product if its casing has been broken open.
R Never touch the plug with wet hands. Danger of electric shock exists.
Installation
R To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
R Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
R Do not allow the AC adaptor or telephone line cord to be excessively pulled, bent or placed under heavy objects.
R Do not place the handset on the base unit when battery cover is removed.
Operating safeguards
R Unplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners.
R Do not disassemble the product. R Do not spill liquids (detergents, cleansers,
etc.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use.
Medical
R Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW (max.).)
R Do not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
CAUTION
Installation and location
R Never install telephone wiring during an electrical storm.
R Never install telephone line jacks in wet locations unless the jack is specifically designed for wet locations.
R Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
R Use caution when installing or modifying telephone lines.
R The AC adaptor is used as the main disconnect device. Ensure that the AC
For assistance, please visit http://shop.panasonic.com/support
7
TGD66x(en)_0420_ver020.pdf 7
2021/04/21 17:05:36
Important Information
outlet is installed near the product and is easily accessible. R The product is only use for mounting at heights £ 2 m.
Note:
R This height is not guaranteed for product reliability.
R To prevent serious injuries due to the product unexpectedly falling, the product must be installed at a height of 1.5 m or lower.
R This product is unable to make calls when: the handset batteries need recharging or have failed. there is a power failure.
Battery
R We recommend using the batteries noted on page 4. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
R Do not mix old and new batteries. R Do not open or mutilate the batteries.
Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed. R Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. R Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual. R Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode. R Avoid the use in the following conditions High or low extreme temperatures during
use, storage or transportation. Replacement of a battery with an
incorrect type that can defeat a safeguard. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting
of a battery, that can result in an explosion. Extremely high temperature and/or extremely low air pressure that can result in an explosion or the leakage of flammable liquid or gas. Attention:
A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery.
Important safety instructions
When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for
example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. SAVE THESE INSTRUCTIONS
8
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 8
2021/04/21 17:05:36
Important Information
For best performance
Base unit location/avoiding noise
The base unit and other compatible Panasonic units use radio waves to communicate with each other. R For maximum coverage and noise-free
communications, place your base unit: at a convenient, high, and central
location with no obstructions between the handset and base unit in an indoor environment. away from electronic appliances such as TVs, radios, personal computers, wireless devices, or other phones. facing away from radio frequency transmitters, such as external antennas of mobile phone cell stations. (Avoid putting the base unit on a bay window or near a window.) R Coverage and voice quality depends on the local environmental conditions. R If the reception for a base unit location is not satisfactory, move the base unit to another location for better reception.
Environment
R Keep the product away from electrical noise generating devices, such as fluorescent lamps and motors.
R The product should be kept free from excessive smoke, dust, high temperature, and vibration.
R The product should not be exposed to direct sunlight.
R Do not place heavy objects on top of the product.
R When you leave the product unused for a long period of time, unplug the product from the power outlet.
R The product should be kept away from heat sources such as heating devices, cooking appliances, etc. It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided.
R The maximum calling distance may be shortened when the product is used in the following places: Near obstacles such as
hills, tunnels, underground, near metal objects such as wire fences, etc. R Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
Routine care R Wipe the outer surface of the product
with a soft moist cloth. R Do not use benzine, thinner, or any
abrasive powder.
Other information
R The applied nameplate is located at the bottom or rear of the product. CAUTION: Risk of explosion if battery is
replaced by an incorrect type. Dispose of used batteries according to the instructions.
Notice for product disposal, transfer, or return R This product can store your private/
confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.
For assistance, please visit http://shop.panasonic.com/support
9
TGD66x(en)_0420_ver020.pdf 9
2021/04/21 17:05:36
Important Information Notice
Specifications
R Standard: Bluetooth wireless technology 4.2
Hands Free Profile (HFP)
Headset Profile (HSP)
Phone Book Access Profile (PBAP)
Object Push Profile (OPP)
Serial Port Profile (SPP)
Message Access Profile (MAP) R Frequency range:
1.92 GHz to 1.93 GHz (DECT)
2.402 GHz to 2.480 GHz (Bluetooth) R RF transmission power:
115 mW (max.) R Power source:
120 V AC, 60 Hz R Power consumption:
Base unit: Standby: 1.2 W
Maximum: 4.5 W
Charger: Standby: 0.1 W
Maximum: 1.8 W R Operating conditions:
0 °C 40 °C (32 °F 104 °F), 20 % 80 %
relative air humidity (dry)
10
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 10
2021/04/21 17:05:36
Setting up
Connections
R If you do not connect the telephone line cord and use only cellular lines, set the cellular line only mode to use this unit more conveniently (page 20).
n Base unit Connect the AC adaptor to the unit by pressing the plug firmly. Connect the AC adaptor to the power outlet. Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click. A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
Note: R Use only the supplied Panasonic AC
adaptor PNLV226.
2
Getting Started
n Charger Connect the AC adaptor to the power outlet.
1
Battery installation
R USE ONLY rechargeable Ni-MH batteries AAA (R03) size (1).
R Do NOT use alkaline/manganese/Ni-Cd batteries.
R Confirm correct polarities ( , ).
3 1
3 4
1
4 2
3
1
R Follow the directions on the display to set up the unit.
For assistance, please visit http://shop.panasonic.com/support
11
TGD66x(en)_0420_ver020.pdf 11
2021/04/21 17:05:36
Getting Started
Removing the battery
1
2
Battery charging
Charge for about 7 hours. R Confirm "Charging" is displayed (1). R When the batteries are fully charged,
"Fully charged" is displayed. 1
Note when setting up
Note for connections
R The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
R The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a horizontally oriented AC outlet that faces the floor, such as an AC outlet installed on a ceiling or under a table, as the weight of the adaptor may cause it to become disconnected.
Power failure
R The unit cannot be used to make or receive calls during a power failure. We recommend connecting a corded-type telephone that does not use an AC adaptor to your telephone line.
Note for battery installation
R Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 4, 8.
Note for battery charging
R It is normal for the handset to feel warm during charging.
R Clean the charge contacts of the handset, base unit, and charger with a soft and dry cloth once a month. Before cleaning the unit, disconnect from power outlets and any telephone line cords. Clean more often if the unit is exposed to grease, dust, or high humidity.
Battery level
Icon /
Battery level High Medium Low Needs charging.
12
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 12
2021/04/21 17:05:36
Getting Started
Icon
Battery level Empty
Controls
Note: R At the end of each call, the unit displays a
Handset
large icon for a few moments to indicate the
battery level. R You can set the unit to play a voice
G
announcement when the battery is low or
needs charging. (page 16)
Ni-MH battery performance (supplied
H
batteries)
Operation
Operating time
A
I
In continuous use
10 hours max.*1
B
Not in use (standby) 5 days max.*1
*1 If eco mode is on except when using link to cell function.
Note: R Actual battery performance depends on
usage and ambient environment.
Intelligent eco mode
This feature automatically reduces handset
power consumption by suppressing handset
transmission power when the handset is close to the base unit.
R When this feature is activated,
is
displayed. However, during a cellular call,
is not displayed even though this
feature is activated. R Eco mode is turned off when the clarity
booster is activated (page 25).
C
D
J
E
F
K
A
A
B
Speaker M N (TALK)
Dial keypad *: Temporary tone dialing 0: ( ) Ringer off MZN (SP-PHONE: Speakerphone) MCALL BLOCKN Microphone Receiver Display MOFFN ( )
For assistance, please visit http://shop.panasonic.com/support
13
TGD66x(en)_0420_ver020.pdf 13
2021/04/21 17:05:36
Getting Started
M N (Assist) MFLASHN R You can use the handset to operate
the voice recognition feature of your cellular phone by pressing M N
(page 50). Charge contacts
n Control type Soft keys
By pressing a soft key, you can select the feature shown directly above it on the display. After a cellular phone is paired, MCELLN is displayed.
Navigator key MDN, MCN, MFN, or MEN: Scroll through
various lists and items. VOL. (Volume: MDN or MCN): Adjust the
receiver or speaker volume while talking. MFN W: View the phonebook entry. MEN REDIAL: View the redial list. MCN CID (Caller ID): View the caller list.
Base unit
A
B
C DE F
LK J I H G
Charge contacts Speaker Message counter CELL 1 indicator CELL 2 indicator HEADSET indicator MjN/MkN (VOL.: Volume up/down) MERASEN MCELL 2N (For pairing) M N (Skip) M N (PLAY/STOP) Message indicator ( )
MANSWER ON/OFFN MCELL 1N (For pairing) M N (Repeat) MLOCATORN R You can locate a misplaced handset
by pressing MLOCATORN.
Display icons/Indicators
Handset display items
Item
Meaning
Within base unit range
Out of base unit range
The landline is in use. R When flashing slowly:
The call is on hold. R When flashing rapidly: An
incoming call is now being received.
A cellular line is in use.*1 R When flashing slowly: The cellular call is on hold. R When flashing rapidly: A cellular call or text message is being received.
The remote voice assist feature is in use.
Eco mode is on.*2 (page 13)
A cellular phone is connected.*1 Ready to make/ receive cellular calls. R When turned off:
A cellular phone is not connected to the base unit. (page 20)
A cellular call is in progress on that line.
The cellular line is selected for the setting.
Noise reduction is set. (page 24)
Equalizer is set. (page 24)
14
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 14
2021/04/21 17:05:36
Getting Started
Item
In use Cell1 in use Cell2 in use C1&C2 in use Line in use
Meaning
Speakerphone is on. (page 22)
Ringer volume is off.*3 (page 23, 36, 38)
Silent mode is on. (page 42)
Call sharing mode is off. (page 40)
Alarm is on. (page 42)
Handset number
Battery level
Blocked call (page 28)
Clarity booster is on.*2 (page 25)
Baby monitor is activated. The name/number displayed next to the icon indicates the monitoring unit. (page 43)
Answering system is being used by another unit.
Someone is using the corresponding line.
*1 Corresponding lines (1, 2: cellular line) are indicated next to the item.
*2 During a cellular call, the item is not displayed even though the feature is activated.
*3 Corresponding lines (1, 2: cellular line, L: landline) are indicated next to the item. If all lines are turned off, no line is indicated.
Base unit display item
Item
Meaning
"Greeting only" is selected. Caller messages are not recorded. (page 58)
CELL indicators on the base unit
The CELL indicators show each cellular line status.
Status On Flashing slowly
Flashing rapidly Light off
Meaning
A cellular phone is connected. Ready to make/receive cellular calls.
The cellular line is in use. Phonebook entries are
being copied from a cellular phone (page 48). The base unit is searching for the paired cellular phone. The base unit is pairing a cellular phone. A cellular call is on hold. The remote voice assist feature is in use (page 50).
A cellular call is being received.
A cellular phone is not paired to the base unit.
A cellular phone is not connected to the base unit (page 20).
Bluetooth HEADSET indicator on the base unit
The HEADSET indicator shows the Bluetooth headset status.
Status On
Flashing slowly
Flashing rapidly
Meaning
A Bluetooth headset is connected to the base unit. Ready to use it.
A Bluetooth headset is in use.
The base unit is searching for the paired Bluetooth headset.
The base unit is pairing a headset.
A landline call is being received.
For assistance, please visit http://shop.panasonic.com/support
15
TGD66x(en)_0420_ver020.pdf 15
2021/04/21 17:05:36
Getting Started
Status Light off
Meaning
A Bluetooth headset is not paired to the base unit.
The Bluetooth headset is not connected to the base unit.
5 *: Select "AM" or "PM".
6 MSAVEN a MOFFN
Note:
R When English is selected as the display language, 12-hour clock format is used. When Spanish is selected, 24-hour clock format is used.
Language settings
Display language
1 MMENUN#110 2 MbN: Select the desired setting. a
MSAVEN a MOFFN Note: R The language selected will also be used for
the low battery alert announcement (page 16).
Recording your greeting message
You can record your own greeting message instead of using a pre-recorded greeting message. See page 54 for details.
1 MMENUN#302 2 MbN: "Yes" a MSELECTN 3 Record a greeting message. a MSTOPN
a MOFFN
Voice announcement language
You can select the language used for the following features. Answering system guidance Talking Caller ID Application (App) alert announcement Text message (SMS) alert announcement
1 MMENUN#112 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Date and time
Other settings
Dialing mode
If you cannot make calls, change this setting according to your telephone line service. The default setting is "Tone". "Tone": For tone dial service. "Pulse": For rotary/pulse dial service.
1 MMENUN#120 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
1 MMENUN#101 2 Enter the current month, date, and year
by selecting 2 digits for each. Example: July 12, 2021 07 12 21
3 MOKN 4 Enter the current hour and minute
(12-hour clock format) by selecting 2 digits for each. Example: 9:30 09 30
Low battery alert
This feature plays a voice announcement when the handset battery is low or needs charging. When this feature is turned on, the unit notifies you as follows.
n When you end a call: The unit plays a voice announcement when the battery is low or needs charging.
16
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 16
2021/04/21 17:05:36
n When the handset is in standby mode: If the battery is low or needs charging, the unit plays a voice announcement at the selected interval up to 3 times.
Note for handset: R At the end of each call, the unit displays a
large icon for a few moments to indicate the battery level.
Setting low battery alert
To turn this feature on, select the desired announcement interval, or select "Off" to turn this feature off. The default setting is "Every hour".
1 MMENUN#176 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Getting Started
For assistance, please visit http://shop.panasonic.com/support
17
TGD66x(en)_0420_ver020.pdf 17
2021/04/21 17:05:36
Link to Cell
Link to cell feature
You can connect your base unit and cellular phone using Bluetooth wireless technology, so that you can make or answer cellular calls using your phone system. This allows you to: use the unit to talk on cellular calls even if
some areas of your home have poor cellular reception, simply by placing your cellular phone in an area with good reception. talk on cellular calls even if your cellular phone is in your pocket or bag. enjoy cordless cellular calls even if your cellular phone plugged in and charging.
Important: R Your cellular phone must support the
Hands Free Profile (HFP) specification. R You may pair 2 cellular phones and 1
Bluetooth headset. R The unit can be used to talk on 2 lines at
the same time (for example, 2 cellular lines,or the landline and 1 cellular line). R Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular lines, or the Bluetooth headset and 1 cellular line *1). R Locate your cellular phone near the base unit. If the cellular phone is too close to the base unit during a cellular call, you may hear noise. For best performance, we recommend placing the cellular phone between 0.6 m to 3 m (2 feet to 10 feet) away from the base unit.
*1 You cannot use a Bluetooth headset to talk on a cellular line.
Pairing a cellular phone
Important: R For more details and the list of compatible
cellular phones, please visit our Web site: http://shop.panasonic.com/bluetooth-phone R Before pairing a Bluetooth enabled cellular phone to the base unit, make sure that no other Bluetooth device such as a Bluetooth headset is connected to your cellular phone.
1 Base unit:
Press and hold MCELL 1N or MCELL 2N for about 5 seconds. R After the corresponding CELL
indicator on the base unit starts flashing, the rest of the procedure must be completed within 5 minutes.
2 Your cellular phone:
While the corresponding CELL indicator is flashing, follow the instructions of your cellular phone to enter the pairing mode. R Depending on your cellular phone, it
may ask you to enter the Bluetooth PIN (default: "0000"). R If your cellular phone prompts you to confirm the passkey, tap MOKN or otherwise to accept the pairing request.
3 Base unit:
Wait until a long beep sounds. R It may take more than 10 seconds
to complete pairing. R When the corresponding CELL
indicator lights up, the cellular phone is connected to the base unit. You are ready to make cellular calls.
Note:
R If the cellular phone has already paired to the base unit, it is overwritten.
R Make sure that your cellular phone is set to connect to this product automatically. Refer to your cellular phone's operating instructions.
R Make sure you cancel your cellular phone's current pairing if you want to pair it to the other line (page 18).
R The default setting for the alert feature is "On", so when you pair your cellular phone to the base unit, this feature may be activated (page 50). (This depends on the version and type of cellular phone you are using.)
Unpairing a cellular phone
You can cancel the pairing of a cellular phone that is stored in the base unit.
18
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 18
2021/04/21 17:05:36
1 For CELL 1: MMENUN#6111
For CELL 2: MMENUN#6112
2 MbN: "Yes" a MSELECTN
R When the cellular phone is unpaired, the CELL indicator is turned off.
3 MOFFN
Link to cell settings
Selecting which unit receives cellular calls
You can select which unit rings and receives calls for a cellular line. When "All" is selected, all handsets and the base unit ring.
1 For CELL 1: MMENUN#6271
For CELL 2: MMENUN#6272
2 MbN: Select the desired handset or "All".
a MSAVEN a MOFFN Note: R When you select a specific handset to
receive calls for a cellular line, other handsets cannot answer the calls. R When you change to "All" from another setting, the base unit ringer volume also returns to the lowest level even if the ringer volume was changed. R The units selected with this setting have the alert feature (page 50) applied to them.
Link to Cell
"On (without Talking CID)": The handset and base unit use your cellular phone's ringer tone. Caller information is not announced even if the Talking Caller ID is turned on.
Important:
R To use this feature, your cellular phone must support Bluetooth in-band ringtone. Refer to your cellular phone's operating instructions.
1 For CELL 1: MMENUN#6141
For CELL 2: MMENUN#6142
2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Note:
R The units use the preset ringer tones instead of your cellular phone's ringer tone when a cellular call is being received if: your cellular phone is in silent mode (depending on your cellular phone). the base unit is in use. 2 handsets are sharing a landline call.
R If your cellular phone is in silent mode with "On (with Talking CID)" set, the unit announces caller information even when Talking Caller ID is turned off (page 38).
R When ring as cell mode is set to on, the ringer volume depends on the cellular phone Bluetooth output level specification. If the ringer volume in this mode is low, turn this feature off to use the ringer tones of the handset and base unit.
Ring as cell mode
Once this feature is turned on, the handset and base unit ring using the same ringer tone as your cellular phone. The following settings are available: "Off": Turn this feature off to use the
ringer tones of the handset and base unit. Caller information is announced depending on the Talking Caller ID setting (page 38). "On (with Talking CID)" (default): The handset and base unit use your cellular phone's ringer tone. Caller information is announced even if the Talking Caller ID is turned off.
To use the handset ringer tone instead of your cellular phone's ringer tone
Select "Off" in step 2, "Ring as cell mode", page 19. To change the handset ringer tone for a cellular line, see page 36.
Auto connection to the Bluetooth devices (cellular phones)
After pairing, your Bluetooth devices are connected to the base unit. If you move the Bluetooth devices out of base unit range, the Bluetooth devices are disconnected from the
For assistance, please visit http://shop.panasonic.com/support
19
TGD66x(en)_0420_ver020.pdf 19
2021/04/21 17:05:36
Link to Cell
base unit. This feature allows the base unit to try to reconnect the Bluetooth devices at regular intervals when it returns within base unit range. You can set the interval. The default setting is "1 min".
Important: R When 3 Bluetooth devices (2 cellular
phones and 1 headset) are paired to the base unit, only 2 Bluetooth devices can be used with the unit at the same time, and the base unit loses its connection from other Bluetooth devices. To automatically resume the connection to Bluetooth devices, leave the auto connection on. R Some cellular phones lose connection after usage, please check the specifications of your cellular phone for more details.
1 MMENUN#632 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Note: R Some cellular phones may ask you if you
accept the connection requirement from the base unit. In that case, select "Off" in step 2. Check the specifications of your cellular phone.
Connecting/disconnecting the cellular phone manually
If you will not be using the paired cellular phone's link to cell feature temporarily (for example, you do not want the unit to ring when your cellular line receives a call), you can disconnect your cellular phone from the base unit. If you want to use it again, reconnect the cellular phone to the base unit.
Note: R After you disconnect a paired cellular
phone from the base unit manually, it will automatically be connected to the base unit in 30 minutes. If you do not use the link to cell feature anymore, unpair the cellular phone (page 19). R A disconnected cellular phone is not unpaired from the base unit, so pairing it to the base unit again is unnecessary.
1 To connect/disconnect:
For CELL 1: MMENUN#6251 For CELL 2: MMENUN#6252 R A long beep sounds.
2 MOFFN
Cellular line only mode (If you do not use the landline)
If you do not use the landline, we recommend setting the unit to the cellular line only mode. The default setting is "Off".
Important: R If you turn on the "Cell line only
mode", disconnect the telephone line cord from the base unit. Otherwise the "Cell line only mode" cannot be activated.
1 MMENUN#157 2 To turn on:
MbN: "On" a MSELECTN a MbN: "Yes" a MSELECTN To turn off: MbN: "Off" a MSELECTN
Note: R Once you set this mode, you can press
M N or MZN instead of MCELLN (page 22) to make cellular calls for the handset. R Once you set this mode, the following features cannot be used: Landline features (page 41) Answering system (page 54)
Messages cannot be received. Voicemail features (page 59) R After this mode is turned on or off, the base unit reboots. Bluetooth connections from cellular
phones or Bluetooth headset are disconnected. If the auto connection is turned on (page 19), the cellular phones are reconnected. will be displayed on the handset momentarily. The handset can be used once is displayed.
20
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 20
2021/04/21 17:05:37
When you use the landline again
Before connecting the telephone line to the base unit, select "Off" in step 2, "Cellular line only mode (If you do not use the landline)", page 20.
Cellular line selection
This feature determines which cellular line is selected to make cellular calls when: you press MCELLN on the handset. you press M N or MZN on the handset
while the cellular line only mode is turned on. The following settings are available: "Manual" (default): You can select the desired cellular line when making a call. "Cellphone 1"*1: CELL 1 is selected. "Cellphone 2"*1: CELL 2 is selected.
1 MMENUN#634 2 MbN: Select the desired setting. a
MSAVEN a MOFFN *1 After the Bluetooth device is paired, the
device name is displayed.
Link to Cell
we recommend that you change the PIN, and keep it confidential.
Important: R Please make note of your new PIN. The
unit does not reveal the PIN to you. If you forget your PIN, see page 71.
1 MMENUN#619
R If the unit prompts you to enter the old PIN (when the default has been changed), enter the current 4-digit PIN.
2 Enter the new 4-digit PIN. a MOKN 3 Enter the new 4-digit PIN again. a
MSAVEN a MOFFN
Storing your area code (for dialing only a 7-digit phone number to make a local call)
You need to add your area code when making cellular calls to a phone number in your area. Once you store your area code, it is automatically added to the beginning of the 7-digit phone number when making cellular calls.
1 MMENUN#633
2 Enter the 3-digit area code.
R To correct a digit, press MCLEARN.
3 MSAVEN a MOFFN
Changing the Bluetooth PIN (Personal Identification Number)
The PIN is used to pair cellular phones to the base unit. The default PIN is "0000". To prevent unauthorized access to this product,
For assistance, please visit http://shop.panasonic.com/support
21
TGD66x(en)_0420_ver020.pdf 21
2021/04/21 17:05:37
Making/Answering Calls
Making cellular calls
Important: R The unit can be used to talk on 2 lines at
the same time (for example, 2 cellular lines, or the landline and 1 cellular line). R Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular lines, or the headset and 1 cellular line*1). R Before making calls, confirm that the corresponding on the handset is displayed (page 14).
*1 You cannot use a Bluetooth headset to talk on a cellular line.
1 Lift the handset and then dial the phone
number. R To correct a digit, press MCLEARN.
2 MCELLN
R The unit starts dialing immediately in the following situations. Only 1 cellular phone is paired. A specific line is set to make cellular calls (page 21). Go to step 4.
3 MbN: Select the desired cellular phone. a
MSELECTN
4 When you finish talking, press MOFFN or
place the handset on the base unit or charger.
Note: R To switch to the speaker, press MZN.
To switch back to the receiver, press MZN/ M N. R In step 1, you can store the dialed phone number to the phonebook by pressing and holding MFN W for a few seconds.
Adjusting the receiver or speaker volume
Press MDN or MCN repeatedly while talking.
Note: R The receiver*1 or speaker volume you set is
kept for each line (landline and cellular lines).
*1 If the receiver volume is set to level 5 (max.), it will be changed to level 4 in the next call.
Making a cellular call using the redial list
The last 5 phone numbers dialed are stored in the redial list (48 digits max. each).
1 MEN REDIAL 2 MbN: Select the desired entry. 3 MCELLN
R The unit starts dialing immediately in the following situations. Only 1 cellular phone is paired. A specific line is set to make cellular calls (page 21).
4 MbN: Select the desired cellular phone. a
MSELECTN
Erasing a number in the redial list n When a cellular phone is paired:
1 MEN REDIAL 2 MbN: Select the desired entry. a
MMENUN
3 MbN: "Erase" a MSELECTN 4 MbN: "Yes" a MSELECTN a MOFFN
n When a cellular phone is not paired:
1 MEN REDIAL 2 MbN: Select the desired entry. a
MERASEN
3 MbN: "Yes" a MSELECTN a MOFFN
Making landline calls
1 Lift the handset and then dial the phone
number. R To correct a digit, press MCLEARN.
2 Press M N to make the call.
R To make the call using the speakerphone, press MZN.
3 When you finish talking, press MOFFN or
place the handset on the base unit or charger.
22
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 22
2021/04/21 17:05:37
Making/Answering Calls
Note: R To switch to the speaker, press MZN.
To switch back to the receiver, press MZN/ M N. R In step 1, you can store the dialed phone number to the phonebook by pressing and holding MFN W for a few seconds.
Making a call using the redial list The last 5 phone numbers dialed are stored in the redial list (48 digits max. each). 1 MEN REDIAL 2 MbN: Select the desired entry. 3M N
Pause (for PBX/long distance service users) A pause is sometimes required when making calls using a PBX or long distance service. When storing a calling card access number and/or PIN in the phonebook, a pause is also needed (page 32). Example: If you need to dial the line access number "9" when making outside calls with a PBX: 1 9 a MDN (Pause) 2 Dial the phone number. a M N Note: R A 3.5 second pause is inserted each time
MDN (Pause) is pressed.
Answering calls
Temporary handset ringer off: You can turn the ringer off temporarily by pressing M N (left soft key).
Adjusting the ringer volume
Handset Press MDN or MCN repeatedly to select the desired volume while ringing. R To turn the ringer off, press MCN repeatedly.
Base unit
n While the base unit is ringing for an incoming call: Press MjN or MkN repeatedly to select the desired volume.
n While the base unit is in standby mode: Press MjN or MkN repeatedly to select the desired volume for landline call.
R To turn the ringer off, press and hold MkN until the unit beeps.
Note for handset and base unit: R You can adjust the ringer volume for
cellular call and landline call by programming (page 36, 38). R The ringer volume you set is kept for each line (landline and cellular lines).
One-touch ringer off for the handset Press and hold 0 ( ) until the unit beeps to turn the ringer off. While the ringer is turned off, the handset will not ring for cellular calls or for landline calls. R You can turn the ringer on again by
pressing and holding 0 ( ) until the unit beeps.
1 Lift the handset and then press M N or
MZN when the unit rings. R To answer a cellular call, you can also
press MCELLN.
2 When you finish talking, press MOFFN or
place the handset on the base unit or charger. Any key answer: You can answer the call by pressing any dial key. Auto talk: You can answer calls simply by lifting the handset (page 40).
Useful features during a call
Hold 1 Press MMENUN during an outside call. 2 MbN: "Hold" a MSELECTN 3 To release hold on the cellular line:
Press MCELLN.*1
For assistance, please visit http://shop.panasonic.com/support
23
TGD66x(en)_0420_ver020.pdf 23
2021/04/21 17:05:37
Making/Answering Calls
R Another handset user can take the call by pressing MCELLN.*1 *1 If you press MCELLN and the selection list is displayed, select the desired cellular line and press MSELECTN.
To release hold on the landline: Press M N. R Another handset user can take the call
by pressing M N.
Note: R After holding for 10 minutes, the call is
disconnected.
2 To switch between calls, press MFLASHN.
Note: R Please contact your phone service provider
for details and availability of this service in your area.
Temporary tone dialing for landline calls (for rotary/pulse service users)
Press * before entering access numbers which require tone dialing.
Mute
1 Press MMUTEN during a call. 2 To return to the call, press MMUTEN.
Note: R MMUTEN is a soft key visible on the display
during a call.
Flash for landline calls
MFLASHN allows you to use the special features of your host PBX such as transferring an extension call, or accessing optional telephone services.
Note: R To change the flash time, see page 40.
For call waiting or Call Waiting Caller ID service users
To use call waiting or Call Waiting Caller ID, you must first subscribe with your phone service provider. This feature allows you to receive calls while you are already talking on the phone. If you receive a call while on the phone, you will hear a call waiting tone. If you subscribe to both Caller ID and Call Waiting with Caller ID services, the 2nd caller's information is displayed on the unit that is in use after you hear the call waiting tone.
1 Press MFLASHN to answer the 2nd call.
Handset noise reduction
This feature allows you to hear the voice of the person you are talking to more clearly, by reducing the surrounding noise coming from the other party's telephone.
1 Press MMENUN while talking. 2 MbN: "Noise reduction on" or
"Noise reduction off" a MSELECTN
Note: R The setting you made is kept for each line
(landline and cellular lines). The default settings are as follows: for landline: "Noise reduction off" for cellular lines: "Noise reduction
on" R Depending on the environment where this
handset is being used, this feature may not be effective. R This feature is not available while using the speakerphone.
Handset equalizer
This feature clarifies the voice of the person you are talking to, producing a more natural-sounding voice that is easier to hear and understand.
1 Press MMENUN while talking. 2 MbN: "Equalizer" a MSELECTN 3 MbN: Select the desired setting. 4 Press MOKN to exit.
24
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 24
2021/04/21 17:05:37
Making/Answering Calls
Note:
R The setting you made is kept for each line
(landline and cellular lines). R Depending on the condition and quality of
your telephone line, this feature may
emphasize existing line noise. If it becomes
difficult to hear, select another setting. R This feature is not available while using the
speakerphone. R When both the "Equalizer" setting and
noise reduction are activated,
is
shown on the display.
Handset clarity booster
This feature can improve sound clarity when
the handset is used in an area where there may be interference. During an outside call,
this feature is turned on automatically when
necessary.
R When this feature is turned on,
is
displayed. However, during a cellular call,
is not displayed even though the
feature is activated.
Call share
You can join an existing outside call.
n While another unit is on a cellular call:
1 To join the conversation, press
MCELLN. R You can join the conversation in the
following situations. Only 1 cellular phone is paired. A specific line is set to make
cellular calls (page 21).
2 MbN: Select the corresponding cellular
phone. a MSELECTN
n While another unit is on a landline call: To join the conversation, press M N.
Transferring calls, conference calls
Outside calls can be transferred or a conference call with an outside party can be made between handsets.
1 During an outside call, press MMENUN. 2 MbN: "Intercom" a MSELECTN 3 MbN: Select the desired unit. a MSELECTN 4 Wait for the paged party to answer.
R If the paged party does not answer, press MBACKN to return to the outside call.
5 To complete the transfer:
Press MOFFN. To establish a conference call: MMENUN a MbN: "Conference" a MSELECTN R To leave the conference, press MOFFN.
The other 2 parties can continue the conversation. R To put the outside call on hold: MMENUN a MbN: "Hold" a MSELECTN To resume the conference: MMENUN a MbN: "Conference" a MSELECTN R To cancel the conference: MMENUN a MbN: "Stop conference" a MSELECTN You can continue the conversation with the outside caller.
Transferring a cellular call between the handset and a cellular phone
Transferring a cellular call from the handset to a cellular phone
Note:
R A maximum of 3 parties (including 1 outside party) can join a conversation using 2 extensions. (3-way conference)
R To prevent other users from joining your conversations with outside callers, turn call sharing mode off (page 40).
1 Press MMENUN during a cellular call. 2 MbN: "Transfer to cell" a
MSELECTN R The cellular call is transferred to the
cellular phone.
Note: R Depending on your cellular phone type, you
may need to set the cellular phone to be
For assistance, please visit http://shop.panasonic.com/support
25
TGD66x(en)_0420_ver020.pdf 25
2021/04/21 17:05:37
Making/Answering Calls
ready to talk before transferring. For example, if your cellular phone has a top cover, open it beforehand.
Transferring a cellular call from a cellular phone to the handset During a conversation using a cellular phone, the call cannot be transferred to the handset by the cellular phone. Perform the following with the handset. 1 During a conversation using a cellular
phone, press MCELLN. R The call is transferred to the handset in
the following situations. Only 1 cellular phone is paired. A specific line is set to make cellular
calls (page 21).
2 MbN: Select the corresponding cellular
phone. a MSELECTN R The call is transferred to the handset.
Answering a 2nd call
If you receive a call while talking on the phone, the interrupt tone sounds (page 38) and the 2nd caller's information is displayed if you subscribe to Caller ID service (page 46).
Answering a cellular call during a landline call
1 Press MMENUN during a landline call. 2 MbN: "Hold" a MSELECTN 3 To answer the 2nd call:
Press MCELLN while the 2nd call is being received.
4 To hang up the 2nd call and return to the
1st call (landline call), press MOFFN, then press M N.
Answering a 2nd call during a cellular call
1 Press MMENUN during a cellular call. 2 MbN: "Hold" a MSELECTN
3 To answer the 2nd call:
Press M N or MCELLN while the 2nd call is being received.
4 To hang up the 2nd call and return to the
1st call (cellular call), press MOFFN, then press MCELLN.*1 *1 If you press MCELLN and the selection list is displayed, select the desired cellular line and press MSELECTN.
Intercom
Intercom calls can be made between handsets. Note: R When paging unit(s), the paged unit(s)
beeps for 1 minute. R If you receive an outside call while talking
on the intercom, the interrupt tone sounds (page 38). To finish intercom, press MOFFN. Then, press M N to answer the call. R To change the handset ringer volume and ringer tone for intercom, see page 38.
Making an intercom call 1 MMENUN a MbN: "Intercom" a
MSELECTN
2 MbN: Select the desired unit. a MSELECTN 3 When you finish talking, press MOFFN.
Note: R You can also use the MINTERCOMN soft
key, if displayed, to make intercom calls.
Answering an intercom call 1 Press M N to answer the page. 2 When you finish talking, press MOFFN.
Turning auto intercom on/off
This feature allows the handset to answer intercom calls automatically when it is called. You do not need to press M N or MZN. When
26
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 26
2021/04/21 17:05:37
this feature is set to "On", the monitoring handset for the baby monitor feature (page 44) will also answer baby monitor calls automatically. The default setting is "Off".
1 MMENUN#273
2 MbN: Select the desired setting. a
MSAVEN
3 MOFFN
Note:
R This feature is not available for all handsets paging even if it is turned on.
Making/Answering Calls
For assistance, please visit http://shop.panasonic.com/support
27
TGD66x(en)_0420_ver020.pdf 27
2021/04/21 17:05:37
Call Block
Call block
You can press the MCALL BLOCKN button in the following situations to disconnect the current call and add a phone number to the call block list: when an incoming call is being received when an incoming call is being recorded by
the answering system when talking on an outside call Once a phone number has been added to the call block list, the unit will block calls from that phone number in the future.
1 Press MCALL BLOCKN under the
situations shown above.
2 Confirm the call block number and press
MYESN. R The call block number is stored in the
call block list, "Caller blocked" is displayed, and then the call is disconnected.
Note: R If the call has no phone number, the call is
blocked but it is not stored in the call block list. R The call block feature is not available: for intercom calls or calls received by call
waiting. when a landline call (or cellular call) is
being received during a cellular call (or landline call). R Blocked calls are logged in the caller list.
Storing unwanted callers
The unit can block calls by storing the desired items in the call block list beforehand (Caller ID subscribers only). "Block a single number": The unit
blocks calls from specific phone numbers stored in the call block list. "Block range of numbers": The unit blocks calls that begin with a number stored in the call block list, such as a toll-free phone number prefix or certain area codes. "Block unknown CID": The unit blocks calls that have no phone number.
Single phone numbers and ranges of numbers can be stored in the call block list up to 150 items in total. Blocking unwanted callers: When a call is received, the unit rings once*1 while caller information is being received. If the caller's phone number matches an entry in the call block list, the unit emits no sound to the caller, and disconnects the call. *1 If you do not want this one ring to sound,
select "No" in "Turning the first ring on/ off" (page 29).
Storing a single phone number
Important: R We recommend storing 10 digits (including
the area code). If only 7 digits are stored, all numbers that have the same last 7 digits will be blocked.
Adding call blocked numbers from the caller list
n When a cellular phone is paired:
1 MCN CID 2 MbN: Select the desired entry to be
blocked. R To edit the number:
MSELECTN a Press * (Edit) repeatedly until the phone number is shown in the 10-digit format. a MSAVEN a MbN: "Call block" a MSELECTN a Go to step 4.
3 MCALL BLOCKN 4 MbN: "Yes" a MSELECTN 5 Edit the phone number if necessary
(24 digits max.). a MSAVEN a MOFFN n When a cellular phone is not paired:
1 MCN CID 2 MbN: Select the desired entry to be
blocked. R To edit the number: MMENUN a
MbN: "Edit" a MSELECTN Press MEDITN repeatedly until the phone number is shown in the 10-digit format. a MSAVEN a MbN:
28
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 28
2021/04/21 17:05:37
"Call block" a MSELECTN a Go to step 4.
3 MCALL BLOCKN 4 MbN: "Yes" a MSELECTN 5 Edit the phone number if necessary
(24 digits max.). a MSAVEN a MOFFN
Adding call blocked numbers manually
1 MCALL BLOCKN 2 MbN: "Block a single number" a
MSELECTN
3 MMENUN a MbN: "Add" a MSELECTN 4 Enter the phone number (24 digits max.).
a MSAVEN a MOFFN
Storing a range of number
1 MCALL BLOCKN 2 MbN: "Block range of numbers" a
MSELECTN
3 MMENUN a MbN: "Add" a MSELECTN 4 Enter the desired number (2-8 digits). a
MSAVEN a MOFFN
Blocking incoming calls that have no phone number
You can block calls when no phone number is provided, such as private callers or out of area calls.
1 MCALL BLOCKN 2 MbN: "Block unknown CID" a
MSELECTN
3 MbN: Select the desired setting. a
MSAVEN a MOFFN
Turning the first ring on/off
You can choose whether the first ring sounds when a call is received. "Yes" (default): The first ring for all calls will be heard, including calls from blocked phone numbers.
Call Block
"No": The first ring is muted for all calls. If this setting is selected, the unit will never ring for calls from blocked phone numbers.
1 MCALL BLOCKN 2 MbN: "One ring for blocked call"
a MSELECTN
3 MbN: Select the desired setting. a
MSAVEN a MOFFN
Viewing/editing/erasing call block numbers
1 MCALL BLOCKN 2 MbN: "Block a single number" or
"Block range of numbers" a MSELECTN
3 MbN: Select the desired entry.
R After viewing, press MOFFN to exit.
4 To edit a number:
MEDITN a Edit the number. a MSAVEN a MOFFN To erase a number: MERASEN a MbN: "Yes" a MSELECTN a MOFFN Note: R When editing, press the desired dial key to add digits and press MCLEARN to erase digits.
Erasing all call block numbers
1 MCALL BLOCKN 2 MbN: "Block a single number" or
"Block range of numbers" a MSELECTN
3 MMENUN a MbN: "Erase all" a
MSELECTN
4 MbN: "Yes" a MSELECTN 5 MbN: "Yes" a MSELECTN a MOFFN
For assistance, please visit http://shop.panasonic.com/support
29
TGD66x(en)_0420_ver020.pdf 29
2021/04/21 17:05:37
Phonebook
Phonebook
You can add 3,000 names (16 characters max.) and phone numbers (24 digits max.) to the phonebook, and assign each phonebook entry to the desired group (page 31). The following groups are available: Group 1: "Home"*1 (default) Group 2: "Cell 1"*1 Group 3: "Cell 2"*1 Group 4-9: You can change the group
name for each group. *1 For groups 1-3, the group names cannot
be changed.
Important:
R All entries can be shared by any registered handset.
R You can copy phonebook entries from a Bluetooth cellular phone to the unit's phonebook (page 48).
Adding phonebook entries
1 MFN W a MMENUN 2 MbN: "Add new entry" a MSELECTN 3 Enter the party's name. a MOKN 4 Enter the party's phone number. a MOKN 5 MbN: Select the desired group. a
MSELECTN 2 times a MOFFN
Note: R In step 3, you can switch the language for
entering characters. # a MbN: Select the desired language. a MOKN
Entering characters
Press the dial key that corresponds to the desired character. Press repeatedly to scroll through the available characters. The following operations are also available.
Key
Operation
*
Switch between the
uppercase and lowercase
(A « a)
Key MFN MEN MCLEARN
Operation
Move the cursor
Erase the character or number R To erase all, press and
hold it.
R To enter another character that is located on the same dial key, first press MEN to move the cursor to the next space.
R If you do not press any dial key within 2 seconds after entering a character, the character is fixed and the cursor moves to the next space.
Storing a redial list number to the phonebook
Phone numbers of up to 24 digits can be stored in the phonebook.
n When a cellular phone is paired:
1 MEN REDIAL 2 MbN: Select the desired entry. a
MMENUN
3 MbN: "Save" a MSELECTN 4 To store the name, continue from step
3, "Editing entries", page 32.
n When a cellular phone is not paired:
1 MEN REDIAL 2 MbN: Select the desired entry. a
MSAVEN
3 To store the name, continue from step
3, "Editing entries", page 32.
Note: R The name stored in the phonebook will be
reflected in the redial list after you make a call using that phonebook entry.
Storing caller information to the phonebook
n When a cellular phone is paired:
1 MCN CID
2 MbN: Select the desired entry. a
MSELECTN R To edit the number, press * (Edit)
repeatedly until the phone number is shown in the desired format.
30
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 30
2021/04/21 17:05:37
3 MSAVEN 4 MbN: "Phonebook" a MSELECTN 5 Continue from step 3, "Editing entries",
page 32. n When a cellular phone is not paired:
1 MCN CID 2 MbN: Select the desired entry. a
MMENUN R To edit the number:
MbN: "Edit" a MSELECTN Press MEDITN repeatedly until the phone number is shown in the desired format. a MSAVEN a MbN: "Phonebook" a MSELECTN a Go to step 4.
3 MbN: "Save phonebook" a
MSELECTN
4 Continue from step 3, "Editing entries",
page 32.
Groups
Groups can help you find entries in the phonebook quickly and easily. You can change the group name for groups 4-9 ("Friends", "Family", etc.). By assigning different ringer tones for different groups of callers, you can identify who is calling (ringer ID), if you have subscribed to Caller ID service.
Changing group names/setting ringer ID
1 MFN W a MMENUN 2 MbN: "Group" a MSELECTN 3 MbN: Select the desired group. a
MSELECTN R If you selected "Home", "Cell 1", or
"Cell 2", go to step 5.
4 To change group names
MbN: "Group name" a MSELECTN a Edit the name (10 characters max.). a MSAVEN
Phonebook
5 To set group ringer tone
MbN: Select the current setting of the group ringer tone. a MSELECTN a MbN: Select the desired ringer tone. a MSAVEN
6 MOFFN
Finding and calling from a phonebook entry
1 MFN W
2 To scroll through all entries
MbN: Select the desired entry. To search by first character
Press the dial key (0 to 9, or #) which contains the character you are searching for. MbN: Scroll through the phonebook if necessary. To search by group MGROUPN MbN: Select the desired group. a MSELECTN MbN: Scroll through the phonebook if necessary. To search by query You can narrow down the search to enter the first characters of a name. *
To search for the name, enter the
first characters (up to 4) in
uppercase. a MOKN
MbN: Scroll through the phonebook if
necessary.
3
n Using a cellular line: MCELLN
R The unit starts dialing
immediately in the following
situations.
Only 1 cellular phone is
paired.
A specific line is set to make
cellular calls (page 21).
MbN: Select the desired cellular
phone. a MSELECTN
n Using a landline: MN
For assistance, please visit http://shop.panasonic.com/support
31
TGD66x(en)_0420_ver020.pdf 31
2021/04/21 17:05:37
Phonebook
Editing entries 1 Find the desired entry (page 31). 2 MMENUN a MbN: "Edit" a MSELECTN 3 Edit the name if necessary. a MOKN 4 Edit the phone number if necessary. a
MOKN
5 MbN: Select the desired group (page 31).
a MSELECTN 2 times a MOFFN
Erasing entries
R If you have rotary/pulse service, you need to press * before pressing MFN W in step 1 to change the dialing mode temporarily to tone. When adding entries to the phonebook, we recommend adding * to the beginning of phone numbers you wish to chain dial (page 30).
Speed dial
You can assign 1 phone number to each of the dial keys (1 to 9) on the handset.
Erasing an entry
1 Find the desired entry (page 31). 2 MMENUN a MbN: "Erase" a MSELECTN 3 MbN: "Yes" a MSELECTN a MOFFN
Erasing all entries
1 MFN W a MMENUN 2 MbN: "Erase all" a MSELECTN 3 MbN: Select the desired group. a
MSELECTN
4 MbN: "Yes" a MSELECTN 5 MbN: "Yes" a MSELECTN a MOFFN
Chain dial
This feature allows you to dial phone numbers in the phonebook while you are on a call. This feature can be used, for example, to dial a calling card access number or bank account PIN that you have stored in the phonebook, without having to dial manually.
1 During an outside call, press MFN W. 2 MbN: Select the desired entry. 3 Press MCALLN to dial the number.
Note: R When storing a calling card access number
and your PIN in the phonebook as one phonebook entry, press MDN (Pause) to add pauses after the number and PIN as necessary (page 23).
Adding phone numbers to speed dial keys
n By entering phone numbers:
1 Press and hold the desired speed dial
key (1 to 9). a MADDN
2 MbN: "Manual" a MSELECTN 3 Enter the party's name (16 characters
max.). a MOKN
4 Enter the party's phone number (24
digits max.). a MOKN a MSELECTN a MOFFN n From the phonebook:
1 Press and hold the desired speed dial
key (1 to 9). a MADDN
2 MbN: "Phonebook" a MSELECTN 3 MbN: Select the desired entry. a
MSAVEN a MOFFN Note: R If you edit a phonebook entry which is
assigned to a speed dial key, the edited entry does not transfer to the speed dial key.
Editing an entry
1 Press and hold the desired speed dial key
(1 to 9). a MMENUN
2 MbN: "Edit" a MSELECTN 3 Edit the name if necessary. a MOKN 4 Edit the phone number if necessary. a
MOKN a MSELECTN a MOFFN
32
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 32
2021/04/21 17:05:37
Erasing an entry
1 Press and hold the desired speed dial key
(1 to 9). a MMENUN
2 MbN: "Erase" a MSELECTN 3 MbN: "Yes" a MSELECTN a MOFFN
Viewing an entry/Making a call
n Using a cellular line:
1 Press and hold the desired speed dial
key (1 to 9).
2 MCELLN
R The unit starts dialing immediately in the following situations. Only 1 cellular phone is paired. A specific line is set to make cellular calls (page 21).
3 MbN: Select the desired cellular phone.
a MSELECTN n Using a landline:
1 Press and hold the desired speed dial
key (1 to 9).
2 To make a call, press M N.
Phonebook
For assistance, please visit http://shop.panasonic.com/support
33
TGD66x(en)_0420_ver020.pdf 33
2021/04/21 17:05:37
Programming
Menu list
To access the features, there are 2 methods.
n Scrolling through the display menus
1 MMENUN 2 Press MCN or MDN to select the desired main menu. a MSELECTN 3 Press MCN or MDN to select the desired item from the next sub-menus. a MSELECTN 4 Press MCN or MDN to select the desired setting. a MSAVEN
n Using the direct command code
1 MMENUN a Enter the desired code.
Example: Press MMENUN#101.
2 Select the desired setting. a MSAVEN
Note: R To exit the operation, press MOFFN. R In the following table, < > indicates the default settings. R In the following table, indicates the reference page number. R Display menu order and sub-menu may vary depending on your model.
Display menu tree and direct command code table
Main menu: W "Phonebook" Operation Viewing the phonebook entry.
Main menu: "Caller list" Operation Viewing the caller list.
Main menu: "Answering device"
Sub-menu 1 Play new message Play all message Erase all message*1 Greeting
Sub-menu 2
Record greeting*1 Check greeting Pre-recorded*1 (Reset to pre-recorded greeting)
Settings
Code
#280
31
Code
#213
46
Code
#323
55
#324
55
#325
56
#302
54
#303
55
#304
55
34
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 34
2021/04/21 17:05:37
Sub-menu 1 Settings
Sub-menu 2 Ring count*1
Recording time*1
Remote code*1 Screen call
Answer on*1
Answer off*1
Main menu:
"Voicemail access"*3
Operation Listening to voicemail messages.
Main menu: "Intercom" Operation Paging the desired unit.
Programming
Settings
Code
Toll saver 2-7 rings <4 rings>
#211
58
<3 min>
#305
58
1 min
Greeting only*2
<111>
#306
56
<On> Off
#310
57
#327
54
#328
54
Code
#330
59
Code
#274
26
For assistance, please visit http://shop.panasonic.com/support
35
TGD66x(en)_0420_ver020.pdf 35
2021/04/21 17:05:37
Programming
Main menu: "Bluetooth"
Sub-menu 1
Link to cell 1:Add new
device*4 (for CELL 1) 2:Add new device*4 (for CELL 2)
Sub-menu 2 Connect*1/ Disconnect*1
Ringer volume Handset
Ringer volume Base unit*1
Ringer tone*7
Select unit to ring*1
Ring as cell (limited)*1
Alert settings*1 Alert On/Off
Alert settings*1 Voice alert
Alert settings*8 Alert tone
Pair
Settings
Off6 <6>
Off6 <1>
<Tone 2>*5 <Tone 4>*6 <All> Handset 1-6
<On (with Talking CID)> On (without Talking CID) Off <On> Off
<On> Off
<Tone 1>*5 <Tone 2>*6
Unpair
Phonebook transfer
Headset
Add new device*4
Connect*1/
Disconnect*1
Pair
Unpair
Code
#6251*5
20
#6252*6
#6281*5
23
#6282*6
#G6281*5
#G6282*6
#6291*5
#6292*6
#6271*5
19
#6272*6
#6141*5
19
#6142*6
#6101*5
50
#6102*6
#6031*5
50
#6032*6
#6041*5
50
#6042*6
#6241*5
18
#6242*6
#6111*5
18
#6112*6
#618
48
#621
51
#622
52
#621
51
#612
52
36
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 36
2021/04/21 17:05:37
Programming
Sub-menu 1 Settings
Sub-menu 2
Settings
Code
Auto connect*1
Off
<1 min> 3 min 5 min 10 min
#632
19
Cell area code*1
#633
21
Cell line only mode*1
On <Off>
#157
20
Cell line select <Manual>
#634
21
Cellphone 1*4
Cellphone 2*4
Set PIN*1
<0000>
#619
21
International code*1
#117
48
Country code*1
#118
Trunk prefix*1
#119
Main menu: "Set date & time"
Sub-menu 1 Date and time*1 Memo alarm
Sub-menu 2
Alarm13
Time adjustment*1, *9
Settings
Code
#101
16
<Off> Once Daily Weekly
#720
42
<Caller ID auto>
#226
Manual
Main menu: "Speed dial" Operation Viewing the speed dial entry.
Code
#261
32
For assistance, please visit http://shop.panasonic.com/support
37
TGD66x(en)_0420_ver020.pdf 37
2021/04/21 17:05:37
Programming
Main menu: "Settings"
Sub-menu 1 Ring adjustments
Sub-menu 2
Ringer volume (Incoming) Handset*3
Ringer volume (Incoming) Base unit*1, *3
Intercom ringer volume
Settings Off6 <6>
Off6 <1>
16 <6>
Code
#160
#G160
#175
Ringer tone (Incoming)*3, *7, *10 (Handset)
Intercom ringer tone*7, *10
<Tone 1> <Tone 3>
#161
#163
Interrupt tone*11
<On> Off
#201
26
Silent mode On/Off
On <Off>
#238
42
Silent mode Start/End
<11:00 PM/06:00 #237
43
AM>
Silent mode Select group
Home Cell 1 Cell 2 Group 4-9
#241
43
Set date & time
Date and time*1
#101
16
Memo alarm Alarm13
<Off> Once Daily Weekly
#720
42
Time adjustment*1, *9 <Caller ID auto> #226
Manual
Talking caller ID Handset
<On> Off
#162
46
Base unit*1
On <Off>
#G162
Low battery alert
Off
#176
17
<Every hour>
Every 3 hour
Every 6 hour
38
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 38
2021/04/21 17:05:37
Sub-menu 1
Key detector setting*12 1:Add new device
(for Detector1)*13 2:Add new device
(for Detector2) 3:Add new device
(for Detector3) 4:Add new device
(for Detector4)
Sub-menu 2 Change name*1
Registration
Deregistration
Settings Detector1 Detector2*14 Detector3*14 Detector4*14
Call block*1
Speed dial Record greeting*1 Voicemail*3
Block a single number
Block range of numbers
Block unknown CID (CID: Caller ID) One ring for blocked call
Save VM access#*1 (VM: Voicemail)
VM tone detect*1
LCD contrast
(Display contrast)
Handset name
Display name
Auto intercom
Key tone
Caller ID edit
(Caller ID number auto
edit)
Block <Unblock> <Yes> No
<On> Off Level 14 <2>
On <Off> On <Off> <On> Off <On> Off
Programming
Code
#6561
#6562*14
#6563*14
#6564*14
#6571
#6572*14
#6573*14
#6574*14
#6581
#6582*14
#6583*14
#6584*14
#217
28
29
#240
29
#173
29
#261
32
#302
54
#331
59
#332
59
#145
#104
45
#105
45
#273
26
#165
#214
47
For assistance, please visit http://shop.panasonic.com/support
39
TGD66x(en)_0420_ver020.pdf 39
2021/04/21 17:05:37
Programming
Sub-menu 1 Auto talk*15 Set tel line*3
Call sharing*1 Registration Change language
Sub-menu 2
Set dial mode*1 Set flash time*1, *16
Set line mode*1, *17
Register handset Deregistration*2 Display Announcement*1
Settings
On <Off>
<Tone> Pulse
80 ms 90 ms 100 ms 110 ms 160 ms 200 ms 250 ms 300 ms 400 ms 600 ms <700 ms> 900 ms
A <B>
<On> Off
<English> Español
<English> Español
Main menu: "Customer support" Operation Displaying customer support Web address.
Main menu: "Baby monitor"
Sub-menu 1 On/Off
Sub-menu 2
Sensitivity level
Settings
On <Off>
Low <Middle> High
Code
#200
23
#120
16
#121
24
#122
#194
25
#130
45
#131
45
#110
16
#112
16
Code
#680
Code
#268
43
#269
44
40
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 40
2021/04/21 17:05:37
Programming
Main menu: "Key detector"*12
Sub-menu 1 Search Battery check
Sub-menu 2
Settings
Code
#655
*1 If you program these settings using one of the units, you do not need to program the same item using another unit.
*2 This menu is not displayed when scrolling through the display menus. It is only available in direct command code.
*3 When the cellular line only mode is turned on, these menus are not displayed (page 20). *4 After the Bluetooth device is paired, the device name is displayed. *5 For CELL 1 *6 For CELL 2 *7 The preset melodies in this product ("Tone 3" - "Melody 10") are used with permission of
© 2009 Copyrights Vision Inc. *8 The preset melodies in this product ("Tone 1" and "Tone 2") are used with permission of
© 2013 Copyrights Vision Inc. *9 This feature allows the unit to automatically adjust the date and time each time caller
information including date and time is received. To turn this feature on, select "Caller ID auto". To turn this feature off, select
"Manual". (Caller ID subscribers only)
To use this feature, set the date and time first (page 16). *10 If you subscribe to a distinctive ring service (such as IDENTA-RING), select a tone (tone 1 or
2). If you select a melody, you cannot distinguish lines by their ringers. *11 This tone lets you know when you receive an outside call while you are on another line or an
intercom call. If you select "On", the tone sounds 2 times.
*12 This setting is available when you have the key detector (KX-TGA20). Read the installation manual for more information on the key detector.
*13 For models with supplied key detectors, the display shows "1: Detector1".
*14 If you register 2 or more key detectors. *15 If you subscribe to a Caller ID service and want to view the caller's information after lifting up
the handset to answer a call, turn off this feature. *16 The flash time depends on your telephone exchange or host PBX. Contact your PBX
supplier if necessary. The setting should stay at "700 ms" unless pressing MFLASHN fails to
pick up the waiting call. *17 Generally, the line mode setting should not be changed. This setting automatically maintains
receiver volume at the proper level depending on the current telephone line condition. Set the line mode to "A" if telephone line condition is not good.
For assistance, please visit http://shop.panasonic.com/support
41
TGD66x(en)_0420_ver020.pdf 41
2021/04/21 17:05:38
Programming
Alarm
An alarm sounds at the set time for 1 minute and is repeated 5 times at 5 minute intervals (snooze function). A text memo can also be displayed for the alarm. A total of 3 separate alarm times can be programmed for each handset. You can set one of 3 different alarm options (once, daily, or weekly) for each alarm time. Important: R Make sure the unit's date and time setting
is correct (page 16).
1 MMENUN#720 2 MbN: Select the desired alarm. a
MSELECTN
3 MbN: Select the desired alarm option. a
MSELECTN
"Off" Turns alarm off. Go to step 10.
"Once" An alarm sounds once at the set time.
"Daily" An alarm sounds daily at the set time. Go to step 5.
"Weekly" Alarm sounds weekly at the set time(s).
4 Proceed with the operation according to
your selection in step 3. n Once:
Enter the desired month and date. a MOKN n Weekly: MbN: Select the desired day of the week and press MSELECTN. a MOKN
5 Set the desired time. 6 *: Select "AM" or "PM". a MOKN 7 Enter a text memo (10 characters max.).
a MOKN
8 MbN: Select the desired alarm tone. a
MSELECTN R We recommend selecting a different
ringer tone from the one used for outside calls.
9 MbN: Select the desired snooze setting.
a MSAVEN
10 MSELECTN a MOFFN
Note: R Press MSTOPN to stop the alarm completely. R When the handset is in use, the alarm will
not sound until the handset is in standby mode. R Press any dial key or MSNOOZEN to stop the sound but keep the snooze function activated. R If you want to make an outside call when the snooze function is activated, please stop the snooze function before making the call.
Silent mode
Silent mode allows you to select a period of time during which the handset will not ring for outside calls. This feature is useful for time periods when you do not want to be disturbed, for example, while sleeping. Silent mode can be set for each unit. Using the phonebook's group feature (page 31), you can also select groups of callers whose calls override silent mode and ring the unit (Caller ID subscribers only).
Important: R Make sure the unit's date and time setting
is correct (page 16). R We recommend turning the base unit ringer
off (page 36, 38) in addition to turning the silent mode on. R If you have set the alarm, the alarm sounds even if the silent mode is turned on.
Turning silent mode on/off
1 MMENUN#238
42
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 42
2021/04/21 17:05:38
Programming
2 MbN: Select the desired setting. a
MSAVEN R If you select "Off", press MOFFN to
exit.
3 Enter the desired hour and minute you
wish to start this feature.
4 *: Select "AM" or "PM". a MOKN 5 Enter the desired hour and minute you
wish to end this feature.
6 *: Select "AM" or "PM". 7 MSAVEN a MOFFN
Changing the start and end time
1 MMENUN#237 2 Continue from step 3, "Turning silent
mode on/off", page 42.
Selecting groups to bypass silent mode
1 MMENUN#241 2 MbN: Select the desired groups. a
MSELECTN R " " is displayed next to the selected
group numbers. R To cancel the selected group:
MbN: Select the group. a Press MSELECTN again. " " disappears.
3 MSAVEN a MOFFN
Baby monitor
This feature allows you to listen in on a room where another handset is located, allowing you to easily monitor from different areas of the house or even while away from home. The monitored handset (placed in a baby's room, for example) will automatically call the monitoring handset or the phone number stored when it detects sound. Important: R Before using this feature, we recommend
that you test it and adjust the baby monitor sensitivity as needed, especially if you plan to monitor from outside.
R This feature should not be used as a substitute for a medical or caregiver's supervision. It is the caregiver's responsibility to stay close enough to handle any eventuality.
Note: R During the monitoring mode, battery
consumption is faster than usual. We recommend leaving the monitored handset on the base unit or charger. R The monitored handset never rings while it is being monitored. If the base unit is placed near the monitored handset, we recommend turning off the base unit ringer volume (page 36, 38).
Setting the baby monitor
Perform the setting operation with the handset to be monitored (for example, the handset placed in a baby's room).
To monitor with a handset
The internal baby monitor feature is available between handsets.
1 MMENUN#268 2 MbN: "On" a MSELECTN 3 MbN: Select the desired handset's number
to monitor with. a MSAVEN R "Baby monitor" will be displayed. R The registered handset's name/
number is displayed.
Note: R When this feature is on, another handset
can hear the monitored handset by making an intercom call.
To monitor from outside
If you enable this feature, the unit will call a pre-programmed phone number when the handset detects sound. After you answer the call, you can listen in on the room where the handset is located. This feature is only available for landline. n From the phonebook:
1 MMENUN#268
For assistance, please visit http://shop.panasonic.com/support
43
TGD66x(en)_0420_ver020.pdf 43
2021/04/21 17:05:38
Programming
2 MbN: "On" a MSELECTN 3 MbN: Select "Outgoing call" to
monitor from outside. a MADDN
4 MbN: "Phonebook" a MSELECTN 5 MbN: Select the phonebook entry. a
MSAVEN R "Baby monitor" will be displayed. Note: R If you edit a phonebook entry which is assigned for monitoring, the edited entry does not transfer to the monitor. n By entering phone numbers:
1 MMENUN#268 2 MbN: "On" a MSELECTN 3 MbN: Select "Outgoing call" to
monitor from outside. a MADDN
4 MbN: "Manual" a MSELECTN 5 Enter the desired name. a MOKN 6 Enter the desired number. a MOKN
a MSELECTN R "Baby monitor" will be displayed. Note: R The registered name/number is displayed.
Turning off the baby monitor
The monitored handset cannot be used while baby monitor is set to "On".
1 Press MMENUN on the handset being
monitored.
2 MbN: "On/Off" a MSELECTN 3 MbN: "Off" a MSELECTN a MOFFN
Editing an outside monitoring number
1 Press MMENUN on the handset being
monitored.
2 MbN: "On/Off" a MSELECTN 3 MbN: "On" a MSELECTN 4 MbN: Select the outside line. a MMENUN 5 MbN: "Edit" a MSELECTN 6 Edit the name if necessary. a MOKN
7 Edit the phone number if necessary. a
MOKN a MSELECTN
Erasing an outside monitoring number
1 Press MMENUN on the handset being
monitored.
2 MbN: "On/Off" a MSELECTN 3 MbN: "On" a MSELECTN 4 MbN: Select the outside line. a MMENUN 5 MbN: "Erase" a MSELECTN 6 MbN: "Yes" a MSELECTN a MOFFN
Baby monitor sensitivity
You can adjust the sensitivity of the baby monitor. Increase or decrease the sensitivity to adjust the sound level needed to trigger the baby monitor feature. R This feature cannot be set during a
monitoring call.
1 Press MMENUN on the handset being
monitored.
2 MbN: "Sensitivity level" a
MSELECTN
3 MbN: Select the desired setting. a
MSAVEN a MOFFN
Answering the baby monitor
n When monitoring with a handset: Press M N to answer a call. If you want to respond from the monitoring handset, press MMUTEN. R The monitoring handset will answer calls automatically when the auto intercom feature is set to "On" (page 26). Note: R If you receive an outside call when communicating with the monitored handset, the interrupt tone sounds. To answer the call, press MOFFN, then press M N.
n When monitoring from outside: Answer the call.
44
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 44
2021/04/21 17:05:38
If you want to respond from your monitoring phone, press #1 using tone dialing. You can turn off the baby monitor feature by pressing #0. Note: R The unit disconnects the call
automatically after 2 minutes.
Other programming
Changing the handset name
The default handset name is "Handset 1" to "Handset 6". You can customize the name of each handset ("Bob", "Kitchen", etc.). This is useful when you make intercom calls between handsets. To display the handset name in standby mode, turn on the handset name display feature (page 45).
1 MMENUN#104 2 Enter the desired name (10 characters
max.). a MSAVEN a MOFFN
Displaying the handset name
You can select whether or not the handset name is displayed in standby mode. The default setting is "Off".
1 MMENUN#105 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Programming
Registering a handset to the base unit
The supplied handset and base unit are pre-registered. If for some reason the handset is not registered to the base unit, re-register the handset.
1 Handset:
MMENUN#130
2 Base unit:
Press and hold MLOCATORN for about 5 seconds. R If all registered handsets start ringing,
press MLOCATORN again to stop, then repeat this step.
3 Handset:
Press MOKN, then wait until a long beep sounds.
Deregistering a handset
A handset can cancel its own registration to the base unit, or other handsets registered to the same base unit. This allows the handset to end its wireless connection with the system.
1 MMENUN#131
R All handsets registered to the base unit are displayed.
2 MbN: Select the handset you want to
cancel. a MSELECTN
3 MbN: "Yes" a MSELECTN a MOFFN
Registering a unit
Operating additional units
Additional handsets Up to 6 handsets can be registered to the base unit. Important: R See page 4 for information on the available
model.
For assistance, please visit http://shop.panasonic.com/support
45
TGD66x(en)_0420_ver020.pdf 45
2021/04/21 17:05:38
Caller ID Service
Using Caller ID service
Important: R This unit is Caller ID compatible. To use
Caller ID features, you must subscribe to a Caller ID service. Contact your phone service provider for details.
Caller ID features
When an outside call is being received, the caller information is displayed. Caller information for the last 50 callers is logged in the caller list from the most recent call to the oldest. R If the unit cannot receive caller information,
the following is displayed: "Out of area": The caller dials from
an area which does not provide a Caller ID service. "Private caller": The caller requests not to send caller information. "Long distance": The caller makes a long distance call. R If the unit is connected to a PBX system, caller information may not be properly received. Contact your PBX supplier.
Talking Caller ID
Handset / Base unit
This feature lets you know who is calling without looking at the display. To use this feature, you must: subscribe to a Caller ID service of your
phone service provider. turn this feature on (page 38). When caller information is received, the handsets and/or base unit announce the caller's name or phone number received from your phone service provider following every ring. R Name pronunciation may vary. This feature
may not pronounce all names correctly. R Caller ID service has a limit of how many
characters can be displayed. If the caller's name is too long, the unit may not be able to display or announce the entire name.
Phonebook name announcement
When caller information is received and it matches a phone number stored in the phonebook, the stored name in the phonebook is announced.
Missed calls
If a call is not answered, the unit treats it as a missed call. The display shows "Missed call".
Note: R Even when there are unviewed missed
calls, "Missed call" disappears from the standby display if the following operation is performed by one of the units: A handset is replaced on the base unit
or charger. Pressing MOFFN on a handset.
Phonebook name display
When caller information is received and it matches a phone number stored in the phonebook, the stored name in the phonebook is displayed and logged in the caller list.
Caller list
Important: R Make sure the unit's date and time setting
is correct (page 16).
Viewing the caller list and calling back
n Using a cellular line
1 MCN CID 2 Press MCN to search from the most recent
call, or MDN to search from the oldest call.
3 To call back, press MSELECTN.
To exit, press MOFFN.
4 MCELLN
R The unit starts dialing immediately in the following situations. Only 1 cellular phone is paired.
46
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 46
2021/04/21 17:05:38
Caller ID Service
A specific line is set to make cellular calls (page 21).
5 MbN: Select the desired cellular phone. a
MSELECTN n Using a landline
1 MCN CID 2 Press MCN to search from the most recent
call, or MDN to search from the oldest call.
3 To call back, press M N.
To exit, press MOFFN.
Note: R If the entry has already been viewed or
answered, " " is displayed. R or indicates the caller information
was received from the cellular line. R " " indicates the caller information for
blocked calls.
Editing a caller's phone number
You can edit a phone number in the caller list by removing its area code and/or the long distance code "1".
n When a cellular phone is paired:
1 MCN CID 2 MbN: Select the desired entry. a
MSELECTN
3 Press * (Edit) repeatedly until the
phone number is shown in the desired format.
4 Using a cellular line:
To make a cellular call, continue from step 4, "Viewing the caller list and calling back", page 46. Using a landline: MN
n When a cellular phone is not paired:
1 MCN CID 2 MbN: Select the desired entry. a
MMENUN
3 MbN: "Edit" a MSELECTN 4 Press MEDITN repeatedly until the
phone number is shown in the desired format.
5M N
Caller ID number auto edit feature
Once you call back an edited number, the unit which was used to call back remembers the area code and format of the edited number. The next time someone calls from the same area code, caller information is customized by the unit as follows: When the call is being received, the Caller
ID number is displayed in the same format as the edited number. After the call has ended, the caller's phone number is displayed in the same format as the edited number, when reviewed from the caller list. For example, you can use this feature to set the unit to ignore the area code of callers in your area, so that you can call these local numbers using caller information without dialing the area code. To activate this feature, you must edit an entry in the caller list, then call that number. After that, phone numbers from that caller's area code are edited automatically. This feature can be set for each unit (page 39). The default setting is "On".
Note: R Phone numbers from the 4 most recently
edited area codes are automatically edited.
Erasing selected caller information
1 MCN CID 2 MbN: Select the desired entry. 3 MERASEN a MbN: "Yes" a MSELECTN
a MOFFN
Erasing all caller information
1 MCN CID 2 MERASEN a MbN: "Yes" a MSELECTN
a MOFFN
For assistance, please visit http://shop.panasonic.com/support
47
TGD66x(en)_0420_ver020.pdf 47
2021/04/21 17:05:38
Using Bluetooth® Devices
Copying phonebook from a cellular phone (phonebook transfer)
You can copy phonebook entries from the paired cellular phones or other cellular phones (not paired) to the unit's phonebook. A cellular phone must be compatible with Bluetooth wireless technology.
Important:
R Your cellular phone must support Phone Book Access Profile (PBAP) or Object Push Profile (OPP) specification.
R If a copied entry has 2 or more phone numbers, each phone number (6 max.) is stored as a separate entry with the same name.
R If a phonebook entry includes additional data such as a picture, that entry may fail to copy to the base unit.
R If your cellular phone includes international call entries, set the conversion codes before copying (page 48).
1 Handset:
MMENUN#618
2 Handset:
To copy from paired cellular phones: MbN: Select the desired cellular phone. a MSELECTN R Copied items are stored to the group
("Cell 1" or "Cell 2") which the cellular phone is paired to. To copy from other cellular phones (not paired): MbN: "Other cell" a MSELECTN a MbN: Select the group you want to copy to. a MSELECTN
3 Handset:
When "Use the cell to transfer phone book" is displayed: Go to step 4. When "Select mode" menu is displayed: MbN: Select "Auto" or "Manual". a MSELECTN "Auto": Download all entries from the cellular phone automatically. Go to step 5.
"Manual": Copy entries you selected. R "Select mode" menu is displayed
only when the cellular phone supports Phone Book Access Profile (PBAP) for Bluetooth connection. R Some cellular phones may require you to perform an operation on the cellular phone even if you select "Auto".
4 Cellular phone:
Follow the instructions of your cellular phone to copy phonebook entries. R For other cellular phones (not paired),
you need to search for and select the base unit. The Bluetooth PIN (default: "0000") may be required. If your cellular phone shows PassKey confirmation on its display, follow the directions to proceed. R The entries being copied are displayed on the handset.
5 Handset:
Wait until "Completed" is displayed. R You can continue copying other entries
if necessary.
6 Handset: MOFFN
Note:
R Some copied entries may have characters which are not available. These characters can be displayed but cannot be entered when editing an entry.
R The unit does not support some characters. If a copied entry includes those characters, they are replaced with other available characters or "H".
R If you receive a call while copying phonebook entries, the copying procedure stops. Try again after finishing the call.
Setting conversion codes
You must first set the following 3 dialing codes before transferring the phonebook from your cellular phone (4 digits max. each). "International code": An international
prefix used when you make an international call. "Country code": Your country code for international calls.
48
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 48
2021/04/21 17:05:38
Using Bluetooth® Devices
"Trunk prefix": A trunk prefix; the initial digit(s) to be dialed in a domestic call, prior to the area code.
1 MMENUN 2 To store "International code":
#117 To store "Country code": #118 To store "Trunk prefix": #119
3 Enter the desired number. a MSAVEN
a MOFFN Note: R After you copy the entries, confirm that the
numbers were transferred correctly.
Link to Cell app
n Phone Settings Using your paired Android phone, you can program your Phone Settings for the following features: [Time adjustment]*1 [Cell line only mode] (page 20) [International code], [Country code], and [Trunk prefix] (page 48)
*1 When your paired Android phone is within the base unit's range, the date and time information is updated on the handset's display, if time adjustment feature is activated on your Android phone.
Installing the Link to Cell app
Download links are also available at the web page below.
For AndroidTM users
The free Link to Cell app helps you integrate your Android phone with your DECT phone for convenient use.
Important:
R Your cellular phone must support Serial Port Profile (SPP) specification.
n Application (App) Alerts On/Off This feature alerts your DECT phone when your paired Android phone receives the following alert information: [Google Calendar]TM [Gmail]TM [Text messages] [Facebook] [Twitter] [Instagram] [Low Battery] information Please check the latest information for details on functions that can be alerted at the web page below. https://panasonic.net/cns/pcc/support/ tel/appalerts/
You can turn each type of alert on or off using the Link to Cell app. If you turn the alerting app on, your DECT phone alerts you with the corresponding information.
https://panasonic.net/cns/pcc/support/tel/ appalerts/
Starting the app for the first time 1 Make sure that your Android device's
Bluetooth feature is turned on and that your Android device is paired to the base unit.
2 Start the Link to Cell app by tapping its
icon.
3 Follow the on-screen instructions.
Important: R For further information, refer to the
instructions on web page listed above.
For assistance, please visit http://shop.panasonic.com/support
49
TGD66x(en)_0420_ver020.pdf 49
2021/04/21 17:05:38
Using Bluetooth® Devices
R To use this feature, the following settings are required. Android phone: Bluetooth must be turned on. Android phone: [Application Alerts manager] must be turned on. Handset: "Alert On/Off" must be turned on (page 50).
R If this feature does not work, turn on your device's Bluetooth feature, unplug the base unit's AC adaptor, and then reconnect it.
R If this feature still does not work properly after performing the above operation, re-install the Link to Cell app.
Text message (SMS) alert
For iPhone® users
This feature alerts you on your DECT phone when your paired cellular phone receives SMS messages. The Link to Cell app is not required for iPhone users.
Important: R Your cellular phone must support Message
Access Profile (MAP) specification. R For further information, refer to the
instructions on web page listed below: www.panasonic.net/pcc/support/tel/sms/ R To use this feature, the following settings are required: iPhone: Bluetooth must be turned on. Handset: "Alert On/Off" must be
turned on (page 50). R If this feature does not work, turn on your
device's Bluetooth feature, unplug the base unit's AC adaptor, and then reconnect it.
Important: R For Android users: Use the Link to Cell app
to enable the desired alerts (page 49).
Turning alert on/off Once this feature is turned on, it will alert you on the handset when your cellular phone receives notifications. "On" (default): The handset alerts you. "Off": The handset does not alert you. 1 For CELL 1: MMENUN#6101
For CELL 2: MMENUN#6102
2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Setting the voice alert You can turn on/off the voice alert. "On" (default): The handset notifies you by
voice announcement. "Off": Voice announcement is not
available as alert.
1 For CELL 1: MMENUN#6031
For CELL 2: MMENUN#6032
2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Selecting the alert tone 1 For CELL 1: MMENUN#6041
For CELL 2: MMENUN#6042
2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Remote voice assist
Alert settings for your DECT phone
If your cellular phone is paired to the base unit and receives notifications, the handset can alert you: by briefly displaying a message by announcement by sounding alert tones
For iPhone® and AndroidTM smartphone users
You can use the handset to operate the voice recognition feature of a paired cellular phone (Siri® or Google AssistantTM). For example, you can speak into the handset and command your cellular phone to make a call.
50
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 50
2021/04/21 17:05:38
Using Bluetooth® Devices
Compatible voice recognition features
R Google Assistant (Android 4.0 or later) R Siri (iOS 8.0 or later)
Important:
R Your cellular phone must support the Hands Free Profile (HFP) specification.
R In order to use this feature, your cellular phone's voice recognition feature must be ready to use. iPhone: Make sure Siri is turned on. Android: In order to use Google Assistant, make sure your cellular phone is registered to your Google account.
R If you have multiple voice recognition features available for your cellular phone, you may need to set the desired voice recognition feature as the default.
R For Android users: Depending on your cellular phone, you may need to set Google Assistant as your cellular phone's default voice recognition feature. For more information, refer to the operating instructions of your cellular phone.
Activating remote voice assist
1M N
R Go to step 3 in the following situations. Only 1 cellular phone is paired. A specific line is set to make cellular calls (page 21).
2 MbN: Select the desired cellular phone. a
MSELECTN
3 Wait until "Voice assist" is displayed.
R A confirmation tone sounds. R Speakerphone is turned on
automatically. R To switch to the receiver, press MZN.
4 Speak your commands to your handset.
R When you have finished using remote voice assist, press MOFFN.
Note:
R While using this feature, you cannot use another handset to make a cellular call using the same cellular line.
R If you receive a call on the landline or on another cellular line while using this feature, the interrupt tone sounds.
R If you receive a call on the same cellular line while using this feature, voice recognition ends and the unit receives the incoming call.
R If your cellular phone is connected to the base unit, you may not be able to use your cellular phone's microphone to operate its voice recognition feature. In this case, disconnect your cellular phone from the base unit.
R The compatible voice commands depends on the cellular phone voice recognition feature.
Using a Bluetooth headset (optional)
By pairing a Bluetooth headset to the base unit, you can enjoy hands-free conversations when talking on landline calls.
Important: R Your Bluetooth headset must support the
Headset Profile (HSP) specification. R Only 1 Bluetooth headset can be paired to
the base unit. R Only 2 Bluetooth devices can be used with
the unit at the same time (for example, 2 cellular lines, or the headset and 1 cellular line*1). R For best performance, we recommend using your Bluetooth headset within 1 m (3.3 feet) of the base unit. The base unit can communicate with Bluetooth headsets within an approximately 10 m (33 feet) range.
*1 You cannot use a Bluetooth headset to talk on a cellular line.
Pairing a Bluetooth headset to the base unit
Important: R Make sure that the Bluetooth headset is not
connected to any other Bluetooth device.
1 Bluetooth headset:
Set your headset to pairing mode. R Refer to the headset's operating
instructions.
For assistance, please visit http://shop.panasonic.com/support
51
TGD66x(en)_0420_ver020.pdf 51
2021/04/21 17:05:38
Using Bluetooth® Devices
2 Handset:
MMENUN#621
3 If your headset PIN is "0000", go to
step 4. If your headset PIN is not "0000", press MCLEARN, then enter your headset's PIN. R Typically, default PIN is "0000". Refer
to the headset's operating instructions.
4 Press MOKN, then wait until a long beep
sounds.
5 MOFFN
R When the Bluetooth headset is ready for use, the HEADSET indicator on the base unit lights up.
Connecting/disconnecting a Bluetooth headset
If you cannot connect the headset and base unit using the headset, you can connect using the handset. To use your headset with another Bluetooth device such as a cellular phone, you may need to disconnect it from the base unit. Important: R Make sure that the headset is turned on.
1 To connect/disconnect:
MMENUN#622 R A long beep sounds.
2 MOFFN
Unpairing a Bluetooth headset
You can cancel a pairing of the headset that is stored to the base unit.
1 MMENUN#612 2 MbN: "Yes" a MSELECTN
R When the headset is unpaired, the HEADSET indicator is turned off.
3 MOFFN
Operating a Bluetooth headset using a landline
Important: R Refer to your headset's operating
instructions for details. R Some features described here may not be
available depending on Bluetooth headset.
Answering landline calls with your headset
To answer a landline call, press your headset's button. When you finish talking, press your headset's button.
Note: R If you cannot hang up the call using your
headset, press M N (STOP) on the base unit.
Call sharing between your headset and the handset
Important: R To activate this feature, you should set call
sharing mode to on beforehand (page 40). n While the handset is on a landline call:
To join the conversation with your headset, press your headset's button. n While your headset is on a landline call: To join the conversation with the handset, press M N.
Note: R This function may not operate properly
depending on specification of the headset.
Switching between the base unit and your headset
You can switch from the base unit to your headset while listening to messages recorded on the base unit answering system. R You can only switch from the base unit to
your headset. n To switch to your headset:
Press your headset's button.
52
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 52
2021/04/21 17:05:38
Adjusting your headset receiver volume
Base unit Press MjN or MkN repeatedly while using your headset.
Note: R Depending on your headset, the receiver
volume may not be adjustable.
Using Bluetooth® Devices
For assistance, please visit http://shop.panasonic.com/support
53
TGD66x(en)_0420_ver020.pdf 53
2021/04/21 17:05:38
Answering System for Landline
Answering system for landline
The answering system can answer and record calls for you when you are unavailable to answer the phone. The unit can be set to play a greeting message but not to record caller messages by selecting "Greeting only" as the recording time setting (page 58).
Important: R Make sure the unit's date and time setting
is correct (page 16).
Memory capacity (including your greeting message)
The total recording capacity is about 18 minutes. A maximum of 64 messages can be recorded.
Note: R When message memory becomes full:
"Messages full" is shown on the handset display.
The message counter on the base unit flashes if the answering system is turned on.
If you use the pre-recorded greeting message, the unit automatically switches to another pre-recorded greeting message asking callers to call again later.
If you recorded your own greeting message, the same message is still announced to callers even though their messages are not recorded.
Turning the answering system on/off
Base unit Press MANSWER ON/OFFN to turn on/off the answering system.
Handset
1 To turn on:
MMENUN#327 To turn off: MMENUN#328
2 MOFFN
Note for base unit and handset: R When the answering system is turned on,
the message counter on the base unit displays the total number of messages (old and new).
Greeting message
When the unit answers a call, a greeting message is played to callers. You can use either: your own greeting message a pre-recorded greeting message
Recording your greeting message
1 MMENUN#302 2 MbN: "Yes" a MSELECTN 3 After a beep sounds, speak clearly about
20 cm (8 inches) away from the microphone (2 minutes max.).
4 Press MSTOPN to stop recording. a
MOFFN
Using a pre-recorded greeting message
The unit provides 2 pre-recorded greeting messages: If you reset to pre-recorded greeting or do
not record your own greeting message, the unit plays a pre-recorded greeting asking callers to leave a message. If the message recording time (page 58) is set to "Greeting only", callers' messages are not recorded and the unit plays a different pre-recorded greeting message asking callers to call again.
54
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 54
2021/04/21 17:05:38
Answering System for Landline
Resetting to a pre-recorded greeting message
Use this procedure to erase your greeting message and use a pre-recorded one.
1 MMENUN#304 2 MYESN a MOFFN
Key MERASEN
Operation
Erase currently playing message
*1 If pressed within the first 5 seconds of a message, the previous message is played.
Playing back the greeting message
Erasing all messages
Press MERASEN 2 times while the unit is not in use.
1 MMENUN#303 2 To exit, press MOFFN.
Listening to messages
Important:
R When using the base unit or handset to listen to messages, the noise reduction feature (page 24) is activated automatically in spite of the setting ( is not displayed).
Using the base unit
When new messages have been recorded, the message indicator ( ) on the base unit flashes. Press M N (PLAY). R During playback, the message indicator
( ) on the base unit lights. R If new messages have been recorded, the
base unit plays back new messages. R If there are no new messages, the base
unit plays back all messages.
Operating the answering system during playback
Key MjN or MkN
MN MN M N (STOP)
Operation Adjust the speaker volume Repeat message*1
Skip message
Stop playback
Using the handset
When new messages have been recorded, "New message" is displayed.
1 To listen to new messages:
MMENUN#323 To listen to all messages: MMENUN#324
2 When finished, press MOFFN.
Note:
R To switch to the receiver, press M N. R You can also use the MPLAYN soft key, if
displayed, to play new messages.
Operating the answering system MMENUN a MbN: "Answering device" a MSELECTN
Key MDN or MCN
1 or MFN
2 or MEN
3 4 5 6 76 8 MPAUSEN
Operation Adjust the receiver/speaker volume (during playback)
Repeat message (during playback)*1
Skip message (during playback)
Enter the "Settings" menu
Play new messages
Play all messages
Play greeting message
Record greeting message
Turn answering system on Pause message*2
For assistance, please visit http://shop.panasonic.com/support
55
TGD66x(en)_0420_ver020.pdf 55
2021/04/21 17:05:38
Answering System for Landline
Key 9 or MSTOPN 0 *4*3
*5 *6
Operation
Stop recording Stop playback
Turn answering system off
Erase currently playing message
Erase all messages
Reset to a pre-recorded greeting message
*1 If pressed within the first 5 seconds of a message, the previous message is played.
*2 To resume playback: MbN: "Playback" a MSELECTN
*3 You can also erase as follows: MPAUSEN a MbN: "Erase" a MSELECTN a MbN: "Yes" a MSELECTN
Calling back (Caller ID subscribers only)
n Using a landline:
1 Press MPAUSEN during playback.
2 MbN: "Call back" a MSELECTN
n Using a cellular line:
1 Press MPAUSEN during playback.
2 MbN: "Call back (Cell)" a
MSELECTN R The unit starts dialing immediately
in the following situations. Only 1 cellular phone is paired. A specific line is set to make
cellular calls (page 21).
3 MbN: Select the desired cellular phone.
a MSELECTN
Editing the number before calling back
n Using a landline:
1 Press MPAUSEN during playback. 2 MbN: "Edit & Call" a MSELECTN 3 Press MEDITN repeatedly until the phone
number is shown in the desired format (page 47).
4M N
n Using a cellular line:
1 Press MPAUSEN during playback. 2 MbN: "Edit & Call" a MSELECTN 3 Press MEDITN repeatedly until the phone
number is shown in the desired format (page 47).
4 MCELLN
R The unit starts dialing immediately in the following situations. Only 1 cellular phone is paired. A specific line is set to make cellular calls (page 21).
5 MbN: Select the desired cellular phone. a
MSELECTN
Erasing all messages
1 MMENUN#325 2 MbN: "Yes" a MSELECTN a MOFFN
Remote operation
Using a touch-tone phone, you can call your phone number from outside and access the unit to listen to messages or change answering system settings. The unit's voice guidance prompts you to press certain dial keys to perform different operations.
Remote access code
A 3-digit remote access code must be entered when operating the answering system remotely. This code prevents unauthorized parties from listening to your messages remotely. The default setting is "111". Important: R To prevent unauthorized access to this
product, we recommend that you regularly change the remote code.
1 MMENUN#306 2 Enter the desired 3-digit remote access
code. a MSAVEN a MOFFN
56
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 56
2021/04/21 17:05:38
Answering System for Landline
Deactivating remote operation Press * in step 2 on "Remote access code", page 56. R The entered remote access code is deleted.
Using the answering system remotely
1 Dial your landline phone number from a
touch-tone phone.
2 After the greeting message starts, enter
your remote access code.
3 Follow the voice guidance prompts as
necessary or control the unit using remote commands (page 57).
4 When finished, hang up.
Key 5 9
0 *4 *5 *#
Operation Play all messages
Stop playback*2 Start voice guidance*3
Turn answering system off
Erase currently playing message
Erase all messages
End remote operation (or hang up)
*1 If pressed within the first 5 seconds of a message, the previous message is played.
*2 For English voice guidance only *3 For Spanish voice guidance only
Voice guidance
n When the English voice guidance is selected During remote operation, the unit's voice guidance starts and prompts you to press 1 to perform a specific operation, or press 2 to listen to more available operations.
n When the Spanish voice guidance is selected To start the voice guidance, press 9. The voice guidance announces the available remote commands (page 57).
Note:
R If you do not press any dial keys within 10 seconds after a voice guidance prompt, the unit disconnects your call.
Turning on the answering system remotely 1 Dial your phone number from a
touch-tone phone.
2 Let the phone ring 15 times.
R A long beep is heard.
3 Enter your remote access code within 10
seconds after the long beep. R The greeting message is played back. R You can either hang up, or enter your
remote access code again and begin remote operation (page 56).
Answering system settings
Remote commands
You can press dial keys to access certain answering system functions without waiting for the voice guidance to prompt you.
Key Operation
1
Repeat message (during
playback)*1
2
Skip message (during playback)
4
Play new messages
Call screening
While a caller is leaving a message, you can listen to the call through the unit's speaker. To adjust the speaker volume, press MDN or MCN repeatedly. You can answer the call by pressing M N on the handset. Call screening can be set for each unit. The default setting is "On".
1 MMENUN#310 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
For assistance, please visit http://shop.panasonic.com/support
57
TGD66x(en)_0420_ver020.pdf 57
2021/04/21 17:05:38
Answering System for Landline
Number of rings before the unit answers a call
You can change the number of times the phone rings "Ring count" before the unit answers calls. You can select 2 to 7 rings, or "Toll saver". The default setting is "4 rings". "Toll saver": The unit's answering system answers at the end of the 2nd ring when new messages have been recorded, or at the end of the 5th ring when there are no new messages. If you call your phone from outside to listen to new messages (page 57), you know that there are no new messages when the phone rings for the 3rd time. You can then hang up without being charged for the call.
1 MMENUN#211 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Caller's recording time
You can change the maximum message recording time allowed for each caller. The default setting is "3 min".
1 MMENUN#305 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Selecting "Greeting only"
You can select "Greeting only" which sets the unit to announce a greeting message to callers but not record messages. Select "Greeting only" in step 2 on "Caller's recording time", page 58.
Note: R When you select "Greeting only":
If you do not record your own message, the unit will play the pre-recorded greeting-only message asking callers to call again later.
If you use your own message, record the greeting-only message asking callers to call again later (page 54).
58
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 58
2021/04/21 17:05:38
Useful Information
Example:
Voicemail service for landline
In addition to your unit's answering system you may also have voicemail service from your phone service provider. Voicemail is an answering service that may be offered by your phone service provider. This service can also record calls when you are unavailable to answer the phone or when your line is busy. Messages are recorded on the phone company system and not on the unit's answering system. R To use the voicemail service rather than the
unit's answering system, turn off the answering system (page 54). If you have unit's answering system set to on and also the voicemail enabled, the system with least amount of rings will record the message first. Example: If the unit's answering system is set to 4 rings (page 58) and the voicemail answering system provided by your phone company is set to 6 rings (call your service provider), the unit's answering system will record the incoming call first.
Storing the voicemail (VM) access number
In order to listen to your voicemail messages, you must dial your phone service provider's voicemail access number. Once you have stored your voicemail access number, you can dial it automatically (page 59).
1 MMENUN#331
2 Enter your access number (24 digits
max.). a MSAVEN a MOFFN
Note:
R When storing your voicemail access number and your mailbox password, press MDN (Pause) to add pauses (page 23) between the access number and the password as necessary. Contact your phone service provider for the required pause time.
1-222-333-4444 PPPP 8888
VM access number
Pauses Password
To erase the voicemail access number
1 MMENUN#331 2 Press and hold MCLEARN until all digits
are erased. a MSAVEN a MOFFN
Voicemail (VM) tone detection
Your phone service provider sends special signals (sometimes called "voicemail tones" or "stutter tones") to the unit to let you know you have new voicemail messages. If you hear a series of dial tones followed by a continuous dial tone after you press M N on the handset, you have new voicemail messages. Soon after you hang up a call or after the phone stops ringing, your unit checks the phone line to see if new voicemail messages have been recorded. Turn this feature off when: You do not subscribe to voicemail service. Your phone service provider does not send
voicemail tones. Your phone is connected to a PBX. If you are not sure which setting is required, contact your phone service provider.
Turning VM tone detection on/off
The default setting is "On".
1 MMENUN#332 2 MbN: Select the desired setting. a
MSAVEN a MOFFN
Listening to voicemail messages
When new messages have been recorded, "Voicemail msg. via phone co." is displayed if message indication service is available.
1 MMENUN#330
R The speakerphone turns on.
For assistance, please visit http://shop.panasonic.com/support
59
TGD66x(en)_0420_ver020.pdf 59
2021/04/21 17:05:38
Useful Information
2 Follow the pre-recorded instructions. 3 When finished, hang up.
Note: R You can also use the MACCESSN soft key,
if displayed, to play new voicemail messages. R If the handset still indicates there are new messages even after you have listened to all new messages, turn it off by pressing and holding # until the handset beeps.
AC adaptor cord and telephone line cord (B). 1 AC adaptor cord
B
Wall mounting
Note: R Make sure that the wall and the fixing
method are strong enough to support the weight of the unit.
Base unit
1 Lead the AC adaptor cord and telephone
line cord through the hole in the wall mounting adaptor in the direction of the arrow.
A
1
3 Insert the hooks on the wall mounting
adaptor into holes (1) and (2) on the base unit.
12
2 Tuck the telephone line cord inside the
wall mounting adaptor (A). Connect the
2
1
60
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 60
2021/04/21 17:05:38
4 Adjust the adaptor to hold the base unit,
then push it in the direction of the arrow until it clicks into place.
Useful Information
5 Mount the unit on a wall then slide down
to secure in place. 1 AC adaptor cord R This product is compliant with the
following wall phone plate sizes (2 types). 2 83 mm (3 1/4 inches) 3 102 mm (4 inches) Fit the slots of the unit onto the corresponding wall phone plate tabs for (4) and (5) respectively.
1
4
5
4
2
5
3
For assistance, please visit http://shop.panasonic.com/support
61
TGD66x(en)_0420_ver020.pdf 61
2021/04/21 17:05:39
Useful Information
To remove the wall mounting adaptor While pushing down the release levers (A), remove the adaptor (B).
A
A
B
Charger
Drive the screws (1) (not supplied) into the wall. 2 27.2 mm (1 1/16 inches)
2
1
62
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 62
2021/04/21 17:05:39
Useful Information
Error messages
Display message Ask phone company for VM access # Main unit no power or No link. Reconnect base AC adaptor. Busy
Check tel line
Error!!
Memory full Failed
Cause/solution
R You have not stored the voicemail access number. Store the number (page 59).
R Confirm the base unit's AC adaptor is connected to the unit and the power outlet correctly.
R The handset has lost communication with the base unit. Move closer to the base unit and try again.
R Unplug the base unit's AC adaptor to reset the unit. Reconnect the adaptor and try again.
R The handset's registration may have been canceled. Re-register the handset (page 45).
R No cellular phone is paired to the base unit. Pair a cellular phone (page 18).
R The called unit is in use. R Other units are in use and the system is busy. Try
again later. R The handset you are using is too far from the base
unit. Move closer and try again. R Only 2 Bluetooth devices can be used with the unit at
the same time (for example, 2 cellular lines, or the headset and 1 cellular line). R The voice recognition feature could not be activated. Try again later.
R The supplied telephone line cord has not been connected yet or not connected properly. Check the connections (page 11).
R If you do not connect the telephone line cord and use only cellular lines, set the cellular line only mode (page 20).
R Recording was too short. Try again. R Someone is using a cellular line or headset. Try
again later. R The phonebook copy is incomplete (page 48). The
cellular phone is disconnected from the base unit. Make sure that other Bluetooth devices are not connected to the cellular phone, and try again.
R The recording memory is full. Erase unwanted recordings (page 56).
R Although the unit tried to connect to the cellular phone or headset, the connection has been failed. Someone is using a cellular line or headset. Try again later. Make sure that the cellular phone or headset is not connected to other Bluetooth devices.
For assistance, please visit http://shop.panasonic.com/support
63
TGD66x(en)_0420_ver020.pdf 63
2021/04/21 17:05:39
Useful Information
Display message Invalid
Requires subscription to Caller ID. Use rechargeable battery.
Cause/solution
R There is no handset registered to the base unit matching the handset number you entered.
R The handset is not registered to the base unit. Register the handset (page 45).
R You must subscribe to a Caller ID service. Once you receive caller information after subscribing to a Caller ID service, this message will not be displayed.
R A wrong type of battery such as alkaline or manganese was inserted. Use only the rechargeable Ni-MH batteries noted on page 4, 8.
Troubleshooting
If you still have difficulties after following the instructions in this section, disconnect the base unit's AC adaptor, then reconnect the base unit's AC adaptor. Remove the batteries from the handset, and then insert them into the handset again.
General use
Problem The handset does not turn on even after installing charged batteries. The unit does not work.
I cannot pair a cellular phone to the base unit.
Cause/solution
R Place the handset on the base unit or charger to turn on the handset.
R Make sure the batteries are installed correctly (page 11). R Fully charge the batteries (page 12). R Check the connections (page 11). R Unplug the base unit's AC adaptor to reset the unit.
Reconnect the adaptor and try again. R The handset has not been registered to the base unit.
Register the handset (page 45).
R Depending on the compatibility of the cellular phone, you may not be able to pair it to the base unit. Confirm that your cellular phone supports the hands-free profile (HFP) specification.
R Confirm that the Bluetooth feature of your cellular phone is turned on. You may need to turn this feature on depending on your cellular phone.
R The Bluetooth technology on your cellular phone may not be functioning normally. Turn off and on your cellular phone.
R If your cellular phone is already connected to another Bluetooth device such as a Bluetooth headset, turn it off or disconnect it from your cellular phone.
R Some cellular phones may require you to enter the Bluetooth PIN to pairing. Confirm that you entered the correct PIN.
64
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 64
2021/04/21 17:05:39
Useful Information
Problem I cannot connect a cellular phone to the base unit.
I cannot hear a dial tone.
The unit does not emit the specified number of rings.
Cause/solution
R Confirm that your cellular phone is turned on. R Confirm that your cellular phone is within base unit range
(page 14). R Your cellular phone's Bluetooth feature is turned off. Turn
it on. R Depending on the state of the wireless environment, such
as the presence of any electrical interference, there may be a delay even if the auto connection feature is turned on. You can connect to the base unit manually (page 20). R The cellular phone has not been paired to the base unit. Pair the cellular phone (page 18). R If your cellular phone is already connected to another Bluetooth device such as a Bluetooth headset or other Panasonic DECT phone, disconnect the device, then perform the connecting procedure to the base unit. R If your cellular phone is already registered on another Panasonic DECT phone, this function will not work properly. We strongly recommend that you remove the registration of this phone on both your cellular phone and on the other Panasonic DECT phone.
R The base unit's AC adaptor or telephone line cord is not connected. Check the connections.
R Disconnect the base unit from the telephone line and connect the line to a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your phone service provider.
R If the first ring is turned off ("No") (page 29), the number of rings decreases by 1 from the specified number of rings.
Menu list
Problem
The display is in a language I cannot read.
I cannot register a handset to a base unit.
Cause/solution R Change the display language (page 16).
R The maximum number of handsets (6) is already registered to the base unit. Cancel unused handset registrations from the base unit (page 45).
Battery recharge
Problem The handset beeps and/or flashes.
Cause/solution R Battery charge is low. Fully charge the batteries (page 12).
For assistance, please visit http://shop.panasonic.com/support
65
TGD66x(en)_0420_ver020.pdf 65
2021/04/21 17:05:39
Useful Information
Problem
I fully charged the batteries, but still flashes, is displayed, or the operating time seems to
be shorter.
Cause/solution
R Clean the battery ends ( , ) and the charge contacts with a dry cloth and charge again.
R It is time to replace the batteries (page 11).
Making/answering calls, intercom
Problem is displayed.
Noise is heard, sound cuts in and out.
The handset or base unit does not ring.
I cannot make local calls with the handset using a cellular line. I cannot make or answer cellular calls with the handset.
Cause/solution
R The handset is too far from the base unit. Move closer. R The base unit's AC adaptor is not properly connected.
Reconnect AC adaptor to the base unit. R The handset is not registered to the base unit. Register it
(page 45).
R You are using the handset or base unit in an area with high electrical interference. Re-position the base unit and use the handset away from sources of interference.
R Move closer to the base unit. R If you use a DSL/ADSL service, we recommend
connecting a DSL/ADSL filter between the base unit and the telephone line jack. Contact your DSL/ADSL provider for details.
R The ringer volume for landline is turned off. Adjust the ringer volume (page 23, 38).
R The ringer volume for cellular line is turned off. Adjust the ringer volume (page 23, 36).
R The unit which is not selected to ring for cellular calls does not ring. To change the selection, see page 19.
R Silent mode is turned on. Turn it off (page 42). R The ringer volume is turned off by pressing and holding
0 ( ). Press and hold 0 ( ) again to turn it on (page 23).
R You need to add your area code when making cellular calls. Store your area code in order to automatically add it to the beginning of the 7-digit phone number when making cellular calls (page 21).
R Depending on the cellular phone's compatibility (page 5), you may not be able to make or answer cellular calls even if the cellular phone is connected to the base unit.
R Make sure that the CELL indicator lights up and the cellular phone is connected to the base unit (page 20).
R Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular lines, or the headset and 1 cellular line).
R The cellular phone is being used separately from your system.
66
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 66
2021/04/21 17:05:39
Useful Information
Problem I can make and answer cellular calls but cannot hear a sound.
I cannot switch cellular calls from the unit to the cellular phone. I cannot make a call using a landline. I cannot use a cellular line or a landline.
When you receive a call for a cellular line, the ringer volume is very low.
I cannot make long distance calls.
Cause/solution
R The Bluetooth technology on your cellular phone may not be functioning normally. Turn off and on your cellular phone.
R Disconnect and reconnect the base unit AC adaptor and try again.
R Your cellular phone may not support this feature. Refer to the operating instructions of your cellular phone.
R The dialing mode may be set incorrectly. Change the setting (page 16).
R The unit can be used to talk on 2 lines at the same time (for example, 2 cellular lines, or the landline and 1 cellular line).
R Ringer volume in "Ring as cell mode" depends on the cellular phone Bluetooth output level specification. If ring as cell mode is set to "On (with Talking CID)" or "On (without Talking CID)", turn this feature off to use the ringer tones of the handset and base unit (page 19).
R Make sure that you have long distance service.
Caller ID/Talking Caller ID
Problem Caller information is not displayed.
Caller information is displayed or announced late.
Cause/solution
R You must subscribe to Caller ID service. Contact your phone service provider for details.
R If your unit is connected to any additional telephone equipment such as a Caller ID box or cordless telephone line jack, plug the unit directly into the wall jack.
R If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL filter between the base unit and the telephone line jack. Contact your DSL/ADSL provider for details.
R The name display service for landline calls may not be available in some areas. Contact your phone service provider for details.
R Other telephone equipment may be interfering with this unit. Disconnect the other equipment and try again.
R Depending on your phone service provider, the unit may display or announce the caller's information at the 2nd ring or later.
R Move closer to the base unit.
For assistance, please visit http://shop.panasonic.com/support
67
TGD66x(en)_0420_ver020.pdf 67
2021/04/21 17:05:39
Useful Information
Problem Caller information is not announced.
The caller list/incoming phone numbers are not edited automatically. I cannot dial the phone number edited in the caller list. Time on the unit has shifted.
The 2nd caller's information is not displayed during an outside call.
Cause/solution
R The ringer volume for landline is turned off. Adjust the ringer volume (page 38).
R The ringer volume for cellular line is turned off. Adjust the ringer volume (page 36).
R The unit which is not selected to ring for cellular calls does not announce caller information. To change the selection, see page 19.
R The Talking Caller ID feature is turned off. Turn it on (page 38).
R The ring as cell mode is set to "On (without Talking CID)". To change the mode, see page 19.
R The number of rings for the answering system is set to "2 rings" or "Toll saver". Select a different setting (page 58).
R Your unit does not announce caller information while the other devices such as handsets are engaged in a call.
R The Caller ID number auto edit feature is turned off. Turn it on and try again (page 39).
R You need to call back the edited number to activate Caller ID number auto edit.
R The phone number you dialed might have been edited incorrectly (for example, the long distance "1" or the area code is missing). Edit the phone number with another pattern (page 47).
R Incorrect time information from incoming Caller ID changes the time. Set the time adjustment to "Manual" (off) (page 38).
R In order to use Caller ID, call waiting, or Call Waiting Caller ID (CWID), you must first contact your phone service provider and subscribe to the desired service. After subscribing, you may need to contact your phone service provider again to activate this specific service, even if you already subscribed to both Caller ID and Call Waiting with Caller ID services (CWID).
68
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 68
2021/04/21 17:05:39
Useful Information
Using Bluetooth devices
Problem I cannot copy phonebook entries from a cellular phone.
I cannot have a conversation using the headset. or I cannot connect my headset to the base unit.
Noise is heard during a call on the headset.
Some headset enhanced features are not available. An error tone is heard when I try to program the Bluetooth feature.
Cause/solution
R Confirm that the cellular phone supports Bluetooth wireless technology.
R Confirm that the cellular phone supports the Phone Book Access Profile (PBAP) or Object Push Profile (OPP) specification.
R If the cellular phone is already connected to another Bluetooth device such as a Bluetooth headset, turn it off or disconnect it from the cellular phone.
R Someone is using a cellular line or headset. Try again later.
R Turn the cellular phone off, then turn it on and try again. R If an entry is already stored in the unit's phonebook, the
entry cannot be copied even by selecting another group. R iPhone does not support individual phonebook copy.
R Confirm that the Bluetooth wireless headset supports the HeadSet Profile (HSP) specification.
R Your Bluetooth headset is not paired. Pair it (page 51). R Turn your headset off, then turn it on and try again. R If your headset is already connected to another Bluetooth
device such as your cellular phone, disconnect the headset from your cellular phone, then perform the connecting procedure to the base unit. R Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular lines, or the headset and 1 cellular line).
R A Bluetooth headset can communicate with the base unit within a range of approximately 10 m (33 feet). The connection may be subject to interference from obstructions such as walls or electronic devices. Move closer to the base unit.
R The base unit does not support enhanced features such as Last number redial or Call reject.
R The Bluetooth feature cannot be accessed immediately after connecting the AC adaptor to the base unit. Wait a few seconds and try again.
R The headset has not connected to the base unit yet, even though you performed the connecting procedure setting. Wait a few seconds and try again.
For assistance, please visit http://shop.panasonic.com/support
69
TGD66x(en)_0420_ver020.pdf 69
2021/04/21 17:05:39
Useful Information
Problem App alert is not displayed or announced. or Text message alert is not displayed or announced.
Your cellular phone's voice recognition feature does not start after pressing M N.
The desired app does not start when you try to start the app using remote voice assist.
Cause/solution
R Confirm that the cellular phone supports the Message Access Profile (MAP) specification to use text message alert feature.
R Confirm that the cellular phone supports the Serial Port Profile (SPP) specification to use App alert feature.
R Confirm that the [Application Alerts manager] setting of your Android phone is turned on.
R "Alert On/Off" is set to "Off". Set it to "On" (page 50).
R "Voice alert" is set to "Off". Set it to "On" (page 50). R The Bluetooth device's Bluetooth notifications setting is
turned off. R The handset selected to display and/or announce alerts is
in use. R The Bluetooth device or its corresponding cellular line is
in use. R Your cellular phone's Bluetooth feature is turned off. Turn
it on. R The unit which is not selected to ring for cellular calls
does not ring. To change the selection, see page 19.
R This feature may not be available when your cellular phone is in use. Try again later.
R If you cannot use this feature while your cellular phone is locked, unlock your phone and try again.
R For some cellular phones, you may be able to set your phone to allow its voice recognition feature to be used even when the phone is locked. For more information, refer to the operating instructions of your cellular phone.
R You may not be able to use this feature if other features or applications on your cellular phone are using Bluetooth features. Turn off these features or exit these applications, and then try again.
R In order to use this feature, your cellular phone's voice recognition feature must be ready to use. iPhone: Make sure Siri is turned on. Android: In order to use Google Assistant, make sure your cellular phone is registered to your Google account.
R If you have multiple voice recognition features installed in your cellular phone, you may need to set the desired voice recognition feature as the default. If you cannot set the default, delete the other voice recognition features.
70
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 70
2021/04/21 17:05:39
Useful Information
Answering system
Problem The unit does not record new messages.
I cannot operate the answering system remotely.
Cause/solution
R The answering system is turned off. Turn it on (page 54). R The answering system does not answer or record calls
from cellular lines. R The message memory is full. Erase unnecessary
messages (page 55, 56). R The recording time is set to "Greeting only". Change
the setting (page 58). R Your phone service provider's voicemail service may be
answering your calls before the unit's answering system can answer your calls. Change the unit's number of rings setting (page 58) to a lower value, or contact your phone service provider. R The answering system will not answer incoming calls while the other devices such as handsets are engaged in a call.
R The remote access code is not set. Set the remote access code (page 56).
R You are entering the wrong remote access code. If you have forgotten your remote access code, enter the remote access code setting to check your current code (page 56).
R The answering system is turned off. Turn it on (page 57). R You cannot operate the answering system when calling a
cellular phone paired to the base unit.
Bluetooth PIN
Problem I cannot remember the PIN.
Cause/solution
R Change the PIN using the following method.
1 MMENUN#619 2 *7000 3 Enter the new 4-digit PIN. a MOKN 4 Enter the new 4-digit PIN again. a MSAVEN a MOFFN
For assistance, please visit http://shop.panasonic.com/support
71
TGD66x(en)_0420_ver020.pdf 71
2021/04/21 17:05:39
Useful Information
Voicemail
Problem
"Voicemail msg. via phone co." is shown on the handset display. How do I remove this message from the display?
Cause/solution
R This notification is displayed when your phone service provider's voicemail service (not the unit's answering system) has recorded a message for you. Typically you can remove this notification from the display by listening to the message. To listen to the message, dial the voicemail number provided by your phone service provider (for most cases, this will be your own phone number), and follow the voice instructions. Depending on your phone service provider, you may need to remove all messages from your voice mailbox to remove the notification. You can also remove this notification by pressing and holding # until the unit beeps.
Liquid damage
Problem
Liquid or other form of moisture has entered the handset/base unit.
Cause/solution
R Disconnect the AC adaptor and telephone line cord from the base unit. Remove the batteries from the handset and leave to dry for at least 3 days. After the handset/base unit are completely dry, reconnect the AC adaptor and telephone line cord. Insert the batteries and charge fully before use. If the unit does not work properly, contact an authorized service center.
Caution: R To avoid permanent damage, do not use a microwave oven to speed up the drying process.
72
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 72
2021/04/21 17:05:39
Useful Information
FCC and other information
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:ACJ----------. If requested, this number must be provided to the telephone company. L Registration No.............(found on the
bottom of the unit) L Ringer Equivalence No. (REN).......0.1A
advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with the product. It is designed to be connected to a compatible modular jack that is also compliant.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for the product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be
If trouble is experienced with this equipment, for repair or warranty information, please contact a Factory Service Center or other Authorized Servicer. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when using this phone. Consult with your audiologist or Hearing Aid
For assistance, please visit http://shop.panasonic.com/support
73
TGD66x(en)_0420_ver020.pdf 73
2021/04/21 17:05:39
Useful Information
manufacturer about the availability of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO EMERGENCY NUMBERS: 1) Remain on the line and briefly explain to
the dispatcher the reason for the call. 2) Perform such activities in the off-peak
hours, such as early morning or late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.
CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna. Increase the separation between the
equipment and receiver. Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If
interference is experienced, move the
cordless telephone further away from the TV or VCR. This will often reduce or eliminate interference.
FCC RF Exposure Warning: L This product complies with FCC radiation
exposure limits set forth for an uncontrolled environment. L To comply with FCC RF exposure requirements, the base unit must be installed and operated 20 cm (8 inches) or more between the product and all person's body. L This product may not be collocated or operated in conjunction with any other antenna or transmitter. L For body-worn operation, the handset must be used only with a non-metallic accessory. Use of other accessories may not ensure compliance with FCC RF exposure requirements.
Notice: L FCC ID can be found inside the battery
compartment or on the bottom of the units.
74
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 74
2021/04/21 17:05:39
Compliance with TIA-1083 standard: Telephone handsets identified with this logo have reduced noise and interference when used with T-Coil equipped hearing aids and cochlear implants.
Compatible with Hearing Aid T-Coil
T
TIA-1083
Useful Information
For assistance, please visit http://shop.panasonic.com/support
75
TGD66x(en)_0420_ver020.pdf 75
2021/04/21 17:05:39
Guía Rápida Española
Guía Rápida Española
1 2 3 4 L
2
1
3 4 3
1
1
76
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
TGD66x(en)_0420_ver020.pdf 76
2021/04/21 17:05:39
1
L L L L L
Guía Rápida Española
4
2
2
3
1
ST 2
1
1 2
{^} {V} {<} {>}
{^} {V}
{<} k {>} {V}
{^}
{<}
{>}
{V}
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
77
TGD66x(en)_0420_ver020.pdf 77
2021/04/21 17:05:39
Guía Rápida Española
{}
{
}(11) s {r}
{
}(112 s {r}
{
}(1)1
{
}s{ }
s{
}s{ }
s{
}s{ }
s{ }
{
}(3)2 s {r}
s{
}
{
}
s{ }
L
1 2
L L
1 2
78
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
TGD66x(en)_0420_ver020.pdf 78
2021/04/21 17:05:40
L
L
L L L
{
}{
}
td
L
L
xd L
Guía Rápida Española
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
79
TGD66x(en)_0420_ver020.pdf 79
2021/04/21 17:05:40
Guía Rápida Española
uv
L
L L
L {}
{
}(6251
{
}(6252
L
{
}(157
{r}
s{
} s {r}
s{
}
{r}
s{
}
80
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
TGD66x(en)_0420_ver020.pdf 80
2021/04/21 17:05:40
Guía Rápida Española
s{ }
L
{C} {s}
{}
{r}
s{
}
s {C} {s}
{C} {s} {}
{^} {V}
{>}
s {r}
{}
{ } s {r}
s
{
}
{C} {s} {^} {V}
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
81
TGD66x(en)_0420_ver020.pdf 81
2021/04/21 17:05:40
Guía Rápida Española
{<} k s {
}
{r}
{} {r} {} L
( s {r}
{<} k s {r}
{ } s {r}
{
}
{C}
s{
}
s{
}
s{ } s
s
s{ } {} s
{
}
{P}
{
}{
}(323
{
}(324
82
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
TGD66x(en)_0420_ver020.pdf 82
2021/04/21 17:05:40
Guía Rápida Española
{
}(618
{r}
s{
}
L
{r}
s{
} s {r}
{r}
s{
}
L L
L
L s{ }
s{
}
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
83
TGD66x(en)_0420_ver020.pdf 83
2021/04/21 17:05:41
Guía Rápida Española
L
L
{
}(621
L
L
L L N
{}
L N
1 2
1 2
{
}
s{ }
{P}
84
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
TGD66x(en)_0420_ver020.pdf 84
2021/04/21 17:05:41
Guía Rápida Española
_
L
L
L
L L
L
L L L
L L
{
}(13)
{}
{^}
L
L
{
}
{
}
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
85
TGD66x(en)_0420_ver020.pdf 85
2021/04/21 17:05:41
Appendix
Customer services
Shop Accessories!
for all your Panasonic gear
Go to
hp://shop.panasonic.com/support
Get everything you need to get the most out of your Panasonic products
Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Baeries,
Backup Chargers & more...
Customer Services Directory
For Product Informaon, Operang Assistance, Parts, Owner's Manuals, Dealer and Service info
go to hp://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
86
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 86
2021/04/21 17:05:41
Appendix
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Products Limited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.
Product or Part Name Telephone
Parts One (1) Year
Labor One (1) Year
During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold "as is".
Mail-In Service--Online Repair Request
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
For assistance, please visit http://shop.panasonic.com/support
87
TGD66x(en)_0420_ver020.pdf 87
2021/04/21 17:05:41
Appendix
Limited Warranty Limits and Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:
Panasonic Corporation of North America Consumer Affairs Department 8th FI. Two Riverfront Plaza Newark NJ 07102-5490
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
As of January 2020
88
For assistance, please visit http://shop.panasonic.com/support
TGD66x(en)_0420_ver020.pdf 88
2021/04/21 17:05:41
Index
# 3-way conference: 25 A Additional handset: 45
Alarm: 42 Answering calls: 23 Answering system
Call screening: 57 Erasing messages: 55, 56, 57 Greeting message: 54 Greeting only: 58 Listening to messages: 55, 57 Number of rings: 58 Recording time: 58 Remote access code: 56 Remote operation: 56 Ring count: 58 Toll saver: 58 Turning on/off: 54 Assist button: 14 Auto intercom: 26 Auto talk: 23, 40 B Baby monitor: 43 Battery: 11, 12 Bluetooth wireless technology Cellular phone (Link to cell): 18 Headset: 51 Phonebook transfer: 48 Booster (Clarity booster): 25 C Call block: 28 One ring for blocked call: 29 Call share: 25, 40 Call waiting: 24 Call Waiting Caller ID: 24 Caller ID number auto edit: 39, 47 Caller ID service: 46 Caller list: 46 Caller list edit: 47 Cellular calls: 22 Cellular phone Pairing: 18 Unpairing: 18 Chain dial: 32 CID (Caller ID): 46, 47 Conference calls: 25 Control type: 14 Customer support: 40 D Date and time: 16 Dialing mode: 16 Direct command code: 34
TGD66x(en)_0420_ver020.pdf 89
Index
Display Contrast: 39 Language: 16
E Eco mode: 13 Equalizer: 24 Error messages: 63
F Flash: 24, 40 G Groups: 31 H Handset
Deregistration: 45 Name: 45 Registration: 45 Hold: 23 I Intercom: 26 K Key detector: 39, 41 Key tone: 39 L Landline calls: 22 Line mode: 40 Link to cell Alert settings for your DECT phone: 50 Area code: 21 Auto connection: 19 Cellular line only mode: 20 Cellular line selection: 21 Connection: 20 Link to Cell app: 49 Ring as cell mode: 19 Select unit to ring: 19 Text message (SMS: Short Message Service) alert: 50 Low battery alert: 16 M Making calls: 22 Missed calls: 46 Mute: 24 N Noise reduction: 24 P Pause: 23 Phonebook: 30 PIN: 21 Power failure: 12 R Redialing: 22, 23 Remote voice assist: 50 Ringer ID: 31 Ringer tone: 36, 38 Rotary/pulse service: 24 S Silent mode: 42 Speed dial: 32 SP-PHONE (Speakerphone): 22 T Talking Caller ID: 46 Temporary tone dialing: 24
89
2021/04/21 17:05:41
Index
Time adjustment: 38 Transferring calls: 25 Troubleshooting: 64 TTY: 86 V VM (Voicemail): 59 Voice announcement language: 16 Voicemail: 59 Volume
Receiver: 22 Ringer (Base unit): 23, 36, 38 Ringer (Handset): 23, 36, 38 Ringer for intercom call (Handset): 38 Speaker: 22 W Wall mounting: 60
90
TGD66x(en)_0420_ver020.pdf 90
2021/04/21 17:05:41
Notes
TGD66x(en)_0420_ver020.pdf 91
91
2021/04/21 17:05:41
IMPORTANT!
If your product is not working properly. . .
1 Reconnect AC adaptor to the base unit. 2 Check if telephone line cord is connected. 3 Use rechargeable Ni-MH batteries.
(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.) 4 Read troubleshooting page in the Operating Instructions.
Visit our Web site: http://shop.panasonic.com/support L FAQ and troubleshooting hints are available.
For your future reference We recommend keeping a record of the following information to assist with any repair under
warranty.
Serial No. (found on the bottom of the base unit) Name and address of dealer
Date of purchase
Attach your purchase receipt here.
Two Riverfront Plaza, Newark, NJ 07102-5490 © Panasonic Corporation 2021 Printed in Malaysia
TGD66x(en)_0420_ver020.pdf 92
*PNQX9173ZA* *PNQX9173ZA* PNQX9173ZA PP0521KR0
2021/04/21 17:05:41
Antenna House PDF Output Library 2.6.0 (Windows)
