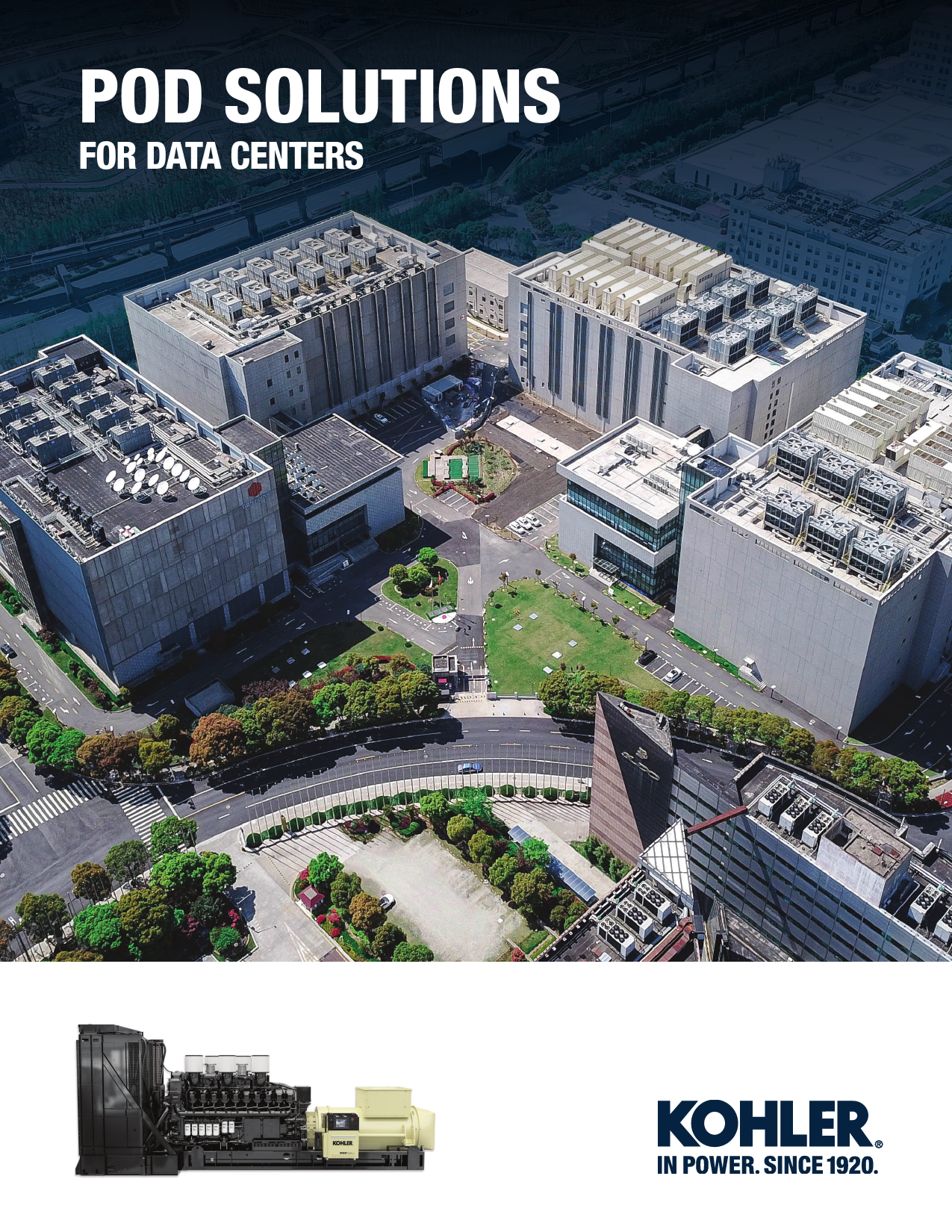

POD SOLUTIONS
FOR DATA CENTERS

KOHLER POWER AMERICAS

KOHLER POWER EMEA

KOHLER POWER CHINA

KOHLER POWER INDIA

KOHLER POWER SEA

5 manufacturing locations
15 logistic hubs
10,000+ dealers
THE POWER YOU NEED.
ANYTIME, ANYWHERE.
A global force in power solutions since 1920, Kohler is committed to reliable, intelligent products, advanced engineering and responsive after-sale support.
As the largest privately-owned power generation manufacturer in the world, we have 100 years of experience in industrial power and benefit from global R&D, manufacturing, sales and distribution integration.
2 / PODS FOR DATA CENTERS

KOHLER PODs POWER OPTIMIZED DESIGNS FOR DATA CENTERS
Inspired by our clients, we developed dedicated solutions for the data center industry worldwide.
Our PODs are designed with standard and reliable components--and available in a variety of configurations. Whether you need to secure the power supply of your data center or simply replace your current backup generators, we have the perfect power options for your business.
Our qualified technical teams will guide you towards the right technical solution for your project, based on your individual requirements and regulations.

OUR PODS PROVIDE GUARANTEED LEAD TIMES AND
RELIABLE POWER AT A COMPETITIVE VALUE

BENEFITS Short lead-time and quick deployment Optimized design for data centers Easy for operations Stackable and rackable solutions

See video of the PODs

DENSITY PODs
Walkin enclosure / 45-Ft container Best Power Density on the market

HYPERSCALE DATA CENTER Up to 500 MW

MODULAR PODs
40-Ft container / Skin-tight Stackable, rackable Quick deployment
X-PRESS PODs
Canopy / Skin-tight / 20-Ft container Compact Short lead time

REGIONAL DATA CENTER Up to 25 MW
EDGE DATA CENTER Up to 5 MW
PODS FOR DATA CENTERS / 3

YOUR CHALLENGES
OUR EXPERTISE
A data center's electrical power supply can be provided by several different circuits and supplemented by energy storage systems and generators. To provide a "no-break" power supply, data centers need two independent power sources provide redundancy and risk reduction, rather than a single source of inbound power.
Uptime and reliability
Designing power systems that meet the requirement for the highest levels of uptime (e.g. the Uptime Institute Tier IV standard) requires expert attention to system architecture and equipment redundancy. Our priority is to provide you with a reliable and flexible solution for your project, including paralleling two or more generators.
Noise
Our teams focus on generator set design and installation to consider the local environmental impact noise will have on populated areas and to comply with sound levels regulations all over the world. Kohler measures the sound emitted by all its generator systems, whether open or fully sound attenuated, to ensure the generator selected is within your site location noise regulations.
Emissions
Kohler complies with global and local emissions standards (e.g., EPA, MCP, etc.) thanks to our advanced engine design and exhaust equipment. Our KD Series generators are specially engineered to allow the lowest levels of emissions particles on the market.
Compact design
The footprint of a generator--in terms of both surface area and volume--is key to ensuring its integration into an environment, regardless of space constraints. That's why KOHLER� generators pack big performance into a compact frame, in both soundproofed and open versions.
4 / PODS FOR DATA CENTERS

YOUR PROJECT
OUR PRIORITY
From standard solutions to specific design, Kohler always supports your needs with a dedicated approach.

1 PLANNING
Conceptual Design Detailed Proposal Site Survey & Planning Quotation & Recommendation Budgeting
2 PROJECT EXECUTION
Equipment Selection Implementation & Construction Shop Drawing & Site Preparation Equipment Delivery & Installation Contracting Agreement & Scope of Work
3 POST-INSTALLATION
Testing & Commissioning Maintenance Contracts Functionality Test Scheduled Preventive Maintenance Training & Documentation Emergency Service

Each project submitted to Kohler follows a proven process from planning to the post-installation maintenance. A succession of pre-established steps mastered by all our teams provides you with the guarantee of flawless efficiency.
From planning the design and choice of equipment to final testing and commissioning, we have one goal: to offer you reliable power systems, precisely designed to your specifications. Great flexibility in manufacturing, extreme rigor during testing, meticulous precautions during commissioning--everything is done to provide you with a solution adapted to your activity and your budget.
GLOBAL STRENGTH
LOCAL SUPPORT
PODS FOR DATA CENTERS / 5

KOHLER� PODs are pre-designed modules, which offer the best solution for scaling your data center power for expansion or incremental growth.
The modules are fully integrated to include a control panel, generating set, monitoring, security, fire system and cooling.
CHOOSE FROM ONE OF OUR BASE DESIGNS OR CUSTOMIZE FOR YOUR SPECIFICS NEEDS.
Data Center Mission Critical for Continuous Power
Kohler is accredited by the Uptime Institute to deliver DCP rating power for your data center. We are also able to design solutions in compliance with Uptime Institute Tier I to IV requirements.

Standard Features
- Double starter - Circuit breaker - Dead bus synhronizing

- G3 - Class F alternator

Certifications
EMEA - ISO8528-5 - CE - EPA Tier 2 - MCP ready

NAFTA - IBC - OSHPD - Wind Load - Missile Impact

- UL2200 Listed - NFPA 70, 37
& 100 - EPA Tier 2

Operating Ambient Conditions
- T� min/max: 10 to 40�C - Humidity: 0-100% - Altitude: Up to 1000 m
6 / PODS FOR DATA CENTERS

X-PRESS PODs
Power Optimized Design

50 Hz kWe 500 60 Hz kWe 500

1440 1750

EDGE DATA CENTER Up to 5 MW
Compact and short lead time
4000
4000

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:

Canopy
1200 kWe (50Hz) - 1000 kWe (60Hz)
76 dB(A) @ 7 m (SL2, 50Hz) 82 dB(A) @ 7 m (SL1, 60Hz) L 6.80 x W 2.16 x H 2.75 m Belly Tank (High fuel capacity for large autonomy)

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:

20-ft container
1440 kWe (50 Hz) - 1750 kWe (60 Hz)
72 dB(A) @ 7 m (SL2, 50Hz) 79 dB(A) @ 7 m (SL2, 60Hz) L 9.14 x W 2.44 x H 2.90 m Belly Tank (High fuel capacity for large autonomy)

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:

Skin-tight
1440 kWe (50 Hz) - 1750 kWe (60 Hz)
79 dB(A) @ 7 m (SL2, 50Hz) 95 dB(A) @ 7 m (SL1, 60Hz) L 11.15 x W 3.02 x H 4.57 m Belly Tank (High fuel capacity for large autonomy)

PODS FOR DATA CENTERS / 7

MODULAR PODs
Power Optimized Design

REGIONAL DATA CENTER Up to 25 MW
Stackable, rackable and quick deployment

50 Hz kWe 500

1600 2240

4000

60 Hz kWe 500

2000 2500

4000

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:

Skin-tight
2240 kWe (50 Hz) � 2500 kWe (60 Hz)
78 dB(A) @ 7 m (SL2, 60Hz) 90 dB(A) @ 7 m (SL1, 60Hz) L 13.49 x W 3.48 x H 4.78 m Belly tank (High fuel capacity for large autonomy)

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:
Cooling system Electrical or mechanical driven

40-ft container
2240 kWe (50 Hz) � 2500 kWe (60 Hz)
72 dB(A) @ 7 m (SL2, 50Hz) 80 dB(A) @ 7 m (SL1, 60Hz) L 12.19 x W 2.44 x H 2.90 m Belly tank (High fuel capacity for large autonomy)

KOHLER engine

KOHLER controller APM403 / APM603 / APM802

Redundant starting system
8 / PODS FOR DATA CENTERS

*Typical sound levels. @50Hz are at 75% PRP and @60Hz are at 100% PRP

DENSITY PODs
Power Optimized Design
50 Hz kWe 500
60 Hz kWe 500

HYPERSCALE DATA CENTER Up to 500 MW
Best power density on the market

2500

3680

4000

2814

4000 4000

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:

45-ft container
2800 kWe (50 Hz) � 4000 kWe (60 Hz)
80 dB(A) @ 7 m (SL1, 50Hz) 74 dB(A) @ 7 m (SL1, 60Hz) L 13.72 x W 2.44 x H 2.90 m Belly tank (High fuel capacity for large autonomy)

Enclosure: Max Power: Sound Level*:
Dimensions: Fuel System:

Walkin-enclosure + Stack SCR ready POD
3680 kWe (50 Hz) � 4000 kWe (60 Hz)
75 dB(A) @ 7 m (SL1, 50Hz) 65 dB(A) @ 7 m (SL2, 50Hz) L 15.24 x W 4.01 x H 4.09 m Belly tank (High fuel capacity for large autonomy)

Options:
- IBC compliance - C4/C5 painting - SCR treatment - Fire system - Double Circuit Breaker - Low Voltage / Medium Voltage

- Extreme temperature - High Altitude - Super Silent: 65 dB(A) - Onboard synchronization capabilities - Fuel polishing - Fast cable connectors
PODS FOR DATA CENTERS / 9

GUANGZHOU KEYUN DATA CENTER:
A POWERFUL CASE STUDY
Generating set: KD2500 Number of gensets: 12 Rackable solution Frequency: 50 Hz Engine brand: KOHLER Engine model: KD62V12 Voltage: 10.5KV

Keyun Data Center is located in Guangzhou Economic and Technological Development Zone, with a construction area of 44,091 square meters.
Keyun Phase III is the largest data center park built by Guangdong Telecom for Tencent. For this project, Kohler delivered 12 KD2500 gensets with strong project management ability, fast delivery and after-sales service.

See video of the Keyun project

USA 24 x 1,500kW 40 x 3,250kW

UK 12 x 1,800kVA

NETHERLANDS 34 x 3,100kVA 2 x 2,250kVA

CHINA 12 x 2,250kW 16 x 2,800kW

HONG KONG 9 x 2,000kVA 29 x 2,500kVA

COLOMBIA 2 x 1,250kW
BRAZIL 12 x 700kVA
URUGUAY 3 x 2,200kVA
10 / PODS FOR DATA CENTERS

SPAIN 8 x 2,200kVA
MOROCCO 2 x 1,900kVA

GERMANY 2 x 2,200kVA

FRANCE 12 x 2,500kVA 3 x 2,700kVA

MYANMAR 3 x 500kVA

THAILAND 3 x 2,000kVA

SOUTH AFRICA 6 x 2,800kVA

SINGAPORE 2 x 500kVA UPS 2N System 4 x 2,400kVA 1 x 800kVA UPS

TAIWAN 3 x 1,625kVA
INDONESIA 2 x 1,700kVA

AFTERMARKET PARTS AND SERVICE

Global Network
Worldwide distribution locations providing personal customer support and technical assistance 24/7. Consistent world-class parts and service support in all markets we serve.

9 Training centers 800+ Distributor service providers 19 Spare parts hub

Warranty
Kohler stands by the quality of our products by offering a Standard Warranty and optional Extended Warranty to support your investment. All of our equipment is supported by a global network of certified Kohler distributor technicians and backed by factory-direct technical support services.

Training
Every Kohler distributor receives technician certification training with Kohler factory instructors in training centers located worldwide. Kohler also hosts training events in Kohler classrooms and labs, as well as on-site training at distributor or customer locations as needed.

Genuine Parts
KOHLER� genuine parts are built specifically for your generator throughout its life cycle and are available when you need them, wherever you are through our global network of distributors.
Preventative maintenance kits are available to provide all the parts required to complete scheduled maintenance events.

Generator Tech Support
As a single point of contact, your Kohler Key Account Service Manager is dedicated to your project.
Our factory-trained and certified technicians are equipped with the knowledge and latest diagnostic tools to keep your generator up and running with quick, accurate resolutions.
Factory-direct field service engineers support critical installations and field issues as needed.
24/7 service is available nationwide. And hands-on technical support is available from Kohler.

Switchgear Tech Support
Switchgear field service provides 24/7 emergency technical support through our distribution partners.
Qualified technicians are available to respond at a moment's notice and factory support is available when required.
We build lasting relationships, identify potential risks and mitigate future issues.
Our switchgear support team offers: � Preventative maintenance � Risk assessments � Consistent review of system operations � Proactive equipment upgrades

PODS FOR DATA CENTERS / 11
