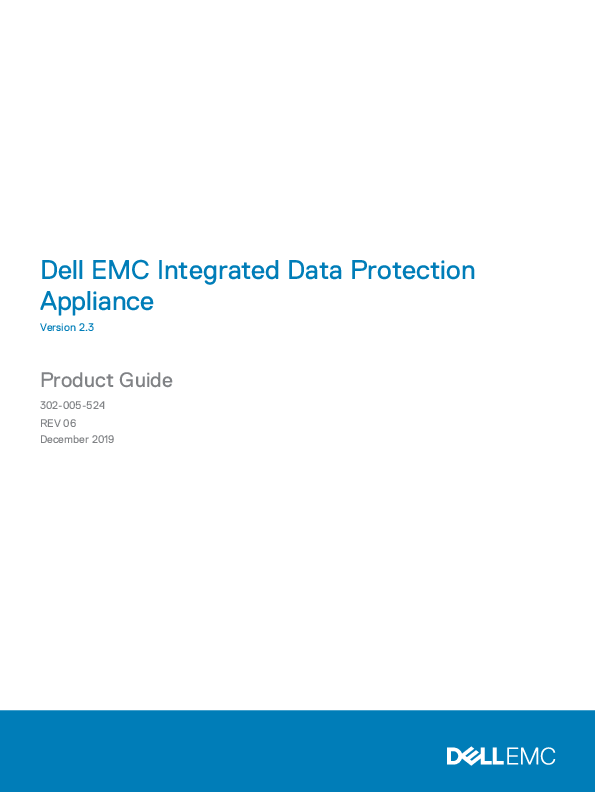

Dell EMC Integrated Data Protection Appliance Version 2.3 Product Guide 302-005-524 REV 06 December 2019
Dell EMC Integrated Data Protection Appliance Version 2.3 Product Guide 302-005-524 REV 06 December 2019 Copyright © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. THE INFORMATION IN THIS PUBLICATION IS PROVIDED "AS-IS." DELL MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE INFORMATION IN THIS PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. USE, COPYING, AND DISTRIBUTION OF ANY DELL SOFTWARE DESCRIBED IN THIS PUBLICATION REQUIRES AN APPLICABLE SOFTWARE LICENSE. Dell Technologies, Dell, EMC, Dell EMC and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be the property of their respective owners. Published in the USA. Dell EMC Hopkinton, Massachusetts 01748-9103 1-508-435-1000 In North America 1-866-464-7381 www.DellEMC.com 2 Dell EMC Integrated Data Protection Appliance Product Guide CONTENTS Chapter 1 Chapter 2 Chapter 3 Chapter 4 Revision history 5 Introduction 7 Document scope and audience............................................................................8 Product features.................................................................................................8 System architecture and components............................................................... 10 Detailed configuration...........................................................................10 Base hardware.......................................................................................11 Embedded software.............................................................................. 11 System self-protection......................................................................... 12 Network connectivity overview............................................................ 12 Customer Support tasks....................................................................................15 Monitor and manage the appliance 17 About the ACM dashboard................................................................................ 18 Basic management tasks...................................................................... 18 Appliance Configuration Manager dashboard home.............................. 19 Shut down the IDPA.............................................................................30 Advanced backup configuration............................................................31 Health.................................................................................................. 32 Upgrade............................................................................................... 33 Install the IDPA postinstallation patch on the DataProtection-ACM..................33 Start up the IDPA............................................................................................. 35 Access components with a browser.................................................................. 36 User accounts for components......................................................................... 37 Change passwords and synchronize components............................................. 38 Data Domain settings........................................................................... 39 Avamar settings................................................................................... 39 DP Advisor settings..............................................................................39 Search settings.................................................................................... 40 vCenter settings.................................................................................. 40 ESXi settings........................................................................................43 Configure IDPA to use specific interfaces for replication.................................. 43 Upgrade the IDPA software (DP4400) 47 Upgrade components........................................................................................48 Upgrade Prerequisites (DP4400)......................................................................48 Upgrade the appliance software (DP400).........................................................49 Upgrade Postrequisites ....................................................................................52 Upgrade CDRA manually...................................................................... 52 Troubleshooting 55 System log files................................................................................................ 56 Troubleshoot shutdown.................................................................................... 56 Avamar shutdown validation errors...................................................... 56 Shut down Avamar manually................................................................ 57 Shut down Data Domain manually........................................................ 58 Dell EMC Integrated Data Protection Appliance Product Guide 3 Contents Chapter 5 Index Shut down vCenter manually............................................................... 58 Shut down ESX manually..................................................................... 58 Troubleshooting startup....................................................................................59 Adding a CA-signed certificate.......................................................................... 61 Enabling certificate verification........................................................................ 62 Configure secure AD having self-signed Certificates on IDPA...........................62 Troubleshoot LDAP...........................................................................................63 Troubleshoot secure LDAP configuration.............................................63 Verify Internal LDAP password.............................................................63 Create internal LDAP password........................................................... 64 Troubleshoot Avamar........................................................................................64 Credential mismatch............................................................................ 65 Troubleshooting health monitoring................................................................... 65 Troubleshooting component software upgrades............................................... 66 Retry upgrade process.........................................................................66 Advanced troubleshooting (support only)............................................ 67 Rollback is Successful..........................................................................68 Rollback Failed..................................................................................... 68 Upgrade log files.................................................................................. 69 Additional resources 71 Document references for IDPA......................................................................... 72 Document references for individual components...............................................72 IDPA training resources.....................................................................................73 75 4 Dell EMC Integrated Data Protection Appliance Product Guide Revision history Table 1 IDPA Product Guide Revision History Revision 06 Date December 2019 05 June 2019 04 April 2019 03 April 2019 02 March 2019 01 January 2019 Description Updated Upgrade Prerequisites (DP4400) on page 48. l Added Configure IDPA to use specific interfaces for replication on page 43. l Added Install the IDPA postinstallation patch on the DataProtection-ACM on page 33. Updated Adding a CA-signed certificate on page 61. Fixed documentation defects and incorporated review comments for the following sections for IDPA 2.3: l ESXi settings on page 43. l Avamar shutdown validation errors on page 56. l Troubleshoot LDAP on page 63. Documentation updates and minor bug fixes for IDPA 2.3. First release of this document for IDPA 2.3. Dell EMC Integrated Data Protection Appliance Product Guide 5 Revision history 6 Dell EMC Integrated Data Protection Appliance Product Guide CHAPTER 1 Introduction This chapter provides a general overview of the Integrated Data Protection Appliance 2.3 features and hardware configurations. Topics include: l Document scope and audience................................................................................................ 8 l Product features..................................................................................................................... 8 l System architecture and components....................................................................................10 l Customer Support tasks........................................................................................................ 15 Dell EMC Integrated Data Protection Appliance Product Guide 7 Introduction Document scope and audience The scope of this document is to describe the administrative details of the Integrated Data Protection Appliance (IDPA). The target audience for this document includes field personnel, partners, and customers responsible for managing and operating the IDPA. This document is designed for people familiar with Dell EMC Data Protection solutions. Product features The IDPA provides a simplified configuration and the integration of data protection components in a consolidated solution. Integrated solution The IDPA DP4400 model is a hyper-converged, 2U system that a user can install and configure onsite. Other models of IDPA (DP5300, DP5800, DP8300, and DP8800) are shipped as a complete unit, with all hardware components racked and cabled in the factory. Installation and initial configuration of the IDPA DP5300, DP5800, DP8300, and DP8800 appliances are completed by Customer Support. IDPA includes an Avamar server as a Backup Server node with optional NDMP Accelerators, a Data Domain system as the Protection Storage node, Compute nodes for virtual components and software, a networking switch for improved setup speed, and Cloud Disaster Recovery. Note: This is applicable for the DP5300, 5800, 8300, and 8800 appliances. The Cloud Disaster Recovery node is applicable for DP4400. A backup application, target storage, reporting and analytics, search, cloud disaster recovery, system manager, and the Appliance Configuration Manager (ACM). The Search, Reporting and Analytics, and CDRA are optional. Additionally, the Search, Reporting and Analytics, and CDRA functions can also be performed by a central corporate implementation of these functions. After the unit is on site, connected to the existing infrastructure, and powered on, register the appliance with Secure Remote Services (formerly ESRS). The Secure Remote Services is a secure, IP-based, distributed customer service support system that provides Dell EMC customers with command, control, and visibility of support-related activities. Centralized management IDPA System Manager provides advanced monitoring and management capabilities of the IDPA from a single pane of glass and includes the following features: l Comprehensive dashboards that include the following Avamar and IDPA system information: n Backup activities n Replication activities n Capacity n Health n Alerts l Manage the Avamar, Data Domain, Data Protection Advisor, and Search components. l Management capabilities for the backup application. l Advanced search and recover operations through integration with Search. 8 Dell EMC Integrated Data Protection Appliance Product Guide Introduction l Reporting capabilities. l Cloud backups. Appliance administration The ACM provides a graphical, web-based interface for configuring, monitoring, and upgrading the appliance. The ACM dashboard displays a summary of the configuration of the individual components and enables the administrator to monitor the appliance, change configuration details, or upgrade the system and its components. The dashboard also displays appliance health alert information for the server and VMware components. Backup administration You can also add Avamar NDMP Accelerators to enable backup and recovery of NAS systems. The IDPA uses Avamar servers to perform backup operations. Depending on various IDPA models, it uses either an Avamar Virtual Edition (AVE) or a scalable multinode configuration, with the data being stored in a Data Domain system. For the most part, when using the Avamar Administrator Management Console, all Avamar servers look and behave the same. The main differences among the Avamar server configurations are the number of nodes and disk drives that are reported in the server monitor. The Avamar NDMP Accelerator uses the network data management protocol (NDMP) to enable backup and recovery of network-attached storage (NAS) systems. The accelerator performs NDMP processing and real-time data deduplication and then sends the data directly to the Avamar server. Reporting and Analytics The reporting and analytics feature offers robust reporting functionality with dedicated sections for various features. The reports help you retrieve information about the environment so that you can review and analyze the activities in the environment. Using these reports, you can identify outages in the environment, diagnose problems, plan to mitigate risks, and forecast future trends. You can run system and customized reports, dashboard templates on demand, and schedule the reports generation as per your enterprise requirements. Search The Search feature provides a powerful way to search backup data within the IDPA and then restore the backup or download the search results. Scheduled collection activities are used to gather and index the metadata (such as keyword, name, type, location, size, and backup server/ client, or full text content of the files) of the backup, which is then stored within the IDPA. Disaster recovery The CDRA is a integrated, optional solution that facilitates the recovery of on-premises virtual machines by providing the capability to recover those VMs in the cloud. The CDRA integrates with the backup application inside IDPA to copy backups of virtual machine data to the public cloud. It can then perform disaster recovery tests or failover of production environments by orchestrating a complete conversion of the VM to an Amazon Web Services Elastic Compute Cloud (EC2) instance, and by running this instance in the cloud. Note: Installing CDRA, Search, and Data Protection Advisor is optional. Also, if these components are already configured in your environment, then the appliance can be configured to use the central implementation of with IDPA. You do not need to configure the optional components that are bundled in IDPA once again. If you are running a corporate deployment of the CDRA, Search, and Data Protection Advisor instance, IDPA supports it externally to index the system. However, the IDPA dashboard does not display any data associated with external CDRA, Search, and Data Protection Advisor. Dell EMC Integrated Data Protection Appliance Product Guide 9 Introduction Moreover, you must manage and configure any such external instances. Also, IDPA does not support local search and analytics. Scalability The IDPA is designed to be scalable so it can scale up with ever-changing needs. The following table details the base configuration for all the IDPA models, which can be expanded by licensing additional capacity in increments. Table 2 Capacity Specification for all IDPA Models Model DP4400 DP5300 DP5800 DP8300 DP8800 Capacity From 24 TB up to 96 TB From 34 TB up to 130 TB From 96 TB up to 288 TB From 192 TB up to 720 TB From 624 TB to 1 PB Unified support The same Customer Support team supports both the hardware and the software that is used in the appliance. System architecture and components The IDPA integrates multiple data protection components into a single product. Detailed configuration The IDPA is available in the following models: Table 3 Configuration options for each model Model Protection Storage model DP4400 DP5300 Data Domain Virtual Edition Data Domain 6300 DP5800 Data Domain 6800 DP8300 Data Domain 9300 Protection Storage configuration options (usable TB) Backup Server Avamar Accelerator Node for NDMP/NAS Backup (optional) 24, 36, 48, 60, 72, 84, or Avamar Virtual Edition 3 NDMP Accelerator (1) 96 TB TB 34, 82, or 130 TB Avamar Virtual Edition 3 NDMP Accelerator (1) TB 96, 144, 192, 240, or 288 Avamar Virtual Edition 3 NDMP Accelerator (1 TB TB 3) 192, 240, 288, 336, 384, 432, 480, 528, 576, 624, 672, or 720 TB Avamar Grid: l One utility node l Three M1200 storage nodes (12 TB) l Two switches NDMP Accelerator (1 4) 10 Dell EMC Integrated Data Protection Appliance Product Guide Introduction Table 3 Configuration options for each model (continued) Model Protection Storage model DP8800 Data Domain 9800 Protection Storage configuration options (usable TB) Backup Server Avamar Accelerator Node for NDMP/NAS Backup (optional) 624, 672, 720 768, 816, 864, 912, 960, or 1008 TB Avamar Grid: l One utility node NDMP Accelerator (1 4) l Four M1200 storage nodes (16 TB) l Two switches Base hardware The following hardware is included with the IDPA models, DP4400, DP5300, DP5800, DP8300, and DP8800: l Supported shelf type: DS60 with 4 TB l Titan-P rack n Single Phase n 3-Phase Delta n 3-Phase WYE l Three Dell R640 servers l Dell S4048 48-port switch Note: Ports Fo 1/13, Fo 1/14, Fo 1/51, Fo 1/52, Fo 1/53, and Fo 1/54 are reserved for uplinks to the network environment. l Internal cabling Embedded software After initial configuration, the following software is deployed and configured: l Data Domain l VMware vCenter Server (internal architecture platform on which the appliance runs) l Avamar l Integrated Data Protection Appliance System Manager l Data Protection Advisor (optional) n Data Collection Agent Host VM n Data Processor Tool Host VM l Data Protection Search (optional) n Search Index VM n Search Index 2 VM ( DP5300 and DP5800 models) n Search Index 3 VM (DP8300 and DP8800 models) l DD Cloud DR CDRA (optional) l Appliance Configuration Manager Dell EMC Integrated Data Protection Appliance Product Guide 11 Introduction System self-protection The IDPA is configured to protect itself from data loss with the backup and storage applications included in the system. The system is protected with self-defined and self-initiated backup jobs that are scheduled daily and have a 30-day retention period. The system metadata is protected using checkpoint backup to the internal target storage. The below table is applicable for DP5300, DP5800, DP8300, and DP8800 models only Table 4 Component VM backup jobs Virtual machine Backup job ACM Management_VM_Backup vCenter vCenter_Backup DP Advisor DataProtectionAdvisor_Backup Search DataProtectionSearch_Backup IDPA System Manager DataProtectionCentral_Backup Note: (Applicable for DP5300, DP5800, DP8300, and DP8800 models only) If one of the servers in the IDPA vSAN cluster fails, you must immediately log in to the Avamar Administrator GUI and disable the backup jobs in Component VM backup jobs table. For disabling the Avamar backup jobs, refer to the Avamar Administration Guide. After disabling the backup jobs, refer to #unique_17. Note: Backup jobs are related to virtual machines hosted on the IDPA appliance. If one of the servers in the cluster fails, it may not be possible to take a snapshot of the VM, which leads to backup failure. Once all the three servers in the cluster are up and running, you must re-enable the backup jobs from the Avamar UI. For more information on re-enabling the backup jobs through the Avamar UI, refer to the Avamar Administration Guide. Network connectivity overview IDPA requires 11 IP addresses for the various components. These can be assigned either as a range of addresses or as individual, non-contiguous addresses. Using a range is the preferred method as it simplifies the assignment and reduces the chance for errors while entering the IP addresses. When a range of IP addresses is used during the IDPA configuration, the IP addresses are assigned in a standard order. Use the table below to determine which IP address is allocated to a component. The first column in each table, IP Range Allocation, is the value to add to the first IP address in the range. Table 5 IP address range assignments for DP4400 IP Range Allocation +0 +1 +2 +3 Example 192.0.2.1 192.0.2.2 192.0.2.3 192.0.2.4 Component vCenter Target storage Target storage Target storage Assigned Field VMware vCenter Server VM Management IP 1 Backup IP 2 Backup IP 3 12 Dell EMC Integrated Data Protection Appliance Product Guide Introduction Table 5 IP address range assignments for DP4400 (continued) IP Range Allocation +4 +5 +6 +7 +8 +9 +10 Example Component Assigned Field 192.0.2.5 Backup application 192.0.2.6 Backup application 192.0.2.7 IDPA System Manager 192.0.2.8 Reporting and Analytics 192.0.2.9 Reporting and Analytics 192.0.2.10 Search 192.0.2.11 DD Cloud DR CDRA (optional) Server IP Avamar Proxy VM IDPA System Manager VM Application Server Host VM Datastore Server Host VM Index Master Node Host VM Data Domain Cloud Disaster Recovery (DD Cloud DR) Cloud DR Add-on (CDRA) virtual appliance Table 6 IP address range assignments for the DP5300 and DP5800 IP Range Allocation +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 Component Data Domain Data Domain Data Domain Data Domain Avamar Avamar DP Advisor DP Advisor DP Advisor Search IDPA System Manager Assigned Field Management IP 1 Backup IP 2 Backup IP 3 Backup IP 4 Server IP Proxy IP Application Server IP Data Store Server IP Agent IP Index Master Node 1 IDPA System Manager Table 7 IP address range assignments for the DP8300 and DP8800 IP Range Allocation +0 +1 +2 +3 +4 +5 +6 Component Data Domain Data Domain Data Domain Data Domain Data Domain Data Domain Avamar Assigned Field Management IP 1 Backup IP 2 Backup IP 3 Backup IP 4 Backup IP 5 Backup IP 6 Proxy IP Dell EMC Integrated Data Protection Appliance Product Guide 13 Introduction Table 7 IP address range assignments for the DP8300 and DP8800 (continued) IP Range Allocation +7 +8 +9 +10 +11 +12 +13 Component DP Advisor DP Advisor DP Advisor Search Search Search IDPA System Manager Assigned Field Application Server IP Data Store Server IP Agent IP Index Master Node 1 Index Data Node 1 Index Data Node 2 IDPA System Manager Table 8 Management IP address range assignments for the DP8300 and DP8800 with Dedicated Backup Network Management IP Range Allocation +0 +1 +2 +3 +4 +5 Component Avamar DP Advisor DP Advisor DP Advisor DP Advisor IDPA System Manager Assigned Field Management IP Application Server IP Data Store Server IP Agent IP Data Processor Tool IDPA System Manager Table 9 Backup IP address range assignments for the DP8300 and DP8800 with Dedicated Backup Network Backup IP Range Allocation Component +0 Data Domain +1 Data Domain +2 Data Domain +3 Data Domain +4 Data Domain +5 Data Domain +6 Avamar +7 Search +8 Search +9 Search +10 Search +11 Search Assigned Field Management IP 1 Backup IP 2 Backup IP 3 Backup IP 4 Backup IP 5 Backup IP 6 Proxy IP Index Master Node 1 Index Data Node 1 Index Data Node 2 Index Data Node 3 Index Data Node 4 14 Dell EMC Integrated Data Protection Appliance Product Guide Introduction Table 9 Backup IP address range assignments for the DP8300 and DP8800 with Dedicated Backup Network (continued) Backup IP Range Allocation Component +12 IDPA System Manager Assigned Field IDPA System Manager Example 1 Sample configuration For a DP5300 system with the specified range 192.0.2.1/13, the IP assignments are: Assigned IP Address 192.0.2.1 192.0.2.2 192.0.2.3 192.0.2.4 192.0.2.5 192.0.2.6 192.0.2.7 192.0.2.8 192.0.2.9 192.0.2.10 192.0.2.11 192.0.2.12 192.0.2.13 Component Data Domain Data Domain Data Domain Data Domain Avamar Avamar DP Advisor DP Advisor DP Advisor DP Advisor Search Search IDPA System Manager Assigned Field Management IP 1 Backup IP 2 Backup IP 3 Backup IP 4 Server IP Proxy IP Application Server IP Data Store Server IP Agent IP Data Processor Tool Index Master Node 1 Index Data Node 1 IDPA System Manager Note: IDPA is compatible with IPv4 enabled networks and does not support pure IPv6 or dual-stack networks. Customer Support tasks This section describes IDPA components that require Customer Support for additional assistance. Table 10 Customer Support tasks Task Licensing Secure Remote Services (SRS) Description Applicable IDPA models l If you are unable to find the All models. right license keys for any of the components. l To obtain licensing for increased storage capacity. To register customer site IDs to the All models. SRS gateway. Dell EMC Integrated Data Protection Appliance Product Guide 15 Introduction Table 10 Customer Support tasks (continued) Physical NDMP During fresh installation, server configuration, and upgrade. Physical Avamar During fresh installation and Server upgrade. Latest firmware, BIOS, and driver updates on all Dell Servers For upgrading IDPA models on Generation 13 (Gen 13) servers. Gen 13 Dell For upgrading IDPA models on Servers must Generation 13 (Gen 13) servers. have two additional drives added per server, amounting to 7 SAS drives per ESX Server All models. l DP8300 l DP8800 l DP5300 l DP5800 l DP8300 l DP8800 l DP5300 l DP5800 l DP8300 l DP8800 16 Dell EMC Integrated Data Protection Appliance Product Guide CHAPTER 2 Monitor and manage the appliance This chapter introduces the features and functionality of the ACM dashboard. Topics include: l About the ACM dashboard.....................................................................................................18 l Install the IDPA postinstallation patch on the DataProtection-ACM...................................... 33 l Start up the IDPA.................................................................................................................. 35 l Access components with a browser...................................................................................... 36 l User accounts for components..............................................................................................37 l Change passwords and synchronize components..................................................................38 l Configure IDPA to use specific interfaces for replication.......................................................43 Dell EMC Integrated Data Protection Appliance Product Guide 17 Monitor and manage the appliance About the ACM dashboard The ACM dashboard enables you to manage settings for the appliance and individual components, update customer support information, and upgrade software for the appliance and its components. The ACM dashboard also performs system health monitoring for the appliance hardware. To access the dashboard, type https://<ACM IP address>:8543/ in a web browser and log in. The dashboard requires Google Chrome version 64 and later or Mozilla Firefox 47.2 and later. Note: The dashboard is enabled only after configuring IDPA. The initial view displays the Home page and tabs for Health and Upgrade. Basic management tasks The ACM Dashboard enables you to view system details, change the password of appliance components, and log out from the dashboard. Changing the appliance password The appliance password is common for all IDPA components. 1. Click the Change Password icon. 2. Type the Current Password. 3. Type and confirm the New Password. The password must contain 9 through 20 characters and include at least one of each type of supported character. The following types of characters are supported: l Uppercase letters (AZ) l Lowercase letters (az) l Numbers (09) l Special characters: Period (.), hyphen (-), and underscore (_) Note: A password with a period (.) as the last character (for example, Idpa1234.) is not accepted as a valid password. l Must not start with a hyphen (-) l The password must not include common names or user names such as root or admin. 4. Click Change Password. The password change process for ACM and all the other IDPA components is initiated. The Password change progress shows the progress bar with status descriptions. Note: The password change process takes approximately 40 minutes to complete. The password gets changed for the users in the following sequence: 1. ACM internal LDAP user idpauser 2. Storage (DDVE) sysadmin user 3. Backup Server (Avamar) users: a. Operating system admin and operating system root b. Avamar server users root, mcuser, repulser, and viewuser 4. Backup server proxy operating system root user 5. IDPA System Manager(DPC) users: Operating system admin and operating system root 18 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance 6. Reporting and analytics (DPA) users: Application Server operating system root, Datastore operating system root, Application server administrator 7. Search(DPS) operating system root and search default LDAP root and admin 8. Cloud disaster recovery(CDRA) admin password 9. VCenter and ESXi idpauser password. 10. ACM root password Note: Once the password is changed, ACM users will be logged out and they need to log in again using the updated password. Viewing version and build details Click the Information (i) icon. The About page displays details about the IDPA software version, build number, and the hardware version. Logging out Click the Logout button. Appliance Configuration Manager dashboard home The Home tab provides an overview of the status and settings for the IDPA and each component. On the dashboard Home tab, you can view the network configuration and product details, manage the password, time zone, SMTP, SNMP, and NTP settings, and modify customer support information. You can also configure LDAP, create and download log bundles, download the current appliance configuration, shutdown the appliance, register components with Secure Remote Services (formerly ESRS), and install optional components such as Reporting and Analytics, Search, Data Protection Advisor, and Cloud Disaster Recovery (CDRA) if not already installed. Note: The Secure Remote Services configuration link is present under gear icon menu for the relevant components. Mouse over on the gear icon to see a list of all the menu options. Downloading the configuration details To download a PDF containing the current details of the IDPA configuration, click the Adobe PDF icon. Managing system components The Home tab contains panels for each of the following: l IDPA System Manager l Backup Server l Protection Storage l Reporting and Analytics l Search l Cloud Disaster Recovery l Virtualization l Customer Information panel l General Settings Note: If a component cannot be reached on the network or has an incorrect stored credential, the corresponding panel prompts the user to resolve the issue. Dell EMC Integrated Data Protection Appliance Product Guide 19 Monitor and manage the appliance IDPA System Manager panel The IDPA System Manager panel displays the IDPA System Manager version and component IP address. You can hover over the Services to view the status information for IDPA System Manager services. To launch the web interface, click IDPA System Manager Web UI and log in. Note: If external LDAP has not been configured, then use the idpauser as the username. If external LDAP has been configured, then use the external LDAP username. For more information about IDPA System Manager workflows and capabilities, refer to the IDPA System Manager Administration Guide. Backup Server panel The Backup Server panel displays the component IP address, Avamar version, metadata of the total and available backup storage, number of NDMP servers, license status of the Backup Server node, and whether the installation of agents is in progress. You can hover over the Services to view the status information for Avamar services. Click Backup Server Web UI to launch the Avamar Web Interface and log in. You can download the Avamar agents from the web interface. For more information about the role of backup agents and how to install them, refer to the Avamar Administration Guide. Protection Storage panel The Protection Storage panel displays the DD OS version, component IP address, total and available backup storage, the file system and license status of the Protection Storage node, and any alerts that require your action. To access additional functionality of the component, click the Protection Storage System Manager link. Note: Protection Storage (Data Domain) cannot be managed by the Data Domain Management Center (DDMC) instance. Expanding storage capacity You can expand the storage capacity by obtaining the required additional licenses through ELMS (an electronic license management system). Before you begin Note: Adding licenses to expand the storage directly from the Data Domain user interface is not recommended, as it may result in loss of critical functionality. About this task Once the system detects the hardware, the Expand storage option is available in the gear icon menu under the Protection Storage panel. Procedure 1. In the Protection Storage panel, mouse over the gear icon on the top right and click the Expand storage. The Storage expansion and license upgrade wizard appears. 2. Click Browse and select the required license files for the additional storage. 20 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance 3. Click Expand. Results After several minutes, the dashboard reflects the increased storage capacity. Configuring cloud long-term retention feature on IDPA DD Cloud Tier is configured through ACM configuration. Follow the below procedures to create DD cloud units and configure Avamar backup policies for cloud long-term retention (LTR). Before you begin Note: For detailed information on creating DD cloud units, refer Data Domain Operating System Administration Guide. This process refers to the procedures in the following documents: l Data Domain Operating System Administration Guide for DD OS 6.0 or higher l Avamar and Data Domain System Integration Guide for Avamar 7.4 or higher Procedure 1. On the ACM home tab, click the Protection Storage System Manager link. The Data Domain System Manager GUI is displayed. 2. Follow the "Importing CA certificates" procedure in the Data Domain Operating System Administration Guide. After importing the certificate, close the Data Domain System Manager. 3. Connect to the Avamar user interface through IDPA System Manager. The Avamar Administrator GUI is displayed. 4. Follow the "Adding or editing a Data Domain system with cloud tier support" procedure in the Avamar and Data Domain System Integration Guide. Note: The ACM makes the step that refers to "Adding a Data Domain system" unnecessary. To learn how to access the Edit Data Domain System dialog box, refer to "Editing a Data Domain system." 5. Follow the "Creating a new tier group" procedure in the Avamar and Data Domain System Integration Guide. 6. To verify your configuration, click the Activity launcher button in Avamar Administrator and review the list of session on the Activity Monitor tab. Reporting and Analytics panel The Reporting and Analytics panel displays the Data Protection Advisor (DPA) version, IP addresses for the Application Server and the Datastore Server, the license status of the Reporting and Analytics node, and any alerts that require your action. You can hover over the Services to view the status information for Data Protection Advisor services. To load the Reporting and Analytics console, click the Reporting and Analytics Web UI link. If Reporting and Analytics is not configured during the initial configuration process, the panel displays a message indicating Reporting and Analytics is not configured. To configure the Reporting and Analytics node, click the message. The Reporting and Analytics Configuration screen is displayed. On the Reporting and Analytics Configuration screen, provide the required license information and IP addresses and click Configure. IDPA supports use of an external DPA implementation to analyze the system if you are running a corporate deployment of the DPA instance. However, IDPA dashboard (ACM) does not display any Dell EMC Integrated Data Protection Appliance Product Guide 21 Monitor and manage the appliance data that is associated with the external DPA separately. IDPA does not support local analytics and search functions when an external instance of DPA or Search is used. Moreover, if you are using an external DPA instance, you must configure and manage any such external DPA instances as external instances cannot be configured or managed through the ACM. Search panel The Search panel displays the Search version, IP address for the Index Master node, and any alerts that require your action. To load the Search console, click the Search link. Hover over Services to view the status information for Search services. If Search is not configured during the initial configuration process, the panel displays a message indicating Search is not configured. To configure the Search node, click the message. The Search Configuration screen appears. On the Search Configuration screen, provide the required IP address and click Configure. IDPA supports the use of an external Search node if you are running a corporate deployment of the Search instance. However, the Search panel on the IDPA dashboard (ACM) does not display any data that is associated with the external Search separately. IDPA does not support local analytics and search functions when external instances of Search are used. Moreover, if you are using an external Search instance, you must configure and manage any such external instances as external instances cannot be configured and managed through the ACM. Configuring clients in Search To enable indexing for backup clients, additional configuration in Search is required. Refer to the procedures in the "Collections" chapter of the Data Protection Search Installation and Administration Guide. In the Sources section of the Collections wizard, select the clients that are connected to the appliance. All the domains under Avamar get indexed automatically. Only those client domains that are added post deployment of Search, are added manually. Cloud Disaster Recovery panel The Cloud Disaster Recovery panel displays the CDRA version, and alerts that require any action. To load the Cloud Disaster Recovery console, click the Cloud Disaster Recovery Web UI link. IDPA supports the use of an external CDRA if you are running a corporate deployment of the CDRA instance. However, the Cloud Disaster Recovery panel on the IDPA dashboard (ACM) does not display any events or data that is associated with the external CDRA separately. Moreover, if you are using an external CDRA instance, you must configure and manage any such external CDRA instances as external instances cannot be configured and managed through the ACM. If CDRA is not configured during the initial configuration process, the panel displays Click here to configure Cloud Disaster Recovery, indicating that Cloud Disaster Recovery is not configured. To configure the Cloud Disaster Recovery node, click the message. The Cloud Disaster Recovery Configuration screen is displayed. On the Cloud Disaster Recovery Configuration screen, provide the IP address and click Configure. Note: l Do not change the Avamar root user password before configuring CDRA from the dashboard. l Do not change the Data Domain boost user password before configuring CDRA from the Dashboard. l If a cloud account and email address are not configured during the CDRA configuration, the CDRA Login page does not work. You must configure a cloud account and email address manually in CDRA. 22 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance Connect to the cloud account and add Cloud DR targets Connect the CDRA to the Amazon Web Services account and add targets to the account. Before you begin l You have logged in to CDRA as administrator. l You have an AWS account that is already configured before connecting to the cloud account. Note: IDPA does the CDRA configuration automatically. Procedure 1. Click Cloud Account on the menu bar. The Connect to Cloud Account page appears. 2. Click Add Cloud Account. 3. In the Connecting to AWS Cloud account dialog box, enter the access key and the secret key for the AWS account. http://docs.aws.amazon.com/IAM/latest/UserGuide/ id_credentials_access-keys.html provides information about obtaining the access and secret keys. 4. To copy the IAM policy, click Copy IAM Policy. This action copies to the buffer a JSON version of the minimum AWS user account permissions that are required for Cloud DR implementation, which can then be applied to AWS to set the permissions policy for the AWS user. 5. To view the Identity and Access Management (IAM) policy that represents the minimum AWS user account permissions that are required for Cloud DR implementation, click Show IAM Policy. 6. To save the AWS cloud account, click Verify & Save. The CDRA verifies that the account exists before saving the cloud account information and closing the Connecting to AWS Cloud account dialog box. Note: When you have provided credentials to an AWS account, you cannot change to another AWS account. Add cloud targets You can add one or more cloud targets to the cloud account that includes selecting an Amazon S3 bucket and an encryption method. Procedure 1. Click Cloud Account on the menu bar. The Connect to Cloud Account page appears. 2. Click Add Cloud DR Target to set up one or more Cloud DR targets on the cloud account. The Cloud DR target is the S3 bucket on AWS where data is written when VMs are backed up to the cloud. The Cloud DR Server is deployed on one of the targets. The Add Cloud DR Target dialog box opens. 3. Enter a name for the Cloud DR target. The name entered here appears in the Avamar Administrator when creating a Cloud DR backup policy. 4. Select an Amazon S3 bucket for the Cloud DR target. Dell EMC Integrated Data Protection Appliance Product Guide 23 Monitor and manage the appliance 5. Click Advance security option and select an encryption method: Option SSE-S3 SSE-KMS Description Default encryption (no cost) Key management service encryption (incurs a cost) Note: If you select the SSE-KMS encryption method, only the default customer managed key is supported. Changing the encryption key might cause errors with the files in the Amazon S3 bucket. For more information about these encryption methods, see: l SSE-S3 - https://docs.aws.amazon.com/AmazonS3/latest/dev/ UsingServerSideEncryption.html l SSE-KMS - https://docs.aws.amazon.com/AmazonS3/latest/dev/ UsingKMSEncryption.html 6. Click Add. Deploy the Cloud DR Server Deploy the CDRS on a on a specific Cloud DR target. Before you begin l Cloud DR targets are required in the AWS account before performing this task. Connect to the cloud account and add Cloud DR targets on page 23 contains information about adding Cloud DR targets to the AWS account. l AWS Marketplace terms must be accepted before deploying the Cloud DR Server. Procedure 1. Click Cloud DR Server on the menu bar. l If no CDRS has been deployed, the Deploy Cloud DR Server page appears. l If the CDRS has already been deployed, the Cloud DR Server page appears. You cannot deploy additional CDRS instances. 2. In the Cloud DR Server Configuration section, select the Cloud DR target on which to deploy the Cloud DR Server. 3. To allocate IP addresses for the Cloud DR solution, provide the IPV4 CIDR Range. 4. In the User Configuration section, enter and confirm passwords for the CDRS Admin and CDRS Monitor users. The passwords must: l Be at least eight characters in length l Contain characters of a minimum of three of the following types: n English uppercase: A-Z n English lowercase: a-z n Numeric character: 09 n Special (non-alphanumeric) characters a. Enter and confirm passwords for the CDRS Admin and CDRS Monitor users. 24 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance b. Enter an email address for DD Cloud DR password reset requests. When the Cloud DR Server is successfully deployed, AWS sends an email to this address for verification. Follow the instructions in the email within 24 hours of deployment. 5. To confirm that you accept the marketplace terms, click the I have accepted the AWS Marketplace terms checkbox. 6. Click Deploy Cloud DR Server. The CDRA begins deployment of the CDRS to the Cloud DR target. If an error occurs during deployment, click Cleanup to delete the cloud resources that CDRS creates, and then retry deployment. Deploying the CDRS may take up to 30 minutes. If the deployment is successful, the Cloud DR Server page appears, listing the hostname of the CDRS host, and the region. Also deployed are: l A Virtual Private Cloud (VPC). l An Amazon Relational Database Services (RDS) catalog, to maintain persistent data. l A private subnet for communication between the RDS and CDRS. l A public subnet (Standard Mode) or private subnet (Professional Mode) with internet access to be used by CDRS. l The CDRS EC2 instance. The M4.Large instance type is used for the CDRS instance. To reduce deployment costs, you may want to purchase reserved instances from AWS; otherwise an on-demand instance is used. An elastic IP address is automatically assigned to the CDRS instance. You cannot change this IP address. Note: Multiple Cloud DR Add-on appliances can connect to a single Cloud DR Server instance. However, one Cloud DR Add-on appliance cannot connect to multiple Cloud DR Server instances. Results When the CDRS is deployed, connect to the Cloud DR Server by clicking the CDRS hostname. Create rapid recovery images for protected VMs You can accelerate the recovery process ahead of time by creating rapid recovery images for protected VMs. About this task Creating a rapid recovery image starts the rehydration process and converts the VMDK files to an Amazon Machine Image (AMI). The recovery process then launches the recovered instance from the AMI. Perform this procedure when a new backup copy is available in the Amazon S3 bucket. Procedure 1. In the CDRS user interface, select Protection > VM Protection in the navigation pane. The existing protected VMs appear in the right pane. The Rapid recovery image column indicates whether the VM is enabled for rapid recovery. 2. Select one or more VMs and click Create Rapid Recovery Image. Dell EMC Integrated Data Protection Appliance Product Guide 25 Monitor and manage the appliance Results l The CDRS creates the AMI and removes any previous AMI for an earlier copy. l You can verify the results by reviewing the Rapid recovery image column. l You can disable rapid recovery for a VM by selecting it and clicking Disable Rapid Recovery Image. l You can monitor the protection status and its progress by reviewing the Protection status column. Note: Ensure that when you set up Disaster Recovery for client VMs that need to be restored on the cloud using CDRA, the OS version on the client VMs must be supported by AWS at the time of restore. While performing a recovery to AWS, if the kernel version of the OS on the client VMs is not an AWS supported kernel version, then the recovery activities fail with an error message. Perform a DR test or failover of a single VM This procedure describes how to perform a DR test or failover on a single VM by using the Cloud DR Server interface. Before you begin To perform a DR test or failover of a VM by using the Cloud DR Server interface, you must have instances of virtual machines that are backed up by the on-premises backup software and copied to the cloud. About this task To ensure a successful failover, and better prepare for a disaster, best practices recommend testing various disaster recovery scenarios. After performing a DR test, you can promote the test to a failover. When an operational error or disaster occurs on premises, you can fail over a VM to the public cloud. When the on-premise issue is resolved, you may fail the VM back to the on-premises environment. Note: When performing failovers, you must fail over VMs in the correct order to ensure the continued operation of servers and applications. Procedure 1. In the Cloud DR Server user interface, select Recovery > VM Recovery You can also open the VM Recovery page from the dashboard by clicking See All in the Recovery pane. The VM Recovery page appears. 2. Select the VM you want to recover and click DR Test or Failover. If you click Failover and the VM has never been tested, a message prompts you about this condition. Running a DR test is recommended before implementing a failover. The message also recommends that you shut down the production VM to avoid a possible data loss that is caused by accidental user access. Click Select Copy to continue. 3. On the Copy and Network window, select the VM copy and the network where you want to launch the EC2 instance. The Advanced Options section at the bottom of the window indicates the auto-selected EC2 instance type and security group to use for the recovery process. 26 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance 4. If you do not want to use the auto-selected EC2 instance type or security group, expand Advanced Options and select an alternate EC2 instance type and one or more security groups. 5. Click Start DR Test or Start Failover. Results The recovery process begins and you can monitor progress on the DR Activities page. During the recovery process: 1. If the VM is not enabled for rapid recovery, a temporary Restore Service instance is launched in each region where recovery is needed. This instance performs hydration during recovery, and is automatically terminated after 10 minutes of idle time. 2. The Cloud DR Server then converts the VMDK to an AMI and launches an EC2 instance that is based on the AMI. 3. When the EC2 instance is running, the Cloud DR Server deletes the VMDK and AMI. Virtualization panel The Virtualization panel displays information about the internal virtual environment on the appliance, including the IP address and version of the vCenter server and ESXi host. Customer information panel The Customer Information panel displays the contact information of the administrator. It also displays the location or site information. About this task To view the full value of an item, hover over the item. Perform the following actions to change the customer information: Procedure 1. In the Customer Information panel, click the corresponding Edit icon next to the value you want to modify. 2. Type a new value: l Admin Name--Type the name of the administrator and click Save. l Admin Number--Type the phone number of the administrator and click Save. l Admin Email--Type the email address of the administrator and click Save. l Company Name--Type the name of the company and click Save. l Location--Type the location of the IDPA and click Save. l Site ID--Type the Site ID of the IDPA and click Save. You can verify your Site ID number on the Online Support website: a. Log in to the Online Support website with your credentials. b. Select Service Center. c. On the Service Center page, below the Sites and Contracts area, click Administer a Site. d. Ensure that the site where the storage system is installed is listed in the My Sites area. Note: You can also search for a site and add it to the My Sites list. If a site ID is not available or the correct site ID is not listed, you must notify your local field representative to request one. Dell EMC Integrated Data Protection Appliance Product Guide 27 Monitor and manage the appliance General Settings panel The General Settings panel displays basic settings including time and network configuration. About this task To view the full value of an item, hover over the item. Perform the following actions to change the general settings information: Procedure 1. In the General Settings panel, click the corresponding Edit icon next to the value you want to change. 2. Select or type a new value: l Time Zone--Select the time zone from the list and click Save. The time zone is updated for the Avamar, Data Domain, DP Advisor nodes, and Search nodes, the ACM, and the vCenter host server. NOTICE If this setting is changed, the Data Domain node restarts automatically. l SMTP--Type the SMTP server IP address and click Save. The SMTP server IP address is updated for the Avamar and Data Domain nodes and the vCenter host server. NOTICE If this setting is changed, the Avamar MCS and Backup Scheduler services restart automatically. Ensure that there is no backup running on the Avamar node before changing this setting. l SNMP--Type the SNMP server IP address and click Save. The SNMP server IP address is updated for the Avamar and Data Domain nodes and the vCenter host server. l NTP--Type the NTP server IP address and click Save. The NTP server IP address is updated for the Avamar, Data Domain, DP Advisor, and Search nodes, the ACM, and the vCenter host server. Note: The NTP server must be specified by IP address. Do not use a server name in this field. 3. To change ACM DNS, perform the following step: a. Edit the etc/resolv.conf file, and then specify the IP address of the customer DNS server and the domain name. For example, when the customer environment has a public DNS server with an IP address of 10.254.66.23 and the domain name is mycompany.com, the /etc/ resolv.conf file contains the following entries: Note: The following output is an example, not the actual domain name and nameserver addresses. These values must be provided by the customer. search mycompany.com nameserver 10.254.66.23 nameserver 192.168.100.100 Note: Ensure that the entry for the public DNS server appears before the private DNS server. If the private DNS server appears first, the DPA integration with the Data Domain system will fail. 28 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance Configure external LDAP environment The Configure LDAP settings page on the ACM dashboard is used to configure the LDAP settings. About this task By default, IDPA is set to use internal LDAP configuration. However, using the Configure LDAP settings page, you can change this default configuration to an external LDAP configuration. The LDAP username and password configured using the Configure LDAP settings page are used to log in to IDPA System Manager and Search components only. To configure LDAP settings for other components of IDPA, such as Avamar, Data Domain, DPA, Compute node, and ESXi, see the respective component's documentation. You can also see the Product and subsystem security chapter in the Dell EMC Integrated Data Protection Appliance Security Configuration Guide for more information. Also, you cannot view the existing LDAP settings from the Configure LDAP settings page. If you want to view the LDAP settings, click the Download current configuration icon that is next to the Shutdown appliance icon on the ACM dashboard. IDPA generates a PDF file (as part of the current configuration of the appliance), detailing all your current LDAP settings. To configure the LDAP settings, perform the following actions: Procedure 1. Select LDAP type. 2. Check Secure LDAP to verify if the LDAP is secure. 3. Enter Server hostname. 4. Enter Domain name. l The domain to which the Server hostname belongs should be the same as the Domain name specified. l The domain name can be alphanumeric characters and special characters. 5. Enter Query username. The query username can be alphanumeric characters and special characters (-, _, ., ,, and =). 6. Enter Query password. The query password should consist a minimum of 9 to 20 characters, contains at least one lower case alphabet, one upper case alphabet, one digit, and any of the supported special characters (-, _, and .). 7. Enter Admin group name. The Admin group name is case-sensitive and must be identical to the group name entered in the LDAP server. If there is a mismatch in the names, the configuration fails. You must have already added the required users and provided the appropriate privileges to those users who need access to the IDPA System Manager (DPC) because IDPA System Manager is used to access or connect to the user interfaces of respective point products. For more information, see the Configure LDAP or AD user access section in the Dell EMC IDPA System Manager Version 18.2 Getting Started Guide, which is available on the Online Support website at https://www.dell.com/support/home. 8. Enter Port number. 9. Click Validate to check the validation of your LDAP details. Dell EMC Integrated Data Protection Appliance Product Guide 29 Monitor and manage the appliance 10. Click Submit, and then click Close. The settings have been updated to external LDAP environment. 11. Click Close. Revert to internal LDAP environment By default, IDPA uses the internal LDAP configuration. However, if you have changed this default configuration to an external LDAP configuration and if you need to revert it to internal LDAP configuration, perform the following steps: About this task Consider a scenario where you have changed the common appliance password after configuring the external LDAP. In such cases, the internal LDAP account is still associated with the old common appliance password that was in use before the external LDAP was configured. To create or verify an internal LDAP password, see the Troubleshoot LDAP on page 63 section. Procedure 1. Update the LDAP settings from the ACM dashboard using the following values: l LDAP type: OPENLDAP l Secure LDAP: Checked/selected l Server hostname: <ACM_HOSTNAME_FQDN> l Domain name: dc=idpa,dc=com l Query username: uid=idpauser,ou=People,dc=idpa,dc=com l Query password: <Internal LDAP user account password> l Admin groupname: dp_admin l Port number: 636 2. Connect to the ACM by using an SSH client. 3. Modify the following settings in the /usr/local/dataprotection/var/configmgr/ server_data/config/commonconfig.xml file: <useExternalLdapSettings>true</useExternalLdapSettings> to <useExternalLdapSettings>false</useExternalLdapSettings> Shut down the IDPA You can shut down the IDPA appliance from the ACM console. Before you begin l Ensure that there are no backup jobs running on the Avamar Backup Server. Note: n If there are backup jobs running on Avamar Backup Server when the IDPA appliance shutdown operation is in progress, the shutdown operation waits for the Avamar jobs to complete with the status Waiting for shutdown of Backup Server. n It is recommended that you wait for the backup jobs to complete. However, if you must shut down the appliance immediately, and then you must log in to the Avamar UI and cancel the backup jobs that are in progress. l Shutting down the IDPA appliance requires physical intervention, or use of IDPA, to restart the system. If you are remotely shutting down the IDPA appliances, ensure that either you have physical access to the system or have configured iDRAC on the system. 30 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance About this task To shut down IDPA, perform the following actions: Procedure 1. On the ACM dashboard Home tab, click the Shutdown Appliance icon. 2. Enter the ACM root password, and click Yes. The appliance shut down progress is displayed. The IDPA appliance shuts down the components in the following order: l Backup Server l Search l Reporting and Analytics l System Manager l Cloud Disaster Recovery Agent l Protection Storage l Appliance Configuration Manager l vCenter Server l Compute Node If the ACM-initiated shutdown fails to shut down the Backup Server and the Protection Storage or both, then the ACM displays a message listing the component(s) that failed to shut down. The ACM then continues to shut down the other components. If any components fail to shut down, you must manually shut down the components. For more information about manual shut down of IDPA components, see Troubleshooting shut down. Advanced backup configuration The Advanced Backup Configuration tab allows an administrator to add, delete, or edit a NAS system on the IDPA. Configuring NAS servers with NDMP Accelerators Before you begin Adding a NAS system requires at least one NDMP Accelerator. About this task From the Advanced Backup Configuration tab of the dashboard, an administrator can add the following supported NAS systems: l EMC Celerra, EMC Unity, or EMC VNX l EMC Isilon l NetApp filer l Oracle ZFS This view also allows an administrator to edit or delete an existing connected NAS system. Procedure 1. From Advanced Backup Configuration > NAS page, click Add. 2. Select the NAS Type, Encoding Scheme, and NDMP Accelerator. Dell EMC Integrated Data Protection Appliance Product Guide 31 Monitor and manage the appliance Health 3. Type the NDMP Account Name, NDMP Account Password, and Avamar Account Name. Note: Only the following characters may be used in the NDMP account name: a-z (lowercase), '.', '-', and '_'. A green check mark indicates that the NDMP Account Password and Confirm Password field match. 4. Click Save. Results After adding a NAS system, you can create a protection job for the new system with the Avamar Administrator GUI. The Health tab displays status information and alerts for the server hardware and the virtual infrastructure components of IDPA including vSphere alerts from ESXi servers. The IDPA uses Secure Remote Services to automatically send critical and fatal events to Customer Support for troubleshooting (events are sent only for the IDPA Appliance, Avamar, Data Domain, and Data Protection Advisor). A support ticket is opened based on the events that are received. Critical and fatal events are sent to Customer Support either after 30 min have elapsed, or when 30 events have accumulated, whichever occurs first. By default, all events are deleted after 30 days. If no events have occurred in the selected time period, the Event Summary and Event Details panel indicate that there is no data available. Event Summary The Event Summary panel displays a summary of the status events on the appliance, which is grouped by Device and Severity. To refresh the data displayed on the Health page, click the Refresh icon beside the Event filter list. Note: The application refreshes the data based on the filters that you have selected. To change the time period for which events are displayed, select an option from the Event filter list. Selecting Today lists events that have occurred from midnight to the present. To show only events for a specific device or of a specific severity in the Event Details panel, click the corresponding wedge in the chart. Event Details The Event Details panel displays a list of the status events on the appliance. Use the Component, Component Name, and Severity lists and click Search to filter the events and display the details of each event. To read more detailed information about an event, click its table entry. To export the list as a .CSV file, click the CSV icon. To clear the options selected in the filters, click Reset. Troubleshooting If a critical component of the health monitoring function is not working, the panels indicate that the service is down and an error message is displayed at the top of the page. For more information about how to resolve issues with the Health tab, see Troubleshooting health monitoring on page 65. 32 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance Upgrade The Upgrade tab allows an administrator to update the IDPA software. Refer to Upgrade the IDPA software (DP4400) on page 47 for more information. Install the IDPA postinstallation patch on the DataProtectionACM Perform the following steps to install a postinstallation patch: Before you begin You must go through the readme file available along with this postinstallation patch to verify if there are any preinstallation tasks that you must perform before applying this postinstallation patch. Procedure 1. Go to https://support.emc.com/downloads/41849_Integrated-Data-Protection-Appliance website to verify if any postinstallation patches are available for your version of IDPA. If any postinstallation patch is available, download it to your local folder. Information similar to the following is displayed when you go to the https:// support.emc.com/downloads/41849_Integrated-Data-Protection-Appliance website to download the postinstallation patch: Idpa_post_update_N.N.N.nnnnnn.tar.gz Where: l N.N.N is the latest postinstallation patch version. l nnnnnn is the build number. 2. Copy the Idpa_post_update_N.N.N.nnnnnn.tar.gz file to /data01/upgrade location on the ACM. Note: Ensure that only the postinstallation patch file exists in this folder and no other packages exist. If there are any other install files in this folder, you must delete them before installing the patch. 3. Ensure that you have the executable permission for the install package that you copied to the /data01/upgrade directory. If you do not have the executable permission, run the chmod 644 Idpa_post_update_<version.build number>.tar.gz command to obtain the permission. 4. Log in to the ACM and click the Upgrade tab. The latest upgrade package file is automatically detected and is displayed in Upgrade Binary Location. 5. Click Extract. The browser redirects to https://<acm_configured_public_ip>:9443 with a changed port number. Note: The validation process takes approximately 15 minutes, and the ACM can time out while waiting. To resume the session, you must login in once again. The system validates the following: l VLAN status Dell EMC Integrated Data Protection Appliance Product Guide 33 Monitor and manage the appliance n Validates if it can connect to all 3 ESXi servers (Applicable for DP5300, DP5800, DP8300, and DP8800 models only). n Validates the number of vSAN clusters (Applicable for DP5300, DP5800, DP8300, and DP8800 models only). n Validate if the vSAN datastore is greater than 16.2 TB (Applicable for DP5300, DP5800, DP8300, and DP8800 models only). l Validates the connection to all components. l Validates the license status. l Validates if Avamar services are running. l Validates to ensure that no backup jobs are running on Avamar. l Validates if the DD capacity used is less than 85%. l Avamar checkpoint validation l vSAN requirements (Applicable for DP5300, DP5800, DP8300, and DP8800 models only): n Checks for inaccessible vSAN objects or virtual machines. n Checks if the vSAN cluster requires a disk data rebalance. n Checks if a component rebuilding task is currently in progress in the vSAN cluster. n Checks for sufficient disk space requirements (30%). l ESX upgrade prerequisites: n Requires valid connection points to all the required ESXi servers. n Requires that the applicable ESXi servers are in maintenance mode. n Requires that the VCSA version is higher than ESXi version. In case, there is a major upgrade to VCSA, then the private IP address of the VCSA, 192.168.100.108 should not be in use. Note: The private IP address of the VCSA, 192.168.100.108, is only required temporarily during the upgrade process. A table displays the current version, new version, and type (for example, major, patch) of each component for which an upgrade is available. If the validation is not successful, check the errors that are displayed when you hover over the exclamation mark. Resolve all the errors and then click Extract. 6. Click Upgrade, type the ACM password, and click Authenticate. 7. To start the upgrade, click Yes. The upgrade process starts. Note: The upgrade process can take five to six hours, during which all activity on the IDPA must be quiesced. The system is not accessible during parts of the upgrade. WARNING If the upgrade process is still running, do not shut down/reboot the ACM or restart the dataprotection_webapp service. For some reason, if you have shut down/ rebooted the ACM or restarted the dataprotection_webapp service while the upgrade process is still running, and if you are unable to see the progress of the upgrade after the ACM is rebooted, then contact a technical support professional. The Upgrade Progress displays the following: 34 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance l The ACM upgrade progress bar with the progress percentage and description of the upgrade step in progress l Individual component upgrade progress bar with progress percentage and description of the upgrade step in progress 8. After all the components are upgraded successfully and the overall IDPA upgrade progress bar shows 100%, click Finish. 9. Click OK on the Upgrade Finish window. Note: After the upgrade is complete, there can be a scenario where Avamar is in maintenance mode and the jobs cannot be executed at that time. After Avamar comes out of the maintenance mode, the jobs are executed. Note: After the upgrade is complete, acknowledge the notification Event ConnectEMC notification failed on the Avamar Administrator. This notification is generated during upgrade when the MC service is disconnected. Note: After the upgrade is complete, there is a warning on vCenter about a potential vulnerable issue that is described in CVE-2018-3646. IDPA uses the ESXi version which has the fix for this vulnerability, however this fix is not enabled by default as it has severe performance impact. Refer to the IDPA Security Configuration Guide for more information. Note: If you have NDMP Accelerator nodes added to IDPA, you must manually upgrade the NDMP accelerator nodes. To upgrade NDMP accelerator nodes, see the Upgrading the accelerator software section in the Dell EMC Avamar NDMP Accelerator for Dell EMC NAS Systems User Guide. The components that were updated as part of this installation patch are listed in the Validation Table. The dashboard with all the products and their upgraded versions are displayed along with the newly configured ACM. If the upgrade process does not complete as expected, see Troubleshooting component software upgrades in the IDPA Field and Professional Services Deployment Guide. If the upgrade for any component fails, then the upgrade process is stopped until you troubleshoot and resolve the failure. However, if there are any noncritical warnings, the upgrade process continues. These warnings must be resolved once the upgrade process is completed. Start up the IDPA The following procedure is applicable only for DP5800, DP8300, and DP8800 models. IDPA DP4400 model has only one ESXi Server and powering that ESXi Server ensures powering of all IDPA point products in the required sequence. About this task Powering on IDPA requires starting individual components in the correct order. Procedure 1. Power on Data Domain system. 2. Power on the NDMP accelerator or accelerators if they are included in the configuration. Note: Do not continue until both Data Domain and all NDMP accelerators are fully initialized. To verify that the Data Domain system is fully initialized, log in to the Data Dell EMC Integrated Data Protection Appliance Product Guide 35 Monitor and manage the appliance Domain system using sysadmin as the username, and for password, use the IDPA common password. Check the file system status using the filesys status command. The file system should be up and running. To verify that the NDMP accelerators are fully initialized, connect to the accelerator node using SSH. 3. For configurations with a physical Avamar implementation, power on the utility node and storage nodes. This step is not necessary for configurations with AVE. 4. Login to the Avamar Admin GUI to ensure that the appliance is powered on and Avamar is fully initialized. 5. On IDPA DP5800, DP8300, and DP8800 models, power on each of the ESXi servers, moving from the bottom ESXi server to the top. Results The remaining process finishes automatically. Once the ESXi servers are powered on, IDPA automatically starts all other components. For issues during startup, see Troubleshooting startup on page 59. Note: After IDPA starts successfully, you can connect to the ACM dashboard and monitor the progress of the startup. If there is a failure in the startup, the application displays an error message with an option to access the ACM dashboard page. Access components with a browser In addition to clicking the links in the ACM panel, you can access the user interface for individual components by browsing to the corresponding network location and typing the username and password. In each of the following sections, <component_ip> refers to the IP address of the component. The credentials for Search and IDPA System Manager are determined by your LDAP setup. The IDPA System Manager is used to access or connect to the user interfaces of respective point products. The IDPA System Manager uses single sign-on when you are trying to access a particular point product's UI. The LDAP references in the below table apply to IDPA System Manager and Search components only. The appliance and other components do not use the LDAP settings that are configured from the ACM. Note: Ensure you are using Flash version 27.0.0.183 or later to access the vCenter web client. Table 11 Access Components Component Avamar client manager Avamar user interface Data Domain user interface Location SSO from IDPA System Manager https:// Yes <component_ip> /aam https:// Yes <component_ip> /mcui https:// Yes <component_ip> Username MCUser MCUser sysadmin 36 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance Table 11 Access Components (continued) Component IDPA System Manager user interface Location SSO from IDPA System Manager https:// Not applicable <component_ip> DP Advisor user interface Search user interface https:// Yes <component_ip> :9002/ dpaui/jsp https:// Yes <component_ip> /admin/#/login vCenter web client Cloud Disaster Recovery https:// No <component_ip> https:// No <component_ip> Username <username>@<do main> Note: If external LDAP has not been configured, then the username is idpauser, by default. administrator <username>@<do main> Note: If external LDAP has not been configured, then the username is idpauser, by default. idpauser User name is admin User accounts for components The IDPA configuration uses the user accounts in Table 12 on page 37. By default, these accounts use the common IDPA password that is set from the General settings page of the ACM UI. The LDAP references in the below table apply to IDPA System Manager and Search components only. The appliance and other components do not use LDAP. For information about how to change component passwords, see Change passwords and synchronize components on page 38. Table 12 Component and user account mapping Component ACM Username root Password Common password provided during IDPA Appliance configuration. Dell EMC Integrated Data Protection Appliance Product Guide 37 Monitor and manage the appliance Table 12 Component and user account mapping (continued) Component Username Password IDPA System Manager (If idpauser external LDAP is not configured) Common password provided during IDPA Appliance configuration. IDPA System Manager (If Respective LDAP external LDAP is credentials configured) External LDAP password as applicable. Avamar admin Common password provided during the IDPA Appliance configuration Data Domain sysadmin Common password provided during the IDPA Appliance configuration. Data Protection Advisor administrator Common password provided during IDPA Appliance configuration. Search Respective LDAP Common password provided during IDPA credentials. If external Appliance configuration. LDAP is not configured, then idpauser CDRA admin Common password provided during IDPA Appliance configuration. CDRS admin or monitor Password set during CDRS deployment. vCenter idpauser Common password provided during IDPA Appliance configuration. ESXi idpauser Common password provided during IDPA Appliance configuration. Change passwords and synchronize components Single-click user password change is one of the features, which simplifies the password maintenance of IDPA. It is recommended that you use this feature for changing the password as it changes passwords for all the components in IDPA. WARNING Changing passwords of individual components is not recommended. Due to any unforeseen circumstances, if you have to change passwords of individual components, see the following section. Changing passwords for individual components Some changes to component passwords and settings require updating the settings of other components. Changing a password for an IDPA component causes the ACM UI to display the password out of sync error message. To enable the ACM to gather health information for the component, you must update the stored password (old password) in the ACM UI with the respective component's updated password. To update an unsynchronized password, click the error text. Note: All passwords for the individual components must adhere to the IDPA requirements, even when they are changed on individual components. 38 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance Note: If you modify the password manually on the Avamar server and do not use the change password option on the IDPA Appliance the system displays an error message when you try to update the password using the ACM dashboard. For more information about resolving the Avamar password being out of sync, see the Credential mismatch section. Data Domain settings Updating the Data Domain password For information about how to change the Data Domain sysadmin account password, refer to the Data Domain Operating System Administration Guide. After changing the password for the sysadmin account, log in to DP Advisor and update the Data Domain SSH credentials to match. NOTICE Update the Data Domain SSH credentials in DP Advisor immediately. Failure to do so can cause account lockout as DP Advisor repeatedly tries to connect with the old password. After updating the password in DP Advisor, log in to the ACM and update the Protection Storage password to match. Note: Do not change DD boost user password before configuring CDRA from Dashboard. Avamar settings Updating Avamar passwords Avamar uses multiple user accounts, including MCUser, viewuser, server root, OS admin, and OS root. The IDPA requires that the OS admin and OS root accounts use the same password. The MCUser, viewuser, and server root accounts must also share a password, which can be different than the OS admin and OS root password. For more information about how to change an Avamar password, refer to the Avamar Administration Guide. After changing the password for any Avamar account, log in to the ACM and update the Backup Server password to match. If you change the MCUser account password, update it in the Search Admin UI. For more information about how to change the Avamar password for Search, refer to the Data Protection Search Installation and Administration Guide. If you change the viewuser account password, update it in the DP Advisor UI. For more information about how to change the Avamar password in DP Advisor, refer to the Data Protection Advisor Installation and Administration Guide. Updating the DD Boost user password After changing the password for the Data Domain DDBoostUser account, log in to the Avamar Administrator GUI. Edit the Data Domain system settings and update the DD Boost user password to match. For more information, refer to the "Editing a Data Domain system" procedure in the Avamar Administration Guide. Note: Do not change DD boost user password before configuring CDRA from Dashboard. DP Advisor settings Updating DP Advisor passwords To change the DP Advisor administrator account password or root password, you must log in and change that password for each DP Advisor node. For more information about how to change a password in DP Advisor, refer to the Data Protection Advisor Installation and Administration Guide. After changing the password on all nodes, log in to the ACM and update the Reporting and Analytics password to match. Dell EMC Integrated Data Protection Appliance Product Guide 39 Monitor and manage the appliance Updating the Data Domain SNMP community string If the community string is changed from its default value of public, DP Advisor must be updated to reflect the change. 1. Log in to Data Domain and change the community string with the following command, where <community_string> is the new string and <Dpa_DC_Agent_IP> is the IP address of the Data Collection Agent VM. snmp add rw-community <community_string> hosts <Dpa_DC_Agent_IP> 2. In the Reporting and Analytics panel of the ACM, click the Reporting and Analytics Web UI link. 3. Click Manage Credentials on the Admin > System page. 4. Select the EMC Data Domain Credential and update the community string to match. Search settings To change the Search OS root password, you must log in and change the OS root password for each Search node. Updating the Search password For more information about how to change the OS root password, refer to the Data Protection Search Installation and Administration Guide. After changing the password for the Search OS root account, log in to the ACM and update the Search password with the same password that you used for Search OS root account. Note: #, ?, /, and \ are illegal characters for new passwords. vCenter settings For information about how to change the vCenter root password, refer to the documentation on the vCenter Support website. Updating the vCenter password for the ACM After changing the password: Note: If you are manually changing the password for the vCenter Server, the password you set for the vsphere.local\Administrator and the root user accounts must be the same. 1. Log in to the ACM with SSH. 2. Change directory to /usr/local/dataprotection/customscripts/tools 3. Run the script sync_vcenter_password.sh 4. Modify the permissions on the script by running the command chmod +x sync_vcenter_password.sh For more information about the sync_vcenter_passwords.sh script, run sync_vcenter_passwords.sh -h If you need to log in to vCenter to troubleshoot an issue encountered during installation, use the user idpauser@localos and the common password for the IDPA. This user account has limited privileges, but has access to information that can help identify and address problems. 40 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance Updating the vCenter password for Avamar 1. Connect to the Avamar user interface with an SSH client as a user with the Administrator role. The Avamar Administrator GUI is displayed. 2. Locate the vCenter client in the vCenter domain. 3. Edit the vCenter client and update the root password with the same password that you used for the root account. Updating the vsphere.local\Administrator password For information about how to change the vsphere.local\Administrator password, refer to the documentation on the vCenter Support website. The domain is vsphere.local. Configure the root password expiry policy While the vCenter root password is still valid/has not expired, and if you want that the vCenter root password should never expire for the vCenter root user, perform the following steps: Procedure 1. Log in to the VMware vSphere Appliance Management UI by going to https://<VCSA hostname or IP>:5480 using the credentials as root/<common IDPA password>. 2. In the vCenter Server Appliance Management UI, click Administration. 3. In the Password Expiration Settings pane, select No for the Root password expires field. 4. Click Submit. Change the expired root password If your vCenter root password has already expired for the vCenter root user, perform the following steps to change the password: Procedure 1. Log in to the VMware vSphere Appliance Management UI by going to https://<VCSA hostname or IP>:5480 using the credentials as root/<common IDPA password>. 2. In the vCenter Server Appliance Management UI, click Administration. 3. In the Change root password pane, specify all the required fields and click Submit. The new password that you are specifying must contain at least six characters and it should not be the same as your previous five passwords. Note: To ensure that you are never logged out of the vCenter server, configure the password expiration settings for the root user account to never expire. 4. Synchronize the changed password with the ACM. For more information about changing passwords and synchronizing components, see Change passwords and synchronize components on page 38. Dell EMC Integrated Data Protection Appliance Product Guide 41 Monitor and manage the appliance Change expired password of administrator@vsphere.local user account This topic details on how to change the expired password for administrator@vsphere.local user account when the upgrade is not initiated or if the upgrade fails. When the upgrade is not initiated When the upgrade is still not initiated, you must perform the following steps to change the expired password of the administrator@vsphere.local user account: Procedure 1. Log in to the VMware vSphere Appliance Management UI by going to https://<VCSA hostname or IP>:5480 using the credentials as administrator@vsphere.local/<common IDPA password>. 2. In the vCenter Client UI, click Administrator@VSPHERE.LOCAL. 3. From the drop-down menu, select Change Password. 4. Specify the required fields. 5. Synchronize the changed password with the ACM. For more information about changing passwords and synchronizing components, see Change passwords and synchronize components on page 38. If the upgrade fails If the upgrade fails, you must perform the following steps to change the expired password of the administrator@vsphere.local user account: Procedure 1. Log in to the VMware vSphere Appliance Management UI by going to https://<VCSA hostname or IP>:5480 using the credentials as administrator@vsphere.local/<common IDPA password>. 2. In the vCenter Client UI, click Administrator@VSPHERE.LOCAL. 3. From the drop-down menu, select Change Password. 4. Specify the required fields. 5. Cycle through a new password five times to clear the restriction and reset to the same password that was set before the password expiry. 6. Initiate the IDPA Upgrade process once again using the RETRY option. Change expired password of root user account If the upgrade fails, you must perform the following steps to change the expired password of the root user account: Procedure 1. Log in to the VMware vSphere Appliance Management UI by going to https://<VCSA hostname or IP>:5480 using the credentials as root/<common IDPA password>. 2. In the vCenter Server Appliance Management UI, click Administration. 3. In the Change root password pane, specify all the required fields and click Submit. 4. Cycle through a new password five times to clear the restriction and reset to the same password that was set before the password expiry. 5. Initiate the upgrade process using the RETRY option. 42 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance ESXi settings Updating the ESXi password For information about how to change the ESXi password, refer to the documentation on the ESXi Support website. After changing the password: 1. Log in to the ACM with SSH. 2. Change directory to /usr/local/dataprotection/customscripts/tools 3. Run the script sync_Switch_Server_ESX_Passwords.sh 4. Modify the permissions on the script by running the command chmod +x sync_Switch_Server_ESX_Passwords.sh For more information about the sync_Switch_Server_ESX_Passwords.sh script, run sync_Switch_Server_ESX_Passwords.sh -h Note: The script sync_Switch_Server_ESX_Passwords.sh is named as sync_ESX_Passwords.sh for IDPA systems that shipped with version 2.0, although they have been updated to a newer version of the software. Configure IDPA to use specific interfaces for replication A replication job copies the client backup data from the source IDPA to another IDPA, for example, a Data Domain system. The purpose of replication is to protect against data loss if the source IDPA system fails. About this task Perform the following steps to configure replication of the backup data: After performing the following steps, you must continue to follow the steps mentioned in the: l Replication section of the Dell EMC Avamar Administration Guide to configure replication. l Fore more information about ifgroups for replication traffic, see the Dell EMC Data Domain Boost for Partner Integration Administration Guide. Note: The need for additional steps listed below are to configure the IDPA appliance to use 10G connections instead of the default 1G connection for the replication. Procedure 1. Log in to the Data Domain system using SSH. 2. Run the following command to list the available mtree (Avamar mtree) on the Data Domain system: sysadmin@ddhostname # mtree list Output similar to the following is displayed: Name ---------------------------/data/col1/avamar-1542004352 /data/col1/backup /data/col1/esx1-logs ---------------------------- Pre-Comp (GiB) Status -------------- ------ 3999.3 RW 0.0 RW 0.0 RW/Q -------------- ----- Note down the Avamar mtree details. Dell EMC Integrated Data Protection Appliance Product Guide 43 Monitor and manage the appliance 3. Run the following command to assign Avamar mtree to the ifgroup, and also to add the destination Data Domain server: ifgroup replication assign <IFGROUP_NAME> mtree <MTREE_PATH> remote <TARGET_DD_MANAGEMENT_HOSTNAME> Output similar to the following is displayed: ifgroup replication assign vlan280 mtree /data/col1/avamar-1542004352 remote vdppunvm126.vdp.emc.com 4. Run the following command to see the summary of the ifgroup: sysadmin@ddhostname # ifgroup show config <IFGROUP_NAME> all Output similar to the following is displayed: Group-name ---------vlan280 ---------- Status ------enabled ------- Interface --------- 2 --------- Clients ------- 1 ------- Replication ----------- 1 ----------- Group-name ---------vlan280 vlan280 ---------Group-name ---------vlan280 ---------- Status ------enabled enabled ------Status ------enabled ------- Interfaces -------------10.118.136.110 10.118.136.111 -------------DD Boost Clients ---------------10.118.136.0/22 ---------------- Group-name Status Replication Mtree Remote Host ---------- ------- ---------------------------- ------------ vlan280 enabled /data/col1/avamar-1542004352 vdppunvm126.vdp.emc.com ---------- ------- ---------------------------- ------------ File replication is allowed on ifgroup. Client may use any interface. Replication ----------- ----------- 44 Dell EMC Integrated Data Protection Appliance Product Guide Monitor and manage the appliance 5. Similarly, create the ifgroup on the destination Data Domain system, and add the interfaces, clients, and the Avamar mtree path as mentioned in the above steps. Once you have successfully created the ifgroup, output similar to the following is displayed: ifgroup replication assign <IFGROUP_NAME> mtree <MTREE_PATH> remote <SOURCE_DD_MANAGEMENT_HOSTNAME> 6. Execute the replication from the Avamar UI, and from the Data Domain system, verify if the replication traffic is using the interfaces in the replication ifgroup, by running the following command: ifgroup show connections. 7. Once the above steps are successfully executed, you can continue to configure the replication policies. For more information, see the Dell EMC Avamar Administration Guide. Dell EMC Integrated Data Protection Appliance Product Guide 45 Monitor and manage the appliance 46 Dell EMC Integrated Data Protection Appliance Product Guide CHAPTER 3 Upgrade the IDPA software (DP4400) This chapter describes how to upgrade the IDPA software on DP4400 models. Topics include: l Upgrade components............................................................................................................ 48 l Upgrade Prerequisites (DP4400).......................................................................................... 48 l Upgrade the appliance software (DP400)............................................................................. 49 l Upgrade Postrequisites ........................................................................................................ 52 Dell EMC Integrated Data Protection Appliance Product Guide 47 Upgrade the IDPA software (DP4400) Upgrade components This topic describes the list of core components that are required for the upgrade process. Upgrade of the software for various core components of IDPA happens in this sequence: 1. Backup Server (Avamar), IDPA System Manager, Reporting and Analytics (Data Protection Advisor), Search , CDRA, and ACM. 2. Protection Storage (Data Domain). 3. VCSA (vCenter Server Appliance) and Compute node (ESXi). Upgrade components: l Backup Server (Avamar). l IDPA System Manager. l Reporting and Analytics (Data Protection Advisor). l Search. l Protection Storage (Data Domain). l CDRA. l ACM. l vCSA. l Compute node (ESXi). Upgrade Prerequisites (DP4400) This section provides you information about the prerequisites that you need to complete before you begin the upgrade procedure. Note: All the existing Avamar packages and the snapshots are deleted before the upgrade. l Before proceeding with this upgrade, you must apply the Proxy Deployment Manager (PDM) Hotfix 305717 to avoid VCenter host/cluster tree returning empty during discovery. To apply the Hotfix 305717, SSH to the Avamar client with root credentials and run the following command: cd /usr/local/avamar/src mv <PDM HF > /data01/avamar/repo/packages [Avamar GUI] Apply PDM HF. For more information, see the KB Article 529640. l Review the Integrated Data Protection Appliance Release Notes for information specific to the current release. l If you have NDMP Accelerator nodes added to IDPA, you must manually upgrade the NDMP accelerator nodes. To upgrade NDMP accelerator nodes, see the Upgrading the accelerator software section in the Dell EMC Avamar NDMP Accelerator for Dell EMC NAS Systems User Guide. l An upgrade should be started only during a software upgrade maintenance window. Ensure that no other maintenance or backup activity is occurring on Avamar or Avamar Virtual Edition during the upgrade process (Avamar jobs should not be running and Avamar Server status should be idle). You can check the server status by running the following command on the Avamar server: 48 Dell EMC Integrated Data Protection Appliance Product Guide Upgrade the IDPA software (DP4400) admin@vdppunvm140:~/>: opstatus.dpn l Ensure that you note down the Search settings before starting the upgrade procedure because as part of the upgrade, Search is also upgraded. Search upgrade comprises of deleting the old Search VM and adding the new Search VM, which will delete all the Search settings such as the custom user permissions and email notifications after the upgrade. Similarly, the LDAP settings are stored on ACM, and ACM restores the previous LDAP settings on the new Search VM after the upgrade. l Ensure that all the ESXi passwords are synchronized with ACM. If you have changed the ESXi passwords, see ESXi settings under Change passwords and synchronize components section in the IDPA Product Guide to synchronize them. l Make sure that the ACM Dashboard is not displaying any Password out of sync for any of the components. l Ensure that the VCenter passwords are synchronized with ACM. If you have changed the VCenter password, see under Change passwords and synchronize components section in the IDPA Product Guide. l Ensure that the ESXi server is up and running, by verifying on the vCenter UI. l Ensure that Avamar and Data Domain storage consumption is less than 85 percent. Refer to Monitoring the system with the Avamar Administrator Dashboard and Monitoring Data Domain system capacity sections in the Dell EMC Avamar Data Domain System Integration Guide for more information. l Disable all the backup policies through the Avamar UI. Refer to the section Enabling and disabling a backup policy in the Dell EMC Avamar Administration Guide. l Restart MCS on Avamar before starting the upgrade process to ensure Avamar is quiesced, so that the upgrade does not fail due to Avamar being busy. To restart MCS on Avamar , login to the Avamar Utility node with SSH (ssh login credential is admin and the password is the common appliance password that you would have provided) by using the Avamar IP address and run the dpnctl stop mcs command to stop and then run the dpnctl start mcs command to restart the Avamar server. l Make sure that you check the health of the vCenter before the upgrade procedure. To check the health of the vCenter, login to the vCenter Web interface. If there are any critical alerts requiring user action, you must first fix those critical alerts before starting the IDPA upgrade procedure. Upgrade the appliance software (DP400) Upgrade the software for the components of IDPA from the Upgrade tab of the ACM. About this task You can upgrade from IDPA version 2.2 to IDPA version 2.3 (on DP4400 models). Procedure 1. Download the upgrade package file from Online Support and use the md5sum validation process to verify its integrity. The name of the file is in the format IDPA_Upgrade_<version>.tar.gz. 2. Copy the file to /data01/upgrade on the ACM. Note: Ensure that only the upgrade file exists in this folder and no other post or prepatch packages exist. Dell EMC Integrated Data Protection Appliance Product Guide 49 Upgrade the IDPA software (DP4400) 3. Ensure that you have the executable permission for the upgrade package that you copied to the /data01/upgrade directory. If you do not have the executable permission, type the chmod 644 Idpa_Upgrade_<version>.tar.gz command to obtain the permission. 4. Log in to the ACM and click the Upgrade tab. The latest upgrade package file is automatically detected and is displayed in Upgrade Binary Location. 5. Click Validate. Note: The validation process takes approximately 15 minutes, and the ACM can time out while waiting. To resume the session, you must log in once again. The system validates the following: l VLAN status l Validates the connection to all components. l Validates the license status. l Validates if Avamar services are running. l Validates to ensure that no backup jobs are running on Avamar. l Validates if the DD capacity used is less than 85%. l Avamar Checkpoint validation l Validates the DPA version on the component VM and the version being installed. n For upgrade from IDPA 2.1 to 2.3, the DPA version must not be later than 6.4b187. n For upgrade from IDPA 2.2 to 2.3, the DPA version must not be later than 6.5b119. l ESX upgrade prerequisites: n Requires valid connection points to the required ESXi servers. n Verify that the ESXi Server can enter and exit maintenance mode successfully before the upgrade. n Requires that the VCSA version is higher than ESXi version. n In case, there is a major upgrade to VCSA, then the private IP address of the VCSA, 192.168.100.108 should not be in use in the customer environment as it will be temporarily used by IDPA. Note: The private IP address of the VCSA, 192.168.100.108, is only required temporarily during the upgrade process. A table displays the current version, new version, and type (for example, major, patch) of each component for which an upgrade is available. If the validation is not successful, check the errors that are displayed when you hover on the exclamation mark. Resolve all the errors and then click Validate. 6. Click Upgrade, type the ACM password, and click Authenticate. 7. To start the upgrade, click Yes. To cancel the upgrade, click No. The upgrade process starts. The ACM also undergoes an upgrade which results in users getting logged out of ACM. Note: The upgrade process can take five to six hours, during which all jobs on the IDPA must be quiesced. The system is not accessible during parts of the upgrade. 50 Dell EMC Integrated Data Protection Appliance Product Guide Upgrade the IDPA software (DP4400) Note: If the upgrade process is still running, do not shut down/reboot the ACM or restart the dataprotection_webapp service. For some reason, if you have shut down/ rebooted the ACM or restarted the dataprotection_webapp service while the upgrade process is still running, and if you are unable to see the progress of the upgrade after the ACM is rebooted, then contact Customer Support. 8. Relogin to the ACM. The Upgrade Progress displays the following: l The ACM upgrade progress bar with the progress percentage and description of the upgrade step in progress. l Individual component upgrade progress bar with progress percentage and description of the upgrade step in progress. 9. After all the components are upgraded successfully and the overall IDPA upgrade progress bar shows 100%, click Finish. 10. Click OK on the Upgrade Finish window to reboot the IDPA system. Note: After the upgrade is complete, there can be a scenario where Avamar is in maintenance mode and the jobs cannot be executed at that time. After Avamar comes out of the maintenance mode, the jobs are executed. Note: After the upgrade is complete, acknowledge the notification Event ConnectEMC notification failed on the Avamar Administrator GUI. This notification is generated during upgrade when the Avamar service is disconnected. Note: After the upgrade is complete, there is a warning on vCenter about a potential vulnerability issue that is described in CVE-2018-3646. See https://kb.vmware.com/s/ article/57374 and https://kb.vmware.com/s/article/55806 for more information. IDPA uses the ESXi version which has the fix for this vulnerability, however this fix is not enabled by default as it has severe performance impact. See the Security updates and patching section on the IDPA Security Configuration Guide for more information. Results The following components are updated: l Backup Server (Avamar) l IDPA System Manager (Data Protection Central) l Reporting and Analytics (Data Protection Advisor) l Search l Protection Storage (Data Domain) l ACM l VCSA (vCenter Server Appliance) l Compute nodes (ESXi) The dashboard with all the products and their upgraded versions are displayed along with the newly configured ACM. If the upgrade process does not complete as expected, see Troubleshooting component software upgrades in the IDPA Product Guide.. If the upgrade for any component fails, then the upgrade process is stopped until you troubleshoot and resolve the failure. However, if there are any noncritical warnings, the upgrade process continues. These warnings must be resolved once the upgrade process is completed to ensure a trouble-free operation of IDPA. Dell EMC Integrated Data Protection Appliance Product Guide 51 Upgrade the IDPA software (DP4400) Upgrade Postrequisites After you have successfully completed the upgrade procedure, ensure that you are aware/perform the following: l To save the log files from the upgrade process, click Download logs when the upgrade is complete. When you have finished, click Finish. l After the upgrade process is complete, you must close the browser and start a new browser session before you relogin to ACM. l The Upgrading proxies section of the Avamar for VMware User Guide provides instructions for upgrading the Avamar proxies. The upgrade must be performed on each Avamar proxy in the environment. n Note: Verify if the old Avamar proxy VMs still exist in your vCenter, and if they do, delete them from your vCenter after they are successfully replaced by the upgraded Avamar proxy VMs. To completely delete the old Avamar proxy VMs, click the Delete from disk option. Upgrade CDRA manually This section provides information on how to upgrade CDRA manually. About this task If your existing CDRA is not configured to communicate with CDRS, then your CDRA instance is replaced with the CDRA that is bundled within the IDPA release package. However, if your existing CDRA is configured to communicate with CDRS, then the IDPA release package does not upgrade your CDRA. You must manually upgrade it after the IDPA is upgraded from version 2.2 to version 2.3, using the IDPA user interface by first upgrading the CDRS, which in turn notifies you to upgrade the appropriate CDRA version. For more information about Cloud Disaster Recovery Add-on (CDRA) compatibility for various IDPA versions, see the Integrated Data Protection Appliance Software Compatibility Guide. IDPA version 2.2 is bundled with CDRA version 17.4. However, IDPA 2.3 is compatible with CDRA version 18.3 P2. To upgrade from CDRA version 17.4 to 18.3 P2, first you must manually upgrade the CDRA from 17.4 to 18.1. Once you complete the upgrade from 17.4 to 18.1, then you must manually upgrade from 18.1 to 18.2. Once this upgrade is also complete, you must upgrade from 18.2 to 18.3 P2, which is compatible with IDPA 2.3. Note: For detailed information about how to upgrade CDRA/CDRS, see the Upgrade the Cloud DR Add-on, Upload upgrade packages for the CDRS and CDRA, and Upgrade the Cloud DR Server procedures in the Dell EMC Data Domain Cloud Disaster Recovery Installation and Administration Guide, which can be obtained from Online Support website. To upgrade the CDRA/CDRS from IDPA 2.2 to IDPA 2.3: Procedure 1. Download the following Data Domain Cloud Disaster Recovery Upgrade Packages from the Online Support website at https://support.emc.com: l Data Domain Cloud Disaster Recovery 18.1 Upgrade Package. l Data Domain Cloud Disaster Recovery 18.2 Upgrade Package. l Data Domain Cloud Disaster Recovery 18.3 P2 Upgrade Package. 52 Dell EMC Integrated Data Protection Appliance Product Guide Upgrade the IDPA software (DP4400) 2. Upload the Data Domain Cloud Disaster Recovery 18.1 Upgrade Package to CDRS and upgrade the CDRS to 18.1. 3. Upgrade the CDRA to 18.1. 4. Upload the Data Domain Cloud Disaster Recovery 18.2 Upgrade Package to CDRS and upgrade the CDRS to 18.2. 5. Upgrade CDRA to 18.2. 6. Upload the Data Domain Cloud Disaster Recovery 18.3 P2 Upgrade Package to CDRS and upgrade the CDRS to 18.3 P2. 7. Upgrade the CDRA to 18.3 P2. Dell EMC Integrated Data Protection Appliance Product Guide 53 Upgrade the IDPA software (DP4400) 54 Dell EMC Integrated Data Protection Appliance Product Guide CHAPTER 4 Troubleshooting This chapter contains basic troubleshooting information to help resolve possible issues. Topics include: l System log files..................................................................................................................... 56 l Troubleshoot shutdown.........................................................................................................56 l Troubleshooting startup........................................................................................................ 59 l Adding a CA-signed certificate.............................................................................................. 61 l Enabling certificate verification............................................................................................. 62 l Configure secure AD having self-signed Certificates on IDPA............................................... 62 l Troubleshoot LDAP............................................................................................................... 63 l Troubleshoot Avamar............................................................................................................ 64 l Troubleshooting health monitoring........................................................................................ 65 l Troubleshooting component software upgrades....................................................................66 Dell EMC Integrated Data Protection Appliance Product Guide 55 Troubleshooting System log files To help troubleshoot issues, download bundled log files for the IDPA from the Home tab page directly. Select the Download log bundle option from the log bundle icon available on the Home tab page to download the log files. The log files for the specified components are saved in the folder /Downloads/ on the system in a compressed format. During an upgrade, additional log files are generated in a different location. For more information, refer to Upgrade log files on page 69. Note: The user should not create or copy their logs in /data01/log_bundle folder as this functionality deletes all existing log while creating log bundle. Troubleshoot shutdown During the shut down process, if the appliance or any of the components fail to shut down automatically, you can manually shut down the IDPA appliance and its individual components. If the Avamar or Data Domain systems fail to shut down, aside from performing a manual shut down of these components, you must also shut down the infrastructure components, which include vCenter and ESX servers. Avamar shutdown validation errors The following is a comprehensive list of Avamar shutdown validation errors that you might encounter before shutting down the Avamar Server. If you encounter any of these errors, you must take the suggested action for the error you encounter. After you take the suggestion action on the validation error, you can initiate the appliance shutdown once again. Table 13 Avamar shutdown validation errors Validation error message One of the Avamar OS user is out of sync Avamar MC user is out of sync Accelerators found to be out of sync Failed to stop scheduler service of Avamar Suggested action On the ACM dashboard, click the error message pop-up window and enter the password for that particular Avamar user which is out of sync. On the ACM dashboard, click the error message pop-up window and enter the password for that particular Avamar user which is out of sync. On the ACM dashboard, click the error message pop-up window and enter the password for the Accelerator node that is out of sync. To manually stop the scheduler services on Avamar: 1. Login to Avamar Utility node. 2. Run the dpnctl stop scheduler command. 56 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting Table 13 Avamar shutdown validation errors (continued) Validation error message Suggested action 3. Shut down the appliance. One or more of the services are down/disabled so cannot shutdown Ensure that Avamar server, MCS, and EMT services on Avamar are up and running. To check the status of the services, log in to Avamar Utility node and run the dpnctl status all command. Found running jobs on Avamar, will not proceed for appliance shutdown Ensure that there are no backup jobs running on Avamar Server. See Shut down the IDPA on page 30 for more information. Also see Enabling and disabling a backup policy section in the Dell EMC Avamar Administration Guide for disabling all the backup policies through the Avamar UI. Backup Server MCS flush not done within last 12 hours 1. Log in to the Avamar Utility node. 2. Backup the MCS data by running the mcserver.sh flush command. 3. Shut down the appliance. Shut down Avamar manually You can shut down the Avamar component manually for the various IDPA Appliances. DP5300, DP5800, and DP4400 This section provides you information about how to shut down the Avamar component manually in the DP5300, DP5800, and DP4400 appliances. About this task To manually shut down the Avamar virtual edition component, perform the following actions. Procedure 1. Login to the Avamar Virtual Edition (AVE) server with SSH by using the Avamar IP address. a. Create a checkpoint by running the following command. mccli checkpoint create --override_maintenance_scheduler b. Backup the MCS data by running the following command: mcserver.sh --flush c. Stop all Avamar services by running the following command. dpnctl stop all d. Power off the AVE from vCenter. Dell EMC Integrated Data Protection Appliance Product Guide 57 Troubleshooting Note: If you have the DP4400 appliance, then you must shutdown ESX. For more information about manual shut down of ESX, see Shut down ESX manually. Shut down Data Domain manually This section provides you information about how to shut down the Data Domain component manually. About this task To manually shut down the Data Domain component or the DDVE, perform the following actions. Note: The manual shut down for Data Domain system is applicable for the DP5300, DP5800, DP8300, and DP8800 appliances. Note: The manual shut down for DDVE is applicable for the DP4400 appliance. Procedure 1. Open a new SSH session to login to the Data Domain system and DDVE. 2. Shut down the Data Domain or DDVE system by running the following command. system poweroff Note: If you have the DP4400 appliance, then you must shutdown ESX. For more information about manual shut down of ESX, see Shut down ESX manually. Shut down vCenter manually This section provides you information about how to shut down the vCenter manually. About this task This procedure to shut down vCenter manually is applicable for all models of IDPA. To manually shut down the vCenter, perform the following actions. Procedure 1. Open a browser and enter the IP address to access vCenter. The login page is displayed. 2. Enter your username and password on the vCenter login page. 3. Shut down the Data Protection virtual application. Note: All virtual machines and virtual applications under Data Protection virtual application are automatically shut down. 4. Shut down the IDPA Virtual Machine Guest operating system and the virtual machine. Shut down ESX manually This section provides you information about how to shut down the ESX manually. About this task This procedure to shut down ESX manually is applicable for all models of IDPA. To manually shut down the ESX, perform the following actions. Procedure 1. Login to the ESXi server on which the vCenter is installed. 58 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting 2. Login to each ESXi host. 3. Set all ESXi hosts into maintenance mode by running the following command on each host esxcli system maintenanceMode set -e true -m noAction 4. Shut down all ESXi host using the vSphere client or the ESXi host. Troubleshooting startup If one part of the startup process fails to complete automatically, the problem can be resolved manually to enable startup to continue. Avamar does not start If Avamar does not complete startup, connect to the Avamar server. If Avamar reports that Avamar server did not shut down cleanly, select the option to roll back to the last checkpoint. The ACM does not start If the ACM Service does not start within 2 hours and 15 minutes of powering on the appliance, one or more of the following components are not powered on or are not accessible on the network: l Data Domain l AVE 1. Verify that the components that are required for the configuration are powered on. 2. Verify that the required components are accessible on the network. Resolve any connectivity issues that are encountered. l If the ACM loads successfully, skip the rest of this procedure. The Search nodes, DP Advisor nodes, IDPA System Manager, AVE, and Avamar Proxy start automatically. l If all required components are powered on and accessible, but the ACM does not load, restart the ACM Service: 3. Stop the dataprotection_webapp service: service dataprotection_webapp stop 4. Start the dataprotection_webapp service: service dataprotection_webapp start The Search nodes, DP Advisor nodes, IDPA System Manager, AVE, and Avamar Proxy start automatically. The VMs do not start Switch on the power button present on the Dell Server. The ACM internally starts local.sh (/etc/init.d/local.sh) and the VMs start automatically. To start the VMs manually: 1. Move ESXi out of maintenance mode manually. Note: To do this, log in to ESX using idpauser and select Exit maintenance mode. 2. Start the DataProtection-VCSA by running the /etc/init.d/local.sh script on ESXi or power on the VM from the ESXi. DataProtection-ACM VM starts five minutes after the VCSA VM starts. 3. If DDVE VM is not up, click the Power on button to start the DDVE VM. Code waits file system status to show up and running. 4. If AVE is not started, start AVE VM from ESX UI. 5. Log in to AVE using admin credentials. Dell EMC Integrated Data Protection Appliance Product Guide 59 Troubleshooting ACM runs dpnctl status all, dpnctl start all, and dpnctl start maint commands. 6. If something goes wrong, run the following in sequence and click the Power on button: l DataProtectionSearch Vapp l DPADatastoreServer VM l DPAApplicationServer VM l DataDomainCloudDR VApp l DataProtectionCentral VApp l AVProxy VM 7. If DPS vApp does not get started, start the vApp. 8. Start the services of Search by logging in to index master IP using operating system root credentials and run the following commands: a. service elasticsearch start b. service search-cis-core start c. service search-cis-schedule start d. service search-networker-worker start e. service search-networker-action start f. service search-avamar-worker start g. service search-avamar-action start h. service search-worker start i. service search-adminapi start j. service search-api start 9. Log in to the DPA Application Server VM using SSH. 10. Stop all DPA Application Services by running the following command: /opt/emc/dpa/services/bin/dpa.sh service stop If there are any errors, you may continue to ignore them. 11. Log in to the DPA Application Server VM using SSH. 12. Stop all DPA Datastore Server services by running the following command: /opt/emc/dpa/services/bin/dpa.sh service stop 13. Verify if all the services are stopped on the DPA Application Server and on the DPA Datastore Server by running the following command: /opt/emc/dpa/services/bin/dpa.sh service status 14. Once all the services on both the DPA Application and the DPA Datastore servers are stopped, restart the services on the DPA Datastore Server by running the following command: /opt/emc/dpa/services/bin/dpa.sh service start 15. Once all the services on the DPA Datastore servers are started, restart the services on the DPA Application Server by running the following command: /opt/emc/dpa/services/bin/dpa.sh service start 16. You must wait for sometime until all the services are started on DPA Datastore Server. You can verify the status by running the following command: /opt/emc/dpa/services/bin/dpa.sh service status 60 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting 17. You must wait for sometime until all the services are started on DPA Application Server. You can verify the status by running the following command: /opt/emc/dpa/services/bin/dpa.sh service status 18. Log in to VCSA using idpauser credentials, select AVProxy VM and click the Power on button. 19. After IDPA starts, start two services of Avamar using dpnctl start emt. Adding a CA-signed certificate The ACM includes a self-signed certificate, which may cause the browser to report an unsecured connection. To resolve this issue, replace the default certificate with a CA-signed certificate. Before you begin l Access the IDPA command line using one of the following procedures: n Log in to vCenter, right-click the DataProtection-ACM VM, and select Open Console. Specify the ACM credentials. OR n Connect to the ACM by using an SSH client to access the ACM's IP address. Specify the ACM credentials. l Change the directory to /home/idpauser Procedure 1. Stop the Tomcat server. service dataprotection_webapp stop 2. Back up the existing keystore file. cp /home/idpauser/.keystore /home/idpauser/.keystore.bkp Use the backup if you encounter any errors in this process. 3. Delete the existing self-signed certificate from the keystore. /usr/java/latest/bin/keytool -delete -alias tomcat -storepass changeit 4. Create a new certificate. /usr/java/latest/bin/keytool -genkeypair -v -alias tomcat -keyalg RSA sigalg SHA256withRSA -keystore /home/idpauser/.keystore -storepass changeit -keypass changeit -validity 3650 -dname "CN=idpa.companyname, OU=Idpa, O=CompanyName, L=Hopkinton, S=Massachusetts, C=US" 5. Generate a CSR file for the keystore. /usr/java/latest/bin/keytool -certreq -alias tomcat -keyalg RSA -file / home/idpauser/ACM_Host.csr -keystore /home/idpauser/.keystore 6. Get the CA-signed certificate in the .p7b format by using the CSR content and save the certificate. 7. Import the new certificate into the keystore. /usr/java/latest/bin/keytool -import -alias tomcat -file /home/idpauser/ certnew.p7b -keystore /home/idpauser/.keystore 8. To ensure that the /usr/local/dataprotection/tomcat/conf/server.xml is using the /home/idpauser/.keystore file, check the value of the keystoreFile attribute for the HTTP Connector. Dell EMC Integrated Data Protection Appliance Product Guide 61 Troubleshooting 9. Verify the certificates in the keystore. /usr/java/latest/bin/keytool -list -keystore /home/idpauser/.keystore alias tomcat 10. Start the Tomcat server. service dataprotection_webapp start Enabling certificate verification By default, vCenter certificate checking is disabled on the IDPA. About this task The IDPA uses a modified version of the Avamar MCServer.xml file. During configuration, this modification causes vCenter certificates to be ignored when adding vCenter servers. To enable certificate checking: 1. In the MCServer.xml file, change the ignore_vc_cert value to false. The MCServer.xml file is located in /space/avamar/var/mc/server_data/prefs/ mcserver.xml. 2. Restart the MC service using dpnctl, 3. Stop mcs and dpctl, and 4. Start mcs commands on Avamar server. Configure secure AD having self-signed Certificates on IDPA If you are using secure AD with self-signed certificates, search fails to configure if the self-signed certificate is not present on search VM. Procedure 1. Export root CA certificate. Refer https://support.microsoft.com/en-us/help/555252 to know how to export the root CA certificate. 2. Log into the Root Certification Authority server or Active Directory Server with administrator account. 3. Go to Start > Run, type cmd, and press Enter. 4. To export the Root Certification Authority server into a new file name ca_name.cer, run certutil -ca.cert ca_name.cer. 5. Convert certificate as PEM format as follows: a. Cy ca_name.cer to Search Master. b. Run openssl x509 -in ca_ name.cer -inform der -out ca_name.pem - outform pem. c. Copy this ca_name.pem to /etc/pki/trust/anchors/ on Search Node. 6. Do LDAP Configuration from Dashboard. 62 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting Troubleshoot LDAP This topic provides you information about how to troubleshoot LDAP configurations. Troubleshoot secure LDAP configuration While configuring secure LDAP, an error message Unable to connect to secure LDAP/AD. Please verify whether the LDAP/AD Server provided is present as alternate name in LDAPS Certificate may be displayed. About this task The recent changes to Java SE Development Kit 8, Update 181 is causing this issue related to LDAP Endpoint Identification. For more information on this issue, see the Java SE Development Kit 8, Update 181 Release Notes. Perform the following steps to disable the LDAP Endpoint Identification to work around this issue. Procedure 1. Connect to the ACM by using an SSH client. 2. Using a text editor, open the catalina.sh file that is located in the /usr/local/ dataprotection/tomcat/bin/ directory. 3. In the catalina.sh file, locate the following line: JAVA_OPTS="$JAVA_OPTS Dorg.apache.catalina.security.SecurityListener.UMASK=`umask`" 4. Modify this line as per the values provided below: JAVA_OPTS="$JAVA_OPTS Dcom.sun.jndi.ldap.object.disableEndpointIdentification=true Dorg.apache.catalina.security.SecurityListener.UMASK=`umask`" 5. Save the changes you made to the catalina.sh file. 6. Restart the data protection service on ACM using the below command: service dataprotection_webapp restart Verify Internal LDAP password If you already know internal LDAP password, then perform the following steps to verify the password: Before you begin If you know your internal LDAP password, note it down and keep it ready. Procedure 1. Connect to the ACM by using an SSH client. Dell EMC Integrated Data Protection Appliance Product Guide 63 Troubleshooting 2. To validate your existing password, run the ldapsearch command with your password. An example is given below. # ldapsearch -h ldaps:/<ACM_IP> -p 636 -D uid=idpauser,ou=People,dc=idpa,dc=com -b dc=idpa,dc=com -w <IDPAUSER_PWD> Create internal LDAP password If you do not remember the internal LDAP password, you must first set the internal LDAP password, by performing the following steps: Procedure 1. Connect to the ACM by using an SSH client. 2. Generate a hash for the new password. An example input is given below. vdppunvm340:/etc/openldap # slappasswd -s <NEW_PASSWORD> 3. Create a file with the modified hash file. An example is given below. # vi /etc/openldap/update_idpauserpwd.ldif dn: uid=idpauser,ou=People,dc=idpa,dc=com changetype: modify replace: userPassword userPassword: <COMMAND_OUPUT_IN_FIRSTSTEP> 4. Execute the following command to update the password using the LDAP root password. # ldapmodify -x -D cn=Manager,dc=idpa,dc=com -w "<LDAP_ROOT_PASSWORD>" f /etc/openldap/update_idpauserpwd.ldif Where the <LDAP_ROOT_PASSWORD> is the same as the common appliance password. 5. Execute the ldapsearch command on the ACM with the new password to validate. An example is given below. # ldapsearch -h ldaps:/<ACM_IP> -p 636 -D uid=idpauser,ou=People,dc=idpa,dc=com -b dc=idpa,dc=com -w <NEW_IDPAUSER_PWD> Troubleshoot Avamar there is a problem with Avamar, the Backup Server panel in the ACM dashboard displays the following status: Backup Agents Installation in progress... Possible causes for this issue include: l The Avamar service, Avamar, or AVE is down. l Avamar cannot be pinged. l There is a mismatch between the Avamar administrator password and the password stored in the ACM. 64 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting The Avamar service is down To start the Avamar service: 1. Using an SSH client, connect to the Avamar Utility node as the admin user. 2. Type the command dpnctl start all Avamar or AVE is down Power on the Avamar or AVE server. Avamar cannot be pinged If Avamar cannot be pinged, find and resolve the source of the issue. Possible causes include: l The Avamar server is down. l There is a network connectivity issue. l The Avamar server has a hardware issue. Credential mismatch This section provides information about how to resolve the password mismatch scenario for the IDPA point products. If you manually modify the password on the point products and do not use the change password option on IDPA Appliance the system displays an error message when you try to update the password using the ACM dashboard. About this task To resolve a password mismatch, perform the following actions. Procedure 1. Click the warning message in the point products panel and enter a new password. 2. Click Update Password in the point products panel and enter a new password. 3. Click the Refresh button on the ACM dashboard. The system updates the new password for all the relevant accounts. Troubleshooting health monitoring If there is an issue with SNMP or one of the health monitor processes, the Health tab cannot display data. SNMP validation errors By default, the ACM validates the SNMP configuration of the switch and Dell servers every 4 hours. If the ACM detects that the SNMP configuration for a component is disabled or missing, it automatically corrects the configuration. If the ACM cannot reach one of the components on its internal IP, the following message is displayed on the Health tab: Failed to validate SNMP configuration on component(s) <unreachable-component> To resolve this issue: 1. Verify that the internal IP addresses of IDPA Appliance server is reachable on the network. 2. If the component is reachable on the network, verify SSH connectivity by attempting to connect with the default SSH password. If an SSH connection cannot be established, revert the SSH password on the component to the default password. Dell EMC Integrated Data Protection Appliance Product Guide 65 Troubleshooting Note: Refer Changing passwords and synchronizing components to know how to change passwords and synchronize components. Health monitor processes errors If the SNMP Receiver port, Message Broker service, or Database service is down, the following message is displayed on the Health tab: Health monitor processes are down : <process> To resolve this issue, connect to the ACM using SSH and follow the procedure that corresponds to the error message: l If the SNMP Receiver port is down, verify that port 161 is enabled. If the port is enabled and the problem persists, restart the Tomcat service with the following command: service dataprotection_webapp restart l If the Message Broker service is down, verify that the RabbitMQ service is running with the following command: service rabbitmq-server status If the service is not running, start it with the following command: service rabbitmq-server start l If the Database service is down, verify that the PostgreSQL service is running with the following command: service dataprotection_database status If the service is not running, start it with the following command: service dataprotection_database start Troubleshooting component software upgrades You can troubleshoot the upgrade failures using the different options available. Retry upgrade process When there is an upgrade failure for a component, the progress bar is displayed in red and you can see the RETRY and DOWNLOAD LOGS buttons. To retry the upgrade again, click the RETRY button. Alternatively, you can click DOWNLOAD LOGS to download the logfiles. Avamar If the Avamar upgrade fails while upgrading the IDPA appliance software, and if you are retrying the Avamar upgrade even after 24 hours of failure, then you must manually upgrade the Avamar server. If the Avamar upgrade fails during the RETRY operation, with a message Validated checkpoint not found, you must manually resolve this issue by creating a checkpoint on the Avamar Server. To create a checkpoint on the Avamar Server, see the Upgrade prerequisites 66 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting section. Once a valid checkpoint is created, you can go to Avamar UI and click the Sync button which is displayed for the failed component. vCenter In case if the vCenter is rebooted when any of the component product upgrade is in progress, then the upgrade process stops. You must wait until the services on the vCenter server are up and running, and then attempt a retry of the upgrade for that component. To verify that the vCenter server services are up and running, try logging into the vSphere client console. A successful login indicates that the services on the vCenter server are started. Advanced troubleshooting (support only) When there is an upgrade failure even after using the Retry option, the technical support professional can use the Rollback and Sync options to troubleshoot the upgrade failure. Using rollback The Rollback option reverts the component to its previous state using the snapshots taken. The upgrade process uses vSphere snapshot technology to preserve the preupgrade configuration of the IDPA. Before a component is upgraded, a snapshot of the component VM is created. When the upgrade is completed successfully, the snapshots are deleted. If the upgrade fails, the snapshots are used to revert the components to their previous state. If the upgrade fails and any of the VMs are not restored, review the information in Upgrade log files on page 69 and contact Customer Support. Note: If upgrading DD OS is not successful, contact Customer Support. 1. In the Upgrade progress window, select Troubleshooting (Support only) checkbox at the top. The ROLLBACK button is displayed for the component with upgrade failure. 2. Click ROLLBACK. The component reverts to the previous version. Refer to the section Rollback is Successful on page 68. If rollback is unsuccessful, see the section Rollback Failed on page 68. Using Sync If there is a mismatch between the versions of the upgraded component, for example, instead of upgrading to Avamar version 18.2.0-134, the component gets upgraded to Avamar version 7.5.1-101, this results in upgrade failure of that particular point product. Although the Support personnel can manually update the failed component/point product in the background using the SYNC functionality, the SYNC functionality does not verify the operating system version of the point product. The customer or Support personnel performing the manual upgrade must ensure that the appropriate operating system rollup is applied to the point product before manually upgrading it. If there is no mismatch between the versions of the upgraded component, the SYNC operation is successful. Once the SYNC operation is completed successfully, the ROLLBACK, RETRY, and SYNC buttons are disabled. For more information about the operating system rollup versions and their associated patches if applicable, see the Integrated Data Protection Appliance Software Compatibility Guide. After the manual update, follow these steps: 1. In the Upgrade progress window, select Troubleshooting (Support only) checkbox at the top. The SYNC and ROLLBACK buttons get enabled for the components that failed to upgrade. Dell EMC Integrated Data Protection Appliance Product Guide 67 Troubleshooting 2. Click SYNC. The SYNC validates the manually upgraded component version and reflects the upgrade progress bar in green and status to completed. Rollback is Successful IDPA is rolled back to its previous state. No manual action is required from your side. You can login to dashboard to ensure that all the services are up and running. Optionally, after analyzing the logs, if you find any issues with the upgrade, you can go to upgrade once again. You can download the logs from the upgrade progress user interface. Alternatively, you can also retrieve the logs from /data01/upgradeLogs directory on the Appliance Configuration Manager. Rollback Failed If the IDPA rollback fails during the upgrade procedure, you need to perform the following manual steps. About this task Many of these steps are most likely completed by the IDPA upgrade workflow as IDPA upgrade does not stop operations if an error is encountered. Procedure 1. Check for all the products in VMware vCenter to ensure that there is no snapshot by the name BeforeUpgrade. If the BeforeUpgrade snapshot exists, you must delete that snapshot. To delete the BeforeUpgrade VMware vCenter snapshots from all the components, perform the following steps on each of the component where BeforeUpgrade snapshot exists: l Avamar Proxy: a. Revert to the snapshot and then delete the snapshot. l AVE Server: a. Shut down the AVE VM. b. Revert to the snapshot and delete the snapshot. c. Change all the data disks to independent-persistent. d. Power on the AVE VM to verify if all the AVE services are up and running. l DPA VMs: a. Revert to snapshots of all DPA VMs such as DPA Datastore Server, DPA Application Server, DPA Agent, DPA DD Processor Tool, and so on. b. Delete the snapshots. c. Log in using putty to the DPA Datastore Server and note down the datastore directory in /data01 with the name datastore-xxxx d. Execute following command: /opt/emc/dpa/services/bin/dpa.sh datastore import /data01/ datastore-*/ e. Log in to the DPA Application Server using putty and run the following command: /opt/emc/dpa/services/bin/dpa.sh service start 68 Dell EMC Integrated Data Protection Appliance Product Guide Troubleshooting f. Verify that the services are correctly starting by going to https://dpaAppServerIp:9002 l DPS VMs: a. Stop the DPS Services. b. Shutdown or power off the DPS Vapp. c. Revert to the snapshot BeforeUpgrade. d. Delete the snapshot BeforeUpgrade from all DPS VMs. e. Change hard disk 3 mode to independent-persistent for all the DPS VMs. f. Power on the DPS VApp. g. Ensure that all DPS Services are up and running. l DPS Index Master Node Services: a. Log in to DPS Master Index Node using putty. b. Execute the following commands: l service dpworker status l service unicorn status l service elasticsearch status l Data Domain: If there is a failure in the Data Domain upgrade, contact Customer Support. 2. Start the Avamar scheduler service by logging in to Avamar using putty and running the dpnctl start scheduler command: 3. Uninstall the dataprotection-upgrade RPM from ACM To uninstall the dataprotection-upgrade RPM, on ACM, run the rpm -qa | grep dataprotection-upgrade command to check if any dataprotection-upgrade RPM is present. If it is present, note down its name and uninstall it by using the e dataprotection-upgrade-rpm-name command. 4. Use create tar command to create a tarball of /data01/tmp/patch/logs folder and save it to the /data01/upgradeLogs folder. 5. Restart the tomcat service on ACM using following commands: l service dataprotection_webapp stop l service dataprotection_webapp start Upgrade log files If both the upgrade process and the snapshot recovery fails, you can collect the log files in the following locations and contact Customer Support: l Log files for the most recent upgrade process are located in /data01/tmp/patch/logs and include the following: n ACM--acm_upgrade.log n Data Domain--dd_precheck.log, dd_upgrade.log n DP Advisor--dpa_upgrade.log n Search--dps_upgrade.log n AVE--AvamarServerUpgrade.log, av_upgrade.log Dell EMC Integrated Data Protection Appliance Product Guide 69 Troubleshooting n IDPA System Manager--dpc_deploy_config.log n Common logs for all components--appLevelUpgrade.log, detailed_upgrade_logs.log n Internal service call logs -- Upgrade-utility.log n Validation logs -- Validate.log l Log files for past upgrades are archived in /data01/upgradeLogs, in the format idpa_upgradeLogs<date>_<time>.tgz. l The logs of user interface messages for individual components are available in /data01/tmp/ patch/log/status/. Log file details The following log file content is extraneous and can be ignored: In the log file /data01/tmp/patch/logs/appLevelUpgrade.log RUNNING,26,Please Contact Dell/EMC Support to upgrade Physical Backup server and NDMP RUNNING,74,Performing post upgrade operations RUNNING,74,Please login again to Appliance Management deployment and configuration page In the log file /data01/tmp/patch/logs/detailed_upgrade_logs.log ERROR : Couldn't upgrade avi-cli to 0.2.1-44. Performing post upgrade operations Check if the dataprotection-upgrade package deployed successfully on tomcat. Dataprotection-upgrade package deployed successfully. Old Version , New Version Updateing Appliance status for Old Version .., New Version .. Input oldVersion .., newVersion .. No implementation for given version .. Appliance status updated Failed. In the log file /data01/tmp/patch/logs/acm_upgrade.log Error: Could not open input file: /usr/java/jdk1.8.0_131/lib/tools.pack plugin.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/plugin.pack javaws.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/javaws.pack deploy.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/deploy.pack rt.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/rt.pack jsse.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/jsse.pack charsets.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/charsets.pack localedata.jar... Error: Could not open input file: /usr/java/jdk1.8.0_131/jre/lib/ext/ localedata.pack warning: file /usr/local/dataprotection/var/configmgr/server_data/config/ InfrastructureComponents_Template.xml: remove failed: No such file or directory 70 Dell EMC Integrated Data Protection Appliance Product Guide CHAPTER 5 Additional resources This chapter provides references to other materials related to the IDPA and individual components. Topics include: l Document references for IDPA..............................................................................................72 l Document references for individual components................................................................... 72 l IDPA training resources......................................................................................................... 73 Dell EMC Integrated Data Protection Appliance Product Guide 71 Additional resources Document references for IDPA The IDPA documentation set includes the following publications: l Integrated Data Protection Appliance DP4400 Installation Guide Instruction for installing the IDPA DP4400 hardware. l Integrated Data Protection Appliance Getting Started Guide Explains how to perform initial IDPA configuration tasks and how to get started with basic functionality like backup and restore. l Integrated Data Protection Appliance Product Guide Provides the overview and administration information about the IDPA system. l Integrated Data Protection Appliance Release Notes Product information about the current IDPA release. l Integrated Data Protection Appliance DP4400 Service Procedure Guide Procedures for replacing or upgrading hardware components of the IDPA. l Integrated Data Protection Appliance Security Configuration Guide Information about the security features that are used to control user and network access, monitor system access and use, and support the transmission of storage data. l Integrated Data Protection Appliance Software Compatibility Guide Information about software components and versions that are used in the IDPA product. Document references for individual components The documentation for these components can be obtained from Online Support at https:// support.emc.com. Protection Storage node The following document contains information that is related to Data Domain: l Data Domain Operating System Administration Guide This publication explains how to manage Data Domain systems with an emphasis on procedures using the Data Domain System Manager. Backup Server node The following documents contain information that is related to Avamar: l Avamar Administration Guide This publication describes how to configure, administer, monitor, and maintain an Avamar server. l Avamar and Data Domain System Integration Guide This guide includes procedures for configuring the Avamar server to perform cloud tier operations on the Data Domain system. l Avamar for VMware User Guide This publication describes various methods and strategies for protecting VMware virtual machines. l Avamar NDMP Accelerator for Oracle ZFS User Guide This publication describes how to install, configure, administer, and use the Avamar NDMP Accelerator (accelerator) to back up and restore supported Oracle ZFS storage appliances. l Avamar NDMP Accelerator for NetApp Filers User Guide This publication describes how to install, configure, administer, and use the Avamar NDMP Accelerator (accelerator) to back up and restore supported NetApp filers. 72 Dell EMC Integrated Data Protection Appliance Product Guide Additional resources l Avamar NDMP Accelerator for EMC NAS Systems User Guide This publication describes how to install, configure, administer, and use the Avamar NDMP Accelerator (accelerator) to back up and restore supported EMC Isilon, Unity, VNX, VNXe, and Celerra systems. l Avamar for VMware User Guide This publication describes various methods and strategies for protecting VMware virtual machines. IDPA System Manager node The following documents contain information that is related to Integrated Data Protection Appliance System Manager: l IDPA System Manager Release Notes Contains the most up-to-date information about the current release. l IDPA System Manager Getting Started Guide This document includes information about how to deploy Integrated Data Protection Appliance System Manager, and then get started with Integrated Data Protection Appliance System Manager administration. l IDPA System Manager Administration Guide This document includes information about how to administer Integrated Data Protection Appliance System Manager. l IDPA System Manager Security Configuration Guide This document includes information about security features and capabilities of Integrated Data Protection Appliance System Manager. Reporting and Analytics node The following documents contain information that is related to Data Protection Advisor: l Data Protection Advisor Installation and Administration Guide This publication describes how to install, maintain and configure DP Advisor. l Data Protection Advisor Product Guide This document provides information on how to use the DP Advisor web console to run and create reports, view alerts, and view the status of replication operations. Search Storage The following document contains information that is related to Data Protection Search: l Data Protection Search Installation and Administration Guide This publication describes how to install, maintain and configure Search. Cloud Disaster Recovery The following documents contain information that is related to DD Cloud DR and CDRA. l Data Domain Cloud Disaster Recovery Release Notes Contains supplemental information about DD Cloud DR and the most up-to-date information about the current release. l Data Domain Cloud Disaster Recovery Installation and Administration Guide This document describes how to install, deploy, and use the DD Cloud DR product. IDPA training resources Video walkthroughs, demonstrations, and explanations of product features are available online. You can obtain additional IDPA training and information at https://education.emc.com, such as: Dell EMC Integrated Data Protection Appliance Product Guide 73 Additional resources l Integrated Data Protection Appliance 2.2 DP4400 Overview l Integrated Data Protection Appliance 2.2 DP4400 Getting Started l Integrated Data Protection Appliance 2.2 DP4400 CRU Maintenance l Integrated Data Protection Appliance 2.2 System Manager Overview l Integrated Data Protection Appliance 2.2 Alert Monitoring 74 Dell EMC Integrated Data Protection Appliance Product Guide INDEX A avamar 57 Avamar shutdown 57 C CDRA 52 Credential mismatch 65 D data domain 58 Data Domain shutdown 58 DD 58 E ESX 58 ESX shutdown 58 I IDPA 35 M manual avamar shutdown 57 manual data domain shutdown 58 manual ESX shutdown 58 Manual Shutdown 5658 manual vCenter shutdown 58 P postinstallation 33 Postrequisites 52 Power on 35 Prerequisites 48 S Shutdown 5658 Start IDPA 35 Start Up 35 T Troubleshooting 5658, 67 advanced 67 Troubleshooting Shutdown 5658 U Upgrade 48, 52, 66 critical components 48 non-critical components 48 retry 66 Upgrade CDRA 52 Upgrade DP4400 48 Upgrade troubleshooting 67 V vCenter 58 vCenter shutdown 58 Dell EMC Integrated Data Protection Appliance Product Guide 75 Index 76 Dell EMC Integrated Data Protection Appliance Product GuideAntenna House PDF Output Library 6.5.1167 (Windows (x64))
