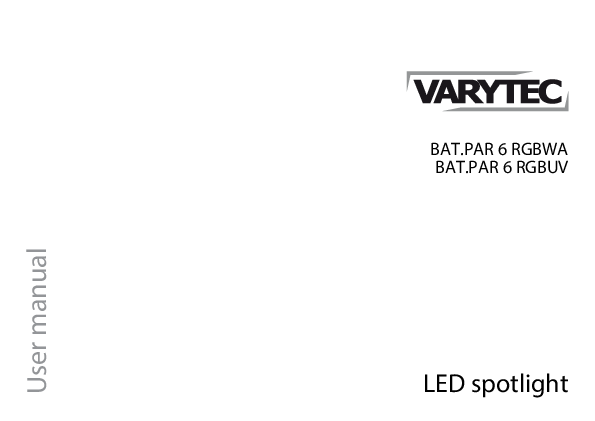

User manual

BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Musikhaus Thomann Thomann GmbH Hans-Thomann-Stra�e 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de
17.03.2021, ID: 385435, 385475 (V3)

Table of contents

1 General information................................................................................................................................. 6 1.1 Further information........................................................................................................................... 7 1.2 Notational conventions.................................................................................................................... 8 1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11 3 Features....................................................................................................................................................... 16 4 Installation.................................................................................................................................................. 17
4.1 Dealing with lithium batteries..................................................................................................... 20 5 Starting up.................................................................................................................................................. 22 6 Connections and operating elements........................................................................................... 24 7 Operating.................................................................................................................................................... 30
7.1 Starting the device........................................................................................................................... 30 7.2 Operating on the unit..................................................................................................................... 30 7.3 IR remote control............................................................................................................................. 34 7.4 Menu overview................................................................................................................................. 35

3 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Table of contents

7.5 Functions in 1-channel DMX mode........................................................................................... 37 7.6 Functions in 4-channel DMX mode........................................................................................... 37 7.7 Functions in 5-channel DMX mode........................................................................................... 38 7.8 Functions in 6-channel DMX mode........................................................................................... 40 7.9 Functions in 7-channel DMX mode........................................................................................... 41 7.10 Functions in 8-channel DMX mode........................................................................................ 44 8 Technical specifications....................................................................................................................... 47 9 Plug and connection assignments.................................................................................................. 50 10 Troubleshooting...................................................................................................................................... 51 11 Cleaning....................................................................................................................................................... 53 12 Protecting the environment.............................................................................................................. 54

4 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

5 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

General information
1 General information
This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. Our products and user manuals are subject to a process of continuous development. We there- fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de.
6 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

General information

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the following points:

Download

This manual is also available as PDF file for you to download.

Keyword search

Use the search function in the electronic version to find the topics of interest for you quickly.

Online guides

Our online guides provide detailed information on technical basics and terms.

Personal consultation For personal consultation please contact our technical hotline.

Service

If you have any problems with the device the customer service will gladly assist you.

7 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

General information

1.2 Notational conventions
This manual uses the following notational conventions:

Letterings

The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button.

1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.

8 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Signal word DANGER! WARNING! NOTICE!
Warning signs

General information
Meaning This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in death or serious injury if it is not avoided. This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided.
Type of danger Warning � high-voltage.
Warning � dangerous optical radiation.

9 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

General information

Warning signs

Type of danger Warning � suspended load.
Warning � danger zone.

10 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Safety instructions

2 Safety instructions

Intended use

This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con- ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.

Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation.

11 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Safety instructions

Safety

DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING! Eye damage caused by high light intensity Never look directly into the light source.

12 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Safety instructions
WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING! Incorrect handling of lithium batteries can result in injury In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Follow the advice on the correct handling of lithium batteries in the present section. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames.
NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter `Technical specifications' of this user manual. Avoid heavy temperature fluctuations and do not switch the device on immediately after it was exposed to temperature fluctuations (for example after transport at low outside temperatures). Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction.
13 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Safety instructions
NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat- teries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
14 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Safety instructions
NOTICE! Possible damage to lithium-ion batteries through incorrect storage By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the batteries to around 50 % of their capacity and then switch off the device. Store the device at room temperature or cooler in an envi- ronment as dry as possible. If the batteries are stored for a longer period, recharge them to 50 % every three months. Fully charge the batteries only shortly before use at room temperature. NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
15 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Features
3 Features

Special features of the device:
n Model BAT.PAR 6 RGBWA: six RGBWA LEDs (red, green, blue, white, amber, 8 W each) n Model BAT.PAR 6 RGBUV: six RGBUV LEDs (red, green, blue, UV, 8 W each) n Stand-alone, master-slave or DMX mode operation n Control via DMX, four different modes, with the supplied infrared remote control or the
buttons and display on the unit n Stand-alone operation with static colours n Sound control n Battery or mains powered n Power adapter and infrared remote control included n Suitable for use in clubs, bars, theatres, exhibitions, etc. or for mobile use
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness.

16 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Installation

4 Installation

Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain.

17 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Installation

NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 �C (104 �F).
NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.

18 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Mounting options

Installation
NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers.
You can install the unit in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings provided on the twopiece bracket for attaching. Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the bracket.

19 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Installation

Please note that this device must not be connected to a dimmer.

4.1 Dealing with lithium batteries
WARNING! Incorrect handling of lithium batteries can result in injury In the event of a short circuit, overheating or mechanical damage, lithium bat- teries can cause severe injuries. Follow the advice on the correct handling of lithium batteries in the present sec- tion. When handled correctly and appropriately lithium batteries pose no risk. Store lithium batteries in a cool, dry place, ideally in the original packaging.
20 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Installation
Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium batteries are hermetically sealed. Never attempt to open a lithium battery. If the battery housing is damaged small amounts of the electrolyte may leak out. If this should happen, seal the lithium battery in airtight packaging and wipe up the traces of electrolyte using absorbent paper towels. You must wear protective rubber gloves when doing so. Clean your hands and the affected surface thoroughly with cold water. Never attempt to recharge non-rechargeable lithium batteries. When charging lithium bat- teries you must use a suitable charging device intended for the purpose. Before disposing of the device remove the lithium batteries. Protect used lithium batteries against potential short circuits, e.g. by covering the poles with adhesive tape. Only use powder extinguishers or other suitable extinguishing agents to extinguish a burning lithium battery.
21 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Starting up

5 Starting up

Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards.

22 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Starting up

Connections in DMX mode

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 , � W).

23 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Connections and operating elements
6 Connections and operating elements
24 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Connections and operating elements
1 Display and function buttons: [MENU] Activates the main menu and toggles between menu items. Closes an opened submenu. [UP], [DOWN] Toggles between the menu items of a menu level, increases or decreases the displayed value by one. [ENTER] Selects an option of the respective operating mode, confirms the set value.
2 Locking screws for the mounting bracket. 3 Bracket for floor placement or hanging. 4 [POWER]
Connection socket for the 15 V power supply unit. 5 Battery compartment 6 [SWITCH]
Main switch. Turns the device on and off.
25 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Connections and operating elements
7 [BATTERY INDICATOR] Remaining battery capacity display. When all the LEDs are on, the battery is fully charged. If only the red LED is on, the unit must be connected to the mains again to charge as soon as possible.
8 [DMX IN] DMX input.
9 [DMX OUT] DMX output.
26 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Remote control

Connections and operating elements

27 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Connections and operating elements
10 Button to turn the device on and off. 11 [DMX]
Button to switch between DMX and stand-alone mode. 12 [SLAVE]
Button to switch between Master and Slave mode. 13 [AUTO 1], [AUTO 2], [SPEED]
Buttons to activate automatic mode 1 or 2 and to adjust the program's speed. 14 [UP], [DOWN]
Buttons to switch between individual programs and to increase/decrease numeric values. 15 Buttons for colour selection.
Use n [W] for white light. n [R], [G], or [B] for primary colours red, green and blue. 16 [STROBE] Button to turn the strobe effect on/off.
28 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Connections and operating elements
17 Numerical buttons 0 ... 9 for direct number entry. 18 [SOUND 1], [SOUND 2]
Buttons to activate automatic mode 1 or 2 of the sound control.
29 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating
7 Operating
7.1 Starting the device
Turn on the power using the main switch. The display shows the current operation mode.

7.2 Operating on the unit
Wait for approx. 15 seconds after confirming the last modification of the setting until the dis- play turns off. Now the settings are saved.

DMX address

Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Addr' . Confirm with [ENTER].
Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [UP] and [DOWN] to select a value between 1 and 512 (display shows `A001' ... `A512' ). Confirm with [ENTER].

30 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Sound control Dimmer settings Constant colour

Operating
Make sure that this number matches the configuration of your DMX controller.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Soun' . Confirm with [ENTER]. Use [UP] and [DOWN] to select the desired mode `Sou1' or `Sou2' . Confirm with [ENTER]. Now you can adjust the sensitivity of the built-in microphone for sound control. Use [Up] and [Down] to select a value between 0 (low sensitivity) and 9 (high sensitivity), display shows `Se0' ... `Se9' .
Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Stat' . Confirm with [ENTER]. Use [UP] and [DOWN] to select the fixed colour for which the dimmer setting should be adjusted: n BAT.PAR 6 RGBWA (item no. 385435): Red, green, blue, white, amber n BAT.PAR 6 RGBUV (item no. 385457): Red, green, blue, UV, speed strobe effect Adjust the setting as desired in a range from 0 ... 255 (0 % to 100 %) and confirm with [ENTER] to switch to the next colour in the menu.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Colo' . Confirm with [ENTER].
31 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating
Operating mode Auto Device info
Operating mode Slave

Use [UP] and [DOWN] to select a constant colour in a range from `Col1' ... `Col51' . Confirm with [ENTER].
Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Auto' . Confirm with [ENTER]. Use [UP] and [DOWN] to select the desired mode `Aut1' , `Aut2' or `Aut3' . Confirm with [ENTER]. Now you can adjust the progress speed of the programme between `SP 1' and `SP 9' .
Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Info' . Confirm with [ENTER]. The display shows the version number of the currently installed software. Use [UP] and [DOWN] to select the option `tenP' . Confirm with [ENTER]. The display shows the current device temperature. or Use [UP] and [DOWN] to select the option `uer' . Confirm with [ENTER]. The display shows the version number of the currently installed software.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows `SLav' . Confirm with [ENTER]. The display shows `Sla' , the unit is now in Slave mode.

32 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Operating

DMX mode, BAT.PAR 6 RGBWA (item no. 385435)

Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Chnd' . Confirm with [ENTER].
Now use [UP] or [DOWN] to select one of the following DMX operating modes:
n `1Ch' (one channel) n `5Ch' (five channels) n `7Ch' (seven channels) n `8Ch' (eight channels)
Confirm the selection with [ENTER].

DMX mode, BAT.PAR 6 RGBUV (item no. 385457)

Press [MENU], [UP] or [DOWN] repeatedly until the display shows `Chnd' . Confirm with [ENTER].
Now use [UP] or [DOWN] to select one of the following DMX operating modes:
n `1Ch' (one channel) n `4Ch' (four channels) n `6Ch' (six channels) n `7Ch' (seven channels)
Confirm the selection with [ENTER].

33 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating

7.3 IR remote control

Press [MENU], [UP] or [DOWN] repeatedly until the display shows `reno' . Confirm with [ENTER].
Use [UP] and [DOWN] to select the option `on' to operate the unit via the IR remote control. Confirm with [ENTER].

34 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

7.4 Menu overview
BAT.PAR 6 RGBWA (item no. 385435)

Operating

35 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating
BAT.PAR 6 RGBUV (item no. 385457)
36 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

7.5 Functions in 1-channel DMX mode

Channel 1

Value 0...255

Function Selecting colour macros 1 ... 51

7.6 Functions in 4-channel DMX mode

BAT.PAR 6 RGBUV (item no. 385457)

Channel 1 2

Value 0...255 0...255

Function Intensity red (0 % to 100 %) Intensity green (0 % to 100 %)

Operating

37 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating

Channel 3 4

Value 0...255 0...255

Function Intensity blue (0 % to 100 %) Intensity UV light (0 % to 100 %)

7.7 Functions in 5-channel DMX mode

BAT.PAR 6 RGBWA (item no. 385435)

Channel

Value

0...255

Function Intensity red (0 % to 100 %) Intensity green (0 % to 100 %) Intensity blue (0 % to 100 %)

38 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Channel 4 5

Value 0...255 0...255

Function Intensity white (0 % to 100 %) Intensity amber (0 % to 100 %)

Operating

39 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating

7.8 Functions in 6-channel DMX mode

BAT.PAR 6 RGBUV (item no. 385457)

Channel

Value

0...255

Function Master dimmer (0 % to 100 %) Intensity red (0 % to 100 %) Intensity green (0 % to 100 %) Intensity blue (0 % to 100 %) Intensity UV light (0 % to 100 %) Stroboscope effect (0 % to 100 %)

40 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

7.9 Functions in 7-channel DMX mode

BAT.PAR 6 RGBWA (item no. 385435)

Channel

Value

0...255

Function Master dimmer (0 % to 100 %) Intensity red (0 % to 100 %) Intensity green (0 % to 100 %) Intensity blue (0 % to 100 %) Intensity white (0 % to 100 %) Intensity amber (0 % to 100 %) Stroboscope effect (0 % to 100 %)

Operating

41 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating

BAT.PAR 6 RGBUV (item no. 385457)

Channel 1 2 3 4 5

Value 0...255 0...255 0...255 0...255 0...255

0...15

16...31

32...47

48...63 64...79 80...95

Function Master dimmer (0 % to 100 %) Intensity red (0 % to 100 %) Intensity green (0 % to 100 %) Intensity blue (0 % to 100 %) Intensity UV light (0 % to 100 %) No function Programme 1 Programme 2 Programme 3 Programme 4 Programme 5

42 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Channel 7

Value 96...111 112...127 128...143 144...159 160...175 176...191 192...207 208...223 224...239 240...255 0...255

Function Programme 6 Programme 7 Programme 8 Programme 9 Programme 10 Programme 11 Programme 12 Programme 13 Sound mode 1 Sound mode 2 Stroboscope effect (0 % to 100 %), if channel 6 = 0...15

Operating

43 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating

Channel

Value

Function Programme speed, if channel 6 = 16...223 Microphone sensitivity, if channel 6 = 224...255

7.10 Functions in 8-channel DMX mode

BAT.PAR 6 RGBWA (item no. 385435)

Channel

Value

0...255

Function Master dimmer (0 % to 100 %) Intensity red (0 % to 100 %) Intensity green (0 % to 100 %) Intensity blue (0 % to 100 %)

44 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Channel 5 6 7

Value 0...255 0...255 0...15 16...31 32...47 48...63 64...79 80...95 96...111 112...127 128...143 144...159 160...175

Function Intensity white (0 % to 100 %) Intensity amber (0 % to 100 %) No function Programme 1 Programme 2 Programme 3 Programme 4 Programme 5 Programme 6 Programme 7 Programme 8 Programme 9 Programme 10

Operating
45 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Operating

Channel 8

Value 176...191 192...207 208...223 224...239 240...255 0...255

Function Programme 11 Programme 12 Programme 13 Sound mode 1 Sound mode 2 Stroboscope effect (0 % to 100 %), if channel 6 = 0...15 Programme speed, if channel 6 = 16...223 Microphone sensitivity, if channel 6 = 224...255

46 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Technical specifications

8 Technical specifications

Light source Optical properties Beam angle Control

Number of DMX channels

Input connections Power supply

DMX control

Output connec- tions

DMX control

Power consumption

Power supply

BAT.PAR 6 RGBWA (Item no. 385435)

BAT.PAR 6 RGBUV (Item no. 385475)

6 � RGBWA, each 8 W 6 � RGBUV, each 8 W

25 �

DMX, infrared remote control, buttons and dis- play

1, 5, 7 or 8

1, 4, 6 or 7

Plug-in power supply

XLR chassis socket, 3-pin

48 W Power adapter, 100 - 240 V 50/60 Hz

47 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Technical specifications

BAT.PAR 6 RGBWA (Item no. 385435)

BAT.PAR 6 RGBUV (Item no. 385475)

Operating voltage

15 V / 5 A, centre positive

Battery / recharge- Battery type able battery

Interchangeable lithium-ion battery pack (item no. 385488)

Voltage

10.8 V

Capacity

1500 mAh

Operating time

max. 5 h

Degree of protection

IP20

Mounting options

Hanging, standing

Dimensions (W � H � D)

250 mm � 254 mm � 130 mm

Weight

2 kg

Ambient condi- tions

Temperature range 0 �C...40 �C Relative humidity 20 %...80 % (non-condensing)

48 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Further information Construction LED type Base housing Fanless Remote control Wireless DMX Housing colour

Flat PAR x-in-1 Yes No included No Black

Technical specifications

49 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Plug and connection assignments

9 Plug and connection assignments

Introduction

This chapter will help you select the right cables and plugs to connect your valuable equip- ment so that a perfect light experience is guaranteed.
Please take our tips, because especially in `Sound & Light' caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or `just' a not working light show!

DMX connections

The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug.

Pin Configuration

Ground, shielding

Signal inverted (DMX�, `cold signal')

Signal (DMX+, `hot signal')

50 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Troubleshooting
10 Troubleshooting
NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting:
51 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Troubleshooting

Symptom

Remedy

Device not working, no light

Check the mains connection and the main fuse.

Not responding to DMX controller 1. Check the DMX connectors and cables to see if they are properly linked.

2. Check the address settings and the DMX polarity.

3. Try using another DMX controller.

4. Check whether the DMX cables run near or parallel to high-voltage cables that may cause damage or interfer- ence to the DMX interface circuit.

The built-in battery can no longer Do not attempt to replace the built-in battery yourself.

be recharged

Please contact our service centre.

If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de.

52 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Cleaning

11 Cleaning
Optical lenses
Fan grids

Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). n Always dry the parts carefully.
The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg- ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth.

53 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Protecting the environment

12 Protecting the environment

Disposal of the packaging mate- rial

For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.

Disposal of batteries

Batteries do contain some hazardous chemicals so they should not be thrown away with the normal household waste. They should be returned to the manufacturer for disposal or recycled elsewhere in accordance with your local regulations.
Dispose lithium batteries only in discharged condition. Remove lithium batteries from the device before disposal. Protect used lithium batteries against potential short circuits, e.g. by covering the poles with adhesive tape. Dispose the built-in lithium batteries together with the device. Please check for an appropriate reception facility.

54 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Protecting the environment

Disposal of your old device

This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.

55 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Notes
56 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Notes
57 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight

Notes
58 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight

Musikhaus Thomann � Hans-Thomann-Stra�e 1 � 96138 Burgebrach � Germany � www.thomann.de

References

Buy musical instruments online from the market leader – United States
