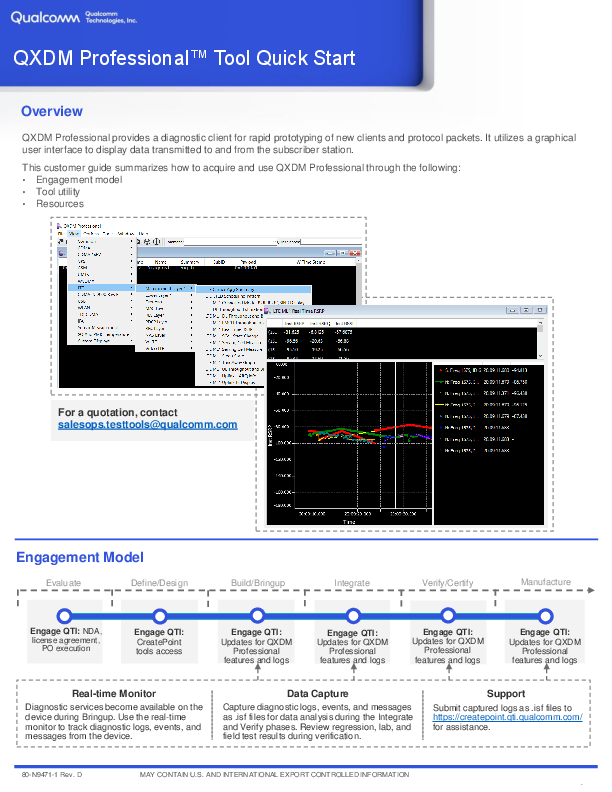

QXDM ProfessionalTM Tool Quick Start
Overview
QXDM Professional provides a diagnostic client for rapid prototyping of new clients and protocol packets. It utilizes a graphical user interface to display data transmitted to and from the subscriber station. This customer guide summarizes how to acquire and use QXDM Professional through the following: · Engagement model · Tool utility · Resources
For a quotation, contact salesops.testtools@qualcomm.com
Engagement Model
Evaluate
Define/Design
Build/Bringup
Integrate
Verify/Certify
Manufacture
Engage QTI: NDA, license agreement,
PO execution
Engage QTI: CreatePoint tools access
Engage QTI: Updates for QXDM
Professional features and logs
Engage QTI: Updates for QXDM
Professional features and logs
Engage QTI: Updates for QXDM
Professional features and logs
Engage QTI: Updates for QXDM
Professional features and logs
Real-time Monitor
Diagnostic services become available on the device during Bringup. Use the real-time monitor to track diagnostic logs, events, and messages from the device.
Data Capture
Capture diagnostic logs, events, and messages as .isf files for data analysis during the Integrate and Verify phases. Review regression, lab, and field test results during verification.
Support
Submit captured logs as .isf files to https://createpoint.qti.qualcomm.com/ for assistance.
80-N9471-1 Rev. D
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
.
QXDM Professional
Use QXDM Professional to capture and monitor proprietary diagnostic logs, messages, and events, such as:
· Hardware bringup · Software integration · Software debug and verification.
Diagnostic Packets, Msg, and
Events LTE
WCDMA/HSPA+
1X / EVDO
GSM
TDSCDMA
USB, UART, IP
Interface control document
Specifies diagnostic packet structure and parameter descriptions.
QTI chipset and module
QXDM Professional supports all Qualcomm® devices with enabled diagnostic services.
Diagnostic connection
A Qualcomm USB driver required to establish the connection.
QXDM Professional
Captures and analyzes diagnostic packets defined in the interface control document.
Subscription-based License
Tools Licenses QXDM Professional license(s) can be subscribed annually QXDM Professional license subscription includes content updates and download access to
QXDM Professional QCAT QPST (for Windows only) Qualcomm USB Driver Tool technologies and features are activated by providing license keys to Qualcomm Package Manager Qualcomm Package Manager is included as a part of tool installer Tool technology licenses can be purchased individually, for example QXDM 2-4G Yearly License Subscription QXDM 2-5G Yearly License Subscription
Contact Us
Visit us at https://createpoint.qti.qualcomm.com..
