DuoRacer MPPT charge controller is made for charging two batteries (shown as. BATT1 and BATT2 below) at the same time in a solar system. This controller ...
This manual contains all the instructions of safety, installation, and operation for DuoRacer series MPPT Dual Battery Solar Charge Controller (referred to as the controller in this manual). Read all the instructions and warnings carefully before installation.
This manual contains all the instructions of safety, installation, and operation for DuoRacer series MPPT Dual Battery Solar Charge Controller (referred to as the controller in this manual). Read all the instructions and warnings carefully before installation. No user serviceable component inside the controller. Do NOT disassemble or

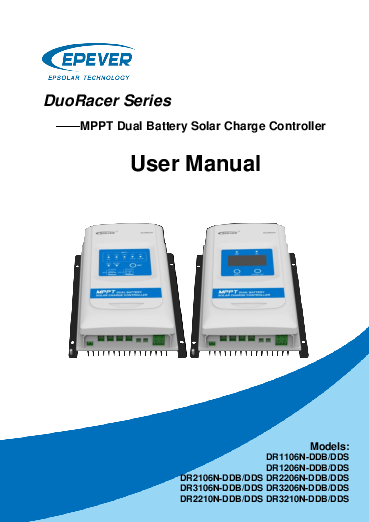

DuoRacer Series ----MPPT Dual Battery Solar Charge Controller User Manual Models: DR1106N-DDB/DDS DR1206N-DDB/DDS DR2106N-DDB/DDS DR2206N-DDB/DDS DR3106N-DDB/DDS DR3206N-DDB/DDS DR2210N-DDB/DDS DR3210N-DDB/DDS Important Safety Instructions Please reserve this manual for future review. This manual contains all the instructions of safety, installation, and operation for DuoRacer series MPPT Dual Battery Solar Charge Controller (referred to as the controller in this manual). Read all the instructions and warnings carefully before installation. No user serviceable component inside the controller. Do NOT disassemble or attempt to repair the controller. Avoid direct sunlight, high temperature, and do NOT install the controller at locations where water can get in. Install the controller at well-ventilated places, the controller's heat sink may become very hot during the system operation. Appropriated external fuses or breaker are suggested. Please cut off all connections of the PV array, fuses or breakers which close to the battery before the controller installation and adjustment. Power connections must remain tight to avoid excessive overheating from the loose connection. CONTENTS 1. Overview..........................................................................................1 1.1Information & Features...............................................................1 1.2 Name definition .........................................................................2 1.3 Structure....................................................................................2 1.4 Starter battery BATT2 Instruction ..............................................3 1.5 AES Signal Output Port Instruction ...........................................4 1.6 Accessories...............................................................................5 2. Installation.......................................................................................7 2.1 Warning.....................................................................................7 2.2PV Array Requirements..............................................................7 2.3Wire Size..................................................................................10 2.4 Mounting .................................................................................11 3.Display units ..................................................................................15 3.1DuoRacerDisplay Basic (DDB).................................................15 3.2 DuoRacerDisplay Standard (DDS) ..........................................17 4.Protections, Troubleshooting & Maintenance.............................23 4.1Protections ...............................................................................23 4.2 Troubleshooting ......................................................................23 4.3 Maintenance............................................................................24 5. Specifications ...............................................................................26 Annex I Mechanical Dimension Diagram ........................................28 1. Overview 1.1Information & Features DuoRacer MPPT charge controller is made for charging two batteries (shown as BATT1 and BATT2 below) at the same time in a solar system. This controller supports multiple life battery (BATT1) types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and so on. The device recognizes the start battery (BATT2) system voltage automatically, and trickle charges the battery when the conditions are satisfied. The controller adopts the advanced MPPT control algorithm,which will minimize the maximum power point loss rate and loss time,also fast track the maximum power point(MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. When there is no manual operation for a long time, and the charging conditions cannot be reached, the controller will turn to low-power mode, which reduces the loss and battery power waste to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory). The AES control signal of the car refrigerator is built in the controller, which will supply the surplus solar power to the refrigerator to avoid energy waste. The controller comes with IP33 protection level, which is waterproof and dustproof. Multiple protection features, including battery overcharge protection, over discharge protection, and reverse connection protection of the PV and battery, which effectively ensure the solar system safety, stability, and lifetime. Features Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed Advanced MPPT control algorithm to minimize the MPPlost rate and lost time The wider range of the MPP operation voltage to improve the PV module utilization Auto control function of charging power & charging current limitation(BATT1) High quality and low failure rate components of ST, TI and Infineon to ensure the product life Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life. BATT1 type can be set via LED/LCD. Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V). 100% charging and discharging in operationenvironmental temperature range. 1 LED and LCD dispiay units selectable. AES control signal for car refrigerator to avoid energy waste. Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area. Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically). Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically). NOTE: the BATT1 and BATT2 must be at the same voltage level. 1.2 Name definition 1.3 Structure 2 Mounting hole size5mm BATT1 terminals LCD(Refer to chapter 3) Grounding Terminal BATT2 terminals RS485 Communication port Remote temperature sensor port AES (signal) output port PV terminals Terminal protection cover The controller is charging the BATT1 as default (25) without temperature compensation function when it's not connected to the remote temperature sensor, or the temperature sensor is damaged. The temperature compensation is ONLY designed for the lead-acid battery, for lithium battery, there is no temperature compensation. AES port which output is 12V/200mA and RS485 Port which output is 5V/200mA are independent of DR1106/2106/3106N models, the AES port output voltage is the battery voltage. The above two ports of DR1206/2206/3206/2210/3210N models share the power of 5VDC/Max. 200mA also the AES signal port is designed for AES supporting car refrigerator, It is required for internal power switching device. 1.4 Starter battery BATT2 Instruction 1)Working principle of starter battery The controller trickle charges the BATT2 at 1A constant current. When the voltage reaches the "Full voltage" during the BATT2 charging process, the controller will stop charging and exit from constant voltage charging mode. 2) Voltage contol parameters ofstarter battery Item Full voltage Charge return voltage Default 13.8V/12V; 27.6V/24V 13V/12V; 26V/24V Modify range 917V(24V×2) 917V(24V×2) CAUTION: Please follow the logic of Full Voltage > Return Voltage when modifying the voltage point. 3) Start Charging Conditions CAUTION: BATT2 ONLY supports lead-acid battery type, before starting the BATT2 charging, please connect the BATT1 first. Condition1: BATT2 start charging when BATT1 reach the float charging stage and the BATT2 voltage is lower than the "Charging Return Voltage. Condition 2:BATT2 start charging when the batteries total charging current is higher than 3A and the BATT2 voltage is lower than the "Charging Return Voltage. 4) Stop Charging Conditions Condition 1:BATT2 stops charging when the PV voltage is no ligher 2V than BATT1. Condition 2:BATT2 stops charging when BATT1 is not in float charging stage and the total charging current for the battery is less than 2.5A. Condition 3: BATT2 stops charging when BATT2 reaches the "Full Voltage". 3 CAUTION: After the BATT2 charging is turned off, it will be recharged only when the start charging conditions are satisfied again. 5) Starter Battery (BATT2) Charging indication 1.5 AES Signal Output Port Instruction 1)AES port of DR1106/2106/3106N-DDB/DDS The AES port and the RS485 port are indenpent, the AES port output 12V/200mA and the voltage is the battery voltage.Connect the refrigerator, refer to the below picture. 2)AES signal port of DR1206/2206/3206/2210/3210N-DDB/DDS The AES signal port and RS485 port share the power of 5VDC/Max.200mA.,connect the accessories when connect the refrigerator, refer to the below picture. 4 NOTE:The AES signal port and RS485 port share the power of 5VDC/Max.200mA. The MT11 power consumption is 13mA when it is ON, and 4mA when it's off. 3) AES port working principle The AES signal turns on after the BATT1 voltage reaches the boost charging voltage or equalize charging voltage for 5 mins. The controller will check if the BATT1 voltage is lower than the boost charging voltage or equalize charging voltage every 5 mins (This value is the judgement delay time for turning off the AES signal which can be set via PC software, default as 5 mins, ranging form 0 to 999 mins) , the AES signal control will be turned off if it meets the conditions for 5 times. 1.6 Accessories Accessories(included) Local Temperature Sensor (Model:RT-MF58R47K3.81A) AES signal terminal(Model:3.81-2P) The 2P cable is recommended for connecting the AES signal port of the car refrigerator. Accessories(optional) 1) Remote Meter(Model: MT11) MT11 can display various operating data and fault information of the system. The information can be displayed on a backlit LCD screen, the buttons are easy-to-operate, and the numeric display is readable.Standard version is for surface mounting, and optional version is for wall mounting.(Standard version includes the communication cable) 2) Remote temperature sensor(Model:RTS300R47K3.81A) Acquisition of battery temperature for undertaking temperature compensation of control parameters, the standard length of the cable is 3m (Length can be customized).The RTS300R47K3.81A connects to the port() on the controller. 3)USB to RS485 converter cable(Model:CC-USB-RS485-150U-3.81) It used to monitor each controller on the network via PC software. The length of cable is 1.5m. one end connect the port of controller, the other end connect the PC 4)WIFI Serial Adapter(Model:eBox-WIFI-01) After the controller is connected with the eBox-WIFI-01 through the standard Ethernet cable(parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP through WIFI signals. 5 5) RS485 to bluetooth adapter(Model:eBox-BLE-01) After the controller is connected with the eBox-BLE-01 through the standard Ethernet cable(parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP through Bluetooth signals. 6) AES adapter(Model: AES-ADP) The adapter convers 5V of controller into 12V of the refrigerator, it will supply the surplus solar power to the refrigerator to avoid energy waste. 6 2. Installation 2.1 Warning Be very careful when installing the batteries, especially flooded lead-acid battery. Please wear eye protection, and have fresh water available to rinse if any contact with battery acid. Keep the battery away from any metal objects, which may cause short circuit of the battery. Explosive battery gases may come out from the battery during charging, so make sure ventilation condition is good. For outdoor installation, keep out of the direct sunshine and rain infiltration. Loose connections and corroded wires may result in high heat that can melt wire insulation, burn surrounding materials, or even cause fire. Ensure tight connections and use cable clamps to secure cables and prevent them from swaying in mobile application. The controller can work with lead-acid battery and lithium battery within its control scope. Battery connection may be wired to one battery or a bank of batteries. The following instructions refer to a singular battery, but it is implied that the battery connection can be made to either one battery or a group of battery bank. Select the system connection cables according to the current density no greater than 5A/mm2. 2.2PV Array Requirements (1)Serial connection(string) of PV modules As the core component of solar system, controller could be suitable for various types of PV modules and maximize converting solar energy into electrical energy. According to the open circuit voltage(Voc) and the maximum power point voltage(Vmpp) of the MPPT controller, the series number of different types PV modules can be calculated. The below table is for reference only. DR1106/2106/3106/1206/2206/3206N-DDB/DDS: System voltage 36cell Voc23V Max. Best 48cell Voc31V Max. Best 54cell Voc34V Max. Best 12V 2 2 1 1 1 1 24V 2 2 - - - - 7 60cell Voc38V Max. Best 1 1 - - System voltage 72cell Voc46V Max. Best 96cell Voc62V Max. Best Thin-Film module Voc80V 12V 1 1 - - - 24V 1 1 - - - NOTE: The above parameter values are calculated under standard test conditions (STC(Standard Test Condition): Irradiance 1000W/m2, Module Temperature 25 , Air Mass 1.5.) DR2210/3210N-DDB/DDS: System voltage 36cell Voc23V Max. Best 48cell Voc31V Max. Best 54cell Voc34V Max. Best 60cell Voc38V Max. Best 12V 4 2 2 1 2 1 2 1 24V 4 3 2 2 2 2 2 2 System voltage 72cell Voc46V Max. Best 96cell Voc62V Max. Best Thin-Film module Voc80V 12V 2 1 1 1 1 24V 2 1 1 1 1 NOTE: The above parameter values are calculated under standard test conditions (STC(Standard Test Condition): Irradiance 1000W/m2, Module Temperature 25 , Air Mass 1.5.) (2)Maximum PV array power The MPPT controller has the function of charging current/power-limiting, that is, during the charging process, when the charging current or power exceeds the rated charging current or power, the controller will automatically limit the charging current or power to the rated value, which can effectively protect the charging parts of the controller, and prevent damages to the controller due to the connection of over-specification PV modules. The actual operation of PV array is as follows: Condition1, Actual charging power of PV array Rated charging power of controller Condition2, Actual charging power of PV array Rated charging power of controller When the controller operates under"Condition1" or "Condition2", it will carry out the charging as per the actual current or power; at this time, the controller can work at the maximum power point of PV array. WARNING: When the power of PV is not greater than the rated charging power, but the maximum open-circuit voltage of PV array is more than 8 60V(DR**06N-DDB/DDS)/100V(DR**10N-DDB/DDS)(at the lowest environmental temperature), the controller may be damaged. Condition3, Actual charging power of PV array Rated charging power of controller Condition4, Actual charging power of PV array Rate charging current of controller When the controller operates under"Condition 3" or "Condition 4", it will carry out the charging as per the rated current or power. WARNING: When the power of PV is not greater than the rated charging power, but the maximum open-circuit voltage of PV array is more than 60V(DR**06N-DDB/DDS)/100V(DR**10N-DDB/DDS)(at the lowest environmental temperature), the controller may be damaged. According to "Peak Sun Hours diagram", if the power of PV array exceeds the rated charging power of controller, then the charging time as per the rated power will be prolonged, so that more energy can be obtained for charging the battery. However, in the practical application, the maximum power of PV array shall be not greater than 1.5 times the rated charging power of controller. If the maximum power of PV array exceeds the rated charging power of controller too much, it will not only cause the waste of PV modules, but also increase the open-circuit voltage of PV array due to the influence of environmental temperature, which may make the probability of damage to the controller rise. Therefore, it is very important to configure the system reasonably. For the recommended maximum power of PV array for this controller, please refer to the table below: Model DR1106N-DDB/DDS Rated Charge Current 10A Rated Charge Power 130W/12V DR2106N-DDB/DDS 20A 260W/12V DR3106N-DDB/DDS 30A 390W/12V DR1206N-DDB/DDS 10A 130W/12V 260W/24V DR2206N-DDB/DDS 20A 260W/12V 520W/24V DR3206N-DDB/DDS 30A 390W/12V 780W/24V DR2210N-DDB/DDS 20A 260W/12V 520W/24V DR3210N-DDB/DDS 30A 390W/12V 780W/24V At 25 environment temperature. Max. PV Array Power 195W/12V 390W/12V 580W/12V 195W/12V 390W/24V 390W/12V 780W/24V 580W/12V 1170W/24V 390W/12V 780W/24V 580W/12V 1170W/24V Max. PV Open Circuit Voltage 46V 60V 92V 100V 9 At minimum operating environment temperature. 2.3Wire Size The wiring and installation methods must conform to all national and local electrical code requirements. PV Wire Size Since PV array output can vary due to the PV module size, connection method or sunlight angle, the minimum wire size can be calculated by the Isc of PV array. Please refer to the value of Isc in the PV module specification. When PV modules are connected in series, the Isc if equal to Isc of PV modules. When PV modules are connected in parallel, the Isc is equal to the sum of the PV modules'Isc. The Isc of the PV array must not exceed the controller's maximum PV input current. Please refer to the table as below: NOTE: All PV modules in a given array are assumed to be identical. Isc=Short circuit current(amps) Voc= Open circuit voltage Model DR1106N-DDB/DDS DR1206N-DDB/DDS DR2106N-DDB/DDS DR2206N-DDB/DDS DR2210N-DDB/DDS DR3106N-DDB/DDS DR3206N-DDB/DDS DR3210N-DDB/DDS Max. PV input current 10A 20A 30A Max. PV wire size 4mm2/12AWG 6mm2/10AWG 10mm2/8AWG CAUTION: When the PV modules connect in series, the open circuit voltage of the PV array must not exceed 46V(DR**06N-DDB/DDS),92V (DR**10N-DDB/DDS). Battery and load wire size The battery and load wire size must conform to the rated current, the reference size as below: Model Rated Charge Current Battery wire size DR1106N-DDB/DDS DR1206N-DDB/DDS 10A 4mm2/12AWG DR2106N-DDB/DDS DR2206N-DDB/DDS 20A 6mm2/10AWG DR2210N-DDB/DDS DR3106N-DDB/DDS DR3206N-DDB/DDS 30A 10mm2/8AWG DR3210N-DDB/DDS 10 CAUTION: The wire size is only for reference. If there is a long distance between the PV array and the controller or between the controller and the battery. Larger size wires can be used to reduce the voltage drop and improve performance. CAUTION: For the battery, the recommended wire size will be selected according to the conditions that its terminals are not connected to any additional inverter. 2.4 Mounting WARNING: Risk of explosion. Never install the controller in a sealed enclose with flooded batteries. Do not install in a confined area where battery gas can accumulate. WARNING:Risk of electric shock. When wiring the solar modules, the PV array can produce a high open circuit voltage, so turn off the breaker before wiring and be careful when wiring. CAUTION: The controller requires at least 150mm of clearance above and below for proper air flow. Ventilation is highly recommended if mounted in an enclosure. Installation steps: 11 Step1: Determine of installation location and heat-dissipation space Determination of installation location: The controller shall be installed in a place with sufficient air flow through the radiators of the controller and minimum clearance of 150mm from the upper and lower edges to ensure natural thermal convection. CAUTION: Ensure that the controller is able to dissipate heat if it's installed in a closed area. If the controller is to be installed in an enclosed box, it is important to ensure reliable heat dissipation through the box. Step2: Wiring Connect the system in the order ofStarter batteryBATT2 Main battery BATT1 PV array in accordance with the above diagram and disconnect the system in the reverse order. CAUTION:The BATT1 and BATT2 must be set at same voltage level, and other situations are not supported for the moment. CAUTION: Follow the above instruction for wiring, otherwise, it may cause the BATT2 system voltage identification error. CAUTION: While wiring the controller do not turn on the breaker or fuse and make sure that the poles of "+" and "-" are connected correctly. CAUTION: A fuse which current is 1.25 to 2 times the rated current of the controller must be installed on the battery side with a distance from the battery not greater than 150mm 12 CAUTION: If an inverter is to be connected to the system, connect the inverter directly to the battery. Step3Grounding DR N series is a common-negative controller, where all the negative terminals of PV array and battery can be grounded simultaneously or any one of the negative will be grounded. However, according to the practical application, all the negative terminals of PV array and battery needn't to be grounded, but the grounding terminal on controller's shell must be grounded, which may effectively shield the electromagnetic interference from the outside, and prevent some electric shock to the human body due to the electrification of the shell. CAUTION:For common-negative systems, such as a motorhome, it is recommended to use a common-negative controller, but if in the common-negative system, some common-negative equipment is used, and the positive electrode is grounded, the controller may be damaged. Step4: Connect the remote temperature sensor cable Temperature sensor (Model:RT-MF58R47K3.81A) Remoter temperature sensor Model:RTS300R47K3.81A Connect the remote temperature sensor cable to the port and place the other end close to the BATT1. CAUTION: If the remote temperature sensor is not connected to the controller, the default temperature for battery charging or discharging is 25 without temperature compensation. Step5: Connect the remote meter MT11 and AES signal of the refrigerator DR1106/2106/3106N-DDB/DDS: 13 DR1206/2206/3206/2210/3210N-DDB/DDS: RS485 Communication cable ModelsCC-RS485-RS485-3.81-4P-150(Included) CC-RS485-RS485-3.81-4P-1000(Optional) CC-RS485-RS485-3.81-4P-2000(Optional) The operation of the remote meter refer to the user manual of MT11 The controller only provides one AES signal control, and the practical consideration is needed for the specific application (Check the "1.5 AES Signal output port instruction" for more information). Step6: Power on the controller Firstly, turn on the BATT2 safety switch and check the BATT2 charging indicator status. then, turn on the BATT1 safety switch and check the BATT1 charging indicator status (Check the "3. Display Units" for more information). Lastly, turn on the PV array circuit breaker. CAUTION: If the controller is not operating properly or the battery indicator on the controller shows abnormality, please refer to 5.2 "Troubleshooting". 14 3.Display units 3.1DuoRacerDisplay Basic (DDB) 1Status indicator indicator Color Green Green Green Red Red Green Green Green Red Status OFF Slowly flashing (1Hz) On solid OFF Fast flashing (4Hz) On solid Slowly flashing (0.2Hz) OFF On solid Red Green Green Green Green OFF On solid OFF On solid Slowly flashing(1Hz) Instruction No charging Charging, in Boost or Equalize charging stage Full, in Float charging stage BATT1 Temperature normal BATT1 over temperature or BATT1 low temperature Connect to BATT1 and in charging Connect to BATT1 and no charging Not connect BATT1 BATT1 over discharged/Low voltage BATT1 low voltage reconnect AES signal is ON AES signal is OFF Connect to BATT2 and in charging Connect to BATT2 and no charging 15 Green OFF Not connect BATT2 Green On solid In the mode of setting battery type Green OFF All indicatorFast flashing(4Hz) Settings are saved and quit the setting mode System voltage error All indicatorSlowly flashing(1Hz) Controller overheating The controller don't recognize the syetem voltage when the battery type is lithium battery Indicator "OFF". Indicator "On solid". Indicator"Slowly flashing (1Hz) ". Indicator"Slowly flashing (0.2Hz)". Battery typeindicator Indicator Color Status Instruction Sealed Green On solid Flashing 12V system 24V system Red Gel Flooded Green Red LiFePO4 Green Li-NiCoMn The step of setting battery type On solid Flashing On solid Flashing On solid Flashing On solid Flashing 12V system 24V system 12V system 24V system 12V system 24V system 12V system 24V system Step1:Press the button and hold on 3s, mode. green on solid, enter the battery setting Step2:Press the button to select the battery type. Step3:Wait for 5 seconds until the setting indicator turns off. Barrery type is set successfully. 16 3.2 DuoRacerDisplay Standard (DDS) (1)Charging indicator Indicator Color Status Instruction PV connection normal but the Green On solid low voltage(low irradiance) from PV, no charging. Green OFF No PV voltage(night time) or PV connection problem Green Slowly flashing(1Hz) In charging Green Fast flashing(4Hz) PV overvoltage (2)Operation interface Icon Instruction Icon Instruction BATT1 battery capacit 012% BATT2battery capacity 012% BATT1battery capacity 13%35% BATT2battery capacity 13%35% BATT1battery capacity 36%61% BATT2battery capacity 36%61% BATT1battery capacity 62%86% BATT2battery capacity 62%86% 17 BATT1battery capacity 87%100% BATT2battery capacity 87%100% Day PV array Night BATT1 charging icon Display the parameters of PV Display the parameters of BATT1 Display the parameters of BATT2 Setting icon BATT2charging icon BATT1temperature parameters AES signal icon Battery type icon Auto global browsing icon Minimum voltage icon Fault Icon Maximum voltage icon Battery capacity is calculated by the linear relationship between the LVD voltage and float charging voltage. Fault indication Fault Fault Charge indicator indicator LCD Instruction BATT1 overvoltage Red Fast flashing ---- Battery capacity shows full, battery frame blink, fault icon blink. BATT1 over-discharged ---- ---- Battery capacity shows empty, battery frame blink, fault icon blink. BATT1 over temperature Red Fast flashing ---- BATT1 system voltage error Red Fast flashing Green Fast flashing Battery frame blink, fault icon blink, the temperature icon blink. Battery capacity shows empty, battery frame blink. Fault icon blinks and battery frame blink 18 No alarm for system voltage error when BATT1 is lithium battery. (3)Buttons Press the button Press the button Press the button and hold on 5s (1)Auto global browsing mode Operation: Parameters of PV array Parameters of BATT1 Parameters of BATT2 Auto global browsing mode( ) Browse the parameters of PV array Browse the parameters of BATT1 Browse the parameters of BATT2 Select the temperature unit Select the battery type Press the button until is appear. Then Press the appears. Now it is set as auto global browsing mode. button, Loop diaplayPV voltage PVcurrent PV powerGenerated energyBATT1 voltageBATT1 currentMax. BATT1 voltageMin.BATT1 voltage BATT1 temperatureBATT1 battery typeBATT2 voltageBATT2 currentMax. BATT2 voltageMin.BATT2 voltagePVvoltage 19 (2)Change Temperature units Operation: Step1: Press the symbol is flashing. button under the battery temperature interface,until the Step2: Press the button to select the temperature unit. Step3: Press the button to set successfully. (3) Clear the generated energy Press the and generated energy. (3)Change Battery type button at the same time and hold on for 5s to clear the 1)Operation: Step1: Press the button and hold on for 5s under the battery type interface. until the symbol is flashing. Step2: Press the button to select the battery type. Step3: Press the button to confirm the battery type. 2) Battery type BATT112V Sealed BATT112V Gel BATT124V Sealed BATT124V Gel 20 BATT112V Flooded LiFePO4(4S) Li-NiCoMn (3S) User BATT124V Flooded LiFePO4(8S) Li-NiCoMn (6S) CAUTION:The battery control voltage parameters are not changeable when battery is set as default battery types. If you want to change the control parameters, please set the battery type as "User". CAUTION: The control parameters of user battery type can only be set via PC software or mobile APP. 1) Lead-acid Battery Control Voltage Parameters The parameters are in 12V system at 25 ºC, please double the values in 24V system. Battery type Voltage parameter Sealed Gel Flooded User Over Voltage Disconnect Voltage Charging Limit Voltage Over Voltage Reconnect Voltage 16.0V 15.0V 15.0V 16.0V 15.0V 15.0V 16.0V 15.0V 15.0V 9~17V 9~17V 9~17V Equalize Charging Voltage 14.6V ---- 14.8V 9~17V Boost Charging Voltage 14.4V 14.2V 14.6V 9~17V Float Charging Voltage 13.8V 13.8V 13.8V 9~17V Boost Reconnect Charging Voltage Low Voltage Reconnect Voltage Under Voltage Warning Reconnect Voltage Under Volt. Warning Volt. Low Volt. Disconnect Volt. Discharging LimitVoltage Equalize Duration (min.) 13.2V 12.6V 12.2V 12.0V 11.1V 10.6V 120 13.2V 12.6V 12.2V 12.0V 11.1V 10.6V ---- 13.2V 12.6V 12.2V 12.0V 11.1V 10.6V 120 9~17V 9~17V 9~17V 9~17V 9~17V 9~17V 0~180 Boost Duration (min.) 120 120 120 10~180 The following rules must be observed when modifying the parameters value in user battery type(factory default value is the same as sealed type): A. Over Voltage Disconnect Voltage > Charging Limit Voltage Equalize Charging Voltage Boost Charging Voltage Float Charging Voltage > Boost Reconnect Charging Voltage. B. Over Voltage Disconnect Voltage > Over Voltage Reconnect Voltage C. Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage Discharging Limit Voltage. D. Under Voltage Warning Reconnect Voltage > Under Voltage Warning Voltage Discharging Limit Voltage. E. Boost Reconnect Charging voltage > Low Voltage Reconnect Voltage. 21 1) Lithium Battery Control Voltage Parameters The parameters are in 12V system at 25 ºC, please double the values in 24V system. Battery type Voltage parameter LiFePO4(4S) Li-NiCoMn (3S) User Over Voltage Disconnect Voltage Charging Limit Voltage Over Voltage Reconnect Voltage Equalize Charging Voltage Boost Charging Voltage Float Charging Voltage Boost Reconnect Charging Voltage Low Voltage Reconnect Voltage Under Voltage Warning Reconnect Voltage Under Volt. Warning Volt. 15.6V 14.6V 14.5V 14.5V 14.5V 13.8V 13.2V 12.4V 12.5V 12.0V 13.5V 12.6V 12.5V 12.5V 12.5V 12.2V 12.1V 10.5V 11.0V 10.5V 917V 917V 917V 917V 917V 917V 917V 917V 917V 917V Low Volt. Disconnect Volt. 11.0V 9.3V 917V Discharging LimitVoltage 10.8V 9.3V 917V The following rules must be followed when modifying the value of lithium battery. A.Over Voltage Disconnect Voltage>Over charging protection voltage(Protection Circuit Modules(BMS))+0.2V; B.Over Voltage Disconnect Voltage>Over Voltage Reconnect VoltageCharging Limit Voltage Equalize Charging VoltageBoost Charging Voltage Float Charging Voltage>Boost Reconnect Charging Voltage; C.Low Voltage Reconnect Voltage>Low Voltage Disconnect Voltage Discharging Limit Voltage; D.Under Voltage Warning Reconnect Voltage>Under Voltage Warning Voltage Discharging Limit Voltage; E.Boost Reconnect Charging voltage> Low Voltage Reconnect Voltage; F.Low Voltage Disconnect Voltage Over discharging protection voltage (BMS)+0.2V. WARNING:The voltage parameters of lithium battery can be set, but you must refer to the voltage parameters of lithium battery BMS. WARNING: The required accuracy of BMS shall be at least 0.2V. If the deviation is higher than 0.2V, the manufacturer will assume no liability for any system malfunction caused by this. 22 4.Protections, Troubleshooting & Maintenance 4.1Protections PV Over Current/Power PV Short Circuit PV Reverse Polarity Night Reverse Charging BATT1 and BATT2 Reverse Polarity BATT1 Over Voltage BATT1 Over Discharge BATT1 Overheating BATT1Low Temperature(Lithium Battery) Controller Overheating TVSHigh Voltage Transients When the charging current or power of the PV array exceeds the controller's rated current or power, it will change at the rated current or power. When not in the PV charging state, the controller will not be damaged in case of a short-circuiting in PV array. When the polarity of the PV array is reversed, the controller may not be damaged and can continue to operate normally after the polarity is corrected. NOTE: If the PV array is reverse connected to the controller,1.5 times rated controller power(watts)from the PV array, will damage the controller. Prevents the battery from discharging to the PV module at night. Fully protected against battery reverse polarity; no damage will occur to the battery. Correct the miswire to resume normal operation. NOTE: Limited to the characteristic of lithium battery, when the PV connection is correct either BATT1 or BATT2 battery connection reversed, the controller will be damaged. When the battery voltage reaches the over voltage disconnect voltage, it will automatically stop battery charging to prevent battery damagecaused by over-charging. When the battery voltage reaches the low voltage disconnect voltage, it will automatically stop battery discharging to prevent battery damage caused by over-discharging. (Any controller connected loads will be disconnected. Loads directly connected to the battery will not be affected and may continue to discharge the battery.) The controller can detect the battery temperature through an external temperature sensor.The controller stops working when its temperature exceeds 65 °C and restart to work when its temperature is below 55 °C. When the temperature detected by the optional temperature sensor is lower than the Low Temperature Protection Threshold(LTPT), the controller will stop charging and discharging automatically. When the detected temperature is higher than the LTPT, the controller will be working automatically (The LTPT is 0 °C by default and can be set within the range of 10 ~ -40 °C). The controller is able to detect the temperature inside the controller. The controller stops working when its temperature exceeds 85 °C and restart to work when its temperature is below 75 °C. The internal circuitry of the controller is designed with Transient Voltage Suppressors (TVS) which can only protect against high-voltage surge pulses with less energy. If the controller is to be used in an area with frequent lightning strikes, it is recommended to install an external surge arrester. 4.2 Troubleshooting Faults phenomenon Charging LED indicator off during daytime when sunshine falls on PV modules properly Possible reasons PVarray disconnection Troubleshooting Confirm that PV wire connections are correct and tight. 23 Wire connection is correct,the controller is not working. Battery voltage is lower than 8.5V Please check the voltage of battery. At least 8.5V voltage to activate the controller. DDS Red fast flashing Battery level shows full, battery frame blink, fault icon blink BATT1over voltage Check if battery voltage is higher than OVD(over voltage disconnect voltage), and disconnect the PV. DDB DDS DDB red on solid Battery level shows empty, battery frame blink, fault icon blink Red fast flashing DDS Battery level shows current capacity, battery frame blink, fault icon blink, the temperature icon blink DDS RedFast flashing and GreenFast flashing System alarm system voltage error when using Lead-acid battery System alarm an over discharge fault when the BATT1 is 12V but set as 24V System alarm an over-voltage fault when BATT1 is 24V but set as 12V BATT1over discharged BATT1 Overheating BATT1 System voltage error Incorrect wiring steps should not connect BATT1 first and then BATT2 When the battery voltage is restored to or above LVR(low voltage reconnect voltage), the load will recover The controller will automatically turn the system off. When the temperature declines to be below 55 ºC, the controller will resume. Check whether the battery voltage match with the controller working voltage. Please change to a suitable battery or reset the working voltage. Disconnect the system, and reconnect the BATT2 first, then reconnect BATT1 BATT1 voltage level should be the same as BATT2 4.3 Maintenance The following inspections and maintenance tasks are recommended at least two times per year for best controller performance. Make sure controller firmly installed in a clean and dry ambient. Make sure no block on air-flow around the controller. Clear up any dirt and fragments on radiator. 24 Check all the naked wires to make sure insulation is not damaged for serious solarization, frictional wear, dryness, insects or rats etc. Repair or replace some wires if necessary. Tighten all the terminals. Inspect for loose, broken, or burnt wire connections. Check and confirm that LED or LCD is consistent with required. Pay attention to any troubleshooting or error indication .Take necessary corrective action. Confirm that all the system components are ground connected tightly and correctly. Confirm that all the terminals have no corrosion, insulation damaged, high temperature or burnt/discolored sign, tighten terminal screws to the suggested torque. Check for dirt, nesting insects and corrosion. If so, clear up in time. Check and confirm that lightning arrester is in good condition. Replace a new one in time to avoid damaging of the controller and even other equipments. WARNINGRisk of electric shock! Make sure that all the power is turned off before above operations, and then follow the corresponding inspections and operations. 25 5. Specifications Electrical Parameters Item DR1106N -DDB/DDS DR2106N -DDB/DDS DR3106N -DDB/DDS DR1206N -DDB/DDS DR2206N -DDB/DDS DR3206N -DDB/DDS DR2210N -DDB/DDS DR3210N -DDB/DDS BATT1 rated voltage 12VDC 12/24VDC BATT2 rated voltage 12VDC 12/24VDC Rated Charge Current 10A 20A 30A 10A 20A 30A 20A 30A Battery Input Voltage Range Max. PV Open Circuit Voltage 8.516V 60V 46V 8.532V 100V 92V MPP Voltage Range (Battery Voltage+2V)36V (Battery Voltage+2V)72V Rated Charge Power 130W/12V 260W/12V 390W/12V 130W/12V 260W/24V 260W/12V 520W/24V 390W/12V 780W/24V 260W/12V 520W/24V 390W/12V 780W/24V Max. conversion efficiency 97.4% 97.5% 98% 97.4% 97.5% 98% 97.5% 98% Full load efficiency 97% 96% 96% 97% 96% 96% 96% 96% Self-consumption 12mA/12V;4mA/12V (Low-power mode) 12mA/12V;8mA/24V 4mA/12V;3mA/24V(Low-power mode) 26mA/12V;15mA/24V 19mA/12V;10mA/24V (Low-power mode) Temperature compensate coefficient 3mV//2V(default) Grounding BATT2Full voltage BATT2 Charge return voltage AES signal port RS485 com. port Com. baud rate LCD backlight time 13.8V/12V 13V/12V 12VDC/Max.200mA(3.81-4P) 5VDC/Max.200mA(3.81-4P) Common negative 13.8V/12V27.6V/24V(default) 13V/12V26V/24V(default) 5VDC/Max.200mA(2*(3.81-4P)) 115200(default) 60S(default) 26 Warning:When the lithium battery of 12V is used and the BMS is protected, the lithium battery voltage may increase up to 35V which may damage the load, so please consider the load's voltage. At minimum operating environment temperature. At 25 environment temperature. The Temperature compensate coefficient is zero and not changeable when the life battery type is lithium battery. AES port which output is 12V/200mA and RS485 Port which output is 5V/200mA are independent of DR1106/2106/3106N models, the AES port output voltage is the battery voltage. The above two ports of DR1206/2206/3206/2210/3210N models share the power of 5VDC/Max. 200mA The communication baud rate can only be set via PC software. The LCD backing time can only be set via PC software, setting range is 0~999S and the 0s means the LCD is on all the time. Environmental Parameters Item Working environment temperature(100% input and output) Storage temperature range Relative humidity Enclosure Pollution degree DR1106/2106/1206/2206/2210N-DDB/DDS -20+50(DDS) -30+50(DDB) DR3106/3206/3210N-DDB/DDS -20+45(DDS) -30+45(DDB) -30+80 95%, N.C IP33 3-protection against solid objects: protected against solids objects over 2.5mm. 3-protected against sprays to 60°from the vertical. PD2 Mechanical Parameters Item Dimension Mounting dimension Mounting hole size Terminal Recommended cable size Weight DR1106/1206N-DDB/DDS 227.2×143×58.1mm 160×134mm 12AWG/4mm2(BATT1) 12AWG/4mm2(BATT2) 12AWG/4mm2(BATT1) 12AWG/4mm2(BATT2) 0.8kg DR2106/2206/2210N-DDB/DDS 243.7×158×63mm 180×149mm 5mm 6AWG/16mm2(BATT1) 12AWG/4mm2(BATT2) 10AWG/6mm2(BATT1) 12AWG/4mm2(BATT2) 1.1kg DR3106/3206/3210N-DDB/DDS 247.2×165×68.5mm 180×156mm 6AWG/16mm2(BATT1) 12AWG/4mm2(BATT2) 8AWG/6mm2(BATT1) 12AWG/4mm2(BATT2) 1.4kg 27 Annex I Mechanical Dimension Diagram DR1106/1206N-DDB/DDS (Unit: mm) 28 DR2106/2106/2206/2210N-DDB/DDS (Unit: mm) 29 DR3106/3106/3206/3210N-DDB/DDS (Unit: mm) Any changes without prior notice! Version number: 1.0 30 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Tel: +86-752-3889706 E-mailinfo@epsolarpv.com Website:http://www.epsolarpv.comMicrosoft Office Word 2007 Microsoft Office Word 2007
