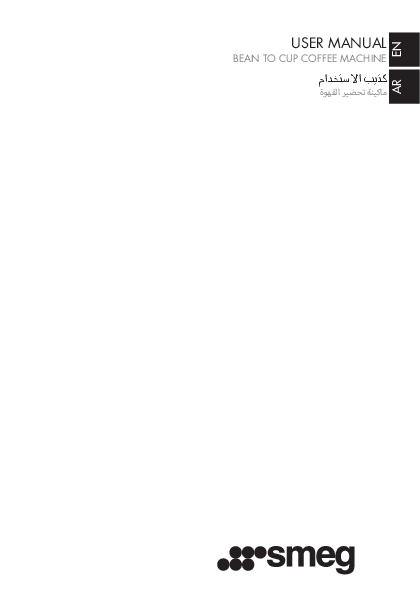

USER MANUAL
BEAN TO CUP COFFEE MACHINE
We advise you to read this manual carefully, as it contains all the instructions for managing the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com
. www.smeg.com
"A"
4
5
7 8
"B" 14
2
31
33
36
1 10
11
12 15
13 9
14
23 22 21
24 25
19 18
9
17 20
16
"C"
26
"H"
A
B6
"D"
"E"
4
5 3
"F"
"I" 2
13
"L" 8
14 "G"
11
27 28 14 12 29
15
14
Important information for the user / Instructions / General information on this user manual, on safety and final disposal / Description / Appliance description / Use / Information on using your appliance / Cleaning and care / Information for proper cleaning and maintenance of the appliance/ Safety instructions /
Information /
Advice /
The manufacturer reserves the right to make any changes deemed useful for the improvement of its products without priornotice. The illustrations and descriptions contained in this manual are therefore not binding and are merely indicative.
. " "
EN
Dear Customer, Thank you very much for purchasing the Smeg Line coffee machine. By choosing our product, You have opted for a solution in which aesthetics and innovative technical design offer unique objects, which become part of the furnishings. In fact, a Smeg household appliance always co-ordinates perfectly with other products in the range and, at the same time, can become a design object for the kitchen. We hope You fully appreciate the functionalities of Your appliance. Best regards.
SMEG S.p.A.
Model BCC01 Bean to cup Coffee machine
EN - 1
Important Safeguards
SAFETY
Essential safety recommendations.
Keep these instructions carefully. Whenever the appliance is transferred to other persons, they must also be given these user instructions.
Danger of Electrocution, since the appliance operates on electric current, it is necessary to comply with the following safety warnings:
· Do not touch the plug with wet hands. · Make sure that the power outlet used is always
freely accessible, because only in this way can it be unplugged when necessary. · If you want to remove the plug from the socket, grasp the plug directly. Do not remove the plug from the socket by pulling on the cable or with wet hands. · If the appliance should break down, do not attempt to repair it. Switch the appliance off, remove the plug from the power outlet and contact the Smeg Technical After-sales centre. · If the plug or power supply cable are damaged, have them replaced exclusively by the Technical After-sales centre, so as to prevent all risks. · Do not immerse the appliance, the power cord, the plug in water or any other liquid. · Warning: Danger of injury! Improper use of the appliance can cause injury. Before cleaning, disconnect the plug. · Do not allow the power supply cable to dangle over the edge of the table or other surface or to come into contact with hot surfaces.
EN - 2
Choking hazard due to plastic packaging, keep the packaging material (plastic bags, expanded polystyrene) out of the reach of children. · Do not position the appliance on or in proximity
of electric or gas cookers, or in a heated oven. · Do not wash the appliance in the dishwasher.
Connecting the appliance Warning! Make sure that the mains voltage and the frequency correspond with those indicated on the data plate on the bottom of the appliance. Only connect the appliance to a current outlet installed perfectly with minimum capacity of 10A and with an efficient earth. If the plug and power outlet are incompatible, have the power outlet replaced with a suitable type by qualified staff. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. · Do not use an adapter. · Do not use an extension cord. · Do not spill liquid on the power plug and on
the power base. Failure to observe these warnings can result in death, fire or electric shock. · Keep the appliance out of the reach of children
under the age of 8. · Children must not play with the appliance. · The use of this appliance is allowed to people
(including children of at least 8 years) with reduced physical, sensory or mental abilities only if they are under the control of adults or have been instructed on the safe use of the appliance and have understood the dangers
Important Safeguards
EN
associated with its use. · Cleaning or maintenance work can be carried
out by children who are at least 8 years old, only under the supervision of an adult. · Disconnect the appliance from the power outlet before all assembly, disassembly and cleaning operations.
Danger of burns · Allow the appliance to cool down before
cleaning. · The coffee machine generates heat and
produces hot water when running. Avoid contact with boiling water.
Use compliant with destination · Only use the appliance indoors and at a
maximum altitude of 2000 meters. · Use the device only to prepare coffee-based
drinks from grinding coffee beans or to dispense hot water. Other uses are improper. · Only insert water into the appropriate tank. Use fresh, clean water. · Use only original spare parts from the manufacturer. The use of spare parts not recommended by the manufacturer could cause fire, electric shock or personal injury. · The appliance is intended for household and similar use, such as: - in the kitchen area for the staff of shops,
offices and other work environments; - in bed and breakfast and agritourism
accommodation; - by guests at hotels and motels, and in
residential environments. · Other uses, in restaurants, bars and cafes for
example, are improper.
Moreover: · Do not fill the water container beyond the
maximum limit indicated. · Do not use without water in the tank or without
a tank. · Use only coffee beans to obtain the powder,
do not put already ground coffee in the coffee bean hopper. · Do not insert the appliance in a closed cabinet (built-in type). Attention: For cleaning surfaces that come into contact with food, observe the special cleaning indications in the instructions. Manufacturer's liability The manufacturer declines all liability for damage undergone by persons and objects due to: · use of the appliance different from that envisioned; · user manual has not been read; · tampering of individual parts of the appliance; · use of non-original spare parts; · failure to comply with safety recommendations.
EN - 3
Description / Assembly / Controls
DISPOSAL
Electrical appliances must not be disposed of with household waste. The appliances
IDENTIFICATION PLATE
The identification plate states the technical data, serial number, and marking. The identification plate must never be removed.
that have this symbol
are subject to
the European Directive 2012/19/EU. All
discarded electric and electronic appliances
must be disposed of separately from household
waste, by taking them to relevant centres
envisioned by the Country. By disposing of
the discarded appliance correctly, damage
to the environment and risks to health will be
avoided. For further information regarding
disposal of the discarded appliance, contact
the Municipal Administration, the Disposal
dept. or the shop where the appliance was
purchased.
DESCRIPTION OF THE APPLIANCE
(Fig. A)
1 Machine body. 2 Coffee bean container lid. 3 Coffee bean container. 4 Water tank cover. 5 Water tank (1,4 l). 6 Grinding selection knob. 7 Grinders protection. 8 Brewing group access door. 9 ON/OFF button. 10 Control panel. 11 Height adjustable coffee dispenser. 12 Coffee grounds container. 13 Internal drip tray. 14 External drip tray with level indicator. 15 Brewing group. 31 Cleaning brush. 33 Water hardness test strip.
BEFORE FIRST USE (Fig. A)
· Unpack the appliance carefully and remove all packaging materials.
· Rinse the removable components with lukewarm water, such as: water tank (5) covers (2,4), door (8) grounds container (12) drip trays (13,14) and brewing group (15). Before use, check that all components are integral and have no cracks.
ASSEMBLY OF COMPONENTS (Fig. B)
· Place the machine on a flat surface and fix the drip tray (14).
· Connect the power supply cable to the socket on the rear of the machine and the other end to a power socket.
EN - 4
Controls
EN
DESCRIPTION OF CONTROLS AND ALARMS (Fig. A-C-D)
ON/OFF button (9) Pressing the button switches the machine on or off.
Change dispensing program
button (20) The product has 8 functions, accessible through two menus, White Menu and Orange
Menu. By pressing this button it is possible to change the dispensing menu from "White" and "Orange" and vice versa.
White
Keys LED white
No coffee alarm (22) The relative LED lights up steadily indicating that the coffee beans in the container (3) have reached the minimum level or are absent. Fill the container with coffee beans.
Coffee grounds container alarm (23) Steady lit LED: Coffee grounds container full (12); empty the container. Flashing LED: Coffee grounds container (12) or internal drip tray (13) missing or incorrectly assembled; the machine is blocked until the components are correctly reassembled.
16 Ristretto coffee 17 Espresso coffee 18 Coffee 19 Hot water Orange Keys LED orange 16 Light Ristretto coffee
Brewing group alarm (24) Flashing LED: Door open or brewing group missing or incorrectly assembled; the machine is blocked until the brewing group is correct assembled or door closed. Stead lit LED: Indicates that the brewing group, its housing and accessible compartment should be cleaned.
17 Light Espresso coffee
18 Long coffee
19 Americano
Empty water tank alarm (21) The related LED flashes when the tank (5) is absent, or when the water inside it is missing or at an insufficient level. Insert the tank or fill it with water.
Descaling alarm (25) Steady lit LED: Indicates that it is highly recommended to carry out a descaling cycle; Flashing LED: The machine is blocked in all its functions, a descaling cycle is mandatory to restore machine operation.
EN - 5
Use
Grinding adjustment knob (6) (Fig. D) The appliance is equipped with a knob (6) that allows you to adjust the grinding grain of the coffee according to its uses: Turning the knob (6) clockwise "A" increases the grinding grain; turning the knob (6) anticlockwise "B" decreases the grinding grain and the ground coffee will be finer (Fig.D). Turn the knob (6) and match the indicator (26) with the desired grinding level.
The grinding grain adjustment must be carried out when the grinder is in operation or on first use when the bean container is completely empty; turning the knob (6) with the grinder stopped and the beans inside could damage the grinding unit.
USE (Fig. E-F-G-H)
· Lift the tank cover (4) and pour fresh water in the tank (5) being sure not to exceed the indicated `Max' level. Replace the water tank cover when full (4).
· Lift the coffee bean container lid (2) and introduce the coffee beans into the container (3).
· Check that the drip tray (14) is correctly positioned.
· Press the button (9) , the machine starts the heating phase and the keys light up flashing in sequence. At the end of the heating, a self-cleaning cycle of the internal circuits is carried out and, once the cycle is finished, the machine is ready to be used.
At the first use it is recommended to make at least one coffee to make a complete break-in of all the circuits.
We recommend setting the water hardness upon first use. Please see the "Water hardness settings" paragraph for this reason.
After 20 minutes of non-use, the machine switches off. If it has made at least one coffee, it performs a self-cleaning cycle. Press the button (9) to switch on the machine.
Change of dispensing program The machine has two dispensing menus in its memory: White and Orange. To switch from one program to another, press the key
(20)
.
In the White menu all the keys are illuminated
in white, in the Orange menu, all the keys are
illuminated in orange.
For the specific functions of each menu, refer
to the paragraph "Description of controls and
alarms"
Turning off the machine the setting of the White or Orange dispensing menu remains in the memory at the next restart.
Dispensing a drink · It is possible to adjust the position of the
dispenser (11) according to the cup used. For very high cups it is possible to remove the drip tray (14). · Place a cup or large cup under the dispenser. · Press the key for the desired function. For each selected function, preparation stops automatically. For specific functions, refer to the paragraph "Description of controls and alarms". · At the end of dispensing, all the keys light up fixed.
EN - 6
Use
EN
Dispensing can be stopped at any time by pressing the dispensing key again.
Remember to reassemble the tray (14) at the end of any dispensing.
It is completely normal that after a prolonged inactivity of the machine (breaks longer than 20 min) the first coffees are not at the right temperature. The tips to obtain a hot coffee immediately are given in the section "What to do if..."
Customization of the quantity It is possible to customize, for each type of dispensing, the quantity of coffee or water dispensed. · Place a cup or large cup under the
dispenser. · Press for at least 3 seconds one of the
keys relative to the drink to be dispensed. The selected key lights up flashing; the machine emits a double sound to signal the modification of the preset program. · On reaching the desired quantity, stop dispensing by pressing the key again; an acoustic signal indicates the memorization of the quantity.
Any customization of the drinks remains saved for future dispensing.
To restore the manufacturer's settings,
press the keys (9)
and (20)
simultaneously for at least 3 seconds. The machine emits a single sound to signal the restoration of the factory settings.
Turning off the machine · Check that the drip tray (14) is positioned
correctly. · If there is no water, the machine remains in
the rinse position until the tank is filled.
· Press the button (9) , the keys (16), (17), (18), (19) light up flashing in sequence and the machine, if it has dispensed at least one coffee, performs a self-cleaning cycle. At the end of the self-cleaning cycle, the machine switches off.
MACHINE SETTINGS (Fig. C-G)
Through a programming menu it is possible to set the water hardness and the acoustic signals.
Activation / deactivation of acoustic signals. The acoustic signals can be disabled /
enabled by keeping the keys (17)
and
(20)
pressed for three seconds; the key
(17)
flashes three times indicating the
memorization of the setting.
Setting the water hardness. The machine is factory set to "Hard Water Level". The machine can also be set according to the actual water hardness in the various regions for less frequent descaling. If you don't know the water hardness, use the supplied test strip (33) and follow the instructions below. · Remove the supplied reactive strip from its
packaging. · Fully submerge the strip in a glass of water
for about one second. · Remove the strip from the water and slightly
shake it. Read the results after about one
EN - 7
Cleaning and maintenance
minute. If 5 blue stripes appear on the strip, select "light water" settings. If 1 or 2 pink stripes appear on the strip, select "average water" settings. If 3, 4 or 5 pink stripes appear on the strip, select "hard water" settings. · To open the water hardness settings,
simultaneously press and hold down keys
(16)
and (20)
for at least 3
seconds, LEDs (21)
, (22) , (23)
will flash simultaneously.
· Choose the water hardness, referring to the
following table, pressing the key (16) , the LED relating to the selected hardness lights up steadily, the others go off.
Led
Hardness
21 Light
22 Medium
23 Hard
· To memorize the selected hardness,
press keys (16)
and (20)
simultaneously for at least 3 seconds or do
not press any key for 15 seconds.
To prolong the machine operation and preserve the aroma and taste of the coffee, it is recommended to use the Smeg Softener Filter (optional, not supplied). For installation and operation, follow the instructions that accompany the accessory. Once installed, set the water hardness level to `Light' following the instructions in the previous paragraph.
CLEANING AND MAINTENANCE (Fig. C-E-G-H-I-L)
Incorrect use Risk of damage to surfaces. · Do not use steam jets to clean
the coffee machine. · Do not use cleaning products
containing chlorine, ammonia or bleach on parts with metal surface finishes (e.g. anodised, nickel- or chrome-plated). · Do not use abrasive or corrosive detergents (e.g. powder products, stain removers and metallic scourers). · Do not use rough or abrasive materials or sharp metal scrapers.
Manual rinse · Make sure that the White program is
selected with keys (16), (17), (18), (19) illuminated in white. · With the machine ready to dispense and the drip tray mounted, press the keys (20)
and (19)
simultaneously for at
least 3 seconds: the machine will rinse the
coffee circuit (coffee dispenser 11).
· At the end of the washing cycle, the keys
light up steadily.
Cleaning of the machine body For a good preservation of the external surfaces it is necessary to clean them regularly at the end of each use, after letting them cool. Clean with a soft cloth dampened with water.
Never immerse the machine body (1) in water or other liquids.
EN - 8
EN
Cleaning and maintenance
Allow the machine to cool down before cleaning.
Use the supplied brush to clean the empty coffee bean container (3), removing any beans or residue. Always clean when the machine is off.
General cleaning To ensure good machine operations, in additional to excellent quality drinks, we recommend a few simple daily cleaning operations such as cleaning the drip tray (13, 14) and grounds container (12). We also recommend you routinely clean some specific machine components such as the brewing group (15) or water tank (5). Please see the specific paragraphs for cleaning instructions.
Cleaning the external drip tray (14) The drip tray (14) is equipped with a red float (27) which protrudes from the cup-holder grid as soon as the maximum liquid level is exceeded. · Remove the tray (14) and the cup-holder
grid (28) and empty it. · Clean the tray (14) and the grid (28) in
running water with neutral dish detergent. · Dry the components and reassemble them
in the machine. Do not clean components, especially the cup holder grid, in the dishwasher.
We recommend you clean the external drip tray daily.
Cleaning the coffee grounds container (12) and internal tray (13)
Always empty the coffee grounds container with the appliance switched on. This is the only way of resetting the coffee grounds counter. The counter resets at least 15 seconds after opening the various components and LED 23 flashes.
· Remove the tray (14). · Remove the grounds container (12) with its
tray (13) by pulling it outwards. · Empty the coffee grounds from the container
(12). · Clean the container (12) and the tray (13)
in running water with neutral dish detergent. · Thoroughly dry components and reassemble
on the machine. When emptying the grounds container, be sure to also empty any water residue from the internal tank.
Daily cleaning of the coffee grounds container and internal tray is recommended. It is normal to find water residue in the internal tank. Clean and dry.
Cleaning the water tank (5) · Remove the lid (4) and remove the tank (5)
from the machine using the appropriate handle. · Clean the tank (5) in running water with neutral dish detergent and reassemble it in the machine.
EN - 9
Cleaning and maintenance
Cleaning the brewing group (15)
We recommend cleaning the brewing group at least once a week.
· The coffee machine indicates when brewing group cleaning is recommended (steady lit LED 24).
· With the machine on, press the lower part of the door (8) until it is released and slide it out from the top.
· Press the two release clips (29) located on the sides of the infuser (15) and remove it from the machine (Fig.L).
· Wash the brewing group (15) with running water and dry it.
· Also thoroughly clean its housing and relevant compartment and dry them before reassembling the various components.
· Refit the service door (8) making sure it is correctly positioned.
Open the door and clean the brewing unit while the machine is on. This is the only way of resetting the counter. The counter resets at least 10 seconds after opening the various components and LED 24 turns off.
We recommend running a manual circuit cleaning cycle whenever this operation is performed. Please see paragraph "Manual rinse" for this reason.
Do not wash the brewing group in the dishwasher in order not to damage it permanently.
Coffee powder residue can be found in the brewing group compartment. We recommend thorough cleaning whenever cleaning the brewing group. Use the supplied brush to remove any residue from the brewing group compartment.
Dry all components and internal parts using a dry cloth before closing the side door.
EN - 10
EN
Cleaning and maintenance
Descaling The coffee machine signals when it is necessary to carry out a descaling cycle based on the set water hardness (For the setting of the water hardness, see the "Setting the water hardness" paragraph).
If the LED (25) lights up steadily, it means that a descaling cycle is necessary, so as not to alter the taste of the coffee and damage the machine. However, coffee and further drinks may continue to be dispensed for a limited number of cycles.
If the LED (25) flashes, it means that a
descaling cycle is mandatory to proceed with
further dispensing of drinks.
To carry out a descaling cycle, proceed as
follows:
· Place a container with a capacity of at least
1.4l under the dispenser (11).
· Make sure that the White program with
white illuminated keys is selected.
· Fill the tank (5), up to the "MAX" level, with a
solution of water and descaler in the doses
recommended by the manufacturer.
· With the machine ready for use, press
the keys (20)
and (18)
simultaneously for at least 3 seconds. The
key (18)
flashes with an orange light
and the LED (25) has a fixed light for
the entire duration of the descaling cycle.
· Stay near the machine for the entire duration
of the descaling cycle since you may be
required, for example, to fill the tank (5). The entire cycle lasts approximately 30 minutes. · During the descaling cycle, the machine will take a few breaks to allow the descaler to act effectively. Wait for the end of the cycle. · The descaling cycle ends when there is no more solution in the tank (5), the key (18)
turns white and the LEDS (21) and (25) remain lit. · Pour clean water into the tank (5) up to the "MAX" level to carry out the rinse cycle,
then press the button (18)
to start the
rinse cycle, the button (18)
flashes
and the LED (25) lights up steadily for the entire duration of the washing cycle. · The rinse cycle ends when the keys light up white.
If, at the end of the descaling
process, the LED (25) remains permanently lit, it indicates that a new descaling cycle must be carried out since the quantity of descaling solution that was used was insufficient for complete cleaning.
Personal injury hazard. · The descaler contains acids that
can irritate the skin and eyes. · Follow the manufacturer's
instructions and safety warnings on the packet scrupulously in the event of contact with skin or eyes. · Use descaler products recommended by Smeg to prevent damage to the coffee machine.
EN - 11
Cleaning and maintenance
Any other servicing should be performed by an authorized service representative.
"Empty system" procedure The `Empty system' procedure is recommended before long periods of non-use and before consulting a maintenance manager. · Activate the procedure by holding down
the key (16)
and the key (19)
simultaneously for three seconds, the key
(17)
and the key (19)
flash
simultaneously.
· The entire quantity of water in the tank is
drained through the coffee circuit.
· The pump continues to operate, even
intermittently, to also empty the internal
water circuits.
· At the end of the procedure the machine
switches off.
The empty system procedure takes several minutes and on-off cycles. Do not turn off the machine until the complete procedure is complete.
EN - 12
EN
What To Do If......
Problem
Possible causes
Plug not connected.
Solution
Connect the plug.
The machine doesn't turn on.
Plug not fully connected.
ON-OFF (9) button not pressed.
Fully connect the plug to the machine.
Press the button to start the machine.
The machine is on but does not work.
ON-OFF (9) button not working.
Empty tank alarm or missing
(LED 21
on).
No coffee alarm (LED 22 on).
Grounds container alarm
(LED 23
on).
Grounds container alarm
(LED 23
flashing).
Generic alarm (LED 24 flashing).
Generic alarm (LED 24 on).
Mandatory descaling alarm on (LED 25 flashing).
Contact an authorised service centre. Make sure the tank is correctly assembled or fill with water, or rinse to remove any scale residues. Pour coffee beans in the relevant container. Empty the grounds container. Note: empty by removing the drawer for at least 15 seconds with the machine on. Alarm 23 flashes to indicate the counter was correctly reset. Grounds container not correctly assembled or internal drip tray missing. Reassemble the components. Make sure the brewing group is correctly assembled and the door closed. Open the access door, remove the brewing unit, check and clean the movement area. If the problem persists, contact an authorised service centre. Run a descaling cycle.
EN - 13
Problem
Possible causes
Tank removed during dispensing or water under the minimum threshold.
Solution
Make sure the tank is correctly assembled or fill with water.
The machine stops when
dispensing.
The side door was opened Close the side door again.
during dispensing.
Incorrect water reading in the tank due to lime scale inside the tank.
Thoroughly clean and reassemble the tank. Run a descaling cycle if needed.
Alarm 21 not on but water missing.
Water erroneously poured Remove the tank and
in the tank gap.
thoroughly dry its
compartment.
Coffee is not hot.
Cups were not pre-heated. Heat cups by rinsing them with hot water (Note: the hot water function can be used).
Coffee is weak or with little cream.
Coffee too roughly ground.
Turn the knob counterclockwise to tighten the coffee grinders. Warning: to avoid machine damages, we strongly recommend you turn the knob when the machine is in the grinding phase.
Dispensing when there are Fill the bean container and
no more beans.
dispense coffee again.
EN - 14
EN
Problem
Possible causes
Coffee too finely ground.
Coffee dispensed slowly or in drips.
Solution
Turn the knob clockwise to loosen the coffee grinders. Note: some blends require
rougher grinding than others. To avoid machine damages, adjust grinding being sure to rotate the knob when the grinders are running.
Dispenser clogged.
Manually clean as indicated in paragraph "Cleaning and Maintenance".
The cycle was not completed.
A descaling cycle was completed by the machine does not work.
The tank was not filled to the maximum level during the descaling cycle or during the following rinse cycle.
Make sure the cycle and subsequent rinse are completed. After the first cycle, the machine requires a rinse cycle. Follow the instructions in paragraph "Cleaning and Maintenance".
Fill the tank being sure to empty the container under the dispenser. Press key 18
again to continue.
The machine does not turn off.
LED 21
is on
indicating no water in the
tank.
Fill the tank to let the machine run the final rinse cycle.
The machine emitted two beeps and the two button LEDS turned off. Drawer blocked.
General machine problem. Contact an authorised service centre.
Incorrect machine use.
Turn the machine off and on to return internal parts to their correct positions.
EN - 15
Problem
All buttons flash simultaneously.
Possible causes
Hydraulic circuit error.
Solution
Make sure there is water in the tank and wait for the circuit to reset. The machine automatically returns to its initial position. If the problem persists, contact an authorised service centre.
Contact local technical support if the problem is not solved or in case of other types of faults.
EN - 16
