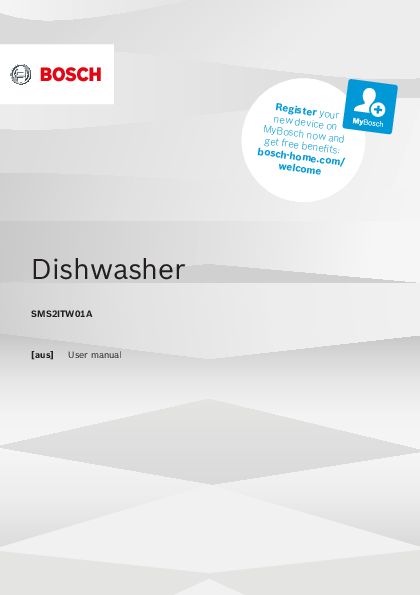

Dishwasher
SMS2ITW01A [aus] User manual
aus
Table of contents
Safety ............................................... 4 General information.......................... 4 Intended use..................................... 4 Restriction on user group................. 4 Safe installation ................................ 5 Safe use ........................................... 6 Damaged appliance ......................... 8 Risk to children ................................ 8 Safety systems ................................. 9 Preventing material damage ........ 10 Safe installation .............................. 10 Safe use ......................................... 10 Childproof lock.............................. 11 Door lock........................................ 11 Environmental protection and saving energy................................ 11 Disposing of packaging ................. 11 Saving energy................................. 12 AquaSensor.................................... 12 Installation and connection.......... 12 Scope of supply ............................. 12 Installing and connecting the appliance ............................................ 12 Drainage connection ...................... 13 Drinking water connection ............. 13 Electrical connection ...................... 13 Familiarising yourself with your appliance............................... 14 Appliance ....................................... 14 Controls .......................................... 15 Programmes .................................. 17 Information for test institute............ 18 Favourite .................................... 18 Additional functions ..................... 19
Features......................................... 19 Top basket ..................................... 19 Bottom basket ................................ 20 Cutlery basket ................................ 20 Etagere ........................................... 20 Basket heights................................ 21 Before using for the first time ...... 21 Making settings for initial startup ................................................... 21 Rinse aid system........................... 21 Rinse aid ........................................ 21 Setting the amount of rinse aid ...... 22 Switching the rinse aid system off ................................................... 22 Detergent ....................................... 23 Suitable detergents ........................ 23 Unsuitable detergents .................... 24 Information on detergents .............. 24 Adding detergent ........................... 24 Tableware ...................................... 25 Damage to glass and tableware .... 25 Arrange tableware .......................... 26 Removing tableware....................... 27 Basic operation ............................. 27 Opening appliance door ................ 27 Switching on the appliance ............ 27 Setting a programme ..................... 27 Setting additional functions ............ 27 Setting timer programming1 ........... 27 Starting the programme ................. 28 Interrupting programme ................. 28 Terminate programme.................... 28 Switching off appliance .................. 28 Basic settings................................ 29 Overview of basic settings ............. 29
1 Depending on the appliance specifications 2
aus Home Connect .............................. 30 Home Connect quick start ............. 31 Home Connect settings.................. 31 Remote Start ............................ 31 Remote Diagnostics ...................... 32 Software update ............................. 32 Data protection............................... 32 Cleaning and servicing ................. 32 Cleaning the tub ............................. 32 Cleaning products .......................... 32 Tips on appliance care................... 33 Machine Care .......................... 33 Filter system ................................... 34 Cleaning spray arms ...................... 35 Troubleshooting............................ 36 Appliance safety ............................. 36 Washing results .............................. 36 Home Connect problem................. 42 Information on display panel.......... 42 Malfunctions ................................... 42 Mechanical damage....................... 43 Noise .............................................. 44 Clean wastewater pump................. 45 Transportation, storage and disposal ......................................... 45 Removing the appliance ................ 45 Protect appliance from frost........... 46 Transporting the appliance ............ 46 Disposing of old appliance ............ 46 Customer Service.......................... 46 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) ..................... 47 AQUA-STOP guarantee .................. 47 Technical specifications............... 47 Information regarding Free and Open Source Software ................... 48 Declaration of Conformity............... 48
3
ausSafety
Safety
Please read the safety information to ensure that you use the appliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you
use the appliance safely and efficiently. ¡ Follow the safety instructions and warnings. ¡ Keep the instruction manual and the product information safe
for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the ap-
pliance if it has been damaged in transit. Intended use Read the information on intended use to ensure that you use the appliance correctly and safely. Only use this appliance: ¡ For cleaning household tableware. ¡ In private households and in enclosed spaces in a domestic en-
vironment. ¡ Up to an altitude of max. 4000 m above sea level. Restriction on user group Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised.
4
Safetyaus
Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance.
WARNING Risk of injury! Improper installation may cause injury. When installing and connecting the appliance, follow the in-
structions in the manual and installation instructions. WARNING Risk of electric shock! ¡ Improper installation is dangerous. Connect and operate the appliance only in accordance with
the specifications on the rating plate. Connect the appliance to a power supply with alternating
current only via a properly installed socket with earthing. The protective conductor system of the domestic electrical
installation must be properly installed. Never equip the appliance with an external switching
device, e.g. a timer or remote control. When the appliance is installed, the mains plug of the
power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations. When installing the appliance, check that the power cable is not trapped or damaged. ¡ Cutting through the supply hose or immersing the Aqua-Stop valve in water is dangerous. Never immerse the plastic housing in water. The plastic housing on the supply hose contains an electric valve. Never cut through the supply hose. The supply hose contains electric power cables.
5
ausSafety
WARNING Risk of fire! It is dangerous to use an extended power cord and non-approved adapters. Do not use extension cables or multiple socket strips. If the power cord is too short, contact Customer Service. Only use adapters approved by the manufacturer. WARNING Risk of burns! If the appliance is not installed properly, this may result in burns. With free-standing appliances, ensure that they are installed
with the back panel against a wall. Safe use
WARNING Risk of serious harm to health! Failure to comply with safety instructions and directions for use on packagings of detergent and rinse aid products may cause serious harm to health. Follow the safety instructions and directions for use on the
packagings of detergent and rinse aid products. WARNING Risk of explosion! ¡ Adding solvents to the interior of the appliance may cause explosions. Never add solvents to the interior of the appliance. ¡ Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning
agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g. grease filters of extractor hoods or aluminium pans), e.g. for the Machine Care programme.
6
Safetyaus
WARNING Risk of injury! ¡ Leaving the appliance door open may result in injury.
Only open the appliance door to load or unload tableware in order to prevent accidents, e.g. through tripping.
Do not sit or stand on the appliance door when open. ¡ Knives and utensils with sharp points can cause injuries.
Arrange knives and utensils with sharp points in the cutlery basket with the points downwards, on the knife shelf or in the cutlery drawer.
WARNING Risk of scalding! If you open the appliance door while the programme is running, hot water may splash out of the appliance. Open the appliance door carefully if the programme is still
running. WARNING Risk of tipping! Overfilling the Baskets may cause the appliance to tip up. Never overfill the Baskets with free-standing appliances. WARNING Risk of electric shock! ¡ An ingress of moisture can cause an electric shock. Only use the appliance in enclosed spaces. Never expose the appliance to intense heat or humidity. Do not use steam- or high-pressure cleaners to clean the
appliance. ¡ If the insulation of the power cord is damaged, this is danger-
ous. Never let the power cord come into contact with hot appli-
ance parts or heat sources. Never let the power cord come into contact with sharp
points or edges. Never kink, crush or modify the power cord.
7
ausSafety
Damaged appliance Follow the safety instructions if the appliance is damaged.
WARNING Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is danger-
ous. Never operate a damaged appliance. Never operate an appliance with a cracked or fractured sur-
face. Never pull on the power cord to unplug the appliance. Al-
ways unplug the appliance at the mains. If the appliance or the power cord is damaged, immediately
unplug the power cord or switch off the fuse in the fuse box and turn off the water tap. "Call Customer Service." Page 46 Repairs to the appliance should only be carried out by trained specialist staff. ¡ Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist staff. Only use genuine spare parts when repairing the appliance. If the power cord of this appliance is damaged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service. Risk to children Follow the safety instructions if there are children in your home. WARNING Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. Keep packaging material away from children. Do not let children play with packaging material. ¡ Children may breathe in or swallow small parts, causing them to suffocate. Keep small parts away from children. Do not let children play with small parts.
8
Safetyaus
WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then
cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. WARNING Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. Keep an eye on children when opening and closing the appliance door. WARNING Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes. Keep children away from detergent and rinse aid products. Keep children away from the appliance when open. The water in the interior of the dishwasher is not drinking water. It may contain residues of detergents and rinse aid. WARNING Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. Keep children away from the appliance when open. WARNING Risk of suffocation! Children may become trapped in the appliance and suffocate. Use the childproof lock if fitted. Never let children play with or operate the appliance. Safety systems Protect children from possible hazards resulting from the appliance. The appliance is equipped with a "Childproof lock " Page 11.
9
ausPreventing material damage
Preventing material dam- Preventingmaterialdamage age
Preventing material damage
Safe installation
Follow the instructions when installing the appliance. ATTENTION! ¡ Improper installation of the appli-
ance may cause damage. If the dishwasher is installed
above or below other domestic appliances, follow the information on installation in combination with a dishwasher in the installation instructions for the individual appliances. If there is no information or if the installation instructions do not include the relevant information, contact the manufacturer of these appliances to check that the dishwasher can be installed above or below these appliances. If no information is available from the manufacturer, the dishwasher should not be installed above or below such appliances. To ensure the safe operation of all domestic appliances, continue following the installation instructions for the dishwasher. Do not install the dishwasher under a hob. Do not install the dishwasher near heat sources, e.g. radiators, heat storage tanks, ovens or other appliances that generate heat. ¡ Modified or damaged water hoses may result in material damage and damage to the appliance. Never kink, crush, modify or cut through water hoses. 10
Only use the water hoses supplied with the appliance or genuine spare hoses.
Never re-use water hoses that have been used before.
¡ If the water pressure is too high or too low, this may impair functioning of the appliance. Make sure that the water pressure in the water supply system is min. 50 kPa (0,5 bar) and max. 1000 kPa (10 bar). If the water pressure exceeds the maximum value specified, a pressure-reducing valve must be installed between the drinking water connection and the hose set of the appliance.
Safe use
Follow the instructions when using the appliance. ATTENTION! ¡ Escaping water vapour can dam-
age fitted units. When the programme ends,
leave the appliance to cool down for a while before opening the door. ¡ Unsuitable cleaning agents may damage the appliance. Do not use a steam cleaner. So as not to scratch the finish on the appliance, do not use sponges with a rough surface or abrasive cleaning agents. To prevent corrosion, do not use sponge cloths on dishwashers with a stainless steel front or rinse such cloths thoroughly several times before using them for the first time.
Childproof lock Childprooflock
The Childprooflock childproof lock lets you protect children from possible hazards resulting from the appliance. The appliance is equipped with a door lock.
Door lock
The door lock is a mechanical safety system and makes it more difficult to open the appliance door. You can activate or deactivate the door lock.
WARNING Risk of suffocation! Children may become trapped in the appliance and thus suffocate. Activate the door lock and close
the appliance door. "Opening appliance door", Page 27 Activating the door lock Note: The door lock remains activated until it is deactivated manually. 1. Open the appliance door. 2. Pull the catch of the childproof
lock forwards and close the appliance door .
1
Childproof lockaus Deactivating the door lock 1. Open the appliance door. 2. Push the catch of the childproof
lock to the right and slide it backwards .
1
2
3. Close the appliance door.
Environmental protection Environmentalprotectionandsavingenergy and saving energy
Help protect the environment by us- Environmentalprotectionandsavingenergy ing your appliance in a way that conserves resources and by disposing of reusable materials properly.
Disposing of packaging
The packaging materials are environmentally compatible and can be recycled. Sort the individual components by
type and dispose of them separately. Information about current disposal methods are available from your specialist dealer or local authority.
2
11
ausInstallation and connection
Saving energy
If you follow these instructions, your appliance will use less electricity and less water. Use the Eco Wash programme.
The Eco Wash programme is energy-efficient and environmentally friendly. "Programmes", Page 17
AquaSensor
The AquaSensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water. You can save water with the AquaSensor. Use of the AquaSensor depends on the programme. If the soiling level is high, the rinsing water is drained off and replaced with fresh water. If the soiling level is lower, the rinsing water is used in the next wash cycle, so reducing water consumption by 3-6 litres. In the automatic programmes the temperature and run time are additionally adjusted to the level of soiling.
Installation and connec- Installationandconnection tion
Installation and connection
Scope of supply
After unpacking all parts, check for any damage in transit and completeness of the delivery. If you have any complaints, contact the dealer who sold you the appliance or our Customer Service. Note: The appliance was tested at the factory to check it is in working order. It is possible that water has left
12
marks on the appliance. These marks will disappear after the first wash cycle. The delivery consists of the following: ¡ Dishwasher ¡ Operating instructions ¡ Installation Instructions ¡ Warranty ¡ Installation material ¡ Mains cable
Installing and connecting the appliance
You can position your built-under or integrable appliance in a fitted kitchen between wooden and plastic walls. If you subsequently install your dishwasher as a free-standing appliance, you must stop it from tipping over, e.g. by screwing it to the wall or installing it under a continuous worktop that is securely connected to adjacent cabinets. 1. "Follow the safety instructions."
Page 4 2. Follow the instructions for electrical
connection. 3. Check the Scope of supply and
the condition of the appliance. 4. Consult the installation instructions
for the installation dimensions required. 5. Make the appliance level using the height-adjustable feet. Make sure that the appliance is standing on the floor securely. 6. "Install the drainage connection." Page 13 7. "Install the drinking water connection." Page 13 8. Connect the appliance to the power supply.
Drainage connection
Connect your appliance to drainage connection so dirty water is discharged via the wash cycle.
Installing the drainage connection 1. Consult the installation instructions
supplied for the steps required here. 2. Connect the wastewater hose to the outlet connection of the siphon using the enclosed parts. 3. When doing so, check that the wastewater hose is not kinked, crushed or twisted. 4. Also check that there is no cover in the drainage system preventing the wastewater from being discharged.
Drinking water connection
Connect your appliance to a drinking water connection.
Installing the drinking water connection Note: If you are replacing the appliance, you must use a new water supply hose. 1. Consult the installation instructions
supplied for the steps required here. 2. Connect the appliance to the drinking water connection using the enclosed parts. Observe the Technical data. 3. When doing so, check that the drinking water connection is not kinked, crushed or twisted.
Installation and connectionaus
Electrical connection
Connect your appliance to the power supply.
Connecting the appliance to the electricity supply Notes ¡ Follow the "Safety instructions"
Page 5. ¡ Please note that the water safety
system is only functional if there is a power supply. 1. Insert the non-heating appliance plug of the power cable into the appliance. 2. Insert the mains plug of the appliance into a nearby socket. The connection data for the appliance can be found on the rating plate. 3. Check that the mains plug is inserted properly.
13
ausFamiliarising yourself with your appliance
Familiarising yourself with your appliance Familiarisingyourselfwithyourappliance
Familiarising yourself with your appliance
Appliance
You can find an overview of the parts of your appliance here.
6
7
5
8
4 9
3
10
2
11
1
1
Rating plate
Rating plate with "E number and FD number" Page 47. The data you need for "Customer Service" Page 46.
1 Depending on the appliance specifications
14
Familiarising yourself with your applianceaus
2
Detergent dispenser
"Detergent" Page 23 is added to the detergent dispenser.
3
Bottom basket
"Bottom basket" Page 20
4
Lower spray arm
The lower spray arm washes the tableware in the bottom basket. If the tableware has not been washed properly, clean the spray arms. "Cleaning spray arms", Page 35
5
Tablet collecting tray
During the wash cycle tablets automatically fall out of the detergent dispenser into the tablet collecting tray where they can fully dissolve.
6
Top basket
Top basket
7
Cutlery shelf1
"Cutlery shelf" Page 20
8
Upper spray arm
The upper spray arm washes the tableware in the top basket. If the tableware has not been washed properly, clean the spray arms. "Cleaning spray arms", Page 35
9
Filter system
"Filter system" Page 34
10 Cutlery basket
"Cutlery basket" Page 20
11 Dispenser for rinse aid
Add rinse aid to the dispenser for rinse aid. "Rinse aid system", Page 21
1 Depending on the appliance specifications
Controls
You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions.
15
ausFamiliarising yourself with your appliance
12 3
4567 8
ABC
13
1
ON/OFF button and reset button
2
Programme button
3
Programmes
4
Rinse aid refill indicator
5
WLAN display
6
Water supply display
7
button
8
Start button
9
Programme buttons and additional functions
10 Remote Start
11 Timer programming1
12 Programme sequence display
13 Door opener1
1 Depending on the appliance specifications
12 11 10 9
"Switching on the appliance" Page 27 "Switching off the appliance" Page 28 "Terminating the programme" Page 28 Programmes
Programmes
"Rinse aid system" Page 21
"Home Connect" Page 30
Display for water supply
If you press
for approx. 3 seconds,
you can open the basic settings.
"Starting the programme" Page 28
Programmes "Additional functions" Page 19 "Remote Start ", Page 31
"Setting timer programming" Page 27
The programme sequence display shows the current cycle of the appliance, e.g. washing, rinsing or drying. "Opening the appliance door" Page 27
16
Programmesaus
Programmes Programmes
You Programmes can find an overview of the programmes that can be selected here. Different programmes, which can be found on the control panel of your appliance, are available depending on the appliance configuration. The running time may vary depending on the programme selected. The running time depends on the water temperature, the quantity of tableware, the level of soiling and the "Ad-
ditional function" Page 19 selected. The running time will change if the rinse aid system is switched off or rinse aid needs to be added. The programme data is based on values measured in the laboratory according to AS/NZS 2007. Different influencing factors such as water temperature or pipe pressure may result in deviations.
Programme Pots / Pans Auto Wash Eco Wash
Consumption values 1) Duration in hrs:mins 2) Energy consumption in kWh 3) Water consumption in litres ¡ 1) 2:10 - 2:15 ¡ 2) 1,350 - 1,400 ¡ 3) 10,5 - 13,5
¡ 1) 2:00 - 3:00 ¡ 2) 0,950 - 1,450 ¡ 3) 9,2 - 15,5
¡ 1) 2:55 ¡ 2) 0,690 ¡ 3) 12,7
Use
Programme se-
quence
Tableware: ¡ Pots and pans, non-
fragile tableware and cutlery Level of soiling: ¡ Stubborn burned or dried-on food remnants containing starch and protein
Intensive: ¡ Pre-Rinse ¡ Cleaning 70 °C ¡ Intermediate rinse ¡ Final rinse 69 °C ¡ Drying
Tableware:
Sensor-controlled:
¡ Mixed tableware ¡ Optimised by
and cutlery
sensors depending
Level of soiling: ¡ Common household
food remnants
on the soiling level of the washing water
lightly dried on
Tableware:
Most economical pro-
¡ Mixed tableware gramme:
and cutlery
¡ Pre-Rinse
Level of soiling: ¡ Normally soiled load
¡ Cleaning 45 °C ¡ Intermediate rinse ¡ Final rinse - °C
¡ Drying
17
ausProgrammes
Programme
Quick 1h Machine Care Favourite
Consumption values 1) Duration in hrs:mins 2) Energy consumption in kWh 3) Water consumption in litres ¡ 1) 1:00 ¡ 2) 1,200 ¡ 3) 10,0
¡ 1) 2:10 ¡ 2) 1,450 ¡ 3) 15,0 ¡ 1) 0:15 - 0:15 ¡ 2) 0,050 - 0,050 ¡ 3) 4,0 - 4,0
Use
Programme se-
quence
Tableware:
Time-optimised:
¡ Mixed tableware ¡ Cleaning 65 °C
and cutlery
¡ Intermediate rinse
Level of soiling: ¡ Common household
¡ Final rinse 69 °C ¡ Drying
food remnants
lightly dried on
Use only if appliance is Machine Care 70 °C unloaded.
-
-
Information for test institute
Test institutes can request the conditions for comparison tests, e.g. according to AS/NZS2007, by sending an e-mail to dishwasher@test-appliances.com. These are the conditions for conducting the tests, however not the results or consumption values. The product number (E-Nr.) and the production number (FD) are required here. They can be found on the rating plate on the appliance door. Open ajar using a block of approximately 100 mm upon completion of dry test.
Favourite
You can save a combination of a programme and an additional function to the button. You can save the programme via the Home Connect app. The pre-rinse program is saved to this button at the factory. Pre-rinse is suitable for all types of tableware. The tableware undergoes intermediate cleaning via cold rinsing. Tip: You can use the Home Connect app to download additional programmes and save them to the button.1
1 Depending on the appliance specifications 18
Additional functions Additionalfunctions
You can find an overview of the addi- Additionalfunctions tional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration.
Additional func- Use tion
SpeedPerfect
¡ The run time is shortened by 15% to 75% depending on the rinse programme.
¡ The additional function can be activated before the start of the programme and at any time when the programme is running.
¡ Energy and water consumption are increased.
HygienePlus
¡ To ensure a higher hygiene status for the appliance and tableware, the temperature is raised and maintained for an extra-long period.
¡ Especially suitable for cleaning chopping boards or baby bottles.
¡ Continuous use of this function increases the hygiene status.
¡ This will increase the run time and energy consumption.
Extra Dry
¡ For a better drying result the final rinse temperature is increased and the drying phase extended.
¡ Especially suitable for drying plastic parts.
Additional functionsaus Additional func- Use tion
¡ There is a slight increase in energy consumption and the run time is extended.
Features Features
You Features can find an overview of the possible features of your appliance and how to use them here. These features depend on the model of your appliance.
Top basket
Arrange cups and glasses in the top basket.
19
ausFeatures
Bottom basket
Arrange pans and plates in the bottom basket.
Cutlery basket
Arrange cutlery in the cutlery basket, always without sorting it and with the sharp points downwards.
a
Cutlery basket 1 Large plates up to a diameter of 31 cm can be arranged in the bottom basket as shown.
Etagere
Use the cutlery shelf and space underneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery.
If you do not need the cutlery shelf, you can fold it up.
1 Depending on the appliance specifications 20
Basket heights
Set the baskets at the right height.
Appliance height 81.5 cm with cutlery basket
Setting 1 max. ø 2 max. ø 3 max. ø
Top basket 22 cm 24.5 cm 27 cm
Before using for the first timeaus
Bottom basket 31 cm 27.5 cm 25 cm
Before using for the Beforeusingforthefirsttime first time
Configure the settings for initial start- Beforeusingforthefirsttime up.
Making settings for initial start-up
On initial start-up or after a reset to the factory settings, you will need to make settings. Tip: Connect your appliance to a mobile device. You can conveniently change all settings via the Home Connect app. "Home Connect quick start", Page 31 Requirement: "The appliance has been installed and connected." Page 12 1. "Add rinse aid." Page 21 2. "Switch on the appliance."
Page 27 3. "Set the amount of rinse aid to be
dispensed." Page 22 4. "Add detergent" Page 23. 5. Start the "Programme with the
highest cleaning temperature" Page 17 without tableware.
We recommend you clean the appliance without tableware before using it for the first time to remove any marks from water or other residues. Tip: You can change this setting and other "Basic settings" Page 29 at any time again.
Rinse aid system Rinseaidsystem
You can use the rinse aid system Rinseaidsystem and rinse aid to get tableware and glasses rinsed perfectly without marks.
Rinse aid
For optimum drying results, use rinse aid. Only use rinse aid for domestic dishwashers. Adding rinse aid If the rinse aid refill indicator lights up, top up with rinse aid. Only use rinse aid for domestic dishwashers.
21
ausRinse aid system 1. Press the catch on the lid of the
dispenser for rinse aid and lift .
2
1
2. Add rinse aid up to the max mark.
max
3. If rinse aid spills out, remove it from the tub. Spilled rinse aid can cause excessive frothing during the wash cycle.
4. Close the lid of the dispenser for rinse aid.
a The lid clicks into position.
Setting the amount of rinse aid
If there are streaks or water marks on tableware, change the amount of rinse aid.
1. Press .
2. To open the appliance settings,
press
for 3 seconds.
3. Press flashes.
repeatedly until
4. Press
repeatedly until the
right amount of rinse aid has been
set.
0, 1, 2 or 3 LEDs will light up accordingly. The factory setting is level 2 ("LED A and LED B" Page 15). A low setting adds less rinse aid
during the wash cycle and reduces streaking on tableware. A higher setting adds more rinse aid during the wash cycle, reduces water marks and improves the drying result.
5. To save the settings, press for 3 seconds.
Switching the rinse aid system off
If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid component, you can switch the rinse aid system off.
Tip: The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid.
1. Press .
2. To open the appliance settings,
press
for 3 seconds.
3. Press flashes.
repeatedly until
4. Press
repeatedly until no
"LED" Page 15 lights up (level
0).
5. To save the settings, press for 3 seconds.
a The rinse aid system is switched
off and the rinse aid refill indicator
is deactivated.
22
Detergent Detergent
Find Detergent out which detergents are suitable for your appliance.
Suitable detergents
Only use detergents that are suitable for dishwashers. Both separate and combined detergents are suitable. For optimum washing and drying results, use separate detergent together with "Rinse aid" Page 21. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygenbased bleaching agents are generally used to remove coloured stains, e.g. tea or ketchup. Note: Follow the manufacturer's instructions for each detergent.
Detergent Tabs
Powder detergent Liquid detergent
Description Tabs are suitable for all cleaning functions and do not need to be measured out. With shorter "Programmes" Page 17 tabs sometimes do not dissolve entirely and leave residues of detergent. This may impair the cleaning effect. Powder detergent is recommended for shorter "Programmes" Page 17. The dosage can be adjusted to the level of soiling. Liquid detergent works faster and is recommended for
Detergentaus
Detergent
Description shorter "Programmes" Page 17 without PreRinse. Sometimes liquid detergent may leak out despite the detergent dispenser being closed. This is not a fault and is non-critical if you remember the following: ¡ Only choose a pro-
gramme without PreRinse. ¡ Do not select timer programming for starting the programme.
The dosage can be adjusted to the level of soiling.
Tip: Suitable detergents are available online via our website or from "Customer Service" Page 46.
Separate detergents Separate detergents are products that do not contain components other than detergent, e.g. powder or liquid detergent. With powder and liquid detergent the dosage can be individually adjusted to the level of soiling of the tableware. For better washing and drying results, please also use "Rinse aid" Page 21.
Combined detergents Besides conventional separate detergents, a number of products are available with additional functions. These products not only contain detergent, but also rinse aid and salt replacement substances (3in1) and, depending on the combination (4in1,
23
ausDetergent
5in1,...), additional components such as glass protection or stainless steel cleaner. Note: Follow the manufacturer's instructions for each detergent. If you are using combined detergent, the washing programme is adjusted automatically to ensure the best possible washing and drying result.
Unsuitable detergents
Do not use detergent which could cause damage to the appliance or present a risk to health.
Detergent
Description
Hand washing-up Hand washing-up liquid
liquid
can cause increased froth-
ing and damage the appli-
ance.
Detergent containing chlorine
Chlorine residue on tableware may present a risk to health.
Information on detergents
Follow the instructions on detergents in everyday use. ¡ Detergents marked as "organic" or
"ecological" (environmentally friendly) generally contain lower levels of active agents or completely dispense with certain substances. The cleaning effect may be restricted here. ¡ Set the rinse aid system to the separate or combined detergent in use. ¡ Follow the manufacturer's instructions for each detergent. ¡ To prevent sticking, only touch detergents in a water-soluble pouch with dry hands and only ever place them in a dry detergent dispenser.
¡ Even if the rinse aid refill indicator lights up, washing programmes will still run properly with combined detergents.
¡ The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid.
¡ Use tablets with a special drying performance.
Adding detergent
1. To open the detergent dispenser, press the locking latch.
2. Add the detergent to the dry detergent dispenser.
50 ml 25 ml 15 ml
If you are using tablets, one is enough. Insert the tablets in a horizontal position. If you are using powder or liquid detergent, follow the manufacturer's instructions and quantities for dosage in the detergent dispenser. 20 ml 25 ml detergent is sufficient for normal soiling. If tableware is only lightly soiled, slightly less than the amount of detergent specified is usually sufficient.
24
3. Close the lid of the detergent dispenser.
a The lid clicks into position. a The detergent dispenser will open
automatically at the optimum time during the programme. Powder or liquid detergent will spread around the washing tank and dissolve there. Tablets will fall into the tablet collecting tray and dissolve in the right dosage. In order to ensure that tablets can dissolve evenly, do not place any other objects in the tablet collecting tray. Tip: If you use powder detergent and select a program with pre-rinse, you can also add a little detergent to the interior door of the appliance.
Tableware Tableware
Only Tableware clean tableware that is suitable for dishwashers. Note: Decorated glassware and parts made of aluminium or silver may fade or discolour with dishwashing. Delicate types of glass may turn cloudy after a few washing cycles.
Tablewareaus
Damage to glass and tableware
Avoid damage to glass and tableware.
Cause
Recommendation
The following table- Only put tableware in
ware is not dish-
the dishwasher if it is
washer-safe:
marked as dish-
¡ Items of cutlery washer-safe by the
and tableware manufacturer.
made from wood
¡ Decorated glass-
ware, antique and
hand-crafted table-
ware
¡ Plastic parts not
resistant to heat
¡ Tableware made
from copper or tin
¡ Tableware soiled
with ash, wax, lub-
ricating grease or
paint
¡ Very small items of
tableware
Glass and tableware was not dishwashersafe.
Only put glasses and china in the dishwasher if it is marked as dishwasher-safe by the manufacturer.
The chemical composition of the detergent causes damage.
Use a detergent marked as gentle on tableware by the manufacturer.
Highly caustic alkaline If you are using highly
or highly acidic clean- caustic alkaline or
ing agents, in particu- highly acidic cleaning
lar commercial or in- agents, in particular
dustrial cleaning
commercial or indus-
agents, are not suit- trial cleaning agents,
able for dishwashers do not put aluminium
in conjunction with parts in the dish-
aluminium.
washer interior.
25
ausTableware
Cause
Recommendation
The water temperat- Select a programme
ure of the programme with lower temperat-
is too high.
ures.
After the programme
has ended, take glass-
ware and cutlery out
of the appliance
without delay.
Arrange tableware
Arrange the tableware correctly to optimise the dishwashing result and prevent damage to both the appliance and tableware. Tips ¡ Using the appliance allows you to
save energy and water compared to washing-up by hand. ¡ See our website for examples of how to load your appliance efficiently, free of charge. ¡ To save energy and water, load the machine with the number of place settings specified. ¡ For better washing and drying results, position items with curves or recesses at an angle so the water can run off.
2. Observe the following when arranging tableware: Put heavily soiled tableware in the bottom basket, e.g. pans. The more powerful the spray jet, the better the dishwashing result will be. To prevent damage to tableware, arrange it so it is stable and cannot tip over. To prevent injury, arrange cutlery with the points and sharp edges downwards. Position containers with the openings facing down so no water can collect in them. Do not block the spray arms make sure that they can turn freely. Do not place small parts in the tablet collecting tray and do not block it with tableware so as not to obstruct the lid of the detergent dispenser.
1. Remove large remnants of food from your tableware. To save resources, do not prerinse tableware under running water.
26
Removing tableware
WARNING Risk of injury! Hot tableware can cause burns to the skin. When hot, tableware is sensitive to shock, may crack and can result in injury. When the programme has ended,
do not empty the appliance until the tableware has cooled down for a while. 1. To prevent water dripping on the tableware, unload it starting at the bottom and working up. 2. Check the washing tank and accessories for soiling and clean if necessary. "Cleaning and servicing", Page 32
Basic operation Basicoperation
Basic operation
Opening appliance door
1. If the childproof lock is not activated, open the appliance door.
2. If the childproof lock is activated, press the catch of the lock to the right and open the appliance door .
1
2
Basic operationaus
Switching on the appliance
Press . The programme last selected will be set by default. If you do not perform any actions on the appliance for 10 minutes, the appliance will automatically switch off.
Setting a programme
To adjust the wash cycle to the soiling level of the tableware, select a suitable programme. Press the programme button re-
peatedly until the right programme has been selected. a The programme is set and the LED flashes.
Setting additional functions
You can set additional functions to complete the washing programme selected. Note: The additional functions which can be used depend on the programme selected. Press the button for the relevant
additional function. "Additional functions", Page 19 a The additional function is set and the additional function button flashes.
Setting timer programming1
You can delay the start of the programme by 3, 6 or 9 hours. 1. Press repeatedly until the relev-
ant display lights up. 2. To activate timer programming,
press .
1 Depending on the appliance specifications 27
ausBasic operation
Note: To deactivate timer programming, press repeatedly until none of the displays 3h, 6h or 9h light up.
Starting the programme
Press . a The programme has ended when
no indicators on the controls light up. Notes ¡ If you want to add more tableware while the appliance is running, do not use the tablet collecting tray as a handle for the top basket. You might touch the partially dissolved tablet. ¡ You can only change a programme when running if you cancel it. "Terminate programme", Page 28 ¡ The appliance switches off automatically 1 minute after the end of the programme to save energy. If you open the appliance door immediately after the programme has ended, the appliance will switch off after 4 seconds. Tip: To assist the drying, we recommend that the door will be partially opened after the cycle.
Interrupting programme
Note: When you open the appliance door once the appliance has heated up, leave the door slightly ajar for a few minutes and then close it. This will help prevent excess pressure building up in the appliance and stop the appliance door bursting open. 1. Press . a The programme is saved and the
appliance switches off. 2. Press to resume the pro-
gramme.
28
Terminate programme
To end a programme early or to switch from a programme that has already started, you will need to cancel it first.
Press
for approx.
4 seconds.
a All displays light up.
a As soon as the displays are off,
the residual water is pumped out.
a The programme is cancelled and
ends after approx. 1 minute.
Switching off appliance
1. Please note the information on "Safe use" Page 10.
2. Press . Tip: If you press during the wash cycle, the programme currently running will be interrupted. When you switch the appliance back on, the programme continues automatically.
Basic settingsaus
Basic settings Basicsettings
You Basicsettings can configure the appliance to meet your needs.
Overview of basic settings
The basic settings depend on the features of your appliance.
Basic setting Rinse aid disp.
Extra Dry
Selection Scale with 4 levels
On Off 1
Wi-Fi Remote Start Factory setting
On Off 1 Scale with 3 levels
Reset
1 Factory setting (may vary according to model)
Description Set the amount of rinse aid to be dispensed or switch off. "Setting the amount of rinse aid", Page 22
Switch Extra Dry on or off for each operation. For a better drying result the temperature in the final rinse is increased. This may increase the running time slightly. Note: Please take care with delicate tableware. "Setting Extra Dry", Page 29
Switch the wireless network connection on or off. "Set Wi-Fi", Page 30
Activate or deactivate the function. "Activating Remote Start ", Page 30
Restore changed settings to the factory settings. The settings for initial start-up must be configured. "Restoring factory settings", Page 30
Setting Extra Dry
1. Press .
2. To open the appliance settings,
press
for 3 seconds.
3. Press
repeatedly until
and flash in the display.
4. Press
repeatedly until the
LEDs show the right value.
If "LED A" Page 15 is not lit, Extra Dry is switched off. If "LED A" Page 15 is lit, Extra Dry is switched on.
29
ausHome Connect
5. To save the settings, press for 3 seconds.
Set Wi-Fi
1. Press .
2. To open the appliance settings,
press
for 3 seconds.
3. Press
repeatedly until
and flash in the display.
4. Press
repeatedly until the
LEDs show the right value.
If "LED A" Page 15 is not lit, the wireless network connection is switched off. If "LED A" Page 15 is lit, the wireless network connection is switched on. 5. To save the settings, press
for 3 seconds.
Activating Remote Start
1. Press .
2. To open the appliance settings,
press
for 3 seconds.
3. Press
repeatedly until
flashes on the display.
4. Press
repeatedly until the
LEDs show the right value.
If LED A lights up, the function is permanently deactivated. If LED A and LED B light up, the function can be selected using the
button. If LED A, LED B and LED C light up, the function is permanently activated. The factory setting is level 2 ("LED A and LED B" Page 15). 5. To save the settings, press
for 3 seconds.
Restoring factory settings 1. Press .
2. To open the appliance settings,
press
for 3 seconds.
3. Press
repeatedly until ,
and flash in the display.
4. Press
to set the appliance
back to the factory settings.
a The appliance is reset.
Home Connect HomeConnect
This HomeConnect appliance is network-capable. Connect your appliance to a mobile device to control its functions via the Home Connect app. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi1) and to the Home Connect app. ¡ "Connecting the appliance to
WLAN home network (Wi-Fi)", Page 31 The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings. Tips ¡ Please consult the documents supplied by Home Connect. ¡ Please also follow the instructions in the Home Connect app. Note: Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. "Safety", Page 4
1 Wi-Fi is a registered trademark of the Wi-Fi Alliance. 30
Home Connect quick start
Connect your appliance to a mobile device quickly and easily. Installing app 1. Install the Home Connect app on
your mobile device.
2. Start the app and set up access for Home Connect. The Home Connect app guides you through the entire login process.
Connecting the appliance to WLAN home network (Wi-Fi) Requirements ¡ Home Connect app is installed on
your mobile device. ¡ Wi-Fi on the router is activated. ¡ The basic setting Wi-Fi is activated
on the appliance. ¡ The appliance receives signals
from the WLAN home network (WiFi) at its installation location. 1. With the help of the Home Connect App scan the QR code.
2. Follow the instructions in the Home Connect app.
Home Connect aus
Home Connect settings
Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.
Remote Start
You can use the Home Connect app to start the appliance with your mobile device. Tip: If you permanently activate this function in the "Basic settings " Page 30, you can start your appliance with a mobile device at any time.
Activating Remote Start When you have selected level 2 in the basic settings of this function, activate the function on your appliance. Requirements ¡ The appliance is connected to your
WLAN home network. ¡ The appliance is connected to the
Home Connect app. ¡ Level 2 is selected in the "Basic
settings " Page 29 of this function. ¡ A programme is selected. Press . If you open the appliance door, the function is automatically deactivated. a button lights up. Tip: To deactivate the function, press .
31
ausCleaning and servicing
Remote Diagnostics
Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com
Software update
You can use this function to update the software of your appliance, e.g. for optimisation, troubleshooting or safety-relevant updating. The Home Connect app informs you about available software updates.
Data protection
Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration): ¡ Unique appliance identification
(consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed). ¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ¡ The current software and hardware version of your appliance. ¡ Status of any previous reset to factory settings.
This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time. Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.
Cleaning and servicing Cleaningandservicing
To keep your appliance working effi- Cleaningandservicing ciently for a long time, it is important to clean and maintain it carefully.
Cleaning the tub
WARNING Risk of harm to health! Using detergents containing chlorine may result in harm to health. Never use detergents containing
chlorine. 1. Remove any coarse soiling in the
interior with a damp cloth. 2. Add detergent to the detergent dis-
penser. 3. Select the programme with the
highest temperature. 4. "Start the programme without
tableware." Page 28
Cleaning products
Only use suitable cleaning products to clean your appliance. "Safe use", Page 10
32
Cleaning and servicingaus
Tips on appliance care
Follow the tips on appliance care to make sure your appliance functions properly at all times.
Action Wipe the door seals, the front of the dishwasher and the con-
Benefit This ensures the parts of the appliance will remain clean and hygienic.
Action
Benefit
trol panel regularly using a damp cloth and washing-up liquid.
If the appliance is not This will prevent ungoing to be used for a pleasant odours. while, leave the door slightly ajar.
Machine Care
Deposits, e.g. from remnants of food and limescale, can cause your appliance to malfunction. To avoid such faults and reduce odours, we recommend cleaning your appliance at regular intervals. Machine Care combined with machine care products and machine cleaners is the right programme for the care of your appliance.
Tip: You can get our tested and approved Dishwasher Care and Machine Cleaner for Dishwashers online at https://www.bosch-home.com/ store or from customer service. Machine Care is a programme which removes various deposits in one washing cycle. Cleaning takes place in two phases:
Phase 1
2
Removal of Grease and limescale
Food remnants and deposits
Detergent
Placement
Liquid machine care product Appliance interior, e.g. bottle
or machine descaler in
hung in the cutlery basket or
powder form.
powder in the interior.
Machine cleaner
Detergent dispenser
To ensure optimum cleaning performance, the programme doses the detergents independently of each another during the relevant cleaning phase. Correct placement of the detergents is necessary here. Run Machine Care without tableware if the indicator for Machine Care lights up on the control panel or if advised to do so by the display. The indicator will go out after you have run Machine Care. If your appliance does not have a reminder function, we recommend performing Machine Care every 2 months.
Running Machine Care Run the Machine Care programme if the indicator for Machine Care lights up on the control panel or if advised to do so by the display.
Notes ¡ Run the Machine Care programme
without any tableware in the dishwasher. ¡ Only use machine care products and machine cleaners specially designed for dishwashers.
33
ausCleaning and servicing
¡ Make sure that there are no aluminium parts, e.g. extractor hood grease filters or aluminium pans, in the interior of the appliance.
¡ If you have not run Machine Care after 3 washing cycles, the indicator for Machine Care will go out automatically.
¡ For optimum cleaning performance, ensure the correct placement of cleaners.
¡ Follow the safety instructions given on the packagings of the machine care products and machine cleaners.
1. Remove any coarse soiling in the interior with a damp cloth.
2. Clean the filters. 3. Place the machine care product in
the appliance interior. Only use machine care products specially designed for dishwashers. 4. Pour the machine cleaner into the detergent dispenser until it is filled completely. Do not place any additional machine cleaner in the appliance interior. 5. Press . 6. Press . a Machine Care is run. a Once the programme has ended, the indicator for Machine Care goes out.
Filter system
The filter system removes coarse soiling from the dishwashing cycle.
3
2
1
1 Micro filter 2 Fine filter 3 Coarse filter
Cleaning filters Soiling in the dishwashing water may block the filters. 1. After each wash check the filters
for residue. 2. Turn the coarse filter anticlockwise
and remove the filter system . Check that no foreign objects
fall into the sump.
2
1
34
3. Pull down the micro filter to remove.
Cleaning and servicingaus
Cleaning spray arms
Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. 1. Unscrew the upper spray arm
and pull down to remove .
4. Press the locking catches together and lift the coarse filter out . 2 1
1
2
2. Pull up the lower spray arm to remove.
5. Clean the filter elements under running water. Carefully clean the rim of dirt between the coarse and the fine filter.
6. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
7. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.
3. Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign bodies.
4. Insert the lower spray arm. a The spray arm clicks into position. 5. Insert the upper spray arm and
screw it firmly in place.
35
ausTroubleshooting
Troubleshooting Troubleshooting
You Troubleshooting can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.
WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist
staff. Only use genuine spare parts when repairing the appliance. If the power cord of this appliance is damaged, it must be replaced with a
special connection cable, which is available from the manufacturer or his Customer Service.
Appliance safety
Fault
Cause
Troubleshooting
Appliance door will not open Childproof lock is activated. "Open the appliance door."
or cannot be opened easily.
Page 27
Washing results
Fault Tableware is not dry.
Cause No rinse aid used or dosage set too low.
Programme or programme option has no drying phase, or the drying phase is too brief.
Troubleshooting 1. Add "Rinse aid" Page 21. 2. Set the amount of rinse aid to be
dispensed. "Setting the amount of rinse aid", Page 22
Select a programme with drying, e.g. intensive, strong or ECO programme. Some option buttons decrease the drying result, e.g varioSpeed.
36
Fault Tableware is not dry.
Troubleshootingaus
Cause
Troubleshooting
Water collects in recesses of Position tableware at an angle
the tableware or cutlery.
where possible.
Plastic tableware is not dry. Cutlery is not dry.
Appliance interior still wet after wash cycle.
The combined detergent used has a poor drying performance.
1. Use rinse aid to improve drying performance.
2. Use a different combined detergent with a better drying performance.
Extra Dry not activated to im- Activate Extra Dry. prove drying performance.
Tableware removed too early or drying process not yet ended.
1. Wait until the programme ends. 2. Only remove tableware 30 minutes
after the programme has ended.
Rinse aid used has a limited Use a name-brand rinse aid.
drying performance.
Eco products may have limited ef-
fectiveness.
Not a fault. As plastic does No remedial action possible. not store heat so well, it also does not dry as well.
Cutlery not arranged properly in the cutlery basket or cutlery drawer.
Droplets can form on the cutlery contact points. 1. "Arrange cutlery individually where
possible." Page 26 2. Avoid points of contact.
Not a fault. The condensation drying principle causes water droplets in the tub they are indeed desirable here. The moisture in the air condenses on the inside walls, runs off and is pumped out.
No action required.
37
ausTroubleshooting
Fault Remnants of food on tableware.
Detergent residue in the appliance
Cause
Troubleshooting
Tableware is placed too close together or basket is overfilled.
1. Arrange tableware with sufficient space in between. The spray jets must reach the surfaces of the tableware.
2. Avoid points of contact.
Spray arm rotation is blocked.
Arrange tableware so that it does not obstruct spray arm rotation.
Spray arm nozzles are blocked.
Clean the "Spray arms" Page 35.
Filters are soiled.
Clean the filters. "Cleaning filters", Page 34
Filters are inserted incorrectly and/or not engaged.
1. Insert the filters properly. "Filter system", Page 34
2. Engage the filters.
Washing programme selec- Select a more intensive washing
ted too weak.
programme.
Tableware has been pre- Only remove large remnants of food
cleaned too intensely. The
and do not prerinse tableware.
sensors chose a weaker pro-
gramme. Stubborn soiling
cannot be entirely removed.
Tall narrow receptacles in Do not position tall narrow recept-
corner areas are not rinsed acles at too great an angle or in
adequately.
corner areas.
Top baskets on right and left Set the top baskets on the left and
are not set to same height.
right to the same level.
Lid of the detergent dispenser is blocked by items of tableware parts and will not open.
1. Arrange tableware in the top basket tableware so the tab collecting tray is not obstructed by tableware. "Arrange tableware", Page 26 Items of tableware are blocking the dispenser lid.
2. Do not place tableware or fragrance dispensers in the tablet collecting tray.
The lid of the detergent dis- Position the tab in the detergent dispenser is blocked by the tab penser crosswise, not vertically. and will not open.
38
Troubleshootingaus
Fault
Cause
Troubleshooting
Detergent residue in the appliance
Tabs are used in the quick Select a more intensive Programme or short programme. Dissolv- or use Powder detergent. ing time of the tab is not attained.
Washing effect and dissolving performance are reduced after a prolonged storage time or detergent is very lumpy.
Change your "detergent" Page 23.
Water marks on plastic parts.
Due to laws of physics
Select a more intensive pro-
droplet formation on plastic gramme.
surfaces is unavoidable. After drying water marks are visible.
Position tableware at an angle. "Arrange tableware", Page 26
Use rinse aid.
"Rinse aid", Page 21
Wipeable or water-soluble Detergent substances are Change your "detergent"
coatings are present inside deposited there. These coat- Page 23.
the appliance or on the door. ings cannot generally be removed with chemicals.
Clean the appliance mechanically.
Stubborn white coatings are Detergent substances are Change your "detergent"
present on tableware, inside deposited there. These coat- Page 23.
the appliance or the door.
ings cannot generally be removed with chemicals.
Clean the appliance mechanically.
Too little detergent is being Increase the amount of detergent
used.
used or change "Detergent "
Page 23.
Washing programme selec- Select a more intensive washing
ted too weak.
programme.
Tea residue or lipstick marks Washing temperature is too Select a programme with a higher
on tableware.
low.
washing temperature.
Too little detergent is being used or is unsuitable.
Use a suitable "Detergent " Page 23 and follow the manufacturer's instructions for the amount to be used.
Tableware has been pre- Only remove large remnants of food
cleaned too intensely. The
and do not prerinse tableware.
sensors chose a weaker pro-
gramme. Stubborn soiling
cannot be entirely removed.
39
ausTroubleshooting
Fault
Cause
Troubleshooting
Coloured coatings (blue, yel- The formation of films is due Clean the appliance.
low, brown) that are difficult or impossible to remove are present inside the appliance or on stainless steel tableware.
to substances contained in vegetables (cabbage, celery, potatoes, noodles, etc.) or tap water (manganese).
You can remove deposits with "Mechanical cleaning" Page 32 or a machine cleaning product. It may not always be possible to completely remove deposits but they
are harmless to health.
The formation of films is due Clean the appliance.
to metal components on silver or aluminium tableware.
You can remove deposits with "Mechanical cleaning" Page 32
or a machine cleaning product. It
may not always be possible to com-
pletely remove deposits but they
are harmless to health.
Plastic parts inside the appli- Plastic parts inside the appli- Discolouration can come about and
ance are discoloured.
ance may become discol-
will not impair functioning of the ap-
oured during the life of the
pliance.
dishwasher.
Plastic parts are discoloured.
Washing temperature is too Select a programme with a higher
low.
washing temperature.
Tableware has been pre- Only remove large remnants of food
cleaned too intensely. The
and do not prerinse tableware.
sensors chose a weaker pro-
gramme. Stubborn soiling
cannot be entirely removed.
Removable streaks are present on glasses, glassware with a metallic appearance and cutlery.
Amount of rinse aid to be dispensed is set too high. No rinse aid has been added.
Set the rinse aid system to a lower setting.
"Adding rinse aid", Page 21
Detergent residue is present 1. Arrange tableware in the top basket
in the final rinse. Lid of the
tableware so the tab collecting tray
detergent dispenser is
is not obstructed by tableware.
blocked by tableware items "Arrange tableware", Page 26
and will not open fully.
Items of tableware are blocking the
dispenser lid.
2. Do not place tableware or fra-
grance dispensers in the tablet col-
lecting tray.
40
Troubleshootingaus
Fault Removable streaks are present on glasses, glassware with a metallic appearance and cutlery.
Irreversible clouding of glassware.
Cause
Troubleshooting
Tableware has been pre- Only remove large remnants of food
cleaned too intensely. The
and do not prerinse tableware.
sensors chose a weaker pro-
gramme. Stubborn soiling
cannot be entirely removed.
Glasses are not dishwasherproof, only suitable for dishwashers.
Use dishwasher-proof glasses. Glasses are usually only suitable for use in a dishwasher, i.e. long-term wear or long-term changes must be expected.
Avoid a lengthy steam phase (standing time after wash cycle ends).
Use a programme with a lower temperature.
Use detergent with a glass protection component.
Rust spots on cutlery.
Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected.
Use rust-resistant tableware.
Cutlery may also rust if washed together with rusting items.
Do not wash rusting items.
Detergent residue is present Spray arms were blocked by Check that the spray arms are not in the detergent dispenser tableware so detergent was blocked and can rotate freely. or the tablet collecting tray. not rinsed out.
Detergent dispenser was damp when detergent was added.
Only add detergent to a detergent dispenser when dry.
Excessive formation of foam Hand washing-up liquid is
occurs.
present in dispenser for
rinse aid.
Immediately add rinse aid to the dispenser. "Adding rinse aid", Page 21
Rinse aid has been spilled. Remove the rinse aid with a cloth.
Detergent or appliance care Change the brand of detergent. product used causes excessive foaming.
41
ausTroubleshooting
Home Connect problem
Fault Connection to home network is not established. WLAN display is flashing.
Home Connect cannot be implemented correctly.
Cause WLAN on router is not active. Connection to home network is not available. Home Connect set incorrectly. Technical fault is present.
Troubleshooting Check the wireless network con-
nection of your router. Activate the wireless network con-
nection on your router. Please consult the documents sup-
plied for Home Connect. Please consult the information
about support in the documents supplied for Home Connect.
Information on display panel
Fault Refill indicator for rinse aid lights up.
Refill indicator for rinse aid does not light up.
Cause Insufficient rinse aid.
Troubleshooting 1. Add "Rinse aid" Page 21. 2. Set the amount of rinse aid to be
dispensed. "Setting the amount of rinse aid", Page 22
Rinse aid system is switched Set the amount of rinse aid to be
off.
dispensed.
Malfunctions
Fault
Cause
Water is left in the appliance Filter system or area under
at the end of the pro-
the filters is blocked.
gramme.
Programme has not yet ended.
Appliance cannot be switched on or operated.
Software update is taking place. Appliance functions have failed.
Troubleshooting 1. Clean the "Filters" Page 34. 2. Clean the "Wastewater pump"
Page 45. Wait until the programme ends or
cancel the programme with Reset. "Terminate programme",
Page 28 Wait until the software update has
finished. 1. Pull out the mains plug or switch off
the fuse. 2. Wait at least 2 minutes. 3. Connect the appliance to the power
supply. 4. Switch the appliance on.
42
Troubleshootingaus
Fault Appliance does not start.
Programme starts automatically. Appliance stops during the programme or cuts out.
Cause
Troubleshooting
The mains fuse has tripped. Check the relevant fuse.
Mains cable is not inserted.
1. Check whether the socket works. 2. Check whether the mains cable is
properly inserted in the socket and on the rear of the appliance.
Appliance door is not closed Close the appliance door. properly.
You did not wait until programme ended.
"Terminate programme", Page 28
Appliance door is not closed Close the appliance door. properly.
Power and/or water supply 1. Check the power supply.
has been interrupted.
2. Check the water supply.
Top basket is pressing against inner door and preventing appliance door from being closed securely.
Check whether the rear panel of the appliance is being pressed in by a socket or hose holder that has not been removed.
Arrange the tableware so that no parts project beyond the basket and prevent the appliance door from closing properly.
Mechanical damage
Fault Appliance door cannot be closed.
Cause Door lock has been activated.
Door cannot be closed due to installation method.
Lid on the detergent dispenser cannot be closed.
Detergent dispenser or lid are blocked by sticky detergent residue.
Troubleshooting Close the appliance door with
greater force.
Check whether the appliance has been installed properly. When closed, the appliance door, its decor or attached parts should not knock against adjacent cabinets or the worktop.
Remove detergent residue.
43
ausTroubleshooting
Noise
Fault Filling valves making knocking noises.
Knocking or rattling noise.
Cause Caused by the domestic installation. No appliance fault present. Does not affect functioning of the appliance. Spray arm is striking tableware. With a small load the water jets directly strike against the tub.
Light items of tableware move about during the wash cycle.
Troubleshooting Can only be remedied in the do-
mestic installation.
Arrange tableware so that the spray arms do not strike tableware.
Distribute the tableware evenly. Load the appliance with more table-
ware. Position light items of tableware se-
curely.
44
Clean wastewater pump
Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned.
WARNING Risk of injury! Sharp and pointed objects or fragments of glass may block the waste water pump and cause injury. Remove any foreign bodies care-
fully. 1. Disconnect the appliance from the
power supply. 2. Remove the top and bottom bas-
ket. 3. Remove the filter system. 4. Scoop out any water.
Use a sponge if necessary. 5. Prise off the pump cover using a
spoon and grip it by the crosspiece.
6. Lift the pump cover inwards at an angle and remove.
7. Remove any remnants of food and foreign bodies in the area of the impeller.
Transportation, storage and disposalaus 8. Insert the pump cover and press
down .
2 1
a The pump cover clicks into position.
9. Install the filter system. 10.Insert the top and bottom basket.
Transportation, storage Transportation,storageanddisposal and disposal
You can find out here how to prepare Transportation,storageanddisposal your appliance for transportation and storage. You will also find out how to dispose of old appliances.
Removing the appliance
1. Disconnect the appliance from the power supply.
2. Turn off the water tap. 3. Detach the drainage connection. 4. Detach the drinking water connec-
tion. 5. Loosen any screws fastening the
appliance to cabinet parts. 6. Remove the base panel if fitted. 7. Pull the appliance out carefully,
along with the hose behind it.
45
ausCustomer Service
Protect appliance from frost
If there is a risk of frost where the appliance will be standing, e.g. in a holiday home, empty the appliance completely. "Empty the appliance."
Page 46
Transporting the appliance
To avoid damage to the appliance, empty it before transporting. Note: Always transport the dishwasher upright to prevent residual water getting into the machine's controls and damaging the appliance. 1. Remove tableware from the appli-
ance. 2. Secure loose parts. 3. "Switch on appliance." Page 27 4. Select the programme with the
highest temperature. 5. "Start the programme." Page 28 6. To drain the appliance, terminate
the programme after approx. 4 minutes. "Terminate programme", Page 28 7. "Switch off the appliance." Page 28 8. Turn off the water tap. 9. To empty the residual water out of the appliance, detach the supply hose and let the water drain out.
Disposing of old appliance
Valuable raw materials can be reused by recycling.
WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug
the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. 1. Unplug the appliance from the mains. 2. Cut through the power cord. 3. Dispose of the appliance in an environmentally friendly manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Customer Service CustomerService
IfCustomerService you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. You can solve many problems yourself by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service.
46
With any warranty claims, we will make sure that your appliance is repaired by trained after-sales technicians using genuine spare parts, including after the manufacturer's warranty has expired. Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)
You can find the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. The rating plate is located inside the appliance door. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.
AQUA-STOP guarantee
In addition to warranty claims against the seller under the purchase agreement and in addition to our manufacturer's warranty, we offer compensation under the following conditions. ¡ If our Aqua-Stop system is defect-
ive and causes water damage, we will make good the damage for private users. To ensure protection
Technical specificationsaus from water damage, the appliance must be connected to the power supply. ¡ The liability guarantee is valid for the service life of the appliance. ¡ A claim can only be made under the guarantee if the appliance has been correctly installed and connected with Aqua-Stop according to our instructions; this also includes correctly fitting the AquaStop extension (genuine accessory). Our guarantee does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap. ¡ If your appliance is fitted with Aqua-Stop, you can in principle leave your appliance unattended during operation and the tap turned on afterwards. The tap only needs to be turned off if you are away from home for a long period, e.g. on holiday for several weeks.
Technical specifications Technicalspecifications
Facts and figures for your appliance Technicalspecifications can be found here.
Weight Voltage
Power rating Fuse Water pressure
Inlet rate Water temperature
Capacity
Max.: 60 kg 220-240 V, 50 Hz or 60 Hz 2000-2400 W 10 A ¡ Min. 0.05 MPa
(0.5 bar) ¡ Max. 1 MPa
(10 bar) Min. 10 l/min Cold water. Hot water max.: 60 °C 13 place settings
47
ausTechnical specifications
Information regarding Free and Open Source Software
This product includes software components that are licensed by the copyright holders as free software or open source software. The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect App: "Profile -> Legal information -> Licence Information". You can download the licence information on the brand product website (search for your appliance model on the product website and check additional documents). Alternatively, you can send a request to ossrequest@bshg.com or to BSH Hausgeräte GmbH GmbH, Carl-Wery-Str. 34, D-81739 München, Germany. The source code will be made available to you on request. To file a request, please email to ossrequest@bshg.com or send a written request to BSH Hausgeräte GmbH, Carl-Wery-Str. 34, D-81739 München, Germany.
BE
BG
CZ
DK
ES
FR
HR
IT
HU
MT
NL
AT
SK
FI
SE
UK
5 GHz WLAN (Wi-Fi): For indoor use only.
Reference "OSSREQUEST" The cost of performing your request will be charged to you. This offer is valid three years from the date of purchase or at least as long as we offer support and spare parts for the respective appliance.
Declaration of Conformity
Robert Bosch Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality meets the essential requirements and other relevant provisions of the Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance.
2.4 GHz band: 100 mW max. 5 GHz band: 100 mW max.
DE
EE
IE
EL
CY
LV
LT
LU
PL
PT
RO
SI
NO
CH
TR
48
Thank you for buying a Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
· Expert tips & tricks for your appliance · Warranty extension options · Discounts for accessories & spare-parts · Digital manual and all appliance data at hand · Easy access to Bosch Home Appliances Service
Free and easy registration also on mobile phones: www.bosch-home.com/welcome
Looking for help? You'll find it here.
Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.bosch-home.com
*9001514834*
9001514834 (001124) 642 E1 aus
ST4 PDF Engine (Build 9.0.3.0) SCHEMA ST4
