Device Name NetStick/TITAN Device Model Number GLU194ST Dimensions 191mm x 40mm x 40mm Antenna IPEX-1 Connectors (x2) Gain between 2 to 6 dBi depending on the band Power USB / 5v1A Weight 170 g Nominal Power Consumption 2.5 W Temperature Operating temperature: -20ºC to 55ºC Storage temperature: -40ºC to 85ºC
Global Telecom's NetStick/TITAN1 is an advanced multi-band LTE Cat 4 mobile device designed for easy deployment across a variety of industries.

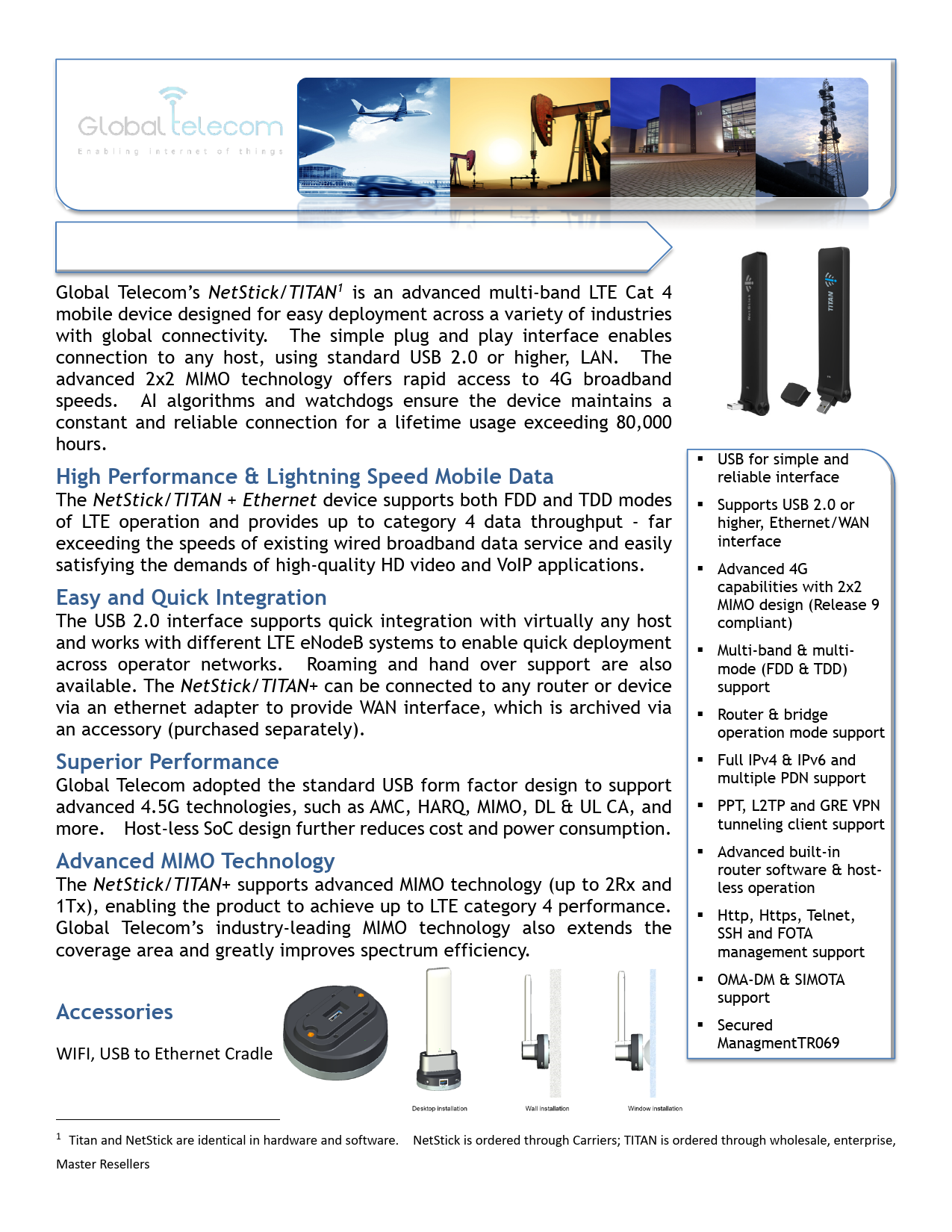

NetStick/TITAN-GLU194ST Global Telecom's NetStick/TITAN1 is an advanced multi-band LTE Cat 4 mobile device designed for easy deployment across a variety of industries with global connectivity. The simple plug and play interface enables connection to any host, using standard USB 2.0 or higher, LAN. The advanced 2x2 MIMO technology offers rapid access to 4G broadband speeds. AI algorithms and watchdogs ensure the device maintains a constant and reliable connection for a lifetime usage exceeding 80,000 hours. High Performance & Lightning Speed Mobile Data The NetStick/TITAN + Ethernet device supports both FDD and TDD modes of LTE operation and provides up to category 4 data throughput - far exceeding the speeds of existing wired broadband data service and easily satisfying the demands of high-quality HD video and VoIP applications. Easy and Quick Integration The USB 2.0 interface supports quick integration with virtually any host and works with different LTE eNodeB systems to enable quick deployment across operator networks. Roaming and hand over support are also available. The NetStick/TITAN+ can be connected to any router or device via an ethernet adapter to provide WAN interface, which is archived via an accessory (purchased separately). Superior Performance Global Telecom adopted the standard USB form factor design to support advanced 4.5G technologies, such as AMC, HARQ, MIMO, DL & UL CA, and more. Host-less SoC design further reduces cost and power consumption. Advanced MIMO Technology The NetStick/TITAN+ supports advanced MIMO technology (up to 2Rx and 1Tx), enabling the product to achieve up to LTE category 4 performance. Global Telecom's industry-leading MIMO technology also extends the coverage area and greatly improves spectrum efficiency. Accessories WIFI, USB to Ethernet Cradle § USB for simple and reliable interface § Supports USB 2.0 or higher, Ethernet/WAN interface § Advanced 4G capabilities with 2x2 MIMO design (Release 9 compliant) § Multi-band & multimode (FDD & TDD) support § Router & bridge operation mode support § Full IPv4 & IPv6 and multiple PDN support § PPT, L2TP and GRE VPN tunneling client support § Advanced built-in router software & hostless operation § Http, Https, Telnet, SSH and FOTA management support § OMA-DM & SIMOTA support § Secured ManagmentTR069 1 Titan and NetStick are identical in hardware and software. NetStick is ordered through Carriers; TITAN is ordered through wholesale, enterprise, Master Resellers NetStick/TITAN Specifications Device Name NetStick/TITAN Device Model Number GLU194ST Dimensions 191mm x 40mm x 40mm Antenna Power IPEX-1 Connectors (x2) Gain between 2 to 6 dBi depending on the band USB / 5v1A Weight 170 g Nominal Power Consumption Temperature Standard 2.5 W Operating temperature: -20ºC to 55ºC Storage temperature: -40ºC to 85ºC 3GPP LTE Release 9 Duplex Mode TDD & FDD with 2Rx / 1Tx Design Frequency B2 / B4 / B5 / B12 / B25 / B26 / B41 / B71 Bandwidth 1.4 MHz / 3 MHz / 5 MHz / 10 MHz / 15 MHz / 20 MHz Modulations MIMO DL: QPSK / QAM16 / QAM64 UL: QPSK / QAM16 / QAM64 2x2 MIMO Tx Power 23dBm ±1dB Networking Interface USB 2.0 / LAN / WAN supports failover Management Plug and Play Support (sFOTA, Http, Https, Telnet, SSH, OMA-DM, SIMOTA, TR069) Operating System Driverless & Host-less Support (Linux, Mac OS, Android, Windows XP, Vista, and Windows 7/8/10)macOS Version 11.2.1 (Build 20D74) Quartz PDFContext Word
