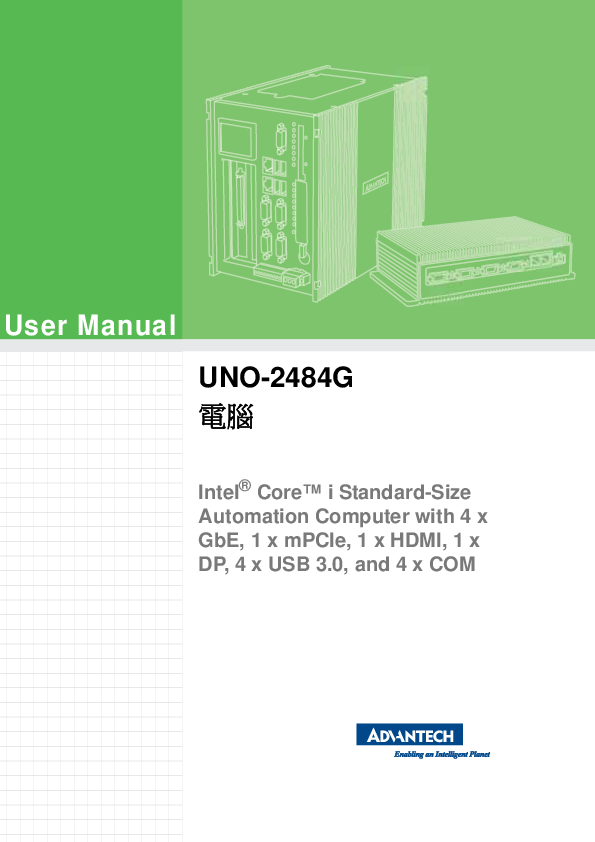

User Manual. UNO-2484G. 電腦. Intel. . Core™ i Standard-Size. Automation Computer with 4 x. GbE, 1 x mPCIe, 1 x HDMI, 1 x. DP, 4 x USB 3.0, and 4 x COM ...
User Manual
UNO-2484G
Intel® CoreTM i Standard-Size Automation Computer with 4 x GbE, 1 x mPCIe, 1 x HDMI, 1 x DP, 4 x USB 3.0, and 4 x COM
!
!
Declaration of the Presence Condition!of the Restricted Substances Marking
Equipment name
!
Type designation (Type)
UNO-2484G ()
Restricted substances and its chemical symbols
nit
Lead
Mercury Cadmium
Hexavalent chromium
+6
Polybrominated
biphenyls
Polybrominated
diphenyl ethers
iYiiY
Note 1"Exceeding 0.1 wt %" and "exceeding 0.01 wt %" indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
Note 2"" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3The "-" indicates that the restricted substance corresponds to the exemption.
!
!
Declaration of the Presence Condition!of the Restricted Substances Marking
!
Equipment name
Type designation (Type)
UNO2484G (
Restricted substances and its chemical symbols
nit Lead
Mercury
Cadmium
Hexavalent chromium
+6
Polybrominated
biphenyls
Polybrominated
diphenyl ethers
iYiiY
Note 1"Exceeding 0.1 wt %" and "exceeding 0.01 wt %" indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
Note 2"" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3The "-" indicates that the restricted substance corresponds to the exemption.
UNO-2484G User Manual
ii
Copyright
The documentation and the software included with this product are copyrighted 2017 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.
Acknowledgements
IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation. Intel®, CoreTM and AtomTM are the trademarks of Intel Corporation Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.
Support
For more information on this and other Advantech products, please visit our websites at: http://www.advantech.com For technical support and service, please visit our support website at: http://support.advantech.com/
Part No. 2003248402 Printed in Taiwan
iii
Edition 3 May 2018
UNO-2484G User Manual
This manual is applicable to the following models:
UNO-2484G, UNO2484G UNO-2484G-6731AE, UNO-2484G-6731AE, UNO-2484G-6531AE, UNO-2484G-6532AE, UNO-2484G-6331AE, UNO-2484G-6332AE, UNO2484G6731701E-T, UNO2484G6731702E-T, UNO2484G6731703E-T, UNO2484G6731704E-T, UNO2484G6731705E-T, UNO2484G6731706E-T, UNO2484G6731707E-T, UNO2484G6731708E-T, UNO2484G6731709E-T, UNO2484G6731801E-T, UNO2484G6731802E-T, UNO2484G6731803E-T, UNO2484G6731804E-T, UNO2484G6731805E-T, UNO2484G6731806E-T, UNO2484G6731807E-T, UNO2484G6731808E-T, UNO2484G6731809E-T, UNO2484G6731901E-T, UNO2484G6731902E-T, UNO2484G6731903E-T, UNO2484G6731904E-T, UNO2484G6731905E-T, UNO2484G6731906E-T, UNO2484G6731907E-T, UNO2484G6731908E-T, UNO2484G6731909E-T, UNO2484G6732001E-T, UNO2484G6732002E-T, UNO2484G6732003E-T, UNO2484G6732004E-T, UNO2484G6732005E-T, UNO2484G6732006E-T, UNO2484G6732007E-T, UNO2484G6732008E-T, UNO2484G6732009E-T, UNO2484G6732101E-T, UNO2484G6732102E-T, UNO2484G6732103E-T, UNO2484G6732104E-T, UNO2484G6732105E-T, UNO2484G6732106E-T, UNO2484G6732107E-T, UNO2484G6732108E-T, UNO2484G6732109E-T, UNO2484G6732201E-T, UNO2484G6732202E-T, UNO2484G6732203E-T, UNO2484G6732204E-T, UNO2484G6732205E-T, UNO2484G6732206E-T, UNO2484G6732207E-T, UNO2484G6732208E-T, UNO2484G6732209E-T, UNO2484G6531701E-T, UNO2484G6531702E-T, UNO2484G6531703E-T, UNO2484G6531704E-T, UNO2484G6531705E-T, UNO2484G6531706E-T, UNO2484G6531707E-T, UNO2484G6531708E-T, UNO2484G6531709E-T, UNO2484G6531801E-T, UNO2484G6531802E-T, UNO2484G6531803E-T, UNO2484G6531804E-T, UNO2484G6531805E-T, UNO2484G6531806E-T, UNO2484G6531807E-T, UNO2484G6531808E-T, UNO2484G6531809E-T, UNO2484G6531901E-T, UNO2484G6531902E-T, UNO2484G6531903E-T, UNO2484G6531904E-T, UNO2484G6531905E-T, UNO2484G6531906E-T, UNO2484G6531907E-T, UNO2484G6531908E-T, UNO2484G6531909E-T, UNO2484G6532001E-T, UNO2484G6532002E-T, UNO2484G6532003E-T, UNO2484G6532004E-T, UNO2484G6532005E-T, UNO2484G6532006E-T, UNO2484G6532007E-T, UNO2484G6532008E-T, UNO2484G6532009E-T, UNO2484G6532101E-T, UNO2484G6532102E-T, UNO2484G6532103E-T, UNO2484G6532104E-T, UNO2484G6532105E-T, UNO2484G6532106E-T, UNO2484G6532107E-T, UNO2484G6532108E-T, UNO2484G6532109E-T, UNO2484G6532201E-T, UNO2484G6532202E-T, UNO2484G6532203E-T, UNO2484G6532204E-T, UNO2484G6532205E-T, UNO2484G6532206E-T, UNO2484G6532207E-T, UNO2484G6532208E-T, UNO2484G6532209E-T, UNO2484G6331701E-T, UNO2484G6331702E-T, UNO2484G6331703E-T, UNO2484G6331704E-T, UNO2484G6331705E-T, UNO2484G6331706E-T,
UNO-2484G User Manual
iv
UNO2484G6331707E-T, UNO2484G6331708E-T, UNO2484G6331709E-T, UNO2484G6331801E-T, UNO2484G6331802E-T, UNO2484G6331803E-T, UNO2484G6331804E-T, UNO2484G6331805E-T, UNO2484G6331806E-T, UNO2484G6331807E-T, UNO2484G6331808E-T, UNO2484G6331809E-T, UNO2484G6331901E-T, UNO2484G6331902E-T, UNO2484G6331903E-T, UNO2484G6331904E-T, UNO2484G6331905E-T, UNO2484G6331906E-T, UNO2484G6331907E-T, UNO2484G6331908E-T, UNO2484G6331909E-T, UNO2484G6332001E-T, UNO2484G6332002E-T, UNO2484G6332003E-T, UNO2484G6332004E-T, UNO2484G6332005E-T, UNO2484G6332006E-T, UNO2484G6332007E-T, UNO2484G6332008E-T, UNO2484G6332009E-T, UNO2484G6332101E-T, UNO2484G6332102E-T, UNO2484G6332103E-T, UNO2484G6332104E-T, UNO2484G6332105E-T, UNO2484G6332106E-T, UNO2484G6332107E-T, UNO2484G6332108E-T, UNO2484G6332109E-T, UNO2484G6332201E-T, UNO2484G6332202E-T, UNO2484G6332203E-T, UNO2484G6332204E-T, UNO2484G6332205E-T, UNO2484G6332206E-T, UNO2484G6332207E-T, UNO2484G6332208E-T, UNO2484G6332209E-T, UNO-2484G-7731AE, UNO-2484G-7531AE, UNO-2484G-7331AE UNO-2484G-7732AE, UNO-2484G-7532AE, UNO-2484G-7332AE UNO2484G7731801E-T, UNO2484G7731802E-T, UNO2484G7731803E-T UNO2484G7731804E-T, UNO2484G7731805E-T UNO2484G7731806E-T, UNO2484G7731807E-T, UNO2484G7731808E-T UNO2484G7731809E-T, UNO2484G7731810E-T UNO2484G7731901E-T, UNO2484G7731902E-T, UNO2484G7731903E-T UNO2484G7731904E-T, UNO2484G7731905E-T UNO2484G7731906E-T, UNO2484G7731907E-T, UNO2484G7731908E-T UNO2484G7731909E-T, UNO2484G7731910E-T UNO2484G7732001E-T, UNO2484G7732002E-T, UNO2484G7732003E-T UNO2484G7732004E-T, UNO2484G7732005E-T UNO2484G7732006E-T, UNO2484G7732007E-T, UNO2484G7732008E-T UNO2484G7732009E-T, UNO2484G7732010E-T UNO2484G7732101E-T, UNO2484G7732102E-T, UNO2484G7732103E-T UNO2484G7732104E-T, UNO2484G7732105E-T UNO2484G7732106E-T, UNO2484G7732107E-T, UNO2484G7732108E-T UNO2484G7732109E-T, UNO2484G7732110E-T UNO2484G7732201E-T, UNO2484G7732202E-T, UNO2484G7732203E-T UNO2484G7732204E-T, UNO2484G7732205E-T UNO2484G7732206E-T, UNO2484G7732207E-T, UNO2484G7732208E-T UNO2484G7732209E-T, UNO2484G7732210E-T UNO2484G7531801E-T, UNO2484G7531802E-T, UNO2484G7531803E-T UNO2484G7531804E-T, UNO2484G7531805E-T UNO2484G7531806E-T, UNO2484G7531807E-T, UNO2484G7531808E-T UNO2484G7531809E-T, UNO2484G7531810E-T UNO2484G7531901E-T, UNO2484G7531902E-T, UNO2484G7531903E-T UNO2484G7531904E-T, UNO2484G7531905E-T UNO2484G7531906E-T, UNO2484G7531907E-T, UNO2484G7531908E-T UNO2484G7531909E-T, UNO2484G7531910E-T UNO2484G7532001E-T, UNO2484G7532002E-T, UNO2484G7532003E-T UNO2484G7532004E-T, UNO2484G7532005E-T
v
UNO-2484G User Manual
UNO2484G7532006E-T, UNO2484G7532007E-T, UNO2484G7532008E-T UNO2484G7532009E-T, UNO2484G7532010E-T
UNO2484G7532101E-T, UNO2484G7532102E-T, UNO2484G7532103E-T UNO2484G7532104E-T, UNO2484G7532105E-T
UNO2484G7532106E-T, UNO2484G7532107E-T, UNO2484G7532108E-T UNO2484G7532109E-T, UNO2484G7532110E-T
UNO2484G7532201E-T, UNO2484G7532202E-T, UNO2484G7532203E-T UNO2484G7532204E-T, UNO2484G7532205E-T
UNO2484G7532206E-T, UNO2484G7532207E-T, UNO2484G7532208E-T UNO2484G7532209E-T, UNO2484G7532210E-T
UNO2484G7331801E-T, UNO2484G7331802E-T, UNO2484G7331803E-T UNO2484G7331804E-T, UNO2484G7331805E-T
UNO2484G7331806E-T, UNO2484G7331807E-T, UNO2484G7331808E-T UNO2484G7331809E-T, UNO2484G7331810E-T
UNO2484G7331901E-T, UNO2484G7331902E-T, UNO2484G7331903E-T UNO2484G7331904E-T, UNO2484G7331905E-T
UNO2484G7331906E-T, UNO2484G7331907E-T, UNO2484G7331908E-T UNO2484G7331909E-T, UNO2484G7331910E-T
UNO2484G7332001E-T, UNO2484G7332002E-T, UNO2484G7332003E-T UNO2484G7332004E-T, UNO2484G7332005E-T
UNO2484G7332006E-T, UNO2484G7332007E-T, UNO2484G7332008E-T UNO2484G7332009E-T, UNO2484G7332010E-T
UNO2484G7332101E-T, UNO2484G7332102E-T, UNO2484G7332103E-T UNO2484G7332104E-T, UNO2484G7332105E-T
UNO2484G7332106E-T, UNO2484G7332107E-T, UNO2484G7332108E-T UNO2484G7332109E-T, UNO2484G7332110E-T
UNO2484G7332201E-T, UNO2484G7332202E-T, UNO2484G7332203E-T UNO2484G7332204E-T, UNO2484G7332205E-T
UNO2484G7332206E-T, UNO2484G7332207E-T, UNO2484G7332208E-T UNO2484G7332209E-T, UNO2484G7332210E-T
UNO-2484G User Manual
vi
Product Warranty (2 years)
Advantech warrants the original purchaser that all of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or that have been subject to misuse, abuse, accident, or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech's high quality control standards and rigorous testing, most customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced free of charge during the warranty period. For out-ofwarranty repairs, customers will be billed according to the cost of replacement materials, service time, and freight. Please consult your dealer for more details. If you believe your product is defective, follow the steps outlined below. 1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages displayed when the problem occurs. 2. Call your dealer and describe the problem. Please have your manual, product, and any relevant information readily available. 3. If your product is diagnosed as defective, obtain an return merchandize authorization (RMA) number from your dealer. This allows us to process your return more quickly. 4. Carefully pack the defective product, a completed Repair and Replacement Order Card, and a proof of purchase date (such as a photocopy of your sales receipt) into a shippable container. Product returned without a proof of purchase date are not eligible for warranty service. 5. Write the RMA number clearly on the outside of the package and ship the package prepaid to your dealer.
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference. In such cases, users are required to correct the interference at their own expense.
vii
UNO-2484G User Manual
Technical Support and Assistance
1. Visit the Advantech website at www.advantech.com/support to obtain the latest product information.
2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: Product name and serial number Description of your peripheral attachments Description of your software (operating system, version, application software, etc.) A comprehensive description of the problem The exact wording of any error messages
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from damage. To avoid electrical shock, always disconnect the power from your PC chassis
before manual handling. Do not touch any components on the CPU card or other cards while the PC is powered on. Disconnect the power before making any configuration changes. The sudden rush of power after connecting a jumper or installing a card may damage sensitive electronic components.
UNO-2484G User Manual
viii
Safety Instructions
1. Read these safety instructions carefully. 2. Retain this user manual for future reference. 3. Disconnect the equipment from all AC outlets before cleaning. Use only a damp
cloth for cleaning. Do not use liquid or spray detergents. 4. For pluggable equipment, the power outlet socket must be located near the
equipment and easily accessible. 5. Protect the equipment from humidity. 6. Place the equipment on a reliable surface during installation. Dropping or letting
the equipment fall may cause damage. 7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. Do not cover the openings. 8. Ensure that the power source voltage is correct before connecting the equip-
ment to a power outlet. 9. Position the power cord away from high-traffic areas. Do not place anything over
the power cord. 10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage from transient overvoltage. 12. Never pour liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel. 14. If one of the following situations occurs, have the equipment checked by service
personnel: The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment is malfunctioning, or does not operate according to the user
manual. The equipment has been dropped and damaged. The equipment shows obvious signs of breakage. 15. Do not leave this equipment in an environment where the storage temperature may fluctuate below -20 °C (-4 °F) or above ~ 60 °C (140 °F). 16. Batteries are at risk of exploding if incorrectly replaced. Replace only with the same or equivalent type as recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions. 17. Danger d'explosion si la batterie est mal remplace. Remplacer uniquement par le meme type ou equivalent recommandé par le fabricant. Jeter les piles usagées selon les instructions du fabricant. 18. In accordance with the IEC 704-1:1982 specifications, the sound pressure level at the operator position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
ix
UNO-2484G User Manual
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.
15. -20 -4 60 140 16. 17. IEC 704-1:1982 70 18. 19. IEC 704-1
UNO-2484G User Manual
x
Contents
Chapter 1
1.1 1.2 1.3
Chapter 2
2.1
2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
Chapter 3
3.1 3.2 3.3 3.4
3.5
Appendix A
A.1 A.2
A.3 A.4
A.5 A.6 A.7 A.8
Overview...............................................1
Introduction ............................................................................................... 2 Safety Precautions .................................................................................... 2 Accessories............................................................................................... 3
Hardware Functionality .......................5
Introduction ............................................................................................... 6 Figure 2.1 Front panel of the UNO-2484G single-stack model.... 6 Figure 2.2 Front panel of the UNO2484G dual-stack model ....... 6
UNO-2484G Interface ............................................................................... 6 2.2.1 COM Port Interface (COM1, COM2, COM3, COM4) .................... 6 LAN: Ethernet Connector .......................................................................... 6 Power Connector ...................................................................................... 6 USB Connector ......................................................................................... 7 RTC Battery .............................................................................................. 7 Power Button/Power Management ........................................................... 7 Reset Button ............................................................................................. 7 PCI Express Mini Card Socket.................................................................. 7
Figure 2.3 First stack motherboard.............................................. 8 Figure 2.4 Second stack extension board ................................... 8
Initial Setup ..........................................9
Chassis Grounding.................................................................................. 10 Figure 3.1 Chassis grounding connection ................................. 10
Connect the Power Supply...................................................................... 10 Open/Close the Rear Cover.................................................................... 11 Hard Disk Installation .............................................................................. 13 3.4.1 HDD/SSD Installation for Single-Stack UNO-2484G .................. 13 3.4.2 HDD/SSD Installation for Double-Stack UNO-2484G................. 15 3.4.3 HDD/SSD Installation with UNO-2484G-S2AE Extension Module .
....................................................................................................19 Extension Kit (UNO-2484G-EKAE) Installation....................................... 23
System Settings/Pin Assignments ..25
CN10 Internal GPIO Pin Header ............................................................. 26 Table A.1: CN10 Internal GPIO Pin Header .............................. 26
Board Connectors and Jumpers ............................................................. 26 Figure A.1 Connector and jumper locations (front view) ............ 27 Table A.2: Connectors and Jumpers ......................................... 27
Power Connector (PWR)......................................................................... 28 Table A.3: Power Connector Pin Assignments .......................... 28
DP Connector.......................................................................................... 28 Table A.4: DisplayPort Adaptor Cable Pin Assignments ........... 28 Table A.5: USB 3.0 Connector Pin Assignments....................... 29
HDMI Display Connector......................................................................... 29 Table A.6: HDMI Display Connector .......................................... 29
COM1/COM2/COM3/COM4 RS232/422/485 Connector ........................ 30 Mini PCIE Slot (MINIPCIE)...................................................................... 31 LAN RJ45 Connector .............................................................................. 32
xi
UNO-2484G User Manual
A.9
A.10 A.11 A.12
CN15/CN53 Internal USB 2.0 Pin Header .............................................. 33 Table A.7: CN15/CN53 Internal USB 2.0 Pin Header................ 33
Screw Type and Quantity for Mounting Module...................................... 33 Modifying the Serial Port Mode............................................................... 34 BIOS Setting of TPM 2.0......................................................................... 36
UNO-2484G User Manual
xii
1 Chapter
Overview
1
This chapter provides an overview of UNO-2484G specifications.
Introduction Safety Precautions Accessories
1.1
Introduction
The UNO-2484G is an embedded hardware-ready platform capable of shortening development time. The system offers a wide range of networking interfaces to satisfy the various needs of different applications. Equipped with the latest Intel® CoreTM i processor, 8 GB of DDR4 RAM, four GbE LAN, and four USB 3.0 ports, the UNO2484G supports one DP and one HDMI display as well as Advantech's iDoor modules.
The UNO-2484G can tolerate a wide operating temperature range (-20 ~ 60 °C) and features one mini PCIe (or three additional mPCIe ports via a mini-card extender) for convenient expansion. This allows the UNO-2484G to be integrated with Wi-Fi, 3G, and I/O expansion modules and industrial protocols via iDoor technology.
With support for multiple drivers and operating systems, including Windows 7, Windows 10, and Linux, users can easily integrate applications on application-ready platforms in order to offer versatile functions for diverse requirements.
1.2
Safety Precautions
The following sections provide instructions for setting up each connection. In most cases, users will simply need to connect a standard cable.
Warning! Always disconnect the power cord from the chassis before manual handling. Do not make any configuration changes when the power is on. The sudden rush of power can damage sensitive electronic components. Only experienced electronics personnel should open the chassis.
Warning! Toujours à la terre pour éliminer toute charge d'électricité statique avant toucher UNO-2484G. Appareils électroniques modernes sont très sensibles à charges d'électricité statique. Utilisez un bracelet antistatique à tout moment. Placez tous composants électroniques sur une surface antistatique ou dans un statique-sac blindé.
Caution! Always ground yourself to remove any static electric charge before touching UNO-2484G. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a staticshielded bag.
Caution! Toujours débrancher le cordon d'alimentation de votre boîtier lorsque vous êtes travailler. Ne branchez pas lorsque l'appareil est allumé. Un afflux soudain de puissance peut endommager les composants électroniques sensibles. Seulement connu personnel de l'électronique devraient ouvrir le châssis.
UNO-2484G User Manual
2
Chapter 1 Overview
1.3
Accessories
The following accessories should be included with the product: Pin connector for power wiring (Advantech P/N: 1652002209) Warranty card If any of the above items are missing or damaged, contact your distributor or sales representative immediately.
Operating Temperature: -20 ~ 60 °C (-4 ~ 140 °F) Power Requirements: 10 - 36 VDC Power Consumption: 55 W (typical), 92.5 W (max.) System Hardware Specifications
CPU: Intel® CoreTM i7-7600U(2.8 GHz)/i7-7300U(2.6 GHz)/i7-7100U(2.4 GHz) Intel® CoreTM i7-6600U (2.6 GHz)/i5-6300U (2.4 GHz)/i3-6100U (2.3 GHz)
Memory: 8 GB DDR4 2133 MHz
Graphics Engine: Intel® HD Graphics
Ethernet: Intel® i210 GbE, 802.10av, IEEE1588/802.1AS, 803.3az
Storage: Supports 2 x SSD or HDD (RAID support) 1 x full-size mSATA (supports mPCIe)
Expansion: 1 x full-size mPCIe slot (can support an additional 3 x full-size mPCIe with the integration of a secondary extension mini card)
Display:1 x HDMI, supports 1920 x 1080 @60Hz 24bpp and 1 x DP
Because UNO-2484G features a modularized design, Advantech offers both single and double-stack models. Single-stack models:
UNO-2484G-6731AE/UNO-2484G-6531AE/UNO-2484G-6331AE Double-stack models:
UNO-2484G-6732AE/UNO-2484G-6532AE/UNO-2484G-6332AE
The double-stack model combines a single-stack model with an extension kit (UNO2484G-EKAE) for integrating iDoor technology.
3
UNO-2484G User Manual
UNO-2484G User Manual
4
2 Chapter
Hardware
2
Functionality
This chapter explains how to setup the UNO-2484G's hardware functions, including connecting peripherals and setting switches and indicators.
Introduction UNO-2484G Interface LAN/Ethernet Connector Power Connector USB Connector RTC Battery Power Button/Power Manage-
ment Reset Button PCI Express Mini Card Socket
2.1
Introduction
The following figures show the connectors on UNO-2484G. Information regarding each peripheral is provided in the following sections.
Figure 2.1 Front panel of the UNO-2484G single-stack model
Figure 2.2 Front panel of the UNO2484G dual-stack model
2.2
UNO-2484G Interface
he UNO-2484G is equipped with four standard COM serial communication ports COM1, COM2, COM3, and COM4. The port settings can be adjusted from the BIOS menu. Drivers are installed automatically during OS installation.
2.2.1 COM Port Interface (COM1, COM2, COM3, COM4)
The UNO-2484G features four RS-232/422/485, DB9, 50 ~ 115.2 kbps.
2.3
LAN: Ethernet Connector
UNO-2484G is equipped with a four Gigabit LAN controller. The controller chip used is an Intel i210 Ethernet controller that is fully compliant with IEEE 802.3u 10/100/ 1000 Base-T. The Ethernet port is a standard RJ-45 jack, and LED indicators are on the front to show its Link (Green LED) and Active (Green LED) status.
2.4
Power Connector
The UNO-2484G is equipped with a phoenix power connector that is compatible with 10 ~ 36 VDC external power and features reversed wiring protection. This protects the system from damage caused by reversed wiring of ground and power lines. (For more information, refer to Appendix A.4.)
UNO-2484G User Manual
6
Chapter 2 Hardware Functionality
2.5
USB Connector
The USB interface supports plug-and-play functionality, which enables users to connect or disconnect a device at any time without powering off the system. Equipped with four USB connectors, the UNO-2484G provides complete plug-and-play and hot-swapping capabilities for up to 127 external devices. The USB interface can be disabled in the system BIOS. Additionally, the provision of four USB ports complies with USB EHCI, Rev. 3.0. (Refer to Appendix A.5 for pin assignments.)
2.6
RTC Battery
The UNO-2484G has an RTC battery to ensure that the BIOS and system clock settings are retained even after brief power disconnections. Type: Panasonic BR2032 Output Voltage: 3 VDC
2.7
Power Button/Power Management
Press the "PWR" button to power on or power off the UNO-2484G(ATX type). The UNO-2484G supports the ACPI (Advanced Configuration and Power Interface). Besides power on/off, it supports multiple suspend modes, such as Power on Suspend (S1), Suspend to RAM (S3), Suspend to Disk (S4). In S3 and S4 suspend mode, the power consumption can be less than 2W, which meets Energy Star requirements.
2.8 Reset Button
Press the "Reset" button to activate the hardware reset function.
2.9
PCI Express Mini Card Socket
The UNO-2484G single-stack model supports one full-size socket for PCI Express mini cards.The (MINI1) interface supports USB, PCIe, and mSATA signals and can automatically detect the device type to provide the required support. This function can be accessed via Wi-Fi, 3G communication module, or mSATA SSD.
The UNO-2484G double-stack model combines a single-stack model with an UNO2484G-EKAE extension kit. In addition to the mini PCIe slot on the first stack, the double-stack model also supports three additional full-size PCI Express mini card sockets on the second stack. The MINI1 interface on the second stack supports USB and PCIe signals. The MINI2 and MINI3 interfaces only support PCIe signals.
Note!
In addition to the mini PCIe (MINI1) socket, the system features a SIM card slot for supporting 3G/LTE functionality. However, users are required to install a 3G/LTE mini PCIe module to enable this function.
7
UNO-2484G User Manual
Figure 2.3 First stack motherboard Figure 2.4 Second stack extension board
UNO-2484G User Manual
8
3 Chapter
Initial Setup
3
This chapter explains the process for initializing the UNO-2484G.
Chassis Grounding Connect the Power Supply Open/Close the Rear Cover Hard Disk Installation Extension Kit Installation
3.1
Chassis Grounding
The UNO-2484G provides adequate EMI protection and a stable grounding base. Moreover, an easy-to-connect chassis grounding point is also provided.
Figure 3.1 Chassis grounding connection
3.2
Connect the Power Supply
The UNO-2484G is intended to be supplied by a listed power adapter or DC power source rated 10 ~ 36VDC, 8A, and TMA 60 °C. Should you require further assistance, please contact Advantech for additional information.
UNO-2484G User Manual
10
Chapter 3 Initial Setup
3.3
Open/Close the Rear Cover
The rear cover can be opened in order to install a mPCIe module, mSATA SSD, or HDD, or to adjust the switch settings.
Open the Rear Cover 1. Remove the four rubber feet.
2. Remove the two affixing screws of the rear cover.
3. Slide to open the rear cover.
11
UNO-2484G User Manual
Close the Rear Cover: 1. Align the guide pillars between the rear cover and bracket then slide the rear
cover in place and fix in position.
2. Secure the rear cover in place using two screws. Then attach the four rubber feet.
UNO-2484G User Manual
12
Chapter 3 Initial Setup
3.4 Hard Disk Installation
3.4.1 HDD/SSD Installation for Single-Stack UNO-2484G
1. Remove the rear cover 2. Remove the HDD bracket by unscrewing the four affixing screws on the HDD
bracket
3. Attach the HDD/SSD to the HDD bracket using screws
13
UNO-2484G User Manual
4. Slide the HDD/SDD attached to the bracket into the chassis
UNO-2484G User Manual
14
Chapter 3 Initial Setup
5. Secure the HDD bracket in place using four screws
6. Replace the rear cover.
3.4.2 HDD/SSD Installation for Double-Stack UNO-2484G
1. Remove the rear cover. 2. Unscrew the five affixing screws to remove the second stack extension kit
15
UNO-2484G User Manual
3. Remove the HDD bracket by unscrewing the four screws on the HDD bracket 4. Attach the HDD/SSD to the HDD bracket using screws
UNO-2484G User Manual
16
Chapter 3 Initial Setup
5. Slide the HDD/SDD attached to the bracket into the chassis
17
UNO-2484G User Manual
6. Affix the HDD bracket in place using four screws 7. Reattach the second stack extension kit using five screws.
8. Replace the rear cover.
UNO-2484G User Manual
18
Chapter 3 Initial Setup
3.4.3 HDD/SSD Installation with UNO-2484G-S2AE Extension Module
Below is the list of components provided with the UNO-2484G-S2AE extension module.
1. Secure the second stack extension kit rear cover (5-1) in place using the screws provided (1).
19
UNO-2484G User Manual
2. Lock PCBA Port A (3) and Port B (3) with screws (2).
3. Secure the front cover (5-2) in place using the screws provided (1). Ensure that the HDD A port of the front cover and Port A on the PCBA are located on the same side.
UNO-2484G User Manual
20
Chapter 3 Initial Setup
4. Secure the HDD to the HDD tray (5-3) using the screws located at the internal side of the first stack layer.
5. Insert the HDD with tray into the slot and tighten the thumb screws.
21
UNO-2484G User Manual
6. Align the guide pillars between the rear cover and bracket, and then slide the rear cover in place to fix in position.
7. Secure the rear cover in place using the screws provided. Then attach the rubber feet.
UNO-2484G User Manual
22
Chapter 3 Initial Setup
3.5 Extension Kit (UNO-2484G-EKAE) Installation
1. Remove the rear cover 2. Attach the second extension kit stack to the first stack.
3. Secure the rear cover in place using the two screws provided. Then attach the four rubber feet.
23
UNO-2484G User Manual
UNO-2484G User Manual
24
A Appendix
System Settings/Pin
A
Assignments
A.1 CN10 Internal GPIO Pin Header
Table A.1: CN10 Internal GPIO Pin Header
Pin
Signal
1
+5V
2
GPIO0
3
GPIO1
4
GPIO2
5
GPIO3
6
GPIO4
7
GPIO5
8
GPIO6
9
GPIO7
10
GND
A.2
Board Connectors and Jumpers
The UNO-2484G board features several connectors and jumpers. The following sections explain how to configure the UNO-2484G hardware settings.
UNO-2484G User Manual
26
Appendix A System Settings/Pin Assignments
Figure A.1 Connector and jumper locations (front view)
Table A.2: Connectors and Jumpers
Label
Function
DCIN HDMI DP USB LAN PWR RST COM COM5/COM7 MINI SATA1/SATA2 CN4 CN10 CN15/CN53 CN21
CN24
Power-in connector HDMI connector DisplayPort connector USB 3.0 connector RJ45 connector Power button Reset button COM port connector Internal COM port pin header PCI Express mini card socket/mSATA SATA connector RTC battery connector Internal GPIO pin header Internal USB 2.0 pin header Audio line-out Internal power connector; the voltage is the same as that for DCIN
CN35
Board-to-board connector
SW6
AT/ATX mode switch. ON -> ATX mode, OFF -> AT mode.
SW7
Clear COMS switch. Pin 1 -> normal, Pin 3 -> Clear
SW8
Disable internal COM5~8, Pin (1-2) -> enable, Pin (3-4) -> disable
27
UNO-2484G User Manual
A.3 Power Connector (PWR)
Table A.3: Power Connector Pin Assignments
Pin
Signal
Description
1
Power-In V+
2
Power-In V- (GND)
10 ~ 36VDC
A.4 DP Connector
Table A.4: DisplayPort Adaptor Cable Pin Assignments
Pin
Signal Name
1
ML_Lane 0 (p)
2
GND
3
ML_Lane 0 (n)
4
ML_Lane 1 (p)
5
GND
6
ML_Lane 1 (n)
7
ML_Lane 2 (p)
8
GND
9
ML_Lane2 (2)
10
ML_Lane 3 (p)
11
GND
12
ML_Lane 3 (n)
13
CONFIG1
14
CONFIG2
15
AUX CH (p)
16
GND
17
AUX CH (n)
18
Hot Plug
19
Return
20
DP_PWR
UNO-2484G User Manual
28
Appendix A System Settings/Pin Assignments
Table A.5: USB 3.0 Connector Pin Assignments
Pin
Signal Name
Description
1
VBUS
Power
2
D-
3
D+
USB2.0 differential pair
4
GND
Ground for power return
5
StdA_SSRX-
6
StdA_SSRX+
SuperSpeed receiver differential pair
7
GND_DRIAN
Ground for signal return
8
StdA_SSTX-
9
StdA_SSTX+
SuperSpeed transmitter differential pair
A.5 HDMI Display Connector
Table A.6: HDMI Display Connector
Pin
Signal
Pin
1
TMDS Data2+
2
3
TMDS Data2-
4
5
TMDS Data1 Shield
6
7
TMDS Data0+
8
9
TMDS Data0-
10
11
TMDS Clock Shield
12
13
CEC
14
15
SCL
16
17
DDC/CEC/HEC Ground 18
19
Hot Plug Detect
Signal
TMDS Data2 Shield TMDS Data1+ TMDS Data1TMDS Data0 Shield TMDS Clock+ TMDS ClockReserved SDA +5 V Power (max. 50 mA)
29
UNO-2484G User Manual
A.6 COM1/COM2/COM3/COM4 RS232/422/485 Connector
Pin
RS232
RS422
RS485
1
DCD
TX-
D-
2
RX
TX+
D+
3
TX
RX+
4
DTR
RX-
5
GND
GND
GND
6
DSR
7
RTS
8
CTS
9
RI
UNO-2484G User Manual
30
Appendix A System Settings/Pin Assignments
A.7 Mini PCIE Slot (MINIPCIE)
Supports PCI1.1, PCI1.2 power definition.
Pin Signal
Description
Pin Signal
Description
52
+3.3Vaux / +3.3V
PCI1.1 was +3.3V, PCI1.2 was +3.3Vaux 51
Reserved
NC
50
GND
49 Reserved
NC
48
+1.5V
47 Reserved
NC
46
NC
NC
45 Reserved
NC
44
NC
NC
43
PIN43_MPCIE_ PWRSEL
The pin to select the Pin 2, 52 power output for +3.3Vaux or +3.3V (PCI1.1 was Reserved and PIC1.2 was GND
42
NC
NC
41 +3.3Vaux
40
GND
39 +3.3Vaux
38
USB_D+
36
USB_D-
USB serial data interface compliant to 37 GND
the USB 2.0 specification
35 GND
34
GND
33 PETp0
PCI Express differential transmit pair
32
SMB_DATA SMBus data signal compliant to the
30
SMB_CLK SMBus 2.0 specification
31 PETn0 29 GND
28
+1.5V
27 GND
26
GND
25 PERp0
PCI Express differential receive pair
24
+3.3Vaux
23 PERn0
22
PERST#
Functional reset to the card
21 GND
Active low signal. This signal is used by
the system to disable radio operation on
20
W_DISABLE #
add-in cards that implement radio frequency applications. When implemented,
19
Reserved
NC
this signal requires a pull-up resistor on
the card.
18
GND
17 Reserved
NC
Key
Key
Key
Key
16
NC
NC
15 GND
14
NC
NC
13 REFCLK+
12
NC
NC
11 REFCLK-
10
NC
NC
9
GND
8
NC
NC
7
CLKREQ#
Reference clock request signal
6
1.5V
5
NC
NC
4
GND
3
NC
NC
2
+3.3Vaux / +3.3V
PCI1.1 was +3.3V , PCI1.2 was +3.3Vaux
1
WAKE#
Open drain active low signal. This signal is used to request that the system return from a sleep/suspended state to service a function initiated wake event.
Note 1: +3.3V aux is suspend power; power out to device +3.3V/1.1A Note 2: +3.3V is core power Note 3: +1.5V is core power; power out to device +1.5V/0.5A
31
UNO-2484G User Manual
A.8 LAN RJ45 Connector
RJ45 Pin Signal
1
MDI0+
2
MDI0-
Description
In BASE-T: Media-dependent interface[0]: 1000BASE-T: In MDI configuration, MDI[0]+/- corre-
sponds to BI_DA+/- and in MDI-X configuration MDI[0]+/corresponds to BI_DB+/-. 10BASE-T and 100BASE-TX: In MDI configuration, MDI[0]+/- is used for the transmit pair and in MDIX configuration MDI[0]+/- is used for the receive pair.
In BASE-T: Media-dependent interface[1]:
3
MDI1+ 1000BASE-T: In MDI configuration, MDI[1]+/- corre-
sponds to BI_DB+ and in MDI-X configuration MDI[1]+/-
corresponds to BI_DA+/-.
10BASE-T and 100BASE-TX: In MDI configuration,
6
MDI1-
MDI[1]+/- is used for the receive pair and in MDI-X configuration MDI[1]+/- is used for the transmit pair.
In BASE-T: Media-dependent interface[3:2]:
4
MDI2+ 1000BASE-T: In MDI and in MDI-X configuration,
MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/- corre-
5
MDI2-
sponds to BI_DD+/-.
100BASE-TX: Unused.
7
MDI3+ 10BASE-T: Unused.
8
MDI3-
10Link 100Link
Off
Orange
Left LED 1000 Link Green
Right LED Active Green
UNO-2484G User Manual
32
Appendix A System Settings/Pin Assignments
A.9 CN15/CN53 Internal USB 2.0 Pin Header
Table A.7: CN15/CN53 Internal USB 2.0 Pin Header
Pin
Signal
1
+5V
2
+5V
3
USB1-
4
USB2-
5
USB1+
6
USB2+
7
GND
8
GND
9
NC
A.10 Screw Type and Quantity for Mounting Module
33
UNO-2484G User Manual
A.11 Modifying the Serial Port Mode
The default setting for the serial ports is RS-232 mode. The setting can be configured to RS-422 or RS-485 modes by following the instructions below. 1. Power on the UNO-2484G device and press "Delete" to enter the BIOS configu-
ration menu. 2. Select "Advanced"=>"IT8768E Super IO Configuration".
3. Select the serial port (e.g., select "Serial Port 1 Configuration").
UNO-2484G User Manual
34
Appendix A System Settings/Pin Assignments
4. Select "COM1 mode" and choose from "RS232 mode", "RS422 mode", or "RS485 mode".
35
UNO-2484G User Manual
A.12 BIOS Setting of TPM 2.0
The UNO-2484G series supports TPM2.0 function. This function can be enabled or disabled in the BIOS configuration menu by following the instructions below. 1. Power on the UNO-2484G device and press "Delete" to enter the BIOS configu-
ration menu. 2. Select "Advanced"=> "Trusted Computing".
3. Select "Security Device Support".
UNO-2484G User Manual
36
Appendix A System Settings/Pin Assignments
4. Choose "Enabled" or "Disabled" to enable/disable TPM2.0 function in the BIOS menu.
37
UNO-2484G User Manual
UNO-2484G User Manual
38
Appendix A System Settings/Pin Assignments
UNO-2484G User Manual
39
www.advantech.com
Please verify specifications before quoting. This guide is intended for reference purposes only. All product specifications are subject to change without notice. No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2017
