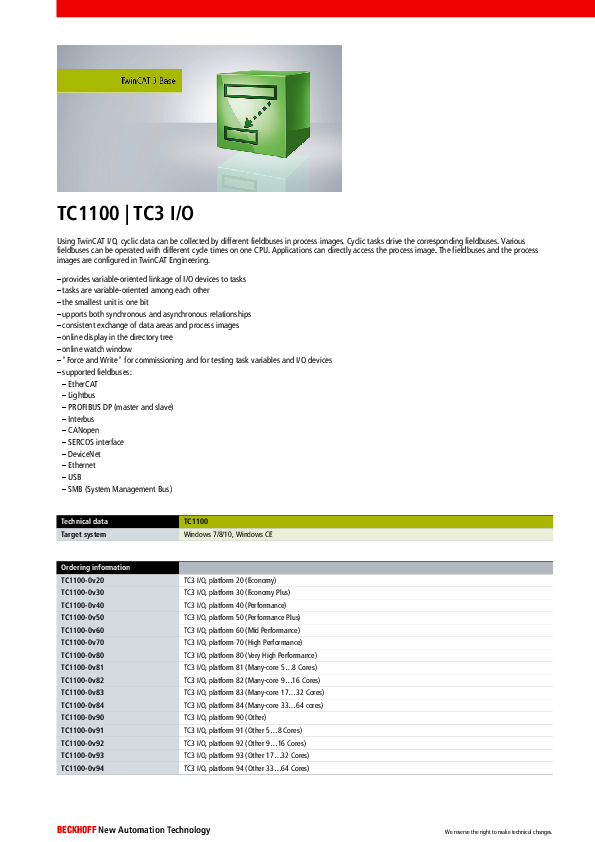

Original Document

If the viewer doesn’t load, open the PDF directly.

Extracted Text

TC1100 | TC3 I/O
Using TwinCAT I/O, cyclic data can be collected by different fieldbuses in process images. Cyclic tasks drive the corresponding fieldbuses. Various fieldbuses can be operated with different cycle times on one CPU. Applications can directly access the process image. The fieldbuses and the process images are configured in TwinCAT Engineering.
provides variable-oriented linkage of I/O devices to tasks tasks are variable-oriented among each other the smallest unit is one bit upports both synchronous and asynchronous relationships consistent exchange of data areas and process images online display in the directory tree online watch window "Force and Write" for commissioning and for testing task variables and I/O devices supported fieldbuses:
EtherCAT Lightbus PROFIBUS DP (master and slave) Interbus CANopen SERCOS interface DeviceNet Ethernet USB SMB (System Management Bus)

Technical data Target system

TC1100 Windows 7/8/10, Windows CE

Ordering information TC1100-0v20 TC1100-0v30 TC1100-0v40 TC1100-0v50 TC1100-0v60 TC1100-0v70 TC1100-0v80 TC1100-0v81 TC1100-0v82 TC1100-0v83 TC1100-0v84 TC1100-0v90 TC1100-0v91 TC1100-0v92 TC1100-0v93 TC1100-0v94

TC3 I/O, platform 20 (Economy) TC3 I/O, platform 30 (Economy Plus) TC3 I/O, platform 40 (Performance) TC3 I/O, platform 50 (Performance Plus) TC3 I/O, platform 60 (Mid Performance) TC3 I/O, platform 70 (High Performance) TC3 I/O, platform 80 (Very High Performance) TC3 I/O, platform 81 (Many-core 5...8 Cores) TC3 I/O, platform 82 (Many-core 9...16 Cores) TC3 I/O, platform 83 (Many-core 17...32 Cores) TC3 I/O, platform 84 (Many-core 33...64 cores) TC3 I/O, platform 90 (Other) TC3 I/O, platform 91 (Other 5...8 Cores) TC3 I/O, platform 92 (Other 9...16 Cores) TC3 I/O, platform 93 (Other 17...32 Cores) TC3 I/O, platform 94 (Other 33...64 Cores)

BECKHOFF New Automation Technology

We reserve the right to make technical changes.
