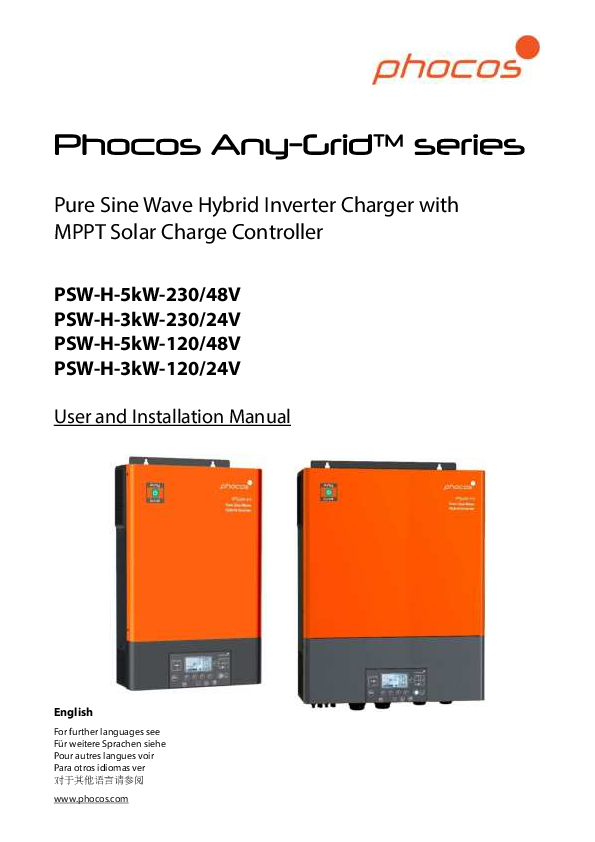

Phocos PSW-H Series manual

Pure Sine Wave Hybrid Inverter Charger with MPPT Solar Charge Controller
PSW-H-5kW-230/48V PSW-H-3kW-230/24V PSW-H-5kW-120/48V PSW-H-3kW-120/24V User and Installation Manual
English
For further languages see Für weitere Sprachen siehe Pour autres langues voir Para otros idiomas ver www.phocos.com

1.0 Introduction ...................................................................................................................................................2 2.0 Important Safety Information.......................................................................................................................2 3.0 Regulatory Information .................................................................................................................................3 4.0 Overview.........................................................................................................................................................4
Functional Overview .......................................................................................................................................................................... 4 Product Overview................................................................................................................................................................................ 5 5.0 Installation .....................................................................................................................................................6 Package Contents ................................................................................................................................................................................ 6 Installation of Battery Wiring Extension Box and Cable Glands ........................................................................................ 6 Mounting the Unit............................................................................................................................................................................... 6 Battery Connection............................................................................................................................................................................. 7 AC Input and AC Output Connection .......................................................................................................................................... 8 PV Connection ....................................................................................................................................................................................10 Final Assembly .................................................................................................................................................................................... 11 Remote Display Panel Installation...............................................................................................................................................11 Installing Multiple Units in Parallel, Split Phase or 3-Phase Configuration .................................................................13 6.0 BLE Communication.....................................................................................................................................19 7.0 Relay Contact................................................................................................................................................19 8.0 Operation .....................................................................................................................................................20 Inverter Power ON/OFF ...................................................................................................................................................................20 Display and Control Module..........................................................................................................................................................20 Display Symbols .................................................................................................................................................................................21 Device Operation Settings ............................................................................................................................................................. 23 USB and Timer Settings ...................................................................................................................................................................31 Screen Views of Current Values ....................................................................................................................................................34 Operating Mode Description ........................................................................................................................................................ 40 9.0 Fault Reference Codes..................................................................................................................................43 10.0 Warning Codes .............................................................................................................................................44 11.0 Troubleshooting...........................................................................................................................................46 12.0 Specifications ...............................................................................................................................................49 Grid Mode ............................................................................................................................................................................................. 49 Off-Grid Mode .....................................................................................................................................................................................50 Battery Charging ................................................................................................................................................................................51 General................................................................................................................................................................................................... 52 13.0 Warranty .......................................................................................................................................................53 Conditions ............................................................................................................................................................................................ 53 Liability Exclusion ..............................................................................................................................................................................53

www.phocos.com

1 |P a g e

1.0 Introduction
Dear customer, thank you for choosing this quality Phocos product. The Any-GridTM pure sine wave hybrid inverter / charger series has numerous outstanding features and use-cases such as:
Function as purely Off-Grid inverter for applications with no AC power source
Function as solar enabled (optional) uninterruptible power supply (UPS) functionality for intermittent or unstable AC sources
Function as grid-connected or AC-generator-connected inverter to reduce energy demand from the AC source by prioritizing solar and/or battery power, thus saving energy costs
Grid injection of excess energy possible where it is legal, with or without a connected battery. Accidental injection is prevented by requirement of a PIN code for activation
Both neutral (N) and live (L) wires of the AC input are automatically disconnected (break-before-make relays) from the AC output when the Any-Grid operates in Off-Grid mode
High-voltage MPPT solar charge controller allows the connection of more solar panels in series (compared to other Off-Grid solar charge controllers), typically eliminating the need for expensive combiner boxes
Battery charging from an AC source such as the public power grid or a genset
Compatibility with multiple battery types including lead-acid (gel, AGM and liquid electrolyte) and Lithiumbased batteries such as LiFePO4
Battery-free mode: if an AC source is available, photovoltaic (PV / solar) power can be used as first priority, even with no battery attached
Removable wired display unit can be installed in a different room (up to 20 m / 66 ft cable can be used)
All-in-one hybrid unit allows simple and fast installation, and easy configuration
Monitor the unit in real-time with the PhocosLink Mobile BLE smartphone App
Optional accessory: Phocos Any-BridgeTM IoT Gateway (sold separately) to connect to the PhocosLink Cloud from anywhere with any internet-capable device via its web browser
This manual describes the assembly, installation, operation and troubleshooting of this unit.
2.0 Important Safety Information
SAVE THESE INSTRUCTIONS: This manual contains important instructions for models PSW-H-5kW-230/48V and PSW-H-5kW-120/48V (referred to as 48 Vdc model), as well as the PSW-H-3KW-230/24V and PSW-H-3kW120/24V (referred to as 24 Vdc model) that shall be followed during installation and maintenance of the hybrid inverter/charger. The PSW-H-5kW-230/48V and PSW-H-3KW-230/24V are also referred to as 230 Vac models; the PSW-H-5kW-120/48V and PSW-H-3KW-120/24V as 120 Vac models. Read and save this manual for future reference.
WARNING: The installation of this unit may only be undertaken by qualified personnel with appropriate training. High voltages in and around the unit can cause serious injury or death. This unit must be installed in accordance with rules and regulations at the site of installation.
CAUTION: A battery can present a risk of electrical shock, burn from high short-circuit current, fire or explosion from vented gasses. Observe proper precautions.
WARNING: This unit must be connected to a permanent grounded wiring system. Be sure to comply with local requirements and regulations when installing this unit.
BATTERY TYPE: Suitable for use with lead-acid (gel, AGM and liquid electrolyte) and Lithium-based batteries such as LiFePO4.
OVERCURRENT PROTECTION FOR BATTERY: Install an overcurrent protection device with a minimum of 1000A interrupt rating as close as possible to the battery terminal. Select a device rated for 1.25 times the nominal current rating of the inverter/charger . An overcurrent protection device must be purchased separately.
1. Before using the unit, read all instructions and cautionary markings on this unit, the batteries, the solar modules, any connected loads.

www.phocos.com

2 |P a g e

2. Please do not disassemble or attempt to repair Phocos products. This unit does not contain user serviceable parts. Damage to the warranty seal will lead to a loss of warranty of the product and can lead to injury.
3. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning. Switching off the unit is not sufficient, turn off and / or disconnect all connections to the unit.
4. For safe operation of this unit, please adhere to appropriate cable size requirements in this manual.
5. Be very cautious when working with uninsulated metal tools on or around batteries. They can short-circuit batteries or other electrical parts and could cause an explosion and / or injury.
6. Strictly follow the installation procedure when connecting or disconnecting AC or DC terminals. Please refer to the "Installation" section of this manual for details.
7. Appropriate fuses or breakers are required near the battery supply and AC input and AC output of this unit.
8. WARNING: It is highly recommended and legally required in many countries to install a Type B residual current device (RCD) between the AC output of the unit(s) and the AC loads to protect humans from hazardous electric shock due to faulty AC wiring, faulty loads or a potential inverter fault. Only in Off-Grid mode, the neutral (N) and ground (PE) of the AC output are automatically bridged inside the AnyGrid to ensure the RCD's functioning if the AC installation is wired correctly as a TN-S or TN-C-S earthing system. In a TN-C-S installation the bridge between neutral (N) and ground (PE) must be between the public grid and AC input of the Any-Grid to ensure that there is never more than one bridge between N and PE.
9. Never allow any AC or DC connections to be short-circuited. Do not connect to the mains when the battery input is short-circuited.
10. Only qualified service persons may service this device. If errors persist after following the "Troubleshooting" section in this manual, please send this unit back to a local Phocos dealer or service center for maintenance.
11. WARNING: Because this inverter (AC output) is not isolated from the PV input, only solar panels are acceptable for use which do not require positive or negative grounding as grounding the positive or negative PV cables is not allowed. To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter. For example, positive- or negative-grounded PV modules will cause current leakage to the inverter. Grounding of the PV module frame is permitted and frequently required by local law. The battery is galvanically isolated from the inverter and PV input, therefore the battery positive or negative terminal may be grounded if required.
12. CAUTION: When using more than one Any-Grid, ensure that each Any-Grid is connected only to its own PV array. There may be no electrical contact between units' PV arrays or the Any-Grids will be damaged.
13. CAUTION: It is highly recommended to use a surge arrester, also named surge protective device (SPD) near the PV input terminals of this unit. This is to prevent damage to the unit from lightning, thunderstorms or other voltage surges on the PV cables. The max. DC operating voltage of the SPD must be between 450 and 480 Vdc for 230 Vac models. For example the Citel DS240-350DC is suitable. For 120 Vac models the max. DC operating voltage must be between 250 to 280 Vdc, so for example the Citel DS240-220DC is suitable.
14. CAUTION: It is highly recommended to use a surge arrester, also named surge protective device (SPD) near the AC input terminals of this unit, if the AC input is used. This is to prevent damage to the unit from lightning, thunderstorms or other voltage surges on the AC input conductors (for example coming from the public grid). The max. AC operating voltage of the SPD must be between 275 and 300 Vac for 230 Vac models. For example, the Citel DS41S-230 (for most public grids or generators, higher protection) or Citel DS41S-320 (for public grids with large voltage swings, lower protection) are suitable. For 120 Vac models the SPD must have a max. AC operating voltage between 140 and 150 Vac. For example, the Citel DS41S-120 is suitable

3.0 Regulatory Information

This product is CE and RoHS (Restriction of Hazardous Substances) compliant. Please find the CE declaration at www.phocos.com.

RoHS

This product is manufactured in an ISO 9001 (quality management) and ISO 14001 (environmental management) certified facility.

This equipment is suitable for use in non-hazardous locations only.

This is a class A device: in a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

www.phocos.com

3 |P a g e

4.0 Overview
Functional Overview
This pure sine wave hybrid inverter charger with solar charge controller (MPPT) can provide power to connected loads by utilizing PV power, AC power and battery power. Most connections are optional, but there must be at least one power source (AC or PV):

PV Panels (optional)

AC Loads

Public Grid (optional)*

Battery (optional)

Phocos Any-GridTM

Removable Display

Hybrid Inverter Charger

(up to 9 units parallel, split-phase

or 3-phase)

AC Generator (optional)* * Any-GridTM accepts one AC input

Fig. 1: System Overview

This unit has one each of the following power connections: battery, PV, AC input, AC output. The unit is designed to provide continuous power from PV / battery or an AC source, depending on the set priority. Independently, the priority for charging the battery can be set (the battery can only be charged from AC when the unit is not working in Off-Grid mode). The switching time between Grid (also valid when an AC generator is used) and Off-Grid modes is only 10 milliseconds (typical) when a single Any-Grid unit is used. Timers can be used to change the priorities based on hourly time slots; this is useful for areas where grid power has differing costs throughout the day. The integrated maximum power point tracking (MPPT) solar charge controller can handle particularly high PV voltages, allowing for a simpler installation and lower costs than most Off-Grid solar charge controllers. Typically, no combiner boxes or string fuses / diodes are required.
The pure sine wave AC output and the surge power capability (twice the continuous power rating) assure all types of AC loads can be powered. Ensure that the peak power requirement of the loads is below the surge power capability of this inverter.
Two special functions allow even more flexibility: Battery-Free mode and Grid Injection.
In Battery-Free mode, no battery is connected to the unit and an AC source must be present. The unit will then provide as much power from PV as is available to supply loads, adding any missing power from the AC source. If there is more PV power available than can be utilized by the loads, then the PV power is reduced to ensure no power feedin into the grid.
The Grid Injection functionality allows feeding any excess power into the grid. If there is excess PV power beyond what is utilized by the load and for battery charging, this power can be fed into the public grid to take advantage of net metering or feed-in tariffs. In this way all the PV power can be used even if the battery is full and the loads do not require all the available PV power. Feeding into the grid may be prohibited in some areas so this function is locked by a PIN code to avoid accidental grid injection.

www.phocos.com

4 |P a g e

Product Overview

Display Unit
Pin 1 Pin 8

Fig. 2: Product Overview 1. LCD screen 2. Inverter status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. AC output on/off switch (solar charging still functions when the AC output is powered off ) 7. AC input terminals (public grid or AC generator connection) 8. AC output terminals (load connection) 9. PV terminals 10. Battery terminals 11. Resettable circuit breaker 12. Remote display unit communication port 13. Parallel communication port (for inter-connecting multiple Any-Grid units) 14. Current sharing port (for inter-connecting multiple Any-Grid units) 15. Relay contact 16. USB-OTG communication port 17. Output source indicators and USB function indicators 18. Battery Management System (BMS) communication port: CAN, RS-485 and RS-232 19. RS-232 communication port 20. Battery wiring extension box (only included with PSW-H-3KW-120/24V)
www.phocos.com

5 |P a g e

5.0 Installation
Package Contents
Before installation, please inspect the unit to ensure nothing inside the package is damaged. Package contents: Any-Grid unit This manual RS-232 cable (SUB-D to RJ-45) Parallel communication cable (gray connectors, needed for systems with multiple Any-Grid units) Current sharing cable (green connectors, needed for systems with multiple Any-Grid units on a phase) 3 pcs. ring terminals for battery connection (2 pcs. required for installation)
Installation of Battery Wiring Extension Box and Cable Glands
Note: Cable glands applicable to 120 Vac models only. Battery wiring extension box applicable to PSW-H3KW-120/24V only. Installation of the battery wiring extension box is necessary for UL conformity. If UL conformity is not required in your region, it is sufficient to only install the cable glands (step 3) shown below.

Fig. 3: Installation of cable glands and battery wiring extension box
1. Remove faceplate by removing 4 screws (Fig. 3, left). 2. Assemble battery wiring extension box and mount in place of the faceplate (Fig. 3, right) with screws. 3. Install the 5 included cable glands (Fig. 3, right).
Mounting the Unit
Before connecting all wirings, please take off bottom cover by removing two screws as shown below and carefully sliding the cover down. Before removing the cover entirely, remove the 3 wire harnesses by their connectors (Fig. 4).

www.phocos.com

6 |P a g e

Fig. 4: Removal of bottom cover

Fig. 5.1: Minimum distance to other objects

WARNING: Only mount this unit on concrete or another solid non-combustible surface capable of securely holding the weight of the unit.
Install this inverter at eye level to ensure legibility of the display
Ensure the ambient temperature is between -10 ~ 50 °C, 14 ~ 122 °F at all times. In order to fulfill UL requirements, inverters must be operated at an ambient temperature of -10 ~ 40 °C, 14 ~ 104 °F.
Avoid excessively dusty environments
The unit is designed for vertical installation on a solid wall
Ensure a minimum distance to other objects and surfaces as shown in Fig. 5.1 to guarantee sufficient heat dissipation and to have enough space for removing wires.
Install in a room where noise is not an issue as the unit has fans for cooling

Install the unit by using three M4 or M5 screws (Fig. 5.2) appropriate for the weight of the unit and wall material, use wall plugs. The bottom screw hole is only accessible after removal of the bottom cover (Fig. 4). This bottom cover must remain removed for the rest of this "Installation" chapter until instructed otherwise.

Fig. 5.2: Mounting holes

Battery Connection
WARNING: The installation of this unit may only be undertaken by qualified personnel with appropriate training. High voltages in and around the battery and unit can cause serious injury or death. This unit must be installed in accordance with rules and regulations at the site of installation.
WARNING: Choose a suitable battery fuse as outlined in the chapter "Important Safety Information", section "OVERCURRENT PROTECTION FOR BATTERY".
WARNING: Ensure the battery cables are sized according to the table below. Inadequate battery cables can cause excessive heat or fire during operation.
Recommended battery cable cross-section, battery size and fuse / DC circuit breaker rating:

www.phocos.com

7 |P a g e

Any-Grid model
Battery cable crosssection
Nominal battery voltage
Min. battery capacity (lead-based)
Battery discharge current capability
Fuse / breaker rating

PSW-H-5KW230/48V

PSW-H-5KW120/48V

PSW-H-3KW230/24V

35 ~ 50 mm², AWG 0 ~ AWG 2

PSW-H-3KW120/24V

48 Vdc

24 Vdc

200 Ah

140 Adc cont. 280 Adc surge (5s)
175 Adc, min. 66 Vdc

115 Adc cont. 280 Adc surge (5s)
175 Adc, min. 66 Vdc

168 Adc cont. 336 Adc surge (5s)
210 Adc, min. 33 Vdc

145 Adc cont. 336 Adc surge (5s)
210 Adc, min. 33 Vdc

Steps to connect the battery:
1. WARNING: Ensure the battery cables are not yet connected to the battery. CAUTION: Ensure none of the cable insulation is jammed in the ring terminal before crimping. Crimp one battery ring terminal (included) to each the positive and negative battery lead (unit side). If choosing ring terminals other than the included ones, make sure they have an inside ring diameter of 6.4 mm, 0.25 in to fit the M6 battery terminal bolts of the Any-Grid securely.
2. Remove the pre-installed nuts from the battery terminal bolts. Insert the ring terminal of the battery cables through the casing holes (cable glands for 120 Vac models) and flat onto the corresponding battery terminal (Fig. 6). Screw down the previously removed nuts with a torque of 2 ~ 3 Nm (1.5 ~ 2.2 lbfft). Ensure the ring terminals sit flush on the connectors. CAUTION: Do not apply any anti-oxidant substances to the battery terminals of the unit before they are adequately fastened. CAUTION: Over-tightening the terminal nuts can cause damage to the terminal, under-tightening can cause a loose connection and excessive heat during operation, make sure to use the prescribed torque.
3. Install the fuse holder or breaker in the positive battery cable (or negative, if the battery must be positivegrounded). WARNING: Ensure the fuse is not yet installed or make sure the circuit breaker is secured in the open position for the rest of the installation procedure until instructed to do otherwise.
4. Connect the other end of the battery cables to the battery. Ensure the polarity of the battery terminals on the Any-Grid match the battery polarity. CAUTION: Reverse polarity connection to the battery may damage the unit.

Fig. 6: Battery connection
AC Input and AC Output Connection
WARNING: Before connecting an AC source to the AC input of the Any-Grid, install an AC circuit breaker between the Any-Grid and AC input power source. This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input. Make sure the breaker is open / off for the rest of the installation procedure until instructed otherwise.

www.phocos.com

8 |P a g e

WARNING: Ensure that the installation has adequate grounding and connect the protective earth (PE)
terminals to this ground as instructed below. Failure to do so can cause serious injury or death once the unit is powered up or the AC source is activated via its breaker.

WARNING: Ensure the AC cables are sized according to the table below. Inadequate AC cables can cause excessive heat or fire during operation.

CAUTION: Do not connect an AC source to the "AC OUTPUT" labelled terminal of the unit as this will destroy the unit. Only connect it to the "AC INPUT" labeled terminal.

CAUTION: Only AC sources with a neutral may be used. Using two phases on a single Any-Grid instead, will cause damage.

Recommended AC cable cross-section and AC circuit breaker rating:

Any-Grid model

PSW-H-5KW230/48V

PSW-H-3KW230/24V

PSW-H-3KW120/24V

PSW-H-5KW120/48V

AC input and output cable cross-section

4 ~ 10 mm², AWG 7 ~ AWG 11

6 ~ 16 mm², AWG 4 ~ AWG 9

Circuit breaker rating 40 Aac, 280 Vac 30 Aac, 280 Vac 40 Aac, 140 Vac

63 Aac, 140 Vac

Steps to connect the AC source and AC loads:
1. WARNING: Ensure the battery cable fuse is removed or breaker is secured in the open position. WARNING: Ensure the AC source breaker is secured in the open position and there is no voltage on the conductors before continuing.
2. Remove 10 mm / 0.4 in of insulation for the six AC conductors (neutral "N", live "L" and protective earth "PE" for the AC source and loads).
3. Insert the three AC source wires through the rectangular casing hole (cable gland for 120 Vac models) marked "AC INPUT". Insert the "PE" protective conductor first into the corresponding AC input terminal and tighten with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbfft). Repeat for the neutral "N" and live "L" conductors.

Fig. 7: AC input connection
4. Insert the three AC load wires through the rectangular casing hole (cable gland for 120 Vac models) marked "AC OUTPUT". Insert the "PE" protective conductor first into the corresponding AC output terminal and tighten with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbfft). Repeat for the neutral "N" and live "L" conductors.

www.phocos.com

Fig. 8: AC Output connection

9 |P a g e

5. Make sure the six wires are securely connected. CAUTION: Over-tightening the terminal screws can cause damage to the terminal, under-tightening can cause a loose connection and excessive heat during operation, make sure to use the prescribed torque. Ensure none of the conductor insulation is jammed between the terminal contacts. CAUTION: Ensure the polarity is correct on all wires. Failure to do so may cause a short-circuit at the
AC source when several units are working in parallel operation.

PV Connection

WARNING: Before connecting the PV module array to the PV input of the Any-Grid, install a DC circuit breaker between each Any-Grid PV terminal pair and the PV modules. This ensures the inverter can be securely disconnected during maintenance and is protected from over-current of the PV modules. PV modules produce a dangerous voltage even at low light. Make sure the breaker is open / off for the rest of the
installation procedure until instructed otherwise.

WARNING: Ensure the PV cables are sized according to the table below. Inadequate PV cables can cause excessive heat or fire during operation.

Recommended PV cable cross-section and DC circuit breaker rating:

Any-Grid model

PSW-H-5KW-230/48V PSW-H-3KW-230/24V

PSW-H-3KW-120/24V

PSW-H-5KW-120/48V

PV cable cross-section

2.5 ~ 16 mm², AWG 5 ~ AWG 13

Circuit breaker rating

20 Adc, min. 450 Vdc

20 Adc, min. 250 Vdc

20 Adc, min. 250 Vdc per PV input

For selecting the correct PV module configuration, please consider the following points:

The total open circuit voltage (Uoc / Voc) of the PV module array may never exceed the values in the table below. Consider the coldest possible temperatures at the installation location together with the temperature coefficient of the PV modules used.

The total maximum power point voltage (Umpp / Vmpp) of the PV module array must be above the minimum values in the table below. Consider the hottest PV module temperatures at installation location.

The total maximum power point current (Impp / Ampp) of the PV array may not exceed the values below.

Any-Grid model

PSW-H-5KW- PSW-H-3KW-

230/48V

230/24V

PSW-H-5KW-120/48V

PSW-H-3KW120/24V

Max. PV voltage (Uoc)

450 Vdc

250 Vdc

Min. PV mpp voltage (Umpp)

120 Vdc

90 Vdc

Max. mpp current (Impp)

22.5 Adc (up to 18 Adc actually usable)

22.5 Adc (up to 18 Adc usable) per input, 30 Adc
total max. usable

22.5 Adc (up to 18 Adc
actually usable)

Steps to connect the PV module array:
1. Remove 10 mm / 0.4 in of insulation from the positive and negative PV cables.
2. Insert the two PV wires through the rectangular casing hole (cable glands for 120 Vac models) marked "PV input".
3. Insert the positive PV cable into the "PV+" terminal and the negative PV cable into the "PV-" terminal. CAUTION: Ensure correct polarity.

www.phocos.com

10 | P a g e

Fig. 9: PV connection
4. Tighten both terminal screws with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbfft) and make sure the two wires are securely connected. CAUTION: Over-tightening the terminal screws can cause damage to the terminal, under-tightening can cause a loose connection and excessive heat during operation, make sure to use the prescribed torque. Ensure none of the cable insulation is jammed between the terminal contacts.
5. If using the PSW-H-5KW-120/48V, repeat step 3 and 4 for the second PV terminal pair and a second PV array. CAUTION: If using two PV arrays for this model, they must be independent. The positive and negative terminals of the two PV arrays may not touch each other.
Final Assembly
After Battery, PV and AC wiring is completed, please slide the bottom cover back up on the unit, re-connect the 3 wire harnesses removed in Fig. 4, and secure it by fastening the two screws as shown below.

Fig. 10: Re-applying bottom cover
Remote Display Panel Installation
The display module can optionally be removed and installed in a remote location with an optional communication cable. Please take the following steps to implement this remote panel installation. Use a standard straight Ethernet patch cable (Cat5 or higher) with male RJ45 connectors on both sides (not included). A maximum cable length of 20 meters or 66 feet is recommended. Follow the steps below to remove the display module and install it away from the inverter unit.
1. Remove the screw holding the bracket on the bottom of the display module (Fig. 11 ) and push down the display unit from the case slightly while removing the metal bracket.
2. Keep pushing the display module down, taking care not to damage the connected cable (Fig. 11 ).

www.phocos.com

11 | P a g e

3. Remove the cable connected to the display module (Fig. 11 ). 4. Screw the bracket removed in Fig. 11 back in place (Fig. 11 ).

Remove

Push

Pull
Screw in
Fig. 11: Remote display removal 5. Drill the three mounting holes in the marked distances of 70 mm, 2.76 in into each other (Fig. 12, left). Use
M3, size no. 4 diameter screws. The screw heads must be between 5 ~ 7 mm, 0.2 ~ 0.3 in. Screw the bottom two screws into the wall where the display module is to be mounted and let the screw heads protrude 2 mm, 0.08 in. from the wall. Slide the display down on the protruding screw heads. Now insert and tighten the third screw at the top (Fig. 12, right).

Fig. 12: Remote display mounting hole locations

6. Install one end of the Ethernet patch cable (not included) into socket (Fig. 2) on the display module (right side). Install the other end of the Ethernet patch cable into socket (Fig. 2) on the Any-Grid unit.

7. If using Lithium batteries designed for battery management system (BMS) communication such as Pylontech batteries, please visit www.phocos.com for a current list of batteries supported with BMS
communication. Connect the special battery BMS cable (ask your dealer for details) to socket (Fig. 2). CAUTION: Ensure the battery and BMS is compatible with the Any-Grid and that the pin location is correct before connection. Damage to any communication port or the battery due to incorrect connection or cables is not covered by warranty. Do not use any inverter communication cables included with your battery, consult your Phocos dealer for appropriate Any-Grid cables instead.

Pin (see Fig. 2)

Function

RS-232 RX RS-232 TX RS-485 B +12 Vdc RS-485 A CAN H CAN L

GND

www.phocos.com

12 | P a g e

Installing Multiple Units in Parallel, Split Phase or 3-Phase Configuration
Introduction
This entire chapter is only relevant if using more than one Any-Grid unit. Multiple Any-Grid units of the same model number can be used either in parallel on a single phase, split-phase / 2-phase (only 120 Vac models), or in a 3phase configuration with a common neutral. All units must be connected to the same battery bank. This chapter is an addition to all other sections above in the chapter "Installation", please adhere to all guidelines and safety instructions in those sections accordingly.
Parallel operation on a single phase is possible with up to 9 units.
Alternatively, 3-phase configuration is possible, whereby at least one unit must be installed on each of the 3 phases with a maximum of 7 units on a phase. The total number of units may not exceed 9 in any case.
For 120 Vac models split-phase (2-phase) operation is possible whereby at least one unit must be installed on each of the 2 phases with a maximum of 8 units on a phase. The total number of units may not exceed 9 in any case.
CAUTION: If using an AC source, each unit must be connected to a neutral and a phase conductor, never two phases.
Mounting the Units
When installing multiple units, please keep a minimum distance between the units as shown in Fig. 13.

Fig. 13: Minimum distance between units and to other objects
Connections
Use the cable cross-sections, tightening torque and connectors as described for a single unit.
Battery Connection: Make sure to use a separate DC fuse or circuit breaker for each unit. Instead of connecting each unit to the battery, connect each positive battery cable to a bus bar, and each negative battery cable to a second bus bar. These bus bars are then connected to the battery terminals. The cross-section of the bus bars, and the cables from the bus bars to the battery terminals should equal the recommended battery cable cross-section per unit, times the number of units connected to it.
The minimum recommended battery capacity for lead-based batteries is 200 Ah per connected Any-Grid. For example, in a system with 3 units, the battery bank should have a capacity of at least 600 Ah.
CAUTION: All inverters must share the same battery bank. Otherwise, the inverters will go into fault mode.
CAUTION: Please install at least a breaker at the battery terminals and AC input of every individual Any-Grid unit. This will ensure each unit can be securely disconnected during maintenance and fully protected from over-current of battery or AC input. Use the breaker ratings as described in the chapters "Battery Connection" and "AC Input and AC Output Connection".
AC Connections: Regarding AC input and output, please also follow the same principle. Use the wiring cross-section and circuit breaker as defined for each individual unit, then attach those wires to bus bars. The bus bars from the AC

www.phocos.com

13 | P a g e

input are then connected to the AC source, the bus bars from the AC output are connected to the distribution panel and loads.
PV Connections: Use the PV connection as described for individual units. Each unit must be connected to its own PV array and must not have any electrical contact to any other units' PV arrays.
CAUTION: Connecting a single PV array to multiple Any-Grids simultaneously will damage the Any-Grid units. If using PV, each unit must be connected to its own individual PV array, not electrically shared with any other units.
WARNING: Ensure all circuit breakers are open / disabled before wiring the units so that there is no voltage on all battery, AC and PV wires.
General rules for the communications connections (see Fig. 2 Parallel Communication Port and Current Sharing Port):
1. Every unit must have both parallel communication ports occupied. These ensure phase synchronization and synchronization of parameters between the units.
2. Current sharing ports must only be occupied for those units where there is more than one unit on that particular phase. If there is only one unit on a phase, then current sharing cables must not be used. These current sharing cables ensure that all units on one phase operate at the same AC power output level.
3. Every parallel communication or current sharing cable used, must either be connected directly between two neighboring units, or with a maximum of one unit between them.
4. Connecting parallel communication cables, assuming units are numbered from 1 to 9 from left to right:
a) Connect the left black parallel communication port of unit 1 to the right port on unit 2.
b) Connect the right port of unit 1 to the left port of unit 3.
c) Connect the left port of unit 2 to the to the right port of unit 4.
d) Continue connecting the right port of each odd-numbered unit to the left port of the next oddnumbered unit. Continue connecting the left port of each even-numbered to the right port of the next even-numbered unit, until there are only two unoccupied black ports.
e) Connect the unoccupied black port of the last unit to the unoccupied black port of the second-tolast unit.
5. Connecting current sharing cables just like step 4, assuming units are numbered from 1 to 9 from left to right on a particular phase (there must be no connection of current sharing cables between any two phases' units!):
a) Connect the left green current sharing port of unit 1 to the right port on unit 2.
b) Connect the right port of unit 1 to the left port of unit 3.
c) Connect the left port of unit 2 to the to the right port of unit 4.
d) Continue connecting the right port of each odd-numbered unit to the left port of the next oddnumbered unit. Continue connecting the left port of each even-numbered to the right port of the next even-numbered unit, until there are only two unoccupied green ports on the particular phase.
e) Connect the unoccupied green port of the last unit to the unoccupied green port of the second-tolast unit.
f) Repeat steps 5a to 5e for further phases with more than one unit.
The following section will show a few examples of how the parallel communication and current sharing cables are mounted. For better visibility download this manual in color at www.phocos.com.
Once commissioning is completed, the following settings menus (see chapter "Device Operation Settings") are automatically synchronized between all units: 01, 02, 03, 05, 06, 07, 08, 09, 10, 12, 13, 23, 26, 27, 29, 30, 32, 33, 34, 35, 36, 37, 39 and 41. All settings not mentioned here and priority timers can be set on each unit individually.
Example: 5 Units on Single Phase
Note: this example excludes circuit breakers, SPDs, RCDs and bus bars for better visibility.

www.phocos.com

14 | P a g e

Fig. 14: Power connections of 5 units on a single phase
Fig. 15: Communication connections of 5 units on a single phase
Example: 7 Units on Phase 1, 1 Unit on Phase 2, 1 Unit on Phase 3
Note: this example excludes circuit breakers, SPDs, RCDs and bus bars for better visibility.

Fig. 16: Power connections of 7 units on P1, 1 unit on P2, 1 unit on P3

Fig. 17: Communication connections of 7 units on P1, 1 unit on P2, 1 unit on P3

Notice that because there is only one unit on phase 2 (P2) and phase 3 (P3), there are no green current sharing cables connected to these two units.

www.phocos.com

15 | P a g e

Example: 4 Units on Phase 1, 4 Units on Phase 2 (split-phase)
Note: this example excludes circuit breakers, SPDs, RCDs and bus bars for better visibility.

Fig. 18: Power connections of 4 units on P1, 4 units on P2

Fig. 19: Communication connections of 4 units on P1, 4 units on P2
Commissioning
CAUTION: Before continuing, ensure the wiring is correct according to the previous chapter. Particularly that all units are connected to the same neutral wire at the AC input and all AC output neutral terminals are connected to a separated common neutral wire. Ensure that all AC input breakers and AC output breakers are open on each individual Any-Grid unit and that each unit is turned off with its AC output on/off switch. Ensure each unit is disconnected from PV but connected to the battery via its battery breaker / fuse. The battery breaker must be closed / inserted to ensure each unit can function for commissioning.
Parallel in Single Phase
Follow these steps once the wiring is completed:
1. Turn on one unit with its AC output on/off switch. If PV is available, switch it on with its breaker. Otherwise, if an AC source is available, switch it on with its AC input breaker.
2. In the Settings Menu (see chapter "Device Operation Settings") navigate to settings menu 28.
3. Turn the AC output on/off switch off to deactivate the AC output. The unit will remain in Stand-By mode for under a minute and the display will stay on for this time.
4. Set the menu number 28 setting from the default value "Single" (SIG) to "Parallel" (PAL). This will not be possible if the unit is not turned off as described in the previous step. Press so the entry stops blinking. Now press the button to accept the new setting and return to the main view.
5. Switch off the PV and AC input breaker if they were on. Wait for the unit to shut down automatically, the display will then turn off completely.
6. Repeat steps 1 to 5 with each further unit connected in parallel.

www.phocos.com

16 | P a g e

7. Now turn on each unit. One unit will automatically and randomly be defined as the host unit and will show the host screen, all other units will show the client screen on their display:

Screen of Host unit

Screen of Client unit(s)

8. Switch on the AC input breaker of each unit in quick succession, if an AC source is installed. If this takes too long, then some units may show fault 82 on their screen, but they will restart automatically and upon
detecting a valid AC input, will function normally. The displays will show the following:

Screen of Host unit

Screen of Client unit(s)

9. If there are no further faults displayed, the parallel system installation is complete. The breakers on the AC output of each unit can be switched on and then loads may be connected.

3-Phase, One or more Units per Phase

Follow these steps once the wiring is completed:

1. Turn on the unit on phase 1 with its AC output on/off switch. If PV is available, switch it on with its breaker. Otherwise, if an AC source is available, switch it on with its AC input breaker.

2. In the Settings Menu (see chapter "Device Operation Settings") navigate to settings menu 28.

3. Turn the AC output on/off switch off to deactivate the AC output. The unit will remain in Stand-By mode for under a minute and the display will stay on for this time.

4. Set the menu number 28 setting from the default value "Single" (SIG) to "Phase L1" (3P1). This will not be possible if the unit is not turned off as described in the previous step. Press so the entry stops blinking. Now press the button to accept the new setting and return to the main view.

5. Switch off the PV and AC input breaker if they were on. Wait for the unit to shut down automatically, the display will then turn off completely.

6. Repeat steps 1 to 5 with each further unit connected on the same phase 1. Then repeat steps 1 to 5 for each unit in phase 2 and, instead of choosing "Phase L1" in step 4, choose "Phase L2" (3P2). Then repeat steps 1 to 5 for each unit in phase 3 and, instead of choosing "Phase L1" in step 4, choose "Phase L3" (3P3).

7. Now turn on each unit. The units will show the following in their respective screens:

Screen of Units on Phase L1

Screen of Units on Phase L2

Screen of Units on Phase L3

8. Switch on the AC input breaker of each unit in quick succession, if an AC source is installed. If this takes too

www.phocos.com

17 | P a g e

long, then some units may show fault 82 on their screen, but they will restart automatically and upon detecting a valid AC input, will function normally.

9. If a valid AC input source is detected and the three phases match with the unit settings in settings menu
number 28, they will work normally. Otherwise, the symbol will flash and Grid Mode will not function. In this case, check that the order or the three phases is correct. If necessary, turn off all units and then switch the setting in settings menu number 28 for all Phase L2 units to Phase L3 and vice-versa by following steps 1 to 5. Then continue with step 7. The displays will now show the following:

Screen of Units on Phase L1

Screen of Units on Phase L2

Screen of Units on Phase L3

10. If there are no further faults displayed, the 3-phase system installation is complete. The breakers on the AC output of each unit can be switched on and then loads may be connected.

Split-Phase (2-Phase), One or more Units per Phase

Follow these steps once the wiring is completed:

1. Turn on the unit on phase 1 with its AC output on/off switch. If PV is available, switch it on with its breaker. Otherwise, if an AC source is available, switch it on with its AC input breaker.

2. In the Settings Menu (see chapter "Device Operation Settings") navigate to settings menu 28.

3. Turn the AC output on/off switch off to deactivate the AC output. The unit will remain in Stand-By mode for under a minute and the display will stay on for this time.

4. Set the menu number 28 setting from the default value "Single" (SIG) to "Phase L1 for split-phase" (2P1). This will not be possible if the unit is not turned off as described in the previous step. Press so the entry stops blinking. Now press the button to accept the new setting and return to the main view.

5. Switch off the PV and AC input breaker if they were on. Once the setting is confirmed, wait for the unit to shut down automatically, the display will then turn off completely.

6. Repeat steps 1 to 5 with each further unit connected on the same phase 1. Then repeat steps 1 to 5 for each unit in phase 2 and, instead of choosing "Phase L1 for split-phase" in step 4, choose "Phase L2 for split-phase" (2P2).

7. Now turn on each unit. The units will show the following in their respective screens:

Screen of Units on Phase L1

Screen of Units on Phase L2

8. Switch on the AC input breaker of each unit in quick succession, if an AC source is installed. If this takes too long, then some units may show fault 82 on their screen, but they will restart automatically and upon detecting a valid AC input, will function normally. The displays will show the following:

www.phocos.com

18 | P a g e

Screen of Units on Phase L1

Screen of Units on Phase L2

9. If there are no further faults displayed, the split-phase system installation is complete. The breakers on the AC output of each unit can be switched on and then loads may be connected.

6.0 BLE Communication

Google PlayTM

This unit is equipped with wireless BLE functionality. Download the "PhocosLink Mobile" App from the Google PlayTM store or Apple's App Store® with an AndroidTM or iOS device, respectively. Once the App is installed, use "pair your device" with the built-in BLE functionality of your device to connect to the Any-Grid unit with the BLE pairing password
"123456". Then open the app and connect to the Any-Grid. The typical maximum communication distance is approximately 6 ~ 7 meters.

Apple App Store®

7.0 Relay Contact

There is one potential-free relay contact (3A / 250 Vac) available on the display module (Fig. 2 ). It may be used to signal an external device when battery voltage reaches a low level, such as a gasoline or diesel generator. The relay may be wired with normally closed (NC) or normally open (NO) logic. The table below indicates the relay states
between the common (C) and NO, as well as between C and NC contacts.

Relay terminals:

Any-Grid Status Condition

Powered Off or Battery-free mode
Powered On

NC & C

Unit is off and AC output is not powered.

Closed

Output is
powered from Battery power or Solar power.

Settings Menu 01 set as "Utility / AC input first" (USB)
or "Solar / PV first" (SUB)

Battery voltage < Low DC warning voltage (2 Vdc for the 48 V model / 1 Vdc for the 24 V model above the value in settings menu 29)
Battery voltage > Settings menu 13 or battery charging reaches Floating phase

Settings Menu 01 is set as SBU

Battery voltage < Settings menu 12
Battery voltage > Settings menu 13 or battery charging reaches Floating phase

Open
Closed Open Closed

NO & C Open
Closed
Open Closed Open

www.phocos.com

19 | P a g e

8.0 Operation
Inverter Power ON/OFF

Fig. 20: Display module ON/OFF load button location
Ensure the "ON/OFF" switch located on the display module (Fig. 20) is in the "OFF" position after the initial installation (the button must not be depressed).
Now activate the circuit breakers or insert the fuses to energize the various inputs and outputs in the following order (skip any that are not connected):
1. Battery
2. AC input
3. PV input
4. AC output
Next, press the "ON/OFF" switch to turn on the AC output and thus connected AC loads and the entire unit.
If the "ON/OFF" switch is in the "OFF" position, then the unit will be completely off when there is insufficient sunlight. If PV modules are connected and there is sufficient PV voltage, the unit and display will wake up automatically to charge the batteries during the day. Once the PV voltage drops below the threshold, the unit will again turn completely off to save energy during the night. The AC output and thus the AC loads will remain off as long as the "ON/OFF" switch is in the "OFF" position.
Display and Control Module

The display and control module, shown in Fig. 21, includes six LED indicators, six function buttons, an ON/OFF button and a LCD screen, indicating the operating status and allowing the programming of settings parameters.

LCD screen

Source LED 2

Source LED 1

Status indicators
Function buttons

Fig. 21: Display module buttons and indicators

Source LED 3
Inverter ON/OFF button

www.phocos.com

20 | P a g e

Indicator Description
LED Indicator Source LED 1 Source LED 2 Source LED 3
Status indicators

Color Green Green Green
Green
Green
Red

Solid On / Flashing Solid On Solid On Solid On Solid On Flashing
Solid On Flashing Solid On Flashing

Description AC output powered by AC input AC output powered by PV AC output powered by battery AC output powered by AC input (Grid mode) AC output powered by integrated inverter (Off-Grid mode) Battery is fully charged Battery is charging Fault mode Warning mode

Function Buttons
Function Button Escape / close USB function setting

Description Exit settings without confirming Select USB-OTG functions

Timer setting for AC output source priority Setup timer for prioritizing AC output source

Timer setting for the battery charger source priority

Setup timer for prioritizing battery charger source

To last selection

Down

To next selection

Enter

To confirm/enter the selection in setting mode

Display Symbols

Symbol Input Information
www.phocos.com

Fig. 22: LCD screen symbols Description
Indicates AC input Indicates PV input

21 | P a g e

Settings menu and Fault Information

Indicates input voltage, input frequency, PV voltage, charging current, charging power, battery voltage.

Indicates the setting menus

Indicates warning and fault codes.

Output Information Battery Information

Warning: Fault:

flashing with warning code. shown with fault code.

Indicates output voltage, output frequency, load in % of nominal power, load in VA, load in Watt and discharging current.

Indicates battery level in 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100% (left to right) increments.

While the battery is charging, the battery indicator shows the following:

Status

Battery voltage (48 V model / 24 V model)

LCD Display

All battery charging modes except Floating phase

< 48 V / < 24 V 48 ~ 50 V / 24 ~ 25 V 50 ~ 52 V / 25 ~ 26 V
> 52 V / > 26 V

4 bars flash in turns Bottom bar constantly on and other three bars flash in turns Bottom two bars constantly on and other two bars flash in turns
Bottom three bars constantly on and top bar flashes

Floating phase. Batteries are fully charged.

4 bars constantly on

While the battery is discharging, the battery indicator shows the following:

Load Percentage

Battery voltage (48 V model / 24 V model) LCD screen

< 44.4 / < 22.2 V

0 ~ 24%

Load > 50%

44.4 ~ 46.4 V / 22.2 ~ 23.2 V 46.4 ~ 48.4 V / 23.2 ~ 24.2 V

25 ~ 49% 50 ~ 74%

> 48.4 V / > 24.2 V

75 ~ 100%

< 45.4 / 22.7 V

0 ~ 24%

Load < 50%

45.4 ~ 47.4 V / 22.7 ~ 23.7 V 47.4 ~ 49.4 V / 23.7 ~ 24.7 V

25 ~ 49% 50 ~ 74%

> 49.4 V / > 24.7 V

75 ~ 100%

www.phocos.com

22 | P a g e

Load Information Mode Operation Information

Indicates overload Indicates load level by 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100% (left to right) increments.
Constantly on: AC source valid Blinking: AC source present but rejected PV input valid
Load supplied by AC input
AC source charger circuit is active PV charger circuit is active DC to AC inverter circuit is active Alarm disabled BLE is ready to connect USB disk connected Timer setting or time display

Device Operation Settings
General Settings

Press press

for 3 seconds to enter settings mode. Press or to select between settings menus. Once selected, to confirm the selection or to exit without confirmation.

Settings menus

Menu no. Description

Selectable Option and Notes

Escape

Exit setting mode

www.phocos.com

23 | P a g e

Utility / AC input first (Default)
"USB" for: Utility Solar Battery

AC input / utility will provide power to the loads as first priority. If there is excess solar power beyond what is required for battery charging, this power is used to supply power to the loads instead. The battery is
not discharged (Grid mode).

Solar and battery will provide power to the loads when AC input / utility power is unavailable (OffGrid mode).

Solar / PV first
"SUB" for: Solar Utility Battery

Solar provides power to the loads as first priority. If solar power is not sufficient to power all connected loads, AC input / utility power will supply the loads simultaneously (Grid mode).

AC output source priority:

Configure the priority of

which power sources supply

the AC output load

If no solar power is available (ex. at night), AC input / utility power is used exclusively. The battery is only discharged when the AC input / utility power is unavailable (OffGrid mode).

SBU priority
"SBU" for: Solar Battery Utility

Solar powers the loads as first priority. If solar power is not sufficient to power all connected loads, the battery will supply power to the loads at the same time. The
Any-Grid is disconnected from the grid at this time (Off-Grid mode).

AC input / utility provides power to the loads (Grid mode) only when the battery voltage drops to either low-level warning voltage or the
setting point in settings menu 12.

When first applying SBU priority, it may take up to 10 minutes for the Any-Grid to switch to Off-Grid mode.

Maximum total battery

10A

charging current of AC and

solar charging combined:

80A (Default)

Max. total charging current =

AC input charging current +

solar charging current

Can be set from 10 ~ 80 Adc in 10 Adc increments. This is the battery-

side DC charging current.

This setting is important to

limit charging current for

some battery types.

Appliances

Accepted AC input voltage range

from 90 ~ 280 Vac for 230 Vac

AC input voltage range

models, 80 ~ 140 Vac for 120 Vac models.

www.phocos.com

24 | P a g e

UPS (Default) AGM (Default)

Accepted AC input voltage range from 170 ~ 280 Vac for 230 Vac models, 90 ~ 140 Vac for 120 Vac models.
Flooded

User-defined

Battery type

Settings menus 26, 27 and 29 Pylontech battery

can only be modified if "User- (only for 48 Vdc models)

defined" is selected here

Automatic restart if an AC output overload occurs

Restart disabled (Default)

Battery charging voltages and low voltage disconnect (LVD) can be manually defined in settings menu 26, 27 and 29.
For use with Pylontech Lithium batteries. Ensure the battery management system (BMS) communication is connected. Do not use inverter communication cables supplied with your batteries unless instructed by Phocos guides!
Please visit www.phocos.com for a current list of batteries supported and their specific settings guides, including Pylontech.
Restart enabled

Restart disabled (Default)

Automatic restart when overtemperature occurs

Restart enabled

Solar power feed-in into grid Disabled (Default)

Enabled

A PIN code is required to

change this setting. Grid feed-

in / injection may not be legal

at the site of installation. Contact your dealer for more

details.

Only activate when using the

public grid as AC source, else

your AC generator and the

Any-Grid could be damaged.

AC output frequency

50 Hz (Default, 230 Vac models) 60 Hz (Default, 120 Vac models)

Only relevant for Off-Grid

mode

www.phocos.com

25 | P a g e

AC output voltage

Only relevant for Off-Grid

mode

230 Vac (Default, 230 Vac models)

From 220 ~ 240 Vac in 10 Vac increments for 230 Vac models.
110, 120 and 127 Vac for 120 Vac models, default 120 Vac.

Maximum AC source charging 30 Adc (Default) current (battery side)

Available values: 2 Adc and 10 ~ 80 Adc in 10 Adc increments.

If settings menu 02 is smaller

than this value, charging will

be limited by the value in

settings menu 02.

48 Vdc (48 Vdc model Default) Available values: 44 ~ 57 Vdc in 1

Voltage set-point to switch

24 Vdc (24 Vdc model Default) Vdc increments for 48 Vdc model.

from Off-Grid mode to Grid mode when "SBU priority" is

Available values: 22 ~ 28.5 Vdc in 0.5 Vdc increments for 24 Vdc

selected in settings menu 01

model.

Battery fully charged

54 Vdc (48 Vdc model Default) 27 Vdc (24 Vdc model Default)

Voltage set-point to switch

from Grid mode to Off-Grid
mode when selecting "SBU priority" in settings menu 01.

Available values: "FULL" and 48 ~ 64 Vdc in 1 Vdc increments for 48 Vdc model.

Available values: "FULL" and 24 ~ 32 Vdc in 1 Vdc increments for 24 Vdc model.

The battery is considered fully charged when the float charging phase is reached.

Solar first

Solar power will charge battery as first priority.

Battery charger source priority Solar and Utility (Default)

Configure the priority of

which power sources are used

to charge the battery. The AC

source can only charge the

battery if in Grid, Stand-By or

Fault modes. In Off-grid mode

only solar / PV power can

charge the battery.

Only Solar

Utility will charge battery only when solar energy is not available and the unit is in Grid mode.
Solar power and AC input power will charge battery at the same time if the unit is in Grid mode.
While the AC output and PV are active, grid charging is temporarily disabled until either PV becomes unavailable or the AC output is no longer active.
Solar power will be the only battery charging source regardless of the operating mode.

General alarm control

Alarm on (Default)

Alarm off

www.phocos.com

26 | P a g e

Return to default display view (Default)

The display will return to the default overview (input voltage / output voltage) if no button is pressed for approx. 1 minute.

Automatic return to default overview display screen

Remain at last view

The display will remain at the selected view indefinitely, until another view is selected.

Display backlight control

Backlight always on (Default)

Backlight off after one minute of no button presses

Alarm on (Default)

Beeps while primary source is interrupted

Alarm off

Overload by-pass:

By-pass disabled (Default)

When enabled, the unit will

quickly switch to Grid mode if

an AC output overload occurs

in Off-Grid mode. It will return

back to Off-Grid mode once

the load power has

normalized.

Record enabled (Default)

Record fault codes to internal datalogger

By-pass enabled Record disabled

Boost battery charging voltage

Floating battery charging voltage

57.6 Vdc (48 Vdc model Default) 28.8 Vdc (24 Vdc model Default)
55.2 Vdc (48 Vdc model Default) 27.6 Vdc (24 Vdc model Default)

If "User-defined" is selected in settings menu 05, this value can be changed.
Available values: 48.0 ~ 64.0 Vdc in 0.1 Vdc increments for 48 Vdc model.
Available values: 24.0 ~ 32.0 Vdc in 0.1 Vdc increments for 24 Vdc model.
If "User-defined" is selected in settings menu 05, this value can be changed.
Available values: 48.0 ~ 64.0 Vdc in 0.1 Vdc increments for 48 Vdc model.
Available values: 24.0 ~ 32.0 Vdc in 0.1 Vdc increments for 24 Vdc model.

www.phocos.com

27 | P a g e

Single: This unit is used alone in a single-phase application (Default)

Parallel: This unit is one of several units in a single-phase application

AC output mode

Phase L1: This unit is one of

Phase L2: This unit is one of several

several units and on phase 1 in a units and on phase 2 in a three-

three-phase application

phase application

To avoid damage, this value

can only be changed if the

inverter is in Stand-By mode

(AC output turned off ). See

chapter "Installing Multiple Phase L3: This unit is one of

Phase L1: This unit is one of several

Units in Parallel, Split Phase several units and on phase 3 in a units and on phase 1 in a split-

or 3-Phase Configuration" three-phase application

phase (2-phase) application

for detailed instructions.

Split-phase / 2-phase modes are only available on 120 Vac models.

Phase L2: This unit is one of several units and on phase 2 in a split-phase (2-phase) application, with 120° phaseshift relative to phase 1:

Phase L2: This unit is one of several units and on phase 2 in a splitphase (2-phase) application, with 180° phase-shift relative to phase 1:

Low voltage disconnect

44.0 Vdc (48 Vdc model Default) 22.0 Vdc (24 Vdc model Default)

If "User-defined" is selected in settings menu 05, this value can be
changed.

The AC output is turned off

when the battery reaches this

voltage level to protect the battery from deep discharge.

The low DC / battery warning

voltage is 2 Vdc for the 48 V

model and 1 Vdc for the 24 V

model above this setting.

Available values: 37.5 ~ 54.0 Vdc in 0.1 Vdc increments for 48 Vdc model.
Available values: 18.8 ~ 27.0 Vdc in 0.1 Vdc increments for 24 Vdc model.
This voltage is fixed and independent of the load power level.

Low voltage reconnect

54.7 Vdc (48 Vdc model Default) If "User-defined" is selected in

27.1 Vdc (24 Vdc model Default) settings menu 05, this value can be

If the AC output is turned off

changed.

due to low voltage disconnect

(settings menu 29), the AC

output is automatically turned

back on once this voltage is reached. This value must be at

Available values: 41.6 ~ 63.5 Vdc in 0.1 Vdc increments for 48 Vdc model.
Available values: 20.9 ~ 31.5 Vdc in

most 0.5 Vdc below settings

0.1 Vdc increments for 24 Vdc

menu 27, and at least 4 Vdc for

model.

the 48 V model or 2 Vdc for

the 24 V model higher than

settings menu 29.

www.phocos.com

28 | P a g e

Automatic

120 min (Default)

Boost battery charging duration

The duration for which the boost voltage from settings
menu 26 is held before the Floating phase is reached.

If "User-defined" is selected in settings menu 05, this value can be changed. Available values: "Automatic" and 5 ~ 900 minutes in 5 min. increments.

If "Automatic" is set, the duration of bulk phase (see chapter

"Specifications" "Battery Charging") is multiplied by 10, with a

minimum of 10 minutes and maximum of 8 hours.

Battery equalization

Enabled

Disabled (Default)

Battery equalization helps

prevent sulfation of lead-acid

batteries and is beneficial for

bringing all cells to the same

voltage. Consult your battery If "User-defined" or "Flooded" is selected in settings menu 05, this value

manual to make sure the

can be changed.

battery can withstand the

higher voltages required for

this purpose. This is typically

the case for flooded lead-acid

batteries.

59.2 Vdc (48 Vdc model Default) Available values: 48.0 ~ 64.0 Vdc in

29.6 Vdc (24 Vdc model Default) 0.1 Vdc increments for 48 Vdc

model.

Battery equalization voltage

Available values: 24.0 ~ 32.0 Vdc in

0.1 Vdc increments for 24 Vdc

model.

Battery equalization duration 120 min. (Default)

The duration for which the

equalization voltage from

settings menu 34 is held

before the Floating phase is

reached.

Battery equalization timeout 180 min. (Default)

If the equalization voltage

from settings menu 34 cannot

be reached within the duration from settings menu

35, once this timeout is

reached, equalization is ended

and the charger returns to

Floating phase.

30 days (Default)

Equalization interval

Available values: 5 ~ 900 minutes in 5 min. increments.
Available values: 5 ~ 900 minutes in 5 min. increments.
Available values: 0 ~ 90 days in 1day increments.

www.phocos.com

29 | P a g e

Enabled

Disabled (Default)

Equalization phase: forced start

If the battery equalization function is enabled in settings menu 33, this function can be enabled. If "Enabled" is selected in this menu, battery

equalization is immediately force-started and the display main view

will show (EQ).

If "Disabled" is selected, it will cancel the forced equalization function

until the next scheduled equalization interval as defined in settings

menu 37. will no longer be shown in LCD main page.

Not reset (Default)

Reset

Reset PV and Load energy datalogger storage

Disabled (Default)

120 A

Depending on the battery type used, its maximum discharge current

may be lower than what the Any-Grid unit requires to deliver its full

power to AC loads. If set to "Disabled" the unit will draw as much

current from the battery as necessary to supply the loads. If

Maximum discharging current overloaded by too much load power, settings menu 23 determines if

This setting is important to limit discharging current for some battery types.

the unit may switch to the AC input by-pass to deliver more power or protect itself by turning off permanently (until manual restart) or temporarily (depends on settings menu 06).

If this setting is not "Disabled" then the unit will allow a maximum of

the set discharge current. If this limit is surpassed, the unit will switch

to the AC input by-pass temporarily to provide more power to the

loads. If no AC source is available, then the unit will shut down for 5

minutes.

Available values: Disabled and 30 ~ 120 Adc in 10 Adc increments for 48 Vdc model.

Available values: Disabled and 30 ~ 150 Adc in 10 Adc increments for 24 Vdc model.

No reset (Default)

Reset

Erase all datalogger contents

www.phocos.com

30 | P a g e

10 days (Default)

Datalogger storage period

Time setting: minute

Time setting: hour

Date setting: day of month

Date setting: month

Date setting: year

The Any-Grid unit can store measurement data with the following frequency: 3 days: 20 entries per hour 5 days: 12 entries per hour 10 days: 6 entries per hour 20 days: 3 entries per hour 30 days: 2 entries per hour 60 days: 1 entry per hour Once the memory is full, the oldest entries are over-written. Available values: 3, 5, 10, 20, 30 and 60 days. Irrespective of this setting the unit stores the last 100 error / warning event codes. Allows setting the current time in minutes. Available values: 00 ~ 59 minutes.
Allows setting the current time in hours (24h notation). Available values: 00 ~ 23 hours.
Allows setting the current day of the month. Available values: day 01 ~ 31.
Allows setting the current month. Available values: month 01 ~ 12.
Allows setting the current year (last two digits: ex. 2019 = 19). Available values: year 17 ~ 99.

USB and Timer Settings
There are three function keys on the display module to implement functions such as USB OTG, timer settings for the output source priority and timer settings for the battery charger source priority.

USB Functionality

Insert a USB OTG storage device (disk) or a USB disk with a USB OTG microUSB adaptor (Micro-B male to USB Type A

female, sold separately) into the USB port

(see Fig. 2). Press for 3 seconds to enter USB function mode.

These functions include the firmware upgrade, data log export and internal parameters re-write from the USB disk.

Note: If no button is pressed within 1 minute of starting this procedure, the screen it will automatically return to the default main view.

www.phocos.com

31 | P a g e

Follow these steps to select the various USB functions:
1. Press for 3 seconds to enter USB function mode. The three available functions are shown on the display (UPGRADE, SETTINGS, LOGGER):

2. Press either , or

Function

Description

to enter one of the three selectable settings programs:

Screen View

Upgrade firmware

1. By pressing the Any-Grid prepares for firmware upgrade with a file from the USB disk. If a valid upgrade file is found on the USB disk, the

screen will display

. This may take several seconds. Press the

button to confirm the selection.

2. Press to select "YES" or change.

to return to the main view without any

3. If "YES" was selected, Source LED 1 (see Fig. 19) will flash once every second during the upgrade process. Do not power off the inverter during this time.

4. Once upgraded successfully, the screen shows "UPG" and all LEDs are
on. Press the button to return to the main view. Otherwise, it will return to the main view automatically after 1 minute.

Re-write parameters

Over-write all parameter settings with a settings file stored on the USB disk. Settings files may be available from your Phocos dealer.
1. By pressing the unit prepares to export the internal data log to a connected USB disk. Once the function is ready, the screen will display . Press the button to confirm the selection.

Export data log

2. Press to select "YES" or any change.

to return to the main screen without

3. If "YES" was selected, Source LED 1 (see Fig. 19) will flash once every second during the process.

4. Once the data log copy to the USB disk is complete, the screen will

show:

and all LEDs will be lit.

5. Now press to return to main screen. Otherwise, it will return to the main view automatically after 1 minute.

Possible error messages for USB functions: Error Code Description No USB disk is detected
USB disk is write-protected

If any error occurs, the error code will be displayed for three seconds. After three
seconds, the screen returns to the default main view.

File from USB disk has incorrect format or USB stick is incompatible

www.phocos.com

32 | P a g e

Timer Override Setting for AC Output Source Priority
This timer setting is to set up the daily AC output source priority.
Note: If no button is pressed within 1 minute of starting this procedure, the screen will automatically return to the default main view.
To define a daily time period in which a specific AC output source priority is to be temporarily activated, follow the steps below:
1. Press and hold for 3 seconds to enter the timer setting for the AC output source priority. The three available priority orders are shown on the display (see chapter "Device Operation Settings" "Settings menu 01" for an explanation):

2. From top to bottom the priorities shown in the screen represent: a. Utility / AC input first ("USB" for Utility Solar Battery) b. Solar / PV first ("SUB" for Solar Utility Battery) c. SBU priority ("SBU" for Solar Battery Utility)

3. Press either , or to enter one of the three selectable priorities:

= USB

= SUB

= SBU

4. The selected priority order (USB, SUB or SBU) is shown at the top of the screen. The middle shows the
starting time and the bottom shows the stopping time in full hours (24h notation). As an example for the USB priority:

5. Press to select the starting time (middle of screen), it will flash. Now press or to change the starting time in 1-hour steps. Then, press to confirm the starting time, it will stop flashing.
6. Press to select the ending time (bottom of screen), it will flash. Now press or to change the ending time in 1-hour steps. Then, press to confirm the ending time, it will stop flashing.
7. Now press to return to main screen.
Timer Override Setting for Battery Charger Source Priority
This timer setting is to set up the daily battery charger source priority. Note: If no button is pressed within 1 minute of starting this procedure, the screen it will automatically return to the default main view. To define a daily time period in which a specific battery charging source priority is to be temporarily activated, follow the steps below:
1. Press and hold for 3 seconds to enter the timer setting for the battery charger source priority. The three available priority orders are shown on the display (see chapter "Device Operation Settings" "Settings menu 16" for an explanation):

www.phocos.com

33 | P a g e

2. From top to bottom the priorities shown in the screen represent: a. Solar first ("CSO" for Charger Solar) b. Solar and Utility ("SNU" for Solar and Utility) c. Only Solar ("OSO")

3. Press either , or to enter one of the three selectable priorities:

= CSO

= SNU

= OSO

4. The selected priority order (CSO, SNU or OSO) is shown at the top of the screen. The middle shows the starting time and the bottom shows the stopping time in full hours (24h notation). As an example for the CSO priority:

Screen Views of Current Values

The screen views can be scrolled by pressing or to show current values in the following order:

Measurement Values

Screen View Example

If there is no grid feed-in: Input voltage = 230 Vac, Output voltage = 230 Vac

AC input voltage / AC output voltage (Default Display Screen)

If there is grid feed-in: Feed-in power = 800 W, Output voltage = 230 Vac

www.phocos.com

34 | P a g e

AC input frequency PV voltage PV current PV power

Input frequency = 50 Hz, Output voltage = 230 Vac PV voltage = 260 Vdc PV current = 2.5 Adc PV power = 650 W

www.phocos.com

35 | P a g e

Charging current Charging power www.phocos.com

AC and PV charging current (battery side) = 50 Adc PV charging current = 25 Adc AC charging current = 25 Adc AC and PV charging power = 2.5 kW PV charging power = 1.5 kW AC charging power = 1.5 kW
36 | P a g e

Battery voltage and AC output voltage

Battery voltage = 50 Vdc, output voltage = 230 Vac

AC output frequency

Output frequency = 50 Hz

AC output percentage of nominal inverter power

Load percent = 80%

When load power is lower than 1 kVA, apparent power is shown in VA (ex. 900 VA)

AC output in VA (apparent power)

When load power is higher than 1 kVA, apparent power is shown in kVA (ex. 4.00 kVA)

www.phocos.com

37 | P a g e

Load in Watt (active power)

When load power is lower than 1 kW, active power is shown in W (ex. 900 W)
When load power is higher than 1 kW, active power is shown in kW (ex. 4.00 kW)

Battery voltage / DC discharging current

Battery voltage = 50 Vdc, discharging current = 25 Adc
Battery voltage = 50 Vdc, inverter temperature = 25 °C

Battery voltage / inverter internal temperature and solar charge controller internal temperature
(Inverter temperature and solar charge controller temperature is displayed in turns)

Battery voltage = 50 Vdc, solar charge controller temperature = 25 °C

www.phocos.com

38 | P a g e

PV energy generated today, and AC output energy consumed today

PV energy = 2.38 kWh, AC output energy = 2.38 kWh

PV energy = 23.8 kWh, AC output energy = 23.8 kWh
PV energy generated this month, and AC output energy consumed this month

PV energy generated this year, and AC output energy consumed this year

PV energy = 2.38 MWh, AC output energy = 2.38 MWh

PV energy generated in total, and AC output energy consumed in total

PV energy = 23.8 MWh, AC output energy = 23.8 MWh

Current date

October 28, 2019

www.phocos.com

39 | P a g e

Current time (24h notation)

16:30 hrs.

3 consecutive views are available: Main unit firmware version (U1) Display unit firmware version (U2) BLE controller version (U3)

U1 firmware version 30.00

Operating Mode Description

Operating mode

Behaviors

LCD display
Battery is charged by an AC source

Battery is charged by solar power

Stand-By mode
The AC output is not turned on, but the unit can charge the battery without AC output (if the inverter ON/OFF switch is set to the OFF position).

Battery is charged by AC source and solar power
No AC output voltage is supplied by the unit, but it still can charge batteries

No charging

Battery is charged by solar power and excess power is fed into the grid

www.phocos.com

40 | P a g e

No battery connected, solar power is fed directly into the grid

Battery is charged by AC source and solar power

Fault mode
Errors are currently active (see chapter "Fault Reference Codes" for details)

Solar power and AC
source can charge batteries

Battery is charged by an AC source Battery is charged by solar power

Grid mode

No charging
Battery is charged and AC loads are powered by AC source

AC output can be powered from the AC
input, battery charging is available

Battery is charged and AC loads are powered by an AC source

www.phocos.com

41 | P a g e

Battery is charged and AC loads are powered by the grid and excess power is fed into the grid
No battery connected, solar power and AC source provide power to AC loads

No battery connected, AC source provides power to AC loads

Solar power and the AC source provide power to the AC output

Battery-free mode
No battery is connected to the Any-Grid

AC output power is fully sourced from the AC input and solar power

AC source provides power to the AC output

Off-Grid mode

Battery and solar provide power to the AC output
AC output power from battery (if connected) and solar power

www.phocos.com

42 | P a g e

Solar provides power to the AC output and charges battery at the same time, no AC source available
Power to AC output from battery only
No battery connected and no AC source, power to AC output from solar only

9.0 Fault Reference Codes

Fault Code

Fault Event

Fan is locked while inverter is off

Over-temperature

Battery voltage is too high

Battery voltage is too low

AC output is short circuited

AC output voltage is too high

AC output overload timeout

Internal DC bus voltage is too high

Internal DC bus soft start failed

Solar charge controller over-current

Solar charge controller over-voltage

DC-DC converter over-current

Battery discharge over-current

Over-current

Internal DC bus voltage is too low

www.phocos.com

Screen View 43 | P a g e

Inverter soft-start failed

DC voltage component in AC output too high

Current sensor failed

Output voltage too low

Power feedback protection

Firmware version inconsistent

Current sharing fault

CAN communication fault

Host unit loss

Synchronization loss

Battery voltage detected differs between units

AC input voltage and frequency detected differs between units

AC output current unbalanced

AC output mode setting differs between units

10.0 Warning Codes

Warning Code

Warning Event

Fan is locked while inverter is on

Over-temperature

Audible Alarm Screen view
Beeps three times every second
None

Battery is over-charged

Beeps once

every second

Low battery voltage

Beeps once

every second

www.phocos.com

44 | P a g e

AC output overload

Beeps twice

every second

AC output power de-rating

Beeps twice

every 3 seconds

Communication interrupted between None

main inverter unit and remote display

panel.

60
Only available if Lithium battery communication is active.

Battery charging and discharging
temporarily disabled to protect Lithium battery.

Beeps once every second

61 Only available if Lithium
battery communication is active.

Battery communication lost. After 10 minutes of no communication
charging and discharging will stop to protect Lithium battery.

Beeps once every second

69
Only available if Lithium battery communication is active.

Battery charging temporarily disabled Beeps once

to protect Lithium battery.

every second

70
Only available if Lithium battery communication is active.

Battery discharging temporarily disabled to protect Lithium battery.

Beeps once every second

Battery equalization

None

Battery is not connected

None

www.phocos.com

45 | P a g e

11.0 Troubleshooting

Problem Unit shuts down automatically during start-up process.
No response after power on.
AC source exists but the unit works in OffGrid / battery mode.
When the unit is turned on, internal relay is switched on and off repeatedly.
Buzzer beeps continuously and red LED is on.

LCD / LED / Buzzer LCD / LEDs and buzzer will be active for 3 seconds and then turn off.
No indication.
Input voltage displayed as 0 on LCD, green LED flashing.
Green LED is flashing.
Green LED is flashing.
LCD and LEDs are flashing
Fault code 07
Fault code 05
Fault code 02 Fault code 03 Fault code 01 Fault code 06/58 Fault code 08/09/53/57

Explanation / Possible cause
The battery voltage is too low (< 45.84 V / < 22.92 V for the 48 V / 24 V model)
1. The battery voltage is far too low (< 33.6 V / < 16.8 V for the 48 V / 24 V model) 2. Battery polarity is connected in reverse
Input circuit breaker is tripped
Insufficient quality of AC power (Grid or Generator)
"Solar / PV First" is set as the priority of the AC output source.
Battery is disconnected.
Overload error. Inverter is overloaded 110% for more than allowed duration.
Output short circuited.
Temperature of internal converter components is over 120°C. Temperature of inverter components is over 100°C. Battery is over-charged. The battery voltage is too high. Fan fault
AC output abnormal
Internal components failed.

What to do
1. Re-charge battery 2. Replace battery
1. Check if batteries and the wiring are connected correctly, check battery polarity. 2. Re-charge battery. 3. Replace battery. Check if AC circuit breaker is tripped and AC wiring is connected correctly. 1. Check if AC wires are too thin and/or too long. 2. Check if generator (if applied) is working correctly or if input voltage range setting is correct (try switching from UPS mode Appliances mode), see chapter "Device Operation Settings" "Settings menu 03" for details. Change output source priority to "AC input / utility first", see chapter "Device Operation Settings" "Settings menu 01" for details.
Check if battery wires are well connected.
Reduce the connected load by switching off some equipment.
Check if wiring is connected well and remove abnormal loads.
Check whether the air flow of the unit is blocked or whether the ambient temperature is too high.
Return to repair center. Check if specifications and quantity of batteries meet requirements. Replace the fan(s) 1. Reduce the connected load. 2. Return to repair center
Return to repair center.

www.phocos.com

46 | P a g e

Fault code 51 Fault code 52 Fault code 55 Fault code 56 Fault code 13 Warning code 60
Warning code 61
Warning code 69 Warning code 70
Fault code 71

Over current or surge. Internal DC bus voltage too low. Output voltage unbalanced. Battery not connected correctly / internal fuse blown. Battery discharge overcurrent detected.
Battery discharging and charging temporarily disabled by battery management system.
Battery management system communication loss.
Battery charging temporarily disabled by battery management system.
Battery discharging temporarily disabled by battery management system.
The firmware version of each inverter is not the same.

Restart the unit, if the error occurs again, please return to repair center.
If the battery is connected correctly, please return to repair center.
Increase the battery discharge current limit in settings menu number 41.
Battery is not allowed to discharge and charge as the battery management system (BMS) in the connected battery has blocked discharging and charging due a BMS error. The Any-Grid will stop discharging and charging the battery.
This fault is only available when the battery type in settings menu 05 is set to anything other than "AGM", "Flooded" or "User-defined". Unless you are using a BMS connection for a compatible lithium battery and have correctly configured the connection, make sure to use "AGM", "Flooded" or "User-defined" in settings menu 05.
After battery communication cable is connected and a communication signal is not detected for 3 minutes, buzzer will beep. After 10 minutes, inverter will stop charging and discharging the battery.
Battery is not allowed to charge as the battery management system (BMS) in the connected battery has blocked charging due a BMS or battery cell error. The Any-Grid will stop charging the battery.
Battery is not allowed to discharge as the battery management system (BMS) in the connected battery has blocked discharging due a BMS or battery cell error. The Any-Grid will stop discharging the battery.
1. Check the version of each inverter firmware via the screen and make sure the versions are same. If not, contact your instraller to provide a firmware update.
2. After updating, if the problem still remains, please contact your repair center.

www.phocos.com

47 | P a g e

Fault code 72 Fault code 80 Fault code 81 Fault code 82
Fault code 83
Fault code 84
Fault code 85

The output current of each inverter is different. CAN communication data loss Host data loss Synchronization data loss
The detected battery voltage differs between units.
The detected AC input voltage and frequency differ between units.
AC output current unbalanced

1. Check if the green current sharing cables are correctly connected and restart the unit.
2. If the problem remains, please contact your repair center.
1. Check if the grey communication cables are correctly connected between all units and restart the units.
2. If the problem remains, please contact your repair center.
1. Make sure all inverters share same battery bank.
2. Remove all loads and disconnect AC input and PV input. Then, check the battery voltage of all units. If the values from all inverters are close, please check if all battery cables are the same length and same material and cross-section. Verify the seat of each battery connaction to the respective units.
3. If the problem still remains, please contact your repair center.
1. Check the AC input wiring connection and restart the unit.
2. Make sure the AC source starts up with the same voltage and frequency on each phase. If there are breakers installed between AC inout and Any-Grid units, please be sure all breakers can be turned on the AC input at same time.
3. If the problem still remains, please contact your repair center.
1. Restart the inverter.
2. Remove excessive loads and recheck load information from LCD of units. If the values are different between units on the same phase, please check if AC input and output cables are the same length, cross-section and material.
3. If the problem remains, please contact your repair center.

www.phocos.com

48 | P a g e

Fault code 86

AC output mode setting is different between units.

1. Switch off the units and check settings menu number 28.
2. For parallel systems on a single phase, make sure each unit is set to "PAL" in settings menu number 28. For plit-phase and 3-phase systems, make sure each unit has the same two first characters in settings menu number 28 ("2P" for split-phase "3P" for 3-phase) and is on the correct phase.
3. If the problem remains, please contact your repair center.

12.0 Specifications

Grid Mode

Model

PSW-H-5KW230/48V

PSW-H-3KW230/24V

PSW-H-5KW120/48V

PSW-H-3KW120/24V

AC Input Voltage Waveform

Pure Sine Wave (utility or generator)

Nominal AC Input Voltage

230 Vac

120 Vac

Maximum AC Input Current

40 Aac

30 Aac

63 Aac

38.3 Aac

AC Input Overvoltage Category

OVC III

Low Loss AC Input Voltage

170 Vac ± 7 Vac (UPS mode) 90 Vac ± 7 Vac (Appliances mode)
See chapter "Device Operation Settings" "Settings menu 03" for details.

90 Vac ± 7 Vac (UPS mode) 80 Vac ± 7 Vac (Appliances mode)
See chapter "Device Operation Settings" "Settings menu 03" for details.

Low Loss Return AC Input Voltage

180 Vac ± 7 Vac (UPS mode) 100 Vac ± 7 Vac (Appliances mode)

100 Vac ± 7 Vac (UPS mode) 90 Vac ± 7 Vac (Appliances mode)

High Loss AC Input Voltage

280 Vac ± 7 Vac

140 Vac ± 7 Vac

High Loss Return AC Input Voltage

270 Vac ± 7 Vac

135 Vac ± 7 Vac

Maximum AC Input Voltage

300 Vac

150 Vac

Nominal AC Input Frequency

50 Hz / 60 Hz

Low Loss Frequency

40 Hz ± 1 Hz

Low Loss Return AC Input Frequency

42 Hz ± 1 Hz

High Loss AC Input Frequency

65 Hz ± 1 Hz

High Loss Return AC Input Frequency
Output Short Circuit Protection

63 Hz ± 1 Hz
Grid mode: Circuit breaker (amperage equivalent to maximum AC input current, resettable) Off-Grid mode: Electronic protection

www.phocos.com

49 | P a g e

Transfer Time between Grid mode and Off-Grid mode and vice versa
AC Output Power De-Rating In Grid mode, the maximum AC output power is dependent on the AC input voltage.

10 ms typical (UPS mode), 20 ms typical (Appliances mode) Up to 50 ms when using multiple synchronized Any-Grids

See chapter "Device Operation Settings" "Settings menu 03" for details.

Maximum AC output power
formula when in Grid mode:

40 Aac x AC input voltage = Max. AC output
power

30 Aac x AC input voltage = Max. AC output
power

63 Aac x AC input voltage = Max. AC output
power

38.3 Aac x AC input voltage = Max. AC output
power

Example: 40 Aac x 230 Vac = 9,200 W

Example: 30 Aac x 230 Vac = 6,900 W

Example: 63 Aac x 120 Vac = 7,560 W

Example: 38.3 Aac x 120 Vac = 4,596 W

Off-Grid Mode

Model Nominal AC Output Power

PSW-H-5KW230/48V
5000 VA / 5000 W

PSW-H-3KW230/24V
3000 VA / 3000 W

PSW-H-5KW120/48V
5000 VA / 5000 W

PSW-H-3KW120/24V
3000 VA / 3000 W

AC Output Voltage Waveform

Pure Sine Wave

AC Output Voltage Regulation

230 Vac ± 5% (programmable, 220 ~ 240 Vac)

120 Vac ± 5% (programmable, 110 ~ 127 Vac)

Total Harmonic Distortion of Voltage

< 5% for linear load, < 10% for non-linear load at nominal voltage

AC Output Frequency

50 Hz or 60 Hz (programmable)

Peak Efficiency (from battery)

> 93%

> 91%

> 90%

AC Output Overload Protection

100 milliseconds @ 205% nominal AC output power 5 seconds @ 150% nominal AC output power
10 seconds @ 110% ~ 150% nominal AC output power

AC Output Surge Capacity

2x nominal power for 5 seconds

Nominal Battery Input Voltage

48 Vdc

24 Vdc

48 Vdc

24 Vdc

Min. Battery Voltage for Inverter Start-up
See chapter "Device Operation Settings" "Settings menu 29" for details.

46.0 Vdc Default 2.0 Vdc. above "Low voltage disconnect" setting

23.0 Vdc Default 1.0 Vdc. above "Low voltage disconnect" setting

46.0 Vdc Default 2.0 Vdc. above "Low voltage disconnect" setting

23.0 Vdc Default 1.0 Vdc. above "Low voltage disconnect" setting

Low Battery Warning Voltage (relative to nominal AC output power)
load < 20% 20% load < 50% load 50%

46.0 Vdc 42.8 Vdc 40.4 Vdc

23.0 Vdc 21.4 Vdc 20.2 Vdc

46.0 Vdc 42.8 Vdc 40.4 Vdc

23.0 Vdc 21.4 Vdc 20.2 Vdc

www.phocos.com

50 | P a g e

Low Battery Warning Return Voltage (relative to nominal AC output power)
load < 20% 20% load < 50% load 50%
Low Battery Voltage Disconnect (relative to nominal AC output power)
load < 20% 20% load < 50% load 50%
High Battery Disconnect Voltage

48.0 Vdc 44.8 Vdc 42.4 Vdc

24.0 Vdc 22.4 Vdc 21.2 Vdc

48.0 Vdc 44.8 Vdc 42.4 Vdc

24.0 Vdc 22.4 Vdc 21.2 Vdc

Programmable, see chapter "Device Operation Settings" "Settings menu 29" for details.

44.0 Vdc
40.8 Vdc 38.4 Vdc

22.0 Vdc
20.4 Vdc 19.2 Vdc

44.0 Vdc
40.8 Vdc 38.4 Vdc

22.0 Vdc
20.4 Vdc 19.2 Vdc

66 Vdc

33 Vdc

66 Vdc

33 Vdc

High Battery Return Voltage

64 Vdc

32 Vdc

64 Vdc

32 Vdc

DC Voltage Accuracy

± 0.3%V at no load

DC Offset
AC Output Power De-Rating
If the AC output load power is higher than the power in the diagram to the right, the AC output voltage will be decreased until the AC output power reaches the de-rated power specified to conserve battery. The lower limit of the AC output voltage de-rating is 95 / 190 Vac for 120 Vac models and 230 Vac models, respectively.

AC Output Power
Nominal Power
Nominal Power 600 W for 24 Vdc model or 1000 W for 48 Vdc model

100 mV

18.8 / 37.5 Vdc

25 / 50 Vdc

Battery voltage for 24 Vdc / 48 Vdc model

Battery Charging
Charging from AC Source

Model

Max. Battery Charging Current at Nominal AC Input Voltage

Boost Charging Flooded Battery

Voltage

AGM / Gel Battery

Floating Charging Voltage

Overcharge Protection

Charging Algorithm

PSW-H-5KW230/48V
58.4 Vdc 57.6 Vdc 55.2 Vdc 66 Vdc

PSW-H-3KW230/24V

PSW-H-5KW120/48V

80 Adc

29.2 Vdc

58.4 Vdc

28.8 Vdc

57.6 Vdc

27.6 Vdc

55.2 Vdc

33 Vdc

66 Vdc

4-Stage with Equalization

PSW-H-3KW120/24V
29.2 Vdc 28.8 Vdc 27.6 Vdc 33 Vdc

www.phocos.com

51 | P a g e

Charging Curve
If battery type "User-defined" is set in chapter "Device Operation Settings" "Settings menu 05", the charging parameters are set with the following settings menus:
Charge current limit: 11 Boost voltage: 26 Boost duration: 32 Float voltage: 27 Equalization: 33, 34, 35, 36, 37

Battery Voltage & Current

Voltage

Bulk: phase 1 (charge current limited)

Absorption or Equalization: phase 2/3 (boost or equalization
voltage limited)

Current

Floating: phase 4 (float voltage limited)

Time

Charging from MPPT Solar Charge Controller

Model

PSW-H-5KW230/48V

PSW-H-3KW230/24V

Number of Independent MPPTs

Max. Usable Solar Power

4800 W

4000 W (2400 W for battery charging)

Max. Solar Array Power

6000 Wp

5000 Wp

Max. Solar Array Open Circuit Voltage, Overvoltage Category
Solar Array MPP Voltage Range

450 Vdc, OVC II

120 ~ 430 Vdc

90 ~ 430 Vdc

Max. Usable Solar Input Current

18 Adc

MPPT Start-Up Voltage

110 Vdc ± 10Vdc

PSW-H-5KW120/48V 2
2400 W per MPPT
3000 Wp per MPPT

PSW-H-3KW120/24V
1
4000 W (2400 W for battery charging)
5000 Wp

250 Vdc, OVC II

90 Vdc ~ 230 Vdc

18 Adc per MPPT,
30 Adc total

18 Adc

80 Vdc ± 5Vdc

General
Model Certifications Idle Self-Consumption (only supplied by battery when PV and AC input are unavailable)
Operating Temperature Range
Storage Temperature Humidity Ingress Protection, Pollution Degree
Housing Dimensions (H x W x D)
Net Weight

PSW-H-5KW230/48V

PSW-H-3KW230/24V

PSW-H-5KW120/48V

PSW-H-3KW120/24V

CE, RoHS, produced in ISO 9001 & ISO 14001 certified facility

< 40 W

< 58 W

< 40 W

-10 ~ 50 °C, 14 ~ 122 °F

-10 ~ 40 °C, 14 ~ 104 °F
for UL compatibility; up to 50 °C, 122 °F without UL compatibility

-15 ~ 60 °C

5% to 95% Relative Humidity (non-condensing)

IP21, pollution degree 2, for indoor use

478 x 309 x 143 mm 18.8 x 12.2 x 5.6 in

584 x 433 x 148 478 x 309 x 143

mm / 23 x 17 x mm / 18.8 x 12.2

5.8 in

x 5.6 in

12 kg / 26 lbs 11.2 kg / 24.7 lbs 18 kg / 40 lbs 12 kg / 27 lbs

www.phocos.com

52 | P a g e

13.0 Warranty
Conditions
We warranty this product against defects in materials and workmanship for a period of 24 months from the date of purchase and will repair or replace any defective unit when directly returned, postage paid, to Phocos. This warranty will be considered void if the unit has suffered any obvious physical damage or alteration either internally or externally. This warranty does not cover damage arising from improper use, such as plugging the unit into unsuitable power sources, attempting to operate products that require excessive power consumption, or use in unsuitable environments. This is the only warranty the company makes. No other warranties express or implied including warranties of merchantability and fitness for a particular purpose. Repair and replacement are your sole remedies and the company shall not be liable for damages, whether direct, incidental, and special or consequential, even if caused by negligence.
Further details about our warranty conditions can be found at www.phocos.com.
Liability Exclusion
The manufacturer shall not be liable for damages, especially on the battery, caused by use other than as intended or as mentioned in this manual or if the recommendations of the battery manufacturer are neglected. The manufacturer shall not be liable if there has been service or repair carried out by any unauthorized person, unusual use, wrong installation, or incorrect system design.

Specifications are subject to change without notice. Copyright © 2020 Phocos AG, All Rights Reserved. Version: 20200729 Made in China
Phocos AG Magirus-Deutz-Str. 12 89077 Ulm, Germany Phone +49 731 9380688-0 Fax +49 731 9380688-50 www.phocos.com info@phocos.com
www.phocos.com

ISO 9001 ISO 14001 RoHS
53 | P a g e

Microsoft: Print To PDF
