User Manual for Schneider Electric models including: Energy meters, DA0005NE-12, 10 2019, iEM3000
iEM3000 series user manual. 4. DOCA0005EN-12. Safety information. Important information. Read these instructions carefully and look at the ...
Electrometer three phase A9MEM3255 electronic 3P N 5A Modbus

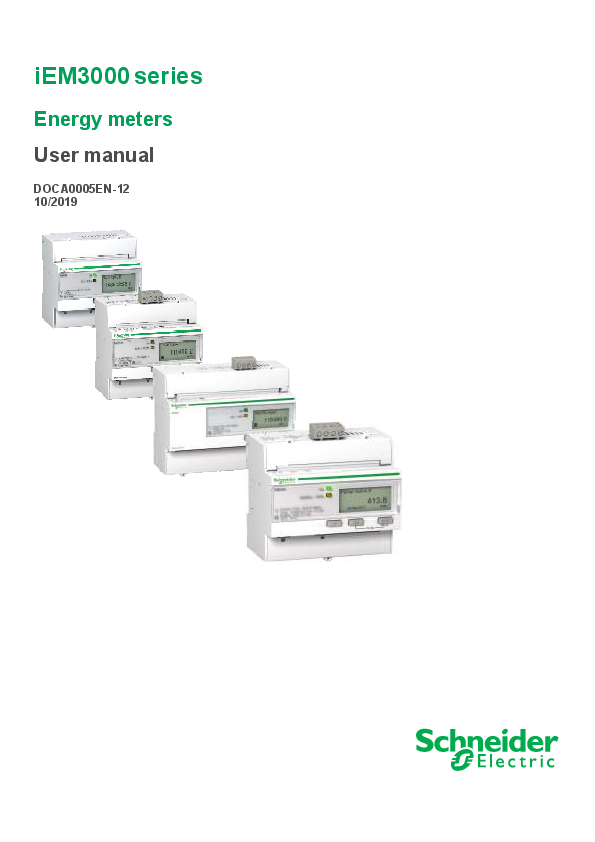

iEM3000 series Energy meters User manual DOCA0005EN-12 10/2019 iEM3000 series user manual The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us. No part of this document may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission of Schneider Electric. All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components. When devices are used for applications with technical safety requirements, the relevant instructions must be followed. Failure to use Schneider Electric software or approved software with our hardware products may result in injury, harm, or improper operating results. Failure to observe this information can result in injury or equipment damage. © 2019 Schneider Electric. All rights reserved. DOCA0005EN-12 3 iEM3000 series user manual Safety information Important information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service or maintain it. The following special messages may appear throughout this bulletin or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. The addition of either symbol to a "Danger" or "Warning" safety label indicates that an electrical hazard exists which will result in personal injury if the instructions are not followed. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. . DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE NOTICE is used to address practices not related to physical injury. Please note Electrical equipment should be installed, operated, serviced and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved. 4 DOCA0005EN-12 iEM3000 series user manual Notices FCC Part 15 notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. DOCA0005EN-12 5 iEM3000 series user manual About the manual Document scope This manual is intended for use by designers, system builders and maintenance technicians with an understanding of electrical distribution systems and monitoring devices. Validity note The meters are used to measure the amount of active energy consumed by an installation or a part of an installation. This function meets the requirements for: · consumption monitoring, · evaluation of energy items (cost, accounting, etc.). This function may also satisfy the power-saving incentives implemented by many countries. Related documents Title of documentation Installation sheet: iEM3100 / iEM3150 Installation sheet: iEM3110 / iEM3115 / iEM3135 / iEM3155 / iEM3165 / iEM3175 Installation sheet: iEM3200 / iEM3250 Installation sheet: iEM3210 / iEM3215 / iEM3235 / iEM3255 / iEM3265 / iEM3275 Installation sheet iEM3300 / iEM3350 Installation sheet iEM3310 / iEM3335 / iEM3355 / iEM3365 / iEM3375 Installation sheet: iEM3455 / iEM3465 / iEM3555 / iEM3565 Reference number NHA15785 / NHA20207 NHA15789 / NHA20208 NHA15795 / NHA20211 NHA15801 / NHA20213 HRB91204 / HRB91205 HRB91202 / HRB91203 NHA61470 You can download these technical publications and other technical information from www.schneider-electric.com. 6 DOCA0005EN-12 iEM3000 series user manual Contents Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Chapter 6 Chapter 7 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 About the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Safety precautions ................................................................................................... 9 Overview ................................................................................................................. 11 Overview of meter functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Typical applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Hardware and installation ..................................................................................... 17 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Meter sealing points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Input, output and communications wiring considerations . . . . . . . . . . . . . . . . . . . . . 18 Dismounting the meter from a DIN rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Considerations for iEM31·· and iEM33·· devices associated with a contactor . . . . 18 Split-core LVCT & Rogowski Coil recommendations . . . . . . . . . . . . . . . . . . . . . . . . 19 Front panel display and meter setup ................................................................... 21 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Data display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Demand Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Resets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Multi Tariff feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Meter status information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Meter information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 The device clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Modifying parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Configuration mode menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Communications via Modbus ............................................................................... 47 Modbus communication overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Modbus functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Command interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Modbus register list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Read Device Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Communications via LonWorks ........................................................................... 67 LonWorks communications overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 LonWorks communication implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Standard network variable types (SNVTs) and configuration properties for reading data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Meter configuration properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Echelon LonMaker plug-in for data display and meter configuration . . . . . . . . . . . . 76 Communications via M-Bus .................................................................................. 79 M-Bus communications overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 M-Bus protocol support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 M-Bus protocol implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 DOCA0005EN-12 7 iEM3000 series user manual Chapter 8 Chapter 9 Chapter 10 Chapter 11 Variable data structure telegram information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Telegram information for data records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Telegram information for meter configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 M-Bus tool for data display and meter configuration . . . . . . . . . . . . . . . . . . . . . . . 102 Communications via BACnet .............................................................................. 107 BACnet communications overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 BACnet protocol support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 BACnet communications implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 BACnet object and property information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Specifications ....................................................................................................... 117 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Environmental characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Measurement accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 MID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Internal clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Modbus communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 LonWorks communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 M-Bus communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 BACnet communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Troubleshooting ................................................................................................... 125 Diagnosis screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Diagnostic codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Power, energy and power factor ......................................................................... 127 Power (PQS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 Energy delivered (imported) / energy received (exported) . . . . . . . . . . . . . . . . . . . 128 Power factor (PF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Power factor register format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 8 DOCA0005EN-12 iEM3000 series user manual Chapter 1 Safety precautions Safety precautions Installation, wiring, testing and service must be performed in accordance with all local and national electrical codes. Carefully read and follow the safety precautions outlined below. DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH · Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E in the USA, CSA Z462 or applicable local standards. · This equipment must only be installed and serviced by qualified electrical personnel. · Turn off all power supplying this device and the equipment in which it is installed before working on the device or equipment. · Always use a properly rated voltage sensing device to confirm power is off. · Before performing visual inspections, tests, or maintenance on this equipment, disconnect all sources of electric power. Assume that all circuits are live until they have been completely de-energized, tested and tagged. Pay particular attention to the design of the power system. Consider all power supply sources, particularly the potential for backfeed. · Replace all devices, doors and covers before turning on power to this equipment. · Do not exceed the device's ratings for maximum limits. Failure to follow these instructions will result in death or serious injury. WARNING UNINTENDED OPERATION Do not use the meter for critical control or protection applications where human or equipment safety relies on the operation of the control circuit. Failure to follow these instructions can result in death, serious injury or equipment damage. WARNING INACCURATE DATA RESULTS · Do not rely solely on data displayed on the front panel or in software to determine if the device is functioning correctly or compliant with all applicable standards. · Do not use data displayed on the front panel or in software as a substitute for proper workplace practices or equipment maintenance. Failure to follow these instructions can result in death, serious injury or equipment damage. DOCA0005EN-12 9 Safety precautions iEM3000 series user manual 10 DOCA0005EN-12 iEM3000 series user manual Chapter 2 Overview Overview iEM3100 iEM3110 iEM3115 iEM3135 iEM3150 iEM3155 iEM3165 iEM3175 Overview of meter functions The meters provide the essential measurement capabilities (for example, current, voltage, and energy) required to monitor a 1-phase or 3-phase electrical installation. The key features of the meters are: · Measurement of active and reactive energy · Multi Tariffs (up to 4) controlled by internal clock, digital inputs or communication · MID compliance for many of the meters · Pulse outputs · Display (current, voltage, and energy measurements) · Communications via Modbus, LonWorks, M-Bus or BACnet protocols Main characteristics 63 A meters Function Direct measurement (up to 63 A) Active Energy measurement accuracy class (total and partial kWh) 1 1 1 1 1 1 1 1 Four Quadrant Energy measurements Electrical measurements (I, V, P, ...) Controlled by internal clock 4 4 4 4 4 Multi Tariff Controlled by digital input(s) 4 2 2 2 2 Controlled by communications 4 4 4 4 Measurement display (number of lines) 3 3 3 3 3 3 3 3 Digital inputs Programmable (status, tariff control, or input monitoring) 1 1 1 1 Tariff control only 2 Digital outputs Programmable (energy pulsing or overload alarm) Pulse output only 1 1 1 1 Overload alarm Modbus Communications LonWorks M-Bus BACnet MID compliant Width (18 mm module in DIN rail mounting) 5 5 5 5 5 5 5 5 DOCA0005EN-12 11 Overview 125 A meters iEM3000 series user manual iEM3300 iEM3310 iEM3335 iEM3350 iEM3355 iEM3365 iEM3375 Function Direct measurement (up to 125 A) Active Energy measurement accuracy class (total and partial kWh) 1 1 1 1 1 1 1 Four Quadrant Energy measurements Electrical measurements (I, V, P, ...) Controlled by internal clock 4 4 4 4 Multi Tariff Controlled by digital input(s) 2 2 2 2 Controlled by communications 4 4 4 4 Measurement display (number of lines) 3 3 3 3 3 3 3 Digital inputs (programmable for status, tariff control, or input monitoring) 1 1 1 1 Digital outputs Programmable (energy pulsing or overload alarm) 1 1 1 Pulse output only 1 Overload alarm Modbus Communications LonWorks M-Bus BACnet MID compliant Width (18 mm module in DIN rail mounting) 7 7 7 7 7 7 7 1 A / 5 A meters Function Measurement inputs through CTs (1 A, 5 A) Measurement inputs through VTs Active Energy measurement accuracy class (total and partial kWh) 0.5S 0.5S 0.5S 0.5S 0.5S 0.5S 0.5S 0.5S Four Quadrant Energy measurements Electrical measurements (I, V, P, ...) Controlled by internal clock 4 4 4 4 4 Multi Tariff Controlled by digital input(s) 4 2 2 2 2 Controlled by communications 4 4 4 4 Measurement display (number of lines) 3 3 3 3 3 3 3 3 Digital inputs Programmable (status, tariff control, or input monitoring) 1 1 1 1 Tariff control only 2 iEM3200 iEM3210 iEM3215 iEM3235 iEM3250 iEM3255 iEM3265 iEM3275 12 DOCA0005EN-12 iEM3000 series user manual Overview iEM3200 iEM3210 iEM3215 iEM3235 iEM3250 iEM3255 iEM3265 iEM3275 iEM3455 iEM3465 iEM3555 iEM3565 Function Digital outputs Programmable (energy pulsing or overload alarm) 1 1 1 Pulse output only 1 Overload alarm Modbus Communications LonWorks M-Bus BACnet MID compliant (5 A only) Width (18 mm module in DIN rail mounting) 5 5 5 5 5 5 5 5 LVCT / Rogowski Coil meters Function Measurement inputs through VTs Measurement input through LVCT Measurement input through Rogowski Coil Active Energy measurement accuracy class (total and partial kWh) Four Quadrant Energy measurements Electrical measurements (I, V, P, ...) Controlled by internal clock Multi Tariff Controlled by digital input(s) Controlled by communications Measurement display (number of lines) Digital inputs Programmable (status, tariff control, or input monitoring) Digital outputs Programmable (energy pulsing or overload alarm) Overload alarm Communications Modbus BACnet Width (18 mm module in DIN rail mounting) 0.5% 4 2 4 3 0.5% 4 2 4 3 0.5% 4 2 4 3 0.5% 4 2 4 3 1 1 1 1 1 1 1 1 5 5 5 5 DOCA0005EN-12 13 Overview iEM3000 series user manual Typical applications This range is a cost effective solution to monitor feeder circuits. These meters can monitor energy consumption by usage, by zone or by feeder in the cabinet. They can be used to monitor feeders in a main switchboard or to monitor the main in a distribution cabinet. iEM31·· and iEM33·· series Functions Advantages Can directly measure feeders up to: iEM31··: 63 A iEM33··: 125 A Embedded current transformers (CTs) Saves installation time and space in the cabinet No wiring to manage Clear distribution network Adapted to be installed with Acti9 iC60 (iEM31··) Can be used in three-phase systems with or without or Acti9 C120, NG125 (iEM33··) circuit breakers neutral Can be used for single-phase multi-circuit monitoring 3 single feeders can be monitored with a single meter iEM32·· series Functions CT and VT connection Flexible configuration Advantages Can be used in low or medium voltage applications Can be adapted to any distribution network with or without neutral iEM34·· series iEM35·· series Functions Split core LVCT and VT connection Flexible configuration Advantages Can be used in low or medium voltage applications LVCTs connect directly to the meter, eliminating the need for shorting blocks required with traditional 1A or 5A CTs. Quick, simple retrofit solution for existing equipment Can be adapted to any distribution network with or without neutral Functions Rogowski Coil and VT connection Flexible configuration Advantages Can be used in low or medium voltage applications Rogowski coils connect directly to the meter, eliminating the need for shorting blocks required with traditional 1A or 5A CTs. Quick, simple retrofit solution for existing equipment Can be adapted to any distribution network with or without neutral 14 DOCA0005EN-12 iEM3000 series user manual Typical applications Overview The following table presents some of the functions of the different meters, the advantages and main applications. Functions Advantages Applications Meter Total and partial energy counters Internal clock Energy usage monitoring Saves the date and time of last reset Sub-billing management All Metering applications Provides the timestamp of the last reset of the partial energy accumulation All (except iEM3100 / iEM3200 / iEM3300) Pulse output with a configurable pulse weight of up to 1 pulse per 1 Wh Remote monitoring of energy Collect pulses from the meter with consumption a Smartlink system, PLC or any Integrate the meter in to a basic acquisition system system monitoring of a large number of devices iEM3110 / iEM3310 / iEM3210 iEM3115 / iEM3135 / iEM3155 / iEM3165 / iEM3175 iEM3215 / Manages up to four tariffs, controlled by the digital input(s), internal clock or communications (depending on meter model) Categorize energy consumption into On Peak and Off Peak, working days and weekends, or by different electricity sources (for example, from the utility and an electrical generator) Energy demand management Sub-billing management Identification of local energy consumption behavior by zone, by usage or by feeder iEM3235 / iEM3255 / iEM3265 / iEM3275 iEM3335 / iEM3355 / iEM3365 / iEM3375 iEM3455 / iEM3465 iEM3555 / iEM3565 Measures essential Instantaneous measurements electrical parameters like current, average voltage and total help you monitor the imbalance between phases. Total power allows you to monitor Monitoring of feeders or any sub-cabinet power. the feeder load level. iEM3135 / iEM3155 / iEM3165 / iEM3175 iEM3235 / iEM3255 / iEM3265 / iEM3275 iEM3335 / iEM3355 / iEM3365 / iEM3375 iEM3455 / iEM3465 / iEM3555 / iEM3565 M-Bus communications Communicate advanced parameters using M-Bus protocol M-Bus network integration iEM3135 / iEM3235 / iEM3335 iEM3150 / iEM3155 Modbus communications Communicate advanced parameters using Modbus protocol Modbus network integration iEM3250 / iEM3255 iEM3350 / iEM3355 iEM3455 / iEM3555 DOCA0005EN-12 15 Overview iEM3000 series user manual Functions Advantages Applications Meter BACnet communications LonWorks communications Communicate advanced parameters using BACnet MS/TP BACnet network integration protocol iEM3165 / iEM3265 / iEM3365 iEM3465 / iEM3565 Communicate advanced parameters using LonWorks communications iEM3175 / LonWorks network integration iEM3275 / iEM3375 Four quadrant calculation Identification of imported and exported active and reactive energy allows you to monitor energy flow in both directions: delivered from the utility and produced on-site Measurement of active, reactive and apparent energy. Allows you to monitor energy consumption and production Can be programmed to: Count pulses from other meters (gas, water, etc.) Programmable digital input Monitor an external status Reset the partial energy accumulation and start a new period of accumulation Ideal for facilities with back-up generators or green power iEM3135 / capabilities (for example, iEM3155 / solar panels or wind turbines) iEM3165/ iEM3175 Manage energy consumption and make informed investment to reduce your energy bill or penalties (for example, installing capacitor banks) This allows for monitoring of: WAGES Intrusion (for example, doors opening) or equipment status Energy usage iEM3235 / iEM3255 / iEM3265 / iEM3275 iEM3335 / iEM3355 / iEM3365 / iEM3375 iEM3455 / iEM3465 / iEM3555 / iEM3565 Can be programmed to: be an active energy (kWh) pulse Programmable digital output, with a configurable pulse output weight Alarm on a power overload at a configurable pickup setpoint This allows you to: Collect pulses from the meter with a Smartlink system, PLC or any basic acquisition system Monitor power levels at a detailed level and to help detect an overload before the circuit breaker trips iEM3135 / iEM3155 / iEM3165 iEM3235 / iEM3255 / iEM3265 iEM3335 / iEM3355 / iEM3365 iEM3455 / iEM3465 / iEM3555 / iEM3565 16 DOCA0005EN-12 iEM3000 series user manual Chapter 3 Hardware and installation Hardware and installation This section provides supplemental information to help mount and install your meter. It is intended to be used in conjunction with the installation sheet that ships in the box with your meter. See your device's installation sheet for information related to installation, such as dimensions, mounting and wiring instructions. Safety precautions Installation, wiring, testing and service must be performed in accordance with all local and national electrical codes. DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH · Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E in the USA, CSA Z462 or applicable local standards. · Turn off all power supplying this device and the equipment in which it is installed before working on the device or equipment. · Use only split-core LVCT or Rogowski Coil current sensors which provide reinforced insulation rated for the nominal voltage of the system to be measured and measurement category CAT III or CAT IV. · Use only split-core LVCT or Rogowski Coil current sensors which comply with the IEC/EN/UL/CSA 61010-1 or IEC/EN/UL/CSA 61010-2-032 standard. · Always follow the current sensor installation instructions provided by the current sensor manufacturer. · Always use a properly rated voltage sensing device to confirm power is off. · Replace all devices, doors and covers before turning on power to this equipment. · Do not exceed the device's ratings for maximum limits. · Do not touch the current terminal when the meter is energized. Failure to follow these instructions will result in death or serious injury. 1. Turn off all power supplying this device and the equipment in which it is installed before working on the device or equipment. 2. Always use a properly rating voltage sensing device to confirm that all power is off. Meter sealing points All meters have sealing covers and sealing points to help prevent access to inputs and outputs and current and voltage connections. DOCA0005EN-12 17 Hardware and installation iEM3000 series user manual Input, output and communications wiring considerations · The pulse output is compatible with S0 format, and the programmable digital output is compatible with S0 format when configured as a pulse output. · The digital input and output are electrically independent. · The digital output is polarity-independent. Dismounting the meter from a DIN rail 1. Use a flat-tip screwdriver ( 6.5 mm / 0.25 in) to lower the locking mechanism and release the meter. 2. Lift the meter out and up to free it from the DIN rail. Considerations for iEM31·· and iEM33·· devices associated with a contactor Connection requirements for iEM3100 / iEM3110 / iEM3115 / iEM3135 / iEM3150 / iEM3155 / iEM3165 / iEM3175 / iEM3300 / iEM3310 / iEM3335 / iEM3350 / iEM3355 / iEM3365 / iEM3375: · When the meter is associated with a contactor, connect the meter upstream of the contactor. · The meter must be protected by a circuit breaker. L L iEM Load iEM Load 18 DOCA0005EN-12 iEM3000 series user manual Split-core LVCT & Rogowski Coil recommendations Hardware and installation Split-core LVCT Part Number LVCT00102S LVCT00202S LVCT00302S LVCT00403S LVCT00603S LVCT00803S LVCT00804S LVCT01004S LVCT01204S LVCT01604S LVCT02004S LVCT02404S LVCT00050S LVCT00101S LVCT00201S Sensing Current 100A 200A 300A 400A 600A 800A 800A 1000A 1200A 1600A 2000A 2400A 50A 100A 200A Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz Output 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V 0 to 1/3V Rogowski Coil Part Number METSECTR25500 METSECTR30500 METSECTR46500 METSECTR60500 METSECTR90500 Sensing Current Frequency 5000A 5000A 5000A 5000A 5000A 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz Lead Approximate Inside length (m) Diameter (mm) 2.35 80 2.35 96 2.35 146 2.35 191 2.35 287 DOCA0005EN-12 19 Hardware and installation iEM3000 series user manual 20 DOCA0005EN-12 iEM3000 series user manual Chapter 4 Front panel display and meter setup Front panel display and meter setup Overview The meter features a front panel with signaling LEDs, a graphical display, and menu buttons that allow you to access the information required to operate the meter and modify parameter settings. The front panel also allows you to display, configure and reset parameters. Some meters have the Multi Tariff feature, which allows you to configure different tariffs. Data display Data display screen overview A Measurement B Ea / Er = active / reactive energy (if available) C Value D Active tariff (if applicable) E Scroll through the available screens F View more screens related to the measurement category (if available) G Go back to previous screen H Date and time (if applicable) I Unit J Icon indicating date / time are not set Example: navigating the display screens Partial Reactive E Tariffs OK T1 T2 T3 T4 V & I 1. Press to scroll through the main display screens; in the image above, press to move from Partial Reactive E to Tariffs to V & I. 2. Press OK to access additional screens related to main screen (if available); in the image above, press OK to access screens for each of the available tariffs. DOCA0005EN-12 21 Front panel display and meter setup 3. Press to scroll through these additional screens. iEM3000 series user manual Related topics · See "Data display screens" on page 22 for information on the screens available on each meter model. Data display screens The following sections outline the data display screens available on the various meter models. Data display screens: iEM3100 / iEM3110 / iEM3115 / iEM3200 / iEM3210 / iEM3215 / iEM3300 / iEM3310 Total Active E A Resets all energy measurements except total active energy B iEM3115 / iEM3215 C Diagnosis screen appears if there is a specific event Partial Active E Reset Tariffs T1 T2 T3 T4 Information Diagnosis Related topics · See "Troubleshooting" on page 125 for more information on the Diagnosis screen and a list of diagnostic codes. · See "Resets" on page 25 for more information on meter resets. Data display screens: iEM3150 / iEM3250 / iEM3350 Total Active E A Resets all energy measurements except total active energy B Diagnosis screen appears if there is a specific event Partial Active E Reset V & I Active Power Avg. L-L (L-N) Voltage Phase 1 Current Phase 2 Current Phase 3 Current Power Factor Information Diagnosis 22 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Related topics · See "Troubleshooting" on page 125 for more information on the Diagnosis screen and a list of diagnostic codes. · See "Resets" on page 25 for more information on meter resets. Data display screens: iEM3135 / iEM3155 / iEM3165 / iEM3175 / iEM3235 / iEM3275 / iEM3335 / iEM3355 / iEM3365 / iEM3375 / iEM3455 / iEM3465 / iEM3555 / iEM3565 Total Ea Import Total Er Import Partial Active E Total Ea Export Total Er Export Reset Import / export indicated for total active (Ea) A and total reactive (Er) energy. Other energy measurements are import only. B Resets all energy measurements except total active energy and total reactive energy C Diagnosis screen appears if there is a specific event D iEM3455, iEM3465, iEM3555, iEM3565 Partial Reactive E Reset Tariffs V & I P, Q & S PF & F Operation Time Information Diagnosis T1 T2 T3 T4 Avg. L-L (L-N) Voltage Phase 1 Current Phase 2 Current Phase 3 Current I1 Demand I2 Demand I3 Demand I1 Demand Peak I2 Demand Peak I3 Demand Peak Active Power Reactive Power Apparent Power P Demand Q Demand S Demand P Demand Peak Q Demand Peak S Demand Peak Power Factor Frequency DOCA0005EN-12 23 Front panel display and meter setup iEM3000 series user manual Related topics · See "Troubleshooting" on page 125 for more information on the Diagnosis screen and a list of diagnostic codes. · See "Resets" on page 25 for more information on meter resets. Demand Readings Demand readings and related features that are described in this section and other sections throughout this document are available in the iEM34xx and iEM35xx models from the below firmware versions. iEM34xx and iEM35xx models with older firmware versions cannot be upgraded. · iEM34x5 - V1.2.003 and higher · iEM35x5 - V1.1.001 and higher · iEM3465 and iEM3565 - BACnet V2.4 and higher Characteristics Description Demand Values (iEM3455, iEM3465, iEM3555, iEM3565) Current Per phase and average1 Active, reactive, apparent power Total Peak Demand Values (iEM3455, iEM3465, iEM3555, iEM3565) Current Active, reactive, apparent power Per phase and average1 Total 1 Available only by communications Demand Calculation Methods Power demand is the energy accumulated during a specified period divided by the length of the period. Current demand is calculated using arithmetical integration of the current RMS values during a time period, divided by the length of the period. How the power meter performs this calculation depends on the selected method. To be compatible with electric utility billing practices, the power meter provides block interval power/current demand calculations. For block interval demand calculations, you select a block of time (interval) that the power meter uses for the demand calculation and the mode the meter uses to handle the interval. 2 different modes are possible: · Fixed block - Select an interval from 10, 15, 20, 30, 60 minutes. The power meter calculates and updates the demand at the end of each interval. · Sliding block - Select an interval from 10, 15, 20, 30, 60 minutes. For demand intervals less than 15 minutes, the value is updated every 15 seconds. For demand intervals of 15 minutes and greater, the demand value is updated every 60 seconds. The power meter displays the demand value for the last completed interval. The following figures illustrate the 2 ways to calculate demand power using the block method. For illustration purposes, the interval is set to 15 minutes. 24 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Peak Demand In nonvolatile memory, the power meter maintains a maximum operating demand value called peak demand. The peak is the highest value (absolute value) for each of these readings since the last reset. You can reset peak demand values from the power meter display. You should reset peak demand after changes to basic power meter setup such as CT ratio or power system configuration. Resets The following resets are available, depending on your meter model: Reset Partial energy Input metering Description Clears all active and reactive energy accumulated since the last reset. this does not reset the total active and reactive energy accumulation. Clears all input metering energy data. you can only reset the input metering accumulation using software. Resetting accumulated energy using the display 1. Navigate to the Partial Active E or Partial Reactive E screen. The screen displays the date of the last reset. For example: Partial Active E 876.2 23-Apr-2012 kWh A Date of last reset 2. Press and hold . The Reset screen appears. DOCA0005EN-12 25 Front panel display and meter setup iEM3000 series user manual 3. Press OK to confirm the reset and enter the meter password when prompted. NOTE: Regardless of the screen you use to access this reset, accumulations of both Partial Active Energy and the Partial Reactive Energy (if available) are cleared. Resetting peak demand using the display 1. Navigate to any of the below listed screens: · I1 Demand Peak · I2 Demand Peak · I3 Demand Peak · P Demand Peak · Q Demand Peak · S Demand Peak I1 Demand Peak 229.1 01-Jan-2017 06:12 A A Date and time of peak demand 2. Press and hold ESC. The Reset screen appears. 3. Press OK to confirm the reset and enter the meter password. NOTE: Once the peak demand is reset, the date and time are not displayed till the next peak demand is captured. Related topics · See your software documentation for information on resetting the input metering accumulation. Multi Tariff feature The Multi Tariff feature is available on the following devices: iEM3115, iEM3135, iEM3155, iEM3165, iEM3175, iEM3215, iEM3235, iEM3275, iEM3335, iEM3355, iEM3365, iEM3375, iEM3455, iEM3465, iEM3555, and iEM3565. The following table illustrates how the tariffs operate according to the tariff selection (2, 3 or 4 tariffs). These tariffs are stored in 4 different registers: T1, T2, T3 and T4. 2 tariffs 3 tariffs 4 tariffs T1 T1 T1 Weekday T2 24 H T2 24 H T2 24 H Weekend T1 T2 24 H T3 24 H T3 T4 24 H NOTE: If the tariff Control Mode is set to by Internal Clock, the start time of the next tariff is the end time of the current tariff. For example, T2 start equals the end of T1. 26 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Meter status information Two LEDs on the front panel indicate the current status of the device: the green status LED and the yellow energy pulsing LED. The icons in the table below indicate the LED state as follows: · = LED is off · = LED is on · = LED is flashing Status LED Energy pulsing LED Off Description On, no pulse counting 1s > On, with pulse counting Error, pulse counting stopped Abnormal, with pulse counting Related topics See the section for the protocol of your device for information on the communication LED: · "Troubleshooting" on page 125 · "Communications LED indicator for Modbus devices" on page 47 · "LED indicators for LonWorks meters" on page 67 · "Communications LED indicator for M-Bus meters" on page 80 · "Communications via BACnet" on page 107 Meter information Meter information (for example, model and firmware version) is available on the information screen. In display mode, press the down arrow until you reach the information screen: The device clock This section does not apply to the iEM3100, iEM3200 or iEM3300. You must reset the time to account for any time change (for example, to switch the time from standard time to daylight savings time). DOCA0005EN-12 27 Front panel display and meter setup iEM3000 series user manual Clock behavior: iEM3110, iEM3210, iEM3150, iEM3250, iEM3310, and iEM3350: You are not prompted to set the date and time when the meter is powered up. You can enter configuration mode to set the date and time. If you have not set the clock, the following icon appears on the display: . When power is interrupted, the date and time are reset and you must enter configuration mode to configure the clock, if you require time information. Clock behavior: iEM3115, iEM3135, iEM3155, iEM3165, iEM3175, iEM3215, iEM3235, iEM3275, iEM3335, iEM3355, iEM3365, iEM3375, iEM3455, iEM3465, iEM3555, and iEM3565: You are prompted to set the date and time when the meter is powered up. Press ESC to skip this step if you do not want to set the clock (you can enter configuration mode and set the date and time later, if required). When the power is interrupted, the device retains its date and time information for 3 days. If power is interrupted for longer than 3 days, the device automatically displays the screen to set Date and Time when power is restored. Date/time format The date is displayed in the following format: DD-MMM-YYYY. The time is displayed using the 24-hour clock in the following format: hh:mm:ss. Setting the clock initially The following diagram illustrates how to set the clock when you initially power up the device or after a power failure. To set the clock during normal operation, see the section on device configuration. NOTE: Password entry is only required for meters that support a password. Related topics · See "Device configuration" on page 29 for information on setting the clock during normal device operation. 28 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Device configuration The default factory settings (as applicable based on your model) are listed in the following table: Menu Wiring CT Ratio CT & VT Ratio Frequency Date Time Multi Tariffs Overload Alarm Digital Output Digital Input Pulse Output Demand Communication Com.Protection Contrast Password Factory settings iEM31··: 3PH4W iEM32··: 3PH4W; 3 CTs on I1, I2, and I3; Direct-No VT iEM33··: 3PH4W iEM34··: 3PH4W; 3 LVCTs on I1, I2, and I3; Direct-No VT iEM35··: 3PH4W; 3 Rogowski Coils on I1, I2, and I3; Direct-No VT Varies depending on meter model Varies depending on meter model 50 Hz 1-Jan-2000 00:00:00 Disable Disable Disable Input Status 100 imp/kWh Method = Sliding Interval = 15 mins Varies depending on protocol Enable 5 0010 Entering configuration mode 1. Press and hold OK and ESC at the same time for about 2 seconds. 2. Enter the meter password, if prompted. The Access Counter screen displays, indicating the number of times the configuration mode has been accessed. Config > 2s The front panel display in configuration mode The diagram below illustrates the various elements of the display in configuration mode: ..\In. Pulse Const. 00500 Overriding! A Parameter B Setting C Indicates that the setting impacts the Multi Tariff feature D Configuration mode icon DOCA0005EN-12 Related topics · See "Modifying parameters" on page 30 for instructions on using the front panel buttons to configure list and numeric value settings. · See "Configuration mode menus" on page 31 for a diagram of your device's configuration screens. 29 Front panel display and meter setup iEM3000 series user manual Com. Protection setting For meters with communications capabilities, you can enable or disable the Com. Protection setting. If this setting is enabled, you must use the display to configure certain settings (for example, wiring or frequency, etc.) and perform resets; you cannot use communications. The protected settings and resets are: · Power system settings (for example, wiring, frequency, CT ratios) · Date and time settings · Multi-tariff settings · Communications settings · Partial energy reset Modifying parameters There are two methods for modifying a parameter, depending on the type of parameter: · selecting a value in a list (for example, selecting 1PH2W L-N from a list of available power systems), or · modifying a numerical value, digit by digit (for example, entering a value for the date, time or VT primary). NOTE: Before you modify any parameters, ensure that you are familiar with the HMI functionality and navigation structure of your device in configuration mode. Related topics · See "Configuration mode menus" on page 31 for information on navigating the configuration menus on your device. Selecting a value from a list 1. Use the down button to scroll through the parameter values until you reach the desired value. 2. Press OK to confirm the new parameter value. Example: Configuring a list value To set the nominal frequency of the meter: 1. Enter configuration mode and press the down button until you reach Frequency then press OK to access the frequency configuration. 2. Press the down button to select the frequency you want then click OK. Press OK again to save your changes. Modifying a numerical value When you modify a numerical value, the digit on the far right side is selected by default (except for Date/Time). The parameters listed below are the only ones for which you set a numerical value (if the parameter is available on your device): 30 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup · Date · Time · Pick Up Value for an overload alarm · Voltage Transformer (VT) Primary · Current Transformer (CT) Primary · Password · Address of the meter To modify a numerical value: 1. Use the down button to modify the selected digit. 2. Press OK to shift to next digit. Modify the next digit, if needed, or press okay to move to the next digit. Continue to move through the digits until you reach the last digit then press OK again to confirm the new parameter value. If you enter an invalid setting for the parameter, when you press OK after setting the left-most number, the cursor shifts back to the right-most number so you can enter a valid value. Example: configuring a numeric value To set the password: 1. Enter configuration mode and press the down button until you reach Password then press OK to access the password configuration. 2. Press the down button to increment the selected digit or press OK to move to the next digit to the left. When you reach the left-most digit, press OK to move to the next screen. Press OK again to save your changes. Canceling an entry To cancel the current entry, press the ESC button screen reverts to the previous display. . The change is canceled and the Configuration mode menus The diagrams below show the configuration navigation for each device. Related topics · See "Modifying parameters" on page 30 for instructions on how to change settings. DOCA0005EN-12 31 Front panel display and meter setup iEM3000 series user manual Configuration menu for iEM3100 / iEM3110 / iEM3115 / iEM3300 / iEM3310 Wiring Type A iEM3110 / iEM3115 / iEM3310 B iEM3110 / iEM3310 C iEM3115 Frequency Frequency Date Date Time Time Pulse Output Pulse Constant Pulse Width Multi Tariffs Contrast Password Reset Config Control mode Disable by Internal Clock by Digital Input by Communications Contrast Schedule by 2 Tariffs by 3 Tariffs by 4 Tariffs Password Reset Config Section Parameter Options Description 3PH3W Wiring Type 3PH4W 1PH2W L-N 1PH2W L-L Select the power system type the meter is wired to. 1PH3W L-L-N Frequency 50 Frequency 60 Select the frequency of the electrical power system, in Hz. Date (iEM3110 / iEM3115 / iEM3310) Date DD-MMM-YYYY Set the current date using the specified format. Time (iEM3110 / iEM3115 / iEM3310) Time hh:mm Use the 24-hour format to set the time. 100 Pulse Constant (imp/kWh) Pulse Output (iEM3110 / iEM3310) 200 1000 1 10 20 Set the pulses per kWh for the pulse output. 50 Pulse Width 100 (ms) 200 Set the pulse width (ON time). 300 32 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Section Multi Tariffs (iEM3115) Contrast Password (iEM3110 / iEM3115 / iEM3310) Reset Config Parameter Options Description Control Mode Select the tariff control mode: Disable: the Multi Tariff function is disabled. by Digital Input: the digital input is associated with the multi-tariff function. A signal to the digi- Disable by Digital Input tal input changes the active tariff. by Internal Clock: the device clock controls the active tariff. If you set the Control Mode to by by Internal Clock Internal Clock, you must also configure the schedule. Set the time when each tariff period starts, using the 24 hour clock format (00:00 to 23:59). The start time of the next tariff is the end time of the current tariff. For example, T2 start equals the end of T1. Contrast 1-9 Increase or decrease the value to increase or decrease the display contrast. Password 0-9999 Sets the password for accessing the meter configuration screens and resets. Reset Config -- Settings are reset to their defaults, except for Password. Meter restarts. Configuration menu for iEM3150 / iEM3350 Wiring Frequency Date Time Type Frequency Date Time Communication Contrast Slave Address Baud Rate Parity Contrast Reset Config Reset Config Section Wiring Frequency Date Time Parameter Options Description Type Frequency Date Time 3PH4W 1PH2W L-N 1PH2W L-L 1PH3W L-L-N Select the power system type the meter is wired to. 3PH3W 1PH4W Multi L-N 50 Select the frequency of the electrical power system, 60 in Hz. DD-MMM-YYYY Set the current date using the specified format. hh:mm Set the time using the 24-hour format. DOCA0005EN-12 33 Front panel display and meter setup iEM3000 series user manual Section Communication Contrast Reset Config Parameter Options Slave Address 1 - 247 19200 Baud Rate 38400 9600 Parity Even Odd None Contrast 1-9 Reset Config -- Description Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Select None if the parity bit is not used. The parity setting must be the same for all devices in a communications loop. NOTE: Number of stop bits = 1. Increase or decrease the value to increase or decrease the display contrast. Settings are reset to their defaults, except for Password. Meter restarts. 34 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Configuration menus for iEM3135 / iEM3155 / iEM3165 / iEM3175 / iEM3335 / iEM3355 / iEM3365 / iEM3375 Wiring Frequency Type Frequency A Not available on iEM3175 / iEM3375 B iEM3155 / iEM3355 C iEM3135 / iEM3335 D iEM3165 / iEM3365 Date Date Time Time Multi Tariffs Overload Alarm Digital Output Digital Input Control mode Disable by Internal Clock by Digital Input by Communications Alarm Disable Enable Schedule by 2 Tariffs by 3 Tariffs by 4 Tariffs Pick Up Value DO Function Disable for Alarm for Pulse Pulse Constant Pulse Width DI Function Input Status Tariff Control Input Metering Partial Reset In. Pulse Const. Communication Slave Address Baud Rate Parity Communication Primary Addr. Baud Rate Communication MAC Addr. Baud Rate Device ID Com.Protection Com.Protection Contrast Contrast Password Reset Config Password Reset Config Section Wiring Frequency Parameter Type Frequency Options 3PH4W 1PH2W L-N 1PH2W L-L 1PH3W L-L-N 3PH3W 1PH4W Multi L-N 50 60 Description Select the power system type the meter is wired to. Select the frequency of the electrical power system, in Hz. DOCA0005EN-12 35 Front panel display and meter setup Date Time Section Parameter Date Time Options DD-MMM-YYYY hh:mm Multi Tariffs Control Mode Disable by Communication by Digital Input by Internal Clock Overload Alarm Alarm Disable Enable Digital Output DO Function Disable for Alarm for Pulse (kWh) Digital Input DI Function Input Status Tariff Control Input Metering Partial Reset Communication (iEM3155 / iEM3355) Communication (iEM3135 / iEM3335) Slave Address Baud Rate Parity Primary Addr. Baud Rate 1 - 247 19200 38400 9600 Even Odd None 0 - 255 2400 4800 9600 300 600 1200 iEM3000 series user manual Description Set the current date using the specified format. Set the time using the 24-hour format. Select the tariff control mode: Disable: the Multi Tariff function is disabled. by Communication: the active tariff is control by communications. See the chapter for the applicable protocol for more information. by Digital Input: the digital input is associated with the multi-tariff function. A signal to the digital input changes the active tariff. by Internal Clock: the device clock controls the active tariff. If you set the Control Mode to by Internal Clock, you must also configure the schedule. Set the time when each tariff period starts, using the 24 hour clock format (00:00 to 23:59). The start time of the next tariff is the end time of the current tariff. For example, T2 start equals the end of T1. Select whether or not the Overload Alarm is enabled: Disable: the alarm is disabled. Enable: the alarm is enabled. If you enabled the Overload Alarm, you must also configure the Pick Up Value in kW from 1 - 9999999. Select how the digital output functions: Disable: the digital output is disabled. for Alarm: the digital output is associated with the overload alarm. The meter sends a pulse to the digital output port when the alarm is triggered. for Pulse (kWh): The digital output is associated with energy pulsing (active energy). When this mode is selected., you can select the energy parameter and set the Pulse Constant (imp/kWh) and the Pulse Width (ms). NOTE: the iEM3175 and iEM3375 do not have a digital output. Select how the digital input functions: Input status: the digital input records the status of the input, for example, OF, SD of a circuit breaker. Input Metering: the digital input is associated with input metering. The meter counts and records the number of incoming pulses. If you set the DI Function to Input Metering, you must also configure In. Pulse Constant. Tariff Control: the digital input is associated with the multi-tariff function. A signal to the digital input changes the active tariff. Partial Reset: a signal to the digital input initiates a partial reset. Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Select None if the parity bit is not used. The parity setting must be the same for all devices in a communications loop. NOTE: Number of stop bits = 1. Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. 36 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Section Communication (iEM3165 / iEM3365) Com.Protection Contrast Password Reset Config Parameter Options MAC Addr. Baud Rate Device ID Com.Protection Contrast 1 - 127 9600 19200 38400 57600 76800 0 - 4194303 Enable Disable 1-9 Password 0-9999 Reset Config -- Description Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Set the Device ID for this device. Make sure the Device ID is unique in your BACnet network. Protects selected settings and resets from configuration via communications. Increase or decrease the value to increase or decrease the display contrast. Sets the password for accessing the meter configuration screens and resets. Settings are reset to their defaults, except for Password. Meter restarts. Configuration menus for iEM3200 / iEM3210 / iEM3215 Wiring Type CT A iEM3210 / iEM3215 B iEM3210 C iEM3215 CT Ratio CT Secondary CT Primary Frequency Frequency Date Date Time Time Pulse Output Multi Tariffs Contrast Password Reset Config Pulse Constant Pulse Width Control mode Disable by Internal Clock by Digital Input by Communications Contrast Schedule by 2 Tariffs by 3 Tariffs by 4 Tariffs Password Reset Config DOCA0005EN-12 37 Front panel display and meter setup iEM3000 series user manual Section Wiring CT Ratio Frequency Date (iEM3210 / iEM3215) Time (iEM3210 / iEM3215) Pulse Output (iEM3210) Parameter Options 3PH3W Type 3PH4W 1PH2W L-N 1PH2W L-L 1PH3W L-L-N 3CTs on I1, I2, I3 CT 1 CT on I1 CT Secondary CT Primary 2 CTs on I1, I3 1 5 1 - 32767 50 Frequency 60 Date DD-MMM-YYYY Time hh:mm 0.01 0.1 Pulse Constant 1 (imp/kWh) 10 100 500 50 Pulse Width 100 (ms) 200 300 Multi Tariffs (iEM3215) Control Mode Disable by Internal Clock Contrast Contrast 1-9 Password (iEM3210 / iEM3215) Password 0-9999 Reset Config Reset Config -- Description Select the power system type the meter is wired to. Define how many current transformers (CT) are connected to the meter and which terminals they are connected to. Select the size of the CT secondary, in Amps. Enter the size of the CT primary, in Amps. Select the frequency of the electrical power system, in Hz. Set the current date using the specified format. Set the time using the 24-hour format. Set the pulses per kWh for the pulse output. Set the pulse width (ON time). Select the tariff control mode: Disable: the Multi Tariff function is disabled. by Digital Input: the digital input is associated with the multi-tariff function. A signal to the digital input changes the active tariff. by Internal Clock: the device clock controls the active tariff. If you set the Control Mode to by Internal Clock, you must also configure the schedule. Set the time when each tariff period starts, using the 24 hour clock format (00:00 to 23:59). The start time of the next tariff is the end time of the current tariff. For example, T2 start equals the end of T1. Increase or decrease the value to increase or decrease the display contrast. Sets the password for accessing the meter configuration screens and resets. Settings are reset to their defaults, except for Password. Meter restarts. 38 DOCA0005EN-12 iEM3000 series user manual Configuration menus for iEM3250 Wiring CT & VT Ratio Frequency Date Time Type VT CT CT Secondary CT Primary VT Secondary VT Primary Frequency Date Time Communication Contrast Slave Address Baud Rate Parity Contrast Reset Config Reset Config Front panel display and meter setup Section Wiring CT & VT Ratio Frequency Date Time Parameter Options Type VT CT CT Secondary CT Primary VT Secondary VT Primary Frequency Date Time 3PH4W 1PH2W L-N 1PH2W L-L 1PH3W L-L-N 3PH3W 1PH4W Multi L-N Direct-NoVT Wye(3VTs) Delta(2VTs) 3CTs on I1, I2, I3 1 CT on I1 2 CTs on I1, I3 1 5 1 - 32767 100 110 115 120 1 - 1000000 50 60 DD-MMM-YYYY hh:mm Description Select the power system type the meter is wired to. Select how many voltage transformers (VT) are connected to the electrical power system. Define how many current transformers (CT) are connected to the meter and which terminals they are connected to. Select the size of the CT secondary, in Amps. Enter the size of the CT primary, in Amps. Select the size of the VT secondary, in Volts. Enter the size of the VT primary, in Volts. Select the frequency of the electrical power system, in Hz. Set the current date using the specified format. Set the time using the 24-hour format. DOCA0005EN-12 39 Front panel display and meter setup iEM3000 series user manual Section Communication Contrast Reset Config Parameter Options Slave Address Baud Rate Parity 1 - 247 19200 38400 9600 Even Odd None Contrast 1-9 Reset Config -- Description Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Select None if the parity bit is not used. The parity setting must be the same for all devices in a communications loop. NOTE: Number of stop bits = 1. Increase or decrease the value to increase or decrease the display contrast. Settings are reset to their defaults, except for Password. Meter restarts. 40 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Configuration menus for iEM3235 / iEM3255 / iEM3265 / iEM3275 Wiring Type VT CT A iEM3235 / iEM3255 / iEM3265 B iEM3255 C iEM3235 D iEM3265 CT & VT Ratio CT Secondary CT Primary VT Secondary VT Primary Frequency Frequency Date Date Time Time Multi Tariffs Overload Alarm Digital Output Digital Input Control mode Disable by Internal Clock by Digital Input by Communications Alarm Disable Enable Schedule by 2 Tariffs by 3 Tariffs by 4 Tariffs Pick Up Value DO Function Disable for Alarm for Pulse Pulse Constant Pulse Width DI Function Input Status Tariff Control Input Metering Partial Reset In. Pulse Const. Communication Slave Address Baud Rate Parity Communication Primary Addr. Baud Rate Communication MAC Addr. Baud Rate Device ID Com.Protection Com.Protection Contrast Contrast Password Password Reset Config Reset Config DOCA0005EN-12 41 Front panel display and meter setup iEM3000 series user manual Section Parameter Wiring CT & VT Ratio Frequency Date Time Type VT CT CT Secondary CT Primary VT Secondary VT Primary Frequency Date Time Multi Tariffs Control Mode Overload Alarm Alarm Digital Output (iEM3235 / iEM3255 / iEM3265) DO Function Digital Input DI Function Options Description 3PH3W 3PH4W 1PH2W L-N 1PH2W L-L 1PH3W L-L-N Select the power system type the meter is wired to. 1PH4W Multi L-N Direct-NoVT Wye(3VTs) Delta(2VTs) Select how many voltage transformers (VT) are connected to the electrical power system. 3CTs on I1, I2, I3 1 CT on I1 2 CTs on I1, I3 1 5 1 - 32767 Define how many current transformers (CT) are connected to the meter and which terminals they are connected to. Select the size of the CT secondary, in Amps. Enter the size of the CT primary, in Amps. 100 110 Select the size of the VT secondary, in Volts. 115 120 1 - 1000000 50 60 DD-MMM-YYYY Enter the size of the VT primary, in Volts. Select the frequency of the electrical power system, in Hz. Set the current date using the specified format. hh:mm Set the time using the 24-hour format. Select the tariff control mode: Disable: the Multi Tariff function is disabled. by Communication: the active tariff is control by communications. See the Disable chapter for the applicable protocol for more information. by Communication by Digital Input: the digital input is associated with the multi-tariff function. A by Digital Input signal to the digital input changes the active tariff. by Internal Clock: the device clock controls the active tariff. If you set the Con- by Internal Clock trol Mode to by Internal Clock, you must also configure the schedule. Set the time when each tariff period starts, using the 24 hour clock format (00:00 to 23:59). The start time of the next tariff is the end time of the current tariff. For example, T2 start equals the end of T1. Disable Enable Disable for Alarm for Pulse (kWh) Select whether or not the Overload Alarm is enabled: Disable: the alarm is disabled. Enable: the alarm is enabled. If you enabled the Overload Alarm, you must also configure the Pick Up Value in kW from 1 - 9999999. Select how the digital output functions: Disable: the digital output is disabled. for Alarm: the digital output is associated with the overload alarm. The meter sends a pulse to the digital output port when the alarm is triggered. for Pulse (kWh): The digital output is associated with energy pulsing (active energy). When this mode is selected, you can select the energy parameter and set the Pulse Constant (imp/kWh) and the Pulse Width (ms). Input Status Tariff Control Input Metering Partial Reset NOTE: the iEM3275 does not have a digital output. Select how the digital input functions: Input status: the digital input records the status of the input, for example, OF, SD of a circuit breaker. Input Metering: the digital input is associated with input metering. The meter counts and records the number of incoming pulses. If you set the DI Function to Input Metering, you must also configure In. Pulse Constant. Tariff Control: the digital input is associated with the multi-tariff function. A signal to the digital input changes the active tariff. Partial Reset: a signal to the digital input initiates a partial reset. 42 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Section Parameter Options Slave Address 1 - 247 Baud Rate Communication (iEM3255) Parity 19200 38400 9600 Even Odd None Primary Addr. 0 - 255 Communication (iEM3235) Baud Rate 2400 4800 9600 300 600 1200 MAC Addr. 1 - 127 Communication (iEM3265) Baud Rate 9600 19200 38400 57600 76800 Device ID 0 - 4194303 Com.Protection Contrast Password Reset Config Com.Protection Contrast Password Reset Config Enable Disable 1-9 0-9999 -- Description Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Select None if the parity bit is not used. The parity setting must be the same for all devices in a communications loop. NOTE: Number of stop bits = 1. Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Set the Device ID for this device. Make sure the Device ID is unique in your BACnet network. Protects selected settings and resets from configuration via communications. Increase or decrease the value to increase or decrease the display contrast. Sets the password for accessing the meter configuration screens and resets. Settings are reset to their defaults, except for Password. Meter restarts. DOCA0005EN-12 43 Front panel display and meter setup Configuration menus for iEM34·· and iEM35·· Wiring CT & VT Ratio Angle & Ratio Frequency Type VT CT CT Secondary (iEM3455 / iEM3465) CT Primary VT Secondary VT Primary Angle Compen Ratio Compen Frequency CT Ratio (iEM3555 / iEM3565) Date Date Time Time Multi Tariffs Overload Alarm Digital Output Digital Input Control mode Disable by Internal Clock by Digital Input by Communications Alarm Disable Enable DO Function Disable for Alarm for Pulse DI Function Input Status Tariff Control Input Metering Partial Reset Schedule by 2 Tariffs by 3 Tariffs by 4 Tariffs Pick Up Value Pulse Constant Pulse Width In. Pulse Const. Demand Demand Method Sliding Fixed Demand Demand Interval 10, 15, 20, 30, 60 Communication Slave Address Baud Rate Parity CComommmunuinciactaiotinon MAC Addr. BaBuadudRRataete Device ID Com.Protection Com.Protection Contrast Contrast Password Reset Config Password Reset Config iEM3000 series user manual A iEM3455/iEM3555 B iEM3465/iEM3565 C iEM3455/iEM3465 44 DOCA0005EN-12 iEM3000 series user manual Front panel display and meter setup Section Wiring CT & VT Ratio Angle & Ratio (iEM3455/ iEM3465) Frequency Date Time Multi Tariffs Overload Alarm Parameter Type VT CT CT Secondary CT Primary VT Secondary VT Primary Angle Compen Ratio Compen Frequency Date Time Control Mode Alarm Options Description 3PH3W 3PH4W 1PH2W L-N 1PH2W L-L 1PH3W L-L-N Select the power system type the meter is wired to. 1PH4W Multi L-N Direct-NoVT Wye(3VTs) Delta(2VTs) Select how many voltage transformers (VT) are connected to the electrical power system. 3CTs on I1, I2, I3 1 CT on I1 2 CTs on I1, I3 0.333 1 1 - 32767 Define how many current transformers (CT) are connected to the meter and which terminals they are connected to. Select the size of the CT secondary, in Volts. Enter the size of the CT primary, in Amps. 100 110 Select the size of the VT secondary, in Volts. 115 120 1 - 1000000 Enter the size of the VT primary, in Volts. Enter the phase angle compensation, in rad (radian). 0 - 17000 For negative phase shift: Formula = 10000 - (Angle in rad*1000) Example: For -30° negative phase shift, the value in rad is -0.524 Value to be entered = 10000 - (-0.524*1000), which is equal to 10524 For positive phase shift: Formula = Angle in rad*1000 Example: For 30° positive phase shift, the value in rad is 0.524 Value to be entered = 0.524*1000, which is equal to 524 0 - 2000 Enter the ratio compensation. Formula = Ratio value*1000 50 Select the frequency of the electrical power system, in Hz. 60 DD-MMM-YYYY Set the current date using the specified format. hh:mm Set the time using the 24-hour format. Select the tariff control mode: Disable: the Multi Tariff function is disabled. by Communication: the active tariff is control by communications. See the Disable chapter for the applicable protocol for more information. by Communication by Digital Input: the digital input is associated with the multi-tariff function. A by Digital Input signal to the digital input changes the active tariff. by Internal Clock: the device clock controls the active tariff. If you set the Con- by Internal Clock trol Mode to by Internal Clock, you must also configure the schedule. Set the time when each tariff period starts, using the 24 hour clock format (00:00 to 23:59). The start time of the next tariff is the end time of the current tariff. For example, T2 start equals the end of T1. Disable Select whether or not the Overload Alarm is enabled: Disable: the alarm is disabled. Enable Enable: the alarm is enabled. If you enabled the Overload Alarm, you must also configure the Pick Up Value in kW from 1 - 9999999. DOCA0005EN-12 45 Front panel display and meter setup iEM3000 series user manual Section Digital Output Parameter Options DO Function Disable for Alarm for Pulse (kWh) Digital Input DI Function Input Status Tariff Control Input Metering Partial Reset Demand Sliding Demand Method Fixed 10 15 Demand Interval 20 30 60 Slave Address 1 - 247 Communication (iEM3455/ Baud Rate iEM3555) Parity 19200 38400 9600 Even Odd None MAC Addr. 1 - 127 Communication (iEM3465/ iEM3565) Baud Rate 9600 19200 38400 57600 76800 Device ID 0 - 4194303 Com.Protection Contrast Password Reset Config Com.Protection Contrast Password Reset Config Enable Disable 1-9 0-9999 -- Description Select how the digital output functions: Disable: the digital output is disabled. for Alarm: the digital output is associated with the overload alarm. The meter sends a pulse to the digital output port when the alarm is triggered. for Pulse: The digital output is associated with energy pulsing. When this mode is selected, you can select the energy parameter and set the Pulse Constant (imp/kWh) and the Pulse Width (ms). Select how the digital input functions: Input status: the digital input records the status of the input, for example, OF, SD of a circuit breaker. Input Metering: the digital input is associated with input metering. The meter counts and records the number of incoming pulses. If you set the DI Function to Input Metering, you must also configure In. Pulse Constant. Tariff Control: the digital input is associated with the multi-tariff function. A signal to the digital input changes the active tariff. Partial Reset: a signal to the digital input initiates a partial reset. Select the method to use for demand calculation. Select the demand calculation block interval in minutes. Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Select None if the parity bit is not used. The parity setting must be the same for all devices in a communications loop. NOTE: Number of stop bits = 1. Set the address for this device. The address must be unique for each device in a communications loop. Select the speed for data transmission. The baud rate must be the same for all devices in a communications loop. Set the Device ID for this device. Make sure the Device ID is unique in your BACnet network. Protects selected settings and resets from configuration via communications. Increase or decrease the value to increase or decrease the display contrast. Sets the password for accessing the meter configuration screens and resets. Settings are reset to their defaults, except for Password. Meter restarts. 46 DOCA0005EN-12 iEM3000 series user manual Chapter 5 Communications via Modbus Communications via Modbus Modbus communication overview Modbus RTU protocol is available on the iEM3150, iEM3155, iEM3250, iEM3255, iEM3350, iEM3355, iEM3455, and iEM3555. The information in this section assumes that you have an advanced understanding of Modbus communications, your communications network and the power system that your meter is connected to. There are three different ways of using Modbus communication: · By sending commands using the command interface (see "Command interface overview" on page 49) · By reading the Modbus registers (see "Modbus register list" on page 56) · By reading Device Identification (see "Read Device Identification" on page 65) Modbus communications settings Before communicating with the device using Modbus protocol, use the display to configure the following settings: Settings Baud rate Parity Address Possible values 9600 Baud 19 200 Baud 38 400 Baud Odd Even None NOTE: number of stop bits = 1 1247 Communications LED indicator for Modbus devices The yellow communications LED indicates the status of communication between the meter and the master as follows: If... The LED is flashing The LED is off Then... Communication with the device has been established. NOTE: If there is an error online, the LED also flashes. There is no active communication between the master and the slave Related topics · For more information on the Modbus protocol, see the Modbus organization website at www.modbus.org. · See "Meter sealing points" on page 17 for the location of the communications LED. DOCA0005EN-12 47 Communications via Modbus iEM3000 series user manual Modbus functions Function list The table below lists the supported Modbus functions: Decimal 3 16 43/14 Function code Hexadecimal 0x03 0x10 0x2B/0x0E Function name Read Holding Registers Write Multiple Registers Read Device Identification For example: · To read different parameters from the meter, use function 3 (Read). · To change the tariff, use function 16 (Write) to send a command to the meter. Table format Register tables have the following columns: Address Register Action (R/W/WC) Size Type Units Range Description · Address: A 16-bit register address in hexadecimal. The address is the data used in the Modbus frame · Register : A 16-bit register number in decimal (register = address + 1) · Action: The read/write/write by command property of the register · Size: The data size in Int16 · Type: The encoding data type · Units: The unit of the register value · Range: The permitted values for this variable, usually a subset of what the format allows · Description: Provides information about the register and the values that apply Unit table The following data types appear in the Modbus register list: Type UInt16 Int16 UInt32 Int64 UTF8 Float32 Bitmap DATETIME Description 16 bit unsigned integer 16 bit signed integer 32 bit unsigned integer 64 bit unsigned integer 8 bit field 32 bit value -- See below Range 0 65535 -32768 to +32767 0 4 294 967 295 0 18 446 744 073 709 551 615 multibyte character encoding for Unicode Standard representation IEEE for floating number (with single precision) -- -- DATETIME format: Word 1 2 3 Bits 15 14 13 12 11 10 9 8 7 6 543210 Reserved (0) R4 (0) Year (0 127) 0 Month (1 12) WD (0) Day (1 31) SU (0) 0 Hour (0 23) iV 0 Minute (0 59) 48 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Bits Word 15 14 13 12 11 10 9 8 7 6 543210 4 Millisecond (0 59999) R4 : Reserved Bit Year : 7 bits (year from 2000) Month : 4 bits Day : 5 bits Hour : 5 bits Minute : 6 bits Millisecond : 2 octets WD (day of the week) : 17: SundaySaturday SU (summer time) : Bit to 0 if this parameter is not used. iV (validity of received data) : Bit to 0 if this parameter is not valid or not used. Command interface Command interface overview The command interface allows you to configure the meter by sending specific command requests using Modbus function 16. Command request The following table describes a Modbus command request: Slave Numb er Functio n Code Register Address 1247 16 5250 (up to 5374) Command block Command Description CRC The command is made of a command number and a set of parameters. See the detailed description of each command in the command list. Checking NOTE: All the reserved parameters can be considered as any value, e.g. 0. The following table describes the command block:Command result The command result can be obtained by reading registers 5375 and 5376. The following table describes the command result: Register Address 5375 5376 Content Size (Int16) Data (example) Requested Command Number 1 Result Command result codes: 0 = Valid Operation 3000 = Invalid Command 1 3001 = Invalid Parameter 3002 = Invalid Number of Parameters 3007 = Operation Not Performed 2008 (Set Tariff) 0 (Valid Operation) DOCA0005EN-12 49 Communications via Modbus Command list iEM3000 series user manual Set Date/Time Command Number 1003 Action (R/W) W W W W W W W W Size 1 1 1 1 1 1 1 1 Type UInt16 UInt16 UInt16 UInt16 UInt16 UInt16 UInt16 UInt16 Unit Range -- -- -- 20002099 -- 112 -- 131 -- 23 -- 059 -- 059 -- -- Description (Reserved) Year Month Day Hour Minute Second (Reserved) 50 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Set Wiring Command Action Number (R/W) W W W Size 1 1 1 Type UInt16 UInt16 UInt16 W 1 UInt16 W W W W W W W W 2000 W 1 UInt16 2 Float32 2 Float32 2 Float32 1 UInt16 1 UInt16 2 Float32 1 UInt16 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 Unit Range Description Hz V V A mV uV/kA/ Hz (Reserved) (Reserved) (Reserved) Power System Configuration 0 = 1PH2W L-N 1 = 1PH2W L-L 0, 1, 2, 3, 11,13 2 = 1PH3W L-L-N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4W L-N 50, 60 Nominal Frequency (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) VT Secondary 1000000.0 VT Primary NOTE: For iEM3250 / iEM3255 / iEM3455 / iEM3555. Reserved by iEM3150 / iEM3155 / iEM3350 / iEM3355 100, 110, 115, 120 VT Secondary NOTE: For iEM3250 / iEM3255 / iEM3455 / iEM3555. Reserved by iEM3150 / iEM3155 / iEM3350 / iEM3355 1, 2, 3 Number of CTs NOTE: For iEM3250 / iEM3255 / iEM3455 / iEM3555. Reserved by iEM3150 / iEM3155 / iEM3350 / iEM3355 132767 CT Primary NOTE: For iEM3250 / iEM3255 / iEM3455 / iEM3465. Reserved by iEM3150 / iEM3155 / iEM3350 / iEM3355 5000 333, 1000 CT Primary NOTE: For iEM3555 / iEM3565. CT Secondary NOTE: For iEM3455 / iEM3465. 1167 CT Secondary NOTE: For iEM3555 / iEM3565. (Reserved) (Reserved) (Reserved) (Reserved) VT Connection type: 0 = Direct Connect 0, 1, 2 1 = 3PH3W (2 VTs) 2 = 3PH4W (3 VTs) NOTE: For iEM3250 / iEM3255. Reserved by iEM3150 / iEM3155 / iEM3350 / iEM3355 DOCA0005EN-12 51 Communications via Modbus iEM3000 series user manual Set Demand (iEM3455, iEM3555) Command Action Number (R/W) Size Type Unit W 1 UInt16 -- W 1 UInt16 -- 2002 W 1 UInt16 -- W 1 UInt16 Minute W 1 UInt16 -- Range Description -- -- 1, 2 10, 15, 20, 30, 60 -- (Reserved) (Reserved) Demand method: 1 = Timed interval sliding block 2 = Timed interval fixed block Demand Interval Reserved Set Pulse Output (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Command Number Action (R/W) Size Type Unit Range Description W 1 UInt16 -- -- (Reserved) W 1 UInt16 -- -- (Reserved) Pulse Output enable / disable W 1 UInt16 -- 0, 1 0 = Disable 1 = Enable 2003 iEM3155 / iEM3355: 1, 10, 20, 100, 200, 1000 W 2 Float32 pulse/kWh iEM3255 / Pulse constant iEM3455 / iEM3555: 0.01, 0.1, 1, 10, 100, 500 W 1 UInt16 -- -- W 1 UInt16 -- -- (Reserved) (Reserved) W 2 Float32 -- -- W 1 UInt16 -- -- (Reserved) (Reserved) W 1 UInt16 -- -- W 2 Float32 -- -- (Reserved) (Reserved) 2038 W 1 UInt16 -- W 1 UInt16 -- W 1 UInt16 ms -- -- 50, 100, 200, 300 (Reserved) (Reserved) Pulse width Set Tariff (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Command Action Number (R/W) Size Type Unit W 1 UInt16 -- Range -- 2060 W 1 UInt16 -- 0, 1, 2, 4 Description (Reserved) Multi Tariff Mode 0 = Disable Multi Tariff 1 = Use COM as Tariff Control (maximum 4 tariffs) 2 = Use Digital Input as Tariff Control (2 tariffs) 4 = Use Internal Clock as Tariff Control (maximum 4 tariffs) 52 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Command Action Number (R/W) Size Type Unit W 1 UInt16 -- Range -- 2008 W 1 UInt16 -- 14 Description (Reserved) Tariff 1 = T1 2 = T2 3 = T3 4 = T4 NOTE: You can only set the tariff using this method if the Tariff Mode is set to by Communication. Set Digital Input as Partial Energy Reset (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Command Action Number (R/W) Size Type Unit W 1 UInt16 -- 6017 W 1 UInt16 -- Range -- 0, 1 Description (Reserved) Digital Input to Associate: 0 = Disable 1 = Enable Input Metering Setup (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Command Action Number (R/W) Size Type Unit W 1 UInt16 W 1 UInt16 W 20 UTF8 6014 W 2 Float32 W 1 UInt16 W 1 UInt16 Range Description 1 string size <= 40 110000 0, 1 (Reserved) Input Metering Channel Label Pulse Weight (Reserved) Digital Input Association: 0 = Disable 1 = Enable DOCA0005EN-12 53 Communications via Modbus iEM3000 series user manual Overload Alarm Setup (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Command Action Number (R/W) Size Type W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 Unit W 1 UInt16 7000 W W W W W W W W W W W 20000 2 Float32 2 UInt32 2 Float32 2 UInt32 1 UInt16 4 UInt16 1 UInt16 1 UInt16 1 UInt16 2 Float32 2 UInt32 W 1 Bitmap 20001 W 1 UInt16 Range Description 9 0, 1 0.01e10 0,1 (Reserved) Alarm ID (Reserved) (Reserved) (Reserved) 0 = Disable 1 = Enable Pickup value (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) (Reserved) Digital Output to Associate 0 = Unassociated 1 = Associated Acknowledge the Overload Alarm Communications Setup Command Number Action (R/W) Size Type Unit W 1 UInt16 W 1 UInt16 W 1 UInt16 W 1 UInt16 5000 W 1 UInt16 W 1 UInt16 W 1 UInt16 Range 1247 0, 1, 2 0, 1, 2 Description (Reserved) (Reserved) (Reserved) Address Baud Rate 0 = 9600 1 = 19200 2 = 38400 Parity 0 = Even 1 = Odd 2 = None (Reserved) Reset all Peak Demand (iEM3455, iEM3555) Command Action Number (R/W) Size Type Unit 2015 W 1 UInt16 Range Description (Reserved) 54 DOCA0005EN-12 iEM3000 series user manual Reset Partial Energy Counters Command Action Number (R/W) Size Type Unit 2020 W 1 UInt16 Communications via Modbus Range Description (Reserved) iEM3150/iEM3250/iEM3350: Partial Active Energy and Phase Energy registers will be reset. iEM3155/iEM3255/iEM3355/ iEM3455/iEM3555: Partial Active / Reactive Energy, Energy by tariff and Phase Energy registers will be reset. Reset Input Metering Counter (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Command Action Number (R/W) Size Type Unit 2023 W 1 UInt16 Range Description (Reserved) DOCA0005EN-12 55 Communications via Modbus iEM3000 series user manual Modbus register list System Address Register 0x001D 0x0031 0x0045 0x0081 0x0083 0x0087 0x0664 30 50 70 130 132 136 1637 0x07340x0737 18451848 Action (R/W/ WC) Size Type R 20 UTF8 R 20 UTF8 R 20 UTF8 R 2 UInt32 R 4 DATETIME R 5 UTF8 R 1 UInt16 R/WC 1 X 4 UInt16 Units Description Meter Name Meter Model Manufacturer Serial Number Date of Manufacture Hardware Revision Present Firmware Version (DLF format): X.Y.ZTT Date/Time Reg. 1845: Year (b6:b0) 099 (year from 2000 to 2099) Reg. 1846: Month (b11:b8), Weekday (b7:b5), Day (b4:b0) Reg. 1847: Hour (b12:b8), Minute (b5:b0) Reg. 1848: Millisecond Meter Setup and Status Address Register Action (R/W/ WC) Size Type 0x07D3 0x07DD 0x07DE 2004 2014 2015 R 2 UInt32 R 1 UInt16 R 1 UInt16 0x07DF 2016 R/WC 1 UInt16 0x07E0 0x07E8 0x07E9 0x07EB 0x07EC 0x07ED 2017 2025 2026 2028 2029 2030 R/WC 1 R 1 R/WC 2 R/WC 1 R/WC 1 R/WC 1 UInt16 UInt16 Float32 UInt16 UInt16 UInt16 Units Description Meter Operation Timer Second Not applicable for iEM3150 / iEM3250 / iEM3350 Number of Phases Number of Wires Power System 0 = 1PH2W LN 1 = 1PH2W LL 2 = 1PH3W LL with N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4W multi L with N Hz Nominal Frequency Number VTs Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 VT Primary V Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 VT Secondary V Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 Number CTs Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 CT Primary A Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 56 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Address Register 0x07EE 2031 0x07F3 2036 Action (R/W/ WC) Size Type R/WC 1 UInt16 R/WC 1 UInt16 Units Description CT Secondary A Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 VT Connection Type 0 = Direct Connect 1 = 3PH3W (2 VTs) 2 = 3PH4W (3 VTs) Not applicable for iEM3150 / iEM3155 / iEM3350 / iEM3355 PF firmware (iEM3x55 energy meters) updates Address 0x0C77 0x0C79 0x0C7B 0x0C7C Register 3192 3194 3196 3197 Addition to PF Registers: Values ranging from +1 to -1 Read/Write iEM3155 iEM3255 R R R R R R R R iEM3355 R R R R Size 2 2 1 1 Type Units Description FLOAT32 FLOAT32 UInt16 UInt16 Power Factor Total IEC Power Factor Total Lead Lag Power Factor Total IEC Power Factor Total Lead Lag Energy Pulse Output Setup (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Address 0x0850 Register 2129 Action (R/W/ WC) Size R/WC 1 Type UInt16 0x0852 2131 R/WC 1 UInt16 0x0853 2132 R/WC 2 Float32 Units Millisecond pulse/kWh Description Energy Pulse Duration Digital Output Association 0 = Disable 1 = DO1 enable for active energy pulse output Pulse Weight 1PH4W Multi LN (iEM3x55 energy meters) updates Address 0xB047 0xB049 0xB04B Register 45128 45130 45132 Addition of each phase reactive energy import register Read/Write iEM3155 iEM3255 iEM3355 Size R R R 2 R R R 2 R R R 2 Type Units Description FLOAT32 FLOAT32 FLOAT32 KVARH KVARH KVARH Reactive Energy Delivered Phase A Reactive Energy Delivered Phase B Reactive Energy Delivered Phase C You can access each phase reactive energy import values using INT64 or Float 32 register format. Address 0xDEA7 0xDEAC 0xDEB1 Register 57000 57005 57010 Addition of each phase name register Read/Write iEM3155 iEM3255 iEM3355 Size R R R 5 R R R 5 R R R 5 Type UTF8 UTF8 UTF8 Units Description - Phase 1 Name - Phase 2 Name - Phase 3 Name Default value PH1 Eng Impt PH2 Eng Impt PH3 Eng Impt DOCA0005EN-12 57 Communications via Modbus iEM3000 series user manual Addition of one command to set the each phase name Command Action Number (R/W) W W 6018 W W Size 1 5 5 5 Type UInt16 UTF8 UTF8 UTF8 Units - Range Description - (Reserved) string size <= 10 Phase 1 name Label string size <= 10 Phase 2 name Label string size <= 10 Phase 3 name Label Addition to display: Each phase active/reactive values are added to HMI NOTE: When the wiring configuration is 1PH4W Multi LN, the partial energy reset through Digital Input or Command is not possible. Command Interface Address 0x1481 0x1483 0x14FD 0x14FE Register 5250 5252 5374 5375 0x14FF 5376 0x1500 0x157A 5377 5499 Action (R/W/WC) Size R/W 1 R/W 1 R/W 1 R 1 Type UInt16 UInt16 UInt16 UInt16 R 1 UInt16 R/W 1 UInt16 R 1 UInt16 Units Description Requested Command Command Parameter 001 Command Parameter 123 Command Status Command Result codes: 0 = Valid Operation 3000 = Invalid Command 3001 = Invalid Parameter 3002 = Invalid Number of Parameters 3007 = Operation Not Performed Command Data 001 Command Data 123 Communication Address Register 0x1963 0x1964 6500 6501 0x1965 6502 0x1966 6503 Action (R/W/WC) Size Type R 1 UInt16 R/WC 1 UInt16 R/WC 1 UInt16 R/WC 1 UInt16 Units Description Protocol 0 = Modbus Address Baud Rate: 0 = 9600 1 = 19 200 2 = 38 400 Parity: 0 = Even 1 = Odd 2 = None NOTE: number of stop bits = 1 58 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Input Metering Setup (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Address 0x1B77 0x1B8B 0x1B8E Register 7032 7052 7055 Action (R/W/WC) Size R/WC 20 R/WC 2 R/WC 1 Type UTF8 Float32 UInt16 Units pulse/unit Description Label Pulse Constant Digital Input Association 0 = Disable for input metering 1 = Enable for input metering Digital Input (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Address Register 0x1C69 7274 0x22C8 8905 Action (R/W/WC) Size Type R 1 UInt16 R 2 Bitmap Units Description Digital Input Control Mode: 0 = Normal (Input Status) 2 = Multi Tariff Control 3 = Input Metering 5 = All Energy Reset Digital Input Status (only Bit 1 is used): Bit 1 = 0, relay open Bit 1 = 1, relay closed Digital Output (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Address 0x25C8 Register 9673 Action (R/W/WC) Size Type R 1 UInt16 Units Description Digital Output Control Mode Status: 2 = for Alarm 3 = for Pulse (kWh) 0xFFFF = Disable DOCA0005EN-12 59 Communications via Modbus Meter Data iEM3000 series user manual Current, voltage, power, power factor and frequency Address Register Current 0x0BB7 0x0BB9 0x0BBB 0x0BC1 Voltage 0x0BCB 0x0BCD 0x0BCF 0x0BD1 0x0BD3 0x0BD5 0x0BD7 0x0BDB Power 0x0BED 0x0BEF 0x0BF1 0x0BF3 0x0BFB 3000 3002 3004 3010 3020 3022 3024 3026 3028 3030 3032 3036 3054 3056 3058 3060 3068 0x0C03 3076 Power Factor 0x0C0B 3084 Frequency 0x0C25 3110 Action (R/W/WC) Size Type R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 R 2 Float32 Units Description A I1: phase 1 current A I2: phase 2 current A I3: phase 3 current A Current Avg V Voltage L1L2 V Voltage L2L3 V Voltage L3L1 V Voltage LL Avg V Voltage L1N V Voltage L2N V Voltage L3N V Voltage LN Avg kW kW kW kW kVAR kVA Active Power Phase 1 Active Power Phase 2 Active Power Phase 3 Total Active Power Total Reactive Power Not applicable for iEM3150 / iEM3250 / iEM3350 Total Apparent Power Not applicable for iEM3150 / iEM3250 / iEM3350 Total Power Factor: -1 < PF < 0 = Quad 2, active power negative, capacitive -2 < PF < -1 = Quad 3, active power negative, inductive 0 < PF < 1 = Quad 1, active power positive, inductive 1 < PF < 2 = Quad 4, active power positive, capacitive Hz Frequency 60 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Energy, energy by tariff and input metering Most energy values are available in both signed 64-bit integer and 32-bit floating point format. The energy and energy by tariff measurements listed below are preserved through power failures. Energy reset and active tariff information Address Register Action (R/W/WC) Size Type 0x0CB3 3252 R 4 DATETIME 0x0DE1 3554 R 4 DATETIME 0x105E 4191 R/WC 1 UInt16 Units Description Energy Reset Date and Time Input Metering Accumulation Reset Date and Time Not applicable for iEM3150 / iEM3250 / iEM3350 MultiTariffs Energy Active Rate 0: multi tariff disabled 1 to 4: rate A to rate D Not applicable for iEM3150 / iEM3250 / iEM3350 NOTE: You can only set the tariff using this method if the Tariff Mode is set to by Communication. Energy values 64-bit integer Address Register Action (R/W/WC) Size Type Units Description Total Energy (cannot be reset) 0x0C83 3204 R 4 Int64 Wh 0x0C87 3208 R 4 Int64 Wh 0x0C93 3220 R 4 Int64 VARh 0x0C97 3224 R 4 Int64 VARh Partial Energy 0x0CB7 3256 R 0x0CC7 3272 R 4 Int64 4 Int64 Wh VARh Phase Energy 0x0DBD 3518 R 0x0DC1 3522 R 0x0DC5 3526 R Input Metering Counter 4 Int64 Wh 4 Int64 Wh 4 Int64 Wh 0x0DE5 3558 R 4 Int64 Unit Demand (iEM3455 / iEM3465 / iEM3555 / iEM3565 only) 0x0E74 0x0E75 0x0E79 0x0EB5 0x0EB9 0x0EBB 3701 3702 3706 3766 3770 3772 R/WC R/WC R R R R 1 UInt16 1 UInt16 Minute 4 DATETIME 2 Float32 kW 2 Float32 kW 4 DATETIME Total Active Energy Import Total Active Energy Export Not applicable for iEM3150 / iEM3250 / iEM3350 Total Reactive Energy Import Not applicable for iEM3150 / iEM3250 / iEM3350 Total Reactive Energy Export Not applicable for iEM3150 / iEM3250 / iEM3350 Partial Active Energy Import Partial Reactive Energy Import Not applicable for iEM3150 / iEM3250 / iEM3350 Active Energy Import Phase 1 Active Energy Import Phase 2 Active Energy Import Phase 3 Input Metering Accumulation Not applicable for iEM3150 / iEM3250 / iEM3350 Demand method: 1 = Timed interval sliding block 2 = Timed interval fixed block Demand Interval Duration Demand Peak Reset Date/Time Active Power Demand Active Power Peak Demand Active Power Peak Demand DateTime DOCA0005EN-12 61 Communications via Modbus iEM3000 series user manual Energy values 64-bit integer Address Register Action (R/W/WC) Size Type Units Description 0x0EC5 3782 R 0x0EC9 3786 R 0x0ECB 3788 R 0x0ED5 3798 R 0x0ED9 3802 R 0x0EDB 3804 R 0x0EE5 3814 R 0x0EE9 3818 R 0x0EEB 3820 R 0x0EF5 3830 R 0x0EF9 3834 R 0x0EFB 3836 R 0x0F05 3846 R 0x0F09 3850 R 0x0F0B 3852 R 0x0F25 3878 R 0x0F29 3882 R 0x0F2B 3884 R 2 Float32 kVAR Reactive Power Demand 2 Float32 kVAR Reactive Power Peak Demand 4 DATETIME Reactive Power Peak Demand DateTime 2 Float32 kVA Apparent Power Demand 2 Float32 kVA Apparent Power Peak Demand 4 DATETIME Apparent Power Peak Demand DateTime 2 Float32 A Current I1 Demand 2 Float32 A Current I1 Peak Demand 4 DATETIME Current I1 Peak Demand DateTime 2 Float32 A Current I2 Demand 2 Float32 A Current I2 Peak Demand 4 DATETIME Current I2 Peak Demand DateTime 2 Float32 A Current I3 Demand 2 Float32 A Current I3 Peak Demand 4 DATETIME Current I3 Peak Demand DateTime 2 Float32 A Current Avg Demand 2 Float32 A Current Avg Peak Demand 4 DATETIME Current Avg Peak Demand DateTime Energy by Tariff (iEM3155 / iEM3255 / iEM3355 only) 0x1063 4196 R 0x1067 4200 R 0x106B 4204 R 0x106F 4208 R 4 Int64 4 Int64 4 Int64 4 Int64 Wh Rate A Active Energy Import Wh Rate B Active Energy Import Wh Rate C Active Energy Import Wh Rate D Active Energy Import Energy values 32-bit floating point Address Register Action (R/W/WC) Size Type Units Description Demand (iEM3455 / iEM3465 / iEM3555 / iEM3565 only) 0x9D08 0x9D09 0x9D0B 0x9D0F 0x9D11 0x9D13 0x9D17 0x9D19 0x9D1B 0x9D1F 0x9D21 0x9D23 0x9D27 0x9D29 0x9D2B 0x9D2F 0x9D31 0x9D33 40201 40202 40204 40208 40210 40212 40216 40218 40220 40224 40226 40228 40232 40234 40236 40240 40242 40244 R/WC R/WC R R R R R R R R R R R R R R R R 1 UInt16 1 UInt16 Minute 4 DATETIME 2 Float32 kW 2 Float32 kW 4 DATETIME 2 Float32 kVAR 2 Float32 kVAR 4 DATETIME 2 Float32 kVA 2 Float32 kVA 4 DATETIME 2 Float32 A 2 Float32 A 4 DATETIME 2 Float32 A 2 Float32 A 4 DATETIME Demand method: 1 = Timed interval sliding block 2 = Timed interval fixed block Demand Interval Duration Demand Peak Reset Date/Time Active Power Demand Active Power Peak Demand Active Power Peak Demand DateTime Reactive Power Demand Reactive Power Peak Demand Reactive Power Peak Demand DateTime Apparent Power Demand Apparent Power Peak Demand Apparent Power Peak Demand DateTime Current I1 Demand Current I1 Peak Demand Current I1 Peak Demand DateTime Current I2 Demand Current I2 Peak Demand Current I2 Peak Demand DateTime 62 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Energy values 32-bit floating point Address Register Action (R/W/WC) Size Type Units Description 0x9D37 40248 R 0x9D39 40250 R 0x9D3B 40252 R 0x9D47 40264 R 0x9D49 40266 R 0x9D4B 40268 R Total Energy (cannot be reset) 0xB02B 45100 R 0xB02D 45102 R 0xB02F 45104 R 0xB031 45106 R 2 Float32 A 2 Float32 A 4 DATETIME 2 Float32 A 2 Float32 A 4 DATETIME Current I3 Demand Current I3 Peak Demand Current I3 Peak Demand DateTime Current Avg Demand Current Avg Peak Demand Current Avg Peak Demand DateTime 2 Float32 Wh Total Active Energy Import Total Active Energy Export 2 Float32 Wh Not applicable for iEM3150 / iEM3250 / iEM3350 Total Reactive Energy Import 2 Float32 VARh Not applicable for iEM3150 / iEM3250 / iEM3350 Total Reactive Energy Export 2 Float32 VARh Not applicable for iEM3150 / iEM3250 / iEM3350 Partial Energy 0xB033 45108 R 0xB035 45110 R 2 Float32 Wh Partial Active Energy Import Partial Reactive Energy Import 2 Float32 VARh Not applicable for iEM3150 / iEM3250 / iEM3350 Phase Energy 0xB037 45112 R 0xB039 45114 R 0xB03B 45116 R Input Metering Counter 0xB03D 45118 R 2 Float32 Wh Active Energy Import Phase 1 2 Float32 Wh Active Energy Import Phase 2 2 Float32 Wh Active Energy Import Phase 3 Input Metering Accumulation 2 Float32 Unit Not applicable for iEM3150 / iEM3250 / iEM3350 Energy by Tariff (iEM3155 / iEM3255 / iEM3355 only) 0xB03F 45120 R 0xB041 45122 R 0xB043 45124 R 0xB045 45126 R 2 Float32 Wh Rate A Active Energy Import 2 Float32 Wh Rate B Active Energy Import 2 Float32 Wh Rate C Active Energy Import 2 Float32 Wh Rate D Active Energy Import DOCA0005EN-12 63 Communications via Modbus iEM3000 series user manual Overload Alarm (iEM3155 / iEM3255 / iEM3355 / iEM3455 / iEM3555) Address 0xAFC8 0xAFC9 0xAFCB 0xAFCC 0xAFCD 0xAFCE 0xAFD2 Register 45001 45002 45004 45005 45006 45007 45011 Action (R/W/WC) Size Type Units Description Overload Alarm Setup: R/WC 1 Bitmap 0x0000 = Disabled 0x0100 = Enabled R/WC 2 Float32 kW Pickup Setpoint Digital Output to Associate: R/WC 1 Bitmap 0x0000 = Digital Output unassociated to overload alarm 0x0100 = Digital Output associated to overload alarm Activated Status: R 1 Bitmap 0x0000 = Alarm is inactive 0x0100 = Alarm is active Unacknowledged Status: R 1 Bitmap 0x0000 = Historic alarm is acknowledged by the user 0x0100 = Historic alarm is unacknowledged by the user R 4 DATETIME Last Alarm - Time Stamp R 2 Float32 kW Last Alarm - Value LVCT Angle compensation and Ratio compensation (iEM3455 / iEM3555) Address 0xDEB6 0xDEB8 Register 57015 57017 Action (R/W/WC) Size Type R 2 Float32 R 2 Float32 Units Description Angle compensation rad Range: -7 to 1 Ratio compensation Range: 0 to 2 64 DOCA0005EN-12 iEM3000 series user manual Communications via Modbus Read Device Identification The meters supports the Read Device Identification function with the mandatory objects VendorName, ProductCode and Revision Number. Object ID Name/Description Length Value Note 0x00 VendorName 16 0x01 ProductCode 09 0x02 MajorMinorRevision 04 SchneiderElectric A9MEM3150 A9MEM3155 A9MEM3250 A9MEM3255 A9MEM3350 The ProductCode value is identical to the catalog number of each device. A9MEM3355 A9MEM3455 A9MEM3555 V1.0 Equivalent to X.Y in register 1637 The Read Device ID codes 01 and 04 are supported: · 01 = request to get basic device identification (stream access) · 04 = request to get one specific identification object (individual access) The Modbus request and response are compliant with the Modbus Application Protocol Specification. DOCA0005EN-12 65 Communications via Modbus iEM3000 series user manual 66 DOCA0005EN-12 iEM3000 series user manual Chapter 6 Communications via LonWorks Communications via LonWorks LonWorks communications overview LonWorks communications is available on the iEM3175, iEM3275, and iEM3375. The information in this section assumes that you have an advanced understanding of LonWorks communications, your communications network and the power system that your device is connected to. Related topics · See the LonMark International website at www.lonmark.org for more information on LonTalk protocol or LonWorks communications. LonWorks communication implementation External interface file (XIF) The variables and configuration properties for the meter are documented in the external interface file (XIF). The XIF file is loaded onto the meter where your LNS (LonWorks Network Services) software can download it. You can also download the XIF file from www.schneider-electric.com if you need to manually add the XIF file to your software. The LonMaker plug-ins The plug-ins allow you to configure the meter and view meter data in Echelon LonMaker. LED indicators for LonWorks meters The LonWorks meters have two LonWorks status LEDs: the red service LED and the green communications LED. Red service LED This LED provides the status of LonWorks operations. LED state The LED is off The LED is flashing The LED is on Description The meter is configured. It may be online or offline. The meter is unconfigured but has an application. The meter is unconfigured and without an application, or There is a defective internal memory issue. Green communications LED This LED provides the status of the meter's communications with the network. LED state The LED is off The LED is flashing Description Communication is not active. Communication is active. DOCA0005EN-12 67 Communications via LonWorks iEM3000 series user manual Location of the service pin and Neuron ID The service pin is located on the front panel. Press this when requested by your LNS software in order to identify the meter to your LonWorks network. You can also find the Neuron ID on the meter label if you need to manually enter it into your LNS software. A Service pin B Location of the Neuron ID on the front panel C/- DI LON Neuron ID: 000000000000 S/N: 0000000000 OK ESC Reset Config Related topics · See "Meter sealing points" on page 17 for the location of the communications LED. · See "Input, output and communications wiring considerations" on page 18 for information on wiring the device communications. · See "Echelon LonMaker plug-in for data display and meter configuration" on page 76 for instructions on installing and using the LonMaker plug-in. Standard network variable types (SNVTs) and configuration properties for reading data The following sections outline the standard network variable types (SNVTs), the standard configuration property types (SCPTs), and user configuration property types (UCPTs) that you can access to read data from the meter. General variables Related topics · See "Meter configuration properties" on page 73 for more information on configuring settings using LonWorks. Network variable label Type nviRequest nvoStatus SCPTpartNumber SCPToemType Description For LonWorks internal communication. For LonWorks internal communication. System variables Network variable label Type nvoFileDirectory nvoResponse SNVT_address SNVT_count Description Configuration parameter file directory address (LonMark) Command result (LonMark) 68 DOCA0005EN-12 iEM3000 series user manual Communications via LonWorks Network variable label Type Description Device error status Error bitmap: each bit of the bitmap provides error information about the device. If value of the bit = 1, that error is active. Bit0 = Code 101: EEPROM error Bit1 = Code 102: No calibration table Bit2 = Code 201: mismatch between frequency settings and frequency measurements nvoErrors SNVT_state Bit3 = Code 202: mismatch between wiring settings and wiring inputs Bit4 = Code 203: phase sequence reversed Bit5 = Not used Bit6 = Code 205: Date and time have been reset due to a power failure Bit7 = Not used Bit8 = Code 207: Abnormal internal clock function Bit9 = Internal data bus communications error Bit10 - 15: Not used nciMeterModel nciMeterManf SNVT_str_asc (SCPTpartNumber) SNVT_str_asc (SCPToemType) Device model, stored as an ASCII string (for example, iEM3275) Manufacturer name (Schneider Electric) nciSerialNumber nciManfDateTime SNVT_str_asc (SCPTserialNumber) SNVT_time_stamp (SCPTmanfDate) Device serial number Date of manufacture nciDevMajVer SCPTdevMajVer LonWorks firmware major version (for example, 2.xx) This variable functions with nciDevMinVer to provide the device's LonWorks firmware version nciDevMinVer SCPTdevMinVer LonWorks firmware minor version (for example, x.34) This variable functions with nciDevMajVer to provide the device's LonWorks firmware version nciMeterVersion SNVT_str_asc (UCPTMeterVersion) Device firmware version, stored as an ASCII text string Related topics · See "Troubleshooting" on page 125 for more information on the error codes. · See "Network propagation rate setup" on page 75 for information on variables that control the network update rate. Energy and energy by tariff measurements Most energy values are available in both signed 32-bit integer and floating point format. The SNVT is appended with _l for 32-bit integer values and _f for floating point values. For example, the SNVTs for total active energy import are as follows: · 32-bit integer: SNVT_elec_kwh_l · Floating point: SNVT_elec_whr_f The energy and energy by tariff measurements listed below are preserved through power failures. Network variable label Type nvoTotkWhImp SNVT_elec_kwh_l nvoTotkWhExp SNVT_elec_kwh_l Description Total active energy import Total active energy export DOCA0005EN-12 69 Communications via LonWorks iEM3000 series user manual Network variable label Type nvoTotkVARhImp SNVT_elec_kwh_l nvoTotkVARhExp nvoTotWhImp SNVT_elec_kwh_l SNVT_elec_whr_f nvoTotWhExp nvoTotVARhImp SNVT_elec_whr_f SNVT_elec_whr_f nvoTotVARhExp nvoPartialkWh SNVT_elec_whr_f SNVT_elec_kwh_l nvoPartialkVARh nvoPartialWh SNVT_elec_kwh_l SNVT_elec_whr_f nvoPartialVARh nvoPh1kWh SNVT_elec_whr_f SNVT_elec_kwh_l nvoPh2kWh nvoPh3kWh SNVT_elec_kwh_l SNVT_elec_kwh_l nvoPh1Wh nvoPh2Wh SNVT_elec_whr_f SNVT_elec_whr_f nvoPh3Wh SNVT_elec_whr_f nvoTariffActRate SNVT_count nvoTariffAkWh nvoTariffBkWh nvoTariffCkWh nvoTariffDkWh nvoTariffAWh nvoTariffBWh nvoTariffCWh nvoTariffDWh nvoInMeterAcc nvoRstEnergyDT SNVT_elec_kwh_l SNVT_elec_kwh_l SNVT_elec_kwh_l SNVT_elec_kwh_l SNVT_elec_whr_f SNVT_elec_whr_f SNVT_elec_whr_f SNVT_elec_whr_f SNVT_count_f SNVT_time_stamp Description Total reactive energy import Total reactive energy export Total active energy import Total active energy export Total reactive energy import Total reactive energy export Partial active energy import Partial reactive energy import Partial active energy import Partial reactive energy import Active energy import phase 1 Active energy import phase 2 Active energy import phase 3 Active energy import phase 1 Active energy import phase 2 Active energy import phase 3 Active tariff 0 = Multi Tariff feature is disabled 1 = rate A (tariff 1) active 2 = rate B (tariff 2) active 3 = rate C (tariff 3) active 4 = rate D (tariff 4) active Rate A (tariff 1) active energy import Rate B (tariff 2) active energy import Rate C (tariff 3) active energy import Rate D (tariff 4) active energy import Rate A (tariff 1) active energy import Rate B (tariff 2) active energy import Rate C (tariff 3) active energy import Rate D (tariff 4) active energy import Input metering accumulation Date and time of last energy reset Related topics · See "Resets" on page 73 for information on resetting values. · See "Network propagation rate setup" on page 75 for information on variables that control the network update rate. Instantaneous (RMS) measurements Network variable label Type nvoActPowerPh1 SNVT_power_f nvoActPowerPh2 nvoActPowerPh3 SNVT_power_f SNVT_power_f nvoActPowerSum nvoRctPowerSum SNVT_power_f SNVT_power_f nvoAppPowerSum nvoVoltsL1N SNVT_power_f SNVT_volt_f nvoVoltsL2N nvoVoltsL3N SNVT_volt_f SNVT_volt_f nvoVoltsLNAvg SNVT_volt_f Description Active power Phase 1 Active power Phase 2 Active power Phase 3 Total active power Total reactive power Total apparent power Voltage L1-N Voltage L2-N Voltage L3-N Average voltage line-to-neutral 70 DOCA0005EN-12 iEM3000 series user manual Communications via LonWorks Network variable label Type nvoVoltsL1L2 SNVT_volt_f nvoVoltsL2L3 nvoVoltsL3L1 SNVT_volt_f SNVT_volt_f nvoVoltsLLAvg nvoCurrentPh1 SNVT_volt_f SNVT_amp_f nvoCurrentPh2 nvoCurrentPh3 SNVT_amp_f SNVT_amp_f nvoCurrentAvg nvoAvgPwrFactor SNVT_amp_f SNVT_count_inc_f nvoFrequency SNVT_freq_f Description Voltage L1-L2 Voltage L2-L3 Voltage L3-L1 Average voltage line-to-line Phase 1 current Phase 2 current Phase 3 current Average current Total power factor Frequency Related topics · See "Network propagation rate setup" on page 75 for information on variables that control the network update rate. Meter status information You can read the following network variables to obtain configuration and status information about the meter. For information on configuring the meter, see the sections on meter configuration properties and the LonWorks plug-in. Network variable label SNVT / UCPT type Description Basic information and meter configuration nvoDateTime SNVT_time_stamp Meter date and time (DD/MM/YYYY hh:mm:ss) nvoOpTimer SNVT_count_32 Meter operation timer: the time in seconds since the meter was last powered up System configuration information Power system configuration: 0 = 1PH2W L-N 1 = 1PH2W L-L nciSystemType SNVT_count 2 = 1PH3W L-L with N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4 wire multi L-N nciWireNum SNVT_count Number of wires 2, 3, 4 nciPhaseNum SNVT_count Number of phases 1, 3 nciCtNum SNVT_count Number of CTs 1, 2, 3 nciVtNum SNVT_count NOTE: only applies to the iEM3275 Number of VTs 0-10 nciVtPrimary nciVTSecondary nciCtPrimary SNVT_count_32 SNVT_count SNVT_count NOTE: only applies to the iEM3275 VT Primary NOTE: only applies to the iEM3275 VT Secondary NOTE: only applies to the iEM3275 CT Primary NOTE: only applies to the iEM3275 DOCA0005EN-12 71 Communications via LonWorks iEM3000 series user manual Network variable label SNVT / UCPT type Description nciCtSecondary nciVtConnType nciNominalFreq SNVT_count SNVT_count SNVT_freq_hz CT Secondary NOTE: only applies to the iEM3275 VT connection type 0 = Direct connection, no VTs 1 = 3PH3W (2VTs) 2 = 3PH4W (3VTs) System frequency 50, 60 Digital input configuration and status information nciDICtrMode nciDIPulseConst nvoDIStatus SNVT_count SNVT_count_32 SNVT_count Digital input control mode 0 = Normal (input status) 2 = Multi Tariff control 3 = Input metering 5 = All partial energy reset (configure to reset all partial energy logs) Pulse constant (pulses/unit) Digital input status (only Bit 1 is used) 0 = relay open 1 = relay closed NOTE: The information provided by this variable only applies if the digital input control mode is set to Input Status. Alarm status nvoAlmStatus nvoAlmUnAckState nvoAlmLastTime nvoAlmLastValue nciAlmEnable nciAlmPkUpSetPt SNVT_count SNVT_count SNVT_time_stamp SNVT_power_f SNVT_count SNVT_power_f Alarm status (only Bit 1 is used) 0 = Alarm is inactive 1 = Alarm is active Acknowledgement status (only Bit 1 is used): 0 = historic alarm is acknowledged by the user 1 = historic alarm is unacknowledged by the user Timestamp of last alarm (DD/MM/YYYY hh:mm:ss) Value at last alarm Overload alarm configuration: 0 = disabled 1 = enabled Active power alarm pickup setpoint in kW Related topics · See "Meter configuration properties" on page 73 for information on SCPTs and UCPTs that you can use to configure the meter. · See "Echelon LonMaker plug-in for data display and meter configuration" on page 76 for instructions on using the LNS plug-in to configure the meter. 72 DOCA0005EN-12 iEM3000 series user manual Communications via LonWorks Resets Network variable label nciRstPartEnergy nciRstInMeterAcc Type Description Action Resets all partial energy accumulators to 0: Partial active energy import (nvoPartialkWh, nvoPartialWh) Partial reactive energy import (nvoPartialkVARh, nvoPartialVARh) Rate A active energy import (nvoTariffAkWh, nvoTariffAWh) Rate B active energy import (nvoTariffBkWh, nvoTariffBWh) SNVT_swit ch Rate C active energy import (nvoTariffCkWh, nvoTariffCWh) To reset, set the state field to 1. Rate D active energy import (nvoTariffDkWh, nvoTariffDWh) Active energy import phase 1 (nvoPh1kWh, nvoPh1Wh) Active energy import phase 2 (nvoPh2kWh, nvoPh2Wh) Active energy import phase 3 (nvoPh3kWh, nvoPh3Wh) SNVT_swti Resets input metering accumulation ch (nvoInMeterAcc) to 0 To reset, set the state field to 1. Meter configuration properties You can configure the meter using the configuration properties listed in this section. However, it is recommended that you use the Echelon LonMaker plug-in if you are configuring the meter using LonWorks communications. NOTE: If Com. Protection is enabled, you may receive an error response when you try to configure the meter over communications. Related topics · See "Com. Protection setting" on page 30 for more information on the Com. Protection feature. · See "Echelon LonMaker plug-in for data display and meter configuration" on page 76 for instructions on using the LNS plug-in to configure the device. Date/time setup Function profile UCPT nciCfgDateTime UCPTDateTime Struct Members year month day hour minute second Range / options 2000 - 2099 1 - 12 1 - 31 0 - 23 0 - 59 0 - 59 DOCA0005EN-12 73 Communications via LonWorks iEM3000 series user manual Basic setup Function profile UCPT nciCfgWiring UCPTWiring Struct Members SystemType NominFreq VtPrimary VtSecondary CtNum CtPrimary CtSecondary VtConnType Range / options Description 0, 1, 2, 3, 11, 13 50, 60 0 - 1000000.0 100, 110, 115, 120 1, 2, 3 1 - 32767 1, 5 0, 1, 2 0 = 1PH2W L-N 1 = 1PH2W L-L 2 = 1PH3W L-L with N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4 wire multi L with N Nominal frequency in Hz The minimum value for VtPrimary must be equal to or greater than the value set for VtSecondary. -- -- -- -- VT connection type 0 = Direct connection 1 = 3PH3W (2VTs) 2 = 3PH4W (3VTs) Digital input setup Function profile UCPT Struct Members Range / options nciCfgDigitInpt UCPTDigitalInput -- 0, 1 Description Associates the digital input to reset partial energy data: 0 = Digital input is not associated with the partial energy reset. 1 = Digital input is associated with the partial energy reset. Setting this property to 1 also updates nciDICtrlMode (UCPTDiCtrlMode) to All Energy Reset. Input metering setup Function profile UCPT Struct Members Range / options PulseWeight 1 - 10000 nciCfgInptMet UCPTInputMet Acc ering DigitalAssociation 0, 1 Description Sets the pulse weight (1 - 10000 ms) Setting this property also sets nciDIPulseConst (UCPTDiPulseConst) to the same value. Associates the digital input with input metering: 0 = Digital input is not associated with input metering. 1 = The digital input is associated with input metering. Setting this property to 1 also updates nciDICtrlMode (UCPTDiCtrlMode) to Input Metering. 74 DOCA0005EN-12 iEM3000 series user manual Communications via LonWorks Overload alarm setup Function profile UCPT Struct Members Range / options nciCfgOvLoad UCPTOverLoadAl AlmEnable 0, 1 Alm arm PkUpSetpoint 1 - 9999999 nciCfgOvLoad Ack UCPTOverLoadAl mAck -- 0, 1 Description Enable or disable the overload alarm: 0 = Disabled 1 = Enabled The pickup value for the overload alarm Acknowledgement status (only Bit 1 is used): 0 = historic alarm is acknowledged by the user 1 = historic alarm is unacknowledged by the user Multi Tariff setup Function profile UCPT Struct Members nciCfgCommT ariff UCPTTariffMode -- nciCfgTariffSel UCPTTariffSelect -- Range / options 0, 1 1, 2, 3, 4 Description Set Multi Tariff control mode to Disabled or by Communication 0 = Disabled 1 = by Communication NOTE: To configure the Multi Tariff feature to be controlled by the digital input or device clock, use the HMI. Set the active tariff 1 = Rate A (tariff 1) 2 = Rate B (tariff 2) 3 = Rate C (tariff 3) 4 = Rate D (tariff 4) NOTE: You can only set the tariff using this method if the Tariff Mode is set to by Communication. Network propagation rate setup The following configuration properties help control network traffic by controlling the rate at which variable values are sent to your LNS. nci variable UCPTs/ SCPTs Applies to... Description nciErrors nciAllEnergy nciAllPower nciMaxNvSntP UCPTNVUpdtL nciAllVoltage erSec imit nciAllCurrent nciAllPowerFactor nciFrequency. nvoErrors nciErrors SCPTmaxSen dTime Limits the total number of updates sent per second for listed nci variables. If more than the specified number of updates are queued to be sent out in any 1 second period, the excess updates are delayed until the next second to reduce network traffic. The number of updates sent per second varies depending on the connection type updates from network variables that are not controlled by this configuration property. Maximum interval, in seconds, between transmissions of error values to the network. The value of the applicable variable is sent after the interval has elapsed, regardless of whether or not the value of the variable has changed. The counter is reset to 0. DOCA0005EN-12 75 Communications via LonWorks iEM3000 series user manual nci variable UCPTs/ SCPTs Applies to... Description Floating-point energy values: nvoTotWhImp nvoTotWhExp nvoTotVARhImp nvoTotVARhExp nciAllEnergy nvoPartialWh SCPTminSend nvoPartialVARh Time nvoPh1Wh nvoPh2Wh nvoPh3Wh nvoTariffAWh nvoTariffBWh nvoTariffCWh nvoTariffDWh nvoActPowerPh1 nciAllPower nvoActPowerPh2 The minimum interval, in seconds, between nvoActPowerPh3 consecutive transmissions of the listed variable SCPTminSend Time nvoActPowerSum nvoRctPower- values to the network. No updates to the value of the applicable variables are sent over the network until the minimum interval Sum has elapsed, regardless of whether or not the value nvoAppPower- of the variable has changed. Sum After an update is sent, the counter is reset to 0. nvoVoltsL1N nvoVoltsL2N nvoVoltsL3N nciAllVoltage SCPTminSend nvoVoltsLNAvg Time nvoVoltsL1L2 nvoVoltsL2L3 nvoVoltsL3L1 nvoVoltsLLAvg nvoCurrentPh1 nciAllCurrent SCPTminSend nvoCurrentPh2 Time nvoCurrentPh3 nvoCurrentAvg nciAllPowerFa SCPTminSend nvoAvgPwrFac- ctor Time tor nciFrequency SCPTminSend nvoFrequency Time Echelon LonMaker plug-in for data display and meter configuration The information in this section assumes that you have an advanced understanding of system administration using Echelon LonMaker. The LonMaker plug-in provides a graphical user interface where you can view meter values and configure meter settings. Once you install and register the plug-in with LonMaker, it opens instead of the default LonMaker browser when you browse the meter in LonMaker. To add devices to LonMaker, you need access to the device service pin when commissioning the device or your need the device Neuron ID recorded in an accessible location. 76 DOCA0005EN-12 iEM3000 series user manual Communications via LonWorks Related topics · Refer to http://www.echelon.com/products/tools/integration/lonmaker/ and the LonMaker documentation for more information on using LonMaker. · See "Location of the service pin and Neuron ID" on page 68 for the location of the service pin and Neuron ID. Installing and registering the LonMaker plug-in Before you install the plug-in: · Download the plug-in and XIF file for your device from www.schneider-electric.com or contact your sales representative to obtain these files. · Make sure Echelon LonMaker is closed. 1. Navigate to the location where you saved the plug-in. Extract the files if they are in a .zip file. 2. Double-click setup.exe. A welcome screen appears. Click Next. 3. Select the installation folder where you want to install the plug-in. Click Browse if you want to select a different location. Click Next. A confirmation screen appears. 4. Click Next to begin the installation. NOTE: If LonMaker is open, a message appears instructing you to close LonMaker and restart the plug-in installation. A screen appears when the installation is complete. Click Close. 5. Navigate to Start > Programs > Schneider Electric and select the registration entry for the plug-in you installed (for example, Schneider Electric iEM3275 Plugin Registration). The LNS Plugin Registration dialog box appears, indicating that registration is complete. Make sure that the plug-in appears in the list of registered plug-ins in LonMaker before you try to connect to a meter using the plug-in. If it does not appear, you may need to re-register the plug-in. Once the plug-in is installed and registered, add the meter to LonMaker. You can either read the template (.XIF) from the device during commissioning or select the EnergyMeter5A or EnergyMeter63A template when you add the device to LonMaker. Related topics · Refer to the Echelon LonMaker documentation for information on registering the plug-in. Browsing the meter using the LonMaker plug-in In order to use the plug-in to view data and configure the meter: · The plug-in must be installed and registered. · The meter must be added to LonMaker and commissioned. 1. Open LonMaker. 2. Right-click the meter icon and select Browse. The meter plug-in appears. NOTE: If the meter-specific plug-in does not open, the plug-in may not be correctly registered or the meter may not be properly commissioned in LonMaker. Double-check the registration and meter commissioning. Refer to the Echelon LonMaker documentation for more information. DOCA0005EN-12 77 Communications via LonWorks LonMaker plug-in interface iEM3000 series user manual The plug-in has the following tabs: Tab name Meter Info Energy Measure RMS Measure Meter Status Meter Config Diagnostics Description This tab provides basic information about the meter (for example, model and serial number) and any active error codes. This tab provides total and partial energy values as well as energy per phase and energy by tariff information. You can also reset energy and input metering accumulations on this tab. This tab provides power, current, and voltage values as well as frequency and power factor information. This tab provides information on the settings and status of the digital input and alarms as well as existing power system settings. This tab provides access to the meter configuration properties, allowing you to configure power system, digital input, alarm, Multi Tariff and time settings. NOTE: If you see a message that the configuration was unsuccessful, make sure: 1) the meter is properly commissioned in LonMaker and the plug-in is communicating with the meter, and 2) that Com. Protection is disabled on the meter. This tab provides LonMaker diagnostics information related to the meter. 78 DOCA0005EN-12 iEM3000 series user manual Chapter 7 Communications via M-Bus Communications via M-Bus M-Bus communications overview M-Bus is a master / slave communications protocol where the master initiates transactions and the slave(s) respond with the requested information or action. Data is transferred using hexadecimal telegrams. Communications via M-Bus protocol is available on the iEM3135, iEM3235 and iEM3335. The information in this section is intended for users with an advanced understanding of M-Bus protocol, their communications network and their power system. Configuring basic communications settings Before communicating with the meter via M-Bus protocol, use the HMI to configure the following settings: Setting Baud rate Primary address 300 600 1200 2400 4800 9600 1250 Possible values NOTE: For M-Bus communication, the device consumes 2 standard loads (2 Unit Loads or 2UL). Key terms Term C-Field CI-Field Fixed data header DIF DIFE Master Slave VIF / VIFE Definition The control or function field of the telegram. It provides information about the telegram, such as the direction of data flow (master to slave or slave to master), the status of the data flow and the function of the message. The control information field of the telegram. It defines the type and sequence of data to be transmitted. Contains device and manufacturer identification information. Data information field. The DIF contains information about the function of the data (for example, instantaneous versus maximum) and the data format (for example, 16-bit integer). Data information field extension. A DIFE contain additional information about the data, such as tariff and subunit. A device that issues commands and receives responses from slave devices. There can be only one master per serial network. A device that provides information or performs actions in response to requests from the master. Value information field and value information field extension. The VIF and VIFE contain information about the value (for example, whether it is an energy or power value). The meter uses both primary VIFE (as detailed in the M-Bus protocol documentation) and manufacturer-specific VIFE. DOCA0005EN-12 79 Communications via M-Bus iEM3000 series user manual Related topics · See the M-Bus organization website at www.m-bus.com for more information on the M-bus protocol. · See "Meter sealing points" on page 17 for the location of the communications LED. · See "Communications setup" on page 101 for information on setting the baud rate using a telegram. M-Bus protocol support The meter supports the M-Bus protocol as follows: · Mode 1 communications (least significant bit first). · Telegram formats: Single character Short frame Long frame · Function codes (C-field bits 3-0): SND_NKE: Initiates of communications between the master and slave. SND_UD: The master sends user data to the slave. REQ_UD2: The master requests Class 2 user data from the slave. RSP_UD: The slave sends requested data to the master. · Secondary addressing in accordance with the M-Bus standard. · Broadcast telegrams. Related topics · See the M-Bus organization website at www.m-bus.com for more information on the M-Bus protocol, including secondary addressing procedures. · See "Fixed data header" on page 81 for the meter-specific information required for secondary addressing (for example, identification number, manufacturer and medium). M-Bus protocol implementation M-Bus tool for viewing data and configuring the meter The M-Bus tool provides a graphical user interface where you can view meter data and configure meter settings. To obtain the tool, go to www.schneider-electric.com and search for your meter model then select Downloads or contact your local Schneider Electric representative. Communications LED indicator for M-Bus meters The communications LED indicates the status of the communications between the meter and the network as follows: LED state The LED is flashing The LED is off Description Communication with the meter has been established. NOTE: The LED flashes even if there is a communications error. There is no active communication. 80 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Related topics · See "Meter sealing points" on page 17 for the location of the communications LED. · See "The following example distinguishes the M-Bus serial number for iEM3135/ iEM3235/iEM3335 meters." on page 82 for information on obtaining and using the M-Bus tool. Variable data structure telegram information Fixed data header Byte 1-4 Identification No. Byte 5-6 Manufacturer Byte 7 Version Byte 8 Byte 9 Byte 10 Byte 11-12 Medium Access No. Status Signature Serial number of the meter in an 8-digit, BCD Firmware coded format The serial number can 4CA3 hex = Schneider Elect ric version of the Counter of communications 02 hex successful board (electricity) access attempts also be found 10 = version 1.0 on the meter front panel. Indicates M-Bus application errors Not used Decoding secondary address and M-Bus serial number Each M-Bus meter has a unique secondary address. The secondary address of a meter includes 4 parts: serial number, M-Bus firmware version, medium, and manufacturer. The format of the secondary address is SSSSSSSSMAVVME. The decoding of the secondary address is given below: SSSSSSSS: Serial Number MA: Manufacturer VV: M-Bus Firmware Version ME: Medium Common Medium list: 01 = Oil 02 = Electricity 03 = Gas 04 = Heat The main board serial number format is YYWWDNNN. The decoding of the M-Bus serial number is given below followed with an example: YY: Year WW: Week D: Day NNN: Number DOCA0005EN-12 81 Communications via M-Bus iEM3000 series user manual The following example distinguishes the M-Bus serial number for iEM3135/iEM3235/iEM3335 meters. Main Board SN M-Bus SN iEM3135 iEM3235 iEM3335 14053100 01053100 31053100 61053100 YY YY-13 YY+17 YY+47 Data record header information Data formats used by the meter (DIF bits 3-0) NOTE: x in the hex value is determined by bits 7-4 of the DIF. Format No data 8-bit integer 16-bit integer 24-bit integer 32-bit integer 32-bit real 48-bit integer 64-bit integer Variable length bin 0000 0001 0010 0011 0100 0101 0110 0111 1101 hex x0 x1 x2 x3 x4 x5 x6 x7 xD Data function types used by the meter (DIF bits 5-4) Function type bin Instantaneous 00 Maximum 01 Primary VIF used by the meter NOTE: E denotes the extension bit; x in the hex value is determined by bits 7-4 of the VIF. Primary VIF Energy Power Time point Bus address Primary VIFE Manufacturer-specific VIFE bin E000 0011 E000 1110 E110 1101 E111 1010 1111 1101 1111 1111 hex x3 xE xD xA FD FF Description Wh with a resolution of 100 in int64 kWh with a resolution of 103 in float32 kW with a resolution of 103 Date and time in data type F, as detailed in the M-Bus protocol documentation Data type C (unsigned integer), as detailed in the M-Bus protocol documentation Indicates that the first VIFE is a primary VIF extension Indicates that the next VIFE is manufacturer specific 82 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Primary VIFE codes used by the meter The primary VIFE codes in the table below are used by the meter when the VIF equals FD hex (1111 1101 bin). NOTE: E denotes the extension bit; x in the hex value is determined by bits 7-4 of the VIFE. Primary VIFE codes bin Manufacturer Model Voltage Current Digital output Digital input Cumulation counter Error flag E000 1010 E000 1100 E100 1001 E101 1100 E001 1010 E001 1011 E110 0001 E001 0111 hex xA xC x9 xC xA xB x1 x7 Additional information -- -- Volts with a resolution of 100 Amps with a resolution of 100 -- -- Input metering accumulation -- Manufacturer-specific VIFE codes The manufacturer-specific VIFE codes in the table below are used by the meter when the VIF equals FF hex (1111 1111 bin). NOTE: E denotes the extension bit; the hex value assumes E = 0. Description L1 value L2 value L3 value Export energy value Partial energy value Average current L-N Avg L1-L2 L2-L3 L3-L1 L-L Avg Power Factor Frequency Energy reset date and time Input metering reset date and time Input metering accumulation Active tariff (Energy active rate) Tariff control mode Meter operation timer Number of phases Number of wires Power system configuration Nominal frequency Number of VTs bin E000 0001 E000 0010 E000 0011 E000 1001 E000 1101 E000 0000 E000 0100 E000 0101 E000 0110 E000 0111 E000 1000 E000 1010 E000 1011 E000 1100 E000 1110 E000 1111 E001 0000 E001 0001 E010 0000 E010 0001 E010 0010 E010 0011 E010 0100 E010 0101 hex 01 02 03 09 0D 00 04 05 06 07 08 0A 0B 0C 0E 0F 10 11 20 21 22 23 24 25 DOCA0005EN-12 83 Communications via M-Bus iEM3000 series user manual Description VT primary VT secondary Number of CTs CT Primary CT Secondary VT connection type Energy pulse duration Digital output association with active energy pulsing Pulse weight Pulse constant Digital input association Digital input status Overload alarm setup Pickup setpoint Digital output association with overload alarm Activated status Acknowledgment Date and time of last alarm Value at last alarm bin E010 0110 E010 0111 E010 1000 E010 1001 E010 1010 E010 1011 E010 1100 E010 1101 E010 1110 E010 1111 E011 0000 E011 0010 E011 0100 E011 0101 E011 0110 E011 0111 E011 1000 E011 1001 E011 1010 hex 26 27 28 29 2A 2B 2C 2D 2E 2F 30 32 34 35 36 37 38 39 3A Telegram information for data records The following sections outline the telegram information used in data records. The tables contain the following information (if applicable): · Data format in hex (for example, 16-bit integer) · Primary VIF in hex · Primary VIFE codes in bin and hex · Manufacturer-specific VIFE codes in bin and hex Meter information NOTE: E denotes the extension bit; the hex value assumes E = 0. Data format Primary VIF Extension bin hex 0D E000 1010 0A 0D E000 1100 0C 0D E000 1110 0E 03 E0001 0111 17 Description Manufacturer 18-bit ASCII = Schneider Electric Model Firmware version Meter error codes: 0 = Code 101: EEPROM error 1 = Code 102: No calibration table 2 = Code 201: Mismatch between frequency settings and frequency measurements 3 = Code 202: Mismatch between wiring settings and wiring inputs 4 = Code 203: Phase sequence reversed 5 = Code 204: Total active energy negative due to incorrect voltage or current connections 6 = Code 205: Date and time are reset due to a power failure 7 = Code 206: Pulse missing due to overspeed of energy pulse output 8 = Code 207: Abnormal internal clock function 9 = Internal data bus communications error 84 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Related topics · See "Troubleshooting" on page 125 for more information on the diagnostics codes. Energy and energy by tariff measurements (INT64 and FLOAT32) The energy and energy by tariff measurements listed below are preserved through power failures. An addition of energy values in FLOAT32 format have been provided with the existing 64-bit registers. NOTE: E denotes the extension bit; the hex value assumes E = 0. INT64 Data format DIFE Primary VIF Primary VIFE bin hex 07 -- 03 -- -- 07 -- 83 -- -- 87 40 03 -- -- 87 40 83 -- -- 07 -- 83 -- -- 87 40 83 -- -- 07 -- 83 -- -- 07 -- 83 -- -- 07 -- 83 -- -- 03 ---- -- -- 87 10 03 87 20 03 87 30 03 87 80 10 03 07 ---- 04 -- ED 04 -- ED FLOAT32 05 - 03 05 - 83 -- -- -- -- -- -- -- -- E110 0001 61 -- -- -- -- - - - - Manufacturerspecific VIFE bin -- E000 1001 -- E000 1001 E000 1101 E000 1101 E000 0001 E000 0010 E000 0011 hex -- 09 -- 09 0D 0D 01 02 03 E001 0000 10 -- -- -- -- -- -- -- -- Description Total active energy import Total active energy export Total reactive energy import Total reactive energy export Partial active energy import Partial reactive energy import Active energy import phase 1 Active energy import phase 2 Active energy import phase 3 Active tariff 0 = Multi Tariff feature is disabled 1 = rate A (tariff 1) active 2 = rate B (tariff 2) active 3 = rate C (tariff 3) active 4 = rate D (tariff 4) active Rate A (tariff 1) active energy import Rate B (tariff 2) active energy import Rate C (tariff 3) active energy import Rate D (tariff 4) active energy import -- -- Input metering accumulation E000 1100 0C E000 1110 0E Date and time of last partial energy reset Date and time of last input metering reset - - E000 1001 09 Total active energy import Total active energy export DOCA0005EN-12 85 Communications via M-Bus iEM3000 series user manual INT64 Data format DIFE Primary VIF Primary VIFE bin hex 85 40 03 - - 85 40 83 - - 05 - 83 - - 85 40 83 - - 05 - 83 - - 05 - 83 - - 05 - 83 - - 85 10 03 - - 85 20 03 - - 85 30 03 - - 85 80 10 - - 05 - - E110 0001 61 Manufacturerspecific VIFE bin - E000 1001 E000 1101 E000 1101 E000 0001 E000 0010 E000 0011 hex 09 0D 0D 01 02 03 - - - - - - - - Description Total reactive energy import Total reactive energy export Partial active energy import Partial reactive energy import Active energy import phase 1 Active energy import phase 2 Active energy import phase 3 Rate A (tariff 1) active energy import Rate B (tariff 2) active energy import Rate C (tariff 3) active energy import Rate D (tariff 4) active energy import - - Input metering accumulation NOTE: The unit of FLOAT32 energy value is kWh/kVARh. Instantaneous measurements NOTE: E denotes the extension bit; the hex value assumes E = 0. Data format DIFE Primary VIF Primary VIFE bin hex 05 -- AE -- -- 05 -- AE -- -- 05 -- AE -- -- 05 -- 2E -- -- 85 40 2E -- -- 85 80 40 2E -- -- 05 ---- E100 1001 C9 05 ---- E100 1001 C9 05 ---- E100 1001 C9 05 ---- E100 1001 C9 05 ---- E100 1001 C9 05 ---- E100 1001 C9 Manufacturerspecific VIFE bin E000 0001 E000 0010 E000 0011 -- -- -- E000 0001 E000 0010 E000 0011 E000 0100 E000 0101 E000 0110 hex 01 02 03 -- -- -- 01 02 03 04 05 06 Description Active power Phase 1 Active power Phase 2 Active power Phase 3 Total active power Total reactive power Total apparent power Voltage L1-N Voltage L2-N Voltage L3-N Average voltage line-to-neutral Voltage L1-L2 Voltage L2-L3 86 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Data format DIFE Primary VIF Primary VIFE bin hex 05 ---- 05 ---- 05 ---- 05 ---- 05 ---- 05 ---- E100 1001 C9 E100 1001 C9 E101 1100 DC E101 1100 DC E101 1100 DC E101 1100 DC 05 ---- -- -- 05 ---- -- -- Manufacturerspecific VIFE bin E000 0111 E000 1000 E000 0001 E000 0010 E000 0011 E000 0000 E000 1010 E000 1011 hex 07 08 01 02 03 00 0A 0B Description Voltage L3-L1 Average voltage line-to-line Phase 1 current Phase 2 current Phase 3 current Average current Total power factor Frequency Meter status information Use the following information to read system and status information from the meter. See the section regarding telegram information for meter configuration for more information on writing to the meter. Date and time information NOTE: E denotes the extension bit; the hex value assumes E = 0. Data Primary format VIF Manufacturerspecific VIFE bin hex 04 6D -- -- 06 -- E010 0000 20 Description Meter date and time (DD/MM/YYYY hh:mm:ss) Meter operation timer: the time in seconds since the device was last powered up Power system configuration information NOTE: E denotes the extension bit; the hex value assumes E = 0. Data format 03 03 03 Manufacturer-specific VIFE bin hex E010 0011 23 E010 0010 22 E010 0001 21 Description Power system configuration: 0 = 1PH2W L-N 1 = 1PH2W L-L 2 = 1PH3W L-L with N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4 wire multi L with N Number of wires 2, 3, 4 Number of phases 1, 3 DOCA0005EN-12 87 Communications via M-Bus iEM3000 series user manual Data format 03 03 05 03 03 03 03 03 Manufacturer-specific VIFE bin hex E010 1000 29 E010 0101 25 E010 0110 26 E010 0111 27 E010 1001 29 E010 1010 2A E010 1011 2B E010 0100 24 Description Number of CTs 1, 2, 3 NOTE: only applies to the iEM3235 Number of VTs 0-10 NOTE: only applies to the iEM3235 VT Primary NOTE: only applies to the iEM3235 VT Secondary NOTE: only applies to the iEM3235 CT Primary NOTE: only applies to the iEM3235 CT Secondary NOTE: only applies to the iEM3235 VT connection type 0 = Direct connection, no VTs 1 = 3PH3W (2VTs) 2 = 3PH4W (3VTs) Nominal frequency 50, 60 Digital input and output status information NOTE: E denotes the extension bit; the hex value assumes E = 0. Data Primary VIFE format bin hex Manufacturerspecific VIFE bin hex 03 E001 1011 1B -- -- 05 -- -- E010 1111 2F 02 -- -- E011 0010 32 03 -- -- E011 0000 30 03 -- -- E010 1100 2C Description Digital input control mode: 0 = Normal (Input Status) 2 = Multi Tariff control 3 = Input metering 5 = All partial energy logs reset Pulse constant (pulses/unit) Digital input status: 0 = relay open 1 = relay closed NOTE: This information only applies if the digital input control mode is set to Input Status. Digital input association with partial energy data reset 0 = Digital input is not associated with the partial energy reset 1 = Digital input is associated with the partial energy reset Energy pulse duration in milliseconds NOTE: This information only applies if the digital output mode is set to energy pulsing. 88 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Data format 05 03 03 02 Primary VIFE bin hex Manufacturerspecific VIFE bin hex -- -- E010 1110 2E E001 1010 1A -- -- -- -- E010 1101 2D -- -- E011 0110 36 Description Pulse weight of the digital output NOTE: This information only applies if the digital output mode is set to energy pulsing. Digital output control mode 2 = for Alarm 3 = for Pulse (kWh) 0xFFFF = Disabled Digital output association with energy pulsing: 0 = Digital output disabled 1 = for Pulse (digital output is associated with active energy pulse output) Digital output association with overload alarm: 0x0000 = digital output disabled 0x0100 = for Alarm (digital output is associated with the overload alarm) Alarm status information NOTE: E denotes the extension bit; the hex value assumes E = 0. Data format Manufacturer-specific Primary VIFE VIF bin hex Description 02 -- E011 0111 37 02 -- E011 1000 38 04 ED E011 1001 39 05 -- E011 1010 3A 02 -- E011 0100 34 05 -- E011 0101 35 Alarm status: 0x0000 = Alarm is inactive 0x0100 = Alarm is active Acknowledgement status: 0x0000 = historic alarm is acknowledged by the user 0x0100 = historic alarm is unacknowledged by the user Timestamp of last alarm (DD/MM/YYYY hh:mm:ss) Value at last alarm Overload alarm configuration: 0x0000 = disabled 0x0100 = enabled The pickup setpoint in kW for the overload alarm Telegram decode information (all values are in hexadecimal) 1st telegram information: Byte No Size Value Description 1 1 68 Start character 2 1 F4 L-field, calculated from C field to last user data 3 1 F4 L-field, repeated 4 1 68 Start character 5 1 08 C-field, RSP_UD 6 1 XX A-field, address 7 1 72 CI-field, variable data respond, LSB first 8-11 4 XXXX Identification number, 8 BCD digits 12-13 2 4CA3 Manufacturer: SCH 14 1 00 Version 15 1 02 Medium, 02 = Electricity DOCA0005EN-12 89 Communications via M-Bus 90 Byte No 16 17 18-19 20 21 22 23 24-41 42 43 44 45-53 54 55 56 57-64 65 66 67 68-70 71 72 73 74 75 76-79 80 81 82 83 84 85-88 89 90 91 92 93 94-97 98 99 100 101 102 103-106 107 108 109 110 111 112-115 116 Size 1 1 2 1 1 1 1 18 1 1 1 9 1 1 1 8 1 1 1 3 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 iEM3000 series user manual Value Description X Number of accesses X Status 0000 Signature (0000 = no encryption) 0D DIF size, special function FD VIF extension of VIF-codes 0A Manufacturer name 12 String length XXXXXXXXXX XXXXXXXX Schneider Electric 0D DIF size, special function FD VIF extension of VIF-codes 0C Model XXXXXXXXX Meter model 0D DIF size, special function FD VIF extension of VIF-codes 0E Firmware version XXXXXXXX Meter Firmware version 03 DIF size, 24 Bit Integer FD VIF extension of VIF-codes 17 Error flags XXX Error flags (Diagnostics active bitmaps(1)) 05 DIF size, 32 Bit Real FD VIF extension of VIF-codes DC Current FF VIF next byte is manufacturer specific 01 L1 XXXX Current per phase,I1 05 DIF size, 32 Bit Real FD VIF extension of VIF-codes DC Current FF VIF next byte is manufacturer specific 02 L2 XXXX Current per phase,I2 05 DIF size, 32 Bit Real FD VIF extension of VIF-codes DC Current FF VIF next byte is manufacturer specific 03 L3 XXXX Current per phase,I3 05 DIF size, 32 Bit Real FD VIF extension of VIF-codes DC Current FF VIF next byte is manufacturer specific 00 Average XXXX Average current 05 DIF size, 32 Bit Real FD VIF extension of VIF-codes C9 Voltage FF VIF next byte is manufacturer specific 05 L1-L2 XXXX Voltage,L1-L2 05 DIF size, 32 Bit Real DOCA0005EN-12 iEM3000 series user manual Byte No 117 118 119 120 121-124 125 126 127 128 129 130-133 134 135 136 137 138 139-142 143 144 145 146 147 148-151 152 153 154 155 156 157-160 161 162 163 164 165 166-169 170 171 172 173 174 175-178 179 180 181 182 183-186 187 188 189 190 191-194 195 DOCA0005EN-12 Size 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 4 1 1 1 1 4 1 Value FD C9 FF 06 XXXX 05 FD C9 FF 07 XXXX 05 FD C9 FF 08 XXXX 05 FD C9 FF 01 XXXX 05 FD C9 FF 02 XXXX 05 FD C9 FF 03 XXXX 05 FD C9 FF 04 XXXX 05 AE FF 01 XXXX 05 AE FF 02 XXXX 05 Communications via M-Bus Description VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L2-L3 Voltage,L2-L3 DIF size, 32 Bit Real VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L3-L1 Voltage,L3-L1 DIF size, 32 Bit Real VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L-L Average Average voltage, L -L DIF size, 32 Bit Real VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L1 Voltage, L1 DIF size, 32 Bit Real VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L2 Voltage, L2 DIF size, 32 Bit Real VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L3 Voltage, L3 DIF size, 32 Bit Real VIF extension of VIF-codes Voltage VIF next byte is manufacturer specific L-N, average Average, L-N DIF size, 32 Bit Real Power VIF next byte is manufacturer specific L1 Power,L1 DIF size, 32 Bit Real Power VIF next byte is manufacturer specific L2 Power,L2 DIF size, 32 Bit Real 91 Communications via M-Bus iEM3000 series user manual Byte No 196 197 198 199-202 203 204 205-208 209 210 211 212-215 216 217 218 219 220-223 224 225 226 227-230 231 232 233 234-237 238 239 240-247 248 249 250 Size 1 1 1 4 1 1 4 1 1 1 4 1 1 1 1 4 1 1 1 4 1 1 1 4 1 1 8 1 1 1 Value AE FF 03 XXXX 05 2E XXXX 85 40 2E XXXX 85 80 40 2E XXXX 05 FF 0A XXXX 05 FF 0B XXXX 07 03 XXXXXXXX 1F X 16 NOTE: Error flags illustrate: 0 = Inactive 1 = Active Bit0 = Code 101 Bit1 = Code 102 Bit2 = Code 201 Bit3 = Code 202 Bit4 = Code 203 Bit5 = Code 204 Bit6 = Code 205 Bit7 = Code 206 Bit8 = Code 207 Description Power VIF next byte is manufacturer specific L3 Power,L3 DIF size, 32 Bit Real Power Total power DIF size, 32 Bit Real DIFE: Unit 1 Power Reactive power DIF size, 32 Bit Real DIFE DIFE: Unit 2 Power Apparent power DIF size, 32 Bit Real VIF next byte is manufacturer specific Power factor Power factor value DIF size, 32 Bit Real VIF next byte is manufacturer specific Frequency Frequency value DIF size, 64 Bit Integer Energy Total Active Energy Import DIF, more records will follow in next telegram CS checksum, calculated from C field to last data Stop character 92 DOCA0005EN-12 iEM3000 series user manual 2nd telegram information: Byte No Size Value 1 1 68 2 1 F6 3 1 F6 4 1 68 5 1 08 6 1 X 7 1 72 8-11 4 XXXX 12-13 2 4CA3 14 1 00 15 1 02 16 1 X 17 1 00 18-19 2 0000 20 1 07 21 1 83 22 1 FF 23 1 09 24-31 8 XXXXXXXX 32 1 87 33 1 40 34 1 03 35-42 8 XXXXXXXX 43 1 87 44 1 40 45 1 83 46 1 FF 47 1 09 48-55 8 XXXXXXXX 56 1 04 57 1 ED 58 1 FF 59 1 0C 60-63 4 XXXX 64 1 07 65 1 83 66 1 FF 67 1 0D 68-75 8 XXXXXXXX 76 1 87 77 1 40 78 1 83 79 1 FF 80 1 0D 81-88 8 XXXXXXXX 89 1 07 90 1 83 91 1 FF 92 1 01 93-100 8 XXXXXXXX 101 1 07 Communications via M-Bus Description Start character L-field, calculated from C field to last user data L-field, repeated Start character C-field, RSP_UD A-field, address CI-field, variable data respond, LSB first Identification number, 8 BCD digits Manufacturer: SCH Version Medium, 02 = Electricity Number of accesses Status Signature (0000 = no encryption) DIF size, 64 Bit Integer Energy VIF next byte is manufacturer specific Export energy Total Active Energy Export DIF size, 64 Bit Integer DIFE: Unit1 Energy Total Reactive Energy Import DIF size, 64 Bit Integer DIFE:Unit 1 Energy VIF next byte is manufacturer specific Export energy Total Reactive Energy Export DIF size, 32 Bit Integer Date/Time VIF next byte is manufacturer specific Energy Reset Energy Reset Date/Time DIF size, 64 Bit Integer Energy VIF next byte is manufacturer specific Partial energy Partial Active Energy Import DIF size, 64 Bit Integer DIFE: Unit 1 Energy VIF next byte is manufacturer specific Partial Energy Partial Reactive Energy Import DIF size, 64 Bit Integer Energy VIF next byte is manufacturer specific L1 Active Energy Delivered, L1 DIF size, 64 Bit Integer DOCA0005EN-12 93 Communications via M-Bus 94 Byte No 102 103 104 105-112 113 114 115 116 117-124 125 126 127 128 129-132 133 134 135 136-143 144 145 146 147-149 150 151 152 153-160 161 162 163 164-171 172 173 174 175-182 183 184 185 186 187-194 195 196 197-200 201 202 203 204-206 207 208 209 210-212 213 214 Size 1 1 1 8 1 1 1 1 8 1 1 1 1 4 1 1 1 8 1 1 1 3 1 1 1 8 1 1 1 8 1 1 1 8 1 1 1 1 8 1 1 4 1 1 1 3 1 1 1 3 1 1 iEM3000 series user manual Value 83 FF 02 XXXXXXXX 07 83 FF 03 XXXXXXXX 04 ED FF 0E XXXX 07 FD 61 XXXXXXXX 03 FF 10 XXX 87 10 03 XXXXXXXX 87 20 03 XXXXXXXX 87 30 03 XXXXXXXX 87 80 10 03 XXXXXXXX 04 6D XXXX 03 FF 2C XXX 03 FF 2D XXX 05 FF Description Energy VIF next byte is manufacturer specific L2 Active Energy Delivered, L2 DIF size, 64 Bit Integer Energy VIF next byte is manufacturer specific L3 Active Energy Delivered, L3 DIF size, 32 Bit Integer Date/Time VIF next byte is manufacturer specific Input metering reset Input Metering Accumulation Reset D/T DIF size, 64 Bit Integer VIF extension Input Metering Accumulation Channel 1 Input Metering Channel 1 Value DIF size, 24 Bit Integer VIF next byte is manufacturer specific Energy Active Rate Energy Active Rate, Number DIF size, 64 Bit Integer DIFE: Tariff 1 Energy Active Energy Delivered Rate 1 DIF size, 64 Bit Integer DIFE: Tariff 2 Energy Active Energy Delivered Rate 2 DIF size, 64 Bit Integer DIFE: Tariff 3 Energy Active Energy Delivered Rate 3 DIF size, 64 Bit Integer DIFE: Tariff 4 DIFE: Tariff 4 Energy Active Energy Delivered Rate 4 DIF size, 32 Bit Integer Date/Time System date/time DIF size, 24 Bit Integer VIF next byte is manufacturer specific Energy pulse duration Value, Energy pulse duration DIF size, 24 Bit Integer VIF next byte is manufacturer specific Digital output association Value, Digital output association DIF size, 32 Bit Real VIF next byte is manufacturer specific DOCA0005EN-12 iEM3000 series user manual Byte No Size Value 215 1 2E 216-219 4 XXXX 220 1 05 221 1 FF 222 1 2F 223-226 4 XXXX 227 1 03 228 1 FF 229 1 30 230-232 3 XXX 233 1 03 234 1 FD 235 1 1B 236-238 3 XXX 239 1 02 240 1 FF 241 1 32 242-243 2 XX 244 1 03 245 1 FD 246 1 1A 247-249 3 XXX 250 1 1F 251 1 X 252 1 16 3rd telegram information: Byte No Size Value 1 1 68 2 1 F1 3 1 F1 4 1 68 5 1 08 6 1 X 7 1 72 8-11 4 XXXX 12-13 2 4CA3 14 1 00 15 1 02 16 1 X 17 1 00 18-19 2 0000 20 1 02 21 1 FF 22 1 34 23-24 2 XX 25 1 05 26 1 FF 27 1 35 28-31 4 XXXX 32 1 02 33 1 FF DOCA0005EN-12 Communications via M-Bus Description Pulse weight Value, Pulse weight DIF size, 32 Bit Real VIF next byte is manufacturer specific Pulse constant Value, Pulse constant DIF size, 24 Bit Integer VIF next byte is manufacturer specific Digital input association Value, Digital input association DIF size, 24 Bit Integer VIF extension Digital input control mode Value, Digital input control mode DIF size, 16 Bit Integer VIF next byte is manufacturer specific Digital input status Value, Digital input status DIF size, 24 Bit Integer VIF extension Digital output control mode status Value, Digital output control mode status DIF, more records will follow in next telegram CS checksum, calculated from C field to last data Stop character Description Start character L-field, calculated from C field to last user data L-field, repeated Start character C-field, RSP_UD A-field, address CI-field, variable data respond, LSB first Identification Number, 8 BCD digits Manufacturer: SCH Version Medium, 02 = Electricity Number of accesses Status Signature (0000 = no encryption) DIF size, 16 Bit Integer VIF next byte is manufacturer specific Overload alarm setup Value, Overload alarm setup DIF size, 32 Bit Real VIF next byte is manufacturer specific Pickup setpoint Value, Pickup setpoint DIF size, 16 Bit Integer VIF next byte is manufacturer specific 95 Communications via M-Bus 96 Byte No 34 35-36 37 38 39 40-41 42 43 44 45-46 47 48 49 50 51-54 55 56 57 58-61 62 63 64 65-70 71 72 73 74-76 77 78 79 80-82 83 84 85 86-88 89 90 91 92-94 95 96 97-100 101 102 103 104 105-108 109 110 111 112-115 116 Size 1 2 1 1 1 2 1 1 1 2 1 1 1 1 4 1 1 1 4 1 1 1 6 1 1 1 3 1 1 1 3 1 1 1 3 1 1 1 3 1 1 4 1 1 1 1 4 1 1 1 4 1 Value 36 XX 02 FF 37 XX 02 FF 38 XX 04 ED FF 39 XXXX 05 FF 3A XXXX 06 FF 20 XXXXXX 03 FF 21 XXX 03 FF 22 XXX 03 FF 23 XXX 03 FF 24 XXX 05 03 XXXX 05 83 FF 09 XXXX 85 40 03 XXXX 85 iEM3000 series user manual Description Digital output associate Value, Digital output associate DIF size, 16 Bit Integer VIF next byte is manufacturer specific Activated status Value, Activated status DIF size, 16 Bit Integer VIF next byte is manufacturer specific Unacknowledged status Value, Unacknowledged status DIF size, 32 Bit Integer Date/Time VIF next byte is manufacturer specific Date time last alarm Value, Date time last alarm DIF size, 32 Bit Real VIF next byte is manufacturer specific Value last alarm Value last alarm DIF size, 48 Bit Integer VIF next byte is manufacturer specific Meter operation time Value, Meter operation time DIF size, 24 Bit Integer VIF next byte is manufacturer specific Num of phases Value, Num of phases DIF size, 24 Bit Integer VIF next byte is manufacturer specific Num of wires Value, Num of wires DIF size, 24 Bit Integer VIF next byte is manufacturer specific Power System Configuration Value, Power System Configuration DIF size, 24 Bit Integer VIF next byte is manufacturer specific Nominal Frequency Value, Nominal Frequency DIF size, 32 Bit Real Energy Total Active Energy Import DIF size, 32 Bit Real Energy VIF next byte is manufacturer specific Export energy Total Active Energy Export DIF size, 32 Bit Real DIFE: Unit1 Energy Total Reactive Energy Import DIF size, 32 Bit Real DOCA0005EN-12 iEM3000 series user manual Byte No 17 118 119 120 121-124 125 126 127 128 129-132 133 134 135 136 137 138-141 142 143 144 145 146-149 150 151 152 153 154-157 158 159 160 161 162-165 166 167 168 169-172 173 174 175 176-179 180 181 182 183-186 187 188 189 190-193 194 195 196 197 198-201 DOCA0005EN-12 Size 1 1 1 1 4 1 1 1 1 4 1 1 1 1 1 4 1 1 1 1 4 1 1 1 1 4 1 1 1 1 4 1 1 1 4 1 1 1 4 1 1 1 4 1 1 1 4 1 1 1 1 4 Value 40 83 FF 09 XXXX 05 83 FF 0D XXXX 85 40 83 FF 0D XXXX 05 83 FF 01 XXXX 05 83 FF 02 XXXX 05 83 FF 03 XXXX 05 FD 61 XXXX 85 10 03 XXXX 85 20 03 XXXX 85 30 03 XXXX 85 80 10 03 XXXX Communications via M-Bus Description DIFE:Unit 1 Energy VIF next byte is manufacturer specific Export energy Total Reactive Energy Export DIF size, 32 Bit Real Energy VIF next byte is manufacturer specific Partial energy Partial Active Energy Import DIF size, 32 Bit Real DIFE: Unit 1 Energy VIF next byte is manufacturer specific Partial Energy Partial Reactive Energy Import DIF size, 32 Bit Real Energy VIF next byte is manufacturer specific L1 Active Energy Delivered, L1 DIF size, 32 Bit Real Energy VIF next byte is manufacturer specific L2 Active Energy Delivered, L2 DIF size, 32 Bit Real Energy VIF next byte is manufacturer specific L3 Active Energy Delivered, L3 DIF size, 32 Bit Real VIF extension Input Metering Accumulation Channel 1 Input Metering Channel 1 Value DIF size, 32 Bit Real DIFE: Tariff 1 Energy Active Energy Delivered Rate 1 DIF size, 32 Bit Real DIFE: Tariff 2 Energy Active Energy Delivered Rate 2 DIF size, 32 Bit Real DIFE: Tariff 3 Energy Active Energy Delivered Rate 3 DIF size, 32 Bit Real DIFE: Tariff 4 DIFE: Tariff 4 Energy Active Energy Delivered Rate 4 97 Communications via M-Bus iEM3000 series user manual Byte No 202 203 204 205-207 208 209 210 211-214 215 216 217 218-220 221 222 223 224-226 227 228 229 230-232 233 234 235 236-238 239 240 241 242-244 245 246 247 Size 1 1 1 3 1 1 1 4 1 1 1 3 1 1 1 3 1 1 1 3 1 1 1 3 1 1 1 3 1 1 1 Value 03 FF 25 XXX 05 FF 26 XXXX 03 FF 27 XXX 03 FF 28 XXX 03 FF 29 XXX 03 FF 2A XXX 03 FF 2B XXX 0F X 16 4th telegram information: Byte No Size Value 1 1 68 2 1 X 3 1 X 4 1 68 5 1 08 6 1 X 7 1 72 8-11 4 XXXX 12-13 2 4CA3 14 1 00 15 1 02 16 1 X 17 1 X 18-19 2 0000 20 1 07 21 1 03 22-29 8 XXXXXXXX 30 1 07 Description DIF size, 24 Bit Integer VIF next byte is manufacturer specific Number VTs Value, Number VTs DIF size, 32 Bit Real VIF next byte is manufacturer specific VT Primary Value, VT Primary DIF size, 24 Bit Integer VIF next byte is manufacturer specific VT Secondary Value, VT Secondary DIF size, 24 Bit Integer VIF next byte is manufacturer specific Number CTs Value, Number CTs DIF size, 24 Bit Integer VIF next byte is manufacturer specific CT Primary Value, CT Primary DIF size, 24 Bit Integer VIF next byte is manufacturer specific CT Secondary Value, CT Secondary DIF size, 24 Bit Integer VIF next byte is manufacturer specific VT connection type Value, VT connection type DIF indicating that this is the last telegram CS checksum, calculated from C field to last data Stop character Description Start character L-field, calculated from C field to last user data L-field, repeated Start character C-field, RSP_UD A-field, address CI-field, variable data respond, LSB first Identification number, 8 BCD digits Manufacturer: SCH Version Medium, 02 = Electricity Number of accesses Status Signature (0000 = no encryption) DIF size, 64 Bit Integer Energy Total Active Energy Import DIF size, 64 Bit Integer 98 DOCA0005EN-12 iEM3000 series user manual Byte No 31 32 33 34-41 42 43 44-47 48 49 50 Size 1 1 1 8 1 1 4 1 1 1 Communications via M-Bus Value 83 FF 09 XXXXXXXX 05 2E XXXX 0F X 16 Description Energy VIF next byte is manufacturer specific Export energy Total Active Energy Export DIF size, 32 Bit Real Power Total Power DIF indicating that this is the last telegram CS checksum, calculated from C field to last data Stop character Telegram information for meter configuration You can use the information provided in this section to write to the meter using a SND_UD function. NOTE: If Com. Protection is enabled, you may receive an error response when you try to configure the meter over communications. You can also configure the meter using the M-Bus tool available from www.schneiderelectric.com. Supported VIFE codes for meter configuration NOTE: E denotes the extension bit; the hex value assumes E = 0. VIFE code bin hex E000 0000 00 E000 0111 07 Action Description Write and replace Replaces the old value with the new value. Clear Resets an accumulated value to 0 (zero). Related topics · See "Configuration mode menus" on page 31 for information on enabling and disabling Com. Protection. · See "The following example distinguishes the M-Bus serial number for iEM3135/ iEM3235/iEM3335 meters." on page 82 for information on the M-Bus tool. Date/time setup Data format Primary VIF Description Type F data type, as described in the M-Bus protocol documentation. 04 6D Supports the date and time in the following format YYYY:MM:DD hh:mm:ss. Power system setup NOTE: E denotes the extension bit; the hex value assumes E = 0. DOCA0005EN-12 99 Communications via M-Bus iEM3000 series user manual SND_UD Data code format Manufacturerspecific VIFE bin hex 00 02 E010 0011 23 00 02 E010 0100 24 00 05 E010 0110 26 00 02 E010 0111 27 00 02 E010 1000 28 00 02 E010 1001 29 00 02 E010 1010 2A 00 02 E010 1011 2B Range/options 0, 1, 2, 3, 11, 13 50, 60 VT Secondary 1000000.0 100, 110, 115, 120 1, 2, 3 1-32767 1, 5 0, 1, 2 Description Power system configuration: 0 = 1PH2W L-N 1 = 1PH2W L-L 2 = 1PH3W L-L with N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4 wire multi L with N Nominal frequency VT Primary (iEM3235 only) VT Secondary (iEM3235 only) Number of CTs (iEM3235 only) CT Primary (iEM3235 only) CT Secondary (iEM3235 only) VT Connection Type (iEM3235 only) 0 = direct connect 1= 3PH3W (2 VTs) 2 = 3PH4W (3 VTs) Multi Tariff setup NOTE: E denotes the extension bit; the hex value assumes E = 0. SND_UD Data code format Manufacturerspecific VIFE bin hex 00 02 E001 0001 11 00 02 E001 0000 10 Range/options 0,1 1, 2, 3, 4 Description Set Multi Tariff control mode to Disabled or by Communication: 0 = Disabled 1 = by Communication NOTE: To configure the Multi Tariff feature to be controlled by the digital input or device clock, use the HMI. Set the active tariff: 1 = Rate A (tariff 1) 2 = Rate B (tariff 2) 3 = Rate C (tariff 3) 4 = Rate D (tariff 4) NOTE: You can only set the tariff using this method if the Tariff Mode is set to by Communication. 100 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Communications setup SND_UD code Data format Primary VIF Range/options 00 01 7A 0-250 Description Primary address To change the baud rate via communications, send a telegram to the meter with the appropriate value in the CI-field: Baud rate 300 B8 600 B9 1200 BA 2400 BB 4800 BC 9600 BD Hex value for CI-field Digital input setup NOTE: E denotes the extension bit; the hex value assumes E = 0. SND_UD Data code format Manufacturerspecific VIFE bin hex 00 02 E001 1011 1B 00 05 E010 1111 2F Range/options Description 0, 3, 5 1-10000 Digital input control mode 0 = Normal (Input Status) 3 = Input metering 5 = Partial energy reset Pulse constant (pulses/unit; applicable when the digital input is used for input metering) Digital output setup NOTE: E denotes the extension bit; the hex value assumes E = 0. SND_UD Data code format Manufacturerspecific VIFE bin hex 00 02 E001 1010 1A 00 05 E010 1110 2E 00 02 E010 1100 2C Range/options 2, 3, 0xFFFF iEM3135 / iEM3335: 1, 10, 20, 100, 200, 1000 iEM3235: 0.01, 0.1, 1, 10, 100, 500 50, 100, 200, 300 Description Digital output control mode 2 = Alarm 3 = Energy (energy pulsing) 0xFFFF = Disable Pulse constant NOTE: This information only applies if the digital output control mode is set to for Pulse. Pulse width in ms NOTE: This information only applies if the digital output control mode is set to for Pulse. DOCA0005EN-12 101 Communications via M-Bus iEM3000 series user manual Overload alarm setup and acknowledgment Use the information in the table below to configure the overload alarm. NOTE: E denotes the extension bit; the hex value assumes E = 0. SND_UD Data code format Manufacturerspecific VIFE bin hex 00 05 E011 0101 35 Range/options 0 - 9999999 00 02 E011 0100 34 0,1 Description The pickup setpoint in kW for the overload alarm Overload alarm setup: 0 = Disable 1 = Enable Use the information in the table below to acknowledge the overload alarm. NOTE: E denotes the extension bit; the hex value assumes E = 1. SND_UD Data code format Manufacturerspecific VIFE bin hex 07 00 E011 1000 B8 Range/options -- Description Acknowledge alarm Resets NOTE: E denotes the extension bit; the hex value assumes E = 1. SND_UD Data code format Primary VIFE bin hex Manufacturerspecific VIFE bin hex 07 00 -- -- E000 1101 8D 07 00 E110 0001 E1 -- -- Description Resets partial energy accumulation to 0. Resets input accumulation to 0. M-Bus tool for data display and meter configuration The M-Bus tool provides a graphical user interface where you can view meter data and configure meter settings. To obtain the tool, go to www.schneider-electric.com and search for your meter model then select Downloads or contact your local Schneider Electric representative. If you access a different meter without closing and re-opening the M-Bus tool, the fields displayed in the tool may not match the device you are accessing. The M-Bus tool may indicate a setting was changed without the setting on the meter actually changing. 102 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus NOTICE INACCURATE DEVICE SETTINGS Do not rely on the configuration information displayed in the M-Bus tool to determine if the associated device is correctly configured. Failure to follow these instructions can result in inaccurate device settings and data results. Installing the M-Bus tool Before you install the tool, you need to download it from www.schneider-electric.com or obtain it from your sales representative. 1. Navigate to the location where you saved the installation files. 2. Double-click setup.exe. A welcome screen appears. Click Next. 3. Confirm the installation location for the tool. Click Browse if you want to select a different location. Click Next. A confirmation screen appears. 4. Click Next to begin the installation. A screen appears when the installation is complete. 5. Click Close. Accessing the meter using the tool Before you access the meter using the M-Bus tool, make sure that you: · connect the meter to a level converter (for a direct serial connection) or a level converter and gateway (for connection via a serial or Ethernet network). · set the address of the device to a value other than 0 (zero) using the HMI. · install the M-Bus tool on your computer. 1. Select Start > Programs > Schneider Electric > Mbus config tool (or navigate to the location where you installed the program) and click SE_iEM3135_3235_3335 Mbus Tool to open the tool. The login screen appears. 2. Select the port on your computer that you are using to connect to the meter and select the baud rate that matches the meter's configuration. 3. Click Test Com to open the communications port. 4. Type the device address in the Address field. 5. Select the communications mode that you want the tool to start in: Monitor(Automatic): The tool automatically sends read requests to and receives data from the meter. You can set the interval at which these read requests are sent. Monitor(Manual): You must manually send a read request to get data from the meter. Config: The tool opens in configuration mode. You can change the mode from within the tool, if needed. 6. Click OK to start the M-Bus tool and access the meter. DOCA0005EN-12 103 Communications via M-Bus Viewing meter data using the M-Bus tool iEM3000 series user manual NOTE: The software version of M-Bus Meter Config tool is V3.0. You can use two modes to view data from the device: · Automatic mode: Select the update interval from the Interval dropdown list. · Manual mode: Press Req_UD2 to request data from the meter. To switch modes, select Setup > Monitor then select the mode you want to use. The tool has the following tabs for viewing meter information: Tab name Meter Info Energy Measure Description This tab provides basic information about the meter (for example, model and serial number) and any active error codes. Click Clear to remove the error codes from the display. This does not resolve the errors. This tab provides total and partial energy, energy per phase and energy by tariff information, as well as input accumulations and the date and time of the last input metering and partial energy resets. 104 DOCA0005EN-12 iEM3000 series user manual Communications via M-Bus Tab name RMS Measure Meter Status Description This tab provides power, current, and voltage values as well as frequency and power factor information. This tab provides information on the settings and status of the digital input, digital outputs and alarms as well as existing power system settings. Configuring the meter using the M-Bus tool DOCA0005EN-12 1. Select Setup > Config to switch to configuration mode. 2. Set the values that you want to change then click Send for that value or section. For example, to change the nominal frequency, select a different value from the list then click Send in Set Wiring. Some values may be unavailable based on existing settings. NOTE: If Com. Protection is enabled, you may receive a message that the configuration failed. Use the HMI to either: 1) configure the meter, or 2) disable Com. Protection then configure the meter using the tool. 105 Communications via M-Bus iEM3000 series user manual The configuration screen has the following sections: Section Set Wiring Set Digital Input Set Digital Output Set Multi Tariff Set Power Alarm Reset Set Date Time Set Baudrate Set Address Description Configure power system settings (for example, power system configuration and nominal frequency). Set the digital input mode and pulse constant. Enable / disable the digital output and set the control mode, pulse weight and duration. Disable the Multi Tariff feature or set the control mode to by Communication and set the active tariff if the control mode is set to by Communication. Enable / disable to the overload alarm, enter the setpoint, and acknowledge alarms. Reset partial energy and input metering accumulations. Set the date and time or send a time synchronization signal to set the meter to the computer time. Set the baud rate. Set the meter address. 106 DOCA0005EN-12 iEM3000 series user manual Chapter 8 Communications via BACnet Communications via BACnet BACnet communications overview Communications via BACnet MS/TP protocol is available on the iEM3165, iEM3265, iEM3365, iEM3465 and iEM3565. The information in this section is intended for users with an advanced understanding of BACnet protocol, their communications network and their power system. Key terms Term Definition APDU Application protocol data unit, that data portion of a BACnet message. Confirmed message COV A message for which the device expects an answer. Change of value, sets the amount by which a value has to change in order for the meter to send a subscription notification. Device MS/TP A BACnet device is a unit that is designed to understand and use BACnet protocol (for example, a BACnet-enabled meter or software program). It contains information about the device and device data in objects and object properties. Your meter is a BACnet device. Master-slave/token-passing over RS-485. Object Present value Represents the device and device data. Each object has a type (for example, analog input or binary input) and has a number of properties. The current value of an object. Property Service The smallest piece of information in BACnet communications, it consists of a name, data type and value. Messages from one BACnet device to another. Subscription Subscription notification Creates a relationship between the server and the meter, so that when the present value property of an object changes by more than the configured COV threshold (COV_Increment), a notification is sent. The message the meter sends to indicate a COV event has occurred. Unconfirmed message A message for which the device does not expect an answer. Related topics · See www.bacnet.org for more information on the BACnet protocol. BACnet protocol support Go to www.schneider-electric.com and search for your meter model to access the PICS (Protocol Implementation Conformance Statement) for your meter. The meter supports the BACnet protocol as follows: BACnet component Protocol version Protocol revision Standardized device profile (Annex L) Description 1 6 BACnet Application Specific Controller (B-ASC) DOCA0005EN-12 107 Communications via BACnet iEM3000 series user manual BACnet component BACNet Interoperability Building Blocks (Annex K) Data link layer options Character set Supported services Segmentation Static device address binding Networking options Description DS-RP-B (Data Sharing - Read Property - B) DS-RPM-B (Data Sharing - Read Property Multiple - B) DS-WP-B (Data Sharing - Write Property - B) DS-COV-B (Data Sharing - COV - B) DM-DDB-B (Device Management - Dynamic Device Binding - B) DM-DOB-B (Device Management - Dynamic Object Binding - B) DM-DCC-B (Device Management - Device Communication Control - B) MS/TP master (clause 9) Baud rates 9600, 19200, 38400, 57600, 76800 ANSI X3.4 subscribeCOV readProperty readPropertyMultiple writeProperty deviceCommunicationControl who-HAS who-Is I-Am I-Have Confirmed COV notification Unconfirmed COV notification The meter does not support segmentation The meter does not support static device address binding None The following standard object types are supported: Object type Optional properties supported Device Object Analog Input Object Analog Value Object Binary Input Object Max_Master Max_Info_Frames Description Location Local_Date Local_Time Active_COV_Subscriptions Profile Name COV_Increment -- -- Writeable properties supported Object_Name Max_Master Max_Info_Frames Description Location APDU_Timeout Number_Of_APDU_Retries COV_Increment Present_Value -- Proprietary properties ID_800 ID_801 ID_802 -- -- -- Related topics · See "Device object" on page 109 for information on the proprietary properties in the Device object. 108 DOCA0005EN-12 iEM3000 series user manual Communications via BACnet BACnet communications implementation Configuring basic communication parameters Before communicating with the meter via BACnet protocol, use the front panel to configure the following settings: Setting Baud rate Mac Address Device ID 9600 19200 38400 57600 76800 1 - 127 0 - 4194303 Possible values Make sure that the Mac Address is unique on the serial loop and the Device ID is unique in your BACnet network. Communications LED indicator for BACnet meters The LED indicates the status of the meter's communications with the network. LED state The LED is off The LED is flashing Description Communication is not active. Communication is active. NOTE: The LED flashes even if there is a communications error. Change of Value (COV) subscriptions The meter supports up to 14 COV subscriptions. You can add COV subscriptions to Analog Input and Binary Input objects using your BACnet-compatible software. Related topics · See "Hardware and installation" on page 17 for the location of the communications LED. · See "Device configuration" on page 29 for information on configuring the meter using the front panel. BACnet object and property information The following sections outline the supported objects and properties available on the meter. Device object The following table outlines the properties of the Device object, whether a property is read-only or read-write, and if the value of the property is stored in the meter's nonvolatile onboard memory. DOCA0005EN-12 109 Communications via BACnet iEM3000 series user manual Device object property R/W Store d Possible values Description Object_Identifier R-- Object_Name R/W Object_Type System_Status Vendor_Name Vendor_Identifier R-- R-- R-- R-- Model_Name R-- Firmware_Revision R -- Application_Software _Version R -- Description R/W Location Protocol_Version Protocol_Revision R/W R-- R-- Protocol_Services_S upported R -- Protocol_Object_Typ es_Supported R -- Object_list R-- Max_APDU_Length_ Accepted R -- Segmentation_Suppo rted R -- Local_Date R-- Local_Time R-- APDU_Timeout R/W Number_Of_APDU_R etries R/W configurable The unique device ID number for the meter, in the format of <device, #>. NOTE: You must use the front panel to configure the device ID number. A configurable name for the meter. configurable The meter ships from the factory with a name of <model name>_<serial number> (for example, iEM3265_0000000000). Device The object type for the meter Operational This value of this property is always Operational. Schneider Ele ctric Meter manufacturer 10 The BACnet vendor identifier for Schneider Electric iEM3165, iEM3265, iEM3365, iEM3465, iEM3565 Device model (for example, iEM3265) and serial number in the format <model name>_<serial number> (for example, iEM3265_0000000000). varies BACnet firmware version, stored in an x.x.x format (for example, 1.7.2). varies Meter firmware version, stored in an x.x.xxx format (for example, 1.0.305). configurable Optional description of the meter, limited to 64 characters. configurable Optional description of the meter's location, limited to 64 characters. varies BACnet protocol version (for example, version 1) varies BACnet protocol revision (for example, revision 6) 0000 0100 0000 1011 0100 0000 0000 0000 0110 0000 The BACnet services supported by the meter: subscribeCOV, readProperty, readPropertyMultiple, writeProperty, deviceCommunicationControl, whoHAS, who-Is 1011 0000 1000 0000 0000 0000 0000 0000 The BACnet object types supported by the meter: analog input, analog value, binary input, device List of objects in the meter: varies iEM3165 / iEM3365: DE1, AI0-AI48, AV0, BI0-BI6 iEM3265 / iEM3465 / iEM3565: DE1, AI0-AI55, AV0, BI0-BI6 480 The maximum packet size (or application protocol data unit) that the meter can accept, in bytes 0x03 The meter does not support segmentation. configurable configurable 1000 - 30000 1 - 10 Date NOTE: You must use the front panel to set the meter's date. Time NOTE: You must use the front panel to set the meter's time. The amount of time (in milliseconds) before the meter tries to resend a confirmed message that has not been answered. The number of times the meter tries to resend an unanswered confirmed request. 110 DOCA0005EN-12 iEM3000 series user manual Communications via BACnet Device object property R/W Store d Possible values Max_Master R/W 1 - 127 Max_Info_Frames R/W 1 - 14 Device_Address_Bin ding R -- -- Database_Revision R varies Active_COV_Subscri ptions R -- varies Profile_Name R-- varies ID 800 ID 801 ID 802 R-- R-- R-- varies varies varies Description The highest master address the meter will try to discover when the next node is unknown. Maximum number of messages the meter can send before it must pass the token. Device address binding table is always blank because the meter does not initiate the who-Is service. A number that increments when the object database on the meter changes (for example, when an object is created or deleted or the ID of an object changes). List of COV subscriptions currently active on the meter. Device identifier, used on these meters to record the meter manufacturer, the meter family and the specific meter model (for example, 10_iEM3000_iEM3265). Date and time of last energy reset Date and time of last input metering accumulation reset Date and time of the last alarm (DD/MM/YYYY hh:mm:ss) Related topics · See "Device configuration" on page 29 for information on configuring the meter using the front panel. DOCA0005EN-12 111 Communications via BACnet Analog Input objects iEM3000 series user manual The following tables list the Analog Input (AI) objects along with the units and default COV value for each AI object (if applicable). NOTE: The Value Type for all AI objects is Real. Energy and energy by tariff measurements The energy and energy by tariff measurements listed below are preserved through power failures. Object ID Units Default COV Object name / description 27 Wh 100 28 Wh 100 29 Wh 100 30 Wh 100 31 Wh 100 32 Wh 100 33 Wh 100 34 Wh 100 35 Wh 100 36 -- 10 37 --1 38 Wh 100 39 Wh 100 40 Wh 100 41 Wh 100 AI27 - Total active energy import AI28 - Total active energy export AI29 - Total reactive energy import AI30 - Total reactive energy export AI31 - Partial active energy import AI32 - Partial reactive energy import AI33 - Active energy import phase 1 AI34 - Active energy import phase 2 AI35 - Active energy import phase 3 AI36 - Accumulation Input metering accumulation AI37 - Tariff Energy Active Rate Denotes the active tariff: 0 = Multi Tariff feature is disabled 1 = rate A (tariff 1) active 2 = rate B (tariff 2) active 3 = rate C (tariff 3) active 4 = rate D (tariff 4) active AI38 - Rate A (Tariff 1) active energy import AI39 - Rate B (Tariff 2) active energy import AI40 - Rate C (Tariff 3) active energy import AI41 - Rate D (Tariff 4) active energy import Instantaneous (RMS) measurements Object ID Units Default COV Object name / description 7 A 50 AI07 - Current Phase 1 8 A 50 9 A 50 AI08 - Current Phase 2 AI09 - Current Phase 3 10 A 50 11 V 10 AI10 - Current Average AI11 - Voltage L1-L2 12 V 10 13 V 10 AI12 - Voltage L2-L3 AI13 - Voltage L3-L1 14 V 10 15 V 10 AI14 - Voltage Average L-L AI15 - Voltage L1-N 16 V 10 17 V 10 AI16 - Voltage L2-N AI17 - Voltage L3-N 18 V 10 19 kW 10 AI18 - Voltage Average L-N AI19 - Active Power Phase 1 20 kW 10 21 kW 10 AI20 - Active Power Phase 2 AI21 - Active Power Phase 3 22 kW 10 AI22 - Active Power Total 112 DOCA0005EN-12 iEM3000 series user manual Communications via BACnet Object ID Units Default COV Object name / description 23 kVAR 10 AI23 - Reactive Power Total 24 kVA 10 25 -- 0.2 AI24 - Apparent Power Total AI25 - Power Factor Total 26 Hz 10 AI26 - Frequency Meter information The following AI objects display information about the meter and its configuration. NOTE: You can access the meter's configuration information over BACnet communications. However, you must use the front panel to configure the meter's settings. Object ID Units Default COV Object name / description 44 Secon ds 10 45 -- 1 46 -- 1 47 -- 1 48 Hz 1 49 -- 1 AI44 - Meter operation time The time in seconds since the meter was last powered up AI45 - Number of phases 1, 3 AI46 - Number of wires 2, 3, 4 AI47 - Power system type 0 = 1PH2W L-N 1 = 1PH2W L-L 2 = 1PH3W L-L with N 3 = 3PH3W 11 = 3PH4W 13 = 1PH4 wire multi L-N AI48 - Nominal frequency 50, 60 AI49 - Number of VTs 0 - 10 50 V 1 51 V 1 52 -- 1 NOTE: only applies to the iEM3265 / iEM3465 / iEM3565 AI50 - VT Primary NOTE: only applies to the iEM3265 / iEM3465 / iEM3565 AI51 - VT Secondary NOTE: only applies to the iEM3265 / iEM3465 / iEM3565 AI52 - Number of CTs 1, 2, 3 53 A 1 NOTE: only applies to the iEM3265 / iEM3465 / iEM3565 AI53 - CT Primary NOTE: only applies to the iEM3265 / iEM3465 / iEM3565 DOCA0005EN-12 113 Communications via BACnet iEM3000 series user manual Object ID Units Default COV Object name / description For iEM32 65, the unit is A, For iEM34 54 65, the unit is 1 mV, For iEM35 65, the unit is uV/kA/ Hz AI54 - CT Secondary NOTE: only applies to the iEM3265 / iEM3465 / iEM3565 55 -- 1 AI55 - VT connection type 0 = Direct connection, not VTs 1 = 3PH3W (2VTs) 2 = 3PH4W (3VTs) Communications settings information The following AI objects display information about the meter's communications settings. NOTE: You can access the meter's communications configuration information over BACnet communications. However, you must use the front panel to configure the meter's settings. Object ID Units Default COV Object name / description 00 -- 1 AI00 - BACnet MAC Address 01 -- 1 AI01 - BACnet Baud Rate Digital input and output setting information The following AI objects display information about the meter's I/O settings. NOTE: You can access the meter's I/O configuration information over BACnet communications. However, you must use the front panel to configure the meter's settings. Object ID Units Default COV 02 ms 1 03 -- 1 Object name / description AI02 - Pulse Duration The energy pulse duration (or pulse width), in milliseconds, of the digital output. NOTE: This information only applies if the digital output mode is set to energy pulsing. AI03 - Pulse Weight The pulses/unit setting of the digital input when it is configured for input metering. NOTE: This information only applies if the digital input mode is set to Input Metering. 114 DOCA0005EN-12 iEM3000 series user manual Communications via BACnet Analog Value object Object ID Units Default COV 04 -- 1 05 -- 1 06 -- 1 42 kW 10 43 kW 10 Object name / description AI04 - Pulse Constant The pulses/kWh setting of the digital output. NOTE: This information only applies if the digital output mode is set to energy pulsing. AI05 - Digital Input Mode 0 = Normal (input status) 2 = Multi Tariff control 3 = Input metering 5 = All partial energy logs reset AI06 - Digital Output Mode 2 = Alarm 3 = Energy 0xFFFF (65535 dec) = Disabled AI42 - Pickup Setpoint Active power alarm pickup setpoint in kW AI43 - Last Alarm Value Related topics · See "Device configuration" on page 29 for information on configuring the meter using the front panel. · See "Binary Input objects" on page 116 for information on reading the statuses of the input, output and alarm. There is one Analog Value (AV) object available on the meter, named AV00 Command. The available commands are listed in the following table. Enter the number in the Present_Value column in the Present_Value property of the AV object to write the associated command to the meter. Command Present_Value entry Object name / description Acknowledge Overload Alarm 20001.00 Reset Partial Energy Counter 2020.00 Reset Input Metering Counter 2023.00 Acknowledge an overload alarm. The alarm indicator disappears from the front panel display after you acknowledge the alarm; however, this does not address the state that caused the alarm. Reset partial energy accumulation to 0. Partial Active / Reactive Energy, Energy by Tariff and Phase Energy registers are reset. Resets input metering accumulation to 0. DOCA0005EN-12 115 Communications via BACnet Binary Input objects iEM3000 series user manual The following table lists the Binary Input (BI) objects available on the meter. NOTE: The Value Type for all BI objects is Boolean. Object ID Object name / description BI00 - Digital Output Enable Indicates whether or not the digital output functions as an energy pulse output: 0 0 = Digital output disabled 1 = Digital output is associated with active energy pulse output BI01 - Digital Input Association Enable Indicates whether or not the digital input is associated with input metering: 1 0 = Digital input is not associated with input metering. 1 = Digital input is associated with input metering. BI02 - Digital Input Status 0 = relay open 2 1 = relay closed NOTE: This information only applies if the digital input is set to Input Status. BI03 - Alarm Enable Indicates whether the overload alarm is enabled or disabled: 3 0 = disabled 1 = enabled BI04 - Digital Output Association Enable Indicates if the digital output is configured for alarming: 4 0 = digital output disabled 1 = for Alarm (digital output is associated with the overload alarm) BI05 - Alarm Status 5 0 = Alarm is inactive 1 = Alarm is active BI06 - Unacknowledged status 6 0 = historic alarm is acknowledged 1 = historic alarm is unacknowledged 116 DOCA0005EN-12 iEM3000 series user manual Chapter 9 Specifications Specifications Electrical characteristics Power system inputs: iEM31·· meters Characteristic Value Measured voltage Wye: 100 - 277 V L-N, 173 - 480 V L-L ±20% Delta: 173 - 480 V L-L ±20% Maximum current Measured current Overload 63 A 0.5 A to 63 A 332 V L-N or 575 V L-L Voltage impedance 3 M Current impedance < 0.3 m Frequency 50 / 60 Hz ±10% Measurement category III Minimum wire temperature rating required 90 °C (194 °F) Burden < 10 VA at 63 A Wire 16 mm2 / 6 AWG Wire strip length Torque Withstand 11 mm / 0.43 in 1.8 Nm / 15.9 in·lb 10 A continuous, 20 A at 10 sec/hr Power system inputs: iEM33·· meters Characteristic Value Measured voltage Wye: 100 - 277 V L-N, 173 - 480 V L-L ±20% Delta: 173 - 480 V L-L ±20% Maximum current 125 A Measured current 1 A to 125 A Overload 332 V L-N or 575 V L-L Voltage impedance 6 M Current impedance < 0.2 m Frequency 50 / 60 Hz ±10% Measurement category III Minimum wire temperature rating required 105 °C (221 °F) Burden < 10 VA at 125 A Wire 50 mm2 / 1 AWG Wire strip length 13 mm / 0.5 in Torque 3.5 Nm / 30.9 in·lb Withstand 10 A continuous, 20 A at 10 sec/hr DOCA0005EN-12 117 Specifications Power system inputs: iEM32·· meters Characteristic Measured voltage Voltage inputs Current inputs Overload Impedance Frequency Measurement category Minimum wire temperature rating required Maximum device consumption Wire Wire strip length Torque Nominal current Measured current Withstand Minimum wire temperature rating required Impedance Frequency Burden Wire Wire strip length Torque Power system inputs: iEM34·· and iEM35·· meters iEM3000 series user manual Value Wye: 100 - 277 V L-N, 173 - 480 V L-L ±20% Delta: 173 - 480 V L-L ±20% 332 V L-N or 575 V L-L 3 M 50 / 60 Hz ±10% III 90 °C (194 °F) < 10 VA 2.5 mm2 / 14 AWG 8 mm / 0.31 in 0.5 Nm / 4.4 in·lb 1 A or 5 A 20 mA to 6 A 10 A continuous, 20 A at 10 sec/hr 90 °C (194 °F) < 1 m 50 / 60 Hz ±10% < 0.036 VA at 6 A 6 mm2 / 10 AWG 8 mm / 0.31 in 0.8 Nm / 7.0 in·lb Characteristic Measured voltage Voltage inputs Current inputs Overload Impedance Frequency Measurement category Minimum wire temperature rating required Maximum device consumption Wire Wire strip length Torque Split-core LVCTs Rogowski Coil Minimum wire temperature rating required Frequency Wire Wire strip length Torque Value Wye: 100 - 277 V L-N, 173 - 480 V L-L ±20% Delta: 173 - 480 V L-L ±20% 332 V L-N or 575 V L-L 3 M 50 / 60 Hz ±10% III 90 °C (194 °F) < 10 VA 2.5 mm2 / 14 AWG 8 mm / 0.31 in 0.5 Nm / 4.4 in·lb 0.333V or 1V nominal U018 Series of Rogowski Coils (up to 5000 A) 90 °C (194 °F) 50 / 60 Hz ±10% 6 mm2 / 10 AWG 8 mm / 0.31 in 0.8 Nm / 7.0 in·lb 118 DOCA0005EN-12 iEM3000 series user manual Inputs and outputs Specifications Characteristic Number Type Load voltage Maximum load current Programmable Output resistance digital output Isolation Wire Wire strip length Torque Number Type Pulse output Pulses / kWh Voltage Current Pulse width Isolation Wire Wire strip length Torque Value 1 Form A 5 40 V DC 50 mA 0.1 50 3.75 kV rms 1.5 mm2 / 16 AWG 6 mm / 0.23 in 0.5 Nm / 4.4 in·lb 1 S0 form (IEC 62053-31 compatible) Configurable 5 30 V DC 1 15 mA Configurable Minimum width is 50 ms 3.75 kV rms 2.5 mm2 / 14 AWG 7 mm / 0.28 in 0.5 Nm / 4.4 in·lb 2 Number 1 Type Type 1 (IEC 61131-2) Programmable Voltage Maximum input 40 V DC digital input Current 4 mA Voltage OFF 0 - 5 V DC Voltage ON 11 - 40 V DC Nominal voltage 24 V DC Isolation 3.75 kV rms Wire 1.5 mm2 / 16 AWG Wire strip length 6 mm / 0.23 in Torque 0.5 Nm / 4.4 in·lb Meters iEM3135 / iEM3155 / iEM3165 / iEM3235/ iEM3255 / iEM3265 / iEM3335 / iEM3355 / iEM3365 / iEM3455 / iEM3465 / iEM3555 / iEM3565 iEM3110 / iEM3210 / iEM3310 iEM3115 / iEM3215 iEM3135 / iEM3155 / iEM3165 / iEM3175 / iEM3235 / iEM3255 / iEM3265 / iEM3275 / iEM3335 / iEM3355 / iEM3365 / iEM3375/ iEM3455 / iEM3465 / iEM3555 / iEM3565 iEM3115 / iEM3135 / iEM3155 / iEM3165 / iEM3175 / iEM3215 / iEM3235 / iEM3255 / iEM3265 / iEM3275 / iEM3335 / iEM3355 / iEM3365 / iEM3375/ iEM3455 / iEM3465 / iEM3555 / iEM3565 DOCA0005EN-12 119 Specifications iEM3000 series user manual Mechanical characteristics Characteristic Value Front panel IP40 IP degree of protection Meter body Meter body except bottom wiring surface IP20 IP20 Impact rating IK08 Active energy display In kWh or MWh up to 99999999 MWh range In kWh: 8 + 1 digits up to 99999999.9 500 flashes / kWh Energy pulsing LED (yellow)1 5000 flashes / kWh without consideration of transformer ratios 200 flashes / kWh 24000/x flashes /kWh 5 flashes / kWh 1The pulses / kWh of the energy pulsing LED cannot be changed. Meters iEM31·· / iEM32·· / iEM33·· / iEM34·· / iEM35·· iEM31·· / iEM32·· / iEM34·· / iEM35·· iEM33·· iEM31·· / iEM32·· / iEM33·· / iEM34·· / iEM35·· iEM32·· / iEM34·· / iEM35·· iEM31·· / iEM33·· iEM31·· iEM32·· iEM33·· iEM34·· iEM35·· Environmental characteristics Characteristic Operating temperature Storage temperature Pollution degree Relative humidity Location Altitude Value Meters -25 to 55 °C (-13 to 131 °F) (K55) iEM31·· / iEM32·· / iEM33·· -25 to 70 °C (-13 to 158 °F) (K70) iEM34·· / iEM35·· -40 to 85 °C (-40 to 185 °F) 2 5% 95% RH non-condensing Maximum dewpoint 36 °C (97 °F) For indoor use only iEM31·· / iEM32·· / iEM33·· / iEM34·· / iEM35·· Not suitable for wet locations < 3000 m (9842 ft) above sea level 120 DOCA0005EN-12 iEM3000 series user manual Specifications Measurement accuracy Characteristic Value Meters 63 A Active energy Reactive energy 125 A Active energy Reactive energy Active energy for x/1A current input Reactive energy Active energy for x/5A current input Reactive energy Class 1 conforming to IEC 62053-21 and IEC 61557-12 (PMD DD): Imax=63 A, Ib=10 A, and Ist=0.04 A iEM31·· Class B conforming to EN 50470-3: Imax=63 A, lref=10 A, Imin=0.5 A, and Ist=0.04 A iEM31·· Class 2 conforming to IEC 62053-23 and IEC 61557-12 (PMD DD): Imax=63 A, Ib=10 A, and Ist=0.05 A iEM3135 / iEM3155 / iEM3165 / iEM3175 Class 1 conforming to IEC 62053-21 and IEC 61557-12 (PMD DD): Imax=125 A, Ib=20 A, and Ist=0.08 A iEM33·· Class B conforming to EN 50470-3: Imax=125 A, lref=20 A, Imin=1 A, and Ist=0.08 A iEM33·· Class 2 conforming to IEC 62053-23 and IEC 61557-12 (PMD DD): Imax=125 A, Ib=20 A, and Ist=0.1 A iEM3335 / iEM3355 / iEM3365 / iEM3375 Class 1 conforming to IEC 62053-21 and IEC 61557-12 (PMD SD): Imax=1.2 A, ln=1 A, and Ist=0.002 A iEM3200 / iEM3210 / iEM3215 Class 1 conforming to IEC 62053-21 and IEC 61557-12 (PMD Sx): Imax=1.2 A, ln=1 A, and Ist=0.002 A iEM3235 / iEM3250 / iEM3255 / iEM3265 / iEM3275 Class 2 conforming to IEC 62053-23 and IEC 61557-12 (PMD Sx): Imax=1.2 A, ln=1 A, and Ist=0.003 A iEM3235 / iEM3255 / iEM3265 / iEM3275 Class 0.5S conforming to IEC 62053-22 and IEC 61557-12 (PMD SD): Imax=6 A, ln=5 A, and Ist=0.005 A iEM32·· Class 0.5S conforming to IEC 62053-22 and IEC 61557-12 (PMD iEM3235 / iEM3250 / iEM3255 / Sx): Imax=6 A, ln=5 A, and Ist=0.005 A iEM3265 / iEM3275 Class C conforming to EN 50470-3: Imax=6 A, ln=5 A, Imin=0.05 A, and Ist=0.005 A iEM32·· Class 2 conforming to IEC 62053-23 and IEC 61557-12 (PMD Sx): Imax=6 A, ln=5 A, and Ist=0.015 A iEM3235 / iEM3255 / iEM3265 / iEM3275 MID Type of Measurement IEC 62053-22 ANSI C12.20 NMI Value Class 0.5S NMI 14/2/88 -25 to 55 deg NMI 14/2/89 -25 to 60 deg Meters iEM34·· / iEM35·· iEM3255 iEM3350 Characteristic Value Meters Electromagnetic environmental class E2 Mechanical environmental class M1 iEM3110 / iEM3115 / iEM3135 / iEM3155 / iEM3165 / iEM3175 / iEM3210 / iEM3215 / iEM3235 / iEM3255 / iEM3265 / iEM3275 / iEM3310 / iEM3335 / iEM3355 / iEM3365 / iEM3375 For MID compliance: · The Wiring > Type setting must be set to 3PH4W or 1PH4W. · For applicable iEM32xx models, the CT and VT ratio > CT secondary must be set to 5 A. The meter complies with the European Measuring Instruments Directive (MID) 2014/32/EU when installed in a suitable switchboard in accordance with the instructions in DOCA0038EN, available on our website. The CE declaration document is also available; search for ECDiEM3000. DOCA0005EN-12 121 Specifications iEM3000 series user manual Internal clock Characteristic Type Time error Backup time Value Meters Quartz crystal based Backup by supercapacitor < 2.5 s/day (30 ppm) at 25°C (77°F) > 3 days at 25°C (77°F) iEM3115 / iEM3135 / iEM3155 / iEM3165 / iEM3175 / iEM3215 / iEM3235 / iEM3255 / iEM3265 / iEM3275 / iEM3335 / iEM3355 / iEM3365 / iEM3375/ iEM3455 / iEM3465 / iEM3555 / iEM3565 Modbus communications Characteristic Number of ports Labels Parity Baud rate Isolation Wire Wire strip length Torque Value 1 0V, D0/-, D1/+ (shield) Even, Odd, None 9600, 19200, 38400 4.0 kV rms 2.5 mm2 / 14 AWG shielded twisted pair 7 mm / 0.28 in 0.5 Nm / 4.4 in·lb Meters iEM3150 / iEM3155 / iEM3250 / iEM3255 / iEM3350 / iEM3355 / iEM3455 / iEM3555 Related topics · See "Communications via Modbus" on page 47 for information on Modbus communications. LonWorks communications Characteristic Number of ports Isolation Wire Wire strip length Torque Value 1 3.75 kV rms 2.5 mm2 / 14 AWG 7 mm / 0.28 in 0.5 Nm / 4.4 in·lb Meters iEM3175 / iEM3275 / iEM3375 Related topics · See "Communications via LonWorks" on page 67 for information on LonWorks communications. M-Bus communications Characteristic Number of ports Parity Baud rate Isolation Wire Wire strip length Torque Value 1 Even, Odd, None 300, 600, 1200, 2400, 4800, 9600 3.75 kV rms 2.5mm2 / 14 AWG 7 mm / 0.28 in 0.5 Nm / 4.4 in·lb Meters iEM3135 / iEM3235 / iEM3335 Related topics · See "Communications via M-Bus" on page 79 for information on M-Bus communications. 122 DOCA0005EN-12 iEM3000 series user manual Specifications BACnet communications Characteristic Number of ports Labels Baud rate Isolation Wire Wire strip length Torque Value 1 0V, D0/-, D1/+ (shield) 9600, 19200, 38400, 57600, 76800 4.0 kV rms 2.5mm2 / 14 AWG shielded twisted pair 7 mm / 0.28 in 0.5 Nm / 4.4 in·lb Meters iEM3165 / iEM3265 / iEM3365 /iEM3465 / iEM3565 Related topics · See "Communications via BACnet" on page 107 for information on BACnet communications. DOCA0005EN-12 123 Specifications iEM3000 series user manual 124 DOCA0005EN-12 iEM3000 series user manual Chapter 10 Troubleshooting Troubleshooting The meter does not contain any user-serviceable parts. If the meter requires service, contact your local Schneider Electric representative. NOTICE RISK OF DAMAGE TO THE METER · Do not open the meter case. · Do not attempt to repair any components of the meter. Failure to follow these instructions can result in equipment damage. Do not open the meter. Opening the meter voids the warranty. Diagnosis screen The Diagnosis screen lists any current diagnostic codes. NOTE: The Diagnosis screen only appears if there is a specific event. Diagnosis 201 T1 23-Apr-2012 1/2 A Diagnostic code B Existing events 1. Press the down button to scroll through the main display screens until you reach the Diagnosis screen. 2. Press the button to scroll through any existing events. Related topics · See "Data display" on page 21 for more information on navigating to the Diagnosis screen. DOCA0005EN-12 125 Troubleshooting iEM3000 series user manual Diagnostic codes If the diagnostics code persists after following the instructions below, please contact Technical Support. Diagnostic code1 Description Possible solution LCD display is not visible. Check and adjust LCD contrast. Push buttons do not respond. Restart the meter by powering off and powering on again. Metering stops due to an EEPROM error. 101 Press OK to display total energy consumption. Enter configuration mode and select Reset Config. Metering stops due to a lack of a 102 calibration table. Press OK to display total energy Enter configuration mode and select Reset Config. consumption. Metering continues. 201 Correct the frequency settings according to Mismatch between frequency settings and the nominal frequency of the power system. frequency measurements. Metering continues. 202 Mismatch between wiring settings and Correct the wiring settings according to wiring inputs. wiring inputs. Metering continues. 203 Phase sequence reversed. Check the wire connections and correct the wiring settings if needed. Metering continues. 204 Total active energy is negative due to Check the wire connections and correct the wiring settings if needed. incorrect voltage and current connections. Metering continues. 205 Date and Time have been reset due to a Set the Date and Time. loss of power. Metering continues. 206 Check the energy pulse output settings and Pulse is missing due to overload on energy correct if needed. pulse output. Metering continues. Restart the meter by powering off and 207 powering on again then reset the date and Abnormal internal clock function. time. 1 Not all diagnostic codes apply to all devices. 126 DOCA0005EN-12 iEM3000 series user manual Power, energy and power factor Chapter 11 Power, energy and power factor NOTE: The descriptions in this section assume that you are an electrical energy consumer, not a supplier. Power (PQS) A typical AC electrical system load has both resistive and reactive (inductive or capacitive) components. Resistive loads consume real power (P) and reactive loads consume reactive power (Q). Apparent power (S) is the vector sum of real power (P) and reactive power (Q): S = P2 + Q2 Real power is measured in watts (W or kW), reactive power is measured in vars (VAR or kVAR) and apparent power is measured in volt-amps (VA or kVA). Power and the PQ coordinate system The meter uses the values of real power (P) and reactive power (Q) on the PQ coordinate system to calculate apparent power. +Q (+kVAR) Quadrant 2 Quadrant 1 -P (-kW) S Q (+) P (-) P (-) Q (-) S S Q (+) P (+) P (+) Q (-) S +P (+kW) Power flow Quadrant 3 Quadrant 4 -Q (-kVAR) Positive power flow P(+) and Q(+) means power is flowing from the power source towards the load. Negative power flow P(-) and Q(-) means power is flowing from the load towards the power source. DOCA0005EN-12 127 Power, energy and power factor iEM3000 series user manual Energy delivered (imported) / energy received (exported) The meter interprets energy delivered (imported) or received (exported) according to the direction of real power (P) flow. Energy delivered (imported) means positive real power flow (+P) and energy received (exported) means negative real power flow (-P). Quadrant Quadrant 1 Quadrant 2 Quadrant 3 Quadrant 4 Real (P) power flow Positive (+) Negative (-) Negative (-) Positive (+) Energy delivered (imported) or received (exported) Energy delivered (imported) Energy received (exported) Energy received (exported) Energy delivered (imported) Power factor (PF) Power factor (PF) is the ratio of real power (P) to apparent power (S), and is a number between 0 and 1. PF = P-S An ideal, purely resistive load has no reactive components, so its power factor is one (PF = 1, or unity power factor). A purely inductive or capacitive load no resistive components, so its power factor is zero (PF = 0). True PF True power factor includes harmonic content. PF lead / lag convention The meter correlates leading power factor (PF lead) or lagging power factor (PF lag) with whether the current waveform is leading or lagging the voltage waveform. Current phase shift from voltage For purely resistive loads the current waveform is in phase with the voltage waveform. For capacitive loads, current leads voltage. For inductive loads, current lags voltage. Current lead / lag and load type Current and voltage in phase (resistive) Current leads voltage (capacitive) Current lags voltage (inductive) V Vb Ib I Ia Va Ic Vc V Vb Ib Ia Va I Ic Vc V I Vb Ib Va Ic Ia Vc 90° 270° 90° 270° 90° 270° 128 DOCA0005EN-12 iEM3000 series user manual Power and PF lead / lag +Q (+kVAR) Power, energy and power factor Quadrant 2 Quadrant 1 S Q (+) PF lead P (-) -P (-kW) PF lag P (-) Q (-) S S P (+) P (+) S Q (+) PF lag +P (+kW) PF lead Q (-) Quadrant 3 Quadrant 4 -Q (-kVAR) PF lead / lag summary Quadrant Quadrant 1 Quadrant 2 Quadrant 3 Quadrant 4 Current phase shift Current lags voltage Current leads voltage Current lags voltage Current leads voltage Load type Inductive Capacitive Inductive Capacitive PF lead / lag PF lag PF lead PF lag PF lead DOCA0005EN-12 129 Power, energy and power factor iEM3000 series user manual PF sign convention The meter shows positive or negative power factor according to IEC standards. PF sign in IEC The meter correlates power factor sign (PF sign) with the direction of real power (P) flow. · For positive real power (+P), the PF sign is positive (+). · For negative real power (-P), the PF sign is negative (-). +Q (+kVAR) Quadrant 2 Quadrant 1 S Q (+) PF sign - P (-) -P (-kW) PF sign - P (-) Q (-) S S P (+) P (+) S Q (+) PF sign + +P (+kW) PF sign + Q (-) Quadrant 3 Quadrant 4 -Q (-kVAR) Power factor register format Each power factor value (PF value) occupies one floating point register for power factor (PF register). The meter performs a simple algorithm to the PF value then stores it in the PF register. The meter and software interpret the PF register for all reporting or data entry fields according to the following diagram: 130 DOCA0005EN-12 iEM3000 series user manual Power, energy and power factor 0 -0.5 Quadrant 2 -1 PF 0 +0.5 Quadrant 1 0 PF +1 DOCA0005EN-12 -1 +1 Quadrant 3 -1 PF 0 Quadrant 4 0 PF +1 -0.5 +0.5 PF value 0 to -1 0 -1 to 0 0 to +1 +1 to 0 0 -1 0 +1 0 Quadrant 3 Quadrant 2 Quadrant 1 Quadrant 4 -2 -1 0 +1 +2 PF register -2 to -1 -1 to 0 0 to +1 +1 to +2 00 -0.5 +0.5 Quadrant 2 -1 PF register 0 Quadrant 1 0 PF register +1 -1 +1 Quadrant 3 -2 PF register -1 Quadrant 4 +1 PF register +2 -1.5 +1.5 -2 +2 131 Power, energy and power factor iEM3000 series user manual PF value is calculated from the PF register value using the following formulas: Quadrant Quadrant 1 Quadrant 2 Quadrant 3 Quadrant 4 PF range PF register range 0 to +1 0 to +1 -1 to 0 0 to -1 -1 to 0 -2 to -1 +1 to 0 +1 to +2 PF formula PF value = PF register value PF value = PF register value PF value = (-2) - (PF register value) PF value = (+2) - (PF register value) Related topics · See the section for the applicable protocol for more information on the registers for that protocol. 132 DOCA0005EN-12 Schneider Electric 35, rue Joseph Monier CS 30323 F - 92506 Rueil Malmaison Cedex www.schneider-electric.com © 2019 Schneider Electric. All Rights Reserved. DOCA0005EN-12 10/2019 Modbus and Schneider Electric are either trademarks or registered trademarks of Schneider Electric in France, the USA and other countries. Other trademarks used are the property of their respective owners.
