To read your manual in English go to page 4. 感谢您购买 Dyson Supersonic™. 吹风机。 如需阅读简体中文版手册，. 请转至第 26 页。 感謝您購買 Dyson Supersonic™.
site:dyson.cloud filetype:pdf - Google Search

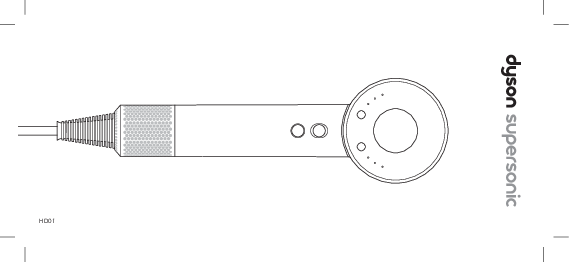

HD01
Thank you for buying the Dyson SupersonicTM hair dryer. To read your manual in English go to page 4.
Dyson SupersonicTM 26
Dyson SupersonicTM 46
Dyson SupersonicTM . 66 .
3
IMPORTANT SAFETY INSTRUCTIONS
BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND ON THE APPLIANCE
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING
THE CONCENTRATOR AND DIFFUSER ACCESSORIES CONTAIN MAGNETS.
1. Keep away from pacemakers, defibrillators, credit cards and electronic storage media. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
WARNING
THESE WARNINGS APPLY TO THE APPLIANCE, AND ALSO WHERE APPLICABLE, TO ALL TOOLS, ACCESSORIES, CHARGERS OR MAINS ADAPTORS.
4
2. This Dyson appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction by a responsible person concerning use of the appliance to ensure that they can use it safely.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. If the appliance is used in a bathroom, unplug after use. The proximity of water presents a hazard even when the appliance is switched off.
5. WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
6. If the supply cord is damaged, it must be replaced or repaired by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5
7. This appliance has a non- self resetting thermal cut out safety device to prevent overheating. If your appliance cuts out, unplug it from the mains supply socket and leave to cool.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility company, or plugged into any socket where the electrical supply is unstable or likely to be turned off.
9. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable. Ask your installer for advice.
10. Do not use the appliance for any other purpose than drying hair.
11. Do not handle any part of the plug or appliance with wet hands.
12. Do not unplug by pulling on the cable. To unplug, grasp the plug, not the cable. The use of an extension cable is not recommended.
6
13. Do not stretch the cord or place the cord under strain. Keep the cord away from heated surfaces and do not wrap the cord around the appliance.
14. Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the appliance.
15. Contact the Dyson Helpline when service or repair is required. Do not disassemble the appliance as incorrect reassembly may result in an electric shock or fire.
16. If the appliance is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Dyson Helpline.
The air exit and metal ring may
be hot during use. Allow to cool
before handling.
7
Activate your guarantee.
After registering your free 2 year guarantee, your Dyson appliance will be covered for parts and labour for 2 years from the date of purchase, subject to the terms of the guarantee. If you have any questions about your Dyson appliance, call the Dyson Helpline with your serial number and details of where/when you bought the appliance. Most questions can be solved over the phone by one of our trained Dyson Helpline staff. Visit www.dyson.com for online help, support videos, general tips and useful information about Dyson.
This product is for household use and it is not intended for business purposes. Using this appliance for professional purposes will invalidate the guarantee.
Your serial number can be found on the rating plate located on the cable label, towards the plug. Note your serial number for future reference on the back page of this manual.
This illustration is for example purposes only.
8
Hair dryers with big bulky motors have to put them in the head that's why hair dryer design hasn't changed since the 1960s.
We've turned convention on its head and put our powerful digital motor in the handle.
We also made the Dyson SupersonicTM hair dryer intelligent, by giving it a clever microprocessor which regulates temperature to help prevent extreme heat damage to protect natural shine.
9
In the box
Dyson SupersonicTM hair dryer
Smoothing nozzle
Styling concentrator
10
Diffuser
Non-slip mat
Storage hanger
11
Functions
12
Airflow control 3 precise settings.
Negative ions Helps reduce static. LEDs Temperature control 4 precise heat settings. Including a cold setting to fix your style. Power on/off Sliding switch.
Cold shot Press and hold to deactivate heat and set style.
Air inlet Removable filter cage Easy to remove for cleaning.
13
Attachments
Magic magnetic holding Magnetic accessories can be quickly and easily attached to the front of the appliance. They can be rotated 360° so you can position them precisely where you need them.
14
Heat Shield technology
Keeps the surface of the attachments cool for easy adjustment and close-up styling.
Smoothing nozzle
Dries hair gently using smooth air.
Storage hanger and non-slip mat
If you store your appliance on a hook, attach the storage hanger to the ribbed section at the base of the handle.
15
Styling concentrator
Fast, precise airflow for controlled styling, one section at a time.
16
Diffuser
Evenly disperses airflow to dry curls gently and help reduce frizz. Recommended for use on the low temperature and flow settings.
17
LEDs
Settings
When solid, the LED lights indicate which settings you're using.
Flow Fast
Medium
Temperature
Gentle High
Medium
Low/scalp mode
No red LED
Constant cold/cold shot
Maximum operating temperature in normal working conditions: up to 105°C
Maximum thermistor temperature at safety shut down: 145°C
Diagnostics
The LEDs will flash indefinitely to communicate one of the following warnings:
Clean filter. See the Cleaning section for details.
Contact call centre
18
19
Cleaning
Ensure that you unplug your appliance from the mains electricity supply before cleaning your filter.
1
2
Cage Mesh
Cage
Hold the handle of your appliance firmly and rotate the filter cage anti-clockwise.
Pull down and away from the appliance. Use a lintfree cloth or soft brush to remove any dust or debris from both the filter cage and the filter mesh.
20
3
4
Do not use water
Rotate the filter cage
to clean the filter.
back into position,
ensuring the correct
s
Do not apply too much alignment.
pressure to the filter
mesh.
Rotate clockwise
to lock before use.
21
USING YOUR DYSON APPLIANCE
PLEASE READ THE `IMPORTANT SAFETY INSTRUCTIONS' IN THIS DYSON OPERATING MANUAL BEFORE PROCEEDING.
LOOKING AFTER YOUR DYSON APPLIANCE
· Do not carry out any maintenance or repair work other than that shown in this Dyson Operating Manual, or advised by the Dyson Helpline.
· Always disconnect the plug from the mains before inspecting for problems. If the appliance will not operate, first check the mains socket has electricity supply and that the plug is properly inserted into the socket.
DISPOSAL INFORMATION
· Dyson products are made from high grade recyclable materials. Recycle where possible.
· The battery should be removed from the product before disposal.
· Dispose of or recycle the battery in accordance with local ordinances or regulations.
DYSON CUSTOMER CARE
THANK YOU FOR CHOOSING TO BUY A DYSON APPLIANCE After registering your free 2 year guarantee, your Dyson appliance will be covered for parts and labour (excluding filters) for 2 years from the date of purchase, subject to the terms of the guarantee. If you have any questions about your Dyson appliance, call the Dyson Helpline with your serial number and details of where/when you bought the appliance. Most questions can be solved over the phone by one of our trained Dyson Helpline staff. Visit www.dyson.com for online help, support videos, general tips and useful information about Dyson. Your serial number can be found on the rating plate located on the cable label, towards the plug. Note your serial number for future reference on the back page of this manual. If your Dyson appliance needs a service, call the Dyson Helpline so we can discuss the available options. If your Dyson appliance is under guarantee, and the repair is covered, it will be repaired at no cost.
PLEASE REGISTER AS A DYSON APPLIANCE OWNER
To help us ensure you receive prompt and efficient service, please register as a Dyson appliance owner. There are two ways to do this: · By email. · By calling the Dyson Helpline. This will confirm ownership of your Dyson appliance in the event of an insurance loss, and enable us to contact you if necessary.
22
LIMITED 2 YEAR GUARANTEE
TERMS AND CONDITIONS OF THE DYSON 2 YEAR LIMITED GUARANTEE
WHAT IS COVERED
· The repair or replacement of your Dyson appliance (at Dyson's discretion) if it is found to be defective due to faulty materials, workmanship or function within 2 years of purchase or delivery (if any part is no longer available or out of manufacture Dyson will replace it with a functional replacement part).
· This guarantee will only be valid if the appliance is used in the country in which it was sold.
WHAT IS NOT COVERED
· Damage caused by not carrying out the recommended appliance maintenance. Dyson does not guarantee the repair or replacement of a product where a defect is the result of:
· Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the appliance which is not in accordance with the Dyson Operating Manual.
· Use of the appliance for anything other than as a hair dryer.
· Use of parts not assembled or installed in accordance with the instructions of Dyson.
· Use of parts and accessories which are not genuine Dyson components.
· Faulty installation (except where installed by Dyson). · Repairs or alterations carried out by parties other than
Dyson or its authorised agents. · Normal wear and tear (e.g. fuse etc.).
If you are in any doubt as to what is covered by your guarantee, please contact Dyson.
SUMMARY OF COVER
· The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
· You must provide proof of (both the original and any subsequent) delivery/purchase before any work can be carried out on your Dyson appliance. Without this proof, any work carried out will be chargeable. Keep your receipt or delivery note.
· All work will be carried out by Dyson or its authorised agents.
· Any parts which are replaced by Dyson will become the property of Dyson.
· The repair or replacement of your Dyson appliance under guarantee will not extend the period of guarantee.
· The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
23
ABOUT YOUR PRIVACY
When registering your Dyson Product · You will need to provide us with basic contact information
to register your product and enable us to support your guarantee. · When you register, you will have the opportunity to choose whether you would like to receive communications from us. If you opt-in to communications from Dyson, we will send you details of special offers and news of our latest innovations. We never sell your information to third parties and only use information that you share with us as defined by our privacy policies which are available on our website. www.dyson.com/support/privacypolicy
24
25
:
1.
2.
3.
4.
26
5.
6.
7.
8.
9. (RCD) 30 mA
10.
11.
12.
27
13.
14.
15.
16.
28
29
2 , ,2 , ,, , www.dyson.cn
30
60 Dyson SupersonicTM ----
31
Dyson
SupersonicTM
32
33
34
3 LED 4 /
35
360°
36
37
38
39
LED
LED
/
LED
/
105°C 145°C
LED
""
40
"
41
1
2
42
3
4
43
" "
·
·
·
· ·
2 2 www.dyson.cn ,, , ,
· ·
44
2
2
· 2
·
·
·
· · · · · ·
·
· /
· · · ·
Dyson Link · · www.dyson.com/privacy
45
1.
2.
3.
4.
46
5.
6.
7.
8.
9.
(RCD)
30 mA
10.
11.
12.
47
13.
14.
15.
16.
48
49
2 2 www.dyson.tw
50
1960 Dyson SupersonicTM
51
Dyson
SupersonicTM
52
53
54
3 LED 4 /
55
360°
56
57
58
59
LED
LED
/
LED
/
105°C 145°C
LED
60
61
1
2
62
3
4
63
·
·
·
· ·
2 2 www.dyson.tw ,,
· ·
64
2
· 2 ( )
· /
·
·
· · · · · ·
· · (
) / · · · ·
·
·
www.dyson.com/privacy
65
.
:
.
1. , , . , ,
, , .
2. , , , .
3. .
66
, . . 4. . .
5. : , , .
6. .
7. . .
8. : , , ,
67
.
9. 30mA (RCD) . .
10. .
11. .
12. . . .
13. . .
14. , , .
15. . . .
16. , , , ,
68
, .
. .
69
.
2 . . . , , , dyson@cosmoglobal.co.kr () . . . . .
.
70
. 1960 .
.
Dyson SupersonicTM .
71
Dyson
SupersonicTM
72
73
74
3 .
. LED 4 . . /(on/off) .
.
.
75
. 360° .
76
.
.
.
, .
77
, .
78
. .
79
LED
LED .
/
LED
/
: 105°C
: 145°C
LED :
. .
80
81
.
1
2
.
. .
82
3
4
.
.
.
.
.
83
` ' .
· .
· . , .
· . .
· .
· .
2 2 ( ) . . . , , , dyson@cosmoglobal.co.kr () . . . . . 2 .
, . . · . · . , .
84
2
2
· , ( ) 2 ( ).
· .
· . :
· , , , , .
· . ·
. · . · ( ). ·
. · (: ).
.
· ( ) .
· ( ) / . . .
· . · . ·
. ·
.
·
. · www.dyson.com/privacy
85
MARKING FOR NAME AND CONTENT
OF TOXIC OR HAZARDOUS
SUBSTANCES OR ELEMENTS
Part Name
Cadmium Lead
(Cd) (Pb)
External chassis, body
O
O
Internal chassis
O
O
Internal wire and cable
O
O
Foam materials
O
O
Screws and nuts &
O
O
Controller and parts &
O
O
Printed circuit board and components O
X(1)
Metals in Thermistor
O
X(1)
Cord Set
O
O
Motor
O
O
Electronic Assembly
O
O
O: Indicate that this toxic or hazardous substance contained in all of the homogeneous materials for this part is within the limit requirement in GB/T26572-2011.
O: GB/T26572-2011
X: Indicate that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part exceed the limit requirement in GB/T26572-2011.
X: GB/T26572-2011
86
10
Toxic or Hazardous Substances or elements
Mercury
Hex Chromium PBB
PBDE
(Hg)
(Cr6+)
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
(1) Toxic or hazardous substance contained is exempted under EU RoHS directives exemption list (2011/65/EU).
(1) RoHS (2011/65/EU).
Disclaimer: The environment safe use period is declared based on the normal temperature & humidity use conditions.
87
COMMON PARTS FOR ALL SKUS
Metals in Thermistor
Printed circuit board and components
88
89
Dyson Customer Care
If you have a question about your Dyson appliance, call the Dyson Helpline with your serial number and details of where and when you bought the appliance, or contact us via the Dyson website. .
90
CN china.service@dyson.com 4009 202 808 63103a + 1M www.dyson.cn
HK Jebsen Consumer Products Company Limited pidcs@jebsen.com 2926 2300 10/F, Continental Electric Building, 17 Wang Chiu Road, Kowloon Bay, Kowloon, Hong Kong www.jebsenconsumer.com
KR dyson@cosmoglobal.co.kr 1588 4253 137-070 720-4 12
MY Dyson Helpline dysonsupport@visionary.com.my 603 7710 5877 A-8, Block Allamanda, 10 Boulevard, Lebuhraya Sprint 6A, Petaling Jaya 47400, Selangor, Malaysia.
SG Dyson Customer Care service@ewpes.com.sg 7000 435 7546 Service @ Home Pte. Ltd., 2 Leng Kee Road, #04-09A Thye Hong Centre, Singapore 159086 www.dyson.com.sg
TW Dyson service@hlh.com.tw 0800 251 209 887 www.dyson.tw
91
JN.79832 PN.306639-07-02 30.03.16
