802.11n(HT20) Mode 5200 MHz 802.11n(HT20) Mode 5240 MHz

Original Document

If the viewer doesn’t load, open the PDF directly.

Extracted Text

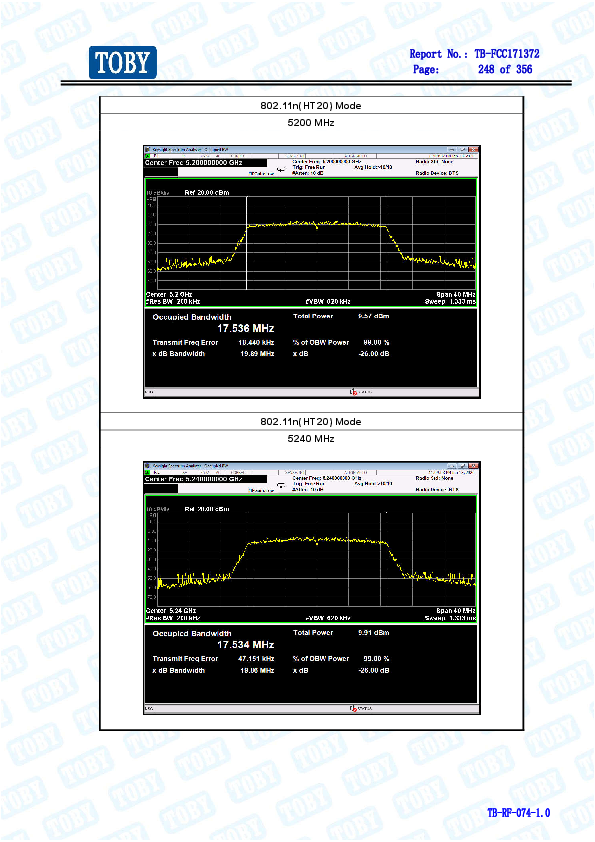

802.11n(HT20) Mode 5200 MHz
802.11n(HT20) Mode 5240 MHz

Temperature: Test Voltage: Test Mode:
Channel
36 40 48

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT20) Mode (U-NII-1)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5180

20.67

5200

20.38

5240

20.59

802.11ac(VHT20) Mode

5180 MHz

55%
99% Bandwidth (MHz) 17.723 17.710 17.718

802.11ac(VHT20) Mode 5200 MHz
802.11ac(VHT20) Mode 5240 MHz

Temperature: Test Voltage: Test Mode:
Channel
38 46

25

Relative Humidity:

DC 3.8V

TX 802.11N(HT40) Mode (U-NII-1)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5190

40.95

5230

46.63

802.11N(HT40) Mode

5190 MHz

55%
99% Bandwidth (MHz) 36.047 36.087

802.11N(HT40) Mode 5230 MHz

Temperature: Test Voltage: Test Mode:
Channel
38 46

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT40) Mode (U-NII-1)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5190

40.79

5230

40.86

802.11ac(VHT40) Mode

5190 MHz

55%
99% Bandwidth (MHz) 36.090 36.035

802.11ac(VHT40) Mode 5230 MHz

Temperature: Test Voltage: Test Mode:
Channel 42

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT80) Mode (U-NII-1)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5210

75.465

802.11ac(VHT80) Mode

5210 MHz

55%
99% Bandwidth (MHz) 81.80

Temperature: Test Voltage: Test Mode:
Channel
52 56 64

25

Relative Humidity:

DC 3.8V

TX 802.11a Mode (U-NII-2A)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5260

20.20

5280

20.04

5320

20.32

802.11a Mode

5260 MHz

55%
99% Bandwidth (MHz) 16.672 16.664 16.684

802.11a Mode 5280 MHz
802.11a Mode 5320 MHz

Temperature: Test Voltage: Test Mode:
Channel
52 56 64

25

Relative Humidity:

DC 3.8V

TX 802.11n(HT20) Mode (U-NII-2A)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5260

22.56

5280

23.76

5320

20.23

802.11n(HT20) Mode

5260 MHz

55%
99% Bandwidth (MHz) 17.766 17.755 17.731

802.11n(HT20) Mode 5280 MHz
802.11n(HT20) Mode 5320 MHz

Temperature: Test Voltage: Test Mode:
Channel
52 56 64

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT20) Mode (U-NII-2A)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5260

20.54

5280

20.54

5320

20.63

802.11ac(VHT20) Mode

5260 MHz

55%
99% Bandwidth (MHz) 17.694 17.684 17.708

802.11ac(VHT20) Mode 5280 MHz
802.11ac(VHT20) Mode 5320 MHz

Temperature: Test Voltage: Test Mode:
Channel
54 62

25

Relative Humidity:

DC 3.8V

TX 802.11N(HT40) Mode (U-NII-2A)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5270

40.92

5310

40.97

802.11N(HT40) Mode

5270 MHz

55%
99% Bandwidth (MHz) 36.043 36.004

802.11N(HT40) Mode 5310 MHz

Temperature: Test Voltage: Test Mode:
Channel
54 62

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT40) Mode (U-NII-2A)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5270

40.65

5310

41.05

802.11ac(VHT40) Mode

5270 MHz

55%
99% Bandwidth (MHz) 35.995 35.935

802.11ac(VHT40) Mode 5310 MHz

Temperature: Test Voltage: Test Mode:
Channel 58

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT80) Mode (U-NII-2A)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5290

80.97

802.11ac(VHT80) Mode

5290 MHz

55%
99% Bandwidth (MHz) 75.277

Temperature: Test Voltage: Test Mode:
Channel
100 116 144

25

Relative Humidity:

DC 3.8V

TX 802.11a Mode (U-NII-2C)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5500

19.42

5600

19.45

5700

19.29

802.11a Mode

5500 MHz

55%
99% Bandwidth (MHz) 16.401 16.395 16.397

802.11a Mode 5600 MHz
802.11a Mode 5700 MHz

Temperature: Test Voltage: Test Mode:
Channel
144

25

Relative Humidity: 55%

DC 3.8V

TX 802.11a Mode (U-NII-2C)

Frequency (MHz)

26dB Bandwidth 6dB Bandwidth

(MHz)

(MHz)

5720

15.11 ----

---3.265

802.11a Mode

5720 MHz Straddle 5.47-5.725GHz

99% Bandwidth (MHz) 13.428 3.9283

802.11a Mode 5720 MHz Straddle 5.725-5.85GHz

Temperature: Test Voltage: Test Mode:
Channel
100 116 144

25

Relative Humidity:

DC 3.8V

TX 802.11n(HT20) Mode (U-NII-2C)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5500

19.87

5600

19.88

5700

20.01

802.11n(HT20) Mode

5500 MHz

55%
99% Bandwidth (MHz) 17.559 17.558 17.522

802.11n(HT20) Mode 5600 MHz
802.11n(HT20) Mode 5700 MHz

Temperature: Test Voltage: Test Mode:
Channel
144

25

Relative Humidity: 55%

DC 3.8V

TX 802.11n(HT20) Mode (U-NII-2C)

Frequency 26dB Bandwidth 6dB Bandwidth

(MHz)

(MHz)

(MHz)

5720

15.15 ----

---3.876

802.11n(HT20) Mode

5720 MHz Straddle 5.47-5.725GHz

99% Bandwidth (MHz) 13.803 4.2248

802.11n(HT20) Mode 5720 MHz Straddle 5.725-5.85GHz

Temperature: Test Voltage: Test Mode:
Channel
100 116 144

25

Relative Humidity:

DC 3.8V

TX 802.11ac(VHT20) Mode (U-NII-2C)

Frequency

26dB Bandwidth

(MHz)

(MHz)

5500

19.91

5600

19.96

5700

20.03

802.11ac(VHT20) Mode

5500 MHz

55%
99% Bandwidth (MHz) 17.523 17.528 17.573

802.11ac(VHT20) Mode 5600 MHz
802.11ac(VHT20) Mode 5700 MHz

Temperature: Test Voltage: Test Mode:
Channel
144

25

Relative Humidity: 55%

DC 3.8V

TX 802.11ac(VHT20) Mode (U-NII-2C)

Frequency 26dB Bandwidth 6dB Bandwidth

(MHz)

(MHz)

(MHz)

5720

15.17 ----

---3.892

802.11ac(VHT20) Mode

5720 MHz Straddle 5.47-5.725GHz

99% Bandwidth (MHz) 13.851 4.1934

802.11ac(VHT20) Mode 5720 MHz Straddle 5.725-5.85GHz
