(Updated October 17, 2019)

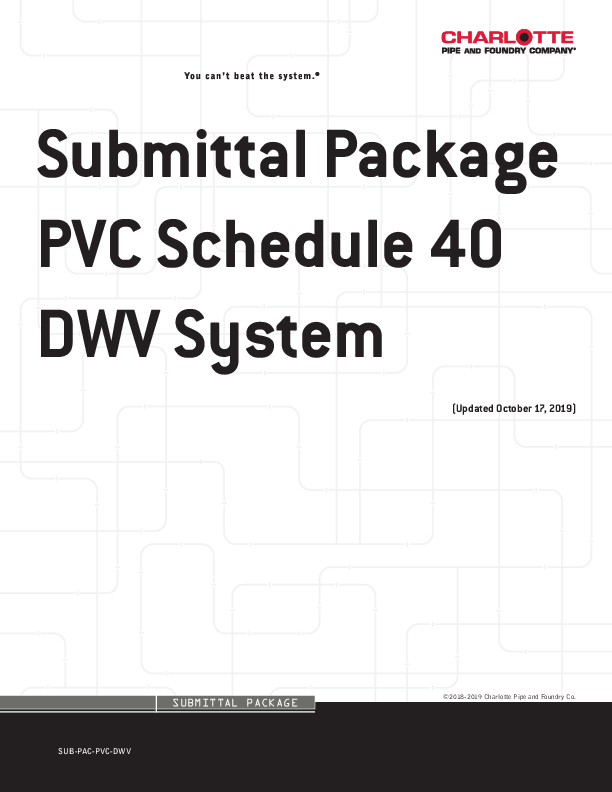

SUBMITTAL PACKAGE
SUB-PAC-PVC-DWV
©2018-2019 Charlotte Pipe and Foundry Co.
PVC Schedule 40 DWV Submittal Package
Table of Contents for PVC Schedule 40 DWV Submittal Package
Page Submittal Form for PVC Schedule 40 Solid Wall Pipe and PVC DWV Fitting System................................ 3 Product Certifications............................................................................................................................... 4 Physical Properties................................................................................................................................... 5 Solvent Cements and Applicators.............................................................................................................. 6 Chemical Resistance............................................................................................................................ 7-27 Dimensional Information................................................................................................................... 28-45 Limited Warranty................................................................................................................................... 47
2
SUBMITTAL FOR CHARLOTTE PIPE® PVC SCHEDULE 40 SOLID WALL PIPE AND PVC DWV FITTING SYSTEM
Date: ________________ Job Name: ______________________________ Engineer: _______________________________
Location: _______________________________ Contractor: ______________________________
Scope: This specification covers PVC Schedule 40 solid wall pipe and PVC DWV fittings used in sanitary drain, waste and
vent (DWV), sewer and storm drainage applications. This system is intended for use in non-pressure applications
where the operating temperature will not exceed 140° F.
Specification: Pipe shall be manufactured from virgin rigid PVC (polyvinyl chloride) vinyl compounds with a cell class of 12454 as identified in ASTM D 1784. PVC Schedule 40 pipe shall be Iron Pipe Size (IPS) conforming to ASTM D 1785 and ASTM D 2665. Injection molded PVC DWV fittings shall conform to ASTM D 2665. Fabricated PVC DWV fittings shall conform to ASTM F 1866. All pipe and fittings shall be manufactured in the United States. All systems shall utilize a separate waste and vent system. Pipe and fittings shall conform to NSF International Standard 14.
Installation: Installation shall comply with the latest installation instructions published by Charlotte Pipe and Foundry and shall
conform to all applicable plumbing, fire, and building code requirements. Buried pipe shall be installed in accordance
with ASTM D 2321 and ASTM F 1668. Solvent cement joints shall be made in a two-step process with primer
conforming to ASTM F 656 and solvent cement conforming to ASTM D 2564. The system shall be protected from
chemical agents, fire-stopping materials, thread sealant, plasticized-vinyl products or other aggressive chemical
agents not compatible with PVC compounds. The system shall be hydrostatically tested after installation.
WARNING! Never test with or transport/store compressed air or gas in PVC pipe or fittings. Doing so can result in explosive failures and cause severe injury or death.
Referenced Standards:
ASTM D 1784: Rigid Vinyl Compounds
ASTM D 1785: PVC Plastic Pipe, Schedule 40
ASTM D 2665: PVC Drain, Waste and Vent Pipe and Fittings
ASTM D 2564: Solvent Cements for PVC Pipe and Fittings
ASTM D 2321: Underground Installation of Thermoplastic
Pipe (non-pressure applications)
ASTM F 656:
Primers for PVC Pipe and Fittings
ASTM F 1668:
Procedures for Buried Plastic Pipe
ASTM F 1866:
Fabricated PVC DWV Fittings
NSF Standard 14: Plastic Piping Components and
Related Materials
Coupling
Quarter Bend
Eighth Bend
Double Sanitary Tee
Cleanout Tee Combination Wye
w/Plug
& Eighth Bend
Not all fitting patterns shown
P-Trap
Closet Flange
PVC Schedule 40 DWV Pipe
PVC Schedule 40 DWV Pipe
PPVVCC SSCCHHEEDDUULLEE 4400 ((WWHHIITTEE)) PPLLAAIINN EENNDD
PPVVCC 11112200
AASSTTMM DD 22666655
PART NO.
NOM. SIZE
UPC # 611942-
QTY. PER SKID
AVG. OD (IN.)
MIN. WALL WT. PER 100 FT.
(IN.)
(LBS.)
PVC 7100* 11/4"x10' 03945 2120' 1.660 .140 42.4 PVC 7100* 11/4"x20' 03946 4240' 1.660 .140 42.4 PVC 7112* 11/2"x10' 03947 1650' 1.900 .145 51.8 PVC 7112* 11/2"x20' 03948 3300' 1.900 .145 51.8 PVC 7200* 2"x10' 03949 1110' 2.375 .154 69.5 PVC 7200* 2"x20' 03950 2220' 2.375 .154 69.5 PVC 7300* 3"x10' 03951 1130' 3.500 .216 144.2 PVC 7300* 3"x20' 03952 1000' 3.500 .216 144.2 PVC 7400 4"x10' 03953 670' 4.500 .237 205.5 PVC 7400 4"x20' 03954 1340' 4.500 .237 205.5 PVC 7500 5"x20' 04837 760' 5.563 .258 272.5 PVC 7600 6"x10' 03955 330' 6.625 .280 361.2 PVC 7600 6"x20' 03956 660' 6.625 .280 361.2 PVC 7800 8"x10' 13087 180' 8.625 .322 543.6 PVC 7800 8"x20' 03958 360' 8.625 .322 543.6 PVC 7910 10"x20' 03959 220' 10.750 .365 770.7 PVC 7912 12"x20' 03961 120' 12.750 .406 1019.0 PVC 7914 14"x20' 04862 60' 14.000 .437 1205.0 PVC 7916 16"x20' 04918 60' 16.000 .500 1575.7
* Dual Marked ASTM D 1785 & ASTM D 2665. Triple Marked ASTM D 1785 & ASTM D 2665 & ASTM F 480.
Charlotte Pipe and Foundry Company · P.O. Box 35430 Charlotte, NC 28235 · (800) 438-6091 · www.charlottepipe.com
Charlotte Pipe and Charlotte Pipe and Foundry Company are registered trademarks of Charlotte Pipe and Foundry Company.
FO-SUB-PVC-DWV (10-17-19)
3
Product Certification
PVC Schedule 40 DWV Submittal Package
This is to certify that all Plastic Pipe and Fittings manufactured by Charlotte Pipe and Foundry Company are manufactured in the United States and conform to the following standards:
PVC SCH. 40 SOLID WALL PIPE ASTM D 1784, ASTM D 1785, ASTM D 2665 FHA UM 79a FEDERAL SPECIFICATION L-P-320a NSF STANDARD 14 AND 61
PVC SCH. 40 DWV CELLULAR CORE PIPE ASTM D 4396, ASTM F 891 NSF STANDARD NO. 14
PVC SCH. 40 DWV FITTINGS ASTM D 1784, ASTM D 2665, ASTM D 3311, ASTM F1866 FHA UM 79a FEDERAL SPECIFICATION L-P-320a NSF STANDARD NO. 14
ConnecTite® PUSH-FIT DWV FITTINGS ASME A112.4.4, IAPMO IGC 334 NSF STANDARD NO. 14
PVC SDR 35 SEWER MAIN PIPE ASTM D 1784, ASTM D 3034, SDR 35 ASTM D 3212, ASTM F 477
PVC SEWER AND DRAIN PIPE ASTM D 1784, ASTM D 2729
PVC THIN WALL PIPE & FITTINGS ASTM D 1784, ASTM D 2949 NSF STANDARD NO. 14
CPVC FLOWGUARD GOLD® CTS PIPE & FITTINGS ASTM D 1784, ASTM D 2846 FHA UM-61a NSF STANDARD NO. 14 AND 61 CSA LISTED ON SPECIFIED ITEMS
CPVC CHEMDRAIN® SCH. 40 PIPE & FITTINGS ASTM D 1784, ASTM F 2618 NSF STANDARD 14
PVC SDR-21 AND SDR-26 PRESSURE PIPE ASTM D 1784, ASTM D 2241 NSF STANDARD NO. 14 AND 61
PVC SCH. 40 PRESSURE FITTINGS ASTM D 1784, ASTM D 2466 NSF STANDARD 14 AND 61
PVC SCH. 40 WELL CASING PIPE ASTM D 1784, ASTM F 480 NSF STANDARD NO. 14 AND 61
PVC SCH. 80 PIPE ASTM D 1784, ASTM D 1785 NSF STANDARD NO. 14 AND 61
ABS SCH. 40 DWV CELLULAR CORE PIPE ASTM D 3965, ASTM F 628 NSF STANDARD NO. 14
ABS PLUS® SCH. 40 DWV CELLULAR CORE PIPE ASTM D 3965, ASTM D 4396, ASTM F 1488
ABS SCH. 40 DWV FITTINGS ASTM D 3965, ASTM D 2661, ASTM D 3311 FHA UM 79a FEDERAL SPECIFICATION L-P-322b NSF STANDARD NO. 14
CHARLOTTE PIPE AND FOUNDRY COMPANY
PVC SCH. 80 FITTINGS ASTM D 1784, ASTM D 2467 ASTM D 2464 ASTM F 1970 NSF STANDARD NO. 14 AND 61
ABS Plus, ChemDrain, and ConnecTite are registered trademarks of Charlotte Pipe and Foundry Company. FlowGuard Gold is a registered trademark of Lubrizol Corp.
4
Physical Properties of Charlotte Pipe® ABS and PVC Materials*
PROPERTY Specific Gravity Tensile Strength (73°F) Minimum Modulus of Elasticity in Tension (73°F) Minimum Flexural Strength (73°F) Izod Impact (notched at 73°F) Minimum Hardness (Durometer D) Hardness (Rockwell R) Compressive Strength (73°F) Hydrostatic Design Stress Coefficient of Linear Expansion Heat Distortion Temperature at 264 psi Minimum Coefficient of Thermal Conductivity Specific Heat Water Absorption (24 hrs at 73°F) Cell Classification - Pipe Cell Classification - Fittings Burning Rate
UNITS g/cc Psi Psi Psi ft lb/ in. of notch
Psi Psi in./ in./ °F degrees F BTU/ hr/sq ft/ °F/ in. BTU/ °F/lb % weight gain
ABS 1.05 4,500 240,000 10,585 6.00 70 100 7,000 N/A 5.5 x 10-5 180 1.1 0.35 0.40 42222 32222
ASTM NO. D 792 D 638 D 638 D 790 D 256 D 2240 D 785 D 695
D 696 D 648 C 177 D 2766 D 570 D 3965 D 3965
PVC 1.40 7,000 400,000 14,000 0.65 80 ± 3 110 - 120 9,600 2,000 3.0 x 10-5 158 1.2 0.25 .05 12454 12454 Self Ext.
ASTM NO. D 792 D 638 D 638 D 790 D 256 D 2240 D 785 D 695 D 1598 D 696 D 648 C 177 D 2766 D 570 D 1784 D 1784 D 635
*Above data is based upon information provided by the raw material manufacturers. It should be used only as a recommendation and not as a guarantee of performance.
5
PVC Schedule 40 DWV Submittal Package
Solvent Cements
Pipe and Fitting System
ABS DWV ABS Plus® Foam Core Pipe
FlowGuard Gold® CTS CPVC
CPVC Sch. 80
CPVC Sch. 80
CPVC Sch. 40 ChemDrain
PVC DWV or Sch. 40 Pressure
PVC DWV or Sch. 40 Pressure
PVC Sch. 80
PVC Sch. 80
Diameter (in.)
Solvent Cement Standard
11/2 - 6 ASTM D 2235
11/2 - 4 ASTM D 2235
1/2 - 2
ASTM F 493
1/2 - 2
ASTM F 493
21/2 - 8
ASTM F 493
11/4 - 8
ASTM F 493
1/2 - 4
ASTM D 2564
6 - 16 ASTM D 2564
1/4 - 2
ASTM D 2564
21/2 - 16 ASTM D 2564
Cement Color
(common usage, check local code)
Black
Black
Description
Regular or Medium-Bodied
Regular or Medium-Bodied
Primer
(common usage, check local code)
Not Recommended
Not Recommended
Yellow IPS 714 or Oatey CPVC
Heavy Duty Orange IPS 714 or Oatey CPVC
Heavy Duty Orange ChemDrain Mustard
Yellow (Required)
Clear
Clear or Grey
Grey
Grey
Regular-Bodied
Heavy-Bodied
Heavy-Bodied
Heavy-Bodied Regular or
Medium-Bodied Medium or
Heavy-Bodied Medium or
Heavy-Bodied
Heavy-Bodied
Optional IPS P-70 or Oatey Industrial Grade IPS P-70 or Oatey Industrial Grade 6" and larger: IPS P-70 or Oatey Industrial Grade required
Required ASTM F 656
Required ASTM F 656
Required ASTM F 656 IPS P-70 or Oatey Industrial Grade
NOTICE: Aerosol or spray-on type primers/solvent cements are not recommended. The practice of aggressively scouring the pipe and fittings with both primer and solvent cement is an integral part of the joining process. Not working the primer or solvent cement into the pipe or fitting could cause potential system failure or property damage.
Primers and cements are extremely flammable and may be explosive. Do not store or use near open flame or elevated temperatures, which may result in injury or death. · Solvent fumes created during the joining process are
heavier than air and may be trapped in newly installed piping systems. · Ignition of the solvent vapors caused by spark or flame may result in injury or death from explosion or fire. · Read and obey all manufacturers' warnings and any instructions pertaining to primers and cements. · Provide adequate ventilation to reduce fire hazard and to minimize inhalation of solvent vapors when working with cements, primers and new piping systems.
Applicator Types
Nominal Pipe
Applicator Type
Size (in.)
Dauber Brush Width (in.) Swab Length (in.)
1/4
A
1/2
NR
3/8
A
1/2
NR
1/2
A
1/2
NR
3/4
A
1
NR
1
A
1
NR
11/4
A
1
NR
11/2
A
1 - 11/2
NR
2
A
1 - 11/2
NR
21/2
NR
11/2 - 2
NR
3
NR
11/2 - 21/2
NR
4
NR
2 - 3
3
6
NR
3 - 5
3
8
NR
4 - 6
7
10
NR
6 - 8
7
12
NR
6 - 8
7
14
NR
7 - 8
7
16
NR
8+
8
A = Acceptable
NR = Not Recommended
NOTICE: Rollers are not recommended.
6
Chemical Resistance
The following table gives the chemical resistance of ABS, PVC and CPVC thermoplastic piping materials and three commonly used seal materials. The information shown is based upon laboratory tests conducted by the manufacturers of the materials, and it is intended to provide a general guideline on the resistance of these materials to various chemicals.
PVC, ABS and CPVC piping systems have very different chemical resistance. Review manufacturer's literature for all chemicals coming into contact with the piping materials prior to use.
NOTICE: This table is not a guarantee, and any piping systems using
products made of these materials should be tested under actual service conditions to determine their suitability for a particular
purpose. See website for most current data: www.charlottepipe.com
Number = Maximum Recommended Temp. (°F)** CF = Consult Factory NR = Not Recommended · · = Incomplete Data
Chemical Name
Acetaldehyde............................................ Acetamide................................................ Acetate Solvent, Crude ............................ Acetate Solvent, Pure .............................. Acetic Acid, 10% .................................... Acetic Acid, 20% .................................... Acetic Acid, 50% .................................... Acetic Acid, 80% .................................... Acetic Acid, Glacial ................................. Acetic Anhydride ..................................... Acetone ................................................... Acetonitrile.............................................. Acetophenone .......................................... Acetyl Chloride ........................................ Acetylene ................................................ Acetyl Nitrile............................................ Acrylic Acid............................................. Acrylonitrile............................................. Adipic Acid (Sat'd) .................................. Alcohol, Allyl........................................... Alcohol, Amyl........................................... Alcohol, Benzyl ....................................... Alcohol, Butyl ......................................... Alcohol, Diacetone ................................... Alcohol, Ethyl (Ethanol) Up to 5% ........... Alcohol, Ethyl (Ethanol) Over 5%............. Alcohol, Hexyl (Hexanol).......................... Alcohol, Isopropyl (Isopropanol)............... Alcohol, Methyl (Methanol)...................... Alcohol, Octyl (1-n-Octanol)...................... Alcohol, Propyl (Propanol)......................... Allyl Alcohol............................................ Allyl Chloride .......................................... Alums ..................................................... Aluminum Acetate....................................
Pipe & Fitting Materials Recommended Max. Temp (°F)
ABS
PVC
CPVC
NR
NR
NR
120
· ·
· ·
NR
NR
NR
NR
NR
NR
120
140
180
NR
140
180
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
140§
140§
180§
NR
NR
NR
NR
NR
NR
NR
73
NR
· ·
140
180
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
100
NR
NR
NR
NR
73
140
180
NR
140
180
NR
100
NR
NR
140
NR
NR
140
140
NR
100
73
NR
140
NR
NR
NR
NR
NR
NR
NR
140
140
180
140
· ·
180
Seal Materials Recommended Max. Temp. (°F)
Viton ®
EPDM
Neoprene
NR
200
NR
NR
200
NR
NR
200
NR
NR
200
NR
73
200
NR
NR
200
NR
NR
140
NR
NR
140
NR
NR
73
NR
NR
NR
73
NR
200
NR
NR
NR
73
NR
140
NR
185
NR
NR
200
200
73
NR
NR
NR
NR
NR
NR
NR
100
NR
160
140
140
73
73
73
160
200
140
140
NR
NR
200
140
140
NR
70
NR
200
200
160
NR
200
140
200
NR
NR
160
160
73
NR
160
160
73
NR
NR
200
200
140
100
70
73
NR
NR
NR
200
100
100
NR
200
NR
Acrylonitrile-Butadiene-Styrene Polyvinyl Chloride Type 1 Grade 1 Chlorinated Polyvinyl Chloride Type IV Grade 1 Flourocarbon Elastomer (Viton ® is a registered trademark of the DuPont Co.) Ethylene Propylene Diene Monomer ** Maximum recommended temperature, for chemical resistance, under normal conditions. § Non-pressure, vent-only, applications when chemical is in gas form. Must use solvent cement specially formulated for hypochlorite or caustic chemical service (IPS Weld-On 724 or equal).
