to an X-405 installed behind a network router by eliminating manual configuration of the device and port forwarding setup on routers. X-405™ Monitor up to 16, 1-Wire temperature/humidity sensors Web-Enabled Temperature and Humidity Module Features: º 1-Wire Bus for up to 16 sensors (temperature, humidity, etc.)
to an X-405 installed behind a network router by eliminating manual configuration of the device and port forwarding setup on routers. X-405™.

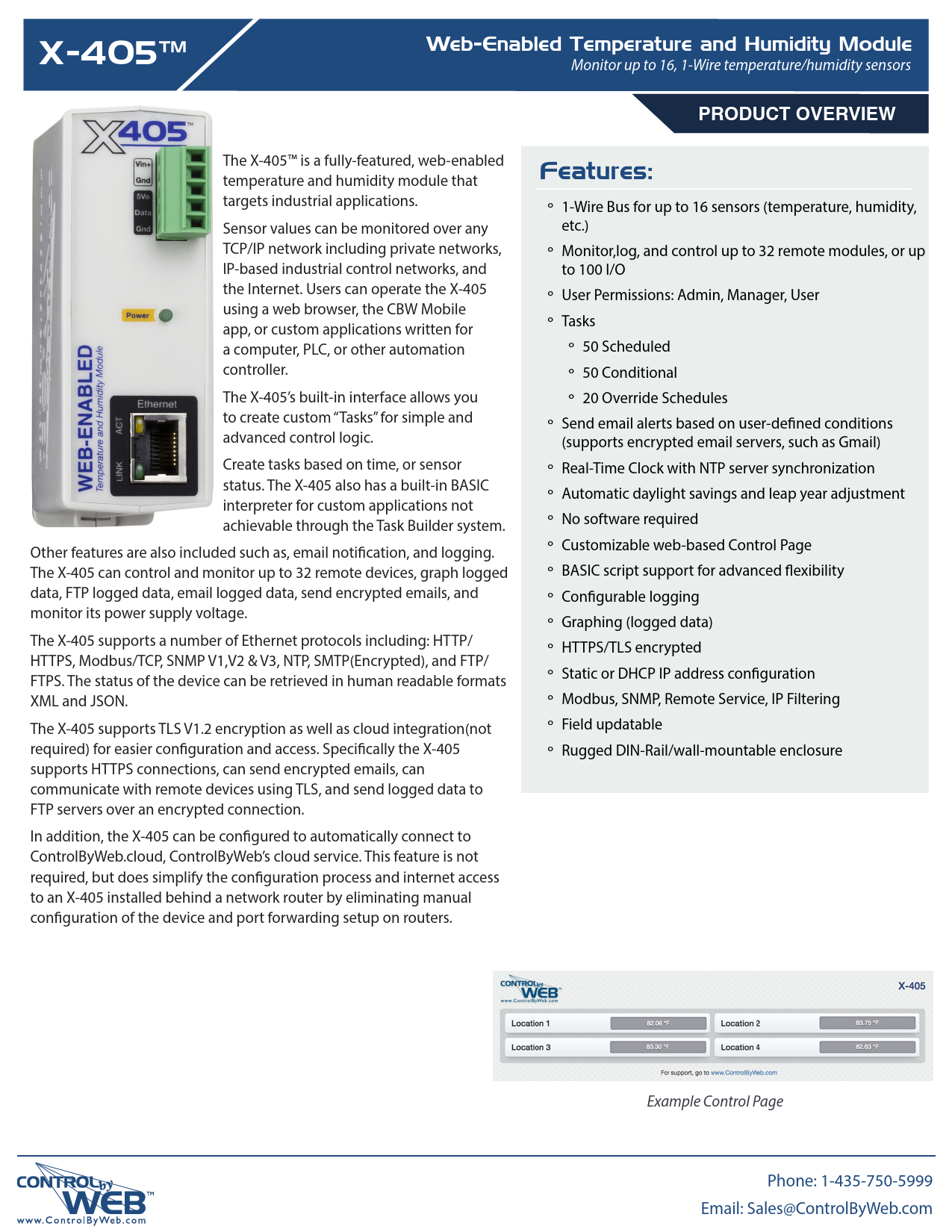

X-405TM Web-Enabled Temperature and Humidity Module Monitor up to 16, 1-Wire temperature/humidity sensors PRODUCT OVERVIEW The X-405TM is a fully-featured, web-enabled temperature and humidity module that targets industrial applications. Sensor values can be monitored over any TCP/IP network including private networks, IP-based industrial control networks, and the Internet. Users can operate the X-405 using a web browser, the CBW Mobile app, or custom applications written for a computer, PLC, or other automation controller. The X-405's built-in interface allows you to create custom "Tasks" for simple and advanced control logic. Create tasks based on time, or sensor status. The X-405 also has a built-in BASIC interpreter for custom applications not achievable through the Task Builder system. Other features are also included such as, email notification, and logging. The X-405 can control and monitor up to 32 remote devices, graph logged data, FTP logged data, email logged data, send encrypted emails, and monitor its power supply voltage. The X-405 supports a number of Ethernet protocols including: HTTP/ HTTPS, Modbus/TCP, SNMP V1,V2 & V3, NTP, SMTP(Encrypted), and FTP/ FTPS. The status of the device can be retrieved in human readable formats XML and JSON. The X-405 supports TLS V1.2 encryption as well as cloud integration(not required) for easier configuration and access. Specifically the X-405 supports HTTPS connections, can send encrypted emails, can communicate with remote devices using TLS, and send logged data to FTP servers over an encrypted connection. In addition, the X-405 can be configured to automatically connect to ControlByWeb.cloud, ControlByWeb's cloud service. This feature is not required, but does simplify the configuration process and internet access to an X-405 installed behind a network router by eliminating manual configuration of the device and port forwarding setup on routers. Features: ºº 1-Wire Bus for up to 16 sensors (temperature, humidity, etc.) ºº Monitor,log, and control up to 32 remote modules, or up to 100 I/O ºº User Permissions: Admin, Manager, User ºº Tasks ºº 50 Scheduled ºº 50 Conditional ºº 20 Override Schedules ºº Send email alerts based on user-defined conditions (supports encrypted email servers, such as Gmail) ºº Real-Time Clock with NTP server synchronization ºº Automatic daylight savings and leap year adjustment ºº No software required ºº Customizable web-based Control Page ºº BASIC script support for advanced flexibility ºº Configurable logging ºº Graphing (logged data) ºº HTTPS/TLS encrypted ºº Static or DHCP IP address configuration ºº Modbus, SNMP, Remote Service, IP Filtering ºº Field updatable ºº Rugged DIN-Rail/wall-mountable enclosure Example Control Page Phone: 1-435-750-5999 Email: Sales@ControlByWeb.com X-405TM Web-Enabled Temperature and Humidity Module Monitor up to 16, 1-Wire temperature/humidity sensors APPLICATIONS & SPECS Greenhouse Temperature & Humidity Monitoring Power Requirements · Voltage: · X-405-I: 9-28 VDC · X-405-E: POE and/or 9-28VDC · Max Current: 240mA Temperature Sensors · Maximum Number of Sensors: 16 · Type: Dallas Semiconductor DS18B20 · Temperature Range: -67°F to 257°F (-55°C to +125°C) · Accuracy: ±0.5°C (from -10°C to +85°C) · Sensor Functions: Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps · Humidity Type: Xytronix Model X-DTHS-P sensor · Humidity Range: 0-100% RH · Accuracy: ±2% · Max Cable Length: 600 feet (180m) maximum combined cable length Real-Time Clock · Manual or NTP(Network Time Protocol) setup · NTP Sync Period: Once, Daily, Weekly, On Power-up · Auto Daylight Savings Adjustment Capacitor Power Backup · Backup Functions: Retain Real-Time Clock, External Variables, Relay State, and Counters · Backup Duration: 3 days minimum Network · Type: 10/100 Base-T Ethernet Port · Setup: Static IP address assignment. TCP port selectable Connectors · Power/Input/Relays: 14-Position, 3.81mm, Removable · Network: 8-pin RJ-45 LED Indicators · Number of LEDs: 3 ºº Power on ºº Network linked ºº Network activity Physical · Operating Temperature: -40°F to 150°F (-40°C to 65.5°C) · Size: ºº 1.41in (35.7mm) wide ºº 3.88in (98.5mm) tall ºº 3.1in (78mm) deep (not including connector) · Weight: 5 oz (142 grams) · Enclosure Material: Lexan 940 Polycarbonate Plastic · Enclosure Flame Rating: UL94 V0 Protocols · HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP, Remote Services Logging · Log File Size: 512K (up to 8,448 logs) · Storage: Nonvolatile Flash · Buffer Architecture: Circular Buffer · Log data can be periodically read and stored on a computer Advanced Features · Task Builder · BASIC interpreter · Remote services Password Settings · Password protection on setup page: Yes · Password protection on control page: Optional · Password Encoding: Base 64 · Max Password Length: 18 Characters Electromagnetic Compliance · IEC CISPR 22, CISPR 24 · EU EN55024, EN55022 · X-405-I: FCC 47CFR15 (Class B) · X-405-E: FCC 47CFR15 (Class A) Product Safety Compliance · UL 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use) Phone: 1-435-750-5999 Email: Sales@ControlByWeb.comAdobe InDesign CC 14.0 (Macintosh) Adobe PDF Library 15.0
