Ixia Flex Tap™
The Ixia Flex Tap™ provides reliable continuous visibility of 100% of network traffic to support performance and security with no network performance degradation or disruption.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

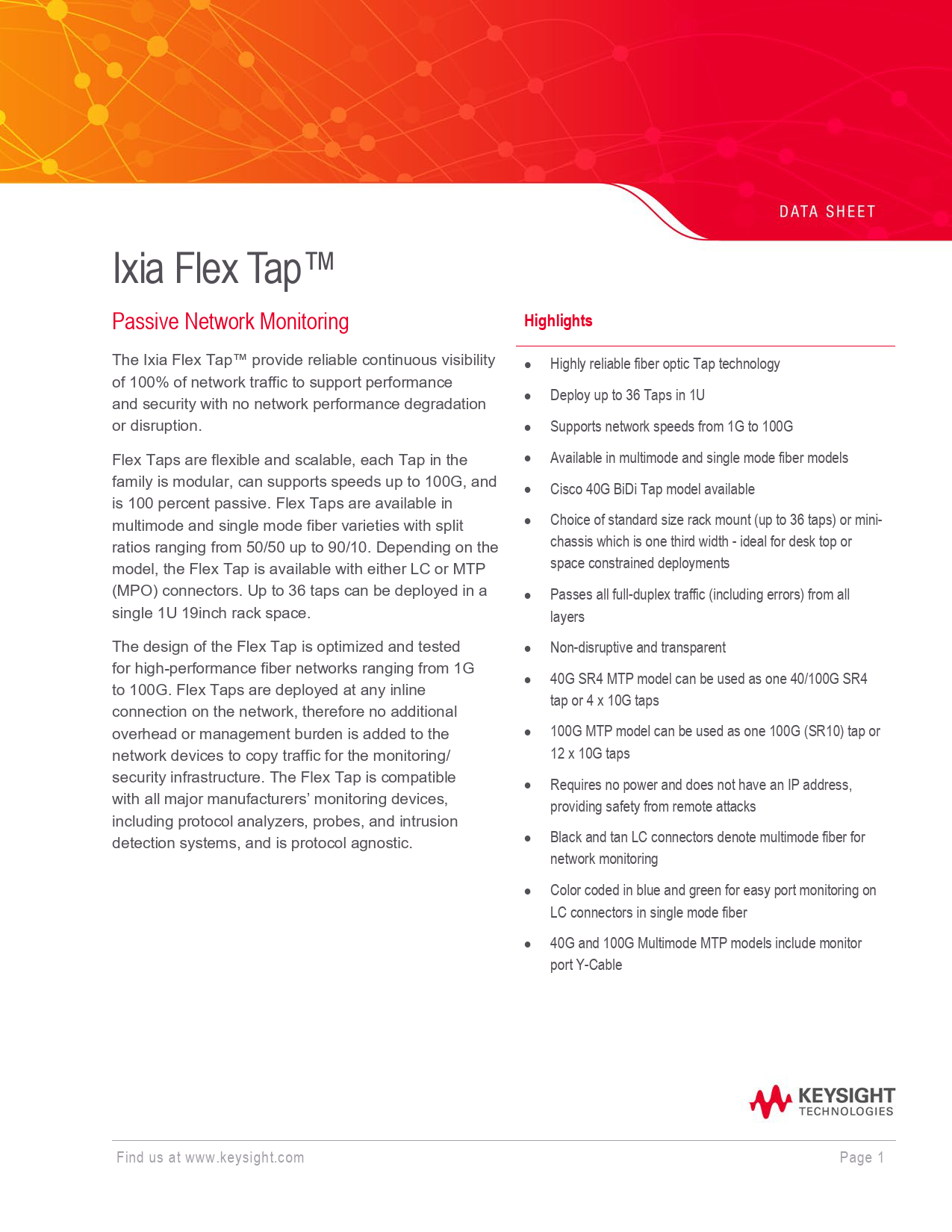

Ixia Flex TapTM Passive Network Monitoring Highlights The Ixia Flex TapTM provide reliable continuous visibility of 100% of network traffic to support performance and security with no network performance degradation or disruption. Flex Taps are flexible and scalable, each Tap in the family is modular, can supports speeds up to 100G, and is 100 percent passive. Flex Taps are available in multimode and single mode fiber varieties with split ratios ranging from 50/50 up to 90/10. Depending on the model, the Flex Tap is available with either LC or MTP (MPO) connectors. Up to 36 taps can be deployed in a single 1U 19inch rack space. The design of the Flex Tap is optimized and tested for high-performance fiber networks ranging from 1G to 100G. Flex Taps are deployed at any inline connection on the network, therefore no additional overhead or management burden is added to the network devices to copy traffic for the monitoring/ security infrastructure. The Flex Tap is compatible with all major manufacturers' monitoring devices, including protocol analyzers, probes, and intrusion detection systems, and is protocol agnostic. � Highly reliable fiber optic Tap technology � Deploy up to 36 Taps in 1U � Supports network speeds from 1G to 100G � Available in multimode and single mode fiber models � Cisco 40G BiDi Tap model available � Choice of standard size rack mount (up to 36 taps) or minichassis which is one third width - ideal for desk top or space constrained deployments � Passes all full-duplex traffic (including errors) from all layers � Non-disruptive and transparent � 40G SR4 MTP model can be used as one 40/100G SR4 tap or 4 x 10G taps � 100G MTP model can be used as one 100G (SR10) tap or 12 x 10G taps � Requires no power and does not have an IP address, providing safety from remote attacks � Black and tan LC connectors denote multimode fiber for network monitoring � Color coded in blue and green for easy port monitoring on LC connectors in single mode fiber � 40G and 100G Multimode MTP models include monitor port Y-Cable Find us at www.keysight.com Page 1 Key Features � Low insertion loss � minimize impact on data flows � Flex Tap is fully passive � monitoring infrastructure does not impact network availability � Does not modify traffic � tools see real copies of the packets from the network � High density � Save valuable rack real estate � Cost effective � avoid costly expenses managing SPAN ports Ixia Flex Taps in RK-FLEX-24 Rack Flex Tap Families Flex Tap LC Flex Tap BiDi Flex Tap MTP Flex Tap SECURE+ Flex Tap VHD Find us at www.keysight.com Flex Tap UHD Page 2 Rack Options Assembly Rack Chassis � RK-Flex-24 Tap Deployment Mini Chassis � RK-Flex-8 LC Tap Deployment MTP Tap Deployment Find us at www.keysight.com Page 3 Specifications Operating Mechanical Certifications Specifications � Operating Temperature: 0� to 40�C � Storage Temperature: -10� to 70�C � Relative Humidity: 10% min, 95% max, non-condensing Standard Rack Dimensions: 1.7" High x 8.4" Deep x 19" Wide Mini Rack Dimensions: 1.7" High x 8.4" Deep x 5.7" Wide � Fully RoHS-compliant � Safety Certifications: UL, CSA, CB Mechanical Fiber Specs Connectors Standared Models - LC LC Models 1.6" High x 7.8" Deep x 0.7" Wide Multimode: 62.5/125�m; 850nm 50/125�m; 850nm Supports speeds of 1G and 10G Single Mode: 8.5/125�m; 1310nm/1550nm Supports speeds of 1G, 10G, 25G, 40G, and 100G � Network Ports: 2 x Duplex LC � Monitoring Ports: 1 x Duplex LC Cisco BiDi Model 1.6" High x 10.1" Deep x 1.3" Wide 50/125�m; 850nm Supports speeds of 40G � Network Ports: 2 x Duplex LC per tap � Monitoring Ports: 2 x Duplex LC per tap Mechanical Fiber Specs Connectors Standard Models - MTP 1.6" High x 10.1" Deep x 1.3" Wide 50/125�m OM4; 850nm Supports speeds of 10G, 40G/100G* *40G & 100G are supported for SR4 models Network Ports: 2 x MTP (MPO); 12 Fiber or 24 Fiber Monitoring Ports: 1 x MTP (MPO); 12 Fiber or 24 Fiber Find us at www.keysight.com Page 4 Mechanical Fiber Specs Connectors VHD Models - LC 1.6" High x 10.1" Deep x 1.3" Wide Multimode: 62.5/125�m; 850nm 50/125�m; 850nm Supports speeds of 1G and 10G � Network Ports: 6 x Duplex LC � Monitoring Ports: 3 x Duplex LC Single Mode: 8.5/125�m; 1310nm/1550nm Supports speeds of 1G, 10G, 40G, and 100G Mechanical Fiber Specs Connectors UHD Models - MTP 1.6" High x 10.1" Deep x 1.3" Wide 50/125�m OM4; 850nm Supports speeds of 10G, 40G/100G*, and 100G** *40G & 100G are supported for SR4 models and **100G for SR10 multimode optics � Network Ports: 2 x MTP (MPO); 12 Fiber or 24 Fiber � Monitoring Ports: 1 x MTP (MPO); 12 Fiber or 24 Fiber 50/50 1/10/25/40/100G 3.7db/3.7db SM (LC & VHD) Insertion Loss (Network/Monitor) 60/40 70/30 2.8 dB/4.8 dB 2.0 dB/6.1 dB 80/20 1.3 dB/8.0 dB 90/10 0.8 dB/12.0 dB 1G MM (LC) 4.5 dB/4.5 dB 3.1 dB /5.1 dB 2.4 dB /6.3 dB 1.8 dB/8.1 dB 1.3 dB /11.5 dB 10G MM (LC & VHD) 3.9 dB /3.9 dB 2.9 DB /4.9 DB 2.2 dB /6.1 dB 1.6 DB /7.9 dB - 40G MM (BiDi) 4.1 dB /4.1 dB - - - - 4x10/40/10G MM 4.4 dB /4.4 dB - 2.6 dB / 6.6 dB - - (MTP SR4) 12x10/40/100G 4.4 dB /4.4 dB - 2.6 dB / 6.6 dB - - MM (MTP SR10) Find us at www.keysight.com Page 5 1/3x100G/3x40G/ 4.4 dB /4.4 dB - 2.6 dB / 6.6 dB - - 12x10G 4x10/40/100G MM 4.4 dB /4.4 dB - 2.6 dB / 6.6 dB - - UHD (MTP SR4) 12x10/40/100G 4.4 dB /4.4 dB - 2.6 dB / 6.6 dB - - MM UHD (MTP SR10 Ordering Information Model CN Type/ Diameter (UM) Taps In 1U Speed GBPS Split Ratio Part Numbers Network Cables To Use Std LC SM 1-24 1,10 50/50: TP-100-LR-85-50b In Y cable kit 8.5um 25,40 60/40: TP-100-LR-85-60b 100GB 70/30: TP-100-LR-85-70b 80/20: TP-100-LR-85-80b 90/10: TP-100-LR-85-90b Std LC MM 62um 1-24 1 GB 50/50: TP-1-SX-62-50 60/40: TP-1-SX-62-60 70/30: TP-1-SX-62-70 80/20: TP-1-SX-62-80 90/10: TP-1-SX-62-90 In Y cable kit Std LC MM 50um 1-24 1 GB 50/50: TP-1-SX-50-50 60/40: TP-1-SX-50-60 70/30: TP-1-SX-50-70 80/20: TP-1-SX-50-80 90/10: TP-1-SX-50-90 In Y cable kit Std LC MM 50um 1-24 1,10 GB 50/50: TPX-10-SR-50-50 60/40: TPX-10-SR-50-60 70/30: TPX-10-SR-50-70 80/20: TPX-10-SR-50-80 90/10: TPX-10-SR-50-90 In Y cable kit Cisco LC MM BiDi 50um 1-12 40 GB 50/50: TPX-40-SR-50-50-BD Standard x 2 Y Cable Kits To Use 705-0014001 705-0013001 705-0012001 705-0012001 Use standard duplex Find us at www.keysight.com Page 6 Model CN Type/ Taps Diameter In 1U (UM) Speed GBPS Split Ratio Part Numbers Network Cables To Use Y Cable Kits To Use Std LX4 LC MM 50um 1-24 40 GB 70/30: TP-40-SR-50-70MR4 In Y cable kit 705-0012001 Std MTP MM MTP 50um 1-12 40 GB SR4 50/50: TPX-40-SR-50-50MTPa 70/30: TPX-40-SR-50-70MTPa MTP � MTP x 2 Included with tap � spare is 705-0027001 Secure+ LC SM 8.5um 1-24 1,10 GB 50/50: TPS-100-LR-85-50 In Y cable kit 705-0014001 VHD LC SM 1-36 1, 10 50/50: TPVHD-100-LR-85- In Y cable kit 705-0014- 8.5um 25, 40 50b 001 x 3 100GB 70/30: TPVHD-100-LR-85- 70b VHD LC MM 50um 1-36 1,10 GB 50/50: TPVHD-10-SR-5050 70/30: TPVHD-10-SR-5070 In Y cable kit 705-0012001 x 3 UHD MTP MM 1, 36 1,10 50/50: TPUHD-100-SR-50- CKT-MTP- CKT-MTP- 8.5um or 40,100 50-Mc 12LC-50-OM4 24LC-50- 144 GB 70/30: TPUHD-100-SR-50- x 2 or OM4 (SR/SR 70-Mc CKT-MTP- or 4/SR10) 3MTP-50- CKT-MTP- OM4 x 2 or 6MTP-50- MTP to MTP OM4 x 2 or CKT-MTP- 2MTP-50- OM4 Table Notes: Y cable kits for LC taps contain 2 x network and 1 x Y cables a These taps are primarily designed for use in 4 lane MM fiber installations � eg. QSFP+ or QSFP28. b These taps can be used in SM 1G (SFP), 10G (SFP+), 40G (QSFP+) or 100G (QSFP28) applications c Each tap can tap either 12 MM LC links at 1/10G, 3 MM MTP based SR4 links at 40G/100G or a single SR10 link at 100G Find us at www.keysight.com Page 7 Cables And Accessories 705-0012-001 Cable Assembly Kit, LC/LC, 1G/10G, MM, 50um OM3, 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps. (955-8100) 705-0013-001 Cable Assembly Kit, LC/LC 1G/10G, MM, 62.5um 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps. (955-8101) 705-0014-001 Cable Assembly Kit, LC/LC 1G/10G, SM, 8.5um 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps. (955-8102) 705-0015-001 Cable Assembly Kit, LC/SC 1G/10G, MM, 50um OM3, 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps. LC at tap end and SC at remote end. Allows LC taps to be used with SC fiber infrastructure (955-8103) 705-0016-001 Cable Assembly Kit, LC/SC 1G/10G, MM, 62.5um 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps. LC at tap end and SC at remote end. Allows LC taps to be used with SC fiber infrastructure (955-8104) 705-0017-001 Cable Assembly Kit, LC/SC 1G/10G, SM, 8.5um 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps. LC at tap end and SC at remote end. Allows LC taps to be used with SC fiber infrastructure (955-8105) 705-0027-001 Cable Assembly Kit, MTP/MTP, MM, OM4, 50um 3m long cables. Includes 2 MTP Type B "reversed" cables (each with 12 fiber strands - single row - only 8 used with tap) and one Y cable with 8 fibers. Female connectors. Used to install fiber taps in 40G (QSFP+) and 100G (QSFP28) infrastructure. Note Ixia MTP taps already have Y cables included. (955-8106) CKT-LC-LC-50-OM4 Cable Assembly Kit, LC/LC, 1G/10G, MM, OM4, 50um 3m long cables. Includes 2 straight through cables and one Y cable. Used to install fiber taps in OM4 fiber infrastructure (955-8117) CKT-MTP-4LC-50-OM4 Cable Breakout Kit, MTP to 4 LCs, MM, 50um, OM4 3m long. Used to tap 4 1G/10G network links using a single MTP based tap. Also can be used on 40G QSFP+ links if 4 x 10G lanes in use on independent fiber strands via LC connectors. Populated with 8 fiber strands. Female MTP connector. (955-8115) Find us at www.keysight.com Page 8 CKT-MTP-12LC-50-OM4 Cable Breakout Kit, MTP to 12 LCs, MM, 50um, OM4 3m long. Used to tap 12 1G/10G network links using a single MTP based tap. Also can be used on 3 40G QSFP+ links if 4 x 10G lanes in use on independent fiber strands via LC connectors, or can be used on 3 100G QSFP28 links if 4 x 10G lanes in use on independent fiber strands via LC connectors, or can be used on a single 1 100G CFP links if 10 x 10G lanes in use on independent fiber strands via LC connectors. Populated with 24 fiber strands. Female MTP connector (955-8117) CKT-MTP-4LC-85-LR Cable Breakout Kit, MTP to 4 LCs, SM, 8.5um, 3m long. Used to tap 4 1G/10G network links using a single MTP based tap. Also can be used on 40G QSFP+ links if 4 x 10G lanes in use on independent fiber strands via LC connectors. Populated with 8 fiber strands. Female MTP connector. (955-8162) CKT-MTP-12LC-85-LR Cable Breakout Kit, MTP to 12 Duplex LCs, SM, 8.5um, 3m long. Used to tap 12 1G/10G network links using a single MTP based tap. Also can be used on 3 40G QSFP+ links if 4 x 10G lanes in use on independent fiber strands via LC connectors, or can be used on 3 100G QSFP28 links if 4 x 10G lanes in use on independent fiber strands via LC connectors, or can be used on a single 1 100G CFP links if 10 x 10G lanes in use on independent fiber strands via LC connectors. Populated with 24 fiber strands. Female MTP connector (955-8176) CKT-MTP-3MTP-50-OM4 Cable Breakout Kit, MTP (24 fiber) to 3 MTPs (12 fiber), MM, 50um, OM4, 3m long. Can be used on 3 x 40G QSFP+ links or 3 x 100G QSFP28. (955-8181) Standard MTP-MTP cable MTP (24 pin) to MTP (24-pin), Type B Polarity, MM, 50um. MTP (24 pin) to MTP (24-pin), Type B Polarity, MM, 50um CKT-MTP-24LC-85-LR Cable Breakout Kit, MTP to 24 Simplex LCs, SM, 8.5um, 3m long. Used to connect to the monitor port output of the Flex Tap UHD Single Mode. (955-8177) CKT-MTP-24LC-50-OM4 Cable Breakout Kit, MTP to 24 Simplex LCs, MM, 50um, OM4, 3m long. Used to connect to the monitor port output of the Flex Tap UHD multimode. (955-8180) CKT-MTP-6MTP-50-OM4 Cable Breakout Kit, MTP (24 fiber) to 6 MTPs (12 fiber), MM, 50um, OM4, 3m long. Used for the monitor port output of the Flex Tap UHD Multimode, can be used for 3 x 40G QSFP+ links or 3 x 100G QSFP28. (955-8182) Find us at www.keysight.com Page 9 CKT-MTP-2MTP-50-OM4 Cable Breakout Kit, MTP to 2MTP Y cable, MM, 50um, OM4. Use to connect a MM UHD tap to two tool monitoring ports when a single 100G SR10 (CFP) based link is being tapped. One is required per UHD tap deployment (955-8146) RK-FLEX-24 Assembly rack Chassis, Flex Tap. Holds 24 Flex Taps modules, or up to 36 VHD Flex Taps in a 12-slot unit. Note that MTP, VHD, and UHD Tap modules are double-wide and take up two slots. RK-FLEX-8 Assembly rack Mini Chassis, Flex Tap, holds 8 Flex Tap modules, or up to 12 VHD Flex Taps in a 4-slot unit. Note that MTP, VHD, and UHD Tap modules are double-wide and take up two slots. Rack Mountable or desk top use. Includes 1 flex tap spacer unit (RK_FLEX-SPACER). RK-FLEX-SPACER Flex Tap spacer unit. (RK-FLEX-SPACER) Learn more at: www.keysight.com For more information on Keysight Technologies' products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com This information is subject to change without notice. � Keysight Technologies, 2017-2020, Published in USA, May 22 2020, 3119-1148.EN Page 10
