DATA SHEET | FortiAP™ Universal Access Point Series 6 FAP-U221EV / FAP-U223EV RF Rx/Tx Performance Table FORTIAP U221EV AND FORTIAP U223EV Radio 1 2.4 GHz Radio 2 5 GHz 802.11 a/g Max Tx Power per

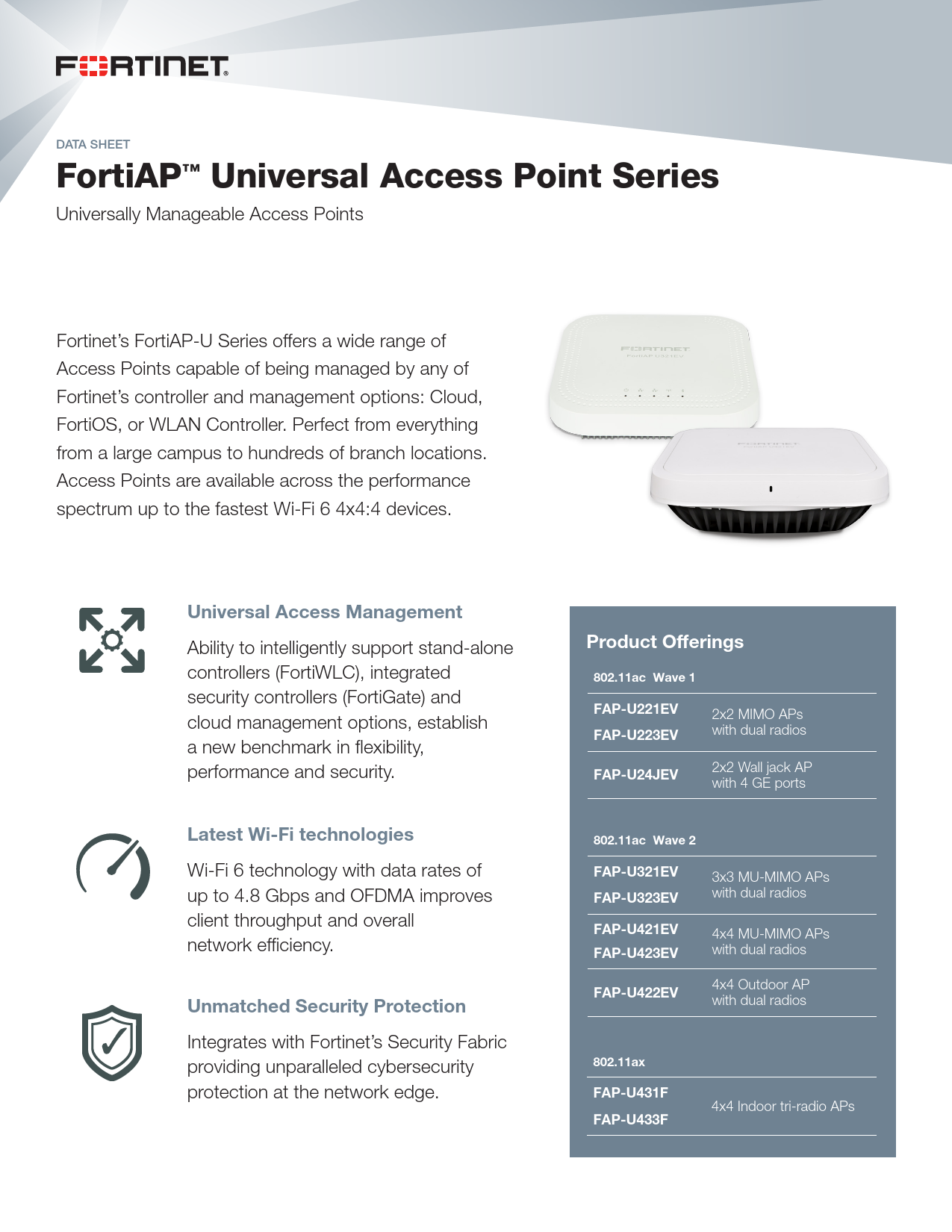

DATA SHEET FortiAPTM Universal Access Point Series Universally Manageable Access Points Fortinet's FortiAP-U Series offers a wide range of Access Points capable of being managed by any of Fortinet's controller and management options: Cloud, FortiOS, or WLAN Controller. Perfect from everything from a large campus to hundreds of branch locations. Access Points are available across the performance spectrum up to the fastest Wi-Fi 6 4x4:4 devices. Universal Access Management Ability to intelligently support stand-alone controllers (FortiWLC), integrated security controllers (FortiGate) and cloud management options, establish a new benchmark in flexibility, performance and security. Latest Wi-Fi technologies Wi-Fi 6 technology with data rates of up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency. Unmatched Security Protection Integrates with Fortinet's Security Fabric providing unparalleled cybersecurity protection at the network edge. Product Offerings 802.11ac Wave 1 FAP-U221EV FAP-U223EV 2x2 MIMO APs with dual radios FAP-U24JEV 2x2 Wall jack AP with 4 GE ports 802.11ac Wave 2 FAP-U321EV FAP-U323EV 3x3 MU-MIMO APs with dual radios FAP-U421EV FAP-U423EV 4x4 MU-MIMO APs with dual radios FAP-U422EV 4x4 Outdoor AP with dual radios 802.11ax FAP-U431F FAP-U433F 4x4 Indoor tri-radio APs DATA SHEET | FortiAPTM Universal Access Point Series Highlights Fortinet Universal access points are designed to support a variety of deployments from branches, to medium to large offices, schools, universities, hospitals, hotels, and large retail stores. The Universal access points can serve such a wide range of applications because they can be managed by any of Fortinet's control and management offerings: FortiGate, FortiWLC, and FortiCloud. Integrated FortiGate Controller FortiWLC Cloud FortiCloud Universal Access Point FAP-U Figure 1 -- Universal Access Management, highest Gigabit Wi-Fi performance and unmatched security protection. Education The Education sector is at rising risk from cyber attacks. This in conjunction with requirements to protect minors from inappropriate materials can make deploying wireless a challenge. Our integrated Universal APs Floor 3 secure wireless controller (FortiGate) ensures secure student access to learning resources while FortiGuard services provides cybersecurity protection. ULanrigveerCsiatympus Floor 2 Floor 1 ClassSrcohoomosl Universal APs OfFfiacceulty FortiGate Controller (HA) Universal APs Management Data Single Management Pane Figure 2 -- Educational organizations with Universal APs managed by on-premise FortiGate controllers. 2 DATA SHEET | FortiAPTM Universal Access Point Series Highlights Healthcare Patient safety is priority one. Fortinet Universal APs empower hospitals to improve patient safety by enabling life-critical applications such as telemetry requiring low bandwidth but exceptionally high reliability. Our dedicated wireless controllers (FortiWLC) connected to our Universal access points ensures patient safety remains paramount, while providing improved performance for wireless enabled medical devices. Universal APs Single Management Pane BrHaonscphital Universal APs CMlineidcical FortiWLC Controller (HA) FortiGate Management Data Universal APs HosMpiatainl Figure 3 -- Healthcare organizations with Universal APs managed by on-premise FortiWLC controllers. Small/Medium Business Retailers can streamline Wi-Fi store deployments through the combination of Universal APs and FortiCloud management. This, in combination with FortiDeploy for zero-touch provisioning and deployment offers a cost effective solution for retail IT. Universal APs mPOS POS Terminal Digital Signage RETAIL Management Data Figure 4 -- Retail store with Universal APs managed by FortiCloud. 3 DATA SHEET | FortiAPTM Universal Access Point Series Highlights FortiAP U221EV and U223EV The Fortinet U221EV and U223EV access points support the latest 802.11ac Wave 1 standard, with a client association rate of up to 867 Mbps. These APs feature two 2x2:2 radios, supporting client devices transmitting up to two spatial streams. 802.11ac Wave 1 | Dual Radio 2.4 & 5 GHz | 4 Interior/Exterior Antennas 2x2 MIMO | Up to 300 + 867 Mbps Specifications Hardware Hardware Type Number of Radios Number of Antennas Antenna Type and Peak Gain Frequency Bands (GHz) Radio 1 Capabilities Radio 2 Capabilities Maximum Data Rate Bluetooth Low Energy Radio Interfaces Power over Ethernet (PoE) Simultaneous SSIDs EAP Type(s) User/Device Authentication Maximum Tx Power (Conducted) Kensington Lock IEEE Standards SSID Types Supported Per Radio Client Capacity Cellular Co-existence** LED Off Mode FORTIAP U221EV Indoor AP 2 + 1 BLE 4 Internal + 1 BLE Internal Patch: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) Radio 1: up to 300 Mbps Radio 2: up to 867 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 1x 10/100/1000 Base-T RJ45, 1x Type A USB IEEE 802.3af or 802.3.at Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 25 dBm / 316 mW (2 chains combined)* 5 GHz: 23 dBm/ 200 mW (2 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az Local-Bridge, Tunnel & Mesh Up to 128 Yes Yes Advanced 802.11 Features 802.11ac MU-MIMO Wave 2 No Transmit Beam Forming (TxBF) Yes Low-Density Parity Check (LDPC) Encoding Yes Maximum Likelihood Demodulation (MLD) Yes Maximum Ratio Combining (MRC) Yes A-MPDU and A-MSDU Packet Aggregation Yes MIMO Power Save Yes Short Guard Interval Yes ** Frequency selection and power may be restricted to abide by regional regulatory compliance laws. ** Additional filtration added to reduce interference in 2.4GHz band from nearby cellular equipment. FORTIAP U223EV Indoor AP 2 + 1 BLE 4 External (RP-SMA) + 1 BLE Internal Dipole: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) Radio 1: up to 300 Mbps Radio 2: up to 867 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 1x 10/100/1000 Base-T RJ45, 1x Type A USB IEEE 802.3af or 802.3.at Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 25 dBm / 316 mW (2 chains combined)* 5 GHz: 23 dBm/ 200 mW (2 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az Local-Bridge, Tunnel & Mesh Up to 128 Yes Yes No Yes Yes Yes Yes Yes Yes Yes 4 Specifications Wireless Monitoring Capabilities Rogue Scan Radio Modes WIPS / WIDS Radio Modes Packet Sniffer Mode Spectrum Analyzer Dimensions Length x Width x Height Weight Package (shipping) Weight Mounting Options Included Accessories Environment Power Supply Power Consumption (Maximum) Humidity Operating / Storage Temperature Directives UL2043 Plenum Material Mean Time Between Failures IP Rating Surge Protection Built In Hit-less PoE Failover Certifications Wi-Fi Alliance Certified DFS Warranty Limited Lifetime Warranty DATA SHEET | FortiAPTM Universal Access Point Series FORTIAP U221EV Background, Dedicated Background, Dedicated (recommended) Yes Yes 7.87 x 7.87 x 1.5 inches (200 x 200 x 40 mm) 1.2 lbs (0.55 kg) 2.5 lbs (1.15 kg) Ceiling, T-Rail and Wall Mount kits for Ceiling, T-Rail and Wall SP-FAP200-PA-XX, GPI-115, or GPI-130 12.5 W 590% non-condensing 32122°F (050°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS No >3 Years -- -- No Yes FCC, CE, Japan Yes FORTIAP U223EV Background, Dedicated Background, Dedicated (recommended) Yes Yes 7.87 x 7.87 x 1.5 inches (200 x 200 x 40 mm) 1.3 lbs (0.6 kg) 2.6 lbs (1.18 kg) Ceiling, T-Rail and Wall Mount kits for Ceiling, T-Rail and Wall, 4 dipole antennas SP-FAP200-PA-XX, GPI-115, or GPI-130 12.5 W 590% non-condensing 32122°F (050°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS No >3 Years -- -- No Yes FCC, CE, Japan Yes 5 DATA SHEET | FortiAPTM Universal Access Point Series FAP-U221EV / FAP-U223EV RF Rx/Tx Performance Table FORTIAP U221EV AND FORTIAP U223EV 802.11 a/g 1 Mbps 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps Max Tx Power per transmit chain (dBm) 22 22 22 22 22 22 22 22 19 802.11 HT20 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4(16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) 21 21 20 19 19 18 18 17 802.11 HT40 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4(16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) 21 20 20 19 19 18 18 18 802.11 HT80 Tx Power (dBm) MSC 0 (BPSK) MSC 1 (QPSK) MSC 2 (QPSK) MSC 3 (16-QAM) MSC 4 (16-QAM) MSC 5 (64-QAM) MSC 6 (64-QAM) MSC 7 (64-QAM) MSC 8 (256-QAM) MSC 9 (256-QAM) Maximum capability of the Hardware provided (Excluding antenna gain) Radio 1 2.4 GHz Rx Sensitivity per receiver chain (dBm) -97 -91 -90 -87 -86 -81 -76 -75 -74 Rx Sensitivity (dBm) -90 -86 -83 -82 -77 -75 -73 -70 Rx Sensitivity (dBm) -87 -87 -84 -83 -78 -73 -72 -71 Rx Sensitivity (dBm) Max Tx Power per transmit chain (dBm) 20 20 20 20 20 19 19 18 Tx Power (dBm) 19 19 19 18 17 17 17 16 Tx Power (dBm) 18 18 18 18 18 17 17 15 15 15 Tx Power (dBm) 18 17 17 16 16 15 15 15 15 15 Radio 2 5 GHz Rx Sensitivity per receiver chain (dBm) -90 -89 -86 -85 -80 -75 -74 -73 Rx Sensitivity (dBm) -90 -87 -85 -82 -80 -77 -74 -71 -66 Rx Sensitivity (dBm) -88 -85 -85 -80 -78 -74 -71 -68 -64 -61 Rx Sensitivity (dBm) -83 -80 -78 -75 -73 -75 -72 -69 -61 -58 6 Antenna Radiation Patterns FAP-U221EV H-Plane Pattern Z (E-Plane) Y FLOOR X (H-Plane) FAP-U223EV Z H-Plane Pattern (E-Plane) Y FLOOR X (H-Plane) DATA SHEET | FortiAPTM Universal Access Point Series E-Plane Pattern E-Plane Pattern 7 DATA SHEET | FortiAPTM Universal Access Point Series Highlights FortiAP U24JEV The FortiAP U24JEV is an enterprise low cost next generation compact design 2x2 MU-MIMO 802.11ac Wave 1 Dual Band (2.4 GHz/5.0 GHz) wall plug/wall plate access point with an optionally available stand for desk mounting. 802.11ac Wave 1 | 2x2 Radio capable of operating as Dual Band 1x1 Radios 2x2 | 2x 1x1 radios up to 867 Mbps Specifications Hardware Hardware Type Number of Radios Number of Antennas Antenna Type and Peak Gain Frequency Bands (GHz) Radio 1 Capabilities Radio 2 Capabilities Maximum Data Rate Bluetooth Low Energy Radio Interfaces Power over Ethernet (PoE) Simultaneous SSIDs EAP Type(s) User/Device Authentication Maximum Tx Power (Conducted) Kensington Lock IEEE Standards SSID Types Supported Per Radio Client Capacity Cellular Co-existence** LED Off Mode Advanced 802.11 Features 802.11ac MU-MIMO Wave 2 Transmit Beam Forming (TxBF) Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD) FORTIAP U24JEV Wall Plate AP 1 (can operate as 2) + 1 BLE 2 Internal + 1 BLE Internal Patch: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM) or 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) or 2.4 GHz b/g/n (1x1:1 stream) 20/40 MHz (64 QAM) & 5 GHz a/n/ac (1x1:1 stream) 20/40/80 MHz (256 QAM) -- up to 867 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 4x 10/100/1000 Base-T RJ45 Ports (1x 802.3at PoE (PD), 1x 802.3af PoE (PSE), 2x Non-PoE Ports), 1 Pass-through in RJ45, 1 Pass-through out RJ45 802.3af (max PSE output of 4W) or 802.3at (full 802.3af PSE output) Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 23 dBm / 200 mW (2 chains combined)* or 5 GHz: 21 dBm / 126 mW (2 chains combined)* No 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az, 802.3ad Local-Bridge, Tunnel Up to 128 Yes Yes No Yes Yes Yes Maximum Ratio Combining (MRC) A-MPDU and A-MSDU Packet Aggregation MIMO Power Save Short Guard Interval FORTIAP U24JEV Yes Yes Yes Yes Wireless Monitoring Capabilities Rogue Scan Radio Modes WIPS / WIDS Radio Modes Packet Sniffer Mode Spectrum Analyzer Background, Dedicated Background, Dedicated (recommended) Yes Yes Dimensions Length x Width x Height Weight Package (shipping) Weight Mounting Options Included Accessories 6.1 x 3.7 x 1.2 inches (155 x 95 x 31 mm) 0.569 lbs (0.258 kg) 1.34 lbs (0.606 kg) Wall plate or desk stand Mounting kit for wall plate Environment Power Supply Power Consumption (Maximum) Humidity Operating / Storage Temperature Directives UL2043 Plenum Material Mean Time Between Failures IP Rating Surge Protection Built In Hit-less PoE Failover SP-FAPU24-PA-XX, GPI-115, or GPI-130 24W (Depends on PoE connected and USB power consumed) 1090% non-condensing 32104°F (040°C) / -22158°F (-3070°C) RoHS No >30 Years -- -- No Certifications Wi-Fi Alliance Certified DFS Yes CE, Japan Warranty Limited Lifetime Warranty Yes ** Frequency selection and power may be restricted to abide by regional regulatory compliance laws. ** Additional filtration added to reduce interference in 2.4GHz band from nearby cellular equipment. 8 DATA SHEET | FortiAPTM Universal Access Point Series FAP-U24JEV RF Rx/Tx Performance Table FORTIAP U24JEV 802.11 a/g 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps Max Tx Power per transmit chain (dBm) 20 20 20 20 20 20 20 17 802.11 HT20 MCS 0/8/16 (BPSK) MCS 1/9/17 (QPSK) MCS 2/10/18 (QPSK) MCS 3/11/19 (16-QAM) MCS 4/12/20 (16-QAM) MCS 5/13/21 (64-QAM) MCS 6/14/22 (64-QAM) MCS 7/15/23 (64-QAM) Tx Power (dBm) 19 19 19 19 18 17 17 16 802.11 HT40 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4 (16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) 19 19 19 19 18 17 17 16 802.11 HT80 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4 (16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) Maximum capability of the Hardware provided (Excluding antenna gain) Radio 1 2.4 GHz Rx Sensitivity per receiver chain (dBm) -96 -94 -93 -91 -87 -84 -79 -78 Rx Sensitivity (dBm) -95 -93 -90 -87 -84 -79 -77 -76 Rx Sensitivity (dBm) -93 -90 -88 -84 -81 -76 -75 -73 Rx Sensitivity (dBm) Max Tx Power per transmit chain (dBm) 18 18 18 18 18 18 18 15 Tx Power (dBm) 19 19 19 19 19 19 19 16 Tx Power (dBm) 18 18 18 18 18 17 16 15 15 15 Tx Power (dBm) 17 17 17 16 16 15 15 15 14 14 Radio 1 5 GHz Rx Sensitivity per receiver chain (dBm) -94 -93 -92 -89 -86 -83 -78 -76 Rx Sensitivity (dBm) -90 -87 -85 -82 -80 -77 -74 -71 Rx Sensitivity (dBm) -90 -87 -85 -82 -79 -73 -72 -73 -67 -66 Rx Sensitivity (dBm) -87 -83 -81 -78 -75 -73 -70 -68 -64 -62 9 DATA SHEET | FortiAPTM Universal Access Point Series Antenna Radiation Patterns -- Wall Mount FAP-U24JEV Z H-Plane Pattern with metal mounting plate (E-Plane) Y FLOOR X (H-Plane) E-Plane Pattern with metal mounting plate H-Plane Pattern without metal mounting plate E-Plane Pattern without metal mounting plate 10 DATA SHEET | FortiAPTM Universal Access Point Series Highlights FortiAP U321EV and U323EV The FortiAP U321EV and U323EV access points support the latest 802.11ac Wave 2 standard, with a maximum data rate of up to 2.6 Gbps. Additional features include 802.11ac explicit transmit beamforming (TxBF), MU-MIMO built in BLE radio for location services and more. 802.11ac Wave 2 | Dual Radio 2.4 & 5 GHz | 6 Interior/Exterior Antennas 3x3 MU-MIMO | Up to 450 Mbps + 1,733 Mbps Specifications Hardware Hardware Type Number of Radios Number of Antennas Antenna Type and Peak Gain Frequency Bands (GHz) Radio 1 Capabilities Radio 2 Capabilities Maximum Data Rate Bluetooth Low Energy Radio Interfaces Power over Ethernet (PoE) Simultaneous SSIDs EAP Type(s) User/Device Authentication Maximum Tx Power (Conducted) Kensington Lock IEEE Standards SSID Types Supported Per Radio Client Capacity Cellular Co-existence** LED Off Mode FORTIAP U321EV Indoor AP 2 + 1 BLE 6 Internal + 1 BLE Internal Patch: 4.5 dBi for 2.4 GHz, 6.5 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (3x3:3 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (3x3:3 stream) 20/40/80 MHz (256 QAM) (also supports 1024 Turbo QAM) Radio 1: up to 450 Mbps Radio 2: up to 1,733 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 2x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port Dual redundant PoE power ports with support for IEEE 802.3at (20 dBm TX Power and USB disabled with 802.3af) Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 26.7 dBm / 468 mW (3 chains combined)* 5 GHz: 24.7 dBm / 295 mW (3 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az, 802.3ad Local-Bridge, Tunnel & Mesh Up to 256 Yes Yes ** Frequency selection and power may be restricted to abide by regional regulatory compliance laws. ** Additional filtration added to reduce interference in 2.4 GHz band from nearby cellular equipment. FORTIAP U323EV Indoor AP 2 + 1 BLE 6 External (RP-SMA) + 1 BLE Internal Dipole: 3.5 dBi for 2.4 GHz, 5 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (3x3:3 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (3x3:3 stream) 20/40/80 MHz (256 QAM) (also supports 1024 Turbo QAM) Radio 1: up to 450 Mbps Radio 2: up to 1,733 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 2x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port Dual redundant PoE power ports with support for IEEE 802.3at (20 dBm TX Power and USB disabled with 802.3af) Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 26.7 dBm / 468 mW (3 chains combined)* 5 GHz: 24.7 dBm / 295 mW (3 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az, 802.3ad Local-Bridge, Tunnel & Mesh Up to 256 Yes Yes 11 DATA SHEET | FortiAPTM Universal Access Point Series Specifications Advanced 802.11 Features 802.11ac MU-MIMO Wave 2 Transmit Beam Forming (TxBF) Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD) Maximum Ratio Combining (MRC) A-MPDU and A-MSDU Packet Aggregation MIMO Power Save Short Guard Interval Wireless Monitoring Capabilities Rogue Scan Radio Modes WIPS / WIDS Radio Modes Packet Sniffer Mode Spectrum Analyzer Dimensions Length x Width x Height Weight Package (shipping) Weight Mounting Options Included Accessories Environment Power Supply Power Consumption (Maximum) Humidity Operating / Storage Temperature Directives UL2043 Plenum Material Mean Time Between Failures IP Rating Surge Protection Built In Hit-less PoE Failover Certifications Wi-Fi Alliance Certified DFS Warranty Limited Lifetime Warranty FORTIAP U321EV Yes Yes Yes Yes Yes Yes Yes Yes FORTIAP U323EV Yes Yes Yes Yes Yes Yes Yes Yes Background, Dedicated Background, Dedicated (recommended) Yes Yes Background, Dedicated Background, Dedicated (recommended) Yes Yes 8.58 x 8.58 x 1.69 inches (218 x 218 x 43 mm) 2.24 lbs (1.02 kg) 3.73 lbs (1.69 kg) Ceiling, T-Rail and Wall Mount kits for Ceiling, T-Rail and Wall 8.58 x 8.58 x 1.69 inches (218 x 218 x 43 mm) 2.25 lbs (1.02 kg) 3.74 lbs (1.70 kg) Ceiling, T-Rail and Wall Mount kits for Ceiling, T-Rail and Wall, 6 dipole antennas SP-FAP200-PA-XX, GPI-115, or GPI-130 15 W when supplied by 802.3at power and 12.8 W when in 802.3af power mode (TX power limited to 20 dBm) 590% non-condensing 32122°F (050°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS No >30 Years -- -- Yes SP-FAP200-PA-XX, GPI-115, or GPI-130 15 W when supplied by 802.3at power and 12.8 W when in 802.3af power mode (TX power limited to 20 dBm) 590% non-condensing 32122°F (050°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS No >30 Years -- -- Yes Yes FCC, IC, CE, Japan Yes FCC, IC, CE, Japan Yes Yes 12 DATA SHEET | FortiAPTM Universal Access Point Series FAP-U321EV / FAP-U323EV RF Rx/Tx Performance Table FORTIAP U321EV AND U323EV 802.11 a/g 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps Max Tx Power per transmit chain (dBm) 22 22 22 22 22 22 22 19 802.11 HT20 MCS 0/8/16 (BPSK) MCS 1/9/17 (QPSK) MCS 2/10/18 (QPSK) MCS 3/11/19 (16-QAM) MCS 4/12/20 (16-QAM) MCS 5/13/21 (64-QAM) MCS 6/14/22 (64-QAM) MCS 7/15/23 (64-QAM) Tx Power (dBm) 21 21 20 19 19 18 18 17 802.11 HT40 MCS 0/8/16 (BPSK) MCS 1/9/17 (QPSK) MCS 2/10/18 (QPSK) MCS 3/11/19 (16-QAM) MCS 4/12/20 (16-QAM) MCS 5/13/21 (64-QAM) MCS 6/14/22 (64-QAM) MCS 7/15/23 (64-QAM) MCS 8/16/24 (256-QAM) MCS 9/17/25 (256-QAM) Tx Power (dBm) 21 20 20 19 19 18 18 18 802.11 HT80 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4 (16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) Maximum capability of the Hardware provided (Excluding antenna gain) Radio 1 2.4 GHz Rx Sensitivity per receiver chain (dBm) -91 -90 -87 -86 -81 -76 -75 -74 Rx Sensitivity (dBm) -90 -86 -83 -82 -77 -75 -73 -70 Rx Sensitivity (dBm) -87 -87 -84 -83 -78 -73 -72 -71 Rx Sensitivity (dBm) Max Tx Power per transmit chain (dBm) 20 20 20 20 20 19 19 18 Tx Power (dBm) 19 19 19 18 17 17 17 16 Tx Power (dBm) 18 18 18 18 18 17 17 15 15 15 Tx Power (dBm) 18 17 17 16 16 15 15 15 15 15 Radio 2 5 GHz Rx Sensitivity per receiver chain (dBm) -90 -89 -86 -85 -80 -75 -74 -73 Rx Sensitivity (dBm) -90 -87 -85 -82 -80 -77 -74 -71 Rx Sensitivity (dBm) -88 -85 -85 -80 -78 -74 -71 -68 -64 -61 Rx Sensitivity (dBm) -83 -80 -78 -75 -73 -75 -72 -69 -61 -58 13 DATA SHEET | FortiAPTM Universal Access Point Series Antenna Radiation Patterns FAP-U321EV H-Plane Pattern Z (E-Plane) Y FLOOR X (H-Plane) FAP-U323EV Z H-Plane Pattern (E-Plane) Y FLOOR X (H-Plane) E-Plane Pattern E-Plane Pattern 14 Performance Matrix FAP-U321EV AND FAP-U323EV 802.11AC PERFORMANCE -- DATA RATES (MBPS) Descriptor Data Streams VHT20 Normal GI MCS 0 1 6.5 MCS 1 1 13 MCS 2 1 19.5 MCS 3 1 26 MCS 4 1 39 MCS 5 1 52 MCS 6 1 58.5 MCS 7 1 65 MCS 8 1 78 MCS 9 1 NA Short GI 7.2 14.4 21.7 28.9 43.3 57.8 65 72.2 86.7 NA MCS 0 2 MCS 1 2 MCS 2 2 MCS 3 2 MCS 4 2 MCS 5 2 MCS 6 2 MCS 7 2 MCS 8 2 MCS 9 2 13 14.4 26 28.9 39 43.3 52 57.8 78 86.7 104 115.6 117 130 130 144.4 156 173.3 NA NA MCS 0 3 19.5 21.7 MCS 1 3 39 43.3 MCS 2 3 58.5 65 MCS 3 3 78 86.7 MCS 4 3 117 130 MCS 5 3 156 173.3 MCS 6 3 175.5 195 MCS 7 3 195 216.7 MCS 8 3 234 260 MCS 9 3 260 286 DATA SHEET | FortiAPTM Universal Access Point Series Normal GI 13.5 27 40.5 54 81 108 121.5 135 162 180 VHT40 Short GI 15 30 45 60 90 120 135 150 180 200 27 30 54 60 81 90 108 120 162 180 216 240 243 270 270 300 324 360 360 400 40.5 45 81 90 121.5 135 162 180 243 270 324 360 364.5 405 405 450 486 540 540 600 Normal GI 29.3 58.5 87.8 117 175.5 234 263.3 292.5 351 390 VHT80 Short GI 32.5 65 97.5 130 195 260 292.5 325 390 433.3 58.5 117 175.5 234 351 468 526.5 585 702 780 65 130 195 260 390 520 585 650 780 866.7 87.8 175.7 263.3 351 526.5 702 NA 877.5 1053 1170 97.5 195 292.5 390 585 780 NA 975 1170 1300 15 DATA SHEET | FortiAPTM Universal Access Point Series Highlights FortiAP U421EV and U423EV The FortiAP U421EV and U423EV access points support the latest 802.11ac Wave 2 standard, with a maximum data rate of up to 3.4 Gbps. Additional features include 802.11ac explicit transmit beamforming (TxBF), MU-MIMO and more. 802.11ac Wave 2 | Dual Radio 2.4 & 5 GHz | 8 Interior/Exterior Antennas 4x4 MU-MIMO | Up to 600 Mbps + 3,466 Mbps Specifications Hardware Hardware Type Number of Radios Number of Antennas Antenna Type and Peak Gain Frequency Bands (GHz) Radio 1 Capabilities Radio 2 Capabilities Maximum Data Rate Bluetooth Low Energy Radio Interfaces Power over Ethernet (PoE) Simultaneous SSIDs EAP Type(s) User/Device Authentication Maximum Tx Power (Conducted) Kensington Lock IEEE Standards SSID Types Supported Per Radio Client Capacity Cellular Co-existence** LED Off Mode FORTIAP U421EV Indoor AP 2 + 1 BLE 8 Internal + 1 BLE Internal Patch: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (4x4:4 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (4x4:4 stream) 20/40/80/160 MHz (256 QAM) (also supports 1024 Turbo QAM) Radio 1: up to 600 Mbps Radio 2: up to 3,466 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 2x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port Dual redundant PoE power ports with support for IEEE 802.3at (2x2 operation at 17 dBm TX Power and USB disabled with 802.3af) Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 28 dBm / 631 mW (4 chains combined)* 5 GHz: 26 dBm / 398mW (4 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az Local-Bridge, Tunnel & Mesh Up to 256 Yes Yes ** Frequency selection and power may be restricted to abide by regional regulatory compliance laws. ** Additional filtration added to reduce interference in 2.4GHz band from nearby cellular equipment. FORTIAP U423EV Indoor AP 2 + 1 BLE 8 External (RP-SMA) + 1 BLE Internal Dipole: 3 dBi for 2.4 GHz, 3 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (4x4:4 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (4x4:4 stream) 20/40/80/160 MHz (256 QAM) (also supports 1024 Turbo QAM) Radio 1: up to 600 Mbps Radio 2: up to 3,466 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 2x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port Dual redundant PoE power ports with support for IEEE 802.3at (2x2 operation at 17 dBm TX Power and USB disabled with 802.3af) Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 28 dBm / 631 mW (4 chains combined)* 5 GHz: 26 dBm / 398mW (4 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az Local-Bridge, Tunnel & Mesh Up to 256 Yes Yes 16 Specifications Advanced 802.11 Features 802.11ac MU-MIMO Wave 2 Transmit Beam Forming (TxBF) Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD) Maximum Ratio Combining (MRC) A-MPDU and A-MSDU Packet Aggregation MIMO Power Save Short Guard Interval Wireless Monitoring Capabilities Rogue Scan Radio Modes WIPS / WIDS Radio Modes Packet Sniffer Mode Spectrum Analyzer Dimensions Length x Width x Height Weight Package (shipping) Weight Mounting Options Included Accessories Environment Power Supply Power Consumption (Maximum) Humidity Operating / Storage Temperature Directives UL2043 Plenum Material Mean Time Between Failures IP Rating Surge Protection Built In Hit-less PoE Failover Certifications Wi-Fi Alliance Certified DFS Warranty Limited Lifetime Warranty DATA SHEET | FortiAPTM Universal Access Point Series FORTIAP U421EV Yes Yes Yes Yes Yes Yes Yes Yes FORTIAP U423EV Yes Yes Yes Yes Yes Yes Yes Yes Background, Dedicated Background, Dedicated (recommended) Yes Yes Background, Dedicated Background, Dedicated (recommended) Yes Yes 8.46 x 8.46 x 2.2 inches (215 x 215 x 56 mm) 3.31 lbs (1.5 kg) 5.09 lbs (2.31 kg) Ceiling, T-Rail and Wall Mount kits for Ceiling, T-Rail and Wall 8.46 x 8.46 x 2.2 inches (215 x 215 x 56 mm) 3.4 lbs (1.53 kg) 5.36 lbs (2.43 kg) Ceiling, T-Rail and Wall Mount kits for Ceiling, T-Rail and Wall, 8 dipole antennas SP-FAP400-PA-XX, GPI-115, or GPI-130 24.5 W max power draw in 802.3at mode and 12.5 W max power draw when in 802.3af power mode (operates in at reduced power and spatial streams) 590% non-condensing -4122°F (-2050°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS Yes >30 Years -- -- Yes SP-FAP400-PA-XX, GPI-115, or GPI-130 24.5 W max power draw in 802.3at mode and 12.5 W max power draw when in 802.3af power mode (operates in at reduced power and spatial streams) 590% non-condensing -4122°F (-2050°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS Yes >30 Years -- -- Yes Yes FCC, IC, CE, Japan, Taiwan, Korea Yes FCC, IC, CE, Japan, Taiwan, Korea Yes Yes 17 DATA SHEET | FortiAPTM Universal Access Point Series FAP-U421EV / FAP-U423EV RF Rx/Tx Performance Table FORTIAP U421EV AND U423EV 802.11 a/g 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps Max Tx Power per transmit chain (dBm) 22 22 22 22 22 22 22 19 802.11 HT20 MSC 0/8/16 (BPSK) MSC 1/9/17 (QPSK) MSC 2/10/18 (QPSK) MSC 3/11/19 (16-QAM) MSC 4/12/20 (16-QAM) MSC 5/13/21 (64-QAM) MSC 6/14/22 (64-QAM) MSC 7/15/23 (64-QAM) Tx Power (dBm) 22 21 20 19 19 18 18 18 802.11 HT40 MSC 0/8/16 (BPSK) MSC 1/9/17 (QPSK) MSC 2/10/18 (QPSK) MSC 3/11/19 (16-QAM) MSC 4/12/20 (16-QAM) MSC 5/13/21 (64-QAM) MSC 6/14/22 (64-QAM) MSC 7/15/23 (64-QAM) MSC 8/16/24 (256-QAM) MSC 9/17/25 (256-QAM) Tx Power (dBm) 21 20 20 19 19 18 18 18 802.11 HT80 MSC 0 (BPSK) MSC 1 (QPSK) MSC 2 (QPSK) MSC 3 (16-QAM) MSC 4 (16-QAM) MSC 5 (64-QAM) MSC 6 (64-QAM) MSC 7 (64-QAM) MSC 8 (256-QAM) MSC 9 (256-QAM) Tx Power (dBm) Maximum capability of the Hardware provided (Excluding antenna gain) Radio 1 2.4 GHz Rx Sensitivity per receiver chain (dBm) -94 -92 -89 -88 -83 -78 -77 -76 Rx Sensitivity (dBm) -91 -89 -86 -85 -80 -75 -74 -73 Rx Sensitivity (dBm) -89 -87 -84 -83 -78 -73 -72 -71 Rx Sensitivity (dBm) Max Tx Power per transmit chain (dBm) 20 20 20 20 20 19 19 18 Tx Power (dBm) 20 19 19 18 17 17 17 17 Tx Power (dBm) 20 19 19 18 18 17 17 17 14 14 Tx Power (dBm) 18 17 17 16 16 15 15 15 15 15 Radio 2 5 GHz Rx Sensitivity per receiver chain (dBm) -91 -89 -86 -85 -80 -75 -74 -73 Rx Sensitivity (dBm) -89 -87 -84 -83 -78 -73 -72 -71 Rx Sensitivity (dBm) -86 -84 -81 -80 -75 -70 -69 -68 -65 -63 Rx Sensitivity (dBm) -83 -80 -78 -75 -73 -72 -70 -69 -65 -59 18 Antenna Radiation Patterns FAP-U421EV H-Plane Pattern Z (E-Plane) Y FLOOR X (H-Plane) FAP-U423EV Z H-Plane Pattern (E-Plane) Y FLOOR X (H-Plane) DATA SHEET | FortiAPTM Universal Access Point Series E-Plane Pattern E-Plane Pattern 19 DATA SHEET | FortiAPTM Universal Access Point Series Performance Matrix FAP-U421EV AND FAP-U423EV 802.11AC PERFORMANCE -- DATA RATES (MBPS) Descriptor Data Streams VHT20 Normal GI Short GI MCS 0 1 6.5 7.2 MCS 1 1 13 14.4 MCS 2 1 19.5 21.7 MCS 3 1 26 28.9 MCS 4 1 39 43.3 MCS 5 1 52 57.8 MCS 6 1 58.5 65 MCS 7 1 65 72.2 MCS 8 1 78 86.7 MCS 9 1 NA NA VHT40 Normal GI 13.5 27 40.5 54 81 108 121.5 135 162 180 Short GI 15 30 45 60 90 120 135 150 180 200 MCS 0 2 MCS 1 2 MCS 2 2 MCS 3 2 MCS 4 2 MCS 5 2 MCS 6 2 MCS 7 2 MCS 8 2 MCS 9 2 13 14.4 27 30 26 28.9 54 60 39 43.3 81 90 52 57.8 108 120 78 86.7 162 180 104 115.6 216 240 117 130 243 270 130 144.4 270 300 156 173.3 324 360 NA NA 360 400 MCS 0 3 MCS 1 3 MCS 2 3 MCS 3 3 MCS 4 3 MCS 5 3 MCS 6 3 MCS 7 3 MCS 8 3 MCS 9 3 19.5 21.7 40.5 45 39 43.3 81 90 58.5 65 121.5 135 78 86.7 162 180 117 130 243 270 156 173.3 324 360 175.5 195 364.5 405 195 216.7 405 450 234 260 486 540 260 288.9 540 600 MCS 0 4 MCS 1 4 MCS 2 4 MCS 3 4 MCS 4 4 MCS 5 4 MCS 6 4 MCS 7 4 MCS 8 4 MCS 9 4 26 28.9 54 60 52 57.8 108 120 78 86.7 162 180 104 115.6 216 240 156 173.3 324 360 208 231.1 432 480 234 260 486 540 260 288.9 540 600 312 346.7 648 720 NA NA 720 800 VHT80 Normal GI 29.3 58.5 87.8 117 175.5 234 263.3 292.5 351 390 Short GI 32.5 65 97.5 130 195 260 292.5 325 390 433.3 58.5 117 175.5 234 351 468 526.5 585 702 780 65 130 195 260 390 520 585 650 780 866.7 87.8 175.5 263.3 351 526.5 702 NA 877.5 1053 1170 97.5 195 292.5 390 585 780 NA 975 1170 1300 117 234 351 468 702 936 1053 1170 1404 1560 130 260 390 520 780 1040 1170 1300 1560 1733.3 VH160 Normal GI 58.6 117 175.6 234 351 468 526.6 585 702 780 Short GI 65 130 195 260 390 520 585 650 780 866.6 117 130 234 260 351 390 468 520 702 780 936 1040 1053 1170 1170 1300 1404 1560 1560 1733.4 175.6 195 351 390 526.6 585 702 780 1053 1170 1404 1560 NA NA 1755 1950 2106 2340 N/A N/A 234 468 702 936 1404 1872 2106 2340 2808 3120 260 520 780 1040 1560 2080 2340 2600 3120 3466.6 20 DATA SHEET | FortiAPTM Universal Access Point Series Highlights FortiAP U422EV This enterprise class 802.11ac Wave 2 outdoor AP provides dual concurrrent 4x4 radios in both 2.4 GHz and 5 GHz frequencies. This top-of-the-line access point provides MU-MIMO, two Gigabit Ethernet ports and supports 1xPD+1xPSE function and withstands harsh outdoor environments with certified IP67 industrial grade protection. 802.11ac Wave 2 | Dual Radio 2.4 GHz & 5 GHz | 8 External Antennas 4x4 MU-MIMO | Up to 600 Mbps + 3,466 Mbps Specifications Hardware Hardware Type Number of Radios Number of Antennas Antenna Type and Peak Gain Frequency Bands (GHz) Radio 1 Capabilities Radio 2 Capabilities Maximum Data Rate Bluetooth Low Energy Radio Interfaces Power over Ethernet (PoE) Simultaneous SSIDs EAP Type(s) User/Device Authentication Maximum Tx Power (Conducted) Kensington Lock IEEE Standards SSID Types Supported Per Radio Client Capacity Cellular Co-existence** LED Off Mode Advanced 802.11 Features 802.11ac MU-MIMO Wave 2 Transmit Beam Forming (TxBF) Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD) Maximum Ratio Combining (MRC) A-MPDU and A-MSDU Packet Aggregation FORTIAP U422EV Outdoor AP 2 + 1 BLE 8 External (Type N) + 1 BLE Internal Dipole: 5 dBi for 2.4 GHz, 7 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 2.4 GHz b/g/n (4x4:4 stream) 20/40 MHz (64 QAM) 5 GHz a/n/ac (4x4:4 stream) 20/40/80/160 MHz (256 QAM) (also supports 1024 Turbo QAM) Radio 1: up to 600 Mbps Radio 2: up to 3,466 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 2x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port Proprietary or 802.3at Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist 2.4 GHz: 24 dBm / 251 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)* No 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az, 802.3ad Local-Bridge, Tunnel & Mesh Up to 256 Yes Yes Yes Yes Yes Yes Yes Yes MIMO Power Save Short Guard Interval FORTIAP U422EV Yes Yes Wireless Monitoring Capabilities Rogue Scan Radio Modes WIPS / WIDS Radio Modes Packet Sniffer Mode Spectrum Analyzer Background, Dedicated Background, Dedicated (recommended) Yes Yes Dimensions Length x Width x Height Weight Package (shipping) Weight Mounting Options Included Accessories 8.3 x 8.3 x 2.0 inches (210 x 210 x 51 mm) 4.08 lbs (1.85 kg) 11.42 lbs (5.18 kg) Wall Mount or Pole Mount Mounting Kits, Grounding Cable, 4x 2.4 GHz and 4x 5 GHz dipole Antennas Environment Power Supply Power Consumption (Maximum) Humidity Operating / Storage Temperature Directives UL2043 Plenum Material Mean Time Between Failures IP Rating Surge Protection Built In Hit-less PoE Failover Proprietary PoE injector or GPI-130 22 W 590% non-condensing -40140°F (-4060°C) / -40158°F (-4070°C) Low Voltage Directive · RoHS No >9.9 Years IP67 Yes No Certifications Wi-Fi Alliance Certified DFS Yes FCC, IC, CE, Japan Warranty Limited Lifetime Warranty No -- 1 Year Limited Warranty ** Frequency selection and power may be restricted to abide by regional regulatory compliance laws. ** Additional filtration added to reduce interference in 2.4GHz band from nearby cellular equipment. 21 DATA SHEET | FortiAPTM Universal Access Point Series FAP-U422EV RF Rx/Tx Performance Table FORTIAP U24JEV 802.11 a/g 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps Max Tx Power per transmit chain (dBm) 18 18 18 18 18 18 18 18 802.11 HT20 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4 (16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) Tx Power (dBm) 18 18 18 18 18 18 17 17 802.11 HT40 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4 (16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) 18 18 18 18 18 18 17 16 802.11 HT80 MCS 0 (BPSK) MCS 1 (QPSK) MCS 2 (QPSK) MCS 3 (16-QAM) MCS 4 (16-QAM) MCS 5 (64-QAM) MCS 6 (64-QAM) MCS 7 (64-QAM) MCS 8 (256-QAM) MCS 9 (256-QAM) Tx Power (dBm) Maximum capability of the Hardware provided (Excluding antenna gain) Radio 1 2.4 GHz Rx Sensitivity per receiver chain (dBm) -92 -90 -88 -84 -82 -78 -77 -75 Rx Sensitivity (dBm) -92 -89 -86 -83 -80 -75 -74 -72 Rx Sensitivity (dBm) -90 -86 -84 -80 -77 -73 -71 -70 Rx Sensitivity (dBm) Max Tx Power per transmit chain (dBm) 18 18 18 18 18 18 18 15 Tx Power (dBm) 18 18 18 18 18 18 16 15 Tx Power (dBm) 18 18 18 18 17 16 15 14 14 13 Tx Power (dBm) 18 18 18 18 17 16 15 14 13 12 Radio 2 5 GHz Rx Sensitivity per receiver chain (dBm) -91 -89 -87 -85 -82 -80 -77 -73 Rx Sensitivity (dBm) -91 -88 -86 -83 -79 -75 -74 -71 Rx Sensitivity (dBm) -87 -84 -82 -79 -75 -71 -70 -69 -64 -62 Rx Sensitivity (dBm) -84 -81 -79 -76 -72 -68 -67 -66 -61 -59 22 Antenna Radiation Patterns FAP-U422EV H-Plane Pattern Z DATA SHEET | FortiAPTM Universal Access Point Series E-Plane Pattern (E-Plane) Y FLOOR X (H-Plane) Radio 1 2.4 GHz Radio 2 5.5 GHz Radio 1 2.4 GHz Radio 2 5.5 GHz 23 DATA SHEET | FortiAPTM Universal Access Point Series Highlights FortiAP U431F and U433F These enterprise class 802.11ax indoor APs provide three radios. These top-of-the-line access points provide OFDMA, a 2.5 Gigabit Ethernet port plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications. 802.11ax | Tri-Radio 5 GHz + 5 GHz + 2.4 GHz or 5 GHz + 2.4 GHz + scanning | 10 Antennas 4x4 MIMO | Up to 4,804 Mbps + 4,804 Mbps + 300 Mbps Specifications Hardware Hardware Type Number of Radios Number of Antennas Antenna Type and Peak Gain Frequency Bands (GHz) Radio 1 Capabilities Radio 2 Capabilities Radio 3 Capabilities Maximum Data Rate Bluetooth Low Energy Radio Interfaces Power over Ethernet (PoE) Simultaneous SSIDs EAP Type(s) User/Device Authentication Maximum Tx Power (Conducted) Kensington Lock IEEE Standards SSID Types Supported Per Radio Client Capacity Cellular Co-existence** LED Off Mode FORTIAP-U431F Indoor AP 3 + 1 BLE 10 Internal + 1 BLE Internal PIFA: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) 2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) 2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) Radio 1: up to 4,804 Mbps Radio 2: up to 4,804 Mbps Radio 3: up to 300 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port Dual redundant PoE power ports with support for IEEE 802.3at Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az Local-Bridge, Mesh, & Tunnel Up to 512 Yes Yes ** Frequency selection and power may be restricted to abide by regional regulatory compliance laws. ** Additional filtration added to reduce interference in 2.4GHz band from nearby cellular equipment. FORTIAP-U433F Indoor AP 3 + 1 BLE 10 External (RP-SMA) + 1 BLE Internal Dipole: 3.5 dBi for 2.4 GHz, 5 dBi for 5 GHz 2.4002.4835, 5.1505.250, 5.2505.350, 5.4705.725, 5.7255.850 5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) 2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) 2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) Radio 1: up to 4,804 Mbps Radio 2: up to 4,804 Mbps Radio 3: up to 300 Mbps Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port Dual redundant PoE power ports with support for IEEE 802.3at Up to 16 (14 if background scanning enabled) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST WPATM, WPA2TM, and WPA3TM with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)* Yes 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az Local-Bridge, Mesh, & Tunnel Up to 512 Yes Yes 24 Specifications Advanced 802.11 Features 802.11ac MU-MIMO Wave 2 Transmit Beam Forming (TxBF) Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD) Maximum Ratio Combining (MRC) A-MPDU and A-MSDU Packet Aggregation MIMO Power Save Short Guard Interval OFMDA Wireless Monitoring Capabilities Rogue Scan Radio Modes WIPS / WIDS Radio Modes Packet Sniffer Mode Spectrum Analyzer Dimensions Length x Width x Height Weight Package (shipping) Weight Mounting Options Included Accessories Environment Power Supply Power Consumption (Maximum) Humidity Operating / Storage Temperature Directives UL2043 Plenum Material Mean Time Between Failures IP Rating Surge Protection Built In Hit-less PoE Failover Certifications Wi-Fi Alliance Certified DFS Warranty Limited Lifetime Warranty DATA SHEET | FortiAPTM Universal Access Point Series FORTIAP-U431F Yes Yes Yes Yes Yes Yes Yes Yes Yes Background, Dedicated Background, Dedicated (recommended) Yes Yes 8.46 x 8.46 x 2.26 inches (215 x 215 x 57.5 mm) 1.0 lb (0.453 kg) 1.8 lbs (0.82 kg) Ceiling, T-Rail, and Wall Mount kits for Ceiling, T-Rail, and Wall SP-FAP200-PA-XX, or GPI-130 24.5 W 1090% Non-Condensed 590% Condensed 32122°F (050°C) / -31158°F (-3570°C) Low Voltage Directive · RoHS Yes >30 Years -- -- Yes (802.3at only) No CE Yes FORTIAP-U433F Yes Yes Yes Yes Yes Yes Yes Yes Yes Background, Dedicated Background, Dedicated (recommended) Yes Yes 8.46 x 8.46 x 2.26 inches (215 x 215 x 57.5 mm) 1.0 lb (0.453 kg) 1.8 lbs (0.82 kg) Ceiling, T-Rail, and Wall Mount kits for Ceiling, T-Rail, and Wall, 10x dipole antennas SP-FAP200-PA-XX, or GPI-130 24.5 W 1090% Non-Condensed 590% Condensed 32122°F (050°C) / -31158°F (-3570°C) Low Voltage Directive · RoHS Yes >30 Years -- -- Yes (802.3at only) No CE Yes 25 DATA SHEET | FortiAPTM Universal Access Point Series FAP-U431F / FAP-U433F RF Rx/Tx Performance Table FORTIAP U431F AND U433F 2.4 GHz, 802.11b 1 Mbps 11 Mbps Radio 1 Max Tx Power per Rx Sensitivity per transmit chain (dBm) receiver chain (dBm) 20 -98 20 -89 2.4 GHz, 802.11g 6 Mbps 54 Mbps 20 -94 20 -75 2.4 GHz, 802.11n HT20 MCS0 19 -93 MCS7 17 -74 2.4 GHz, 802.11n HT40 MCS0 19 -92 MCS7 17 -73 2.4 GHz, 802.11ax HE20 MCS0 18 -90 MCS11 16 -71 2.4 GHz, 802.11ax HE40 MCS0 17 -88 MCS11 15 -68 5.0 GHz, 802.11a 6 Mbps 54 Mbps 20 -92 20 -72 5.0 GHz, 802.11n HT20 MCS0 20 -91 MCS7 18 -72 5.0 GHz, 802.11n HT40 MCS0 20 -88 MCS7 18 -69 5.0 GHz, 802.11ac VHT20 MCS0 MCS9 20 -91 18 -67 5.0 GHz, 802.11ac VHT40 MCS0 20 -88 MCS9 18 -62 5.0 GHz, 802.11ac VHT80 MCS0 19 -85 MCS9 17 -59 5.0 GHz, 802.11ac VHT160 MCS0 MCS9 16 -82 15 -56 5.0 GHz, 802.11ax HE20 MCS0 19 -90 MCS11 17 -66 5.0GHz, 802.11ac HE40 MCS0 19 -87 MCS11 17 -61 5.0 GHz, 802.11ac HE80 MCS0 18 -94 MCS11 16 -58 5.0 GHz, 802.11ac HE160 MCS0 15 -81 MCS11 14 -55 Maximum capability of the Hardware provided (Excluding antenna gain) Radio 2 Max Tx Power per Rx Sensitivity per transmit chain (dBm) receiver chain (dBm) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 20 -92 20 -72 20 -91 18 -72 20 -88 18 -69 20 -91 18 -67 20 -88 18 -62 19 -85 17 -59 16 -82 15 -56 19 -90 17 -66 19 -87 17 -61 18 -94 16 -58 15 -81 14 -55 Radio 3 Max Tx Power per Rx Sensitivity per transmit chain (dBm) receiver chain (dBm) 19 -96 19 -87 19 -92 19 -73 18 -91 16 -72 18 -90 16 -71 17 -88 15 -69 16 -86 14 -66 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 26 Antenna Radiation Patterns FAP-U431F Z Internal Antenna H-Plane Pattern Radio 1 & 3 (E-Plane) Y FLOOR X (H-Plane) Internal Antenna E-Plane Pattern Radio 1 & 3 DATA SHEET | FortiAPTM Universal Access Point Series Internal Antenna H-Plane Pattern Radio 2 Internal Antenna E-Plane Pattern Radio 2 (E-Plane) FAP-U433F Z Y FLOOR X (H-Plane) External Antenna H-Plane Pattern Dual Band External Antenna E-Plane Pattern Dual Band External Antenna H-Plane Pattern External Antenna E-Plane Pattern 27 DATA SHEET | FortiAPTM Universal Access Point Series Order Information Product FortiAP U221EV FortiAP U223EV FortiAP U24JEV FortiAP U321EV FortiAP U323EV FortiAP U421EV FortiAP U423EV FortiAP U422EV FortiAP U431F FortiAP U433F Gigabit PoE Injector Power Adapter SKU FAP-U221EV FC-10-P221E-247-02-DD FAP-U223EV FC-10-P223E-247-02-DD FAP-U24JEV FC-10-P024E-247-02-DD FAP-U321EV FC-10-PU321-247-02-DD FAP-U323EV FC-10-PU323-247-02-DD FAP-U421EV FC-10-P0421-247-02-DD FAP-U423EV FC-10-P0423-247-02-DD FAP-U422EV FC-10-P0422-247-02-DD FAP-U431F FC-10-P431F-247-02-DD FAP-U433F FC-10-P433F-247-02-DD GPI-115 GPI-130 SP-FAP400-PA SP-FAP200-PA Description Indoor Wireless Universal AP - Dual radio (802.11 b/g/n and 802.11a/n/ac, 2x2 MIMO), internal antennas, 1 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 or AC adapter SP-FAP200-PA. 24x7 FortiCare Contract Indoor Wireless Universal AP - Dual radio (802.11 b/g/n and 802.11a/n/ac, 2x2 MIMO), external antennas included, 1 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 or AC adapter SP-FAP200-PA. 24x7 FortiCare Contract Wall Plate Universal AP - Single radio [can be configured as two] (802.11 a/b/g/n/ac, 2x2 MIMO 2.4GHz/5GHz or 1x1 SISO 2.4GHz and 1x1 SISO 5GHz), internal antennas, 4 x 10/100/1000 RJ45 port (1x 802.3at PoE PD, 1x 802.3af PoE PSE, 2x Non-PoE Ports), . Mounting bracked included.For power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130 or AC adapter SP-FAPU24-PA. 24x7 FortiCare Contract Indoor Wireless Universal AP - Dual radio (802.11 a/b/g/n and 802.11 a/n/ac Wave 2, 3x3 MU-MIMO), internal antennas, 2 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130 or AC adapter SP-FAP200-PA. 24x7 FortiCare Contract Indoor Wireless Universal AP - Dual radio (802.11 a/b/g/n and 802.11 a/n/ac Wave 2, 3x3 MU-MIMO), external antennas included, 2 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130 or AC adapter SP-FAP200-PA. 24x7 FortiCare Contract Indoor Wireless Universal AP - Dual radio (802.11 a/b/g/n and 802.11 a/b/g/n/ac Wave 2, 4x4 MU-MIMO), internal antennas, 2 x 10/100/1000 RJ45 port, . Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. 24x7 FortiCare Contract Indoor Wireless Universal AP - Dual radio (802.11 a/b/g/n and 802.11 a/b/g/n/ac Wave 2, 4x4 MU-MIMO), external antennas included, 2 x 10/100/1000 RJ45 port, . Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. 24x7 FortiCare Contract Outdoor Wireless Universal AP - Dual radio (802.11 a/b/g/n and 802.11 a/b/g/n/ac Wave 2, 4x4 MU-MIMO), external antennas included, 2 x 10/100/1000 RJ45 port, IP67 rated. Pole/wall mount kit, ground cable, power supply included. 24x7 FortiCare Contract Indoor Wireless Universal AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. 24x7 FortiCare Contract Indoor Wireless Universal AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), external antennas included, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. 24x7 FortiCare Contract 1-Port Gigabit PoE Injector, 802.3af up to 12.95 W. 1-Port Gigabit PoE Power Injector, 802.3at up to 30W. AC Power Adapter for FAP-U421EV, and FAP-U423EV. AC Power Adapter for FAP-U321EV, FAP-U323EV, FAP-U221EV and FAP-U223EV. Note: Additional external antenna options available for some models, please see antenna datasheet for details. REGION/COUNTRY SKU SUFFIX* Americas-FCC Bangladesh China India -A -B -C -D Europe ETSI -E Non-FFCA -N Russia -P Singapore -S Taiwan -T Ukraine -U Note: Additional countries may apply to given suffix codes. Please work with your local supplier for the correct model in your regulatory domain. Indonesia -F Vietnam, Thailand -V International -I World 2.4G -W Japan -J Egypt -Y Korea -K www.fortinet.com Copyright © 2019 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet's General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet's internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable. FST-PROD-DS-FAPU FAP-U-ID-DAT-R27-201910Adobe PDF Library 15.0
