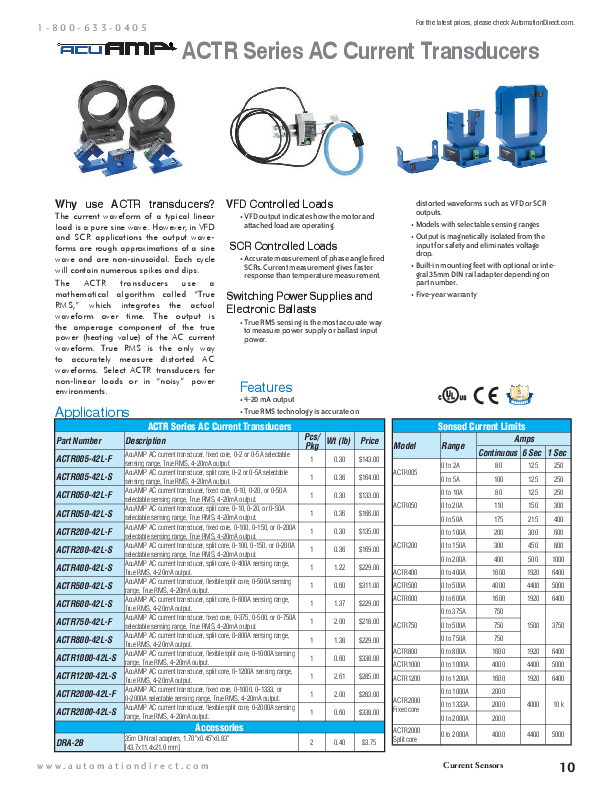

1-800-633-0405 For the latest prices, please check AutomationDirect.com. ACTR Series AC Current Transducers Why use ACTR transducers? VFD Controlled Loads The current waveform of a typical linear load is a pure sine wave. However, in VFD · VFD output indicates how the motor and attached load are operating. and SCR applications the output wave- forms are rough approximations of a sine SCR Controlled Loads wave and are non-sinusoidal. Each cycle will contain numerous spikes and dips. The ACTR transducers use a · Accurate measurement of phase angle fired SCRs. Current measurement gives faster response than temperature measurement. mathematical algorithm called "True RMS," which integrates the actual waveform over time. The output is the amperage component of the true power (heating value) of the AC current waveform. True RMS is the only way Switching Power Supplies and Electronic Ballasts · True RMS sensing is the most accurate way to measure power supply or ballast input power. to accurately measure distorted AC waveforms. Select ACTR transducers for non-linear loads or in "noisy" power environments. Applications Features · 4-20 mA output · True RMS technology is accurate on Part Number ACTR005-42L-F ACTR005-42L-S ACTR050-42L-F ACTR050-42L-S ACTR200-42L-F ACTR200-42L-S ACTR400-42L-S ACTR500-42L-S ACTR600-42L-S ACTR750-42L-F ACTR800-42L-S ACTR1000-42L-S ACTR1200-42L-S ACTR2000-42L-F ACTR2000-42L-S DRA-2B ACTR Series AC Current Transducers Description AcuAMP AC current transducer, fixed core, 0-2 or 0-5A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-2 or 0-5A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, fixed core, 0-10, 0-20, or 0-50A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-10, 0-20, or 0-50A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, fixed core, 0-100, 0-150, or 0-200A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-100, 0-150, or 0-200A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-400A sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, flexible split core, 0-500A sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-600A sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, fixed core, 0-375, 0-500, or 0-750A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-800A sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, flexible split core, 0-1000A sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, split core, 0-1200A sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, fixed core, 0-1000, 0-1333, or 0-2000A selectable sensing range, True RMS, 4-20mA output. AcuAMP AC current transducer, flexible split core, 0-2000A sensing range, True RMS, 4-20mA output. Accessories 35m DIN rail adapters, 1.70"x0.45"x0.83" [43.7x11.4x21.0 mm] Pcs/ Pkg Wt (lb) 1 0.30 1 0.36 1 0.30 1 0.36 1 0.30 1 0.36 1 1.22 1 0.60 1 1.37 1 2.00 1 1.38 1 0.60 1 2.61 1 2.00 1 0.60 2 0.40 Price $143.00 $164.00 $133.00 $166.00 $135.00 $169.00 $229.00 $311.00 $229.00 $218.00 $229.00 $338.00 $285.00 $283.00 $338.00 $3.75 distorted waveforms such as VFD or SCR outputs. · Models with selectable sensing ranges · Output is magnetically isolated from the input for safety and eliminates voltage drop. · Built-in mounting feet with optional or integral 35mm DIN rail adapter depending on part number. · Five-year warranty 5 YEAR Model ACTR005 ACTR050 ACTR200 ACTR400 ACTR500 ACTR600 ACTR750 ACTR800 ACTR1000 ACTR1200 ACTR2000 Fixed core ACTR2000 Split core Sensed Current Limits Amps Range Continuous 6 Sec 1 Sec 0 to 2A 80 125 250 0 to 5A 100 125 250 0 to 10A 80 125 250 0 to 20A 110 150 300 0 to 50A 175 215 400 0 to 100A 200 300 600 0 to 150A 300 450 800 0 to 200A 400 500 1000 0 to 400A 1600 1920 6400 0 to 500A 4000 4400 5000 0 to 600A 1600 1920 6400 0 to 375A 750 0 to 500A 750 1500 3750 0 to 750A 750 0 to 800A 1600 1920 6400 0 to 1000A 4000 4400 5000 0 to 1200A 1600 1920 6400 0 to 1000A 2000 0 to 1333A 2000 4000 10 k 0 to 2000A 2000 0 to 2000A 4000 4400 5000 www.automationdirect.com Current Sensors 10 1-800-633-0405 For the latest prices, please check AutomationDirect.com. ACTR Series AC Current Transducers Specifications Power Supply Output Signal Output Limit Output Impedance Accuracy Response Time Sensing Range Sensing Aperture Isolation Voltage Frequency Range Case Mounting Environmental Certifications ACTR Series Specifications -42L- Models up to 200 -42L-F Models 750 & -42L-S Models 500, 1000, 2000 -42L- Models 400, 600, 800, Amp 2000 Amp Amp 1200A 24VDC nominal, (12 to 40 VDC max) loop powered 24VDC nominal, (12 to 40 VDC max) loop powered 24VDC Nominal, 22-36 Volts Use Class 2 power supply or limitied power 24VDC nominal, 12 to 32VDC max supply only 4 -20 mA, loop powered, True RMS 112% of standard output range maximum 600 @ 24VDC 500 maximum 600 @ 24VDC 1.0% FS (10-100% of range) 600ms Selectable from 2 to 200A based on part number Selectable from on part number 375 to 2000A based 500, 1000 or 2000A based on part number Fixed core: 0.74" [19mm] dia. Split core: 0.85" [21.6 mm] sq. Fixed core: 3.0" [76.2 mm] dia. 4.5 in [114.3 mm] dia. UL listed to 1,270VAC, Tested to 5,000VAC (1 min. max) UL listed to 600V 10 to 400 Hz UL listed to 3,500VAC 40 to 400 Hz 400, 600, 800 or 1200A based on part number 2.22 X 1.19 in [56.3 X 30.2 mm] ACT1200: 3.44 x 2.31 in [87.3 x 58.8 mm] UL tested to 2200VAC 20 to 400 Hz UL 94 V-0 flammability rated thermoplastic Built-in mounting feet or optional DRA-2B 35mm DIN rail adapter Built-in 35mm DIN rail adapter Operating Temperature: -4 to 122°F [-20 to 50°C] Built-in mounting feet or 35mm DIN rail adapter Relative Humidity: 0-95% RH, Non-condensing Pollution Degree 2 Altitude to 2000 meters cULus listed (E222847), CE cULus listed (E197592), CE Dimensions Inches [mm] Built-in mounting feet or 35mm DIN rail adapter ACTR Series, Up to 200 Amp Fixed Core ACTR Series, Up to 200 Amp Split Core ACTR Series, 750 & 2000 Amp Fixed Core Large Aperture ACTR Series 500, 1000 & 2000 Amp Base & Flexible Split Core Loops www.automationdirect.com See our website www.AutomationDirect.com for complete Engineering drawings. Current Sensors 11 1-800-633-0405 Dimensions Inches [mm] For the latest prices, please check AutomationDirect.com. ACTR Series AC Current Transducers ACTR Series, 400, 600, 800 Amp Split Core Large Aperture ACTR Series, 1200 Amp Split Core Large Aperture Wiring ACTR Series, Up to 200 Amp 4-20mA Output Load + 24 VDC Power + Loop Power (VDC) Range Jumper + Output Notes: Captive screw terminals. Use 14-22 AWG solid or stranded. Observe polarity. Output Load Impedance (420 mA output) 32 VL = 12VDC + (RL× 0.020A) 27 where VL = Minimum Loop Supply RL = Total Loop Resistance (Ohms) 22 17 Operating Range 12 0 250 500 750 1000 Total Loop Impedance (Ohms) ACTR Series, Flexible Split Core 500, 1000 & 2000 Amp ACTR Series, 750 & 2000 Amp 4-20mA Output Load + 24 VDC Power + Low Mid High Range Switch + Output Notes: Captive screw terminals. Use 14-22 AWG solid or stranded. Observe polarity. ACTR Series, 400, 600, 800, 1200 Amp 4-20mA Output Load + 24 VDC Power + + Output Notes: Captive screw terminals. Use 14-22 AWG solid or stranded. Observe polarity. Application Example Notes: Fingersafe captive screw terminals. 1422 AWG solid or stranded. Observe polarity. Output 4-20mA Output - + (+) ( ) 24 VDC Power (+) ( ) (MCeotnet,rroeltlec.r,) Load 500 max load www.automationdirect.com Current Sensors 12 1-800-633-0405 For the latest prices, please check AutomationDirect.com. AC Current Switches, Overview Transducers and Indicators The AcuAMP series of AC current sensors for maximum flexibility across many current ranging from 0.5 to 100A and requires no is a family of high-performance current ratings. The current transducer output power for the indicating LED. sensors offering outstanding features, flexibility, and durability at an incredible Price. Choose from a wide selection of current transducers, switches and indicators, all designed in a rugged industry-standard feed-through package, including both fixed choices include 4-20 mA, 24VDC looppowered, and 0 to 10 volt self-powered analog outputs. The Current Switch outputs include isolated solid state switches available in Normally Open and Normally Closed configurations or SPDT relays. These current sensors can be mounted in a panel or attached to the monitored conductor with a wire tie. Use the Selection Guide below to find the best sensor for your requirements. core and split core models. Models with output time delay are also AcuAMP current sensors are available with a broad selection of input sensing ranges offered in the Current Switch series. The ACL1 Current Indicator senses AC current Specifications Series AcuAMP AC Current Transducer Selection Guide Single-Phase Transducer Single-Phase Transducer (True RMS) 3-Phase Transducer ACT ACTR 3ACT 3-Phase Transducer (True RMS) 3ACTR Sensing Range Selectable: ACT005: 0 to 2A 0 to 5A ACT050: 0 to 10A 0 to 20A 0 to 50A ACT200: 0 to 100A 0 to 150A 0 to 200A ACT750: 0 to 375A 0 to 500A 0 to 750A ACT2000: 0 to 1000A 0 to 1333A 0 to 2000A Fixed range: ACT400 0 to 400A ACT600 0 to 600A ACT800 0 to 800A ACT1200 0 to 1200A Selectable: ACTR005: 0 to 2A 0 to 5A ACTR050: 0 to 10A 0 to 20A 0 to 50A ACTR200: 0 to 100A 0 to 150A 0 to 200A ACTR750: 0 to 375A 0 to 500A 0 to 750A ACTR2000: 0 to 1000A 0 to 1333A 0 to 2000A Fixed range: ACTR400: 0 to 400A ACTR500: 0 to 500A ACTR600: 0 to 600A ACTR800: 0 to 800A ACTR1000: 0 to 1000A ACTR1200: 0 to 1200A ACTR2000: 0 to 2000A Selectable: 3ACT030: 0 to 10A 0 to 15A 0 to 30A 3ACT100: 0 to 30A 0 to 50A 0 to 100A 3ACT200: 0 to 100A 0 to 150A 0 to 200A Selectable: 3ACTR030: 0 to 10A 0 to 15A 0 to 30A 3ACTR100: 0 to 30A 0 to 50A 0 to 100A 3ACTR200: 0 to 100A 0 to 150A 0 to 200A Output -10 models: 010 VDC, self-powered 420 mA, -42L models: 420 mA, loop-powered loop-powered True RMS 4 -20 mA, loop-powered 420 mA, loop-powered True RMS -10 models: 50 to 60 Hz -42L models up to 200A: 20 to 100 Hz 20 to 400 Hz; (40 to 400 Hz flexible split core Frequency Range -42L models 400, 600, 800, 1200A: models) 50 to 60 Hz sinusoidal waveforms only sinusoidal and non-sinusoidal waveforms 50 to 60 Hz sinusoidal waveforms only 30 to 100 Hz sinusoidal and non-sinusoidal waveforms ACT005, ACT050, ACT200: Fixed core: 0.75 in [19mm] dia. Split core: 0.85 in [21.6 mm] sq. ACT750, ACT2000: Sensing Aperture Fixed core: 3.0 in [76.2 mm] dia. ACT400, ACT600, ACT800: Split core: 2.22 X 1.19 in [56.3 X 30.2 mm] ACT1200 Split core: 3.44 X 2.31 in [87.3 X 58.8 mm] ACTR005, ACTR050, ACTR200: Fixed core: 0.75 in [19mm] dia. Split core: 0.85 in [21.6 mm] sq. ACTR750, ACTR2000: Fixed core: 3.0 in [76.2 mm] dia. ACTR500, ACTR1000, ACTR2000: Flexible split core: 4.5 in [114.3 mm] dia. ACTR400, ACTR600, ACTR800: Split core: 2.22 X 1.19 in [56.3 X 30.2 mm] ACTR1200 Split core: 3.44 X 2.31 in [87.3 X 58.8 mm] 3x - Fixed core: 0.86 in [21.8 mm] dia. 3x - Fixed core: 0.86 in [21.8 mm] dia. www.automationdirect.com Current Sensors 1 1-800-633-0405 For the latest prices, please check AutomationDirect.com. AC Current Switches, Transducers and Indicator Specifications Series ACSN100 ACSN250 AcuAMP AC Current Switch Selection Guide AC Current Switches ACS150 ACSL ACS200 ACS050/ ACS200 ACS035/ACS400 ACSX Sensing Range 0 to 100A 0 to 250A Fixed core: 1 to 150A Split core: 1.75 to 150A 0 to 50A Jumper Selectable: Fixed core: 1 to 6A 6 to 40A 40 to 175A 1 to 200A Split core: 1.75 to 6A 6 to 40A 40 to 200A 2 to 400A Jumper Selectable: Fixed core: 1.5 to 12A 12 to 55A 55 to 175A Split core: 2 to 12A 12 to 55A 55 to 200A Setpoint (Trip Point) Adjustable: Adjustable Fixed core: 1-150 A (3/4-turn Non-adjustable: 0.5 A Non-adjustable: Fixed core: 0.75A Split core: 1.25A (15-turn potentiometer) Split core: 1.75-150 A (4-turn potentiometer) Monitored load current required to adjust setpoint potentiometer): ACSL010: 1-10A ACSL020: 2-20A ACSL050: 10-50A Monitored load current not required to adjust setpoint Adjustable: (4-turn or 15-turn potentiometer) Fixed core: 1-175A Split core: 1.75-200A Monitored load current required to adjust setpoint Adjustable: (Single turn potentiometer): ACS050: 1-50A ACS200: 4-200A Adjustable: (3/4-turn potentiometer): ACS035: 2-35A ACS400: 25-400A Adjustable: Fixed core: 1.5-175A (15-turn potentiometer) Split core: 2-200A (4-turn potentiometer) Monitored load current required to adjust setpoint Output Isolated solid Isolated solid state: state: Normally Open 0.15 A @ Isolated solid state: Normally Open Normally Open 0.15 A @ 240VAC or VDC 120VAC or VDC 0.15 A @ 240VAC or VDC Normally Closed 0.2 A @ 135VAC or VDC Isolated solid state: Normally Open AC: 0.15 A @ 240VAC Isolated solid state: Normally Open or Normally Closed AC model: 1A @ 240VAC Normally Open AC model: 3A @ 120VAC Normally Open or Normally Closed DC model: 0.15 A @ 30VDC Isolated solid state: Normally Open 1A @ 240VAC Isolated solid state: Normally Open Two Independent or Normally Closed Single Pole, Double AC model: Throw electro-mechan- 1A @ 240VAC ical relays AC: 1A @ 120VAC DC: 2A @ 30VDC Normally Open AC/DC model: 0.15 A @ 240 VAC/ VDC Normally Closed AC/DC model: 0.2 A @ 135 VAC/ VDC Frequency Range 50 to 400 Hz 6 to 100 Hz 6 to 100 Hz 10 to 100 Hz 6 to 100 Hz 40 to 100 Hz 40 to 65 Hz 50 to 100 Hz Response Time N/A 120ms 120ms 100ms & 2s inrush delay 40 to 250 ms 0.50 sec. 5% over set point 0.20 sec. 50% over set point 40 - 120ms 0.15 sec. 100% over set point Field adjustable time delay: 0.12 to 15 seconds Sensing Aperture 0.30 in [8.13 mm] dia. Fixed core: 0.75 in [19mm] dia. Split core: 0.85 in [21.7 mm] sq. Fixed core: 0.75 in [19mm] dia. Split core: 0.85 in [21.7 mm] sq. Fixed core: 0.55 in [13.97 mm] dia. Split core: 0.85 in [21.7 mm] sq. Fixed core: 0.55 in [13.97 mm] dia. Split core: 0.85 in [21.7 mm] sq. 0.75 in [19mm] dia. Fixed core: 0.75 in [19mm] dia. 1.31 in [33.3 mm] dia. Split core: 0.85 in [21.7 mm] sq. www.automationdirect.com Current Sensors 2 1-800-633-0405 For the latest prices, please check AutomationDirect.com. AC Current Switches, Transducers and Indicator AcuAMP AC Current Transducer/Switch and Indicator Selection Guide Specifications AC Current Transducer AC Current Transducer/ Switch Indicator Series ACTH ACTS ACL1 Sensing Range 0 to 50A 1 to 200A 0 to 100A Setpoint (Trip Point) Not Applicable Adjustable: (Single turn potentiometer): ACTS050: 1-50A ACTS200: 4-200A Non-adjustable: 0.5 A Output 4 -20 mA, loop-powered adaptive True RMS 4-20mA analog output and isolated solid state: Normally Open 1A @ 240VAC LED Only (flashing, red) Frequency Range 40 to 400 Hz 40 to 400 Hz Response Time 400ms at 100% duty cycle, or duty cycle period plus 40ms Switch: 0.50 sec. 5% over set point 0.20 sec. 50% over set point 0.15 sec. 100% over set point Analog: < 0.30 sec. 90% step change < 0.40 sec. 100% step change Sensing Aperture 0.86 in [21.9 mm] sq. 0.75 in [19mm] dia. 50 to 400 Hz N/A 0.30 in [7.6 mm] dia. Click on the thumbnail or go to https://www.automationdirect.com/VID-CT-0001 for a short introductory video on the AcuAmp Current Switches, Transducers and Indicators www.automationdirect.com Current Sensors 3 1-800-633-0405 For the latest prices, please check AutomationDirect.com. AC Current Sensors, Switches and Transducers Application Guide Application Guide AcuAMP current sensors are a great fit for many applications including material handling, fan and pump applications, and heating systems. With current transducers, current switches and current indicators, this sensor family gives you valuable data for processes ranging from monitoring loads to preventive maintenance. Models with the ability to read True RMS non-sinusoidal waveforms make it easy to monitor applications using variable frequency drives. Use the application examples to help choose the best sensor model for your application. Heater Life Prediction Current I Pump Jam & Suction Loss Protection Current Switch or Transducer Motor Control Signal Motor Starter Digital Input ACS Series Current Operated Switch Pump Load Monitoring Variable Frequency Drive Lamp Failure Detection 4-20mA Input to Controller True RMS Transducer Crusher/Grinder/Shredder Motor Interlocks The performance of size reduction equipment like crushers or grinders can be optimized by controlling the in-feed in order to: · Help prevent jamming · Improve the uniformity of the resultant product · Enhance overall production efficiency PLC Outputs PLC Inputs Motor Starters Use: ACTR Series - True RMS Current Current Switch or Transducer ACS Series Current Operated Switch L1 Electric Motor Load Status L2 Inactive Relay Contact When L1 fails, the current drops. The Current Operated Switch detects the drop in current and activates the relay which turns on the back-up lamp L2. The system may be configured fail-safe by using a Normally Open Current switch together with Normally Closed relay contacts www.automationdirect.com Current Sensors 4
