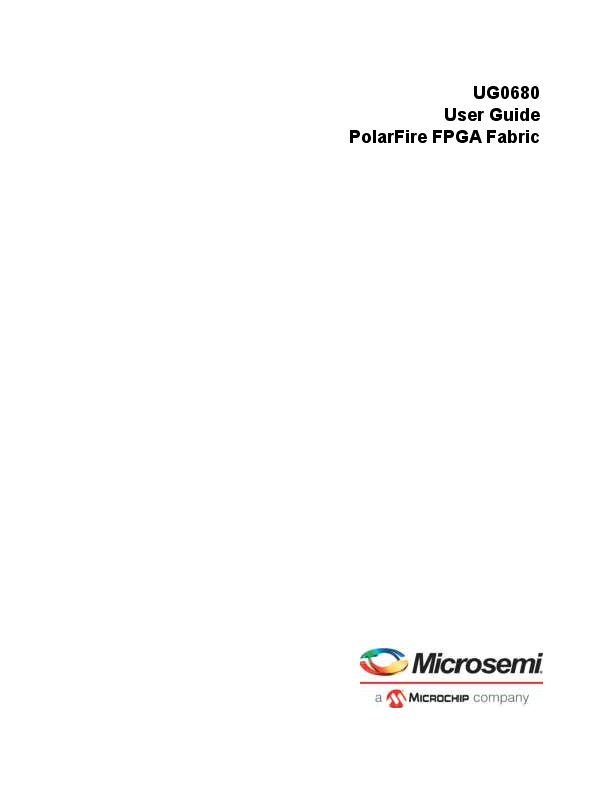

UG0680 User Guide PolarFire FPGA Fabric
Microsemi Headquarters One Enterprise, Aliso Viejo, CA 92656 USA Within the USA: +1 (800) 713-4113 Outside the USA: +1 (949) 380-6100 Sales: +1 (949) 380-6136 Fax: +1 (949) 215-4996 Email: sales.support@microsemi.com www.microsemi.com
�2021 Microsemi, a wholly owned subsidiary of Microchip Technology Inc. All rights reserved. Microsemi and the Microsemi logo are registered trademarks of Microsemi Corporation. All other trademarks and service marks are the property of their respective owners.
Microsemi makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its products and services for any particular purpose, nor does Microsemi assume any liability whatsoever arising out of the application or use of any product or circuit. The products sold hereunder and any other products sold by Microsemi have been subject to limited testing and should not be used in conjunction with mission-critical equipment or applications. Any performance specifications are believed to be reliable but are not verified, and Buyer must conduct and complete all performance and other testing of the products, alone and together with, or installed in, any end-products. Buyer shall not rely on any data and performance specifications or parameters provided by Microsemi. It is the Buyer's responsibility to independently determine suitability of any products and to test and verify the same. The information provided by Microsemi hereunder is provided "as is, where is" and with all faults, and the entire risk associated with such information is entirely with the Buyer. Microsemi does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other IP rights, whether with regard to such information itself or anything described by such information. Information provided in this document is proprietary to Microsemi, and Microsemi reserves the right to make any changes to the information in this document or to any products and services at any time without notice.
About Microsemi
Microsemi, a wholly owned subsidiary of Microchip Technology Inc. (Nasdaq: MCHP), offers a comprehensive portfolio of semiconductor and system solutions for aerospace & defense, communications, data center and industrial markets. Products include high-performance and radiation-hardened analog mixed-signal integrated circuits, FPGAs, SoCs and ASICs; power management products; timing and synchronization devices and precise time solutions, setting the world's standard for time; voice processing devices; RF solutions; discrete components; enterprise storage and communication solutions, security technologies and scalable anti-tamper products; Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as custom design capabilities and services. Learn more at www.microsemi.com.
50200680. 7.0 4/21
Contents
1 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1
Revision 7.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2
Revision 6.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3
Revision 5.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4
Revision 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5
Revision 3.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6
Revision 2.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.7
Revision 1.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Logic Element and Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1
Logic Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2
Interface Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3
Logic Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4
Routing Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5
Fabric X-Y Coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Embedded Memory Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1
LSRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1.1 Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.2 Two-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1.3 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.2
�SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.2.1 Read Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.2.2 Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.2.3 Collision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.2.4 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
4.3
�PROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
4.3.1 �PROM Architecture and Address Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
4.3.2 �PROM Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
4.3.3 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4.4
sNVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
4.4.1 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
5 Math Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5.1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5.2
Math Block Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5.3
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5.3.1 Pre-Adder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
5.3.2 Multiplier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
5.3.3 Adder/Subtractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
5.3.4 Math Block Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
5.3.5 16 x 18 Coefficient ROM and B2 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.4
Cascading Math Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.4.1 Wrap-Around to the Start of the Cascade Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.4.2 Wrap-Around to the Inside of the Cascade Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.5
Operational Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
5.5.1 Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Microsemi Proprietary UG0680 Revision 7.0
1
5.5.2 DOTP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 5.5.3 SIMD Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
5.6
Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.6.1 RTL Inference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.6.2 Math Block Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.6.3 Use Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6 Appendix: Supported Memory File Formats for LSRAM and �SRAM . . . . . . . . . . . 81
7 Appendix: Macro Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
7.1
LSRAM Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
7.1.1 A_WIDTH and B_WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
7.1.2 A_WEN and B_WEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
7.1.3 A_ADDR and B_ADDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
7.1.4 A_DIN and B_DIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
7.1.5 A_DOUT and B_DOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
7.1.6 A_BLK_EN and B_BLK_EN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
7.1.7 A_WMODE and B_WMODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
7.1.8 A_CLK and B_CLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
7.1.9 A_REN and B_REN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
7.1.10 ECC_EN and ECC_BYPASS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7.1.11 SB_CORRECT and DB_DETECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7.1.12 BUSY_FB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7.1.13 ACCESS_BUSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7.2
�SRAM Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
7.2.1 Read-Address and Read-Data Pipeline Register Control Signals . . . . . . . . . . . . . . . . . . . . . . 91
7.3
Math Block Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
7.3.1 MACC_PA (MACC with Pre-Adder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
7.3.2 MACC_PA_BC_ROM (MACC with Pre-Adder, BCOUT Register, and Coefficient ROM) . . . . 98
7.4
Libero SoC Compile Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Microsemi Proprietary UG0680 Revision 7.0
2
Figures
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8 Figure 9 Figure 10 Figure 11 Figure 12 Figure 13 Figure 14 Figure 15 Figure 16 Figure 17 Figure 18 Figure 19 Figure 20 Figure 21 Figure 22 Figure 23 Figure 24 Figure 25 Figure 26 Figure 27 Figure 28 Figure 29 Figure 30 Figure 31 Figure 32 Figure 33 Figure 34 Figure 35 Figure 36 Figure 37 Figure 38 Figure 39 Figure 40 Figure 41 Figure 42 Figure 43 Figure 44 Figure 45 Figure 46 Figure 47 Figure 48 Figure 49 Figure 50 Figure 51 Figure 52 Figure 53 Figure 54
PolarFire FPGA Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Fabric Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Functional Block Diagram of Logic Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Functional Block Diagram of Interface Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 LSRAM Interfacing with ILs in a Row . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Math Block Interfacing with ILs in a Row . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 �SRAMs Interfacing with ILs in a Row . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Logic Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 MPF300 Fabric X-Y Coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 LSRAM Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Simplified Functional Block Diagram of LSRAM in Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . 17 Block Select Inputs for Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Synchronous Pipeline Register Reset in Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Asynchronous Pipeline Register Reset in Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Read Operation in Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Write Operations in Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Simplified Functional Block Diagram for LSRAM in Two-Port Mode . . . . . . . . . . . . . . . . . . . . . . . 23 Synchronous Pipeline Reset in Two-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Read Operation in Two-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Asynchronous Pipeline Register Reset in Two-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Dual-Port Large SRAM Configurator: Generated Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Dual-Port Large SRAM Configurator: Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Dual-Port Large SRAM Configurator: Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Dual-Port Large SRAM Configurator: Memory Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Two-Port Large SRAM Configurator with ECC Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Two-Port Large SRAM Configurator: Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Two-Port Large SRAM Configurator: Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Two-Port Large SRAM Configurator: Memory Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 �SRAM Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Simplified Functional Block Diagram of �SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Read Operation in �SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Write Operation in �SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 �SRAM Configurator - Generated Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 MicroSRAM Configurator: Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 MicroSRAM Configurator: Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 MicroSRAM Configurator: Memory Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Simplified Functional Block Diagram of �PROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 �PROM Memory Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Read Operation in �PROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 �PROM Core in Catalog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 �PROM Configurator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Add Data Storage Client Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Import Memory File Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Absolute Path of Memory File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Relative Path of Memory File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Location of Memory File to Copy From . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Microsemi Binary File (*.mem) Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 User Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Editing User Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Edit Data Storage Client Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Deleting a Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Update �PROM Memory Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Simplified Functional Block Diagram of Math Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Wrap-Around of Cascade Chain Using Pipeline Registers in Fabric . . . . . . . . . . . . . . . . . . . . . . . 68
Microsemi Proprietary UG0680 Revision 7.0
3
Figure 55 Figure 56 Figure 57 Figure 58 Figure 59 Figure 60 Figure 61 Figure 62 Figure 63 Figure 64 Figure 65 Figure 66 Figure 67 Figure 68 Figure 69 Figure 70 Figure 71 Figure 72 Figure 73 Figure 74
Wrap-Around to Inside of Cascade Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Merging Cascade Chains Using C Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Merging Cascade Chains Using Fabric Adders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Functional Block Diagram of the Math Block in Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Functional Block Diagram of the Math Block in DOTP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Functional Block Diagram of the Math Block in SIMD Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Symmetric FIR Filter Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 9 x 9 Systolic FIR Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 9 x 9 Symmetric FIR Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 9-Bit Complex Multiplication Using DOTP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Non-Pipelined Implementation Using Cascade Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Pipelined Implementation Using Cascade Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 35 x 35 Multiply Using Fabric Adders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Extension of 2-Input Adder in Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Extension of 3-Input Adder in Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 RAM1K20 Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 RAM64x12 Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 MACC_PA Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 MACC_PA_BC_ROM Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Sample Compile Report for MPF300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Microsemi Proprietary UG0680 Revision 7.0
4
Tables
Table 1 Table 2 Table 3 Table 4 Table 5 Table 6 Table 7 Table 8 Table 9 Table 10 Table 11 Table 12 Table 13 Table 14 Table 15 Table 16 Table 17 Table 18 Table 19 Table 20 Table 21 Table 22 Table 23 Table 24 Table 25 Table 26 Table 27 Table 28 Table 29 Table 30 Table 31 Table 32 Table 33 Table 34 Table 35 Table 36 Table 37
Fabric Resources for PolarFire FPGA Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Number of Logic Elements (PolarFire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ILs for Embedded Hard IP Blocks (PolarFire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 PolarFire LSRAM, �SRAM, �PROM, and sNVM Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 LSRAM Port List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Port A and Port B Data Width Configurations for LSRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Block Select Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Byte Write Enables Settings for Dual-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 LSRAM Data Width Configurations (Two-Port Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Byte Write Enable Settings for Two-Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Error Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Dual-Port LSRAM Configurator Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Two-Port Large SRAM Configurator Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Port List for �SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 �SRAM Configurator Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 �PROM Port List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Port List for Math Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Truth Table for Computation of OVFL_CARRYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Truth Table for Propagating Operand E of the Adder or Accumulator . . . . . . . . . . . . . . . . . . . . . . 66 Truth Table for Computation of Result P and CDOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Port List of RAM1K20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Width/Depth Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Write/Read Operation Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Write/Read Operation Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Data Input Buses Used and Unused Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Data Output Buses Used and Unused Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Block-Port Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Truth Table for A_DOUT and B_DOUT Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Error Detection and Correction Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Port List for RAM64x12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Truth Table for A_DOUT and B_DOUT Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 MACC_PA Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Truth Table for Control Registers ARSHFT17, CDIN_FDBK_SEL, PASUB, and SUB . . . . . . . . . 97 Truth Table for Data Registers A, B, P, and OVFL_CARRYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Truth Table for Data Registers C, CARRYIN, and D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 MACC_PA_BC_ROM Parameter Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 MACC_PA_BC_ROM Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Microsemi Proprietary UG0680 Revision 7.0
5
Revision History
1 Revision History
1.1
1.2 1.3
1.4 1.5 1.6
1.7
Revision 7.0
The following is a summary of changes made in this revision.
� Updated Figure 15, page 20 to correct the output data values in the Pipeline Mode. � Removed collision prevention from Table 4, page 14. � Updated Table 8, page 19 for 1K x 16 mode. � Added information about how RAM blocks are cascaded when Write byte Enables option is
selected. See, Dual-Port Large SRAM Configurator, page 29 and Two-Port LSRAM Configurator, page 35. � Updated �PROM Operation, page 51 to mention that PROM memory file supports only the plain text file. � Updated Figure 11, page 17 and Figure 17, page 23 to show that A_BYPASS and B_BYPASS signals are control signals of the MUX. � Removed Simple Write, Feed-Through Write, and Read-Before-Write specific content from two-port LSRAM. These write operations are not supported in the two-port LSRAM configuration.
Revision 6.0
Updated ECC Mode (For x33 Two-Port Mode Only), page 26.
Revision 5.0
The following is a summary of the changes in this revision.
� Structural changes were made throughout the document. � Information about PolarFire LSRAM, SRAM, PROM, and sNVM Features were updated. See,
Table 2, page 10. � Math Block Features were updated. See, Features, page 62. � Libero SoC PolarFire Compile Report is moved to appendix. See, Libero SoC Compile Report,
page 103.
Revision 4.0
Updated the Math Blocks Resources. For more information, see Table 1, page 9.
Revision 3.0
Revision 3.0 of this document is updated to include features and enhancements introduced in Libero SoC PolarFire v2.0.
Revision 2.0
The following is a summary of the changes made in this revision.
� Added reference to the ChipPlanner user guide. For more information, see Fabric X-Y Coordinates, page 13
� Added reference to the Synplify Pro RAM block application note for LSRAM. For more information, see RTL Inference during Synthesis, page 28.
� Added reference to the Synplify Pro RAM block application note for �SRAM. For more information, see RTL Inference during Synthesis, page 44.
� Added reference to the Synplify Pro MACC block application note for MACC. For more information, see RTL Inference, page 73.
Revision 1.0
The first publication of this document.
Microsemi Proprietary UG0680 Revision 7.0
6
Overview
2 Overview
Figure 1 �
PolarFire� FPGAs are the fifth-generation family of 28nm non-volatile SoC FPGA devices from Microchip.
The PolarFire FPGA fabric consists of the following resources:
� Logic element--these are basic building blocks in the PolarFire FPGA. � Embedded memory blocks--these include large SRAM (LSRAM), microSRAM (�SRAM),
microPROM (�PROM), and secure non-volatile memory (sNVM)1. � Math blocks (MACC)--these have a built-in multiplier, pre-adder, and adder. Microchip's Libero� SoC Design Suite provides LSRAM, �SRAM, �PROM, and Math IP blocks. Figure 1 shows the top-level block diagram of the PolarFire FPGA.
PolarFire FPGA Block Diagram
Microsemi PolarFire FPGA
Up to 24 Lanes Multi-Protocol Low Power 250 Mbps�12.7 Gbps Transceiver Lane
PCI Express Gen2
(EP/RP) DMA, x1, x2, x4
4 to 24 Transceiver Lanes
64B/6XB
8B/10B
PIPE
22%
CTLE
Loop Back
DFE
Eye Monitor
PCI Express Gen2
(EP/RP) DMA, x1, x2, x4
PolarFire System Controller
SPI Auto 3URJUDPPLQJ
Physically Unclonable Function (PUF)
Suspend
System Services
Secure H190V190
Tamper Detectors and
Countermeasures
)ODJV Response
9DD 9RU9 9DD25 9 9DD18 9
6(8,PPXQH&RQILJXUDWLRQ&HOO)3*$)DEULFXSWR./RJLF(OHPHQWV
18 � 18 MACC, Pre Adder
65$0 (64 � 12)
LSRAM (1024 � 20) SECDED
User PLLs and DLLs 3520
+LJK6SHHG,2+6,2 9�9
,2'LJLWDO
DDR4, 3L, LPDDR2/3,
QDRII+
*HQHUDO3XUSRVH,2*3,2 9�9
,2*HDULQJ
SGMII
DDR2/3, LPDDR, QDRII+
Crypto Co-Processor
AHB
DPA Safe
True Random Number Generator
Available on Data Security Devices
Fabric
The fabric layout is shown in Figure 2. The FPGA logic resources are displayed as Logic Clusters (LC) and Interface Logic (IL). Each LC and IL consists of 12 Logic Elements (LE). The embedded memory blocks and math blocks are arranged in rows.
1. sNVM is part of PolarFire system controller.
Microsemi Proprietary UG0680 Revision 7.0
7
Overview
Figure 2 � Fabric Layout
