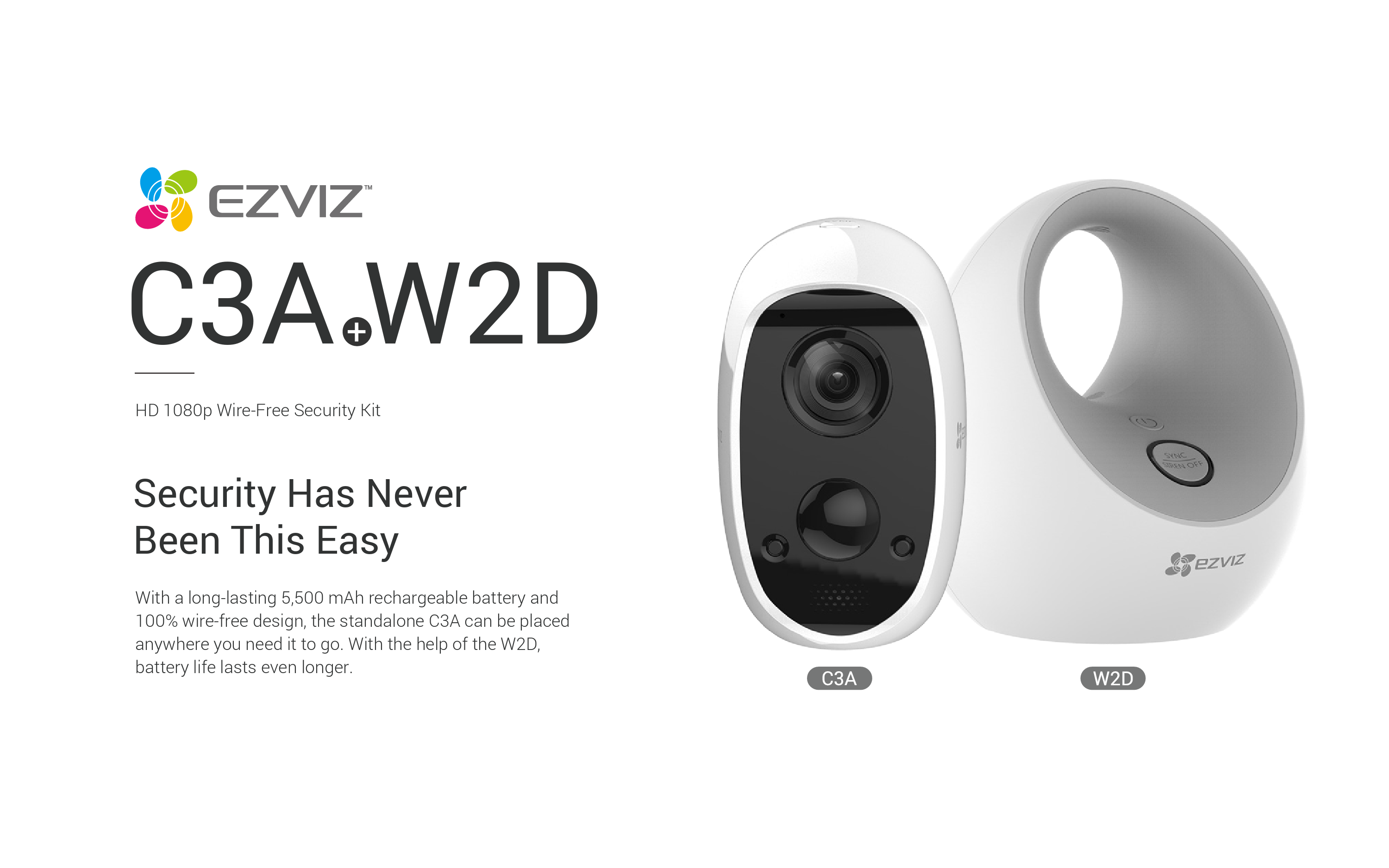

C3A W2D datasheet
C3A W2D C3A +W2D
HD 1080p Wire-Free Security Kit
Security Has Never Been This Easy
With a long-lasting 5,500 mAh rechargeable battery and 100% wire-free design, the standalone C3A can be placed anywhere you need it to go. With the help of the W2D, battery life lasts even longer.
C3A
100% Wire-Free, Battery-Powered Camera
W2D Base Station for the C3A
PIR Motion Detection
Two-Way Talk
Night Vision Up to 25 ft. (7.5 m)
1080p
125PDiagonal Field of View
2.4GHz
5500 mAh Rechargeable Lithium Battery
IP65 Dust and
5
Water Protection
Supports MicroSD Card (Up to 128GB)
Supports up to six C3A units Prolongs battery life of connected C3A Supports 100-decibel siren
Hassle-Free, Effortless Security
Use the C3A to monitor anywhere whether indoors or out, or even in places without power outlets. Thanks to its wireless, battery powered and weatherproof design, the options are limitless!
Watches Over What Matters Most, Day and Night
The C3A lets you see wide-angle, Full HD images. Its night vision also ensures 24/7 protection even when it's dark outside.
125o
Two-Way Talk Secures Your Home
Speak with visitors and hear what's happening anywhere and at any time using your smartphone.
Extra Protection with Accurate Detection
The C3A's passive infrared (PIR) motion detection feature sends you an instant alert with images and videos captured when a visitor approaches. Once you connect the C3A with the W2D, the W2D will even emit a 100-decibel siren when triggered, reminding you to check on what's happening.
Pet Movement
Human Movement
Curtain Movement
Insect Movement
Lighting Changes
Worry Less with Longer Battery Life
The C3A equips with a removable and rechargeable 5,500 mAh Lithium battery. Paired with the W2D, the C3A's battery life can last even longer.
Easy Pairing
With one-click sync buttons, the C3A and W2D will pair in seconds.
Comprehensive Accessories to Choose From
A wide range of accessories are also available to enhance your experience, including a charging station, rechargeable battery and mounting bracket for long-lasting protection and good usability.
Battery Release Latch
Rechargeable 5500 mAh Lithium battery
USB Charging
Removable Battery Easy Pairing
Multiple Storage Solutions
Save your recordings with flexible and secured solutions. The C3A comes with a built-in MicroSD card slot that can store up to 128 GB of recorded footage. You can also save your images to EZVIZ Cloud for additional back-up (Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.)
Supports MicroSD Card
Encrypted Cloud Storage
Specifications
C3A
Model C3A
System Parameters
Processor Operation System
High-Performance Embedded SOC Processor Embedded RTOS
Camera Parameters
Sensor Lens Field of View Night Vision
1/4" 2-Megapixel sensor 2.2mm@F2.4 Diagonal FOV 125° Up to 25 ft.
Video Parameters
Compression Standard Max. Resolution Frame Rate
DNR WDR BLC
Smart H.264
1920 × 1080, FHD Max. 15fps Adaptive frame rate of network transmission 3D DNR DWDR Supports
Audio Parameters
Audio Input Audio Output Audio Quality
Built-in Omni-direction microphone Built-in loudspeaker Noise suppression
Network Parameters And Storage
Wireless Network Configuration Minimum Network Requirements Local Storage
Cloud Storage
Built-in 2.4 GHz Wi-Fi AP Pairing 2 Mbps
Support microSD card (Up to 128 GB) EZVIZ Cloud Storage
Event
Sensor Alarm Siren
PIR Motion Sensor Customized Alert Area N/A
General
Power Supply Power Consumption Weatherproof Product Dimensions (mm) Packaging Dimensions (mm) Weight (g)
5500 mAh Rechargeable Lithium Battery and 5V DC Max. 5W IP65 56.08 x 70.02 x 92.09 118.5 x 130 x 215 215g
Specifications
W2D
Model CS-W2D-EUP
Network Interface
1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.
Minimum Network Environment
2Mbps
Wireless Interface
Supports 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n. Supports Sub-1G connection with Low-Power Private Protocol. Working Band of 433M/868M/915M and available channels vary according to the sales area regulations.
Battery Camera
Supports up to 6 Wire-Free Cameras
CPU
Qualcomm @ 650 MHz (Maximum)
RAM
128MB
Flash
16 MB
Alarm Siren
Supported
Antenna
2.4G: 2 internal @ 2dB max. Sub-1G: 1 internal.
Indicator
One System LED. One WAN Port LED.
Button
One SYNC button. One Power button. One Reset button, hold 10 seconds to RESET.
General
Power
Product Dimensions (mm) Packaging Dimensions (mm) Weight
DC 5V 2A typical power consumption < 10watts The adapter supports a wide voltage range expected 100V~240V
95 x 95 x 110
119.5 x 130 x 215
180g
Package Contents:
C3A
- Camera - Battery - Magnetic Mount - 3.3-Foot (1-Meter) USB Cable - Power Adapter - Screw Kit - Quick Start Guide
W2D
- Base - 5-Foot (1.5-Meter) USB Cable - Power Adapter - Ethernet - Quick Start Guide
Requirements
C3A - Operating Conditions: -4 - 113ºF (-20 - 45ºC), Humidity 95% or less W2D - Operating Conditions: 32 - 104ºF (0 - 40ºC), Humidity 10%-90%
Certificates
C3A - CE / FCC / UL W2D - FCC / UL
Specifications are subject to change without notice. " ", "
" and other EZVIZ's trademarks and logos
are the properties of EZVIZ in various jurisdictions. Other brands and product names
are trademarks or registered trademarks of their respective holders.
