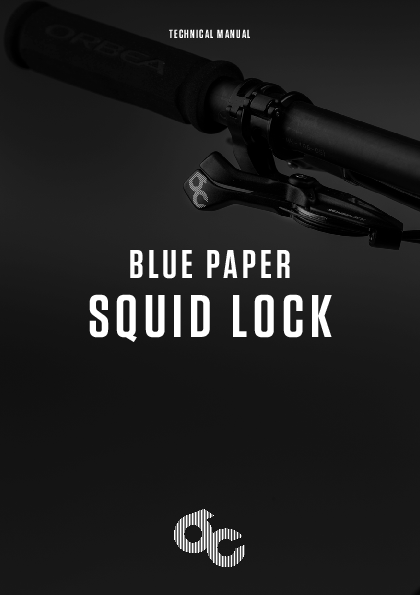

Orbea Squid Lock Technical Manual

Index

• Technical Specifications
• Assembly Options
• Operation
• Assembly and Cable Tension Adjustment
• Spare Parts
• Warranty
• Additional Information

Illustration of the Orbea Squid Lock remote control unit.

Technical Specifications

The Squidlock system unlocks the full performance of FOX DPS shocks, allowing selection from three positions: Open, Medium, and Firm, enabling the bicycle to adapt to any terrain. Squidlock provides access to the intermediate position, maximizing the potential of the DPS technology. It also allows access to an intermediate position on the compression settings of FOX forks with GRIP cartridges (Performance Series).

FOX forks with FIT4 cartridges (Factory Series) offer two positions (Firm and Open). The Open position's compression setting can be tuned manually using the black dial on the top of the right leg. If the description of a FOX fork with FIT4 cartridge (Factory Series) specifies "2Pos", it means that when Squidlock is in its middle position (DPS shock intermediate compression setting), the fork will remain in Open mode, but the compression setting can still be adjusted manually with the black dial.

Compatible Orbea Bicycles:

Squidlock is designed for optimal functionality with FOX Push-to-Unlock suspensions, as found on the following factory-specified models:

2020 Models:

• OIZ 27 H30
• OIZ 27 H20
• OIZ 27 H10
• OIZ 29 H30
• OIZ 29 H20
• OIZ 29 H10
• OIZ 27 M30
• OIZ 27 M20 TR
• OIZ 27 M10
• OIZ 27 M10 TR
• OIZ 27 M-TEAM
• OIZ 27 M-LTD
• OIZ 29 M30
• OIZ 29 M20 TR
• OIZ 29 M10
• OIZ 29 M10 TR
• OIZ 29 M-TEAM
• OIZ 29 M-LTD
• OIZ 27 OMR+IL DPS R+K
• OIZ 29 OMR+IL DPS R+K

Squidlock is also compatible with Push-to-Lock suspensions. However, its operation may not be fully optimized for these cartridges, potentially resulting in a heavier lever action. For these suspensions, the lever action will be reversed. Compatible bicycles originally specified with Push-to-Lock from the factory include:

2019 Models:

• OIZ 27 M50 19
• OIZ 27 M30 19
• OIZ 29 M50 19
• OIZ 29 M30 19
• OIZ OMP 27 19
• OIZ OMP 29 19
• OIZ 27 SP M10-TR 19
• OIZ 27 SP M-TEAM 19
• OIZ 27 SP M-LTD 19
• OIZ 29 SP M10 19
• OIZ 29 SP M10-TR 19
• OIZ 29 SP M-TEAM 19
• OIZ 29 SP M-LTD 19
• OIZ 27 SP OMR+IL DPS R+K 19
• OIZ 29 SP OMR+IL DPS R+K 19

2018 Models:

• OIZ 27 M-LTD 18
• OIZ 29 M50 18
• OIZ 29 M30-XT 18
• OIZ 29 M30-EAGLE 18
• OIZ 29 M20 18
• OIZ 29 M10 18
• OIZ 27 M50 18
• OIZ 29 M-TEAM 18
• OIZ 27 M30-XT 18
• OIZ 29 M-LTD 18
• OIZ 27 M30-EAGLE 18
• OIZ OMP 27 18
• OIZ 27 M20 18
• OIZ OMP 29 18
• OIZ 27 M10 18
• OIZ 27 OMR+DPS REM KASH 18
• OIZ 27 M-TEAM 18

For models prior to 2018 and not listed, Orbea cannot guarantee Squidlock compatibility.

Assembly Options

The Squid Lock system can be configured in several ways:

1. FORK+SHOCK+DROPPER REMOTE
2. FORK+SHOCK REMOTE
3. DROPPER SEATPOST REMOTE

Illustrations showing the three possible configurations for integrating the Squid Lock remote with bicycle suspension and dropper post controls.

Operation

The Squid Lock remote controls the suspension lockout and dropper post. It features a lever for the dropper seatpost and a main lever for actuating the fork and shock compression (3 positions).

Diagram illustrating the operation of the Squid Lock system. It shows the dropper seatpost remote lever and cable, and how the main lever actuates the compression lock/unlock mechanism for the fork and shock. Labels indicate: "Dropper seatpost remote lever", "Push to unlock compression remote lever of the fork and shock (3 positions)", "Release to lock lever", "Dropper seatpost remote cable", and "Fork and shock remotes cables".

Assembly and Cable Tension Adjustment

Suspension Cable Tension Assembly and Adjustment

Follow these steps to install and adjust the cables for the fork and shock remote:

1. Install the 4mm Jagwire metal ferrules on the shock and fork outer cable housings.
2. Begin by setting the bolts flush with the inside face of the remote mechanism.
3. Install both cables, ensuring their ends are fully seated in the lever's housing. Secure the other end of each cable to the respective compression adjuster on the fork and shock, removing any slack. Ensure the cables do not cross in the designated groove.
4. Use the adjuster screws to remove any remaining slack and make fine adjustments to the cable tension.

Illustrations detailing the suspension cable installation and adjustment process. Includes views of ferrule placement, bolt setting, cable routing, and the use of adjuster screws.

Dropper Seatpost Cable Tension Assembly and Adjustment

To adjust the dropper seatpost cable tension:

• Adjust the cable tension using the barrel adjuster located on the elbow piece.
• Secure the cable using the grubscrew.
• Ensure the cable end is properly seated in its housing under the lever.

Illustration of the dropper seatpost remote cable connection and adjustment. Also shows a diagram of a bicycle frame with suspension components (shock, fork) and the routing of the associated cables.

Spare Parts

The following spare parts are available for the Squid Lock system:

Illustrations of the individual spare parts, corresponding to the list above.

Warranty

All OC COMPONENTS are covered by a commercial warranty against manufacturing or conformity defects for a period of two years from the original date of purchase. Wearable components are not covered by this warranty.

To make a warranty claim, take your components to an Orbea distributor along with the original proof of purchase.
