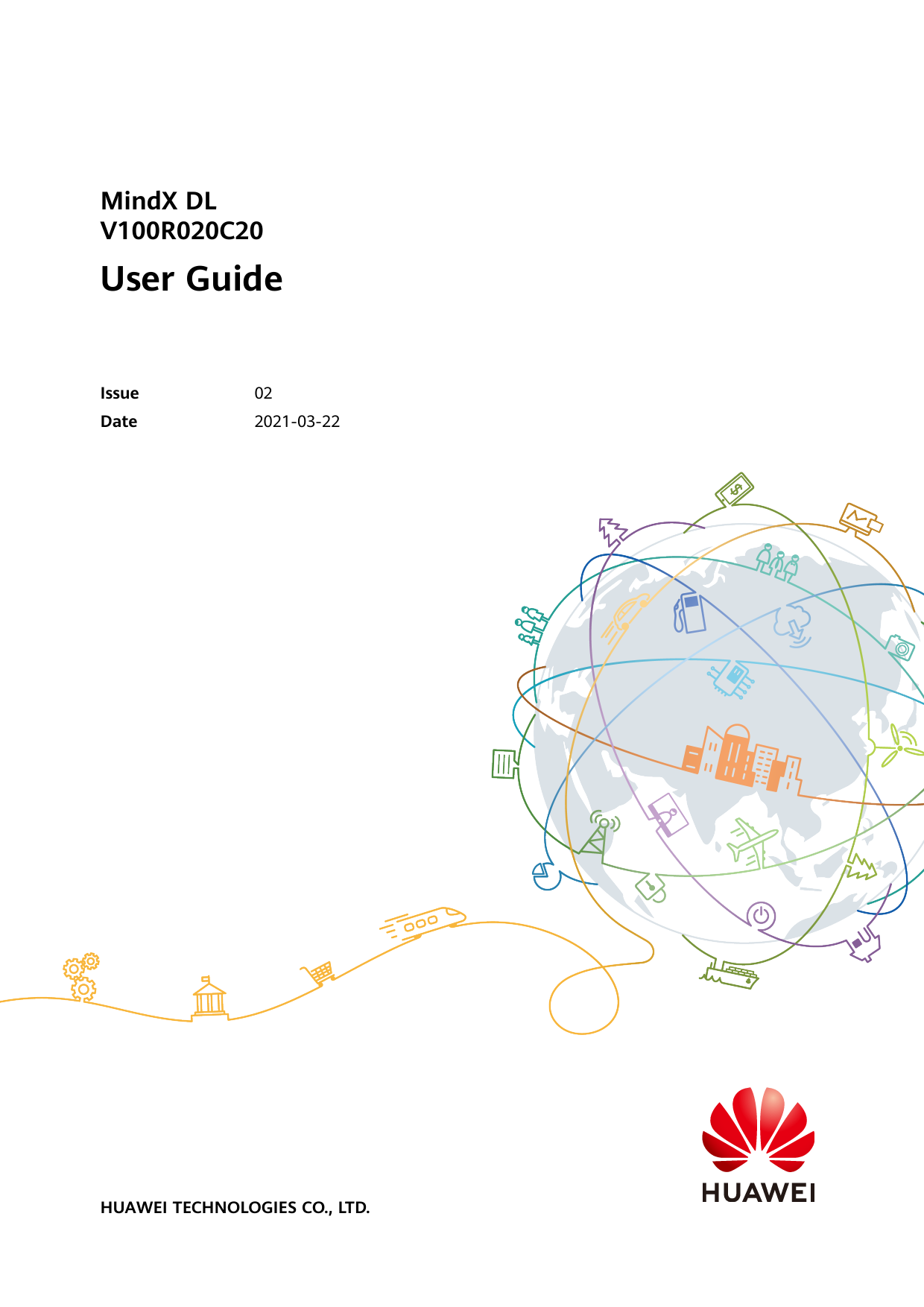

MindX DL V100R020C20
User Guide

Issue Date

02 2021-03-22

HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2021. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

Issue 02 (2021-03-22)

MindX DL User Guide

Contents

1 Product Description.................................................................................................................1
1.1 Product Introduction.............................................................................................................................................................. 1 1.1.1 Product Positioning............................................................................................................................................................. 1 1.1.2 Functions................................................................................................................................................................................. 2 1.2 Application Scenarios............................................................................................................................................................. 3 1.3 System Architecture................................................................................................................................................................ 3 1.4 Software Version Mapping................................................................................................................................................... 4 1.5 Training Job Model Description.......................................................................................................................................... 5
2 Installation and Deployment................................................................................................6
2.1 Before You Start....................................................................................................................................................................... 6 2.1.1 Disclaimer............................................................................................................................................................................... 6 2.1.2 Constraints............................................................................................................................................................................. 6 2.2 Installation Overview............................................................................................................................................................. 7 2.2.1 Environment Dependencies.............................................................................................................................................. 7 2.2.2 Networking Schemes.......................................................................................................................................................... 9 2.2.2.1 Logical Networking Scheme......................................................................................................................................... 9 2.2.2.2 Typical Physical Networking Scheme...................................................................................................................... 10 2.2.3 Installation Scenarios....................................................................................................................................................... 10 2.3 MindX DL Installation.......................................................................................................................................................... 11 2.3.1 MindX DL Online Installation........................................................................................................................................ 11 2.3.1.1 Preparations for Installation....................................................................................................................................... 11 2.3.1.2 Online Installation......................................................................................................................................................... 13 2.3.2 MindX DL Offline Installation....................................................................................................................................... 14 2.3.2.1 Preparations for Installation....................................................................................................................................... 14 2.3.2.2 Offline Installation......................................................................................................................................................... 35 2.3.3 MindX DL Manual Installation...................................................................................................................................... 37 2.3.3.1 Preparations for Installation....................................................................................................................................... 37 2.3.3.2 Manual Installation (Using Images Downloaded from Ascend Hub)......................................................... 42 2.3.3.3 Manual Installation (Using Manually Built Images)......................................................................................... 45 2.4 Environment Check.............................................................................................................................................................. 49 2.4.1 Checking the Environment Manually......................................................................................................................... 49 2.4.2 Checking the Environment Using a Script................................................................................................................ 51 2.5 MindX DL Uninstallation.................................................................................................................................................... 56

Issue 02 (2021-03-22)

MindX DL User Guide

Contents

2.5.1 Automatic Uninstallation................................................................................................................................................56 2.5.2 Manual Uninstallation..................................................................................................................................................... 58 2.5.2.1 Clearing Running Resources....................................................................................................................................... 58 2.5.2.2 Deleting Component Logs.......................................................................................................................................... 59 2.5.2.3 Removing a Node from a Cluster............................................................................................................................. 60 2.6 MindX DL Upgrade............................................................................................................................................................... 60 2.6.1 Preparing for the Upgrade............................................................................................................................................. 60 2.6.2 Upgrading MindX DL........................................................................................................................................................ 62 2.7 Security Hardening............................................................................................................................................................... 64 2.7.1 Hardening OS Security.................................................................................................................................................... 64 2.7.2 Hardening Container Security....................................................................................................................................... 64 2.7.3 Security Hardening for Ownerless Files.....................................................................................................................67 2.7.4 Hardening the cAdvisor Monitoring Port.................................................................................................................. 67 2.8 Common Operations........................................................................................................................................................... 67 2.8.1 Checking the Python and Ansible Versions.............................................................................................................. 68 2.8.2 Installing Python and Ansible....................................................................................................................................... 70 2.8.2.1 Installing Python and Ansible Online......................................................................................................................70 2.8.2.2 Installing Python and Ansible Offline..................................................................................................................... 72 2.8.3 Configuring Ansible Host Information....................................................................................................................... 85 2.8.4 Obtaining MindX DL Images......................................................................................................................................... 90 2.8.5 Building MindX DL Images............................................................................................................................................. 95 2.8.6 Modify the Permission of /etc/passwd.......................................................................................................................99 2.8.7 Installing the NFS.............................................................................................................................................................. 99 2.8.7.1 Ubuntu............................................................................................................................................................................... 99 2.8.7.2 CentOS............................................................................................................................................................................ 101 2.9 User Information................................................................................................................................................................ 103
3 Usage Guidelines................................................................................................................. 104
3.1 Instructions........................................................................................................................................................................... 104 3.2 Interconnection Programming Guide.......................................................................................................................... 104 3.3 Scheduling Configuration................................................................................................................................................ 106 3.4 ResNet-50 Model Use Examples................................................................................................................................... 109 3.4.1 TensorFlow........................................................................................................................................................................ 109 3.4.1.1 Atlas 800 Training Server.......................................................................................................................................... 109 3.4.1.1.1 Preparing the NPU Training Environment....................................................................................................... 109 3.4.1.1.2 Creating a YAML File...............................................................................................................................................116 3.4.1.1.3 Preparing for Running a Training Job................................................................................................................121 3.4.1.1.4 Delivering a Training Job....................................................................................................................................... 123 3.4.1.1.5 Checking the Running Status............................................................................................................................... 124 3.4.1.1.6 Viewing the Running Result................................................................................................................................. 128 3.4.1.1.7 Deleting a Training Job.......................................................................................................................................... 129 3.4.1.2 Server (with Atlas 300T Training Cards)..............................................................................................................129 3.4.1.2.1 Preparing the NPU Training Environment....................................................................................................... 129

Issue 02 (2021-03-22)

iii

MindX DL User Guide

Contents

3.4.1.2.2 Creating a YAML File...............................................................................................................................................136 3.4.1.2.3 Preparing for Running a Training Job................................................................................................................141 3.4.1.2.4 Delivering a Training Job....................................................................................................................................... 143 3.4.1.2.5 Checking the Running Status............................................................................................................................... 144 3.4.1.2.6 Viewing the Running Result................................................................................................................................. 148 3.4.1.2.7 Deleting a Training Job.......................................................................................................................................... 149 3.4.2 PyTorch............................................................................................................................................................................... 149 3.4.2.1 Atlas 800 Training Server.......................................................................................................................................... 149 3.4.2.1.1 Preparing the NPU Training Environment....................................................................................................... 149 3.4.2.1.2 Creating a YAML File...............................................................................................................................................151 3.4.2.1.3 Preparing for Running a Training Job................................................................................................................153 3.4.2.1.4 Delivering a Training Job....................................................................................................................................... 158 3.4.2.1.5 Checking the Running Status............................................................................................................................... 159 3.4.2.1.6 Viewing the Running Result................................................................................................................................. 163 3.4.2.1.7 Deleting a Training Job.......................................................................................................................................... 164 3.4.2.2 Server (with Atlas 300T Training Cards)..............................................................................................................164 3.4.2.2.1 Preparing the NPU Training Environment....................................................................................................... 164 3.4.2.2.2 Creating a YAML File...............................................................................................................................................166 3.4.2.2.3 Preparing for Running a Training Job................................................................................................................168 3.4.2.2.4 Delivering a Training Job....................................................................................................................................... 173 3.4.2.2.5 Checking the Running Status............................................................................................................................... 174 3.4.2.2.6 Viewing the Running Result................................................................................................................................. 178 3.4.2.2.7 Deleting a Training Job.......................................................................................................................................... 179 3.4.3 MindSpore......................................................................................................................................................................... 179 3.4.3.1 Preparing the NPU Training Environment...........................................................................................................179 3.4.3.2 Creating a YAML File.................................................................................................................................................. 181 3.4.3.3 Preparing for Running a Training Job................................................................................................................... 185 3.4.3.4 Delivering a Training Job...........................................................................................................................................187 3.4.3.5 Checking the Running Status.................................................................................................................................. 187 3.4.3.6 Viewing the Running Result.....................................................................................................................................191 3.4.3.7 Deleting a Training Job.............................................................................................................................................. 192 3.4.4 Inference Job..................................................................................................................................................................... 192 3.4.4.1 Preparing the NPU Inference Environment........................................................................................................ 192 3.4.4.2 Creating a YAML File.................................................................................................................................................. 193 3.4.4.3 Delivering Inference Jobs.......................................................................................................................................... 194 3.4.4.4 Checking the Running Status.................................................................................................................................. 194 3.4.4.5 Deleting an Inference Job......................................................................................................................................... 194 3.5 Log Collection...................................................................................................................................................................... 194 3.6 Common Operations......................................................................................................................................................... 198 3.6.1 Creating an NPU Training Script (MindSpore)......................................................................................................198 3.6.2 Creating a Container Image Using a Dockerfile (TensorFlow)....................................................................... 202 3.6.3 Creating a Container Image Using a Dockerfile (PyTorch).............................................................................. 212

Issue 02 (2021-03-22)

MindX DL User Guide

Contents

3.6.4 Creating a Container Image Using a Dockerfile (MindSpore)........................................................................ 220 3.6.5 Creating an Inference Image Using a Dockerfile................................................................................................. 229 3.6.6 Creating the WHL Package of the TensorFlow Framework............................................................................. 232
4 API Reference....................................................................................................................... 236
4.1 Overview................................................................................................................................................................................ 236 4.2 Description............................................................................................................................................................................ 236 4.2.1 API Communication Protocols.................................................................................................................................... 236 4.2.2 Encoding Format............................................................................................................................................................. 236 4.2.3 URLs..................................................................................................................................................................................... 237 4.2.4 API Authentication.......................................................................................................................................................... 238 4.2.5 Requests............................................................................................................................................................................. 238 4.2.6 Responses.......................................................................................................................................................................... 239 4.2.7 Status Codes..................................................................................................................................................................... 239 4.3 API Reference....................................................................................................................................................................... 241 4.3.1 Data Structure.................................................................................................................................................................. 242 4.3.2 Volcano Job....................................................................................................................................................................... 387 4.3.2.1 Reading All Volcano Jobs Under a Namespace.................................................................................................388 4.3.2.2 Creating a Volcano Job.............................................................................................................................................. 392 4.3.2.3 Deleting All Volcano Jobs Under a Namespace................................................................................................ 397 4.3.2.4 Reading the Details of a Volcano Job...................................................................................................................401 4.3.2.5 Deleting a Volcano Job.............................................................................................................................................. 404 4.3.3 cAdvisor.............................................................................................................................................................................. 406 4.3.3.1 Obtaining Ascend AI Processor Monitoring Information............................................................................... 406 4.3.3.2 cAdvisor Prometheus Metrics API.......................................................................................................................... 408 4.3.3.3 Other cAdvisor APIs.................................................................................................................................................... 410
5 FAQs....................................................................................................................................... 411
5.1 Pod Remains in the Terminating State After vcjob Is Manually Deleted........................................................411 5.2 The Training Task Is in the Pending State Because "nodes are unavailable"................................................ 413 5.3 A Job Was Pending Due to Insufficient Volcano Resources.................................................................................415 5.4 Failed to Generate the hcl.json File.............................................................................................................................. 416 5.5 Calico Network Plugin Not Ready................................................................................................................................ 417 5.6 Error Message "admission webhook "validatejob.volcano.sh" denied the request" Is Displayed When a YAML Job Is Running................................................................................................................................................................ 418 5.7 Kubernetes Fails to Be Restarted After the Server Is Restarted......................................................................... 419 5.8 Message "certificate signed by unknown authority" Is Displayed When a kubectl Command Is Run ......................................................................................................................................................................................................... 421
6 Communication Matrix...................................................................................................... 422
A Change History.................................................................................................................... 424

Issue 02 (2021-03-22)

MindX DL User Guide

1 Product Description

1 Product Description
1.1 Product Introduction
1.1.1 Product Positioning
MindX DL (Ascend deep learning component) is a deep learning component reference design powered by Atlas 800 training servers, Atlas 800 inference servers, servers (with Atlas 300T training cards), and GPU servers. It manages resources and optimizes scheduling for Ascend AI Processors, and generates distributed training collective communication configurations, enabling partners to quickly develop deep learning systems. To obtain the source code and documents, visit Ascend Developer Community. MindX DL components include Ascend Device Plugin, Huawei Collective Communication Library (HCCL)-Controller, Volcano, and Container Advisor (cAdvisor), as shown in Figure 1-1.

Issue 02 (2021-03-22)

MindX DL User Guide

Figure 1-1 Product positioning

1 Product Description

1.1.2 Functions
Ascend Device Plugin: Based on the Kubernetes device plug-in mechanism, the device discovery, device allocation, and device health status reporting functions of Ascend AI Processors are added so that the Kubernetes can manage Ascend AI Processor resources.
HCCL-Controller: a Huawei-developed component used for NPU training jobs. It uses the Kubernetes (K8s for short) informer mechanism to continuously monitor NPU training jobs and various events of pods, read the NPU information of pods, and generate the corresponding ConfigMap. ConfigMap contains the HCCL configuration on which training jobs depend, facilitating better collaboration and scheduling of the underlying NPUs. No manual configuration is required.
Volcano: Based on the open-source Volcano cluster scheduling, the affinity scheduling based on the physical topology of the Ascend training card is enhanced to maximize the computing performance of Ascend AI Processors.
cAdvisor: monitors the resource usage and performance characteristics of running containers. In addition to the powerful container resource monitoring function of the open-source cAdvisor, this component can monitor NPU resources in real time and provide APIs and metrics interfaces for you to use with other monitoring software to obtain information such as the Ascend AI Processor usage, frequency, temperature, voltage, and memory in real time.
MindX DL generally consists of the management node, compute nodes, and storage node. The functions of these nodes are as follows:

Issue 02 (2021-03-22)

MindX DL User Guide

1 Product Description

Management node (Master node): manages clusters, distributes training or inference jobs to each compute node for execution, and implements deep learning functions such as data management, job management, model management, and log monitoring.
Compute node (Worker node): performs training and inference jobs.
Storage node: stores datasets and training output models.
Table 1-1 describes the MindX DL component deployment on each node.

Table 1-1 Components deployed on each node

Node

Component Function

Manage ment node

HCCLController

Plugin developed based on the Kubernetes controller mechanism, which is used to generate the ranktable information of the cluster HCCL.

Volcano

Enhances the affinity scheduling function of Ascend 910 AI Processors based on the open-source Volcano cluster scheduling.

Compute Ascend Device Provides the common device plug-in mechanism

node

Plugin

and standard device APIs for Kubernetes to use

devices.

cAdvisor

Enhances open-source cAdvisor, which monitors Ascend AI Processors.

NOTE If the management node is also a compute node and has Ascend processors, Ascend Device Plugin and cAdvisor must be installed on the management node.
1.2 Application Scenarios
You can use MindX DL components to quickly create NPU training and inference jobs, and build your own deep learning systems based on the basic components.
1.3 System Architecture
Figure 1-2 shows the system architecture of MindX DL.

Issue 02 (2021-03-22)

MindX DL User Guide

Figure 1-2 System architecture

1 Product Description

Based on the Kubernetes ecosystem, MindX DL provides device management and scheduling functions for ISVs to integrate into their own systems.
As shown in Figure 1-2, MindX DL provides the following external APIs:
1. vcjob: An external API provided after Volcano is registered with Kubernetes. It is used to add, delete, and query vcjobs. If Volcano is used as the job scheduler, you need to create jobs of the vcjob type.
2. Ascend Device Plugin: A standard API for Kubernetes device plugin to manage Ascend devices. It provides the Register, ListAndWatch, and Allocate APIs.
3. cAdvisor: In compliance with cAdvisor standard API specifications, this API provides the function of obtaining the Ascend AI Processor status.

1.4 Software Version Mapping

Table 1-2 Software Version Mapping

Dependency

Version

Kubernetes

1.17.x

Docker-ce

18.06.3

Description
Select the latest bugfix version.
The Docker version depends on the Kubernetes requirement.

Issue 02 (2021-03-22)

MindX DL User Guide

Dependency OS
NPU driver MindX DL

1 Product Description

Version

Description

Ubuntu 18.04

CentOS 7.6

EulerOS 2.8

For details, see the version mapping.

v20.2.0

Component versions: Volcano: v1.0.1-r40 HCCL-Controller: v20.2.0 Ascend Device Plugin:
v20.2.0 cAdvisor: v0.34.0-r40

1.5 Training Job Model Description
Based on the service model design, the training job constraints are as follows:
Atlas 800 training server The number of NPUs on a training node cannot exceed 8. The number of NPUs applied for a training job is 1, 2, 4, 8, or a multiple of 8. If the number of Ascend 910 AI Processors applied for a training job is less than or equal to 8, only one pod can be applied for. If the number is greater than 8, each pod has eight Ascend 910 AI Processors.
servers (with Atlas 300T training cards) The number of NPUs on a training node cannot exceed 2. The number of pods that can be applied for is not limited in a distributed training job. Only x86 servers are supported in this version. Only Ubuntu is supported in this version.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2.1 Before You Start

2.1.1 Disclaimer
This document may include the third-party information covering products, services, software, components, and data. Huawei does not control and assumes no responsibility for the third-party content, including but not limited to the content's accuracy, compatibility, reliability, availability, legitimacy, appropriateness, performance, non-infringement, and status update, unless otherwise specified in this document. Huawei does not provide any guarantee or authorization for the third-party content mentioned or referenced in this document.
If you need a third-party license, obtain it in an authorized or legal way, unless otherwise specified in this document.
2.1.2 Constraints
If the space usage of the root directory is higher than 85%, the Kubelet image garbage collection mechanism is triggered and the service is unavailable. Ensure that the root directory has sufficient space. For details about the image garbage collection policy, see the Kubernetes document.
Ensure that the UIDs and GIDs of users HwHiAiUser and hwMindX on all physical machines (management nodes and compute nodes) and containers are not occupied. If the UIDs and GIDs are occupied, services may be unavailable.
The UID and GID of HwHiAiUser are both 1000.
The UID and GID of hwMindX are both 9000.
The default validity period of the Kubernetes certificate is 365 days. Update the certificate before it expires.
MindX DL images used in the ARM architecture and x86 architecture are incompatible.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2.2 Installation Overview

2.2.1 Environment Dependencies
To ensure that MindX DL can be successfully installed, the software and hardware environments must meet certain requirements.

Hardware Requirements

Table 2-1 Hardware requirements

Item

Configuration Reference

Server (single-node)

ARM: Atlas 800 training server (model 9000)
x86: Atlas 800 training server (model 9010) and servers (with Atlas 300T training cards)

Server (cluster)

Management node: ARM: TaiShan 200 server (model 2280) x86: FusionServer Pro 2288H V5

Compute node:
ARM: Atlas 800 training server (model 9000) and Atlas 800 inference server (model 3000)
x86: Atlas 800 training server (model 9010), Atlas 800 inference server (model 3010), and servers (with Atlas 300T training cards)

Storage node: storage server

Memory

Management node memory > 64 GB

Storage

> 1 TB
For details about the drive space plan, see Table 2-3.

Network

Out-of-band management (BMC): > 1 Gbit/s In-band management (SSH): > 1 Gbit/s Service plane: > 10 Gbit/s Storage plane: > 25 Gbit/s Parameter plane: 100 Gbit/s

Software

Before installing MindX DL, install the software listed in Table 2-2.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

NOTICE
The dependencies of ARM are different from those of x86. Select dependencies based on the system architecture.

Table 2-2 Software environment
Software Version Package

Ubuntu 18.04

CentOS 7.6

EulerOS 2.8

NOTE

EulerOS 2.8 supports only manual installation of MindX DL.

The servers (with Atlas 300T training cards) supports only Ubuntu 18.04.

NPU driver

For details, see the version mapping.

Installati How to Obtain on Position

All nodes

Ubuntu and CentOS Log in to the download address to obtain the operation guide of the corresponding version.
EulerOS Log in to the download address to obtain the operation guide of the corresponding version.

Compute node

For details, see the Driver and Firmware Installation and Upgrade Guides of hardware products to obtain the guide of the corresponding version.

After the software is installed, perform the following operation:
Run the following command on a compute node to check the NPU driver version:
/usr/local/Ascend/driver/tools/upgrade-tool --device_index -1 -system_version
For example, if the driver version is 20.2.0, the command output is as follows:
{ Get system version(20.2.0) succeed, deviceId(0) {"device_id":0, "version":20.2.0} Get system version(20.2.0) succeed, deviceId(1) {"device_id":1, "version":20.2.0} ... }

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Docker Drive Partitions
Table 2-3 lists the recommended Docker drive partitions.

Table 2-3 Drive space plan

Partiti Description on

Partition Format

/boot Boot partition

EFI

/var

Docker and log partition
NOTE Docker images and logs are stored in the /var partition. If the usage of the /var partition is greater than 85%, Kubernetes automatically deletes the images. Ensure that the usage of the /var partition is less than 85%.

EXT4

/data Data partition

EXT4

Primary partition

EXT4

Size 500M > 400G
> 400G > 100G

bootable flag on off
off off

Environment Check
For details, see Environment Check.
2.2.2 Networking Schemes
2.2.2.1 Logical Networking Scheme
Logical Network of Single-node Deployment
The management node, compute node, and storage node are deployed on the same Atlas 800 training server. Figure 2-1 shows the logical networking.
Figure 2-1 Single-node deployment

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Logical Network of Cluster Deployment
The management node uses a general-purpose server. The compute nodes consist of multiple Atlas 800 training servers, Atlas 800 inference servers, servers (with Atlas 300T training cards), and GPU training servers. The storage node uses an external storage server. All node networks must be configured in the same network segment. Figure 2-2 shows the logical networking.

Figure 2-2 Cluster deployment

2.2.2.2 Typical Physical Networking Scheme

2.2.3 Installation Scenarios
This section describes three installation scenarios of MindX DL. You can select a proper installation scenario based on the site requirements.
NOTE
You can download images used during the installation from Ascend Hub or by building the source code. Three installation scenarios are supported by Ascend Hub for downloading images. Images obtained by building the source code supports only offline installation and
manual installation.

Table 2-4 Installation scenarios

Scenario

Description

MindX DL Online Installation

All nodes must be connected to the Internet. During online installation, Kubernetes, Docker, network file system (NFS), and MindX DL can be deployed using scripts without manual installation.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Scenario MindX DL Offline Installation
MindX DL Manual Installation

Description
Offline installation is to prepare the software packages required for installation in advance and distribute the software packages to each node from the management node for installation and deployment. Offline installation improves the reusability and stability of installation and deployment, facilitates the installation of new nodes, and improves the installation efficiency.
If a node loses internet access, you can use scripts to deploy Kubernetes, Docker, NFS, and MindX DL in offline mode.
NOTE For offline installation, you need to prepare the Kubernetes basic image, MindX DL image, and necessary dependencies in advance. The node where the images and dependencies are prepared must be connected to the Internet. Other nodes do not need to be connected to the Internet.
In this scenario, you need to manually install Kubernetes, Docker, NFS, and MindX DL. This document describes how to manually install MindX DL. You need to install other components by referring to their installation guides.
NOTE
If the MindX DL images required by all nodes are prepared on only one node, only this node needs to be connected to the Internet.
If each node needs to prepare its own MindX DL image, each node needs to be connected to the Internet.
For details about how to install Kubernetes and Docker, see official Kubernetes and Docker websites, respectively.

2.3 MindX DL Installation
2.3.1 MindX DL Online Installation

2.3.1.1 Preparations for Installation

Prerequisites

An OS has been installed. The NPU driver has been installed. All nodes have access to the Internet. User permissions meet the requirements. For details, see Modify the Permission of /etc/passwd.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Precautions

The images used for online installation can be automatically downloaded from Ascend Hub. If you want to use manually built images, select the offline installation or manual installation mode.
When MindX DL is installed, the system automatically creates the hwMindX user and the HwHiAiUser user group, and adds the user to the user group. The hwMindX user is used to run HCCL-Controller and Volcano. The root user is used to run other components.

Scripts

Obtain online installation scripts from the MindX DL deployment file repository, as listed in Table 2-5.
Link: Gitee Code Repository

Table 2-5 Script list Script Name entry.sh set_global_env.yaml online_install_package.yaml
online_load_images.yaml
init_kubernetes.yaml clean_services.yaml online_deploy_service.yaml calico.yaml

Description

Script Path

Provides an entry for online deployment.

deploy/online/steps

Sets global variables.

deploy/online/steps

Installs software packages and dependencies.

deploy/online/steps

Obtains Docker images from Ascend Hub online.

deploy/online/steps

Creates a Kubernetes cluster.

deploy/online/steps

Clears the MindX DL service.

deploy/online/steps

Deploys MindX deploy/online/steps DL components.

Kubernetes network plugin configuration file.

yamls

Issue 02 (2021-03-22)

MindX DL User Guide

Script Name ascendplugin-volcanov20.2.0.yaml
ascendplugin-310-v20.2.0.yaml
cadvisor-v0.34.0-r40.yaml hccl-controller-v20.2.0.yaml volcano-v1.0.1-r40.yaml

2 Installation and Deployment

Description
Ascend Device Plugin configuration file for Ascend 910 AI Processor.
Ascend Device Plugin configuration file for Ascend 310 AI Processor.
Configuration file of the NPU monitoring component.
NPU training job component configuration file.
NPU training job scheduling component configuration file.

Script Path yamls
yamls
yamls yamls yamls

2.3.1.2 Online Installation

Procedure
Step 1 Log in to the management node as the root user.
Step 2 Check whether Python 3.7.5 and Ansible have been installed on the management node.
For details, see Checking the Python and Ansible Versions.
Step 3 Configure Ansible host information on the management node.
For details, see Configuring Ansible Host Information.
Step 4 Upload the files in the deploy/online/steps directory obtained in Table 2-5 to any directory on the management node, for example, /home/online_deploy.
Step 5 On the management node, copy the files in the yamls directory in Table 2-5 to the dls_root_dir directory defined in /etc/ansible/hosts on the management node. /tmp is used as an example of the dls_root_dir directory.
The reference directory structure is as follows:

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

/tmp ... yamls
ascendplugin-volcano-v20.2.0.yaml ascendplugin-310-v20.2.0.yaml calico.yaml hccl-controller-v20.2.0.yaml cadvisor-v0.34.0-r40.yaml volcano-v1.0.1-r40.yaml
Step 6 Install MindX DL.
1. Go to the /home/online_deploy directory in Step 4 and run the following command to modify the entry.sh file: chmod 600 entry.sh vim entry.sh If you need to install basic dependencies such as Docker, Kubernetes, and NFS, change the value of the scope field in entry.sh to full, save the modification, and exit.
set -e
scope="full" ...
If Docker and NFS have been installed on the node and the Kubernetes cluster has been set up, you only need to install MindX DL. Change the value of the scope field in entry.sh to basic, save the modification, and exit.
set -e
scope="basic" ...
2. Run the following commands to perform automatic installation: dos2unix * chmod 500 entry.sh bash -x entry.sh
NOTE
The ufw firewall is disabled during the installation. If you need to enable the firewall after the installation, see Hardening OS Security.
Step 7 Verify the installation. For details, see Environment Check.
----End
2.3.2 MindX DL Offline Installation

2.3.2.1 Preparations for Installation

Precautions

There are ARM and x86 software packages and images. You need to obtain the software packages and images based on the site requirements.
The packages whose names end with arm64.XXX are applicable to the ARM architecture.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

The packages whose names end with amd64.XXX are applicable to the x86 architecture.
When MindX DL is installed, the system automatically creates the hwMindX user and the HwHiAiUser user group, and adds the user to the user group. The hwMindX user is used to run HCCL-Controller and Volcano. The root user is used to run other components.

Prerequisites

An OS has been installed.
The NPU driver has been installed.
You have obtained the MindX DL component images.
For details about how to obtain images from Ascend Hub, see Obtaining MindX DL Images.
For details about how to manually build images, see Building MindX DL Images.
User permissions meet the requirements. For details, see Modify the Permission of /etc/passwd.

Software Packages
Prepare the software packages and dependencies required for the installation, compress them into a .zip package based on the format described in the following table, upload the .zip package to any directory on the management node, and decompress the package. Software packages are classified into Ubuntu and CentOS software packages. You need to obtain software packages as required. Download paths in the How to Obtain column indicate the paths for storing the downloaded software packages. Change them based on the actual situation.

NOTICE
NFS, Docker, and Kubernetes offline installation packages are used to install Docker, Kubernetes, and NFS on all nodes. Obtain the software packages based on the actual architecture of each node. If all nodes in the cluster use the same architecture (ARM or x86), you only need to obtain the software packages of the corresponding architecture. If nodes of both architectures exist in the cluster, you need to obtain the software packages of both architectures.
Ensure that you have the read and write permissions on the directory where the software packages are stored.
Download the software packages using the methods provided in this document. The software package versions in the table are only examples and may be different from the actual versions, which does not affect the use of the software packages.
Ubuntu 18.04

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-6 NFS, Docker, and Kubernetes offline installation packages

Package Name

Package Content

How to Obtain

offline-pkg-arm64.zip

conntrack_1%3a1.4.4+sna pshot20161117-6ubuntu2 _arm64.deb
critools_1.13.0-01_arm64.de b
haveged_1.9.1-6_arm64.d eb
keyutils_1.5.9-9.2ubuntu2 _arm64.deb
libhavege1_1.9.1-6_arm64 .deb
libltdl7_2.4.6-2_arm64.de b
libnfsidmap2_0.25-5.1_ar m64.deb
libtirpcdev_0.2.5-1.2ubuntu0.1_a rm64.deb
libtirpc1_0.2.5-1.2ubuntu0 .1_arm64.deb
nfscommon_1%3a1.3.4-2.1u buntu5.3_arm64.deb
nfs-kernelserver_1%3a1.3.4-2.1ubu ntu5.3_arm64.deb
rpcbind_0.2.3-0.6ubuntu0. 18.04.1_arm64.deb
socat_1.7.3.2-2ubuntu2_a rm64.deb
sshpass_1.06-1_arm64.de b

cat <<EOF >/etc/apt/ sources.list.d/ kubernetes.list deb https:// mirrors.aliyun.c om/kubernetes/ apt/ kubernetesxenial main
EOF
curl -s https:// mirrors.aliyun.c om/ kubernetes/apt/ doc/apt-key.gpg | apt-key add -
apt-get update
apt-get download conntrack critools haveged keyutils libhavege1 libltdl7 libnfsidmap2 libtirpc-dev libtirpc1 nfscommon nfskernel-server rpcbind socat sshpass

dockerce_18.06.3~ce~3-0~ubuntu_a rm64.deb

wget --no-checkcertificate https:// download.docker.c om/linux/ubuntu/ dists/bionic/pool/ stable/arm64/ dockerce_18.06.3~ce~3-0~ ubuntu_arm64.deb

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Package Name

Package Content

How to Obtain

kubernetescni_0.8.6-00_arm64.deb
kubeadm_1.17.3-00_arm6 4.deb
kubectl_1.17.3-00_arm64. deb
kubelet_1.17.3-00_arm64. deb

apt-get download kubelet=1.17.3-00 kubeadm=1.17.3-0 0 kubectl=1.17.3-00 kubernetescni=0.8.6-00

offline-pkg-amd64.zip

conntrack_1.4.4_amd64.d eb
critools_1.13.0-01_amd64.de b
haveged_1.9.1-6_amd64.d eb
keyutils_1.5.9-9.2ubuntu2 _amd64.deb
libhavege1_1.9.1-6_amd6 4.deb
libltdl7_2.4.6-2_amd64.de b
libnfsidmap2_0.25-5.1_am d64.deb
libtirpcdev_0.2.5-1.2ubuntu0.1_a md64.deb
libtirpc1_0.2.5-1.2ubuntu0 .1_amd64.deb
nfscommon_1.3.4-2.1ubuntu 5.3_amd64.deb
nfs-kernelserver_1.3.4-2.1ubuntu5.3 _amd64.deb
rpcbind_0.2.3-0.6ubuntu0. 18.04.1_amd64.deb
socat_1.7.3.2-2ubuntu2_a md64.deb
sshpass_1.06-1_amd64.de b

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

CentOS 7.6

2 Installation and Deployment

Package Content

How to Obtain

dockerce_18.06.3~ce~3-0~ubuntu_a md64.deb

wget --no-checkcertificate https:// download.docker.c om/linux/ubuntu/ dists/bionic/pool/ stable/amd64/ dockerce_18.06.3~ce~3-0~ ubuntu_amd64.deb

kubernetescni_0.8.6-00_amd64.deb
kubeadm_1.17.3-00_amd 64.deb
kubectl_1.17.3-00_amd64. deb
kubelet_1.17.3-00_amd64. deb

apt-get download kubelet=1.17.3-00 kubeadm=1.17.3-0 0 kubectl=1.17.3-00 kubernetescni=0.8.6-00

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-7 NFS, Docker, and Kubernetes offline installation packages

Package Name

Folder Name

Package Content

How to Obtain

offline-pkg- nfs arm64.zip

gssproxy-0.7.0-29.el7.aarc h64.rpm
keyutils-1.5.8-3.el7.aarch6 4.rpm
libbasicobjects-0.1.1-32.el 7.aarch64.rpm
libcollection-0.7.0-32.el7.a arch64.rpm
libevent-2.0.21-4.el7.aarc h64.rpm
libini_config-1.3.1-32.el7.a arch64.rpm
libnfsidmap-0.25-19.el7.a arch64.rpm
libpath_utils-0.2.1-32.el7. aarch64.rpm
libref_array-0.1.5-32.el7.a arch64.rpm
libtirpc-0.2.4-0.16.el7.aarc h64.rpm
libvertolibevent-0.2.5-4.el7.aarch 64.rpm
nfsutils-1.3.0-0.68.el7.aarch6 4.rpm
quota-4.01-19.el7.aarch64 .rpm
quotanls-4.01-19.el7.noarch.rp m
rpcbind-0.2.0-49.el7.aarch 64.rpm
tcp_wrappers-7.6-77.el7.a arch64.rpm

yum install -downloadonly -downloaddir=D ownload path nfs-utils

versionlo ck

yum-pluginversionlock-1.1.31-54.el7_8.n oarch.rpm

yum install -downloadonly -downloaddir=D ownload path yum-pluginversionlock

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain

yum-utils

yumutils-1.1.31-54.el7_8.noarc h.rpm
libxml2-2.9.1-6.el7.5.aarch 64.rpm
libxml2python-2.9.1-6.el7.5.aarch 64.rpm
pythonchardet-2.2.1-3.el7.noarch .rpm
pythonkitchen-1.1.1-5.el7.noarch .rpm

yum install -downloadonly -downloaddir=D ownload path yum-utils

lvm2

lvm2-2.02.187-6.el7.aarch 64.rpm
lvm2libs-2.02.187-6.el7.aarch6 4.rpm
devicemapper-1.02.170-6.el7.aar ch64.rpm
device-mapperevent-1.02.170-6.el7.aarc h64.rpm
device-mapper-eventlibs-1.02.170-6.el7.aarch6 4.rpm
device-mapperlibs-1.02.170-6.el7.aarch6 4.rpm

yum install -downloadonly -downloaddir=D ownload path lvm2

selinux

distro-1.5.0-py2.py3none-any.whl
selinux-0.2.1-py2.py3none-any.whl

pip3.7 download distro==1.5.0 selinux==0.2.1

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain

libselinux

libselinux-2.5-15.el7.aarch 64.rpm
libselinuxpython-2.5-15.el7.aarch64 .rpm
libselinuxpython3-2.5-15.el7.aarch6 4.rpm
libselinuxutils-2.5-15.el7.aarch64.rp m
libtirpc-0.2.4-0.16.el7.aarc h64.rpm
python3-3.6.8-18.el7.aarc h64.rpm
python3libs-3.6.8-18.el7.aarch64.r pm
python3pip-9.0.3-8.el7.noarch.rpm
python3setuptools-39.2.0-10.el7.n oarch.rpm

yum install -downloadonly -downloaddir=D ownload path libselinuxpython3

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name
docker

Package Content

How to Obtain

audit-2.8.5-4.el7.aarch64.r pm
auditlibs-2.8.5-4.el7.aarch64.rp m
audit-libspython-2.8.5-4.el7.aarch6 4.rpm
checkpolicy-2.5-8.el7.aarc h64.rpm
containerselinux-2.119.2-1.911c772 .el7_8.noarch.rpm
dockerce-18.06.3.ce-3.el7.aarch6 4.rpm
libcgroup-0.41-21.el7.aarc h64.rpm
libseccomp-2.3.1-4.el7.aar ch64.rpm
libsemanagepython-2.5-14.el7.aarch64 .rpm
libtoolltdl-2.4.2-22.el7_3.aarch6 4.rpm
policycoreutils-2.5-34.el7. aarch64.rpm
policycoreutilspython-2.5-34.el7.aarch64 .rpm
pythonIPy-0.75-6.el7.noarch.rpm
setoolslibs-3.3.8-4.el7.aarch64.rp m

yum-configmanager --addrepo http:// mirrors.aliyun.c om/docker-ce/ linux/centos/ docker-ce.repo
yum install -downloadonly -downloaddir=D ownload path dockerce-18.06.3.ce

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain

kubernet es

*kubectl-1.17.3-0.aarch64.r pm
*-critools-1.13.0-0.aarch64.rp m
*kubelet-1.17.3-0.aarch64.r pm
*-kubernetescni-0.8.7-0.aarch64.rpm
conntracktools-1.4.4-7.el7.aarch64.r pm
*kubeadm-1.17.3-0.aarch6 4.rpm
libnetfilter_cthelper-1.0.011.el7.aarch64.rpm
libnetfilter_cttimeout-1.0. 0-7.el7.aarch64.rpm
libnetfilter_queue-1.0.2-2. el7.aarch64.rpm
socat-1.7.3.2-2.el7.aarch6 4.rpm

cat << EOF > /etc +B2:E65/ yum.repos.d/ kubernetes.r epo [kubernetes]
name=Kuber netes
baseurl=http: // mirrors.aliyu n.com/ kubernetes/y um/repos/ kubernetesel7-aarch64
enabled=1
gpgcheck=1
repo_gpgche ck=1
gpgkey=http: // mirrors.aliyu n.com/ kubernetes/y um/doc/yumkey.gpg http:// mirrors.aliyu n.com/ kubernetes/y um/doc/rpmpackagekey.gpg
EOF
yum install -downloadonl y -downloaddir =Download path kubelet-1.17. 3 kubeadm-1.1 7.3 kubectl-1.17.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Package Name

Folder Name

offline-pkg- nfs amd64.zip

Package Content

How to Obtain

3 -disableexclud es=kubernete s

gssproxy-0.7.0-28.el7.x86_ 64.rpm
keyutils-1.5.8-3.el7.x86_64 .rpm
libbasicobjects-0.1.1-32.el 7.x86_64.rpm
libcollection-0.7.0-32.el7.x 86_64.rpm
libevent-2.0.21-4.el7.x86_ 64.rpm
libini_config-1.3.1-32.el7.x 86_64.rpm
libnfsidmap-0.25-19.el7.x 86_64.rpm
libpath_utils-0.2.1-32.el7.x 86_64.rpm
libref_array-0.1.5-32.el7.x 86_64.rpm
libtirpc-0.2.4-0.16.el7.x86_ 64.rpm
libvertolibevent-0.2.5-4.el7.x86_6 4.rpm
nfsutils-1.3.0-0.66.el7_8.x86_ 64.rpm
quota-4.01-19.el7.x86_64. rpm
quotanls-4.01-19.el7.noarch.rp m
rpcbind-0.2.0-49.el7.x86_6 4.rpm
tcp_wrappers-7.6-77.el7.x 86_64.rpm

yum install -downloadonly -downloaddir=D ownload path nfs-utils

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain

versionlo ck

yum-pluginversionlock-1.1.31-54.el7_8.n oarch.rpm

yum install -downloadonly -downloaddir=D ownload path yum-pluginversionlock

yum-utils

yumutils-1.1.31-54.el7_8.noarc h.rpm
libxml2-2.9.1-6.el7.5.x86_ 64.rpm
libxml2python-2.9.1-6.el7.5.x86_6 4.rpm
pythonchardet-2.2.1-3.el7.noarch .rpm
pythonkitchen-1.1.1-5.el7.noarch .rpm

yum install -downloadonly -downloaddir=D ownload path yum-utils

lvm2

lvm2-2.02.187-6.el7.x86_6 4.rpm
lvm2libs-2.02.187-6.el7.x86_64. rpm
devicemapper-1.02.170-6.el7.x8 6_64.rpm
device-mapperevent-1.02.170-6.el7.x86_ 64.rpm
device-mapper-eventlibs-1.02.170-6.el7.x86_64. rpm
device-mapperlibs-1.02.170-6.el7.x86_64. rpm

yum install -downloadonly -downloaddir=D ownload path lvm2

selinux

distro-1.5.0-py2.py3none-any.whl
selinux-0.2.1-py2.py3none-any.whl

pip3.7 download distro==1.5.0 selinux==0.2.1

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain

libselinux

libselinux-2.5-15.el7.x86_6 4.rpm
libselinuxpython-2.5-15.el7.x86_64. rpm
libselinuxpython3-2.5-15.el7.x86_6 4.rpm
libselinuxutils-2.5-15.el7.x86_64.rp m
libtirpc-0.2.4-0.16.el7.x86_ 64.rpm
python3-3.6.8-13.el7.x86_ 64.rpm
python3libs-3.6.8-13.el7.x86_64.rp m
python3pip-9.0.3-7.el7_7.noarch.r pm
python3setuptools-39.2.0-10.el7.n oarch.rpm

yum install -downloadonly -downloaddir=D ownload path libselinuxpython3

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name
docker

Package Content

How to Obtain

audit-2.8.5-4.el7.x86_64.r pm
auditlibs-2.8.5-4.el7.x86_64.rp m
audit-libspython-2.8.5-4.el7.x86_64. rpm
checkpolicy-2.5-8.el7.x86_ 64.rpm
containerselinux-2.119.2-1.911c772 .el7_8.noarch.rpm
dockerce-18.06.3.ce-3.el7.x86_64 .rpm
libcgroup-0.41-21.el7.x86_ 64.rpm
libseccomp-2.3.1-4.el7.x86 _64.rpm
libsemanagepython-2.5-14.el7.x86_64. rpm
libtoolltdl-2.4.2-22.el7_3.x86_64. rpm
policycoreutils-2.5-34.el7. x86_64.rpm
policycoreutilspython-2.5-34.el7.x86_64. rpm
pythonIPy-0.75-6.el7.noarch.rpm
setoolslibs-3.3.8-4.el7.x86_64.rp m

yum-configmanager -add-repo http:// mirrors.aliyu n.com/ docker-ce/ linux/centos/ dockerce.repo
yum install -downloadonl y -downloaddir =Download path dockerce-18.06.3.ce

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain

kubernet es

*kubectl-1.17.3-0.x86_64.r pm
*-critools-1.13.0-0.x86_64.rpm
*kubelet-1.17.3-0.x86_64.r pm
*-kubernetescni-0.8.7-0.x86_64.rpm
conntracktools-1.4.4-7.el7.x86_64.rp m
*kubeadm-1.17.3-0.x86_64. rpm
libnetfilter_cthelper-1.0.011.el7.x86_64.rpm
libnetfilter_cttimeout-1.0. 0-7.el7.x86_64.rpm
libnetfilter_queue-1.0.2-2. el7_2.x86_64.rpm
socat-1.7.3.2-2.el7.x86_64. rpm
ebtables-2.0.10-16.el7.x86 _64.rpm

cat << EOF > /etc +B2:E65/ yum.repos.d/ kubernetes.r epo [kubernetes]
name=Kuber netes
baseurl=http: // mirrors.aliyu n.com/ kubernetes/y um/repos/ kubernetesel7-x86_64
enabled=1
gpgcheck=1
repo_gpgche ck=1
gpgkey=http: // mirrors.aliyu n.com/ kubernetes/y um/doc/yumkey.gpg http:// mirrors.aliyu n.com/ kubernetes/y um/doc/rpmpackagekey.gpg
EOF
yum install -downloadonl y -downloaddir =Download path kubelet-1.17. 3 kubeadm-1.1 7.3 kubectl-1.17.

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Folder Name

Package Content

How to Obtain
3 -disableexclud es=kubernete s

Scripts

Obtain offline installation scripts from the MindX DL deployment file repository, as listed in Table 2-8.
Link: Gitee Code Repository

Table 2-8 Script list Script Name entry.sh set_global_env.yaml offline_install_package.yaml
offline_load_images.yaml init_kubernetes.yaml clean_services.yaml offline_deploy_service.yaml calico.yaml

Description

Script Path

Provides an

deploy/offline/steps

entry for offline

deployment.

Sets global variables.

deploy/offline/steps

Installs software packages and dependencies.

deploy/offline/steps

Imports the

deploy/offline/steps

required Docker

image.

Creates a Kubernetes cluster.

deploy/offline/steps

Clears the MindX DL service.

deploy/offline/steps

Deploys MindX deploy/offline/steps DL components.

Kubernetes network plugin configuration file.

yamls

Issue 02 (2021-03-22)

MindX DL User Guide

Script Name ascendplugin-volcanov20.2.0.yaml
ascendplugin-310-v20.2.0.yaml
cadvisor-v0.34.0-r40.yaml hccl-controller-v20.2.0.yaml volcano-v1.0.1-r40.yaml

2 Installation and Deployment

Description
Ascend Device Plugin configuration file for Ascend 910 AI Processor.
Ascend Device Plugin configuration file for Ascend 910 AI Processor.
Configuration file of the NPU monitoring component.
NPU training job component configuration file.
NPU training job scheduling component configuration file.

Script Path yamls
yamls
yamls yamls yamls

Base Image Packages
Table 2-9 lists base image packages.

NOTICE
The Docker image in Table 2-9 is used to create a Kubernetes cluster. The images need to be stored on the management node. Obtain the corresponding images based on the actual architecture of each node. If all nodes in the cluster use the same architecture (ARM or x86), you only need to obtain the images of the corresponding architecture. If nodes of both architectures exist in the cluster, you need to obtain the images of both architectures.

To obtain the packages, perform the following operations:
1. Run the following command to obtain and save the image packages: docker pull XXX docker save -o Image package name Image name:tag

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

NOTE
docker pull XXX: For details about the command to be run, see the official obtaining method in Table 2-9.
For example, run the following commands to obtain and save the calico/ node:v3.11.3 ARM image: docker pull calico/node:v3.11.3 docker save -o calico-cni_arm64.tar.gz calico/node:v3.11.3
2. Save the image packages generated in 1 to the local PC.

Table 2-9 Base image packages

Descripti Image Package on

Official Obtaining Method

Kubernet es network plugin

calico-cni_arm64.tar.gz calico-kube-controllers_arm64.tar.gz calico-node_arm64.tar.gz calico-pod2daemon-
flexvol_arm64.tar.gz
calico-cni_amd64.tar.gz calico-kube-
controllers_amd64.tar.gz calico-node_amd64.tar.gz calico-pod2daemon-
flexvol_amd64.tar.gz

docker pull calico/ node:v3.11.3
docker pull calico/ pod2daemonflexvol:v3.11.3
docker pull calico/ cni:v3.11.3
docker pull calico/ kubecontrollers:v3.11.3

Kubernet es domain name service

coredns_arm64.tar.gz coredns_amd64.tar.gz

docker pull coredns/ coredns:1.6.5

Kubernet es cluster database

etcd_arm64.tar.gz etcd_amd64.tar.gz

docker pull cruse/etcdarm64:3.4.3-0
docker pull cruse/etcdamd64:3.4.3-0

Kubernet es cluster data center

kube-apiserver_arm64.tar.gz kube-apiserver_amd64.tar.gz

docker pull cruse/kubeapiserver-arm64:v1.17.3
docker pull kubesphere/ kube-apiserver:v1.17.3

Kubernet es cluster managem ent controller

kube-controller-manager_arm64.tar.gz

docker pull cruse/kubecontroller-managerarm64:v1.17.3

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Descripti Image Package on

Official Obtaining Method

kube-controller-manager_amd64.tar.gz docker pull kubesphere/ kube-controllermanager:v1.17.3

Kubernet es cluster HCCL and load balancing

kube-proxy_arm64.tar.gz kube-proxy_amd64.tar.gz

docker pull cruse/kubeproxy-arm64:v1.17.3beta.0
docker pull kubesphere/ kube-proxy:v1.17.3

Kubernet es cluster scheduler

kube-scheduler_arm64.tar.gz

docker pull cruse/kubescheduler-arm64:v1.17.3beta.0

kube-scheduler_amd64.tar.gz

docker pull kubesphere/ kube-scheduler:v1.17.3

Kubernet es basic container

pause_arm64.tar.gz pause_amd64.tar.gz

docker pull cruse/pausearm64:3.1
docker pull kubesphere/ pause:3.1

MindX DL Image Packages
Table 2-10 lists image packages.
To obtain the packages, perform the following operations:
1. Obtain the component image. Select one of the following methods based on the site requirements: Obtain images from Ascend Hub. For details, see Obtaining MindX DL Images. Manually build images. For details, see Building MindX DL Images.
2. Run the following command on each node where the MindX DL image exists to obtain the image packages: docker save -o XXX
NOTE
XXX: For details about the commands, see Table 2-10.
3. Save the images generated in 2 to the local PC.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-10 Image list

Item

Image Package

MindX DL Kubernet es device plugin

Ascend-K8sDevicePluginv20.2.0-arm64-Docker.tar.gz

Ascend-K8sDevicePluginv20.2.0-amd64-Docker.tar.gz

MindX DL training job HCCL plugin

hccl-controller-v20.2.0arm64.tar.gz

hccl-controller-v20.2.0amd64.tar.gz

MindX DL device monitorin g plugin

huawei-cadvisor-v0.34.0-r40arm64.tar.gz

huawei-cadvisor-v0.34.0-r40amd64.tar.gz

Obtaining Command Obtainin g Node

docker save -o AscendK8sDevicePluginv20.2.0-arm64Docker.tar.gz ascendk8sdeviceplugin:v20. 2.0
docker save -o AscendK8sDevicePluginv20.2.0-amd64Docker.tar.gz ascendk8sdeviceplugin:v20. 2.0

Node where the Ascend Device Plugin image has been obtained

docker save -o hcclcontroller-v20.2.0arm64.tar.gz hcclcontroller:v20.2.0
docker save -o hcclcontroller-v20.2.0amd64.tar.gz hcclcontroller:v20.2.0

Node where the HCCLController image has been obtained

docker save -o huawei-cadvisorv0.34.0-r40arm64.tar.gz google/ cadvisor:v0.34.0-r40
docker save -o huawei-cadvisorv0.34.0-r40amd64.tar.gz google/ cadvisor:v0.34.0-r40

Node where the cAdvisor image has been obtained

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Item

Image Package

Obtaining Command Obtainin g Node

MindX DL job schedulin g plugin

vc-controller-managerv1.0.1-r40-arm64.tar.gz
vc-scheduler-v1.0.1-r40arm64.tar.gz
vc-webhook-manager-basev1.0.1-r40-arm64.tar.gz
vc-webhook-managerv1.0.1-r40-arm64.tar.gz

docker save -o vccontrollermanager-v1.0.1r40-arm64.tar.gz volcanosh/vccontrollermanager:v1.0.1r40
docker save -o vcscheduler-v1.0.1r40-arm64.tar.gz volcanosh/vcscheduler:v1.0.1r40
docker save -o vcwebhookmanager-basev1.0.1-r40arm64.tar.gz volcanosh/vcwebhookmanagerbase:v1.0.1-r40
docker save -o vcwebhookmanager-v1.0.1r40-arm64.tar.gz volcanosh/vcwebhookmanager:v1.0.1r40

Node where the Volcano image has been obtained

Issue 02 (2021-03-22)

MindX DL User Guide

Item

2 Installation and Deployment

Image Package

Obtaining Command Obtainin g Node

vc-controller-managerv1.0.1-r40-amd64.tar.gz
vc-scheduler-v1.0.1-r40amd64.tar.gz
vc-webhook-manager-basev1.0.1-r40-amd64.tar.gz
vc-webhook-managerv1.0.1-r40-amd64.tar.gz

docker save -o vccontrollermanager-v1.0.1r40-amd64.tar.gz volcanosh/vccontrollermanager:v1.0.1r40
docker save -o vcscheduler-v1.0.1r40-amd64.tar.gz volcanosh/vcscheduler:v1.0.1r40
docker save -o vcwebhookmanager-basev1.0.1-r40amd64.tar.gz volcanosh/vcwebhookmanagerbase:v1.0.1-r40
docker save -o vcwebhookmanager-v1.0.1r40-amd64.tar.gz volcanosh/vcwebhookmanager:v1.0.1r40

2.3.2.2 Offline Installation

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

dls_root_dir directory defined in /etc/ansible/hosts on the management node. /tmp is used as an example of the dls_root_dir directory. The folder names must be the same as the following. (A heterogeneous cluster running Ubuntu 18.04 is used as an example.)
The directory structure is as follows:
/tmp docker_images Ascend-K8sDevicePlugin-v20.2.0-amd64-Docker.tar.gz Ascend-K8sDevicePlugin-v20.2.0-arm64-Docker.tar.gz calico-cni_amd64.tar.gz calico-cni_arm64.tar.gz calico-kube-controllers_amd64.tar.gz calico-kube-controllers_arm64.tar.gz calico-node_amd64.tar.gz calico-node_arm64.tar.gz calico-pod2daemon-flexvol_amd64.tar.gz calico-pod2daemon-flexvol_arm64.tar.gz coredns_amd64.tar.gz coredns_arm64.tar.gz etcd_amd64.tar.gz etcd_arm64.tar.gz hccl-controller-v20.2.0-amd64.tar.gz hccl-controller-v20.2.0-arm64.tar.gz huawei-cadvisor-v0.34.0-r40-amd64.tar.gz huawei-cadvisor-v0.34.0-r40-arm64.tar.gz kube-apiserver_amd64.tar.gz kube-apiserver_arm64.tar.gz kube-controller-manager_amd64.tar.gz kube-controller-manager_arm64.tar.gz kube-proxy_amd64.tar.gz kube-proxy_arm64.tar.gz kube-scheduler_amd64.tar.gz kube-scheduler_arm64.tar.gz pause_amd64.tar.gz pause_arm64.tar.gz vc-controller-manager-v1.0.1-r40-amd64.tar.gz vc-controller-manager-v1.0.1-r40-arm64.tar.gz vc-scheduler-v1.0.1-r40-amd64.tar.gz vc-scheduler-v1.0.1-r40-arm64.tar.gz vc-webhook-manager-base-v1.0.1-r40-amd64.tar.gz vc-webhook-manager-base-v1.0.1-r40-arm64.tar.gz vc-webhook-manager-v1.0.1-r40-amd64.tar.gz vc-webhook-manager-v1.0.1-r40-arm64.tar.gz offline-pkg-amd64.zip offline-pkg-arm64.zip yamls
ascendplugin-volcano-v20.2.0.yaml ascendplugin-310-v20.2.0.yaml calico.yaml hccl-controller-v20.2.0.yaml cadvisor-v0.34.0-r40.yaml volcano-v1.0.1-r40.yaml
Step 5 Upload the files (listed in Table 2-8) in the deploy/offline/steps directory to any directory on the management node, for example, /home/offline_deploy.
Step 6 Install MindX DL.
1. Go to the /home/offline_deploy directory in Step 5 and run the following commands in the directory to modify the entry.sh file:
chmod 600 entry.sh
vim entry.sh
If you need to install basic dependencies such as Docker, Kubernetes, and NFS, change the value of the scope field in entry.sh to full, save the modification, and exit.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

set -e
scope="full" ...
If Docker and NFS have been installed on the node and the Kubernetes cluster has been set up, you only need to install MindX DL. Change the value of the scope field in entry.sh to basic, save the modification, and exit.
set -e
scope="basic" ...
2. Run the following commands to perform automatic installation: dos2unix * chmod 500 entry.sh bash -x entry.sh
NOTE
The ufw firewall is disabled during the installation. If you need to enable the firewall after the installation, see Hardening OS Security.
Step 7 Verify the installation. For details, see Environment Check.
----End
2.3.3 MindX DL Manual Installation

2.3.3.1 Preparations for Installation

Prerequisites
A Kubernetes cluster has been set up.

Component Installation Positions
Table 2-11 shows the installation positions of the components.

Table 2-11 Component installation positions

Node

Component

Function

Management node
HCCLController

HCCL-Controller

Plugin developed based on the Kubernetes controller mechanism, which is used to generate the ranktable information of the cluster HCCL.

Volcano

Open-source Volcano cluster scheduling, which enhances the affinity scheduling function of Ascend 910 AI Processors.

Issue 02 (2021-03-22)

MindX DL User Guide

Node

Component

Compute node Ascend Device Plugin cAdvisor

cAdvisor

2 Installation and Deployment
Function
Provides the common device plugin mechanism and standard device APIs for Kubernetes to use devices.
Enhances open-source cAdvisor to monitor Ascend AI Processors.

Creating a Node Label
Run the following commands on the management node to label the corresponding node so that MindX DL can schedule work nodes of different forms:

NOTICE
In a single-node system, the management node and compute node are the same node, which should be labeled.

Table 2-12 Labeling commands

Label Command Numb er

kubectl label nodes Hostname node-

role.kubernetes.io/worker=worker

kubectl label nodes Hostname

accelerator=huawei-Ascend910

kubectl label nodes Hostname

accelerator=huawei-Ascend310

kubectl label nodes Hostname

masterselector=dls-master-node

kubectl label nodes Hostname

workerselector=dls-worker-node

Description
Identifies Kubernetes compute nodes. Hostname indicates the names of all compute nodes.
Identifies Ascend 910 AI Processor nodes. Hostname indicates the names of all training nodes.
Identifies Ascend 310 AI Processor node. Hostname indicates the names of all inference nodes.
Identifies the MindX DL management node. Hostname indicates the name of the management node.
Identifies MindX DL compute nodes. Hostname indicates the names of all compute nodes.

Issue 02 (2021-03-22)

MindX DL User Guide

Label Command Numb er

kubectl label nodes Hostname host-

arch=huawei-x86

kubectl label nodes Hostname host-

arch=huawei-arm

kubectl label nodes Hostname

accelerator-type=card

2 Installation and Deployment
Description
Identifies x86 nodes. Hostname indicates the names of all x86 compute nodes.
Identifies ARM nodes. Hostname indicates the names of all ARM compute nodes.
Identifies servers (with Atlas 300T training cards). Hostname indicates the names of all compute nodes of the servers (with Atlas 300T training cards).

NOTE
The rules for creating a node label are as follows: The label numbers that may be used by an ARM management node are as follows:
4: The node functions only as a management node in a cluster. 1, 2, 4, 5, and 7: The node that is equipped with Ascend 910 AI Processors functions
as both a management node and a compute node in a single-node system. The label numbers that are used by an x86 compute node with Ascend 310 AI
Processors are 1, 3, 5, and 6. The label numbers that must be used by an x86 compute node with Atlas 300T training
cards are 1, 2, 5, 6, and 8.
Creating a User

NOTICE
Run HCCL-Controller and Volcano as user hwMindX. Run the Ascend Device Plugin and cAdvisor as user root.

Run MindX DL as the hwMindX user and run the following commands to create a user:
useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX
usermod -a -G HwHiAiUser hwMindX

Creating MindX DL Log Paths
You need to manually create MindX DL log paths. Table 2-13 lists the log paths.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-13 MindX DL log path list

MindX DL

Component Log Path Perm Owner Group Node

Component Name

ission

Ascend Device Plugin
cAdvisor

/var/log/devicePlugin 750 root:root

/var/log/cadvisor

750 root:root

All compute nodes

HCCL-Controller Volcano

/var/log/atlas_dls/ hccl-controller
/var/log/atlas_dls/ volcano-admission

750 hwMindX:hw Manage

MindX

ment

node 750 hwMindX:hw

MindX

/var/log/atlas_dls/ volcano-controller

750 hwMindX:hw MindX

/var/log/atlas_dls/ volcano-scheduler

750 hwMindX:hw MindX

Step 1 Run the following command to create a log path: mkdir -p Component log path
NOTE
Component log path: indicates a log path in Table 2-13.
Example: mkdir -p /var/log/devicePlugin Step 2 Run the following command to set the permission on the log path: chmod -R Permissions Component log path
NOTE
Permissions: indicate the permissions on the log paths of the corresponding components in Table 2-13.
Example: chmod -R 750 /var/log/devicePlugin Step 3 Run the following command to set the owner of the log path: chown -R hwMindX:hwMindX Component log path ----End
Configuring Log Dumping
A large number of logs are generated after the components run for a long time. Therefore, you need to configure log dumping rules. The recommended log dumping configuration for MindX DL is as follows:

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Management node
a. In the /etc/logrotate.d directory, run the following command to create a log dump configuration file:
vim /etc/logrotate.d/File name
Example:
vim /etc/logrotate.d/mindx_dl_scheduler
b. Add the following content to the file and run the :wq command to save the file.
/var/log/atlas_dls/volcano-*/*.log /var/log/atlas_dls/hccl-*/*.log{
daily rotate 8 size 20M compress dateext missingok notifempty copytruncate create 0640 hwMindX hwMindX sharedscripts postrotate
chmod 640 /var/log/atlas_dls/volcano-*/*.log chmod 640 /var/log/atlas_dls/hccl-*/*.log chmod 440 /var/log/atlas_dls/volcano-*/*.log-* chmod 440 /var/log/atlas_dls/hccl-*/*.log-* endscript }
c. Run the following commands to set the file permission to 640 and owner to root:
chmod 640 /etc/logrotate.d/File name
chown root /etc/logrotate.d/File name
Example:
chmod 640 /etc/logrotate.d/mindx_dl_scheduler
chown root /etc/logrotate.d/mindx_dl_scheduler
All compute nodes
a. In the /etc/logrotate.d directory, run the following command to create a log dump configuration file:
vim /etc/logrotate.d/File name
Example:
vim /etc/logrotate.d/mindx_dl_cadvisor
b. Add the following content to the file and run the :wq command to save the file.
/var/log/devicePlugin/*.log /var/log/cadvisor/*.log{
daily rotate 8 size 20M compress dateext missingok notifempty copytruncate create 0640 root root sharedscripts postrotate

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

chmod 640 /var/log/devicePlugin/*.log chmod 640 /var/log/cadvisor/*.log chmod 440 /var/log/devicePlugin/*.log-* chmod 440 /var/log/cadvisor/*.log-* endscript }
c. Run the following commands to set the file permission to 640 and owner to root:
chmod 640 /etc/logrotate.d/File name
chown root /etc/logrotate.d/File name
Example:
chmod 640 /etc/logrotate.d/mindx_dl_cadvisor
chown root /etc/logrotate.d/mindx_dl_cadvisor

2.3.3.2 Manual Installation (Using Images Downloaded from Ascend Hub)
This section describes how to manually install the Volcano, HCCL-Controller, Ascend Device Plugin, and cAdvisor components.

Precautions
The images for x86 servers and ARM servers are different. Use proper images during installation.

Prerequisites
1. 2. 3. 4.

The environment dependencies have been configured. For details, see Environment Dependencies.
The MindX DL images have been obtained. For details, see Obtaining MindX DL Images.
Installation preparations have been completed. For details, see Preparations for Installation.
All files, except calico.yaml, in the yamls directory have been obtained from Gitee Code Repository and uploaded to any directory on the management node, for example, /home/yamls.
The directory structure of the obtained files is as follows:
/home ... yamls
ascendplugin-volcano-v20.2.0.yaml ascendplugin-310-v20.2.0.yaml hccl-controller-v20.2.0.yaml cadvisor-v0.34.0-r40.yaml volcano-v1.0.1-r40.yaml

Installing Volcano
Step 1 Run the following command on the management node to view the image: docker images NOTE
If no image is available, obtain images. For details, see Obtaining MindX DL Images.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

[root@centos-19 ascend-device-plugin]# docker images|grep volcanosh

volcanosh/vc-webhook-manager

v1.0.1-r40

b234843da818 7 days ago

134MB

volcanosh/vc-scheduler

v1.0.1-r40

99bb8e9d020c 7 days ago

108MB

volcanosh/vc-controller-manager v1.0.1-r40

b3b879a1024d 7 days ago

92.6MB

volcanosh/vc-webhook-manager-base v1.0.1-r40

2d540c610363 2 weeks ago

47.6MB

Step 2 Run the following command to go to the directory (for example, /home/yamls) where the YAML file for starting Volcano is stored:

cd /home/yamls

Step 3 Run the following command to run the YAML file for starting Volcano:

kubectl apply -f volcano-{version}.yaml

Example:

kubectl apply -f volcano-v1.0.1-r40.yaml

root@ubuntu:/home/yamls# kubectl apply -f volcano-v1.0.1-r40.yaml Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply namespace/volcano-system configured configmap/volcano-scheduler-configmap created serviceaccount/volcano-scheduler created clusterrole.rbac.authorization.k8s.io/volcano-scheduler created clusterrolebinding.rbac.authorization.k8s.io/volcano-scheduler-role created deployment.apps/volcano-scheduler created serviceaccount/volcano-admission created clusterrole.rbac.authorization.k8s.io/volcano-admission created clusterrolebinding.rbac.authorization.k8s.io/volcano-admission-role created deployment.apps/volcano-admission created service/volcano-admission-service created job.batch/volcano-admission-init created serviceaccount/volcano-controllers created clusterrole.rbac.authorization.k8s.io/volcano-controllers created clusterrolebinding.rbac.authorization.k8s.io/volcano-controllers-role created deployment.apps/volcano-controllers created customresourcedefinition.apiextensions.k8s.io/jobs.batch.volcano.sh created customresourcedefinition.apiextensions.k8s.io/commands.bus.volcano.sh created customresourcedefinition.apiextensions.k8s.io/podgroups.scheduling.volcano.sh created customresourcedefinition.apiextensions.k8s.io/queues.scheduling.volcano.sh created

----End

Installing HCCL-Controller
Step 1 Run the following command on the management node to view the image: docker images

NOTE

If no image is available, obtain images. For details, see Obtaining MindX DL Images.

[root@centos-19 ascend-device-plugin]# docker images|grep hccl-controller

hccl-controller

v20.2.0

914deb02403e 3 weeks ago

151MB

Step 2 Run the following command to go to the directory (for example, /home/yamls) where the YAML file for starting HCCL-Controller is stored:

cd /home/yamls

Step 3 Run the following command to start HCCL-Controller: kubectl apply -f hccl-controller-{version}.yaml

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Example: kubectl apply -f hccl-controller-v20.2.0.yaml ----End

Installing Ascend Device Plugin
Step 1 Run the following command on a compute node to view the image: docker images|grep k8sdeviceplugin

NOTE

If no image is available, obtain images. For details, see Obtaining MindX DL Images.

root@ubuntu:~# docker images|grep k8sdeviceplugin

ascend-k8sdeviceplugin

v20.2.0

43a5c145ac8c

root@ubuntu:~#

About an hour ago 768MB

Step 2 On the management node, run the following command to go to the path (for example, /home/yamls) where the YAML file for starting Ascend Device Plugin is stored:

cd /home/yamls

Step 3 Run the following command on the management node to start the image: Start a training node. kubectl apply -f ascendplugin-volcano-{version}.yaml Example: kubectl apply -f ascendplugin-volcano-v20.2.0.yaml Start an inference node. If there is no inference node, skip this step. kubectl apply -f ascendplugin-310-{version}.yaml Example: kubectl apply -f ascendplugin-310-v20.2.0.yaml
NOTE

Ascend Device Plugin requires Docker to enable Ascend Docker Runtime. If Ascend Docker Runtime is not installed, install the toolbox Ascend-cann-toolbox_{version}_linux{arch}.run by referring to "Installing the Operating Environment (Training)" > "Installing the Training Software" in the CANN Software Installation Guide.
----End

Installing cAdvisor
Step 1 Run the following command on a compute node to view the image: docker images | grep cadvisor

NOTE

If no image is available, obtain images. For details, see Obtaining MindX DL Images.

[root@centos-19 ascend-device-plugin]# docker images | grep cadvisor

google/cadvisor

v0.34.0-r40

391393dea5f8 2 weeks ago

98.7MB

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Step 2 On the management node, run the following command to go to the path (for example, /home/yamls) where the YAML file for starting cAdvisor is stored:

cd /home/yamls

Step 3 Run the following command on the management node to install cAdvisor:

kubectl apply -f cadvisor-{version}.yaml

Example:

kubectl apply -f cadvisor-v0.34.0-r40.yaml

root@ubuntu:/home/yamls# kubectl apply -f cadvisor-v0.34.0-r40.yaml

namespace/cadvisor created

serviceaccount/cadvisor created

clusterrole.rbac.authorization.k8s.io/cadvisor created

clusterrolebinding.rbac.authorization.k8s.io/cadvisor created

daemonset.apps/cadvisor created

podsecuritypolicy.policy/cadvisor created

root@ubuntu:/home/yamls# kubectl get pod -n cadvisor

NAME

READY STATUS RESTARTS AGE

cadvisor-p8qp8 1/1 Running 0

60s

----End

Verifying the Installation
Check that the components are installed properly. For details, see Environment Check.

2.3.3.3 Manual Installation (Using Manually Built Images)
This section describes how to manually install the Volcano, HCCL-Controller, Ascend Device Plugin, and cAdvisor components.

Precautions
The images for x86 servers and ARM servers are different. Use proper images during installation.

Prerequisites
1. Installation preparations have been completed. For details, see Environment Dependencies.
2. The components has been built. For details, see Building MindX DL Images.
3. Pre-installation operations have been performed. For details, see Preparations for Installation.

Installing Volcano
Step 1 Copy the files required for installing Volcano to any directory on the management node, for example, /home/install.
In the list of required files, {REL_OSARCH} indicates the system architecture. The value can be amd64 or arm64.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-14 Files

File Name

Description

Path in the Compilation Environment

vc-controller-manager-v1.0.1-r40{REL_OSARCH}.tar.gz

ControllerManager installation image

${GOPATH}/src/volcano.sh/ volcano/_output/ DockFile/vc-controllermanager-v1.0.1-r40{REL_OSARCH}.tar.gz

vc-scheduler-v1.0.1-r40{REL_OSARCH}.tar.gz

vc-scheduler installation image

${GOPATH}/src/volcano.sh/ volcano/_output/ DockFile/vc-schedulerv1.0.1-r40{REL_OSARCH}.tar.gz

vc-webhook-manager-basev1.0.1-r40-{REL_OSARCH}.tar.gz

webhookmanager-base installation image

${GOPATH}/src/volcano.sh/ volcano/_output/ DockFile/vc-webhookmanager-base-v1.0.1-r40{REL_OSARCH}.tar.gz

vc-webhook-manager-v1.0.1-r40{REL_OSARCH}.tar.gz

Webhookmanager installation image

${GOPATH}/src/volcano.sh/ volcano/_output/ DockFile/vc-webhookmanager-v1.0.1-r40{REL_OSARCH}.tar.gz

volcano-v1.0.1-r40.yaml

YAML file for installing Volcano

${GOPATH}/src/volcano.sh/ volcano/hack/../_output/ release/volcano-v1.0.1r40.yaml

The following uses amd64 as an example. After the operation is complete, the files in the directory are as follows:
root@ubuntu:/home/install# ll total 433964 drwxr-xr-x 2 root root 4096 Nov 17 20:09 ./ drwxr-xr-x 5 root root 4096 Nov 17 20:09 ../ -rw------- 1 root root 96946176 Nov 17 20:09 vc-controller-manager-v1.0.1-r40-amd64.tar.gz -rw------- 1 root root 113263616 Nov 17 20:09 vc-scheduler-v1.0.1-r40-amd64.tar.gz -rw------- 1 root root 50782720 Nov 17 20:09 vc-webhook-manager-base-v1.0.1-r40-amd64.tar.gz -rw------- 1 root root 141210624 Nov 17 20:09 vc-webhook-manager-v1.0.1-r40-amd64.tar.gz -rw-r--r-- 1 root root 24413 Nov 17 20:09 volcano-v1.0.1-r40.yaml
Step 2 Import images.
1. Run the following commands to import the images:
docker load --input vc-controller-manager-v1.0.1-r40-amd64.tar.gz
docker load --input vc-scheduler-v1.0.1-r40-amd64.tar.gz
docker load --input vc-webhook-manager-base-v1.0.1-r40-amd64.tar.gz
docker load --input vc-webhook-manager-v1.0.1-r40-amd64.tar.gz
root@ubuntu:/home/install# docker load --input vc-controller-manager-v1.0.1-r40-amd64.tar.gz 5555a23bac37: Loading layer [==================================================>]

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

42.42MB/42.42MB 9d71c9e305a9: Loading layer [==================================================>] 45.98MB/45.98MB Loaded image: volcanosh/vc-controller-manager:v1.0.1-r40 root@ubuntu:/home/install# docker load --input vc-scheduler-v1.0.1-r40-amd64.tar.gz 3c5cfcf6e497: Loading layer [==================================================>] 49.68MB/49.68MB 6c299227fb43: Loading layer [==================================================>] 53.23MB/53.23MB Loaded image: volcanosh/vc-scheduler:v1.0.1-r40 root@ubuntu:/home/install# docker load --input vc-webhook-manager-base-v1.0.1-r40-amd64.tar.gz Loaded image: volcanosh/vc-webhook-manager-base:v1.0.1-r40 root@ubuntu:/home/install# docker load --input vc-webhook-manager-v1.0.1-r40-amd64.tar.gz df6d1282497d: Loading layer [==================================================>] 39.9MB/39.9MB d835292e5e19: Loading layer [==================================================>] 4.608kB/4.608kB Loaded image: volcanosh/vc-webhook-manager:v1.0.1-r40

2. Run the following command to check whether the images are imported successfully.

docker images|grep vc

root@ubuntu:/home/install# docker images|grep vc

volcanosh/vc-webhook-manager

v1.0.1-r40

3aca3aa7dd10 5 hours ago

85.9MB

volcanosh/vc-scheduler

v1.0.1-r40

9958222963de 5 hours ago

161MB

volcanosh/vc-controller-manager

v1.0.1-r40

7e94f8150198 5 hours ago

146MB

volcanosh/vc-webhook-manager-base

v1.0.1-r40

bbadada24a40 15 months

ago 46MB

Step 3 Run the following command to run the YAML file for starting Volcano:

kubectl apply -f volcano-v1.0.1-r40.yaml

root@ubuntu:/home/install# kubectl apply -f volcano-v1.0.1-r40.yaml Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply namespace/volcano-system configured configmap/volcano-scheduler-configmap created serviceaccount/volcano-scheduler created clusterrole.rbac.authorization.k8s.io/volcano-scheduler created clusterrolebinding.rbac.authorization.k8s.io/volcano-scheduler-role created deployment.apps/volcano-scheduler created serviceaccount/volcano-admission created clusterrole.rbac.authorization.k8s.io/volcano-admission created clusterrolebinding.rbac.authorization.k8s.io/volcano-admission-role created deployment.apps/volcano-admission created service/volcano-admission-service created job.batch/volcano-admission-init created serviceaccount/volcano-controllers created clusterrole.rbac.authorization.k8s.io/volcano-controllers created clusterrolebinding.rbac.authorization.k8s.io/volcano-controllers-role created deployment.apps/volcano-controllers created customresourcedefinition.apiextensions.k8s.io/jobs.batch.volcano.sh created customresourcedefinition.apiextensions.k8s.io/commands.bus.volcano.sh created customresourcedefinition.apiextensions.k8s.io/podgroups.scheduling.volcano.sh created customresourcedefinition.apiextensions.k8s.io/queues.scheduling.volcano.sh created

----End

Installing HCCL-Controller
Step 1 Run the following command to check whether the HCCL-Controller image exists: docker images

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

NOTE
If no image is available, build the image by referring to Building HCCL-Controller.
Step 2 Run the following command to go to the HCCL-Controller source code building directory: cd /home/ascend-hccl-controller/output
Step 3 Run the following command to start HCCL-Controller: kubectl apply -f hccl-controller-*.yaml ----End

Installing Ascend Device Plugin

Step 1 Upload the images generated in Building Ascend Device Plugin to the /home/ ascend-device-plugin/output directory on a compute node with Ascend AI Processors.

Step 2 Install the image. ARM docker load -i Ascend-K8sDevicePlugin-v20.2.0-arm64-Docker.tar.gz x86 docker load -i Ascend-K8sDevicePlugin-v20.2.0-amd64-Docker.tar.gz

Step 3 Run the following command to query images:

docker images|grep k8sdeviceplugin

root@ubuntu:~# docker images|grep k8sdeviceplugin

ascend-k8sdeviceplugin

v20.2.0

43a5c145ac8c

root@ubuntu:~#

About an hour ago 768MB

Step 4 Copy the YAML files in the root directory (/home/ascend-device-plugin is used as an example) of the ascend-device-plugin source code on the compute node to the active Kubernetes node.

cd /home/ascend-device-plugin

scp ascendplugin-*.yaml root@masterIp:/home/ascend-device-plugin

Step 5 Run the following command to start the image:

kubectl apply -f ascendplugin-310.yaml

kubectl apply -f ascendplugin-volcano.yaml

----End

Installing cAdvisor
Step 1 Upload the huawei-cadvisor-beta.tar.gz image in the $GOPATH/src/github.com/ google/cadvisor directory built in Building cAdvisor to a compute node with Ascend AI Processors and run the following command to load the image:
docker load < huawei-cadvisor-*.tar.gz

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Step 2 Run the following command to copy the yaml folder in the cAdvisor source code directory to the management node, for example, /home:

scp cadvisor-v0.34.0-*.yaml root@masterIp:/home

Step 3 Go to the directory in Step 2, for example, /home, and run the following command to install cAdvisor:

kubectl apply -f cadvisor-v0.34.0-*.yaml

root@ubuntu:/home# kubectl apply -f cadvisor-v0.34.0-*.yaml

namespace/cadvisor created

serviceaccount/cadvisor created

clusterrole.rbac.authorization.k8s.io/cadvisor created

clusterrolebinding.rbac.authorization.k8s.io/cadvisor created

daemonset.apps/cadvisor created

podsecuritypolicy.policy/cadvisor created

root@ubuntu:/home# kubectl get pod -n cadvisor

NAME

READY STATUS RESTARTS AGE

cadvisor-p8qp8 1/1 Running 0

60s

----End

Verifying the Installation
Check that the components are installed properly. For details, see Environment Check.

2.4 Environment Check

2.4.1 Checking the Environment Manually

Procedure
Step 1 Run the following command on all nodes to check the Docker version and runtime:
docker info
Information similar to the following is displayed:
[root@centos-21 ~]# docker info Client: Debug Mode: false
Server: Containers: 59 Running: 30 Paused: 0 Stopped: 29 Images: 113 Server Version: 18.06.3 Storage Driver: overlay2 Backing Filesystem: xfs Supports d_type: true Native Overlay Diff: true Logging Driver: json-file Cgroup Driver: systemd Plugins: Volume: local Network: bridge host ipvlan macvlan null overlay

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Log: awslogs fluentd gcplogs gelf journald json-file local logentries splunk syslog Swarm: inactive Runtimes: ascend runc Default Runtime: ascend Init Binary: docker-init ...
NOTE

If the value of Runtimes is not ascend runc, install the toolbox Ascend-canntoolbox_{version}_linux-{arch}.run by referring to "Installing the Operating Environment (Training)" > "Installing the Training Software" in the CANN Software Installation Guide.
Step 2 On the management node, run the following command to check the pod status of ascend-device-plugin, cadvisor, hccl-controller, volcano-admission, volcanocontrollers, volcano-scheduler, and volcano-admission-init:

kubectl get pod --all-namespaces

root@ubuntu:/home# kubectl get pod --all-namespaces

NAMESPACE NAME

READY STATUS

RESTARTS AGE

cadvisor

cadvisor-kr59p

1/1 Running

3d8h

default

hccl-controller-c8dc9ff76-wsxqg

1/1 Running

3d8h

kube-system ascend-device-plugin-daemonset-k6nd7 1/1 Running

4h56m

...

volcano-system volcano-admission-7c4cb5ff8-cf44s

1/1 Running

19h

volcano-system volcano-admission-init-895wh

0/1 Completed

19h

volcano-system volcano-controllers-6786db54f-j4pd2 1/1 Running

19h

volcano-system volcano-scheduler-844f9b547b-6fctn

1/1 Running

19h

NOTE

The volcano-admission-init component of Volcano is Completed, and all other components must be in the Running state, including each component on each compute node of cAdvisor and Ascend Device Plugin.
The hccl-controller, volcano-admission, volcano-controllers, volcano-scheduler, and volcano-admission-init components run only on the management node.
The ascend-device-plugin and cadvisor components run on nodes equipped with Ascend AI Processors.
Step 3 Run the following command on the management node to check the number of processors:

kubectl describe node hostName

NOTE

hostName: name of the node where Ascend Device Plugin is installed in Kubernetes.

Number of Ascend 310 AI Processors

...

Hostname: ubuntu

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend310: 4

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend310: 4

hugepages-2Mi:

memory:

792205068Ki

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

pods:

110

...

Number of Ascend 910 AI Processors

...

Hostname: ubuntu

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8 # The value is 2 if Atlas 300T training cards are installed.

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8 # The value is 2 if Atlas 300T training cards are installed.

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

----End

2.4.2 Checking the Environment Using a Script
MindX DL provides the component check function. You can use a check script to obtain the status and version information of the NPU driver, Docker, Kubernetes components (kubelet, Kubectl, and Kubeadm), and MindX DL. MindX DL supports single-node environment check and cluster environment check. To check the cluster environment, you need to run Ansible commands on the management node to distribute check scripts to check each node in the cluster. For details about how to view the number of processors on a node, see Step 3 in Checking the Environment Manually.

NOTICE
You need to temporarily enable the read and write permissions of the compute nodes for Kubernetes. The read and write permissions are valid only for the compute node resources and cannot process other node resources. After the check is complete, the temporary permissions of the compute nodes are cancelled.
If you do not want to enable the read and write permissions for Kubernetes, perform a manual check. For details, see Checking the Environment Manually.

Prerequisites
To check a single-node environment, requirements 1 to 3 must be met. To check a cluster environment, requirements 1 to 4 must be met.
1. The compute nodes have the permission to access the Kubernetes cluster. If the compute nodes do not have the permission, the check result may be affected. In a single-node environment, you need to manually enable the permission. In a cluster environment, the Ansible script automatically enables the access permission on each compute node. After the check is complete, disable the access permission on each compute node.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2. Obtain all files in the check_evn directory from Gitee Code Repository and upload them to the /home/check_env directory.
3. The dos2unix tool has been installed.
NOTE
For Ubuntu, run the following command to install dos2unix: apt install -y dos2unix
For CentOS, run the following command to install dos2unix: yum install -y dos2unix
4. Python 3.7.5 and Ansible have been installed on the management node. For details about how to check the installation, see Checking the Python and Ansible Versions.

Checking a Single-Node Environment

Step 1 Run the following command to check whether the node has the permission to access the Kubernetes cluster:

kubectl get nodes

If yes, go to Step 3. If no, go to Step 2.

If the following information is displayed, the node has the permission to access

the Kubernetes cluster:

NAME STATUS ROLES

AGE VERSION

centos-19 Ready worker

102s v1.17.3

centos-21 Ready master,worker 3h17m v1.17.3

centos39 Ready worker

88m v1.17.3

Step 2 Temporarily enable the node access permission.
In the shell window that is displayed, run the following command to temporarily enable the access permission for the compute node:
export KUBECONFIG=/etc/kubernetes/kubelet.conf
Enable the access permission on the management node.
By default, the management node has the permission to view the Kubernetes cluster information. If the management node does not have the permission, run the following command in the shell window to temporarily enable the permission:
export KUBECONFIG=/etc/kubernetes/admin.conf

After the function is enabled, run the kubectl get nodes command.

If the following information is displayed, the node has the permission to access

the Kubernetes cluster:

NAME STATUS ROLES

AGE VERSION

centos-19 Ready worker

102s v1.17.3

centos-21 Ready master,worker 3h17m v1.17.3

centos39 Ready worker

88m v1.17.3

NOTE

If "Unable to connect to the server: x509: certificate signed by unknown authority" is displayed, a proxy may be configured. Run the unset http_proxy https_proxy command and enable the permission again.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Step 3 Run the following command to switch to the /home/check_env directory: cd /home/check_env
Step 4 Run the following commands to check the environment using the script: dos2unix * chmod 500 check_env.sh bash check_env.sh node_type ip

NOTE

node_type: The options are as follows. Check different services of MindX DL for different node types.
master indicates the management node. Only the Volcano and HCCL-Controller services of MindX DL are checked.
worker indicates a compute node. Only the Ascend Device Plugin and cAdvisor services of MindX DL are checked.
master-worker indicates that the node is both a management node and a compute node. The Volcano, HCCL-Controller, Ascend Device Plugin, and cAdvisor services are checked.
ip: This parameter is optional. If this parameter is specified, the IP column in the command output is empty.
Example:

dos2unix *

chmod 500 check_env.sh

bash check_env.sh master-worker 10.10.56.78

[root@centos-21 check_env]# bash check_env.sh master-worker 10.10.56.78

------------------------------------------------------------------------------------------------------------------------------

---

| hostname | ip

| service

| status

| version

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | npu-driver

| Normal

| 20.1.0

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | docker

| Normal[active (running)] | 19.03.13

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | kubelet

| Normal[active (running)] | v1.17.3

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | kubeadm

| Normal

| v1.17.3

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | kubectl

| Normal

| v1.17.3

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | HCCL-Controller | Not install

| hccl-controller:v20.2.0,hccl-

controller:v20.1.0 |

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | volcano-admission | Normal[Running]

| volcanosh/vc-webhook-

manager:v1.0.1-r40

------------------------------------------------------------------------------------------------------------------------------

---

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

manager:v1.0.1-r40

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | volcano-controllers | Normal[Running]

| volcanosh/vc-controller-

manager:v1.0.1-r40 |

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | volcano-scheduler | Normal[Running]

| volcanosh/vc-scheduler:v1.0.1-

r40

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | Ascend-Device-Plugin | Normal[Running]

| ascend-

k8sdeviceplugin:v20.2.0

------------------------------------------------------------------------------------------------------------------------------

---

| centos-21 | 10.10.56.78 | cAdvisor

| Normal[Running]

| google/cadvisor:v0.34.0-

r40

------------------------------------------------------------------------------------------------------------------------------

---

Finished! The check report is stored in the /home/check_env/env_check_report.txt

NOTE

status Not install: The service is not installed. Normal: The service is normal. The specific status is displayed in []. Error: The service is abnormal. The error status is displayed in []. Completed: This state is valid only for the volcano-admission-init service. Use Kubernetes to check the MindX DL service. If the node does not have the permission to access the Kubernetes cluster, "Can't get service status, permission denied" is displayed.
version: If the MindX DL service is not running, information about all available images of a service on the current node is displayed. Images are separated by commas (,). If the Docker service is not running, the message "Docker service not running" is displayed.
The last line shows the location of the output report. In the example, the output report is in the /home/check_env directory.
Step 5 Disable the temporary access permission on each node.
After closing the current shell window, you can disable the temporary access permission of a node or run the following command to disable the temporary access permission:
unset KUBECONFIG

NOTE

If the node itself has the access permission, running the preceding command can only disable the temporarily enabled access permission but cannot disable the permission of the node itself.
The preceding command is valid only for the current shell window and can disable only the access permission that is temporarily enabled.
----End

Checking a Cluster Environment
Step 1 Configure Ansible host information. For details, see Configuring Ansible Host Information.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

An example is as follows:
[all:vars] # Master IP master_ip=10.10.56.78
[master] ubuntu-example ansible_host=10.10.56.78 ansible_ssh_user="root" ansible_ssh_pass="ad34#$"
[training_node] ubuntu-example2 ansible_host=10.10.56.79 ansible_ssh_user="root" ansible_ssh_pass="ad34#$"
[inference_node]

[workers:children] training_node inference_node
NOTE
The configuration file /etc/ansible/hosts of the cluster environment checked using Ansible must contain at least the preceding content.
If Ansible is used to install and deploy a cluster, you can directly use the /etc/ansible/ hosts file configured during installation and deployment to check the cluster environment. You do not need to modify the file.
Some groups do not have servers and can be left empty, such as [inference_node] in the example.
The content under [workers:children] cannot be modified.
Step 2 Run the following command to switch to the /home/check_env directory:
cd /home/check_env
The directory structure is as follows:
/home/check_env check_env.sh check_evn.yaml
Step 3 Run the following commands to check the environment:
dos2unix *
ansible-playbook -vv check_env.yaml
NOTE
You are advised to run the following commands to set the permission on the check_env.yaml file to 400 and the permission on the check_env.sh file to 500: chmod 400 check_env.yaml chmod 500 check_env.sh
If the following message is displayed, the operation is successful.
TASK [Generate final report] ****************************************************************************************************************************************** ******************************************************************************************** task path: /home/check_env/check_env.yaml:158 changed: [centos39] => (item=/home/check_env/reports/env_check_report_master.txt) => {"ansible_loop_var": "item", "changed": true, "cmd": "cat /home/check_env/reports/ env_check_report_master.txt >> /home/check_env/env_check_report_all.txt; echo \"\" >> /home/check_env/ env_check_report_all.txt", "delta": "0:00:00.006126", "end": "2020-11-26 15:51:23.865208", "item": "/home/ check_env/reports/env_check_report_master.txt", "rc": 0, "start": "2020-11-26 15:51:23.859082", "stderr": "", "stderr_lines": [], "stdout": "", "stdout_lines": []}

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

changed: [centos39] => (item=/home/check_env/reports/env_check_report_10.10.56.78.txt) => {"ansible_loop_var": "item", "changed": true, "cmd": "cat /home/check_env/reports/ env_check_report_10.10.56.78.txt >> /home/check_env/env_check_report_all.txt; echo \"\" >> /home/ check_env/env_check_report_all.txt", "delta": "0:00:00.006343", "end": "2020-11-26 15:51:24.367935", "item": "/home/check_env/reports/env_check_report_10.10.56.78.txt", "rc": 0, "start": "2020-11-26 15:51:24.361592", "stderr": "", "stderr_lines": [], "stdout": "", "stdout_lines": []}

TASK [Print report path] ****************************************************************************************************************************************** ************************************************************************************************ task path: /home/check_env/check_env.yaml:166 changed: [centos39] => {"changed": true, "cmd": "echo \"Finished! The check report is stored in the /home/ check_env/env_check_report_all.txt on the master node.\"", "delta": "0:00:00.002918", "end": "2020-11-26 15:51:24.957293", "rc": 0, "start": "2020-11-26 15:51:24.954375", "stderr": "", "stderr_lines": [], "stdout": "Finished! The check report is stored in the /home/check_env/env_check_report_all.txt on the master node.", "stdout_lines": ["Finished! The check report is stored in the /home/check_env/env_check_report_all.txt on the master node."]} META: ran handlers META: ran handlers

PLAY RECAP

******************************************************************************************************************************************

**************************************************************************************************************

centos131

: ok=8 changed=7 unreachable=0 failed=0 skipped=0 rescued=0

ignored=0

centos39

: ok=14 changed=8 unreachable=0 failed=0 skipped=1 rescued=0

ignored=0

[root@centos39 check_env]#

NOTE

In the command output, "Finished! The check report is stored in the XXX" following the TASK [Print report path] field indicates the location of the report on the management node. In this example, the report is stored in /home/check_env/ env_check_report_all.txt.
The report contains the check result of each node.
The independent report of each node is stored in the reports directory of the management node. In this example, the directory is /home/check_env/reports.

----End

2.5 MindX DL Uninstallation

2.5.1 Automatic Uninstallation

Prerequisites

MindX DL has been installed.
Python and Ansible have been installed on the management node. For details about how to check the installation, see Installing Python and Ansible.
Ansible host information has been configured on the management node. For details, see Configuring Ansible Host Information.

Script Obtaining
Obtain the uninstallation scripts from the MindX DL deployment file repository, as listed in Table 2-15.
Link: Gitee Code Repository

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-15 Script list

Script Name

Description

Path in the Code Repository

entry.sh

Entry script for offline uninstall uninstallation.

uninstall.yaml

Components and software uninstallation script.

uninstall

ascendplugin-volcanov20.2.0.yaml

Ascend Device Plugin configuration file for Ascend 910 AI Processor.

yamls

ascendplugin-310-v20.2.0.yaml

Ascend Device Plugin configuration file for Ascend 310 AI Processor.

yamls

cadvisor-v0.34.0-r40.yaml

Configuration file of the NPU monitoring component.

yamls

hccl-controller-v20.2.0.yaml

NPU training job component configuration file.

yamls

volcano-v1.0.1-r40.yaml

NPU training job

yamls

scheduling component

configuration file.

Procedure
Step 1 Log in to the management node as the root user.
Step 2 Uninstall MindX DL.
1. Copy the files in the yamls directory obtained in Table 2-15 to the dls_root_dir directory defined in the /etc/ansible/hosts file on the management node. /tmp is used as an example of dls_root_dir. The directory structure is as follows:
/tmp yamls
ascendplugin-volcano-v20.2.0.yaml ascendplugin-310-v20.2.0.yaml hccl-controller-v20.2.0.yaml cadvisor-v0.34.0-r40.yaml volcano-v1.0.1-r40.yaml
2. Copy the files in the uninstall directory obtained in Table 2-15 to any directory on the management node, go to the directory, and run the following scripts to automatically uninstall MindX DL:
dos2unix *
chmod 500 entry.sh

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment
bash -x entry.sh NOTE
Determine whether to delete MindX DL logs, uninstall Kubernetes and Docker on all nodes, and uninstall NFS as prompted.
MindX DL images are deleted during uninstallation. The shared path /data/atlas_dls may contain files, such as datasets uploaded by
users. This directory is not deleted when the NFS is uninstalled.
----End

2.5.2 Manual Uninstallation

2.5.2.1 Clearing Running Resources
You need to clear resources such as the pod, vcjob, namespace, and image. The vcjob is automatically cleared when the Volcano is uninstalled. To clear other resources, use the following procedure.

Procedure
Step 1 On the management node, run the following command to delete the pod:
kubectl delete -f File name
Example:
kubectl delete -f hccl-controller-v20.2.0.yaml
Use YAML to perform the uninstallation. For details about the path of the YAML files, see MindX DL Installation. Obtain the files in the yamls directory and upload the files to a directory on the server.
Step 2 (Optional) Run the following command to delete the namespace:
This step is required when the namespace created in YAML exists.
kubectl delete namespace vcjob
In this example, the namespace is vcjob.
root@ubuntu:/home/install# kubectl delete namespace vcjob namespace "vcjob" deleted
Step 3 Delete the MindX DL image. NOTE
After the component images are deleted using YAML, there are still records. Therefore, you need to delete the records.
Deleted images cannot be recovered. Exercise caution when performing this operation. Volcano and HCCL-Controller can be deleted only on the management node. Ascend
Device Plugin and cAdvisor can be deleted only on compute nodes.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Component Volcano
cAdvisor Ascend Device Plugin HCCL-Controller

Image Name

Image Deletion Command

volcanosh/vcwebhookmanager:v1.0.1-r40
volcanosh/vcscheduler:v1.0.1r40
volcanosh/vccontrollermanager:v1.0.1-r40
volcanosh/vcwebhook-managerbase: v1.0.1-r40

docker image rm $(docker images |grep volcano|awk '{print $3}')

google/ cadvisor:v0.34.0-r40

docker image rm $(docker images |grep cadvisor|awk '{print $3}')

ascend-

docker image rm $(docker

k8sdeviceplugin:v20.2. images |grep ascend-device-

plugin|awk '{print $3}')

hccl-controller:v20.2.0

docker image rm $(docker images |grep hccl-controller| awk '{print $3}')

----End
2.5.2.2 Deleting Component Logs
Procedure
Step 1 Run the following command to delete component logs. The log path /var/log/ atlas_dls is used as an example.
rm -rf /var/log/atlas_dls/
The content in /var/log/atlas_dls/ is as follows:
root@ubuntu:~# ll /var/log/atlas_dls/ total 24 drwxr-x--- 14 hwMindX hwMindX 4096 Sep 28 20:28 ./ drwxrwxr-x 18 root syslog 4096 Sep 29 06:25 ../ drwxr-x--- 2 hwMindX hwMindX 4096 Sep 28 20:30 hccl-controller/ drwxr-x--- 2 hwMindX hwMindX 4096 Sep 28 20:28 volcano-admission/ drwxr-x--- 2 hwMindX hwMindX 4096 Sep 28 20:28 volcano-controller/ drwxr-x--- 2 hwMindX hwMindX 4096 Sep 29 06:25 volcano-scheduler
For details about other log paths, see Table 2-13.
----End

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2.5.2.3 Removing a Node from a Cluster

Prerequisites

The running resources have been cleared. For details about how to clear running resources, see Clearing Running Resources.
Component logs have been deleted. For details about how to delete logs, see Deleting Component Logs.

Procedure
Step 1 Run the following command on the management node to remove the node from the cluster:
kubectl drain hostname --delete-local-data --force --ignore-daemonsets
kubectl delete node hostname
NOTE
hostname: indicates the name of the node from which a cluster is to be removed.
Step 2 Run the following commands on the removed node to reset the node:
kubeadm reset -f
rm -rf ~/.kube
Step 3 Run the following command on the removed node to delete the /etc/kubernetes directory:
rm -rf /etc/kubernetes
root@ubuntu:/home# cd /etc/kubernetes/ root@ubuntu:/etc/kubernetes# ll total 44 drwxr-xr-x 4 root root 4096 Sep 28 14:36 ./ drwxr-xr-x 99 root root 4096 Sep 30 13:05 ../ -rw------- 1 root root 5454 Sep 28 14:36 admin.conf -rw------- 1 root root 5490 Sep 28 14:36 controller-manager.conf -rw------- 1 root root 1862 Sep 28 14:36 kubelet.conf drwxr-xr-x 2 root root 4096 Sep 28 14:36 manifests/ drwxr-xr-x 3 root root 4096 Sep 28 14:36 pki/ -rw------- 1 root root 5434 Sep 28 14:36 scheduler.conf root@ubuntu:/etc/kubernetes# rm -rf /etc/kubernetes/
----End

2.6 MindX DL Upgrade

2.6.1 Preparing for the Upgrade
Before the upgrade, you need to obtain the image files and configuration files required for the upgrade to improve the upgrade efficiency.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Prerequisites

Obtaining Image Files
Table 2-16 lists the image files. In the table, {version} in a package name indicates the version number. Change it based on the actual situation. For details, see Obtaining MindX DL Images.

Table 2-16 Image list

Item

Image Package

Ascend Device Plugin image file

Ascend-K8sDevicePlugin-{version}-arm64Docker.tar.gz

Ascend-K8sDevicePlugin-{version}-amd64Docker.tar.gz

HCCL-Controller image file hccl-controller-{version}-arm64.tar.gz

hccl-controller-{version}-amd64.tar.gz

cAdvisor image file

huawei-cadvisor-{version}-arm64.tar.gz

huawei-cadvisor-{version}-amd64.tar.gz

Volcano image file

vc-controller-manager-{version}-arm64.tar.gz vc-scheduler-{version}-arm64.tar.gz vc-webhook-manager-base-{version}-
arm64.tar.gz vc-webhook-manager-{version}-arm64.tar.gz

vc-controller-manager-{version}-amd64.tar.gz vc-scheduler-{version}-amd64.tar.gz vc-webhook-manager-base-{version}-
amd64.tar.gz vc-webhook-manager-{version}-amd64.tar.gz

Obtaining Configuration Files
Obtain offline upgrade configuration files from the MindX DL deployment file repository, as listed in Table 2-17. In the table, {version} in a file name indicates the version number. Change it based on the actual situation.
Link: Gitee Code Repository

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-17 Configuration file list

Script Name

Description

Script Path

ascendplugin-volcano{version}.yaml

Ascend Device Plugin configuration file for Ascend 910 AI Processor.

yamls

ascendplugin-310{version}.yaml

Ascend Device Plugin configuration file for Ascend 310 AI Processor.

yamls

cadvisor-{version}.yaml

cAdvisor configuration yamls file.

hccl-controller-{version}.yaml HCCL-Controller configuration file.

yamls

volcano-{version}.yaml

Volcano configuration yamls file.

Obtaining Upgrade Scripts
Obtain the upgrade scripts from the MindX DL deployment file repository, as listed in Table 2-18.
Link: Gitee Code Repository

Table 2-18 Upgrade script list Script Name entry.sh upgrade.yaml volcano-v0.4.0-r03.yaml
gen-admission-secret.sh

Description

Path in the Code Repository

Entry script for an offline upgrade.

upgrade

Component upgrade script.

upgrade

First version configuration file of Volcano.

upgrade/volcanodifference

Script for generating a upgrade/volcanoVolcano startup key. difference

2.6.2 Upgrading MindX DL
The upgrade mode provided in this document is offline upgrade. You need to prepare the MindX DL component images and configuration files of the latest version in advance and upgrade the existing MindX DL using scripts. After the

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

upgrade, the component service status will be checked. If the status is abnormal, the components can be rolled back to the source version.

Prerequisites

MindX DL has been installed.
The MindX DL component images and configuration files of the latest version have been obtained. For details, see Preparing for the Upgrade.

Procedure
Step 1 Log in to the management node as the root user.
Step 2 Upgrade MindX DL.
1. Create the upgrade_dependencies directory in the dls_root_dir directory defined in the /etc/ansible/hosts file on the management node, and copy the image files of the latest version and the files in the yamls directory obtained in Obtaining Configuration Files to the upgrade_dependencies directory. /tmp directory is used as an example of dls_root_dir. The directory structure after the upload is as follows:
/tmp/upgrade_dependencies/ images Ascend-K8sDevicePlugin-v20.2.0-amd64-Docker.tar.gz Ascend-K8sDevicePlugin-v20.2.0-arm64-Docker.tar.gz hccl-controller-v20.2.0-amd64.tar.gz hccl-controller-v20.2.0-arm64.tar.gz huawei-cadvisor-v0.34.0-r40-amd64.tar.gz huawei-cadvisor-v0.34.0-r40-arm64.tar.gz vc-controller-manager-v1.0.1-r40-amd64.tar.gz vc-controller-manager-v1.0.1-r40-arm64.tar.gz vc-scheduler-v1.0.1-r40-amd64.tar.gz vc-scheduler-v1.0.1-r40-arm64.tar.gz vc-webhook-manager-base-v1.0.1-r40-amd64.tar.gz vc-webhook-manager-base-v1.0.1-r40-arm64.tar.gz vc-webhook-manager-v1.0.1-r40-amd64.tar.gz vc-webhook-manager-v1.0.1-r40-arm64.tar.gz yamls
ascendplugin-310.yaml ascendplugin-volcano.yaml cadvisor-v0.34.0-r40.yaml hccl-controller-v20.2.0.yaml volcano-v1.0.1-r40.yaml
2. Copy the files in the upgrade directory obtained in Table 2-18 to any directory on the management node, go to the directory, and run the following scripts to automatically upgrade MindX DL:
dos2unix *
chmod 500 entry.sh
bash -x entry.sh

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

NOTE
After the upgrade is successful, the message "Do you want to remove previous version images?(yes/no)" is displayed. You can determine whether to retain the images of the source version.
If the upgrade fails, "Do you want to roll back to previous version?(yes/no)" is displayed. Enter yes to roll back to the source version.
Before the upgrade, the version information of each component will be printed and exported to the pre_check.txt file in the same directory.
After the upgrade, the version information of each component will be printed and exported to the post_check.txt file in the same directory.
----End

2.7 Security Hardening

2.7.1 Hardening OS Security
After an OS is installed, if a common user is configured, you can add the ALWAYS_SET_PATH field to the /etc/login.defs file and set it to yes to prevent unauthorized operations.
The ufw firewall is disabled during the installation and deployment. After the installation and deployment are complete, run the following command to enable the firewall:
ufw enable
ufw allow ssh
2.7.2 Hardening Container Security
Harden container security.
Host Configuration
The host provides the function of auditing the Docker daemon process.
NOTE
The Auditd software has been installed.
The Docker daemon process runs on the host as the root user. You can configure an audit mechanism on the host to audit the running and usage status of the Docker daemon. Once the Docker daemon process encounters unauthorized attacks, the root cause of the attack event can be traced. By default, the host does not enable the audit function for the Docker daemon. You can add an audit rule as follows:
a. Add the following command to the /etc/audit/audit.rules file: -w /usr/bin/docker -k docker

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment
NOTE -w: filters file paths. -k: filters strings based on specified keywords. b. Restart the log daemon process. service auditd restart

NOTICE
If the /etc/audit/audit.rules file contains "This file is automatically generated from /etc/audit/rules.d", the modification of the /etc/audit/audit.rules file is invalid. You must modify the /etc/audit/rules.d/audit.rules file for the modification to take effect. For example, in the Ubuntu system, you need to modify the /etc/audit/rules.d/audit.rules file.
The host provides the audit function for key Docker files and directories. The directories and key files are as follows: /var/lib/docker /etc/docker /etc/default/docker /etc/docker/daemon.json /usr/bin/docker-containerd /usr/bin/docker-runc docker.service docker.socket

NOTICE
The preceding directories are the default Docker installation directories. If a separate partition is created for Docker, the paths may change.
The host must provide the audit function for the directories because key Docker information is saved in the directories. By default, the host does not enable the audit function for these directories and files. You can add an audit rule in either of the following ways: a. Add the following command to the /etc/audit/audit.rules file:
-w /etc/docker -k docker b. Restart the log daemon process.
service auditd restart

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment
NOTICE
If the /etc/audit/audit.rules file contains "This file is automatically generated from /etc/audit/rules.d", the modification of the /etc/audit/audit.rules file is invalid. You must modify the /etc/audit/rules.d/audit.rules file for the modification to take effect. For example, in the Ubuntu system, you need to modify the /etc/audit/rules.d/audit.rules file.

Docker Daemon File Permission Configuration
Set the owner and owner group of the TLS CA certificate file to root:root, and set the permission to 400.
The TLS CA certificate file (the path of the CA certificate file is specified by the --tlscacert parameter) is protected from being tampered with. The certificate file is used by the specified CA certificate to authenticate the Docker server. Therefore, the owner and owner group of the CA certificate must be root, and the permission must be 400 to ensure the integrity of the CA certificate.
You can perform the following operations to set the file properties:
a. Run the following command to set the owner and owner group of the file to root:
chown root:root <path to TLS CA certificate file>
NOTE
Generally, the path to TLS CA certificate file is /usr/local/share/ca-certificates.
b. Set the file permission to 400.
chmod 400 <path to TLS CA certificate file>
The owner and owner group of the daemon.json file are set to root:root, and the file permission is set to 600.
The daemon.json file contains sensitive parameters for changing the Docker daemon process. It is an important global configuration file. The owner and owner group of the file must be root, and only the root user has the write permission on the file to ensure file integrity. This file does not exist by default.
If the daemon.json file does not exist by default, the product does not use this file for configuration. In this case, you can run the following command to set the configuration file to empty in the boot parameters so that the file is not used as the default configuration file to prevent attackers from maliciously creating and modifying configurations.
docker --config-file=""
If the daemon.json file exists in the product environment, the file has been used for configuration. In this case, you need to set the corresponding permission to prevent malicious modification.
i. Run the following command to set the owner and owner group of the file to root:
chown root:root /etc/docker/daemon.json

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

ii. Run the following command to set the file permission to 600: chmod 600 /etc/docker/daemon.json

Docker Permission Control
You are advised to use non-root users or non-privileged root users to use Docker except for special cases, such as cAdvisor and Ascend Device Plugin.
2.7.3 Security Hardening for Ownerless Files
The official Docker image is different from the OS on a physical machine. Therefore, the users in the system may not correspond to each other. As a result, the files generated during the running of the physical machine or container become ownerless files.
You can run the find / -nouser -nogroup command to search for ownerless files in a container or on a physical machine. Then create users and user groups based on the UIDs and GIDs of the files, or change the UIDs of existing users or GIDs of user groups to assign file owners, preventing security risks caused by ownerless files.
2.7.4 Hardening the cAdvisor Monitoring Port
When cAdvisor is deployed in the Kubernetes cluster, the monitoring service port is displayed only in the Kubernetes cluster by default. If network plugins that support network policies, such as Calico, are used during Kubernetes deployment, you can add corresponding network policies to display only network traffic. For example, to receive only traffic from Prometheus, you can configure the following network policies:
apiVersion: networking.k8s.io/v1 kind: NetworkPolicy metadata:
name: cadvisor-network-policy namespace: cadvisor spec: podSelector:
matchLabels: name: cadvisor
policyTypes: - Ingress - Egress
ingress: - from: - namespaceSelector: {} podSelector: matchLabels: app: prometheus
egress: - to: - namespaceSelector: {} podSelector: matchLabels: app: prometheus

2.8 Common Operations

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2.8.1 Checking the Python and Ansible Versions
Check whether the versions of the installed Python and Ansible meet the requirements.
Procedure
Step 1 Log in to the management node as the root user.
Step 2 Check whether the Python development environment is installed.
python3.7.5 --version
pip3.7.5 --version
If the following information is displayed, the tools have been installed:
Python 3.7.5 pip 19.2.3 from /usr/local/python3.7.5/lib/python3.7/site-packages/pip (python 3.7)
NOTE
If the Python of the required version has not been installed, install it by referring to Installing Python and Ansible.
Step 3 Check the Ansible version.
ansible --version
If the following information is displayed, the tools have been installed:
ansible 2.9.7 config file = /etc/ansible/ansible.cfg configured module search path = ['/root/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules'] ansible python module location = /usr/local/python3.7.5/lib/python3.7/site-packages/ansible-2.9.7py3.7.egg/ansible executable location = /usr/local/bin/ansible python version = 3.7.5 (default, Nov 9 2020, 03:44:00) [GCC 7.5.0]
NOTE
If the Ansible of the required version has not been installed, install it by referring to Installing Python and Ansible.
Step 4 Check whether the sshpass library has been installed on all nodes.
Run the following command on each node to check sshpass:
sshpass -V
If the following information is displayed, the tools have been installed:
sshpass 1.06
(C) 2006-2011 Lingnu Open Source Consulting Ltd. (C) 2015-2016 Shachar Shemesh This program is free software, and can be distributed under the terms of the GPL See the COPYING file for more information.
Using "assword" as the default password prompt indicator.
If it is not installed, perform the following steps to install it: If all nodes can communicate with the Internet:
Install sshpass on each node.

Issue 02 (2021-03-22)

MindX DL User Guide

Table 2-19 Installation commands OS Ubuntu CentOS

2 Installation and Deployment
Name apt install -y sshpass yum install -y sshpass

If a node in the cluster cannot communicate with the Internet, you need to download the offline installation package from the node that can be connected to the Internet and distribute the package to other nodes.
Download the offline package.

Table 2-20 Download commands OS Ubuntu CentOS

Name
apt download -y sshpass
yum install --downloadonly -downloaddir=Download path sshpass

After the package is distributed to each node, go to the directory where the offline installation package is stored and install sshpass.

Table 2-21 Installation commands OS Ubuntu CentOS

Name dpkg -i sshpass*.deb rpm -ivh sshpass*.rpm

Step 5 Check whether the management node can access each node using the password by SSH.
Run the ssh root@ Node IP address command on the management node and enter the login password of the node after password to log in to the node.
For example, check whether the CentOS management node can access one of the nodes. The check method for other nodes is similar.
ssh root@10.10.11.12
root@10.10.11.12's password:
If the following information is displayed, the login is successful:
Last failed login: Fri Dec 25 15:21:29 CST 2020 from 10.10.11.12 on ssh:notty There was 1 failed login attempt since the last successful login. Last login: Fri Dec 25 14:53:52 2020 from 10.10.11.10
----End

Issue 02 (2021-03-22)

MindX DL User Guide
2.8.2 Installing Python and Ansible

2 Installation and Deployment

2.8.2.1 Installing Python and Ansible Online

Installing the Python Development Environment
Step 1 Log in to the management node as the root user.
Step 2 Install the software required for building Python.
NOTE
If only some software is not installed, install only the software that is not installed:
Ubuntu ARM sudo apt-get install -y gcc g++ make cmake zlib1g zlib1g-dev libbz2-dev openssl libsqlite3-dev libssl-dev libxslt1-dev libffi-dev unzip pciutils nettools libblas-dev gfortran libblas3 libopenblas-dev
Ubuntu x86 sudo apt-get install gcc g++ make cmake zlib1g zlib1g-dev libbz2-dev libsqlite3-dev libssl-dev libxslt1-dev libffi-dev unzip pciutils net-tools -y
CentOS (ARM and x86) sudo yum install -y gcc gcc-c++ make cmake unzip zlib-devel libffi-devel openssl-devel pciutils net-tools sqlite-devel blas-devel lapack-devel openblas-devel gcc-gfortran
Step 3 Run the following command to download the Python 3.7.5 source code package:
wget https://www.python.org/ftp/python/3.7.5/Python-3.7.5.tgz
Step 4 Go to the download directory and run the following command to decompress the source code package:
tar -zxvf Python-3.7.5.tgz
Step 5 Go to the decompressed folder and run the following commands to install Python:
cd Python-3.7.5
./configure --prefix=/usr/local/python3.7.5 --enable-shared
make
sudo make install
NOTE
--prefix: specifies the Python installation path.
Step 6 Run the following commands to set the soft link:
sudo ln -s /usr/local/python3.7.5/bin/python3 /usr/local/python3.7.5/bin/python3.7.5 sudo ln -s /usr/local/python3.7.5/bin/pip3 /usr/local/python3.7.5/bin/pip3.7.5
Step 7 Set the Python 3.7.5 environment variables. 1. Run the vi ~/.bashrc command in any directory as the running user to open the .bashrc file and append the following content to the file:

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

# Set the Python 3.7.5 library path. export LD_LIBRARY_PATH=/usr/local/python3.7.5/lib:$LD_LIBRARY_PATH # If multiple Python 3 versions exist in the user environment, specify Python 3.7.5. export PATH=/usr/local/python3.7.5/bin:$PATH
2. Run the :wq! command to save the file and exit. 3. Run the source ~/.bashrc command for the modification to take effect
immediately.
Step 8 After the installation is complete, run the following commands to check the version:
python3.7.5 --version
pip3.7.5 --version
If the following information is displayed, the installation is successful:
Python 3.7.5 pip 19.2.3 from /usr/local/python3.7.5/lib/python3.7/site-packages/pip (python 3.7)
----End
Installing Ansible
Step 1 Log in to the management node as the root user.
Step 2 Run the following command to download the Ansible source code package:
wget --no-check-certificate https://releases.ansible.com/ansible/ ansible-2.9.7.tar.gz
Step 3 Go to the download directory and run the following command to decompress the source code package:
tar -zxvf ansible-2.9.7.tar.gz
Step 4 Go to the decompressed folder and run the following commands to install Ansible:
cd ansible-2.9.7
python3.7 setup.py install --record files.txt
mkdir -p /etc/ansible
cp -rf examples/ansible.cfg examples/hosts /etc/ansible/
ln -sf /usr/local/python3.7.5/bin/ansible* /usr/local/bin/
Step 5 After the installation is complete, run the following commands to check the version:
ansible --version
If the following information is displayed, the installation is successful:
ansible 2.9.7 config file = /etc/ansible/ansible.cfg configured module search path = ['/root/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules'] ansible python module location = /usr/local/python3.7.5/lib/python3.7/site-packages/ansible-2.9.7py3.7.egg/ansible executable location = /usr/local/bin/ansible python version = 3.7.5 (default, Nov 9 2020, 03:44:00) [GCC 7.5.0]
----End

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2.8.2.2 Installing Python and Ansible Offline
Obtaining Software Packages
Prepare the Ansible installation package and dependencies required for the installation, and compress them into a .zip package based on the format described in the following table. The software packages are classified into Ubuntu and CentOS software packages. You need to obtain the software packages based on the actual OS.
NOTICE
Python and Ansible offline installation packages: used to install Python 3.7.5 and Ansible 2.9.7 on the management node. This software is installed only on the management node. Obtain the corresponding software packages based on the actual OS of the management node.
Download the software packages using the methods provided in this document. The software package versions in the table are only examples and may be different from the actual versions, which does not affect the use of the software packages.
Ubuntu 18.04

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-22 Python and Ansible offline installation packages

Package Name

Package Content

How to Obtain

base-pkg-arm64.zip

ansible-2.9.7.tar.gz Python-3.7.5.tgz setuptools-19.6.tar.gz

wget --no-checkcertificate https:// releases.ansible.c om/ansible/ ansible-2.9.7.tar. gz
wget --no-checkcertificate https:// www.python.org /ftp/python/ 3.7.5/ Python-3.7.5.tgz
wget --no-checkcertificate https:// pypi.python.org/ packages/ source/s/ setuptools/ setuptools-19.6.t ar.gz

cffi-1.14.3.tar.gz
pycparser-2.20-py2.py3none-any.whl
cryptography-3.1.1.tar.gz
six-1.15.0-py2.py3-noneany.whl
glob3-0.0.1.tar.gz
Jinja2-2.11.2-py2.py3none-any.whl
MarkupSafe-1.1.1.tar.gz
PyYAML-5.3.1.tar.gz

pip3.7 download cffi==1.14.3 cryptography==3.1. 1 glob3 Jinja2 PyYAML==5.3.1

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Package Name base-pkg-amd64.zip

Package Content

How to Obtain

dos2unix_7.3.4-3_arm64.d eb
haveged_1.9.1-6_arm64.d eb
libffidev_3.2.1-8_arm64.deb
libhavege1_1.9.1-6_arm64 .deb
sshpass_1.06-1_arm64.de b
zlib1gdev_1%3a1.2.11.dfsg-0ub untu2_arm64.deb

apt-get download dos2unix haveged libffi-dev libhavege1 sshpass zlib1g-dev

ansible-2.9.7.tar.gz Python-3.7.5.tgz setuptools-19.6.tar.gz

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

CentOS 7.6

2 Installation and Deployment

Package Content

How to Obtain

cffi-1.14.3-cp37-cp37mmanylinux1_x86_64.whl
pycparser-2.20-py2.py3none-any.whl
cryptography-3.1-cp35abi3manylinux2010_x86_64.w hl
six-1.15.0-py2.py3-noneany.whl
glob3-0.0.1.tar.gz
Jinja2-2.11.2-py2.py3none-any.whl
MarkupSafe-1.1.1-cp37cp37mmanylinux1_x86_64.whl
PyYAML-5.3.1.tar.gz

pip3.7 download cffi==1.14.3 cryptography==3.1. 1 glob3 Jinja2 PyYAML==5.3.1

dos2unix_7.3.4-3_amd64. deb
haveged_1.9.1-6_amd64.d eb
libffidev_3.2.1-8_amd64.deb
libhavege1_1.9.1-6_amd6 4.deb
sshpass_1.06-1_amd64.de b
zlib1gdev_1%3a1.2.11.dfsg-0ub untu2_amd64.deb

apt-get download dos2unix haveged libffi-dev libhavege1 sshpass zlib1g-dev

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-23 Python and Ansible offline installation packages

Package Name

Package Content

How to Obtain

base-pkg-arm64.zip

ansible-2.9.7.tar.gz Python-3.7.5.tgz perl-5.28.0.tar.gz openssl-1.1.1a.tar.gz

wget --no-checkcertificate https:// releases.ansible.c om/ansible/ ansible-2.9.7.tar. gz
wget --no-checkcertificate https:// www.python.org /ftp/python/ 3.7.5/ Python-3.7.5.tgz
wget --no-checkcertificate https:// www.cpan.org/sr c/5.0/ perl-5.28.0.tar.gz
wget --no-checkcertificate https:// www.openssl.org /source/ openssl-1.1.1a.ta r.gz

cffi-1.14.3.tar.gz
pycparser-2.20-py2.py3none-any.whl
cryptography-3.2.1-cp35abi3manylinux2014_aarch64. whl
pip-20.2.4-py2.py3-noneany.whl
six-1.15.0-py2.py3-noneany.whl
Jinja2-2.11.2-py2.py3none-any.whl
MarkupSafe-1.1.1.tar.gz
PyYAML-5.3.1.tar.gz
setuptools-50.3.2-py3none-any.whl

pip3.7 download pip==20.2.4 cffi==1.14.3 cryptography==3.2. 1 Jinja2==2.11.2 PyYAML==5.3.1 setuptools==50.3.2

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Package Content

How to Obtain

zlibdevel-1.2.7-18.el7.aarch64 .rpm
bzip2devel-1.0.6-13.el7.aarch64 .rpm
epelrelease-7-11.noarch.rpm
ncursesdevel-5.9-14.20130511.el 7_4.aarch64.rpm
mpfr-3.1.1-4.el7.aarch64.r pm
libmpc-1.0.1-3.el7.aarch64 .rpm
kernelheaders-4.18.0-193.28.1.el 7.aarch64.rpm
glibc-2.17-317.el7.aarch64 .rpm
glibccommon-2.17-317.el7.aar ch64.rpm
glibcheaders-2.17-317.el7.aarc h64.rpm
glibcdevel-2.17-317.el7.aarch6 4.rpm
cpp-4.8.5-44.el7.aarch64.r pm
libgcc-4.8.5-44.el7.aarch6 4.rpm
libgomp-4.8.5-44.el7.aarc h64.rpm
gcc-4.8.5-44.el7.aarch64.r pm
libstdc+ +-4.8.5-44.el7.aarch64.rp m
libstdc++devel-4.8.5-44.el7.aarch64 .rpm

yum install -downloadonly -downloaddir=Downl oad path gcc-c++ libffi-devel zlibdevel bzip2-devel epel-release nursesdevel unzip sshpass dos2unix haveged

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Package Name base-pkg-amd64.zip

Package Content

How to Obtain

gcc-c+ +-4.8.5-44.el7.aarch64.rp m
libffidevel-3.0.13-19.el7.aarch6 4.rpm
libffi-3.0.13-19.el7.aarch6 4.rpm
unzip-6.0-21.el7.aarch64.r pm
sshpass-1.06-2.el7.aarch6 4.rpm
dos2unix-6.0.3-7.el7.aarch 64.rpm
haveged-1.9.1-1.el7.aarch 64.rpm

ansible-2.9.7.tar.gz Python-3.7.5.tgz perl-5.28.0.tar.gz openssl-1.1.1a.tar.gz

wget --no-checkcertificate https:// releases.ansible.c om/ansible/ ansible-2.9.7.tar. gz
wget --no-checkcertificate https:// www.python.org /ftp/python/ 3.7.5/ Python-3.7.5.tgz
wget --no-checkcertificate https:// www.cpan.org/sr c/5.0/ perl-5.28.0.tar.gz
wget --no-checkcertificate https:// www.openssl.org /source/ openssl-1.1.1a.ta r.gz

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Package Content

How to Obtain

cffi-1.14.3-cp37-cp37mmanylinux1_x86_64.whl
pycparser-2.20-py2.py3none-any.whl
cryptography-3.2.1-cp35abi3manylinux2010_x86_64.w hl
six-1.15.0-py2.py3-noneany.whl
Jinja2-2.11.2-py2.py3none-any.whl
MarkupSafe-1.1.1-cp37cp37mmanylinux1_x86_64.whl
PyYAML-5.3.1.tar.gz
setuptools-50.3.2-py3none-any.whl

pip3.7 download cffi==1.14.3 cryptography==3.2. 1 Jinja2==2.11.2 PyYAML==5.3.1 setuptools==50.3.2

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Package Content

How to Obtain

zlibdevel-1.2.7-18.el7.x86_64. rpm
bzip2devel-1.0.6-13.el7.x86_64. rpm
epelrelease-7-11.noarch.rpm
ncursesdevel-5.9-14.20130511.el 7_4.x86_64.rpm
mpfr-3.1.1-4.el7.x86_64.rp m
libmpc-1.0.1-3.el7.x86_64. rpm
kernelheaders-3.10.0-1127.19.1. el7.x86_64.rpm
glibc-2.17-307.el7.1.x86_6 4.rpm
glibccommon-2.17-307.el7.1.x 86_64.rpm
glibcheaders-2.17-307.el7.1.x8 6_64.rpm
glibcdevel-2.17-307.el7.1.x86_ 64.rpm
cpp-4.8.5-39.el7.x86_64.rp m
libgcc-4.8.5-39.el7.x86_64. rpm
libgomp-4.8.5-39.el7.x86_ 64.rpm
gcc-4.8.5-39.el7.x86_64.rp m
libstdc+ +-4.8.5-39.el7.x86_64.rpm
libstdc++devel-4.8.5-39.el7.x86_64. rpm
gcc-c+ +-4.8.5-39.el7.x86_64.rpm

yum install -downloadonly -downloaddir=Downl oad path gcc-c++ libffi-devel zlibdevel bzip2-devel epel-release nursesdevel unzip sshpass dos2unix haveged

Issue 02 (2021-03-22)

MindX DL User Guide

Package Name

2 Installation and Deployment

Package Content

How to Obtain

libffidevel-3.0.13-19.el7.x86_6 4.rpm
libffi-3.0.13-19.el7.x86_64. rpm
unzip-6.0-21.el7.x86_64.rp m
sshpass-1.06-2.el7.x86_64. rpm
dos2unix-6.0.3-7.el7.x86_ 64.rpm
haveged-1.9.13-1.el7.x86_ 64.rpm

Installing Python and Ansible
Step 1 Log in to the management node as the root user. Step 2 Copy the obtained software packages to any directory on the server and
decompress them. Step 3 Install the Python development environment.

Table 2-24 Python installation commands

Command

Ubuntu

dpkg -i dos2unix*.deb zlib1g-dev*.deb libffidev*.deb
tar -zxvf Python-3.7.5.tgz
cd Python-3.7.5
./configure --prefix=/usr/local/python3.7.5 -enable-shared
make
sudo make install
sudo cp /usr/local/python3.7.5/lib/ libpython3.7m.so.1.0 /usr/lib
sudo ln -s /usr/local/python3.7.5/bin/ python3 /usr/bin/python3.7
sudo ln -s /usr/local/python3.7.5/bin/ pip3 /usr/bin/pip3.7
sudo ln -s /usr/local/python3.7.5/bin/ python3 /usr/bin/python3.7.5
sudo ln -s /usr/local/python3.7.5/bin/ pip3 /usr/bin/pip3.7.5

Issue 02 (2021-03-22)

MindX DL User Guide

OS CentOS

2 Installation and Deployment
Command
yum install *.rpm tar -xzf perl-5.28.0.tar.gz cd perl-5.28.0 ./Configure -des -Dprefix=$HOME/localperl make && make install cd .. tar -zxvf openssl-1.1.1a.tar.gz cd openssl-1.1.1a ./config --prefix=/usr/local/openssl no-zlib make && make install mv /usr/bin/openssl /usr/bin/openssl.bak ln -s /usr/local/openssl/include/openssl /usr/ include/openssl ln -s /usr/local/openssl/lib/libssl.so.1.1 /usr/local/ lib64/libssl.so ln -s /usr/local/openssl/bin/openssl /usr/bin/ openssl echo "/usr/local/openssl/lib" >> /etc/ld.so.conf ldconfig cd .. tar -xzvf Python-3.7.5.tgz cd Python-3.7.5 ./configure --prefix=/usr/local/python3.7.5 -enable-shared --with-openssl=/usr/local/openssl make && make install ln -s /usr/local/python3.7.5/bin/python3 /usr/bin/ python3 ln -s /usr/local/python3.7.5/bin/python3 /usr/bin/ python3.7 ln -s /usr/local/python3.7.5/bin/python3 /usr/bin/ python3.7.5 echo "/usr/local/python3.7.5/lib" > /etc/ ld.so.conf.d/python3.7.conf ldconfig ln -s /usr/local/python3.7.5/bin/pip3.7 /usr/bin/ pip3 ln -s /usr/local/python3.7.5/bin/pip3.7 /usr/bin/ pip3.7 ln -s /usr/local/python3.7.5/bin/pip3.7 /usr/bin/ pip3.7.5

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Step 4 Install Ansible.

Table 2-25 Ansible installation commands

Architecture Command

Ubuntu

ARM x86

pip3.7 install Jinja2-2.11.2* MarkupSafe-1.1.1* PyYAML-5.3.1* pycparser-2.20* cffi-1.14.3* six-1.15.0* cryptography-3.1* tar zxf setuptools-19.6.tar.gz cd setuptools-19.6 python3.7 setup.py install cd .. dpkg -i libhavege1_1.9.1-6*.deb dpkg -i haveged_1.9.1-6*.deb tar -zxvf ansible-2.9.7.tar.gz cd ansible-2.9.7 python3.7 setup.py install --record files.txt mkdir -p /etc/ansible cp -rf examples/ansible.cfg examples/ hosts /etc/ansible/ ln -sf /usr/local/python3.7.5/bin/ ansible* /usr/local/bin/ cd .. dpkg -i sshpass_1.06-1*.deb

Issue 02 (2021-03-22)

MindX DL User Guide

OS CentOS

2 Installation and Deployment

Architecture ARM

Command
rpm -ivh haveged*.rpm tar zxf MarkupSafe-1.1.1.tar.gz cd MarkupSafe-1.1.1 python3.7 setup.py install cd .. pip3.7 install pip-20.2.4* Jinja2-2.11.2* pycparser-2.20* six-1.15.0* setuptools-50.3.2* cryptography-3.2.1* tar zxf cffi-1.14.3.tar.gz cd cffi-1.14.3 python3.7 setup.py install cd .. tar zxf PyYAML-5.3.1.tar.gz cd PyYAML-5.3.1 python3.7 setup.py install cd .. tar zxf ansible-2.9.7.tar.gz cd ansible-2.9.7 python3.7 setup.py install mkdir -p /etc/ansible cp -rf examples/ansible.cfg examples/ hosts /etc/ansible/ ln -sf /usr/local/python3.7.5/bin/ ansible* /usr/local/bin/ cd .. rpm -ivh unzip*.rpm rpm -ivh sshpass-1.06*.rpm rpm -ivh dos2unix-6.0.3*.rpm

Issue 02 (2021-03-22)

MindX DL User Guide
OS

2 Installation and Deployment

Architecture x86

Command
pip3.7 install Jinja2-2.11.2* MarkupSafe-1.1.1* pycparser-2.20* cffi-1.14.3* six-1.15.0* cryptography-3.2.1* setuptools-50.3.2* tar zxf PyYAML-5.3.1.tar.gz cd PyYAML-5.3.1 python3.7 setup.py install cd .. rpm -ivh haveged*.rpm tar -zxvf ansible-2.9.7.tar.gz cd ansible-2.9.7 python3.7 setup.py install mkdir -p /etc/ansible cp -rf examples/ansible.cfg examples/ hosts /etc/ansible/ ln -sf /usr/local/python3.7.5/bin/ ansible* /usr/local/bin/ cd .. rpm -ivh unzip*.rpm rpm -ivh sshpass-1.06*.rpm rpm -ivh dos2unix-6.0.3*.rpm

----End
2.8.3 Configuring Ansible Host Information
This section describes how to configure Ansible host information in the singlenode system and cluster scenarios.

Prerequisites
Python 3.7.5 and Ansible have been installed on the management node. For details, see Checking the Python and Ansible Versions.

Precautions

You are advised to run the chmod 400 /etc/ansible/hosts command to set the permission on the hosts file in the /etc/ansible directory to 400.
You are advised to back up the hosts file that has been used in the /etc/ ansible directory for subsequent log collection or reinstallation. The hosts file contains the IP address of the server and the username and password for logging in to the server. After the backup is complete, delete the hosts file from the server.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Single-Node Scenario
Step 1 Log in to the management node as the root user.
Step 2 Run the following command to edit the hosts file:
vim /etc/ansible/hosts
Modify the following content based on the actual situation. Do not modify the following template structure.
[all:vars] # default shared directory, you can change it as yours nfs_shared_dir=/data/atlas_dls
# NFS service IP nfs_service_ip=nfs-host-ip
# Master IP master_ip=master-host-ip
# dls install package dir dls_root_dir=install_dir
# set proxy proxy=proxy_address
# Command for logging in to the Ascend hub ascendhub_login_command=login_command
# Generally, you do not need to change the value or delete it. ascendhub_prefix="swr.cn-south-1.myhuaweicloud.com/public-ascendhub"
# versions deviceplugin_version="v20.2.0" cadvisor_version="v0.34.0-r40" volcano_version="v1.0.1-r40" hccl_version="v20.2.0"
[nfs_server] single-node-host-name ansible_host=IP ansible_ssh_user="username" ansible_ssh_pass="passwd"
[localnode] single-node-host-name ansible_host=IP ansible_ssh_user="username" ansible_ssh_pass="passwd"
[training_node]
[inference_node]
[A300T_node]
[arm]
[x86]
[workers:children] training_node inference_node A300T_node
Set the following parameters based on the actual situation:
nfs-host-ip: IP address of the NFS server, that is, the IP address of the server. If the NFS is not installed, set nfs-host-ip to an empty string, for example, "".
master-host-ip: IP address of the management node server, that is, the server IP address.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

install_dir: directory to which the basic software package, image package, and yamls folder are uploaded.
proxy_address: proxy address. Set this parameter based on the site requirements. If no proxy is required, set this parameter to an empty string, for example, "".
login_command: login command used to obtain images from the Ascend Hub. This parameter is required only for online installation, for example, "docker login -u xxxxxx@xxxxxx -p xxxxxxxx swr.cnsouth-1.myhuaweicloud.com". For details about how to obtain the login command, see Step 1 to Step 2 in Obtaining MindX DL Images. This parameter can be set to an empty string, for example, "", for offline installation.
single-node-host-name: hostname of a single node. You can run the hostname command to view the hostname.
IP: server IP address. username: username for logging in to the server. passwd: password for logging in to the server.
NOTE
If the server is a training server, copy the host line under [localnode] to [training_node].
If the server is an inference server, copy the host line under the [localnode] label to [inference_node].
If Atlas 300T training card is configured on the server, copy the host line under [localnode] to [A300T_node].
If the server is an ARM server, copy the host line under [localnode] to [arm]. If the server is an x86 server, copy the host line under [localnode] to [x86].
Step 3 Run the following command to edit ansible.cfg:
vim /etc/ansible/ansible.cfg
Uncomment the following content and change the value of deprecation_warnings to False:
log_path = /var/log/ansible.log host_key_checking = False deprecation_warnings = False
----End

Cluster Scenario
Step 1 Log in to the management node as the root user.
Step 2 Run the following command to edit the hosts file:
vim /etc/ansible/hosts
Modify the following content based on the actual situation. Do not modify the following template structure.
[all:vars] # default shared directory, you can change it as yours nfs_shared_dir=/data/atlas_dls

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment
# NFS service IP nfs_service_ip=nfs-host-ip
# Master IP master_ip=master-host-ip
# dls install package dir dls_root_dir=install_dir
# set proxy proxy=proxy_address
# Command for logging in to the Ascend hub ascendhub_login_command=login_command
# Generally, you do not need to change the value or delete it. ascendhub_prefix="swr.cn-south-1.myhuaweicloud.com/public-ascendhub"
# versions deviceplugin_version="v20.2.0" cadvisor_version="v0.34.0-r40" volcano_version="v1.0.1-r40" hccl_version="v20.2.0"
[nfs_server] nfs-host-name ansible_host=nfs-host-ip ansible_ssh_user="username" ansible_ssh_pass="password"
[master] master-host-name ansible_host=master-host-ip ansible_ssh_user="username" ansible_ssh_pass="password"
[training_node] training-node1-host-name ansible_host=training-node1-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" training-node2-host-name ansible_host=training-node2-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" ...
[inference_node] inference-node1-host-name ansible_host=inference-node1-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" inference-node2-host-name ansible_host=inference-node2-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" ...
[A300T_node] A300T-node1-host-name ansible_host=A300T-node1-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" A300T-node2-host-name ansible_host=A300T-node2-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" ...
[arm] arm-node1-host-name ansible_host=inference-node1-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" arm-node2-host-name ansible_host=inference-node2-host-ip ansible_ssh_user="username" ansible_ssh_pass="password"
[x86] x86-node1-host-name ansible_host=inference-node1-host-ip ansible_ssh_user="username" ansible_ssh_pass="password" x86-node2-host-name ansible_host=inference-node2-host-ip ansible_ssh_user="username" ansible_ssh_pass="password"
[workers:children] training_node inference_node A300T_node

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

[cluster:children] master workers
Set the following parameters based on the actual situation:
nfs-host-ip: IP address of the NFS server. If the NFS is not installed, set nfshost-ip to an empty string, for example, "".
master-host-ip: IP address of the management node server. install_dir: directory to which the basic software package, image package,
and yamls folder are uploaded. proxy_address: proxy address. Set this parameter based on the site
requirements. If no proxy is required, set this parameter to an empty string, for example, "". login_command: login command used to obtain images from the Ascend Hub. This parameter is required only for online installation, for example, "docker login -u xxxxxx@xxxxxx -p xxxxxxxx swr.cnsouth-1.myhuaweicloud.com". For details about how to obtain the login command, see Step 1 to Step 2 in Obtaining MindX DL Images. This parameter can be set to an empty string, for example, "", for offline installation. XXX-host-name: hostname of a node. The value must be the same as the hostname of the OS and must be unique. You can run the hostname command on the node to view the hostname. The hostname of the Kubernetes cluster must be unique. XXX-host-ip: IP address of the node. username: username of the corresponding node. passwd: user password of the node.
NOTE
If the server is a training server, add the server node information to [training_node]. If the server is an inference server, add the server node information to
[inference_node]. If Atlas 300T training cards are configured on the server, add the node information to
[A300T_node]. If the server is an ARM compute node, add the server node information to [arm]. If the server is an x86 compute node, add the server node information to [x86].
Step 3 Run the following command to edit ansible.cfg:
vim /etc/ansible/ansible.cfg
Uncomment the following content and change the value of deprecation_warnings to False:
log_path = /var/log/ansible.log host_key_checking = False deprecation_warnings = False
----End

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

2.8.4 Obtaining MindX DL Images

Procedure
Step 1 Log in to Ascend Hub.
You can obtain the operation commands only after the account is activated. If you do not have an account, register one. 1. Register an account.
Register an account as prompted on the Ascend Hub login page. 2. Activate the account.
Log in to Ascend Hub and click Activate Account. Submit the activation application as prompted. The activation takes effect after being approved by the administrator.
Step 2 Obtain and copy the docker login command. 1. Click to open an image. The image page is displayed.

2. Click next to docker login XXX to copy the login command.

NOTICE
The validity period of the docker login command is one day. If the command has expired, obtain the command again.

Step 3 Log in to the server as the root user and run the docker login command obtained in Step 2.
If the following information is displayed, the login is successful. Go to Step 4.
[root@centos39 ~]# docker login -u xxxxxx -p xxxxxxxx swr.cn-south-1.myhuaweicloud.com WARNING! Using --password via the CLI is insecure. Use --password-stdin. WARNING! Your password will be stored unencrypted in /root/.docker/config.json. Configure a credential helper to remove this warning. See https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded [root@centos39 ~]#
If the following information is displayed, the login fails:
[root@centos39 ~]# docker login -u xxxxx -p xxxxxxx swr.cn-south-1.myhuaweicloud.com WARNING! Using --password via the CLI is insecure. Use --password-stdin. Error response from daemon: Get http://swr.cn-south-1.myhuaweicloud.com/v2/: dial tcp: lookup swr.cn-south-1.myhuaweicloud.com on 127.0.0.53:53: server misbehaving
The possible cause is that the proxy is not configured. To configure the proxy, perform the following steps:
a. Run the following command to create proxy configuration file proxy.conf for Docker:
mkdir -p /etc/systemd/system/docker.service.d
vim /etc/systemd/system/docker.service.d/proxy.conf
b. Add the following information to the proxy.conf file, set the proxy address based on the site requirements, save the file, and exit.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

[Service] Environment="HTTP_PROXY=http://xxxx.xxx.xxxx.xxxx" Environment="HTTPS_PROXY=http://xxxx.xxx.xxxx.xxxx"
c. Run the following command to configure insecure-registries for Docker: vim /etc/docker/daemon.json
If the insecure-registries field exists in the file, add the following
content to the field:
swr.cn-south-1.myhuaweicloud.com
Example:
{
"insecure-registries": ["xxxxxxxxxxxxxxxx", "swr.cn-south-1.myhuaweicloud.com"],
}
If the insecure-registries field does not exist in the file, add it to the
file. Example:
{
"exec-opts": ["native.cgroupdriver=systemd"], # Assume that this line is the last line of the original /etc/docker/daemon.json file. After adding the insecure-registries field, you need to add a comma (,) after the square bracket (]) in this line.
"insecure-registries": ["swr.cn-south-1.myhuaweicloud.com"]
}
d. Restart the Docker service.
systemctl daemon-reload; systemctl restart docker;
Step 4 Obtain proper component images.
Table 2-26 lists the component images to be obtained for each server.

Table 2-26 Image list Component Name Ascend Device Plugin Volcano
HCCL-Controller
cAdvisor

Target Server
Compute node with NPUs
Management node where Kubernetes is installed
Management node where Kubernetes is installed
Compute node with NPUs

NOTICE Change the image version in each command with the actual one.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-27 Command

Archi Component tectu re

Command

ARM

Ascend Device docker pull swr.cn-south-1.myhuaweicloud.com/

Plugin

public-ascendhub/ascend-

k8sdeviceplugin_arm64:v20.2.0

Volcano

docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-controllermanager_arm64:v1.0.1-r40
docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-scheduler_arm64:v1.0.1-r40
docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-webhookmanager_arm64:v1.0.1-r40
docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-webhook-managerbase_arm64:v1.0.1-r40

HCCLController

docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/hccl-controller_arm64:v20.2.0

cAdvisor

docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/cadvisor_arm64:v0.34.0-r40

x86 Ascend Device docker pull swr.cn-south-1.myhuaweicloud.com/

Plugin

public-ascendhub/ascend-

k8sdeviceplugin_amd64:v20.2.0

Volcano

docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-controllermanager_amd64:v1.0.1-r40
docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-scheduler_amd64:v1.0.1-r40
docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-webhookmanager_amd64:v1.0.1-r40
docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/vc-webhook-managerbase_amd64:v1.0.1-r40

HCCLController

docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/hccl-controller_amd64:v20.2.0

cAdvisor

docker pull swr.cn-south-1.myhuaweicloud.com/ public-ascendhub/cadvisor_amd64:v0.34.0-r40

Step 5 Rename the image.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment
Run the following command to rename the image obtained in Step 4 and delete the original image: docker tag <Old image name>:<Old image version> <Newimage name>:<New image version> Example: docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vc-controllermanager_arm64:v1.0.1-r40 volcanosh/vc-controller-manager:v1.0.1-r40 For details, see Table 2-28.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Table 2-28 Commands

Arch Command itect ure

ARM

docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vccontroller-manager_arm64:v1.0.1-r40 volcanosh/vc-controllermanager:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcscheduler_arm64:v1.0.1-r40 volcanosh/vc-scheduler:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager_arm64:v1.0.1-r40 volcanosh/vc-webhookmanager:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager-base_arm64:v1.0.1-r40 volcanosh/vc-webhookmanager-base:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ hccl-controller_arm64:v20.2.0 hccl-controller:v20.2.0
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ ascend-k8sdeviceplugin_arm64:v20.2.0 ascendk8sdeviceplugin:v20.2.0
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ cadvisor_arm64:v0.34.0-r40 google/cadvisor:v0.34.0-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vccontroller-manager_arm64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcscheduler_arm64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager_arm64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager-base_arm64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ hccl-controller_arm64:v20.2.0
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ ascend-k8sdeviceplugin_arm64:v20.2.0
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ cadvisor_arm64:v0.34.0-r40

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment
Arch Command itect ure
x86 docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vccontroller-manager_amd64:v1.0.1-r40 volcanosh/vc-controllermanager:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcscheduler_amd64:v1.0.1-r40 volcanosh/vc-scheduler:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager_amd64:v1.0.1-r40 volcanosh/vc-webhookmanager:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager-base_amd64:v1.0.1-r40 volcanosh/vc-webhookmanager-base:v1.0.1-r40
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ hccl-controller_amd64:v20.2.0 hccl-controller:v20.2.0
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ ascend-k8sdeviceplugin_amd64:v20.2.0 ascendk8sdeviceplugin:v20.2.0
docker tag swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ cadvisor_amd64:v0.34.0-r40 google/cadvisor:v0.34.0-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vccontroller-manager_amd64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcscheduler_amd64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager_amd64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/vcwebhook-manager-base_amd64:v1.0.1-r40
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ hccl-controller_amd64:v20.2.0
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ ascend-k8sdeviceplugin_amd64:v20.2.0
docker rmi swr.cn-south-1.myhuaweicloud.com/public-ascendhub/ cadvisor_amd64:v0.34.0-r40

----End
2.8.5 Building MindX DL Images
Precautions
The images built for x86 servers and ARM servers are different. Build the image based on your server CPU architecture.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Environment Dependencies

Table 2-29 Environment dependencies

Software

Version

1.14 or later

Docker Git

For details, see the version mapping of the Kubernetes software.
-

How to Obtain
Official Go website Download the required version from https://golang.org/dl/.
Official Docker website Download the required version from https://docs.docker.com/engine/ install/.
Official Git website Download the required version from https://git-scm.com/downloads.

Uploading Building Files
Step 1 Log in as the root user. Log in to the management node for Volcano and HCCL-Controller. Log in to each compute node for Ascend Device Plugin and cAdvisor.
Step 2 Run the following command to create a directory:
mkdir -p ${GOPATH}/{src/github.com/google,src/k8s.io,src/volcano.sh}
Step 3 Upload the ascend-for-cadvisor folder obtained from https://gitee.com/ascend/ ascend-for-cadvisor to the ${GOPATH}/src/github.com/google/ directory and rename the folder cadvisor.
NOTE
If you do not have the permission, contact Huawei technical support.
Step 4 Upload the ascend-for-volcano folder obtained from https://gitee.com/ascend/ ascend-for-volcano to the ${GOPATH}/src/volcano.sh/ directory and rename the folder volcano.
Step 5 Upload the ascend-device-plugin folder obtained from https://gitee.com/ ascend/ascend-device-plugin to the /home/ directory.
Step 6 Upload the ascend-hccl-controller folder obtained from https://gitee.com/ ascend/ascend-hccl-controller to the /home/ directory.
----End

Building Volcano
Step 1 Log in to the management node as the root user.

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Step 2 Run the following command to modify the environment variable:
export GO111MODULE=""
Step 3 Run the following commands to create the build folder:
cd ${GOPATH}/src/volcano.sh/volcano/
mkdir -p build
Step 4 Run the following commands to create and edit the build.sh file:
cd ${GOPATH}/src/volcano.sh/volcano/build
vim build.sh
Add the following content to the file:
#!/bin/sh cd ${GOPATH}/src/volcano.sh/volcano/ make clean export PATH=$GOPATH/bin:$PATH export GO111MODULE=off export GOMOD="" export GIT_SSL_NO_VERIFY=1 make webhook-manager-base-image make image_bins make images make generate-yaml
REL_VERSION=v1.0.1-r40 REL_OSARCH="amd64" OUT_PATH=_output/DockFile/
machine_arch=`uname -m` if [ $machine_arch = "aarch64" ]; then REL_OSARCH="arm64" fi
mkdir -p $OUT_PATH docker save -o ${OUT_PATH}/vc-webhook-manager-base-${REL_VERSION}-${REL_OSARCH}.tar.gz volcanosh/vc-webhook-manager-base:${REL_VERSION} docker save -o ${OUT_PATH}/vc-webhook-manager-${REL_VERSION}-${REL_OSARCH}.tar.gz volcanosh/vcwebhook-manager:${REL_VERSION} docker save -o ${OUT_PATH}/vc-controller-manager-${REL_VERSION}-${REL_OSARCH}.tar.gz volcanosh/vccontroller-manager:${REL_VERSION} docker save -o ${OUT_PATH}/vc-scheduler-${REL_VERSION}-${REL_OSARCH}.tar.gz volcanosh/vc-scheduler:$ {REL_VERSION}
Step 5 Run the following commands to build the image:
chmod +x build.sh
./build.sh
NOTE
For other information, see the Volcano compilation guide.
Step 6 After the images are built, run the docker images command to check whether the volcanosh/vc-webhook-manager:v1.0.1-r40 volcanosh/vc-webhook-managerbase:v1.0.1-r40, volcanosh/vc-scheduler:v1.0.1-r40, and volcanosh/vccontroller-manager:v1.0.1-r40 images exist.
----End

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Building HCCL-Controller
Step 1 Log in to the management node as the root user. Step 2 Run the following command to go to the source code building directory:
cd /home/ascend-hccl-controller/build Step 3 Run the following commands to build the image:
dos2unix *.sh chmod +x build.sh ./build.sh Step 4 Run the following command to go to the /home/ascend-hccl-controller/output directory to obtain the built binary file and install the YAML file: cd /home/ascend-hccl-controller/output Step 5 After the image is generated, run the docker images command to check whether the hccl-controller:v20.2.0 image exists. ----End

Building Ascend Device Plugin
Step 1 Log in to the training node as the root user. Step 2 Go to the device plugin building directory.
cd /home/ascend-device-plugin/build/ Step 3 Run the following commands to set environment variables:
export GO111MODULE=on export GOPROXY=Proxy address export GONOSUMDB=*
NOTE
Use the actual GOPROXY proxy address. You can run the go mod download command in the ascend-device-plugin directory to check the address.
If no error information is displayed, the proxy is set successfully.
Step 4 Run the following commands to change the file permission and run the .sh files: chmod +x build.sh dos2unix build.sh ./build.sh dockerimages
Step 5 After the image is generated, run the docker images command to check whether the ascend-k8sdeviceplugin:v20.2.0 image exists. ----End

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Building cAdvisor
Step 1 Log in to the training node as the root user. Step 2 Run the following command to modify the environment variable:
export GO111MODULE="" Step 3 Run the following command to generate an executable cAdvisor binary file:
cd $GOPATH/src/github.com/google/cadvisor
Step 4 Run the following command to create a Docker image: chmod +x build/*.sh chmod +x deploy/*.sh ./deploy/build.sh
NOTE
For other information, see the cAdvisor compilation guide.
Step 5 After the image is generated, run the docker images command to check whether the google/cadvisor:v0.34.0-r40 image exists.
----End
2.8.6 Modify the Permission of /etc/passwd
During online and offline installation, a user named hwMindX is automatically created on the management node and NFS node. Run the lsattr command to check the /etc/passwd file and ensure that the file does not contain the -i attribute, that is, the file can be modified. If the file has the -i attribute, run the following command to delete the
attribute: chattr -i /etc/passwd After the installation is complete, run the following command to add the -i attribute: chattr +i /etc/passwd
2.8.7 Installing the NFS

2.8.7.1 Ubuntu

Installing the NFS server
Step 1 Log in to the storage node as an administrator and run the following command to install the NFS server: apt install -y nfs-kernel-server
Step 2 Run the following command to disable the firewall: ufw disable

Issue 02 (2021-03-22)

MindX DL User Guide

2 Installation and Deployment

Step 3 Run the following commands to create a shared directory (for example, /data/ atlas_dls) and change the directory permission:
mkdir -p /data/atlas_dls
chmod 755 /data/atlas_dls/
Step 4 Run the following command to add the following content to the end of the file:
vi /etc/exports
/data/atlas_dls *(rw,sync,no_root_squash)
Step 5 Run the following commands to start rpcbind:
systemctl restart rpcbind.service
systemctl enable rpcbind
Step 6 Run the following command to check whether rpcbind is started:
systemctl status rpcbind
If the following information is displayed, the service is running properly:
root@ubuntu-211:/data/kfa# service rpcbind status rpcbind.service - RPC bind portmap service
Loaded: loaded (/lib/systemd/system/rpcbind.service; enabled; vendor preset: enabled) Active: active (running) since Fri 2021-01-08 16:39:03 CST; 6 days ago
Docs: man:rpcbind(8) Main PID: 2952 (rpcbind)
Tasks: 1 (limit: 29491) CGroup: /system.slice/rpcbind.service
2952 /sbin/rpcbind -f -w

Jan 08 16:39:03 ubuntu-211 systemd[1]: Starting RPC bind portmap service... Jan 08 16:39:03 ubuntu-211 systemd[1]: Started RPC bind portmap service.
Step 7 After rpcbind is started, run the following commands to start the NFS service:
systemctl restart nfs-server.service
systemctl enable nfs-server
Step 8 Run the following command to check whether the NFS service is started:
systemctl status nfs-server.service
If the following information is displayed, the service is running properly:
root@ubuntu-211:/data/kfa# service nfs-kernel-server status nfs-server.service - NFS server and services
Loaded: loaded (/lib/systemd/system/nfs-server.service; enabled; vendor preset: enabled) Active: active (exited) since Fri 2021-01-08 16:39:03 CST; 6 days ago Main PID: 3220 (code=exited, status=0/SUCCESS) Tasks: 0 (limit: 29491) CGroup: /system.slice/nfs-server.service

Jan 08 16:39:03 ubuntu-211 systemd[1]: Starting NFS server and services... Jan 08 16:39:03 ubuntu-211 exportfs[3181]: exportfs: /etc/exports [1]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/atlas_dls". Jan 08 16:39:03 ubuntu-211 exportfs[3181]: Assuming default behaviour ('no_subtree_check'). Jan 08 16:39:03 ubuntu-211 exportfs[3181]: NOTE: this default has changed since nfs-utils version 1.0.x Jan 08 16:39:03 ubuntu-211 systemd[1]: Started NFS server and services.
Step 9 Run the following command to check the mounting permission of the shared directory (for example, /data/atlas_dls):

Issue 02 (2021-03-22)

100

MindX DL User Guide

2 Installation and Deployment

cat /var/lib/nfs/etab
If the following information is displayed, the service is running properly:
root@ubuntu203:~# cat /var/lib/nfs/etab /data/atlas_dls *(rw,sync,wdelay,hide,nocrossmnt,secure,no_root_squash,no_all_squash,no_subtree_check,secure_locks,acl,no _pnfs,anonuid=65534,anongid=65534,sec=sys,rw,secure,no_root_squash,no_all_squash)
----End

Installing the NFS Client
Step 1 Log in to another server as an administrator and run the following command to install the NFS client: apt install -y nfs-common
Step 2 Run the following commands to start rpcbind: systemctl restart rpcbind.service systemctl enable rpcbind
Step 3 After rpcbind is started, run the following commands to start the NFS service: systemctl restart nfs-server.service systemctl enable nfs-server ----End

2.8.7.2 CentOS

Installing the NFS server
Step 1 Log in to the storage node as an administrator and run the following command to install the NFS server: yum install nfs-utils -y
Step 2 Run the following command to disable the firewall: systemctl stop firewalld.service systemctl disable firewalld.service
Step 3 Run the following commands to create a shared directory (for example, /data/ atlas_dls) and change the directory permission: mkdir -p /data/atlas_dls chmod 755 /data/atlas_dls/
Step 4 Run the following command to add the following content to the end of the file: vi /etc/exports
/data/atlas_dls *(rw,sync,no_root_squash)
Step 5 Run the following commands to start rpcbind: systemctl restart rpcbind.service

Issue 02 (2021-03-22)

101

MindX DL User Guide

2 Installation and Deployment

systemctl enable rpcbind
Step 6 Run the following command to check whether rpcbind is started:
systemctl status rpcbind
If the following information is displayed, the service is running properly:
[root@centos39 ~]# systemctl status rpcbind rpcbind.service - RPC bind service
Loaded: loaded (/usr/lib/systemd/system/rpcbind.service; enabled; vendor preset: enabled) Active: active (running) since Fri 2021-01-15 15:54:44 CST; 28s ago Main PID: 63008 (rpcbind) CGroup: /system.slice/rpcbind.service
63008 /sbin/rpcbind -w

Jan 15 15:54:44 centos39 systemd[1]: Starting RPC bind service... Jan 15 15:54:44 centos39 systemd[1]: Started RPC bind service.
Step 7 After rpcbind is started, run the following commands to start the NFS service:
systemctl restart nfs
systemctl enable nfs
Step 8 Run the following command to check whether the NFS service is started:
systemctl status nfs
If the following information is displayed, the service is running properly:
[root@centos39 ~]# systemctl status nfs-server.service nfs-server.service - NFS server and services
Loaded: loaded (/usr/lib/systemd/system/nfs-server.service; enabled; vendor preset: disabled) Drop-In: /run/systemd/generator/nfs-server.service.d
order-with-mounts.conf Active: active (exited) since Fri 2021-01-15 15:56:15 CST; 8s ago Main PID: 67145 (code=exited, status=0/SUCCESS) CGroup: /system.slice/nfs-server.service

Jan 15 15:56:15 centos39 systemd[1]: Starting NFS server and services... Jan 15 15:56:15 centos39 systemd[1]: Started NFS server and services.
Step 9 Run the following command to check the mounting permission of the shared directory (for example, /data/atlas_dls):
cat /var/lib/nfs/etab
If the following information is displayed, the service is running properly:
[root@centos39 ~]# cat /var/lib/nfs/etab /data/atlas_dls *(rw,sync,wdelay,hide,nocrossmnt,secure,no_root_squash,no_all_squash,no_subtree_check,secure_locks,acl,no _pnfs,anonuid=65534,anongid=65534,sec=sys,rw,secure,no_root_squash,no_all_squash)
----End

Installing the NFS Client
Step 1 Log in to another server as an administrator and run the following command to install the NFS client:
yum install nfs-utils -y

Issue 02 (2021-03-22)

102

MindX DL User Guide

2 Installation and Deployment

Step 2 Run the following commands to start rpcbind: systemctl restart rpcbind.service systemctl enable rpcbind
Step 3 After rpcbind is started, run the following commands to start the NFS service: systemctl restart nfs systemctl enable nfs ----End

2.9 User Information

System Users
User

Description

Initial Password

HwHiAiUser hwMindX

Running user of the .run driver package

Custom

Default user for

Randomly

starting a container generated

Password Changing Method
Run the passwd command to change the password.
Run the passwd command to change the password.

Container Users
User
HwHiAiUser hwMindX

Description

Initial Password Changing Passwo Method rd

Running user of

Custom Run the passwd command

the .run driver package

to change the password.

Default user for starting a container

Rando mly generat ed

Run the passwd command to change the password.

Issue 02 (2021-03-22)

103

MindX DL User Guide

3 Usage Guidelines

3.1 Instructions
MindX DL is applicable to certain scenarios. You are advised to use MindX DL in the following scenarios:
A data center performs training and inference. A device contains Huawei NPUs. Deployment is based on containerization technologies. The Kubernetes functions as the basic platform for job scheduling.

3.2 Interconnection Programming Guide
MindX DL is a reference design that uses the deep learning components of Huawei NPUs. It is positioned to enable partners to quickly build a deep learning system. MindX DL is operated by using commands and resource configuration files and does not provide a GUI. You need to convert the resource files required in this section into the required format using Kubernetes Clients (supporting multiple languages) and send the converted files to kube-apiserver for programmatic job scheduling so that the files can be integrated into upper-layer systems.

Go
Demo for starting a training job in Go (For reference only. For details, see https:// github.com/kubernetes-client/go. To simplify the code, error handling is omitted in the example.)
package main
import ( "k8s.io/api/core/v1" "k8s.io/client-go/kubernetes" "k8s.io/client-go/tools/clientcmd" "volcano.sh/volcano/pkg/apis/batch/v1alpha1" vcClientset "volcano.sh/volcano/pkg/client/clientset/versioned" )
func main() { config, _ := clientcmd.BuildConfigFromFlags("", "")

Issue 02 (2021-03-22)

104

MindX DL User Guide

3 Usage Guidelines

Java Python

kubeClient, _ := kubernetes.NewForConfig(config) //Create a Kubernetes native client. vcjobClient, _ := vcClientset.NewForConfig(config) //Create a Volcano client. label := make(map[string]string) label["ring-controller.atlas"] = "ascend-910" cmdata := make(map[string]string) cmdata["hccl.json"] = "{\n \"status\":\"initializing\"\n }\n" cm := &v1.ConfigMap{...} kubeClient.CoreV1().ConfigMaps(v1.NamespaceDefault).Create(cm) //Create a ConfigMap using the Kubernetes source client. vcjob := &v1alpha1.Job{...} vcjobClient.BatchV1alpha1().Jobs(v1.NamespaceDefault).Create(vcjob) //Create a vcjob using the Volcano client. }
Demo for starting a training job in Java (For reference only. For details, see https://github.com/kubernetes-client/java.)
import io.kubernetes.client.openapi.ApiClient; import io.kubernetes.client.openapi.ApiException; import io.kubernetes.client.openapi.Configuration; import io.kubernetes.client.openapi.apis.CoreV1Api; import io.kubernetes.client.openapi.apis.CustomObjectsApi; import io.kubernetes.client.openapi.models.V1ConfigMap; import io.kubernetes.client.util.ClientBuilder; import io.kubernetes.client.util.KubeConfig; import io.kubernetes.client.util.Yaml;
import java.io.File; import java.io.FileReader; import java.io.IOException;
public class CustomObjExample { public static void main(String[] args) throws IOException, ApiException { String kubeConfigPath = "~/.kube/config"; //KubeConfig file path ApiClient client = ClientBuilder.kubeconfig(KubeConfig.loadKubeConfig(new
FileReader(kubeConfigPath))).build(); // ApiClient client = ClientBuilder.cluster().build(); //Used in the K8scluster Configuration.setDefaultApiClient(client); File cmFile = new File("configMap.yaml"); V1ConfigMap cm = (V1ConfigMap) Yaml.load(cmFile); CoreV1Api api = new CoreV1Api(); api.createNamespacedConfigMap("default", cm, null, null, null); File file = new File("vcjob.yaml"); VcJob job = (VcJob) Yaml.load(file); //Convert the YAML file into a user-defined VCJob object. CustomObjectsApi customObjectsApi = new CustomObjectsApi(); //Create a Vcjob object. customObjectsApi.createNamespacedCustomObject("batch.volcano.sh", "v1alpha1", "default", "jobs", job, null, null, null);
} }
Demo for starting a training job in Python (For reference only. For details, see https://github.com/kubernetes-client/python.)
from os import path import yaml from kubernetes import client, config
def main(): config.load_kube_config()
with open(path.join(path.dirname(__file__), "config_map.yaml")) as f: # Load ConfigMaps from YAML. cm = yaml.safe_load(f) k8s_core_v1 = client.CoreV1Api k8s_core_v1.create_namespaced_config_map(body=cm, namespace="default")

Issue 02 (2021-03-22)

105

MindX DL User Guide

3 Usage Guidelines

api = client.CustomObjectsApi() vcjob = {...} api.create_namespaced_custom_object(
group="batch.volcano.sh", version="v1alpha1", namespace="default", plural="jobs", body=vcjob, )
if __name__ == "__main__": main()

#Create a vcjob using a customized API.

3.3 Scheduling Configuration
To support hybrid deployment of NPUs and GPUs, x86 and ARM platforms, and standard cards and modules, you need to configure labels for each worker node so that MindX DL can schedule worker nodes of different forms.
You can configure a label to specify the node where a job is to be run. Label configuration involves Job, volcano-scheduler, and Node. The three labels must be matched (that is, the labels configured for Job can be found in volcanoscheduler and Node). Figure 3-1 shows the relationship between them.

Issue 02 (2021-03-22)

106

MindX DL User Guide

Figure 3-1 Process of customizing a label

3 Usage Guidelines

Jobs are classified into NPU, GPU, and CPU by resource type.
The nodeSelector label of host-arch must be configured for NPU jobs. The default content is huawei-arm or huawei-x86. Modification is not supported.
If no label is configured for GPU and CPU jobs, the jobs are scheduled based on other rules.
If a label is configured for a job, the label must match the label configured by volcano-scheduler. If they do not match, the job is in the Pending state and the reason is provided. If they match, the process goes to the next step.

Issue 02 (2021-03-22)

107

MindX DL User Guide

3 Usage Guidelines

The job label is in the label list of volcano-scheduler. The volcano-scheduler needs to select the node with the same label. If there is no such node, the job is in the Pending state and the reason is provided. If there is a marched node, the scheduling is performed according to other rules.

Customizing a volcano-scheduler Label
In the Volcano deployment file volcano-v*.yaml, set configurations in bold as follows.
... data:
volcano-scheduler.conf: |actions: "enqueue, allocate, backfill" tiers: - plugins: - name: topology910 - plugins: - name: priority - name: gang - name: conformance - plugins: - name: drf - name: predicates - name: proportion - name: nodeorder - name: binpack configurations: - arguments: {"host-arch":"huawei-arm|huawei-x86", "accelerator":"huawei-Ascend910|nvidia-tesla-v100|nvidia-tesla-p40", "accelerator-type":"card|module"
...
NOTE
The configuration mode adopts the map format. Currently, only English input is supported. If a label has multiple values, use vertical bars (|) to separate them.
If the value of ascend device plugin is Ascend910, "host-arch":"huawei-arm|huaweix86" in arguments is the default configuration and cannot be modified. If you need to use other labels, add them.
If host-arch is set to huawei-arm|huawei-x86, it cannot be configured or modified and takes effect only for NPU jobs.

Customizing a Job Label
You can add customized labels to the YAML file of a training job as required. For details about a complete YAML file, see the section "Creating a YAML File." NPU jobs must contain the nodeSelector label of host-arch:huawei-arm or hostarch:huawei-x86. There is no restriction on jobs of other types.
The related configuration of the YAML file is as follows:
... spec:
containers: ... nodeSelector:
accelerator: nvidia-tesla-v100 volumes: ...

Issue 02 (2021-03-22)

108

MindX DL User Guide

3 Usage Guidelines

Customizing a Node Label
The node label must be operated on the management node where Kubernetes is installed.
Creating a Node Label kubectl label nodes {HostName} {label_key}={label_value}
NOTE
Parameter description: {HostName}: indicates the name of the host to be added. label_key and label_value must match the configurations in Job and volcano-
scheduler.
Example: kubectl label nodes ubuntu-11 accelerator=nvidia-tesla-p40 Modifying a Node Label kubectl label nodes {HostName} {label_key}={label_value} --overwrite=true Example: kubectl label nodes ubuntu-11accelerator=vidia-tesla-p40 --overwrite=true Deleting a Node Label kubectl label nodes {HostName} {label_key} Example: kubectl label nodes ubuntu-11accelerator -

3.4 ResNet-50 Model Use Examples

3.4.1 TensorFlow

3.4.1.1 Atlas 800 Training Server

3.4.1.1.1 Preparing the NPU Training Environment
After MindX DL is installed, you can use YAML to deliver a vcjob (short for Volcano job, which is a job resource type customized by Volcano) to check whether the system can run properly.
This section uses the environment described in Table 3-1 as an example.

Table 3-1 Test environment requirements

Resource Item

Name

Ubuntu 18.04

CentOS 7.6

EulerOS 2.8

Version -

Issue 02 (2021-03-22)

109

MindX DL User Guide

Resource Item Training script OS architecture

Name

Version

ModelZoo_Resnet50_HC -

ARM

3 Usage Guidelines

Creating a Training Image
For details, see Creating a Container Image Using a Dockerfile (TensorFlow). You can rename the training image, for example, tf_arm64:b030.

Preparing a Dataset
The imagenet_TF dataset is used only as an example.
Step 1 You need to prepare the dataset by yourself. The imagenet_TF dataset is recommended.
Step 2 Upload the dataset to the storage node as an administrator.
1. Go to the /data/atlas_dls/public directory and upload the imagenet_TF dataset to any directory, for example, /data/atlas_dls/public/dataset/ resnet50/resnet50/imagenet_TF.
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF# pwd /data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF
2. Run the following command to check the dataset size: du -sh
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF# du -sh 144G
Step 3 Run the following command to change the owner of the dataset:
chown -R hwMindX:HwHiAiUser /data/atlas_dls/public
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF# chown -R hwMindX:HwHiAiUser /data/atlas_dls/public root@ubuntu:/data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF#
Step 4 Run the following command to change the dataset permission:
chmod -R 750 /data/atlas_dls/public
Step 5 Run the following command to check the file status:
ll /data/atlas_dls/public/Dataset location
Example:
ll /data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF
root@ubuntu:~# ll /data/atlas_dls/public/dataset/resnet50/resnet50/imagenet_TF total 150649408 drwxr-x--- 2 hwMindX HwHiAiUser 53248 Sep 12 16:00 ./ drwxr-x--- 4 hwMindX HwHiAiUser 4096 Oct 7 16:52 ../ -rwxr-x--- 1 hwMindX HwHiAiUser 139619127 Sep 12 15:58 train-00000-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 141465049 Sep 12 16:00 train-00001-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 138414827 Sep 12 16:00 train-00002-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 135107647 Sep 12 15:58 train-00003-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 139356668 Sep 12 15:58 train-00004-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 140990868 Sep 12 15:58 train-00005-of-01024*

Issue 02 (2021-03-22)

110

MindX DL User Guide

3 Usage Guidelines

-rwxr-x--- 1 hwMindX HwHiAiUser 150652029 Sep 12 15:56 train-00006-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 136866315 Sep 12 16:00 train-00007-of-01024* -rwxr-x--- 1 hwMindX HwHiAiUser 149972019 Sep 12 15:58 train-00008-of-01024* ...
----End
Obtaining and Modifying the Training Script
Step 1 Obtain the training script.
1. Log in to ModelZoo, download the ResNet-50 training code package of the TensorFlow framework, and decompress the package to the local host.
2. Find the following folders in the directory generated after the decompression and save them to the resnet50_train directory:
configs data_loader hyper_param layers losses mains models optimizers trainers utils
3. Download train_start.sh and main.sh from mindxdl-sample (download address) and build the following directory structure on the host by referring to Step 1.2:
/data/atlas_dls/code/ModelZoo_Resnet50_HC/ code resnet50_train configs data_loader hyper_param layers losses mains models optimizers trainers utils config(folder) main.sh train_start.sh
Step 2 Change the script permission and owner.
1. Upload the training script to the /data/atlas_dls/code directory on the storage node and decompress it.
2. Run the following command to assign the execute permission recursively:
chmod -R 770 /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chmod -R 770 /data/atlas_dls/code/ root@ubuntu:/data/atlas_dls/code#
3. Run the following command to change the owner:
chown -R hwMindX:HwHiAiUser /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chown -R hwMindX:HwHiAiUser /data/atlas_dls/code root@ubuntu:/data/atlas_dls/code#
4. Run the following command to view the output result:
ll /data/atlas_dls/code
root@ubuntu-infer:/data/atlas_dls/code# ll /data/atlas_dls/code total 64

Issue 02 (2021-03-22)

111

MindX DL User Guide

3 Usage Guidelines

drwxrwx--- 3 hwMindX HwHiAiUser 4096 Nov 3 15:50 ./ drwxrwx--- 5 hwMindX HwHiAiUser 4096 Nov 2 16:05 ../ drwxrwx--- 3 hwMindX HwHiAiUser 4096 Sep 24 18:55 ModelZoo_Resnet50_HC/
Step 3 Modify the permission on the script output directory.
1. Create the /data/atlas_dls/output/model directory for storing PB models on the storage node and run the following command to assign permissions:
mkdir -p /data/atlas_dls/output/model
chmod -R 770 /data/atlas_dls/output
2. Run the following command to change the owner:
chown -R hwMindX:HwHiAiUser /data/atlas_dls/output
ll /data/atlas_dls/output
root@ubuntu-infer:/data/atlas_dls/output/# ll /data/atlas_dls/output total 12 drwxrwx--- 3 hwMindX HwHiAiUser 4096 Nov 2 16:05 ./ drwxrwx--- 3 hwMindX HwHiAiUser 4096 Nov 2 16:05 ../ drwxrwx--- 2 hwMindX HwHiAiUser 4096 Nov 2 16:05 model/
Step 4 Modify the main.sh file in ModelZoo_Resnet50_HC.
1. Obtain the location of the freeze_graph.py file.
a. Run the following command to access the container where the training image is located:
docker run -ti Image name_System architecture:Image tag /bin/bash
Example:
docker run -ti tf_arm64:b030 /bin/bash
b. Run the following command to obtain the naming.log file:
find /usr/local/ -name "freeze_graph.py"
root@ubuntu-216-210:~# find /usr/local/ -name "freeze_graph.py" /usr/local/python3.7.5/lib/python3.7/site-packages/tensorflow_core/python/tools/freeze_graph.py
c. Run the exit command to exit.
2. Run the following command in the directory of the main.sh file to modify the file:
vim {main.sh filepath}
Example:
vim /data/atlas_dls/code/ModelZoo_Resnet50_HC/main.sh
python3.7 /job/code/ModelZoo_Resnet50_HC/code/resnet50_train/mains/res50.py \ --config_file=res50_256bs_1p \ --max_train_steps=1000 \ --iterations_per_loop=100 \ --debug=True \ # Display precision. --eval=False \ --model_dir=${model_dir} \ | tee -a ${currentDir}/result/${log_id}/train_${device_id}.log 2>&1
... cd ${model_dir} python3.7 /usr/local/lib/python3.7/dist-packages/tensorflow_core/python/tools/freeze_graph.py \
--input_checkpoint=${ckpt_name} \ --output_graph=/job/output/model/resnet50_final.pb \ --output_node_names=fp32_vars/final_dense \ --input_graph=graph.pbtxt ...

Issue 02 (2021-03-22)

112

MindX DL User Guide

3 Usage Guidelines

NOTE
In the example, --config_file indicates the configuration file of the training parameters.
res50_256bs_1p indicates that the configuration file res50_256bs_1p.py is used.
In the example, ${ckpt_name} needs to be replaced with the value of max_train_steps.
If max_train_steps=1000, this parameter is ./model.ckpt-1000.
If max_train_steps=100, this parameter is ./model.ckpt-100.
3. Move the following content:
currentDir=$(cd "$(dirname "$0")"; pwd) cd ${currentDir}
To the position under umask 007. That is:
umask 007 currentDir=$(cd "$(dirname "$0")"; pwd) cd ${currentDir}
4. Change export RANK_TABLE_FILE=/user/serverid/devindex/config/hccl.json to export RANK_TABLE_FILE=/hccl_config/hccl.json.
5. Change DEVICE_INDEX=$((DEVICE_ID + RANK_INDEX * 8)) to DEVICE_INDEX=${RANK_ID}.
6. Modify the following content:
model_dir="/job/output/logs/ckpt${device_id}" if [ "$first_card" = "true" ]; then
model_dir="/job/output/logs/ckpt_first" fi
To:
pod_id=$6 model_dir="/job/output/logs/${pod_id}/ckpt${device_id}" if [ "$first_card" = "true" ]; then
model_dir="/job/output/logs/${pod_id}/ckpt_first" fi
Step 5 Modify the following content in the train_start.sh file in the ModelZoo_Resnet50_HC directory.
1. Add export NEW_RANK_INFO_FILE=/hccl_config/rank_id_info.txt under export RANK_TABLE_FILE=/user/serverid/devindex/config/hccl.json line.
2. Change rm -rf ${currentDir}/config/hccl.json to rm -rf ${currentDir}/ config/* /hccl_config.
3. Add the following information before cp ${RANK_TABLE_FILE} $ {currentDir}/config/hccl.json:
mkdir -p /hccl_config python3.7 ${currentDir}/trans_hccl_json_file.py if [ ! $? -eq 0 ] then
exit 1 fi chown -R HwHiAiUser:HwHiAiUser /hccl_config cp ${NEW_RANK_INFO_FILE} ${currentDir}/config/rank_id_info.txt
4. Replace the following content:
mkdir -p /var/log/npu/slog/slogd /usr/local/Ascend/driver/tools/docker/slogd & /usr/local/Ascend/driver/tools/sklogd & /usr/local/Ascend/driver/tools/log-daemon &
With:

Issue 02 (2021-03-22)

113

MindX DL User Guide

3 Usage Guidelines

# mkdir -p /var/log/npu/slog/slogd # /usr/local/Ascend/driver/tools/docker/slogd & # /usr/local/Ascend/driver/tools/sklogd & # /usr/local/Ascend/driver/tools/log-daemon &
5. Locate the following content:
# Single-node training scenario if [[ "$instance_count" == "1" ]]; then
pod_name=$(get_json_value ${RANK_TABLE_FILE} pod_name) mkdir -p ${currentDir}/result/${train_start_time} chmod 770 -R ${currentDir}/result chgrp HwHiAiUser -R ${currentDir}/result
for (( i=1;i<=$device_count;i++ ));do {
dev_id=$(get_json_value ${RANK_TABLE_FILE} device_id ${i}) device_count=$(get_json_value ${RANK_TABLE_FILE} device_count)
first_card=false if [[ "$i" == "1" ]]; then
first_card=true fi su - HwHiAiUser -c "bash ${currentDir}/main.sh ${dev_id} ${device_count} ${pod_name} $ {train_start_time} ${first_card}" & } done # Distributed training scenario else rank_index=`echo $HOSTNAME | awk -F"-" '{print $NF}'` device_count=8 log_id=${train_start_time}${pod_name} mkdir -p ${currentDir}/result/${log_id} chmod 770 -R ${currentDir}/result chgrp HwHiAiUser -R ${currentDir}/result
for (( i=1;i<=$device_count;i++ ));do {
dev_id=$(get_json_value ${RANK_TABLE_FILE} device_id ${i}) su - HwHiAiUser -c "bash ${currentDir}/main.sh ${dev_id} ${device_count} ${rank_index} $ {log_id}" & } done fi
Replace it with the following content:
device_count=$(( $(cat ${NEW_RANK_INFO_FILE} | grep "single_pod_npu_count" | awk -F ':' '{print $2}') )) rank_size=$(cat ${NEW_RANK_INFO_FILE} | grep "rank_size" | awk -F ':' '{print $2}') # IP address of the pod rank_index=`echo $HOSTNAME | awk -F"-" '{print $NF}'` pod_name="pod_${rank_index}" #Information about all ranks in the current pod pod_rank_info=$(cat ${NEW_RANK_INFO_FILE} | grep "${pod_name}") pod_rank_info=${pod_rank_info#*:}
log_id=${train_start_time}${rank_index}
mkdir -p ${currentDir}/result/${log_id} chmod 770 -R ${currentDir}/result chgrp HwHiAiUser -R ${currentDir}/result
for (( i=0;i<$device_count;i++ ));do {
first_card=false if [[ "$i" == "0" ]]; then
first_card=true fi rank_info=$(echo "${pod_rank_info}" | awk -F ':' '{print $1}') dev_id=$(echo ${rank_info} | awk -F ' ' '{print $1}') rank_id=$(echo ${rank_info} | awk -F ' ' '{print $2}')

Issue 02 (2021-03-22)

114

MindX DL User Guide

3 Usage Guidelines

su - HwHiAiUser -c "bash ${currentDir}/main.sh ${dev_id} ${rank_size} ${rank_id} ${log_id} $ {first_card} ${pod_name}" &
pod_rank_info=${pod_rank_info#*:} } done
Step 6 Add the trans_hccl_json_file.py file to the same directory as the main.sh file and add the following content to the file:
import sys import json

HCCL_JSON_FILE_PATH = "/user/serverid/devindex/config/hccl.json" NEW_HCCL_JSON_FILE_PATH = "/hccl_config/hccl.json" RANK_ID_INFO_FILE_PATH = "/hccl_config/rank_id_info.txt"
def read_old_hccl_json_content(): hccl_json_str = "" try: with open(HCCL_JSON_FILE_PATH, "r") as f: hccl_json_str = f.read() except FileNotFoundError as e: print("File {} not exists !".format(HCCL_JSON_FILE_PATH)) sys.exit(1)
if not hccl_json_str: print("File {} is empty !".format(HCCL_JSON_FILE_PATH)) sys.exit(1)
try: hccl_json = json.loads(hccl_json_str)
except TypeError as e: print("File {} content format is incorrect.".format(HCCL_JSON_FILE_PATH)) sys.exit(1)
return hccl_json

def create_new_hccl_content(): hccl_json = read_old_hccl_json_content() group_list = hccl_json.get("group_list")[0] device_count = group_list.get("device_count") node_count = group_list.get("instance_count") instance_lists = group_list.get("instance_list") status = hccl_json.get("status") single_pod_npu_count = 0 new_hccl_json_dict = {} rank_id_info_list = []
new_hccl_json = { "status": status, "server_list": [], "server_count": node_count, "version": "1.0"
}

for instance_list in instance_lists: pod_id = int(instance_list.get("pod_name")) device_info_list = instance_list.get("devices") server_id = instance_list.get("server_id")
server_info = { "server_id": server_id, "device": []
}
single_pod_npu_count = len(device_info_list) rankid_info_list = ["pod_{}".format(pod_id)]

Issue 02 (2021-03-22)

115

MindX DL User Guide

3 Usage Guidelines

device_info_list = sorted(device_info_list, key=lambda x: int(x.get("device_id"))) index = 0
for device_info in device_info_list: device_id = device_info.get("device_id") device_ip = device_info.get("device_ip")
rank_id = single_pod_npu_count * pod_id + index
new_device_info = { "device_id": device_id, "device_ip": device_ip, "rank_id": str(rank_id)
}
rank_info = device_id + " " + str(rank_id) rankid_info_list.append(rank_info) server_info.get("device").append(new_device_info) index += 1

rankid_info_str = ":".join(rankid_info_list) rank_id_info_list.append(rankid_info_str) new_hccl_json_dict[pod_id] = server_info
for pod_id in range(int(node_count)): server_info = new_hccl_json_dict.get(pod_id) new_hccl_json.get("server_list").append(server_info)
rank_id_info_list.append("rank_size:{}".format(device_count)) rank_id_info_list.append("single_pod_npu_count:{}".format(single_pod_npu_count))
return new_hccl_json, rank_id_info_list

def write_new_hccl_to_file(): new_hccl_json, rank_id_info_list = create_new_hccl_content()
with open(NEW_HCCL_JSON_FILE_PATH, "w") as hccl_f: hccl_f.write(json.dumps(new_hccl_json))
with open(RANK_ID_INFO_FILE_PATH, "w") as node_info_f: for rank_id_info in rank_id_info_list: node_info_f.write(rank_id_info) node_info_f.write("\n")

if __name__ == "__main__": write_new_hccl_to_file()
----End
3.4.1.1.2 Creating a YAML File
This section describes the YAML files in the single-node system and cluster scenarios. You can select proper YAML files based on the actual situation.
The YAML example is used in the NFS scenario. The NFS needs to be installed on the storage node. For details about how to install NFS, see Installing the NFS.
NOTE
If MindX DL is fully installed in online or offline mode, the NFS can be automatically installed.

Issue 02 (2021-03-22)

116

MindX DL User Guide

3 Usage Guidelines

Single-Node Scenario
The following uses a single-server single-device training job as an example. Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file.
vim File name.yaml
The following uses Mindx-dl-test.yaml as an example:
vim Mindx-dl-test.yaml

NOTICE
When using the following code, you need to delete the number signs (#) and comments, and modify the YAML file configurations based on the site requirements, such as used images, code paths, output paths, and output log paths.

apiVersion: v1

kind: ConfigMap

metadata:

name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of

the following job. The prefix rings-config- cannot be modified.

namespace: vcjob

# Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 # The value cannot be modified. Service operations will be performed

based on this label.

data:

hccl.json: |

{

"status":"initializing"

}

---

apiVersion: batch.volcano.sh/v1alpha1 # The value cannot be changed. The volcano API must be used.

kind: Job

# Only the job type is supported at present.

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 # The value must be the same as the label in ConfigMap and cannot

be changed.

spec:

minAvailable: 1

schedulerName: volcano

# Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 1

# For a single-node system, the value is 1 and the number of NPUs in the

requests field is 1.

template:

metadata:

Issue 02 (2021-03-22)

117

MindX DL User Guide

3 Usage Guidelines

labels:

app: tf

ring-controller.atlas: ascend-910 # The value must be the same as the label in ConfigMap and

cannot be changed.

spec:

containers:

- image: tf_arm64:b030

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

env:

- name: RANK_TABLE_FILE

value: "/user/serverid/devindex/config/hccl.json" # Data mounting path in ConfigMap. If you need

to change the value, ensure that it is consistent with the mounting path of ConfigMap.

command:

- "/bin/bash"

- "-c"

# Commands for running the training script. Ensure that the involved commands and paths exist on

Docker.

- "cd /job/code/ModelZoo_Resnet50_HC; bash train_start.sh"

#args: [ "while true; do sleep 30000; done;" ] # Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 8. You

can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

# The value must be consistent with that in requests..

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

mountPath: /job/code/

# Path of the training script in the container.

- name: data

mountPath: /job/data

# Path of the training dataset in the container.

- name: output

mountPath: /job/output

# Training output path in the container.

- name: slog

mountPath: /var/log/npu

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-arm # Configure the label based on the actual job.

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: 127.0.0.1

# IP address of the NFS server. In this example, the shared path is /

data/atlas_dls/.

path: "/data/atlas_dls/code/" # Configure the training script path.

- name: data

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/public/dataset/resnet50" # Configure the path of the training set.

- name: output

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/output/" # Configure the path for saving the configuration model,

which is related to the script.

- name: slog

hostPath:

path: /var/log/npu # Configure the NPU log path and mount it to the local host.

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

Issue 02 (2021-03-22)

118

MindX DL User Guide

3 Usage Guidelines

fieldRef: fieldPath: metadata.name
restartPolicy: OnFailure

Cluster Scenario
The following uses two training nodes running 2 x 8P distributed training jobs as an example. Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file.
vim File name.yaml
The following uses Mindx-dl-test.yaml as an example:
vim Mindx-dl-test.yaml

apiVersion: v1

kind: ConfigMap

metadata:

name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of

the following job. The prefix rings-config- cannot be modified.

namespace: vcjob

# Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 # The value cannot be modified. Service operations will be performed

based on this label.

data:

hccl.json: |

{

"status":"initializing"

}

---

apiVersion: batch.volcano.sh/v1alpha1 # The value cannot be changed. The volcano API must be used.

kind: Job

# Only the job type is supported at present.

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The value must be the same as the label in ConfigMap and cannot be

changed.

spec:

minAvailable: 1

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

Issue 02 (2021-03-22)

119

MindX DL User Guide

3 Usage Guidelines

- name: "default-test"

replicas: 2

# The value of replicas is N in an N-node scenario. The number of NPUs in

the field is 8 in an N-node scenario.

template:

metadata:

labels:

app: tf

ring-controller.atlas: ascend-910 #The value must be the same as the label in ConfigMap and

cannot be changed.

spec:

containers:

- image: tf_arm64:b030

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

env:

- name: RANK_TABLE_FILE

value: "/user/serverid/devindex/config/hccl.json" # Data mounting path in ConfigMap. If you need

to change the value, ensure that it is consistent with the mounting path of ConfigMap.

command:

- "/bin/bash"

- "-c"

#Commands for running the training script. Ensure that the involved commands and paths exist on

Docker.

- "cd /job/code/ModelZoo_Resnet50_HC; bash train_start.sh"

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 8

# Number of required NPUs. The maximum value is 8. You

can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 8

# The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

mountPath: /job/code/

# Path of the training script in the container.

- name: data

mountPath: /job/data

# Path of the training dataset in the container.

- name: output

mountPath: /job/output

# Training output path in the container.

- name: slog

mountPath: /var/log/npu

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-arm # Configure the label based on the actual job.

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: xxx.xxx.xxx.xxx

# IP address of the NFS server.

path: "/data/atlas_dls/code/" # Configure the training script path.

- name: data

nfs:

server: xxx.xxx.xxx.xxx

# IP address of the NFS server.

path: "/data/atlas_dls/public/dataset/resnet50" # Configure the path of the training set.

- name: output

nfs:

server: xxx.xxx.xxx.xxx

# IP address of the NFS server.

path: "/data/atlas_dls/output/" # Configure the path for saving the configuration model,

which is related to the script.

- name: slog

hostPath:

path: /var/log/npu #Configure the NPU log path and mount it to the local host.

- name: localtime

hostPath:

Issue 02 (2021-03-22)

120

MindX DL User Guide

3 Usage Guidelines

path: /etc/localtime # Configure the Docker time. env: - name: mindx-dls-test # The value must be consistent with the value of JobName.
valueFrom: fieldRef: fieldPath: metadata.name
restartPolicy: OnFailure
3.4.1.1.3 Preparing for Running a Training Job

Procedure

Step 1 Run the following command to modify the resources in the YAML file. vim XXX.yaml

NOTE

XXX: YAML name generated in Creating a YAML File.
Example:

Single-server single-device training job

vim Mindx-dl-test.yaml

Modify the items based on the resource requirements. For details about how to modify other items, see Creating a YAML File.

...

- name: "default-test"

replicas: 1

# The value is 1 for a single node.

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 8.You

can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

# The value must be consistent with that in requests.

...

NOTE

For a single-server single-device scenario, the value of huawei.com/Ascend910 is 1.

For a single-server multi-device scenario, the value of huawei.com/Ascend910 is 2, 4, or 8.

Two training nodes running 2 x 8P distributed training jobs

vim Mindx-dl-test.yaml

Modify the items based on the resource requirements. For details about how to modify other items, see Creating a YAML File.

...

- name: "default-test"

replicas: 2

# The value of replicas is N in an N-node scenario. The number of NPUs

in the field is 8 in an N-node scenario.replicas1requests

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 8

# Number of required NPUs. The maximum value is 8.

You can add lines below to configure resources such as memory and CPU.

Issue 02 (2021-03-22)

121

MindX DL User Guide

3 Usage Guidelines

limits:

huawei.com/Ascend910: 8

# The value must be consistent with that in requests.

...

If CPU and memory resources need to be configured, configure them as

follows and set the values based on the site requirements:

...

- name: "default-test"

replicas: 1

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 1

cpu: 100m

# means 100 milliCPU.For example 100m CPU, 100 milliCPU, and 0.1

CPU are all the same

memory: 100Gi

# means 100*230 bytes of memory

limits:

huawei.com/Ascend910: 1

cpu: 100m

memory: 100Gi

...

Step 2 Modify the training script.

1. Go to the /data/atlas_dls/code/ModelZoo_Resnet50_HC/code/ resnet50_train/configs directory and modify the configuration file.

In this example, the configuration file res50_256bs_1p is used. Therefore, modify the res50_256bs_1p.py file as follows (only one epoch is run):

Example of a single-server single-device training job

...

'rank_size': 1,

# total number of npus

'shard': False,

# set to False

...

'mode':'train',

# "train","evaluate","train_and_evaluate"

'epochs_between_evals': 4,

#used if mode is "train_and_evaluate"

'stop_threshold': 80.0,

#used if mode is "train_and_evaluate"

'data_dir':'/opt/npu/resnet_data_new',

'data_url': '/job/data/resnet50/imagenet_TF', # dataset path

'data_type': 'TFRECORD',

'model_name': 'resnet50',

'num_classes': 1001,

'num_epochs': 1,

'height':224,

'width':224,

'dtype': tf.float32,

'data_format': 'channels_last',

'use_nesterov': True,

'eval_interval': 1,

'loss_scale': 1024,

...

#======= logger config =======

'display_every': 1,

'log_name': 'resnet50.log',

'log_dir': '/job/output/logs', # Location of the resnet50.log file. The file content indicates

the training precision.

...

Two training nodes running 2 x 8P distributed training jobs

...

'rank_size': 16,

# total number of npus

'shard': True,

# set to True

...

'mode':'train',

# "train","evaluate","train_and_evaluate"

'epochs_between_evals': 4,

#used if mode is "train_and_evaluate"

'stop_threshold': 80.0,

#used if mode is "train_and_evaluate"

'data_dir':'/opt/npu/resnet_data_new',

Issue 02 (2021-03-22)

122

MindX DL User Guide

3 Usage Guidelines

'data_url': '/job/data/resnet50/imagenet_TF', # dataset path 'data_type': 'TFRECORD', 'model_name': 'resnet50', 'num_classes': 1001, 'num_epochs': 1, 'height':224, 'width':224, 'dtype': tf.float32, 'data_format': 'channels_last', 'use_nesterov': True, 'eval_interval': 1, 'loss_scale': 1024, ... #======= logger config ======= 'display_every': 1, 'log_name': 'resnet50.log', 'log_dir': '/job/output/logs', # Location of the resnet50.log file. The file content indicates the training precision. ...
2. Modify the main.sh file in ModelZoo_Resnet50_HC. --config_file parameter is the res50_256bs_1p.py configuration file modified in the previous step.
python3.7 /job/code/ModelZoo_Resnet50_HC/code/resnet50_train/mains/res50.py \ --config_file=res50_256bs_1p \ --max_train_steps=1000 \ --iterations_per_loop=100 \ --debug=False \ --eval=False \ --model_dir=${model_dir} \ | tee -a ${currentDir}/result/${log_id}/train_${device_id}.log 2>&1
3. Go to the /data/atlas_dls/code/ModelZoo_Resnet50_HC/code/ resnet50_train/mains directory, find resnet50.py, and add sys.path.append("/job/code/ModelZoo_Resnet50_HC/code/ resnet50_train") to the file.
...... print (path_2) path_3 = base_path + "/../../" print (path_3)

sys.path.append("/job/code/ModelZoo_Resnet50_HC/code/resnet50_train") sys.path.append(base_path + "/../models") sys.path.append(base_path + "/../../") sys.path.append(base_path + "/../../models")
from utils import create_session as cs from utils import logger as lg ......
----End
3.4.1.1.4 Delivering a Training Job

Issue 02 (2021-03-22)

123

MindX DL User Guide

3 Usage Guidelines

kubectl apply -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl apply -f Mindx-dl-test.yaml configmap/rings-config-mindx-dls-test created job.batch.volcano.sh/mindx-dls-test created
----End
3.4.1.1.5 Checking the Running Status

Procedure

Step 1 Run the following command to check the pod running status:

kubectl get pod --all-namespaces -o wide

Example of a single-server single-device training job

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Issue 02 (2021-03-22)

124

MindX DL User Guide

3 Usage Guidelines

Two training nodes running 2 x 8P distributed training jobs

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

vcjob

mindx-dls-test-default-test-1

1/1 Running

192.168.243.199 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Step 2 View the NPU allocation of compute nodes.

Run the following command on the management node:

kubectl describe nodes

NOTE
The huawei.com/Ascend910 field of Annotations indicates the available NPU of the compute node.
The huawei.com/Ascend910 field in Allocated resources indicates the number of used NPUs.

Issue 02 (2021-03-22)

125

MindX DL User Guide

3 Usage Guidelines

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

beta.kubernetes.io/arch=arm64

beta.kubernetes.io/os=linux

host-arch=huawei-arm

kubernetes.io/arch=arm64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

Ascend910-0,Ascend910-1,Ascend910-2,Ascend910-4,Ascend910-5,Ascend910-6,Ascend910-7

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 1

Events:

<none>

NOTE

The Annotations field does not contain the Ascend 910-3 AI Processor, and the value of the Allocated resources field huawei.com/Ascend910 is 1, indicating that one processor is used for training.

One of the two training nodes running 2 x 8P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

beta.kubernetes.io/arch=arm64

beta.kubernetes.io/os=linux

host-arch=huawei-arm

kubernetes.io/arch=arm64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

Issue 02 (2021-03-22)

126

MindX DL User Guide

3 Usage Guidelines

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 8

Events:

<none>

NOTE

No NPU is available in the Annotations field, and the value of the huawei.com/ Ascend910 field in Allocated resources is 8, all NPUs are used for distributed training.
Step 3 View the NPU usage of a pod.
In this example, run the kubectl describe pod mindx-dls-test-default-test-0 -n vcjob command to check the running status of the pod.

NOTE

Annotations displays the NPU information.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 15:38:22 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"3","device_ip":"192.168.20.102"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910: Ascend910-3

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

Issue 02 (2021-03-22)

127

MindX DL User Guide

3 Usage Guidelines

volcano.sh/task-spec: default-test Status: Running

Two training nodes running 2 x 8P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 15:38:22 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"0","device_ip":"192.168.20.100"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910:

Ascend910-0,Ascend910-1,Ascend910-2,Ascend910-3,Ascend910-4,Ascend910-5,Ascend910-6,Asce

nd910-7

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

volcano.sh/task-spec: default-test

Status: Running

----End

3.4.1.1.6 Viewing the Running Result
Step 1 Log in to the storage server.
The following uses the local NFS whose hostname is Ubuntu as an example.
Step 2 Run the following command to go to the output directory of the job running YAML file:
The resnet50.log file in the /data/atlas_dls/output/logs/ directory records the training FPS value. In this example, the directory structure of a single-node training job is the same as that of a distributed training job.
root@ubuntu:/home# ll /data/atlas_dls/output/logs/ total 16896 drwxr-x--- 2 HwHiAiUser HwHiAiUser 4096 Oct 7 16:06 ./ drwxr-x--- 4 hwMindX HwHiAiUser 4096 Oct 7 15:26 ../ ... -rwxr-x--- 1 HwHiAiUser HwHiAiUser 682 Oct 7 16:06 resnet50.log*
Step 3 View the information in resnet50.log.
cat /data/atlas_dls/output/logs/resnet50.log
If the FPS value is displayed in the command output, the training is successful.
PY3.7.5 (default, Dec 10 2020, 04:31:28) [GCC 7.5.0]TF1.15.0 Step Epoch Speed Loss FinLoss LR step: 100 epoch: 0.0 FPS: 82.6 loss: 6.902 total_loss: 8.242 lr:0.00002 step: 200 epoch: 0.0 FPS: 1771.5 loss: 6.988 total_loss: 8.328 lr:0.00005 step: 300 epoch: 0.0 FPS: 1771.8 loss: 6.969 total_loss: 8.305 lr:0.00007 step: 400 epoch: 0.0 FPS: 1769.3 loss: 6.988 total_loss: 8.328 lr:0.00010 step: 500 epoch: 0.0 FPS: 691.6 loss: 6.895 total_loss: 8.234 lr:0.00012 step: 600 epoch: 0.0 FPS: 741.0 loss: 6.895 total_loss: 8.234 lr:0.00015 step: 700 epoch: 0.0 FPS: 563.2 loss: 6.922 total_loss: 8.258 lr:0.00017 step: 800 epoch: 0.0 FPS: 659.6 loss: 6.934 total_loss: 8.273 lr:0.00020

Issue 02 (2021-03-22)

128

MindX DL User Guide

3 Usage Guidelines

step: 900 epoch: 0.0 FPS: 851.5 loss: 6.898 total_loss: 8.234 lr:0.00022 step: 1000 epoch: 0.0 FPS: 1524.7 loss: 6.949 total_loss: 8.289 lr:0.00025
Step 4 Go to the directory for storing the PB model and view the generated PB file.
ls -l /data/atlas_dls/output/model
root@ubuntu:/home# ls -l /data/atlas_dls/output/model/ total 99960 -rw-rw---- 1 HwHiAiUser HwHiAiUser 102356214 Mar 3 14:30 resnet50_final.pb
----End
3.4.1.1.7 Deleting a Training Job
Run the following command in the directory where YAML is running to delete a training job:
kubectl delete -f XXX.yaml
Example:
kubectl delete -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl delete -f Mindx-dl-test.yaml configmap "rings-config-mindx-dls-test" deleted job.batch.volcano.sh "mindx-dls-test" deleted

3.4.1.2 Server (with Atlas 300T Training Cards)

3.4.1.2.1 Preparing the NPU Training Environment
After MindX DL is installed, you can use YAML to deliver a vcjob to check whether the system can run properly.
This section uses the environment described in Table 3-2 as an example.

Table 3-2 Test environment requirements

Item

Name

Version

Ubuntu 18.04

Training script

ModelZoo_Resnet50_HC -

OS architecture

x86

NOTE Only the x86 environment of Ubuntu 18.04 is supported at present.

Creating a Training Image
Create a training image. For details, see Creating a Container Image Using a Dockerfile (TensorFlow). You can rename the training image, for example, tf_x86:b030.

Issue 02 (2021-03-22)

129

MindX DL User Guide

3 Usage Guidelines

Obtaining and Modifying the Training Script
Step 1 Obtain the training script. 1. Log in to ModelZoo, download the ResNet-50 training code package of the TensorFlow framework, and decompress the package to the local host.

Issue 02 (2021-03-22)

130

MindX DL User Guide

3 Usage Guidelines

2. Find the following folders in the directory generated after the decompression and save them to the resnet50_train directory:
configs data_loader hyper_param layers losses mains models optimizers trainers utils
3. Download train_start.sh and main.sh from mindxdl-sample (download address) and build the following directory structure on the host by referring to Step 1.2:
/data/atlas_dls/code/ModelZoo_Resnet50_HC/ code resnet50_train configs data_loader hyper_param layers losses mains models optimizers trainers utils config(folder) main.sh train_start.sh
Step 2 Change the script permission and owner.
1. Upload the training script to the /data/atlas_dls/code directory on the storage node and decompress it.
2. Run the following command to assign the execute permission recursively:
chmod -R 770 /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chmod -R 770 /data/atlas_dls/code/ root@ubuntu:/data/atlas_dls/code#
3. Run the following command to change the owner:
chown -R hwMindX:HwHiAiUser /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chown -R hwMindX:HwHiAiUser /data/atlas_dls/code root@ubuntu:/data/atlas_dls/code#
4. Run the following command to view the output result:
ll /data/atlas_dls/code
root@ubuntu-infer:/data/atlas_dls/code# ll /data/atlas_dls/code total 64 drwxrwx--- 3 hwMindX HwHiAiUser 4096 Nov 3 15:50 ./ drwxrwx--- 5 hwMindX HwHiAiUser 4096 Nov 2 16:05 ../ drwxrwx--- 3 hwMindX HwHiAiUser 4096 Sep 24 18:55 ModelZoo_Resnet50_HC/
Step 3 Modify the permission on the script output directory.
1. Create the /data/atlas_dls/output/model directory for storing PB models on the storage node and run the following command to assign permissions:
mkdir -p /data/atlas_dls/output/model
chmod -R 770 /data/atlas_dls/output
2. Run the following command to change the owner:

Issue 02 (2021-03-22)

131

MindX DL User Guide

3 Usage Guidelines

chown -R hwMindX:HwHiAiUser /data/atlas_dls/output
ll /data/atlas_dls/output
root@ubuntu-infer:/data/atlas_dls/output/# ll /data/atlas_dls/output total 12 drwxrwx--- 3 hwMindX HwHiAiUser 4096 Nov 2 16:05 ./ drwxrwx--- 3 hwMindX HwHiAiUser 4096 Nov 2 16:05 ../ drwxrwx--- 2 hwMindX HwHiAiUser 4096 Nov 2 16:05 model/
Step 4 Modify the main.sh file in ModelZoo_Resnet50_HC.
1. Obtain the location of the freeze_graph.py file.
a. Run the following command to access the container where the training image is located:
docker run -ti Image name_System architecture:Image tag /bin/bash
Example:
docker run -ti tf_x86:b030 /bin/bash
b. Run the following command to obtain the naming.log file:
find /usr/local/ -name "freeze_graph.py"
root@ubuntu-216-210:~# find /usr/local/ -name "freeze_graph.py" /usr/local/python3.7.5/lib/python3.7/site-packages/tensorflow_core/python/tools/freeze_graph.py
c. Run the exit command to exit.
2. Run the following command in the directory of the main.sh file to modify the file:
vim {main.sh filepath}
Example:
vim /data/atlas_dls/code/ModelZoo_Resnet50_HC/main.sh
python3.7 /job/code/ModelZoo_Resnet50_HC/code/resnet50_train/mains/res50.py \ --config_file=res50_256bs_1p \ --max_train_steps=1000 \ --iterations_per_loop=100 \ --debug=True \ # Display precision. --eval=False \ --model_dir=${model_dir} \ | tee -a ${currentDir}/result/${log_id}/train_${device_id}.log 2>&1
... cd ${model_dir} python3.7 /usr/local/lib/python3.7/dist-packages/tensorflow_core/python/tools/freeze_graph.py \
--input_checkpoint=${ckpt_name} \ --output_graph=/job/output/model/resnet50_final.pb \ --output_node_names=fp32_vars/final_dense \ --input_graph=graph.pbtxt ...
NOTE
In the example, --config_file indicates the configuration file of the training parameters.
res50_256bs_1p indicates that the configuration file res50_256bs_1p.py is used.
In the example, ${ckpt_name} needs to be replaced with the value of max_train_steps.
If max_train_steps=1000, this parameter is ./model.ckpt-1000.
If max_train_steps=100, this parameter is ./model.ckpt-100.

Issue 02 (2021-03-22)

132

MindX DL User Guide

3 Usage Guidelines

3. Move the following content:
currentDir=$(cd "$(dirname "$0")"; pwd) cd ${currentDir}
To the position under umask 007. That is:
umask 007 currentDir=$(cd "$(dirname "$0")"; pwd) cd ${currentDir}
4. Change export RANK_TABLE_FILE=/user/serverid/devindex/config/hccl.json to export RANK_TABLE_FILE=/hccl_config/hccl.json.
5. Change DEVICE_INDEX=$((DEVICE_ID + RANK_INDEX * 8)) to DEVICE_INDEX=${RANK_ID}.
6. Modify the following content:
model_dir="/job/output/logs/ckpt${device_id}" if [ "$first_card" = "true" ]; then
model_dir="/job/output/logs/ckpt_first" fi
To:
pod_id=$6 model_dir="/job/output/logs/${pod_id}/ckpt${device_id}" if [ "$first_card" = "true" ]; then
model_dir="/job/output/logs/${pod_id}/ckpt_first" fi
Step 5 Modify the following content in the train_start.sh file in the ModelZoo_Resnet50_HC directory.
1. Add export NEW_RANK_INFO_FILE=/hccl_config/rank_id_info.txt under export RANK_TABLE_FILE=/user/serverid/devindex/config/hccl.json line.
2. Change rm -rf ${currentDir}/config/hccl.json to rm -rf ${currentDir}/ config/* /hccl_config.
3. Add the following information before cp ${RANK_TABLE_FILE} $ {currentDir}/config/hccl.json:
mkdir -p /hccl_config python3.7 ${currentDir}/trans_hccl_json_file.py if [ ! $? -eq 0 ] then
exit 1 fi chown -R HwHiAiUser:HwHiAiUser /hccl_config cp ${NEW_RANK_INFO_FILE} ${currentDir}/config/rank_id_info.txt
4. Replace the following content:
mkdir -p /var/log/npu/slog/slogd /usr/local/Ascend/driver/tools/docker/slogd & /usr/local/Ascend/driver/tools/sklogd & /usr/local/Ascend/driver/tools/log-daemon &
With:
# mkdir -p /var/log/npu/slog/slogd # /usr/local/Ascend/driver/tools/docker/slogd & # /usr/local/Ascend/driver/tools/sklogd & # /usr/local/Ascend/driver/tools/log-daemon &
5. Locate the following content:
# Single-node training scenario if [[ "$instance_count" == "1" ]]; then
pod_name=$(get_json_value ${RANK_TABLE_FILE} pod_name) mkdir -p ${currentDir}/result/${train_start_time} chmod 770 -R ${currentDir}/result chgrp HwHiAiUser -R ${currentDir}/result
for (( i=1;i<=$device_count;i++ ));do

Issue 02 (2021-03-22)

133

MindX DL User Guide

3 Usage Guidelines

{ dev_id=$(get_json_value ${RANK_TABLE_FILE} device_id ${i}) device_count=$(get_json_value ${RANK_TABLE_FILE} device_count)
first_card=false if [[ "$i" == "1" ]]; then
first_card=true fi su - HwHiAiUser -c "bash ${currentDir}/main.sh ${dev_id} ${device_count} ${pod_name} $ {train_start_time} ${first_card}" & } done # Distributed training scenario else rank_index=`echo $HOSTNAME | awk -F"-" '{print $NF}'` device_count=8 log_id=${train_start_time}${pod_name} mkdir -p ${currentDir}/result/${log_id} chmod 770 -R ${currentDir}/result chgrp HwHiAiUser -R ${currentDir}/result
for (( i=1;i<=$device_count;i++ ));do {
dev_id=$(get_json_value ${RANK_TABLE_FILE} device_id ${i}) su - HwHiAiUser -c "bash ${currentDir}/main.sh ${dev_id} ${device_count} ${rank_index} $ {log_id}" & } done fi
Replace it with the following content:
device_count=$(( $(cat ${NEW_RANK_INFO_FILE} | grep "single_pod_npu_count" | awk -F ':' '{print $2}') )) rank_size=$(cat ${NEW_RANK_INFO_FILE} | grep "rank_size" | awk -F ':' '{print $2}') # IP address of the pod rank_index=`echo $HOSTNAME | awk -F"-" '{print $NF}'` pod_name="pod_${rank_index}" #Information about all ranks in the current pod pod_rank_info=$(cat ${NEW_RANK_INFO_FILE} | grep "${pod_name}") pod_rank_info=${pod_rank_info#*:}
log_id=${train_start_time}${rank_index}
mkdir -p ${currentDir}/result/${log_id} chmod 770 -R ${currentDir}/result chgrp HwHiAiUser -R ${currentDir}/result
for (( i=0;i<$device_count;i++ ));do {
first_card=false if [[ "$i" == "0" ]]; then
first_card=true fi rank_info=$(echo "${pod_rank_info}" | awk -F ':' '{print $1}') dev_id=$(echo ${rank_info} | awk -F ' ' '{print $1}') rank_id=$(echo ${rank_info} | awk -F ' ' '{print $2}') su - HwHiAiUser -c "bash ${currentDir}/main.sh ${dev_id} ${rank_size} ${rank_id} ${log_id} $ {first_card} ${pod_name}" & pod_rank_info=${pod_rank_info#*:} } done
Step 6 Add the trans_hccl_json_file.py file to the same directory as the main.sh file and add the following content to the file:
import sys import json

HCCL_JSON_FILE_PATH = "/user/serverid/devindex/config/hccl.json"

Issue 02 (2021-03-22)

134

MindX DL User Guide

3 Usage Guidelines
NEW_HCCL_JSON_FILE_PATH = "/hccl_config/hccl.json" RANK_ID_INFO_FILE_PATH = "/hccl_config/rank_id_info.txt"
def read_old_hccl_json_content(): hccl_json_str = "" try: with open(HCCL_JSON_FILE_PATH, "r") as f: hccl_json_str = f.read() except FileNotFoundError as e: print("File {} not exists !".format(HCCL_JSON_FILE_PATH)) sys.exit(1)
if not hccl_json_str: print("File {} is empty !".format(HCCL_JSON_FILE_PATH)) sys.exit(1)
try: hccl_json = json.loads(hccl_json_str)
except TypeError as e: print("File {} content format is incorrect.".format(HCCL_JSON_FILE_PATH)) sys.exit(1)
return hccl_json
def create_new_hccl_content(): hccl_json = read_old_hccl_json_content() group_list = hccl_json.get("group_list")[0] device_count = group_list.get("device_count") node_count = group_list.get("instance_count") instance_lists = group_list.get("instance_list") status = hccl_json.get("status") single_pod_npu_count = 0 new_hccl_json_dict = {} rank_id_info_list = []
new_hccl_json = { "status": status, "server_list": [], "server_count": node_count, "version": "1.0"
}
for instance_list in instance_lists: pod_id = int(instance_list.get("pod_name")) device_info_list = instance_list.get("devices") server_id = instance_list.get("server_id")
server_info = { "server_id": server_id, "device": []
}
single_pod_npu_count = len(device_info_list) rankid_info_list = ["pod_{}".format(pod_id)] device_info_list = sorted(device_info_list, key=lambda x: int(x.get("device_id"))) index = 0
for device_info in device_info_list: device_id = device_info.get("device_id") device_ip = device_info.get("device_ip")
rank_id = single_pod_npu_count * pod_id + index
new_device_info = { "device_id": device_id, "device_ip": device_ip, "rank_id": str(rank_id)

Issue 02 (2021-03-22)

135

MindX DL User Guide

3 Usage Guidelines

}
rank_info = device_id + " " + str(rank_id) rankid_info_list.append(rank_info) server_info.get("device").append(new_device_info) index += 1

if __name__ == "__main__": write_new_hccl_to_file()
----End
3.4.1.2.2 Creating a YAML File
This section describes the YAML files in the single-node system and cluster scenarios. You can select proper YAML files based on the actual situation.
The YAML example is used in the NFS scenario. The NFS needs to be installed on the storage node. For details about how to install NFS, see Installing the NFS.
NOTE
If MindX DL is fully installed in online or offline mode, the NFS can be automatically installed.

Single-Node Scenario
The following uses a single-server single-device training job as an example. Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file.
vim XXX.yaml
The following uses Mindx-dl-test.yaml as an example:
vim Mindx-dl-test.yaml

Issue 02 (2021-03-22)

136

MindX DL User Guide

3 Usage Guidelines

apiVersion: v1

kind: ConfigMap

metadata:

name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of

the following job. The prefix rings-config- cannot be modified.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 # The value cannot be modified. Service operations will be performed

based on this label.

data:

hccl.json: |

{

"status":"initializing"

}

---

apiVersion: batch.volcano.sh/v1alpha1 # The value cannot be changed. The volcano API must be used.

kind: Job

#Only the job type is supported at present.

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The value must be the same as the label in ConfigMap and cannot be

changed.

spec:

minAvailable: 1

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 1

# For a single-node system, the value is 1 and the maximum number of NPUs in

the requests field is 2.

template:

metadata:

labels:

app: tf

ring-controller.atlas: ascend-910 #The value must be the same as the label in ConfigMap and

cannot be changed.

spec:

containers:

- image: tf_x86:b030

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

env:

- name: RANK_TABLE_FILE

value: "/user/serverid/devindex/config/hccl.json" # Data mounting path in ConfigMap. If you need

to change the value, ensure that it is consistent with the mounting path of ConfigMap.

command:

- "/bin/bash"

Issue 02 (2021-03-22)

137

MindX DL User Guide

3 Usage Guidelines

- "-c"

#Commands for running the training script. Ensure that the involved commands and paths exist on

Docker.

- "cd /job/code/ModelZoo_Resnet50_HC; bash train_start.sh"

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 2. You

can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

#The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

mountPath: /job/code/

# Path of the training script in the container.

- name: data

mountPath: /job/data/resnet50/imagenet_TF

# Path of the training dataset in the container.

- name: output

mountPath: /job/output

# Training output path in the container.

- name: slog

mountPath: /var/log/npu

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-x86 # Configure the label based on the actual job.

accelerator-type: card

#servers (with Atlas 300T training cards)

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: 127.0.0.1

#IP address of the NFS server. In this example, the shared path is /data/

atlas_dls/.

path: "/data/atlas_dls/code/" # Configure the training script path.

- name: data

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/public/dataset/resnet50/imagenet_TF" # Configure the path of the

training set.

- name: output

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/output/" # Configure the path for saving the configuration model,

which is related to the script.

- name: slog

hostPath:

path: /var/log/npu #Configure the NPU log path and mount it to the local host.

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

fieldRef:

fieldPath: metadata.name

restartPolicy: OnFailure

Cluster Scenario
The following uses two training nodes running 2 x 2P distributed training jobs as an example. Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file.
vim XXX.yaml

Issue 02 (2021-03-22)

138

MindX DL User Guide

The following uses Mindx-dl-test.yaml as an example: vim Mindx-dl-test.yaml

3 Usage Guidelines

apiVersion: v1

kind: ConfigMap

metadata:

name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of

the following job. The prefix rings-config- cannot be modified.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 # The value cannot be modified. Service operations will be performed

based on this label.

data:

hccl.json: |

{

"status":"initializing"

}

---

apiVersion: batch.volcano.sh/v1alpha1 # The value cannot be changed. The volcano API must be used.

kind: Job

#Only the job type is supported at present.

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The value must be the same as the label in ConfigMap and cannot be

changed.

spec:

minAvailable: 1

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 2

# In distributed mode, the value is greater than 1 and the maximum number of

NPUs in the requests field is 2.

template:

metadata:

labels:

app: tf

ring-controller.atlas: ascend-910 #The value of replicas is N in an N-node scenario. The number of

NPUs in the requests field is 2 in an N-node scenario.

spec:

containers:

- image: tf_x86:b030

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

Issue 02 (2021-03-22)

139

MindX DL User Guide

3 Usage Guidelines

env:

- name: RANK_TABLE_FILE

value: "/user/serverid/devindex/config/hccl.json" # Data mounting path in ConfigMap. If you need

to change the value, ensure that it is consistent with the mounting path of ConfigMap.

command:

- "/bin/bash"

- "-c"

#Commands for running the training script. Ensure that the involved commands and paths exist on

Docker.

- "cd /job/code/ModelZoo_Resnet50_HC; bash train_start.sh"

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 2

# Number of required NPUs. The maximum value is 2. You can

add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 2

# The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

mountPath: /job/code/

# Path of the training script in the container.

- name: data

mountPath: /job/data/resnet50/imagenet_TF

# Path of the training dataset in the container.

- name: output

mountPath: /job/output

# Training output path in the container.

- name: slog

mountPath: /var/log/npu

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-x86 # Configure the label based on the actual job.

accelerator-type: card

#servers (with Atlas 300T training cards)

volumes:

- name: ascend-910-config

configMap:

name: rings-config-mindx-dls-test #Corresponds to the name of ConfigMap in the preceding

information.

- name: code

nfs:

server: xxx.xxx.xxx.xxx

# IP address of the NFS server.

path: "/data/atlas_dls/code/" #Configure the training script path.

- name: data

nfs:

server: xxx.xxx.xxx.xxx

# IP address of the NFS server.

path: "/data/atlas_dls/public/dataset/resnet50/imagenet_TF" # Configure the training set

path.

- name: output

nfs:

server: xxx.xxx.xxx.xxx

# IP address of the NFS server.

path: "/data/atlas_dls/output/" # Configure the path for saving the configuration model,

which is related to the script.

- name: slog

hostPath:

path: /var/log/npu #Configure the NPU log path and mount it to the local host.

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

fieldRef:

fieldPath: metadata.name

restartPolicy: OnFailure

Issue 02 (2021-03-22)

140

MindX DL User Guide

3 Usage Guidelines

3.4.1.2.3 Preparing for Running a Training Job

Procedure

Step 1 Run the following command to modify the resources in the YAML file. vim XXX.yaml

NOTE

XXX: YAML name generated in Creating a YAML File.

Example:

Single-server single-device training job

vim Mindx-dl-test.yaml

Modify the items based on the resource requirements. For details about how to modify other items, see Creating a YAML File.

...

- name: "default-test"

replicas: 1

# The value of replicas is 1 in a single-node scenario and N in an N-node

scenario. The number of NPUs in the requests field is 2 in an N-node scenario.

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 2.

You can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

# The value must be consistent with that in requests.

...

NOTE

For a single-server single-device scenario, the value of huawei.com/Ascend910 is 1.

For a single-server multi-device scenario, the value of huawei.com/Ascend910 is 2.

Two training nodes running 2 x 2P distributed training jobs

vim Mindx-dl-test.yaml

Modify the items based on the resource requirements. For details about how to modify other items, see Creating a YAML File.

...

- name: "default-test"

replicas: 2

# In distributed mode, the value is greater than 1 and the maximum

number of NPUs in the requests field is 2.

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 2

# Number of required NPUs. The maximum value is 2.

You can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 2

# The value must be consistent with that in requests.

...

If CPU and memory resources need to be configured, configure them as follows and set the values based on the site requirements:

Issue 02 (2021-03-22)

141

MindX DL User Guide

3 Usage Guidelines

...

- name: "default-test"

replicas: 1

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 1

cpu: 100m

# means 100 milliCPU.For example 100m CPU, 100 milliCPU, and 0.1

CPU are all the same

memory: 100Gi

# means 100*230 bytes of memory

limits:

huawei.com/Ascend910: 1

cpu: 100m

memory: 100Gi

...

Step 2 Modify the training script.

1. Go to the /data/atlas_dls/code/ModelZoo_Resnet50_HC/code/ resnet50_train/configs directory and modify the processor configuration file.

In this example, the res50_256bs_1p.py file is modified as follows: (Only one epochs is run.)

Example of a single-server single-device training job

...

'rank_size': 1,

# total number of npus

'shard': False,

# set to False

...

'mode':'train',

# "train","evaluate","train_and_evaluate"

'epochs_between_evals': 4,

#used if mode is "train_and_evaluate"

'stop_threshold': 80.0,

#used if mode is "train_and_evaluate"

'data_dir':'/opt/npu/resnet_data_new',

'data_url': '/job/data/resnet50/imagenet_TF', # dataset path

'data_type': 'TFRECORD',

'model_name': 'resnet50',

'num_classes': 1001,

'num_epochs': 1,

'height':224,

'width':224,

'dtype': tf.float32,

'data_format': 'channels_last',

'use_nesterov': True,

'eval_interval': 1,

'loss_scale': 1024,

...

#======= logger config =======

'display_every': 1,

'log_name': 'resnet50.log',

'log_dir': '/job/output/logs', # Location of the resnet50.log file. The file content indicates

the training precision.

...

Two training nodes running 2 x 2P distributed training jobs

...

'rank_size': 4,

# total number of npus

'shard': True,

# set to True

...

'mode':'train',

# "train","evaluate","train_and_evaluate"

'epochs_between_evals': 4,

#used if mode is "train_and_evaluate"

'stop_threshold': 80.0,

#used if mode is "train_and_evaluate"

'data_dir':'/opt/npu/resnet_data_new',

'data_url': '/job/data/resnet50/imagenet_TF', # dataset path

'data_type': 'TFRECORD',

'model_name': 'resnet50',

'num_classes': 1001,

'num_epochs': 1,

'height':224,

Issue 02 (2021-03-22)

142

MindX DL User Guide

3 Usage Guidelines
'width':224, 'dtype': tf.float32, 'data_format': 'channels_last', 'use_nesterov': True, 'eval_interval': 1, 'loss_scale': 1024, ... #======= logger config ======= 'display_every': 1, 'log_name': 'resnet50.log', 'log_dir': '/job/output/logs', # Location of the resnet50.log file. The file content indicates the training precision. ...
2. Modify the main.sh file in ModelZoo_Resnet50_HC. --config_file parameter is the res50_256bs_1p.py configuration file modified in the previous step.
python3.7 /job/code/ModelZoo_Resnet50_HC/code/resnet50_train/mains/res50.py \ --config_file=res50_256bs_1p \ --max_train_steps=1000 \ --iterations_per_loop=100 \ --debug=True \ # Display precision. --eval=False \ --model_dir=${model_dir} \ | tee -a ${currentDir}/result/${log_id}/train_${device_id}.log 2>&1
3. Go to the /data/atlas_dls/code/ModelZoo_Resnet50_HC/code/ resnet50_train/mains directory, find resnet50.py, and add sys.path.append("/job/code/ModelZoo_Resnet50_HC/code/ resnet50_train") to the file.
...... print (path_2) path_3 = base_path + "/../../" print (path_3)

Issue 02 (2021-03-22)

143

MindX DL User Guide
root@ubuntu:/home/test/yaml# kubectl apply -f Mindx-dl-test.yaml configmap/rings-config-mindx-dls-test created job.batch.volcano.sh/mindx-dls-test created
----End
3.4.1.2.5 Checking the Running Status

3 Usage Guidelines

Procedure

Step 1 Run the following command to check the pod running status:

kubectl get pod --all-namespaces -o wide

Example of a single-server single-device training job

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Issue 02 (2021-03-22)

144

MindX DL User Guide

3 Usage Guidelines

Two training nodes running 2 x 2P distributed training jobs

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

vcjob

mindx-dls-test-default-test-1

1/1 Running

192.168.243.199 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Step 2 View the NPU allocation of compute nodes.

Run the following command on the management node:

kubectl describe nodes

NOTE
The huawei.com/Ascend910 field of Annotations indicates the available NPU of the compute node.
The huawei.com/Ascend910 field in Allocated resources indicates the number of used NPUs.

Issue 02 (2021-03-22)

145

MindX DL User Guide

3 Usage Guidelines

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

accelerator-type=card

beta.kubernetes.io/arch=amd64

beta.kubernetes.io/os=linux

host-arch=huawei-x86

kubernetes.io/arch=amd64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910: Ascend910-0

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 1

Events:

<none>

NOTE

The Annotations field does not contain the Ascend 910-1 AI Processor, and the value of the Allocated resources field huawei.com/Ascend910 is 1, indicating that one processor is used for training.

One of the two training nodes running 2 x 2P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

accelerator-type=card

beta.kubernetes.io/arch=amd64

beta.kubernetes.io/os=linux

host-arch=huawei-x86

kubernetes.io/arch=amd64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

Issue 02 (2021-03-22)

146

MindX DL User Guide

3 Usage Guidelines

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 2

Events:

<none>

NOTE

No NPU is available in the Annotations field, and the value of the huawei.com/ Ascend910 field in Allocated resources is 2, all NPUs are used for distributed training.
Step 3 View the NPU usage of a pod.
In this example, run the kubectl describe pod mindx-dls-test-default-test-0 -n vcjob command to check the running status of the pod.

NOTE

Annotations displays the NPU information.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 15:38:22 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"4","device_ip":"192.168.21.102"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910: Ascend910-1

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

Issue 02 (2021-03-22)

147

MindX DL User Guide

3 Usage Guidelines

volcano.sh/job-version: 0 volcano.sh/task-spec: default-test Status: Running

Two training nodes running 2 x 2P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 15:38:22 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"1","device_ip":"192.168.20.102"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910: Ascend910-0,Ascend910-1

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

volcano.sh/task-spec: default-test

Status: Running

----End

3.4.1.2.6 Viewing the Running Result
Step 1 Log in to the storage server.
The following uses the local NFS whose hostname is Ubuntu as an example.
Step 2 Run the following command to go to the output directory of the job running YAML file:
The resnet50.log file in the /data/atlas_dls/output/logs/ directory records the training FPS value. In this example, the directory structure of a single-node training job is the same as that of a distributed training job.
root@ubuntu:/home# ll /data/atlas_dls/output/logs/ total 16896 drwxr-x--- 2 HwHiAiUser HwHiAiUser 4096 Oct 7 16:06 ./ drwxr-x--- 4 hwMindX HwHiAiUser 4096 Oct 7 15:26 ../ ... -rwxr-x--- 1 HwHiAiUser HwHiAiUser 682 Oct 7 16:06 resnet50.log*
Step 3 View the information in resnet50.log.
cat /data/atlas_dls/output/logs/resnet50.log
If the FPS value is displayed in the command output, the training is successful.
PY3.7.5 (default, Dec 10 2020, 04:31:28) [GCC 7.5.0]TF1.15.0 Step Epoch Speed Loss FinLoss LR step: 100 epoch: 0.0 FPS: 82.6 loss: 6.902 total_loss: 8.242 lr:0.00002 step: 200 epoch: 0.0 FPS: 1771.5 loss: 6.988 total_loss: 8.328 lr:0.00005 step: 300 epoch: 0.0 FPS: 1771.8 loss: 6.969 total_loss: 8.305 lr:0.00007 step: 400 epoch: 0.0 FPS: 1769.3 loss: 6.988 total_loss: 8.328 lr:0.00010 step: 500 epoch: 0.0 FPS: 691.6 loss: 6.895 total_loss: 8.234 lr:0.00012 step: 600 epoch: 0.0 FPS: 741.0 loss: 6.895 total_loss: 8.234 lr:0.00015 step: 700 epoch: 0.0 FPS: 563.2 loss: 6.922 total_loss: 8.258 lr:0.00017 step: 800 epoch: 0.0 FPS: 659.6 loss: 6.934 total_loss: 8.273 lr:0.00020 step: 900 epoch: 0.0 FPS: 851.5 loss: 6.898 total_loss: 8.234 lr:0.00022 step: 1000 epoch: 0.0 FPS: 1524.7 loss: 6.949 total_loss: 8.289 lr:0.00025

Issue 02 (2021-03-22)

148

MindX DL User Guide

3 Usage Guidelines

Step 4 Go to the directory for storing the PB model and view the generated PB file.
ls -l /data/atlas_dls/output/model
root@ubuntu:/home# ls -l /data/atlas_dls/output/model/ total 99960 -rw-rw---- 1 HwHiAiUser HwHiAiUser 102356214 Mar 3 14:30 resnet50_final.pb
----End
3.4.1.2.7 Deleting a Training Job
Run the following command in the directory where YAML is running to delete a training job:
kubectl delete -f XXX.yaml
Example:
kubectl delete -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl delete -f Mindx-dl-test.yaml configmap "rings-config-mindx-dls-test" deleted job.batch.volcano.sh "mindx-dls-test" deleted
3.4.2 PyTorch

3.4.2.1 Atlas 800 Training Server

3.4.2.1.1 Preparing the NPU Training Environment
After MindX DL is installed, you can use YAML to deliver a vcjob to check whether the system can run properly.
This section uses the environment described in Table 3-3 as an example.

Table 3-3 Test environment requirements

Resource Item

Name

Ubuntu 18.04

CentOS 7.6

EulerOS 2.8

Training script

Benchmark
NOTE This document uses the ResNet50 model.

OS architecture

ARM x86

Version -
-
-

Issue 02 (2021-03-22)

149

MindX DL User Guide

3 Usage Guidelines

Creating a Training Image
Create a training image. For details, see Creating a Container Image Using a Dockerfile (PyTorch). You can rename the training image, for example, torch:b035.

Preparing a Dataset
The imagenet dataset is used only as an example.
Step 1 You need to prepare the dataset by yourself. The imagenet dataset is recommended.
Step 2 Upload the dataset to the storage node as an administrator. 1. Go to the /data/atlas_dls/public directory and upload the imagenet dataset to any directory, for example, /data/atlas_dls/public/dataset/resnet50/ imagenet.
root@ubuntu:/data/atlas_dls/public/dataset/resnet50imagenet# pwd /data/atlas_dls/public/dataset/resnet50/imagenet
2. Run the following command to check the dataset size: du -sh
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/imagenet# du -sh 146G
Step 3 Run the following command to change the owner of the dataset:
chown -R hwMindX:hwMindX /data/atlas_dls/
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/imagenet# chown -R hwMindX:hwMindX /data/ atlas_dls/
Step 4 Run the following command to change the dataset permission:
chmod -R 750 /data/atlas_dls/
Step 5 Run the following command to check the file status:
ll /data/atlas_dls/public/Dataset location
Example:
ll /data/atlas_dls/public/dataset/resnet50/imagenet
root@ubuntu:~# ll /data/atlas_dls/public/dataset/resnet50/imagenet total 84 drwxr-x--- 4 hwMindX hwMindX 4096 Oct 20 17:29 ./ drwxr-x--- 3 hwMindX hwMindX 4096 Oct 16 11:35 ../ drwxr-x--- 1002 hwMindX hwMindX 36864 Sep 12 16:01 train/ drwxr-x--- 1002 hwMindX hwMindX 36864 Sep 12 16:15 val/
----End
Obtaining and Modifying the Training Script
Step 1 Obtain the training script.
NOTE
Currently, this function is available only to ISV partners. For other users, contact Huawei engineers.

Issue 02 (2021-03-22)

150

MindX DL User Guide

3 Usage Guidelines

Step 2 Change the script permission and owner.
1. Upload the training script to the /data/atlas_dls/code directory on the storage node and decompress it.
2. Run the following command to assign the execute permission recursively: chmod -R 750 /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chmod -R 750 /data/atlas_dls/code/
3. Run the following command to change the owner: chown -R hwMindX:hwMindX /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chown -R hwMindX:hwMindX /data/atlas_dls/code
4. Run the following command to view the output result: ll /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# ll total 12 drwxrwxrwx 3 hwMindX hwMindX 4096 Oct 20 20:01 ./ drwxr-x--- 6 hwMindX hwMindX 4096 Oct 22 17:03 ../ drwxrwx--- 5 hwMindX hwMindX 4096 Oct 20 20:01 benchmark_20200924-benchmark_Alpha/
----End
3.4.2.1.2 Creating a YAML File
The YAML example is used in the NFS scenario. The NFS needs to be installed on the storage node. For details about how to install NFS, see Installing the NFS.
NOTE
If MindX DL is fully installed in online or offline mode, the NFS can be automatically installed.
Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file.
vim XXX.yaml
The following uses Mindx-dl-test.yaml as an example:
vim Mindx-dl-test.yaml

NOTICE Delete # when using the file.

apiVersion: v1 kind: ConfigMap metadata:
name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of the following job. The prefix rings-config- cannot be modified.
namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob namespace cannot be used.)
labels: ring-controller.atlas: ascend-910
data: hccl.json: | { "status":"initializing" } #This line is automatically generated by HCCL-Controller. Keep it unchanged.

Issue 02 (2021-03-22)

151

MindX DL User Guide

3 Usage Guidelines

---

apiVersion: batch.volcano.sh/v1alpha1

kind: Job

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob

# Select a proper namespace based on the site requirements. (The

namespaces of ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add

exists, the vcjob namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The HCCL-Controller distinguishes Ascend 910 and other processors

based on this label.

spec:

minAvailable: 1

#The value of minAvailable is 1 in a single-node scenario and 2 in a

distributed scenario.

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 1

#The value of replicas is 1 in a single-node scenario and N in an N-node scenario.

The number of NPUs in the requests field is 8 in an N-node scenario.

template:

metadata:

labels:

app: tf

ring-controller.atlas: ascend-910

spec:

hostNetwork: true

containers:

- image: torch:b035

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

# ==========Distributed scenario ============

env:

- name: NODE_IP

valueFrom:

fieldRef:

fieldPath: status.hostIP

- name: MY_POD_IP

valueFrom:

fieldRef:

fieldPath: status.podIP

# ==============================================

command:

- "/bin/bash"

- "-c"

- "cd /job/code/train;./benchmark.sh -e Resnet50 -hw 1p -f pytorch" #Command for running

the training script. The command varies according to scenarios, Xp in a single-node scenario and ct in a

distributed scenario. X indicates the number of NPUs. Ensure that the involved commands and paths exist

on Docker.

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 8. You can

add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

# The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

Issue 02 (2021-03-22)

152

MindX DL User Guide

3 Usage Guidelines

mountPath: /job/code/

- name: data

mountPath: /job/data

- name: output

mountPath: /job/output

- name: ascend-driver

mountPath: /usr/local/Ascend/driver

- name: ascend-add-ons

mountPath: /usr/local/Ascend/add-ons

- name: dshm

mountPath: /dev/shm

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-arm # Configure the label based on the actual job.

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: 127.0.0.1

#IP address of the NFS server. In this example, the shared path is /data/

atlas_dls/.

path: "/data/atlas_dls/code/benchmark" #Configure the path of the training script. Modify the

path based on the actual benchmark name.

- name: data

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/public/dataset/resnet50/imagenet" # Configure the path of the training

set.

- name: output

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/output/" # Configure the path for saving the configuration model, which is

related to the script.

- name: ascend-driver

hostPath:

path: /usr/local/Ascend/driver #Configure the NPU driver and mount it to Docker.

- name: ascend-add-ons

hostPath:

path: /usr/local/Ascend/add-ons #Configure the add-ons driver of the NPU and mount it to

Docker.

- name: dshm

emptyDir:

medium: Memory

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

fieldRef:

fieldPath: metadata.name

restartPolicy: OnFailure

3.4.2.1.3 Preparing for Running a Training Job

Single-Node Scenario
Step 1 Run the following command to modify the resources in the YAML file. vim XXX.yaml NOTE
XXX: YAML name generated in Creating a YAML File.
Example:

Issue 02 (2021-03-22)

153

MindX DL User Guide

3 Usage Guidelines

vim Mindx-dl-test.yaml

1. Change the number of NPUs based on resource requirements.

...

resources:

requests:

huawei.com/Ascend910: X

#Number of required NPUs. The maximum value is 8. You

can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: X

#Number of required NPU chips. The maximum value is 8.

...

NOTE

X: indicates the number of NPUs.
For a single-server single-device scenario, the value of X is 1.
For a single-server multi-device scenario, the value of X is 2, 4, or 8.
2. Modify the boot command based on the resource requirements.
... command: - "/bin/bash" - "-c" - "cd /job/code/train;./benchmark.sh -e Resnet50 -hw Xp -f pytorch" #Command for running
the training script. Ensure that the path in the command exist on Docker. #args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable
this line. You can manually run the training script in the container to facilitate debugging. ...
NOTE

X: indicates the number of NPUs. For a single-server single-device scenario, the value of X is 1. For a single-server multi-device scenario, the value of X is 2, 4, or 8.
3. For details about how to modify other items, see Creating a YAML File.
Step 2 Modify the training script.
In the /data/atlas_dls/code directory, go to the YAML file configured for the training job, for example, /data/atlas_dls/code/Benchmark/train/yaml. Modify ResNet50.yaml based on the number of running processors.
NOTE

In the single-node scenario, you need to modify the following parameters: data_url: Set this parameter to the path of the dataset mounted to the container. device_group_1p: Set this parameter to 0 in the single-node scenario. pytorch_config: # The input data dir data_url: /job/data
# The mapping of the number of devices and batch_size(the number of devices : batch_size) is 1p:512, 2p:1024, 4p:2048
# 8p:4096 batch_size: 512
# The number of training epochs. Set epochs 90 when wanting to get ACCURACY. epoches: 90
# Training mode, train_and_eval or eval mode: train_and_eval
# Only when the value of mode is eval, config this parameter.Input the ckpt path from training result. ckpt_path: /home/train/result/pt_resnet50/training_job_20200916042624/7/

Issue 02 (2021-03-22)

154

MindX DL User Guide

3 Usage Guidelines

checkpoint_npu7model_best.pth.tar
# Set this parameter only for docker situation. Docker image name:version number. docker_image: c73:b02
# Learning rate, the value of 1p is 0.2, 2p/4p/8p is 1.6 lr: 0.2
# Set device id when training with one piece of npu device. device_group_1p: 0
# Set device id if the number of devices when training is greater than 1. If the number of devices is 2, the value of device_group_multi
# can be '0, 1' or '2, 3'. If the number of devices is 4, the value of device_group_multi can be '0, 1, 2, 3' or '4, 5, 6, 7'.
# If the number of devices is 8, the value of device_group_multi can be '0, 1, 2, 3, 4, 5, 6, 7' device_group_multi: 0,1,2,3,4,5,6,7
# Set this parameter only for multi-node deployment. Cluster master server ip. addr: 172.16.176.54
# Set this parameter only for multi-node deployment. Node rank for distributed training,default value is 0.
rank: 0
# Set this parameter only for multi-node deployment. Start cluster server with mpirun. Tool mpirun config,server1_ip:the number of
# training shell process,server_ip2:the number of training shell process... # Training shell process default is 1, please do not modify this. mpirun_ip: 172.16.176.152:1,172.16.176.154:1
# Set this parameter only for multi-node deployment. The first device id and the index of the first device in every server in cluster.
# The first device id: the index of the first device id. cluster_device_ip: 192.168.10.101:0 192.168.10.103:0
# Set this parameter only for multi-node deployment. The number of devices training using in every server.
# The default value is 8, device count per server in cluster. cdc: 8
# Set this parameter only for multi-node deployment. The number of servers in cluster. world_size: 2
----End

Distributed Scenario

Step 1 Run the following command to modify the resources in the YAML file. vim XXX.yaml

NOTE

XXX: YAML name generated in Creating a YAML File.
Example:

vim Mindx-dl-test.yaml

1. Change the number of NPUs based on resource requirements.

...

resources:

requests:

# You can add lines below to configure resources such as memory

and CPU.

huawei.com/Ascend910: X

limits:

Issue 02 (2021-03-22)

155

MindX DL User Guide

3 Usage Guidelines

huawei.com/Ascend910: X ...
NOTE
X: number of NPUs. The value is 8.
2. Modify the boot command based on the resource requirements.
... command: - "/bin/bash" - "-c" - "cd /job/code/train;./benchmark.sh -e Resnet50 -hw ct -f pytorch" #Command for running
the training script. Ensure that the path in the command exist on Docker. #args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable
this line. You can manually run the training script in the container to facilitate debugging. ...
3. For details about how to modify other items, see Creating a YAML File.
Step 2 Modify the training script.
1. In the /data/atlas_dls/code directory, go to the YAML file configured for the training job, for example, /data/atlas_dls/code/Benchmark/train/yaml. Modify ResNet50.yaml based on the number of running processors.
NOTE
In the distributed scenario, you need to modify the following parameters:
data_url: Set this parameter to the path of the dataset mounted to the container.
device_group_multi: In the distributed scenario, each server uses eight NPUs. Set this parameter to 0, 1, 2, 3, 4, 5, 6, or 7.
addr: Set this parameter to the IP address of the management node in a distributed cluster.
mpirun_ip: Set this parameter to the IP addresses of the nodes in the distributed cluster. Use commas (,) to separate multiple IP addresses. The format is as follows: Node IP address:1,Node IP address:1.
cluster_device_ip: Set this parameter to device_ip:0 of the first NPU on each node in the distributed cluster. Use commas (,) to separate multiple IP addresses. You can run the hccn_tool -i 0 -ip -g command to query the value of device_ip corresponding to device_id=0 on each node.
cdc: Ensure that this parameter is set to 8.
world_size: Set this parameter to the number of nodes in the distributed cluster. For example, if a 2-node cluster runs 2 x 8P training jobs, set this parameter to 2.
pytorch_config: # Change the value based on the actual location of the dataset. data_url: /job/data
# The mapping of the number of devices and batch_size(the number of devices : batch_size) is 1p: 512,2p:1024,4p:2048
# 8p:4096 batch_size: 512
# The number of training epochs. Set epochs 90 when wanting to get ACCURACY. epoches: 90
# Training mode, train_and_eval or eval mode: train_and_eval
# Only when the value of mode is eval, config this parameter. Input the ckpt path from training result.
ckpt_path: /home/train/result/pt_resnet50/training_job_20200916042624/7/ checkpoint_npu7model_best.pth.tar

Issue 02 (2021-03-22)

156

MindX DL User Guide

3 Usage Guidelines
# Set this parameter only for docker situation. Docker image name:version number. docker_image: c73:b02
# Learning rate, the value of 1p is 0.2, 2p/4p/8p is 1.6 lr: 0.2
# Set device id when training with one piece of npu device. device_group_1p: 0
# Set device id if the number of devices when training is greater than 1. If the number of devices is 2, the value of device_group_multi
# can be '0, 1' or '2, 3'. If the number of devices is 4, the value of device_group_multi can be '0, 1, 2, 3' or '4, 5, 6, 7'.
# If the number of devices is 8, the value of device_group_multi can be '0, 1, 2, 3, 4, 5, 6, 7' device_group_multi: 0,1,2,3,4,5,6,7
# Set this parameter only for multi-node deployment. Cluster master server ip. addr: 172.16.176.54
# Set this parameter only for multi-node deployment. Node rank for distributed training, default value is 0.
rank: 0
# Set this parameter only for multi-node deployment. Start cluster server with mpirun. Tool mpirun config,server1_ip:the number of
# training shell process,server_ip2:the number of training shell process... # Training shell process default is 1, please do not modify this. mpirun_ip: 172.16.176.152:1,172.16.176.154:1
# Set this parameter only for multi-node deployment. The first device id and the index of the first device in every server in cluster.
# The first device id: the index of the first device id. cluster_device_ip: 192.168.10.101:0 192.168.10.103:0
# Set this parameter only for multi-node deployment. The number of devices training using in every server.
# The default value is 8, device count per server in cluster. cdc: 8
# Set this parameter only for multi-node deployment. The number of servers in cluster. world_size: 2
2. Modify the run.sh file.
In the /data/atlas_dls/code directory, go to the directory where the model startup script is stored and modify the run.sh file to comment out the following content:
For example, go to the /data/atlas_dls/code/Benchmark \image_classification\ResNet50\pytorch\scripts directory and comment out the following content:
... rank_size=$1
yamlPath=$2 toolsPath=$3 #if [ -f /.dockerenv ];then # CLUSTER=$4 # MPIRUN_ALL_IP="$5" # export CLUSTER=${CLUSTER} #fi ... # ==========Replace the original code. =============================== if [ x"${CLUSTER}" == x"True" ];then
echo "whether if will run into cluster" ln -snf ${currentDir%train*}/train/result/pt_resnet50/training_job_${currtime}/0/hw_resnet50.log $ {train_job_dir} this_ip=$NODE_IP if [ x"${addr}" == x"${this_ip}" ]; then

Issue 02 (2021-03-22)

157

MindX DL User Guide

3 Usage Guidelines

rm -rf ${currentDir}/config/hccl_bridge_device_file if [ ! -d "${currentDir}/config" ]; then
mkdir ${currentDir}/config fi hccl_bridge_device_path=${currentDir}/config/hccl_bridge_device_file for i in ${cluster_device_ip[@]};do
echo $i >> ${hccl_bridge_device_path} done chmod 755 ${hccl_bridge_device_path} export HCCL_BRIDGE_DEVICE_FILE=${hccl_bridge_device_path} ranks=0 for ip in ${MPIRUN_ALL_IP[@]};do
if [ x"$ip" != x"$this_ip" ];then bak_yaml=$(dirname "${yamlPath}")/ResNet50_$ip.yaml rm -rf ${bak_yaml} cp $yamlPath $bak_yaml ranks=$[ranks+1] sed -i "s/rank.*$/rank\: ${ranks}/g" ${bak_yaml}
fi done fi if [ x"${addr}" != x"${this_ip}" ]; then yamlPath=$(dirname "${yamlPath}")/ResNet50_$this_ip.yaml while [ ! -f ${yamlPath} ];do
echo "Wait for the generation of yaml files of worker nodes." sleep 2 done echo "start run train.sh" echo "look at yamPath ${yamlPath}" bash ${currentDir}/scripts/train.sh 0 $rank_size $yamlPath $currtime ${toolsPath} ${CLUSTER} else echo "start run train.sh" echo "look at yamPath ${yamlPath}" bash ${currentDir}/scripts/train.sh 0 $rank_size $yamlPath $currtime ${toolsPath} ${CLUSTER} fi else # ============================================== ...
----End
3.4.2.1.4 Delivering a Training Job

Procedure
Step 1 Run the following command to create a namespace for the training job:
kubectl create namespace vcjob
Step 2 Run the following command on the management node to deliver training jobs using YAML:
kubectl apply -f XXX.yaml
Example:
kubectl apply -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl apply -f Mindx-dl-test.yaml configmap/rings-config-mindx-dls-test created job.batch.volcano.sh/mindx-dls-test created
----End

Issue 02 (2021-03-22)

158

MindX DL User Guide

3 Usage Guidelines

3.4.2.1.5 Checking the Running Status

Procedure

Step 1 Run the following command to check the pod running status:

kubectl get pod --all-namespaces -o wide

Example of a single-server single-device training job

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Two training nodes running 2 x 8P distributed training jobs

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

Issue 02 (2021-03-22)

159

MindX DL User Guide

3 Usage Guidelines

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

vcjob

mindx-dls-test-default-test-1

1/1 Running

192.168.243.199 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Step 2 (Optional) Run the following commands to check the run logs:

kubectl logs -n [Pod running namespace] [Pod name]

Example:

kubectl logs -n vcjob mindx-dls-test-default-test-0

Step 3 View the NPU allocation of compute nodes.

Run the following command on the management node:

kubectl describe nodes

NOTE

The huawei.com/Ascend910 field of Annotations indicates the available NPU of the compute node.
The huawei.com/Ascend910 field in Allocated resources indicates the number of used NPUs.

Issue 02 (2021-03-22)

160

MindX DL User Guide

3 Usage Guidelines

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

beta.kubernetes.io/arch=arm64

beta.kubernetes.io/os=linux

host-arch=huawei-arm

kubernetes.io/arch=arm64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

Ascend910-0,Ascend910-1,Ascend910-3,Ascend910-4,Ascend910-5,Ascend910-6,Ascend910-7

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 1

Events:

<none>

NOTE

The Annotations field does not contain the Ascend 910-2 AI Processor, and the value of the Allocated resources field huawei.com/Ascend910 is 1, indicating that one processor is used for training.

One of the two training nodes running 2 x 8P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

beta.kubernetes.io/arch=arm64

beta.kubernetes.io/os=linux

host-arch=huawei-arm

kubernetes.io/arch=arm64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

Issue 02 (2021-03-22)

161

MindX DL User Guide

3 Usage Guidelines

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 8

Events:

<none>

NOTE

No NPU is available in the Annotations field, and the value of the huawei.com/ Ascend910 field in Allocated resources is 8, all NPUs are used for distributed training.
Step 4 View the NPU usage of a pod.
In this example, run the kubectl describe pod mindx-dls-test-default-test-0 -n vcjob command to check the running status of the pod.

NOTE

Annotations displays the NPU information.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 17:42:32 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"3","device_ip":"192.168.20.102"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910: Ascend910-2

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

Issue 02 (2021-03-22)

162

MindX DL User Guide

3 Usage Guidelines

volcano.sh/task-spec: default-test Status: Running

Two training nodes running 2 x 8P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 18:12:07 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"0","device_ip":"192.168.20.100"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910:

Ascend910-0,Ascend910-1,Ascend910-2,Ascend910-3,Ascend910-4,Ascend910-5,Ascend910-6,Asce

nd910-7

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

volcano.sh/task-spec: default-test

Status: Running

----End

3.4.2.1.6 Viewing the Running Result
Step 1 Log in to the storage server.
The following uses the local NFS whose hostname is Ubuntu as an example.
Step 2 Run the following command to view the output directory of the job running YAML file:
ll /data/atlas_dls/code/Benchmark/train/result/pt_resnet50
root@ubuntu:/home# ll /data/atlas_dls/code/Benchmark/train/result/pt_resnet50 total 28 drwxr-xr-x 7 root root 4096 Oct 22 17:16 ./ drwxr-xr-x 3 root root 4096 Oct 22 17:10 ../ drwxr-xr-x 4 root root 4096 Oct 22 17:10 training_job_20201022074421/ drwxr-xr-x 6 root root 4096 Oct 22 17:10 training_job_20201022080648/ drwxr-xr-x 6 root root 4096 Oct 22 17:10 training_job_20201022082409/ drwxr-xr-x 6 root root 4096 Oct 22 17:12 training_job_20201022091259/ drwxr-xr-x 6 root root 4096 Oct 22 17:16 training_job_20201022091619/
Step 3 Run the following command to access the corresponding training job:
cd /data/atlas_dls/code/Benchmark/train/result/pt_resnet50
cd training_job_20201022091619/
root@ubuntu:cd /data/atlas_dls/code/Benchmark/train/result/pt_resnet50/training_job_20201022091619# ll total 324 drwxr-xr-x 6 root root 4096 Oct 22 17:16 ./ drwxr-xr-x 7 root root 4096 Oct 22 17:16 ../ drwxr-xr-x 3 root root 4096 Oct 22 17:46 0/ drwxr-xr-x 3 root root 4096 Oct 22 17:17 1/ drwxr-xr-x 3 root root 4096 Oct 22 17:17 2/ drwxr-xr-x 3 root root 4096 Oct 22 17:17 3/ lrwxrwxrwx 1 root root 82 Oct 22 17:16 hw_resnet50.log -> /job/code//train/result/pt_resnet50/ training_job_20201022091619//0/hw_resnet50.log -rw-r--r-- 1 root root 300160 Oct 22 17:46 train_4p.log

Issue 02 (2021-03-22)

163

MindX DL User Guide

3 Usage Guidelines

The train_4p.log file in this directory records the training precision.
root@ubuntu:/data/atlas_dls/public/pytorch/train/result/pt_resnet50/training_job_20201022091619# tail -f train_4p.log [gpu id: 0 ] Test: [2495/2502] Time 0.282 ( 0.553) Loss 7.0266 (7.0780) Acc@1 0.59 ( 0.15) Acc@5 1.37 ( 0.68) [gpu id: 0 ] Test: [2496/2502] Time 0.256 ( 0.552) Loss 7.0124 (7.0780) Acc@1 0.39 ( 0.15) Acc@5 0.98 ( 0.68) [gpu id: 0 ] Test: [2497/2502] Time 0.257 ( 0.552) Loss 7.0578 (7.0779) Acc@1 0.00 ( 0.15) Acc@5 0.39 ( 0.68) [gpu id: 0 ] Test: [2498/2502] Time 0.265 ( 0.552) Loss 7.1090 (7.0780) Acc@1 0.00 ( 0.15) Acc@5 0.98 ( 0.68) [gpu id: 0 ] Test: [2499/2502] Time 0.318 ( 0.552) Loss 7.0254 (7.0779) Acc@1 0.00 ( 0.15) Acc@5 0.20 ( 0.68) [gpu id: 0 ] Test: [2500/2502] Time 0.359 ( 0.552) Loss 7.0409 (7.0779) Acc@1 0.00 ( 0.15) Acc@5 0.78 ( 0.68) [gpu id: 0 ] Test: [2501/2502] Time 0.445 ( 0.552) Loss 7.0593 (7.0779) Acc@1 0.39 ( 0.15) Acc@5 1.37 ( 0.68) [gpu id: 0 ] [AVG-ACC] * Acc@1 0.151 Acc@5 0.683 THPModule_npu_shutdown success. :::ABK 1.0.0 resnet50 train success
----End
3.4.2.1.7 Deleting a Training Job
Run the following command in the directory where YAML is running to delete a training job:
kubectl delete -f XXX.yaml
Example:
kubectl delete -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl delete -f Mindx-dl-test.yaml configmap "rings-config-mindx-dls-test" deleted job.batch.volcano.sh "mindx-dls-test" deleted
3.4.2.2 Server (with Atlas 300T Training Cards)

3.4.2.2.1 Preparing the NPU Training Environment
After MindX DL is installed, you can use YAML to deliver a vcjob to check whether the system can run properly.
This section uses the environment described in Table 3-4 as an example.

Table 3-4 Test environment requirements

Item

Name

Ubuntu 18.04

Training script

Benchmark
NOTE This document uses the ResNet50 model.

OS architecture

x86

Version -
-

Issue 02 (2021-03-22)

164

MindX DL User Guide

3 Usage Guidelines

Creating a Training Image
Create a training image. For details, see Creating a Container Image Using a Dockerfile (PyTorch). You can rename the training image, for example, torch:b035.

Preparing a Dataset
The imagenet dataset is used only as an example.
Step 1 You need to prepare the dataset by yourself. The imagenet dataset is recommended.
Step 2 Upload the dataset to the storage node as an administrator. 1. Go to the /data/atlas_dls/public directory and upload the imagenet dataset to any directory, for example, /data/atlas_dls/public/dataset/resnet50/ imagenet.
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/imagenet# pwd /data/atlas_dls/public/dataset/resnet50/imagenet
2. Run the following command to check the dataset size: du -sh
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/imagenet# du -sh 146G
Step 3 Run the following command to change the owner of the dataset:
chown -R hwMindX:hwMindX /data/atlas_dls/
root@ubuntu:/data/atlas_dls/public/dataset/resnet50/imagenet# chown -R hwMindX:hwMindX /data/ atlas_dls/
Step 4 Run the following command to change the dataset permission:
chmod -R 750 /data/atlas_dls/
Step 5 Run the following command to check the file status:
ll /data/atlas_dls/public/Dataset location
Example:
ll /data/atlas_dls/public/dataset/resnet50/imagenet
root@ubuntu:~# ll /data/atlas_dls/public/dataset/resnet50/imagenet total 84 drwxr-x--- 4 hwMindX hwMindX 4096 Oct 20 17:29 ./ drwxr-x--- 3 hwMindX hwMindX 4096 Oct 16 11:35 ../ drwxr-x--- 1002 hwMindX hwMindX 36864 Sep 12 16:01 train/ drwxr-x--- 1002 hwMindX hwMindX 36864 Sep 12 16:15 val/
----End
Obtaining and Modifying the Training Script
Step 1 Obtain the training script.
NOTE
Currently, this function is available only to ISV partners. For other users, contact Huawei engineers.

Issue 02 (2021-03-22)

165

MindX DL User Guide

3 Usage Guidelines

Step 2 Change the script permission and owner.
1. Upload the training script to the /data/atlas_dls/code directory on the storage node and decompress it.
2. Run the following command to assign the execute permission recursively: chmod -R 750 /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chmod -R 750 /data/atlas_dls/code/
3. Run the following command to change the owner: chown -R hwMindX:hwMindX /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chown -R hwMindX:hwMindX /data/atlas_dls/code
4. Run the following command to view the output result: ll /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# ll total 12 drwxrwxrwx 3 hwMindX hwMindX 4096 Oct 20 20:01 ./ drwxr-x--- 6 hwMindX hwMindX 4096 Oct 22 17:03 ../ drwxrwx--- 5 hwMindX hwMindX 4096 Oct 20 20:01 benchmark_20200924-benchmark_Alpha/
----End
3.4.2.2.2 Creating a YAML File
The YAML example is used in the NFS scenario. The NFS needs to be installed on the storage node. For details about how to install NFS, see Installing the NFS.
NOTE
If MindX DL is fully installed in online or offline mode, the NFS can be automatically installed.
Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file.
vim XXX.yaml
The following uses Mindx-dl-test.yaml as an example:
vim Mindx-dl-test.yaml

NOTICE Delete # when using the file.

Issue 02 (2021-03-22)

166

MindX DL User Guide

3 Usage Guidelines

---

apiVersion: batch.volcano.sh/v1alpha1

kind: Job

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob

# Select a proper namespace based on the site requirements. (The

namespaces of ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add

exists, the vcjob namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The HCCL-Controller distinguishes Ascend 910 and other processors

based on this label.

spec:

minAvailable: 1

#The value of minAvailable is 1 in a single-node scenario and 2 in a

distributed scenario.

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 1

#The value of replicas is 1 in a single-node scenario and 2 in a distributed

scenario, and the maximum number of NPUs in the requests field is 2 in a distributed scenario.

template:

metadata:

labels:

app: tf

ring-controller.atlas: ascend-910

spec:

hostNetwork: true

containers:

- image: torch:b035

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

# ==========Distributed scenario ============

env:

- name: NODE_IP

valueFrom:

fieldRef:

fieldPath: status.hostIP

- name: MY_POD_IP

valueFrom:

fieldRef:

fieldPath: status.podIP

# ==============================================

command:

- "/bin/bash"

- "-c"

- "cd /job/code/train;./benchmark.sh -e Resnet50 -hw 1p -f pytorch" #Command for running

the training script. The command varies according to scenarios, Xp in a single-node scenario and ct in a

distributed scenario. X indicates the number of NPUs. Ensure that the involved commands and paths exist

on Docker.

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 2. You can

add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

# The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

Issue 02 (2021-03-22)

167

MindX DL User Guide

3 Usage Guidelines

mountPath: /job/code/

- name: data

mountPath: /job/data

- name: output

mountPath: /job/output

- name: ascend-driver

mountPath: /usr/local/Ascend/driver

- name: ascend-add-ons

mountPath: /usr/local/Ascend/add-ons

- name: dshm

mountPath: /dev/shm

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-arm # Configure the label based on the actual job.

# ========servers (with Atlas 300T training cards)==========================

accelerator-type: card

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: 127.0.0.1

#IP address of the NFS server. In this example, the shared path is /data/

atlas_dls/.

path: "/data/atlas_dls/code/benchmark" #Configure the path of the training script. Modify the

path based on the actual benchmark name.

- name: data

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/public/dataset/resnet50/imagenet" # Configure the path of the training

set.

- name: output

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/output/" # Configure the path for saving the configuration model, which is

related to the script.

- name: ascend-driver

hostPath:

path: /usr/local/Ascend/driver #Configure the NPU driver and mount it to Docker.

- name: ascend-add-ons

hostPath:

path: /usr/local/Ascend/add-ons #Configure the add-ons driver of the NPU and mount it to

Docker.

- name: dshm

emptyDir:

medium: Memory

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

fieldRef:

fieldPath: metadata.name

restartPolicy: OnFailure

3.4.2.2.3 Preparing for Running a Training Job

Single-Node Scenario
Step 1 Run the following command to modify the resources in the YAML file. vim XXX.yaml NOTE
XXX: YAML name generated in Creating a YAML File.

Issue 02 (2021-03-22)

168

MindX DL User Guide

3 Usage Guidelines

Example:

vim Mindx-dl-test.yaml

1. Change the number of NPUs based on resource requirements.

...

resources:

requests:

#You can also configure resources such as the men and cpu.

huawei.com/Ascend910: X

#Number of NPUs required.

limits:

huawei.com/Ascend910: X

#Number of NPUs required.

...

NOTE

X: indicates the number of NPUs.
For a single-server single-device scenario, the value of X is 1.
For a single-server multi-device scenario, the value of X is 2.
2. Modify the boot command based on the resource requirements.
... command: - "/bin/bash" - "-c" - "cd /job/code/train;./benchmark.sh -e Resnet50 -hw Xp -f pytorch" #Command for running
the training script. Ensure that the path in the command exist on Docker. #args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable
this line. You can manually run the training script in the container to facilitate debugging. ...
NOTE

X: indicates the number of NPUs. For a single-server single-device scenario, the value of X is 1. For a single-server multi-device scenario, the value of X is 2.
3. For details about how to modify other items, see Creating a YAML File.

Step 2 Modify the training script.
In the /data/atlas_dls/code directory, go to the YAML file configured for the training job, for example, /data/atlas_dls/code/Benchmark/train/yaml. Modify ResNet50.yaml based on the NPU count and running parameters.
NOTE

In the single-node scenario, you need to modify the following parameters:
data_url: Set this parameter to the path of the dataset mounted to the container.
device_group_1p: Set this parameter to 0 in the single-server single-device scenario.
device_group_multi: Set this parameter to 0 or 1 in the single-server multi-device scenario.
pytorch_config: # The input data dir data_url: /job/data # The mapping of the number of devices and batch_size(the number of devices : batch_size) is 1p:512,
2p:1024, 4p:2048 # 8p:4096 batch_size: 512
# The number of training epochs. Set epochs 90 when wanting to get ACCURACY. epoches: 90
# Training mode, train_and_eval or eval mode: train_and_eval

Issue 02 (2021-03-22)

169

MindX DL User Guide

3 Usage Guidelines

# Only when the value of mode is eval, config this parameter.Input the ckpt path from training result. ckpt_path: /home/train/result/pt_resnet50/training_job_20200916042624/7/ checkpoint_npu7model_best.pth.tar
# Set this parameter only for docker situation. Docker image name:version number. docker_image: c73:b02
# Learning rate, the value of 1p is 0.2, 2p/4p/8p is 1.6 lr: 0.2
# Set device id when training with one piece of npu device. device_group_1p: 0
# Set device id if the number of devices when training is greater than 1. If the number of devices is 2, the value of device_group_multi
# can be '0, 1' or '2, 3'. If the number of devices is 4, the value of device_group_multi can be '0, 1, 2, 3' or '4, 5, 6, 7'.
# If the number of devices is 8, the value of device_group_multi can be '0, 1, 2, 3, 4, 5, 6, 7' device_group_multi: 0,1 # Set this parameter only for multi-node deployment. Cluster master server ip. addr: 172.16.176.54
# Set this parameter only for multi-node deployment. Node rank for distributed training, default value is 0.
rank: 0
# Set this parameter only for multi-node deployment. Start cluster server with mpirun. Tool mpirun config,server1_ip:the number of
# training shell process, server_ip2:the number of training shell process... # Training shell process default is 1, please do not modify this. mpirun_ip: 172.16.176.152:1,172.16.176.154:1
# Set this parameter only for multi-node deployment. The first device id and the index of the first device in every server in cluster.
# The first device id: the index of the first device id. cluster_device_ip: 192.168.10.101:0 192.168.10.103:0
# Set this parameter only for multi-node deployment. The number of devices training using in every server.
# The default value is 8, device count per server in cluster. cdc: 2
# Set this parameter only for multi-node deployment. The number of servers in cluster. world_size: 2
----End

Distributed Scenario

Step 1 Run the following command to modify the YAML file based on the resource requirements.
vim XXX.yaml

NOTE

XXX: YAML name generated in Creating a YAML File.

Example:

vim Mindx-dl-test.yaml

1. Change the number of NPUs based on resource requirements.

...

resources:

requests:

#You can also configure resources such as the men and cpu.

Issue 02 (2021-03-22)

170

MindX DL User Guide

3 Usage Guidelines

huawei.com/Ascend910: X limits:
huawei.com/Ascend910: X ...
NOTE
X: number of NPUs. The value is 1 or 2.
2. Modify the boot command based on the resource requirements.
... command: - "/bin/bash" - "-c" - "cd /job/code/train;./benchmark.sh -e Resnet50 -hw ct -f pytorch" #Command for running
the training script. Ensure that the path in the command exist on Docker. #args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable
this line. You can manually run the training script in the container to facilitate debugging. ...
3. For details about how to modify other items, see Creating a YAML File.
Step 2 Modify the training script.
1. In the /data/atlas_dls/code directory, go to the YAML file configured for the training job, for example, /data/atlas_dls/code/Benchmark/train/yaml. Modify ResNet50.yaml based on the number of running processors.
NOTE
In the distributed scenario, you need to modify the following parameters:
data_url: Set this parameter to the path of the dataset mounted to the container.
device_group_1p: Set this parameter to 0 in the distributed single-device scenario.
device_group_multi: In the distributed multi-device scenario, each server uses two NPUs. Set this parameter to 0 or 1.
addr: Set this parameter to the IP address of the management node in a distributed cluster.
mpirun_ip: Set this parameter to the IP addresses of the nodes in the distributed cluster. Use commas (,) to separate multiple IP addresses. The format is as follows: Node IP address:1,Node IP address:1.
cluster_device_ip: Set this parameter to device_ip:0 of the first NPU on each node in the distributed cluster. Use commas (,) to separate multiple IP addresses. You can run the hccn_tool -i 0 -ip -g command to query the value of device_ip corresponding to device_id=0 on each node.
cdc: Ensure that this parameter is set to 2.
world_size: Set this parameter to the number of nodes in the distributed cluster. For example, if a 2-node cluster runs 2 x 2P training jobs, set this parameter to 2.
pytorch_config: # Change the value based on the actual location of the dataset. data_url: /job/data
# The mapping of the number of devices and batch_size(the number of devices : batch_size) is 1p: 512, 2p:1024, 4p:2048
# 8p:4096 batch_size: 512
# The number of training epochs. Set epochs 90 when wanting to get ACCURACY. epoches: 90
# Training mode, train_and_eval or eval mode: train_and_eval
# Only when the value of mode is eval, config this parameter. Input the ckpt path from training result.

Issue 02 (2021-03-22)

171

MindX DL User Guide

3 Usage Guidelines
ckpt_path: /home/train/result/pt_resnet50/training_job_20200916042624/7/ checkpoint_npu7model_best.pth.tar
# Set this parameter only for docker situation. Docker image name:version number. docker_image: c73:b02
# Learning rate, the value of 1p is 0.2, 2p/4p/8p is 1.6 lr: 0.2
# Set device id when training with one piece of npu device. device_group_1p: 0
# Set device id if the number of devices when training is greater than 1. If the number of devices is 2, the value of device_group_multi
# can be '0, 1' or '2, 3'.If the number of devices is 4, the value of device_group_multi can be '0, 1, 2, 3' or '4, 5, 6, 7'.
# If the number of devices is 8, the value of device_group_multi can be '0, 1, 2, 3, 4, 5, 6, 7' # For the distributed training scenario on servers (with Atlas 300T training cards), if there is only one card, device_group_multi: 0; If there are two cards, device_group_multi: 0,1 device_group_multi: 0,1
# Set this parameter only for multi-node deployment. Cluster master server ip. Run the kubectl get pods -o wide -n {Job namespace} command to query POD_IP of the active node of the training jobs.
addr: 172.16.176.54
# Set this parameter only for multi-node deployment. Node rank for distributed training, default value is 0.
rank: 0
# Set this parameter only for multi-node deployment.Start cluster server with mpirun. Tool mpirun config, server1_ip:the number of
# training shell process, server_ip2:the number of training shell process... # Training shell process default is 1, please do not modify this. Run the kubectl get pods -o wide n {Job namespace} command to query POD_IP of the two training jobs. mpirun_ip: 172.16.176.152:1,172.16.176.154:1
# Set this parameter only for multi-node deployment. The first device id and the index of the first device in every server in cluster.
# The first device id: the index of the first device id. Run the hccn_tool -i 0 -ip -g command to check device_ip corresponding to device_id=0 on the two servers.
# For the distributed training scenario on servers (with Atlas 300T training cards), run the hccn_tool -i 1 -ip -g command to check the value of device_ip corresponding to device_id=1 on the two servers. The value is device_ip: device_id.
cluster_device_ip: 192.168.10.101:0 192.168.10.103:0
# Set this parameter only for multi-node deployment. The number of devices training using in every server.
# The default value is 8, device count per server in cluster. cdc: 2
# Set this parameter only for multi-node deployment. The number of servers in cluster. world_size: 2
2. Modify the run.sh file.
In the /data/atlas_dls/code directory, go to the directory where the model startup script is stored and modify the run.sh file to comment out the following content:
For example, go to the /data/atlas_dls/code/Benchmark \image_classification\ResNet50\pytorch\scripts directory and comment out the following content:
... rank_size=$1
yamlPath=$2 toolsPath=$3 #if [ -f /.dockerenv ];then

Issue 02 (2021-03-22)

172

MindX DL User Guide

3 Usage Guidelines

# CLUSTER=$4 # MPIRUN_ALL_IP="$5" # export CLUSTER=${CLUSTER} #fi ... # ==========Replace the original code. =============================== if [ x"${CLUSTER}" == x"True" ];then
echo "whether if will run into cluster" ln -snf ${currentDir%train*}/train/result/pt_resnet50/training_job_${currtime}/0/hw_resnet50.log $ {train_job_dir} this_ip=$NODE_IP if [ x"${addr}" == x"${this_ip}" ]; then
rm -rf ${currentDir}/config/hccl_bridge_device_file if [ ! -d "${currentDir}/config" ]; then
mkdir ${currentDir}/config fi hccl_bridge_device_path=${currentDir}/config/hccl_bridge_device_file for i in ${cluster_device_ip[@]};do
echo $i >> ${hccl_bridge_device_path} done chmod 755 ${hccl_bridge_device_path} export HCCL_BRIDGE_DEVICE_FILE=${hccl_bridge_device_path} ranks=0 for ip in ${MPIRUN_ALL_IP[@]};do
if [ x"$ip" != x"$this_ip" ];then bak_yaml=$(dirname "${yamlPath}")/ResNet50_$ip.yaml rm -rf ${bak_yaml} cp $yamlPath $bak_yaml ranks=$[ranks+1] sed -i "s/rank.*$/rank\: ${ranks}/g" ${bak_yaml}
fi done fi if [ x"${addr}" != x"${this_ip}" ]; then yamlPath=$(dirname "${yamlPath}")/ResNet50_$this_ip.yaml while [ ! -f ${yamlPath} ];do
echo "Wait for the generation of yaml files of worker nodes." sleep 2 done echo "start run train.sh" echo "look at yamPath ${yamlPath}" bash ${currentDir}/scripts/train.sh 0 $rank_size $yamlPath $currtime ${toolsPath} ${CLUSTER} else echo "start run train.sh" echo "look at yamPath ${yamlPath}" bash ${currentDir}/scripts/train.sh 0 $rank_size $yamlPath $currtime ${toolsPath} ${CLUSTER} fi else ... # ===========================================
----End
3.4.2.2.4 Delivering a Training Job

Issue 02 (2021-03-22)

173

MindX DL User Guide

3 Usage Guidelines

Procedure

Step 1 Run the following command to check the pod running status:

kubectl get pod --all-namespaces -o wide

Example of a single-server single-device training job

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Issue 02 (2021-03-22)

174

MindX DL User Guide

3 Usage Guidelines

Two training nodes running 2 x 2P distributed training jobs

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu

<none>

vcjob

mindx-dls-test-default-test-1

1/1 Running

192.168.243.199 ubuntu

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Step 2 (Optional) Run the following commands to check the run logs:

kubectl logs -n [Pod running namespace] [Pod name]

Example:

kubectl logs -n vcjob mindx-dls-test-default-test-0

Step 3 View the NPU allocation of compute nodes.

Run the following command on the management node:

kubectl describe nodes

Issue 02 (2021-03-22)

175

MindX DL User Guide

3 Usage Guidelines

NOTE

The huawei.com/Ascend910 field of Annotations indicates the available NPU of the compute node.

The huawei.com/Ascend910 field in Allocated resources indicates the number of used NPUs.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

accelerator-type=card

beta.kubernetes.io/arch=amd64

beta.kubernetes.io/os=linux

host-arch=huawei-x86

kubernetes.io/arch=amd64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910: Ascend910-0

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 1

Events:

<none>

NOTE

The Annotations field does not contain the Ascend 910-1 AI Processor, and the value of the Allocated resources field huawei.com/Ascend910 is 1, indicating that one processor is used for training.

One of the two training nodes running 2 x 2P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

accelerator-type=card

Issue 02 (2021-03-22)

176

MindX DL User Guide

3 Usage Guidelines

beta.kubernetes.io/arch=amd64

beta.kubernetes.io/os=linux

host-arch=huawei-x86

kubernetes.io/arch=amd64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 2

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 2

Events:

<none>

NOTE

No NPU is available in the Annotations field, and the value of the huawei.com/ Ascend910 field in Allocated resources is 2, all NPUs are used for distributed training.
Step 4 View the NPU usage of a pod.
In this example, run the kubectl describe pod mindx-dls-test-default-test-0 -n vcjob command to check the running status of the pod.

NOTE

Annotations displays the NPU information.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 19:15:12 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

Issue 02 (2021-03-22)

177

MindX DL User Guide

3 Usage Guidelines

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices": [{"device_id":"4","device_ip":"192.168.21.102"}...
cni.projectcalico.org/podIP: 192.168.243.195/32 cni.projectcalico.org/podIPs: 192.168.243.195/32 huawei.com/Ascend910: Ascend910-1 predicate-time: 18446744073709551615 scheduling.k8s.io/group-name: mindx-dls-test volcano.sh/job-name: mindx-dls-test volcano.sh/job-version: 0 volcano.sh/task-spec: default-test Status: Running

Two training nodes running 2 x 2P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 20:39:50 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"1","device_ip":"192.168.20.102"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910: Ascend910-0,Ascend910-1

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

volcano.sh/task-spec: default-test

Status: Running

----End

3.4.2.2.6 Viewing the Running Result
Step 1 Log in to the storage server.
The following uses the local NFS whose hostname is Ubuntu as an example.
Step 2 Run the following command to view the output directory of the job running YAML file:
ll /data/atlas_dls/code/Benchmark/train/result/pt_resnet50
root@ubuntu:/home# ll /data/atlas_dls/code/Benchmark/train/result/pt_resnet50 total 28 drwxr-xr-x 7 root root 4096 Oct 22 17:16 ./ drwxr-xr-x 3 root root 4096 Oct 22 17:10 ../ drwxr-xr-x 4 root root 4096 Oct 22 17:10 training_job_20201022074421/ drwxr-xr-x 6 root root 4096 Oct 22 17:10 training_job_20201022080648/ drwxr-xr-x 6 root root 4096 Oct 22 17:10 training_job_20201022082409/ drwxr-xr-x 6 root root 4096 Oct 22 17:12 training_job_20201022091259/ drwxr-xr-x 6 root root 4096 Oct 22 17:16 training_job_20201022091619/
Step 3 Run the following command to access the corresponding training job:
cd /data/atlas_dls/code/Benchmark/train/result/pt_resnet50
cd training_job_20201022091619/
root@ubuntu:cd /data/atlas_dls/code/Benchmark/train/result/pt_resnet50/training_job_20201022091619# ll total 324 drwxr-xr-x 6 root root 4096 Oct 22 17:16 ./

Issue 02 (2021-03-22)

178

MindX DL User Guide

3 Usage Guidelines

drwxr-xr-x 7 root root 4096 Oct 22 17:16 ../ drwxr-xr-x 3 root root 4096 Oct 22 17:46 0/ drwxr-xr-x 3 root root 4096 Oct 22 17:17 1/ drwxr-xr-x 3 root root 4096 Oct 22 17:17 2/ drwxr-xr-x 3 root root 4096 Oct 22 17:17 3/ lrwxrwxrwx 1 root root 82 Oct 22 17:16 hw_resnet50.log -> /job/code//train/result/pt_resnet50/ training_job_20201022091619//0/hw_resnet50.log -rw-r--r-- 1 root root 300160 Oct 22 17:46 train_4p.log
The train_4p.log file in this directory records the training precision.
root@ubuntu:/data/atlas_dls/public/pytorch/train/result/pt_resnet50/training_job_20201022091619# tail -f train_4p.log [gpu id: 0 ] Test: [2495/2502] Time 0.282 ( 0.553) Loss 7.0266 (7.0780) Acc@1 0.59 ( 0.15) Acc@5 1.37 ( 0.68) [gpu id: 0 ] Test: [2496/2502] Time 0.256 ( 0.552) Loss 7.0124 (7.0780) Acc@1 0.39 ( 0.15) Acc@5 0.98 ( 0.68) [gpu id: 0 ] Test: [2497/2502] Time 0.257 ( 0.552) Loss 7.0578 (7.0779) Acc@1 0.00 ( 0.15) Acc@5 0.39 ( 0.68) [gpu id: 0 ] Test: [2498/2502] Time 0.265 ( 0.552) Loss 7.1090 (7.0780) Acc@1 0.00 ( 0.15) Acc@5 0.98 ( 0.68) [gpu id: 0 ] Test: [2499/2502] Time 0.318 ( 0.552) Loss 7.0254 (7.0779) Acc@1 0.00 ( 0.15) Acc@5 0.20 ( 0.68) [gpu id: 0 ] Test: [2500/2502] Time 0.359 ( 0.552) Loss 7.0409 (7.0779) Acc@1 0.00 ( 0.15) Acc@5 0.78 ( 0.68) [gpu id: 0 ] Test: [2501/2502] Time 0.445 ( 0.552) Loss 7.0593 (7.0779) Acc@1 0.39 ( 0.15) Acc@5 1.37 ( 0.68) [gpu id: 0 ] [AVG-ACC] * Acc@1 0.151 Acc@5 0.683 THPModule_npu_shutdown success. :::ABK 1.0.0 resnet50 train success
----End
3.4.2.2.7 Deleting a Training Job
Run the following command in the directory where YAML is running to delete a training job:
kubectl delete -f XXX.yaml
Example:
kubectl delete -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl delete -f Mindx-dl-test.yaml configmap "rings-config-mindx-dls-test" deleted job.batch.volcano.sh "mindx-dls-test" deleted
3.4.3 MindSpore

3.4.3.1 Preparing the NPU Training Environment
After MindX DL is installed, you can use YAML to deliver a vcjob to check whether the system can run properly.
This section uses the environment described in Table 3-5 as an example.

Issue 02 (2021-03-22)

179

MindX DL User Guide

Table 3-5 Test environment requirements

Item

Name

Ubuntu 18.04

CentOS 7.6

EulerOS 2.8

Training script

ResNet

OS architecture

ARM x86

3 Usage Guidelines
Version -
-

Creating a Training Image
Create a training image. For details, see Creating a Container Image Using a Dockerfile (MindSpore). You can rename the training image, for example, mindspore:b035.

Preparing a Dataset
The CIFAR-10 dataset is used only as an example.
Step 1 You need to prepare the dataset by yourself. The CIFAR-10 dataset is recommended.
Step 2 Upload the dataset to the storage node as an administrator. 1. Go to the /data/atlas_dls/public directory and upload the CIFAR-10 dataset to any directory, for example, /data/atlas_dls/public/dataset/cifar-10.
root@ubuntu:/data/atlas_dls/public/dataset/cifar-10# pwd /data/atlas_dls/public/dataset/cifar-10
2. Run the following command to check the dataset size: du -sh
root@ubuntu:/data/atlas_dls/public/dataset/cifar-10# du -sh 176M
Step 3 Run the following command to change the owner of the dataset:
chown -R hwMindX:hwMindX /data/atlas_dls/
root@ubuntu:/data/atlas_dls/public/dataset/cifar-10# chown -R hwMindX:hwMindX /data/atlas_dls/ root@ubuntu:/data/atlas_dls/public/dataset/cifar-10#
Step 4 Run the following command to change the dataset permission:
chmod -R 750 /data/atlas_dls/
Step 5 Run the following command to check the file status:
ll /data/atlas_dls/public/Dataset location
Example:
ll /data/atlas_dls/public/dataset/cifar-10/cifar-10-batches-bin
root@ubuntu:~# ll /data/atlas_dls/public/dataset/cifar-10/cifar-10-batches-bin total 180088

Issue 02 (2021-03-22)

180

MindX DL User Guide

3 Usage Guidelines

drwxr-x--- 2 hwMindX HwHiAiUser 4096 Dec 15 16:00 ./ drwxr-x--- 4 hwMindX HwHiAiUser 4096 Dec 15 16:52 ../ -rwxr-x--- 1 hwMindX HwHiAiUser 61 Jul 11 10:23 batches.meta.txt -rwxr-x--- 1 hwMindX HwHiAiUser 30730000 Jul 11 10:23 data_batch_1.bin -rwxr-x--- 1 hwMindX HwHiAiUser 30730000 Jul 11 10:24 data_batch_2.bin -rwxr-x--- 1 hwMindX HwHiAiUser 30730000 Jul 11 10:23 data_batch_3.bin -rwxr-x--- 1 hwMindX HwHiAiUser 30730000 Jul 11 10:24 data_batch_4.bin -rwxr-x--- 1 hwMindX HwHiAiUser 30730000 Jul 11 10:24 data_batch_5.bin -rwxr-x--- 1 hwMindX HwHiAiUser 88 Jul 11 10:23 readme.html -rwxr-x--- 1 hwMindX HwHiAiUser 30730000 Jul 11 10:24 test_batch.bin
----End

Obtaining and Modifying the Training Script
Step 1 Obtain the training script.
For details, see Creating an NPU Training Script (MindSpore).
NOTE
The modified training script supports both the single-node and cluster scenarios.
Step 2 Change the script permission and owner.
1. Upload the training script to the /data/atlas_dls/code directory on the storage node and decompress it.
2. Run the following command to assign the execute permission recursively: chmod -R 750 /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chmod -R 750 /data/atlas_dls/code/ root@ubuntu:/data/atlas_dls/code#
3. Run the following command to change the owner: chown -R hwMindX:hwMindX /data/atlas_dls/code
root@ubuntu:/data/atlas_dls/code# chown -R hwMindX:hwMindX /data/atlas_dls/code root@ubuntu:/data/atlas_dls/code#
4. Run the following command to view the output result: ll /data/atlas_dls/code
root@ubuntu-infer:/data/atlas_dls/code# ll /data/atlas_dls/code total 64 drwxr-x--- 3 hwMindX hwMindX 4096 Dec 15 15:50 ./ drwxr-x--- 5 hwMindX hwMindX 4096 Dec 15 16:05 ../ drwxr-x--- 3 hwMindX hwMindX 4096 Dec 15 18:55 resnet/
----End

3.4.3.2 Creating a YAML File
This section describes the YAML files in the single-node system and cluster scenarios. You can select proper YAML files based on the actual situation.
The YAML example is used in the NFS scenario. The NFS needs to be installed on the storage node. For details about how to install NFS, see Installing the NFS.
NOTE
If MindX DL is fully installed in online or offline mode, the NFS can be automatically installed.

Issue 02 (2021-03-22)

181

MindX DL User Guide

3 Usage Guidelines

Single-Node Scenario
Run the following command on the management node to create the YAML file for training jobs and add the content in this section to the YAML file. vim XXX.yaml The following uses Mindx-dl-test.yaml as an example: vim Mindx-dl-test.yaml

NOTICE Delete # when using the file.

apiVersion: v1

kind: ConfigMap

metadata:

name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of

the following job. The prefix rings-config- cannot be modified.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910

data:

hccl.json: |

{

"status":"initializing"

} #This line is automatically generated by HCCL-Controller. Keep it unchanged.

---

apiVersion: batch.volcano.sh/v1alpha1

kind: Job

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob

# Select a proper namespace based on the site requirements. (The

namespaces of ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add

exists, the vcjob namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The HCCL-Controller distinguishes Ascend 910 and other processors

based on this label.

spec:

minAvailable: 1

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 1

#The value of replicas is 1 in a single-node scenario. The value is N and the

number of NPUs in the requests field is 8 in an N-node distributed scenario.

template:

metadata:

labels:

app: mindspore

ring-controller.atlas: ascend-910

spec:

containers:

- image: mindspore:b035

# Training framework image, which can be modified.

Issue 02 (2021-03-22)

182

MindX DL User Guide

3 Usage Guidelines

imagePullPolicy: IfNotPresent

command:

- "/bin/bash"

- "-c"

- "cd /job/code/resnet/scripts; chmod +x train_start.sh; ./train_start.sh" #Commands for running the

training script. Ensure that the involved commands and paths exist on Docker.

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 1

# Number of required NPUs. The maximum value is 8. You can

add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 1

# The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

mountPath: /job/code/

- name: data

mountPath: /job/data

- name: ascend-driver

mountPath: /usr/local/Ascend/driver

- name: ascend-add-ons

mountPath: /usr/local/Ascend/add-ons

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-arm # Configure the label based on the actual job.

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: 127.0.0.1

# IP address of the NFS server. In this example, the shared path is /

data/atlas_dls/.

path: "/data/atlas_dls/code" # Configure the path of the training script.

- name: data

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/public/dataset/cifar-10" # Configure the path of the training set.

- name: ascend-driver

hostPath:

path: /usr/local/Ascend/driver #Configure the NPU driver and mount it to Docker.

- name: ascend-add-ons

hostPath:

path: /usr/local/Ascend/add-ons # Configure the add-ons driver of the NPU and mount it to

Docker.

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

fieldRef:

fieldPath: metadata.name

restartPolicy: OnFailure

Issue 02 (2021-03-22)

183

MindX DL User Guide

The following uses Mindx-dl-test.yaml as an example: vim Mindx-dl-test.yaml

3 Usage Guidelines

NOTICE Delete # when using the file.

apiVersion: v1

kind: ConfigMap

metadata:

name: rings-config-mindx-dls-test # The value of JobName must be the same as the name attribute of

the following job. The prefix rings-config- cannot be modified.

namespace: vcjob # Select a proper namespace based on the site requirements. (The namespaces of

ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add exists, the vcjob

namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910

data:

hccl.json: |

{

"status":"initializing"

} #This line is automatically generated by HCCL-Controller. Keep it unchanged.

---

apiVersion: batch.volcano.sh/v1alpha1

kind: Job

metadata:

# The value must be consistent with the name of ConfigMap.

namespace: vcjob

# Select a proper namespace based on the site requirements. (The

namespaces of ConfigMap and Job must be the same. In addition, if the tjm component of MindX-add

exists, the vcjob namespace cannot be used.)

labels:

ring-controller.atlas: ascend-910 #The HCCL-Controller distinguishes Ascend 910 and other processors

based on this label.

spec:

minAvailable: 1

schedulerName: volcano

#Use the Volcano scheduler to schedule jobs.

policies:

- event: PodEvicted

action: RestartJob

plugins:

ssh: []

env: []

svc: []

maxRetry: 3

queue: default

tasks:

- name: "default-test"

replicas: 2

#The value of replicas is 1 in a single-node scenario. The value is N and the

number of NPUs in the requests field is 8 in an N-node distributed scenario.

template:

metadata:

labels:

app: mindspore

ring-controller.atlas: ascend-910

spec:

containers:

- image: mindspore:b035

# Training framework image, which can be modified.

imagePullPolicy: IfNotPresent

command:

- "/bin/bash"

- "-c"

- "cd /job/code/resnet/scripts; chmod +x train_start.sh; ./train_start.sh" #Commands for running the

training script. Ensure that the involved commands and paths exist on Docker.

#args: [ "while true; do sleep 30000; done;" ] #Comment out the preceding line and enable this

Issue 02 (2021-03-22)

184

MindX DL User Guide

3 Usage Guidelines

line. You can manually run the training script in the container to facilitate debugging.

resources:

requests:

huawei.com/Ascend910: 8

# Number of required NPUs. The maximum value is 8. You

can add lines below to configure resources such as memory and CPU.

limits:

huawei.com/Ascend910: 8

# The value must be consistent with that in requests.

volumeMounts:

- name: ascend-910-config

mountPath: /user/serverid/devindex/config

- name: code

mountPath: /job/code/

- name: data

mountPath: /job/data

- name: ascend-driver

mountPath: /usr/local/Ascend/driver

- name: ascend-add-ons

mountPath: /usr/local/Ascend/add-ons

- name: localtime

mountPath: /etc/localtime

nodeSelector:

host-arch: huawei-arm # Configure the label based on the actual job.

volumes:

- name: ascend-910-config

configMap:

- name: code

nfs:

server: 127.0.0.1

# IP address of the NFS server. In this example, the shared path is /

data/atlas_dls/.

path: "/data/atlas_dls/code" # Configure the path of the training script.

- name: data

nfs:

server: 127.0.0.1

path: "/data/atlas_dls/public/dataset/cifar-10" # Configure the path of the training set.

hostPath:

path: /usr/local/Ascend/driver #Configure the NPU driver and mount it to Docker.

- name: ascend-add-ons

hostPath:

path: /usr/local/Ascend/add-ons #Configure the add-ons driver of the NPU and mount it to

Docker.

- name: localtime

hostPath:

path: /etc/localtime # Configure the Docker time.

env:

- name: mindx-dls-test # The value must be consistent with the value of JobName.

valueFrom:

fieldRef:

fieldPath: metadata.name

restartPolicy: OnFailure

3.4.3.3 Preparing for Running a Training Job

Procedure
Step 1 Run the following command to modify the resources in the YAML file. vim XXX.yaml NOTE
XXX: YAML name generated in Creating a YAML File.
Example: Single-server single-device training job

Issue 02 (2021-03-22)

185

MindX DL User Guide

3 Usage Guidelines

vim Mindx-dl-test.yaml

Modify the items based on the resource requirements. For details about how to modify other items, see Creating a YAML File.

...

resources:

requests:

huawei.com/Ascend910: 1

#Number of required NPUs. The maximum value is 8.

Resources such as the MEN and CPU can be configured.

limits:

huawei.com/Ascend910: 1

#Number of required NPUs. The maximum value is 8.

Resources such as the MEN and CPU can be configured.

...

NOTE

For a single-server single-device scenario, the value of huawei.com/Ascend910 is 1.

For a single-server multi-device scenario, the value of huawei.com/Ascend910 is 2, 4, or 8.

Two training nodes running 2 x 8P distributed training jobs

vim Mindx-dl-test.yaml

Modify the items based on the resource requirements. For details about how to modify other items, see Creating a YAML File.

...

- name: "default-test"

replicas: 2

# The value of replicas is 1 in a single-node scenario and N in an N-node

scenario. The number of NPUs in the requests field is 8 in an N-node scenario.

template:

metadata:

...

resources:

requests:

huawei.com/Ascend910: 8

# Number of required NPUs. The maximum value is 8.

Resources such as men and cpu can be configured.

limits:

huawei.com/Ascend910: 8

# The value must be consistent with that in requests.

...

Step 2 Modify the training script.

Go to the /data/atlas_dls/code/resnet/src directory and modify the code based on the network structure and dataset.

In this example, the network structure and data set are resnet50 and cifar-10, respectively. Therefore, the following content is modified: (Only 10 epochs are run.)

... # config for resent50, cifar10 config1 = ed({
"class_num": 10, "batch_size": 32, "loss_scale": 1024, "momentum": 0.9, "weight_decay": 1e-4, "epoch_size": 10, "pretrain_epoch_size": 0, "save_checkpoint": True, "save_checkpoint_epochs": 5, "keep_checkpoint_max": 10, "save_checkpoint_path": "./", "warmup_epochs": 5, "lr_decay_mode": "poly",

Issue 02 (2021-03-22)

186

MindX DL User Guide

3 Usage Guidelines

"lr_init": 0.01, "lr_end": 0.00001, "lr_max": 0.1 }) ...
----End

3.4.3.4 Delivering a Training Job

Procedure
Step 1 Run the following command to create a namespace for the training job:
kubectl create namespace vcjob
Step 2 Run the following command on the management node to deliver training jobs using YAML: kubectl apply -f XXX.yaml
Example: kubectl apply -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl apply -f Mindx-dl-test.yaml configmap/rings-config-mindx-dls-test created job.batch.volcano.sh/mindx-dls-test created
----End

3.4.3.5 Checking the Running Status

Procedure

Step 1 Run the following command to check the pod running status:

kubectl get pod --all-namespaces -o wide

Example of a single-server single-device training job

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

Issue 02 (2021-03-22)

187

MindX DL User Guide

3 Usage Guidelines

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.198 ubuntu <none>

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

39s

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

Example of executing a 2 x 8P distributed training task on two training nodes

root@ubuntu-96:~# kubectl get pod --all-namespaces -o wide

NAMESPACE NAME

READY STATUS

RESTARTS AGE

NODE

NOMINATED NODE READINESS GATES

cadvisor

cadvisor-8x86g

1/1 Running

192.168.243.252 ubuntu

<none>

cadvisor

cadvisor-hgbw8

1/1 Running

26h

192.168.207.48 ubuntu-96 <none>

<none>

cadvisor

cadvisor-shwb4

1/1 Running

6m46s

192.168.240.65 ubuntu-infer <none>

<none>

default

hccl-controller-688c7cb8c6-4b88n

1/1 Running

192.168.243.199 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-8f2dx 1/1 Running

192.168.243.218 ubuntu

<none>

kube-system ascend-device-plugin-daemonset-f2jk9 1/1 Running

192.168.207.49 ubuntu-96 <none>

<none>

kube-system ascend310-device-plugin-daemonset-fls4v 1/1 Running

4m15s

192.168.240.66 ubuntu-infer <none>

<none>

kube-system calico-kube-controllers-8464785d6b-bj4pk 1/1 Running

192.168.243.198 ubuntu

<none>

kube-system calico-node-bkbvl

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system calico-node-bzd7q

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system calico-node-fh58s

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system coredns-6955765f44-4pdhg

1/1 Running

192.168.243.249 ubuntu

<none>

kube-system coredns-6955765f44-n9pg4

1/1 Running

192.168.243.237 ubuntu

<none>

kube-system etcd-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-controller-manager-ubuntu

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-b5flw

1/1 Running

10.174.217.96 ubuntu-96 <none>

<none>

kube-system kube-proxy-ttsjp

1/1 Running

10.174.217.94 ubuntu

<none>

kube-system kube-proxy-zp9xw

1/1 Running

8m16s

10.174.216.214 ubuntu-infer <none>

<none>

kube-system kube-scheduler-ubuntu

1/1 Running

Issue 02 (2021-03-22)

188

MindX DL User Guide

3 Usage Guidelines

10.174.217.94 ubuntu

<none>

vcjob

mindx-dls-test-default-test-0

1/1 Running

192.168.243.134 ubuntu <none>

<none>

vcjob

mindx-dls-test-default-test-1

1/1 Running

192.168.243.135 ubuntu <none>

<none>

volcano-system volcano-admission-5bcb6d799-rgk5r

1/1 Running

192.168.243.215 ubuntu

<none>

volcano-system volcano-controllers-7d6d465877-nnf7l 1/1 Running

192.168.243.238 ubuntu

<none>

volcano-system volcano-admission-init-bbx5z

0/1 Completed

10.174.217.96 ubuntu-96 <none>

<none>

volcano-system volcano-scheduler-67f89949b4-ncs8q

1/1 Running

192.168.243.211 ubuntu

<none>

10m

39s

Step 2 View the NPU allocation of compute nodes.

Run the following command on the management node:

kubectl describe nodes

NOTE

The huawei.com/Ascend910 field of Annotations indicates the available NPU of the compute node.

The huawei.com/Ascend910 field in Allocated resources indicates the number of used NPUs.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

beta.kubernetes.io/arch=arm64

beta.kubernetes.io/os=linux

host-arch=huawei-arm

kubernetes.io/arch=arm64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

Ascend910-0,Ascend910-1,Ascend910-2,Ascend910-3,Ascend910-5,Ascend910-6,Ascend910-7

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Issue 02 (2021-03-22)

189

MindX DL User Guide

3 Usage Guidelines

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 1

Events:

<none>

NOTE

The Annotations field does not contain the Ascend 910-4 AI Processor, and the value of the Allocated resources field huawei.com/Ascend910 is 1, indicating that one processor is used for training.

One of the two training nodes running 2 x 8P distributed training jobs

root@ubuntu:/home/test/yaml# kubectl describe nodes

Name:

ubuntu

Roles:

master,worker

Labels:

accelerator=huawei-Ascend910

beta.kubernetes.io/arch=arm64

beta.kubernetes.io/os=linux

host-arch=huawei-arm

kubernetes.io/arch=arm64

kubernetes.io/hostname=ubuntu

kubernetes.io/os=linux

masterselector=dls-master-node

node-role.kubernetes.io/master=

node-role.kubernetes.io/worker=worker

workerselector=dls-worker-node

Annotations: huawei.com/Ascend910:

kubeadm.alpha.kubernetes.io/cri-socket: /var/run/dockershim.sock

node.alpha.kubernetes.io/ttl: 0

projectcalico.org/IPv4Address: XXX.XXX.XXX.XXX/23

projectcalico.org/IPv4IPIPTunnelAddr: 192.168.243.192

volumes.kubernetes.io/controller-managed-attach-detach: true

CreationTimestamp: Mon, 28 Sep 2020 14:36:54 +0800

...

Capacity:

cpu:

192

ephemeral-storage: 1537233808Ki

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792307468Ki

pods:

110

Allocatable:

cpu:

192

ephemeral-storage: 1416714675108

huawei.com/Ascend910: 8

hugepages-2Mi:

memory:

792205068Ki

pods:

110

...

Allocated resources:

(Total limits may be over 100 percent, i.e., overcommitted.)

Resource

Requests Limits

--------

-------- ------

cpu

37250m (19%) 37500m (19%)

memory

117536Mi (15%) 119236Mi (15%)

ephemeral-storage 0 (0%)

0 (0%)

huawei.com/Ascend910 8

Events:

<none>

NOTE

No NPU is available in the Annotations field, and the value of the huawei.com/ Ascend910 field in Allocated resources is 8, all NPUs are used for distributed training.

Step 3 View the NPU usage of a pod.

Issue 02 (2021-03-22)

190

MindX DL User Guide

3 Usage Guidelines

In this example, run the kubectl describe pod mindx-dls-test-default-test-0 -n vcjob command to check the running status of the pod.

NOTE

Annotations displays the NPU information.

Example of a single-server single-device training job

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 15:38:22 +0800

Labels: app=mindspore

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"4","device_ip":"192.168.20.102"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910: Ascend910-4

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

volcano.sh/task-spec: default-test

Status: Running

Example of executing a 2 x 8P distributed training task on two training nodes

root@ubuntu:/home/test/yaml# kubectl describe pod mindx-dls-test-default-test-0 -n vcjob

Name:

mindx-dls-test-default-test-0

Namespace: vcjob

Priority: 0

Node:

ubuntu/XXX.XXX.XXX.XXX

Start Time: Wed, 30 Sep 2020 15:38:22 +0800

Labels: app=tf

ring-controller.atlas=ascend-910

volcano.sh/job-name=mindx-dls-test

volcano.sh/job-namespace=vcjob

Annotations: atlas.kubectl.kubernetes.io/ascend-910-configuration:

{"pod_name":"0","server_id":"XXX.XXX.XXX.XXX","devices":

[{"device_id":"0","device_ip":"192.168.20.100"}...

cni.projectcalico.org/podIP: 192.168.243.195/32

cni.projectcalico.org/podIPs: 192.168.243.195/32

huawei.com/Ascend910:

Ascend910-0,Ascend910-1,Ascend910-2,Ascend910-3,Ascend910-4,Ascend910-5,Ascend910-6,Asce

nd910-7

predicate-time: 18446744073709551615

scheduling.k8s.io/group-name: mindx-dls-test

volcano.sh/job-name: mindx-dls-test

volcano.sh/job-version: 0

volcano.sh/task-spec: default-test

Status: Running

----End

3.4.3.6 Viewing the Running Result
Step 1 Log in to the storage server. The following uses the local NFS whose hostname is Ubuntu as an example.
Step 2 Run the following command to go to the training output directory specified during job running:

Issue 02 (2021-03-22)

191

MindX DL User Guide

3 Usage Guidelines

ll /data/atlas_dls/code/scripts/train

root@ubuntu:/home# ll /data/atlas_dls/code/scripts/train total 16896 drwxr-x--- 2 HwHiAiUser HwHiAiUser 4096 Dec 15 16:06 ./ drwxr-x--- 4 hwMindX HwHiAiUser 4096 Dec 15 15:26 ../ -rwxr-x--- 1 HwHiAiUser HwHiAiUser 188537157 Dec 15 19:59 resnet-10_1875.ckpt -rwxr-x--- 1 HwHiAiUser HwHiAiUser 188537157 Dec 15 19:56 resnet-5_1875.ckpt -rwxr-x--- 1 HwHiAiUser HwHiAiUser 938486 Dec 15 19:54 resnet-graph.meta
----End

3.4.3.7 Deleting a Training Job
Run the following command in the directory where YAML is running to delete a training job:
kubectl delete -f XXX.yaml
Example:
kubectl delete -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl delete -f Mindx-dl-test.yaml configmap "rings-config-mindx-dls-test" deleted job.batch.volcano.sh "mindx-dls-test" deleted
3.4.4 Inference Job

3.4.4.1 Preparing the NPU Inference Environment

Environment Dependencies
This section uses the environment described in Table 3-6 as an example.

Table 3-6 Test environment requirements

Item

Name

Ubuntu 18.04

CentOS 7.6

RUN NPU package RUN inference package

Inference service code

XXX.tar
NOTE XXX: name of the inference service code package. You need to prepare the package based on the inference service. This document uses dvpp_resnet.tar as an example.

Version -
For details, see the version mapping. -

Issue 02 (2021-03-22)

192

MindX DL User Guide

Item OS architecture

Name
ARM x86

Version -

3 Usage Guidelines

Creating an Inference Image
Create an inference image. For details, see Creating an Inference Image Using a Dockerfile. Rename the inference image, for example, ubuntu-infer:v1.

3.4.4.2 Creating a YAML File

Run the following command on the management node to create the YAML file for inference jobs and add the content in this section to the XXX.yaml file.

vim XXX.yaml

The following uses Mindx-dl-test.yaml as an example:

vim Mindx-dl-test.yaml

apiVersion: batch/v1

kind: Job

metadata:

#namespace: kube-system

spec:

template:

spec:

nodeSelector:

accelerator: huawei-Ascend310

#Select an inference processor node.

containers:

- image: ubuntu-infer:v1

#Inference image name

imagePullPolicy: IfNotPresent

resources:

requests:

huawei.com/Ascend310: 1

#Number of Ascend 310 AI Processors for inference.

limits:

huawei.com/Ascend310: 1

#The value must be the same as the number in requests.

volumeMounts:

- name: ascend-dirver

mountPath: /usr/local/Ascend/driver #Driver path.

- name: slog

mountPath: /var/log/npu/conf/slog/ #Log path.

- name: localtime

#The container time must be the same as the host time.

mountPath: /etc/localtime

volumes:

- name: ascend-dirver

hostPath:

path: /usr/local/Ascend/driver

- name: slog

hostPath:

path: /var/log/npu/conf/slog/

- name: localtime

hostPath:

path: /etc/localtime

restartPolicy: OnFailure

Issue 02 (2021-03-22)

193

MindX DL User Guide

3 Usage Guidelines

3.4.4.3 Delivering Inference Jobs
Run the following command on the management node to deliver inference jobs using YAML: kubectl apply -f XXX.yaml Example: kubectl apply -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl apply -f Mindx-dl-test.yaml job.batch/resnetinfer1-2 created
3.4.4.4 Checking the Running Status

Procedure

Step 1 Run the following command to check the pod running status:

kubectl get pod --all-namespaces

NAMESPACE NAME

READY STATUS RESTARTS AGE

cadvisor

cadvisor-r6qkq

1/1 Running 0

3d21h

default

dls-cec-deploy-6544466488-fpgsj

1/1 Running 1

3d21h

default

dls-mms-deploy-6456b45b5f-z7nsd

1/1 Running 2

3d21h

default

hccl-controller-688c7cb8c6-r4zkm

1/1 Running 0

3d21h

default

resnetinfer1-2-scpr5

1/1 Running 0

default

tjm-68dcc744fc-vm4zg

1/1 Running 2

3d21h

kube-system ascend-device-plugin2-daemonset-8g2hb 1/1 Running 1

4d16h

Step 2 Run the following command on the management node to view the inference result:

kubectl logs -f resnetinfer1-2-scpr5

----End

3.4.4.5 Deleting an Inference Job
Run the following command in the directory where YAML is run to delete an inference job:
kubectl delete -f XXX.yaml
Example:
kubectl delete -f Mindx-dl-test.yaml
root@ubuntu:/home/test/yaml# kubectl delete -f Mindx-dl-test.yaml job "resnetinfer1-1" deleted

3.5 Log Collection
MindX DL provides the log collection function. You can use scripts to obtain log files of the NPU driver, Docker, Kubernetes components (Kubelet, Kubectl, and Kubeadm), and MindX DL. Logs of a single node or a cluster can be collected. To collect cluster logs, you need to run Ansible commands on the management node to distribute collection scripts and collect logs of each node in the cluster.

Issue 02 (2021-03-22)

194

MindX DL User Guide

3 Usage Guidelines
NOTE The log collection paths can be configured in the script. To use this script to collect logs, you need to install Python 2.7 or Python 3.

NOTICE
Ensure that the server has sufficient space for collecting logs. Otherwise, the system may be abnormal.
The collected information is not checked during log collection, and insecure information (such as sensitive information and confidential information) may be collected. You are advised to delete the collected information in a timely manner after using it.

Prerequisites
To run the log collection tool, the following conditions must be met:
1. Obtain all files in the collect_log directory from Gitee Code Repository and upload them to the /home/collect_log directory.
2. The dos2unix tool has been installed.
NOTE
For Ubuntu, run the following command to install dos2unix: apt install -y dos2unix
For CentOS, run the following command to install dos2unix: yum install -y dos2unix
3. Python 3.7.5 and Ansible have been installed on the management node. For details about how to check the installation, see Checking the Python and Ansible Versions.

Collecting Logs of a Single Node
Step 1 Run the following command to switch to the /home/collect_log directory:
cd /home/collect_log
Step 2 Run the following commands to change the log collection paths:
chmod 600 collect_log.py
vim collect_log.py
NOTE
The format of the log collection path is (os.path.join(base, "Archive path in the compressed package"),"Path of logs to be collected in the system"). You can add or delete log collection paths based on the site requirements.
... def get_log_path_src_and_dst(base):
# compress all files from source folders into destination folders dst_src_paths = \
[(os.path.join(base, "volcano-scheduler"),

Issue 02 (2021-03-22)

195

MindX DL User Guide

3 Usage Guidelines

"/var/log/atlas_dls/volcano-scheduler"), (os.path.join(base, "volcano-admission"), "/var/log/atlas_dls/volcano-admission"), (os.path.join(base, "volcano-controller"), "/var/log/atlas_dls/volcano-controller"), (os.path.join(base, "hccl-controller"), "/var/log/atlas_dls/hccl-controller"), (os.path.join(base, "devicePlugin"), "/var/log/devicePlugin"), (os.path.join(base, "cadvisor"), "/var/log/cadvisor"), (os.path.join(base, "npuSlog"), "/var/log/npu/slog/host-0/"), (os.path.join(base, "apigw"), "/var/log/atlas_dls/apigw"), (os.path.join(base, "cec"), "/var/log/atlas_dls/cec"), (os.path.join(base, "dms"), "/var/log/atlas_dls/dms"), (os.path.join(base, "mms"), "/var/log/atlas_dls/mms"), (os.path.join(base, "mysql"), "/var/log/atlas_dls/mysql"), (os.path.join(base, "nginx"), "/var/log/atlas_dls/nginx"), (os.path.join(base, "tjm"), "/var/log/atlas_dls/tjm")] return dst_src_paths ...
Step 3 Run the following commands to collect logs:
dos2unix *
chmod 500 collectLog.py
python collectLog.py
Information similar to the following is displayed:
root@ubuntu560:/home/collect_log# python collect_log.py begin to collect log files creating dst folder:MindX_Report_2020_12_07_16_10_55/LogCollect compress files:/var/log/atlas_dls/volcano-scheduler/volcano-scheduler.log ... compress files:/var/log/npu/slog/host-0/host-0_20201206190134713.log warning: /var/log/atlas_dls/apigw not exists warning: /var/log/atlas_dls/cec not exists warning: /var/log/atlas_dls/dms not exists warning: /var/log/atlas_dls/mms not exists warning: /var/log/atlas_dls/mysql not exists warning: /var/log/atlas_dls/nginx not exists warning: /var/log/atlas_dls/tjm not exists compress files:/var/log/messages-20201122 compress files:/var/log/messages-20201129 compress files:/var/log/messages-20201206 compress files:/var/log/messages create tar file:MindX_Report_2020_12_07_16_10_55-centos-127-LogCollect.tar.gz, from all compressed files adding to tar: MindX_Report_2020_12_07_16_10_55/LogCollect
delete temp folderMindX_Report_2020_12_07_16_10_55 collect log files finish
NOTE
In this example, the collect_log.py file has been copied to the /home/collect_log directory.
In the command output, the log collection path is /home/collect_log/ MindX_Report_2020_12_02_19_58_10-ubuntu560-LogCollect.gz, which is in the path where the collect_log.py file is stored.
----End

Collecting Logs of a Cluster
Step 1 Configure Ansible host information.

Issue 02 (2021-03-22)

196

MindX DL User Guide

3 Usage Guidelines

For details, see Configuring Ansible Host Information.
An example is as follows:
[all:vars] # Master IP master_ip=10.10.56.78
[master] ubuntu-example ansible_host=10.10.56.78 ansible_ssh_user="root" ansible_ssh_pass="ad34#$"
[training_node] ubuntu-example2 ansible_host=10.10.56.79 ansible_ssh_user="root" ansible_ssh_pass="ad34#$"
[inference_node]

[workers:children] training_node inference_node
NOTE
The configuration file /etc/ansible/hosts of the cluster logs collected using Ansible must contain at least the preceding content.
If Ansible is used to install and deploy a cluster, you can directly use the /etc/ansible/ hosts file configured during installation and deployment to collect cluster logs. You do not need to modify the file.
Some groups do not have servers and can be left empty, such as [inference_node] in the example.
The content under [workers:children] cannot be modified.
Step 2 Run the following command to switch to the /home/collect_log directory:
cd /home/collect_log
The directory structure is as follows:
/home/collect_log collect_log.py collect_log.yaml
Step 3 Run the following commands to collect logs:
dos2unix *
ansible-playbook -vv collect_log.yaml
NOTE
You are advised to run the following commands to set the permission on the collect_log.yaml file to 400 and the permission on the collect_log.sh file to 500: chmod 400 collect_log.yaml chmod 500 collect_log.py
If the following message is displayed, the operation is successful.
root@ubuntu560:/home/collect_log# ansible-playbook -vv collect_log.yaml ansible-playbook 2.9.7
config file = /etc/ansible/ansible.cfg configured module search path = ['/root/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules'] ansible python module location = /usr/local/python3.7.5/lib/python3.7/site-packages/ansible-2.9.7py3.7.egg/ansible executable location = /usr/local/bin/ansible-playbook python version = 3.7.5 (default, Sep 22 2020, 17:38:26) [GCC 7.5.0]

Issue 02 (2021-03-22)

197

MindX DL User Guide

3 Usage Guidelines

Using /etc/ansible/ansible.cfg as config file

PLAYBOOK: collect_log.yaml ****************************************************************************************************************************************** ************************************ 2 plays in collect_log.yaml

PLAY [master] ****************************************************************************************************************************************** ************************************************* ... ****************************************************************************************************************************************** ************************************** task path: /home/collect_log/collect_log.yaml:102 changed: [ubuntu-11] => {"changed": true, "cmd": "echo \"Finished! The check report is stored in /home/ collect_log/MindXReport/ on the master node.\"", "delta": "0:00:00.003850", "end": "2020-12-02 12:26:36.867520", "rc": 0, "start": "2020-12-02 12:26:36.863670", "stderr": "", "stderr_lines": [], "stdout": "Finished! The check report is stored in /home/collect_log/MindXReport/ on the master node.", "stdout_lines": ["Finished! The check report is stored in /home/collect_log/MindXReport/ on the master node."]} META: ran handlers META: ran handlers

PLAY RECAP

******************************************************************************************************************************************

****************************************************

ubuntu-11

: ok=7 changed=4 unreachable=0 failed=0 skipped=1 rescued=0

ignored=0

ubuntu560

: ok=5 changed=4 unreachable=0 failed=0 skipped=0 rescued=0

ignored=0

NOTE

In this example, the collect_log.yaml and collect_log.py file has been copied to the / home/collect_log directory.
The independent report of each node is stored in the MindXReport directory where the collect_log.yaml file of the management node is stored. In this example, the directory is /home/collect_log/MindXReport/.

----End

3.6 Common Operations

3.6.1 Creating an NPU Training Script (MindSpore)

Procedure
Step 1 Log in to ModelZoo, download the ResNet-50 training code package of the MindSpore framework, and decompress the package to the local host.
Step 2 Create the hccl2ranktable.py, train_start.sh, and main.sh files in the resnet/ scripts directory. The following is an example of the directory structure:
root@ubuntu:/data/atlas_dls/code/resnet/scripts/# scripts/ hccl2ranktable.py main.sh run_distribute_train_gpu.sh run_distribute_train.sh run_eval_gpu.sh run_eval.sh run_gpu_resnet_benchmark.sh run_parameter_server_train_gpu.sh

Issue 02 (2021-03-22)

198

MindX DL User Guide

3 Usage Guidelines

run_parameter_server_train.sh run_standalone_train_gpu.sh run_standalone_train.sh train_start.sh
Step 3 Perform the following steps to prepare the files:
hccl2ranktable.py contains the conversion code of the old and new HCCL configuration files.
train_start.sh and main.sh are training scripts.
1. Run the following command to create the hccl2ranktable.py file:
vim hccl2ranktable.py
Add the following content to the file and run the :wq command to save the file:
# Copyright 2020 Huawei Technologies Co., Ltd # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. # ============================================================================ """convert new format hccl config to old config script"""
import json import sys

def creat_rank_table_file(hccl_path, rank_table_file_path): hccn_table = {'version': '1.0', 'server_count': '1'}
server_list = [] with open(hccl_path, 'r', encoding='UTF-8') as f:
data = json.load(f)
status = data.get('status') instance_list = data.get('group_list')[0].get('instance_list') server_count = data.get('group_list')[0].get('instance_count') rank_id = 0 for instance in instance_list:
del instance['pod_name'] devices_list = instance.get('devices') for dev in devices_list:
dev['rank_id'] = str(rank_id) rank_id += 1 instance['device'] = devices_list del instance['devices'] instance['host_nic_ip'] = 'reserve' server_list.append(instance) hccn_table['server_count'] = server_count hccn_table['server_list'] = server_list hccn_table['status'] = status
with open(rank_table_file_path, 'w') as convert_fp: json.dump(hccn_table, convert_fp, indent=4)
sys.stdout.flush()

if __name__ == "__main__":

Issue 02 (2021-03-22)

199

MindX DL User Guide

3 Usage Guidelines

if len(sys.argv) != 3: print("Parameter is invalid, exit!!!") exit(1)
hccl_path = sys.argv[1] rank_table_file_path = sys.argv[2] creat_rank_table_file(hccl_path, rank_table_file_path)
2. Run the following command to create the train_start.sh file:
vim train_start.sh
Add the following content to the file and run the :wq command to save the file:
#!/bin/bash # set -x
# rank_table_file generated by HCCL-Controller export RANK_TABLE_FILE=/user/serverid/devindex/config/hccl.json
# Parse rank_table_file. function get_json_value() {
local json=$1 local key=$2
if [[ -z "$3" ]]; then local num=1
else local num=$3
fi
local value=$(cat "${json}" | awk -F"[,:}]" '{for(i=1;i<=NF;i++){if($i~/'${key}'\042/){print $(i+1)}}}' | tr -d '"' | sed -n ${num}p)
echo ${value} }
# Check the status of rank_table_file. function check_hccl_status() {
local retry_times=60 local retry_interval=5 for (( n=1;n<=$retry_times;n++ ));do {
local status=$(get_json_value ${RANK_TABLE_FILE} status) if [[ "$status" != "completed" ]]; then
echo "hccl status is not completed, wait 5s and retry." | tee -a hccl.log sleep $retry_interval continue else echo 0 return fi } done echo 1 }
ret=$(check_hccl_status) if [[ "${ret}" == "1" ]]; then
echo "wait hccl status timeout, train job failed." | tee -a hccl.log exit 1 fi
sleep 1

# Obtain the value of the device_count field in the hcl.json file. device_count=$(get_json_value ${RANK_TABLE_FILE} device_count) if [[ "$device_count" == "" ]]; then
echo "device count is 0, train job failed." | tee -a hccl.log

Issue 02 (2021-03-22)

200

MindX DL User Guide

3 Usage Guidelines

exit 1 fi
# Obtain the value of the instance_count field in the hcl.json file. instance_count=$(get_json_value ${RANK_TABLE_FILE} instance_count) if [[ "$instance_count" == "" ]]; then
echo "instance count is 0, train job failed." | tee -a hccl.log exit 1 fi # Single-node training scenario if [[ "$instance_count" == "1" ]]; then device_count=$(get_json_value ${RANK_TABLE_FILE} device_count) server_id=0 if [ ${device_count} -eq 1 ]; then
bash main.sh /job/data/cifar-10-batches-bin/ fi if [ ${device_count} -gt 1 ]; then
python hccl2ranktable.py ${RANK_TABLE_FILE} /job/code/resnet/rank_table_${instance_count}x$ {device_count}pcs.json
bash main.sh ${device_count} /job/code/resnet/rank_table_${instance_count}x$ {device_count}pcs.json ${server_id} /job/data/cifar-10-batches-bin/
fi
# Distributed training scenario else
rank_index=`echo $HOSTNAME | awk -F"-" '{print $NF}'` device_count=8
python hccl2ranktable.py ${RANK_TABLE_FILE} /job/code/resnet/rank_table_${instance_count}x$ {device_count}pcs.json
bash main.sh ${device_count} /job/code/resnet/rank_table_${instance_count}x$ {device_count}pcs.json ${rank_index} /job/data/cifar-10-batches-bin/ fi
wait
3. Run the following command to create the main.sh file:
vim main.sh
Add the following content to the file and run the :wq command to save the file:
#!/bin/bash
ulimit -u unlimited
# Single-device single-card if [ $# == 1 ]; then
export DEVICE_NUM=1 export DEVICE_ID=0 export RANK_ID=0 export RANK_SIZE=1
if [ -d "train" ]; then
rm -rf ./train fi mkdir ./train cp ../*.py ./train cp *.sh ./train cp -r ../src ./train cd ./train || exit echo "start training for device $DEVICE_ID" env > env.log
# Keep the foreground output. python train.py --net=resnet50 --dataset=cifar10 --dataset_path=$1 | tee log
fi
# Single-device multi-card and distributed deployment

Issue 02 (2021-03-22)

201

MindX DL User Guide

3 Usage Guidelines

if [ $# == 4 ]; then export DEVICE_NUM=$1 export RANK_SIZE=$1 export RANK_TABLE_FILE=$2
export SERVER_ID=$3 rank_start=$((DEVICE_NUM * SERVER_ID))
# Start the background job and check the log output of a foreground job. for((i=1; i<${DEVICE_NUM}; i++)) do rankid=$((rank_start + i)) export DEVICE_ID=${i} export RANK_ID=${rankid} rm -rf ./train_parallel${rankid} mkdir ./train_parallel${rankid} cp ../*.py ./train_parallel${rankid} cp *.sh ./train_parallel${rankid} cp -r ../src ./train_parallel${rankid} cd ./train_parallel${rankid} || exit echo "start training for rank $RANK_ID, device $DEVICE_ID" env > env.log
python train.py --net=resnet50 --dataset=cifar10 --run_distribute=True --device_num= $DEVICE_NUM --dataset_path=$4 &> log &
cd .. done
rankid=$((rank_start)) export DEVICE_ID=0 export RANK_ID=${rankid} rm -rf ./train_parallel${rankid} mkdir ./train_parallel${rankid} cp ../*.py ./train_parallel${rankid} cp *.sh ./train_parallel${rankid} cp -r ../src ./train_parallel${rankid} cd ./train_parallel${rankid} || exit echo "start training for rank $RANK_ID, device $DEVICE_ID" env > env.log
python train.py --net=resnet50 --dataset=cifar10 --run_distribute=True --device_num= $DEVICE_NUM --dataset_path=$4 | tee log
cd .. fi
----End
3.6.2 Creating a Container Image Using a Dockerfile (TensorFlow)

Prerequisites
Obtain the software packages of the corresponding operating system and the Dockerfile and script files required for packaging images by referring to Table 3-7.
In the names of the deep learning acceleration engine package and framework plugin package, {version} indicates the package version, {arch} indicates the OS.

Issue 02 (2021-03-22)

202

MindX DL User Guide

3 Usage Guidelines

Table 3-7 Required software Software Package Ascend-cann-nnae_{version}_linux-{arch}.run
Ascend-cann-tfplugin_{version}_linux-{arch}.run ARM: tensorflow-1.15.0-cp37-cp37m-
linux_aarch64.whl x86: tensorflow_cpu-1.15.0-cp37-cp37m-
manylinux2010_x86_64.whl
Dockerfile ascend_install.info

Description
Deep learning engine software package Framework plugin package WHL package of the TensorFlow framework
Required for creating an image Software package installation log file

How to Obtain
Link
Link
For the ARM architectu re, see Creating the WHL Package of the TensorFlo w Framewo rk.
For the x86 architectu re, download the x86 TensorFlo w framewor k.
Prepared by users
Copy the /etc/ ascend_insta ll.info file from the host.

Issue 02 (2021-03-22)

203

MindX DL User Guide

Software Package version.info

prebuild.sh

install_ascend_pkgs.sh postbuild.sh

3 Usage Guidelines

Description How to Obtain

Driver package version information file

Copy the /usr/ local/ Ascend/ driver/ version.info file from the host.

Script used to prepare for the installation of the training operating environment, for example, configuring the agent.

Prepared by users

Script for installing the Ascend software package.

Delete the installation packages, scripts, and proxy configuration s that do not need to be retained in the container.

Issue 02 (2021-03-22)

204

MindX DL User Guide

3 Usage Guidelines

Ascend-cann-nnae_{version}_linux-{arch}.run Ascend-cann-tfplugin_{version}_linux-{arch}.run tensorflow-1.15.0-cp37-cp37m-linux_aarch64.whl ascend_install.info version.info
Step 2 Log in to the server as the root user.
Step 3 Perform the following steps to prepare the prebuild.sh file:
1. Go to the directory where the software package is stored and run the following command to create the prebuild.sh file: vim prebuild.sh
2. For details about the content to be written, see the prebuild.sh compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 4 Perform the following steps to prepare the install_ascend_pkgs.sh file:
1. Go to the directory where the software package is stored and run the following command to create the install_ascend_pkgs.sh file: vim install_ascend_pkgs.sh
2. For details about the content to be written, see the install_ascend_pkgs.sh compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 5 Perform the following steps to prepare the postbuild.sh file:
1. Go to the directory where the software package is stored and run the following command to create the postbuild.sh file: vim postbuild.sh
2. For details about the content to be written, see the postbuild.sh compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 6 Perform the following steps to prepare the Dockerfile file:
1. Go to the directory where the software package is stored and run the following command to create the Dockerfile file: vim Dockerfile
2. For details about the content to be written, see the Dockerfile in the Ubuntu ARM system. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
NOTE
To obtain the image ubuntu:18.04, you can also run the docker pull ubuntu:18.04 command to obtain the image from Docker Hub.
Step 7 Go to the directory where the software package is stored and run the following command to create a container image:
docker build -t Image name_System architecture:Image tag .
Example:

Issue 02 (2021-03-22)

205

MindX DL User Guide

3 Usage Guidelines

docker build -t test_train_arm64:v1.0 . Table 3-8 describes the commands.

Table 3-8 Command parameter description

Parameter

Description

-t

Image name.

Image name_System architecture:Image tag

Image name and tag. Change them based on the actual situation.

If "Successfully built xxx" is displayed, the image is successfully created. Do not omit . at the end of the command.

Step 8 After the image is created, run the following command to view the image information:

docker images

Example:

REPOSITORY

TAG

test_train_arm64

v1.0

IMAGE ID d82746acd7f0

CREATED

SIZE

27 minutes ago 749MB

Step 9 Run the following command to access the container:

docker run -it Image name_System architecture:Image tag bash

Example:

docker run -it test_train_arm64:v1.0 bash

Step 10 Run the following command to obtain the naming.log file:

find /usr/local/ -name "freeze_graph.py"

root@032953231d61:/tmp# find /usr/local/ -name "freeze_graph.py" /usr/local/lib/python3.7/dist-packages/tensorflow_core/python/tools/freeze_graph.py

Step 11 Run the following command to modify the file in the image:

vim /usr/local/lib/python3.7/dist-packages/tensorflow_core/python/tools/ freeze_graph.py

Add the following content.
from npu_bridge.estimator import npu_ops from npu_bridge.estimator.npu.npu_config import NPURunConfig from npu_bridge.estimator.npu.npu_estimator import NPUEstimator from npu_bridge.estimator.npu.npu_optimizer import allreduce from npu_bridge.estimator.npu.npu_optimizer import NPUDistributedOptimizer from npu_bridge.hccl import hccl_ops

Run the :wq command to save the configuration and exit.

Step 12 Run the exit command to exit the container.

Step 13 Run the following command to save the current image:

docker commit containerid Image name_System architecture:Image tag

Issue 02 (2021-03-22)

206

MindX DL User Guide

3 Usage Guidelines

Example:
root@032953231d61:/tmp# exit exit root@ubuntu-185:/data/kfa/train# docker commit 032953231d61 test_train_arm64:v2.0
NOTE
In the preceding example, the value of containerid is 032953231d61.
----End
Compilation Examples
NOTE
Modify the software package version and architecture based on the actual situation.
1. Compilation example of prebuild.sh (Ubuntu)
#!/bin/bash #-------------------------------------------------------------------------------# Use the bash syntax to compile script code and prepare for the installation, for example, configuring the proxy. # This script will be run before the formal creation process is started. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# DNS settings. If the DNS settings are not required, delete them. tee /etc/resolv.conf <<- EOF nameserver xxx.xxx.xxx.xxx #IP address of the DNS server. You can enter multiple IP addresses based on the site requirements. nameserver xxx.xxx.xxx.xxx nameserver xxx.xxx.xxx.xxx EOF # APT proxy settings tee /etc/apt/apt.conf.d/80proxy <<- EOF Acquire::http::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTP proxy server. Acquire::https::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTPS proxy server. EOF chmod 777 -R /tmp rm /var/lib/apt/lists/* #APT source settings (The following uses Ubuntu 18.04 ARM as an example. Set the information based on the site requirements.) tee /etc/apt/sources.list <<- EOF deb http://mirrors.aliyun.com/ubuntu-ports/ bionic main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-security main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-security main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-updates main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-updates main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-proposed main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-proposed main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-backports main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-backports main restricted universe multiverse EOF
Example of compiling the prebuild.sh script for the Ubuntu x86 OS
#!/bin/bash #--------------------------------------------------------------------------------
# Use the bash syntax to compile script code and prepare for the installation, for example, configuring the proxy. # This script will be run before the formal creation process is started. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained

Issue 02 (2021-03-22)

207

MindX DL User Guide

3 Usage Guidelines
in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# APT proxy settings tee /etc/apt/apt.conf.d/80proxy <<- EOF Acquire::http::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTP proxy server. Acquire::https::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTPS proxy server. EOF
#APT source settings (The following uses Ubuntu 18.04 x86 as an example. Set the information based on the site requirements.) tee /etc/apt/sources.list <<- EOF deb http://mirrors.ustc.edu.cn/ubuntu/ bionic main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-security main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-security main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main multiverse restricted universe EOF
2. Compilation example of install_ascend_pkgs.sh
#!/bin/bash #-------------------------------------------------------------------------------# Use the bash syntax to compile script code and install the Ascend software package. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# Copy the /etc/ascend_install.info file on the host to the current directory before creating the container image. cp ascend_install.info /etc/ # Copy the /usr/local/Ascend/driver/version.info file on the host to the current directory before creating the container image. mkdir -p /usr/local/Ascend/driver/ cp version.info /usr/local/Ascend/driver/
# Ascend-cann-nnae_{version}_linux-{arch}.run chmod +x Ascend-cann-nnae_{version}_linux-{arch}.run ./Ascend-cann-nnae_{version}_linux-{arch}.run --install-path=/usr/local/Ascend/ --install --quiet
# Ascend-cann-tfplugin_{version}_linux-{arch}.run chmod +x Ascend-cann-tfplugin_{version}_linux-{arch}.run ./Ascend-cann-tfplugin_{version}_linux-{arch}.run --install-path=/usr/local/Ascend/ --install --quiet
#Only for the installation of the nnae package. Therefore, the nnae package needs to be cleared. When the container is started, the nnae package is mounted by the Ascend Docker. rm -f version.info rm -rf /usr/local/Ascend/driver/
3. Compilation example of postbuild.sh (Ubuntu)
#!/bin/bash #-------------------------------------------------------------------------------# Use the bash syntax to compile the script code and delete the installation packages, scripts, and proxy configurations that do not need to be retained in the container. # This script will be run after the formal creation process ends. # # Note: After this script is run, it is automatically cleared and will not be left in the image. The scripts and Working Dir are stored in /root. #--------------------------------------------------------------------------------
rm -f ascend_install.info rm -f prebuild.sh rm -f install_ascend_pkgs.sh rm -f Dockerfile rm -f Ascend-cann-nnae_{version}_linux-{arch}.run

Issue 02 (2021-03-22)

208

MindX DL User Guide

3 Usage Guidelines
rm -f Ascend-cann-tfplugin_{version}_linux-{arch}.run rm -f tensorflow-1.15.0-cp37-cp37m-linux_{arch}.whl rm -f /etc/apt/apt.conf.d/80proxy
# Delete if not required tee /etc/resolv.conf <<- EOF # This file is managed by man:systemd-resolved(8). Do not edit. # # This is a dynamic resolv.conf file for connecting local clients to the # internal DNS stub resolver of systemd-resolved. This file lists all # configured search domains. # # Run "systemd-resolve --status" to see details about the uplink DNS servers # currently in use. # # Third party programs must not access this file directly, but only through the # symlink at /etc/resolv.conf. To manage man:resolv.conf(5) in a different way, # replace this symlink by a static file or a different symlink. # # See man:systemd-resolved.service(8) for details about the supported modes of # operation for /etc/resolv.conf.
options edns0
nameserver xxx.xxx.xxx.xxx nameserver xxx.xxx.xxx.xxx EOF
4. Dockerfile compilation sample
The following is an example of the Dockerfile in the Ubuntu ARM system.
FROM ubuntu:18.04
ARG TF_PKG=tensorflow-1.15.0-cp37-cp37m-linux_aarch64.whl ARG HOST_ASCEND_BASE=/usr/local/Ascend ARG NNAE_PATH=/usr/local/Ascend/nnae/latest ARG TF_PLUGIN_PATH=/usr/local/Ascend/tfplugin/latest ARG INSTALL_ASCEND_PKGS_SH=install_ascend_pkgs.sh ARG PREBUILD_SH=prebuild.sh ARG POSTBUILD_SH=postbuild.sh WORKDIR /tmp COPY . ./
# Trigger prebuild.sh. RUN bash -c "test -f $PREBUILD_SH && bash $PREBUILD_SH || true"
ENV http_proxy http://xxx.xxx.xxx.xxx:xxx ENV https_proxy http://xxx.xxx.xxx.xxx:xxx
# System package RUN apt update && \
apt install --no-install-recommends \ python3.7 python3.7-dev \ curl g++ pkg-config unzip \ libblas3 liblapack3 liblapack-dev \ libblas-dev gfortran libhdf5-dev \ libffi-dev libicu60 libxml2 -y
# Configure the Python PIP source. RUN mkdir -p ~/.pip \ && echo '[global] \n\ index-url=https://pypi.doubanio.com/simple/\n\ trusted-host=pypi.doubanio.com' >> ~/.pip/pip.conf
# pip3.7 RUN curl -k https://bootstrap.pypa.io/get-pip.py -o get-pip.py && \
cd /tmp && \ apt-get download python3-distutils && \ dpkg-deb -x python3-distutils_*.deb / && \ rm python3-distutils_*.deb && \

Issue 02 (2021-03-22)

209

MindX DL User Guide

3 Usage Guidelines
cd - && \ python3.7 get-pip.py && \ rm get-pip.py
# HwHiAiUser, hwMindX RUN useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX && \
useradd -d /home/HwHiAiUser -u 1000 -m -s /bin/bash HwHiAiUser && \ usermod -a -G HwHiAiUser hwMindX
# Python package RUN pip3.7 install numpy && \
pip3.7 install decorator && \ pip3.7 install sympy==1.4 && \ pip3.7 install cffi==1.12.3 && \ pip3.7 install pyyaml && \ pip3.7 install pathlib2 && \ pip3.7 install grpcio && \ pip3.7 install grpcio-tools && \ pip3.7 install protobuf && \ pip3.7 install scipy && \ pip3.7 install requests
# Ascend package RUN bash $INSTALL_ASCEND_PKGS_SH
# TensorFlow installation ENV LD_LIBRARY_PATH=\ /usr/lib/aarch64-linux-gnu/hdf5/serial:\ $HOST_ASCEND_BASE/add-ons:\ $NNAE_PATH/fwkacllib/lib64:\ $HOST_ASCEND_BASE/driver/lib64/common:\ $HOST_ASCEND_BASE/driver/lib64/driver:$LD_LIBRARY_PATH
RUN pip3.7 install $TF_PKG
# Environment variables ENV GLOG_v=2 ENV TBE_IMPL_PATH=$NNAE_PATH/opp/op_impl/built-in/ai_core/tbe ENV TF_PLUGIN_PKG=$TF_PLUGIN_PATH/tfplugin/python/site-packages ENV FWK_PYTHON_PATH=$NNAE_PATH/fwkacllib/python/site-packages ENV PATH=$NNAE_PATH/fwkacllib/ccec_compiler/bin:$PATH ENV ASCEND_OPP_PATH=$NNAE_PATH/opp ENV PYTHONPATH=\ $FWK_PYTHON_PATH:\ $FWK_PYTHON_PATH/auto_tune.egg:\ $FWK_PYTHON_PATH/schedule_search.egg:\ $TF_PLUGIN_PKG:\ $TBE_IMPL_PATH:\ $PYTHONPATH
# Create /lib64/ld-linux-aarch64.so.1. RUN umask 0022 && \
if [ ! -d "/lib64" ]; \ then \
mkdir /lib64 && ln -sf /lib/ld-linux-aarch64.so.1 /lib64/ld-linux-aarch64.so.1; \ fi
ENV http_proxy "" ENV https_proxy ""
# Trigger postbuild.sh. RUN bash -c "test -f $POSTBUILD_SH && bash $POSTBUILD_SH || true" && \
rm $POSTBUILD_SH
Dockerfile example for Ubuntu x86
FROM ubuntu:18.04 # The following lines are used for online download and installation during image compilation. It is mutually exclusive with the WHL configuration. ARG TF_PKG=tensorflow-cpu==1.15.0 # Use the offline x86 TensorFlow package, comment out the upper line, and delete the

Issue 02 (2021-03-22)

210

MindX DL User Guide

3 Usage Guidelines
comment tag (#) from the lower line. #ARG TF_PKG=tensorflow_cpu-1.15.0-cp37-cp37m-manylinux2010_x86_64.whl ARG HOST_ASCEND_BASE=/usr/local/Ascend ARG NNAE_PATH=/usr/local/Ascend/nnae/latest ARG TF_PLUGIN_PATH=/usr/local/Ascend/tfplugin/latest ARG INSTALL_ASCEND_PKGS_SH=install_ascend_pkgs.sh ARG PREBUILD_SH=prebuild.sh ARG POSTBUILD_SH=postbuild.sh WORKDIR /tmp COPY . ./
# Triggering prebuild.sh RUN bash -c "test -f $PREBUILD_SH && bash $PREBUILD_SH || true"
ENV http_proxy http://xxx.xxx.xxx.xxx:xxx ENV https_proxy http://xxx.xxx.xxx.xxx:xxx
# System package RUN apt update && \
apt install --no-install-recommends \ python3.7 python3.7-dev \ curl g++ pkg-config unzip \ libblas3 liblapack3 liblapack-dev \ libblas-dev gfortran libhdf5-dev \ libffi-dev libicu60 libxml2 -y
# Configuring the Python PIP source RUN mkdir -p ~/.pip \ && echo '[global] \n\ index-url=https://pypi.doubanio.com/simple/\n\ trusted-host=pypi.doubanio.com' >> ~/.pip/pip.conf
# pip3.7 RUN curl -k https://bootstrap.pypa.io/get-pip.py -o get-pip.py && \
cd /tmp && \ apt-get download python3-distutils && \ dpkg-deb -x python3-distutils_*.deb / && \ rm python3-distutils_*.deb && \ cd - && \ python3.7 get-pip.py && \ rm get-pip.py
# HwHiAiUser, hwMindX RUN useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX && \
useradd -d /home/HwHiAiUser -u 1000 -m -s /bin/bash HwHiAiUser && \ usermod -a -G HwHiAiUser hwMindX
# Python package RUN pip3.7 install numpy && \
pip3.7 install decorator && \ pip3.7 install sympy==1.4 && \ pip3.7 install cffi==1.12.3 && \ pip3.7 install pyyaml && \ pip3.7 install pathlib2 && \ pip3.7 install grpcio && \ pip3.7 install grpcio-tools && \ pip3.7 install protobuf && \ pip3.7 install scipy && \ pip3.7 install requests
# Ascend package RUN bash $INSTALL_ASCEND_PKGS_SH
# TensorFlow installation ENV LD_LIBRARY_PATH=\ /usr/lib/x86_64-linux-gnu/hdf5/serial:\ $HOST_ASCEND_BASE/add-ons:\ $NNAE_PATH/fwkacllib/lib64:\ $HOST_ASCEND_BASE/driver/lib64/common:\

Issue 02 (2021-03-22)

211

MindX DL User Guide

3 Usage Guidelines

$HOST_ASCEND_BASE/driver/lib64/driver:$LD_LIBRARY_PATH
RUN pip3.7 install $TF_PKG
# Environment variables ENV GLOG_v=2 ENV TBE_IMPL_PATH=$NNAE_PATH/opp/op_impl/built-in/ai_core/tbe ENV TF_PLUGIN_PKG=$TF_PLUGIN_PATH/tfplugin/python/site-packages ENV FWK_PYTHON_PATH=$NNAE_PATH/fwkacllib/python/site-packages ENV PATH=$NNAE_PATH/fwkacllib/ccec_compiler/bin:$PATH ENV ASCEND_OPP_PATH=$NNAE_PATH/opp ENV PYTHONPATH=\ $FWK_PYTHON_PATH:\ $FWK_PYTHON_PATH/auto_tune.egg:\ $FWK_PYTHON_PATH/schedule_search.egg:\ $TF_PLUGIN_PKG:\ $TBE_IMPL_PATH:\ $PYTHONPATH
ENV http_proxy "" ENV https_proxy ""
# Triggering postbuild.sh RUN bash -c "test -f $POSTBUILD_SH && bash $POSTBUILD_SH || true" && \
rm $POSTBUILD_SH
3.6.3 Creating a Container Image Using a Dockerfile (PyTorch)

Prerequisites
Obtain the software packages of the corresponding operating system and the Dockerfile and script files required for packaging images by referring to Table 3-9.
In the software package names, {version} indicates the version and {arch} indicates the OS architecture.

Table 3-9 Required software Software Package Ascend-cann-nnae_{version}_linux-{arch}.run
apex-0.1+ascend-cp37-cp37m-linux_{arch}.whl
torch-1.5.0+ascend.post2-cp37-cp37mlinux_{arch}.whl Dockerfile

Description
Deep learning engine software package
Mixed precision module
PyTorch Adapter plugin
Required for creating an image

How to Obtain Link
Link
Link
Prepared by users

Issue 02 (2021-03-22)

212

MindX DL User Guide

Software Package dllogger-master ascend_install.info

version.info

prebuild.sh

install_ascend_pkgs.sh postbuild.sh

3 Usage Guidelines

Description How to Obtain

PyTorch log Link tool

Software package installation log file

Copy the /etc/ ascend_insta ll.info file from the host.

Driver package version information file

Copy the /usr/ local/ Ascend/ driver/ version.info file from the host.

Script used to prepare for the installation of the training operating environment, for example, configuring the agent.

Prepared by users

Script for installing the Ascend software package.

Delete the installation packages, scripts, and proxy configuration s that do not need to be retained in the container.

Issue 02 (2021-03-22)

213

MindX DL User Guide

3 Usage Guidelines

NOTE
This section uses Ubuntu ARM as an example.
Procedure
Step 1 Upload the software package, deep learning framework, host Ascend software package installation information file, and driver package version information file to the same directory (for example, /home/test) on the server. Ascend-cann-nnae_{version}_linux-{arch}.run apex-0.1+ascend-cp37-cp37m-linux_{arch}.whl torch-1.5.0+ascend.post2-cp37-cp37m-linux_{arch}.whl dllogger-master ascend_install.info version.info
Step 2 Log in to the server as the root user.
Step 3 Perform the following steps to prepare the prebuild.sh file:
1. Go to the directory where the software package is stored and run the following command to create the prebuild.sh file: vim prebuild.sh
2. For details about the content to be written, see the prebuild.sh compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 4 Perform the following steps to prepare the install_ascend_pkgs.sh file:
1. Go to the directory where the software package is stored and run the following command to create the install_ascend_pkgs.sh file: vim install_ascend_pkgs.sh
2. For details about the content to be written, see the install_ascend_pkgs.sh compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 5 Perform the following steps to prepare the postbuild.sh file:
1. Go to the directory where the software package is stored and run the following command to create the postbuild.sh file: vim postbuild.sh
2. For details about the content to be written, see the postbuild.sh compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 6 Perform the following steps to prepare the Dockerfile file:
1. Go to the directory where the software package is stored and run the following command to create the Dockerfile file: vim Dockerfile
2. For details about the content to be written, see the Dockerfile compilation example. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.

Issue 02 (2021-03-22)

214

MindX DL User Guide

3 Usage Guidelines

NOTE
To obtain the image ubuntu:18.04, you can also run the docker pull ubuntu:18.04 command to obtain the image from Docker Hub.
Step 7 Go to the directory where the software package is stored and run the following command to create a container image: docker build -t Image name_System architecture:Image tag . Example: docker build -t test_train_arm64:v1.0 . Table 3-10 describes the commands.

Table 3-10 Command parameter description

Parameter

Description

-t

Image name.

Image name_System architecture:Image tag

Image name and tag. Change them based on the actual situation.

If "Successfully built xxx" is displayed, the image is successfully created. Do not omit . at the end of the command.

Step 8 After the image is created, run the following command to view the image information:

docker images

Example:

REPOSITORY

TAG

test_train_arm64 v1.0

IMAGE ID d82746acd7f0

CREATED

SIZE

27 minutes ago 749MB

----End

Compilation Examples
NOTE
Modify the software package version and architecture based on the actual situation.
1. Compilation example of prebuild.sh
Example of compiling the prebuild.sh script for the Ubuntu ARM OS
#!/bin/bash #-------------------------------------------------------------------------------# Use the bash syntax to compile script code and prepare for the installation, for example, configuring the proxy. # This script will be run before the formal creation process is started. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# DNS settings tee /etc/resolv.conf <<- EOF

Issue 02 (2021-03-22)

215

MindX DL User Guide

3 Usage Guidelines

nameserver xxx.xxx.xxx.xxx #IP address of the DNS server. You can enter multiple IP addresses based on the site requirements. nameserver xxx.xxx.xxx.xxx nameserver xxx.xxx.xxx.xxx EOF # APT proxy settings tee /etc/apt/apt.conf.d/80proxy <<- EOF Acquire::http::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTP proxy server. Acquire::https::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTPS proxy server. EOF chmod 777 -R /tmp rm /var/lib/apt/lists/* #APT source settings (The following uses Ubuntu 18.04 ARM as an example. Set the information based on the site requirements.) tee /etc/apt/sources.list <<- EOF deb http://mirrors.aliyun.com/ubuntu-ports/ bionic main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-security main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-security main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-updates main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-updates main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-proposed main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-proposed main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-backports main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-backports main restricted universe multiverse EOF
Example of compiling the prebuild.sh script for the Ubuntu x86 OS
#!/bin/bash #--------------------------------------------------------------------------------
# Use the bash syntax to compile script code and prepare for the installation, for example, configuring the proxy. # This script will be run before the formal creation process is started. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# APT proxy settings tee /etc/apt/apt.conf.d/80proxy <<- EOF Acquire::http::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTP proxy server. Acquire::https::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTPS proxy server. EOF
#APT source settings (The following uses Ubuntu 18.04 x86 as an example. Set the information based on the site requirements.) tee /etc/apt/sources.list <<- EOF deb http://mirrors.ustc.edu.cn/ubuntu/ bionic main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-security main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-security main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main multiverse restricted universe EOF
2. Compilation example of install_ascend_pkgs.sh
#-------------------------------------------------------------------------------# Use the bash syntax to compile script code and install the Ascend software package. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #--------------------------------------------------------------------------------

Issue 02 (2021-03-22)

216

MindX DL User Guide

3 Usage Guidelines

cp ascend_install.info /etc/ # Copy the /usr/local/Ascend/driver/version.info file on the host to the current directory before creating the container image. mkdir -p /usr/local/Ascend/driver/ cp version.info /usr/local/Ascend/driver/ # Ascend-cann-nnae_{version}_linux-{arch}.run chmod +x Ascend-cann-nnae_{version}_linux-{arch}.run ./Ascend-cann-nnae_{version}_linux-{arch}.run --install-path=/usr/local/Ascend/ --install --quiet # Only for the installation of the nnae package. Therefore, the nnae package needs to be cleared. When the container is started, the nnae package is mounted by the Ascend Docker. rm -f version.info rm -rf /usr/local/Ascend/driver/
3. Compilation example of postbuild.sh
#-------------------------------------------------------------------------------# Use the bash syntax to compile the script code and delete the installation packages, scripts, and proxy configurations that do not need to be retained in the container. # This script will be run after the formal creation process ends. # # Note: After this script is run, it is automatically cleared and will not be left in the image. The scripts and Working Dir are stored in /tmp. #-------------------------------------------------------------------------------rm -f ascend_install.info rm -f prebuild.sh rm -f install_ascend_pkgs.sh rm -f Dockerfile rm -f Ascend-cann-nnae_{version}_linux-{arch}.run rm -f apex-0.1+ascend-cp37-cp37m-linux_{arch}.whl rm -f torch-1.5.0+ascend.post2-cp37-cp37m-linux_{arch}.whl rm -f /etc/apt/apt.conf.d/80proxy
4. Dockerfile compilation sample
The following is an example of the Dockerfile in the Ubuntu ARM system.
FROM ubuntu:18.04
ARG PYTORCH_PKG=torch-1.5.0+ascend-cp37-cp37m-linux_aarch64.whl ARG APEX_PKG=apex-0.1+ascend-cp37-cp37m-linux_aarch64.whl ARG HOST_ASCEND_BASE=/usr/local/Ascend ARG NNAE_PATH=/usr/local/Ascend/nnae/latest # ARG TF_PLUGIN_PATH=/usr/local/Ascend/tfplugin/latest ARG INSTALL_ASCEND_PKGS_SH=install_ascend_pkgs.sh ARG PREBUILD_SH=prebuild.sh ARG POSTBUILD_SH=postbuild.sh
WORKDIR /tmp COPY . ./
# Triggering prebuild.sh RUN bash -c "test -f $PREBUILD_SH && bash $PREBUILD_SH || true"
ENV http_proxy http://xxx.xxx.xxx.xxx:xxx ENV https_proxy http://xxx.xxx.xxx.xxx:xxx
# System package RUN apt update && \
apt install --no-install-recommends \ python3.7 python3.7-dev \ curl g++ pkg-config unzip \ libblas3 liblapack3 liblapack-dev \ libblas-dev gfortran libhdf5-dev \ libffi-dev libicu60 libxml2 -y
# Configuring the Python PIP source RUN mkdir -p ~/.pip \ && echo '[global] \n\ index-url=https://pypi.doubanio.com/simple/\n\ trusted-host=pypi.doubanio.com' >> ~/.pip/pip.conf
# pip3.7 RUN curl -k https://bootstrap.pypa.io/get-pip.py -o get-pip.py && \

Issue 02 (2021-03-22)

217

MindX DL User Guide

3 Usage Guidelines
cd /tmp && \ apt-get download python3-distutils && \ dpkg-deb -x python3-distutils_*.deb / && \ rm python3-distutils_*.deb && \ cd - && \ python3.7 get-pip.py && \ rm get-pip.py
# HwHiAiUser, hwMindX RUN useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX && \
useradd -d /home/HwHiAiUser -u 1000 -m -s /bin/bash HwHiAiUser && \ usermod -a -G HwHiAiUser hwMindX
# Python package RUN pip3.7 install numpy && \
pip3.7 install decorator && \ pip3.7 install sympy==1.4 && \ pip3.7 install cffi==1.12.3 && \ pip3.7 install pyyaml && \ pip3.7 install pathlib2 && \ pip3.7 install grpcio && \ pip3.7 install grpcio-tools && \ pip3.7 install protobuf && \ pip3.7 install scipy && \ pip3.7 install requests && \ pip3.7 install attrs
# Ascend package RUN bash $INSTALL_ASCEND_PKGS_SH
# PyTorch installation ENV LD_LIBRARY_PATH=\ /usr/lib/aarch64-linux-gnu/hdf5/serial:\ $HOST_ASCEND_BASE/add-ons:\ $NNAE_PATH/fwkacllib/lib64:\ $HOST_ASCEND_BASE/driver/lib64/common:\ $HOST_ASCEND_BASE/driver/lib64/driver:$LD_LIBRARY_PATH
RUN pip3.7 install $APEX_PKG
RUN pip3.7 install $PYTORCH_PKG
RUN pip3.7 install torchvision
RUN cd /tmp/dllogger-master/ && \ python3.7 setup.py build && \ python3.7 setup.py install
# Environment variables ENV GLOG_v=2 ENV TBE_IMPL_PATH=$NNAE_PATH/opp/op_impl/built-in/ai_core/tbe ENV FWK_PYTHON_PATH=$NNAE_PATH/fwkacllib/python/site-packages ENV PATH=$NNAE_PATH/fwkacllib/ccec_compiler/bin:$PATH ENV ASCEND_OPP_PATH=$NNAE_PATH/opp ENV PYTHONPATH=\ $FWK_PYTHON_PATH:\ $FWK_PYTHON_PATH/auto_tune.egg:\ $FWK_PYTHON_PATH/schedule_search.egg:\ $TBE_IMPL_PATH:\ $PYTHONPATH
# Creating /lib64/ld-linux-aarch64.so.1 RUN umask 0022 && \
if [ ! -d "/lib64" ]; \ then \
mkdir /lib64 && ln -sf /lib/ld-linux-aarch64.so.1 /lib64/ld-linux-aarch64.so.1; \ fi
ENV http_proxy ""

Issue 02 (2021-03-22)

218

MindX DL User Guide

3 Usage Guidelines

ENV https_proxy ""
# Triggering postbuild.sh RUN bash -c "test -f $POSTBUILD_SH && bash $POSTBUILD_SH || true" && \
rm $POSTBUILD_SH
Dockerfile example for Ubuntu x86
FROM ubuntu:18.04
ARG PYTORCH_PKG=torch-1.5.0+ascend-cp37-cp37m-linux_x86_64.whl ARG APEX_PKG=apex-0.1+ascend-cp37-cp37m-linux_x86_64.whl ARG HOST_ASCEND_BASE=/usr/local/Ascend ARG NNAE_PATH=/usr/local/Ascend/nnae/latest ARG INSTALL_ASCEND_PKGS_SH=install_ascend_pkgs.sh ARG PREBUILD_SH=prebuild.sh ARG POSTBUILD_SH=postbuild.sh WORKDIR /tmp COPY . ./
# Triggering prebuild.sh RUN bash -c "test -f $PREBUILD_SH && bash $PREBUILD_SH || true"
#System package RUN apt update RUN apt install --no-install-recommends python3.7 python3.7-dev -y RUN apt install --no-install-recommends curl g++ pkg-config unzip -y RUN apt install --no-install-recommends libblas3 liblapack3 liblapack-dev libblas-dev gfortran libhdf5dev libffi-dev \
libicu60 libxml2 -y
ENV http_proxy http://xxx.xxx.xxx.xxx:xxx ENV https_proxy http://xxx.xxx.xxx.xxx:xxx
# Configure the Python PIP source. RUN mkdir -p ~/.pip \ && echo '[global] \n\ index-url=https://pypi.doubanio.com/simple/\n\ trusted-host=pypi.doubanio.com' >> ~/.pip/pip.conf
# pip3.7 RUN curl -k https://bootstrap.pypa.io/get-pip.py -o get-pip.py && \
cd /tmp && \ apt-get download python3-distutils && \ dpkg-deb -x python3-distutils_*.deb / && \ rm python3-distutils_*.deb && \ cd - && \ python3.7 get-pip.py && \ rm get-pip.py
# HwHiAiUser, hwMindX RUN umask 0022 && \ useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX && \ useradd -d /home/HwHiAiUser -u 1000 -m -s /bin/bash HwHiAiUser && \ usermod -a -G HwHiAiUser hwMindX
# Python package RUN pip3.7 install numpy && \
pip3.7 install decorator && \ pip3.7 install sympy==1.4 && \ pip3.7 install cffi==1.12.3 && \ pip3.7 install pyyaml && \ pip3.7 install pathlib2 && \ pip3.7 install grpcio && \ pip3.7 install grpcio-tools && \ pip3.7 install protobuf && \ pip3.7 install scipy && \ pip3.7 install requests && \ pip3.7 install attrs && \ pip3.7 install Pillow && \ pip3.7 install torchvision==0.6.0

Issue 02 (2021-03-22)

219

MindX DL User Guide

3 Usage Guidelines

# Ascend package RUN bash $INSTALL_ASCEND_PKGS_SH
# PyTorch installation ENV LD_LIBRARY_PATH=\ /usr/lib/x86_64-linux-gnu/hdf5/serial:\ $HOST_ASCEND_BASE/add-ons:\ $NNAE_PATH/fwkacllib/lib64:\ $HOST_ASCEND_BASE/driver/lib64/common:\ $HOST_ASCEND_BASE/driver/lib64/driver:$LD_LIBRARY_PATH
RUN pip3.7 install $APEX_PKG
RUN pip3.7 install $PYTORCH_PKG
RUN cd /tmp/dllogger-master/ && \ # Find the directory where the setup.py file is located based on the downloaded file and modify the file.
python3.7 setup.py build && \ python3.7 setup.py install
# Environment variables ENV GLOG_v=2 ENV TBE_IMPL_PATH=$NNAE_PATH/opp/op_impl/built-in/ai_core/tbe ENV FWK_PYTHON_PATH=$NNAE_PATH/fwkacllib/python/site-packages ENV PATH=$NNAE_PATH/fwkacllib/ccec_compiler/bin:$PATH ENV ASCEND_OPP_PATH=$NNAE_PATH/opp ENV PYTHONPATH=\ $FWK_PYTHON_PATH:\ $FWK_PYTHON_PATH/auto_tune.egg:\ $FWK_PYTHON_PATH/schedule_search.egg:\ $TBE_IMPL_PATH:\ $PYTHONPATH
ENV http_proxy "" ENV https_proxy ""
# Triggering postbuild.sh RUN bash -c "test -f $POSTBUILD_SH && bash $POSTBUILD_SH || true" && \
rm $POSTBUILD_SH
3.6.4 Creating a Container Image Using a Dockerfile (MindSpore)
Prerequisites
Obtain the software packages of the corresponding OS and the Dockerfile and script files required for packaging images by referring to Table 3-11.
In the names of the deep learning engine software package and MindSpore framework software package, {version} indicates the package version, {arch} indicates the OS.
NOTE
The MindSpore software package must match the Ascend 910 AI Processor software package. For details, see the MindSpore Installation Guide.

Issue 02 (2021-03-22)

220

MindX DL User Guide

Table 3-11 Required software Software Package Ascend-cann-nnae_{version}_linux-{arch}.run mindspore_ascend-{version}-cp37-cp37mlinux_{arch}.whl Dockerfile ascend_install.info
version.info
prebuild.sh
install_ascend_pkgs.sh

3 Usage Guidelines

Description How to Obtain

Deep learning engine software package

Link

WHL package of the MindSpore framework

Link

Package required for creating an image.

Prepared by users.

Software package installation log file.

Copy the /etc/ ascend_insta ll.info file from the host.

Driver package version information file.

Copy the /usr/ local/ Ascend/ driver/ version.info file from the host.

Script used to prepare for the installation of the training operating environment, for example, configuring the agent.

Prepared by users.

Script for installing the Ascend software package.

Issue 02 (2021-03-22)

221

MindX DL User Guide

Software Package postbuild.sh

3 Usage Guidelines
Description How to Obtain
Delete the installation packages, scripts, and proxy configuration s that do not need to be retained in a container.

Issue 02 (2021-03-22)

222

MindX DL User Guide

3 Usage Guidelines

vim postbuild.sh 2. For details about the content to be written, see the postbuild.sh compilation
example (Ubuntu). After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
Step 6 Perform the following steps to create a Dockerfile:
1. Go to the directory where the software package is stored and run the following command to create the Dockerfile file: vim Dockerfile
2. For details about the content to be written, see the Dockerfile in the Ubuntu ARM system. After writing the content, run the :wq command to save the content. The following uses Ubuntu ARM as an example.
NOTE
To obtain the image ubuntu:18.04, you can also run the docker pull ubuntu:18.04 command to obtain the image from Docker Hub.
Step 7 Go to the directory where the software packages are stored and run the following command to create a container image:
docker build -t Image name_System architecture:Image tag .
Example:
docker build -t test_train_arm64:v1.0 .
Table 3-12 describes the commands.

Table 3-12 Command parameter description

Parameter

Description

-t

Specifies the image name.

Image name_System architecture:Image tag

Image name and tag. Change them based on the actual situation.

If "Successfully built xxx" is displayed, the image is successfully created. Do not omit . at the end of the command.

Step 8 After the image is created, run the following command to view the image information:

docker images

Example:

REPOSITORY

TAG

test_train_arm64

v1.0

IMAGE ID d82746acd7f0

CREATED

SIZE

27 minutes ago 749MB

----End

Issue 02 (2021-03-22)

223

MindX DL User Guide

3 Usage Guidelines

Compilation Examples
NOTE
Modify the software package version and architecture based on the actual situation.
1. Example of compiling the prebuild.sh script for the Ubuntu ARM OS
#!/bin/bash #-------------------------------------------------------------------------------#Use the bash syntax to compile script code and prepare for the installation, for example, configuring the proxy. # This script will be run before the formal creation process is started. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# DNS settings tee /etc/resolv.conf <<- EOF nameserver xxx.xxx.xxx.xxx #IP address of the DNS server. You can enter multiple IP addresses based on the site requirements. nameserver xxx.xxx.xxx.xxx nameserver xxx.xxx.xxx.xxx EOF # APT proxy settings tee /etc/apt/apt.conf.d/80proxy <<- EOF Acquire::http::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTP proxy server. Acquire::https::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTPS proxy server. EOF chmod 777 -R /tmp rm /var/lib/apt/lists/* #APT source settings (The following uses Ubuntu 18.04 ARM as an example. Set the information based on the site requirements.) tee /etc/apt/sources.list <<- EOF deb http://mirrors.aliyun.com/ubuntu-ports/ bionic main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-security main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-security main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-updates main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-updates main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-proposed main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-proposed main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu-ports/ bionic-backports main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu-ports/ bionic-backports main restricted universe multiverse EOF
Example of compiling the prebuild.sh script for the Ubuntu x86 OS
#!/bin/bash #--------------------------------------------------------------------------------
# Use the bash syntax to compile script code and prepare for the installation, for example, configuring the proxy. # This script will be run before the formal creation process is started. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# APT proxy settings tee /etc/apt/apt.conf.d/80proxy <<- EOF Acquire::http::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTP proxy server. Acquire::https::Proxy "http://xxx.xxx.xxx.xxx:xxx"; #IP address and port number of the HTTPS proxy server. EOF
#APT source settings (The following uses Ubuntu 18.04 x86 as an example. Set the information based on the site requirements.) tee /etc/apt/sources.list <<- EOF

Issue 02 (2021-03-22)

224

MindX DL User Guide

3 Usage Guidelines
deb http://mirrors.ustc.edu.cn/ubuntu/ bionic main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-security main multiverse restricted universe deb http://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-security main multiverse restricted universe deb-src http://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main multiverse restricted universe EOF
2. Compilation example of install_ascend_pkgs.sh
#!/bin/bash #-------------------------------------------------------------------------------# Use the bash syntax to compile script code and install the Ascend software package. # # Note: After this script is run, it will not be automatically cleared. If it does not need to be retained in the image, clear it from the postbuild.sh script. #-------------------------------------------------------------------------------# Copy the /etc/ascend_install.info file on the host to the current directory before creating the container image. cp ascend_install.info /etc/ mkdir -p /usr/local/Ascend/driver/ cp version.info /usr/local/Ascend/driver/
# Ascend-cann-nnae_{version}_linux-{arch}.run chmod +x Ascend-cann-nnae_{version}_linux-{arch}.run ./Ascend-cann-nnae_{version}_linux-{arch}.run --install-path=/usr/local/Ascend/ --install --quiet
# Only the nnae package is installed. Therefore, the nnae package needs to be cleared. When the container is started, the nnae package is mounted by the Ascend Docker. rm -f version.info rm -rf /usr/local/Ascend/driver/
3. Compilation example of postbuild.sh (Ubuntu)
#!/bin/bash #-------------------------------------------------------------------------------# Use the bash syntax to compile the script code and delete the installation packages, scripts, and proxy configurations that do not need to be retained in the container. # This script will be run after the formal creation process ends. # # Note: After this script is run, it is automatically cleared and will not be left in the image. The scripts and Working Dir are stored in /root. #--------------------------------------------------------------------------------
rm -f ascend_install.info rm -f prebuild.sh rm -f install_ascend_pkgs.sh rm -f Dockerfile rm -f version.info rm -f Ascend-cann-nnae_{version}_linux-{arch}.run rm -f mindspore_ascend-{version}-cp37-cp37m-linux_{arch}.whl rm -f /etc/apt/apt.conf.d/80proxy
tee /etc/resolv.conf <<- EOF # This file is managed by man:systemd-resolved(8). Do not edit. # # This is a dynamic resolv.conf file for connecting local clients to the # internal DNS stub resolver of systemd-resolved. This file lists all # configured search domains. # # Run "systemd-resolve --status" to see details about the uplink DNS servers # currently in use. # # Third party programs must not access this file directly, but only through the # symlink at /etc/resolv.conf. To manage man:resolv.conf(5) in a different way, # replace this symlink by a static file or a different symlink. # # See man:systemd-resolved.service(8) for details about the supported modes of

Issue 02 (2021-03-22)

225

MindX DL User Guide

3 Usage Guidelines
# operation for /etc/resolv.conf.
options edns0
nameserver xxx.xxx.xxx.xxx nameserver xxx.xxx.xxx.xxx EOF
4. Dockerfile compilation sample
The following is an example of the Dockerfile in the Ubuntu ARM system.
FROM ubuntu:18.04
ARG HOST_ASCEND_BASE=/usr/local/Ascend ARG INSTALL_ASCEND_PKGS_SH=install_ascend_pkgs.sh ARG NNAE_PATH=/usr/local/Ascend/nnae/latest ARG MINDSPORE_PKG=mindspore_ascend-{version}-cp37-cp37m-linux_aarch64.whl ARG PREBUILD_SH=prebuild.sh ARG POSTBUILD_SH=postbuild.sh WORKDIR /tmp COPY . ./
# Trigger prebuild.sh. RUN bash -c "test -f $PREBUILD_SH && bash $PREBUILD_SH"
ENV http_proxy http://xxx.xxx.xxx.xxx:xxx ENV https_proxy http://xxx.xxx.xxx.xxx:xxx
# System package RUN apt update && \
apt install --no-install-recommends python3.7 python3.7-dev curl g++ pkg-config unzip \ libblas3 liblapack3 liblapack-dev libblas-dev gfortran libhdf5-dev libffi-dev libicu60 libxml2
-y
# Create a Python soft link. RUN ln -s /usr/bin/python3.7 /usr/bin/python
# Configure the Python PIP source. RUN mkdir -p ~/.pip \ && echo '[global] \n\ index-url=https://pypi.doubanio.com/simple/\n\ trusted-host=pypi.doubanio.com' >> ~/.pip/pip.conf
# pip3.7 RUN curl -k https://bootstrap.pypa.io/get-pip.py -o get-pip.py && \
cd /tmp && \ apt-get download python3-distutils && \ dpkg-deb -x python3-distutils_*.deb / && \ rm python3-distutils_*.deb && \ cd - && \ python3.7 get-pip.py && \ rm get-pip.py
# HwHiAiUser, hwMindX RUN useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX && \
useradd -d /home/HwHiAiUser -u 1000 -m -s /bin/bash HwHiAiUser && \ usermod -a -G HwHiAiUser hwMindX
# Python package RUN pip3.7 install numpy && \
pip3.7 install decorator && \ pip3.7 install sympy==1.4 && \ pip3.7 install cffi==1.12.3 && \ pip3.7 install pyyaml && \ pip3.7 install pathlib2 && \ pip3.7 install grpcio && \ pip3.7 install grpcio-tools && \ pip3.7 install protobuf && \ pip3.7 install scipy && \

Issue 02 (2021-03-22)

226

MindX DL User Guide

3 Usage Guidelines
pip3.7 install requests
# Ascend package RUN umask 0022 && bash $INSTALL_ASCEND_PKGS_SH
# MindSpore installation RUN pip3.7 install $MINDSPORE_PKG
# Environment variable ENV GLOG_v=2 ENV TBE_IMPL_PATH=$NNAE_PATH/opp/op_impl/built-in/ai_core/tbe ENV FWK_PYTHON_PATH=$NNAE_PATH/fwkacllib/python/site-packages ENV PATH=$NNAE_PATH/fwkacllib/ccec_compiler/bin:$PATH ENV ASCEND_OPP_PATH=$NNAE_PATH/opp ENV PYTHONPATH=\ $FWK_PYTHON_PATH:\ $FWK_PYTHON_PATH/auto_tune.egg:\ $FWK_PYTHON_PATH/schedule_search.egg:\ $TBE_IMPL_PATH:\ $PYTHONPATH ENV LD_LIBRARY_PATH=$NNAE_PATH/fwkacllib/lib64/:\ /usr/local/Ascend/driver/lib64/common/:\ /usr/local/Ascend/driver/lib64/driver/:\ /usr/local/Ascend/add-ons/:\ /usr/local/Ascend/driver/tools/hccn_tool/:\ $LD_LIBRARY_PATH
# Create /lib64/ld-linux-aarch64.so.1. RUN umask 0022 && \
if [ ! -d "/lib64" ]; \ then \
mkdir /lib64 && ln -sf /lib/ld-linux-aarch64.so.1 /lib64/ld-linux-aarch64.so.1; \ fi
ENV http_proxy "" ENV https_proxy ""
# Trigger postbuild.sh. RUN bash -c "test -f $POSTBUILD_SH && bash $POSTBUILD_SH" && \
rm $POSTBUILD_SH
Dockerfile example for Ubuntu x86
FROM ubuntu:18.04
ARG HOST_ASCEND_BASE=/usr/local/Ascend ARG INSTALL_ASCEND_PKGS_SH=install_ascend_pkgs.sh ARG NNAE_PATH=/usr/local/Ascend/nnae/latest ARG MINDSPORE_PKG=mindspore_ascend-{version}-cp37-cp37m-linux_x86_64.whl ARG PREBUILD_SH=prebuild.sh ARG POSTBUILD_SH=postbuild.sh WORKDIR /tmp COPY . ./
# Trigger prebuild.sh. RUN bash -c "test -f $PREBUILD_SH && bash $PREBUILD_SH"
ENV http_proxy http://xxx.xxx.xxx.xxx:xxx ENV https_proxy http://xxx.xxx.xxx.xxx:xxx

# System package RUN apt update && \
apt install --no-install-recommends python3.7 python3.7-dev curl g++ pkg-config unzip \ libblas3 liblapack3 liblapack-dev libblas-dev gfortran libhdf5-dev libffi-dev libicu60 libxml2
-y
# Create a Python soft link. RUN ln -s /usr/bin/python3.7 /usr/bin/python
# Configure the Python PIP source.

Issue 02 (2021-03-22)

227

MindX DL User Guide

3 Usage Guidelines
RUN mkdir -p ~/.pip \ && echo '[global] \n\ index-url=https://pypi.doubanio.com/simple/\n\ trusted-host=pypi.doubanio.com' >> ~/.pip/pip.conf
# pip3.7 RUN curl -k https://bootstrap.pypa.io/get-pip.py -o get-pip.py && \
cd /tmp && \ apt-get download python3-distutils && \ dpkg-deb -x python3-distutils_*.deb / && \ rm python3-distutils_*.deb && \ cd - && \ python3.7 get-pip.py && \ rm get-pip.py
# HwHiAiUser, hwMindX RUN useradd -d /home/hwMindX -u 9000 -m -s /bin/bash hwMindX && \
useradd -d /home/HwHiAiUser -u 1000 -m -s /bin/bash HwHiAiUser && \ usermod -a -G HwHiAiUser hwMindX
# Python package RUN pip3.7 install numpy && \
pip3.7 install decorator && \ pip3.7 install sympy==1.4 && \ pip3.7 install cffi==1.12.3 && \ pip3.7 install pyyaml && \ pip3.7 install pathlib2 && \ pip3.7 install grpcio && \ pip3.7 install grpcio-tools && \ pip3.7 install protobuf && \ pip3.7 install scipy && \ pip3.7 install requests
# Ascend package RUN umask 0022 && bash $INSTALL_ASCEND_PKGS_SH
# MindSpore installation RUN pip3.7 install $MINDSPORE_PKG
# Environment variable ENV GLOG_v=2 ENV TBE_IMPL_PATH=$NNAE_PATH/opp/op_impl/built-in/ai_core/tbe ENV FWK_PYTHON_PATH=$NNAE_PATH/fwkacllib/python/site-packages ENV PATH=$NNAE_PATH/fwkacllib/ccec_compiler/bin:$PATH ENV ASCEND_OPP_PATH=$NNAE_PATH/opp ENV PYTHONPATH=\ $FWK_PYTHON_PATH:\ $FWK_PYTHON_PATH/auto_tune.egg:\ $FWK_PYTHON_PATH/schedule_search.egg:\ $TBE_IMPL_PATH:\ $PYTHONPATH ENV LD_LIBRARY_PATH=$NNAE_PATH/fwkacllib/lib64/:\ /usr/local/Ascend/driver/lib64/common/:\ /usr/local/Ascend/driver/lib64/driver/:\ /usr/local/Ascend/add-ons/:\ /usr/local/Ascend/driver/tools/hccn_tool/:\ $LD_LIBRARY_PATH
ENV http_proxy "" ENV https_proxy ""
# Trigger postbuild.sh. RUN bash -c "test -f $POSTBUILD_SH && bash $POSTBUILD_SH" && \
rm $POSTBUILD_SH

Issue 02 (2021-03-22)

228

MindX DL User Guide

3 Usage Guidelines

3.6.5 Creating an Inference Image Using a Dockerfile

Prerequisites
Obtain the software packages of the corresponding operating system and the Dockerfile and script files required for packaging images by referring to Table 3-13.
In the name of the offline inference engine package, {version} indicates the version, xxx indicates the OS, and {gcc_version} indicates the GCC version.

Table 3-13 Required software

Software Package

Description

How to Obtain

Ascend-cann-nnrt_{version}_linux{arch}.run

Offline inference engine package.

Link

Dockerfile

Required for creating Prepared by

an image

users

install.sh

Script for installing the inference service.

XXX.tar

Name of the inference service code package, which is prepared by users based on the inference service. This document uses dvpp_resnet.tar as an example.

run.sh

Script for starting the inference service.

NOTE Other software packages and code required for inference need to be prepared by users.

This section uses Ubuntu x86 as an example.

Procedure
Step 1 Upload the software packages and files to the same directory (for example, / home/infer) on the server. Ascend-cann-nnrt_{version}_linux-{arch}.run Dockerfile install.sh run.sh

Issue 02 (2021-03-22)

229

MindX DL User Guide

3 Usage Guidelines

XXX.tar (Inference code or script prepared by users)
Step 2 Log in to the server as the root user.
Step 3 Perform the following steps to prepare the install.sh file:
1. Go to the directory where the software package is stored and run the following command to create the install.sh file: vim install.sh
2. Build a sample based on the service requirements and run the :wq command to save the content. For details, see the install.sh compilation example.
Step 4 Perform the following steps to prepare the run.sh file:
1. Go to the directory where the software package is stored and run the following command to create the run.sh file: vim run.sh
2. Build a sample based on the service requirements and run the :wq command to save the content. For details, see the run.sh compilation example.
Step 5 Perform the following steps to prepare the Dockerfile file:
1. Go to the directory where the software package is stored and run the following command to create the Dockerfile file: vim Dockerfile
2. Write the sample code by referring to the Dockerfile compilation sample and run the :wq command to save the file.
Step 6 Go to the directory where the software package is stored and run the following command to create a container image:
docker build --build-arg NNRT_VERSION={version} --build-arg NNRT_ARCH={arch} --build-arg DIST_PKG=XXX.tar -t Image name_System architecture:Image tag .
Example:
docker build --build-arg NNRT_VERSION=20.1.rc1 --build-arg NNRT_ARCH=x86_64 --build-arg DIST_PKG=dvpp_resnet.tar -t ubuntu-infer:v1 .
Table 3-14 describes the commands.

Table 3-14 Command parameter description

Parameter

Description

--build-arg

Parameters in the Dockerfile.

{version}

Version of the offline inference acceleration package. Set it to the actual one.

{arch}

Architecture of the offline inference acceleration package. Set it to the actual one.

XXX.tar

Name of the inference service code package. Set it to the actual one.

Issue 02 (2021-03-22)

230

MindX DL User Guide

Parameter
-t
Image name_System architecture:Image tag

3 Usage Guidelines
Description Image name. Image name and tag. Change them based on the actual situation.

If "Successfully built xxx" is displayed, the image is successfully created. Do not omit . at the end of the command.

Step 7 After the image is created, run the following command to view the image information:

docker images

Example:

REPOSITORY ubuntu-infer

TAG v1

IMAGE ID fffbd83be42a

CREATED 2 minutes ago

SIZE 293MB

----End

Compilation Examples
1. Compilation example of install.sh
#!/bin/bash #-------------------------------------------------------------------------------# Install the inference service script. The following uses the inference service package dvpp_resnet.tar as an example. You can change the service package name as required. #------------------------------------tar -xvf dvpp_resnet.tar -------------------------------------------
2. Compilation example of run.sh
#!/bin/bash # Runing the NPU inference driver daemon mkdir -p /usr/slog mkdir -p /var/log/npu/slog/slogd chown -Rf HwHiAiUser:HwHiAiUser /usr/slog chown -Rf HwHiAiUser:HwHiAiUser /var/log/npu/slog /usr/local/Ascend/driver/tools/slogd # Runing the service code cd /home/out numbers=`ls /dev/| grep davinci | grep -v davinci_manager | wc -l` # Updating logs every 5 minutes #./main $numbers|grep -nE '.*\[.*[[:digit:]]{2}:[[:digit:]]{1}[05]:00' >/home/log/log.txt ./main $numbers
3. Dockerfile compilation sample
FROM ubuntu:18.04
# Setting the parameters of the offline inference engine package ARG NNRT_VERSION ARG NNRT_ARCH ARG NNRT_PKG=Ascend-cann-nnrt_${NNRT_VERSION}_linux-${NNRT_ARCH}.run # Setting environment variables ARG ASCEND_BASE=/usr/local/Ascend
ENV LD_LIBRARY_PATH=\ $LD_LIBRARY_PATH:\ $ASCEND_BASE/driver/lib64:\ $ASCEND_BASE/add-ons:\ $ASCEND_BASE/nnrt/latest/acllib/lib64

Issue 02 (2021-03-22)

231

MindX DL User Guide

3 Usage Guidelines

# Setting the directory of the started container WORKDIR /home # Copy the driver package and offline inference engine package. COPY $NNRT_PKG .
# Installing the offline inference engine package RUN umask 0022 && \
groupadd HwHiAiUser && \ useradd -g HwHiAiUser -m -d /home/HwHiAiUser HwHiAiUser && \ chmod +x ${NNRT_PKG} &&\ ./${NNRT_PKG} --quiet --install &&\ rm ${NNRT_PKG}
# Copying the service inference program package, installation script, and running script ARG DIST_PKG COPY $DIST_PKG . COPY install.sh . COPY run.sh .
# Running the installation script RUN chmod +x run.sh install.sh && \
sh install.sh && \ rm $DIST_PKG && \ rm install.sh
CMD sh run.sh
3.6.6 Creating the WHL Package of the TensorFlow Framework

Installation Preparations
For the x86 architecture, skip this step.
In the AArch64 architecture, TensorFlow depends on H5py, and H5py depends on HDF5. Therefore, you need to compile and install HDF5 first. Otherwise, an error is reported when you use pip to install H5py. Perform the following operations as the root user:
Step 1 Compile and install the HDF5.
1. Run the wget command to download the source code package of HDF5 to any directory of the installation environment. The command is as follows:
wget https://support.hdfgroup.org/ftp/HDF5/releases/hdf5-1.10/hdf5-1.10.5/src/hdf5-1.10.5.tar.gz --nocheck-certificate
2. Run the following command to go to the download directory and decompress the source code package:
tar -zxvf hdf5-1.10.5.tar.gz
Go to the decompressed folder and run the following configuration, build, and installation commands:
cd hdf5-1.10.5/ ./configure --prefix=/usr/include/hdf5 make install
Step 2 Configure environment variables and create a soft link to the dynamic link library (DLL).
1. Configure environment variables.
export CPATH="/usr/include/hdf5/include/:/usr/include/hdf5/lib/"
2. Run the following command as the root user to create a soft link to the DLL. Add sudo before the following commands as a non-root user:

Issue 02 (2021-03-22)

232

MindX DL User Guide

3 Usage Guidelines

ln -s /usr/include/hdf5/lib/libhdf5.so /usr/lib/libhdf5.so ln -s /usr/include/hdf5/lib/libhdf5_hl.so /usr/lib/libhdf5_hl.so
Step 3 Install h5py.
Run the following command as the root user to install the h5py dependency:
pip3.7 install Cython
The h5py installation command is as follows:
pip3.7 install h5py==2.8.0
----End

Installing TensorFlow 1.15.0

TensorFlow 1.15 must be installed for operator development verification and training service development.

For the x86 architecture, download the software package from the pip source. For details, see https://www.tensorflow.org/install/pip?lang=python3. Note that the instructions provided by the TensorFlow website are incorrect. To download the CPU version from the pip source, you need to explicitly specify tensorflow-cpu. Otherwise, the GPU version is downloaded by default. That is, change tensorflow==1.15 --Release for CPU-only to tensorflow-cpu==1.15 --Release for CPU-only. In addition, the installation command pip3 install --user --upgrade tensorflow described on the official website needs to be changed to pip3.7 install tensorflow-cpu==1.15 as the root user and to pip3.7 install tensorflow-cpu==1.15 --user as a non-root user.
For the AArch64 architecture, the pip source does not provide the corresponding version. Therefore, you need to use GCC 7.3.0 to compile TensorFlow 1.15.0. For details about the compilation procedure, see https:// www.tensorflow.org/install/source. Pay attention to the following points:

After downloading the tensorflow tag v1.15.0 source code, perform the following steps:

Step 1 Download the nsync-1.22.0.tar.gz source code package.

1. Go to the tensorflow tag v1.15.0 source code directory, open the

tensorflow/workspace.bzl file, and find the definition of tf_http_archive

whose name is nsync.

tf_http_archive(

name = "nsync",

sha256 = "caf32e6b3d478b78cff6c2ba009c3400f8251f646804bcb65465666a9cea93c4",

strip_prefix = "nsync-1.22.0",

system_build_file = clean_dep("//third_party/systemlibs:nsync.BUILD"),

urls = [

"https://storage.googleapis.com/mirror.tensorflow.org/github.com/google/nsync/

archive/1.22.0.tar.gz",

"https://github.com/google/nsync/archive/1.22.0.tar.gz",

)

2. Download the nsync-1.22.0.tar.gz source code package from any path in urls and save it to any path.

Step 2 Modify the nsync-1.22.0.tar.gz source code package:
1. Go to the directory where nsync-1.22.0.tar.gz is stored and decompress the source code package. Find the decompressed nsync-1.22.0 folder and the pax_global_header file.

Issue 02 (2021-03-22)

233

MindX DL User Guide

3 Usage Guidelines

2. Edit the nsync-1.22.0/platform/c++11/atomic.h file.
Add the following information to the end of the NSYNC_CPP_START_ file:
#include "nsync_cpp.h" #include "nsync_atomic.h"

NSYNC_CPP_START_

#define ATM_CB_() __sync_synchronize()

static INLINE int atm_cas_nomb_u32_ (nsync_atomic_uint32_ *p, uint32_t o, uint32_t n) { int result = (std::atomic_compare_exchange_strong_explicit (NSYNC_ATOMIC_UINT32_PTR_ (p),
&o, n, std::memory_order_relaxed, std::memory_order_relaxed)); ATM_CB_(); return result;
} static INLINE int atm_cas_acq_u32_ (nsync_atomic_uint32_ *p, uint32_t o, uint32_t n) {
int result = (std::atomic_compare_exchange_strong_explicit (NSYNC_ATOMIC_UINT32_PTR_ (p), &o, n, std::memory_order_acquire, std::memory_order_relaxed));
ATM_CB_(); return result; } static INLINE int atm_cas_rel_u32_ (nsync_atomic_uint32_ *p, uint32_t o, uint32_t n) { int result = (std::atomic_compare_exchange_strong_explicit (NSYNC_ATOMIC_UINT32_PTR_ (p), &o, n, std::memory_order_release, std::memory_order_relaxed)); ATM_CB_(); return result; } static INLINE int atm_cas_relacq_u32_ (nsync_atomic_uint32_ *p, uint32_t o, uint32_t n) { int result = (std::atomic_compare_exchange_strong_explicit (NSYNC_ATOMIC_UINT32_PTR_ (p), &o, n, std::memory_order_acq_rel, std::memory_order_relaxed)); ATM_CB_(); return result; }

Step 3 Compress the nsync-1.22.0.tar.gz source code package.

Compress the modified nsync-1.22.0 folder and pax_global_header into a new nsync-1.22.0.tar.gz source code package (for example, /tmp/nsync-1.22.0.tar.gz).

Step 4 Generate a sha256sum verification code for the nsync-1.22.0.tar.gz source code package.

sha256sum /tmp/nsync-1.22.0.tar.gz

Run the preceding command to obtain the sha256sum verification code (a string of digits and letters).

Step 5 Change the sha256sum verification code and urls.

Go to the tensorflow tag v1.15.0 source code directory, open the tensorflow/

workspace.bzl file, find the definition of tf_http_archive whose name is nsync,

enter the verification code obtained in Step 4 after sha256=, and enter the first

line of the list after urls=, enter the file:// index for storing the nsync-1.22.0.tar.gz

file.

tf_http_archive(

name = "nsync",

sha256 = "caf32e6b3d478b78cff6c2ba009c3400f8251f646804bcb65465666a9cea93c4",

strip_prefix = "nsync-1.22.0",

system_build_file = clean_dep("//third_party/systemlibs:nsync.BUILD"),

urls = [

"file:///tmp/nsync-1.22.0.tar.gz ",

"https://storage.googleapis.com/mirror.tensorflow.org/

github.com/google/nsync/archive/1.22.0.tar.gz",

"https://github.com/google/nsync/archive/1.22.0.tar.gz",

)

Issue 02 (2021-03-22)

234

MindX DL User Guide

3 Usage Guidelines

Step 6 Continue to perform compilation from the official configuration build (https:// www.tensorflow.org/install/source).
After the ./configure command is executed, add the following build option to the .tf_configure.bazelrc configuration file.
build:opt --cxxopt=-D_GLIBCXX_USE_CXX11_ABI=0
Delete the following two lines:
build:opt --copt=-march=native build:opt --host_copt=-march=native
Step 7 Proceed with the official compilation procedure (https://www.tensorflow.org/ install/source).
----End

Issue 02 (2021-03-22)

235

MindX DL User Guide

4 API Reference

4.1 Overview
This document describes the external APIs of MindX DL. You can manage the vcjob jobs and view the NPU status.
Before calling Mind X DL APIs, ensure that you are familiar with the basic concepts and knowledge of Kubernetes, and that the Kubernetes authentication is implemented by yourself.
4.2 Description

4.2.1 API Communication Protocols
MindX DL APIs are invoked in Representational State Transfer (REST) mode. Volcano uses the URL of the Kubernetes API server. You are advised to enable HTTPS during Kubernetes installation. cAdvisor supports only HTTP, security hardening has been performed by default, and its port is open only in the Kubernetes cluster.
NOTE
You are advised to use the Kubernetes-encapsulated client to manage Volcano resources, which is more convenient. For details, see Interconnection Programming Guide.
4.2.2 Encoding Format
Request and response packets are in JSON format (RFC 4627).
NOTE
Request packets received and response packets returned by APIs must be in JSON format. (The upload and download APIs are subject to API definitions.)
The media type is application/json. All APIs use the UTF-8 encoding format.

Issue 02 (2021-03-22)

236

MindX DL User Guide

4 API Reference

4.2.3 URLs
MindX DL APIs are designed based on the RESTful API architecture.
Representational State Transfer (REST) observes the entire network from the resource perspective. Resources are identified by Uniform Resource Identifiers (URIs) across the network and applications from a client obtain resources through Uniform Resource Locators (URLs).
NOTE
A URL can contain path parameters. For example, in https://localhost:26335/ rest/uam/v1/roles/{parm1}/{parm2}, parm1 and parm2 are path parameters. You can also add query conditions by appending question marks (?) and ampersands (&) to the URL. For example, in https://localhost:26335/rest/uam/v1/roles/{parm1}/{parm2}? parm3=value3&parm4=value4, parm3 and parm4 are query parameters, and value3 and value4 are their values, respectively.
A URL cannot contain URL special characters (defined by RFC1738). Encode the URL if special characters are required.

Request URI
A request URI is in the following format:
{URI-scheme} :// {Endpoint} / {resource-path} ? {query-string}
Although a request URI is included in a request header, most programming languages or frameworks require the request URI to be separately transmitted, rather than being conveyed in a request message.
URI-scheme:
Protocol used to transmit requests. All APIs use HTTPS.
Endpoint:
Domain name or IP address of the server bearing the REST service endpoint. (Generally, the value is the IP address of the master node in the Kubernetes cluster, and the default port number is 6443.) You can obtain the value from the administrator.
resource-path:
Path in which the requested resource is located, that is, the API access path. For example, the resource-path of the API in Reading All Volcano Jobs Under a Namespace is /apis/batch.volcano.sh/v1alpha1/namespaces/ {namepace}/jobs, in which {namespace} indicates the command space of the job.
query-string:
Query parameter, which is optional. Ensure that a question mark (?) is included before each query parameter that is in the format of "Parameter name=Parameter value". For example, ? limit=10 indicates that a maximum of 10 data records will be displayed.
The following shows the URI combination of the API in Reading All Volcano Jobs Under a Namespace. {endpoint} indicates the terminal node. Replace it with the actual value.
https://{endpoint}/apis/batch.volcano.sh/v1alpha1/{namespaces}/vcjob/jobs

Issue 02 (2021-03-22)

237

MindX DL User Guide

4 API Reference

NOTE
To simplify the URI display in this document, each API is provided only with a resourcepath and a request method. The URI-scheme of all APIs is HTTPS, and the endpoints of all APIs in the same region are identical.
4.2.4 API Authentication
For details about Kubernetes authentication, see Kubernetes Documentation.
API authentication is disabled on cAdvisor by default. If you need to enable API authentication, see API HTTP authentication.
4.2.5 Requests

Request Methods
REST style regulates that resource-related operations must comply with HTTPS. The request method can be GET, PUT, POST, or DELETE.

Table 4-1 Mapping between request methods and resource operations

Request Method

Resource Operation

GET

Obtain resources.

PUT

Update resources.

POST

Create resources.

DELETE

Delete resources.

GET

NOTE If the requested URL does not support the operation, status code 405 (Method Not
Allowed) is returned. The PATCH request method is not supported.
For details about the constraints on each request method, see the following sections.
[Application scenario] This method is used to obtain resources. [Status code] If the request is successful, status code 200 (OK) is returned. [Constraints] The request method meets security and idempotence requirements.
NOTE The security requirement means that the operation does not change the server resource status. The idempotence requirement means that relative status change is not allowed for the resource.

Issue 02 (2021-03-22)

238

MindX DL User Guide

4 API Reference

POST

[Application scenario] This method is used to create resources in the scenario where operations cannot be expressed by CRUD (non-CRUD).
[Status code] If the resource is successfully created using POST, status code 200 (OK), 201 (Created), or 202 (Accepted) is returned. If POST is performed successfully in non-CRUD scenarios, status code 200 (OK) is returned.
[Constraints] The request method does not meet security or idempotence requirements.

PUT

[Application scenario] This method is used to fully update resources. If the object to be updated does not exist, the object will be created.
NOTE
For example, PUT /users/admin indicates that if user admin does not exist, the PUT method is used to create the user and set attributes for the user. If user admin exists, this method is used to replace all information about the user.
[Status code] If the resource is successfully created using PUT, status code 201 (Created) or 202 (Accepted) is returned. If the resource is successfully updated, status code 200 (OK) is returned.
[Constraints] The request method meets idempotence requirements.

DELETE

[Application scenario] This method is used to delete resources.
[Status code] If the resource is successfully deleted, status code 204 (OK) is returned. If the resource to be deleted does not exist, status code 404 (No Content) is returned. If a service receives the request but the resource is not deleted immediately, status code 202 (Accepted) is returned.
[Constraints] The request method meets idempotence requirements.

4.2.6 Responses

Unless otherwise specified, the returned result for each request is identified with a status code. For details, see Status Codes.

4.2.7 Status Codes

Status Code 200 OK
201 Created

Description
The request is successful. The response header or message body will be returned with the response.
When the POST or PUT operation is successful, status code 201 (Created) is returned with the URI in the Location field of the new resource in the message header.

Issue 02 (2021-03-22)

239

MindX DL User Guide

Status Code 202 Accepted

204 No Content 206 Partial Content 302 Found
303 See Other 304 Not Modified

400 Bad Request 401 Unauthorized 403 Forbidden

4 API Reference
Description
The request has been accepted for processing, but the process has not been completed. A resource has been created according to the request and the request URI is returned with the Location field in the message header.
The server has processed the request but does not return any content.
The server has processed certain GET requests.
The requested resource resides temporarily under a different URI. Since the redirection might be altered on occasion, the client should continue to use the Request-URI for future requests.
The response to the request can be found under a different URI and should be retrieved using the GET method on that resource.
The document has not been modified as expected. The client has a cached document and has sent a conditional request (In most cases, the If-ModifiedSince header is provided, indicating that the client uses only documents updated after a specified date). The server uses this error code to notify the client that the cached document is available.
1. The request cannot be understood by the server due to malformed syntax. The client should not send the request repeatedly without modifications. 2. Request parameters are incorrect.
Used only in the HTTPS (BASIC authentication, DIGET authentication) authentication scenarios. If there are other authentication mechanisms, status code 403 is returned after authentication failure. The response must include the header WWWAuthenticate for user information query.
If the request method is not HEAD, the server must describe the reason for the refusal in the message body. If the cause cannot be disclosed, 404 Not Found is returned.

Issue 02 (2021-03-22)

240

MindX DL User Guide

4 API Reference

Status Code

Description

404 Not Found

The server has not found anything matching the Request-URI. No indication is given of whether the condition is temporary or permanent. The status code 410 should be used if the server knows, through some internally configurable mechanism, that an old resource is permanently unavailable and has no forwarding address. The status code 404 is commonly used when the server does not wish to reveal exactly why the request has been refused, or when no other response is applicable.

405 Method Not Allowed

You are not allowed to use the method specified in the request. The response must include an Allow header containing a list of valid methods for the requested resource. Since the PUT and DELETE methods will write resources on the server, the preceding methods are not supported or allowed by default by most servers. The server will return 405 (Method Not Allowed) for this type of requests.

409 Conflict

The request cannot be completed due to a conflict with the current state of the resource. Conflicts are most likely to occur in response to a PUT request.

414 Request-URI Too Long The URL can contain a maximum of 2083 characters.

429 Too Many Requests

The number of requests sent to the server in a given period of time has exceeded the threshold.

500 Internal Server Error

An unexpected error occurs on the server. As a result, the server cannot process the request.

502 Bad Gateway

The server, while acting as a gateway or proxy, received an invalid response from the upstream server it accessed in attempting to fulfill the request.

503 Service Unavailable

The server is currently unable to handle the request due to temporary overloading or maintenance of the server.

4.3 API Reference
MindX DL provides a job management component that depends on the Kubernetes platform.

Issue 02 (2021-03-22)

241

MindX DL User Guide

4 API Reference

4.3.1 Data Structure

Table 4-2 Data structure of PodTemplate

Parameter

Mandatory Type

Description

kind

Yes

String

A string value representing

the REST resource this object

represents. Servers may infer

this from the endpoint the

client submits requests to.

Cannot be updated. In

CamelCase.

The value of this parameter is PodTemplate.

apiVersion

Yes

String

Versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
The value of this parameter is v1.

metadata

Yes

ObjectMeta object

template

Yes

PodTemplate Spec object

Table 4-3 Data structure of Pod

Parameter

Mandatory Type

kind

Yes

String

Issue 02 (2021-03-22)

242

MindX DL User Guide

Parameter apiVersion
metadata spec status

4 API Reference

Mandatory Yes
Yes Yes No

Type String
ObjectMeta object podSpec object PodStatus object

Description
Versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values. The value of this parameter is v1.
-
-
Most recently observed status of the pod.

Issue 02 (2021-03-22)

243

MindX DL User Guide

4 API Reference

Table 4-4 Data structure of the PodStatus field

Parameter

Mandatory Type

phase

String

conditions

message

reason

hostIP

Array of PodConditio ns objects String
String
String

Description
Current condition of the pod.
NOTE Pod states include:
- Pending:
means the pod has been accepted by the system, but one or more of the containers has not been started. This includes time before being bound to a node, as well as time spent pulling images onto the host.
- Running: The pod has been bound to a node and all of the containers have been started. At least one container is still running or is in the process of being restarted.
Succeeded: All containers in the pod have voluntarily terminated with a container exit code of 0, and the system is not going to restart any of these containers.
Failed: All containers in the pod have terminated, and at least one container has terminated in a failure (exited with a non-zero exit code or was stopped by the system).
Unknown: The state of the pod could not be obtained for some reasons, typically due to an error in communicating with the host of the pod.
Current service state of the pod.
A human readable message indicating details about why the pod is in this condition.
A brief CamelCase message indicating details about why the pod is in this state. e.g. 'OutOfDisk'
IP address of the host to which the pod is assigned. Empty if not yet scheduled.

Issue 02 (2021-03-22)

244

MindX DL User Guide

4 API Reference

Parameter podIP

Mandatory No

startTime

containerStatu No ses
initContainerSt No atuses

qosClass

podNetworks No

Type

Description

String

IP address allocated to the pod. Routable at least within the cluster. Empty if not yet allocated.

String

RFC 3339 date and time at which the object was acknowledged by the Kubelet. This is before the Kubelet pulled the container image(s) for the pod.

Array of containerSta tuses objects

The list has one entry per container in the manifest. Each entry is currently the output of container inspect.

Array of containerSta tuses objects

The list has one entry per init container in the manifest. The most recent successful init container will have ready = true, the most recently started container will have startTime set.

String

The Quality of Service (QoS) classification assigned to the pod based on resource requirements. Can be:
- Guaranteed
- Burstable
- BestEffort

Array of PodNetworkI nterface objects

Complete list of Networks attached to this pod.

Issue 02 (2021-03-22)

245

MindX DL User Guide

4 API Reference

Table 4-5 Data structure of the PodConditions field

Parameter

Mandatory Type

Description

type

String

Type of the condition.

Currently only Ready.

Resizing - An user trigger resize of pvc has been started

NOTE Pod conditions include:

- PodScheduled: represents status of the scheduling process for this pod.

- Ready: pod is able to service requests and should be added to the load balancing pools of all matching services.

- Initialized: all init containers in the pod have started successfully.

- Unschedulable:

the scheduler cannot schedule the pod right now, for example due to insufficient resources in the cluster.

status

String

Status of the condition. Can be True, False, or Unknown.

lastProbeTime No

String

Last time we probed the condition.

lastTransitionTi No me

String

Last time the condition transitioned from one status to another.

reason

String

Unique, one-word, CamelCase reason for the condition's last transition.

message

String

Human-readable message indicating details about last transition.

Table 4-6 Data structure of the containerStatuses field

Parameter

Mandatory Type

Description

name

Yes

String

This must be a DNS_LABEL. Each container in a pod must have a unique name. Cannot be updated.

Issue 02 (2021-03-22)

246

MindX DL User Guide

4 API Reference

Parameter state lastState ready restartCount
image imageID containerID

Mandatory No No No No
Yes No No

Type

Description

ContainerSta Details about the container's

te object

current condition.

ContainerSta Details about the container's

te object

last termination condition.

Boolean

Specifies whether the container has passed its readiness probe.

Integer

The number of times the container has been restarted, currently based on the number of dead containers that have not yet been removed. Note that this is calculated from dead containers. However, those containers are subject to garbage collection. This value will get capped at 5 by GC.

String

The image the container is running.

String

ID of the container's image.

String

Container's ID in the format 'docker://'.

Table 4-7 Data structure of the ContainerState field

Parameter

Mandatory Type

Description

waiting

ContainerSta Details about a waiting

teWaiting

container.

object

running

ContainerSta Details about a running teRunning container. object

terminated

terminated object

Details about a terminated container.

Issue 02 (2021-03-22)

247

MindX DL User Guide

4 API Reference

Table 4-8 Data structure of the ContainerStateWaiting field

Parameter

Mandatory Type

Description

reason

String

(Brief) Reason the container is not yet running.

message

String

Message regarding why the container is not yet running.

Table 4-9 Data structure of the ContainerStateRunning field

Parameter

Mandatory Type

Description

startedAt

String

Time at which the container was last (re-)started.

Table 4-10 Data structure of the terminated field

Parameter

Mandatory Type

Description

exitCode

Integer

Exit status from the last termination of the container.

signal

Integer

Signal from the last termination of the container.

reason

String

(Brief) reason from the last termination of the container.

message

String

Message regarding the last termination of the container.

startedAt

String

Time at which previous execution of the container started.

finishedAt

String

Time at which the container last terminated.

containerID

String

Container's ID in the format 'docker://'

Issue 02 (2021-03-22)

248

MindX DL User Guide

4 API Reference

Table 4-11 Data structure of the ObjectMeta field

Param Mand Type

eter

atory

Description

name Yes String

Name must be unique within a namespace. Is required when creating resources, although some resources may allow a client to request the generation of an appropriate name automatically. Name is primarily intended for creation idempotence and configuration definition. Cannot be updated.
The task name and job name could not be same.
0 characters < name length 63 characters.
The name must be a regular expression [a-z0-9] ([-a-z0-9]*[a-z0-9])?.

cluster No Name

String

The name of the cluster which the object belongs to. This is used to distinguish resources with same name and namespace in different clusters. This field is not set anywhere right now and apiserver is going to ignore it if set in create or update request.

initializ No ers

initializer s object

An initializer is a controller which enforces some system invariant at object creation time. This field is a list of initializers that have not yet acted on this object. If nil or empty, this object has been completely initialized. Otherwise, the object is considered uninitialized and is hidden (in list/watch and get calls) from clients that haven't explicitly asked to observe uninitialized objects. When an object is created, the system will populate this list with the current set of initializers. Only privileged users may set or modify this list. Once it is empty, it may not be modified further by any user.

enable No Boolean Enable identify whether the resource is available.

Issue 02 (2021-03-22)

249

MindX DL User Guide

4 API Reference

Param Mand Type

eter

atory

generat No eName

String

names No pace

String

selfLink No String

uid

No String

Description
An optional prefix used by the server to generate a unique name ONLY IF the Name field has not been provided. If this field is used, the name returned to the client will be different from the name passed. This value will also be combined with a unique suffix. The provided value has the same validation rules as the Name field, and may be truncated by the length of the suffix required to make the value unique on the server.
If this field is specified and the generated name exists, the server will NOT return a 409. Instead, it will either return 201 Created or 500 with Reason ServerTimeout indicating a unique name could not be found in the time allotted, and the client should retry (optionally after the time indicated in the Retry-After header).
Applied only if Name is not specified.
0 characters < generated name length 253 characters.
The generated name must be a regular expression [a-z0-9]([-a-z0-9]*[a-z0-9])?.
Namespace defines the space within each name must be unique. An empty namespace is equivalent to the "default" namespace, but "default" is the canonical representation. Not all objects are required to be scoped to a namespace - the value of this field for those objects will be empty. Must be a DNS_LABEL. Cannot be updated.
0 characters < namespace length 63 characters.
The namespace must be a regular expression [az0-9]([-a-z0-9]*[a-z0-9])?.
A URL representing this object. Populated by the system. Read-only.
NOTE This field is automatically generated. Do not assign any value to this field. Otherwise, API calls would fail.
UID is the unique in time and space value for this object. It is typically generated by the server on successful creation of a resource and is not allowed to change on PUT operations. Populated by the system. Read-only.
NOTE This field is automatically generated. Do not assign any value to this field. Otherwise, API calls would fail.

Issue 02 (2021-03-22)

250

MindX DL User Guide

Param Mand Type

eter

atory

resourc No eVersio n

String

generat No ion

Integer

creatio No nTimes tamp

String

deletio No nTimes tamp

String

4 API Reference
Description
An opaque value that represents the internal version of this object that can be used by clients to determine when objects have changed. May be used for optimistic concurrency, change detection, and the watch operation on a resource or set of resources. Clients must treat these values as opaque and passed unmodified back to the server. They may only be valid for a particular resource or set of resources. Populated by the system. Read-only. Value must be treated as opaque by clients.
NOTE This field is automatically generated. Do not assign any value to this field. Otherwise, API calls would fail.
A sequence number representing a specific generation of the desired state. Currently only implemented by replication controllers. Populated by the system. Read-only.
A timestamp representing the server time when this object was created. It is not guaranteed to be set in happens-before order across separate operations. Clients may not set this value. It is represented in RFC3339 form and is in UTC. Populated by the system. Read-only. Null for lists.
NOTE This field is automatically generated. Do not assign any value to this field. Otherwise, API calls would fail.
RFC 3339 date and time at which this resource will be deleted. This field is set by the server when a graceful deletion is requested by the user, and is not directly settable by a client. The resource will be deleted (no longer visible from resource lists, and not reachable by name) after the time in this field. Once set, this value may not be unset or be set further into the future, although it may be shortened or the resource may be deleted prior to this time. For example, a user may request that a pod is deleted in 30 seconds. The Kubelet will react by sending a graceful termination signal to the containers in the pod. Once the resource is deleted in the API, the Kubelet will send a hard termination signal to the container. If not set, graceful deletion of the object has not been requested. Populated by the system when a graceful deletion is requested. Read-only.

Issue 02 (2021-03-22)

251

MindX DL User Guide

4 API Reference

Param Mand Type

eter

atory

Description

deletio No nGrace PeriodS econds

Integer

Number of seconds allowed for this object to gracefully terminate before it will be removed from the system. Only set when deletionTimestamp is also set. May only be shortened. Read-only.

labels No Object

Map of string keys and values that can be used to organize and categorize (scope and select) objects. May match selectors of replication controllers and services.

annota No tions

annotatio ns object

An unstructured key value map stored with a resource that may be set by external tools to store and retrieve arbitrary metadata. They are not queryable and should be preserved when modifying objects.
NOTE Each resource type has required annotations. For details, see the description in APIs of specific resources.

ownerR No eferenc es

Array of ownerRef erences objects

List of objects depended by this object. If ALL objects in the list have been deleted, this object will be garbage collected. If this object is managed by a controller, then an entry in this list will point to this controller, with the controller field set to true. There cannot be more than one managing controller.

finalize No rs

Array of strings

Must be empty before the object is deleted from the registry. Each entry is an identifier for the responsible component that will remove the entry from the list. If the deletionTimestamp of the object is non-nil, entries in this list can only be removed.

Table 4-12 Data structure of the annotations field

Parameter

Mandat Type ory

Description

obssidecar-

injector-webhook/

inject

Boolean

This parameter is required when a pod is created by mounting into an OBS bucket.

Issue 02 (2021-03-22)

252

MindX DL User Guide

Parameter
pod.logcollection. kubernetes.io

Mandat ory
No

Type
Array of strings

paas.storage.io/ No cryptKeyId

String

paas.storage.io/ No cryptAlias

String

paas.storage.io/ No cryptDomainId

String

4 API Reference
Description
List of containers whose standard output logs need to be collected. If this parameter is left blank, standard output logs of all containers will be collected.
Example 1: Collect standard output logs of all containers.
pod annotation: log.stdoutcollection.kubernetes.io: {"collectionContainers":[]}
Example 2: Collect standard output logs of container0, where container0 is the container name.
pod annotation: log.stdoutcollection.kubernetes.io: {"collectionContainers": ["container0"]}
Encryption key ID.
This parameter is required only when the storage class is SFS or EVS and an encrypted volume needs to be created.
You can obtain the key ID from the Security Console by choosing Data Encryption Workshop > Key Management Service.
Encryption key alias.
This parameter is required only when the storage class is SFS and an encrypted volume needs to be created.
You can obtain the key alias from the Security Console by choosing Data Encryption Workshop > Key Management Service.
Domain ID of a tenant.
This parameter is required only when the storage class is SFS and an encrypted volume needs to be created.

Issue 02 (2021-03-22)

253

MindX DL User Guide

4 API Reference

Table 4-13 Data structure of the initializers field

Parameter

Mandatory Type

Description

pending

Array of

Pending is a list of initializers

pending

that must execute in order

objects

before this object is visible.

When the last pending

initializer is removed, and no

failing result is set, the

initializers struct will be set to

nil and the object is

considered as initialized and

visible to all clients.

result

status object If result is set with the Failure

field, the object will be

persisted to storage and then

deleted, ensuring that other

clients can observe the

deletion.

Table 4-14 Data structure of the pending field

Parameter

Mandatory Type

name

String

Description
Name of the process that is responsible for initializing this object.

Table 4-15 Data structure of the ownerReferences field

Parameter

Mandatory Type

Description

apiVersion

Yes

String

API version of the referent.

blockOwnerDe No letion

Boolean

If true, AND if the owner has the "foregroundDeletion" finalizer, then the owner cannot be deleted from the key-value store until this reference is removed. Defaults to false. To set this field, a user needs "delete" permission of the owner, otherwise 422 (Unprocessable Entity) will be returned.

kind

Yes

String

Kind of the referent.

name

Yes

String

Name of the referent.

Issue 02 (2021-03-22)

254

MindX DL User Guide

Parameter uid controller

Mandatory No No

Type String Boolean

4 API Reference
Description UID of the referent. If true, this reference points to the managing controller.

Table 4-16 Data structure of the spec field

Parameter

Mandatory Type

Description

replicas

Integer

The number of desired replicas. This is a pointer to distinguish between explicit zero and unspecified.
Value range: 0.
Default: 1

minReadySeco No nds

Integer

Minimum number of seconds for which a newly created pod should be ready without any of its containers crashing, for it to be considered available. Defaults to 0 (pod will be considered available as soon as it is ready)

template

Yes

PodTemplate Spec object

selector

Yes

Object

A label query over pods that should match the Replicas count. If Selector is empty, it is defaulted to the labels present on the Pod template. Label keys and values that must match in order to be controlled by this replication controller, if empty defaulted to labels on Pod template.

Table 4-17 Data structure of the status field

Parameter

Mandatory Type

replicas

Integer

Description
The most recently observed number of replicas.

Issue 02 (2021-03-22)

255

MindX DL User Guide

Parameter

Mandatory

availableReplic No as

Type Integer

readyReplicas No

conditions

Integer
condition object

observedGener No ation
FullylabeledRe No plicas

Integer Obeject

4 API Reference
Description
The number of available replicas (ready for at least minReadySeconds) for this replication controller.
The number of ready replicas for this replication controller.
Represents the latest available observations of a replication controller's current state.
Reflects the generation of the most recently observed replication controller.
-

Table 4-18 Data structure of the PodTemplateSpec field

Parameter

Mandatory Type

Description

metadata

ObjectMeta object

spec

podSpec

object

Table 4-19 Data structure of the condition field

Parameter

Mandatory Type

lastTransitionTi No me

String

message

String

reason

status

type

String String String

Description
The last time the condition transitioned from one status to another.
A human readable message indicating details about the transition.
The reason for the condition's last transition.
Status of the condition, one of True, False, Unknown.
Type of replication controller condition.

Issue 02 (2021-03-22)

256

MindX DL User Guide

Table 4-20 Data structure of the podSpec field

Parameter

Mandatory Type

volumes

Array of volumes objects

affinity

affinity object

containers

Yes

restartPolicy No

Array of containers objects
String

priority

Integer

4 API Reference
Description
List of volumes that can be mounted by containers belonging to the pod.
If specified, the pod's scheduling constraints.
NOTE Affinity settings cannot be configured. By default, the soft anti-affinity settings are used.
List of containers belonging to the pod. Containers cannot currently be added or removed. There must be at least one container in a pod. Cannot be updated.
Restart policy for all containers within the pod. Value: Always OnFailure Never Default: Always.
Pod priority. A larger value indicates a higher priority. The default value is 0. Value range: [-10, 10]

Issue 02 (2021-03-22)

257

MindX DL User Guide

4 API Reference

Parameter
terminationGr acePeriodSeco nds

Mandatory No

activeDeadline No Seconds

dnsPolicy

hostAliases

Type Integer
Integer
String
Array of hostAliases objects

Description
Optional duration in seconds the pod needs to terminate gracefully. May be decreased in delete request. Value must be a non-negative integer. The value zero indicates delete immediately. If this value is nil, the default grace period will be used instead. The grace period is the duration in seconds after the processes running in the pod are sent a termination signal and the time when the processes are forcibly halted with a kill signal. Set this value longer than the expected cleanup time for your process. Defaults to 30 seconds.
Optional duration in seconds the pod may be active on the node relative to StartTime before the system will actively try to mark it failed and kill associated containers. Value must be a positive integer.
Value range of this parameter: > 0.
Set DNS policy for containers within the pod.
Value:
ClusterFirst
Default
NOTE dnsPolicy cannot be set to Default.
Default: ClusterFirst.
HostAliases is an optional list of hosts and IPs that will be injected into the pod's hosts file if specified. This is only valid for non-hostNetwork pods.

Issue 02 (2021-03-22)

258

MindX DL User Guide

Parameter

Mandatory

serviceAccount No Name

Type String

serviceAccount No

String

schedulerNam No e

String

nodeName

String

4 API Reference
Description
Name of the ServiceAccount used to run this pod.
0 characters < service account name length 253 characters.
The service account name must be a regular expression [a-z0-9]([-a-z0-9]*[a-z0-9])?.
NOTE This field cannot be set because serviceaccount is not supported.
DeprecatedServiceAccount is a depreciated alias for ServiceAccountName. Deprecated: Use serviceAccountName instead.
NOTE This field cannot be set because serviceaccount is not supported.
If specified, the pod will be dispatched by specified scheduler. If not specified, the pod will be dispatched by default scheduler.
NOTE The scheduler name cannot be specified.
A request to schedule this pod onto a specific node. If it is non-empty, the scheduler simply schedules this pod onto that node, assuming that it fits resource requirements.
0 characters < node name length 253 characters.
The node name must be a regular expression [a-z0-9]([a-z0-9]*[a-z0-9])?.
NOTE The node name cannot be specified.

Issue 02 (2021-03-22)

259

MindX DL User Guide

4 API Reference

Parameter nodeSelector

Mandatory No

automountSer No viceAccountTo ken
hostNetwork No

hostPID

hostIPC

securityContex No t

Type

Description

Object

NodeSelector is a selector which must be true for the pod to fit on a node. Selector which must match a node's labels for the pod to be scheduled on that node.
NOTE The node selector cannot be configured.

Boolean

AutomountServiceAccountToken indicates whether a service account token should be automatically mounted.

Boolean

Host networking requested for this pod. Use the host's network namespace. If this option is set, the ports that will be used must be specified. Defaults to false.
(This parameter cannot be configured.)
NOTE The host network cannot be used.

Boolean

A flag indicating whether to use the host's pid namespace. This parameter is optional and defaults to false.
NOTE The host PID namespaces cannot be used.

Boolean

A flag indicating whether to use the host's ipc namespace. This parameter is optional and defaults to false.
NOTE The host IPC namespaces cannot be used.

PodSecurityC ontext object

SecurityContext holds podlevel security attributes and common container settings.
Defaults to empty.

Issue 02 (2021-03-22)

260

MindX DL User Guide

4 API Reference

Parameter
imagePullSecr ets

Mandatory No

initContainers No

hostname

Type

Description

Array of imagePullSec rets objects

An optional list of references to secrets in the same namespace to use for pulling any of the images used by this PodSpec. If specified, these secrets will be passed to individual puller implementations for them to use.
NOTE If you select an image from the My Images tab page of the SWR console, this parameter is required.

Array of containers objects

List of initialization containers belonging to the pod. Init containers are executed in order prior to containers being started. If any init container fails, the pod is considered to have failed and is handled according to its restartPolicy. The name for an init container or normal container must be unique among all containers. Init containers may not have Lifecycle actions, Readiness probes, or Liveness probes. The resourceRequirements of an init container is taken into account during scheduling by finding the highest request/ limit for each resource type, and then using the maximum of that value or the sum of the normal containers. Limits are applied to init containers in a similar fashion. Init containers cannot currently be added or removed.

String

Specifies the hostname of the Pod. If not specified, the pod's hostname will be set to a system-defined value.

Issue 02 (2021-03-22)

261

MindX DL User Guide

4 API Reference

Parameter subdomain

Mandatory No

tolerations

priorityClassNa No me

Type String
tolerations object
String

Description
If specified, the fully qualified Pod hostname will be"<hostname>.<subdomain> .<pod namespace>.svc<cluster domain>". If not specified, the pod will not have a domainname at all.
If specified, the pod's tolerations.
NOTE The tolerations field cannot be configured.
If specified, indicates the pod's priority. "SYSTEM" is a special keyword which indicates the highest priority. Any other name must be defined by creating a PriorityClass object with that name.
If not specified, the pod priority will be default or zero if there is no default.

Table 4-21 Data structure of the volumes field

Parameter

Mandatory Type

Description

name

Yes

String

Volume name. Must be a DNS_LABEL and unique within the pod.
0 characters < volume name length 63 characters.
The volume name must be a regular expression [a-z0-9]([a-z0-9]*[a-z0-9])?.

secret

SecretVolum eSource object

Secret represents a secret that should populate this volume.

persistentVolu No meClaim

PersistentVol umeClaimVo lumeSource object

PersistentVolumeClaimVolumeSource represents a reference to a PersistentVolumeClaim in the same namespace.

Issue 02 (2021-03-22)

262

MindX DL User Guide

Parameter localDir
emptyDir

4 API Reference

Mandatory No
No

Type

Description

LocalDirVolu meSource object

LocalDir represents a LocalDir volume that is created by LVM and mounted into the pod

emptyDir object

Used for creating a pod mounted into a local volume.

Table 4-22 Data structure of the containers field

Parameter

Man Type dator y

Description

name

Yes String

Name of the container specified as a DNS_LABEL. Each container in a pod must have a unique name (DNS_LABEL). Cannot be updated.
0 characters < container name length 63 characters.
The container name must be a regular expression [a-z0-9]([-a-z0-9]*[a-z0-9])?.
Cannot be updated.


Yes String

Container image address.

command No

Array of strings

Entrypoint array. Not executed within a shell. The container image's entrypoint is used if this is not provided. Variable references $ (VAR_NAME) are expanded using the container's environment. If a variable cannot be resolved, the reference in the input string will be unchanged. The $(VAR_NAME) syntax can be escaped with a double $$, for example, $$(VAR_NAME). Escaped references will never be expanded, regardless of whether the variable exists or not.
Cannot be updated.

Issue 02 (2021-03-22)

263

MindX DL User Guide

4 API Reference

Parameter

Man Type dator y

Description

args

Array of Arguments to the entrypoint. The container

strings image's cmd is used if this is not provided.

Variable references $(VAR_NAME) are

expanded using the container's environment.

If a variable cannot be resolved, the reference

in the input string will be unchanged. The $

(VAR_NAME) syntax can be escaped with a

double $$, for example, $$(VAR_NAME).

Escaped references will never be expanded,

regardless of whether the variable exists or

not.

Cannot be updated.

workingDir No String

Container's working directory. Defaults to Container's default. Defaults to image's default.
Cannot be updated.

ports

No Array of List of ports to expose from the container. Contain Cannot be updated. erPort objects

env

No Array of List of environment variables to set in the

EnvVar container.

objects Cannot be updated.

envFrom No Array of List of sources to populate environment EnvFrom variables in the container. The keys defined Source within a source must be a C_IDENTIFIER. All objects invalid keys will be reported as an event when the container is starting. When a key exists in multiple sources, the value associated with the last source will take precedence. Values defined by an Env with a duplicate key will take precedence.
Cannot be updated.

resources No Resourc Minimum resources the volume should have. eRequire Cannot be updated. ments object

volumeMo No unts

Array of volume Mounts objects

Pod volumes to mount into the container's filesystem.
Cannot be updated.

Issue 02 (2021-03-22)

264

MindX DL User Guide

4 API Reference

Parameter

Man Type dator y

Description

volumeDevi No ces

Array of volume Device objects

VolumeDevices is the list of block devices to be used by the container.
This is an alpha feature and may change in the future.

livenessPro No be

Probe object

Periodic probe of container liveness. Container will be restarted if the probe fails. Cannot be updated.

readinessPr No obe

Probe object

Periodic probe of container service readiness. Container will be removed from service endpoints if the probe fails.
Cannot be updated.

lifecycle

No lifecycle Actions that the management system should

object

take in response to container lifecycle events.

Cannot be updated.

termination No MessagePa th

String

Path at which the file to which the container's termination message will be written is mounted into the container's filesystem. Message written is intended to be brief final status, such as an assertion failure message. Defaults to /dev/termination-log. Cannot be updated.
Cannot be updated.

Issue 02 (2021-03-22)

265

MindX DL User Guide

4 API Reference

Parameter

Man Type dator y

termination No MessagePol icy

String

imagePullP No olicy

String

securityCon No text

stdin

security Context object
Boolean

Description
Indicate how the termination message should be populated. File will use the contents of terminationMessagePath to populate the container status message on both success and failure. FallbackToLogsOnError will use the last chunk of container log output if the termination message file is empty and the container exited with an error. The log output is limited to 2048 bytes or 80 lines, whichever is smaller. Defaults to File. Cannot be updated.
NOTE Value options: -File: default behavior and will set the container status message to the contents of the container's terminationMessagePath when the container exits. -FallbackToLogsOnError: will read the most recent contents of the container logs for the container status message when the container exits with an error and the terminationMessagePath has no contents.
Image pull policy. Defaults to Always if the :latest tag is specified, or IfNotPresent otherwise. Cannot be updated. Value: Always Never IfNotPresent
Cannot be updated.
NOTE Only Always is supported.
Security options the pod should run with
A flag indicating whether this container should allocate a buffer for stdin in the container runtime. If this is not set, reads from stdin in the container will always result in EOF. Default is false.

Issue 02 (2021-03-22)

266

MindX DL User Guide

4 API Reference

Parameter stdinOnce
tty

Man Type dator y No Boolean
No Boolean

Description
A flag indicating whether the container runtime should close the stdin channel after it has been opened by a single attach. When stdin is true, the stdin stream will remain open across multiple attach sessions. If stdinOnce is set to true, stdin is opened on container start, is empty until the first client attaches to stdin, and then remains open and accepts data until the client disconnects, at which time stdin is closed and remains closed until the container is restarted. If this flag is false, a container process that reads from stdin will never receive an EOF.
Default is false.
A flag indicating whether this container should allocate a TTY for itself, also requires 'stdin' to be true.
Default is false.

Table 4-23 Data structure of the PodSecurityContext field

Parameter

Mandatory Type

Description

seLinuxOptions No

seLinuxOptio ns object

runAsUser

Integer

The UID to run the entrypoint of the container process. Defaults to user specified in image metadata if unspecified. May also be set in SecurityContext. If set in both SecurityContext and PodSecurityContext, the value specified in SecurityContext takes precedence for that container.
Value length: > 0 characters.

Issue 02 (2021-03-22)

267

MindX DL User Guide

Parameter

Mandatory

runAsNonRoot No

Type Boolean

supplementalG No roups

Array of integers

fsGroup

Integer

4 API Reference
Description
Indicates that the container must run as a non-root user. If true, the Kubelet will validate the image at runtime to ensure that it does not run as UID 0 (root) and fail to start the container if it does. If unset or false, no such validation will be performed. May also be set in SecurityContext. If set in both SecurityContext and PodSecurityContext, the value specified in SecurityContext takes precedence.
A list of groups applied to the first process run in each container, in addition to the container's primary GID. If unspecified, no groups will be added to any container.
A special supplemental group that applies to all containers in a pod. Some volume types allow the Kubelet to change the ownership of that volume to be owned by the pod:
The owning GID will be the FSGroup 2. The setgid bit is set (new files created in the volume will be owned by FSGroup) 3. The permission bits are OR'd with rw-rw.

Issue 02 (2021-03-22)

268

MindX DL User Guide

Parameter fsOwner

Mandatory No

Type Integer

4 API Reference
Description
A special supplemental owner that applies to all containers in a pod. Some volume types allow the Kubelet to change the ownership of that volume to be owned by the pod:
1. The owning UID will be the FSOwner
2. The setgid bit is set (new files created in the volume will be owned by FSOwner).
3. The permission bits are OR'd with rw-------
If unset, the Kubelet will not modify the ownership and permissions of any volume.

Table 4-24 Data structure of the imagePullSecrets field

Parameter

Mandatory Type

Description

name

String

Name of the referent.
NOTICE If you select an image from the My Images tab page of the SWR console, the value of this parameter must be set to imagepull-secret.

Table 4-25 Data structure of the SecretVolumeSource field

Parameter

Mandat Type ory

Description

secretName No

String

Name of a secret in the pod's namespace.

Issue 02 (2021-03-22)

269

MindX DL User Guide

4 API Reference

Parameter items
defaultMode optional

Mandat ory No
No
No

Type items(KeyToP ath) object
Integer
Boolean

Description
If unspecified, each key-value pair in the Data field of the referenced. Secret will be projected into the volume as a file whose name is the key and content is the value. If specified, the listed keys will be projected into the specified paths, and unlisted keys will not be present. If a key is specified which is not present in the Secret, the volume setup will error. Paths must be relative and may not contain the '..' path or start with '..'.
Optional: mode bits to use on created files by default. Must be a value between 0 and 0777. Defaults to 0644. Directories within the path are not affected by this setting. This might be in conflict with other options that affect the file
mode, like fsGroup, and the result can be other mode bits set.
Specify whether the Secret or it is keys must be defined

Table 4-26 Data structure of the PersistentVolumeClaimVolumeSource field

Parameter

Mandatory Type

Description

claimName

String

Name of a PersistentVolumeClaim in the same namespace as the pod using this volume.

readOnly

Boolean

ReadOnly here will force the ReadOnly setting in VolumeMounts.
Value:
true
false
Default: false.

Issue 02 (2021-03-22)

270

MindX DL User Guide

4 API Reference

Table 4-27 Data structure of the items(KeyToPath) field

Parameter

Mandatory Type

Description

key

String

The key to project.

path

String

The relative path of the file to map the key to. May not be an absolute path. May not contain the path element '..'. May not start with the string '..'.

mode

Integer

Mode bits to use on this file, must be a value between 0 and 0777. If not specified, the volume defaultMode will be used. This might be in conflict with other options that affect the file mode, like fsGroup, and the result can be other mode bits set.

Table 4-28 Data structure of the ContainerPort field

Parameter

Mandatory Type

Description

name

String

If specified, this must be an IANA_SVC_NAME and unique within the pod. Each named port in a pod must have a unique name. Name for the port that can be referred to by services.
0 characters < name length 15 characters.
The name must be a regular expression [a-z0-9]([-az0-9]*[a-z0-9])?.

hostPort

Integer

Number of the port to expose on the host. If specified, this must be a valid port number, 0 < x < 65536. If HostNetwork is specified, this must match ContainerPort. Most containers do not need this.
Value range: [1, 65535].
NOTE The hostPort field cannot be configured.

Issue 02 (2021-03-22)

271

MindX DL User Guide

Parameter containerPort

Mandatory No

Type Integer

protocol

String

hostIP

String

4 API Reference
Description
Number of the port to expose on the pod's IP address. This must be a valid port number, 0 < x < 65536. Value range: [1, 65535].
Protocol for port. Value: TCP UDP Default: TCP.
What host IP to bind the external port to.
NOTE The hostIP field cannot be configured.

Table 4-29 Data structure of the EnvVar field

Parameter

Mandatory Type

name

Yes

String

value

String

valueFrom

EnvVarSourc e object

Description
Name of the environment variable. Must be a C_IDENTIFIER.
Variable references $ (VAR_NAME) are expanded using the previous defined environment variables in the container and any service environment variables. If a variable cannot be resolved, the reference in the input string will be unchanged. The $(VAR_NAME) syntax can be escaped with a double $$, for example, $$(VAR_NAME). Escaped references will never be expanded, regardless of whether the variable exists or not. Defaults to "".
Source for the environment variable's value. Cannot be used if value is not empty.

Issue 02 (2021-03-22)

272

MindX DL User Guide

4 API Reference

Table 4-30 Data structure of the ResourceRequirements field

Parameter

Mandatory Type

Description

limits

Array of ResouceNam e objects

Maximum amount of compute resources allowed.
NOTE The values of limits and requests must be the same. Otherwise, an error is reported.

requests

Array of ResouceNam e objects

Minimum amount of compute resources required. If Requests is omitted for a container, it defaults to Limits if that is explicitly specified, otherwise to an implementation-defined value.
Cloud Container Instance (CCI) has limitation on pod specifications. For details, see Pod Specifications in Usage Constraints.

Table 4-31 Available values of the ResourceName field

Parameter

Mandatory Type

Description

storage

String

Volume size, in bytes (e,g. 5Gi = 5GiB = 5 * 1024 * 1024 * 1024)

cpu

String CPU size, in cores. (500m = .5

cores)

memory

String

Memory size, in bytes. (500Gi = 500GiB = 500 * 1024 * 1024 * 1024)

localdir

String

Local Storage for LocalDir, in bytes. (500Gi = 500GiB = 500 * 1024 * 1024 * 1024)

nvidia.com/gpu- No tesla-v100-16GB

String

NVIDIA GPU resource, the type may change in different environments, in production environment is
nvidia.com/gpu-tesla-v100-16GB now. The value must be an integer and not less than 1.

Issue 02 (2021-03-22)

273

MindX DL User Guide

4 API Reference

Table 4-32 Data structure of the volumeMounts field

Parameter

Mandatory Type

Description

name

Yes

String

This must match the Name of a Volume.
0 characters < name length 253 characters
The name must be a regular expression [a-z0-9]([-az0-9]*[a-z0-9])?.

readOnly

Boolean

Mounted read-only if true, read-write otherwise (false or unspecified).
Value:
true
false
Default: false.

mountPath

String

Path within the container at which the volume should be mounted.
Value length: > 0 characters.

subPath

String

Path within the volume from which the container's volume should be mounted. Defaults to "" (volume's root).

Issue 02 (2021-03-22)

274

MindX DL User Guide

Parameter

Mandatory

mountPropaga No tion

Type String

4 API Reference
Description
MountPropagation determines how mounts are propagated from the host
to container and the other way around.
When not set, MountPropagationHostToContainer is used. This field is alpha in 1.8 and can be reworked or removed in a future release.
NOTE The available values include:
- HostToContainer: means that the volume in a container will receive new mounts from the host or other containers, but filesystems mounted inside the container will not be propagated to the host or other containers. Note that this mode is recursively applied to all mounts in the volume
("rslave" in Linux terminology).
- Bidirectional: means that the volume in a container will receive new mounts from the host or other containers, and its own mounts will be propagated from the container to the host or other containers. Note that this mode is recursively applied to all mounts in the volume
("rshared" in Linux terminology)

Issue 02 (2021-03-22)

275

MindX DL User Guide

Parameter
extendPathMo de

Mandatory No

Type String

4 API Reference
Description
Extend the volume path by appending the pod metadata to the path according to specified pattern, which provides a way of directory isolation and helps prevent the writing conflict between different pods.
NOTE The available values include:
- PodUID: Include PodUID in path
- PodName: Include Pod full name in path
- PodUID/ContainerName: Include Pod UID and container name in path
- PodName/ContainerName: Include Pod full name and container name in path

Table 4-33 Data structure of volumeDevice

Paramet Type er

Description

name

String

Name must match the name of a persistentVolumeClaim in the pod.

devicePa String th

DevicePath is the path inside of the container that the device will be mapped to.

Table 4-34 Data structure of the Probe field

Parameter

Mandatory Type

exec

exec object

initialDelaySec- No onds

Integer

Description
Only one option should be specified. Exec specifies the action to take.
Number of seconds after the container has started before liveness probes are initiated. Value range: 0.

Issue 02 (2021-03-22)

276

MindX DL User Guide

Parameter

Mandatory

timeoutSecond No s

Type Integer

periodSeconds No

Integer

successThresho No ld

Integer

failureThreshol No d

Integer

4 API Reference
Description
Number of seconds after which the probe times out. Value range: 0. Default: 1.
How often (in seconds) to perform the probe. Default to 10 seconds. Minimum value is 1. Value range: 0. Default: 10.
Minimum consecutive successes for the probe to be considered successful after having failed. Defaults to 1. Must be 1 for liveness. Minimum value is 1. Value range: 0. Default: 1.
Minimum consecutive failures for the probe to be considered failed after having succeeded. Defaults to 3. Minimum value is 1. Value range: 0. Default: 3.

Table 4-35 Data structure of the lifecycle field

Parameter

Mandatory Type

postStart

Handler object

Description
PostStart is called immediately after a container is created. If the handler fails,
the container is terminated and restarted according to its restart policy.
Other management of the container blocks until the hook completes.

Issue 02 (2021-03-22)

277

MindX DL User Guide

Parameter preStop

Mandatory No

Type
Handler object

4 API Reference
Description
PreStop is called immediately before a container is terminated. The container is terminated after the handler completes. The reason for termination is passed to the handler.
Regardless of the outcome of the handler, the container is eventually terminated.
Other management of the container blocks until the hook completes.

Table 4-36 Data structure of the securityContext field

Parameter

Mandatory Type

Description

capabilities

capabilities object

The capabilities to add/drop when running containers.
Defaults to the default set of capabilities granted by the container runtime.

privileged

Boolean

Run container in privileged mode. Processes in privileged containers are essentially equivalent to root on the host.
Value:
true
false
Default: false.
NOTE This parameter cannot be set to True.

Issue 02 (2021-03-22)

278

MindX DL User Guide

4 API Reference

Parameter

Mandatory

seLinuxOptions No

runAsUser

runAsNonRoot No

readOnlyRootF No ilesystem

Type

Description

seLinuxOptio ns object

The SELinux context to be applied to the container. If unspecified, the container runtime will allocate a random SELinux context for each container. May also be set in PodSecurityContext. If set in both SecurityContext and PodSecurityContext, the value specified in SecurityContext takes precedence.

Integer

The UID to run the entrypoint of the container process. Defaults to user specified in image metadata if unspecified. May also be set in PodSecurityContext. If set in both SecurityContext and PodSecurityContext, the value specified in SecurityContext takes precedence.

Boolean

Indicates that the container must run as a non-root user. If true, the Kubelet will validate the image at runtime to ensure that it does not run as UID 0 (root) and fail to start the container if it does. If unset or false, no such validation will be performed. May also be set in PodSecurityContext. If set in both SecurityContext and PodSecurityContext, the value specified in SecurityContext takes precedence.
Value:
true
false

Boolean

Whether this container has a read-only root filesystem.
Default is false.

Issue 02 (2021-03-22)

279

MindX DL User Guide

Parameter

Mandatory

allowPrivilegeE No scalation

Type Boolean

4 API Reference
Description
AllowPrivilegeEscalation controls whether a process can gain more privileges than its parent process. This bool directly controls if the no_new_privs flag will be set on the container process. AllowPrivilegeEscalation is true always when the container is: 1) run as Privileged 2) has CAP_SYS_ADMIN

Table 4-37 Data structure of the seLinuxOptions field

Parameter

Mandatory Type

Description

user

String

SELinux user label that

applies to the container.

role

String

SELinux role label that applies

to the container.

type

String

SELinux type label that

applies to the container.

level

String

SELinux level label that applies to the container.

Table 4-38 Data structure of the items field

Parameter

Mandatory Type

Description

path

String

Relative path name of the file

to be created. Must not be

absolute or contain the '..'

path. Must be utf-8 encoded.

The first item of the relative

path must not start with '..'

fieldRef

ObjectFieldS elector object

Issue 02 (2021-03-22)

280

MindX DL User Guide

4 API Reference

Parameter
resourceFieldR ef

Mandatory No

Type
ResourceFiel dSelector object

Description
Selects a resource of the container: only resources limits and requests. (limits.cpu, limits.memory, requests.cpu and requests.memory) are currently supported.

Table 4-39 Data structure of the EnvVarSource field

Parameter

Mandatory Type

Description

fieldRef

ObjectFieldS elector object

Selects a field of the pod: supports metadata.name, metadata.namespace, metadata.labels, metadata.annotations,spec.no deName, spec.serviceAccountName, status.hostIP, status.podIP.

resourceFieldR No ef

ResourceFiel dSelector object

Selects a resource of the container: only resources limits and requests. (limits.cpu, limits.memory, requests.cpu and requests.memory) are currently supported.

configMapKey No Ref

ConfigMapK eySelector object

Selects a key of a ConfigMap.

secretKeyRef No
processResourc No eFieldRef

SecretKeySel Selects a key of a secret in ector object the pod's namespace

ProcessResou rceFieldSelec tor object

Selects a resource of the process: only resources limits and requests
(limits.cpu, limits.memory, requests.cpu and requests.memory) are currently supported.

Issue 02 (2021-03-22)

281

MindX DL User Guide

Table 4-40 Data structure of the exec field

Parameter

Mandatory Type

command

Array of strings

4 API Reference
Description
Command is the command line to execute inside the container, the working directory for the command is root ('/') in the container's filesystem. The command is simply executed, it is not run inside a shell, so traditional shell instructions ('|', etc) do not work. To use a shell, you need to explicitly call out to that shell. Exit status of 0 is treated as live/healthy and non-zero is unhealthy.

Table 4-41 Data structure of Handler

Parameter

Mandatory Type

exec

exec object

Description
Only one option should be specified. Exec specifies the action to take.

Table 4-42 Data structure of the capabilities field

Parameter

Mandatory Type

Description

add

Array of

Added capabilities.

strings

drop

Array of

Removed capabilities.

strings

Table 4-43 Data structure of the ObjectFieldSelector field

Parameter

Mandatory Type

Description

apiVersion

String

Version of the schema the FieldPath is written in terms of. Defaults to "v1".

fieldPath

String

Path of the field to select in the specified API version.

Issue 02 (2021-03-22)

282

MindX DL User Guide

4 API Reference

Table 4-44 Data structure of the ResourceFieldSelector field

Parameter

Mandatory Type

Description

containerNam No e

String

Container name: required for volumes, optional for env vars.

resource

Yes

String

Required: resource to select.

divisor

String

Specifies the output format of the exposed resources, defaults to "1".

Table 4-45 Data structure of the ConfigMapKeySelector field

Parameter

Mandatory Type

Description

name

String

The ConfigMap name to select from

key

String

Key to be selected.

optional

String

Specify whether the ConfigMap or it is key must be defined

Table 4-46 Data structure of the SecretKeySelector field

Parameter

Mandatory Type

Description

name

String

Secret name to be selected.

key

String

Key to be selected.

optional

String

Whether the secret or its key must be defined.

Table 4-47 Data structure of the ProcessResourceFieldSelector field

Parameter

Mandatory Type

Description

processName No

String

Process name: required for volumes, optional for env vars

resource

Yes

String

Required: resource to select.

divisor

Integer

Specifies the output format of the exposed resources, defaults to "1".

Issue 02 (2021-03-22)

283

MindX DL User Guide

4 API Reference

Table 4-48 Data structure of the EnvFromSource field

Parameter

Mandatory Type

Description

prefix

String

An optional identifier to prepend to each key in the ConfigMap. Must be a C_IDENTIFIER.

configMapRef No

ConfigMapE nvSource object

The ConfigMap to select from

secretRef

SecretEnvSo The Secret to select from urce object

Table 4-49 Data structure of the ConfigMapEnvSource field

Parameter

Mandatory

Type

name

String

optional

String

Description
The ConfigMap to select from
Specify whether the ConfigMap must be defined

Table 4-50 Data structure of the SecretEnvSource field

Parameter

Mandatory

Type

name

String

optional

String

Description
Secret name to be selected.
Whether the secret must be defined.

Table 4-51 Data structure of the add field

Parameter

Mandatory Type

name

Yes

String

namespaced No

Boolean

kind

String

Description
Name of the resource.
A flag indicating whether a resource is namespaced or not. Default: false.
Kind of the resource.

Issue 02 (2021-03-22)

284

MindX DL User Guide

4 API Reference

Table 4-52 Data structure of the affinity field

Parameter

Mandatory Type

nodeAffinity No

nodeAffinity object

podAffinity

podAffinity object

podAntiAffinity No

podAffinity object

Description
Describes node affinity scheduling rules for the pod.
Describes pod affinity scheduling rules (e.g. colocate this pod in the same node, zone, etc. as some other pod(s)).
Describes pod anti-affinity scheduling rules (e.g. avoid putting this pod in the same node, zone, etc. as some other pod(s)).

Table 4-53 Data structure of the nodeAffinity field

Parameter

Mandatory Type

Description

preferredDurin No gSchedulingIgn oredDuringExe cution

preferredDur ingSchedulin gIgnoredDuri ngExecution object

The scheduler will prefer to schedule pods to nodes that satisfy the affinity expressions specified by this field, but it may choose a node that violates one or more of the expressions. The node that is most preferred is the one with the greatest sum of weights, i.e. for each node that meets all of the scheduling requirements (resource request, requiredDuringScheduling affinity expressions, etc.), compute a sum by iterating through the elements of this field and adding "weight" to the sum if the node matches the corresponding matchExpressions; the node(s) with the highest sum are the most preferred.

Issue 02 (2021-03-22)

285

MindX DL User Guide

4 API Reference

Parameter

Mandatory

requiredDuring No SchedulingIgno redDuringExec ution

Type

Description

requiredDuri ngSchedulin gIgnoredDuri ngExecution object

If the affinity requirements specified by this field are not met at scheduling time, the pod will not be scheduled onto the node. If the affinity requirements specified by this field cease to be met at some point during pod execution (e.g. due to an update), the system may or may not try to eventually evict the pod from its node.

Table 4-54 Data structure of the podAffinity field

Parameter

Mandatory Type

Description

preferredDurin No gSchedulingIgn oredDuringExe cution

preferredDur ingSchedulin gIgnoredDuri ngExecution object

The scheduler will prefer to schedule pods to nodes that satisfy the affinity expressions specified by this field, but it may choose a node that violates one or more of the expressions. The node that is most preferred is the one with the greatest sum of weights, i.e. for each node that meets all of the scheduling requirements (resource request, requiredDuringScheduling affinity expressions, etc.), compute a sum by iterating through the elements of this field and adding "weight" to the sum if the node has pods which match the corresponding podAffinityTerm; the node(s) with the highest sum are the most preferred.

Issue 02 (2021-03-22)

286

MindX DL User Guide

4 API Reference

Parameter

Mandatory

requiredDuring No SchedulingIgno redDuringExec ution

Type
podAffinityT erm object

Description
NOT YET IMPLEMENTED. TODO: Uncomment field once it is implemented. If the affinity requirements specified by this field are not met at scheduling time, the pod will not be scheduled onto the node. If the affinity requirements specified by this field cease to be met at some point during pod execution (e.g. due to a pod label update), the system will try to eventually evict the pod from its node. When there are multiple elements, the lists of nodes corresponding to each podAffinityTerm are intersected, i.e. all terms must be satisfied. RequiredDuringSchedulingRequiredDuringExecution []PodAffinityTerm json:"requiredDuringSchedulingRequiredDuringExecution,omitempty" If the affinity requirements specified by this field are not met at scheduling time, the pod will not be scheduled onto the node. If the affinity requirements specified by this field cease to be met at some point during pod execution (e.g. due to a pod label update), the system may or may not try to eventually evict the pod from its node. When there are multiple elements, the lists of nodes corresponding to each podAffinityTerm are intersected, i.e. all terms must be satisfied.

Issue 02 (2021-03-22)

287

MindX DL User Guide

4 API Reference

Table 4-55 Data structure of the preferredDuringSchedulingIgnoredDuringExecution field

Parameter

Mandatory Type

Description

preference

preference object

A node selector term, associated with the corresponding weight.

weight

Integer

Weight associated with matching the corresponding nodeSelectorTerm, in the range 1-100.

Table 4-56 Data structure of the requiredDuringSchedulingIgnoredDuringExecution field

Parameter

Mandatory Type

Description

nodeSelectorTe No rms

preference object

Required. A list of node selector terms. The terms are ORed.

Table 4-57 Data structure of the preference field

Parameter

Mandatory Type

Description

matchExpressi No ons

matchExpres sions object

Required. A list of node selector requirements. The requirements are ANDed.

Table 4-58 Data structure of the matchExpressions field

Parameter

Mandatory Type

Description

key

String

The label key that the

selector applies to.

operator

String

Represents a key's relationship to a set of values. Valid operators are In, NotIn, Exists, DoesNotExist. Gt, and Lt.

Issue 02 (2021-03-22)

288

MindX DL User Guide

Parameter values

Mandatory No

Type String

4 API Reference
Description
An array of string values. If the operator is In or NotIn, the values array must be nonempty. If the operator is Exists or DoesNotExist, the values array must be empty. If the operator is Gt or Lt, the values array must have a single element, which will be interpreted as an integer. This array is replaced during a strategic merge patch.

Table 4-59 Data structure of the preferredDuringSchedulingIgnoredDuringExecution field

Parameter

Mandatory Type

Description

podAffinityTer No m

podAffinityT erm object

Required. A pod affinity term, associated with the corresponding weight.

weight

Integer

Weight associated with matching the corresponding podAffinityTerm, in the range 1-100.

Table 4-60 Data structure of the podAffinityTerm field

Parameter

Mandatory Type

Description

labelSelector No

labelSelector A label query over a set of

object

resources, in this case pods.

namespaces No

Array of strings

Namespaces specifies which namespaces the labelSelector applies to (matches against); null or empty list means "this pod's namespace".

Issue 02 (2021-03-22)

289

MindX DL User Guide

Parameter topologyKey

Mandatory No

Type String

4 API Reference
Description
This pod should be co-located (affinity) or not co-located (anti-affinity) with the pods matching the labelSelector in the specified namespaces, where co-located is defined as running on a node whose value of the label with key topologyKey matches that of any node on which any of the selected pods is running. For PreferredDuringScheduling pod anti-affinity, empty topologyKey is interpreted as "all topologies" ("all topologies" here means all the topologyKeys indicated by scheduler command-line argument --failure-domains); for affinity and for RequiredDuringScheduling pod anti-affinity, empty topologyKey is not allowed.

Table 4-61 Data structure of the labelSelector field

Parameter

Mandatory Type

Description

matchExpressi No ons

Array of LabelSelecto rRequiremen t objects

MatchExpressions is a list of label selector requirements. The requirements are ANDed.

matchLabels No

Object

MatchLabels is a map of {key,value} pairs. A single {key,value} in the matchLabels map is equivalent to an element of matchExpressions, whose key field is "key", the operator is "In", and the values array contains only "value". The requirements are ANDed.

Issue 02 (2021-03-22)

290

MindX DL User Guide

4 API Reference

Table 4-62 Data structure of the LabelSelectorRequirement field

Parameter

Mandatory Type

Description

key

String

Key is the label key that the

selector applies to.

operator

String

Operator represents a key's relationship to a set of values.
Valid operators are In, NotIn, Exists and DoesNotExist.

values

Array of strings

Values is an array of string values. If the operator is In or NotIn, the values array must be non-empty. If the operator is Exists or DoesNotExist, the values array must be empty. This array is replaced during a strategic merge patch.

Table 4-63 Data structure of the hostAliases field

Parameter

Mandatory Type

Description

hostnames

Array of strings

Hostnames for the above IP address.

String

IP address of the host file

entry.

Table 4-64 Data structure of the tolerations field

Parameter

Mandatory Type

Description

effect

String

Effect indicates the taint effect to match. Empty means match all taint effects. When specified, allowed values are NoSchedule, PreferNoSchedule and NoExecute.

key

String

Key is the taint key that the

toleration applies to. Empty

means match all taint keys. If

the key is empty, operator

must be Exists; this

combination means to match

all values and all keys.

Issue 02 (2021-03-22)

291

MindX DL User Guide

Parameter operator

Mandatory No

Type String

tolerationSeco No nds

Integer

value

String

4 API Reference
Description
Operator represents a key's relationship to the value. Valid operators are Exists and Equal. Defaults to Equal. Exists is equivalent to wildcard for value, so that a pod can tolerate all taints of a particular category.
TolerationSeconds represents the period of time the toleration (which must be of effect NoExecute, otherwise this field is ignored) tolerates the taint. By default, it is not set, which means tolerate the taint forever (do not evict). Zero and negative values will be treated as 0 (evict immediately) by the system.
Value is the taint value the toleration matches to. If the operator is Exists, the value should be empty, otherwise just a regular string.

Table 4-65 Data structure of DeleteOptions

Parameter

Mandatory Type

kind

Yes

String

Issue 02 (2021-03-22)

292

MindX DL User Guide

4 API Reference

Parameter apiVersion

Mandatory Yes

gracePeriodSec No onds

preconditions No
orphanDepend No ents

Type

Description

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
The value of this parameter is v1.

Integer

The duration in seconds before the object should be deleted. Value must be a nonnegative integer. The value zero indicates delete immediately. If this value is nil, the default grace period for the specified type will be used. Defaults to a per object value if not specified. The value 0 indicates to delete immediately.
Value range of this parameter: > 0.

precondition s object

Must be fulfilled before a deletion is carried out. If not possible, a 409 Conflict status will be returned.

Boolean

Should the dependent objects be orphaned. If true/false, the "orphan" finalizer will be added to/removed from the object's finalizers list.

Issue 02 (2021-03-22)

293

MindX DL User Guide

Parameter

Mandatory

propagationPol No icy

Type String

4 API Reference
Description
Whether and how garbage collection will be performed. Either this field or OrphanDependents may be set, but not both. The default policy is decided by the existing finalizer set in the metadata.finalizers and the resource-specific default policy.
NOTICE Acceptable values are:
'Orphan' - orphan the dependents;
'Background' - allow the garbage collector to delete the dependents in the background;
'Foreground' - a cascading policy that deletes all dependents in the foreground.

Table 4-66 Data structure of the preconditions field

Parameter

Mandatory Type

Description

uid

String

Specifies the target UID.

Table 4-67 Data structure of PodNetworkInterface

Parameter

Type

Description

name

String

Name of the interface inside the pod

network

String

Name of the attached network

Array of IP address(both v4 and v6) of this interface

strings

Issue 02 (2021-03-22)

294

MindX DL User Guide

4 API Reference

Table 4-68 Data structure of v1.PodList

Parameter

Type

kind

String

apiVersion

String

metadataString items

ListMeta object Array of Pod objects

Description
A string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.
Versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
-
List of pods.

Table 4-69 Data structure of v1.PodTemplateList

Parameter

Type

Description

kind

String

A string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

apiVersion

String

Versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

metadata

ListMeta object

items

Array of PodTemplate List of pod templates. objects

Table 4-70 Data structure of the status field

Parameter

Type

Description

phase

String

Current condition of the pod.

conditions

PodConditions object Current service state of the pod.

Issue 02 (2021-03-22)

295

MindX DL User Guide

Parameter message
reason

Type String
String

hostIP podIP startTime

String String String

containerStatuses containerStatuses object

4 API Reference
Description
A human readable message indicating details about why the pod is in this condition.
A brief CamelCase message indicating details about why the pod is in this state. e.g. 'OutOfDisk'
IP address of the host to which the pod is assigned. Empty if not yet scheduled.
IP address allocated to the pod. Routable at least within the cluster. Empty if not yet allocated.
RFC 3339 date and time at which the object was acknowledged by the Kubelet. This is before the Kubelet pulled the container image(s) for the pod.
The list has one entry per container in the manifest. Each entry is currently the output of container inspect.

Table 4-71 Data structure of the metadata field

Parameter

Type

Description

selfLink

String

SelfLink is a URL representing this object. Populated by the system. Read-only.

resourceVersion String

String that identifies the server's internal version of this object that can be used by clients to determine when objects have changed. Value must be treated as opaque by clients and passed unmodified back to the server. Populated by the system. Readonly.

Issue 02 (2021-03-22)

296

MindX DL User Guide

4 API Reference

Table 4-72 Data structure of the objectReference field

Parameter

Type

Description

kind

String

Kind of the referent.

namespace

String

Namespace of the referent.

name

String

Name of the referent.

uid

String

UID of the referent.

apiVersion

String

API version of the referent.

resourceVersion String

Specific resourceVersion to which this reference is made, if any.

fieldPath

String

Path of the field to select in the specified API version.

Table 4-73 Data structure of the status field

Parameter Type

Description

kind

String

Kind is a string value representing the REST resource

this object represents. Servers may infer this from

the endpoint the client submits requests to. Cannot

be updated.

apiVersion String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

metadata ListMeta object

Standard list metadata.

status

String

Status of the operation. One of: "Success" or "Failure".

message String

A human-readable description of the status of this operation.

reason

reason object

A machine-readable description of why this operation is in the "Failure" status. If this value is empty there is no information available. A Reason clarifies an HTTP status code but does not override it.

details

StatusDeta ils object

Extended data associated with the reason. Each reason may define its own extended details. This field is optional and the data returned is not guaranteed to conform to any schema except that defined by the reason type.

Issue 02 (2021-03-22)

297

MindX DL User Guide

Parameter Type

code

Integer

4 API Reference
Description Suggested HTTP return code for this status, 0 if not set.

Table 4-74 Data structure of StatusDetails

Paramet Type er

Description

causes

Array of StatusCa use objects

The Causes array includes more details associated with the StatusReason failure. Not all StatusReasons may provide detailed causes.

group

String

The group attribute of the resource associated with the status StatusReason.

kind

String

The kind attribute of the resource associated with the

status StatusReason. On some operations may differ

from the requested resource Kind

name

String

The name attribute of the resource associated with the status StatusReason (when there is a single name which can be described).

retryAfte Integer rSeconds

If specified, the time in seconds before the operation should be retried. Some errors may indicate the client must take an alternate action - for those errors this field may indicate how long to wait before taking the alternate action.

uid

String

UID of the resource. (when there is a single resource

which can be described)

Table 4-75 Data structure of StatusCause

Parameter Type

Description

field

String The field of the resource that has caused this error, as

named by its JSON serialization. May include dot and

postfix notation for nested attributes. Arrays are zero-

indexed. Fields may appear more than once in an array

of causes due to fields having multiple errors. Optional.

Examples: "name" - the field "name" on the current

resource "items[0].name" - the field "name" on the

first array entry in "items"

message

String

A human-readable description of the cause of the error. This field may be presented as-is to a reader.

Issue 02 (2021-03-22)

298

MindX DL User Guide

4 API Reference

Parameter reason

Type
StatusC ause reason object

Description
A machine-readable description of the cause of the error. If this value is empty there is no information available.

Table 4-76 Value range of the reason field in StatusCause

Parameter

Description

FieldValueNotFou CauseTypeFieldValueNotFound is used to report failure to

find a requested value.(e.g. looking up an ID).

FieldValueRequire d

CauseTypeFieldValueRequired is used to report required values that are not
provided (e.g. empty strings, null values, or empty arrays).

FieldValueDuplicate

CauseTypeFieldValueDuplicate is used to report collisions of values that must be unique (e.g. unique IDs).

FieldValueInvalid CauseTypeFieldValueInvalid is used to report malformed values (e.g. failed regex match).

FieldValueNotSup ported

CauseTypeFieldValueNotSupported is used to report valid (as per formatting rules) values that cannot be handled (e.g. an enumerated string).

UnexpectedServer Response

CauseTypeUnexpectedServerResponse is used to report when the server responded to the client without the expected return type. The presence of this cause indicates the error may be due to an intervening proxy or the server software malfunctioning.

Table 4-77 Data structure of ListMeta

Paramete Type r

Description

continue String

Continue may be set if the user set a limit on the number of items returned, and indicates that the server has more data available. The value is opaque and may be used to issue another request to the endpoint that served this list to retrieve the next set of available objects. Continuing a list may not be possible if the server configuration has changed or more than a few minutes have passed. The resourceVersion field returned when using this continue value will be identical to the value in the first response

Issue 02 (2021-03-22)

299

MindX DL User Guide

Paramete Type r resourceV String ersion
selfLink String

4 API Reference
Description
String that identifies the server's internal version of this object that can be used by clients to determine when objects have changed. Value must be treated as opaque by clients and passed unmodified back to the server. Populated by the system. Read-only
SelfLink is a URL representing this object. Populated by the system. Read-only

Table 4-78 reason

Paramet Value er

Description

StatusRe "" asonUnk nown

StatusReasonUnknown means the server has declined to indicate a specific reason. The details field may contain other information about this error.
Status code 500

StatusRe asonUna uthorize d

Unauthori zed

StatusReasonUnauthorized means the server can be reached and understood the request, but requires the user to present appropriate authorization credentials (identified by the WWW-Authenticate header) in order for the action to be completed. If the user has specified credentials on the request, the server considers them insufficient.
Status code 401

StatusRe asonForb idden

Forbidden

StatusReasonForbidden means the server can be reached and understood the request, but refuses to take any further action. It is the result of the server being configured to deny access for some reason to the requested resource by the client.
Details (optional):
"kind" string - the kind attribute of the forbidden resource on some operations may differ from the requested
resource. "id" string - the identifier of the forbidden resource
Status code 403

Issue 02 (2021-03-22)

300

MindX DL User Guide

4 API Reference

Paramet Value er

Description

StatusRe asonNot Found

NotFound

StatusReasonNotFound means one or more resources required for this operation could not be found.
Details (optional):
"kind" string - the kind attribute of the missing resource on some operations may differ from the requested resource.
"id" string - the identifier of the missing resource
Status code 404

StatusRe asonAlre adyExists

AlreadyEx ists

StatusReasonAlreadyExists means the resource you are creating already exists.
Details (optional):
"kind" string - the kind attribute of the conflicting resource
"id" string - the identifier of the conflicting resource
Status code 409

StatusRe Conflict asonConf lict

StatusReasonConflict means the requested operation cannot be completed due to a conflict in the operation. The client may need to alter the request. Each resource may define custom details that indicate the nature of the conflict.
Status code 409

StatusRe Gone asonGon e

StatusReasonGone means the item is no longer available at the server and no forwarding address is known.
Status code 410

StatusRe Invalid asonInva lid

StatusReasonInvalid means the requested create or update operation cannot be completed due to invalid data provided as part of the request. The client may need to alter the request. When set, the client may use the StatusDetailsmessage field as a summary of the issues encountered.
Details (optional):
"kind" string - the kind attribute of the invalid resource
"id" string - the identifier of the invalid resource
"causes" - one or more StatusCause entries indicating the data in the provided resource that was invalid. The code, message, and field attributes will be set.
Status code 422

Issue 02 (2021-03-22)

301

MindX DL User Guide

4 API Reference

Paramet Value er

Description

StatusRe asonServ erTimeo ut

ServerTim eout

StatusReasonServerTimeout means the server can be reached and understood the request, but cannot complete the action in a reasonable time. The client should retry the request. This is probably due to temporary server load or a transient communication issue with another server. Status code 500 is used because the HTTP spec provides no suitableserverrequested client retry and the 5xx class represents actionable errors.
Details (optional):
"kind" string - the kind attribute of the resource being acted on.
"id" string - the operation that is being attempted.
"retryAfterSeconds" Integer - the number of seconds before the operation should be retried
Status code 500

StatusRe asonTim eout

Timeout

StatusReasonTimeout means that the request could not be completed within the given time. Clients can get this response only when they specified a timeout param in the request, or if the server cannot complete the operation within a reasonable amount of time. The request might succeed with an increased value of timeout param. The client *should*wait at least the number of seconds specified by the retryAfterSeconds field. Details (optional):"retryAfterSeconds" int32 - the number of seconds before the operation should be retried
Status code 504

StatusRe asonToo ManyRe quests

TooMany Requests

StatusReasonTooManyRequests means the server experienced too many requests within a given window and that the client must wait to perform the action again. A client may always retry the request that led to this error, although the client should wait at least the number of seconds specified by the retryAfterSeconds field.
Details (optional):
"retryAfterSeconds" int32 - the number of seconds before the operation should be retried
Status code 429

Issue 02 (2021-03-22)

302

MindX DL User Guide

4 API Reference

Paramet Value er

Description

StatusRe asonBad Request

BadReque st

StatusReasonBadRequest means that the request itself was invalid, because the request does not make any sense, for example deleting a read-only object. This is different from StatusReasonInvalid above which indicates that the API call could possibly succeed, but the data was invalid. API calls that return BadRequest can never succeed.

StatusRe asonMet hodNotA llowed

MethodN otAllowed

StatusReasonMethodNotAllowed means that the action the client attempted to perform on the resource was not supported by the code - for instance, attempting to delete a resource that can only be created. API calls that return MethodNotAllowed can never succeed.

StatusRe asonInte rnalError

InternalEr ror

StatusReasonInternalError indicates that an internal error occurred, it is unexpected and the outcome of the call is unknown.
Details (optional):
"causes" - The original error
Status code 500

StatusRe Expired asonExpi red

StatusReasonExpired indicates that the request is invalid because the content you are requesting has expired and is no longer available. It is typically associated with watches that cannot be serviced.
Status code 410 (gone)

StatusRe asonServ iceUnava ilable

ServiceUn available

StatusReasonServiceUnavailable means that the request itself was valid, but the requested service is unavailable at this time. Retrying the request after some time might succeed.
Status code 503

Table 4-79 Data structure of WatchEvent

Paramet Type er

Description

type

String Type of Event. Can be:

- Added

- Modified

- Deleted

- Error

Issue 02 (2021-03-22)

303

MindX DL User Guide

4 API Reference

Paramet Type er
Object String

Description
Object is: - If Type is Added or Modified: the new state of the object. - If Type is Deleted: the state of the object immediately before deletion. - If Type is Error: Status is recommended; - other types may make sense depending on context.

Table 4-80 Data structure of Deployment

Parameter Mandator Type y

Description

apiVersion Yes

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

Yes

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

metadata Yes

ObjectMeta Standard object metadata. object

spec

Yes

Deployment Specification of the desired behavior Spec object of the Deployment.

status

Deployment Most recently observed status of the Status object Deployment.

Issue 02 (2021-03-22)

304

MindX DL User Guide

4 API Reference

Table 4-81 Data structure of the DeploymentSpec field

Parameter Mandator Type y

Description

minReadyS No econds

Integer

paused

Boolean

Indicates that the deployment is paused.

progressDe No adlineSeco nds

Integer

The maximum time in seconds for a deployment to make progress before it is considered to be failed. The deployment controller will continue to process failed deployments and a condition with a ProgressDeadlineExceeded reason will be surfaced in the deployment status. Once autoRollback is implemented, the deployment controller will automatically rollback failed deployments. Note that progress will not be estimated during the time a deployment is paused. Defaults to 600s.

replicas

Integer

Number of desired pods. This is a pointer to distinguish between explicit zero and not specified. Defaults to 1.
The value of 1 indicates one pod, meaning low availability. You are advised to set this parameter to a value greater than 1.

priority

Integer

Workload priority. A larger value indicates a higher priority. The default value is 0.
Value range: [-10, 10]

revisionHist No oryLimit

Integer

The number of old ReplicaSets to retain to allow rollback. This is a pointer to distinguish between explicit zero and not specified. Defaults to 2.

Issue 02 (2021-03-22)

305

MindX DL User Guide

4 API Reference

Parameter Mandator Type y

Description

selector

labelSelecto r object

Label selector for pods. Existing ReplicaSets whose pods are selected by this will be the ones affected by this deployment.

strategy

Deployment The deployment strategy to use to

Strategy

replace existing pods with new ones.

object

template Yes

PodTemplat Template describes the pods that will eSpec object be created.

Table 4-82 Data structure of the DeploymentStatus field

Parameter Mandator Type y

Description

availableRe No plicas

Integer

Total number of available pods (ready for at least minReadySeconds) targeted by this deployment.

collisionCou No nt

Integer

Count of hash collisions for the Deployment. The Deployment controller uses this field as a collision avoidance mechanism when it needs to create the name for the newest ReplicaSet.

conditions No

Array of Deployment Condition objects

Represents the latest available observations of a deployment's current state.

observedGe No neration

Integer

The generation observed by the deployment controller

readyReplic No as

Integer

Total number of ready pods targeted by this deployment

replicas

Integer

Total number of non-terminated pods targeted by this deployment (their labels match the selector).

unavailable No Replicas

Integer

Total number of unavailable pods targeted by this Deployment.

updatedRep No licas

Integer

Total number of non-terminated pods targeted by this Deployment that have the desired template spec.

Issue 02 (2021-03-22)

306

MindX DL User Guide

4 API Reference

Table 4-83 Data structure of the DeploymentStrategy field

Parameter Mandator Type y

Description

rollingUpda Yes te

RollingUpat Rolling update config params.

eDeploymen Present only if DeploymentStrategy-

t object

Type = RollingUpdate.

type

String

Type of deployment.
Can be "Recreate" or "RollingUpdate".
Default is RollingUpdate.

Table 4-84 Data structure of the DeploymentCondition field

Parameter Mandator Type y

Description

lastTransitio No nTime

String

Last time the condition transitioned from one status to another.

lastUpdate No Time

String

The last time this condition was updated.

message

String

A human readable message indicating details about the transition.

reason

String

The reason for the condition's last transition.

status

String

Status of the condition, one of True, False, Unknown.

type

String

Type of deployment condition.

Can be "Available", "Progressing", "ReplicaFailure"

Issue 02 (2021-03-22)

307

MindX DL User Guide

4 API Reference

Table 4-85 Data structure of the RollingUpateDeployment field

Parameter Mandator Type y

Description

maxSurge No

Integer

The maximum number of pods that can be scheduled above the desired number of pods. Value can be an absolute number (ex: 5) or a percentage of desired pods (ex: 10%). This cannot be 0 if MaxUnavailable is 0. Absolute number is calculated from percentage by rounding up. Defaults to 25%. Example: when this is set to 30%, the new RC can be scaled up immediately when the rolling update starts, such that the total number of old and new pods do not exceed 130% of desired pods. Once old pods have been killed, new RC can be scaled up further, ensuring that total number of pods running at any time during the update is at most 130% of desired pods.

maxUnavail No able

Integer

The maximum number of pods that can be unavailable during the update. Value can be an absolute number (ex: 5) or a percentage of desired pods (ex: 10%). Absolute number is calculated from percentage by rounding down. This cannot be 0 if MaxSurge is 0. Defaults to 25%. Example: when this is set to 30%, the old RC can be scaled down to 70% of desired pods immediately when the rolling update starts. Once new pods are ready, old RC can be scaled down further, followed by scaling up the new RC, ensuring that the total number of pods available at all times during the update is at least 70% of desired pods.

Issue 02 (2021-03-22)

308

MindX DL User Guide

4 API Reference

Table 4-86 Data structure of the apps field in DeploymentList v1

Parameter Mandator Type y

Description

apiVersion Yes

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

Yes

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

metadata No

ListMeta object

Standard object metadata.

items

Yes

Array of

Items is the list of Deployments

Deployment

objects

Table 4-87 Data structure of StatefulSet

Parameter

Mandato Type ry

Description

apiVersion

Yes

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

Yes

String

Kind is a string value

representing the REST resource

this object represents. Servers

may infer this from the endpoint

the client submits requests to.

Cannot be updated.

metadata

Yes

ObjectMeta Standard list metadata.

object

spec

Yes

StatefulSetSp Spec defines the desired

ec object

identities of pods in this set.

Issue 02 (2021-03-22)

309

MindX DL User Guide

Parameter status

4 API Reference

Mandato Type ry

StatefulSetSt

atus object

Description
Status is the current status of Pods in this StatefulSet. This data may be out of date by some window of time.

Table 4-88 Data structure of the StatefulSetStatus field

Parameter

Mandato Type ry

Description

observedGenera No tion

Integer

Most recent generation observed by this autoscaler.

replicas

Integer

Replicas is the number of actual

replicas.

currentReplicas No

Integer

CurrentReplicas is the number of Pods created by the StatefulSet controller from the StatefulSet version indicated by currentRevision.

currentRevision No

String

CurrentRevision, if not empty, indicates the version of the StatefulSet used to generate Pods in the sequence [0,currentReplicas).

readyReplicas No

Integer

ReadyReplicas is the number of Pods created by the StatefulSet controller that have a Ready Condition.

updateRevision No

String

UpdateRevision, if not empty, indicates the version of the StatefulSet used to generate Pods in the sequence [replicasupdatedReplicas,replicas).

updatedReplicas No

Integer

UpdatedReplicas is the number of Pods created by the StatefulSet controller from the StatefulSet version indicated by updateRevision.

Issue 02 (2021-03-22)

310

MindX DL User Guide

4 API Reference

Parameter collisionCount
conditions

Mandato Type ry

Integer

Array of

StatefulSetC ondition objects

Description
CollisionCount is the count of hash collisions for the StatefulSet. The StatefulSet controller uses this field as a collision avoidance mechanism when it needs to create the name for the newest ControllerRevision
Represents the latest available observations of a statefulset's current state.

Table 4-89 Data structure of the StatefulSetSpec field

Parameter

Mandato Type ry

Description

replicas

Integer

Replicas is the desired number of replicas of the given Template. These are replicas in the sense that they are instantiations of the same Template, but individual replicas also have a consistent identity. If unspecified, defaults to 1.
The value of 1 indicates one pod, meaning low availability. You are advised to set this parameter to a value greater than 1.

priority

Integer

Workload priority. A larger value indicates a higher priority. The default value is 0.
Value range: [-10, 10]

Issue 02 (2021-03-22)

311

MindX DL User Guide

4 API Reference

Parameter

Mandato Type ry

Description

podManageme No ntPolicy

String

PodManagementPolicy controls how pods are created during initial scale up, when replacing pods on nodes, or when scaling down.
Values can be: OrderedReady, Parallel.
The default policy is OrderedReady, where pods are created in increasing order (pod-0, then pod-1, etc) and the controller will wait until each pod is ready before continuing. When scaling down, the pods are removed in the opposite order.
The alternative policy is Parallel which will create pods in parallel to match the desired scale without waiting, and on scale down will delete all pods at once.

revisionHistory- No Limit

Integer

RevisionHistoryLimit is the maximum number of revisions that will be maintained in the StatefulSet's revision history. The revision history consists of all revisions not represented by a currently applied StatefulSetSpec version. The default value is 10.

updateStrategy No

StatefulSetUp dateStrategy object

UpdateStrategy indicates the StatefulSetUpdateStrategy that will be employed to update Pods in the StatefulSet when a revision is made to Template.

Issue 02 (2021-03-22)

312

MindX DL User Guide

4 API Reference

Parameter

Mandato Type ry

Description

serviceName Yes

String

ServiceName is the name of the service that governs this StatefulSet. This service must exist before the StatefulSet, and is responsible for the network identity of the set. Pods get DNS/hostnames that follow the pattern: pod-specificstring.serviceName.default.svc.cl uster.local where "pod-specificstring" is managed by the StatefulSet controller.

volumeClaimTe No mplates

PersistentVolu meClaim object

VolumeClaimTemplates is a list of claims that pods are allowed to reference. The StatefulSet controller is responsible for mapping network identities to claims in a way that maintains the identity of a pod. Every claim in this list must have at least one matching (by name) volumeMount in one container in the template. A claim in this list takes precedence over any volumes in the template, with the same name.
Currently, only EVS disks can be mounted.

selector

Yes

labelSelector Selector is a label query over

object

pods that should match the

replica count. If empty,

defaulted to labels on the pod

template.

template

Yes

PodTemplateS Template is the object that

pec object

describes the pod that will be

created if insufficient replicas

are detected. Each pod stamped

out by the StatefulSet will fulfill

this Template, but have a

unique identity from the rest of

the StatefulSet.

Issue 02 (2021-03-22)

313

MindX DL User Guide

4 API Reference

Table 4-90 Data structure of the StatefulSetUpdateStrategy field

Parameter

Mandator Type y

Description

rollingUpdate No

RollingUpdateS tatefulSetStrategy object

RollingUpdate is used to communicate parameters when Type is RollingUpdateStatefulSetStrategyType.

type

String

Type indicates the type of the StatefulSetUpdateStrategy.
can be:
- RollingUpdate: indicates that update will be applied to all Pods in the StatefulSet with respect to the StatefulSet ordering constraints. When a scale operation is performed with this strategy, new Pods will be created from the specification version indicated by the StatefulSet's updateRevision.
- OnDelete: triggers the legacy behavior. Version tracking and ordered rolling restarts are disabled. Pods are recreated from the StatefulSetSpec when they are manually deleted. When a scale operation is performed with this strategy, specification version indicated by the StatefulSet's currentRevision.

Table 4-91 Data structure of the RollingUpdateStatefulSetStrategy field

Parameter

Mandator Type y

Description

partition

Integer

Partition indicates the ordinal at which the StatefulSet should be partitioned.

Issue 02 (2021-03-22)

314

MindX DL User Guide

4 API Reference

Table 4-92 Data structure of the StatefulSetCondition field

Parameter

Mandatory Type

Description

type

String

Type of the condition.

Currently only Ready.

status

String

Status of the condition. Can be True, False, or Unknown.

lastTransitionTi No me

String

Last time the condition transitioned from one status to another.

reason

String

Unique, one-word, CamelCase reason for the condition's last transition.

message

String

Human-readable message indicating details about last transition.

Table 4-93 Data structure of PersistentVolumeClaim

Parameter

Type

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated.

metadata

ObjectMeta object

Standard object's metadata.

spec

PersistentVolume-

Spec defines the desired

ClaimSpec object

characteristics of a volume

requested by a pod author.

status

PersistentVolumeClaimStatus object

Status represents the current information/status of a persistent volume claim. Read-only.

Issue 02 (2021-03-22)

315

MindX DL User Guide

4 API Reference

Table 4-94 Data structure of the PersistentVolumeClaimStatus field

Parameter

Mandatory Type

Description

accessModes No

Array of strings

AccessModes contains the actual access modes the volume backing the PVC has.
ReadWriteOnce - can be mounted read/write mode to exactly 1 host
ReadOnlyMany - can be mounted in read-only mode to many hosts
ReadWriteMany - can be mounted in read/write mode to many hosts

capacity

Array of

Represents the actual resources

ResouceNam of the underlying volume.

e objects

phase

String

Phase represents the current phase of PersistentVolumeClaim.
pending - used for PersistentVolumeClaims that are not yet bound
Bound - used for PersistentVolumeClaims that are bound
Lost - used for PersistentVolumeClaims that lost their underlying. PersistentVolume. The claim was bound to a PersistentVolume and this volume does not exist any longer and all data on it was lost.

conditions

Array of PersistentVol umeClaimCo ndition objects

Current Condition of persistent volume claim. If underlying persistent volume is being resized then the Condition will be set to ResizeStarted.

Issue 02 (2021-03-22)

316

MindX DL User Guide

4 API Reference

Table 4-95 Data structure of the PersistentVolumeClaimCondition field

Parameter

Mandatory Type

Description

type

String

Type of the condition.

Currently only Ready.

Resizing - An user trigger resize of pvc has been started

status

String

Status of the condition. Can be True, False, or Unknown.

lastProbeTime No

String

Last time we probed the condition.

lastTransitionTi No me

String

Last time the condition transitioned from one status to another.

reason

String

Unique, one-word, CamelCase reason for the condition's last transition.

message

String

Human-readable message indicating details about last transition.

Table 4-96 Data structure of the PersistentVolumeClaimSpec field

Parameter

Mandatory Type

Description

volumeName No

String

VolumeName is the binding reference to the PersistentVolume backing this claim.

accessModes Yes

Array of strings

AccessModes contains the desired access modes the volume should have.
ReadWriteOnce the volume can be mounted as read-write by a single node
ReadOnlyMany the volume can be mounted read-only by many nodes
ReadWriteMany the volume can be mounted as read-write by many nodes

resources

Yes

ResourceReq Resources represents the

uirements minimum resources the volume

object

should have.

Issue 02 (2021-03-22)

317

MindX DL User Guide

4 API Reference

Parameter selector

Mandatory No

storageClassN Yes ame

volumeMode No

Type labelSelecto r object String
String

Description
A label query over volumes to consider for binding.
Name of the StorageClass required by the claim.
The following fields are supported:
EVS Currently, EVS disks of high I/O (SAS disks), ultra-high I/O (SSD disks), and common I/O (SATA disks) types are supported.
SFS Currently, nfs-rw is supported.
volumeMode defines what type of volume is required by the claim.
Can be:
- Block: the volume will not be formatted with a filesystem and will remain a raw block device
- Filesystem: the volume will be or is formatted with a filesystem

Table 4-97 Data structure of the apps field in StatefulsetList v1

Parameter Mandator Type y

Description

apiVersion Yes

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

Yes

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

ListMeta

object

Issue 02 (2021-03-22)

318

MindX DL User Guide

4 API Reference

Parameter items

Mandator y
Yes

Type
Array of StatefulSet objects

Description Items is the list of StatefulSets.

Table 4-98 Data structure of Job

Parameter

Mandato Type ry

apiVersion

Yes

String

kind

Yes

String

metadata

Yes

ObjectMeta

object

spec

Yes

JobSpec

object

status

JobStatus

object

Description
APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated.
Standard list metadata.
Specification of the desired behavior of a job.
Current status of a job.

Table 4-99 Data structure of the JobStatus field

Parameter

Mandato Type ry

Description

active

Integer

The number of actively running

pods.

completionTime No

Time

Replicas is the number of actual replicas.

conditions

Array of

The latest available observations

JobCondition of an object's current state. More

objects

info:

Issue 02 (2021-03-22)

319

MindX DL User Guide

Parameter failed startTime

Mandato Type ry

Integer

Time

succeeded

Integer

4 API Reference
Description
The number of pods which reached phase Failed.
Represents time when the job was acknowledged by the job controller. It is not guaranteed to be set in happens-before order across separate operations. It is represented in RFC3339 form and is in UTC.
The number of pods which reached phase Succeeded.

Table 4-100 Data structure of the JobSpec field

Parameter

Mandato Type ry

Description

activeDeadlineS No econds

Integer

Specifies the duration in seconds relative to the startTime that the job may be active before the system tries to terminate it; value must be positive integer.

backoffLimit

Integer

Specifies the number of retries before marking this job failed. Defaults to 6.

priority

Integer

Job priority. A larger value indicates a higher priority. The default value is 0.
Value range: [-10, 10]

completions

Integer

Specifies the desired number of successfully finished pods the job should be run with. Setting to nil means that the success of any pod signals the success of all pods, and allows parallelism to have any positive value. Setting to 1 means that parallelism is limited to 1 and the success of that pod signals the success of the job.

Issue 02 (2021-03-22)

320

MindX DL User Guide

4 API Reference

Parameter

Mandato Type ry

Description

manualSelector No

Boolean

ManualSelector controls generation of pod labels and pod selectors. Leave manualSelector unset unless you are certain what you are doing. When false or unset, the system picks labels unique to this job and appends those labels to the pod template. When true, the user is responsible for picking unique labels and specifying the selector. Failure to pick a unique label may cause this and other jobs to not function correctly. However, You may see manualSelector=true in jobs that were created with the old extensions/v1beta1 API.

parallelism

Integer

Specifies the maximum desired number of pods the job should run at any given time. The actual number of pods running in steady state will be less than this number when ((.spec.completions - .status.successful) < .spec.parallelism), i.e. when the work left to do is less than max parallelism.

selector

Yes

labelSelector Selector is a label query over

object

pods that should match the

replica count. If empty,

defaulted to labels on the pod

template.

template

Yes

PodTemplateS Template is the object that

pec object

describes the pod that will be

created if insufficient replicas

are detected. Each pod stamped

out by the StatefulSet will fulfill

this Template, but have a

unique identity from the rest of

the StatefulSet.

Issue 02 (2021-03-22)

321

MindX DL User Guide

4 API Reference

Table 4-101 Data structure of the JobCondition field

Parameter

Mandator Type y

Description

lastProbeTime No

String

Last time the condition was checked.

lastTransitionT No ime

String

Last time the condition transitioned from one status to another.

message

String

Human-readable message indicating details about last transition.

reason

String

(Brief) Reason for the condition's last transition.

status

String

Status of the condition, one of True, False, Unknown.

type

String

Type of job condition, Complete or Failed.

Table 4-102 Data structure of the core field in Service v1

Parameter

Mandatory Type

Description

kind

Yes

String

Kind is a string value

representing the REST

resource this object

represents. Servers may infer

this from the endpoint the

client submits requests to.

Cannot be updated. In

CamelCase.

The value of this parameter is Service.

apiVersion

Yes

String

metadata

Yes

ObjectMeta object

Issue 02 (2021-03-22)

322

MindX DL User Guide

Parameter spec
status

4 API Reference

Mandatory Yes
No

Type

Description

ServiceSpec object

ServiceStatus object

Table 4-103 Data structure of the ServiceSpec field

Parameter

Mandatory Type

Description

ports

Yes

Array of

The list of ports that are

ServicePort exposed by this service.

objects

selector

Object

This service will route traffic to pods having labels matching this selector. Label keys and values that must match in order to receive traffic for this service. If empty, all pods are selected, if not specified, endpoints must be manually specified.

clusterIP

String

ClusterIP is the IP address of the service and is usually assigned randomly by the master. If an address is specified manually and is not in use by others, it will be allocated to the service; otherwise, creation of the service will fail. This field cannot be changed through updates. Valid values are "None", empty string (""), or a valid IP address.
"None" can be specified for headless services when proxying is not required. Only applies to types ClusterIP, NodePort, and LoadBalancer. Ignored if type is ExternalName.

Issue 02 (2021-03-22)

323

MindX DL User Guide

Parameter type

Mandatory No

Type String

externalIPs

Array of strings

4 API Reference
Description
Type determines how the Service is exposed. Defaults to ClusterIP. Valid options are ExternalName, ClusterIP and LoadBalancer. "ExternalName" maps to the specified externalName.
"ClusterIP" allocates a cluster-internal IP address for load-balancing to endpoints. Endpoints are determined by the selector or if that is not specified, by manual construction of an Endpoints object. If clusterIP is "None", no virtual IP is allocated and the endpoints are published as a set of endpoints rather than a stable IP.
"LoadBalancer" builds on NodePort and creates an external load-balancer (if supported in the current cloud) which routes to the clusterIP.
NOTE The nodePort service is supported in the community version but not supported in CCI scenarios.
ExternalIPs is a list of IP addresses for which nodes in the cluster will also accept traffic for this service. These IPs are not managed by Kubernetes. The user is responsible for ensuring that traffic arrives at a node with this IP. A common example is external load-balancers that are not part of the Kubernetes system.

Issue 02 (2021-03-22)

324

MindX DL User Guide

Parameter

Mandatory

externalTraffic- No Policy

Type String

healthCheckNo No dePort

Integer

externalName No

String

sessionAffinity No

String

4 API Reference
Description
ExternalTrafficPolicy denotes if this Service desires to route external traffic to node-local or cluster-wide endpoints.
valid values are "Local" and "Cluster"
- "Local" preserves the client source IP and avoids a second hop for LoadBalancer and Nodeport type services, but risks potentially imbalanced traffic spreading.
- "Cluster" obscures the client source IP and may cause a second hop to another node, but should have good overall loadspreading.
HealthCheckNodePort specifies the healthcheck nodePort for the service. If not specified, HealthCheckNodePort is created by the service api backend with the allocated nodePort. Will use userspecified nodePort value if specified by the client. Only effects when Type is set to LoadBalancer and ExternalTrafficPolicy is set to Local.
ExternalName is the external reference that kubedns or equivalent will return as a CNAME record for this service. No proxying will be involved.
Must be a valid DNS name and requires Type to be ExternalName.
Used to maintain session affinity. Enable client IP based session affinity.
Must be ClientIP or None.
Defaults to None.

Issue 02 (2021-03-22)

325

MindX DL User Guide

4 API Reference

Parameter

Mandatory

loadBalancerIP No

loadBalancerSo No urceRanges
publishNotRea No dyAddresses

sessionAffinity- No Config

Type

Description

String

Only applies to Service Type: LoadBalancer
LoadBalancer will get created with the IP specified in this field. This feature depends on whether the underlying cloud-provider supports specifying the loadBalancerIP when a load balancer is created. This field will be ignored if the cloud-provider does not support the feature.

Array of strings

Optional: If specified and supported by the platform, this will restrict traffic through the cloudprovide.load-balancer will be restricted to the specified client IPs. This field will be ignored if the cloud-provider does not support the feature.

Boolean

PublishNotReadyAddresses, when set to true, indicates that DNS implementations must publish the notReadyAddresses of subsets for the Endpoints associated with the Service. The default value is false. The primary use case for setting this field is to use a StatefulSet's Headless Service to propagate SRV records for its Pods without respect to their readiness for purpose of peer discovery. This field will replace the service.alpha.kubernetes.io/ tolerate-unready-endpoints when that annotation is deprecated and all clients have been converted to use this field.

SessionAffini SessionAffinityConfig contains

tyConfig

the configurations of session

object

affinity.

Issue 02 (2021-03-22)

326

MindX DL User Guide

4 API Reference

Table 4-104 Data structure of the ServiceStatus field

Parameter

Mandatory Type

Description

loadBalancer No

loadBalancer LoadBalancer contains the Status object current status of the load-
balancer, if one is present

Table 4-105 Data structure of the ServicePort field

Parameter

Mandatory Type

Description

name

String

The name of this port within the service. This must be a DNS_LABEL. All ports within a ServiceSpec must have unique names. This maps to the 'Name' field in EndpointPort objects. Optional if only one ServicePort is defined on this service.
Value length: 0 character < String length 63 characters.
The string must comply with regular expression [a-z0-9]([a-z0-9]*[a-z0-9])?.

protocol

String

The IP protocol for this port. Supports "TCP" and "UDP". This parameter can be set to: TCP UDP

port

Yes

Integer

The port that will be exposed

by this service.

Value range: (0,65535].

Issue 02 (2021-03-22)

327

MindX DL User Guide

Parameter targetPort

Mandatory No

Type String

nodePort

Integer

4 API Reference
Description
Number or name of the port to access on the pods targeted by the service. Number must be in the range 1 to 65535. Name must be an IANA_SVC_NAME. If this is a string, it will be looked up as a named port in the target Pod's container ports. If this is not specified, the value of Port is used (an identity map). Defaults to the service port.
Value range: (0,65535].
The port on each node on which this service is exposed when type=NodePort or LoadBalancer. Usually assigned by the system. If specified, it will be allocated to the service if unused or else creation of the service will fail. Default is to autoallocate a port if the ServiceType of this Service requires one.
Value range: [30000,32767].

Table 4-106 Data structure of loadBalancerStatus

Parameter

Mandatory Type

Description

ingress

Array of LoadBalance rIngress objects

Ingress is a list containing ingress points for the loadbalancer. Traffic intended for the service should be sent to these ingress points.

Table 4-107 Data structure of the LoadBalancerIngress field

Parameter

Mandatory Type

Description

String

IP is set for load-balancer

ingress points that are IP

based.

Issue 02 (2021-03-22)

328

MindX DL User Guide

Parameter hostname

Mandatory No

Type String

4 API Reference
Description Hostname is set for loadbalancer ingress points that are DNS based.

Table 4-108 Data structure of the SessionAffinityConfig field

Parameter

Mandatory Type

Description

clientIP

ClientIPConfi ClientIP contains the

g object

configurations of Client IP

based session affinity.

Table 4-109 Data structure of the ClientIPConfig field

Parameter

Mandatory Type

Description

timeoutSecond No s

Integer

TimeoutSeconds specifies the seconds of ClientIP type session sticky time. The value must be >0 && <=86400(for 1 day) if ServiceAffinity == "ClientIP". Default value is 10800(for 3 hours).

Table 4-110 Data structure of ServiceList

Parameter

Type

kind

String

apiVersion

String

metadata items

ListMeta object
Array of Service objects

Description
Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.
APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
Standard list metadata.
List of services.

Issue 02 (2021-03-22)

329

MindX DL User Guide

4 API Reference

Table 4-111 Data structure of extensions in Ingress v1 beta1

Parameter

Mandat Type ory

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

String

Kind is a string value

representing the REST resource

this object represents. Servers

may infer this from the endpoint

the client submits requests to.

Cannot be updated.

metadata

ObjectMeta Standard object's metadata.

object

spec

IngressSpec Spec is the desired state of the

object

Ingress.

status

IngressStatus Status is the current state of the

Ingress.

Table 4-112 Data structure of the IngressSpec field

Parameter

Mandatory Type

Description

backend

IngressBacke nd object

A default backend capable of servicing requests that do not match any rule. At least one of backend or rules must be specified. This field is optional to allow the loadbalancer controller or defaulting logic to specify a global default.

rules

Array of

A list of host rules used to

IngressRule configure the Ingress. If

objects

unspecified, or no rule

matches, all traffic is sent to

the default backend.

Issue 02 (2021-03-22)

330

MindX DL User Guide

Parameter tls

4 API Reference

Mandatory No

Type
Array of IngressTLS objects

Description
TLS configuration. Currently the Ingress only supports a single TLS port, 443. If multiple members of this list specify different hosts, they will be multiplexed on the same port according to the hostname specified through the SNI TLS extension, if the ingress controller fulfilling the ingress supports SNI.

Table 4-113 Data structure of the IngressStatus field

Parameter

Mandatory Type

Description

loadBalancer No

loadBalancer LoadBalancer contains the Status object current status of the load-
balancer.

Table 4-114 Data structure of the IngressBackend field

Parameter

Mandator Type y

Description

serviceName

String

Specifies the name of the referenced service.

servicePort

String

Specifies the port of the referenced service.

Table 4-115 Data structure of IngressTLS

Paramet Mand Type Description

atory

hosts

Array Hosts are a list of hosts included in the TLS

certificate. The values in this list must match the

string name/s used in the tlsSecret. Defaults to the

wildcard host setting for the loadbalancer

controller fulfilling this Ingress, if left unspecified.

Issue 02 (2021-03-22)

331

MindX DL User Guide

4 API Reference

Paramet er
secretNa me

Mand atory
No

Type Description

String

SecretName is the name of the secret used to terminate SSL traffic on 443. Field is left optional to allow SSL routing based on SNI hostname alone. If the SNI host in a listener conflicts with the "Host" header field used by an IngressRule, the SNI host is used for termination and value of the Host header is used for routing

Table 4-116 Data structure of IngressRule

Param Mand Type

eter

atory

Description

host

String

Host is the fully qualified domain name of a network host, as defined by RFC 3986. Note the following deviations from the "host" part of the URI as defined in the RFC: 1. IPs are not allowed. Currently an IngressRuleValue can only apply to the IP in the Spec of the parent Ingress. 2. The : delimiter is not respected because ports are not allowed. Currently the port of an Ingress is implicitly :80 for http and :443 for https. Both these may change in the future. Incoming requests are matched against the host before the IngressRuleValue. If the host is unspecified, the Ingress routes all traffic based on the specified IngressRuleValue

http

Ingres sRule Value object

IngressRuleValue represents a rule to route requests for this IngressRule. If unspecified, the rule defaults to an http catch-all. Whether that sends just traffic matching the host to the default backend or all traffic to the default backend, is left to the controller fulfilling the Ingress. Http is currently the only supported IngressRuleValue.

Table 4-117 Data structure of IngressRuleValue

Param Manda Type eter tory

Description

http No

HTTPIngre HTTP ingress rule. ssRuleValu e object

Issue 02 (2021-03-22)

332

MindX DL User Guide

4 API Reference

Table 4-118 Data structure of HTTPIngressRuleValue

Para mete r

Mand atory

Type

Description

paths No

Array of HTTPIngr essPath objects

A collection of paths that map requests to backends.

Table 4-119 Data structure of HTTPIngressPath

Param Mandat Type eter ory

Description

path No

String

Path is an extended POSIX regex as defined by IEEE Std 1003.1, (i.e this follows the egrep/unix syntax, not the perl syntax) matched against the path of an incoming request. Currently it can contain characters disallowed from the conventional "path" part of a URL as defined by RFC 3986. Paths must begin with a '/'. If unspecified, the path defaults to a catch all sending traffic to the backend

backe Yes nd

Ingress Backend defines the referenced service endpoint Backen to which the traffic will be forwarded to d object

proper Yes ty

Object Extension property on the path

Table 4-120 Data structure of the loadBalancerStatus field

Paramet Mandat Type

ory

Description

ingress No

Array of LoadBal ancerIn gress objects

Ingress is a list containing ingress points for the load-balancer. Traffic intended for the service should be sent to these ingress points.

Issue 02 (2021-03-22)

333

MindX DL User Guide

4 API Reference

Table 4-121 Data structure of IngressList

Parameter

Type

kind

String

apiVersion

String

metadata items

ListMeta object
Array of Ingress v1beta1 extensions objects

Table 4-122 Request parameters of core in Configmap v1

Parameter

Mandato Type ry

Description

apiVersion

Yes

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

Yes

String

Kind is a string value

representing the REST resource

this object represents. Servers

may infer this from the endpoint

the client submits requests to.

Cannot be updated.

metadata

Yes

ObjectMeta Standard list metadata.

object

data

Yes

Object

Data contains the configuration data. Each key must consist of alphanumeric characters, '-', '_' or '.'.
The value cannot exceed 512 characters.

Issue 02 (2021-03-22)

334

MindX DL User Guide

4 API Reference

Table 4-123 Data structure of ConfigmapList

Parameter

Type

Description

kind

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

metadata

ListMeta object

Standard list metadata.

items

Array of Configmap v1 core objects

List of ConfigMaps.

Table 4-124 Data structure of core in Secret v1

Paramet Manda Type

tory

Description

kind

Yes

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.
The value of this parameter is Secret.

apiVersio Yes n

String

metadat Yes a

ObjectMeta object

data

Object

Data contains the secret data. Each key must consist of alphanumeric characters, '-', '_' or '.'. The serialized form of the secret data is a base64 encoded string, representing the arbitrary (possibly nonstring) data value here

Issue 02 (2021-03-22)

335

MindX DL User Guide

Paramet Manda Type

tory

stringDat No a

Object

type

String

4 API Reference
Description
StringData allows specifying non-binary secret data in string form. It is provided as a write-only convenience method. All keys and values are merged into the data field on write, overwriting any existing values. It is never output when reading from the API
Used to facilitate programmatic handling of secret data. The primitive k8s supports the following secret types, for details, see Table 4-125. Opaque kubernetes.io/dockercfg kubernetes.io/dockerconfigjson kubernetes.io/tls

Table 4-125 Key restrictions of data for different types of secrets

Secret Type

Required Key Description

Opaque

N/A

Secret type Opaque is the default; arbitrary user-defined data.

kubernetes.io/ dockercfg

.dockercfg

Secret type kubernetes.io/dockercfg contains a dockercfg file that follows the same format rules as ~/.dockercfg.

kubernetes.io/tls tls.key tls.crt

Secret type kubernetes.io/tls contains information about a TLS client or server secret. It is primarily used with TLS termination of the Ingress resource, but may be used in other types.

kubernetes.io/ dockerconfigjso n

.dockerconfigjs on

SecretTypeDockerConfigJson contains a dockercfg file that follows the same format rules as ~/.docker/config.json

Issue 02 (2021-03-22)

336

MindX DL User Guide

Table 4-126 Data structure of ServiceList

Parameter

Type

apiVersion

String

kind

String

metadata items

ListMeta object
Array of Secret v1 core objects

4 API Reference
Description
APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated.
Standard list metadata.
List of Secrets.

Table 4-127 Data structure of core in PersistentVolumeClaimList v1

Parameter

Type

Description

kind

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

metadata

ListMeta object

Standard list metadata.

items

Array of PersistentVolumeClaim object

A list of persistent volume claims.

Issue 02 (2021-03-22)

337

MindX DL User Guide

4 API Reference

Table 4-128 Data structure of core in Event v1

Parameter

Type

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

String

Kind is a string value representing the REST

resource this object represents. Servers may infer

this from the endpoint the client submits

requests to. Cannot be updated. In CamelCase.

count

integer

The number of times this event has occurred.

firstTimestamp Time

The time at which the event was first recorded. (Time of server receipt is in TypeMeta.)

involvedObject

involvedO The object that this event is about. bject object

lastTimestamp Time

The time at which the most recent occurrence of this event was recorded.

message

String

A human-readable description of the status of this operation.

metadata

metadata Standard object's metadata. object

reason

String

This should be a short, machine understandable string that gives the reason for the transition into the object's current status.

source

EventSour The component reporting this event. Should be ce object a short machine understandable string.

type

String

Type of this event (Normal, Warning), new types

could be added in the future

eventTime

time.Time Time when this Event was first observed.

Series

EventSerie Data about the Event series this event

object

represents or nil if it is a singleton Event.

action

String

What action was taken/failed regarding to the Regarding object.

ObjectRef erence object

Optional secondary object for more complex actions.

reportingComp String onent

Name of the controller that emitted this Event, e.g. `kubernetes.io/kubelet`

Issue 02 (2021-03-22)

338

MindX DL User Guide

Parameter
reportingInstan ce

Type String

4 API Reference
Description ID of the controller instance, e.g. `kubelet-xyzf`.

Table 4-129 Data structure of the involvedObject field

Parameter

Type

Description

kind

String

Kind of the referent.

namespace

String

Namespace of the referent.

name

String

Name of the referent.

uid

String

UID of the referent.

apiVersion

String

API version of the referent.

resourceVersion String

Specific resourceVersion to which this reference is made.

fieldPath

String

If referring to a piece of an object instead of an entire object, this string should contain a valid JSON/Go field access statement, such as desiredState.manifest.containers[2 ]. For example, if the object reference is to a container within a pod, this would take on a value like: "spec.containers{name}" (where "name" refers to the name of the container that triggered the event) or if no container name is specified "spec.containers[2]" (container with index 2 in this pod). This syntax is chosen only to have some well-defined way of referencing a part of an object.

Table 4-130 Data structure of the EventSource field

Parameter Type

Description

component String

Component from which the event is generated.

host

String

Node name on which the event is generated.

Issue 02 (2021-03-22)

339

MindX DL User Guide

4 API Reference

Table 4-131 Data structure of EventSeries

Parame Type ter

Description

count

integer

Number of occurrences in this series up to the last heartbeat time

lastObs ervedTi me

time.Tim e

Time of the last occurrence observed

state

String

State of this Series: Ongoing, Finished, or Unknown

Table 4-132 Data structure of the ObjectReference field

Parameter

Type

Description

apiVersion

String

API version of the referent.

fieldPath

String

If referring to a piece of an object instead of an entire object, this string should contain a valid JSON/Go field access statement, such as desiredState.manifest.containers[2]. For example, if the object reference is to a container within a pod, this would take on a value like: "spec.containers{name}" (where "name" refers to the name of the container that triggered the event) or if no container name is specified "spec.containers[2]" (container with index 2 in this pod). This syntax is chosen only to have some well-defined way of referencing a part of an object.

kind

String

Kind of the referent.

name

String

Name of the referent.

namespace

String

Namespace of the referent.

resourceVersion String

Specific resourceVersion to which this reference is made, if any.

uid

String

UID of the referent.

Issue 02 (2021-03-22)

340

MindX DL User Guide

4 API Reference

Table 4-133 Data structure of core in EventList v1

Parameter

Type

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

items

Array of Event v1 core objects

List of services.

kind

String

Kind is a string value representing the REST

resource this object represents. Servers may infer

this from the endpoint the client submits

requests to. Cannot be updated. In CamelCase.

metadata

ListMeta object

Standard list metadata.

Table 4-134 Data structure of LocalDirVolumeSource

Parameter

Type

Description

sizeLimit

Object

Storage space of the localDir in use.

Table 4-135 Data structure of emptyDir

Parameter

Type

Description

sizeLimit

integer

Storage space of the emptyDir in use. Value range: (0, 2147483647] Unit: Gi

medium

String

Medium type. The options are as follows:
LocalVolume: ultra-high I/O EVS disks
LocalSSD: local SSDs
NOTE If this parameter is not set, ultra high I/O EVS disks are used by default.

Issue 02 (2021-03-22)

341

MindX DL User Guide

4 API Reference

Table 4-136 Data structure of Endpoints

Parameter Type Description

kind

String String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

The value of this parameter is Secret.

apiVersion

String

String
APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
The value of this parameter is v1.

metadata

Obje ctMe ta objec t

subsets

Array of Endp ointS ubset objec ts

The set of all endpoints is the union of all subsets. Addresses are placed into subsets according to the IPs they share. A single address with multiple ports, some of which are ready and some of which are not (because they come from different containers) will result in the address being displayed in different subsets for the different ports. No address will appear in both Addresses and
NotReadyAddresses in the same subset.
Sets of addresses and ports that comprise a service.

Table 4-137 Data structure of EndpointSubset

Parameter Type Description

addresses

Array of Endpo intAd dress object s

IP addresses which offer the related ports that are marked as ready. These endpoints should be considered safe for load balancers and clients to utilize.

Issue 02 (2021-03-22)

342

MindX DL User Guide

4 API Reference

Parameter Type Description

notReadyA ddresses

Array of Endpo intAd dress object s

IP addresses which offer the related ports but are not currently marked as ready because they have not yet finished starting, have recently failed a readiness check, or have recently failed a liveness check.

ports

Array of Endpo intPor t object s

Port numbers available on the related IP addresses.

Table 4-138 Data structure of EndpointAddress

Parameter Type Description

String The IP of this endpoint.

IPv6 is also accepted but not fully supported on all platforms. Also, certain kubernetes components, like kube-proxy, are not IPv6 ready

hostname String The Hostname of this endpoint

nodename

String Optional: Node hosting this endpoint. This can be used to determine endpoints local to a node.

targetRef

Object Refere nce object

Reference to object providing the endpoint.

nodeAvailab String Optional: The availability zone of the endpoint's host

leZone

node

Table 4-139 Data structure of EndpointPort

Paramet Type er

Description

name

String

The name of this port (corresponds to ServicePort.Name). Must be a DNS_LABEL. Optional only if one port is defined.

port

Integer The port number of the endpoint.

Issue 02 (2021-03-22)

343

MindX DL User Guide

Paramet Type er
protocol String

Description
The IP protocol for this port. Must be UDP or TCP. Default is TCP

4 API Reference

Table 4-140 Data structure of core in EndpointsList v1

Parameter

Type

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

items

Array of Endpoints objects

List of endpoints

kind

String

Kind is a string value representing the REST

resource this object represents. Servers may infer

this from the endpoint the client submits

requests to. Cannot be updated. In CamelCase.

metadata

ListMeta object

Standard list metadata.

Table 4-141 Data structure of ReplicaSet

Param Type Description eter

kind String String
Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.
The value of this parameter is Secret.

apiVers String ion

Issue 02 (2021-03-22)

344

MindX DL User Guide

4 API Reference

Param Type Description eter

metad ata

Objec tMeta object

spec Replic Spec defines the specification of the desired behavior of the aSetS ReplicaSet. pec object

status

Replic aSetSt atus object

Status is the most recently observed status of the ReplicaSet. This data may be out of date by some window of time. Populated by the system. Read-only.

Table 4-142 Data structure of ReplicaSetSpec

Parame Type ter

Description

replicas

Integer

Replicas is the number of desired replicas.
This is a pointer to distinguish between explicit zero and unspecified.
Defaults to 1.

minRea dySecon ds

Integer

Minimum number of seconds for which a newly created pod should be ready without any of its container crashing, for it to be considered available. Defaults to 0 (pod will be considered available as soon as it is ready)

selector

labelS electo r object

Selector is a label query over pods that should match the replica count.
Label keys and values that must match in order to be controlled by this replica set.
It must match the pod template's labels.

templat e

PodTe mplat eSpec object

Template is the object that describes the pod that will be created if insufficient replicas are detected.

Issue 02 (2021-03-22)

345

MindX DL User Guide

4 API Reference

Table 4-143 Data structure of ReplicaSetStatus

Parame Type Description ter

replicas Integ Replicas is the most recently observed number of replicas. er

fullyLab Integ The number of pods that have labels matching the labels of

eledRepl er

the pod template of the replicaset.

icas

readyRe Integ The number of ready replicas for this replica set. plicas er

availabl Integ The number of available replicas (ready for at least

eReplica er

minReadySeconds) for this replica set.

observe Integ ObservedGeneration reflects the generation of the most

dGenera er

recently observed ReplicaSet.

tion

conditio ns

Repli caSe tCon ditio n objec t

Represents the latest available observations of a replica set's current state.

Table 4-144 Data structure of ReplicaSetCondition

Paramet Type er

Description

type

String Type of replica set condition.

Available values:

-- ReplicaFailure: ReplicaSetReplicaFailure is added in a replica set when one of its pods fails to be created due to insufficient quota, limit ranges, pod security policy, node selectors, etc. or deleted due to kubelet being down or finalizers are failing.

status

String Status of the condition, one of True, False, Unknown.

lastTransi Object The last time the condition transitioned from one status

tionTime

to another.

reason String The reason for the condition's last transition.

message String

A human readable message indicating details about the transition.

Issue 02 (2021-03-22)

346

MindX DL User Guide

4 API Reference

Table 4-145 Data structure of core in ReplicaSetList v1

Parameter

Type

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

items

Array of List of endpoints ReplicaSet objects

kind

String

Kind is a string value representing the REST

resource this object represents. Servers may infer

this from the endpoint the client submits

requests to. Cannot be updated. In CamelCase.

metadata

ListMeta object

Standard list metadata.

Table 4-146 Data structure of Volcano Job batch_v1alpha1

Parameter Mandator Type y

Description

apiVersion Yes

String

kind

Yes

String

metadata Yes

ObjectMeta object

Standard object's metadata. More info: https://git.k8s.io/community/ contributors/devel/apiconventions.md#metadata.

Issue 02 (2021-03-22)

347

MindX DL User Guide

4 API Reference

Parameter spec status

Mandator y Yes
No

Type

Description

VolcanoJobS Specification of the desired behavior pec object of a cron job, including the
minAvailable.
VolcanoJobS Current status of Job. tatus object

Table 4-147 Data structure of the VolcanoJobSpec field

Parameter Mandator Type y

Description

maxRetry No

Integer

The limit for retrying submitting job. The default value is 3.

minAvailabl Yes e

Integer

The minimal available pods to run for this Job.
This value should above 0 and no more than existing pod numebr. If the value below 0, will use defaule value(The whole number of this job's pod numebr).

plugins

VolcanoPlug Enabled task plugins when creating

in object

job.

policies

Array of

Specifies the default lifecycle of

VolcanoJobP tasks.

olicy objects

queue

String

The name of the queue on which job should been created.

schedulerN No ame

String

SchedulerName is the default value of `tasks.template.spec.schedulerName`.

tasks

Yes

Array of

Tasks specifies the task specification

VolcanoJobT of Job.

ask objects

volumes

Array of VolcanoJobV olume objects

The volumes for Job.

Issue 02 (2021-03-22)

348

MindX DL User Guide

4 API Reference

Table 4-148 Data structure of the VolcanoJobStatus field

Parameter Mandator Type y

Description

ControlledR Yes esources

Object

All of the resources that are controlled by this job.
{"plugin-env":"env","pluginssh":"ssh","plugin-svc":"svc"}.

Succeeded No

Integer

The number of pods which reached phase Succeeded.

failed

Integer

The number of pods which reached phase Failed.

minAvailabl Yes e

Integer

The minimal available pods to run for this Job.

pending

Integer

The number of pending pods.

retryCount No

Integer

The number that volcano retried to submit the job.

running

Integer

The number of running pods.

version

Integer

Job's current version.

state

Yes

VolcanoJobS Current state of Job. tatusState object

Table 4-149 Data structure of the VolcanoJobPolicy field

Parameter Mandator Type y

Description

action

String

The action that will be taken to the PodGroup according to Event. One of \"Restart\", \"None\". Default to None.

event

String

The Event recorded by scheduler; the controller takes actions according to this Event.

timeout

Object

Timeout is the grace period for controller to take actions. Default to nil (take action immediately).

Issue 02 (2021-03-22)

349

MindX DL User Guide

4 API Reference

Table 4-150 Data structure of the VolcanoJobTask field

Parameter Mandator Type y

Description

name

Yes

String

Name specifies the name of tasks.

policies

VolcanoJobP Specifies the lifecycle of task. olicy object

replicas

Integer

Replicas specifies the replicas of this TaskSpec in Job.

template No

PodTemplat eSpec object

Specifies the pod that will be created for this TaskSpec when executing a Job.

Table 4-151 Data structure of the VolcanoJobVolume field

Parameter Mandator Type y

Description

mountPath Yes

String

Path within the container at which the volume should be mounted. Must not contain ':'.

volumeClai No m

VolcanoTask VolumeClai mSpec object

VolumeClaim defines the PVC used by the VolumeMount.

volumeClai No mName

String

The name of the volume claim.

Table 4-152 Data structure of the VolcanoJobStatusState field

Parameter Mandator Type y

Description

message

String

Human-readable message indicating details about last transition.

phase

Yes

String

The phase of Job.

reason

String

Unique, one-word, CamelCase reason for the condition's last transition.

Issue 02 (2021-03-22)

350

MindX DL User Guide

4 API Reference

Table 4-153 Data structure of the VolcanoTaskVolumeClaimSpec field

Parameter

Mandatory Type

Description

accessModes Yes

Array of strings

resources

Yes

ResourceReq Resources represents the

uirements minimum resources the volume

object

should have.

storageClassN Yes ame

String

Table 4-154 Data structure of the VolcanoPlugin field

Parameter

Mandatory Type

Description

ssh

Array of

Set VK_TASK_INDEX to each

strings

container, which is an index for

giving the identity to container.

The value no-root indicates logging in as a non-root user using SSH.

svc

Array of

Create Service and *.host to

strings

enable pod communication.

Issue 02 (2021-03-22)

351

MindX DL User Guide

Parameter ssh

Mandatory No

Type
Array of strings

4 API Reference
Description Sign in ssh without password, e.g. use command mpirun or mpiexec.

Table 4-155 Data structure of TFJob kubeflow_v1

Parameter Mandator Type y

Description

apiVersion Yes

String

kind

Yes

String

metadata Yes

ObjectMeta Standard object's metadata. object

spec

Yes

TFJobSpec Specification of the desired behavior

object

of a TFJob.

status

JobStatus object

Current status of TFJob.

Table 4-156 Data structure of the TFJobSpec field

Parameter

Mand Type atory

Description

activeDeadlineS No econd

Integer

Specifies the duration in seconds relative to the startTime that the job may be active before the system tries to terminate it; value must be positive integer.

backoffLimit

No Integer

Optional number of retries before marking this job failed.

Issue 02 (2021-03-22)

352

MindX DL User Guide

4 API Reference

Parameter

Mand Type atory

Description

cleanPodPolicy No

CleanPod Policy object

CleanPodPolicy defines the policy to kill pods after TFJob is succeeded. Default to Running.

ttlSecondsAfter- No Finished

Integer

TTLSecondsAfterFinished is the TTL to clean up tf-jobs (temporary before kubernetes adds the cleanup controller). It may take extra ReconcilePeriod seconds for the cleanup, since reconcile gets called periodically.

tfReplicaSpecs Yes

Array of ReplicaSp ec objects

TFReplicaSpecs is map of TFReplicaType and ReplicaSpec specifies the TF replicas to run. For example, { "PS": ReplicaSpec, "Worker": ReplicaSpec, }

Table 4-157 Available values of the CleanPodPolicy field

Avai labl e Valu e

Description

All When the job is finished, kill all pods that the job created.

Run When the job is finished, kill pods that the job created and is in running ning phase.

Non When the job is finished, do not kill any pods that the job created. e

Table 4-158 Available values of the TFReplicaType field

Avai labl e Val ue

Description

PS PS is the type for parameter servers of distributed TensorFlow.

Issue 02 (2021-03-22)

353

MindX DL User Guide

4 API Reference

Avai labl e Val ue

Description

Wor Worker is the type for workers of distributed TensorFlow. This is also used ker for non-distributed TensorFlow.

Chie Chief is the type for chief worker of distributed TensorFlow. If there is

"chief" replica type, it's the "chief worker". Else, worker:0 is the chief

worker.

Eval Evaluator is the type for evaluation replica in TensorFlow. uato r

Table 4-159 Data structure of the ReplicaSpec field

Para Ma Type

mete nda

tory

Description

replic No Integer Replicas is the desired number of replicas of the given

template. If unspecified, defaults to 1.

temp Yes late

PodTe mplate Spec object

Template is the object that describes the pod that will be created for this replica. RestartPolicy in PodTemplateSpec will be overridden by RestartPolicy in ReplicaSpec.

resta No rtPoli cy

String

Restart policy for all replicas within the job. One of Always, OnFailure, Never and ExitCode. Default to Never.

Table 4-160 Data structure of the JobStatus field

Param eter

Man Type dator y

Description

conditi No ons

Array of JobCondi tion objects

Conditions is an array of current observed job conditions.

replica No Statuse s

Array of ReplicaS tatus objects

ReplicaStatuses is map of ReplicaType and ReplicaStatus, specifies the status of each replica.

Issue 02 (2021-03-22)

354

MindX DL User Guide

Param eter
startTi me

Man Type dator y
No Time

comple No tionTi me

Time

lastRec No oncileT ime

Time

Description

4 API Reference

Represents time when the job was acknowledged by the job controller. It is not guaranteed to be set in happens-before order across separate operations. It is represented in RFC3339 form and is in UTC.
Represents time when the job was completed. It is not guaranteed to be set in happens-before order across separate operations. It is represented in RFC3339 form and is in UTC.
Represents last time when the job was reconciled. It is not guaranteed to be set in happens-before order across separate operations. It is represented in RFC3339 form and is in UTC.

Table 4-161 Data structure of the JobCondition field

Param eter

Man dato ry

Type

Description

type

No String Type of job condition.
NOTE Job states include:
-Created:
means the job has been accepted by the system, but one or more of the pods/services has not been started. This includes time before pods being scheduled and launched.
-Running:
means all sub-resources (e.g. services/pods) of this job have been successfully scheduled and launched. The training is running without error.
-Restarting:
means one or more sub-resources (e.g. services/pods) of this job reached phase failed but maybe restarted according to it's restart policy which specified by user in v1.PodTemplateSpec. The training is freezing/pending.
-Succeeded:
means all sub-resources (e.g. services/pods) of this job reached phase have terminated in success. The training is complete without error.
-Failed:
means one or more sub-resources (e.g. services/pods) of this job reached phase failed with no restarting. The training has failed its execution.

status No String Status of the condition, one of True, False, Unknown.

Issue 02 (2021-03-22)

355

MindX DL User Guide

4 API Reference

Param eter

Man dato ry

Type

reason No String

messag No e

String

lastUpd No ateTim e

Time

lastTra No nsition Time

Time

Description
(Brief) Reason for the condition's last transition. Human readable message indicating details about last transition. The last time this condition was updated.
Last time the condition transitioned from one status to another.

Table 4-162 Data structure of the ReplicaStatus field

Param Man Type eter dato
ry

Description

active No

Intege The number of actively running pods. r

succee No ded

Intege The number of pods which reached phase Succeeded. r

failed No

Intege The number of pods which reached phase Failed. r

Table 4-163 Data structure of MXJob kubeflow_v1

Para mete r

Man dato ry

Type

Description

apiVe Yes rsion

String

kind Yes

String

Issue 02 (2021-03-22)

356

MindX DL User Guide

4 API Reference

Para mete r

Man dato ry

Type

Description

meta Yes data

Objec Standard object's metadata. tMeta object

spec Yes

MXJo Specification of the desired behavior of a MXJob. bSpec

status No

JobSt Current status of MXJob. atus object

Table 4-164 Data structure of the MXJobSpec field

Parameter

Mand Type atory

Description

activeDeadlineS No econd

Integer

Specifies the duration in seconds relative to the startTime that the job may be active before the system tries to terminate it; value must be positive integer.

backoffLimit

No Integer

Optional number of retries before marking this job failed.

cleanPodPolicy No

CleanPodP CleanPodPolicy defines the policy to kill

olicy

pods after TFJob is succeeded. Default

object

to Running.

ttlSecondsAfter- No Finished

Integer

mxReplicaSpecs Yes

Array of ReplicaSp ec objects

MXReplicaSpecs is map of MXReplicaType and MXReplicaSpec specifies the MX replicas to run. For example, { "Scheduler": MXReplicaSpec, "Server": MXReplicaSpec, "Worker": MXReplicaSpec, }

Issue 02 (2021-03-22)

357

MindX DL User Guide

4 API Reference

Table 4-165 Available values of the MXReplicaType field

Avai labl e Val ue

Description

Sche Scheduler is the type for scheduler replica in MXNet. dule r

Wor Worker is the type for workers of distributed MXNet. ker

Serv Server is the type for parameter servers of distributed MXNet. er

Table 4-166 Data structure of PyTorchJob kubeflow_v1

Para Ma Type

mete nda

tory

Description

apiVe Yes String rsion

kind Yes String

meta Yes data

Object Meta object

Standard object's metadata.

spec Yes PyTorch Specification of the desired behavior of a pytorchjob. JobSpec object

status No

JobStat us object

Current status of pytorchJob.

Issue 02 (2021-03-22)

358

MindX DL User Guide

4 API Reference

Table 4-167 Data structure of the PyTorchJobSpec field

Parameter

Mand Type atory

Description

activeDeadlineS No econd

Integer

Specifies the duration in seconds relative to the startTime that the job may be active before the system tries to terminate it; value must be positive integer.

backoffLimit

No Integer

Optional number of retries before marking this job failed.

cleanPodPolicy No

CleanPodP CleanPodPolicy defines the policy to kill

olicy

pods after TFJob is succeeded. Default

object

to Running.

ttlSecondsAfter- No Finished

Integer

ReplicaSpecs

Yes Array of A map of PyTorchReplicaType (type) to ReplicaSp ReplicaSpec (value). Specifies the ec objects PyTorch cluster configuration. For example, { "Master": PyTorchReplicaSpec, "Worker": PyTorchReplicaSpec, }

Table 4-168 Available values of the PytorchReplicaType field

Avai labl e Val ue

Description

Mas Master is the type of Master of distributed PyTorch. ter

Wor Worker is the type for workers of distributed PyTorch. ker

Issue 02 (2021-03-22)

359

MindX DL User Guide

4 API Reference

Table 4-169 Data structure of TFJobList kubeflow_v1

Para Man Type meter dator
y

Description

apiVer Yes sion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind Yes String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

metad No ata

ListMeta object

Standard type metadata.

items Yes

Array of TFJob kubeflow_v1 objects

Lists of TFJobs.

Table 4-170 Data structure of MXJobList kubeflow_v1

Para Mand Type meter atory

Description

apiVer Yes sion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind Yes String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

metad No ata

ListMeta object

Standard type metadata.

items Yes

Array of MXJob kubeflow_v 1 objects

Lists of mxjobs.

Issue 02 (2021-03-22)

360

MindX DL User Guide

4 API Reference

Table 4-171 Data structure of PyTorchJobList kubeflow_v1

Para Mand Type meter atory

Description

apiVer Yes sion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind Yes

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

metad No ata

ListMeta object

Standard type metadata.

items Yes

Array of
PyTorchJob kubeflow_ v1 objects

Lists of pytorchjobs.

Table 4-172 Data structure of MPIJob kubeflow_v1alpha2

Parameter Mandator Type y

Description

apiVersion Yes

String

kind

Yes

String

metadata Yes

ObjectMeta Standard object's metadata. object

spec

Yes

MPIJobSpec Specification of the desired behavior

object

of an MPIJob.

Issue 02 (2021-03-22)

361

MindX DL User Guide

Parameter Mandator Type y

status

JobStatus object

4 API Reference Description Current status of MPIJob.

Table 4-173 Data structure of the MPIJobSpec field

Parameter

Mand Type atory

Description

activeDeadlineS No econd

Integer

Specifies the duration in seconds relative to the startTime that the job may be active before the system tries to terminate it; value must be positive integer.

backoffLimit

No Integer

Optional number of retries before marking this job failed.

cleanPodPolicy No

CleanPodPol CleanPodPolicy defines the policy to

icy object

kill pods after TFJob is succeeded.

Default to Running.

slotsPerWorker No Integer

Specifies the number of slots per worker used in hostfile. Defaults to 1.

mpiReplicaSpec Yes s

Array of ReplicaSpec objects

MPIReplicaSpecs is map of MPIReplicaType and MPIReplicaSpec specifies the MPI replicas to run. For example, { "Launcher": MPIReplicaSpec, "Worker": MPIReplicaSpec, }

Table 4-174 Available values of the MPIReplicaType field

Avai labl e Val ue

Description

Lau Launcher is the type for launcher replica in MPI. nch er

Issue 02 (2021-03-22)

362

MindX DL User Guide

Avai labl e Val ue

Description

Wor Worker is the type for workers of distributed MPI. ker

4 API Reference

Table 4-175 Data structure of MPIJobList kubeflow_v1alpha2

Para Man Type meter dator
y

Description

apiVer Yes sion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind Yes String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.

metad No ata

ListMeta object

Standard type metadata.

items Yes

Array of MPIJob kubeflow_v1 alpha2 objects

List of MPIJobs.

Table 4-176 Data structure of PersistentVolumeClaim v1

Parameter Type

Description

apiVersion

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

String

Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated.

Issue 02 (2021-03-22)

363

MindX DL User Guide

4 API Reference

Parameter metadata spec
status

Type
ListMeta v1 meta object
PersistentVolum eClaimSpec object
PersistentVolum eClaimStatus object

Description
Standard object's metadata.
Spec defines the desired characteristics of a volume requested PersistentVolumeClaimStatus by a pod author.
Status represents the current information/ status of a persistent volume claim. Readonly.

Table 4-177 Data structure of the meta field in ListMeta v1

Name

Type

Description

continue string

resourceVe string rsion

selfLink

string

SelfLink is a URL representing this object. Populated by the system. Read-only

Table 4-178 Data structure of the PersistentVolumeClaimSpec field

Parameter Mandat Type ory

Description

volumeNa No me

String

VolumeName is the binding reference to the PersistentVolume backing this claim.

Issue 02 (2021-03-22)

364

MindX DL User Guide

4 API Reference

Parameter
accessMod es

Mandat ory
Yes

resources Yes

selector

storageClas Yes sName

volumeMo No de

Type

Description

Array of strings

ResourceRe quirements object

Resources represents the minimum resources the volume should have.

labelSelecto A label query over volumes to consider

r object

for binding.

String

Name of the StorageClass required by the claim.
The following fields are supported:
EVS Currently, EVS disks of high I/O (SAS disks), ultra-high I/O (SSD disks), and common I/O (SATA disks) types are supported.
SFS Currently, nfs-rw is supported.
SFS Turbo Currently, SFS Turbo volumes of high-performance (efsperformance) and standard (efsstandard) types are supported.
OBS Currently, OBS volumes are supported.

String

volumeMode defines what type of volume is required by the claim.
Can be:
- Block: the volume will not be formatted with a filesystem and will remain a raw block device
- Filesystem: the volume will be or is formatted with a filesystem

Issue 02 (2021-03-22)

365

MindX DL User Guide

4 API Reference

Table 4-179 Data structure of the PersistentVolumeClaimStatus field

Paramete Mandato Type

Description

accessMod No es

Array of strings

capacity No

Array of ResourceReq uirements objects

Represents the actual resources of the underlying volume.

phase

String

conditions No

Array of PersistentVol umeClaimCo ndition objects

Current Condition of persistent volume claim. If underlying persistent volume is being resized then the Condition will be set to ResizeStarted.

Table 4-180 Data structure of the PersistentVolumeClaimCondition field

Name

Mandato Type ry

Description

type

String

Type of the condition. Currently only Ready.
Resizing - An user trigger resize of pvc has been started

status

String

Status of the condition. Can be True, False, or Unknown.

Issue 02 (2021-03-22)

366

MindX DL User Guide

Name

Mandato Type ry

lastProbeT No ime

String

lastTransiti No onTime

String

reason

String

message No

String

4 API Reference
Description
Last time we probed the condition.
Last time the condition transitioned from one status to another. Unique, one-word, CamelCase reason for the condition's last transition. Human-readable message indicating details about last transition.

Table 4-181 Data structure of the ResourceRequirements field

Paramete Mandato Type

Description

limits

Array of ResourceNa me objects

Maximum amount of compute resources allowed.
NOTE The values of limits and requests must be the same. Otherwise, an error is reported.

requests No

Array of ResourceNa me objects

Minimum amount of compute resources required. If Requests is omitted for a container, it defaults to Limits if that is explicitly specified, otherwise to an implementationdefined value.
CCI has limitation on pod specifications. For details, see Pod Specifications in Usage Constraints.

Table 4-182 Available values of the ResourceName field

Type

Mandat Ty Description

ory

storage

Stri Volume size, in bytes (e,g. 5Gi = 5GiB = 5 *

ng 1024 * 1024 * 1024)

cpu

Stri CPU size, in cores. (500m = .5 cores)

memory

Stri Memory size, in bytes. (500Gi = 500GiB = 500

ng * 1024 * 1024 * 1024)

Issue 02 (2021-03-22)

367

MindX DL User Guide

4 API Reference

Type

Mandat Ty Description

ory

localdir

Stri Local Storage for LocalDir, in bytes. (500Gi =

ng 500GiB = 500 * 1024 * 1024 * 1024)

nvidia.com/gpu- No teslav100-16GB

Stri NVIDIA GPU resource, the type may change ng in different environments, in production
environment is
nvidia.com/gpu-tesla-v100-16GB now. The value must be an integer and not less than 1.

Table 4-183 Data structure of the labelSelector field

Parameter

Mandator Type y

Description

matchExpressio No ns

Array of LabelSelector Requirement objects

MatchExpressions is a list of label selector requirements. The requirements are ANDed.

matchLabels No

Object

Table 4-184 Data structure of the LabelSelectorRequirement field

Parameter

Mandatory Type

Description

key

String

Key is the label key that the

selector applies to.

operator

String

Operator represents a key's relationship to a set of values.
Valid operators are In, NotIn, Exists and DoesNotExist.

Issue 02 (2021-03-22)

368

MindX DL User Guide

Parameter values

Mandatory Type

Array of

strings

4 API Reference
Description
Values is an array of string values. If the operator is In or NotIn, the values array must be non-empty. If the operator is Exists or DoesNotExist, the values array must be empty. This array is replaced during a strategic merge patch.

Table 4-185 Data structure of PersistentVolume

Parameter

Mandator Type y

Description

apiVersion

Yes

String

APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.

kind

Yes

String

Kind is a string value

representing the REST resource

this object represents. Servers

may infer this from the

endpoint the client submits

requests to. Cannot be updated.

In CamelCase.

metadata

Yes

metadata object

Standard object's metadata.

spec

Yes

spec object

Spec defines a specification of a

persistent volume owned by the

cluster. Provisioned by an

administrator.

status

status object Status represents the current

information/status for the

persistent volume. Populated by

the system. Read-only.

Issue 02 (2021-03-22)

369

MindX DL User Guide

Table 4-186 Data structure of the spec field

Parameter

Mandator Type y

accessModes Yes

Array of strings

capacity

Yes

Object

claimRef

claimRef object

hostPath

hostPath object

nfs

persistentVolu No meReclaimPolic y

nfs object String

storageClassNa No me

String

4 API Reference
Description
Access mode. Options: ReadWriteOnce: can be read and written by a single node. ReadOnlyMany: can only be read by multiple nodes. ReadWriteMany: can be read and written by multiple nodes.
A description of the persistent volume's resources and capacity.
ClaimRef is part of a bidirectional binding between PersistentVolume and PersistentVolumeClaim. Expected to be non-nil when bound. claim. VolumeName is the authoritative bind between PV and PVC.
HostPath represents a directory on the host. Provisioned by a developer or tester. This is useful for single-node development and testing only! On-host storage is not supported in any way and WILL NOT WORK in a multi-node cluster.
NFS represents an NFS mount on the host. Provisioned by an admin.
What happens to a persistent volume when released from its claim. Valid options are Retain (default) and Recycle. Recycling must be supported by the volume plugin underlying this persistent volume.
Name of StorageClass to which this persistent volume belongs. Empty value means that this volume does not belong to any StorageClass.

Issue 02 (2021-03-22)

370

MindX DL User Guide

4 API Reference

Table 4-187 Data structure of the status field

Parameter

Mandator Type y

message

String

phase

String

reason

String

Table 4-188 Data structure of the claimRef field

Parameter

Mandator Type y

Description

apiVersion

String

API version of the referent.

fieldPath

String

If referring to a piece of an object instead of an entire object, this string should contain a valid JSON/Go field access statement, such as desiredState.manifest.containers[ 2]. For example, if the object reference is to a container within a pod, this would take on a value like: "spec.containers{name}" (where "name" refers to the name of the container that triggered the event) or if no container name is specified "spec.containers[2]" (container with index 2 in this pod). This syntax is chosen only to have some well-defined way of referencing a part of an object.

kind

String

Kind of the referent.

name

String

Name of the referent.

namespace

String

Namespace of the referent.

Issue 02 (2021-03-22)

371

MindX DL User Guide

Parameter
resourceVersio n uid

Mandator y No
No

Type String String

4 API Reference
Description
Specific resourceVersion to which this reference is made, if any. UID of the referent.

Table 4-189 Data structure of the hostPath field

Parameter

Mandator Type y

Description

path

String

Path of the directory on the host.

Table 4-190 Data structure of the nfs field

Parameter

Mandator Type y

path

String

readOnly

Boolean

server

String

Description
Path that is exported by the NFS server.
ReadOnly here will force the NFS export to be mounted with readonly permissions. Defaults to false.
Server is the hostname or IP address of the NFS server.

Issue 02 (2021-03-22)

372

MindX DL User Guide

4 API Reference

Table 4-191 Data structure of the metadata field

Name

Mandator Type y

Description

name

Yes

String

Name must be unique within a

namespace. Is required when

creating resources, although

some resources may allow a

client to request the generation

of an appropriate name

automatically. Name is primarily

intended for creation

idempotence and configuration

definition. Cannot be updated.

0 characters < name length 253 characters.

The name must be a regular expression [a-z0-9]([-a-z0-9]*[az0-9])?.

clusterName No

String

initializers

initializers object

enable

Boolean

Enable identify whether the

resource is available.

Issue 02 (2021-03-22)

373

MindX DL User Guide

Name

Mandator y

generateName No

Type String

4 API Reference
Description
An optional prefix used by the server to generate a unique name ONLY IF the Name field has not been provided. If this field is used, the name returned to the client will be different from the name passed. This value will also be combined with a unique suffix. The provided value has the same validation rules as the Name field, and may be truncated by the length of the suffix required to make the value unique on the server.
If this field is specified and the generated name exists, the server will NOT return a 409. Instead, it will either return 201 Created or 500 with Reason ServerTimeout indicating a unique name could not be found in the time allotted, and the client should retry (optionally after the time indicated in the Retry-After header).
Applied only if Name is not specified.
0 characters < generated name length 253 characters.
The generated name must be a regular expression [a-z0-9]([-az0-9]*[a-z0-9])?.

Issue 02 (2021-03-22)

374

MindX DL User Guide

Name namespace

Mandator y
No

Type String

selfLink

String

uid

String

4 API Reference
Description
Namespace defines the space within each name must be unique. An empty namespace is equivalent to the "default" namespace, but "default" is the canonical representation. Not all objects are required to be scoped to a namespace - the value of this field for those objects will be empty. Must be a DNS_LABEL. Cannot be updated.
0 characters < namespace length 63 characters.
The namespace must be a regular expression [a-z0-9]([-az0-9]*[a-z0-9])?.
A URL representing this object. Populated by the system. Readonly.
NOTE This field is automatically generated. Do not assign any value to this field. Otherwise, API calls would fail.
UID is the unique in time and space value for this object. It is typically generated by the server on successful creation of a resource and is not allowed to change on PUT operations. Populated by the system. Readonly.
NOTE This field is automatically generated. Do not assign any value to this field. Otherwise, API calls would fail.

Issue 02 (2021-03-22)

375

MindX DL User Guide

Name
resourceVersio n

Mandator y
No

Type String

generation

Integer

creationTimest No amp

String

Issue 02 (2021-03-22)

376

MindX DL User Guide

Name

Mandator y

deletionTimest No amp

Type String

deletionGraceP No eriodSeconds

Integer

labels

Yes

Object

4 API Reference
Description
RFC 3339 date and time at which this resource will be deleted. This field is set by the server when a graceful deletion is requested by the user, and is not directly settable by a client. The resource will be deleted (no longer visible from resource lists, and not reachable by name) after the time in this field. Once set, this value may not be unset or be set further into the future, although it may be shortened or the resource may be deleted prior to this time. For example, a user may request that a pod is deleted in 30 seconds. The Kubelet will react by sending a graceful termination signal to the containers in the pod. Once the resource is deleted in the API, the Kubelet will send a hard termination signal to the container. If not set, graceful deletion of the object has not been requested. Populated by the system when a graceful deletion is requested. Read-only.
Number of seconds allowed for this object to gracefully terminate before it will be removed from the system. Only set when deletionTimestamp is also set. May only be shortened. Read-only.
Map of string keys and values that can be used to organize and categorize (scope and select) objects. May match selectors of replication controllers and services.
NOTE This field should be filled in to create the real storage dynamically. The value of the field is according to the real region and zone.

Issue 02 (2021-03-22)

377

MindX DL User Guide

4 API Reference

Name annotations

Mandator y
No

ownerReferenc No es

finalizers

Type

Description

annotations object

An unstructured key value map stored with a resource that may be set by external tools to store and retrieve arbitrary metadata. They are not queryable and should be preserved when modifying objects.
NOTE This field should be filled in to create the real storage dynamically. This field indicates the storage plugin and the StorageClass.

ownerRefere nces object

Array of strings

Issue 02 (2021-03-22)

378

MindX DL User Guide

4 API Reference

Table 4-192 Data structure of the annotations field

Parameter

Mandat Type ory

Description

volume.beta.kubernete Yes s.io/storage-class

String

Storage class.
EVS Currently, EVS disks of high I/O (SAS disks), ultra-high I/O (SSD disks), and common I/O (SATA disks) types are supported.
SFS Currently, nfs-rw is supported.
OBS Currently, OBS buckets of standard (obs-standard) and low-frequency (obs-standardia) types are supported.

volume.beta.kubernete Yes s.io/storageprovisioner

String

Mount path.
If the storage class is EVS, set this parameter to flexvolume-huawei.com/ fuxivol.
If the storage class is SFS, set this parameter to flexvolume-huawei.com/ fuxinfs.
If the storage class is OBS, set this parameter to flexvolume-huawei.com/ fuxiobs.

Table 4-193 Data structure of the initializers field

Parameter

Mandatory Type

Description

pending

pending object

Pending is a list of initializers that must execute in order before this object is visible. When the last pending initializer is removed, and no failing result is set, the initializers struct will be set to nil and the object is considered as initialized and visible to all clients.

Issue 02 (2021-03-22)

379

MindX DL User Guide

Parameter result

4 API Reference

Mandatory No

Type result object

Description
If result is set with the Failure field, the object will be persisted to storage and then deleted, ensuring that other clients can observe the deletion.

Table 4-194 Data structure of the pending field

Parameter

Mandatory Type

Description

name

String

Name of the process that is

responsible for initializing this

object.

Table 4-195 Data structure of the result field

Parameter

Mandatory Type

apiVersion

Yes

String

code

details

Integer
details object

kind

Yes

String

message

metadata

Yes

String
ListMeta object

Description
APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
Suggested HTTP return code for this status, 0 if not set.
Extended data associated with the reason. Each reason may define its own extended details. This field is optional and the data returned is not guaranteed to conform to any schema except that defined by the reason type.
Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated.
A human-readable description of the status of this operation.
Standard list metadata.

Issue 02 (2021-03-22)

380

MindX DL User Guide

Parameter reason

Mandatory Type

String

status

String

4 API Reference
Description
A machine-readable description of why this operation is in the "Failure" status. If this value is empty there is no information available. A Reason clarifies an HTTP status code but does not override it.
Status of the operation. One of: "Success" or "Failure".

Table 4-196 Data structure of the details field

Parameter

Mandatory Type

Description

causes

causes object

The Causes array includes more details associated with the StatusReason failure. Not all StatusReasons may provide detailed causes.

group

String

The group attribute of the

resource associated with the

status StatusReason.

kind

String

The kind attribute of the

resource associated with the

status StatusReason. On some

operations may differ from the

requested resource Kind.

name

String

The name attribute of the

resource associated with the

status StatusReason (when there

is a single name which can be

described).

retryAfterSeco No nds

Integer

If specified, the time in seconds before the operation should be retried.

uid

String

UID of the resource. (when there

is a single resource which can be

described).

Issue 02 (2021-03-22)

381

MindX DL User Guide

4 API Reference

Table 4-197 Data structure of the ListMeta field

Parameter

Mandatory Type

Description

resourceVersio No n

String

Continue

String

selfLink

String

SelfLink is a URL representing this object. Populated by the system. Read-only.

Issue 02 (2021-03-22)

382

MindX DL User Guide

4 API Reference

Table 4-198 Data structure of the causes field

Parameter

Mandatory Type

Description

field

String

The field of the resource that

has caused this error, as named

by its JSON serialization. May

include dot and postfix notation

for nested attributes. Arrays are

zero-indexed. Fields may appear

more than once in an array of

causes due to fields having

multiple errors. Optional.

Examples: "name" - the field

"name" on the current resource

"items[0].name" - the field

"name" on the first array entry

in "items"

message

String

A human-readable description of the cause of the error. This field may be presented as-is to a reader.

reason

String

A machine-readable description of the cause of the error. If this value is empty there is no information available.

Table 4-199 Data structure of the ownerReferences field

Parameter

Mandatory Type

Description

apiVersion

Yes

String

API version of the referent.

blockOwnerDel No etion

Boolean

kind

Yes

String

Kind of the referent.

name

Yes

String

Name of the referent.

uid

String

UID of the referent.

Issue 02 (2021-03-22)

383

MindX DL User Guide

Parameter controller

Mandatory Type

Boolean

4 API Reference
Description If true, this reference points to the managing controller.

Table 4-200 Data structure of volume

Parameter

Mandator Type y

apiVersion

Yes

String

kind

Yes

String

metadata

Yes

spec

Yes

status

metadata object spec object
status object

Description
APIVersion defines the versioned schema of this representation of an object. Servers should convert recognized schemas to the latest internal value, and may reject unrecognized values.
Kind is a string value representing the REST resource this object represents. Servers may infer this from the endpoint the client submits requests to. Cannot be updated. In CamelCase.
Standard object's metadata.
Spec defines a specification of a volume owned by the cluster.
Status represents the current information/status for the volume. Populated by the system. Read-only.

Table 4-201 Data structure of the spec field

Parameter

Mandator Type y

name

Yes

String

size

Yes

Integer

description

String

storageclassna No me

String

Description
Name of this volume. Size of this volume. Description of this volume. StorageclassName new add, use to get az and type from k8s.

Issue 02 (2021-03-22)

384

MindX DL User Guide

4 API Reference

Parameter inresourcepool

Mandator Type y

Yes

Boolean

availability_zon No e

volume_type

snapshot_id

multiattach

Yes

String
String String Boolean

storage_type No

String

share_proto

is_public

String Boolean

access_to

String

access_level

String

pvc_name

access

Yes

vpc_id

Yes

enterprise_proje No ct_id

volume_id

String Array of access object String String
String

Description
Whether the volume is in the resource pool.
AvailabilityZone of this volume.
VolumeType of this volume.
SnapshotId of this volume.
Multiattach defines whether to attach by multiple containers.
Optional values: BS(Block Storage), OS(Object Storage), NFS(Network File System).Default: BS
When storage_type NFS is required, effective value is NFS.
When storage_type is NFS, the visibility of sharing is expressed. Set to true, public visible, set to false, private visible. Default:false
When storage_type NFS is required, the definition of the access rule. The length of 1~255, is VPC ID.
When storage_type NFS is required, said sharing permission level to access the value of RO (read only), RW (read and write).
pvcName of volume
sfs access.
efs vpc
enterprise_project_id
volume_id

Issue 02 (2021-03-22)

385

MindX DL User Guide

Parameter auto_expand

Mandator Type y

Boolean

4 API Reference
Description
When storage_type NFS is required, when value is true capacity expansion is not supported.

Table 4-202 Data structure of the status field

Parameter

Mandator Type y

String

status

Yes

String

created_at

String

attachments Yes

app_info

Yes

access_state

access_id

export_location No

export_location No s

x-obs-fs-file- No interface

Array of attachment objects
Array of app_info objects
String
String
String
String
Bool

Description
A human-readable message indicating details about why the volume is in this state. Phase indicates if a volume is available, bound to a claim, or released by a claim. Reason is a brief CamelCase string that describes any failure and is meant for machine parsing and tidy display in the CLI. Attachments information of this volume.
volume using info.
Access state Vpc id Export location Export locations
True is obs posix bucket

Issue 02 (2021-03-22)

386

MindX DL User Guide

4 API Reference

Table 4-203 Data structure of the access field

Parameter

Mandator Type y

Description

share_id

String

uuid of share.

access_type

Yes

String

access rule type.

access_to

Yes

String

vpc id.

access_level

Yes

String

access level.

Yes

String

uuid of access rule.

state

Yes

String

status of access rule.should be

active or error.

Table 4-204 Data structure of the attachment field

Parameter

Mandator Type y

Description

attachment_id No

String

AttachmentId.

server_id

String

Server of Attached device.

host_name

String

Host name of the attached machine.

device

String

Attached device.

Table 4-205 Data structure of the app_info field

Parameter

Mandator Type y

Description

app_name

Yes

String

App name.

namespace

Yes

String

namespace.

mount_path

Yes

String

Mount path.

app_type

Yes

String

App type.

4.3.2 Volcano Job

Issue 02 (2021-03-22)

387

MindX DL User Guide

4 API Reference

4.3.2.1 Reading All Volcano Jobs Under a Namespace

Function URI

This API is used to read all Volcano jobs under a specified namespace. GET /apis/batch.volcano.sh/v1alpha1/namespaces/{namespace}/jobs

Table 4-206 Path parameter

Parameter

Mandator Description y

namespace

Yes

Object name and auth scope, such as for teams and projects.

Table 4-207 Query parameters

Parameter

Mandator Description y

fieldSelector No

A selector to restrict the list of returned objects by their fields. Defaults to everything.

labelSelector No

A selector to restrict the list of returned objects by their labels. Defaults to everything.

Issue 02 (2021-03-22)

388

MindX DL User Guide

4 API Reference

Parameter

Mandator Description y

limit

Limit is a maximum number of responses to

return for a list call. If more items exist, the server

will set the continue field on the list metadata to

a value that can be used with the same initial

query to retrieve the next set of results. Setting a

limit may return fewer than the requested

amount of items (up to zero items) in the event

all requested objects are filtered out and clients

should only use the presence of the continue field

to determine whether more results are available.

Servers may choose not to support the limit

argument and will return all of the available

results. If limit is specified and the continue field

is empty, clients may assume that no more results

are available. This field is not supported if watch

is true.

The server guarantees that the objects returned when using continue will be identical to issuing a single list call without a limit - that is, no objects created, modified, or deleted after the first request is issued will be included in any subsequent continued requests. This is sometimes referred to as a consistent snapshot, and ensures that a client that is using limit to receive smaller chunks of a very large result can ensure they see all possible objects. If objects are updated during a chunked list the version of the object that was present at the time the first list result was calculated is returned.

resourceVersio No n

When specified with a watch call, shows changes that occur after that particular version of a resource. Defaults to changes from the beginning of history. When specified for list: - if unset, then the result is returned from remote storage based on quorum-read flag; - if it is 0, then we simply return what we currently have in cache, no guarantee; - if set to non zero, then the result is at least as fresh as given rv.

timeoutSecon No ds

Timeout for the list/watch call. This limits the duration of the call, regardless of any activity or inactivity.

watch

Watch for changes to the described resources and

return them as a stream of add, update, and

remove notifications. Specify resourceVersion.

Issue 02 (2021-03-22)

389

MindX DL User Guide

4 API Reference

Request Response

N/A
Response parameters
For the description about response parameters, see Table 4-146.
Example response
{ "apiVersion": "batch.volcano.sh/v1alpha1", "items": [ { "apiVersion": "batch.volcano.sh/v1alpha1", "kind": "Job", "metadata": { "creationTimestamp": "2019-06-26T03:16:26Z", "generation": 1, "name": "openmpi-hello-2-com", "namespace": "cci-namespace-42263891", "resourceVersion": "7625538", "selfLink": "/apis/batch.volcano.sh/v1alpha1/namespaces/cci-namespace-42263891/jobs/
openmpi-hello-2-com", "uid": "c84d86f0-97c0-11e9-9d09-dc9914fb58e0"
}, "spec": {
"minAvailable": 1, "plugins": {
"env": [], "ssh": [], "svc": [] }, "queue": "default", "schedulerName": "volcano", "tasks": [ {
"name": "mpimaster", "policies": [
{ "action": "CompleteJob", "event": "TaskCompleted"
} ], "replicas": 1, "template": {
"spec": { "containers": [ { "command": [ "/bin/sh", "-c", "MPI_HOST=`cat /etc/volcano/mpiworker.host | tr \"\\n\" \",\"`;\nmkdir -
p /var/run/sshd; /usr/sbin/sshd;\nmpiexec --allow-run-as-root --host ${MPI_HOST} -np 2 mpi_hello_world 003e /home/re\n"
], "image": "*.*.5.235:20202/swr/openmpi-hello:3.28", "name": "mpimaster", "ports": [
{ "containerPort": 22, "name": "mpijob-port"
} ], "resources": {
"limits": {

Issue 02 (2021-03-22)

390

MindX DL User Guide

"cpu": "250m", "memory": "1Gi" }, "requests": { "cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" } } }, { "name": "mpiworker", "replicas": 2, "template": { "spec": { "containers": [ { "command": [ "/bin/sh", "-c", "mkdir -p /var/run/sshd; /usr/sbin/sshd -D;\n" ], "image": "*.*.*.*:20202/swr/openmpi-hello:3.28", "name": "mpiworker", "ports": [ { "containerPort": 22, "name": "mpijob-port" } ], "resources": { "limits": { "cpu": "250m", "memory": "1Gi" }, "requests": { "cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" } } } ] }, "status": { "controlledResources": { "plugin-env": "env", "plugin-ssh": "ssh", "plugin-svc": "svc"

Issue 02 (2021-03-22)

4 API Reference 391

MindX DL User Guide

4 API Reference

}, "minAvailable": 1, "pending": 3, "state": {
"lastTransitionTime": "2019-06-26T03:16:27Z", "phase": "Inqueue" } } } ], "kind": "JobList", "metadata": { "continue": "", "resourceVersion": "7678090", "selfLink": "/apis/batch.volcano.sh/v1alpha1/namespaces/cci-namespace-42263891/jobs" } }
Status Code

Table 4-208 Status codes Status Code 200 401 404 500

Description OK Unauthorized Not found Internal error

4.3.2.2 Creating a Volcano Job

Function

This API is used to create a Volcano job.

URI

POST /apis/batch.volcano.sh/v1alpha1/namespaces/{namespace}/jobs

Table 4-209 Path parameter

Parameter

Mandator Description y

namespace

Yes

object name and auth scope, such as for teams and projects. The namespace need be existent before using this url.

Issue 02 (2021-03-22)

392

MindX DL User Guide

4 API Reference

Table 4-210 Query parameter

Parameter

Mandator Description y

pretty

If 'true', then the output is pretty printed.

Request

For the description about request parameters, see Table 4-146.
Example request
{ "apiVersion": "batch.volcano.sh/v1alpha1", "kind": "Job", "metadata": { "name": "openmpi-hello-2-com" }, "spec": { "minAvailable": 1, "schedulerName": "volcano", "plugins": { "ssh": [], "env": [], "svc": [] }, "tasks": [ { "replicas": 1, "name": "mpimaster", "policies": [ { "event": "TaskCompleted", "action": "CompleteJob" } ], "template": { "spec": { "imagePullSecrets": [ { "name": "default-secret" } ], "containers": [ { "command": [ "/bin/sh", "-c", "MPI_HOST=`cat/etc/volcano/mpiworker.host|tr\"\\n\"\",\"`;\nmkdir-p/var/run/
sshd;/usr/sbin/sshd;\nmpiexec--allow-run-as-root--host${\t\t\t\t\t\t\tMPI_HOST\t\t\t\t\t\t}np2mpi_hello_world>/home/re\n"
], "image": "*.*.*.*: 20202/swr/openmpi-hello:3.28", "name": "mpimaster", "ports": [
{ "containerPort": 22, "name": "mpijob-port"
} ], "resources": {
"requests": { "cpu": "250m", "memory": "1Gi"

Issue 02 (2021-03-22)

393

MindX DL User Guide

4 API Reference

Response

}, "limits": {
"cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "restartPolicy": "OnFailure" } } }, { "replicas": 2, "name": "mpiworker", "template": { "spec": { "imagePullSecrets": [ { "name": "default-secret" } ], "containers": [ { "command": [ "/bin/sh", "-c", "mkdir-p/var/run/sshd;/usr/sbin/sshd-D;\n" ], "image": "*.*.*.*:20202/swr/openmpi-hello:3.28", "name": "mpiworker", "ports": [ { "containerPort": 22, "name": "mpijob-port" } ], "workingDir": "/home", "resources": { "requests": { "cpu": "250m", "memory": "1Gi" }, "limits": { "cpu": "250m", "memory": "1Gi" } } } ], "restartPolicy": "OnFailure" } } } ] } }
Response parameters:
For the description about response parameters, see Table 4-146.
Example response
{ "apiVersion": "batch.volcano.sh/v1alpha1",

Issue 02 (2021-03-22)

394

MindX DL User Guide

4 API Reference
"kind": "Job", "metadata": {
"creationTimestamp": "2019-06-26T06:24:50Z", "generation": 1, "name": "openmpi-hello-3-com", "namespace": "cci-namespace-42263891", "resourceVersion": "7681331", "selfLink": "/apis/batch.volcano.sh/v1alpha1/namespaces/cci-namespace-42263891/jobs/openmpihello-3-com", "uid": "1a32a8c4-97db-11e9-9d09-dc9914fb58e0" }, "spec": { "minAvailable": 1, "plugins": {
"env": [], "ssh": [], "svc": [] }, "queue": "default", "schedulerName": "volcano", "tasks": [ {
"name": "mpimaster", "policies": [
{ "action": "CompleteJob", "event": "TaskCompleted"
} ], "replicas": 1, "template": {
"spec": { "containers": [ { "command": [ "/bin/sh", "-c", "MPI_HOST=`cat /etc/volcano/mpiworker.host | tr \"\\n\" \",\"`;\nmkdir -p /var/run/
sshd; /usr/sbin/sshd;\nmpiexec --allow-run-as-root --host ${MPI_HOST} -np 2 mpi_hello_world 003e / home/re\n"
], "image": "*.*.*.*:20202/swr/openmpi-hello:3.28", "name": "mpimaster", "ports": [
{ "containerPort": 22, "name": "mpijob-port"
} ], "resources": {
"limits": { "cpu": "250m", "memory": "1Gi"
}, "requests": {
"cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" }

Issue 02 (2021-03-22)

395

MindX DL User Guide
} }, {
"name": "mpiworker", "replicas": 2, "template": {
"spec": { "containers": [ { "command": [ "/bin/sh", "-c", "mkdir -p /var/run/sshd; /usr/sbin/sshd -D;\n" ], "image": "*.*.*.*:20202/swr/openmpi-hello:3.28", "name": "mpiworker", "ports": [ { "containerPort": 22, "name": "mpijob-port" } ], "resources": { "limits": { "cpu": "250m", "memory": "1Gi" }, "requests": { "cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure"
} } } ] } }
Status Code

Table 4-211 Status codes Status Code 200 201 202 401 400 500

Description OK Created Accepted Unauthorized Badrequest Internal error

Issue 02 (2021-03-22)

4 API Reference 396

MindX DL User Guide

Status Code 403

Description Forbidden

4 API Reference

4.3.2.3 Deleting All Volcano Jobs Under a Namespace

Function

This API is used to delete all Volcano jobs under a specified namespace.

URI

DELETE /apis/batch.volcano.sh/v1alpha1/namespaces/{namespace}/jobs

Table 4-212 Path parameter

Parameter

Mandator Description y

namespace

Yes

Object name and auth scope, such as for teams and projects.

Table 4-213 Query parameters

Parameter

Mandator Description y

fieldSelector No

A selector to restrict the list of returned objects by their fields. Defaults to everything.

labelSelector No

A selector to restrict the list of returned objects by their labels. Defaults to everything.

Issue 02 (2021-03-22)

397

MindX DL User Guide

4 API Reference

Parameter

Mandator Description y

limit

Limit is a maximum number of responses to

return for a list call. If more items exist, the server

will set the continue field on the list metadata to

a value that can be used with the same initial

query to retrieve the next set of results. Setting a

limit may return fewer than the requested

amount of items (up to zero items) in the event

all requested objects are filtered out and clients

should only use the presence of the continue field

to determine whether more results are available.

Servers may choose not to support the limit

argument and will return all of the available

results. If limit is specified and the continue field

is empty, clients may assume that no more results

are available. This field is not supported if watch

is true.

resourceVersio No n

timeoutSecon No ds

Timeout for the list/watch call. This limits the duration of the call, regardless of any activity or inactivity.

watch

Watch for changes to the described resources and

return them as a stream of add, update, and

remove notifications. Specify resourceVersion.

Issue 02 (2021-03-22)

398

MindX DL User Guide

4 API Reference

Request Response

N/A
Response parameters
For the description about response parameters, see Table 4-146.
Example response
{ "apiVersion": "batch.volcano.sh/v1alpha1", "items": [ { "apiVersion": "batch.volcano.sh/v1alpha1", "kind": "Job", "metadata": { "creationTimestamp": "2019-06-26T03:16:26Z", "generation": 1, "labels": { "app": "patchlabel" }, "name": "openmpi-hello-2-com", "namespace": "cci-namespace-42263891", "resourceVersion": "7695210", "selfLink": "/apis/batch.volcano.sh/v1alpha1/namespaces/cci-namespace-42263891/jobs/
openmpi-hello-2-com", "uid": "c84d86f0-97c0-11e9-9d09-dc9914fb58e0"
}, "spec": {
"minAvailable": 1, "plugins": {
"env": [], "ssh": [], "svc": [] }, "queue": "default", "schedulerName": "volcano", "tasks": [ {
"name": "mpimaster", "policies": [
{ "action": "CompleteJob", "event": "TaskCompleted"
} ], "replicas": 1, "template": {
"spec": { "containers": [ { "command": [ "/bin/sh", "-c", "MPI_HOST=`cat /etc/volcano/mpiworker.host | tr \"\\n\" \",\"`;\nmkdir -
p /var/run/sshd; /usr/sbin/sshd;\nmpiexec --allow-run-as-root --host ${MPI_HOST} -np 2 mpi_hello_world 003e /home/re\n"
], "image": "*.*.*.*:20202/l00427178/openmpi-hello:3.28", "name": "mpimaster", "ports": [
{ "containerPort": 22, "name": "mpijob-port"
}

Issue 02 (2021-03-22)

399

MindX DL User Guide

], "resources": {
"limits": { "cpu": "250m", "memory": "1Gi"
}, "requests": {
"cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" } } }, { "name": "mpiworker", "replicas": 2, "template": { "spec": { "containers": [ { "command": [ "/bin/sh", "-c", "mkdir -p /var/run/sshd; /usr/sbin/sshd -D;\n" ], "image": "*.*.*.*:20202/l00427178/openmpi-hello:3.28", "name": "mpiworker", "ports": [ { "containerPort": 22, "name": "mpijob-port" } ], "resources": { "limits": { "cpu": "250m", "memory": "1Gi" }, "requests": { "cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" } } } ] }, "status": { "controlledResources": {

4 API Reference

Issue 02 (2021-03-22)

400

MindX DL User Guide

4 API Reference

"plugin-env": "env", "plugin-ssh": "ssh", "plugin-svc": "svc" }, "minAvailable": 1, "pending": 3, "state": { "lastTransitionTime": "2019-06-26T03:16:27Z", "phase": "Inqueue" } } } ], "kind": "JobList", "metadata": { "continue": "", "resourceVersion": "7732232", "selfLink": "/apis/batch.volcano.sh/v1alpha1/namespaces/cci-namespace-42263891/jobs" } }

Status Code

Table 4-214 Status codes Status Code 200 401 500

Description OK Unauthorized Internal error

4.3.2.4 Reading the Details of a Volcano Job

Function

This API is used to read the details about a specified Volcano job.

URI

GET /apis/batch.volcano.sh/v1alpha1/namespaces/{namespace}/jobs/{name}

Table 4-215 Path parameters

Parameter

Mandator Description y

name

name of the Volcano Job. Null name means all

jobs.

namespace

Yes

Object name and auth scope, such as for teams and projects.

Issue 02 (2021-03-22)

401

MindX DL User Guide

4 API Reference

Table 4-216 Query parameter

Parameter

Mandator Description y

pretty

If 'true', then the output is pretty printed.

Request
N/A

Response

Response parameters
For the description about response parameters, see Table 4-146.
Example response
{ "apiVersion": "batch.volcano.sh/v1alpha1", "kind": "Job", "metadata": { "creationTimestamp": "2019-06-26T06:24:50Z", "generation": 1, "name": "openmpi-hello-3-com", "namespace": "cci-namespace-42263891", "resourceVersion": "7681358", "selfLink": "/apis/batch.volcano.sh/v1alpha1/namespaces/cci-namespace-42263891/jobs/openmpi-
hello-3-com", "uid": "1a32a8c4-97db-11e9-9d09-dc9914fb58e0"
}, "spec": {
"minAvailable": 1, "plugins": {
"env": [], "ssh": [], "svc": [] }, "queue": "default", "schedulerName": "volcano", "tasks": [ {
"name": "mpimaster", "policies": [
{ "action": "CompleteJob", "event": "TaskCompleted"
} ], "replicas": 1, "template": {
"spec": { "containers": [ { "command": [ "/bin/sh", "-c", "MPI_HOST=`cat /etc/volcano/mpiworker.host | tr \"\\n\" \",\"`;\nmkdir -p /var/run/
sshd; /usr/sbin/sshd;\nmpiexec --allow-run-as-root --host ${MPI_HOST} -np 2 mpi_hello_world 003e / home/re\n"
], "image": "*.*.*.*:20202/swr/openmpi-hello:3.28", "name": "mpimaster",

Issue 02 (2021-03-22)

402

MindX DL User Guide

"ports": [ { "containerPort": 22, "name": "mpijob-port" }
], "resources": {
"limits": { "cpu": "250m", "memory": "1Gi"
}, "requests": {
"cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" } } }, { "name": "mpiworker", "replicas": 2, "template": { "spec": { "containers": [ { "command": [ "/bin/sh", "-c", "mkdir -p /var/run/sshd; /usr/sbin/sshd -D;\n" ], "image": "*.*.*.*:20202/swr/openmpi-hello:3.28", "name": "mpiworker", "ports": [ { "containerPort": 22, "name": "mpijob-port" } ], "resources": { "limits": { "cpu": "250m", "memory": "1Gi" }, "requests": { "cpu": "250m", "memory": "1Gi" } }, "workingDir": "/home" } ], "imagePullSecrets": [ { "name": "default-secret" } ], "restartPolicy": "OnFailure" } }

Issue 02 (2021-03-22)

4 API Reference 403

MindX DL User Guide

} ] }, "status": { "controlledResources": {
"plugin-env": "env", "plugin-ssh": "ssh", "plugin-svc": "svc" }, "minAvailable": 1, "pending": 3, "state": { "lastTransitionTime": "2019-06-26T06:24:51Z", "phase": "Inqueue" } } }

Status Code

Table 4-217 Status codes Status Code 200 401 404 500 403

Description OK Unauthorized Not found Internal error Forbidden

4 API Reference

4.3.2.5 Deleting a Volcano Job

Function

This API is used to delete a specified Volcano job.

URI

DELETE /apis/batch.volcano.sh/v1alpha1/namespaces/{namespace}/jobs/{name}

Table 4-218 Path parameters

Parameter

Mandator Description y

name

Yes

name of the Volcano Job. When name is null, it

means delete all the job belong this namespace.

namespace

Yes

Object name and auth scope, such as for teams and projects.

Issue 02 (2021-03-22)

404

MindX DL User Guide

4 API Reference

Table 4-219 Query parameters

Parameter

Mandator Description y

dryRun

When present, indicates that modifications should not be persisted. An invalid or unrecognized dryRun directive will result in an error response and no further processing of the request. Valid values are: - All: all dry run stages will be processed

gracePeriodSe No conds

The duration in seconds before the object should be deleted. Value must be non-negative integer. The value zero indicates delete immediately. If this value is nil, the default grace period for the specified type will be used. Defaults to a per object value if not specified. The value 0 indicates to delete immediately.

orphanDepen No dents

Deprecated: please use the PropagationPolicy, this field will be deprecated in 1.7. Should the dependent objects be orphaned. If true/false, the "orphan" finalizer will be added to/removed from the object's finalizers list. Either this field or PropagationPolicy may be set, but not both.

propagationPo No licy

Whether and how garbage collection will be performed. Either this field or OrphanDependents may be set, but not both. The default policy is decided by the existing finalizer set in the metadata.finalizers and the resource-specific default policy. Acceptable values are: 'Orphan' orphan the dependents; 'Background' - allow the garbage collector to delete the dependents in the background; 'Foreground' - a cascading policy that deletes all dependents in the foreground.

pretty

If 'true', then the output is pretty printed.

Request
N/A

Response

Response parameters
For the description about response parameters, see Table 4-73.
Example response
{ "kind": "Status", "apiVersion": "v1",

Issue 02 (2021-03-22)

405

MindX DL User Guide

"metadata": {}, "status": "Success", "details": {
"name": "openmpi-hello-3-com", "group": "batch.volcano.sh", "kind": "jobs", "uid": "1a32a8c4-97db-11e9-9d09-dc9914fb58e0" } }

Status Code

Table 4-220 Status codes Status Code 200 202 401 500 403

Description OK Accepted Unauthorized Internal Error Forbidden

4 API Reference

4.3.3 cAdvisor

4.3.3.1 Obtaining Ascend AI Processor Monitoring Information

Function

The original cAdvisor machine information API is added to obtain the basic Ascend AI Processor information, as listed in Table 4-221.

Table 4-221 Ascend AI Processor information NPU quantity NPU device list Device health status Device error code Device usage Device frequency Device temperature Device power Device voltage

Issue 02 (2021-03-22)

406

MindX DL User Guide

4 API Reference
Device HBM memory information (for Ascend 910 AI Processor only) Device memory information

URL

GET http://ip:port/api/v1.0/machine
NOTE
ip: IP address of the cAdvisor container. By default, the IP address is not exposed to the host port and cannot be accessed using the host and port number.
port: port number. The default value is 8081. If you need to change the port number, change the value of ports in deploy/kubernetes/base/daemonset.yaml. After hostPort is added, the port number can be exposed to the host. You can also change the port number. To change the port number, change the value of --port in deploy/ kubernetes/overlays/huawei/cadvisor-args.yaml.

Request Parameters
N/A

Response Description

{

"num_cores": 72,

"cpu_frequency_khz": 2601000,

"memory_capacity": 607924887552,

"hugepages": [],

"machine_id": "4b8a3236aa884f7fa1aa2ce868205768",

"system_uuid": "E1C5D866-0018-8CA3-B211-D21D0CDA1A24",

"boot_id": "dc356dae-d541-4c81-ad37-9f3beda84f3a",

"filesystems": [],

"disk_map": {},

"network_devices": [],

"topology": [],

"cloud_provider": "Unknown",

"instance_type": "Unknown",

"instance_id": "None",

"npu_list": [

## List of new Ascend AI Processors

{

"device_id": 0,

## NPU device ID

"device_list": [

{

"health_status": "Healthy", ## NPU device monitoring status, Healthy or Unhealthy

"error_code": 0,

## NNPU error code. 0 indicates normal.

"utilization": 0,

## NPU AI Core Usage

"temperature": 63,

## Device temperature (°C)

"power": 76.4,

## Device power consumption, in W

"voltage": 12.24,

## Device voltage, in V

"frequency": 2000,

## NPU AI core working frequency, in MHz

"memory_info": {

## NPU device memory information

"memory_size": 15307, ## Memory size, in MB

"memory_frequency": 1200, ## Memory frequency, in MHz

"memory_utilization": 1 ## Memory usage (%)

"chip_info": {

## Processor information

"chip_type": "Ascend", ## Processor type

"chip_name": "910own", ## Processor name

"chip_version": "V1"

## Processor version

Issue 02 (2021-03-22)

407

MindX DL User Guide

4 API Reference

"hbm_info": {

## HBM information (for Ascend 910 AI Processor only)

"memory_size": 32255, ## HBM memory size, in MB

"hbm_frequency": 1200, ## HBM working frequency, in MHx

"memory_usage": 0,

## Used HBM memory, in MB

"hbm_temperature": 62, ## HBM temperature (°C)

"hbm_bandwidth_util": 0 ## HBM bandwidth usage (%)

}

"timestamp": "2020-09-24T16:33:53.673903765+08:00"

...

##Other processor information is omitted.

]

}

NOTE

For details about other APIs, see official cAdvisor documentation.

Status Code

Table 4-222 Status code Status Code 200 307 500

Description Normal Temporary redirection Internal server error

4.3.3.2 cAdvisor Prometheus Metrics API

Function

The Metrics API is available for Prometheus to call and integrate.

URL

GET http://ip:port/metrics
NOTE
For security purposes, cAdvisor enables the container-level port by default, and the request IP address is the IP address of the Kubernetes container.

Request Parameters
N/A

Response Description
The data is returned in the Prometheus-specific format.
# HELP cadvisor_version_info A metric with a constant '1' value labeled by kernel version, OS version, docker version, cadvisor version & cadvisor revision. # TYPE cadvisor_version_info gauge cadvisor_version_info{cadvisorRevision="unknown",cadvisorVersion="v0.34.0-r40",dockerVersion="18.06.3-

Issue 02 (2021-03-22)

408

MindX DL User Guide

4 API Reference

ce",kernelVersion="4.15.0-29-generic",osVersion="Alpine Linux v3.12"} 1 ... # HELP container_accelerator_duty_cycle Percent of time over the past sample period during which the accelerator was actively processing. # TYPE container_accelerator_duty_cycle gauge container_accelerator_duty_cycle{acc_id="davinci1",... ... # HELP container_accelerator_memory_total_bytes Total accelerator memory. # TYPE container_accelerator_memory_total_bytes gauge container_accelerator_memory_total_bytes{acc_id="davinci1",... ... # HELP container_accelerator_memory_used_bytes Total accelerator memory allocated. # TYPE container_accelerator_memory_used_bytes gauge container_accelerator_memory_used_bytes{acc_id="davinci1",... ... # TYPE machine_npu_nums gauge machine_npu_nums 8 # HELP npu_chip_info_health_status the npu health status # TYPE npu_chip_info_health_status gauge npu_chip_info_health_status{id="0"} 1 1597126711464 npu_chip_info_health_status{id="1"} 1 1597126711472 npu_chip_info_health_status{id="2"} 1 1597126711479 npu_chip_info_health_status{id="3"} 1 1597126711487 npu_chip_info_health_status{id="4"} 1 1597126711493 npu_chip_info_health_status{id="5"} 1 1597126711502 npu_chip_info_health_status{id="6"} 1 1597126711509 npu_chip_info_health_status{id="7"} 1 1597126711517 ... ...

Table 4-223 Prometheus labels

Label

Description

Unit

container_accelerator_du Accelerator usage in a %

ty_cycle

container.

container_accelerator_m Total accelerator

Byte

emory_total_bytes

memory size in a

container.

container_accelerator_m Used accelerator

Byte

emory_used_bytes

memory size in a

container.

machine_npu_nums

Number of Ascend AI Processors.

Number

machine_npu_name

Name of the Ascend AI Processor.

npu_chip_info_error_code Error code of the Ascend AI Processor.

npu_chip_info_health_sta Health status of an

tus

Ascend AI Processor.

1: healthy 0: unhealthy

npu_chip_info_power

Power consumption of W an Ascend AI Processor.

npu_chip_info_temperatu Temperature of an

°C

Ascend AI Processor.

Issue 02 (2021-03-22)

409

MindX DL User Guide

Label

Description

Unit

npu_chip_info_used_me Used memory of the

mory

Ascend AI Processor.

npu_chip_info_total_me Total memory of the

mory

Ascend AI Processor.

npu_chip_info_hbm_used Used HBM memory

_memory

dedicated for the Ascend

910 AI Processor.

npu_chip_info_hbm_total Total HBM memory

_memory

dedicated for the Ascend

910 AI Processor.

npu_chip_info_utilization AI Core usage of an

Ascend AI Processor.

npu_chip_info_voltage

Voltage of an Ascend AI V Processor.

4 API Reference

NOTE
For details about other Prometheus labels, see the official cAdvisor documentation. The accelerator tag in the cAdvisor container is displayed only when an NPU or GPU
accelerator is mounted to a container.

Status Code

Table 4-224 Status code Status Code 200 307 500

Description Normal Temporary redirection Internal server error

4.3.3.3 Other cAdvisor APIs
For details about other APIs, see official cAdvisor documentation.

Issue 02 (2021-03-22)

410

MindX DL User Guide

5 FAQs

5.1 Pod Remains in the Terminating State After vcjob Is Manually Deleted

Symptom

After vcjob is deleted using kubectl delete -f xxx.yaml, the pod remains in the Terminating state.

Possible Causes
N/A
Method 1: Unmounting the NFS Mounting Paths of the Pod
Step 1 Run the following command to check the NFS mounting paths of the pod: mount|grep NFS share IP address

Issue 02 (2021-03-22)

411

MindX DL User Guide

Figure 5-1 Query result

5 FAQs

As shown in the figure, xxx.xxx.xxx.xxx:/data/k8s/run and xxx.xxx.xxx.xxx:/ data/k8s/dls_data/public/dataset/resnet50 are the NFS mounting paths of the pod.
Step 2 Run the following command to unmount each NFS mounting path of the pod:
umount -f NFS mounting path
Step 3 Run the following command to check whether the NFS mounting paths of the pod have been unmounted:
mount|grep NFS share IP address
If yes, no further action is required. If no, go to Method 2: Deleting the Docker Process to Which the Pod
Belongs.
----End
Method 2: Deleting the Docker Process to Which the Pod Belongs
Step 1 Run the following command to query the Docker process to which the pod belongs:
docker ps |grep Pod name
Step 2 Run the following command to check the files occupied by the Docker process:
ll /var/lib/docker/containers |grep Docker process ID
The following is an example of the query result.
root@ubuntu:/data/k8s/run# ll /var/lib/docker/containers |grep 95aeeafe2db8 drwx------ 4 root root 4096 Jun 24 16:00 95aeeafe2db898065094dd34dbfbeca04734d5248316aa802d43a36b4d8b99df/
Step 3 Run the following command to delete the files occupied by the Docker process:
rm -rf /var/lib/docker/container/ 95aeeafe2db898065094dd34dbfbeca04734d5248316aa802d43a36b4d8b99df/
Step 4 Run the following command to query the ID of the Docker process that occupies the files:
lsof |grep 95aeeafe2db8

Issue 02 (2021-03-22)

412

MindX DL User Guide

Figure 5-2 Query result

5 FAQs

Step 5 Run the following command to kill the process: kill -9 Process ID
Step 6 Run the following command to check whether the process has been deleted: If yes, go to Step 7. If no, query and stop the process again by referring to Step 4 and Step 7.
Step 7 Run the following command to delete the Docker to which the pod belongs: docker rm 95aeeafe2db8 After the pod is deleted, wait for about 1 minute and then view the pod information again. ----End
5.2 The Training Task Is in the Pending State Because "nodes are unavailable"
Symptom
After being delivered, the vcjob training job is not running. Step 1 Run the kubectl get pod --all-namespaces command to check whether the pod
to which the training job belongs is in the Pending state, as shown in the following figure.

Issue 02 (2021-03-22)

413

MindX DL User Guide

5 FAQs

Step 2 Run the kubectl describe pod sasa-resnet1-acc-default-test-0 -n vcjob command to view the pod details. In the event field, the following error is reported: all nodes are unavailable: 1 node annotations(7) not same node idle(8).
----End
Possible Causes
The number of unused NPUs on the node was different from the number of unused NPUs displayed in Annotations. Volcano considered that the system was unstable and could not allocate NPU resources. The kubectl describe nodes command was run to check the huawei.com/ Ascend910: field in Allocated resources and Annotations of the node.

According to the command output, the Ascend Device Plugin startup mode was incorrect, and Kubernetes run slowly when the number of jobs was large.

Issue 02 (2021-03-22)

414

MindX DL User Guide
Solution

5 FAQs Reinstall Ascend Device Plugin. For details, see MindX DL Installation.

5.3 A Job Was Pending Due to Insufficient Volcano Resources

Symptom

When the resources requested by a job met the model requirements but the actual resources did not meet the requirements, the job could not be scheduled and was in the pending state. However, the waiting was not terminated in a timely manner or timed out. The job keeps waiting in some cases if the resource requirement cannot be met.

Figure 5-3 A job was in the Pending state.

Possible Causes
When resources were insufficient, volcano-scheduler did not terminate job scheduling.
A job could not continue due to the lack of a label, but the job was not terminated yet. Figure 5-4 shows the volcano-schedule log.
Figure 5-4 Job pending due to the lack of a node selector

Solution
Step 1 Ensure that resources are sufficient before using.
Step 2 Ensure that the request body (or YAML file) and node label of the job contain the corresponding labeling commands. For details about the labeling commands, see Creating a Node Label.
You can delete the current vcjob using the following method to resolve the problem:

Issue 02 (2021-03-22)

415

MindX DL User Guide

5 FAQs
If a vcjob is in the Pending state due to insufficient resources, run the kubectl delete vcjob job-zdd-001-7dls -n vcjob command to delete the vcjob.

NOTE
job-zdd-001-7dls: name of the vcjob. vcjob: namespace to which the vcjob belongs.
----End

5.4 Failed to Generate the hcl.json File

Symptom

After a training job is started, the hcl.json file in the training job container is in the initializing state. The default file path is /user/serverid/devindex/config/ hccl.json.
Run the kubectl exec -it XXX bash command to access the container. If the pod is not in the default namespace, add -n XXX to specify the namespace, for example, kubectl exec -it XXX -n XXX bash.

Possible Causes
Cause 1: HCCL-Controller is not started properly.
Cause 2: The HCCL-Controller version does not match the Ascend Device Plugin version.
Cause 3: Ascend Device Plugin does not correctly generate the annotation of the pod. To view the annotation, run the kubectl describe XXX -n XXX command.
In normal cases, the command output contains ascend.kubectl.kubernetes.io/ascend-910-configuration or atlas.kubectl.kubernetes.io/ascend-910-configuration (20.1.0 and earlier versions).

Issue 02 (2021-03-22)

416

MindX DL User Guide

5 FAQs

Solution

For cause 1: Reinstall HCCL-Controller by referring to the installation and deployment guide.
For cause 2: Reinstall HCCL-Controller and Ascend Device Plugin by referring to Table 1-2.
For cause 3: The corresponding annotation is not found. The possible cause is that Ascend Device Plugin does not obtain the correct device IP address. Ensure that the device IP address is correctly configured after the driver is installed. For details, see " Development Environment Installation (Training) > Changing NPU IP Addresses" in the CANN Software Installation Guide.

5.5 Calico Network Plugin Not Ready

Symptom

In the output of the kubectl get pod -A command for checking the calico network plugin, the value in the READY column is 0/1.

Possible Causes
If the network segment of a physical machine conflicts with that of the configured container or the physical machine is in a complex network environment, Calico cannot correctly identify valid NICs of the managment and compute nodes.

Issue 02 (2021-03-22)

417

MindX DL User Guide
Solution

5 FAQs
Check whether the network segment of the physical machine is the same as that of the container. If yes, initialize the Kubernetes cluster again and change the value of pod-network-cidr to a network segment that does not conflict with the container network segment. After the initialization, change the value of calico accordingly.
Modify the default container network segment parameter CALICO_IPV4POOL_CIDR in the YAML file for starting Calico. In addition, you are advised to add the IP_AUTODETECTION_METHOD configuration. The value is can-reach={masterIP}, where masterIP indicates the IP address of the physical machine on the Kubernetes management node. The following figure shows the content that needs to be modified in the YAML file for starting Calico. For details about how to reset and install the Kubernetes, see the official Kubernetes website.

5.6 Error Message "admission webhook "validatejob.volcano.sh" denied the request" Is Displayed When a YAML Job Is Running

Symptom

When kubectl apply -f XXX.yaml is used to start a job, the following error message is displayed:
Error from server: error when creating "resnet50_hccl_1-acc-pytorch.yaml": admission webhook "validatejob.volcano.sh" denied the request: spec.task[0].template.spec.volumes[5].hostPath.path: Required value. template.spec.containers[0].volumeMounts[5].name: Not found: "ascend-add-ons".

Issue 02 (2021-03-22)

418

MindX DL User Guide

5 FAQs

Possible Causes
An error occurs in the YAML file during job startup. In this example, the mount path of ascend-add-ons is misspelled.
An example is provided as follows.

The mount path is misspelled as ipath. As a result, YAML fails to run the job.

Solution

Check the YAML file and rectify any incorrect fields.

5.7 Kubernetes Fails to Be Restarted After the Server Is Restarted

Symptom

After the server is restarted, the Kubernetes fails to be restarted. After the kubectl get pod command is run, the following error information is displayed:

The connection to the server xxx.xxx.xxx.xxx:6443 was refused - did you specify the right host or port?

Run the free -m command to check whether the swap is disabled. The following information is displayed:

Mem: Swap:

total used free shared 773737 5373 766172 38146 0 38146

buff/cache available

2192 765453

Issue 02 (2021-03-22)

419

MindX DL User Guide

5 FAQs

Possible Causes
The swap is not disabled.

Solution

Step 1 Run the following command to disable the swap partition:

swapoff -a

Step 2 After the Kubernetes is started, run the following command:

kubectl get pod

If information similar to the following is displayed, the process is normal:

NAME

READY STATUS RESTARTS AGE

hccl-controller-767f45c6b5-srkr4 1/1 Running 10

46h

tjm-6ff5f74865-wh6nm

1/1 Running 0

NOTE

To make the configuration take effect permanently, perform the following operations:
Step 3 Run the following commands to create a .sh file:
mkdir -p /usr/local/scripts/
vim /usr/local/scripts/dls_swap_check.sh
Add the following content to the file:
#!/bin/bash
function check_swap() { swap_total=1 sleep 10 while [ "$swap_total" != "0" ]; do swap_total=$(free -m | grep -i swap | awk '{ print $2 }') echo "The swap total: $swap_total." > /dev/kmsg swapoff -a sleep 5 done
}
check_swap & echo 0
Step 4 Run the following command to change the .sh file permission:
chmod 750 /usr/local/scripts/dls_swap_check.sh
Step 5 Run the following command to edit the rc.local file:

vi /etc/rc.local

Add the following information before exit 0:
/usr/local/scripts/dls_swap_check.sh exit 0

----End

Issue 02 (2021-03-22)

420

MindX DL User Guide

5 FAQs

5.8 Message "certificate signed by unknown authority" Is Displayed When a kubectl Command Is Run

Symptom

When a kubectl command, for example, kubectl get pods --all-namespaces, is run, the following error message is displayed:
Unable to connect to the server: x509: certificate signed by unknown authority

Possible Causes
A proxy has been configured in the environment.

Solution

Run the following command to cancel the proxy: unset http_proxy https_proxy

Issue 02 (2021-03-22)

421

MindX DL User Guide

6 Communication Matrix

Table 6-1 Communication Matrix

Source Device

Other nodes in the Kubernetes cluster.

Source IP Address IP addresses of other nodes in the Kubernetes cluster.

Source Port

Uncertain

Destination Device Kubernetes cluster Worker node.

Destination IP Address

IP address of the Kubernetes cluster Worker node.

Destination Port (Listening)

8081

Protocol

TCP

Port Description

Used by management nodes in the Kubernetes cluster to query cluster Worker node real-time monitoring and performance data collection, including CPU usage, memory usage, network throughput, and file system usage.
This port is enabled by default.
NOTE This is a reference design. This port is available only after you compile and install it in the system during secondary development.

Listening Port Configurable

Mandatory

Authentication

N/A

Mode

Encryption Mode N/A

Plane

Management plane

Version

All versions

Issue 02 (2021-03-22)

422

MindX DL User Guide

Special Scenario Remarks

6 Communication Matrix
N/A cAdvisor process, which is used for communication between nodes on the container network.

Issue 02 (2021-03-22)

423

MindX DL User Guide

A Change History

Date 2021-03-22
2021-01-25

A Change History
Description Added the description of the hwMindX user. Optimized MindSpore image creation. This issue is the first official release.

Issue 02 (2021-03-22)

424

AH Formatter V6.2 MR8 for Windows : 6.2.10.20473 (2015/04/14 10:00JST) Antenna House PDF Output Library 6.2.680 (Windows)
