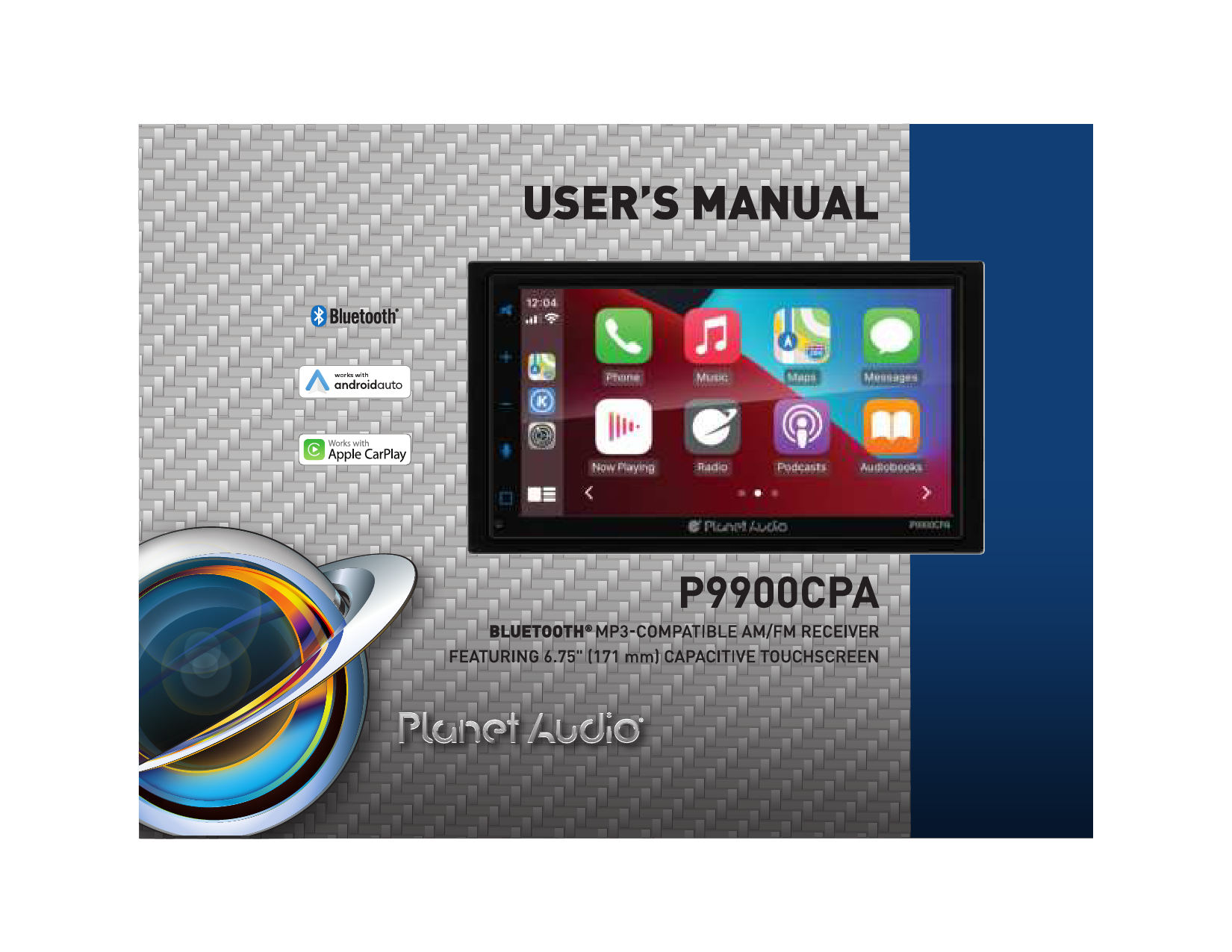

Planet Audio P9900CPA Bluetooth MP3 Compatible AM/FM Receiver User Manual
File info: application/pdf · 39 pages · 5.90MB
21CHZ071-IM-V1.1
User Manual in English - Planet Audio
experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to the risk of electric shock, injury or other.
PDF IMPORTANT - planetaudiousa.com
1 IMPORTANT Record the serial number of the pro IMPORTANT! Fill Out And Keep For Your Records. duct: Model: Serial Number: Date of Purchase: The serial number is located on the top part of the chassis.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Thank you for choosing Planet Audio IMPORTANT! Fill Out And Keep For Your Records. i IMPORTANT Record the serial number of the product: Model: Serial Number: Date of Purchase: The serial number is located on the top part of the chassis. 1 Contents Contents.................................................2 Notes......................................................................4 5-7 About this Manual...............................................7 California Prop. 65...............................................7 Basic Product Opera on ................... 8 What comes in the box.....................................8 Product Basics................................................9-14 Using/Caring for the Touchscreen..................12 Product Setup.....................................................13 14 Apple CarPlay ......................................15 Warnings.............................................................15 Using CarPlay......................................................15 Gestures & Control............................................15 CarPlay Display...................................................16 Disable Apps.......................................................16 Android Auto.......................................17 Warnings.............................................................17 Using Android Auto...........................................17 Bluetooth� ..........................................18 18 18 Phonebook..........................................................18 Device Status......................................................18 Calling..................................................................19 History.................................................................19 Private Mode......................................................19 Audio....................................................................20 Track Control.......................................................20 Media Player Source Switching........................20 Media ..................................................21 Warnings............................................................21 USB Playback.....................................................21 21 Photos.................................................................21 Radio.....................................................22 Display Overview................................................22 Controls...............................................................22 Tuning..................................................................22 Bands...................................................................22 Presets.................................................................22 Favorites.............................................................22 2 Contents AV IN ....................................................23 Playback...............................................................23 Camera.................................................23 Warnings.............................................................23 Reverse View.....................................................23 General Se ngs..................................24 24 System Language................................................24 Time Zone...........................................................24 Date & Time........................................................24 Auto Adjust Daylight Saving............................24 System Tone......................................................24 Power O Delay..................................................24 Parental Disc Lock...........................................24 Audio....................................................25 EQ.........................................................................25 Balance/Fader.....................................................25 Subwoofer...........................................................25 Loudness..............................................................25 Internal Amp.......................................................25 Volume................................................................25 Source level........................................................25 Display Se ngs...................................26 26 Gamma...............................................................26 LED Touch Buons........................................26 LED Animaon...............................................26 Bluetooth� Se ngs.............................27 Device Name.......................................................27 Camera.........................................27 Rear Camera input............................................27 Front Camera input...........................................27 Parking Assist Guide.........................................27 Parking Assist Guide Adjust.............................27 Rear View delay.................................................27 Radio Se ngs......................................27 Region..................................................................27 3 Connec ons.........................................28 28-33 Power/SWC ....................................................... 28 Speaker................................................................29 Audio Pre-amp/AV IN/ Radio............................30 Camera/USB/MIC................................................31 Parking Brake.......................................................32 Hands-free Mic..................................................33 Troubleshoo ng..................................34 Speci ca ons.......................................36 Important This symbol with "WARNING" is intended to injury, death, damage to the product and/or property. ARNING This symbol with "CAUTION" is intended to alert the user to the presence of important injury or damage to the product and/or property. AUTION Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone or iPod may a ect wireless performance. iPhone� is trademark of Apple Inc.,registered in the U.S.and other countries. Apple CarPlay is a trademark of Apple Inc. The Bluetooth� word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Planet Audio is under license. Other trademarks and trade names are those 4 BE SURE TO OBSERVE THE FOLLOWING GUIDELINES: Do not turn up the volume so high that you can't hear what's around you. Do not operate mobile video equipment while driving a motorized vehicle � priority. dealer or the nearest authorized Planet Audio Service Center. always be your highest , or ear discomfort. o the power and consult your Planet Audio does not recommend to install the product yourself. Always consult with a professional installer . experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards Refer any repairs to a quali ed Planet Audio Service Center 5 Before Installing � Use this unit with a 12- CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICL SHOCK, DO NOT REMOVE COVERS. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO A QUALIFIED SERVICE PROFESSIONAL Product Safety and all warranty. Please check with a professional installer to have your product installed properly. was intended to be used with the g this feature will void any Important Note i Due to ongoing enhancements, example images on screens may slightly di r from actual product. 6 Images and Video Watching video while driving is against Federal, State, and Local laws. Check surroundings for safety while camera images are displayed. About this manual for future reference. -Keep the manual -Clean with a dry cloth only -Do not use or operate near water -Do not defeat any safety features 7 ident. n of smartphone Apps accessible dc keep it in a safe place . What comes in the box Hardware Qty 1 P9900CPA Qty 1 Trim Ring Qty 1 -M5 x 6mm Bolts (8) -Brackets (2) Qty 1 Qty 1 Power/Harness Hands-free Microphone 8 Front Detail 1 2 3 4 5 1 Mute/Screen O 4 Power/Home 2 Volume Control 5 System Reset 9 3 Voice Assistant Rear Detail USB2 USB1 Main Harness 10 Pre-Amp Output A/V Input AM/FM Antenna Product Basics Mute 1. Touch to Mute Volume 1. Touch once on either "+" / "-" 2. Touch and Hold for quicker Voice Assistant -Touch to command NOTE Display -Touch and Hold Mute Display On -Touch Power On /Standby 1. Touch once to Power ON 2. Touch and Hold for Standby NOTE In Standby Mode, the LED will slowly pulse on and o 11 Using and Caring for the Touchscreen Use: -end mobile devices. It should be used for and cared for like that type of Do not allow any sharp objects to come in contact with the screen glass. Care and Cleaning: To clean the screen, use a dry micro ber type cloth to clean. Do not use ammonia, window cleaner, or any other type of household chemicals to clean the screen. Abrasives should not be used at all. 12 Product Setup (Date & Time) Connect your Apple � device using a Lightning� cable . The CarPlay USB port must be used. date. User must set Time Zone manually. Default is Paci c Time Zone General > Language 13 Android Auto CarPlay Media Camera Home EQ Tuner Hands-free AV IN 14 Apple CarPlay Using CarPlay Note Apple CarPlay usage is limited while driving. determined by the App provider(s). Controls will vary with each App that is available for CarPlay. For more details visit: ARNING Familiarize yourself with your Local and State laws regarding mobile devices. prohibited and or illegal while driving in your When in doubt, park the vehicle and engage the parking brake rst before performing the 1. via LIGHTING � cable (not included). 2. The iPhone will load the CarPlay 3. On the display, the CarPlay will illuminate green, touch it to enter the CarPlay menu. 4. To return to the product Home menu, Touch NOTE The product's Bluetooth will turn OFF HandsCarPlay feature. When using CarPlay, there is no need to pair your iPhone, the USB cable connected through the USB Port (1) will enable this feature. If other devices are connected via Bluetooth, CarPlay use. 15 Gestures & Control Basic controls, but not limited to: Touch Swipe Dragging Other gestures and controls might di er on each App. NOTE Volume control is handled exclusively by the product. Apple CarPlay Using CarPlay CarPlay Display Setup 1. Using your iPhone: 2. Touch and Hold each App icon to move. To remove an App, Touch NOTE Only Apps with the icon can be removed from CarPlay. Only Apps with the icon can be added in carplay. How to Disable Apps 1. Using your iPhone: App to Disable Planet Audio P9900CPA 16 Android Auto Using Android Auto Note Android Auto usage is limited while driving. determined by the App provider(s). Controls will vary with each App that is available for Android Auto. For more details visit: WARNING Familiarize yourself with your Local and State laws regarding mobile devices. be prohibited and or illegal while driving in When in doubt, park the vehicle and engage the parking brake rst before performing the WARNING For your safety, the setup process MUST be accomplished while the vehicle is Parked and Parking Brake Engaged. Android Auto App 1. For Android 9.0 or earlier, download and install the Android Auto app from Google Play. For smartphone with Android 10.0 or later, plug in your phone and follow the prompts on your phone to accept the permissions that Android Auto requires USB Port 1. via the appropriate USB cable (not included). 2. The Android device will load the Android 3. when the setup is completed. Android Auto Permissions Permissions Minimum Requirements: Android 5.0 Lollipop Several features can be allowed or denied access to customize your usability of the product. device. NOTE To complete the setup properly, the Parking Brake status wire must be connected. 1. During the rst start up and setup of the Android Auto app, the Maps, Music, Google 17 Bluetooth� Hands-Free Menu Touch NOTE disconnect the iPhone to start Bluetooth. guaranteed. Please read through the user's guide of the mobile device. CAUTION For your safety, the setup process should be accomplished while the vehicle is parked and parking brake engaged. Using your phone,media or other Bluetooth device, try to connect to this headunit. Mobile Device: Search for Planet Audio P9900CPA iOS Devices: Android Devices: Bluetooth A passcode is generated and will display on both the head unit and mobile device for secure pairing. Touch to con rm YES within range. NOTE Once paired and connected, the device list will display the available Bluetooth pro les. iphone Phonebook and History To Download Phonebook: 1. Touch Contact > Download To Download History 1. Touch History > Download Device Status the top right of the Home menu. GATT Pro le support is required on the mobile device. 18 Bluetooth� Hands-Free Calling Making & Receiving Calls 1. Dialing from the dial pad Touch to make call 2. Contacts Touch the contact name 3. History Choose the name, then To End a call Touch To Mute a call Touch Dial pad To use the dial pad while on a call Touch Searching History Swipe Up or Down to search History 1. Outgoing Call 2. Incoming Call 3. Missed Call Private Mode When a call needs to be transferred to the mobile device: Touch to switch the mobile device Touch to return to hands-free mode Searching Contacts Contacts must be downloaded to search. 1. Touch 2. Enter the Contact Name, then OK 19 ON Auto Connect: ON Auto Answer: OFF Device Name: Planet Audio P9900CPA Clear Records Call 1 Bluetooth� Audio Audio Streaming To play media through Bluetooth, the mobile device must be Paired and Connected to the P9900CPA 1. Touch Track Control 1. Play/Pause 2. Track Fwd / Rev 3. Swipe to Fwd/Rev Note For best performance, your mobile device All volume adjustments for the system should be controlled from the product. Formats Playback is supported from the mobile device with any format it can play. Audio will only be played by the product. Video cannot be viewed on the unit. Switching Media Touch Available sources will display (Bluetooth and USB) Note USB source will only be displayed if a USB drive is inserted and has playable media. Display Track info will be displayed when available. Album art is not supported via Bluetooth playback. 20 Media USB USB Playback Touch Audio Control 1. Play/Pause 2. Track Fwd / Rev 3. Repeat ALL all 4. Repeat One 1 5. Random Video Control 1Play/Pause 2Track Forward/Backward 3Repeat All all 4Repeat one 1 5SETUP Photo Control 1Play/Pause 2Track Forward/Backward 3Repeat All all 4Repeat One 1 5Rotate Note If there are other les in the USB, music les will play rst. 21 Touch To browse contents Swipe To return to the current le playing, Touch WARNING Watching videos or photos while driving is against Federal ,State, and Local laws. Do not use features of this product if it cannot be operated safely and legally in your Note properly integrate the parking brake wire to the vehicle. Video and or photos cannot be viewed while the parking brake applied to enable viewing. Radio AM/ FM Controls Touch Tuning Search Touch and Hold Manual Seek Touch Auto Search & Store: Touch 10:30AM To remove a favorite, Touch Browsing Favorites Touch To return the Tuner screen Touch Changing Presets Touch Bands LOC/DX Stereo/Mono Auto Search & Store Touch Stereo/Mono Touch FM to switch bands Touch Favorites and Presets Touch Favorite Set 22 Touch LOC/DX To select Local or Distant broadcasting stations, Touch AV In/Camera External Source Playback Touch Media must be controlled from the external device. product. Images may appear reversed Do not use features of this product if it cannot be operated safely and legally in your Rear View The rear view camera can be displayed on demand. Touch Reverse View When the vehicle is put into reverse gear, the camera will display the image on the screen. CHECK SURROUNDINGS BEFORE PROCEEDING Note To adjust the volume level properly, the carry-in device volume should be set between 50 % - 75%. The volume level should remain at connected to the product. WARNING Never rely solely on the rear view camera; always check your surroundings before proceeding. If the user opens the SETTINGS interface and turn on both FRONT CAMERA and REAR CAMERA funcons, you can choose REAR CAMERA and FRONT CAMERA casually. To return to the Home screen Touch Rear View Delay view trigger can be delayed to best suit the vehicle. 0 Sec Delay Note normally, if the product is in standby mode 23 General System Language Touch to change English (Default), Spanish Note CarPlay is independent of the system Time Zone (GMT-08:00) Paci Time Date & Time (US&Canada) 24H Mode Touch OFF ON Auto Adjust Daylight Saving Touch OFF ON Note If using an CarPlay, the iPhone will needs to be adjusted manually. System Tone Touch OFF ON Power O Delay Some vehicles during crank to start will interrupt the accessory power. If the product re-boots during crank to start, Turn ON delay The delay can select 1, 2 or 3 sec. OFF Note Power O Delay ON will also delay when the vehicle is turned OFF. This might a ect handsduring a call. Touch CAUTION 24 Se g Audio EQ To access the EQ menu Touch Note The EQ can also be directly accessed while changing the volume. The volume display will show the EQ icon, you can touch to access the Preset EQ Jazz, HipHop, Pop,Rock, R&B Balance/Fader Touch Swipe for quick adjustment Front/Rear Fader, Touch Swipe for quick adjustment Subwoofer The level and lter can be adjusted for the Sub pre-amp output. Level, 1-14 dB Swipe Filter: 50Hz, 80 Hz, 120 Hz, 160 Hz Touch Subwoofer Frequency Loudness Enhances and gently boosts low and high freq. Touch OFF ON Internal Amp To reduce the possibility of noise entering the -amp outputs, the internal amp can be turned OFF Touch ON OFF Volume Settings are for default volumes for Main (Radio, Media), Hands-free (BT Ring, BT Talking), Apple CarPlay/Android Auto (Navi, Voice). Source Level The source mode (Radio, USB, BT Audio, AV Input, Apple CarPlay, Andriod Auto) gain control. 25 Display Touch OFF ON When the vehicle lights are on, the products Gamm Swipe Gamma can be adjusted for both day and Scree Bri ht ess Swipe Panel Light Touch Six preset colors can be chosen for Touch LED Touch ON OFF Will cycle through all colors on LED touch ON Wall paper Touch to change User can change the background picture by Back r Swipe Bri ht ess Touch ON OFF Power On/O Bluetooth ON Bluetooth Note Bluetooth will turn OFF CarPlay is in use. If other devices are connected via Bluetooth, they will be Auto Co ect Touch ON OFF Auto connects to the device when the product is powered ON ON Auto A swer Touch OFF ON Auto answers when there is an incoming call. OFF 26 Bluetooth Device Name Planet Audio P9900CPA Rear Camera input Turn on if you have a rear view camera, turn Front Camera Input if you have not. Parking Assist guide assist guide, turn on if you have not. Camera Parking Assist guide Adjust If your rear view camera does not have parking guide lines, turn on the parking guide lines built in this unit and adjust the guide lines if found necessary. Touch and drag a square icon to reposion the related guide line. Repeatedly touch an arrow icon to fine tune posioning of the related guide line. Touch the OK icon to confirm the adjustment. To reset to the default posioning of the guide lines, touch the Reset icon. Radio Rear View Delay 0 Sec (Default), 0.1 Sec, 0.5 Sec, 1 Sec, 2 Sec When switching from Park to Drive, or vice versa, the camera should not trigger on the display. on reverse gear selector. Region Touch USA 2 US Tuner Spacing: FM (200 KHz), AM (10 KHz) European Spacing: FM (50 KHz), AM (9 KHz) 27 Power/SWC UTION It is recommended to have the product professional. UTION prevent damage to the product, and/or possible injury. CAUTION If several ampli ers are to be used, it is recommended to use a relay for the Remote Out trigger. Note Unused input/output wires need be insulated with tape, heat shrink, or crimp connectors. Never use wire nuts. Red/Wht ,Rear Camera Power (+12V, 500 mA) Red/Violet,Front Camera Power (+12V, 500 mA) SWC Input Orange Red, Accessory (+12V) Black, Ground (-) Yellow, Constant (+12V) Violet/Wht, Reverse Signal Input (+12V) Blue, Antenna Output (+12V, 500 mA Max) Blue/Wht , Rem. Output(+12v, 500 mA) Note A separate interface might be needed for your consult with a professional installer. te When replacing the fuse, always do so with the same type and value (15 A). 28 S akers UTION Do not chassis ground any speaker wire leads. UTION Only use 4-8 Speakers Do not use 1-3 Speakers UTION Do not bridge any of the channels, they are only to be wired in stereo mode. Note Rear Right (Ch. 4) Purple (+) Purple/Black (-) Unused speaker wires need be insulated with tape, heat shrink, or crimp connectors. Never use wire nuts. If the speaker outputs are not used, turn O the internal amp to reduce the possibility of noise entering the signal chain. Front Right (Ch. 2) Gray (+) Gray/Black (-) Note Observe speaker polarity when making Green (+) Green/Black (-) White (+) White/Black (-) 29 Audio Pre-amp/AV IN/ Radio Note Subwoofer Pre-amp is a non-fading mono output. Note Always run signal wires away from power cables to reduce the possibility of noise. FL FR L-IN RL RR R-IN SUB1 SUB2 V-IN RADIO SUB Pre-Amp Output A/V Input AM/FM Antenna Note If pre-amp outputs are being used exclusively, turn O the internal amp of the product, to reduce the possibility of noise entering the signal chain. 30 Camera/USB/MIC ARNING Never rely solely on the rear view camera; always check your surroundings before proceeding. Images may appear reversed Do not use a feature of this product if it cannot be operated safely and legally in your USB2 USB1 31 Parking Brake ARNING feature) violates Federal, State, and Local laws. This may lead to injury, property damage, and/or death. ARNING Watching videos or photos while driving is against Federal , State, and Local laws. Note For Andoird Auto setup, the parking brake status wire MUST be connected. Note properly integrate the parking brake wire to the vehicle. Video and or photos cannot be viewed while the parking brake applied to enable viewing. Lt. Green, Parking Brake Input 32 Power/Speaker/SWC Harness Note The parking brake input needs to be connected to the power side of the parking brake. Note Every vehicle has a di erent type of parking professional installer. Hands-free Mic Placement Every vehicle will perform di erently due to layout, interior materials, etc... The Red shaded areas are the recommended Items to look for before placement: 1. Do not place in front of air vents. 2. If the vehicle has tweeters placed on sail panels, do NOT locate the mic on steering column area. 3. Front of mic must not be blocked. 4. 5. Do not cover the grille openings surrounding the mic. 6. To avoid excessive wind noise, do not place near the sunroof opening WARNING Run microphone wire where it will NOT i.e. Airbags, Knee Airbags, etc... 33 Issues No Sound Media Not Supported Apple CarPlay/Anroid Auto will not start Bluetooth Cause Internal ampli er is o Product is muted External ampli ers Audio source Media on USB ash drive Radio area Antenna Bad Lightning�/USB cable Locked device Not charged CarPlay/Android Auto frozen 34 ON Touch the volume. Check the external ampli ers are on. Check the remote output wire has voltage Change the audio source Change the media format on the USB device Change the USB device Antenna output wire isn't connected Connect Antenna to product Replace the cable Device needs to be unlocked Device needs to be powered ON for CarPlay/ and power on. Unplug the device, close all Apps and plug it in again. Make sure the device is within range. turned ON Issues Bluetooth Hands-free call quality Unit is unresponsive Cause Mobile device Microphone Processor has frozen Go to Se g >Connec Power ON Pair and Connect the device like new. Check cellular strength on mobile device. End call and redial number. Microphone placement needs to be relocated. Check to see if microphone is properly plugged in. Press the RESET Customer Service 805-751-4854 M-F 8:30a-5:00p (PST) Tech Support: www.planetaudio.com/support 35 General Power Input.................................8.5 V--18 V DC Nominal..............................14.4 V DC ............15A Fuse Type........................................................15A Dimensions (H x W x D).............3.8"x6.71"x3.59" Head Unit Weight...................................1.96 lbs. -4--140�F Display Screen Size.................................................... 6.75" Screen Type......................TFT- Audio Max Power........................................80 W x 4 Ch. Acceptable Speaker Load............................4Preset EQ..............................................................5 JAZZ, HIPHOP, POP, ROCK, R&B EQ Bands, Adjustable........................................10 32, 63, 125, 250Hz, 500Hz 1KHz, 2KHz, 4KHz, 8KHz, 16KHz EQ Boost/Cut...............................................� 6 dB Audio Cont'd Pre-amp Output.........................................3 Pairs Front...........................4V, Full-Range Rear.............................4V, Full-Range Sub (Mono)............................4V, LPF Sub LPF................50 Hz, 80 Hz, 120 Hz, 160 Hz Sub Level..................................................+1-14dB Radio Tuner Freq. Range.................87.5 MHz-108 MHz (FM) Freq. Range...................522 kHz-1710 kHz (AM) USA 1 Range (FM)....................100 kHz Spacing USA 2 Range (FM)....................200 kHz Spacing Europe Range (FM).....................50 kHz Spacing Apple CarPlay iPhone Support.....................iPhone 5 or Newer iOS..............................................iOS 7.1 or Newer Android Auto Supported......................(5.0) Lollipop or Newer 36 USB USB Spec............................USB 2.0 (High-Speed) USB Port 1: Carplay & Android Auto................ Current Output 1.5A USB Port 2: Media & 1.5A Charging ................ Current Output 1.5A File System...................................................FAT32 Audio Playback..................................WAV, MP3 Video Playback......................AVI, MKV, WMV Picture Playback........................JPG, PNG, BMP *Not all listed compressed les guaranteed to contents. Bluetooth� Version................................................v4.2+E.D.R. Audio Codec.................................................S.B.C. Pro les.................................................................... HFP v1.6,A2DP v1.2,AVRCP v1.5,PBAP v1.1 User's Notes 37 0621
