R730

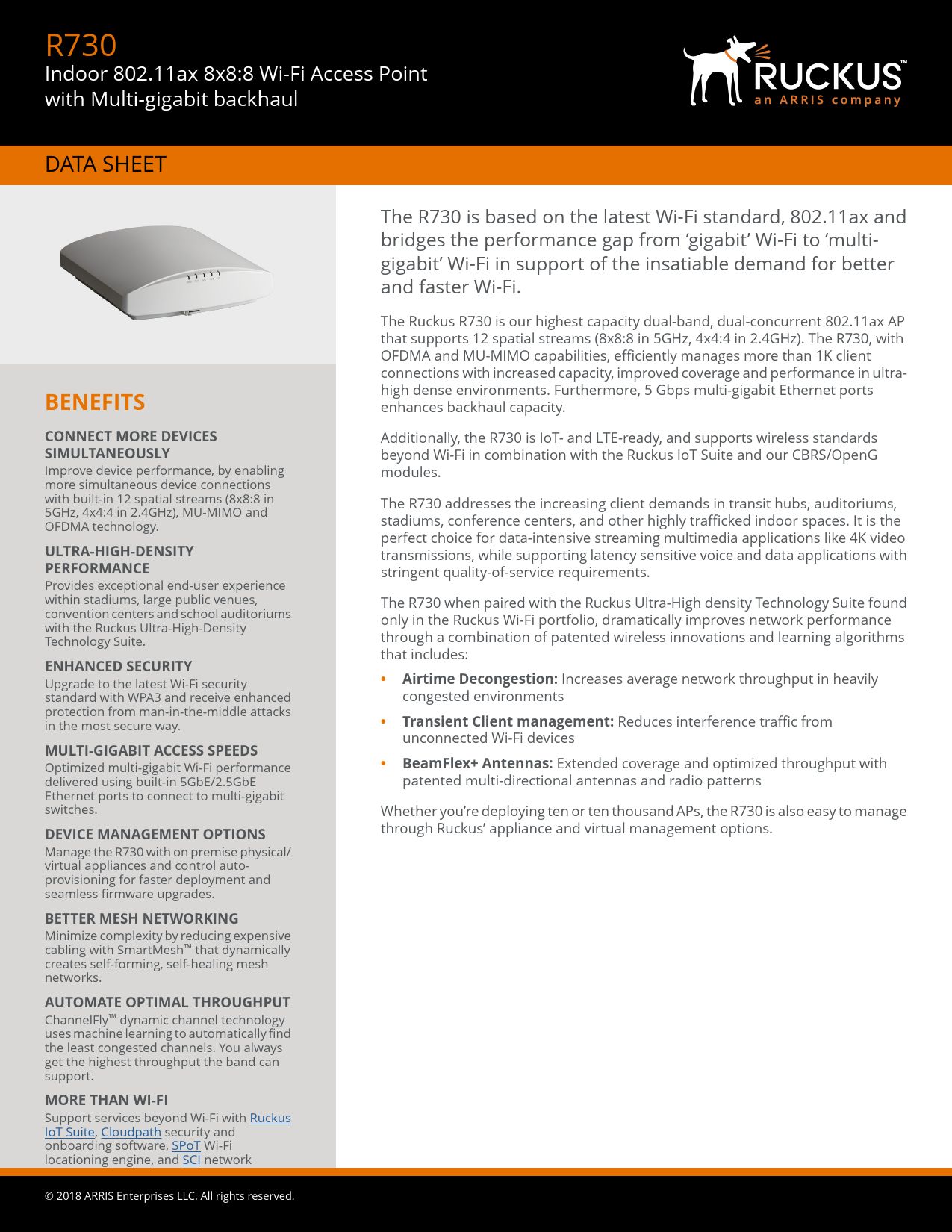

BENEFITS DATA SHEET
efficiently with Multi-gigabit backhaul BENEFITS R730 CONNECT ...
WI-FI Wi-Fi Standards • IEEE 802.11a/b/g/n/ac/ax Supported Rates • 802.11ax: 4 to 4800 Mbps • 802.11ac: 6.5 to 3467 Mbps • 802.11n: 6.5 to 600 Mbps
Download Datasheet
Ruckus R730AP Authorized reseller in goa bangalore India
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
R730 Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul DATA SHEET BENEFITS CONNECT MORE DEVICES SIMULTANEOUSLY Improve device performance, by enabling more simultaneous device connections with built-in 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology. ULTRA-HIGH-DENSITY PERFORMANCE Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the Ruckus Ultra-High-Density Technology Suite. ENHANCED SECURITY Upgrade to the latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way. MULTI-GIGABIT ACCESS SPEEDS Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches. DEVICE MANAGEMENT OPTIONS Manage the R730 with on premise physical/ virtual appliances and control autoprovisioning for faster deployment and seamless firmware upgrades. BETTER MESH NETWORKING Minimize complexity by reducing expensive cabling with SmartMeshTM that dynamically creates self-forming, self-healing mesh networks. AUTOMATE OPTIMAL THROUGHPUT ChannelFlyTM dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support. MORE THAN WI-FI Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics. � 2018 ARRIS Enterprises LLC. All rights reserved. The R730 is based on the latest Wi-Fi standard, 802.11ax and bridges the performance gap from `gigabit' Wi-Fi to `multigigabit' Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The Ruckus R730 is our highest capacity dual-band, dual-concurrent 802.11ax AP that supports 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz). The R730, with OFDMA and MU-MIMO capabilities, efficiently manages more than 1K client connections with increased capacity, improved coverage and performance in ultrahigh dense environments. Furthermore, 5 Gbps multi-gigabit Ethernet ports enhances backhaul capacity. Additionally, the R730 is IoT- and LTE-ready, and supports wireless standards beyond Wi-Fi in combination with the Ruckus IoT Suite and our CBRS/OpenG modules. The R730 addresses the increasing client demands in transit hubs, auditoriums, stadiums, conference centers, and other highly trafficked indoor spaces. It is the perfect choice for data-intensive streaming multimedia applications like 4K video transmissions, while supporting latency sensitive voice and data applications with stringent quality-of-service requirements. The R730 when paired with the Ruckus Ultra-High density Technology Suite found only in the Ruckus Wi-Fi portfolio, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes: � Airtime Decongestion: Increases average network throughput in heavily congested environments � Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices � BeamFlex+ Antennas: Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns Whether you're deploying ten or ten thousand APs, the R730 is also easy to manage through Ruckus' appliance and virtual management options. R730 Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul DATA SHEET ACCESS POINT ANTENNA PATTERN Ruckus' BeamFlex+ adaptive antennas allow the R730 AP to dynamically choose among a host of antenna patterns (over 4,000 possible combinations) in real-time to establish the best possible connection with every device. This leads to: � Better Wi-Fi coverage � Reduced RF interference Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals perdevice on a packet by-packet basis to optimize Wi-Fi coverage and capacity in realtime to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards. Figure 1. Example of BeamFlex+ pattern Figure 2. R730 2.4GHz Azimuth Antenna Patterns Figure 3. R730 5GHz Azimuth Antenna Patterns Figure 4. R730 2.4GHz Elevation Antenna Patterns Figure 5. R730 5GHz Elevation Antenna Patterns Note: The outer trace represents the composite RF footprint of all possible BeamFlex+ antenna patterns, while the inner trace represents one BeamFlex+ antenna pattern within the composite outer trace. � 2018 ARRIS Enterprises LLC. All rights reserved. 2 R730 Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul DATA SHEET WI-FI Wi-Fi Standards Supported Rates Supported Channels MIMO Spatial Streams Channelization Modulation Security Other Wi-Fi Features � IEEE 802.11a/b/g/n/ac/ax � 802.11ax: 4 to 4800 Mbps � 802.11ac: 6.5 to 3467 Mbps � 802.11n: 6.5 to 600 Mbps � 802.11a/g: 6 to 54 Mbps � 802.11b: 1 to 11 Mbps � 2.4GHz: 1-13 � 5GHz: 36-64, 100-144, 149-165 � 8x8 MU-MIMO � 8x8 SU-MIMO � 8 MU-MIMO � 8 SU-MIMO � 20, 40, 80MHz � OFDMA (up to 1024-QAM) � WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK � WIPS/WIDS � WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/ vHotspot � Hotspot 2.0 � Captive Portal � WISPr RF Antenna Type Antenna Gain (max) Frequency Bands 2.4GHz Antennas � Omni: 2 Antennas � BeamFlex+ Adaptive: 2 Antennas � Polarization: 3 Vertical & 1 Horizontal 5GHz Antennas � Omni: 4 Antennas � BeamFlex+ adaptive: 4 Antennas � Polarization: 6 Vertical & 2 Horizontal � Up to 2 dBi � 2.4 - 2.484 GHz � 5.17 - 5.33 GHZ � 5.49 - 5.71 GHz � 5.735 - 5.835 GHz 2.4GHZ RECEIVE SENSITIVITY HT20 HT40 MCS0 MCS7 MCS0 MCS7 -91 -73 -88 -70 HE20 MCS0 MCS7 MCS9 MCS11 -91 -73 -68 -62 VHT20 VHT40 MCS0 MCS7 MCS0 MCS7 -91 -73 -88 -70 HE40 MCS0 MCS7 MCS9 MCS11 -88 -70 -65 -59 2.4GHZ TX POWER TARGET (PER CHAIN) Rate Pout (dBm) - Full Power MCS0 HT20 20 MCS7 HT20 16 MCS8 VHT20 15 MCS9 VHT40 14 MCS11 HE40 12 Pout (dBm) - 802.3at 20 16 15 14 12 5GHZ TX POWER TARGET (PER CHAIN) Rate Pout (dBm) - Full Power MCS0 VHT20 22 MCS7 VHT40, VHT80 16.5 MCS9 VHT40, VHT80 15 MCS11 HE20, HE40, HE80 12.5 Pout (dBm) - 802.3at 22 16.5 15 12.5 PERFORMANCE AND CAPACITY Peak PHY Rates � 2.4GHz: 1.148 Gbps (11ax) � 5GHz: 4.8 Gbps (11ax) Client Capacity � Up to 1024 clients per AP Simultaneous VoIP Clients � Up to 60 per AP SSID � Up to 16 per radio RUCKUS RADIO MANAGEMENT Antenna Optimization � BeamFlex+ � PD-MRC Wi-Fi Channel Management � ChannelFly Client Density Management � Band Balancing � Client Load Balancing � Airtime Fairness � Airtime-based WLAN Prioritization Queuing & Scheduling � SmartCast Mobility � SmartRoam Diagnostic Tools � Spectrum Analysis � SpeedFlex High Density Deployments (RF Innovations) � Perpacket Adaptive Power � Adaptive Wi-Fi Cell Size � Transient Client Management � Airtime Decongestion 5GHZ RECEIVE SENSITIVITY VHT20 VHT40 VHT80 MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9 -91 -72 -69 -- -88 -69 -- -65 -85 -66 -- -62 HE20 HE40 HE80 MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11 -91 -72 -68 -62 -88 -69 -65 -59 -85 -66 -62 -56 � 2018 ARRIS Enterprises LLC. All rights reserved. 3 R730 Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul DATA SHEET NETWORKING Controller Platform Support Mesh IP VLAN 802.1x Tunnel Policy Management Tools � SmartZone � ZD � Standalone � SmartMeshTM wireless meshing technology � IPv4, IPv6 � 802.1Q � BSSID-based (16 BSSIDs / radio) � Port-based � Dynamic, per user based on RADIUS � Wired & wireless � Authenticator & Supplicant � RuckusGRE, SoftGRE � Application Recognition and Control � Access Control Lists � Device Fingerprinting OTHER RADIO TECHNOLOGIES IoT � BLE, Zigbee PHYSICAL INTERFACES Ethernet USB � 1x 1/2.5/5 Gbps port, RJ-45 � 1x 10/100/1000 Mbps port, RJ-45 � 1 USB 2.0 port, Type A PHYSICAL CHARACTERISTICS Physical Size � 22.19 x 24.96 x 6 cm � 8.74 x 9.83 x 2.36 in. Weight � 1.53 kg � 3.37 lbs Mounting � Wall, Acoustic ceiling, Desk � Secure Bracket (sold separately) Physical Security � Hidden Latching Mechanism Operating Temperature � -0C (32F) to 50�C (122�F) Operating Humidity � Up to 95%, non-condensing POWER CONSUMPTION Mode Power Consumption DC Power, PoH, uPoE (Idle) 16.1W DC Power, PoH, uPoE (Max) 31.0W 802.3at (Max) 23.8W 802.3af (Not recommended) 12.4W System Configuration � 5Gbps & 1Gbps Ethernet enabled � USB Enabled (3W) � Zigbee/BLE Enabled (0.5W) � 5Gbps & 1Gbps Ethernet enabled � USB Enabled (3W) � Zigbee/BLE Enabled (0.5W) � 5Gbps & 1Gbps Ethernet enabled � USB Enabled (3W) � Zigbee/BLE Disabled � 5Gbps & 1Gbps Ethernet enabled � USB disabled � Zigbee/BLE Disabled Wi-Fi Radios 2.4GHz (4x4) enabled 5GHz (8x8) enabled (no clients associated) 2.4GHz (4x4) Tx 20 dBm 5GHz (8x8) Tx 22 dBm 2.4GHz (4x4) Tx 20 dBm 5GHz (4x4) Tx 22 dBm 2.4GHz disabled 5GHz disabled CERTIFICATIONS AND COMPLIANCE Wi-Fi Alliance � Wi-Fi CERTIFIEDTM a, b, g, n, ac � Passpoint� � Vantage Standards Compliance � EN 60950-1 Safety � EN 60601-1-2 Medical � EN 61000-4-2/3/5 Immunity � EN 50121-1 Railway EMC � EN 50121-4 Railway Immunity � IEC 61373 Railway Shock & Vibration � EN 62311 Human Safety/RF Exposure � UL 2043 Plenum � WEEE & RoHS � ISTA 2A Transportation SOFTWARE AND SERVICES Location Based Services � SPoT Network Analytics � SmartCell Insight (SCI) Security and Policy � Cloudpath IoT � Ruckus IoT Suite � 2018 ARRIS Enterprises LLC. All rights reserved. 4 R730 Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul ORDERING INFORMATION 901-R730-XX00 R730 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, Ultra-High Density performance, 12 spatial streams, adaptive antennas, PoE support. Includes adjustable acoustic drop ceiling bracket. Two Ethernet ports with 1GbE and 5Gbe. Does not include power adaptor PLEASE NOTE: When ordering Indoor APs, you must specify the destination region by indicating -US, -WW, or -Z2 instead of XX. When ordering PoE injectors or power supplies, you must specify the destination region by indicating -US, -EU, -AU, -BR, -CN, -IN, -JP, -KR, -SA, -UK, or -UN instead of -XX. For access points, -Z2 applies to the following countries: Algeria, Egypt, Israel, Morocco, Tunisia, and Vietnam. OPTIONAL ACCESSORIES 902-0180-XX00 � PoE Injector (60W) 902-1170-XX00 � Power Supply (48V, 0.75A, 36W) 902-0120-0000 � Spare, Accessory Mounting Bracket PLEASE NOTE: When ordering Indoor APs, you must specify the destination region by indicating -US, or -Winstead of XX. When ordering PoE injectors or power supplies, you must specify the destination region by indicating -US, -EU, -AU, -BR, -CN, -IN, -JP, -KR, -SA, -UK, or -UN instead of -XX. DATA SHEET � 2019 ARRIS Enterprises LLC. All rights reserved. ARRIS, the ARRIS logo, Ruckus, Ruckus Wireless, the Ruckus logo, and the Big Dog design are trademarks of ARRIS International plc and/or its affiliates. All other trademarks are the property of their respective owners. 18-11-H www.ruckusnetworks.com | 350 West Java Dr., Sunnyvale, CA 94089 USA
