The XV2-2 is a dual-radio Wi-Fi 6 access point (AP) designed to deliver next generation networks with edge services at a value- based price.
WI-FI 6 DESIGNED FOR MOBILE DEVICES AND IoT. The XV2-2 is a dual-radio Wi-Fi 6 access point (AP) designed to deliver next generation networks with edge services at a value-based price. Wi-Fi 6...

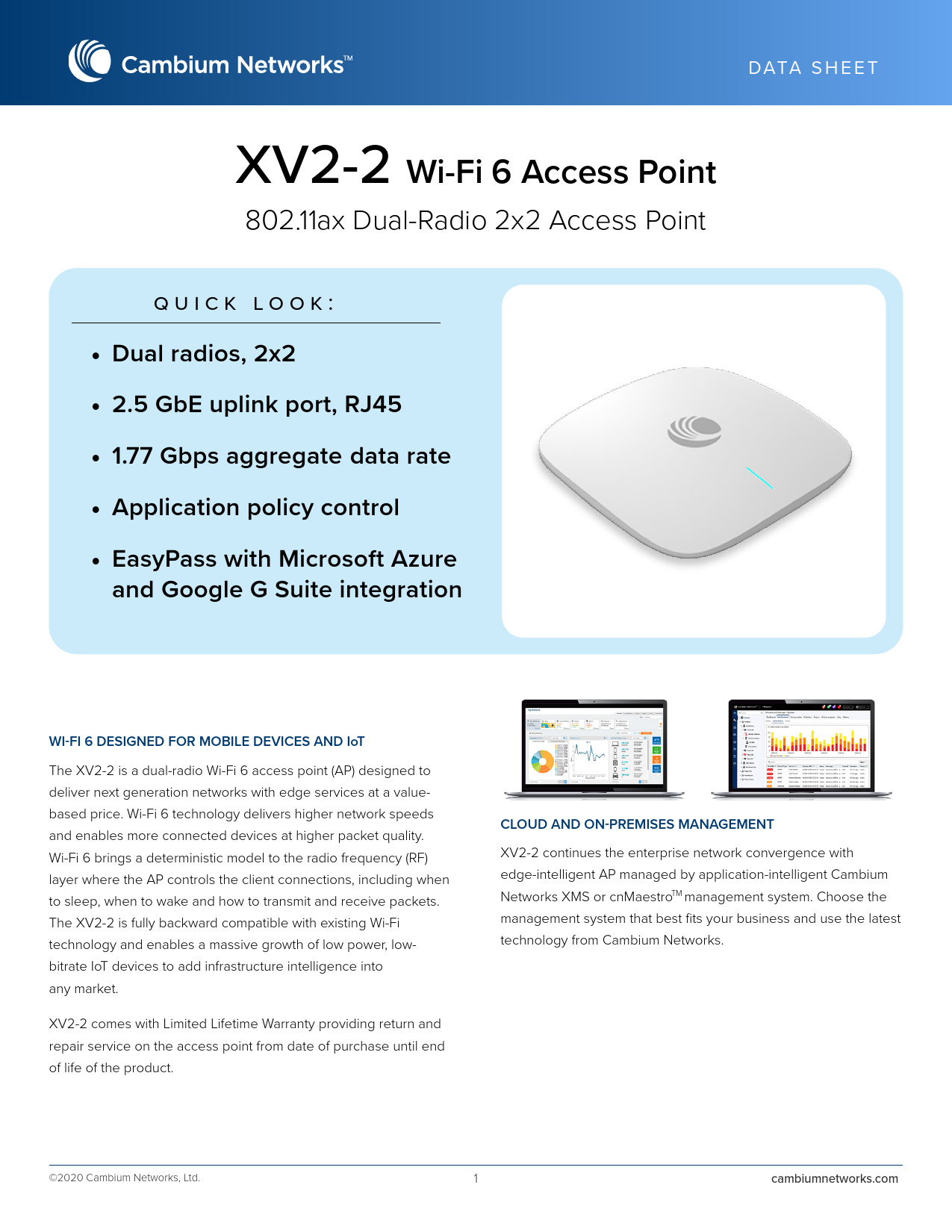

DATA SHEET XV2-2 Wi-Fi 6 Access Point 802.11ax Dual-Radio 2x2 Access Point quick look: · Dual radios, 2x2 · 2.5 GbE uplink port, RJ45 · 1.77 Gbps aggregate data rate · Application policy control · EasyPass with Microsoft Azure and Google G Suite integration WI-FI 6 DESIGNED FOR MOBILE DEVICES AND IoT The XV2-2 is a dual-radio Wi-Fi 6 access point (AP) designed to deliver next generation networks with edge services at a valuebased price. Wi-Fi 6 technology delivers higher network speeds and enables more connected devices at higher packet quality. Wi-Fi 6 brings a deterministic model to the radio frequency (RF) layer where the AP controls the client connections, including when to sleep, when to wake and how to transmit and receive packets. The XV2-2 is fully backward compatible with existing Wi-Fi technology and enables a massive growth of low power, lowbitrate IoT devices to add infrastructure intelligence into any market. XV2-2 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product. CLOUD AND ON-PREMISES MANAGEMENT XV2-2 continues the enterprise network convergence with edge-intelligent AP managed by application-intelligent Cambium Networks XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks. ©2020 Cambium Networks, Ltd. 1 cambiumnetworks.com DATA SHEET XV2-2 Wi-Fi 6 Access Point Access Point Specifications Note: Some features will be included on subsequent firmware releases. FCC Ch 1-11, 36-48, 52-64, 100-144, 149-165 ISED Ch 1-11, 36-48, 52-64, 100-144, 149-165 ETSI Ch 1-13, 32-48, 52-64, 100-144 ROW (Individual country limits may apply) Ch 1-14, 36-48, 52-64, 100-144, 149-165 Radios 5 GHz: 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz: 802.11 b/g/n/ax, 2x2 Wi-Fi 802.11 a/b/g/n/ac Wave 2/ax SSID Security WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open Max PHY Rate 2.4 GHz radio: 573.5Mbps 5 GHz radio: 1,201 Mbps Ports 1 x IEEE 10/100/1000/2500 Mbps Auto sensing MDIX Antenna 2.4/5 GHz: 5 dBi, Omni Max EIRP 2.4 GHz: 30 dBm 5 GHz: 30 dBm Power Max power 18 W, 802.3at powered device Dimensions 200 mm x 200 mm x 50 mm (7.87 in x 7.87 in x 1.97 in) Weight 800 g (1.76 lbs) Security Kensington lock slot LEDs Multi-color status LEDs Ambient Operation temperature Storage Temperature 0ºC to 50ºC (32ºF to 122ºF) -20ºC to 70ºC (-4ºF to 158ºF) Humidity 95% RH non-condensing Mount Options Wall or ceiling, T-bar with included locking bracket, ceiling tile plate Certifications (Compliance) Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS ©2020 Cambium Networks, Ltd. Back Panel 2 cambiumnetworks.com Management XV2-2 Wi-Fi 6 Access Point DATA SHEET Note: Some features will be included on subsequent firmware releases. Cambium XMS leverages intelligent APs with an embedded edge controller to deliver edge services at any network density. XMS management plane is a cloudfirst technology with a simple and easy-to-use interface delivering application L7 policy-based control, EasyPass BYOD secure access, and an MSP dashboard with drag-and-drop design. XMS management architecture supports software-defined radios (SDR) to operate the XV2-2 radio in either single 5 GHz 8x8 or dual 5 GHz 4x4. Cambium cnMaestro uses a distributed intelligence architecture with cloud-first management and edge-intelligent APs that self-optimize for the RF environment. cnMaestro delivers a single pane-of-glass management for Cambium broadband fixed wireless, cnMatrix Ethernet switches, enterprise-grade Wi-Fi APs and service provider residential routers. cnMaestro is included with the price of the equipment. Cambium XMS Management Deployment Xirrus Management System (XMS-Cloud) Cambium cnMaestro Management cnMaestro Cloud, cnMaestro on-premises, Standalone AP Services Deep Packet Inspection (DPI) Application Visibility and Control EasyPass Access Service Monetized, cloud-managed guest portal with design tools APIs Captive Portal RESTful management and statistics API Location API Web page redirect, landing page, redirect to internal or external server, landing page and authentication Client isolation per SSID, per network Client rate limiting per SSID Click-through authentication Microsoft Azure and Google G Suite SSO integration RESTful management and statistics API Location API Webhooks Hosted on cnMaestro On-AP hosted guest portal Redirect to HTTP/RADIUS external portal/authentication Active Directory integration, Google, Facebook, Office 365 integration Data rate, time duration, data throughput limit Server DNS logging, Hotspot 2.0/Passpoint 2.0 Accounting RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM ©2020 Cambium Networks, Ltd. 3 cambiumnetworks.com DATA SHEET XV2-2 Wi-Fi 6 Access Point Network Specifications Note: Some features will be included on subsequent firmware releases. Operational Modes Standalone Cloud managed cnMaestro or VM Cloud managed XMS WLAN Captive Portal Authentication Encryption 512 clients, 16 SSIDs WPA3, WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF Hosted on cnMaestro or External On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS Scheduled WLAN Guest Access On/off by day, week, time of day EasyPass guest self-registration, guest Ambassador, ePSK, Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network Data Limit Client bitrate/time/throughput limit per SSID Subscriber QoS WMM Fast Roaming 802.11r, OKC, Enhanced roaming Mesh Channel Selection Multi-hop, either band Multimodal channel selection with AutoChannel and AutoBand. Granular control of off-channel scan and channel selection RF Management Network Multimodal RF optimization supporting AutoCell performed in the intelligent edge AP. Out-of-band RF spectrum analysis, radio self test network assurance, RF monitor with chn/noise/interference Data rate pruning and minimum data rates TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user Band Steer Load Balance Tunnel Yes L2TP, L2oGRE, PPPoE Network and RF Management Tools Wired and wireles remote packet capture, auto logging, ZapD performance tool, rogue AP detection Services NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure Standards Wi-Fi Protocols VHT MCS rates, 16/64/256/1024-QAM, 20/40/80 MHz TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO IEEE 802.11 a/ac/ax/b/d/e/g/h/i/k/n/r/u/v ©2020 Cambium Networks, Ltd. 4 cambiumnetworks.com XV2-2 Wi-Fi 6 Access Point DATA SHEET Top View Top View Left Corner Right Side Back Panel ©2020 Cambium Networks, Ltd. 5 Back Panel cambiumnetworks.com Antenna Patterns XV2-2 Wi-Fi 6 Access Point DATA SHEET 2.4 GHz Azimuth 2.4 GHz Elevation 5 GHz Azimuth 5 GHz Elevation ©2020 Cambium Networks, Ltd. 6 cambiumnetworks.com DATA SHEET XV2-2 Wi-Fi 6 Access Point Cambium Ordering Information XV2-2X00A00-US XV2-2 Dual-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 2x2, US XV2-2X00A00-CA XV2-2 Dual-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 2x2, CA XV2-2X00A00-EU XV2-2 Dual-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 2x2, EU XV2-2X00A00-RW XMSC-SUB-2R-1 XMSC-SUB-2R-3 XMSC-SUB-2R-5 EASY-SUB-2R-1 XV2-2 Dual-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 2x2, RW XMS-Cloud 1-year subscription: 2-radio AP with EasyPass Guest Self-Registration and Guest Ambassador modules and Cambium Care Advanced Support XMS-Cloud 3-year subscription: 2-radio AP with EasyPass Guest Self-Registration and Guest Ambassador modules and Cambium Care Advanced Support XMS-Cloud 5-year subscription: 2-radio AP with EasyPass Guest Self-Registration and Guest Ambassador modules and Cambium Care Advanced Support EasyPass 1-year subscription for a 2-radio AP operating with XMS-Cloud or XMS-Enterprise EASY-SUB-2R-3 EasyPass 3-year subscription for a 2-radio AP operating with XMS-Cloud or XMS-Enterprise EASY-SUB-2R-5 EasyPass 5-year subscription for a 2-radio AP operating with XMS-Cloud or XMS-Enterprise CCADV-SUP-XV2-2-1 Cambium Care Advanced, 1-year support for one XV2-2 Wi-Fi 6 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW CCADV-SUP-XV2-2-3 Cambium Care Advanced, 3-year support for one XV2-2 Wi-Fi 6 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW CCADV-SUP-XV2-2-5 Cambium Care Advanced, 5-year support for one XV2-2 Wi-Fi 6 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW CCPRO-SUP-XV2-2-1 Cambium Care Pro, 1-year support for one XV2-2 Wi-Fi 6 AP. 24x7 TAC support and SW updates CCPRO-SUP-XV2-2-3 Cambium Care Pro, 3-year support for one XV2-2 Wi-Fi 6 AP. 24x7 TAC support and SW updates CCPRO-SUP-XV2-2-5 Cambium Care Pro, 5-year support for one XV2-2 Wi-Fi 6 AP. 24x7 TAC support and SW updates ©2020 Cambium Networks, Ltd. 7 cambiumnetworks.com XV2-2 Wi-Fi 6 Access Point Cambium Ordering Information N000000L142A PoE injector, 60 W, 5 GbE, Indoor, Energy Level 6 Supply N000900L031A Cable UL Power Supply Cord Set, 720 mm, US N000900L032A Cable UL Power Supply Cord Set, 720 mm, US N000900L033A Cable UL Power Supply Cord Set, 720 mm, UK N000900L034A Cable UL Power Supply Cord Set, 720 mm, BR N000900L011A Cable UL Power Supply Cord Set, 720 mm, ANZ N000900L012A Cable UL Power Supply Cord Set, 720 mm, IN N000900L013A Cable UL Power Supply Cord Set, 720 mm, AR N000900L015A Cable UL Power Supply Cord Set, 720 mm, CN DATA SHEET ABOUT CAMBIUM NETWORKS Cambium Networks empowers millions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and government network operators as well as broadband service providers to connect people, places and things. With a single network architecture spanning fixed wireless and Wi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end cloud management transforms networks into dynamic environments that evolve to meet changing needs with minimal physical human intervention. Cambium Networks empowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work. ©2020 Cambium Networks, Ltd. cambiumnetworks.com 8 06232020 cambiumnetworks.comAdobe PDF Library 15.0 Adobe InDesign 15.1 (Macintosh)
