B660M Pro RS multiQIG

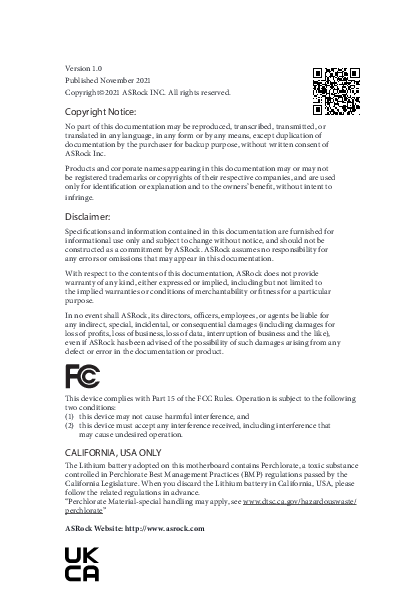

Version 1.0 Published November 2021 Copyright©2021 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. "Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate"
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
The terms HDMI® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
LICENSE. Licensee has a license under Intel's copyrights to reproduce Intel's Software only in its unmodified and binary form, (with the accompanying documentation, the "Software") for Licensee's personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions:
(a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree to prevent unauthorized copying of the Software.
(b) Licensee may not reverse engineer, decompile, or disassemble the Software.
(c) Licensee may not sublicense the Software.
(d) The Software may contain the software and other intellectual property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its licensors or suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. Licensee may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates Licensee's right to use the Software.
DISCLAIMER OF WARRANTY. The Software is provided "AS IS" without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG

ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Licensee's intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if Licensee is in breach of any of its terms or conditions. Upon termination, Licensee will immediately destroy or return to Intel all copies of the Software.
THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S. Government. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95054.
EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee's subsidiaries will export/re-export the Software, directly or indirectly, to any country for which the U.S. Department of Commerce or any other agency or department of the U.S. Government or the foreign government from where it is shipping requires an export license, or other governmental approval, without first obtaining any such required license or approval. In the event the Software is exported from the U.S.A. or re-exported from a foreign destination by Licensee, Licensee will ensure that the distribution and export/re-export or import of the Software complies with all laws, regulations, orders, or other restrictions of the U.S. Export Administration Regulations and the appropriate foreign government.
APPLICABLE LAWS. This Agreement and any dispute arising out of or relating to it will be governed by the laws of the U.S.A. and Delaware, without regard to conflict of laws principles. The Parties to this Agreement exclude the application of the United Nations Convention on Contracts for the International Sale of Goods (1980). The state and federal courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising out of or relating to this Agreement. The Parties consent to personal jurisdiction and venue in those courts. A Party that obtains a judgment against the other Party in the courts identified in this section may enforce that judgment in any court that has jurisdiction over the Parties.
Licensee's specific rights may vary from country to country.

HDMI1

USB2.0 T: USB_1 B: USB_2
PS2 Keyboard
/Mouse

Motherboard Layout
1
ATX12V1

B660M Pro RS
2 345
CPU_FAN1 CPU_FAN2/WP
6
1
7
1

ADDR_LED3

ADDR_LED2

DP1

ATXPWR1

DDR4_A1 (64 bit, 288-pin module) DDR4_A2 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)

28

USB 3.2 Gen1 T: USB3_2 B: USB3_1

USB3_5_6

Top: LINE IN
Center: FRONT
Bottom: MIC IN

USB 3.2 Gen1 Top:

T: USB3_4 B: USB3_3

RJ-45

LAN CHA_FAN1/WP

PCIE1

CMOS Battery
PCIE2

M2_1 M2_WIFI

Intel B660

AUDIO CODEC
HD_AUDIO1 1

CLRMOS1

1

RGB_LED1 1 ADDR_LED1

1

1

T B1

PCIE3

CHA_FAN3/WP CHA_FAN2/WP

SPK_CI1

USB_3_4

1

11

USB_5_6 1

CPU DRAM
VGA BOOT
BIOS ROM

SPI_TPM_J1 1

SATA3_1

SATA3_0

PANEL1 PLED PWRBTN
1 HDLED RESET

27

26 25 24 23 22 21 20 19 18 17

16 15 14

F_USB3_TC_1 1

M2_2

SATA3_2 SATA3_3

8
9 10
11 12 13

English

1

No. Description 1 ATX 12V Power Connector (ATX12V1) 2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 3 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) 4 CPU Fan Connector (CPU_FAN1) 5 CPU/Water Pump Fan Connector (CPU_FAN2/WP) 6 Addressable LED Header (ADDR_LED2) 7 Addressable LED Header (ADDR_LED3) 8 ATX Power Connector (ATXPWR1) 9 USB 3.2 Gen1 Header (USB3_5_6) 10 Front Panel Type C USB 3.2 Gen1 Header (F_USB3_TC_1) 11 SATA3 Connector (SATA3_3)(Lower) 12 SATA3 Connector (SATA3_2)(Upper) 13 System Panel Header (PANEL1) 14 SATA3 Connector (SATA3_0) 15 SATA3 Connector (SATA3_1) 16 SPI TPM Header (SPI_TPM_J1) 17 Post Status Checker (PSC) 18 USB 2.0 Header (USB_5_6) 19 USB 2.0 Header (USB_3_4) 20 Chassis Intrusion and Speaker Header (SPK_CI1) 21 Chassis/Water Pump Fan Connector (CHA_FAN2/WP) 22 Chassis/Water Pump Fan Connector (CHA_FAN3/WP) 23 5-pin Thunderbolt AIC Connector (TB1) 24 Clear CMOS Jumper (CLRMOS1) 25 Addressable LED Header (ADDR_LED1) 26 RGB LED Header (RGB_LED1) 27 Front Panel Audio Header (HD_AUDIO1) 28 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
2

English

I/O Panel
1

B660M Pro RS

3

2

4

10

9

8

No. Description 1 USB 2.0 Ports (USB_12) 2 LAN RJ-45 Port* 3 Line In (Light Blue)** 4 Front Speaker (Lime)** 5 Microphone (Pink)**

7

6

5

No. Description 6 USB 3.2 Gen1 Ports (USB3_3_4) 7 USB 3.2 Gen1 Ports (USB3_1_2) 8 DisplayPort 1.4 9 HDMI Port 10 PS/2 Mouse/Keyboard Port

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED
SPEED LED

LAN Port

Activity / Link LED

Status
Off Blinking On

Description
No Link Data Activity Link

Speed LED
Status Off Orange Green

** Function of the Audio Ports in 7.1-channel Configuration:

Description
10Mbps connection 100Mbps connection 1Gbps connection

Port
Light Blue (Rear panel) Lime (Rear panel) Pink (Rear panel) Lime (Front panel)

Function
Rear Speaker Out Front Speaker Out Central /Subwoofer Speaker Out Side Speaker Out

3

English

Chapter 1 Introduction
Thank you for purchasing ASRock B660M Pro RS motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
· ASRock B660M Pro RS Motherboard (Micro ATX Form Factor) · ASRock B660M Pro RS Quick Installation Guide · ASRock B660M Pro RS Support CD · 2 x Serial ATA (SATA) Data Cables (Optional) · 3 x Screws for M.2 Sockets (Optional) · 1 x Standoff for M.2 Socket (Optional) · 1 x I/O Panel Shield
4

English

B660M Pro RS

1.2 Specifications

Platform

· Micro ATX Form Factor · Solid Capacitor design

CPU

· Supports 12th Gen Intel® CoreTM Processors (LGA1700) · Digi Power design · 8 Power Phase design · Supports Intel® Hybrid Technology · Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

· Intel® B660

Memory

· Dual Channel DDR4 Memory Technology · 4 x DDR4 DIMM Slots · Supports DDR4 non-ECC, un-buffered memory up to
4800+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) · Supports ECC UDIMM memory modules (operate in non-
ECC mode) · Max. capacity of system memory: 128GB · Supports Intel® Extreme Memory Profile (XMP) 2.0

Expansion Slot

· 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Supports NVMe SSD as boot disks · 1 x PCIe Gen3x1 Slot · Supports AMD CrossFireTM · 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel® CNVi (Integrated WiFi/BT)

English

5

Graphics
Audio LAN Rear Panel I/O

· Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
· Intel® Xe Graphics Architecture (Gen 12) · Dual graphics output: support HDMI and DisplayPort 1.4
ports by independent display controllers · Supports HDMI 2.1 TMDS Compatible with max. resolution
up to 4K x 2K (4096x2160) @ 60Hz · Supports DisplayPort 1.4 with DSC (compressed) max.
resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz · Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
· 7.1 CH HD Audio (Realtek ALC897 Audio Codec) · Supports Surge Protection · Nahimic Audio
· Gigabit LAN 10/100/1000 Mb/s · Giga PHY Intel® I219V · Supports Wake-On-LAN · Supports Lightning/ESD Protection · Supports Energy Efficient Ethernet 802.3az · Supports UEFI PXE
· 3 x Antenna Mounting Points · 1 x PS/2 Mouse/Keyboard Port · 1 x HDMI Port · 1 x DisplayPort 1.4 · 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) · 2 x USB 2.0 Ports (Supports ESD Protection) · 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) · HD Audio Jacks: Line in / Front Speaker / Microphone

English

6

B660M Pro RS

Storage

· 4 x SATA3 6.0 Gb/s Connectors* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. · 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode** · 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280
SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode** ** Supports Intel® OptaneTM Technology (M2_2 only) ** Supports Intel® Volume Management Device (VMD) ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit

RAID

· Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Connector

· 1 x SPI TPM Header · 1 x Chassis Intrusion and Speaker Header · 1 x RGB LED Header * Supports in total up to 12V/3A, 36W LED Strip · 3 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip · 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. · 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. · 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. · 1 x 24 pin ATX Power Connector · 1 x 8 pin 12V Power Connector (Hi-Density Power
Connector) · 1 x Front Panel Audio Connector · 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock
Thunderbolt 4 AIC Card)

7

English

BIOS Feature
Hardware Monitor
OS Certifications

· 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
· 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
· 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
· AMI UEFI Legal BIOS with multilingual GUI support · ACPI 6.0 Compliant wake up events · SMBIOS 2.7 Support · CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN
AUX, +1.05V PROC, +0.82V PCH , +1.05V PCH Voltage Multi-adjustment
· Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
· Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
· Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/ Water Pump Fans
· CASE OPEN detection · Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VC-
CIN AUX, +1.05V PROC, VCCSA, +0.82V PCH, +12V, +5V, +3.3V
· Microsoft® Windows® 10 64-bit / 11 64-bit
· FCC, CE · ErP/EuP Ready (ErP/EuP ready power supply is required)

English

* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
8

B660M Pro RS
Chapter 2 Installation
This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings. · Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard components. · In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. · Hold components by the edges and do not touch the ICs. · Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components. · When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
9

English

2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A B

2

3

English

10

B660M Pro RS

4

5

6

7

English

11

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
12

English

2.2 Installing the CPU Fan and Heatsink

B660M Pro RS

1

2

CPU_FAN

13

English

2.3 Installing Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority
1 2

DDR4_A1 Populated

DDR4_A2
Populated Populated

DDR4_B1 Populated

DDR4_B2
Populated Populated

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

English

14

B660M Pro RS 1 2
3 15

English

2.4 Expansion Slots (PCIe Slots)
There are 3 PCIe slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:
PCIE1 (PCIe 4.0 x16 slot) is used for PCIe x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards. PCIE3 (PCIe 3.0 x16 slot) is used for PCIe x4 lane width graphics cards.

PCIe Slot Configurations
Single Graphics Card

PCIE1 Gen4x16

PCIE3 N/A

Two Graphics Cards in CrossFireTM Mode

Gen4x16

Gen3x4

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP or CHA_FAN3/WP) when using multiple graphics cards.

English

16

B660M Pro RS
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".

Clear CMOS Jumper (CLRMOS1) (see p.1, No. 24)

2-pin Jumper

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap after clearing the CMOS.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

English

17

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 20)
18

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Please connect the chassis intrusion and the chassis speaker to this header.

English

B660M Pro RS

Serial ATA3 Connectors Vertical: (SATA3_0: see p.1, No. 14) (SATA3_1: see p.1, No. 15) Right Angle: (SATA3_2: see p.1, No. 12)(Upper) (SATA3_3: see p.1, No. 11)(Lower)

SATA3_2 SATA3_3

SATA3_1 SATA3_0

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

USB 2.0 Headers (9-pin USB_3_4) (see p.1, No. 19) (9-pin USB_5_6) (see p.1, No. 18)

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

There are two USB 2.0 headers on this motherboard.Each USB 2.0 header can support two ports.

USB 3.2 Gen1 Header (19-pin USB3_5_6) (see p.1, No. 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

There is one USB 3.2 Gen1 header on this motherboard. This USB 3.2 Gen1 header can support two ports.

Front Panel Type C USB 3.2 Gen1 Header (20-pin F_USB3_TC_1) (see p.1, No. 10)

USB Type-C Cable

There is one Front Panel Type C USB 3.2 Gen1 Header on this motherboard. This header is used for connecting a USB 3.2 Gen1 module for additional USB 3.2 Gen1 ports.

English

19

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel. E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.1, No. 28)
(4-pin CHA_FAN2/WP) (see p.1, No. 21) (4-pin CHA_FAN3/WP) (see p.1, No. 22)

1

GND

2

FAN_VOLTAGE

3

CHA_FAN_SPEED

4

FAN_SPEED_CONTROL

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.

CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

English

20

B660M Pro RS

CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.1, No. 5)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

This motherboard provides a 4-Pin water cooling CPU fan connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 8)

12

24

1

13

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)

8

5

This motherboard provides

a 8-pin ATX 12V power con-

4

1

nector. To use a 4-pin ATX

power supply, please plug it

along Pin 1 and Pin 5.

*Warning: Please make sure that the power cable connected is for the CPU and not the graphics card. Do not plug the PCIe power cable to this connector.

SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, No. 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

English

21

Thunderbolt AIC Connector (5-pin TB1) (see p.1, No. 23)

Please connect a ThunderboltTM addin card (AIC) to this connector via the GPIO cable. *Please install the ThunderboltTM AIC card to PCIE3 (default slot).

RGB LED Header (4-pin RGB_LED1) (see p.1, No. 26)

1 +12V G R B

Addressable LED Headers (3-pin ADDR_LED1) (see p.1, No. 25)
(3-pin ADDR_LED2) (see p.1, No. 6) (3-pin ADDR_LED3) (see p.1, No. 7)

1 GND
DO_ADDR VOUT
GND
DO_ADDR VOUT 1

This RGB LED header is used to connect RGB LED extension cable which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. *Please refer to page 32 for further instructions on this header.
These three headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged. *Please refer to page 33 for further instructions on this header.

English

22

B660M Pro RS
2.7 Post Status Checker
Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.
23

English

2.8 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT). * The M.2 socket does not support SATA M.2 SSDs.
Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn off the AC power.
Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)
Step 1 Prepare a type 2230 WiFi/BT PCIe WiFi module or Intel® CNVi (Integrated WiFi/BT) and the screw.

PCB Length: 3cm Module Type: Type2230

Step 2 Find the nut location to be used.

A

English

24

A

A

20o

A

B660M Pro RS
Step 3 Gently insert the WiFi/BT PCIe WiFi module or Intel® CNVi (Integrated WiFi/BT) into the M.2 slot. Please be aware that the module only fits in one orientation.
Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

English

25

2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.

1 2 1
3 2
1

Step 2
Before installing a M.2 (NGFF) SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module.
Step 3
Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

English

C

B

A

No. Nut Location PCB Length Module Type

1 A 4.2cm Type2242

2 B 6cm Type2260

3 C 8cm Type 2280

26

C

B

A

C

B

A

20o

C

NUT2

NUT1

2
1 2

B660M Pro RS
Step 4 Prepare the M.2 standoff that comes with the package. Then hand tighten the standoff into the desired nut location on the motherboard. Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
Step 5 Tighten the screw that come with the package with a screwdriver to secure the module into place.
Step 6 Tighten the screw with a screwdriver to secure the M.2 heatsink into place. Please do not overtighten the screw as this might damage the module and M.2 heatsink.

English

27

M.2_SSD (NGFF) Module Support List (M2_1)

Vendor ADATA ADATA ADATA ADATA ADATA Apacer Corsair Intel Intel Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk TEAM TEAM WD WD

Interface PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4

P/N ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 SSDPEKKF256G7 SSDPEKKF512G7 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM8FP2240G0C101 TM8FP2480GC110 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

English

28

B660M Pro RS
2.10 M.2_SSD (NGFF) Module Installation Guide (M2_2)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_2, Key M) supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode. * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
Step 2 Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No. Nut Location PCB Length Module Type

1 A 8cm Type2280

English

29

20o

NUT2

NUT1

Step 4 Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
Step 5 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

English

30

B660M Pro RS

M.2_SSD (NGFF) Module Support List (M2_2)

Vendor ADATA ADATA ADATA ADATA ADATA Crucial Crucial Intel Kingston Plextor Plextor SanDisk SanDisk Team Team Team Team Transcend Transcend Transcend V-Color V-Color V-Color V-Color WD WD

Interface SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 PCIe PCIe PCIe PCIe SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3

P/N AXNS330E-32GM-B AXNS381E-128GM-B AXNS381E-256GM-B ASU800NS38-256GT-C ASU800NS38-512GT-C CT120M500SSD4 CT240M500SSD4 Intel SSDSCKGW080A401/80G SM2280S3 PX-G256M6e PX-G512M6e SD6PP4M-128G SD6PP4M-256G TM4PS4128GMC105 TM4PS4256GMC105 TM8PS4128GMC105 TM8PS4256GMC105 TS256GMTS400 TS512GMTS600 TS512GMTS800 VLM100-120G-2280B-RD VLM100-240G-2280RGB VSM100-240G-2280 VLM100-240G-2280B-RD WDS100T1B0B-00AS40 WDS240G1G0B-00RC30

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

English

31

2.11 ASRock Polychrome SYNC
ASRock Polychrome SYNC is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
Connecting the LED Strip
Connect your RGB LED strip to the RGB LED Header (RGB_LED1) on the motherboard.
RGB_LED1
1 +12V G R B
1 B
12V G R
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
1. Please note that the RGB LED strips do not come with the package. 2. The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.
32

English

B660M Pro RS
Connecting the Addressable RGB LED Strip
Connect your Addressable RGB LED strips to the Addressable LED Headers (ADDR_LED1 / ADDR_LED2 / ADDR_LED3) on the motherboard.
ADDR_LED2
GND DO_ADDR VOUT 1
ADDR_LED3
GND DO_ADDR VOUT 1
ADDR_LED1
1 GND
DO_ADDR VOUT
1
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
1. Please note that the RGB LED strips do not come with the package. 2. The RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/
GND), with a maximum power rating of 3A (5V) and length within 2 meters.
33

English

ASRock Polychrome SYNC Utility
Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!
Drag the tab to customize your preference.

Toggle on/off the RGB LED switch
Sync RGB LED effects for all LED regions of the motherboard

Select a RGB LED light effect from the drop-down menu.

English

34

B660M Pro RS
1 Einleitung
Vielen Dank, dass Sie sich für das ASRock B660M Pro RS entschieden haben ­ ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualität und Beständigkeit erfüllt.
Da die technischen Daten des Motherboards sowie die BIOS-Software aktualisiert werden können, kann der Inhalt dieser Dokumentation ohne Ankündigung geändert werden. Falls diese Dokumentation irgendwelchen Änderungen unterliegt, wird die aktualisierte Version ohne weitere Hinweise auf der ASRock-Webseite zur Verfügung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard benötigen, erhalten Sie auf unserer Webseite spezifischen Informationen über das von Ihnen verwendete Modell. Auch finden Sie eine aktuelle Liste unterstützter VGA-Karten und Prozessoren auf der ASRock-Webseite. ASRockWebseite http://www.asrock.com.
1.1 Lieferumfang
· ASRock B660M Pro RS-Motherboard (ATX-Formfaktor) · ASRock B660M Pro RS­ Schnellinstallationsanleitung · ASRock B660M Pro RS-Support-CD · 2 x Serial-ATA- (SATA) Datenkabel (optional) · 3 x Schrauben für M.2-Sockel (optional) · 1 x Abstandhalter für M.2-Sockel (optional) · 1 x E/A-Blendenabschirmung
35

Deutsch

1.2 Technische Daten

Plattform

· Micro-ATX-Formfaktor · Feststoffkondensator-Design

Prozessor

· Unterstützt Intel® CoreTM-Prozessoren der 12. Gen. (LGA1700) · Digi Power design · 8-Leistungsphasendesign · Unterstützt Intel® Hybrid-Technologie · Unterstützt Intel® Turbo Boost Max Technology 3.0

Chipsatz

· Intel® B660

Speicher

· Dualkanal-DDR4-Speichertechnologie · 4 x DDR4-DIMM-Steckplätze · Unterstützt ungepufferten DDR4-Non-ECC-Speicher bis
4800+(OC)* * Unterstützt nativ DDR4 3200. * Weitere Informationen finden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http://www.asrock.com/) · Unterstützt ECC-UDIMM-Speichermodule (Betrieb im non-ECC-
Modus) · Systemspeicher, max. Kapazität: 128GB · Unterstützt Intel® Extreme Memory Profile (XMP) 2.0

Erweiterungs- · 2 x PCIe-x16-Steckplatz (PCIE1/PCIE3:einzeln bei Gen4x16

steckplatz

(PCIE1); doppelt bei Gen4x16 (PCIE1) / Gen3x4 (PCIE3))

* Unterstützt NVMe-SSD als Bootplatte

· 1 x PCIe-Gen3x1-Steckplätze

· Unterstützt AMD CrossFireTM

· 1 x M.2-Sockel (Key E), unterstützt Typ-2230-WLAN-/-BT-PCIe-

WLAN-Modul und Intel® CNVi (WLAN/BT integriert)

Deutsch

36

B660M Pro RS

Grafikkarte

· Integrierte Intel® UHD Graphics-Visualisierung und VGAAusgänge können nur mit Prozessoren unterstützt werden, die GPU-integriert sind.
· Intel® Xe-Grafikarchitektur (12. Gen.) · Dualer Grafikkartenausgang:Unterstützt HDMI- und DisplayPort
1.4-Ports durch unabhängige Monitor-Controller · Unterstützt HDMI 2.1 TMDS (komprimiert) mit max. Auflösung
bis 4K x 2K (4096x2160) bei 60 Hz · Unterstützt DisplayPort 1.4 mit DSC (komprimiert) max.
Auflösung bis 8K (7680 x 4320) bei 60 Hz / 5K (5120 x 3200) bei 120 Hz · Unterstützt HDCP 2.3 mit TMDS-kompatiblen HDMI-2.1- und DisplayPort-1.4-Ports

Audio

· 7.1-Kanal-HD-Audio (Realtek ALC897-Audiocodec) · Unterstützt Überspannungsschutz · Nahimic Audio

LAN

· Gigabit LAN 10/100/1000 Mb/s

· Giga PHY Intel® I219V

· Unterstützt Wake-On-LAN

· Unterstützt Schutz gegen Blitzschlag/elektrostatische Entladung

· Unterstützt energieeffizientes Ethernet 802.3az

· Unterstützt UEFI PXE

Rückblende, E/A

· 3 x Antennenmontagepunkte · 1 x PS/2-Maus-/Tastaturanschluss · 1 x HDMI-Port · 1 x DisplayPort 1.4 · 4 x USB-3.2-Gen1-Ports (unterstützt Schutz gegen elektrostatische
Entladung) · 2 x USB-2.0-Ports (unterstützt Schutz gegen elektrostatische
Entladung) · 1 x RJ-45-LAN-Port mit LED (Aktivität/Verbindung-LED und
Geschwindigkeit-LED) · HD-Audioanschlüsse: Line-in / Vorderer Lautsprecher / Mikrofon

Deutsch

37

Speicher
RAID Anschluss

· 4 x SATA-III-6,0-Gb/s-Anschlüsse* * Wenn M2_2 durch ein SATA-Typ-M.2-Gerät belegt ist, wird SATA3_0 deaktiviert. · 1 x Hyper-M.2-Sockel (M2_1, Key M), unterstützt Typ-
2242/2260/2280-PCIe-Gen4x4-Modus (64 Gb/s)** · 1 x Ultra-M.2-Sockel (M2_2, Key M), unterstützt Typ-2280-SATA-
III-6,0-Gb/s- und PCIe-Gen3x4- (32 Gb/s) Modi** ** Unterstützt Intel® OptaneTM-Technologie (nur beim M2_2) ** Unterstützt Intel® Volume Management Device (VMD) ** Unterstützt NVMe-SSD als Bootplatte ** Unterstützt ASRock U.2-Kit
· Unterstützt RAID 0, RAID 1, RAID 5 und RAID 10 für SATASpeichergeräte
· 1 x SPI-TPM-Stiftleiste · 1 x Gehäuseeingriff- und Lautsprecher-Stiftleiste · 1 x RGB-LED-Stiftleiste * Unterstützt insgesamt bis zu 12 V/3 A, 36-W-LED-Streifen · 3 x Adressierbare-LED-Stiftleiste * Unterstützen insgesamt bis zu 5 V/3 A, 15-W-LED-Streifen · 1 x CPU-Lüfteranschluss (4-polig) * Der CPU-Lüfteranschluss unterstützt einen CPU-Lüfter mit einer maximalen Lüfterleistung von 1 A (12 W). · 1 x Anschluss für CPU-/Wasserpumpenlüfter (4-polig) (intelligente
Lüftergeschwindigkeitssteuerung) * Der CPU-/Wasserpumpenlüfter unterstützt einen Wasserkühlerlüfter mit einer maximalen Lüfterleistung von 2 A (24 W). · 3 x Anschlusse für Gehäuse-/Wasserpumpenlüfter (4-polig)
(intelligente Lüftergeschwindigkeitssteuerung) * Der Gehäuse-/Wasserpumpenlüfter unterstützt einen Wasserkühlerlüfter mit einer maximalen Lüfterleistung von 2 A (24 W). * CPU_FAN2/WP und CHA_FAN1~3/WP können automatisch erkennen, ob ein 3- oder 4-poliger Lüfter verwendet wird. · 1 x 24-poliger ATX-Netzanschluss · 1 x 8-poliger 12-V-Netzanschluss (hochdichter Netzanschluss) · 1 x Audioanschluss an Frontblende · 1 x Thunderbolt Erweiterungskartenanschluss (5-polig)
(unterstützt ASRock Thunderbolt 4 AIC-Karten)

Deutsch

38

B660M Pro RS

· 2 x USB 2.0-Stiftleisten (unterstützt 4 USB 2.0-Ports) (unterstützt Schutz gegen elektrostatische Entladung)
· 1 x USB 3.2 Gen1-Stiftleiste (unterstützt zwei USB 3.2 Gen1-Ports) (unterstützt Schutz gegen elektrostatische Entladung)
· 1 x USB-3.2-Gen1-Type-C-Stiftleiste an der Frontblende (unterstützt Schutz gegen elektrostatische Entladung)

BIOSFunktion

· AMI-UEFI-Legal-BIOS mit Unterstützung mehrsprachiger grafischer Benutzerschnittstellen
· ACPI 6.0-konforme Aufweckereignisse · SMBIOS 2.7-Unterstützung · CPU-Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN
AUX, +1,05 V PROC, +0,82 V PCH, +1,05 V PCH / Mehrfachspannungsanpassung

Hardwareüberwachung

· Lüftertachometer: CPU-, CPU-/Wasserpumpen-, Gehäuse-/ Wasserpumpenlüfter
· Lautloser Lüfter (automatische Anpassung der Gehäuselüftergeschwindigkeit durch CPU-Temperatur): CPU-, CPU-/Wasserpumpen-, Gehäuse-/Wasserpumpenlüfter
· Mehrfachgeschwindigkeitssteuerung: CPU-, CPU-/ Wasserpumpen-, Gehäuse-/Wasserpumpenlüfter
· Gehäuse-offen-Erkennung · Spannungsüberwachung: CPU Vcore, +1,05 V PCH, DRAM,
VCCIN AUX, +1,05 V PROC, VCCSA, +0,82 V PCH, +12 V, +5 V, +3,3 V

Betriebssystem

· Microsoft® Windows® 10 64 Bit / 11 64 Bit

Zertifizierun- · FCC, CE

gen

· ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)

* Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com

Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS-Einstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von Übertaktungswerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden sind. Eine Übertaktung kann sich auf die Stabilität Ihres Systems auswirken und sogar Komponenten und Geräte Ihres Systems beschädigen. Sie sollte auf eigene Gefahr und eigene Kosten durchgeführt werden. Wir übernehmen keine Verantwortung für mögliche Schäden, die durch eine Übertaktung verursacht wurden.
39

Deutsch

1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,kurzgeschlossen". Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,offen".

CMOS-löschen-Jumper (CLRMOS1) (siehe S. 1, Nr. 24)

2-poliger Jumper

CLRMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und Rücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schließen Sie dann die Kontakte an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz. Löschen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOS-Aktualisierung löschen müssen, starten Sie das System zunächst; fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprofil nur gelöscht werden, wenn die CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOSLöschung zu entfernen.

Falls Sie den CMOS löschen, wird möglicherweise ein Gehäuseeingriff erkannt. Bitte passen Sie die BIOS-Option ,,Status löschen" zur Löschung der Aufzeichnung des vorherigen Gehäuseeingriffstatus an.

Deutsch

40

B660M Pro RS

1.4 Integrierte Stiftleisten und Anschlüsse
Integrierte Stiftleisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper-Kappen an diesen Stiftleisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschlüssen können Sie das Motherboard dauerhaft beschädigen.

Systemblende-Stiftleiste (9-polig, PANEL1) (siehe S. 1, Nr. 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Verbinden Sie Netzschalter, ResetTaste und Systemstatusanzeige am Gehäuse entsprechend der nachstehenden Pinbelegung mit dieser Stiftleiste. Beachten Sie vor Anschließen der Kabel die positiven und negativen Kontakte.

PWRBTN (Ein-/Austaste): Mit der Ein-/Austaste an der Frontblende des Gehäuses verbinden. Sie können die Abschaltung Ihres Systems über die Ein-/Austaste konfigurieren.
RESET (Reset-Taste): Mit der Reset-Taste an der Frontblende des Gehäuses verbinden. Starten Sie den Computer über die Reset-Taste neu, wenn er abstürzt oder sich nicht normal neu starten lässt.
PLED (Systembetriebs-LED): Mit der Betriebsstatusanzeige an der Frontblende des Gehäuses verbinden. Die LED leuchtet, wenn das System läuft. Die LED blinkt, wenn sich das System im S1/S3-Ruhezustand befindet. Die LED ist aus, wenn sich das System im S4-Ruhezustand befindet oder ausgeschaltet ist (S5).
HDLED (Festplattenaktivitäts-LED): Mit der Festplattenaktivitäts-LED an der Frontblende des Gehäuses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Gehäuse variieren. Ein Frontblendenmodul besteht hauptsächlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivität-LED, Lautsprecher etc. Stellen Sie beim Anschließen Ihres Frontblendenmoduls an diese Stiftleiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.

Deutsch

Gehäuseeingriffs- und Lautsprecher-Stiftleiste (7-polig, SPK_CI1) (siehe S. 1, Nr. 20)

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Bitte verbinden Sie Gehäuseeingriffsvorrichtung und den Gehäuselautsprecher mit dieser Stiftleiste.

41

SATA3_2 SATA3_3

Serial-ATA-III-Anschlüsse Vertikal: (SATA3_0: siehe S. 1, Nr. 14) (SATA3_1: siehe S. 1, Nr. 15) Winkel rechts: (SATA3_2: siehe S. 1, Nr. 12) (obere) (SATA3_3: siehe S. 1, Nr. 11) (untere)

SATA3_1 SATA3_0

Diese vier SATA-III-Anschlüsse unterstützen SATA-Datenkabel für interne Speichergeräte mit einer Datenübertragungsgeschwindigkeit bis 6,0 Gb/s. * Wenn M2_2 durch ein SATATyp-M.2-Gerät belegt ist, wird SATA3_0 deaktiviert.

USB 2.0-Stiftleisten (9-polig, USB_3_4) (siehe S. 1, Nr. 19) (9-polig, USB_5_6) (siehe S. 1, Nr. 18)

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

Es gibt zwei USB-2.0-Stiftleisten an diesem Motherboard. Jede USB 2.0-Stiftleiste kann zwei Ports unterstützen.

USB 3.2 Gen1-Stiftleiste (19-polig, USB3_5_6) (siehe S. 1, Nr. 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

Es gibt eine USB-3.2 Gen1Stiftleiste an diesem Motherboard. Diese USB-3.2-Gen1-Stiftleiste kann zwei Ports unterstützen.

Type-C-USB-3.2 Gen1-Stiftleiste für die Frontblende (20-polig, F_USB3_TC_1) (siehe S. 1, Nr. 10)

USB Type-C Cable

Es gibt eine Type-C-USB-3.2 Gen1-Stiftleiste für die Frontblende an diesem Motherboard. Diese Stiftleiste dient dem Anschluss eines USB-3.2 Gen1-Moduls für zusätzliche USB-3.2 Gen1-Ports.

Deutsch

42

B660M Pro RS

Audiostiftleiste Frontblende (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

Diese Stiftleiste dient dem Anschließen von Audiogeräten an der Frontblende.

1. High Definition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss dazu jedoch HDA unterstützt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Gehäuse.
2. Bei Nutzung eines AC'97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostiftleiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur für das HD-Audiopanel vorgesehen. Sie müssen sie nicht für das AC'97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das ,,FrontMic (Vorderes Mikrofon)"Register in der Realtek-Systemsteuerung auf und passen ,,Recording Volume (Aufnahmelautstärke)" an.

Gehäuse-/WasserpumpenLüfteranschlusse (4-polig, CHA_FAN1/WP) (siehe S. 1, Nr. 28)
(4-polig, CHA_FAN2/WP) (siehe S. 1, Nr. 21) (4-polig, CHA_FAN3/WP) (siehe S. 1, Nr. 22)

1

GND

2

FAN_VOLTAGE

3

CHA_FAN_SPEED

4

FAN_SPEED_CONTROL

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO

Dieses Motherboard bietet drei 4-polige WasserkühlungGehäuselüfteranschlüsse. Falls Sie einen 3-poligen GehäuseWasserkühlerlüfter anschließen möchten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.

1 2 34

CPU-Lüfteranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

Dieses Motherboard bietet einen 4-poligen CPU-Lüfteranschluss (lautloser Lüfter). Falls Sie einen 3-poligen CPU-Lüfter anschließen möchten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.

Deutsch

43

CPU-/WasserpumpenLüfteranschluss (4-polig, CPU_FAN2/WP) (siehe S. 1, Nr. 5)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

Dieses Motherboard bietet einen 4-poligen WasserkühlungCPU-Lüfteranschluss. Falls Sie einen 3-poligen CPUWasserkühlerlüfter anschließen möchten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.

ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 8)

12

24

1

13

Dieses Motherboard bietet einen 24-poligen ATX-Netzanschluss. Bitte schließen Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 13 an.

ATX-12-V-Netzanschluss

8

(8-polig, ATX12V1)

(siehe S. 1, Nr. 1)

4

5

Dieses Motherboard bietet

einen 8-poligen ATX-12-V-

1

Netzanschluss. Bitte schließen Sie

es zur Nutzung eines 4-poligen

ATX-Netzteils entlang Kontakt 1

und Kontakt 5 an.

*Warnung: Bitte stellen Sie sicher, dass das Stromkabel der CPU und nicht das der Grafikkarte angeschlossen ist. Schließen Sie das PCIeStromkabel nicht an diesen Anschluss an.

SPI-TPM-Stiftleiste (13-polig, SPI_TPM_J1) (siehe S. 1, Nr. 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

Dieser Anschluss unterstützt das SPI Trusted Platform Module(TPM) System, das Schlüssel, digitale Zertifikate, Kennwörter und Daten sicher aufbewahren kann. Ein TPM-System hilft zudem bei der Stärkung der Netzwerksicherheit, schützt digitale Identitäten und gewährleistet die Plattformintegrität.

44

Deutsch

B660M Pro RS

ThunderboltErweiterungskartenanschluss (5-polig, TB1) (siehe S. 1, Nr. 23)
RGB-LED-Stiftleiste (4-polig, RGB_LED1) (siehe S. 1, Nr. 26)
Adressierbare-LEDStiftleisten (3-polig, ADDR_LED1) (siehe S. 1, Nr. 25)
(3-polig, ADDR_LED2) (siehe S. 1, Nr. 6) (3-polig, ADDR_LED3) (siehe S. 1, Nr. 7)

1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1

Bitte verbinden Sie eine ThunderboltTM-Erweiterungskarte über das GPIO-Kabel mit diesem Anschluss. *Bitte installieren Sie die ThunderboltTM -AIC-Karte am PCIE3 (Standardsteckplatz).
Diese RGB-LED-Stiftleiste dient dem Anschließen eines RGBLED-Erweiterungskabels, das dem Nutzer die Auswahl zwischen verschiedenen LED-Lichteffekten ermöglicht. Achtung: Installieren Sie das RGB-LED-Kabel niemals falsch herum; andernfalls könnte das Kabel beschädigt werden. *Weitere Anweisungen zu dieser Stiftleiste finden Sie auf Seite 32.
Diese drei Stiftleiste dient der Verbindung des AdressierbareLED-Verlängerungskabels, womit Nutzer zwischen verschiedenen LED-Lichteffekten wählen können. Achtung: Installieren Sie das Adressierbare-LEDKabel niemals falsch herum; andernfalls könnte das Kabel beschädigt werden. *Weitere Anweisungen zu dieser Stiftleiste finden Sie auf Seite 33.

Deutsch

45

1 Introduction
Nous vous remercions d'avoir acheté cette carte mère ASRock B660M Pro RS, une carte mère fiable fabriquée conformément au contrôle de qualité rigoureux et constant appliqué par ASRock. Fidèle à son engagement de qualité et de durabilité, ASRock vous garantit une carte mère de conception robuste aux performances élevées.
Les spécifications de la carte mère et du logiciel BIOS pouvant être mises à jour, le contenu de ce document est soumis à modification sans préavis. En cas de modifications du présent document, la version mise à jour sera disponible sur le site Internet ASRock sans notification préalable. Si vous avez besoin d'une assistance technique pour votre carte mère, veuillez visiter notre site Internet pour plus de détails sur le modèle que vous utilisez. La liste la plus récente des cartes VGA et des processeurs pris en charge est également disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
1.1 Contenu de l'emballage
· Carte mère ASRock B660M Pro RS (facteur de forme ATX) · Guide d'installation rapide ASRock B660M Pro RS · CD d'assistance ASRock B660M Pro RS · 2 x câbles de données Serial ATA (SATA) (Optionnel) · 3 x vis pour sockets M.2 (Optionnel) · 1 x Entretoise pour socket M.2 (Optionnel) · 1 x panneau de protection E/S
46

Français

B660M Pro RS

1.2 Spécifications

Plateforme

· Facteur de forme Micro ATX · Conception à condensateurs solides

Processeur

· Prend en charge les processeurs 12ème génération Intel® CoreTM
(LGA1700) · Digi Power design · Alimentation à 8 phases · Prend en charge Intel® Hybrid Technology · Prend en charge la technologie Intel® Turbo Boost Max 3.0

Chipset

· Intel® B660

Mémoire

· Technologie mémoire double canal DDR4 · 4 x fentes DIMM DDR4 · Prend en charge les mémoires sans tampon non ECC DDR4 jusqu'à
4800+(OC)* * Prend en charge la DDR4 3200 de façon native. * Veuillez consulter la liste de prise en charge des mémoires sur le site Web d'ASRock pour de plus amples informations. (http://www.asrock.com/) · Prend en charge les modules mémoire UDIMM ECC (fonctionne
en mode non-ECC) · Capacité max. de la mémoire système : 128GB · Prend en charge Intel® Extreme Memory Profile (XMP) 2.0

Fente d'expansion

· 2 x fentes PCIe x16 (PCIE1/PCIE3 : simple en mode Gen4x16 (PCIE1), double à Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Prend en charge les SSD NVMe comme disques de démarrage · 1 x fente PCIe Gen3x1 · Prend en charge AMD CrossFireTM · 1 x socket M.2 (Touche E), prend en charge les emplacements
modules WiFi/BT type 2230, WiFi PCIe et Intel® CNVi (WiFi/BT intégré)

Français

47

Graphiques

· La technologie Intel® UHD Graphics Built-in Visuals et les sorties VGA sont uniquement prises en charge par les processeurs intégrant un contrôleur graphique.
· Architecture graphique Intel® Xe (Gen 12) · Double sortie graphique :Prend en charge les ports HDMI et
DisplayPort 1.4 via contrôleurs d'affichage indépendants · Prend en charge la technologie HDMI 2.1 TMDS Compatible avec
résolution maximale de 4K x 2K (4096x2160) @ 60Hz · Prend en charge DisplayPort 1.4 avec résolution max. DSC
(compressée) jusqu'à 8K (7680x4320) @ 60 Hz / 5K (5120x3200) @
120 Hz · Prend en charge HDCP 2.3 avec ports HDMI 2.1 compatibles
TMDS et DisplayPort 1.4

Audio

· Audio 7.1 CH HD (Codec audio Realtek ALC897) · Prend en charge la protection contre les surtensions · Audio Nahimic

Réseau

· Gigabit LAN 10/100/1000 Mo/s · Giga PHY Intel® I219V · Prend en charge la fonction Wake-On-LAN · Prend en charge la protection contre la foudre/les décharges
électrostatiques · Prend en charge la fonction d'économie d'énergie Ethernet 802.3az · Prend en charge UEFI PXE

Connectique du panneau arrière

· 3 x points de montage d'antenne · 1 x port souris/clavier PS/2 · 1 x port HDMI · 1 x DisplayPort 1.4 · 4 x ports USB 3.2 Gen1 (Protection contre les décharges
électrostatiques) · 2 x ports USB 2.0 (Protection contre les décharges électrostatiques) · 1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED VITESSE) · Connecteurs jack audio HD : Entrée ligne / haut-parleur avant /
microphone

Français

48

B660M Pro RS

Stockage

· 4 x connecteurs SATA3 6,0 Gb/s* * Si M2_2 est occupé par un périphérique M.2 type SATA, SATA3_0 est désactivé. · 1 x Socket Hyper M.2 (M2_1, Key M), supporte le mode PCIe
Gen4x4 (64 Gb/s) de type 2242/2260/2280** · 1 x Socket Ultra M.2 (M2_2, Key M), prend en charge les modules
SATA3 6,0 Gb/s type 2280 et PCIe Gen3 x4 (32 Gb/s)** ** Prend en charge Intel® OptaneTM Technology (M2_2 uniquement) ** Prend en charge Intel® Volume Management Device (VMD) ** Prend en charge les SSD NVMe comme disques de démarrage ** Prend en charge le kit ASRock U.2

RAID

· Prend en charge RAID 0, RAID 1, RAID 5 et RAID 10 pour les périphériques de stockage SATA

Connecteur

· 1 x embase SPI TPM · 1 x prise LED d'alimentation et emplacement sur châssis · 1 x embase LED RVB * Prend en charge les rubans DEL jusqu'à 12 V/3 A, 36 W au total · 3 x embases LED adressables * Prend en charge les rubans LED jusqu'à 5 V/3 A, 15 W au total · 1 x connecteur pour ventilateur de CPU (4 broches) * Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W). · 1 x connecteur pour ventilateur de processeur /pompe à eau
(4 broches) (contrôle de vitesse de ventilateur intelligent) * Le ventilateur de processeur /pompe à eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). · 3 x connecteurs pour ventilateur de châssis /pompe à eau
(4 broches) (contrôle de vitesse de ventilateur intelligent) * Le ventilateur de châssis /pompe à eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). * CPU_FAN2/WP et CHA_FAN1~3/WP peuvent détecter automatiquement si un ventilateur 3 broches ou 4 broches est utilisé. · 1 x connecteur d'alimentation ATX 24 broches · 1 x connecteur d'alimentation 12 V 8 broches (connecteur
d'alimentation haute densité) · 1 x connecteur audio panneau frontal · 1 x connecteur Thunderbolt AIC (5 broches) (Prise en charge de la
carte ASRock Thunderbolt 4 AIC)

49

Français

· 2 x embases USB 2.0 (4 ports USB 2.0 pris en charge) (Protection contre les décharges électrostatiques)
· 1 x embase USB 3.2 Gen1 (2 ports USB 3.2 Gen1 pris en charge) (Protection contre les décharges électrostatiques)
· 1 x embase USB 3.2 Gen1 Type C sur panneau avant (Protection contre les décharges électrostatiques)

Caractéristiques du BIOS

· BIOS UEFI AMI avec prise en charge d'interface graphique multilingue
· Compatible ACPI 6.0 Wake Up Events · Compatible SMBIOS 2.7 · Réglage de la tension CPU Core/Cache, CPU GT, DRAM,
VDD_IMC, VCCIN AUX, +1,05V PROC, +0,82V PCH, +1,05V PCH

Surveillance du matériel

· Tachymètre de ventilateur : Ventilateurs de CPU, CPU /pompe à eau, châssis /pompe à eau
· Ventilateur silencieux (réglage automatique de la vitesse du ventilateur du châssis d'après la température du CPU) : Ventilateurs de CPU, CPU /pompe à eau, châssis /pompe à eau
· Contrôle simultané des vitesses du ventilateur : Ventilateurs de CPU, CPU /pompe à eau, châssis /pompe à eau
· Détection CHÂSSIS OUVERT · Surveillance de la tension d'alimentation : CPU Vcore,
+1,05V PCH, DRAM, VCCIN AUX, +1,05V PROC, VCCSA, +0,82V PCH, +12V, +5V, +3,3V

Système

· Microsoft® Windows® 10 64-bits / 11 64-bits

d'exploitation

Certifications · FCC, CE · ErP/EuP Ready (alimentation ErP/EuP ready requise)

Français

* pour des informations détaillées de nos produits, veuillez visiter notre site : http://www.asrock.com

Il est important de signaler que l'overclocking présente certains risques, incluant des modifications du BIOS, l'application d'une technologie d'overclocking déliée et l'utilisation d'outils d'overclocking développés par des tiers. La stabilité de votre système peut être affectée par ces pratiques, voire provoquer des dommages aux composants et aux périphériques du système. L'overclocking se fait à vos risques et périls. Nous ne pourrons en aucun cas être tenus pour responsables des dommages éventuels provoqués par l'overclocking.
50

B660M Pro RS
1.3 Configuration des cavaliers (jumpers)
L'illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers). Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est « court-circuité ». Si le capuchon du cavalier n'est pas installé sur les broches, le cavalier est « ouvert ».

Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 24)

Cavalier (jumper) à 2 broches

CLRMOS1 vous permet d'effacer les donnés de la CMOS. Pour effacer les paramètres du système et rétablir les valeurs par défaut, veuillez éteindre votre ordinateur et débrancher son cordon d'alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter les broches sur CLRMOS1 pendant 5 secondes. Toutefois, n'effacez pas la CMOS immédiatement après avoir mis à jour le BIOS. Si vous avez besoin d'effacer les données CMOS après une mise à jour du BIOS, vous devez tout d'abord redémarrer le système, puis l'éteindre avant de procéder à l'effacement de la CMOS. Veuillez noter que les paramètres mot de passe, date, heure et profil de l'utilisateur seront uniquement effacés en cas de retrait de la pile de la CMOS. N'oubliez pas de retirer le capuchon du cavalier une fois les données CMOS effacées.

Si vous effacez la CMOS, l'alerte de châssis ouvert peut se déclencher. Veuillez régler l'option du BIOS sur « Effacer » pour supprimer l'historique des intrusions de châssis précédentes.

Français

51

1.4 Embases et connecteurs de la carte mère
Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irrémédiablement votre carte mère.

Embase du panneau système (PANNEAU1 à 9 broches) (voir p.1, No. 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Branchez le bouton de mise en marche, le bouton de réinitialisation et le témoin d'état du système présents sur le châssis sur cette embase en respectant la configuration des broches illustrée ci-dessous. Repérez les broches positive et négative avant de brancher les câbles.

PWRBTN (bouton d'alimentation): pour brancher le bouton d'alimentation du panneau frontal du châssis. Vous pouvez configurer la façon dont votre système doit s'arrêter à l'aide du bouton de mise en marche.
RESET (bouton de réinitialisation): pour brancher le bouton de réinitialisation du panneau frontal du châssis. Appuyez sur le bouton de réinitialisation pour redémarrer l'ordinateur en cas de plantage ou de dysfonctionnement au démarrage.
PLED (LED d'alimentation du système) : pour brancher le témoin d'état de l'alimentation du panneau frontal du châssis. Le LED est allumé lorsque le système fonctionne. Le LED clignote lorsque le système se trouve en mode veille S1/S3. Le LED est éteint lorsque le système se trouve en mode veille S4 ou hors tension (S5).
HDLED (LED d'activité du disque dur) : pour brancher le témoin LED d'activité du disque dur du panneau frontal du châssis. Le LED est allumé lorsque le disque dur lit ou écrit des données.
La conception du panneau frontal peut varier en fonction du châssis. Un module de panneau frontal est principalement composé d'un bouton de mise en marche, bouton de réinitialisation, LED d'alimentation, LED d'activité du disque dur, haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre châssis sur cette embase, veillez à parfaitement faire correspondre les fils et les broches.

Français

Prise LED d'alimentation et emplacement sur châssis (SPK_CI1 à 7 broches) (voir p.1, No. 20)
52

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Veuillez brancher l'emplacement sur le châssis et le haut-parleur du châssis sur ce connecteur.

B660M Pro RS

Connecteurs Serial ATA3 Vertical: (SATA3_0: voir p.1, No. 14) (SATA3_1: voir p.1, No. 15) Angle droit: (SATA3_2: voir p.1, No. 12) (Supérieur) (SATA3_3: voir p.1, No. 11) (Inférieur)

SATA3_2 SATA3_3

SATA3_1 SATA3_0

Ces quatre connecteurs SATA3 sont compatibles avec les câbles de données SATA pour les appareils de stockage internes avec un taux de transfert maximal de 6,0 Go/s. * Si M2_2 est occupé par un périphérique M.2 type SATA, SATA3_0 est désactivé.

Embases USB 2.0 (USB_3_4 à 9 broches) (voir p.1, No. 19) (USB_5_6 à 9 broches) (voir p.1, No. 18)

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

Cette carte mère comprend deux embases USB 2.0. Chaque embase USB 2.0 peut prendre en charge deux ports.

Embase USB 3.2 Gen1 (USB3_5_6 à 19 broches) (voir p.1, No. 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

Cette carte mère comprend une embase USB 3.2 Gen1. Cette embase USB 3.2 Gen1 peut prendre en charge deux ports.

Embase USB 3.2 Gen1 Type C sur panneau avant (F_USB3_TC_1 à 20 broches) (voir p.1, No. 10)

USB Type-C Cable

Cette carte mère comprend une embase USB 3.2 Gen1 Type C sur le panneau avant. Cette embase sert à connecter un module USB 3.2 Gen1 pour des ports USB 3.2 Gen1 supplémentaires.

Français

53

Embase audio du panneau frontal (HD_AUDIO1 à 9 broches) (voir p.1, No. 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

Cette embase sert au branchement des appareils audio au panneau audio frontal.

1. L'audio haute définition prend en charge la technologie Jack Sensing (détection de la fiche), mais le panneau grillagé du châssis doit être compatible avec la HDA pour fonctionner correctement. Veuillez suivre les instructions figurant dans notre manuel et dans le manuel du châssis pour installer votre système.
2. Si vous utilisez un panneau audio AC'97, veuillez le brancher sur l'embase audio du panneau frontal en procédant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise à terre (GND) sur mise à terre (GND). D. MIC_RET et OUT_RET sont exclusivement réservés au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC'97. E. Pour activer le micro frontal, sélectionnez l'onglet « FrontMic » du panneau de contrôle Realtek et réglez le paramètre « Volume d'enregistrement ».

Connecteurs du ventilateur de châssis/ pompe à eau (CHA_FAN1/WP à 4 broches) (voir p.1, No. 28)
(CHA_FAN2/WP à 4 broches) (voir p.1, No. 21) (CHA_FAN3/WP à 4 broches) (voir p.1, No. 22)

1

GND

2

FAN_VOLTAGE

3

CHA_FAN_SPEED

4

FAN_SPEED_CONTROL

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO

Cette carte mère est dotée de trois connecteurs pour ventilateur de châssis à refroidissement par eau à 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour châssis à 3 broches, veuillez le brancher sur la Broche 1-3.

1 2 34

Connecteur du ventilateur du processeur (CPU_FAN1 à 4 broches) (voir p.1, No. 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

Cette carte mère est dotée d'un connecteur pour ventilateur de processeur (Quiet Fan) à 4 broches. Si vous envisagez de connecter un ventilateur de processeur à 3 broches, veuillez le brancher sur la broche 1-3.

Français

54

B660M Pro RS

Connecteur pour ventilateur de processeur / pompe à eau (CPU_FAN2/WP à 4 broches) (voir p.1, No. 5)
Connecteur d'alimentation ATX (ATXPWR1 à 24 broches) (voir p.1, No. 8)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

12

24

1

13

Cette carte mère est dotée d'un connecteur pour ventilateur de processeur à refroidissement par eau à 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour processeur à 3 broches, veuillez le brancher sur la Broche 1-3.
Cette carte mère est dotée d'un connecteur d'alimentation ATX à 24 broches. Pour utiliser une alimentation ATX à 20 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 13.

Connecteur d'alimentation

8

ATX 12 V

(ATX12V1 à 8 broches)

4

(voir p.1, No. 1)

5

Cette carte mère est dotée d'un

connecteur d'alimentation ATX

1

12 V à 8 broches. Pour utiliser une

alimentation ATX à 4 broches,

veuillez effectuer les branchements

sur la Broche 1 et la Broche 5.

*Avertissement : Veuillez vérifier que le câble d'alimentation connecté est pour l'unité centrale et non pour la carte graphique. Ne branchez pas le câble d'alimentation PCIe sur ce connecteur.

Embase SPI TPM (SPI_TPM_J1 à 13 broches) (voir p.1, No. 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

Ce connecteur prend en charge un module SPI TPM (Trusted Platform Module ­ Module de plateforme sécurisée), qui permet de sauvegarder clés, certificats numériques, mots de passe et données en toute sécurité. Le système TPM permet également de renforcer la sécurité du réseau, de protéger les identités numériques et de préserver l'intégrité de la plateforme.

55

Français

Connecteur Thunderbolt AIC (TB1 à 5 broches) (voir p.1, No. 23)
Embase LED RVB (RGB_LED1 à 4 broches) (voir p.1, No. 26)
Embases LED adressables (ADDR_LED1 à 3 broches) (voir p.1, No. 25)
(ADDR_LED2 à 3 broches) (voir p.1, No. 6) (ADDR_LED3 à 3 broches) (voir p.1, No. 7)

1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1

Veuillez connecter une carte d'extension ThunderboltTM (AIC) à ce connecteur via le câble GPIO. *Veuillez installer la carte ThunderboltTM AIC sur PCIE3 (emplacement par défaut).
Cette embase LED RVB sert à connecter le câble d'extension LED RVB qui permet aux utilisateurs de choisir parmi plusieurs effets lumineux LED. Attention : N'installez jamais le câble LED RVB dans le mauvais sens ; dans le cas contraire, le câble peut être endommagé. *Veuillez consulter la page 32 pour des instructions supplémentaires sur cette embase.
Ces trois embases servent à connecter un câble de rallonge LED adressable permettant aux utilisateurs de choisir parmi différents effets lumineux LED. Attention : N'installez jamais le câble LED adressable dans le mauvais sens. Dans le cas contraire, le câble peut être endommagé. * Veuillez consulter la page 33 pour des instructions supplémentaires sur cette embase.

Français

56

B660M Pro RS
1 Introduzione
Congratulazioni per l'acquisto della scheda madre ASRock B660M Pro RS, una scheda madre affidabile prodotta secondo i severissimi controlli di qualità ASRock. La scheda madre offre eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di offrire sempre qualità e durata.
Dato che le specifiche della scheda madre e del software BIOS possono essere aggiornate, il contenuto di questa documentazione sarà soggetto a variazioni senza preavviso. Nel caso di eventuali modifiche della presente documentazione, la versione aggiornata sarà disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni specifiche relative al modello attualmente in uso. È possibile trovare l'elenco di schede VGA più recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.
1.1 Contenuto della confezione
· Scheda madre ASRock B660M Pro RS (fattore di forma ATX) · Guida all'installazione rapida di ASRock B660M Pro RS · CD di supporto ASRock B660M Pro RS · 2 x cavi dati Serial ATA (SATA) (opzionali) · 3 x viti per Socket M.2 (opzionali) · 1 x Distanziatore per Socket M.2 (opzionali) · 1 x mascherina metallica posteriore I/O
57

Italiano

1.2 Specifiche

Piattaforma

· Fattore di forma Micro ATX · Design condensatore solido

CPU

· Supporta processori 12th Generation Intel® CoreTM (LGA1700)

· Digi Power design

· Potenza a 8 fasi

· Supporta la tecnologia Intel® Hybrid

· Supporta la tecnologia Intel® Turbo Boost Max 3.0

Chipset

· Intel® B660

Memoria

· Tecnologia memoria DDR4 Dual Channel · 4 x alloggi DIMM DDR4 · Supporta DDR4 non ECC, memoria senza buffer fino a
4800+ (OC)* * Supporta DDR4 3200 in modo nativo. * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) · Supporta moduli di memoria ECC UDIMM (funziona in modalità
non ECC) · Capacità max. della memoria di sistema: 128GB · Supporto di XMP (Extreme Memory Profile) Intel® 2.0

Alloggio d'espansione

· 2 x PCIe x16 slot (PCIE1/PCIE3:singolo a Gen4x16 (PCIE1); doppio a Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Supporto di SSD NVMe come disco d'avvio · 1 alloggi PCIe Gen3x1 · Supporta AMD CrossFireTM · 1 x Socket M.2 (Key E), supporta il modulo WiFi tipo 2230 WiFi/
BT PCIe e Intel® CNVi (Integrated WiFi/BT)

Italiano

58

B660M Pro RS

Grafica

· La videografica integrata della scheda video UHD Intel® e le uscite VGA possono essere supportate soltanto con processori con GPU integrata.
· Architettura grafica Intel® Xe (Gen 12) · Doppia uscita grafica:supporto di porte HDMI e DisplayPort 1.4
tramite controller display indipendenti · Supporta HDMI 2.1 compatibile TMDS con risoluzione massima
fino a 4K x 2K (4096 x 2160) a 60Hz · Supporta DisplayPort 1.4 con DSC (compresso) risoluzione max.
fino a 8K (7680 x 4320) a 60 Hz / 5K (5120 x 3200) a 12 0Hz · Supporta HDCP 2.3 con HDMI 2.1 compatibile TMDS e porte
DisplayPort 1.4

Audio

· Audio HD 7.1 CH (codec audio Realtek ALC897) · Supporta protezione da sovratensione · Audio Nahimic

LAN

· LAN Gigabit 10/100/1000 Mb/s

· Giga PHY Intel® I219V

· Supporto WOL (Wake-On-LAN)

· Supporta protezione da fulmini/scariche elettrostatiche

· Supporto Energy Efficient Ethernet 802.3az

· Supporto UEFI PXE

I/O pannello posteriore

· 3 punti di montaggio antenna · 1 x porta mouse/tastiera PS/2 · 1 x porta HDMI · 1 x DisplayPort 1.4 · 4 x porte USB 3.2 Gen1 (supporto protezione da scariche
elettrostatiche) · 2 x porte USB 2.0 (supporto protezione da scariche elettrostatiche) · 1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED LED) · Connettori audio HD: Ingresso linea / altoparlante frontale /
microfono

Italiano

59

Archiviazione

· 4 x Connettori SATA3 6,0 Gb/s* * Se M2_2 è occupato da un dispositivo M.2 di tipo SATA, SATA3_0 sarà disabilitato. · 1 x socket Hyper M.2 (M2_1, key M), supporta le modalità di tipo
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)** · 1 x socket Ultra M.2 (M2_2, Key M), supporta il modulo SATA3
6,0 Gb/s di tipo 2280 ed il modulo PCIe Gen3 x4 (32 Gb/s)** ** Supporta la tecnologia Intel® OptaneTM (solo per M2_2) ** Supporta il dispositivo di gestione del volume Intel® (VMD) ** Supporto di SSD NVMe come disco d'avvio ** Supporta kit ASRock U.2

RAID

· Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA

Connettore

· 1 x connettore SPI TPM · 1 x collegamento altoparlante e intrusione telaio · 1 x collettore LED RGB * Supporto totale di fino a 12V/3A, 36W strip LED · 3 x Header LED indirizzabili * Supporto totale di strisce LED fino a 5 V/3 A, 15 W · 1 x connettore ventola CPU (4-pin) * Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W). · 1 x connettore ventola CPU/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocità della ventola) * La ventola CPU/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2A (24W). · 3 x connettori ventola telaio/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocità della ventola) * La ventola Chassis/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2 A (24W). * CPU_FAN2/WP e CHA_FAN1~3/WP sono in grado di rilevare se è in uso una ventola a 3 pin o 4 a pin. · 1 x connettore alimentazione ATX 24-pin · 1 x connettore alimentazione 12V 8-pin (connettore alimentazione
ad alta densità) · 1 x connettore audio pannello frontale · 1 connettore Thunderbolt AIC (5-pin) (supporta carta ASRock
Thunderbolt 4 AIC)

Italiano

60

B660M Pro RS

· 2 x connettori USB 2.0 (supporto di 4 porte USB 2.0) (supporta protezione da scariche elettrostatiche)
· 1 x connettore USB 3.2 Gen1 (supporto di 2 porte USB 3.2 Gen1) (supporto protezione da scariche elettrostatiche)
· 1 x porta USB 3.2 tipo C connettore Gen1 (Supporto protezione ESD) sul pannello frontale

Funzionalità BIOS

· AMI UEFI Legal BIOS con interfaccia di supporto multilingue · Eventi di riattivazione conformi a ACPI 6.0 · Supporto di SMBIOS 2.7 · CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1,05 V PROC, + 0,82 V PCH, Regolazione multipla della tensione +1,05 V PCH

Hardware Monitor

· Tachimetro ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/ pompa dell'acqua
· Ventola silenziosa (regolazione automatica velocità in base alla temperatura della CPU): Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
· Controllo velocità ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
· Rilevamento CASE OPEN · Monitoraggio tensione: CPU Vcore, +1,05 V PCH, DRAM,
VCCIN AUX, +1,05 V PROC, VCCSA, + 0,82 V PCH, +12 V, + 5 V, + 3,3 V

SO

· Microsoft® Windows® 10 64 bit / 11 64 bit

Certificazioni · FCC, CE · ErP/EuP Ready (è necessaria alimentazione ErP/EuP ready)

* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com
Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking può influenzare la stabilità del sistema o perfino provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.

61

Italiano

1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è posizionato alcun cappuccio del jumper, il jumper è "aperto".

Jumper per azzerare la CMOS (CLRMOS1) (vedere pag. 1, n. 24)

Jumper a 2 pin

CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla configurazione predefinita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare i di CLRMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se è necessario azzerare la CMOS dopo l'aggiornamento del BIOS, è necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il profilo predefinito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS. Ricordarsi di rimuovere il cappuccio jumper prima di cancellare la CMOS.

Se si azzera la CMOS, può essere rilevato il case aperto. Regolare l'opzione del BIOS "Azzerare stato" per azzerare il registro del precedente stato di intrusione nello chassis.

Italiano

62

B660M Pro RS

1.4 Header e connettori su scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocherà danni permanenti alla scheda madre.

Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Collegare l'interruttore dell'alimentazione, l'interruttore di reset e l'indicatore dello stato del sistema sullo chassis su questo header secondo la seguente assegnazione dei pin. Annotare i pin positivi e negativi prima di collegare i cavi.

PWRBTN (interruttore di alimentazione): collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. È possibile configurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.
RESET (interruttore di reset): collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un normale riavvio.
PLED (LED alimentazione del sistema): collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare quando il sistema si trova nello stato di sospensione S1/S3. Il LED è spento quando il sistema si trova nello stato di sospensione S4 o quando è spento (S5).
HDLED (LED di attività disco rigido): collegare al LED di attività disco rigido sul pannello anteriore dello chassis. Il LED è acceso quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore può cambiare a seconda dello chassis. Un modulo di pannello anteriore è composto principalmente da interruttore di alimentazione, interruttore di reset, LED di alimentazione, LED di attività disco rigido, altoparlante, ecc. Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del filo e le assegnazioni del pin corrispondano correttamente.

Collegamento altoparlante e intrusione telaio (SPK_CI1 a 7 pin) (vedere pag. 1, n. 20)

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Collegare l'intrusione telaio e l'altoparlante a questo collegamento.

63

Italiano

SATA3_2 SATA3_3

Connettori Serial ATA3

Verticale:

(SATA3_0:

vedere pag. 1, n. 14)

(SATA3_1:

vedere pag. 1, n. 15)

SATA3_1 SATA3_0

Angolo destroy:

(SATA3_2:

vedere pag.1, n. 12) (Superiore)

(SATA3_3:

vedere pag.1, n. 11) (Inferiore)

Questi quattro connettori SATA3 supportano cavi dati SATA per dispositivi di archiviazione interna, con una velocità di trasferimento dati fino a 6,0 Gb/s. * Se M2_2 è occupato da un dispositivo M.2 di tipo SATA, SATA3_0 sarà disabilitato.

Header USB 2.0 (USB_3_4 a 9 pin) (vedere pag. 1, n. 19) (USB_5_6 a 9 pin) (vedere pag. 1, n. 18)

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

Ci sono due connettori USB 2.0 su questa scheda madre. Ciascun header USB 2.0 può supportare due porte.

Header USB 3.2 Gen1 (USB3_5_6 a 19 pin) (vedere pag. 1, n. 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

Su questa scheda madre c'è un connettore USB 3.2 Gen1. Questa basetta USB 3.2 Gen1 può supportare due porte.

Connettore USB 3.2 Gen1 tipo C pannello anteriore (F_USB3_TC_1 a 20 pin) (vedere pag. 1, n. 10)

USB Type-C Cable

È presente un connettore USB 3.2 Gen1 tipo C pannello anteriore su questa scheda madre. Questo connettore viene utilizzato per il collegamento di un modulo USB 3.2 Gen1 per porte USB 3.2 Gen1 supplementari.

Italiano

64

B660M Pro RS

Header audio pannello anteriore (HD_AUDIO1 a 9 pin) (vedere pag. 1, n. 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

Questo header serve a collegare i dispositivi audio al pannello audio anteriore.

1. L'audio ad alta definizione supporta le funzioni Jack sensing, ma il filo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC'97, installarlo sull'header audio del pannello anteriore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non è necessario collegarli per il pannello audio AC'97. E. Per attivare il microfono anteriore, andare alla scheda "FrontMic" nel pannello di controllo Realtek e regolare il "Volume di registrazione".

Connettori ventola chassis / pompa dell'acqua (CHA_FAN1/WP a 4 pin) (vedere pag. 1, n. 28)
(CHA_FAN2/WP a 4 pin) (vedere pag. 1, n. 21) (CHA_FAN3/WP a 4 pin) (vedere pag. 1, n. 22)

1

GND

2

FAN_VOLTAGE

3

CHA_FAN_SPEED

4

FAN_SPEED_CONTROL

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

Questa scheda madre è dotata di tre connettori ventola a 4 pin per il raffreddamento ad acqua del telaio. Se si decide di collegare una ventola telaio con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.

Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

Questa scheda madre è dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.

Italiano

65

Connettore ventola CPU / pompa dell'acqua (CPU_FAN2/WP a 4 pin) (vedere pag. 1, n. 5)
Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 8)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

12

24

1

13

Questa scheda madre è dotata di un connettore per la ventola della CPU con raffreddamento ad acqua a 4 pin. Se si decide di collegare una ventola della CPU con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.
Questa scheda madre è dotata di un connettore di alimentazione ATX a 24 pin. Per utilizzare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1 e il pin 13.

Connettore di alimentazione ATX da 12 V (ATX12V1 a 8 pin) (vedere pag. 1, n. 1)
Connettore SPI TPM (SPI_TPM_J1 a 13 pin) (vedere pag. 1, n. 16)

8

5

Questa scheda madre è dotata di

un connettore di alimentazione

4

1

ATX da 12 V a 8 pin. Per utilizzare

un'alimentazione ATX a 4 pin,

collegarla lungo il pin 1 e il pin 5.

*Attenzione: Assicurarsi che il cavo di alimentazione collegato sia per la CPU e non la scheda grafica. Non inserire il cavo di alimentazione PCIe in questo connettore.

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

Questo connettore supporta il sistema SPI Trusted Platform Module (TPM), che può archiviare in modo sicuro chiavi, certificati digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza della rete, di proteggere identità digitali e di garantire l'integrità della piattaforma.

Italiano

66

B660M Pro RS

ConnettoreThunderbolt AIC (TB1 a 5 pin) (vedere pag. 1, n. 23)
Collettore LED RGB (RGB_LED1 a 4 pin) (vedere pag. 1, n. 26)
Header LED indirizzabili (ADDR_LED1 a 3 pin) (vedere pag. 1, n. 25)
(ADDR_LED2 a 3 pin) (vedere pag. 1, n. 6) (ADDR_LED3 a 3 pin) (vedere pag. 1, n. 7)

1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1

Collegare una scheda aggiuntiva ThunderboltTM (AIC) a questo connettore utilizzando il cavo GPIO. * Installare la scheda ThunderboltTM AIC nell'alloggio (predefinito) PCIE3.
Questa basetta RGB LED è utilizzata per collegare il cavo di prolunga RGB LED che permette agli utenti di scegliere tra vari effetti luminosi LED. Attenzione: Non installare il cavo LED RGB in senso errato; in caso contrario, il cavo potrebbe danneggiarsi. * Fare riferimento a pagina 32 per ulteriori istruzioni su questa basetta.
Questi tre header serve a collegare il cavo di estensione del LED indirizzabile che consente di scegliere tra vari effetti luce LED. Attenzione: Non installare mai il cavo del LED indirizzabile secondo un orientamento errato, altrimento potrebbe danneggiarsi. * Fare riferimento a pagina 33 per ulteriori istruzioni su questa basetta.

Italiano

67

1 Introducción
Gracias por comprar la placa base ASRock B660M Pro RS, una placa base fiable fabricada según el rigurosísimo control de calidad de ASRock. Ofrece un rendimiento excelente con un diseño resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
Ya que las especificaciones de la placa base y el software de la BIOS podrán ser actualizados, el contenido que aparece en esta documentación estará sujeto a modificaciones sin previo aviso. Si esta documentación sufre alguna modificación, la versión actualizada estará disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia técnica relacionada con esta placa base, visite nuestro sitio web para obtener información específica sobre el modelo que esté utilizando. Podrá encontrar las últimas tarjetas VGA, así como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
1.1 Contenido del paquete
· Placa base ASRock B660M Pro RS (Factor de forma ATX) · Guía de instalación rápida de placa base ASRock B660M Pro RS · CD de soporte ASRock B660M Pro RS · 2 x Cables de datos Serie ATA (SATA) (Opcional) · 3 x Tornillos para sockets M.2 (Opcional) · 1 x separador para socket M.2 (Opcional) · 1 x escudo panel E/S
68

Español

B660M Pro RS

1.2 Especificaciones

Plataforma

· Factor de forma Micro ATX · Diseño de condensador sólido

CPU

· Compatible con la 12a generación de procesadores Intel® CoreTM

(LGA1700)

· Digi Power design

· Diseño de 8 fases de alimentación

· Compatible con la Tecnología Híbrido de Intel®

· Admite Intel® Turbo Boost Technology 3.0

Conjunto de chips

· Intel® B660

Memoria

· Tecnología de memoria DDR4 de doble canal · 4 x ranuras DIMM DDR4 · Admite memoria DDR4 no ECC, sin búfer de hasta 4800+(OC)* * Admite DDR4 3200 de forma nativa. * Para obtener más información, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock.com/) · Admite módulos de memoria UDIMM ECC (funcionamiento en
modo no ECC) · Capacidad máxima de memoria del sistema: 128GB · Admite Perfil de memoria extremo de Intel® (XMP) 2.0

Ranura de expansión

· 2 x Ranuras PCIe x16 (PCIE1/PCIE3: simple a Gen4x16 (PCIE1); dual a Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Admite unidad de estado sólido de NVMe como disco de arranque · 1 ranura PCIe Gen3x1 · Compatible con AMD CrossFireTM · 1 x Zócalo M.2 (Clave E), es compatible con los PCIe WiFi módulos
WiFi/BT tipo 2230 e Intel® CNVi (WiFi/BT integrado)

Español

69

Gráficos

· Intel® UHD Graphics Built-in Visuals y las salidas de VGA son compatibles únicamente con procesadores con GPU integrado.
· Arquitectura de gráficos Intel® Xe (Generación 12) · Salida gráfica dual:compatible con puertos HDMI y DisplayPort 1.4
mediante controladores de pantalla independientes · Compatible con HDMI 2.1 TMDS con una resolución máxima de
4K x 2K (4096x2160) a 60Hz · Admite DisplayPort 1.4 con DSC (comprimido), resolución
máxima hasta 8K (7680x4320) a 60Hz o 5K (5120x3200) a 120 Hz · Admite HDCP 2.3 con HDMI 2.1 compatible con TMDS y puertos
DisplayPort 1.4

Audio

· 7.1 Audio CH HD (Códec de audio Realtek ALC897) · Admite protección contra sobretensiones · Audio Nahimic

LAN

· Gigabit LAN 10/100/1000 Mb/s

· Giga PHY Intel® I219V

· Admite la función Reactivación de LAN

· Admite protección contra rayos y descargas electrostáticas (ESD)

· Admite Ethernet 802.3az de eficiencia energética

· Admite UEFI PXE

E/S en panel posterior

· 3 x Puntos de instalación para la antena · 1 x puerto de ratón/teclado PS/2 · 1 x puerto HDMI · 1 x DisplayPort 1.4 · 4 x Puertos USB 3.2 Gen1 (admite protección contra descargas
electrostáticas) · 2 x Puertos USB 2.0 (admite protección contra descargas
electrostáticas) · 1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/ENLACE
y LED DE VELOCIDAD) · Conector de audio HD: Entrada de línea / Altavoz frontal /
Micrófono

Español

70

B660M Pro RS

Almacenamiento

· 4 x Conectores SATA3 de 6,0 Gb/s* * Si M2_2 se ocupa con un dispositivo M.2 de tipo SATA, SATA3_0 se deshabilitará. · 1 x Zócalo Hyper M.2 (M2_1, Clave M), compatible con los modos
de tipo 2242/2260/2280 PCIe Generación 4 x 4 (64 Gb/s)** · 1 x Zócalo Ultra M.2 (M2_2, Clave M), compatible con los modos
de tipo 2280 SATA3 6,0 Gb/s y PCIe Gen3x4 (32 Gb/s)** ** Compatible con la Tecnología OptaneTM de Intel® (sólo para M2_2) ** Admite el Dispositivo de Administración de Volumen (VMD, según sus siglas en ingles) de Intel® ** Admite unidad de estado sólido de NVMe como disco de arranque ** Admite el kit U.2 de ASRock

RAID

· Admite RAID 0, RAID 1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA

Conector

· 1 x Conector SPI TPM · 1 x cabezal de intrusión de chasis y de altavoces · 1 x Cabezal de indicador LED RGB * Admite una tira de LED de hasta 12 V/3 A (36 W) en total · 3 x Cabezales de LED direccionables * Admite una tira de LED de hasta 5 V/3 A (15 W) en total · 1 x Conector para ventilador de la CPU (4 contactos) * El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) máxima. · 1 x Conector (4 contactos) para el ventilador de la bomba de agua/
CPU (control de velocidad de ventilador inteligente) * El ventilador de la CPU/bomba de agua admite ventilador del disipador por agua con una potencia de ventilador máxima de 2 A (24 W). · 3 x Conectores (4 contactos) para el ventilador de la bomba de
agua/chasis (control de velocidad de ventilador inteligente) * El ventilador de la bomba de agua/Chasis admite ventilador del disipador por agua con una potencia de ventilador máxima de 2 A (24 W). * CPU_FAN2/WP y CHA_FAN1~3/WP se pueden detectar automáticamente si se usa el ventilador de 3 o 4 contactos. · 1 x conector de alimentación ATX de 24 contactos · 1 Conector de alimentación de 8 contactos y 12 V (conector de
alimentación de alta densidad) · 1 x Conector de audio en el panel frontal · 1 x Conector Thunderbolt AIC (5 contactos) (solamente se admite

tarjeta ASRock Thunderbolt 4 AIC)

71

Español

· 2 x Bases de conexiones USB 2.0 (Admite 4 puertos USB 2.0) (Admite protección contra descargas electrostáticas)
· 1 x base de conexiones USB 3.2 Gen1 (Admite 2 puertos USB 3.2 Gen1) (Admite protección contra descargas electrostáticas)
· 1 x Base de conexiones USB 3.2 Gen1 Tipo C en el panel frontal (admite protección ESD)

Función de la BIOS

· BIOS legal UEFI AMI compatible con interfaz gráfica de usuario multilingüe
· Eventos de reactivación compatibles con ACPI 6.0 · Admite SMBIOS 2.7 · Varios ajustes de voltaje de núcleo y caché de CPU, GT de CPU,
DRAM, VDD_IMC, VCCIN AUX, +1,05V PROC, +0,82V PCH , +1,05V PCH

Monitor de hardware

· Tacómetro del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
· Ventilador silencioso (ajuste automático de la velocidad del ventilador del chasis por temperatura de la CPU): Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
· Control de varias velocidades del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
· Detección de CARCASA ABIERTA · Supervisión del voltaje: CPU Vcore, +1,05V PCH, DRAM, VCCIN
AUX, +1,05V PROC, VCCSA, +0,82V PCH, +12V, +5V, +3,3V

SO

· Microsoft® Windows® 10 64 bits/11 64 bits

Certificaciones

· FCC y CE · Preparado para ErP/EuP (se necesita una fuente de alimentación
preparada para ErP/EuP)

Español

* Para obtener información detallada del producto, visite nuestro sitio Web: http://www.asrock.com
Tenga en cuenta que hay un cierto riesgo implícito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnología de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes. El overclocking puede afectar a la estabilidad del sistema e, incluso, dañar los componentes y dispositivos del sistema. Esta operación se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles daños causados por el overclocking.

72

B660M Pro RS
1.3 Instalación de los puentes
La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda "Corto". Si no coloca la tapa de puente en los contactos, el puente queda "Abierto".

Puente de borrado de CMOS (CLRMOS1) (consulte la pág. 1, nº 24)

Puente de 2 contactos

CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los parámetros del sistema a los valores predeterminados de instalación, apague el ordenador y desenchufe el cable de alimentación de la toma de alimentación. Después de esperar 15 segundos, utilice una tapa de puente para acortar los contactos en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS justo después de que haya actualizado la BIOS. Si necesita borrar el CMOS cuando acabe de actualizar la BIOS, deberá arrancar el sistema primero y, a continuación, deberá apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contraseña, la fecha, la hora y el perfil de usuario predeterminado serán eliminados únicamente si se retira la pila del CMOS. Acuérdese de retirar la tapa de puente después de borrar el CMOS.

Si borra el CMOS, podrá detectarse la cubierta abierta. Ajuste la opción del BIOS "Clear Status" (Borrar estado) para borrar el registro del estado de intrusión anterior del chasis.

Español

73

1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores dañará de forma permanente la placa base.

Cabezal del panel del sistema (PANEL1 de 9 contactos) (consulte la pág. 1, nº 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Conecte el interruptor de alimentación, restablezca el interruptor y el indicador del estado del sistema del chasis a los valores de este cabezal, según los valores asignados a los contactos como se indica a continuación. Cerciórese de cuáles son los contactos positivos y los negativos antes de conectar los cables.

PWRBTN (Interruptor de alimentación): Conéctelo al interruptor de alimentación del panel frontal del chasis. Deberá configurar la forma en la que su sistema se apagará mediante el interruptor de alimentación.
RESET (Interruptor de reseteo): Conéctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo para resetear el ordenador si éste está bloqueado y no se puede reiniciar de forma normal.
PLED (Indicador LED de la alimentación del sistema): Conéctelo al indicador de estado de la alimentación del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema está funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensión S1/S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensión S4 o está apagado (S5).
HDLED (Indicador LED de actividad en el disco duro): Conéctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indicador LED permanece encendido cuando el disco duro está leyendo o escribiendo datos.
El diseño del panel frontal puede ser diferente dependiendo del chasis. Un módulo de panel frontal consta principalmente de: interruptor de alimentación, interruptor de reseteo, indicador LED de alimentación, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su módulo del panel frontal del chasis a este cabezal, asegúrese de que las asignaciones de los cables y los contactos coinciden correctamente.

Español

Cabezal de intrusión de chasis y de altavoces (SPK_CI1 de 7 contactos) (consulte la pág. 1, nº 20)
74

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Conecte la intrusión de chasis y el altavoz del chasis a este cabezal.

B660M Pro RS

SATA3_2 SATA3_3

Conectores Serie ATA3 Vertical: (SATA3_0: consulte la pág.1, nº 14) (SATA3_1: consulte la pág.1, nº 15) Ángulo recto: (SATA3_2: consulte la pág. 1, nº 12) (Superior) (SATA3_3: consulte la pág. 1, nº 11) (Inferior)
Cabezales USB 2.0 (USB_3_4 de 9 contactos) (consulte la pág. 1, nº 19) (USB_5_6 de 9 contactos) (consulte la pág. 1, nº 18)

SATA3_1 SATA3_0

Estos cuatro conectores SATA3 son compatibles con cables de datos SATA para dispositivos de almacenamiento interno con una velocidad de transferencia de datos de hasta 6,0 Gb/s. * Si M2_2 se ocupa con un dispositivo M.2 de tipo SATA, SATA3_0 se deshabilitará.

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

Hay dos bases de conexiones USB 2.0 en esta placa base. Cada cabezal USB 2.0 admite dos puertos.

Cabezal USB 3.2 Gen1 (USB3_5_6 de 19 contactos) (consulte la pág. 1, nº 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

Esta placa base tiene otra base de conexiones USB 3.2 Gen1. Esta base de conexiones USB 3.2 Gen1 admite dos puertos.

Base de conexiones USB 3.2 Gen1 de tipo C en el panel frontal (F_USB3_TC_1 de 20 contactos) (consulte la pág. 1, nº 10)

USB Type-C Cable

Existe una base de conexiones USB 3.2 Gen1 de tipo C en el panel frontal en esta placa base. Esta base de conexiones se utiliza para conectar un módulo USB 3.2 Gen1 para puertos USB 3.2 Gen1 adicionales.

Español

75

Cabezal de audio del panel frontal (HD_AUDIO1 de 9 contactos) (consulte la pág. 1, nº 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.

1. El Audio de Alta Definición (HDA, en inglés) es compatible con el método de sensor de conectores, sin embargo, el cable del panel del chasis deberá ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC'97, colóquelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuación: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexión a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan únicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC'97. E. Para activar el micrófono frontal, vaya a la ficha "micrófono frontal" (Front Mic) en el panel de control de Realtek y ajuste el "Volumen de grabación" (Recording Volume).

Conectores del ventilador de 1

2

la bomba de agua/chasis

3

(CHA_FAN1/WP de

4

4 contactos)

(consulte la pág. 1, nº 28)

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL

(CHA_FAN2/WP de 4 contactos) (consulte la pág. 1, nº 21) (CHA_FAN3/WP de 4 contactos) (consulte la pág. 1, nº 22)

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

Esta placa base proporciona tres conectores para el ventilador del chasis para refrigeración por agua de 4 contactos. Si tiene pensando conectar un ventilador de refrigeración por agua del chasis de 3 contactos, conéctelo al contacto 1-3.

Conector del ventilador de la CPU (CPU_FAN1 de 4 contactos) (consulte la pág. 1, nº 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

Esta placa base contiene un conector de ventilador (ventilador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, conéctelo al contacto 1-3.

Español

76

B660M Pro RS

Conector del ventilador de la bomba de agua/CPU (CPU_FAN2/WP de 4 contactos) (consulte la pág. 1, nº 5)
Conector de alimentación ATX (ATXPWR1 de 24 contactos) (consulte la pág. 1, nº 8)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

12

24

1

13

Esta placa base proporciona un conector de ventilador de CPU de refrigeración por agua de 4 contactos. Si tiene pensando conectar un ventilador de disipador por agua de CPU de 3 contactos, conéctelo al contacto 1-3.
Esta placa base contiene un conector de alimentación ATX de 24 contactos. Para utilizar una toma de alimentación ATX de 20 contactos, conéctela en los contactos del 1 al 13.

Conector de alimentación

8

ATX de 12 V

(ATX12V1 de 8 contactos)

4

(consulte la pág. 1, nº 1)

5

Esta placa base contiene un

conector de alimentación ATX de

1

12 V y 8 contactos. Para utilizar

una toma de alimentación ATX

de 4 contactos, conéctela en los

contactos del 1 al 5.

*Advertencia: Asegúrese de que el cable de alimentación conectado corresponda a este CPU y no a la tarjeta gráfica. No conecte el cable de alimentación PCIe a este conector.

Conector SPI TPM (SPI_TPM_J1 de 13 contactos) (consulte la pág. 1, nº 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

Este conector es compatible con el sistema SPI Módulo de Plataforma Segura (TPM, en inglés), que puede almacenar de forma segura claves, certificados digitales, contraseñas y datos. Un sistema TPM también ayuda a aumentar la seguridad en la red, protege las identidades digitales y garantiza la integridad de la plataforma.

77

Español

Conector Thunderbolt AIC (TB1 de 5 contactos) (consulte la pág. 1, nº 23)

Cabezal de LED RGB (RGB_LED1 de 4 contactos) (consulte la pág. 1, nº 26)

1 +12V G R B

Cabezales de LED direccionables (ADDR_LED1 de 3 contactos) (consulte la pág. 1, nº 25)

1
GND DO_ADDR VOUT

(ADDR_LED2 de 3 contactos) (consulte la pág. 1, nº 6) (ADDR_LED3 de 3 contactos) (consulte la pág. 1, nº 7)

GND
DO_ADDR VOUT 1

Enchufe una tarjeta complementaria (AIC) ThunderboltTM a este conector mediante el cable GPIO. *Instale la tarjeta ThunderboltTM AIC a PCIE3 (ranura predeterminada).
Este cabezal LED RGB se utiliza para conectar el alargador de LED RGB que permite a los usuarios elegir entre varios efectos de iluminación de LED. Precaución: Nunca instale el cable de LED RGB con la orientación incorrecta ya que, de lo contrario, el cable puede dañarse. *Consulte la página 32 para obtener más instrucciones sobre esta base de conexiones.
Estas tres bases de conexiones se usa para conectar el alargador de LED direccionable que permite a los usuarios elegir entre varios efectos de iluminación LED. Precaución: Nunca instale el cable de LED direccionable con la orientación incorrecta ya que, de lo contrario, el cable puede dañarse. *Consulte la página 33 para obtener más instrucciones sobre esta base de conexiones.

Español

78

B660M Pro RS
1
       ASRock B660M Pro RS,       ASRock.                ASRock     .
         BIOS         .            - ASRock   .    ,    ,  -           .  - ASRock        VGA-  . - ASRock http://www.asrock.com.
1.1
·   ASRock B660M Pro RS (- ATX) ·     ASRock B660M Pro RS ·     ASRock B660M Pro RS · 2    Serial ATA (SATA) ( ) · 3    M.2 ( ) · 1    M.2 ( ) · 1     -
79



1.2



· - Micro ATX ·



·   12-  Intel® CoreTM

(LGA 1700)

· Digi Power design

·   8

·   Intel® Hybrid

·   Intel® Turbo Boost Max 3.0



· Intel® B660



·   DDR4 · 4 x  DDR4 DIMM ·    DDR4 -ECC
4800+(OC)* *  DDR4 3200  . *        (Memory Support List )  - ASRock. (http://www.asrock.com/) ·    ECC UDIMM (  ,
  ) ·   : 128  ·  Intel® Extreme Memory Profile (XMP) 2.0



· 2 x PCIe x16  (PCIE1/PCIE3:  Gen4x16
(PCIE1);   Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
*     SSD-  NVMe · 1 x PCIe Gen3x1  ·  AMD CrossFireTM ·  M.2 ( E)    2230 Wi-Fi/BT PCIe Wi-Fi
 Intel® CNVi ( Wi-Fi/BT)  1 .



80

B660M Pro RS



·   Intel® UHD Graphics   VGA         .
·   Intel® Xe (12 ) ·   :  HDMI
DisplayPort 1.4    ·  HDMI 2.1 TMDS
  4K × 2K (4096x2160)  60  ·  DisplayPort 1.4  DSC (  ),  .
  8 (7680x4320), 60 / 5K (5120x3200), 120  ·  HDCP 2.3  ,   HDMI 2.1
TMDS,  DisplayPort 1.4



· 7.1-    ( Realtek
ALC897) ·        ·  Nahimic

LAN

· Gigabit Ethernet 10/100/1000 / · Giga PHY Intel® I219V ·     ·       ·  Energy Efficient Ethernet 802.3az ·  UEFI PXE



·   , 3 . · 1 x  PS/2  / · 1 x  HDMI · 1  DisplayPort 1.4 · 4 x  USB 3.2 Gen1 (
) · 2 x  USB 2.0 (    ) · 1 x   RJ-45   (/
 ) ·  HD Audio:   /   /




81



·  SATA3 6,0 /* x 4 . *   M2_2   .2  SATA,  SATA3_0  . ·  Hyper M.2 (M2_1,  M)
2242/2260/2280 PCIe Gen4x4 (64 /)  1 .** ·  Ultra M.2 (M2_2,  M),   2280
SATA3 6,0 /  PCIe Gen3x4 (32 /)** x 1 .** **   Intel® OptaneTM (  M2_2) **   Intel® Volume Management Device (VMD) **     SSD-  NVMe **   ASRock U.2

RAID

·  RAID 0, RAID 1, RAID 5  RAID 10    SATA





· 1 x  SPI  · 1         · 1   RGB-

*    ( 12 /3 ,

   36 ). · 3 x

*    ( 5 /3 ,

   15 ) · 1 x      (4-)

*

    1  (12 ). · 1 x

  (4-) (-

)

*



2  (24 ). · 3 x

(4-) (-  )

*

       2

(24 ).

*   CPU_FAN2/WP  CHA_FAN1~3/WP

    :

3-  4-. · 1   , 24- · 1   12  (8-

) · 1     · 1 AIC- Thunderbolt (5-) (

 ASRock Thunderbolt 4 AIC)

82

B660M Pro RS

· 2  USB 2.0 (4  USB 2.0) (
 ) · 1  USB 3.2 Gen1 (2  USB 3.2 Gen1) (
 ) · 1   USB 3.2 Gen1
(    )

 BIOS

· AMI UEFI Legal BIOS
  ·      ACPI 6.0 ·  SMBIOS 2.7 ·   / , CPU GT, DRAM,
VDD_IMC, VCCIN AUX, +1,05  PROC, +0,82  PCH, +1,05
PCH



· :  ;      ;
 ·   (
     ):  ;
     ;
     ·   :  ;
    ;
   ·    ·  : CPU Vcore, +1,05  PCH, DRAM,
VCCIN AUX, +1,05  PROC, VCCSA, +0,82  PCH, +12 ,
+5 , +3,3

- · Microsoft® Windows® 10 (64-) / 11 (64-)



· FCC, CE ·   ErP/EuP (  ,
  ErP/EuP)

*         -: http://www.asrock.com

 ,   ,    BIOS,   Untied Overclocking      ,    .               .           .       ,   .
83



1.3
    .   -    «».  -    ,  «».

   CMOS (CLRMOS1) (. . 1,  24)

2-

CLRMOS1     CMOS.          ,          .  15        CLRMOS1  5 .    CMOS    BIOS.     CMOS    BIOS   ,        CMOS. ,  , ,           ,    CMOS.    CMOS     .

  CMOS      .       ,   Clear Status ( ) BIOS.



84

B660M Pro RS

1.4   ,
         .        -.  -           .

   (9-, PANEL1) (. . 1,  13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

     ,              ,  .        .

PWRBTN ( ):   ,     .         .
RESET ( ):    ,     .   ,   ,       .
PLED (   ):   ,     .   ,   .       S1/S3,  .       S4   (S5),   .
HDLED (    ):      ,    .   ,        .
       .         ,  ,   ,     ,   . .            .

        (7-, SPK_CI1) (. . 1,  20)

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

        .

85



 Serial ATA3 : (SATA3_0: . . 1,  14) (SATA3_1: . . 1,  15)  : (SATA3_2: . .1,  12) () (SATA3_3: . .1,  11) ()

SATA3_2 SATA3_3

SATA3_1 SATA3_0

   SATA3     SATA          6,0 /. *   M2_2   .2  SATA,  SATA3_0  .

 USB 2.0 (9-, USB_3_4) (. . 1,  19) (9-, USB_5_6) (. . 1,  18)

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

      USB 2.0.   USB 2.0   .

 USB 3.2 Gen1 (19-, USB3_5_6) (. . 1,  9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

      USB 3.2 Gen1.   USB 3.2 Gen1   .

   USB 3.2 Gen1 Type C    (20 , F_USB3_TC_1) (. . 1,  10)

USB Type-C Cable

        USB 3.2 Gen1 Type C   .       USB 3.2 Gen1    USB 3.2 Gen1.



86

B660M Pro RS

   (9-, HD_AUDIO1) (. . 1,  27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

        .

1.       ,      ,        HDA.     .       .
2.    AC'97      ,   : A.  Mic_IN (MIC)  MIC2_L. B.  Audio_R (RIN)  OUT2_R, Audio_L (LIN)  OUT2_L. C.    (GND)    (GND). D.  MIC_RET  OUT_RET      .    AC'97    . E.    ,    FrontMic   Realtek    Recording Volume ( ).



1

2
   3



4



(4- CHA_

FAN1/WP)

(. . 1,  28)

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL

     4-      . 3-         1-3.

(4- CHA_ FAN2/WP) (. . 1,  21) (4- CHA_ FAN3/WP) (. . 1,  22)

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

    (4-, CPU_FAN1) (. . 1,  4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

    4-     .     3-   ,     1-3.
87



        (4- CPU_ FAN2/WP) (. . 1,  5)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

    4-      . 3-         1-3.

   (24-, ATXPWR1) (. . 1,  8)

12

24

1

13

    24-   .   20-   ATX,     1   13.

   12  8
(8-, ATX12V1)
(. . 1,  1)
4


5
 8-



1

12 .

4-

ATX,

 1   5.

*! ,       ,    .     PCIe   .



 SPI  (13-, SPI_ TPM_J1) (. . 1,  16)
88

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

     SPI Trusted Platform Module (TPM),      ,  ,   .       ,       .

B660M Pro RS

 Thunderbolt AIC (5-, TB1) (. . 1,  23)

  RGB- (4-, RGB_ LED1) (. . 1,  26)

1 +12V G R B

    (3-, ADDR_LED1) (. . 1,  25)

1
GND DO_ADDR VOUT

(3-, ADDR_LED2) (. . 1,  6) (3-, ADDR_LED3) (. . 1,  7)

GND
DO_ADDR VOUT 1

   (AIC-) ThunderboltTM       GPIO-. *   ThunderboltTM   PCIE3 (  ).
  RGB-       RGB-,      . !      RGB   ,        . *       .  . 32.
          ,      . !          ,        . *       .  . 33.
89



Português

1 Introdução
Obrigado por comprar a placa mãe ASRock B660M Pro RS, uma placa mãe confiável fabricada sob um rígido e consistente controle de qualidade da ASRock. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
Como as especificações da placa-mãe e do software do BIOS podem ser atualizadas, o conteúdo desta documentação estará sujeito a alterações sem aviso prévio. Caso ocorram modificações a esta documentação, a versão atualizada estará disponível no site da ASRock sem aviso prévio. Se precisar de assistência técnica relacionada a esta placa principal, visite o nosso site para obter informações específicas sobre o modelo que estiver utilizando. Você também poderá encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da ASRock http://www.asrock.com.
1.1 Conteúdo da embalagem
· Placa Mãe ASRock B660M Pro RS (Fator de Forma ATX) · Guia de Instalação Rápida da ASRock B660M Pro RS · CD de Suporte da ASRock B660M Pro RS · 2 x Cabos de dados Serial ATA (SATA) (Opcional) · 3 x Parafusos para Soquetes M.2 (Opcional) · 1 x Porca autônoma sextavada para Soquete M.2 (Opcional) · 1 x Painel de E/S
90

B660M Pro RS

1.2 Especificações

Plataforma

· Micro ATX Form Factor · Design de condensador sólido

CPU

· Suportas Processadores 12th Gen Intel® CoreTM (LGA1700)

· Digi Power design

· Design com 8 fases de alimentação

· Suporta Tecnologia Híbrida Intel®

· Suporta Tecnologia Intel® Turbo Boost Max 3.0

Chipset

· Intel® B660

Memória

· Tecnologia de memória DDR4 de dois canais · 4 x Slots DIMM DDR4 · Suporta DDR4 não-ECC, memória sem buffer até 4800+(OC)* * Suporta DDR4 3200 nativamente. * Por favor, consulte a Lista de Suporte de Memória no site da ASRock para obter mais informação. (http://www.asrock.com/) · Suporta módulos de memória ECC UDIMM (opera em modo não-
ECC) · Capacidade máxima da memória do sistema: 128GB · Suporta Extreme Memory Profile (XMP) 2.0 da Intel®

Slot de expansão

· 2 x Slots PCIe x16 (PCIE1/PCIE3: único a Gen4x16 (PCIE1); duplo a Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Suporta NVMe SSD nos discos de inicialização · 1 x Slot PCIe Gen3x1 · Suporta AMD CrossFireTM · 1 Soquete M.2 (Chave E), suporta módulo 2230 WiFi/BT PCIe
WiFi e Intel® CNVi (WiFi/BT Integrado)

Português

91

Gráficos

· Os gráficos incorporados Intel® UHD e as saídas VGA só podem ser suportados com processadores com GPU integrada.
· Arquitetura Gráfica Intel® Xe (Gen 12) · Saída gráfica dupla: Suporta portas HDMI e DisplayPort 1.4 por
controladores de vídeo independentes · Suporta HDMI 2.1 TMDS Compatível com resolução máx. até
4K x 2K (4096x2160) @ 60Hz · Obsluga DisplayPort 1.4 z DSC (skompresowany) maks.
rozdzielczo do 8K (7680x4320) przy 60Hz / 5K (5120x3200) przy 120Hz · Obsluga HDCP 2.3 przy zgodnoci z HDMI 2.1 TMDS i porty DisplayPort 1.4

Áudio

· Áudio 7.1 CH HD com proteção de conteúdo (Codec de áudio Realtek ALC897)
· Suporta Proteção de Sobretensão · Áudio Nahimic

LAN

· LAN Gigabit a 10/100/1000 Mb/s · Giga PHY Intel® I219V · Suporta Wake-On-LAN · Oferece Suporte à Proteção de Relâmpago/ESD · Suporta Energy Efficient Ethernet 802.3az · Suporta UEFI PXE

E/S do painel posterior

· 3 x Pontos de Montagem da Antena · 1 x Porta PS/2 para mouse/teclado · 1 x Porta HDMI · 1 x DisplayPort 1.4 · 4 x Portas USB 3.2 Gen1 (Suporta Proteção ESD) · 2 x Portas USB 2.0 (Suporta Proteção ESD) · 1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE
VELOCIDADE) · Fichas de áudio HD: Entrada de Linha / Autofalante Frontal /
Microfone

Português

92

B660M Pro RS

Português

Armazenamento

· 4 x Conectores SATA3 6,0 Gb/s* * Se M2_2 é ocupado por um dispositivo tipo M2 SATA, SATA3_0 será desativado. · 1 x Hiper Soquete M.2 (M2_1, Chave M), suporta modo Gen4x4
tipo 2242/2260/2280 PCIe (64 Gb/s)** · 1 x Soquete Ultra M.2 (M2_2, Chave M), suporta modos tipo 2280
SATA3 6,0 Gb/s & PCIe Gen3x4 (32 Gb/s)** ** Suporta a Tecnologia Intel® OptaneTM (para M2_2 apenas) ** Suporta o Dispositivo de Gerenciamento de Volume Intel® (VMD) ** Suporta NVMe SSD como discos de inicialização ** Suporta Kit ASRock U.2

RAID

· Suporta RAID 0, RAID 1, RAID 5 e RAID 10 para dispositivos de armazenagem SATA

Conector

· 1 x Suporte SPI TPM · 1 x Intrusão do Chassi e Cabeçote de Autofalante · 1 x Cabeçote de LED RGB * Suporta no total até 12V/3A, Tira de LED de 36W · 3 x Cabeçotes LED Endereçáveis * Suporte no total de até 5V/3A, Faixa LED de 15W · 1 x Conector da ventoinha da CPU (4 pinos) * O Conector do Ventilador de CPU suporta o ventilador de CPU de alimentação máxima 1A do ventilador (12W). · 1 x Conector de Ventilador de CPU/Ventilador da Bomba de Água
(4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de CPU/Ventilador da Bomba de Água suporta o ventilador de refrigerador a água de 2A máximo (24W) potência do ventilador. · 3 x Conectores de Ventilador de Chassi/Ventilador da Bomba de
Água (4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de Chassi/Ventilador da Bomba de Água suporta o ventilador de refrigerador a água de 2A máximo (24W) potência do ventilador. * CPU_FAN2/WP, CHA_FAN1~3/WP pode detectar automaticamente se o ventilador de 3 pinos ou 4 pinos está em uso. · 1 x Conector alimentação ATX 24-pinos · 1 x Conector de energia 8-pinos 12V (Conector de energia de alta
densidade) · 1 x Conector de áudio do painel frontal · 1 x Conector Thunderbolt AIC (5-pin) (Suporta Placa ASRock
Thunderbolt 4 AIC) 93

· 2 x Plataformas USB 2.0 (Suporta 4 portas USB 2.0) (Suporta Proteção ESD)
· 1 x Plataforma USB 3.2 Gen1 (Suporta 2 portas USB 3.2 Gen1) (Suporta Proteção ESD)
· 1 x Painel Frontal USB 3.2 Gen1 Tipo C (Suporta Proteção ESD)

Funções da BIOS

· AMI Legal UEFI BIOS com suporte multilingue GUI · ACPI 6.0 compatível com eventos de despertar · Suporte SMBIOS 2.7 · CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1,05V PROC, +0,82V PCH, +1,05V PCH de Tensão de Multiajuste

Monitor de hardware

· Tacômetro da ventoinha: CPU, CPU/Bomba de água, Chassis/ Ventoinhas da bomba de água
· Ventoinha Silenciosa (Auto ajusta velocidade da ventoinha do chassi pela temperatura da CPU): CPU, CPU/Bomba de água, Chassis/Ventoinhas da bomba de água
· Controle multi-velocidade da ventoinha: CPU, CPU/Bomba de água, Chassis/Ventoinhas da bomba de água
· Detecção de ABERTURA da CAIXA · Monitoramento da tensão: CPU Vcore, +1,05V PCH, DRAM,
VCCIN AUX, +1,05V PROC, VCCSA, +0,82V PCH, +12V, +5V, +3,3V

SO

· Microsoft® Windows® 10 64-bit / 11 64-bit

Certificações

· FCC, CE · Preparada para ErP/EuP (é necessária uma fonte de alimentação
preparada para ErP/EuP)

Português

* Para obter informações detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com
Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das definições na BIOS, a aplicação de tecnologia Untied Overclocking ou a utilização de ferramentas de overclocking de terceiros. O overclocking poderá afetar a estabilidade do sistema ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por sua conta e risco. Não nos responsabilizamos por possíveis danos causados pelo overclocking.
94

B660M Pro RS
1.3 Configuração dos jumpers
A imagem abaixo mostra como os jumpers são configurados. Quando a tampa do jumper é colocada nos pinos, o jumper é "Curto". Se não for colocada uma tampa de jumper nos pinos, o jumper é "Aberto".

Apagar o Jumper CMOS (CLRMOS1) (ver p.1, N.º 24)

Jumper de 2 pinos

CLRMOS1 permite que você limpe os dados do CMOS. Para apagar e reinicializar os parâmetros do sistema nos valores predefinidos, desligue o computador e desplugue a tomada da alimentação. Depois de aguardar 15 segundos, use uma capa de jumper para fazer curto dos pinos no CLRMOS1 por 5 segundos. No entanto, não apague o CMOS logo após ter realizado a atualização da BIOS. Se você precisar apagar o CMOS logo após ter terminado uma atualização da BIOS, deverá primeiro iniciar o sistema e voltar a encerrá-lo antes de apagar o CMOS. Por favor, observe que a senha, data, hora e perfil padrão do usuário serão apagados só se a bateria CMOS for removida. Por favor, não se esqueça de retirar a tampa do jumper depois de apagar o CMOS.

Se você apagar o CMOS, poderá ser detectada a abertura da caixa. Ajuste a opção do BIOS "Limpar estado" para limpar o registo anterior de estado de intrusão no chassis.

Português

95

1.4 Suportes e conectores onboard
Os conectores e suportes onboard NÃO são jumpers. NÃO coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conectores irá causar danos permanentes à placa-mãe.

Suporte do painel de sistema (PAINEL1 de 9 pinos) (ver p.1, N.º 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Ligue o botão de alimentação, o botão de reinicialização e o indicador do estado do sistema no chassi deste suporte, de acordo com a descrição abaixo. Observe os pinos positivos e negativos antes de conectar os cabos.

PWRBTN (Botão de alimentação): Conecte o botão de alimentação no painel frontal do chassi. Você pode configurar a forma para desligar o seu sistema através do botão de alimentação.
RESET (Botão de reinicialização): Conecte o botão de reinicialização no painel frontal do chassi. Pressione o botão de reinicialização para reiniciar o computador, se ele congela e falha ao realizar um reinício normal.
PLED (LED de alimentação do sistema): Conecte o indicador do estado da alimentação no painel frontal do chassi. O LED ficará aceso quando o sistema estiver em funcionamento. O LED ficará piscando quando o sistema estiver nos estados de suspensão S1/S3. O LED ficará desligado quando o sistema estiver no estado de suspensão S4 ou desligado (S5).
HDLED (LED de atividade do disco rígido): Conecte o LED de atividade do disco rígido no painel frontal do chassi. O LED ficará aceso quando o disco rígido estiver lendo ou registrando dados.
O design do painel frontal poderá variar dependendo do chassi. Um módulo de painel frontal consiste principalmente em um botão de alimentação, um botão de reinicialização, um LED de alimentação, um LED de atividade do disco rígido, um alto-falante, etc. Ao conectar seu módulo de painel frontal do chassi a este conector, certifique-se de que os fios e os pinos correspondem de forma correta.

Português

Intrusão do Chassi e Cabeçote de Autofalante (SPK_CI1 de 7 pinos) (ver p.1, N.º 20)
96

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Conecte a instrusão do chassi e autofalante do chassi a este cabeçote.

B660M Pro RS

Conectores série ATA3 Vertical: (SATA3_0: ver p.1, N.º 14) (SATA3_1: ver p.1, N.º 15) Ângulo reto: (SATA3_2: ver p.1, N.º 12) (superior) (SATA3_3: ver p.1, N.º 11) (inferior)
Plataformas USB 2.0 (USB_3_4 de 9 pinos) (ver p.1, N.º 19) (USB_5_6 de 9 pinos) (ver p.1, N.º 18)

SATA3_2 SATA3_3

SATA3_1 SATA3_0

Estes quatro conectores SATA3 suportam cabos de dados SATA para dispositivos de armazenamento interno com uma taxa de transferência de dados de até 6,0 Gb/s. * Se M2_2 é ocupado por um dispositivo tipo M2 SATA, SATA3_0 será desativado.

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

Há dois cabeçotes USB 2.0 nesta placa-mãe. Cada suporte USB 2.0 pode suportar duas portas.

Plataforma USB 3.2 Gen1 (USB3_5_6 de 19 pinos) (ver p.1, N.º 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

Há um cabeçote USB 3.2 Gen1 nesta placa-mãe. Este suporte USB 3.2 Gen1 pode suportar duas portas.

Painel Frontal Cabeçote USB 3.2 Gen1 Tipo C (F_USB3_TC_1 de 20 pinos) (ver p.1, N.º 10)

USB Type-C Cable

Há um Painel Frontal Cabeçote USB 3.2 Gen1 Tipo C nesta placa mãe. Este cabeçote é utilizado para conectar um módulo USB 3.2 Gen1 a portas adicionais USB 3.2 Gen1.

Português

97

Suporte de áudio do painel frontal (HD_AUDIO1 de 9 pinos) (ver p.1, N.º 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

Este suporte destina-se à conexão dos dispositivos de áudio no painel de áudio frontal.

1. O Áudio de alta definição suporta Sensor de Adaptador, mas o fio do painel no chassi deverá suportar HDA para funcionar corretamente. Por favor, siga as instruções no nosso manual e no manual do chassi para instalar o seu sistema.
2. Se utilizar um painel de áudio AC'97, instale-o no terminal de áudio do painel frontal de acordo com os passos abaixo: A. Ligue Mic_IN (MIC) a MIC2_L. B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Conecte a ligação Terra (GND) à Terra (GND). D. MIC_RET e OUT_RET destinam-se apenas ao painel de áudio HD. Você não precisa ligá-los ao painel de áudio AC'97. E. Para ativar o microfone frontal, vá à guia "FrontMic" (Microfone Frontal) no painel de controle Realtek e ajuste o "Recording Volume" (Volume de gravação).

Chassis / Conectores da ventoinha de bomba de água (CHA_FAN1/WP de 4 pinos) (ver p.1, N.º 28)
(CHA_FAN2/WP de 4 pinos) (ver p.1, N.º 21) (CHA_FAN3/WP de 4 pinos) (ver p.1, N.º 22)

1

GND

2

FAN_VOLTAGE

3

CHA_FAN_SPEED

4

FAN_SPEED_CONTROL

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO

Esta placa mãe fornece três conectores do chassi de refrigeração a água de 4 pinos. Se você pretende conectar um ventilador de refrigeração a água de chassis de 3 pinos, por favor, conecte-o ao Pino 1-3.

1 2 34

Conector da Ventoinha da CPU (CPU_FAN1 de 4 pinos) (ver p.1, N.º 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

Esta placa mãe inclui um conector de ventilador da CPU (Ventilador silencioso) de 4 pinos. Se você pretende conectar um ventilador da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.

Português

98

B660M Pro RS

Conector da ventoinha de bomba de água/CPU (CPU_FAN2/WP de 4 pinos) (ver p.1, N.º 5)
Conector de alimentação ATX (ATXPWR1 de 24 pinos) (ver p.1, N.º 8)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

12

24

1

13

Esta placa mãe inclui um conector de ventilador da CPU de refrigeração a água de 4 pinos. Se você pretende conectar um ventilador de refrigeração a água da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
Esta placa-mãe inclui um conector de alimentação ATX de 24 pinos. Para utilizar uma fonte de alimentação ATX de 20 pinos, introduza-a no Pino 1 e Pino 13.

Conector de alimentação

8

5

Esta placa-mãe inclui um conector

de 12V ATX

de alimentação de 12V ATX de

(ATX12V1 de 8 pinos)

4

1

8 pinos. Para utilizar uma fonte

(ver p.1, N.º 1)

de alimentação ATX de 4 pinos,

introduza-a no Pino 1 e Pino 5.

*Aviso: Certifique-se que o cabo de força conectado é para o CPU e não para a placa gráfica. Não ligue o cabo de força PCIe a este conector.

Plataforma SPI TPM (SPI_TPM_J1 de 13 pinos) (ver p.1, N.º 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

Este conector suporta um sistema com SPI Módulo de Plataforma Confiável (TPM), que pode armazenar com segurança chaves, certificados digitais, senhas e dados. Um sistema TPM também ajuda a melhorar a segurança de rede, a proteger identidades digitais e a garantir a integridade da plataforma.

Português

99

Conector Thunderbolt AIC (TB1 de 5 pinos) (ver p.1, N.º 23)

Cabeçote de LED RGB (RGB_LED1 de 4 pinos) (ver p.1, N.º 26)

1 +12V G R B

Cabeçotes LED Endereçáveis (ADDR_LED1 de 3 pinos) (ver p.1, N.º 25)

1
GND DO_ADDR VOUT

(ADDR_LED2 de 3 pinos) (ver p.1, N.º 6) (ADDR_LED3 de 3 pinos) (ver p.1, N.º 7)

GND
DO_ADDR VOUT 1

Por favor, conecte uma placa adicional ThunderboltTM (AIC) a este conector através do cabo GPIO. *Instale a placa AIC ThunderboltTM no PCIE3 (slot padrão).
Este Cabeçote RGB LED é usado para conectar o cabo de extensão de LED RGB que permite aos usuários escolher entre vários efeitos de iluminação LED. Atenção: Nunca instale o cabo RGB LED na orientação errada; caso contrário, o cabo pode ser danificado. * Consulte a página 32 para obter mais informações sobre esta plataforma.
Esses três cabeçotes são usados para conectar o cabo de extensão de LED Endereçáveis que permite que os usuários escolham entre vários efeitos de iluminação de LED. Atenção: Nunca instale o cabo de LED Ajustável na orientação errada, caso contrário o cabo pode ser danificado. *Consulte a página 33 para obter mais informações sobre esta plataforma.

Português

100

Polski

B660M Pro RS
1 Wprowadzenie
Dzikujemy za zakupienie plyty glównej ASRock B660M Pro RS, niezawodnej plyty glównej produkowanej z konsekwentnie wykonywan przez firm ASRock, rygorystyczn kontrol jakoci. Plyta ta zapewnia doskonal jako dzialania i solidn konstrukcj, spelniajc zobowizanie firmy ASRock do dostarczania produktów o wysokiej jakoci i wytrzymaloci.
Poniewa specyfikacje plyty glównej i oprogramowanie BIOS mog zosta zaktualizowane, zawarto tej dokumentacji moe zosta zmieniona bez powiadomienia. W przypadku jakichkolwiek modyfikacji tej dokumentacji, zaktualizowana wersja bdzie dostpna na stronie internetowej ASRock, bez dalszego powiadomienia. Jeli wymagana jest pomoc techniczna w odniesieniu do tej plyty glównej, naley odwiedzi stron internetow w celu uzyskania specyficznych informacji o uywanym modelu. Na stronie internetowej ASRock, mona take pobra list najnowszych kart VGA i obslugiwanych CPU. Strona internetowa ASRock http://www.asrock.com.
1.1 Zawarto opakowania
· Plyta glówna ASRock B660M Pro RS (Wspólczynnik ksztaltu ATX) · Skrócona instrukcja instalacji ASRock B660M Pro RS · Pomocnicza plyta CD ASRock B660M Pro RS · 2 x kable danych Serial ATA (SATA) (Opcjonalne) · 3 x ruby do gniazda M.2 (Opcjonalne) · 1 x gniazdo wsporcze do gniazda M.2 (Opcjonalna) · 1 x oslona panelu Wejcia/Wyjcia
101

1.2 Specyfikacje

Platforma

· Wspólczynnik ksztaltu Micro ATX · Konstrukcja kondensatorami stalymi

CPU

· Obsluga 12-tej generacji procesorów Intel® CoreTM (LGA1700) · Digi Power design · Sekcja zasilania 8 Power Phase Design · Obsluga technologii Intel® Hybrid · Obsluga technologii Intel® Turbo Boost Max 3.0

Chipset

· Intel® B660

Pami

· Technologia pamici Dual Channel DDR4 · 4 x gniazda DDR4 DIMM · Obsluga niebuforowanej pamici DDR4 non-ECC, do 4800+(OC)*
* Natywna obsluga pamici DDR4 3200.
* Sprawd list obslugiwanej pamici na stronie internetowej ASRock
w celu uzyskania dalszych informacji. (http://www.asrock.com/) · Obsluga modulów pamici ECC UDIMM (dzialanie w trybie non-
ECC) · Maks. wielko pamici systemowej: 128GB · Obsluga Intel® Extreme Memory Profile (XMP) 2.0

Gniazdo rozszerzenia

· 2 x gniazda PCIe x 16 (tryb PCIE1/PCIE3: pojedyncze w 4 generacji x 16 (PCIE1); podwójne w 4 generacji x 16 (PCIE1) / 3 generacji x 4 (PCIE3))
* Obsluga SSD NVMe, jako dysków rozruchowych · 1 x gniazda PCIe Gen3x1 · Obsluga AMD CrossFireTM · 1 x gniazdo M.2 (Key E), z obslug modulu WiFi/BT PCIe typu
2230 i Intel® CNVi (Zintegrowany WiFi/BT)

Polski

102

B660M Pro RS

Grafika
Audio LAN
Tylny panel Wejcia/ Wyjcia

· Wbudowana grafika Intel® UHD i wyjcia VGA s obslugiwane wylcznie z procesorami, które maj zintegrowane GPU.
· Architektura grafiki Intel® Xe (Generacja 12) · Podwójne wyjcie graficzne: Obsluga HDMI i DisplayPort 1.4
przez niezalene sterowniki graficzne · Obsluga HDMI 2.1 TMDS zgodnoci z maks. rozdzielczoci do
4K x 2K (4096x2160) przy 60Hz · Obsluga DisplayPort 1.4 z DSC (skompresowany) maks.
rozdzielczo do 8K (7680x4320) przy 60Hz / 5K (5120x3200) przy 120Hz · Obsluga HDCP 2.3 przy zgodnoci z HDMI 2.1 TMDS i porty DisplayPort 1.4
· Dwik HD 7.1 CH (kodek audio Realtek ALC897) · Obsluga zabezpieczenia przed przepiciami · Nahimic Audio
· Gigabit LAN 10/100/1000 Mb/s · Giga PHY Intel® I219V · Obsluga Wake-On-LAN · Obsluga zabezpieczenia przed wyladowaniami atmosferycznymi/
ESD · Obsluga Energy Efficient Ethernet 802.3az · Obsluga UEFI PXE
· 3 x punkty montau anteny · 1 x port myszy/klawiatury PS/2 · 1 x port HDMI · 1 x DisplayPort 1.4 · 4 x porty USB 3.2 Gen1 (Obsluga zabezpieczenia ESD) · 2 x porty USB 2.0 (Obsluga zabezpieczenia ESD) · 1 x port LAN RJ-45 z LED (LED ACT/LINK i LED SPEED) · Gniazda audio HD: Wejcie liniowe / Glonik przedni / Mikrofon

Polski

103

Polski

Przechowywanie

· 4 x zlcza SATA3 6,0 Gb/s* * Jeli gniazdo M2_2 jest zajte przez urzdzenie M.2 typu SATA, zostanie wylczone SATA3_0. · 1 x Hyper M.2 Socket (M2_1, Key M), z obslug trybu
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)** · 1 x gniazdo Ultra M.2 (M2_2, Key M), z obslug trybu 2280
SATA3 6,0 Gb/s i PCIe Gen3 x4 (32 Gb/s)** ** Obsluga technologii Intel® OptaneTM (tylko dla M2_2) ** Obsluga Intel® Volume Management Device (VMD) ** Obsluga SSD NVMe, jako dysków rozruchowych ** Obsluga ASRock U.2 Kit

RAID

· Obsluga RAID 0, RAID 1, RAID 5 i RAID 10 dla urzdze pamici masowej SATA

Zlcze

· 1 x zlcze glówkowe SPI TPM · 1 x zlcze glówkowe naruszenia obudowy i glonika · 1 x zlcze glówkowe LED RGB * Obsluga lcznie do 12V/3A, pasek LED 36W · 3 x adresowalne zlcza glówkowe LED * Obsluga lcznie do 5V/3A, pasek LED 15W · 1 x zlcze wentylatora CPU (4-pinowe) * Zlcze wentylatora CPU obsluguje wentylator CPU maksymalnym prdem zasilania wentylatora 1A (12W). · 1 x zlcze wentylatora CPU/pompy wodnej (4-pinowe)
(Inteligentne sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora CPU/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). · 3 x zlcza wentylatora obudowy/pompy wodnej (4-pinowe)
(Inteligentne sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora obudowy/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). * CPU_FAN2/WP i CHA_FAN1~3/WP moe automatycznie wykrywa, jeli uywany jest wentylator 3-pinowy lub 4-pinowy. · 1 x 24 pinowe zlcze zasilania ATX · 1 x 8 pinowe 12V zlcze zasilania (Zlcze zasilania Hi-Density) · 1 x zlcze audio na panelu przednim · 1 x zlcze Thunderbolt AIC (5-pinowe) (Obsluga kart ASRock
Thunderbolt 4 AIC)

104

B660M Pro RS

Polski

· 2 x zlcza glówkowe USB 2.0 (Obsluga 4 portów USB 2.0) (obsluga zabezpieczenia ESD)
· 1 x porty glówkowe USB 3.2 Gen1 (obsluga 2 portów USB 3.2 Gen1) (obsluga zabezpieczenia ESD)
· 1 x zlcze glówkowe USB 3.2 Gen1 typu C panelu czolowego (obsluga zabezpieczenia ESD)

Funkcja BIOS

· Obsluga starszych wersji BIOS AMI UEFI z wielojzycznym GUI · Zgodno zdarze wybudzania z ACPI 6.0 · Obsluga SMBIOS 2.7 · Wiele regulacji napicia CPU Core/Cache, CPU GT, DRAM,
VDD_IMC, VCCIN AUX, +1,05V PROC, +0,82V PCH, +1,05V
PCH

Monitor sprztu

· Obrotomierz wentylatora: CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
· Cichy wentylator (Automatyczna regulacja prdkoci obrotowej wentylatora obudowy przez temperatur CPU): CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
· Kontrola wielu prdkoci obrotowych wentylatora: CPU, CPU/ pompa wodna, wentylatory obudowy/pompy wodnej
· Wykrywanie OTWARCIA OBUDOWY · Monitorowanie napicia: CPU Vcore, +1,05V PCH, DRAM,
VCCIN AUX, +1,05V PROC, VCCSA, +0,82V PCH, +12V, +5V, +3,3V

System operacyjny

· Microsoft® Windows® 10 64-bitowy / 11 64-bitowy

Certyfikaty

· FCC, CE · Gotowo do obslugi ErP/EuP (Wymagane zasilanie z gotowoci
obslugi ErP/EuP)

* Dla uzyskania szczególowej informacji o produkcie, naley odwiedzi nasz stron internetow: http://www.asrock.com

Naley pamita, e przetaktowywanie jest zwizane z pewnym ryzykiem, wlcznie z regulacj ustawie w BIOS, zastosowaniem Untied Overclocking Technology lub uywaniem narzdzi przetaktowywania innych firm. Przetaktowywanie moe wplywa na stabilno systemu lub nawet powodowa uszkodzenie komponentów i urzdze systemu. Powinno to zosta zrobione na wlasne ryzyko i koszt. Nie odpowiadamy za moliwe uszkodzenia spowodowane przetaktowywaniem.

105

1.3 Ustawienia zworek
Ta ilustracja pokazuje ustawienia zworek. Po umieszczeniu nasadki zworki na pinach, zworka jest "Zwarta". Jeli nasadka zworki nie jest umieszczona na pinach, zworka jest "Otwarta".

Zworka usuwania danych z pamici CMOS (CLRMOS1) (sprawd s.1, Nr 24)

2-pinowa zworka

CLRMOS1 umoliwia usunicie wszystkich danych z pamici CMOS. Aby usun i zresetowa parametry systemu do ustawie domylnych, wylcz komputer i odlcz przewód zasilajcy od zasilania. Po odczekaniu 15 sekund, uyj nasadk zworki do zwarcia pinów CLRMOS1 na 5 sekund. Jednak, nie naley usuwa danych z pamici CMOS zaraz po wykonaniu aktualizacji BIOS. Jeli wymagane jest usunicie danych z pamici CMOS po zakoczeniu aktualizacji BIOS, przed rozpoczciem usuwania danych z pamici CMOS naley najpierw uruchomi system, a nastpnie wylczy go. Naley pamita, e haslo, data, czas i domylny profil uytkownika zostan usunite tylko po wyjciu baterii CMOS. Naley pamita, aby po usuniciu danych z pamici CMOS, usun nasadk zworki.

Po usuniciu danych z pamici CMOS, moe by wykrywane otwarcie obudowy. Wyreguluj opcj BIOS "Clear Status (Stan usuwania)", aby usun zapis poprzedniego stanu naruszenia obudowy.

Polski

106

B660M Pro RS

1.4 Wbudowane zlcza glówkowe i inne zlcza
Wbudowane zlcza glówkowe i inne zlcza s bezzworkowe. NIE naley umieszcza zworek nad tymi zlczami glówkowymi i zlczami. Umieszczanie zworek nad zlczami glówkowymi i zlczami spowoduje trwale uszkodzenie plyty glównej.

Zlcze glówkowe na panelu systemu (9-pinowe PANEL1) (sprawd s.1, Nr 13)

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

Podlcz do tego zlcza glówkowego przelcznik zasilania, przelcznik resetowania i wskanik stanu systemu na obudowie, zgodnie z pokazanym poniej przydzialem pinów. Przed podlczeniem kabli naley zapisa pozycj pinów plus i minus.

PWRBTN (Przelcznik zasilania): Podlcz do przelcznika zasilania na panelu przednim obudowy. Mona skonfigurowa sposób wylczania systemu z uyciem przelcznika zasilania.
RESET (Przelcznik resetowania): Podlcz do przelcznika resetowania na panelu przednim obudowy. Nacinij przelcznik resetowania w celu ponownego uruchomienia komputera, jeli komputer zawiesi si i nie wykona normalnego ponownego uruchomienia.
PLED (Dioda LED zasilania systemu): Podlczenie do wskanika stanu zasilania na panelu przednim obudowy. Ta dioda LED jest wlczona podczas dzialania systemu. Ta dioda LED miga, gdy system znajduje si w stanie upienia S1/S3. Ta dioda LED jest wylczona, gdy system znajduje si w stanie upienia S4 lub wylczenia zasilania (S5).
HDLED (Dioda LED aktywnoci dysku twardego): Podlczenie do diody LED aktywnoci dysku twardego na panelu przednim obudowy. Dioda LED jest wlczona, podczas odczytu lub zapisu danych przez dysk twardy.
Konstrukcja panelu przedniego zaley od obudowy. Modul panelu przedniego zawiera przede wszystkim przelcznik zasilania, przelcznik resetowania, diod LED zasilania, diod LED aktywnoci dysku twardego, glonik, itd. Po podlczeniu modulu panelu przedniego obudowy do tego zlcza glówkowego upewnij si, e jest prawidlowo dopasowany przydzial przewodów i przydzial pinów.

Polski

Zlcze glówkowe naruszenia obudowy i glonika (7-pinowe SPK_CI1) (sprawd s.1, Nr 20)

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

Podlcz to tego zlcza glówkowego naruszenie obudowy i glonik obudowy.
107

Zlcza Serial ATA3 Pionowy: (SATA3_0: sprawd s.1, Nr 14) (SATA3_1: sprawd s.1, Nr 15) Kt prosty: (SATA3_2: sprawd s.1, Nr 12) (Górny) (SATA3_3: sprawd s.1, Nr 11) (Dolny)

SATA3_2 SATA3_3

SATA3_1 SATA3_0

Te cztery zlcza SATA3 obsluguj kable danych SATA dla wewntrznych urzdze pamici z szybkoci transferu danych do 6,0 Gb/s. * Jeli gniazdo M2_2 jest zajte przez urzdzenie M.2 typu SATA, zostanie wylczone SATA3_0.

Zlcza glówkowe USB 2.0 (9-pinowe USB_3_4) (sprawd s.1, Nr 19) (9-pinowe USB_5_6) (sprawd s.1, Nr 18)

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

Na tej plycie glównej znajduj si dwa zlcza glówkowe USB 2.0. Kade zlcze glówkowe USB 2.0 moe obslugiwa dwa porty.

Zlcza glówkowe USB 3.2 Gen1 (19-pinowe USB3_5_6) (sprawd s.1, Nr 9)

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

Na tej plycie glównej znajduje si jedno zlcze glówkowe USB 3.2 Gen1. To zlcze glówkowe USB 3.2 Gen1 moe obslugiwa dwa porty.

Zlcze glówkowe Gen1 USB 3.2 typu C panelu przedniego (20-pinowe F_USB3_ TC_1) (sprawd s.1, Nr 10)

USB Type-C Cable

Na tej plycie glównej dostpne jest jedno zlcze glówkowe Gen1 USB 3.2 typu C panelu przedniego. To zlcze glówkowe jest uywane do podlczania modulu USB 3.2 Gen1 dla dodatkowych portów USB 3.2 Gen1.

Polski

108

B660M Pro RS

Zlcze glówkowe audio panelu przedniego (9-pinowe HD_AUDIO1) (sprawd s.1, Nr 27)

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

To zlcze glówkowe sluy do podlczania urzdze audio do przedniego panelu audio.

1. High Definition Audio obsluguje wykrywanie gniazda, ale aby dziala prawidlowo przewód panelu na obudowie musi obslugiwa HDA. W celu instalacji systemu naley wykona instrukcje z naszego podrcznika i podrcznika obudowy.
2. Jeli uywany jest panel audio AC'97, naley go zainstalowa w zlczu glówkowym audio panelu przedniego, poprzez wykonanie wymienionych poniej czynnoci: A. Podlcz Mic_IN (MIC) do MIC2_L. B. Podlcz Audio_R (RIN) do OUT2_R i Audio_L (LIN) do OUT2_L. C. Podlcz uziemienie (GND) do uziemienia (GND). D. MIC_RET i OUT_RET slu wylcznie dla panelu audio HD. Nie naley ich podlcza dla panelu audio AC'97. E. Aby uaktywni mikrofon przedni, przejd do zakladki "FrontMic" w panelu Realtek Control i wyreguluj "Glono nagrywania".

Zlcza /wentylatora pompy wodnej obudowy (4-pinowe CHA_FAN1/WP) (sprawd s.1, Nr 28)
(4-pinowe CHA_FAN2/WP) (sprawd s.1, Nr 21) (4-pinowe CHA_FAN3/WP) (sprawd s.1, Nr 22)

1

GND

2

FAN_VOLTAGE

3

CHA_FAN_SPEED

4

FAN_SPEED_CONTROL

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

Ta plyta glówna udostpnia trzy 4-pinowe zlcza obudowy wentylatora chlodzenia wodnego. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego obudowy, naley je podlczy do pinów 1-3.

Zlcze wentylatora CPU (4-pinowe CPU_FAN1) (sprawd s.1, Nr 4)

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

Ta plyta glówna udostpnia 4-pinowe zlcze wentylatora CPU (Cichy wentylator). Jeli planowane jest podlczenie 3-pinowego wentylatora CPU, naley je podlczy do pinów 1-3.

Polski

109

Zlcze wentylatora pompy wodnej /CPU (4-pinowe CPU_FAN2/WP) (sprawd s.1, Nr 5)
Zlcze zasilania ATX (24-pinowe ATXPWR1) (sprawd s.1, Nr 8)

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

12

24

1

13

Ta plyta glówna udostpnia 4-pinowe zlcze obudowy wentylatora chlodzenia wodnego CPU. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego CPU, naley je podlczy do pinów 1-3.
Ta plyta glówna udostpnia 24-pinowe zlcze zasilania ATX. W celu uycia 20-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 13.

Polski

Zlcze zasilania ATX 12V

8

(8-pinowe ATX12V1)

(sprawd s.1, Nr 1)

4

5

Ta plyta glówna udostpnia

8-pinowe zlcze zasilania ATX

1

12V. W celu uycia 4-pinowego

zasilacza ATX, naley podlczy

je wzdlu pinu 1 i pinu 5.

*Ostrzeenie: Upewnij si, e podlczony kabel zasilajcy jest przeznaczony do CPU, a nie do karty graficznej. Nie podlczaj do tego zlcza kabla zasilajcego PCIe.

Zlcze glówkowe SPI TPM (13-pinowe SPI_TPM_J1) (sprawd s.1, Nr 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

To zlcze obsluguje system SPI Trusted Platform Module (TPM), który moe bezpiecznie przechowywa klucze, certyfikaty cyfrowe, hasla i dane. System TPM pomaga take w zwikszeniu zabezpieczenia sieci, ochronie cyfrowych danych osobowych i zapewnieniu integralnoci platformy.

110

B660M Pro RS

Zlcze Thunderbolt AIC (5-pinowe TB1) (sprawd s.1, Nr 23)
Zlcze glówkowe LED RGB (4-pinowe RGB_LED1) (sprawd s.1, Nr 26)
Adresowalne zlcza glówkowe LED (3-pinowe ADDR_LED1) (sprawd s.1, Nr 25)
(3-pinowe ADDR_LED2) (sprawd s.1, Nr 6) (3-pinowe ADDR_LED3) (sprawd s.1, Nr 7)

1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1

Podlcz do tego zlcza dodatkow kart ThunderboltTM (AIC) przez kabel GPIO. * Naley zainstalowa kart ThunderboltTM AIC w zlczu PCIE3 (gniazdo domylne).
To zlcze glówkowe RGB LED jest uywane do podlczenia przedluacza LED RGB, który umoliwia uytkownikom wybór sporód rónych efektów wiatla LED. Ostrzeenie: Nigdy nie naley instalowa kabla LED RGB w nieprawidlowym kierunku; w przeciwnym razie kabel moe zosta uszkodzony. *Dalsze instrukcje dotyczce tego zlcza glówkowego naley sprawdzi na stronie 32.
Te trzy glówkowe jest uywane do podlczenia adresowalnego przedluacza LED, który umoliwia uytkownikom wybór sporód rónych efektów wiatla LED. Ostrzeenie: Nigdy nie naley instalowa adresowalnego kabla LED w nieprawidlowym kierunku; w przeciwnym razie kabel moe zosta uszkodzony. *Dalsze instrukcje dotyczce tego zlcza glówkowego naley sprawdzi na stronie 33.

Polski

111



1
ASRock B660M Pro RS    .   ASRock       .    ASRock         .
  BIOS     ,        .    ,  ASRock      .        ,           . ASRock    VGA  CPU      . ASRock  http://www.asrock.com.
1.1
· ASRock B660M Pro RS  (ATX   ) · ASRock B660M Pro RS    · ASRock B660M Pro RS  CD ·  ATA (SATA)   2  (   ) · M.2   3  (   ) · M.2   1  (   ) · I/O   1
112

B660M Pro RS



1.2



· Micro ATX   ·

CPU

· 12  Intel® CoreTM   (LGA1700) · Digi Power design · 8     · Intel® Hybrid   · Intel® Turbo Boost Max Technology 3.0



· Intel® B660



·   DDR4   · DDR4 DIMM  4  · DDR4  ECC,    4800+(OC)  *
*  DDR4 3200   .
*    ASRock
  . (http://www.asrock.com/) · ECC UDIMM   (  -ECC   )  ·     : 128GB · Intel® Extreme Memory Profile (XMP) 2.0



· PCIe x16  2  (PCIE1/PCIE3:  @ Gen4x16(PCIE1),
 @ Gen4x16(PCIE1) / Gen3x4(PCIE3))
* NVMe SSD       · PCIe Gen3x1  1  · AMD CrossFireTM  · M.2  (E  ) 1  ,  2230 WiFi/BT PCIe WiFi
 Intel® CNVi(  WiFi/BT)



· Intel® UHD   -   VGA  GPU      .
· Intel® Xe   (Gen 12) ·    :    HDMI
DisplayPort 1.4   · HDMI 2.1 TMDS  (   4K x 2K (4096x2160)
@ 60Hz) ·   8K (7680x4320) @ 60Hz / 5K (5120x3200) @
120Hz  DSC(  )  DisplayPort 1.4   . · HDMI 2.1 TMDS  HDCP 2.3  DisplayPort 1.4
113





· 7.1 CH HD  (Realtek ALC897   ) ·    · Nahimic

LAN

· Gigabit LAN 10/100/1000 Mb/s · Giga PHY Intel® I219V · Wake-On-LAN  ·  /ESD   ·   802.3az  · UEFI PXE

  I/O

·   3  · PS/2  /   1  · HDMI  1  · DisplayPort 1.4 1  · USB 3.2 Gen1  4  (ESD   ) · USB 2.0  2  (ESD   ) · LED  RJ-45 LAN  1(ACT/LINK LED  SPEED LED) · HD   :   /   /



· SATA3 6.0 Gb/s  4  * * SATA-  M.2  M2_2    , SATA3_0   . ·  M.2  1  (M2_1, Key M),  2242/2260/2280
PCIe Gen 4x4(64Gb/s)   ** · Ultra M.2  1  (M2_2, Key M),  2280 SATA3 6.0
Gb/s   PCIe Gen3 x4 (32 Gb/s)  ** ** Intel® OptaneTM   (M2_2  ) ** Intel® Volume Management Device(VMD)  ** NVMe SSD       ** ASRock U.2

RAID

· SATA   RAID 0, RAID 1, RAID 5  RAID 10

114

B660M Pro RS



 BIOS

· SPI TPM  1  ·      1  · RGB LED  1  *   12V/3A, 36W LED   ·    LED  3  *   5V/3A, 15W LED   · CPU   (4  ) 1  * CPU      1A(12W)  CPU
 . · CPU/     (4  ) 1  (     ) * CPU/       2A(24W)
  . ·  /     (3  ) 4  (     ) *  /       2A(24W)
  .
* 3   4      , CPU_FAN2/WP
CHA_FAN1~3/WP      . · 24  ATX   1  · 8  12V   1  (    ) ·     1  · Thunderbolt AIC  1  (5  )(ASRock Thunderbolt 4
AIC   ) · USB 2.0  2  (USB 2.0  4   ) (ESD
 ) · USB 3.2 Gen1  1  (USB 3.2 Gen1  2   )
(ESD   ) ·    C USB 3.2 Gen1  1  (ESD
 )
·  GUI   AMI UEFI  BIOS · ACPI 6.0     · SMBIOS 2.7  · CPU  /  , CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1.05V PROC, +0.82V PCH , +1.05V PCH



·   : CPU, CPU/   ,  /    ·   (CPU        ): CPU,
CPU/   ,  /    ·     : CPU, CPU/   ,  /


115

OS

·    ·   : CPU Vcore, +1.05V PCH, DRAM, VCCIN
AUX, +1.05V PROC, VCCSA, +0.82V PCH, +12V, +5V, +3.3V
· Microsoft® Windows® 10 64  / 11 64
· FCC, CE · ErP/EuP   (ErP/EuP     )

*        : http://www.asrock.com
BIOS   Untied Overclocking Technology                .               .         .           .



116

B660M Pro RS
1.3
     .     ""  .       "" .

Clear CMOS  (CLRMOS1) (1  , 24    )

2

CLRMOS1   CMOS       .             . 15        CLRMOS1   5  .  BIOS   CMOS    . BIOS    CMOS     ,         CMOS    . CMOS     ,  ,  ,     . CMOS        .

CMOS         . BIOS "Clear Status (   )"         .



117

1.4
     .        .          .

   (9  PANEL1) (1  , 13    )

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+

   ,   ,           .         .

PWRBTN(   ):       .          .
RESET(   ):       .             .
PLED(   LED):        .     LED    .  S1/S3     LED   .  S4     (S5)    LED   .
HDLED(    LED):       LED .        LED    .
       .       ,   ,  LED,    LED,    .                .



     (7  SPK_CI1) (1  , 20    )

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY

        .

118

SATA3_2 SATA3_3


B660M Pro RS

 ATA3   : (SATA3_0: 1  , 14    ) (SATA3_1: 1  , 15    )   : (SATA3_2: 1  , 12    ) (  ) (SATA3_3: 1  , 11    ) (  )

SATA3_1 SATA3_0

   SATA3   6.0 Gb/s        SATA    . * SATA-  M.2  M2_2    , SATA3_0   .

USB 2.0  (9  USB_3_4) (1  , 19    ) (9  USB_5_6) (1  , 18    )

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

  USB 2.0     .  USB 2.0        .

USB 3.2 Gen1  (19  USB3_5_6) (1  , 9    )

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

   USB 3.2 Gen1  .  USB 3.2 Gen1   2     .

   C USB 3.2 Gen1  (20  F_USB3_TC_1) (1  , 10    )

USB Type-C Cable

     C USB 3.2 Gen1 1  .    USB 3.2 Gen1 USB 3.2 Gen1    .

119



    (9  HD_AUDIO1) (1  , 27    )

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L

          .

1.           HDA  .           .
2. AC'97              : A. Mic_IN (MIC)  MIC2_L   . B. Audio_R (RIN) OUT2_R  Audio_L (LIN) OUT2_L . C.  (GND)   (GND)   . D. MIC_RET  OUT_RET  HD    . AC'97      . E.    Realtek "FrontMic" "Recording Volume(   )"  .

 /     1

2

(4  CHA_FAN1/WP)

3

4

(1  , 28    )

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL

(4  CHA_FAN2/WP) (1  , 21    ) (4  CHA_FAN3/WP) (1  , 22    )

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

  4      3   . 3  CPU        1-3   .

CPU   (4  CPU_FAN1) (1  , 4    )

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

  4  CPU  ( )    . 3  CPU     1-3   .

120



B660M Pro RS

CPU/     (4  CPU_FAN2/WP) (1  , 5    )

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

  4   CPU     . 3  CPU       1-3   .

ATX   (24  ATXPWR1) (1  , 8    )

12

24

1

13

  24  ATX     . 20  ATX    1   13    .

ATX 12V

8

(8  ATX12V1)

(1  , 1    )

4

5

  8  ATX 12V



1

. 4 ATX

   1  5

  .

*  :       CPU  . PCIe       .

SPI TPM  (13  SPI_TPM_J1) (1  , 16    )

SPI_DQ3
SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ

1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

  ,  ,        SPI TPM (Trusted Platform Module)   . TPM     ,       .

121

Thunderbolt AIC  (5  TB1) (1  , 23    )

ThunderboltTM   (AIC)  GPIO     . * ThunderboltTM AIC  PCIE3 (   )   .

RGB LED  (4  RGB_LED1) (1  , 26    )

1 +12V G R B

 RGB LED   LED      RGB LED      .  : RGB LED      .        . *      32   .

   LED  (3  ADDR_LED1) (1  , 25    )

1
GND DO_ADDR VOUT

(3  ADDR_LED2) (1  , 6    ) (3  ADDR_LED3) (1  , 7    )

GND
DO_ADDR VOUT 1

 3    LED         LED      .  :    LED      .       . *      33   .



122



B660M Pro RS
1
ASRock   ASRock B660M Pro RS  ASRock
 BIOS    ASRock    ASRock  VGA   CPU ASRock  http://www.asrock.com.
1.1
· ASRock B660M Pro RS ATX  ) · ASRock B660M Pro RS  · ASRock B660M Pro RS  CD · 2 x  ATA (SATA)  · 3 x M.2  · 1 x M.2  · 1 x I/O

123



1.2



·  ATX  ·

CPU

·  12  Intel® CoreTM  (LGA1700)

·

· 8

· Intel® Hybrid

· Intel®  Max  3.0

 · Intel® B660



·  DDR4  · 4 x DDR4 DIMM  ·  4800+(OC)  DDR4  ECC
 *
* DDR4 3200
* ASRock
(http://www.asrock.com/) · ECC UDIMM non-ECC

· 128GB · Intel®  (XMP) 2.0



· 2 x PCIe x16 PCIE1/PCIE3Gen4x16 (PCIE1)  Gen4x16 (PCIE1)/Gen3x4 (PCIE3)
*  NVMe SSD  · 1 x PCIe Gen3x1  · AMD CrossFireTM  · 1 x M.2  (Key E) 2230 WiFi/BT PCIe WiFi
 Intel® CNVi WiFi/BT

124



B660M Pro RS



· Intel® UHD  VGA GPU

· Intel® Xe  (Gen 12) ·  :
 HDMI  DisplayPort 1.4  · HDMI 2.1 TMDS  4K x 2K (4096x2160)
@ 60Hz · DSC 8K (7680x4320) @60Hz/5K (5120x3200)
@120Hz  DisplayPort 1.4  · HDMI 2.1 TMDS  DisplayPort 1.4  HDCP 2.3




· 7.1 CH HD  (Realtek ALC897 Audio Codec) ·  · Nahimic

LAN

·  LAN 10/100/1000 Mb/s

·  PHY Intel® I219V

· Wake-On-LAN

·  /  (ESD)

·  802.3az

· UEFI PXE

 I/O

· 3 x  · 1 x PS/2  · 1 x HDMI  · 1 x DisplayPort 1.4 · 4 x USB 3.2 Gen1  (ESD)  · 2 x USB 2.0  (ESD)  · LED  1 x RJ-45 LAN ACT/LINK LED  SPEED
LED
· HD  :


125



 RAID

· 4 x SATA3 6.0 Gb/  * * SATA  M.2  M2_2  SATA3_0  · 1 x Hyper M.2 M2_1 M
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)  ** · 1 x Ultra M.2 M2_2 M 2280 SATA3
6.0 Gb/s & PCIe Gen3x432 Gb/s ** ** Intel® OptaneTM M2_2  ** Intel®  (VMD)  **  NVMe SSD  ** ASRock U.2
· SATA RAID 0RAID 1 RAID 5  RAID 10



· 1 x SPI TPM  · 1 x  · 1 x RGB LED  *  12V/3A36W  LED  · 3 x  LED  *  5V/3A15W  LED  · 1 x CPU 4  * CPU  1A (12W)  CPU
 · 1 x CPU 4

* CPU  2A (24W)
 · 3 x 4

*  2A (24W)

* CPU_FAN2/WP  CHA_FAN1~3/WP  3
4  · 1 x 24  ATX  · 1 x 8  12V  · 1 x  · 1 x underbolt AIC 5  underbolt 4 AIC


126

B660M Pro RS



· 2 x USB 2.0 4  USB 2.0   (ESD)
· 1 x USB 3.2 Gen1 2  USB 3.2 Gen1   (ESD)
· 1 x  C USB 3.2 Gen1  ESD

BIOS

· AMI UEFI Legal BIOS GUI  · ACPI 6.0  · SMBIOS 2.7  · CPU CPU GTDRAMVDD_IMC
VCCIN AUX+1.05V PROC+0.82V PCH +1.05V PCH




· CPUCPU
· CPU  CPUCPU/

·  : CPUCPU
·  ·  : CPU Vcore+1.05V PCHDRAMVCCIN AUX
+1.05V PROCVCCSA+0.82V PCH+12V+5V+3.3V

OS

· Microso ® Windows® 10 64  /11 64



· FCCCE · ErP/EuP ReadyErP/EuP

* http://www.asrock.com
BIOS

127



1.3


CMOS  (CLRMOS1) p.1No. 24

2

CLRMOS1  CMOS   15   CLRMOS1  5 BIOS  CMOS BIOS  CMOS  CMOS   CMOS  CMOS

CMOS  BIOS Clear Status

128

B660M Pro RS



1.4


 9  PANEL1 p.1No. 13

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+



PWRBTN
RESET
PLED LED  LED  S1/S3  LED  S4 S5 LED
HDLED LED  LED  LED
  LED  LED

  7  SPK_CI1 p.1No. 20

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY


129

SATA3_2 SATA3_3



 ATA3   : SATA3_0: p.1No. 14  SATA3_1: p.1No. 15   : SATA3_2: p.1No. 12  SATA3_3: p.1No. 11

SATA3_1 SATA3_0

 4  SATA3   6.0 Gb/s    SATA   * SATA  M.2  M2_2  SATA3_0

USB 2.0  9  USB_3_4 p.1No. 19  9  USB_5_6 p.1No. 18

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

 2  USB 2.0   USB 2.0  2

USB 3.2 Gen1  19  USB3_5_6 p.1No. 9

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

 1  USB 3.2 Gen1   USB 3.2 Gen1  2

 C USB 3.2 Gen1  20  F_USB3_TC_1 p.1No. 10

USB Type-C Cable

 1  C USB 3.2 Gen1   USB 3.2 Gen1  USB 3.2 Gen1

130



B660M Pro RS

  9  HD_AUDIO1 p.1No. 27

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L



1.   HDA

2. AC'97
A. Mic_IN (MIC)  MIC2_L  B. Audio_R (RIN)  OUT2_R Audio_L (LIN)  OUT2_L  C.  (GND)  (GND)  D. MIC_RET  OUT_RET HD AC'97
E. Realtek FrontMic

 /  1 2



3

4

4  CHA_FAN1/WP

p.1No. 28

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL

4  CHA_FAN2/WP p.1No. 21  4  CHA_FAN3/WP p.1No. 22

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

 3  4  3    1-3

CPU  4  CPU_FAN1 p.1No. 4

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

 4  CPU   3  CPU   1-3

131



CPU   4  CPU_FAN2/WP p.1No. 5
ATX  24  ATXPWR1 p.1No. 8

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

12

24

1

13

 4   CPU  3  CPU   1-3
 24  ATX  20  ATX   1  13

ATX 12V

8

8  ATX12V1

p.1No. 1

4

5

 8

ATX12V

1

4  ATX

 1

 5



*  :   CPU  PCIe

SPI TPM  13  SPI_TPM_J1 p.1No. 16

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

 SPI    (TPM)    TPM

132



B660M Pro RS

underbolt AIC  5  TB1 p.1No. 23
RGB LED  4  RGB_LED1 p.1No. 26
 LED  (3  ADDR_LED1) p.1No. 25
(3  ADDR_LED2) p.1No. 6  (3  ADDR_LED3) p.1No. 7

1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1

GPIO  underboltTM
(AIC)   *PCIE3  underboltTM AIC
 RGB LED  RGB LED    LED    : RGB LED      *  32
 3   LED    LED    :  LED      *  33

133



1
 B660M Pro RS
 BIOS     VGA  CPU   http://www.asrock.com
1.1
·  B660M Pro RS ATX  ·  B660M Pro RS  ·  B660M Pro RS  · 2 x  ATA (SATA)  · 3 x  M.2  · 1 x  M.2  · 1 x I/O
134



B660M Pro RS

1.2
 CPU



· Micro ATX  ·
·  12  Intel® CoreTM  (LGA1700) · Digi Power design · 8  ·  Intel® Hybrid Technology ·  Intel® Turbo Boost Max Technology 3.0
· Intel® B660
·  DDR4  · 4 x DDR4 DIMM  ·  DDR4  ECC 4800+(OC)* *  DDR4 3200 *  Memory Support List  (http://www.asrock.com/) ·  ECC UDIMM  ECC  · 128GB ·  Intel® Extreme Memory Profile (XMP) 2.0
· 2 x PCIe x16 PCIE1/PCIE3:  - Gen4x16 (PCIE1)  - Gen4x16 (PCIE1)/ Gen3x4 (PCIE3)
*  NVMe SSD  · 1 x PCIe Gen3x1  ·  AMD CrossFireTM · 1 x M.2 Socket (Key E) 2230 WiFi/BT PCIe WiFi
 Intel® CNVi(  WiFi/BT)

135




 LAN  I/O

·  GPU  Intel® UHD Graphics   VGA
· Intel® Xe  (Gen 12) ·  HDMI
DisplayPort 1.4  ·  TMDS  HDMI 2.160Hz  4K x 2K
(4096x2160) ·  DisplayPort 1.4DSC 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz ·  HDCP 2.3  TMDS  HDMI 2.1
DisplayPort 1.4
· 7.1 CH Realtek ALC897  ·  · Nahimic
· Gigabit LAN 10/100/1000 Mb/s · Giga PHY Intel I219V ·  Wake-On-LAN ·  /ESD  ·  802.3az ·  UEFI PXE
· 3 x  · 1 x PS/2  /  · 1 x HDMI  · 1 x DisplayPort 1.4 · 4 x USB 3.2 Gen1  ESD  · 2 x USB 2.0  ESD  · 1 x RJ-45 LAN  LEDACT/LINK LED  SPEED
LED ·  /  /

136



B660M Pro RS


RAID

· 4 x SATA3 6.0 Gb/s  * *  M2_2  SATA  M.2 SATA3_0  · 1 x  M.2 M2_1Key M 2242/2260/2280
PCIe Gen4x4 (64 Gb/s)  ** · 1 x  M.2 M2_2Key M 2280 SATA3
6.0 Gb/s  PCIe Gen3 x4 (32 Gb/s)  ** **  Intel® OptaneTM Technology M2_2 **  Intel®  (VMD) **  NVMe SSD  **  U.2
·  RAID 0RAID 1RAID 5  RAID 10 SATA
· 1 x SPI TPM  · 1 x  · 1 x RGB LED  *  12V/3A, 36W LED  · 3 x  LED  *  5V/3A, 15W LED  · 1 x CPU 4  * CPU  1A (12W)  CPU  · 1 x CPU/ 4  * CPU/  2A (24W)  · 3 x  / 4  *  /  2A (24W)  * CPU_FAN2/WP  CHA_FAN1~3/WP  3  4  · 1 x 24  ATX  · 1 x 8  12V  · 1 x  · 1 x Thunderbolt AIC 5  ASRock
Thunderbolt 4 AIC

137



BIOS



· 2 x USB 2.0  4  USB 2.0  ESD  · 1 x USB 3.2 Gen1  2  USB 3.2 Gen1
ESD  · 1 x  Type C USB 3.2 Gen1  ESD
· AMI UEFI Legal BIOS GUI · ACPI 6.0  ·  SMBIOS 2.7 · CPU  / CPU GTDRAMVDD_IMCVCCIN
AUX+1.05V PROC+0.82V PCH+1.05V PCH
· CPUCPU/  /  ·  CPU CPU
CPU/  /  · CPUCPU/  /  · CASE OPEN · CPU Vcore+1.05V PCHDRAMVCCIN AUX
+1.05V PROCVCCSA+0.82V PCH+12V+5V+3.3V
· Microsoft® Windows® 10 64  /11 64
· FCCCE · ErP/EuP  ErP/EuP

* http://www.asrock.com

 BIOS ""

138



B660M Pro RS
1.3
"" ""

 CMOS  (CLRMOS1)  1  24

2

CLRMOS1  CMOS   15  CLRMOS1   5  BIOS  CMOS BIOS  CMOS CMOS   CMOS   CMOS

 CMOS BIOS "Clear Status"

139



1.4


 9  PANEL1  1  13

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+



PWRBTN:
RESET:
PLED LED:  LED  S1/S3  LED  S4  (S5)  LED
HDLED LED:  LED  LED
  LED LED

 7  SPK_CI1)  1  20

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY



140

SATA3_2 SATA3_3


B660M Pro RS

 ATA3



SATA3_0:

 1  14

SATA3_1:

 1  15

SATA3_1 SATA3_0

 :

SATA3_2:

 1  12

SATA3_3:

 1  11

 SATA3  6.0 Gb/s   SATA  *  M2_2  SATA  M.2  SATA3_0

USB 2.0  9  USB_3_4  1  19  9  USB_5_6  1  18

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

 2  USB 2.0   USB 2.0

USB 3.2 Gen1  19  USB3_5_6  1  9

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

 USB 3.2 Gen1  USB 3.2 Gen1

 C USB 3.2 Gen1  20  F_USB3_TC_1  1  10

 C USB 3.2 Gen1   USB 3.2 Gen1   USB 3.2 Gen1
USB Type-C Cable

141



 9  HD_AUDIO1)  1  27

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L



1.  HDA
2.  AC'97  A.  Mic_IN (MIC)  MIC2_L B.  Audio_R (RIN)  OUT2_R Audio_L (LIN)  OUT2_L C.  (GND)  (GND) D. MIC_RET  OUT_RET  AC'97   E.  Realtek "FrontMic"  "Recording Volume"

 /

1

2
4  CHA_FAN1/WP 3

 1  28  4

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL

4  CHA_FAN2/WP  1  21  4  CHA_FAN3/WP  1  22

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

 4   3   1-3

CPU  4  CPU_FAN1)  1  4

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

 4  CPU    3  CPU   1-3

142



B660M Pro RS

CPU/  4  CPU_FAN2/WP  1  5

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

 4   3  CPU   1-3

ATX  24  ATXPWR1  1  8

12

24

 24  ATX   20  ATX   1  13

1

13

ATX 12V

8

8  ATX12V1

 1  1

4

5

 8  ATX 12V

 4  ATX

1

 1  5

*   CPU PCIe

SPI TPM  13  SPI_TPM_J1  1  16

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

 SPI Trusted Platform ModuleTPM  TPM

Thunderbolt AIC  5  TB1  1  23

 GPIO  ThunderboltTM  (AIC)   *  ThunderboltTM AIC   PCIE3

143

RGB LED  4  RGB_LED1  1  26
 LED  3  ADDR_LED1  1  25
3  ADDR_LED2  1  6  3  ADDR_LED3  1  7

1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1

 RGB LED  RGB LED   LED  RGB LED   *  32
 LED   LED    LED   *  33



144

B660M Pro RS

 SJ/T 11364-2006     10











  (Pb)  (Cd)  (Hg)  (Cr(VI))  (PBB)  (PBDE)

XO O

O

O

O

XO O

O

O

O

O:  SJ/T 11363-2006   X:  SJ/T 11363-2006   2002/95/EC   :

145



1
 B660M Pro RS
 BIOS     VGA  CPU  http://www.asrock.com
1.1
· B660M Pro RS ATX  · B660M Pro RS  · B660M Pro RS  ·2 x Serial ATA (SATA)  ·3 x  M.2  ·1 x  M.2  ·1 x I/O
146



B660M Pro RS

1.2

 CPU

·Micro ATX  ·
· 12  Intel® CoreTM  (LGA1700) ·Digi Power design ·8  · Intel®  · Intel® Turbo Boost Max  3.0



·Intel® B660



· DDR4  ·4 x DDR4 DIMM  · DDR4  ECC 4800+(OC)* *  DDR4 3200 *  (http://www.asrock.com/) · ECC UDIMM  ECC  · 128GB · Intel® Extreme Memory Profile (XMP) 2.0



·2 x PCIe x16 PCIE1/PCIE3 Gen4x16 (PCIE1)  Gen4x16 (PCIE1) / Gen3x4 (PCIE3)
*  NVMe SSD  ·1 x PCIe Gen3x1  · AMD CrossFireTM ·1 x M.2  (Key E) 2230  WiFi/BT PCIe WiFi
 Intel® CNVi WiFi/BT

147





·  GPU  Intel® UHD Graphics Built-in Visuals  VGA
·Intel® Xe  12  · HDMI
DisplayPort 1.4  · 4K x 2K (4096x2160) @ 60Hz  HDMI 2.1
TMDS  · DisplayPort 1.4DSC 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz ·  HDCP 2.3 HDMI 2.1 TMDS  DisplayPort 1.4




·7.1 CH HD Realtek ALC897  ·  ·Nahimic

LAN

·Gigabit LAN 10/100/1000 Mb/s

·Giga PHY Intel® I219V

·

·

· 802.3az EEE

· UEFI PXE

 I/O

·3 x  ·1 x PS/2  ·1 x HDMI  ·1 x DisplayPort 1.4 ·4 x USB 3.2 Gen1  ·2 x USB 2.0  ·1 x RJ-45 LAN  LEDACT/LINK LED  SPEED
LED ·HD

148



B660M Pro RS


RAID

·4 x SATA3 6.0 Gb/s  * *  M2_2  SATA  M.2  SATA3_0 · 1 x Hyper M.2 M2_1Key M 2242/2260/2280
PCIe Gen4x4 (64 Gb/s)  ** ·1 x Ultra M.2  (M2_2 Key M),  2280 SATA3
6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode** **  Intel® OptaneTM  M2_2 **  Intel®  (VMD) **  NVMe SSD  **  U.2
· SATA  RAID 0RAID 1RAID 5  RAID 10
·1 x SPI TPM  ·1 x  ·1 x RGB LED  *  12V/3A36W LED  ·3 x  LED  *  5V/3A15W LED  ·1 x CPU  (4-pin) * CPU  1A (12W)  CPU  ·1 x CPU  (4-pin) * CPU  2A (24W)   · 3 x  (4-pin) *  2A (24W)   *  3-pin  4-pin  CPU_FAN2/WP  CHA_FAN1~3/WP ·1 x 24 pin ATX  ·1 x 8 pin 12V  ·1 x  · 1 x Thunderbolt AIC  (5-pin) Thunderbolt 4 AIC


149



· 2 x USB 2.0  4  USB 2.0  ·1 x USB 3.2 Gen1  2  USB 3.2 Gen1
 ·1 x  Type C USB 3.2 Gen1

BIOS

·AMI UEFI Legal BIOS  GUI  ·ACPI 6.0  · SMBIOS 2.7 ·CPU CPU GTDRAMVDD_IMCVCCIN
AUX+1.05V PROC+0.82V PCH+1.05V PCH



·CPUCPU
· CPU CPU CPU
·CPUCPU
·  ·CPU Vcore+1.05V PCHDRAMVCCIN AUX
+1.05V PROCVCCSA+0.82V PCH+12V+5V+3.3V



·Microsoft® Windows® 10 64  / 11 64



· FCCCE ·ErP/EuP Ready ErP/EuP ready

* http://www.asrock.com
 BIOS

150



B660M Pro RS
1.3


 CMOS

(CLRMOS1)

2-pin

 1  24

 CLRMOS1  CMOS   15   CLRMOS1  pin  5  BIOS  CMOS  BIOS  CMOS CMOS  CMOS   CMOS

 CMOS BIOS

151



1.4


 (9-pin PANEL1)  1  13

PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+



PWRBTN (  )
RESET (  )
PLED (  LED)  LED   S1/S3 LED  S4  (S5) LED
HDLED (  LED)  LEDLED
 LED LED

 (7-pin SPK_CI1)  1  20

SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY



152

SATA3_2 SATA3_3


B660M Pro RS

Serial ATA3   : SATA3_0:  1  14 SATA3_1:  1  15 SATA3_1 SATA3_0  : SATA3_2:  1  12 SATA3_3:  1  11

USB 2.0  (9-pin USB_3_4)  1  19 (9-pin USB_5_6)  1  18

USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR

 SATA3   SATA   6.0 Gb/s   *  M2_2  SATA  M.2  SATA3_0
 USB 2.0  USB 2.0

USB 3.2 Gen1  (19-pin USB3_5_6)  1  9

Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+

Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1

 USB 3.2 Gen1  USB 3.2 Gen1

 C  USB 3.2 Gen1  (20-pin F_USB3_TC_1)  1  10

USB Type-C Cable

 C  USB 3.2 Gen1   USB 3.2 Gen1  USB 3.2 Gen1

153



 (9-pin HD_AUDIO1)  1  27

GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L



1.  (Jack Sensing)  HDA
2.  AC'97  A.  Mic_IN (MIC)  MIC2_L B.  Audio_R (RIN)  OUT2_R  Audio_L (LIN)  OUT2_L C.  (GND)  (GND) D. MIC_RET  OUT_RET  HD  AC'97   E.  Realtek FrontMic



1

2

(4-pin CHA_FAN1/WP)

3

4

 1  28

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL

(4-pin CHA_FAN2/WP)  1  21 (4-pin CHA_FAN3/WP)  1  22

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTRLO
1 2 34

 4-Pin    3-Pin   Pin 1-3

CPU  (4-pin CPU_FAN1)  1  4

4 3 21
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL

 4-Pin CPU    3-Pin CPU   Pin 1-3

154



B660M Pro RS

CPU  (4-pin CPU_FAN2/WP)  1   5

4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL

ATX  (24-pin ATXPWR1)  1  8

12

24

 4-Pin  CPU   3-Pin CPU   Pin 1-3
 24-pin ATX  20-pin ATX   Pin 1  Pin 13

1

13

ATX 12V

8

(8-pin ATX12V1)

 1  1

4

5

 8-pin ATX

12V

1

4-pin ATX

 Pin 1  Pin 5

*  CPU   PCIe

SPI TPM  (13-pin SPI_TPM_J1)  1  16

SPI_DQ3
SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ

1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

 SPI   (TPM)   TPM

Thunderbolt AIC  (5-pin TB1)  1  23

 GPIO  ThunderboltTM  (AIC)  *  ThunderboltTM AIC   PCIE3

155



RGB LED  (4-pin RGB_LED1)  1  26

1 +12V G R B

 LED  (3-pin ADDR_LED1)  1  25

1
GND DO_ADDR VOUT

(3-pin ADDR_LED2)  1  6 (3-pin ADDR_LED3)  1  7

GND
DO_ADDR VOUT 1

 RGB LED  RGB LED   LED   RGB LED   *   32
  LED   LED    LED   *   33

156

Bahasa Indonesia

B660M Pro RS

Spesifikasi

Platform

· Bentuk dan Ukuran Micro ATX · Desain Kapasitor Solid

CPU

· Mendukung Prosesor Intel® CoreTM Gen ke-12 (LGA1700)

· Digi Power design

· Desain 8 Fase Daya

· Mendukung Teknologi Intel® Hybrid

· Mendukung Teknologi Intel® Turbo Boost Max 3.0

Chipset

· Intel® B660

Memori

· Teknologi Memori DDR4 Dua Saluran · 4 x Slot DIMM DDR4 · Mendukung memori DDR4 non-ECC, tanpa buffer hingga
4800+(OC)*
* Mendukung DDR4 3200 secara native.
* Lihat Daftar Dukungan Memori pada situs web ASRock untuk
informasi selengkapnya. (http://www.asrock.com/) · Mendukung modul memori ECC UDIMM (berjalan dalam mode
non-ECC) · Kapasitas maksimum memori sistem: 128GB · Mendukung Intel® Extreme Memory Profile (XMP) 2.0

Slot Ekspansi

· 2 slot PCIe x16 (PCIE1/PCIE3: satu pada Gen4x16 (PCIE1); dua
pada Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Mendukung SSD NVMe sebagai disk boot · 1 slot PCIe Gen3x1 · Mendukung AMD CrossFireTM · 1 x Soket M.2 (Tombol E), mendukung modul jenis 2230 WiFi/
WiFi BT PCIe dan Intel® CNVi (WiFi/BT terintegrasi)

157

Bahasa Indonesia

Grafis
Audio LAN I/O Panel Belakang

· Intel® UHD Graphics Built-in Visuals dan output VGA hanya didukung dengan prosesor yang terintegrasi GPU.
· Arsitektur Grafis Intel® Xe (Gen 12) · Output grafis ganda:Mendukung port HDMI dan DisplayPort 1.4
melalui pengontrol layar mandiri · Mendukung HDMI 2.1 TMDS Kompatibel dengan maks. resolusi
hingga 4K x 2K (4096x2160) @ 60Hz · Mendukung DisplayPort 1.4 dengan resolusi maks, DSC
(terkompresi) hingga 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz · Mendukung HDCP 2.3 dengan Port HDMI 2.1 yang Kompatibel dengan TMDS dan DisplayPort 1.4
· Audio HD 7.1 CH (Realtek ALC897 Audio Codec) · Mendukung Perlindungan dari Lonjakan Arus · Audio Nahimic
· Gigabit LAN 10/100/1000 Mb/s · Giga PHY Intel® I219V · Mendukung Wake-On-LAN · Mendukung Perlindungan dari Petir/ESD · Mendukung Ethernet 802.3az Hemat Energi · Mendukung UEFI PXE
· 3 x Titik Pemasangan Antena · 1 x Port Mouse/Keyboard PS/2 · 1 x Port HDMI · 1 x DisplayPort 1.4 · 4 x Port USB 3.2 Gen1 (Mendukung Perlindungan dari ESD) · 2 x Port USB 2.0 (Mendukung Perlindungan dari ESD) · 1 x Port LAN RJ-45 dengan LED (LED ACT/LINK dan LED
SPEED) · Soket Audio HD: Saluran Masuk/Speaker Depan/Mikrofon

158

B660M Pro RS

Bahasa Indonesia

Penyimpanan

· 4 x Konektor SATA3 6,0 Gb/s* * Jika M2_2 digunakan oleh perangkat SATA tipe M.2, maka SATA3_0 akan dinonaktifkan. · 1 x Soket Hyper M.2 (M2_1, Key M), mendukung PCIe tipe
2242/2260/2280 mode Gen4x4 (64 Gb/s)** · 1 x Soket Ultra M.2 (M2_2, Key M), mendukung SATA3 tipe 2280
6,0 Gb/s & PCIe mode Gen3x4 (32 Gb/s)** ** Mendukung Intel® OptaneTM Technology (hanya untuk M2_2) ** Mendukung Intel® Volume Management Device (VMD) ** Mendukung SSD NVMe sebagai disk boot ** Mendukung Kit ASRock U.2

RAID

· Mendukung RAID 0, RAID 1, RAID 5 dan RAID 10 untuk perangkat penyimpanan SATA

Konektor

· 1 x Header SPI TPM · 1 x Intrusi Chassis dan Header Speaker · 1 x Header LED RGB * Mendukung total Strip LED hingga 12V/3A, 36W · 3 x Addressable LED Header * Mendukung total Strip LED hingga 5V/3A, 15W · 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas maksimum 1A (12W). · 1 x Konektor Kipas CPU/Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * CPU/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). · 3 x Konektor Sasis/Kipas Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * Chassis/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). * CPU_FAN2/WP dan CHA_FAN1~3/WP dapat mendeteksi otomatis jika kipas 3-pin atau 4-pin sedang digunakan. · 1 x Konektor Daya ATX 24 pin · 1 x Konektor Daya 12 V 8 pin (Konektor Daya dengan Densitas
Tinggi) · 1 x Konektor Audio Panel Depan · 1 x Konektor Thunderbolt AIC (5-pin) (Mendukung Thunderbolt 4
AIC)

159

Bahasa Indonesia

Fitur BIOS
Monitor Perangkat Keras
OS Sertifikasi

· 2 x Header USB 2.0 (Mendukung 4 port USB 2.0) (Mendukung Perlindungan dari ESD)
· 1 x Header USB 3.2 Gen1 (Mendukung 2 port USB 3.2 Gen1) (Mendukung Perlindungan dari ESD)
· 1 x Header Tipe C USB 3.2 Gen1 Panel Depan (Mendukung Perlindungan dari ESD)
· AMI UEFI Legal BIOS dengan dukungan GUI multibahasa · ACPI 6.0 Kompatibel dengan aktivitas pengaktifan · Dukungan SMBIOS 2.7 · CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1,05V PROC, +0,82V PCH, Multi penyesuaian Tegangan +1,05V PCH
· Takometer Kipas: Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air · Kipas Hening (Penyesuaian otomatis kecepatan kipas sasis
berdasarkan suhu CPU): Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air · Kontrol Multikecepatan Kipas: Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air · Deteksi CASE OPEN · Pemantauan tegangan: CPU Vcore, +1,05V PCH, DRAM, VCCIN AUX, +1,05V PROC, VCCSA, +0,82V PCH, +12V, +5V, +3,3V
· Microsoft® Windows® 10 64-bit / 11 64-bit
· FCC, CE · Mendukung ErP/EuP (Memerlukan catu daya untuk ErP/EuP)

* Untuk informasi rinci tentang produk, kunjungi situs web kami: http://www.asrock.com
Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan pengaturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat bantu overclocking pihak ketiga. Overclocking dapat mempengaruhi stabilitas sistem, atau bahkan mengakibatkan kerusakan komponen dan perangkat sistem. Risiko dan biaya apa pun menjadi tanggungan Anda. Kami tidak bertanggung jawab atas kemungkinan kerusakan karena overclocking.
160

Contact Information
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp ASRock Incorporation 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) ASRock EUROPE B.V. Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands Phone: +31-24-345-44-33 Fax: +31-24-345-44-38 ASRock America, Inc. 13848 Magnolia Ave, Chino, CA91710 U.S.A. Phone: +1-909-590-8308 Fax: +1-909-590-1026

DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation Address: 13848 Magnolia Ave, Chino, CA91710
Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product
Product Name : Motherboard Model Number : B660M Pro RS Conforms to the following specifications:
FCC Part15, SubpartB,Unintentional Radiators Supplementary Information:
is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person's Name: James
Signature : Date : May 12, 2017

EU Declaration of Conformity

For the following equipment: Motherboard (Product Name)
B660M Pro RS / ASRock (Model Designation / Trade Name)
ASRock Incorporation (Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address)

EMC Directive - 2014/30/EU
¾EN 55032:2015/A11:2020 ¾EN 61000-3-2:2014 ¾EN 61000-3-3:2013

¾EN 55024:2010/A1:2015 ½EN 55035:2017/A11:2020 ¾EN 61000-4-2:2009 ¾EN 61000-4-3:2006/A1:2008/A2:2010 ¾EN 61000-4-4:2012 ¾EN 61000-4-5:2014/A1:2017 ¾EN 61000-4-6:2014/AC:2015 ¾EN 61000-4-8:2010 ¾EN 61000-4-11:2004/A1:2017

Low Voltage Directive - 2014/35/EU
½EN 62368-1:2014 ½EN 62368-1:2014/A11:2017

RoHS Directive - 2011/65/EU
¾(EU) 2015/863½EN 50581:2012

ASRock EUROPE B.V. (Company Name)
Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands (Company Address)
Person responsible for making this declaration:

(Name, Surname) A.V.P (Position / Title) November 15, 2021 (Date)
P/N: 15G062330000AK V1.0


Adobe PDF Library 10.0.1 Adobe InDesign CS6 (Windows)
