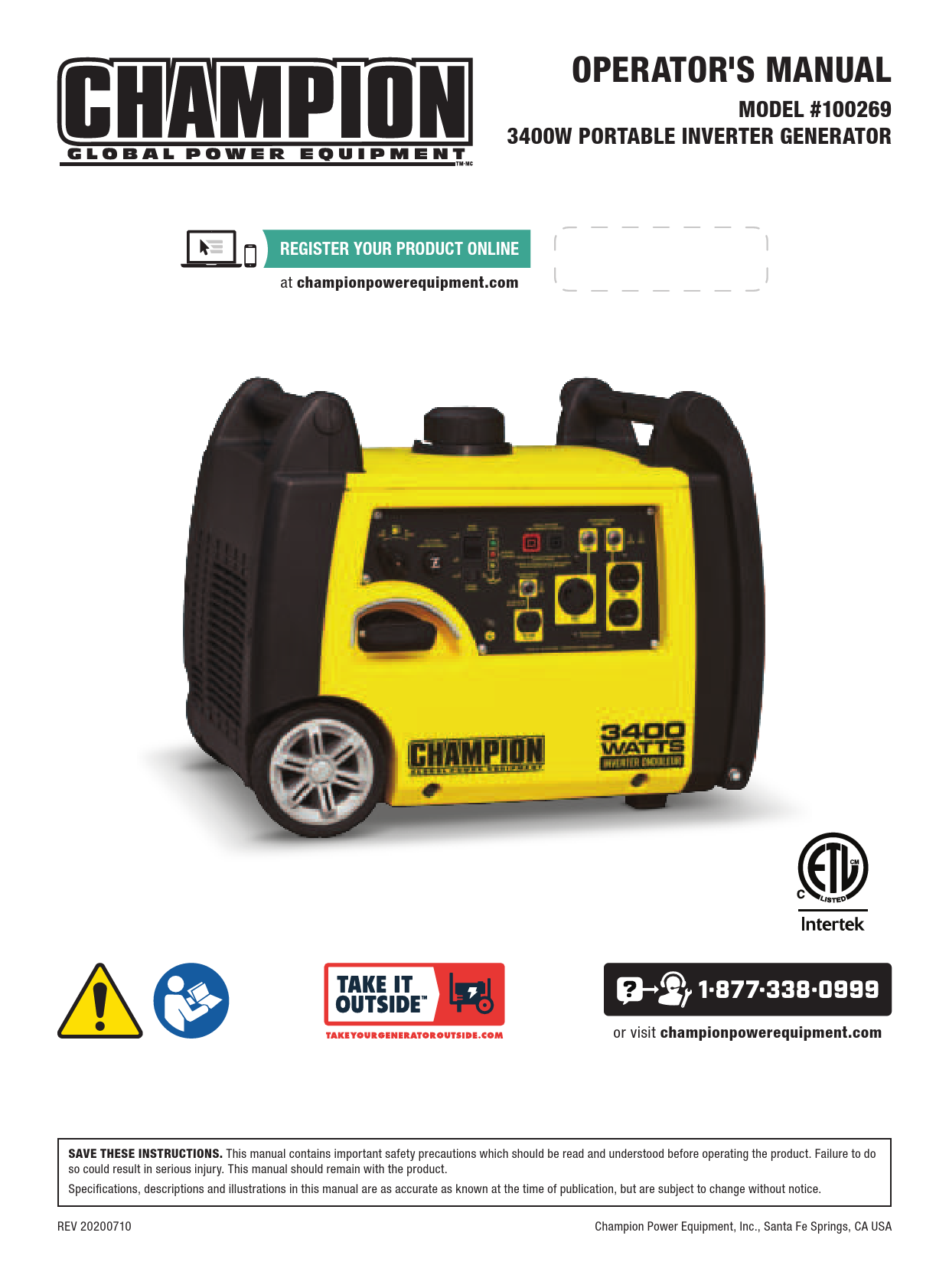

OPERATOR'S MANUAL
MODEL #100269 3400W PORTABLE INVERTER GENERATOR
REGISTER YOUR PRODUCT ONLINE at championpowerequipment.com

or visit championpowerequipment.com

SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.

REV 20200710

Champion Power Equipment, Inc., Santa Fe Springs, CA USA

CARBON MONOXIDE SAFETY: THE BIG PICTURE
As the only safe way to use a portable generator, taking your generator outside is absolutely mandatory to keep your family safe from carbon monoxide. But there's even more you can do. By educating yourself about all carbon monoxide risks, you'll be better prepared to protect your family from this colorless, oderless threat.

ALWAYS READ MANUAL THE OPERATOR'S
MANUAL FIRST

KNOW THE SYMPTOMS

· Headache

· Dizziness

· Nausea

· Fatigue

· Shortness of breath

STAY ALERT WITH CARBON MONOXIDE DETECTORS

KEEP IT OUTSIDE AND AWAY FROM DOORS, WINDOWS, AND GARAGES

IF YOU FEEL SYMPTOMS, LEAVE RIGHT AWAY

POINT FUMES AWAY FROM NEARBY PEOPLE

www.TakeYourGeneratorOutside.com

100269 - 3400W PORTABLE INVERTER GENERATOR
TABLE OF CONTENTS
Introduction................................................... 4 Safety Definitions .......................................... 4 Important Safety Instructions ....................... 5
Fuel Safety ........................................................ 7 Safety and Dataplate Labels...................................... 8
Controls and Features ................................... 9
Generator .......................................................... 9 Control Panel ..................................................... 10 Parts Included .................................................... 11
Assembly ..................................................... 12
Unpacking ........................................................ 12 Add Engine Oil.................................................... 12 Add Fuel .......................................................... 13 Grounding ........................................................ 13
Operation ..................................................... 14
Generator Location............................................... 14 Surge Protection ................................................. 14 Starting the Engine............................................... 14 Connecting Electrical Loads ..................................... 15 Do Not Overload Generator ...................................... 15 Eco (Economy) Mode............................................. 16 12V DC Outlet .................................................... 16 Parallel Operation ................................................ 17 Stopping the Engine.............................................. 17 Moving the Generator ............................................ 17 Operation at High Altitude ....................................... 17
Maintenance ................................................ 17
Cleaning the Generator .......................................... 18 Changing the Engine Oil ......................................... 18 Cleaning and Adjusting the Spark Plug.......................... 18 Cleaning the Air Filter ............................................ 19 Cleaning the Spark Arrestor ..................................... 19 Adjusting the Governor........................................... 19 Maintenance Schedule........................................... 19
Storage ........................................................ 20
Short Term Storage (up to 30 days) ............................. 20 Mid Term Storage (30 days 1 year) ........................... 20 Long Term Storage (over 1 year) ................................ 20 Removing from Storage.......................................... 21

TABLE OF CONTENTS
Specifications.............................................. 22
Generator Specifications............................... .......... 22 Engine Specifications ............................................ 22 Oil Specifications................................................. 22 Fuel Specifications ..................................... .......... 22 Temperature Specifications...................................... 22 ICES002 Warning..................................... .......... 22 Parts Diagram .................................................... 23 Parts List ............................................... .......... 24 Engine Parts Diagram............................................ 26 Engine Parts List ....................................... .......... 27 Wiring Diagram................................................... 29
Troubleshooting........................................... 30 Warranty* .................................................... 31
Warranty Qualifications .......................................... 31 Repair/Replacement Warranty................................... 31 Do Not Return The Unit To The Place Of Purchase ............. 31 Warranty Exclusions ................................... .......... 31 Other Exclusions ................................................. 31 Limits of Implied Warranty and Consequential Damage........ 31 Contact Information .................................... .......... 31

100269 - 3400W PORTABLE INVERTER GENERATOR
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment (CPE) product. CPE designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and completeness of the information in this manual at the time of publication, and we reserve the right to change, alter and/or improve the product and this document at any time without prior notice.
CPE highly values how our products are designed, manufactured, operated, and serviced as well as providing safety to the operator and those around the generator. Therefore, it is IMPORTANT to review this product manual and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please always exercise common sense and always err on the side of caution when operating the product to ensure no accident, property damage, or injury occurs. We want you to continue to use and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to supply the complete model and serial numbers of your product. Transcribe the information found on your product's nameplate label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100269
SERIAL NUMBER

INTRODUCTION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to property damage).

DATE OF PURCHASE

PURCHASE LOCATION

100269 - 3400W PORTABLE INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Generator exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Breathing carbon monoxide will cause nausea, dizziness, fainting or death. If you start to feel dizzy or weak, get to fresh air immediately. OPERATE GENERATOR OUTDOORS ONLY IN A WELL VENTILATED AREA AND POINT EXHAUST AWAY. DO NOT operate the generator inside any building, including garages, basements, crawlspaces and sheds, enclosure or compartment, including the generator compartment of a recreational vehicle. DO NOT allow exhaust fumes to enter a confined area through windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home or garage, EVEN IF doors and windows are open. ONLY use OUTSIDE and far away from windows, doors, and vents.
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up according to the manufacturer's instructions.
WARNING
Although the generator contains a spark arrester, maintain a minimum distance of 5 ft. (1.5 m) from dry vegetation to prevent fires.

IMPORTANT SAFETY INSTRUCTIONS
DANGER
Operate equipment with guards in place. Rotating parts can entangle hands, feet, hair, clothing and/or accessories. Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts. Tie up long hair and remove jewelry. DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles. DO NOT use electrical cords that are worn, damaged or frayed. Use only Champion electrical cords for proper application. DO NOT operate generator in wet weather. DO NOT allow children or unqualified persons to operate or service the generator. Use a ground fault circuit interrupter (GFCI) in damp areas and areas containing conductive material such as metal decking. Connection to your home's electrical system requires a listed 30A transfer switch installed by a licensed electrician and approved by the local authority having jurisdiction. The connection must isolate the generator from the utility power and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately. NEVER use this product to power life support devices or life support appliances. NEVER use this product to power medical devices or medical appliances. Inform your electricity provider immediately if you or anyone in your household depends on electrical equipment to live. Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency.

100269 - 3400W PORTABLE INVERTER GENERATOR
WARNING
Spark from removed spark plug wire can result in fire or electrical shock.
When servicing the generator: Disconnect the spark plug wire and place it where it cannot contact the plug or any other metal object. DO NOT check for spark with the plug removed. Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces. Avoid contact with hot exhaust gases. Allow equipment to cool before touching. Maintain at least 3 ft. (91.4 cm) of clearance on all sides to ensure adequate cooling. Maintain at least 5 ft. (1.5 m) of clearance from combustible materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm towards the engine faster than you can let go. Unintentional startup can result in entanglement, traumatic amputation or laceration. Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the recoil cord slowly until resistance is felt and then pull rapidly to avoid kickback. DO NOT start or stop the engine with electrical devices plugged in and turned on.
CAUTION
Exceeding the generator's running capacity can damage the generator and/or electrical devices connected to it.
DO NOT overload the generator. DO NOT tamper with the governed speed. DO NOT modify the generator in any way.

IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Start the generator and allow the engine to stabilize before connecting electrical loads. Connect electrical equipment in the off position, and then turn them on for operation. Turn electrical equipment off and disconnect before stopping the generator.
CAUTION
Improper treatment or use of the generator can damage it, shorten its life or void the warranty.
Use the generator only for intended uses. Operate only on level surfaces. DO NOT expose generator to excessive moisture, dust, or dirt. DO NOT allow any material to block the cooling slots. If connected devices overheat, turn them off and disconnect them from the generator. DO NOT use the generator if: Electrical output is lost Equipment sparks, smokes or emits flames Equipment vibrates excessively

100269 - 3400W PORTABLE INVERTER GENERATOR
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors: Gasoline is highly flammable and explosive. Gasoline can cause a fire or explosion if ignited. Gasoline is a liquid fuel but it's vapors can ignite. Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes. Gasoline has a distinctive odor, this will help detect potential
leaks quickly. Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs room to expand when temperatures rise. In the case of any petroleum gasoline fire, flames should never be extinguished unless the fuel supply valve can be turned OFF. By not doing so, if a fire is extinguished and the supply of fuel is not turned OFF, an explosion hazard could be created. When adding or removing gasoline: DO NOT light or smoke cigarettes. Always turn the generator off and let cool for a minimum of two minutes before removing the gasoline cap. Afterwards, loosen gasoline cap to relieve pressure from the gasoline tank. Only fill or drain gasoline outdoors in a well-ventilated area. DO NOT pump gasoline directly into the generator at the gas station. Always use an approved fuel container to transfer the gasoline to the generator. DO NOT overfill the gasoline tank. Always keep gasoline away from sparks, open flames, pilot lights, heat and other sources of ignition. When starting the generator: DO NOT attempt to start a damaged generator. Always make certain that the gasoline cap, air filter, spark plug, fuel lines and exhaust system are properly secured, connected and in place. Always allow spilled gasoline to evaporate fully before attempting to start the engine. Make certain that the generator is resting firmly on level ground.

IMPORTANT SAFETY INSTRUCTIONS
When operating the generator: DO NOT move or tip the generator during operation. DO NOT tip the generator or allow fuel or oil to spill. When transporting or servicing the generator: Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty. Disconnect the spark plug wire. When storing the generator: Store away from sparks, open flames, pilot lights, heat and
other sources of ignition. Do not store generator or gasoline near furnaces, water
heaters, or any other appliances that produce heat or have automatic ignitions.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged.

100269 - 3400W PORTABLE INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.

A B C D E F G

A BC

Top

Back

LABEL
SPACE MINIMU

MINIMUM1,D'E5M

5 MFT.CLEARANCE

1,5M
ESPACIO MÍNIMO

1032-L-OP-B

UNLEADED FUEL ONLY. Minimum octane rating of 87. Maximum 10% ethanol. GASOLINA REGULAR SOLAMENTE. 87 octanos como mínimo. Máximo de etanol de 10%. ESSENCE SANS PLOMB SEULEMENT. Indice d'octane minimal de 87. Maximum 10 % d'éthanol.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust

contains carbon monoxide. This is a

poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

ONLY use OUTSIDE and far away from windows, doors, and vents.

PELIGRO

El uso de un generador en interiores PUEDE MATARLO EN MINUTOS. El escape del generador contiene monóxido de carbono. Éste es un veneno que no se puede ver ni oler. NUNCA lo use dentro del hogar ni el garaje, INCLUSO SI las puertas y ventanas

están abiertas. Úselo SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.

DANGER

Utiliser un générateur à l'intérieur PEUT VOUS TUER EN QUELQUES MINUTES. L'échappement du générateur contient du monoxyde de carbone. Il s'agit d'un poison que vous ne pouvez ni voir ni sentir. Ne l'utilisez JAMAIS dans la maison ou le garage

MÊME SI les portes et les fenêtres sont ouvertes. Utilisez-le UNIQUEMENT À L'EXTÉRIEUR, loin des fenêtres, portes et trappes

de ventilation.

DANGER

FOR USE IN A WEATHER PROTECTED AREA ONLY - DO NOT EXPOSE TO RAIN
WHEN STORING GASOLINE, PROPANE (LPG) OR EQUIPMENT WITH FUEL IN IT: Store away from furnaces, stoves, water heaters or other appliances that have a pilot light or other ignition source because they can ignite the fuel.
WARNING

EMPLOYEZ UNIQUEMENT DANS UN EMPLACEMENT A L'ABRI DES INTEMPÉRIES - NE PAS EXPOSER À LA PLUIE
LORSQUE VOUS RANGEZ DE L'ESSENCE, DU GAZ PÉTROLE LIQUÉFIÉ (GPL) OU DU MATÉRIEL CONTENANT DE L'ESSENCE : Rangez-les à l'écart des appareils de chauffage, des chauffe-eaux et des autres dispositifs qui contiennent une veilleuse ou une autre source d'allumage parce qu'il peut enflammer l'essence.
AVERTISSEMENT

Read and follow operating instructions before running engine.
Gasoline and propane (LPG) are extrememely flammable. Check for spilled fuel or fuel leaks. If one is found, shut off fuel supply and stop engine immediately. Allow to cool at least 2 minutes before refueling.

Lire et suivre les instructions avant de faire fonctionner le moteur.
L'essence et le gaz de pétrole liquéfié (GPL) sont extrêmement inflammables. Vérifiez la présence de carburant renversé et de fuite de carburant. Si vous en trouvez, coupez la source d'alimentation en carburant et arrêtez le moteur immédiatement. Laissez-le refroidir au moins 2 minutes avant de remettre du carburant.

Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrester may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.
CAUTION

Le fonctionnement de cet appareil peut générer de étincelles pouvant amorcer un incendie près de la végétation sèche. Un pare-étincelles pourrait être requis. L'opérateur devrait communiquer avec les services d'incendie locaux pour connaître la réglementation concernant les normes de prévention contre les incendies.
MISE EN GARDE

FOR ELECTRICAL EQUIPMENT ONLY.

POUR MATERIEL ÉLECTRIQUE SEULEMENT.

STOP / ALTO / ARRÊT
NO OIL IN UNIT! / ¡NO TIENE ACEITE! / MANQUE D'HUILE DANS L'UNITÉ!
REMOVE PANEL TO FILL OIL / QUITE EL PANEL PARA AGREGAR ACEITE RETIRER LE PANNEAU POUR REMPLIR D'HUILE
READ YOUR OWNER'S MANUAL BEFORE OPERATION. ADD OIL BEFORE INITIAL START UP. AUTOMATIC LOW OIL SHUTOFF WILL PREVENT STARTING WITHOUT ADDING OIL.
LEA EL MANUAL ANTES DE OPERACIÓN. AGREGUE ACEITE ANTES DE PRIMER USO. SENSOR DE NIVEL
DE ACEITE AUTOMATICO. UNIDAD FALLA DE ENCENDER SIN ACEITE.
LIRE LE GUIDE D'UTILISATION AVANT DE FAIRE FONCTIONNER. AJOUTER DE L'HUILE AVANT LE DÉMARRAGE INITIAL. LA FERMETURE AUTOMATIQUE EN CAS DE MANQUE D'HUILE EMPÊCHERA LE DÉMARRAGE SANS AJOUT D'HUILE.

Charge only 12v lead-acid batteries. Other types of batteries may burst causing personal injury and damage.
Risk of explosive gas mixture. Read instructions in owner's guide before using charger.

Utiliser pour charger uniquement les accumulateurs du type plombacide de 12v. D´autres type d´accumulateurs pourraiemt éclater et causer des belessures ou dommager.
Risque de mélange gazeux explosif. Lire les instructions du guide d´utilisstions avant d´utiliser le chargeur.

WARNING

AVERTISSEMENT

DO NOT TOUCH!

Operation of this equipment may create sparks that can start

Exhaust gases, muffler fires around dry vegetation. A spark arrestor may be

and engine components required. The operator should contact local fire agencies for

are extremely HOT and laws and regulations relating to fire prevention requirements.

cause burns.

If installed, clean every 100 hours or every season.

NE PAS TOUCHER! Les gaz Cet équipement peut créer des étincelles et provoquer un incendie dans d'échappement, le silencieux la végétation sèche. Un pare-étincelles peut être requis. L'opérateur et les pièces du moteur sont doit communiquer avec le service d'incendie local pour connaître les extrêmement CHAUDS et lois et les règlements en matière de prévention des incendies. Si elle peuvent causer des brûlures. est installée, nettoyez toutes les 100 heures ou chaque saison.

1308-L-SF-B

1297-L-SF-A

G
Side DESCRIPTION
Minimum Clearance Fuel
CO Danger Spark Arrestor
Add Oil Battery Charging
Hot Surface

100269 - 3400W PORTABLE INVERTER GENERATOR

CONTROLS AND FEATURES

CONTROLS AND FEATURES
Read this operator's manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference.

Generator

7 1

1. Fuel Cap Remove to add fuel. 2. Recoil Starter Used to manually start the engine. 3. Control Panel See Control Panel section. 4. Muffler 5. Maintenance Cover

6. Never Flat Wheels 5.5 in. (14 cm) 7. Carrying Handle(s) Used to lift or carry the unit.

100269 - 3400W PORTABLE INVERTER GENERATOR
Control Panel

CONTROLS AND FEATURES

10
5 6 7
8

8 C

1. Fuel Valve Knob Used to open and close the flow of fuel to the engine.
2. Choke Used to start a cold engine.
3. Engine Switch Used to put in START mode or STOP the generator.
4. Economy Mode Switch Enables/disables automatic idle control.
5. Output Indicator Light Remains ON during normal operating conditions. Turns OFF when generator is overloaded.
6. Overload Indicator Light When ON, generator is overloaded and power to receptacles is cut.
7. Low Oil Warning Indicator Light When ON, engine will shut down and not run. Check oil level.
8. Circuit Breakers (Push Reset) Protects the generator against electrical overloads.
9. Ground Terminal Consult an electrician for local grounding regulations.
10. Parallel Outlets Used to parallel two inverters together for increased power output. (parallel kit sold separately).

RECEPTACLES

0 12V DC, 8A

May be used to supply electrical power for

operation of 12 Volt DC, 8 Amp electrical loads.

120V AC, 30A Locking (NEMA L5-30R)

W B

May be used to supply electrical power for operation of 120 Volt AC, 30 Amp, single phase,

60 Hz electrical loads.

(2×) 120V AC, 20A (NEMA 5-20R)

A May be used to supply electrical power for

operation of 120 Volt AC, 20 Amp, single phase,

60 Hz electrical loads.

WARNING
Do not operate a device while it is plugged into the 12V DC outlet. Prolonged exposure to engine exhaust can cause serious injury or death. While charging a device do no place on the exhaust side of the generator. Extreme heat caused by exhaust can damage the device, and cause a potential fire hazard.

100269 - 3400W PORTABLE INVERTER GENERATOR
Parts Included
Accessories Battery Charging Cables ........................................... 1 Oil Funnel ........................................................... 1 RV Adapter Plug .................................................... 1

CONTROLS AND FEATURES

100269 - 3400W PORTABLE INVERTER GENERATOR
ASSEMBLY
Your generator requires some assembly. This unit ships from our factory without oil. It must be properly serviced with fuel and oil before operation. If you have any questions regarding the assembly of your generator, call our Technical Support Team at 1-877-338-0999. Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface. 2. Remove everything from the carton except the generator. 3. Using the carrying handles of the unit, carefully remove the
generator from the box (two people lifting is recommended).
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has been properly filled with the recommended type and amount of oil. Damage to the generator as a result of failing to follow these instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30 automotive oil. If running generator in extreme temperatures, refer to the following chart for recommended oil type.

Recommended Engine Oil Type 10W-30

5W-30

10W-40

5W-30 Synthetic

°F -20 0

80 100 120

°C -28.9 -17.8 -6.7 4.4 15.6 26.7 37.8 48.9

Ambient temperature

1. Place the generator on a flat, level surface. 2. Loosen the cover screws and remove the maintenance cover.

ASSEMBLY
3. Remove oil fill cap/dipstick to add oil. 4. Using a funnel, add up to 20.3 fl. oz. (600 ml) of oil (not
included) and replace oil fill cap/dipstick. DO NOT OVERFILL. 5. Check engine oil level daily and add as needed.
MAX OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about 1-2 threads from running out of the fill hole. When using the dipstick to check oil level, DO NOT screw in the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop when the oil level in the crankcase falls below the threshold level.

100269 - 3400W PORTABLE INVERTER GENERATOR

ASSEMBLY

NOTICE
The first 5 hours of run time are the break-in period for the unit. During the break in period stay at or below 50% of the running watt rating and vary the load occasionally to allow stator windings to heat and cool. Adjusting the load will also cause engine speed to vary slightly and help seat piston rings. After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in period. Using synthetic oil does not increase the recommended oil change interval. Full synthetic 5W-30 oil will aid in starting in cold ambient < 41º F (5º C) temperatures.
Add Fuel
Use clean, fresh, regular unleaded gasoline with a minimum octane rating of 87 and an ethanol content of 10% or less by volume. y b c DO NOT mix oil with gasoline. 1. Remove the gasoline cap. 2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline can expand after filling. A minimum of ¼ in. (6.4 mm) of space left in the tank is required for gasoline expansion, although more than ¼ in. (6.4 mm) is recommended. Gasoline can be forced out of the tank as a result of expansion if overfilled, and can affect the stable running condition of the generator. 3. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87 and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank. DO NOT mix oil and gasoline. DO NOT overfill the tank. Fill tank to approximately ¼ in. (6.4 mm) below the top of the tank to allow for gasoline expansion. DO NOT pump gasoline directly into the generator at the pump. Use an approved fuel container to transfer the gasoline to the generator. DO NOT fill tank indoors. DO NOT fill tank when the engine is running or hot.

WARNING
Pouring gasoline too fast through the fuel screen may result in gasoline splashing over the generator and operator while filling.
NOTICE
The generator engine works well with 10% or less ethanol blend gasoline. When using ethanol-gasoline blends there are some issues worth noting: Ethanol-gasoline blends can absorb more water than
gasoline alone. These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The compromised gasoline can be drawn into the carburetor and cause damage to the engine and/or potential hazards. If a fuel stabilizer is used, confirm that it is formulated to work with ethanol-gasoline blends. Any damages or hazards caused by using improper gasoline, improperly stored gasoline, and/or improperly formulated stabilizers, are not covered by manufacturer's warranty. It is advisable to always shut off the gasoline supply and run the engine to starvation after each use. See Storage instructions for extended non-use.
Grounding
Your generator must be properly connected to an appropriate ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric shock.
A ground terminal connected to the frame of the generator has been provided (see Controls and Features for terminal location). For remote grounding, connect of a length of heavy gauge (12 AWG minimum) copper wire between the generator ground terminal and a copper rod driven into the ground. We strongly recommend that you consult with a qualified electrician to ensure compliance with local electrical codes.
Neutral Floating* Neutral circuit IS NOT electrically connected to the frame/
ground of the generator. The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.

100269 - 3400W PORTABLE INVERTER GENERATOR
Electrical devices that require a grounded receptacle pin connection will not function if the receptacle ground pin is not functional.
Neutral Bonded to Frame*
Neutral circuit IS electrically connected to the frame/ground of the generator.
The generator system ground connects lower frame crossmember below the alternator. The system ground is connected to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
Generator Location
NEVER operate the generator inside any building, including garages, basements, crawlspaces and sheds, enclosure or compartment, including the generator compartment of a recreational vehicle. Please consult your local authority. In some areas, generators must be registered with the local utility. Generators used at construction sites may be subject to additional rules and regulations. Generators should be on a flat, level surface at all times. (Even while not in operation) Generators must have at least 5 ft. (1.5 m) of clearance from all combustible material. In addition to clearance from all combustible material, generators must also have at least 3 ft. (91.4 cm) of clearance on all sides to allow for adequate cooling, maintenance and servicing. Generators should never be started or operated in the back of a SUV, camper, trailer, in the bed of a truck (regular, flat or otherwise), under staircases/stairwells, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation. Allow generators to properly cool before transport or storage.
Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning generator.
Failure to follow proper safety precautions may void manufacturer's warranty.
WARNING
Do not operate or store the generator in rain, snow, or wet weather.
Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution.

OPERATION
WARNING
During operation the muffler and exhaust fumes will become hot. If adequate cooling and breathing space are not supplied, or if the generator is blocked or enclosed, temperatures can become extremely heated and may lead to fire.
Surge Protection
Electronic devices, including computers and many programmable appliances use components that are designed to operate within a narrow voltage range and may be affected by momentary voltage fluctuations. While there is no way to prevent voltage fluctuations, you can take steps to protect sensitive electronic equipment. Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment. Surge suppressors come in single- or multi-outlet styles. They're designed to protect against virtually all short-duration voltage fluctuations.
Starting the Engine
1. Make certain the generator is on a flat, level surface. 2. Disconnect all electrical loads from the generator. Never start
or stop the generator with electrical devices plugged in or turned on. 3. Turn the fuel valve to the "ON" position.
4. Turn the engine switch to the "ON" position.

100269 - 3400W PORTABLE INVERTER GENERATOR
5. Pull choke knob out to the "CHOKE" position.
6. Pull the recoil cord slowly until resistance is felt and then pull rapidly.
7. As engine warms up, push the choke knob in to the "RUN" position.
NOTICE
Keep choke in "CHOKE" position for only 1 pull of the recoil cord. After first pull, press the choke knob in to the "RUN" position for up to the next 3 pulls of the recoil cord. Too much choke leads to spark plug fouling/engine flooding due to the lack of incoming air. This will cause the engine not to start.
NOTICE
For gasoline restarts with hot engine in hot ambient > 86°F (30°C): Keep the choke in 75% of the "CHOKE" position for only 1 pull of the recoil cord. After first pull, push choke to the "RUN" position for up to 3 more pulls of the recoil cord. Too much choke leads to spark plug fouling/engine flooding due to the lack of incoming air. This will cause the engine not to start.
NOTICE
For gas starting in cold ambient < 59°F (15°C): The choke must be in 100% of the "CHOKE" position for manual start procedures. Do not over-choke. As soon as engine starts, push the choke knob in the "RUN" position.
NOTICE
If the engine starts but does not continue to run make certain that the generator is on a flat, level surface. The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold.

OPERATION
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after starting.
Plug in and turn on the desired 120 or 240 (if applicable) Volt AC single phase, 60 Hz electrical loads.
DO NOT connect 3-phase loads to the generator. DO NOT overload the generator.
WARNING
Connecting a generator to your electric utility company's power lines or to another power source may be against the law. In addition this action, if done incorrectly, could damage your generator and appliances and could cause serious injury or even death to you or a utility worker who may be working on nearby power lines. If you plan to run a portable electric generator during an outage, please notify your electric utility company immediately and remember to plug your appliances directly into the generator. Do not plug the generator into any electric outlet in your home. Doing so could create a connection to the utility company power lines. You are responsible for ensuring that your generator's electricity does not feed back into the electric utility power lines.
If the generator will be connected to a building electrical system, consult your local utility company or a qualified electrician. Connections must isolate generator power from utility power and must comply with all applicable laws and codes.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and starting watts necessary for your purposes:
1. Select the electrical devices you plan on running at the same time.
2. Total the running watts of these items. This is the amount of power you need to keep your items running.
3. Identify the highest starting wattage of all devices identified in step 1. Add this number to the number calculated in step 2. Starting wattage is the surge of power needed to start some electric driven equipment. Following the steps listed under "Power Management" will guarantee that only one device will be starting at a time.

100269 - 3400W PORTABLE INVERTER GENERATOR
Power Management Use the following formula to convert voltage and amperage to watts:
Volts × Amps = Watts To prolong the life of your generator and attached devices, follow these steps to add electrical load: 1. Start the generator with no electrical load attached. 2. Allow the engine to run for several minutes to get up to
temperature. 3. Plug in and turn on the first item. It is best to attach the item
with the largest load first. 4. Allow the engine to stabilize. 5. Plug in and turn on the next item. 6. Allow the engine to stabilize. 7. Repeat steps 5-6 for each additional item.
NOTICE
Never exceed the specified capacity when adding loads to the generator.
Eco (Economy) Mode
The Eco Mode switch can be activated to turn on economy control in order to minimize fuel consumption and noise while operating the unit during times of reduced electrical output. Eco Mode allows the engine speed to idle during periods of non-use. The engine speed returns to normal when an electrical load is connected. When the economy switch is off, the engine runs at normal speed continuously.

OPERATION
12V DC Outlet
The 12V DC outlet is ONLY to be used with the supplied 12V DC battery charging cable. The 12V DC output is unregulated and will damage other 12V DC products. When using the 12V DC outlet, turn the Economy mode switch to the "OFF" position. Battery Charging 1. Before connecting the battery charging cable (included) to a
battery that is installed in a vehicle, disconnect the vehicle battery ground cable from the negative () battery terminal. 2. Plug the battery charging cable into the 12V DC receptacle of the generator. 3. Connect the red (+) battery charger lead to the red (+) battery terminal. 4. Connect the black () battery charger lead to the black () battery terminal. 5. Start the generator.
CAUTION
Do not start the vehicle while the battery charging cable is connected and the generator is running. It will not give the battery a boost of power. The vehicle or the generator may be damaged. Charge only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury or damage.
NOTICE
Be sure all electric devices including the lines and plug connections are in good condition before connection to the generator.
WARNING
Do not operate a device while it is plugged in to the 12V DC outlet.
Prolonged exposure to engine exhaust can cause serious injury or death.

CAUTION
For periods of high electrical load or momentary fluctuations, the Eco Mode should be off.

CAUTION
While charging a device do not place on the exhaust side of the generator. Extreme heat caused by exhaust can damage the device, and cause a potential fire hazard.

100269 - 3400W PORTABLE INVERTER GENERATOR

MAINTENANCE

Parallel Operation
The Champion model 100269 is parallel ready and can be operated in parallel with another Champion unit to increase the total available electrical power. A Champion model 100333 parallel kit (sold separately) is required for parallel operation. For a list of compatible models or to order a parallel kit, please call customer service at 1-877-338-0999 or visit www.championpowerequipment.com.
Detailed instructions for parallel kit installation and operation of the connected generators are provided in the parallel kit operator's manual.
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start or stop the generator with electrical devices plugged in or turned on.
2. Let the generator run at no-load for several minutes to stabilize internal temperatures of the engine and generator.
3. Turn the fuel valve to the "OFF" position.
4. Let the engine run until fuel starvation has stopped the engine. This usually takes a few minutes.
5. Press the engine switch to the "OFF" position.
Important: Always ensure that the fuel valve and the engine switch are in the "OFF" position when the generator is not in use.
NOTICE

Operation at High Altitude
The density of air at high altitudes is lower than at sea level. Engine power is reduced as the air mass and air-fuel ratio decrease. Engine power and generator output will be reduced approximately 3½% for every 1000 ft. of elevation above sea level. At high altitudes increased exhaust emissions can also result due to the increased enrichment of the air fuel ratio. Other high altitude issues can include hard starting, increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural power loss, CPE can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting our Technical Support Team. Installation instructions are also available in the Technical Bulletin area of the CPE website.
The part number and recommended minimum altitude for the application of the high altitude carburetor main jet is listed in the following table.
In order to select the correct high altitude main jet it is necessary to identify the carburetor model. For this purpose, a code is stamped on the side of the carburetor. Select the correct high altitude jet part number corresponding to the carburetor code found on your particular carburetor.

Carb. Code P25-13-H

High Alt. Jet Part Number 28.131017.00.01.H

Min. Altitude
3500 ft. (1067 m)

If the engine will not be used for a period of two (2) weeks or longer, please see the Storage section for proper engine and fuel storage.
Moving the Generator
NEVER lift or carry the generator using the folding handle. ALWAYS place the generator on its wheels in the upright
position.

WARNING
Operation using the alternative main jet at elevations lower than the recommended minimum altitude can damage the engine. For operation at lower elevations, the originally supplied standard main jet must be used. Operating the engine with the wrong engine configuration at a given altitude may increase its emissions and decrease fuel efficiency and performance.

ALWAYS turn the generator off and ensure the fuel valve is closed.

MAINTENANCE

ALWAYS make sure engine and muffler are cooled down before the generator can be handled safely (typically 15-30 minutes).
1. Begin by raising the folding handle, found on opposite side of wheels.
2. Using the handle, tilt the end of the generator slightly off the ground until balanced on the wheels.

Make certain that the generator is kept clean and stored properly. Only operate the unit on a flat, level surface in a clean, dry operating environment. DO NOT expose the unit to extreme conditions, excessive dust, dirt, moisture or corrosive vapors.
WARNING
Never operate a damaged or defective generator.

3. While maintaining balance, roll the generator to the desired location.

WARNING

NEVER tilt sideways while moving the generator.
Failure to follow these instructions could result in personal injury or damage to the generator.

Improper maintenance will void your warranty.
17

100269 - 3400W PORTABLE INVERTER GENERATOR
NOTICE
For Emission control devices and systems, read and understand your responsibilities for service as stated in the Emission Control Warranty Statement of this manual.
The owner/operator is responsible for all periodic maintenance. Complete all scheduled maintenance in a timely manner. Correct any issue before operating the generator. For service or parts assistance, contact our Technical Support Team at 1-877-338-0999.
Cleaning the Generator
CAUTION
DO NOT spray generator directly with water.
Water can enter the generator through the cooling slots and damage the generator windings. It can also contaminate the fuel system.
1. Use a damp cloth to clean exterior surfaces of the generator. 2. Use a soft bristle brush to remove dirt and oil. 3. Use an air compressor (25 PSI) to clear dirt and debris from
the generator. 4. Inspect all air vents and cooling slots to ensure that they are
clean and unobstructed. To prevent accidental starting, remove and ground the spark plug wire before performing any service.
Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil specification to select the proper grade for your operating environment. 1. Set the generator on top of a work bench or table. 2. Loosen the cover screws and remove the maintenance cover. 3. Pop up the rubber maintenance plug, from below the drain
bolt. 4. Remove the oil drain bolt with a 12 mm socket
(not included) and extension.

MAINTENANCE
5. Allow the oil to drain completely into an appropriate container. 6. Replace the oil drain bolt. 7. Replace the rubber maintenance plug. 8. Add oil according to Add Engine Oil in Assembly section.
DO NOT OVERFILL. Oil not included for routine maintenance. 9. Reinstall the maintenance cover. 10. Dispose of used oil at an approved waste management
facility.
NOTICE
Once oil has been added, a visual check should show oil about 1-2 threads from running out of the fill hole. If using the dipstick to check oil level, DO NOT screw in the dipstick while checking.
Cleaning and Adjusting the Spark Plug
1. Remove the maintenance cover. 2. Remove the spark plug cable from the spark plug. 3. Use a spark plug socket tool (not included), or a
13/16 in. (21 mm) socket (not included) to remove the plug. 4. Inspect the electrode on the plug. It must be clean and not
worn to produce the spark required for ignition. 5. Make certain the spark plug gap is
0.028-0.031 in. (0.7-0.8 mm).
SPARK PLUG GAP
6. Refer to the spark plug types in Specifications when replacing the plug.
7. Firmly re-install the plug. 8. Attach the spark plug cable to the spark plug. 9. Reinstall the maintenance cover.

DRAIN BOLT
18

100269 - 3400W PORTABLE INVERTER GENERATOR
Cleaning the Air Filter
1. Remove the maintenance cover. 2. Locate the air filter plastic cover. 3. Unsnap the locking hinge on the cover. 4. Remove the old filter. 5. Place the new filter in the assembly. 6. Re-snap the hinge on the air filter cover. 7. Reinstall the maintenance cover and tighten the cover screw
securely.
Cleaning the Spark Arrestor
1. Allow the engine to cool completely before servicing the spark arrestor.
2. Remove the two screws holding the cover plate which retains the spark arrestor to the muffler.
3. Remove the spark arrestor screen. 4. Carefully remove the carbon deposits from the spark arrestor
screen with a wire brush.

MAINTENANCE
Maintenance Schedule
Follow the service intervals indicated in the following maintenance schedule. Service your generator more frequently when operating in adverse conditions. Contact our Technical Support Team at 1-877-338-0999 to locate the nearest CPE certified service dealer for your generator or engine maintenance needs.
EVERY 8 HOURS OR PRIOR TO EACH USE Check oil level Clean around air intake and muffler
FIRST 5 HOURS (BREAK IN) Change oil
EVERY 50 HOURS OR ANNUALLY Clean air filter Change oil if operating under heavy load or in hot
environments

5. Replace the spark arrestor if it is damaged. 6. Position the spark arrestor on the muffler and attach with the
screws removed in step 2.
CAUTION
Failure to clean the spark arrestor will result in degraded engine performance.

EVERY 100 HOURS OR ANNUALLY Change oil Clean/adjust spark plug Clean spark arrestor Clean fuel valve filter*
EVERY 250 HOURS Clean combustion chamber* Check/adjust valve clearance*
EVERY 3 YEARS Replace fuel line*

Adjusting the Governor
WARNING
Tampering with the factory set governor will void your warranty.

* To be performed by knowledgeable, experienced owners or CPE certified service centers.

The air-fuel mixture is not adjustable. Tampering with the governor can damage your generator and your electrical devices and will void your warranty. Contact our Technical Support Team at 1-877-338-0999 for all other service and/or adjustment needs.

100269 - 3400W PORTABLE INVERTER GENERATOR

STORAGE

STORAGE
DANGER
Gasoline vapors are highly flammable and extremely explosive.

6. Option 2: Run Dry
6a. With the generator running, turn the fuel valve to the "OFF" position and allow the generator to run until the engine stops from complete fuel starvation. This may take a few minutes.

Fire or explosion can cause severe burns or death. Only fill or drain fuel outdoors in a well-ventilated area. DO NOT pump gasoline directly into the generator. Use an approved container to transfer the fuel to the generator. Never use a gasoline container, gasoline tank, or any other fuel item that is damaged or appears damaged. DO NOT overfill the gasoline tank. Always keep fuel away from sparks, open flames, pilot lights, heat and other sources of ignition. DO NOT light or smoke cigarettes.

6b. Turn engine switch to the "OFF" position and allow generator to cool completely before continuing.
7. Remove the spark plug cap and spark plug and pour about a tablespoon of oil into the cylinder.
8. Pull the recoil cord slowly to crank the engine to distribute the oil and lubricate the cylinder.
9. Install the spark plug and spark plug cap.
10. Clean the generator according to Cleaning the Generator.

Short Term Storage (up to 30 days)
Gasoline may gum up and clog the carburetor if the generator is not run or carburetor drained within 4 weeks. 1. Be sure all appliances are disconnected from the generator. 2. Start the generator as instructed in Starting the Engine
section. 3. Turn the fuel valve to the "OFF" position. 4. Let the engine run until fuel starvation has stopped the
engine. This usually takes a few minutes. 5. Move the engine switch to the "OFF" position.

11. Store the generator in a cool, dry place out of direct sunlight.
Long Term Storage (over 1 year)
For storage over 1 year, the gasoline tank and carburetor must be completely drained of gasoline. 1. Follow steps 1-4 according to Mid Term Storage.
1a. Turn engine switch to the "OFF" position and allow generator to cool completely before continuing.
2. Use the drain bolt on the carburetor to empty any excess gasoline from the gasoline tank and carburetor into an appropriate container. Use a funnel (and appropriate hose if necessary) under the carburetor drain bolt to avoid spillage.

Mid Term Storage (30 days 1 year)
Gasoline in the tank has a maximum shelf life of up to 1 year with the addition of a properly formulated fuel stabilizer and stored in a cool, dry place.
1. Be sure all appliances are disconnected from the generator.
2. Add a properly formulated fuel stabilizer to the gasoline tank.

3. When gasoline stops flowing from the carburetor, replace and tighten the carburetor drain bolt and be sure to properly dispose of the drained gasoline according to local regulations or guidelines.
4. Turn the fuel valve to the "OFF" position.
5. Follow steps 8-11 according to Mid Term Storage.

3. Turn the fuel valve to the "ON" position.

4. Start and run the generator for 10 minutes so the treated gasoline cycles through the fuel system.

5. Option 1: Drain Gasoline from Carburetor

5a. Turn engine switch to the "OFF" position and allow generator to cool completely before continuing.

5b. Turn the fuel valve to the "OFF" position.

5c. Use the drain bolt on the carburetor to empty any excess gasoline from the carburetor into an appropriate container. Use a funnel (and appropriate hose if necessary) under the carburetor drain bolt to avoid spillage.

5d. When gasoline stops flowing from the carburetor, replace

and tighten the carburetor drain bolt and be sure to

properly dispose of the drained gasoline according to

local regulations or guidelines.

100269 - 3400W PORTABLE INVERTER GENERATOR
Removing from Storage
If the generator has been improperly stored for a long period of time with gasoline in the gasoline tank and/or carburetor, all fuel must be drained and the carburetor must be thoroughly cleaned. This process involves technically advanced tasks. For assistance please call our Technical Support Team at 1-877-338-0999.
If the gasoline tank and carburetor were properly emptied of all gasoline prior to the generator being stored, follow the below steps when removing from storage.
1. Be sure the engine switch is in the "OFF" position.
2. Add gasoline to the generator according to Add Fuel.
3. Turn the fuel valve to the "ON" position.
4. After 5 minutes check the carburetor and air filter areas for any leaking gasoline. If any leaks are found, the carburetor will need to be disassembled and cleaned or replaced. If no gasoline leaks are found, turn the fuel valve to the "OFF" position.
5. Check engine oil level and add clean, fresh oil if needed. See Oil Specifications for proper oil type.
6. Check and clear air filter of any obstructions such as bugs or cobwebs. If necessary, clean air filter according to Cleaning the Air Filter.
7. Start the generator according to Starting the Engine.

STORAGE

100269 - 3400W PORTABLE INVERTER GENERATOR
SPECIFICATIONS
Generator Specifications
Generator Model ........................................... 100269 Start Type ................................................... Manual Watts (Starting/Running) .............................. 3400/3100 Volts AC.......................................................... 120 AC Amps @ 120V .............................................. 25.8 Volts DC .......................................................... 12 DC Amps............................................................ 8 Frequency ..................................................... 60 Hz Phase ......................................................... Single Grounding Type..................................... Neutral Floating Weight ............................................ 81.3 lb. (36.9 kg) Length .............................................. 22.4 in. (57 cm) Width .............................................. 17.3 in. (44 cm) Height............................................. 18.3 in. (46.4 cm)
Engine Specifications
Model ................................................. YF170FD-330 Displacement ................................................. 192 cc Type................................................... 4-Stroke OHV Spark Plug OEM Type.............................................. NHSP F6RTC Replacement Type...................... NGK BPR6ES or equivalent Gap ..................................0.028-0.031 in. (0.7-0.8 mm) Valve Intake Clearance ................. 0.002-0.005 in. (0.06-0.12 mm) Exhaust Clearance ............... 0.003-0.006 in. (0.08-0.14 mm)
NOTICE
A technical bulletin regarding valve adjustment procedures is available at www.championpowerequipment.com.
Oil Specifications
DO NOT OVERFILL. Type............................................ *See following chart Capacity ....................................... 20.3 fl. oz. (600 ml)

SPECIFICATIONS

Recommended Engine Oil Type 10W-30

5W-30

10W-40

5W-30 Synthetic

°F -20 0

80 100 120

°C -28.9 -17.8 -6.7 4.4 15.6 26.7 37.8 48.9

Ambient temperature

NOTICE
Temperature will affect engine oil and engine performance. Change the type of engine oil used based on the temperature to suit the engine needs.

Fuel Specifications
Use unleaded gasoline with a minimum octane rating of 87 and an ethanol content of 10% or less by volume. DO NOT USE E15 or E85. DO NOT OVERFILL.
Gasoline Capacity ..................................... 1.6 gal. (6 L)
Temperature Specifications
Starting Temperature Range (°F/°C) ........... 5 to 104/-15 to 40
NOTICE
An important message about temperature: Your product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). When needed, it may be operated at temperatures ranging from 5°F (-15°C) to 122°F (50°C) for short periods of time. If exposed to temperatures outside this range during storage, it should be brought back within this range before operation. In any event, the product must always be operated outdoors, in a well-ventilated area and away from doors, windows and vents.

ICES002 Warning
This device complies with Industry Canada license - exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

3 2 1

10 9 5
8
7 6 5 4

131

118 117

96 95 94

119

120

121 122 123 124

116 115

114

125

113

112

126

111

97 90

127
128 129 130

110 109 108 107

11 99 98 100 39

101

102

103

104

105

106

2 38

67 85

11 24

34 64

31 73

38 74

66 75

80 77 78 79

82 30 81

83 84 85 86 7 87 88
1

37 38
39 47
46 41 2 42 30 43 44 45 40 56

50
49 48

51 52 53 54
55

132

133

100269 - 3400W PORTABLE INVERTER GENERATOR
Parts Diagram

SPECIFICATIONS

100269 - 3400W PORTABLE INVERTER GENERATOR
Parts List

SPECIFICATIONS

# Part Number

Description

Qty

1 1.9074.4.0516.1

Screw/Washer Assembly M5 x 16, Black

2 2.08.052.1

Bolt M6 x 16, Black

3 83.200200.01.2 Cover, Left, Black

4 83.201600.03 Supporter, Left, Black

5 1.5789.0612

Flange Bolt M6 x 12

6 83.200701.02.2 Handle, Left, Black

7 1.9074.4.0512.1

Screw/Washer Assembly M5 x 12, Black

8 83.200500.01.48 Cover, Top, Yellow

9 83.200502.01 Spillway, Fuel Tank

10 83.070100.01

Cap, Fuel Tank

11 2.06.016

Clamp, Ø8.7 x b8

12 83.070011.03

Fuel Pipe, Fuel Tank To Fuel Valve

13 21.070600.03

Fitting, Fuel Tank

14 2.08.068.2

Flange Bolt M5 x 13

15 83.071000.04

Fuel Tank, 6L

16 83.070300.01 Fuel Filter, Fuel Tank

17 84.070022.00 Connect, Pipe

18 83.070014.02

Pipe, Fuel Tank To Air Cleaner Pipe

19 1.845.4213

Screw ST4.2 x 13

20 83.081400.01

Muffler Protector Assembly, Upper

21 83.081004.01

Plate

22 2.02.001

Nut M6, Long

23 28.100001.00

Gasket, Exhaust

24 83.101100.01

Muffler Assembly

25 46.101300.08

Spark Arrester Assembly

26 46.101503.08

Plate, Spark Arrester

27 1.9074.4.0514

Screw/Washer Assembly M5 x 14

28 1.97.1.06

Washer Ø6

29 1.93.06

Lock Washer Ø6

30 1.5789.0615

Flange Bolt M6 x 15

31 1.845.4816

Screw ST4.8 x 16

32 1.845.4219

Screw ST4.2 x 19

33 83.081500.01

Muffler Protector Assembly, Lower

34 1.5789.0620

Flange Bolt M6 x 20

35 2.08.055.1

Bolt, Maintenance Cover, Black 2

36 83.200402.01.48 Protector, Rear Cover, Yellow 1

37 83.200401.01.48 Supporter, Rear Cover, Yellow 1

38 2.02.014

Nut M6, Square

39 2.02.010

Cage Nut, M5

40 83.200701.03.2 Handle, Left, Black

41 83.200704.01.2 Bracket, Left, Black

42 83.201600.05 Supporter, Right

43 1.6187.1.08

Lock Nut M8

44 2.13.001

Bushing Ø13.3 x Ø19.3 x 8

# Part Number

Description

Qty

45 1.5789.0612.1 Flange Bolt M6 x 12, Black

46 83.200704.02.2 Bracket, Right, Black

47 2.03.001

Bushing Ø13.3 x Ø19.3 x 2

48 2.03.002

Washer Ø13 x Ø20 x 2.5

49 2.08.002

Bolt M8 x 28

50 83.200701.04.2 Handle, Right, Black

51 2.02.002

Nut M6, T-Style

52 83.200705.01.2 Handle, Upper, Black

53 83.200705.02.2 Handle, Lower, Black

54 1.9074.3.0512.1

Screw/Washer Assembly M5 x 12, Black

55 1.5789.0635.1 Flange Bolt M6 x 35, Black

56 83.190006.01

Rubber Sleeve, End Cover

57 83.190003.01

End Cover, Generator

58 83.190001.01

Fan, Generator

59 2.02.006

Flange Nut, M14 x 1.5

60 83.191100.01

Rotor Assembly

61 1.5789.0645

Flange Bolt M6 x 45

62 83.191200.19

Stator Assembly

63 5.1280.011

Fuse, 15A

64 83.190002.01

End Cover, Motor

65 28.402

Engine,192cc

66 1.6177.1.08

Lock Nut M8, Flange

67 2.05.050

Clamp, 100 mm, Wire

68 83.201600.02

Supporter, Left

69 83.201600.01

Supporter, Right

70 83.201200.01

Motor Mount

71 83.200607.01

Plug, Oil Drain Hole

72 1.6182.06

Lock Nut M6

73 83.200601.01 Base Setting Component

74 83.200609.02 Steel Plate 2

75 83.200609.01 Steel Plate 1

76 83.201400.01 Rubber Pad

77 83.201702.01

Plug, Wheel

78 1.894.1.12

Retaining Ring Ø12

79 1.848.12

Washer Ø12

80 83.201701.01

Wheel, 5.5in., Left

81 83.201500.01 Axle

82 83.201701.02

Wheel, 5.5in., Right

83 83.200305.01 Spring Patch

84 83.200304.01 Rubber Seal, Muffler Cover

85 1.845.3595

Screw ST3.5 x 9.5

86 83.200303.01.2 Muffler Cover, Black

87 83.200701.01.2 Handle, Right, Black

88 83.200302.01.2 Cover, Right Side, Black

89 2.08.075.1

Bolt M6 x 20, Black

90 81.220002.00 Mount Rubber, Control Unit

91 83.220001.00 Protector, Control Unit

92 83.220003.02 Pressure Plate, Control Unit

100269 - 3400W PORTABLE INVERTER GENERATOR

# Part Number

Description

Qty

Control Unit,

93 83.221000.90.92 3100W/120V/60Hz, Wireless 1

Parallel

94 1.5783.0520

Bolt M5 x 20

95 1.93.05

Lock Washer Ø5

96 122.190600.00 Rectifier

97 83.070011.02

Fuel Pipe, Fuel Valve To Carburetor

98 1.845.4819

Screw ST4.8 x 19

99 1.97.1.05

Washer Ø5

100 83.070400.01 Fuel Valve

101 83.200101.01.48 Front Cover, Yellow

102 83.200106.01

Protector, Front Cover

103 83.061200.01.2 Guide Plate, Rope, Black

104 1.823.0408

Screw M4 x 8

105 83.070001.01

Knob, Fuel Valve

106 83.130200.01

Pull Choke Assembly

107 83.210001.00.3 Connect Port, 125V/25A, Red 1

108 83.210001.00.1 Connect Port, 125V/25A, Black 1

109 5.1110.000

Receptacle, DC 12V

110 1.9074.4.0414.1

Screw/Washer Assembly M4 x 14

111 5.1120.023

Receptacle L5-30R

112 5.1120.027

Receptacle 5-20R, Duplex

113 1.6177.1.04.1

Lock Nut M4, Flange, Black

114 83.210002.01

Control Box

115 122.210003.01 Grommet

116 1.9074.1.0535.2

Screw/Washer Assembly M5 x 35

117 5.1210.920

20Amp Circuit Breaker, Push Button

118 5.1210.930

30Amp Circuit Breaker, Push Button

119 5.1200.908

8Amp Circuit Breaker, Push Button, CSA

120 1.818.0514.3

Screw M5 x 14, Green

121 83.210016.00

Speed Limiter

122 83.01.37.2

Control Panel, Black

123 5.1000.002.1

Ignition Switch, Black

124 5.1010.003.1

Switch, Economy

125 1.5783.0520.3 Bolt M5 x 20, Green

126 1.862.05

Lock Washer Ø5, Toothed

127 1.97.1.05.3

Washer Ø5, Green

128 1.93.05.3

Lock Washer Ø5, Green

129 1.6170.05.3

Nut M5, Green

130 100269.21.10

Wire Assembly

131 100269.21

Control Panel Assembly

132 9.1600.010

Cables, DC 12V, 2 m, CSA

133 9.3000.016

RV Adapter Plug

SPECIFICATIONS

100269 - 3400W PORTABLE INVERTER GENERATOR
Engine Parts Diagram

104 56
55

59 63

66 68 69

60 64

17 18 16 15 14 13 12

5 11 10

19 20
21

22 23

24 101

94 100
95

27 28

25 26

35 36

7 38
39

40 41 42 43 44
45
46

5 4

30 31 32 33
102
72

50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71

48 73
2

SPECIFICATIONS

87 86

83 82 81 80 79 78

75 74

103

100269 - 3400W PORTABLE INVERTER GENERATOR
Engine Parts List

SPECIFICATIONS

# Part Number 1 1.5789.0835 2 2.11.014 3 83.030007.01 4 83.127000.01 5 1.5789.0612 6 83.030010.01 7 83.120100.03 8 83.080001.01 9 83.060001.01 10 2.02.006 11 83.080100.01.2 12 45.060008.00 13 45.060007.00 14 45.060009.00 15 45.060002.00 16 45.060003.00 17 21.061001.01 18 21.061005.00 19 81.061010.01 20 81.061006.00 21 2.10.001.1 22 2.05.050 23 83.061100.01.2 24 1.5789.0608 25 83.091200.01 26 83.091300.01 27 1.6177.1.06 28 83.090001.01 29 83.091100.01 30 83.091006.01 31 83.091008.01 32 83.091002.02 33 83.090004.01 34 83.130004.01 35 28.130000.03 36 83.130001.01 37 83.130002.01 38 1.5789.0620 39 28.123000.00 40 28.030100.00 41 83.040013.01 42 83.030013.01 43 2.04.002 44 1.276.6205 45 2.14.017 46 83.050100.01

Description Flange Bolt, M8 x 35 Oil Seal Cover, Crankcase Oil Level Sensor Flange Bolt, M6 x 12 Plate, Coil Flywheel Cooling Fan Pulley, Starter Flange Nut, M14 x 1.5 Fan Cover Screw, Ratchet Guide Ratchet Guide Spring, Ratchet Guide Starter Ratchet, Iron Spring, Ratchet Reel, Recoil Starter Spring, Recoil Starter Holder, Rope Grip, Rubber Rope, Ø4 x 1570, Black Clamp, 100 mm, Wire Cover, Recoil Starter Flange Bolt, M6 x 8 Cover, Air Cleaner Element, Air Cleaner Lock Nut M6, Flange Flange, Steel Base, Air Cleaner Buckle Plug, Air Cleaner Base Seal Pipe, Air Cleaner Gasket, Air Cleaner Carburetor Assembly Insulator, Carburetor Gasket, Insulator Flange Bolt, M6 x 20 Ignition Coil Crankcase Lifter, Valve Seal Strip, Crankcase Cover Dowel Pin, 8 x 14 Bearing 6205 Woodruff Key, 4 x 6.5 x 16 Crankshaft

Qty

# Part Number

Description

Qty

47 83.030008.01 Gasket, Crankcase Cover

2 1

48 1.9074.4.0510

Screw/Washer Assembly, M5 x 10

49 83.080014.01.01 Air Guide Board

50 2.03.016

Washer, Ø10 x Ø16 x 1.5, Drain Bolt

51 2.08.037

Bolt, M10 x 1.25 x 25, Drain 1

52 28.030009.00 Gasket, Cylinder Head

53 2.04.003

Dowel Pin, Ø10 x 14

54 83.040006.01 Valve, Exhaust

55 28.040002.00 Valve, Intake

56 2.01.017

Stud Bolt, M6 x 32

57 28.010100.01

Cylinder Head

58 2.15.002

Spark Plug F6RTC

59 83.040017.01

Oil Seal, Valve

60 83.040004.01 Guide Plate, Push Rod

61 1.5789.0865

Flange Bolt, M8 x 65

62 1.5789.0850

Flange Bolt, M8 x 50

63 2.01.020

Stud Bolt, M6 x 97

64 83.040010.01 Bolt, Rocker Arm

65 83.040005.01 Push Rod

66 83.040003.01 Spring, Valve

67 83.040009.01 Rocker Arm, Valve

68 83.040001.01 Retainer, Valve Spring

69 83.040014.01 Valve Collet

70 21.040020.00 Adjusting Nut, Valve

71 21.040021.00

Nut, Lock

72 83.080200.01 Air Shroud, Cylinder

73 23.020001.01 Breather Tube

74 83.021101.01

Cover, Cylinder Head

75 83.021001.01

Gasket, Cylinder Head Element 1

1 1

76 83.021200.01

Element Component, Head Cover

77 83.020002.01 Gasket, Cylinder Head Cover 1

78 28.050301.00 Ring, First Piston

79 28.050302.00 Ring, Second Piston

80 28.050303.00 Ring, Oil

81 2.09.002

Circlip, Ø16 x Ø1

82 28.050005.01 Piston

83 83.050003.01 Wrist Pin

84 83.050200.01 Connecting Rod Assembly

85 83.040100.01 Camshaft

86 83.031000.01

Oil Dipstick Assembly

87 83.030035.01 Oil Nipple

88 1.818.0306.1

Screw, M3 x 6, Black

89 81.132200.00

Stepper Motor

100269 - 3400W PORTABLE INVERTER GENERATOR

# Part Number
90 1.9074.1.0408
91 82.132100.00 92 1.819.0508 93 81.130010.00 94 81.130008.00 95 28.131000.03
96 1.9074.3.0512
97 81.130007.00
98 83.130005.01
99 1.9074.3.0508
28.131017.00 100
28.131017.00.01 101 83.061000.01 102 83.091000.01 103 83.021000.01 104 28.010000.00

Description

Qty

Screw/Washer Assembly, M4 x 8

Base, Stepper Motor

Screw, M5 x 8

Spring, Connector

Connector, Choke Valve Axis 1

Carburetor

Screw/Washer Assembly, M5 x 12

Pressure Plate, Choke Control Line

Support, Stepper Motor

Screw/Washer Assembly, M5 x 8

Main Jet, Standard

Main Jet, Altitude

Recoil Assembly

Air Cleaner Assembly

Cylinder Head Cover Assembly 1

Cylinder Head Assembly

SPECIFICATIONS

GENERATOR
Y
DC COIL
Y

AC COIL SUB COIL

B BLACK Br BROWN

Y YELLOW B/W BLACK WHITE

L BLUE W/G WHITE GREEN G GREEN G/Y GREEN YELLOW

R RED

W/L WHITE BLUE

W WHITE O ORANGE

C CARNATION A AMETHYST

FUSE 15A DC DIODE CIRCUIT BREAKER DC12V

R 8A

R+

B
W
W/G
PARALLEL TERMINAL

CIRCUIT BREAKER 20A

OUTPUT PANEL R

RECEPTACLE

CIRCUIT BREAKER 30A

G/Y

120V

L5-30R

120V 5-20R

Red Black

G/Y

R R

W W
CONTROL UNIT
R

W
W/G
ECO.SW STOP.SW W

EARTH TERMINAL
G/Y G/Y

PORTFIRE

B/W

W/L

OYL C

B B G Y G/Y O B/W C W

O C

B G

B W/G

Y
W/G
B/G

STEPPING MOTOR

SPARKING PLUG

TCI UNIT

OIL LEVEL SW

B/G
FUEL CUT SOLENOIL

ENGINE

100269 - 3400W PORTABLE INVERTER GENERATOR
Wiring Diagram

SPECIFICATIONS

100269 - 3400W PORTABLE INVERTER GENERATOR
TROUBLESHOOTING

Problem

Cause No fuel. Faulty spark plug.

Low oil level.

Engine will not start.

Spark plug wire loose. Fuel valve is closed. Engine switch OFF. Old fuel or water in fuel. Flooded with fuel.

Choke in the wrong position.

Engine starts but runs roughly.

Dirty air filter. Dirty fuel valve. Clogged spark arrestor. Out of fuel.

Engine shuts down during operation. Low oil level.

Clogged spark arrestor.

Generator cannot supply enough power or overheating.

Generator is overloaded. Dirty air filter. Choke in wrong position.

Engine is running but no AC output. Engine hunts or falters.

Poor cord connection. Circuit breaker is open. Loose wiring. Other. Engine governor defective. Dirty fuel valve. Carburetor is dirty and running lean.

Choke in wrong position.

Overload.

Repeated circuit breaker tripping.

Faulty power cords or device.

Circuit breaker still too hot.
For other issues and technical support:
Technical Support Team Toll Free 1-877-338-0999 support@championpowerequipment.com

TROUBLESHOOTING
Solution Add fuel. Clean and adjust spark plug or replace. Fill crankcase to the proper level. Place generator on a flat, level surface. Attach wire to spark plug. Open fuel valve. Press engine switch ON. Drain fuel and replace with fresh fuel. Let unit stand for 10 mins. Move choke until it stops under RUN position or push in completely. Clean or replace air filter. Clean the fuel valve. Clean spark arrestor. Fill fuel tank. Fill crankcase to the proper level. Place generator on a flat, level surface. Clean spark arrestor. Review load and adjust. See "Connecting Electrical Loads." Clean or replace air filter. Move choke until it stops under RUN position or push in completely. Check all connections. Reset circuit breaker. Inspect and tighten wiring connections. Contact the help line. Contact the help line. Clean the fuel valve. Contact the help line. Move choke until it stops under RUN position or push in completely. Review load and adjust. See "Connecting Electrical Loads." Check for damaged, bare or frayed wires. Replace defective device. Let unit sit for 5 mins.

100269 - 3400W PORTABLE INVERTER GENERATOR

WARRANTY

WARRANTY*
CHAMPION POWER EQUIPMENT 3 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center technical support please visit: https://www.championpowerequipment.com/register To complete registration you will need to include a copy of the purchase receipt as proof of original purchase. Proof of purchase is required for warranty service. Please register within ten (10) days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and electrical components will be free of defects in material and workmanship for a period of three years (parts and labor) from the original date of purchase and 270 days (parts and labor) for commercial and industrial use. Transportation charges on product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of Purchase
Contact CPE's Technical Service and CPE will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, CPE will, at its option, authorize evaluation, repair or replacement of the defective part or component at a CPE Service Center. CPE will provide you with a case number for warranty service. Please keep it for future reference. Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment: Normal Wear Products with mechanical and electrical components need periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole. Installation, Use and Maintenance This warranty will not apply to parts and/or labor if the product is deemed to have been misused, neglected, involved in an accident, abused, loaded beyond the product's limits, modified, installed improperly or connected incorrectly to any electrical component. Normal maintenance is not covered by this warranty and is not required to be performed at a facility or by a person authorized by CPE.

Other Exclusions
This warranty excludes:
Cosmetic defects such as paint, decals, etc.
Wear items such as filter elements, o-rings, etc.
Accessory parts such as starting batteries, and storage covers.
Failures due to acts of God and other force majeure events beyond the manufacturer's control.
Problems caused by parts that are not original Champion Power Equipment parts.
When applicable, this warranty does not apply to products used for prime power in place of a utility.
Limits of Implied Warranty and Consequential Damage
Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE) ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from state to state or province to province. Your state or province may also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
Address Champion Power Equipment, Inc. 12039 Smith Ave. Santa Fe Springs, CA 90670 USA www.championpowerequipment.com Customer Service Toll Free: 1-877-338-0999 info@championpowerequipment.com Fax no.: 1-562-236-9429 Technical Service Toll Free: 1-877-338-0999 tech@championpowerequipment.com 24/7 Tech Support: 1-562-204-1188

*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S. Environment Protection Agency (EPA) and/or California Air Resources Board (CARB). Whichever warranty applies for the longer period, either this 3 year limited warranty or the applicable Emission Control System Warranty, shall supersede the other.
31

References

Take Your Generator Outside

Adobe PDF Library 15.0 Adobe InDesign 15.0 (Macintosh)
