KD-X462BT / KD-X368BT

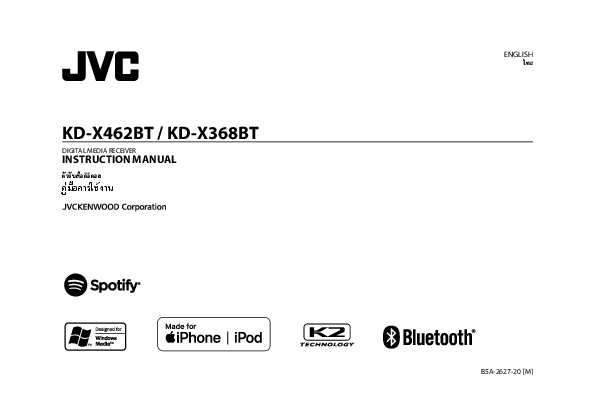

DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL


ENGLISH
B5A-2627-20 [M]

CONTENTS

BEFORE USE

2

BASICS

3

GETTING STARTED

5

1 Cancel the demonstration 2 Set the clock and date 3 Set the basic settings

RADIO

7

AUX

9

USB/iPod/ANDROID

9

Spotify

11

BLUETOOTH®

13

AUDIO SETTINGS

21

DISPLAY SETTINGS

27

REFERENCES

29

Maintenance

More information

TROUBLESHOOTING

32

INSTALLATION/

CONNECTION

34

SPECIFICATIONS

38

BEFORE USE
IMPORTANT · To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings
and Cautions in this manual. · Please keep the manual in a safe and accessible place for future reference.
WARNING · Do not operate any function that takes your attention away from safe driving. · Do not ingest the battery, Chemical Burn Hazard.
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Caution Volume setting: · Adjust the volume so that you can hear sounds outside the car to prevent accidents. · Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.
General: · Avoid using the external device if it might hinder safe driving. · Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data. · Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit. · Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected
(page 36). Turn off the unit when parking at a low ceiling area.
Remote control (RM-RK52): · Do not leave the remote control in hot places such as on the dashboard. · The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type. · The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

2 ENGLISH

How to read this manual · Operations are explained mainly using buttons on the faceplate of KD-X462BT and KD-X368BT. · English indications are used for the purpose of explanation. You can select the display language from the menu. (Page 6) · [XX] indicates the selected items. · (Page XX) indicates references are available on the stated page.

BASICS
Faceplate KD-X462BT:
Source button

Volume knob

Display window

Attach Detach

Detach button

Remote sensor (Do not expose to bright sunlight.)

How to reset

Reset the unit within 5 seconds after detaching the faceplate.

To Turn on the power Adjust the volume
Select a source Change the display information Select an item

On the faceplate

Press BSRC. · Press and hold to turn off the power.

Turn the volume knob.

Press the volume knob to mute the sound or pause playback. · Press again to cancel. The volume level returns to the previous level before muting or pause.

· Press BSRC repeatedly. · Press BSRC, then turn the volume knob within 2 seconds.

Press

repeatedly. (Page 30)

1 Turn the volume knob to select an item. 2 Press the knob to confirm.

ENGLISH 3

BASICS
Faceplate KD-X368BT:

Remote sensor (Do not expose to bright sunlight.)

Display window

Attach Detach

Source button

Detach button

Symbolic button

How to reset

Reset the unit within 5 seconds after detaching the faceplate.

To Turn on the power Adjust the volume
Select a source Change the display information Select an item
4 ENGLISH

On the faceplate

Press SRC-B. · Press and hold to turn off the power.

Press VOL +/­ . · Press and hold VOL + to continuously increase the volume to 15.

Press *ENTER to mute the sound or pause playback. · Press again to cancel. The volume level returns to the previous level before muting or pause.

· Press SRC-B repeatedly. · Press SRC-B, then press VOL +/­ within 2 seconds.

Press

repeatedly. (Page 31)

1 Press VOL +/­ to select an item. 2 Press *ENTER to confirm.

BASICS
Remote control (RM-RK52) Aim the remotely control directly at the remote sensor on the unit. (Page 3 or 4)
Pull out the insulation sheet when using for the first time.
How to replace the battery

To

On the remote control

Adjust the volume Press VOL + or VOL ­ . · Press and hold VOL + to continuously increase the volume to 15.

Press d to mute the sound or pause playback. · Press again to cancel. The volume
level returns to the previous level before muting or pause.

Select a source Press SOURCE repeatedly.

GETTING STARTED

For key layout on the faceplate, see page 3 or page 4.

1 Cancel the demonstration
When you turn on the power for the first time (or [FACTORY RESET] is set to [YES], see page 6), the display shows:

KD-X462BT: "CANCEL DEMO" "PRESS" "VOLUME KNOB"
1 Press the volume knob. [YES] is selected for the initial setup.
2 Press the volume knob again. "DEMO OFF" appears.

KD-X368BT: "CANCEL DEMO" "PRESS ENTER"
1 Press *ENTER. [YES] is selected for the initial setup.
2 Press *ENTER again. "DEMO OFF" appears.

2 Set the clock and date

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to select [CLOCK].

3 Perform `Select an item (page 3 or 4)' operation to adjust the clock.

[CLOCK ADJUST] set the hour and minute [CLOCK FORMAT] [12H] or [24H]

4 Perform `Select an item (page 3 or 4)' operation to set the date.

[DATE SET] set the day, month and year

5 Press

to exit.

To return to the previous setting item, press

.

ENGLISH 5

GETTING STARTED

3 Set the basic settings

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to select an

item (see the following table).

3 Repeat step 2 until the desired item is selected or activated.

4 Press

to exit.

To return to the previous setting item, press

.

Default: [XX]

[SYSTEM] [KEY BEEP]

(Not applicable when 3-way crossover is selected.) [ON]: Activates the keypress tone. ; [OFF]: Deactivates.

[SOURCE SELECT] [AM SRC]* [SW1 SRC]* [SW2 SRC]* [SPOTIFY SRC]*

[ON]: Enables AM in source selection. ; [OFF]: Disables. (Page 7)
[ON]: Enables SW1 in source selection. ; [OFF]: Disables. (Page 7)
[ON]: Enables SW2 in source selection. ; [OFF]: Disables. (Page 7)
[ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 11)

[BUILT-IN AUX]* [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 9)

[F/W UPDATE]

[UPDATE SYSTEM] [F/W UP xxxx]

[YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit <http://www.jvc.net/cs/car/>.

* Not displayed when the corresponding source is selected.

[FACTORY RESET]
[CLOCK] [TIME SYNC]
[CLOCK DISPLAY]
[ENGLISH] [ESPANOL]

[YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels.
[ON]: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; [OFF]: Cancels. [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels.
Select the display language for menu and music information if applicable. By default, [ENGLISH] is selected.

6 ENGLISH

RADIO

For key layout on the faceplate, see page 3 or page 4.
Search for a station
1 Press source button repeatedly to select FM, AM, SW1 or SW2. 2 Press S / T (or press H / I on the remote control) to search for a
station automatically. (or) Press and hold S / T (or press and hold H / I on the remote control) until "M" flashes, then press repeatedly to search for a station manually. · "ST" or "STEREO" lights up when receiving an FM stereo broadcast with sufficient signal strength. · The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast.
Settings in memory
You can store up to 18 stations for FM and 6 stations for AM/SW1/SW2.

Select a stored station

Press one of the number buttons (1 to 6).

(or)

1 Press

.

2 Perform `Select an item (page 3 or 4)' operation to select a

preset number.

Other settings

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to select an item (see

the table on page 8).

3 Repeat step 2 until the desired item is selected/activated or follow the

instructions stated on the selected item.

4 Press

to exit.

To return to the previous setting item, press

.

Store a station
While listening to a station... Press and hold one of the number buttons (1 to 6).
(or) 1 Press and hold the following button until "PRESET MODE" flashes.
KD-X462BT: Volume knob KD-X368BT: *ENTER 2 Perform `Select an item (page 3 or 4)' operation to select a preset number. "MEMORY" appears once the station is stored.

ENGLISH 7

RADIO

Default: [XX]

[TUNER SETTING]
[RADIO TIMER] Turns on the radio at a specific time regardless of the current source. 1 [ONCE]/[DAILY]/[WEEKLY]/[OFF]: Select how often the timer will be turned on. 2 [FM]/[AM]/[SW1]/[SW2]: Select the source. 3 [01] to [18] (for FM)/[01] to [06] (for AM/SW1/SW2): Select the preset station. 4 Set the activation day*1 and time. "M" lights up when complete.

[SSM] [LOCAL SEEK]

Radio Timer will not activate for the following cases. · The unit is turned off. · [OFF] is selected for [AM SRC]/[SW1 SRC]/[SW2 SRC] in [SOURCE SELECT]
after Radio Timer for AM/SW1/SW2 is selected. (Page 6)
[SSM 01­06]/[SSM 07­12]/[SSM 13­18]: Automatically presets up to 18 stations for FM. "SSM" stops flashing when the first 6 stations are stored. Select [SSM 07­12]/[SSM 13­18] to store the following 12 stations.
[ON]: Searches only AM/SW1/SW2 stations with good reception. ; [OFF]: Cancels. · Settings made are applicable only to the selected source/station. Once you
change the source/station, you need to make the settings again.

[IF BAND]

[AUTO]: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; [WIDE]: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

[MONO SET] [NEWS SET]*2

[ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels.
[ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels.

[REGIONAL]*2 [AF SET]*2 [TI]*2 [PTY SEARCH]*2

[ON]: Switches to another station only in the specific region using the "AF" control. ; [OFF]: Cancels.
[ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels.
[ON]: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up) while listening to all sources except in AM/SW1/SW2. ; [OFF]: Cancels.
Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1. *2 Selectable only when in FM source.

PTY code
[NEWS], [AFFAIRS], [INFO], [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music),
[DOCUMENT]

8 ENGLISH

AUX
Preparation: You can listen to music from a portable audio player via the auxiliary input jack. · Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 6)

Start listening

1 Connect a portable audio player (commercially available).

KD-X462BT:

3.5 mm stereo mini plug with "L" shaped connector (commercially available)

USB/iPod/ANDROID

Start playback

The source changes automatically and playback starts.

USB input terminal

KD-X462BT:

USB

USB 2.0 cable*1 (commercially available)
iPod/iPhone

Auxiliary input jack Auxiliary input jack KD-X368BT:

Portable audio player Portable audio player

3.5 mm stereo mini plug with "L" shaped connector (commercially available)
2 Press source button repeatedly to select AUX. 3 Turn on the portable audio player and start playback.

USB input terminal KD-X368BT:

Accessory of the iPod/iPhone*1
ANDROID*2
USB cable*1 (commercially available)

*1 Do not leave the cable inside the car when not using. *2 You can control Android device using the Android device itself via other media player
applications installed in the Android device.

Use a 3-core plug head stereo mini plug for optimum audio output.

ENGLISH 9

USB/iPod/ANDROID
For key layout on the faceplate, see page 3 or page 4.

To Reverse/ Fast-forward*3 Select a file Select a folder*4 Repeat play*3*5
Random play*3*5

On the faceplate Press and hold S / T.

On the remote control Press and hold H / I.

Press S / T.

Press H / I.

Press 2J / 1K.

Press J / K.

Press 4B repeatedly.

[TRACK REPEAT]/[FOLDER REPEAT]/[ALL REPEAT] : MP3/WMA/AAC/ WAV/FLAC file
[ONE REPEAT]/[ALL REPEAT]/[REPEAT OFF] : iPod

Press 3A repeatedly.

[FOLDER RANDOM]/[ALL RANDOM]/[RANDOM OFF] : MP3/WMA/AAC/ WAV/FLAC file
[SONG RANDOM]/[ALL RANDOM]/[RANDOM OFF] : iPod

*3 Not applicable for ANDROID. *4 This does not work for iPod/ANDROID. *5 For iPod: Applicable only when [HEAD MODE] is selected.

Select music drive
While in USB source, press 5MODE repeatedly.
Stored songs in the following drive will be played back. · Selected internal or external memory of a smartphone (Mass
Storage Class). · Selected drive of a multiple drive device.
Settings to use JVC Remote application
JVC Remote application is designed to control the JVC car receiver's operations from the iPhone/iPod (via USB input terminal).
Preparation: · Install the latest version of JVC Remote application on your
device before connecting. · For more information, visit <http://www.jvc.net/cs/car/>.
You can make the settings in the same way as connection via Bluetooth. (Page 19)
Select control mode
While in iPod USB source (or iPod BT source), press 5MODE repeatedly. [HEAD MODE]: Control iPod from this unit. [IPHONE MODE]: Control iPod using the iPod itself. However, you can
still perform play/pause, file skip, fast-forward or fastreverse from this unit.

10 ENGLISH

USB/iPod/ANDROID

Select a file from a folder/list

For iPod, applicable only when [HEAD MODE] is selected.

1 Press

.

2 Perform `Select an item (page 3 or 4)' operation to select a

folder/list.

3 Perform `Select an item (page 3 or 4)' operation to select a file.

Quick search (applicable only for USB source) If you have many files, you can search through them quickly.
Perform the following operation to browse through the list quickly. KD-X462BT: Turn the volume knob quickly KD-X368BT: Press and hold VOL +/­
Alphabet search (applicable only for iPod USB source or iPod BT source) You can search for a file according to the first character.
Perform the following operation to select the desired character (A to Z, 0 to 9, OTHERS).
KD-X462BT: Press 2J / 1K or turn the volume knob quickly KD-X368BT: Press 2J / 1K · Select "OTHERS" if the first character is other than A to Z, 0 to 9.

· To return to the previous setting item, press

.

· To cancel, press and hold

.

Spotify
Preparation: Install the latest version of the Spotify application on your device (iPhone/ iPod touch), then create an account and log in to Spotify. · Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (Page 6)

Start listening

1 Start up the Spotify application on your device. 2 Connect your device to the USB input terminal.

KD-X462BT: USB input terminal

Accessory of the iPod/iPhone*

KD-X368BT: USB input terminal

Accessory of the iPod/iPhone*

3 Press source button repeatedly to select SPOTIFY. Broadcast starts automatically
* Do not leave the cable inside the car when not used.

ENGLISH 11

Spotify

To

On the faceplate

Play back/pause

KD-X462BT:
Press the volume knob.
KD-X368BT: Press *ENTER.

Skip a track

Press S*1 / T.

Select thumbs up Press 2J / 1K. or thumbs down*2

Start radio

Press and hold 5.

Repeat play*3

Press 4B repeatedly.

[ALL REPEAT], [ONE REPEAT]*1, [REPEAT OFF]

Random play*3

Press 3A repeatedly*1.

[ALL RANDOM], [RANDOM OFF]

On the remote control Press d.
Press H*1 / I. Press J / K. ( Not available ) ( Not available )
( Not available )

*1 Available for premium account users only. *2 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is
skipped. *3 Available for tracks in Playlists only.

To unsave, repeat the same procedure. "REMOVED" appears and the information is removed from "Your Music" or "Your Library" on your Spotify account.

Search for a song or station

1 Press

.

2 Perform `Select an item (page 3 or 4)' operation to select a list

type.

The list types displayed differ depending on the information sent from

Spotify.

3 Perform `Select an item (page 3 or 4)' operation to select the

desired song or station.

Perform the following operation to browse through the list quickly.

KD-X462BT: Turn the volume knob quickly

KD-X368BT: Press and hold VOL +/­

To cancel, press and hold

.

Save favorite song information
While listening to the Radio on Spotify... Press and hold the following button to save the song information. KD-X462BT: Volume knob KD-X368BT: *ENTER
"SAVED" appears and the information is stored to "Your Music" or "Your Library" on your Spotify account.

12 ENGLISH

BLUETOOTH®
Depending on the operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.
BLUETOOTH -- Connection Supported Bluetooth profiles ­ Hands-Free Profile (HFP) ­ Advanced Audio Distribution Profile (A2DP) ­ Audio/Video Remote Control Profile (AVRCP) ­ Serial Port Profile (SPP) ­ Phonebook Access Profile (PBAP)
Supported Bluetooth codecs ­ Sub Band Codec (SBC) ­ Advanced Audio Coding (AAC)
Connect the microphone
Rear panel

Microphone input jack

Microphone (supplied)

Adjust the microphone angle

Secure using cord clamps (not supplied) if necessary.

Pair and connect a Bluetooth device for the first time
1 Press source button to turn on the unit. 2 Search and select the name of your receiver ("KD-X4 BT"/ "KD-X3 BT") on the Bluetooth
device. "BT PAIRING" flashes on the display. · For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN)
code immediately after searching. 3 Perform (A) or (B) depending on what appears on the display.
For some Bluetooth devices, pairing sequence may vary from the steps described below. (A) KD-X462BT:
"Device Name" "XXXXXX" "VOL ­ YES" "BACK ­ NO" KD-X368BT: "Device Name" "XXXXXX" "ENTER ­ YES" "BACK ­ NO" "XXXXXX" is a 6-digit passkey randomly generated during each pairing.
Ensure that the passkeys appear on the unit and Bluetooth device are the same. Press the following to confirm the passkey. KD-X462BT: Volume knob KD-X368BT: *ENTER Operate the Bluetooth device to confirm the passkey. (B) KD-X462BT: "Device Name" "VOL ­ YES" "BACK ­ NO" KD-X368BT: "Device Name" "ENTER ­ YES" "BACK ­ NO" Press the following to start pairing. KD-X462BT: Volume knob KD-X368BT: *ENTER · If "PAIRING" "PIN 0000" scrolls on the display, enter the PIN code "0000" into the
Bluetooth device. You can change to a desired PIN code before pairing. (Page 18) · If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

ENGLISH 13

BLUETOOTH®
"PAIRING COMPLETED" appears when pairing is completed and "" will light up when the Bluetooth connection is established. For KD-X462BT, the battery and signal strength of the connected Bluetooth device is shown (see [FORMAT] on page 27).
· This unit supports Secure Simple Pairing (SSP). · Up to five devices can be registered (paired) in total. · Once the pairing is completed, the Bluetooth device will remain registered
in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page 17. · A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page 19) · Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. · When the battery of the connected Bluetooth device runs low, "Device Name" "LOW BATTERY" appears. · Refer to the instruction manual of the Bluetooth device for more information.
Auto Pairing
When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated.
Press the following to pair once you have confirmed the device name. KD-X462BT: Volume knob KD-X368BT: *ENTER
Automatic pairing request is activated only if: ­ Bluetooth function of the connected device is turned on. ­ [AUTO PAIRING] is set to [ON]. (Page 18)

BLUETOOTH -- Mobile phone For key layout on the faceplate, see page 3 or page 4.

Receive a call
When there is an incoming call: · The buttons or symbolic button will blink in the color you have selected in
[RING COLOR]. (Page 16) · The unit answers the call automatically if [AUTO ANSWER] is set to a selected
time. (Page 16)
During a call: · The buttons or symbolic button stop blinking and illuminate in the color
you have selected in [RING COLOR]. (Page 16) · If you turn off the unit or detach the faceplate, Bluetooth is disconnected.

The following operations may differ or be unavailable depending on the connected phone.

To

On the faceplate

First incoming call...

Answer a call

Press

or the following

button.

KD-X462BT: Volume knob KD-X368BT: *ENTER

Reject a call

Press and hold

or the

following button.

KD-X462BT: Volume knob KD-X368BT: *ENTER

End a call

Press and hold

or the

following button.

KD-X462BT: Volume knob KD-X368BT: *ENTER

On the remote control Press J / K / H / I.
Press and hold J / K / H / I.
Press and hold J / K / H / I.

14 ENGLISH

BLUETOOTH®

To

On the faceplate

While talking on the first incoming call...

Answer another incoming Press

or the following button.

call and hold the current KD-X462BT: Volume knob

call

KD-X368BT: *ENTER

Reject another incoming call

Press and hold

or the following button.

KD-X462BT: Volume knob KD-X368BT: *ENTER

While having two active calls...

End current call and activate held call

Press and hold

or the following button.

KD-X462BT: Volume knob KD-X368BT: *ENTER

Swap between the current Press

.

call and held call

Adjust the phone volume*1 Perform the following operation during a call. [00] to [35] (Default: [15]) KD-X462BT: Turn the volume knob
KD-X368BT: Press VOL +/­ *2

Switch between hands-free Press and private talk modes*3

during a call.

On the remote control
( Not available )
( Not available )
Press and hold J / K / H / I. ( Not available ) Press VOL +*2 or VOL ­ during a call. ( Not available )

*1 This adjustment will not affect the volume of the other sources. *2 Press and hold VOL + to continuously increase the volume to 15. *3 Operations may vary according to the connected Bluetooth device.

Improve the voice quality

While talking on the phone...

1 Press and hold .

2 Perform `Select an item (page 3 or 4)'

operation to select an item (see the following

table).

3 Repeat step 2 until the desired item is selected

or activated.

4 Press

to exit.

To return to the previous setting item, press

.

[MIC GAIN] [NR LEVEL] [ECHO CANCEL]

Default: [XX]
[LEVEL ­10] to [LEVEL +10] ([LEVEL ­04]): The sensitivity of the microphone increases as the number increases.
[LEVEL ­05] to [LEVEL +05] ([LEVEL 00]): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
[LEVEL ­05] to [LEVEL +05] ([LEVEL 00]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

ENGLISH 15

BLUETOOTH®

Make the settings for receiving a call

1 Press

to enter Bluetooth mode.

2 Perform `Select an item (page 3 or 4)' operation to select an

item (see the following table).

3 Repeat step 2 until the desired item is selected or activated.

To return to the previous setting item, press

.

Default: [XX]

[SETTINGS] [AUTO ANSWER]
[RING COLOR]

[01 SEC] to [30 SEC]: Answers an incoming call automatically in the selected time (in seconds). ; [OFF]: Cancels.
[COLOR 01] to [COLOR 49] ([COLOR 08]): Selects the illumination color for the buttons or symbolic button as notification when there is an incoming call and during a call. ; [OFF]: Cancels.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press

to enter Bluetooth mode.

"(First device name)" appears.

· If two Bluetooth phones are connected, press

again to switch to

the other phone.

"(Second device name)" appears.

2 Perform `Select an item (page 3 or 4)' operation to select an

item (see the following table).

3 Repeat step 2 until the desired item is selected/activated or follow the

instructions stated on the selected item.

To return to the previous setting item, press

.

[RECENT CALL]

(Applicable only if the phone supports PBAP.) 1 Press the following button to select a name or a phone number.
KD-X462BT: Volume knob KD-X368BT: VOL +/­ · "<" indicates call received, ">" indicates call made, "M" indicates call
missed. · "NO HISTORY" appears if there is no recorded call history or call number. 2 Press the following to call. KD-X462BT: Volume knob KD-X368BT: *ENTER

[PHONEBOOK]

(Applicable only if the phone supports PBAP.) 1 Press 2J / 1K to select the desired letter (A to Z, 0 to 9, and OTHERS).
· "OTHERS" appears if the first character is other than A to Z, 0 to 9. 2 Perform `Select an item (page 3 or 4)' operation to select a name. 3 Perform `Select an item (page 3 or 4)' operation to select a phone
number to call.

· The phonebook of the connected phone is automatically transferred to the unit when pairing.
· This unit can display only non-accent letters. (Accent letters such as "Ú" are showns as "U".)

[DIAL NUMBER]

1 Perform the following operation to select a number (0 to 9) or character ( , #, +).
KD-X462BT: Turn the volume knob
KD-X368BT: Press VOL +/­ 2 Press S / T to move the entry position.
Repeat steps 1 and 2 until you finish entering the phone number.
3 Press the following to call. KD-X462BT: Volume knob KD-X368BT: *ENTER

[VOICE]

Speak the name of the contact you want to call or the voice command to control the phone functions. (See "Make a call using voice recognition" on page 17.)

16 ENGLISH

BLUETOOTH®

Make a call using voice recognition

1 Press and hold

to activate the connected phone.

2 Speak the name of the contact you want to call or the voice command

to control the phone functions.

· Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press

to enter Bluetooth mode.

2 Perform `Select an item (page 3 or 4)' operation to select

[RECENT CALL], [PHONEBOOK] or [DIAL NUMBER].

3 Perform `Select an item (page 3 or 4)' operation to select a

contact or enter a phone number.

If a contact is selected, press the following to show the phone number.

KD-X462BT: Volume knob

KD-X368BT: *ENTER

4 Press and hold one of the number buttons (1 to 6).

"MEMORY P(selected preset number)" appears when the contact is

stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory

1 Press

to enter Bluetooth mode.

2 Press one of the number buttons (1 to 6).

3 Press the following to call.

KD-X462BT: Volume knob

KD-X368BT: *ENTER

"NO PRESET" appears if there is no contact stored.

Bluetooth mode settings

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to select an

item (see the following table).

3 Repeat step 2 until the desired item is selected/activated or follow the

instructions stated on the selected item.

4 Press

to exit.

To return to the previous setting item, press

.

Default: [XX]

[BT MODE]

[PHONE SELECT]* Selects the phone or audio device to connect or disconnect.

[AUDIO SELECT]*

" " appears in front of the device name when connected. " " appears in front of the current playback audio device.

[DEVICE DELETE]

1 Perform `Select an item (page 3 or 4)' operation to select a device to delete.
2 Perform `Select an item (page 3 or 4)' operation to select [YES] or [NO].

* You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time.

ENGLISH 17

BLUETOOTH®

[PIN CODE EDIT] (0000)
[RECONNECT] [AUTO PAIRING] [INITIALIZE] [INFORMATION]

Changes the PIN code (up to 6 digits). 1 Perform the following operation to select a number.
KD-X462BT: Turn the volume knob KD-X368BT: Press VOL +/­ 2 Press S / T to move the entry position. Repeat steps 1 and 2 until you finish entering the PIN code. 3 Press the following to confirm. KD-X462BT: Volume knob KD-X368BT: *ENTER
[ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels.
[ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels.
[YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels.
[MY BT NAME]: Displays the name of your receiver ("KD-X4 BT"/ "KD-X3 BT"). ; [MY ADDRESS]: Shows address of this unit.

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit. · Make sure there is no Bluetooth device paired.

1 Press and hold

.

"BLUETOOTH" "CHECK MODE" appears. "SEARCH NOW USING

PHONE" "PIN IS 0000" scrolls on the display.

2 Search and select the name of your receiver ("KD-X4 BT"/

"KD-X3 BT") on the Bluetooth device within 3 minutes.

3 Perform (A), (B) or (C) depending on what appears on the display. (A) "PAIRING" "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey. (B) "PAIRING" "PIN IS 0000": Enter "0000" on the Bluetooth device. (C) "PAIRING": Operate the Bluetooth device to confirm pairing.
After pairing is done successfully, "PAIRING OK" "Device Name" appears and Bluetooth compatibility check starts. If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue. "TESTING" flashes on the display.
The connectivity result flashes on the display. "PAIRING OK" and/or "HANDS-FREE OK"*1 and/or "AUD.STREAM OK"*2 and/ or "PBAP OK"*3: Compatible
*1 Compatible with Hands-Free Profile (HFP) *2 Compatible with Advanced Audio Distribution Profile (A2DP) *3 Compatible with Phonebook Access profile (PBAP)
After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.
· To cancel, press and hold source button to turn off the power, then turn on the power again.

18 ENGLISH

BLUETOOTH®
BLUETOOTH -- Audio For key layout on the faceplate, see page 3 or page 4.
While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.

Audio player via Bluetooth
1 Press source button repeatedly to select BT AUDIO (or press SOURCE on the remote control). · Pressing enters BT AUDIO directly.
2 Operate the audio player via Bluetooth to start playback.

To

On the faceplate

Play back/pause

KD-X462BT: Press the volume knob. KD-X368BT: Press *ENTER.

Select group or folder Press 2J / 1K.

Reverse skip/ Forward skip

Press S / T.

Reverse/ Fast-forward

Press and hold S / T.

Repeat play

Press 4B repeatedly.

[TRACK REPEAT], [ALL REPEAT], [REPEAT OFF]

Random play

Press 3A repeatedly.

[GROUP RANDOM], [ALL RANDOM], [RANDOM OFF]

Select a file from a folder/list

Refer to "Select a file from a folder/ list" on page 11.

On the remote control Press d. Press J / K. Press H / I. Press and hold H / I.
( Not available )
( Not available )
( Not available )

To
Switch between connected Bluetooth audio devices

On the faceplate Press 5.*

On the remote control ( Not available )

* Pressing the "Play" key on the connected device itself also causes switching of sound output from the device.
Operations and display indications may differ according to their availability on the connected device.

Settings to use JVC Remote application
JVC Remote application is designed to control the JVC car receiver's operations from iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth).

Preparation: · Install the latest version of JVC Remote application on your
device before connecting. · For more information, visit <http://www.jvc.net/cs/car/>.

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to

select an item. (Page 20)

3 Repeat step 2 until the desired item is selected or activated.

4 Press

to exit.

To return to the previous setting item, press

.

ENGLISH 19

BLUETOOTH®

Default: [XX]

[REMOTE APP]

[SELECT] Selects the device (IOS or ANDROID) to use the application.

[IOS]

[YES]: Selects iPhone/iPod to use the application via Bluetooth or connected via

USB input terminal. ; [NO]: Cancels.

If IOS is selected, select iPod BT source (or iPod USB source if your iPhone/iPod is

connected via USB input terminal) to activate the application.

· The connectivity of the application will be interrupted or disconnected if:

­ You change from iPod BT source to any playback source connected via the

USB input terminal.

­ You change from iPod USB source to iPod BT source.

[ANDROID] [YES]: Selects Android smartphone to use the application via Bluetooth. ; [NO]: Cancels.

[ANDROID LIST]*
[STATUS]

Selects the Android smartphone to use from the list.
Shows the status of the selected device. [IOS CONNECTED]: You are able to use the application using the iPhone/iPod connected via Bluetooth or USB input terminal. [IOS NOT CONNECTED]: No IOS device is connected to use the application. [ANDROID CONNECTED]: You are able to use the application using the Android smartphone connected via Bluetooth. [ANDROID NOT CONNECTED]: No Android device is connected to use the application.

* Displayed only when [ANDROID] of [SELECT] is set to [YES].

Listen to iPhone/iPod via Bluetooth
You can listen to the songs on the iPhone/iPod via Bluetooth on this unit.
Press source button repeatedly to select iPod BT. · You can operate the iPod/iPhone in the same way as iPod/iPhone via USB
input terminal. (Page 9) · If you plug in an iPhone/iPod to the USB input terminal while listening to
iPod BT source, the source automatically changes to iPod USB. Press source button to select iPod BT if the device is still connected via Bluetooth.
Internet radio via Bluetooth
You can listen to internet radio (Spotify) on the iPhone/iPod touch/Android device via Bluetooth on this unit. · Make sure the USB input terminal is not connected to any device.
Listen to Spotify
Preparation: Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (Page 6)
1 Start up the Spotify application on your device. 2 Connect your device via Bluetooth connection. (Page 13) 3 Press source button repeatedly to select SPOTIFY (for iPhone/iPod) or
SPOTIFY BT (for Android device). The source switches and broadcast starts automatically.
· You can operate Spotify in the same way as Spotify via USB input terminal. (Page 11)

20 ENGLISH

AUDIO SETTINGS

For key layout on the faceplate, see page 3 or page 4.

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to select an

item (see the following table).

3 Repeat step 2 until the desired item is selected/activated or follow the

instructions stated on the selected item.

4 Press

to exit.

To return to the previous setting item, press

.

[EQ SETTING] [PRESET EQ]
[EASY EQ]

Default: [XX]

Selects a preset equalizer suitable to the music genre. · Select [USER] to use the settings made in [EASY EQ] or [PRO EQ]. [FLAT]/[DRVN 3]/[DRVN 2]/[DRVN 1]/[HARD ROCK]/[HIP HOP]/[JAZZ]/ [POP]/[R&B]/[USER]/[CLASSICAL] Drive equalizer ([DRVN 3]/[DRVN 2]/[DRVN 1]) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres.

Adjusts your own sound settings.

· The settings are stored to [USER] in [PRESET EQ].

· The settings made may affect the current settings of [PRO EQ].

[SUB.W SP]*1*2: [00] to [+06]

(Default: [+03]

[SUB.W]*1: [­50] to [+10]

[00]

[BASS]:

[LVL­09] to [LVL+09]

[LVL 00]

[MID]:

[LVL­09] to [LVL+09]

[LVL 00]

[TRE]:

[LVL­09] to [LVL+09]

[LVL 00])

[PRO EQ]

Adjusts your own sound settings. · The settings are stored to [USER] in [PRESET EQ]. · The settings made may affect the current settings of [EASY EQ].

[62.5HZ]

[LEVEL ­09] to [LEVEL +09] ([LEVEL 00]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

[ON]: Turns on the extended bass. ; [OFF]: Cancels.

[100HZ]/[160HZ]/[250HZ]/[400HZ]/[630HZ]/[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/ [6.3KHZ]/[10KHZ]/[16KHZ]

[LEVEL ­09] to [LEVEL +09] ([LEVEL 00]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

[Q FACTOR] [1.35]/[1.50]/[2.00]: Adjusts the quality factor.

[AUDIO CONTROL]

[BASS BOOST]

[LEVEL +01] to [LEVEL +05]: Selects your preferred bass boost level. ; [OFF]: Cancels.

[LOUDNESS]

[LEVEL 01]/[LEVEL 02]: Boosts low or high frequencies to produce a wellbalanced sound at low volume. ; [OFF]: Cancels.

[SUB.W LEVEL]*1 [SPK-OUT]*2

(Not applicable when 3-way crossover is selected.) [SUB.W 00] to [SUB.W +06] ([SUB.W +03]): Adjusts the output level of the subwoofer connected via speaker lead. (Page 36)

[PRE-OUT]

[SUB.W ­50] to [SUB.W +10] ([SUB.W 00]): Adjusts the output level of the subwoofer connected to the lineout terminals (SW) through an external amplifier. (Page 37)

[SUBWOOFER SET]

[ON]: Turns on the subwoofer output. ; [OFF]: Cancels.

*1, *2 : (page 22)

ENGLISH 21

AUDIO SETTINGS

[FADER]

(Not applicable when 3-way crossover is selected.) [POSITION R15] to [POSITION F15] ([POSITION 00]): Adjusts the front and rear speaker output balance.

[BALANCE]*3

[POSITION L15] to [POSITION R15] ([POSITION 00]): Adjusts the left and right speaker output balance.

[VOLUME ADJUST] [LEVEL ­15] to [LEVEL +06] ([LEVEL 00]): Presets the initial volume level of each source by comparing to the FM volume level. (Before adjustment, select the source you want to adjust.)

[AMP GAIN]

[LOW POWER]: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; [HIGH POWER]: The maximum volume level is 35.

[SPK/PRE OUT]

(Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting for the desired output. (See "Speaker output settings" on page 23.)

[SPEAKER SIZE] [X ' OVER]

Depending on the crossover type you have selected (see [X ' OVER TYPE]), 2-way crossover or 3-way crossover setting items will be shown. (See "Crossover settings" on page 23.) By default, 2-way crossover type is selected.

[DTA SETTINGS] [CAR SETTINGS] [X ' OVER TYPE]
[2-WAY]
[3-WAY]

For settings, see "Digital Time Alignment settings" on page 26.
Caution: Adjusts the volume before changing the [X ' OVER TYPE] to avoid the sudden increase or decrease of the output level.
(Displayed only when [3-WAY] is selected.) [YES]: Selects two way crossover type. ; [NO]: Cancels. (Displayed only when [2-WAY] is selected.) [YES]: Selects three way crossover type. ; [NO]: Cancels.

[SOUND EFFECT] [SPACE ENHANCE]
[SND RESPONSE] [SOUND LIFT] [VOL LINK EQ] [K2 TECHNOLOGY]

(Not applicable for FM/AM/SW1/SW2 source.) [SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space. ; [OFF]: Cancels.
[LEVEL1]/[LEVEL2]/[LEVEL3]: Virtually makes the sound more realistic. ; [OFF]: Cancels.
[LOW]/[MIDDLE]/[HIGH]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels.
[ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels.
(Not applicable for FM/AM/SW1/SW2 source and AUX source.) [ON]: Improves the sound quality of compressed music. ; [OFF]: Cancels.

*1 Displayed only when [SUBWOOFER SET] is set to [ON]. (Page 21) *2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W].
(Page 23) *3 This adjustment will not affect the subwoofer output.

22 ENGLISH

AUDIO SETTINGS
Speaker output settings [SPK/PRE OUT] (Applicable only if [X ' OVER TYPE] is set to [2-WAY]) (page 22) Select the output setting for the speakers [SPK/PRE OUT], based on the speaker connection method.
Connection via lineout terminals For connections through an external amplifier. (Page 37)

Setting on [SPK/PRE OUT]

Audio signal through lineout terminal

FRONT

REAR

SW

[REAR/REAR] (default) Front speakers output

Rear speakers output

Subwoofer output

[SUB.W/SUB.W]

Front speakers output

L (left): Subwoofer output Subwoofer output R (right): (Mute)

Connection via speaker leads
You can also connect the speakers without using an external amplifier but still being able to enjoy the subwoofer output with these settings. (Page 36)

Setting on [SPK/PRE OUT]
[REAR/REAR] [SUB.W/SUB.W]

Audio signal through rear speaker lead

L (left)

R (right)

Rear speakers output

Rear speakers output

Subwoofer output

(Mute)

If [SUB.W/SUB.W] is selected: ­ [120HZ] is selected in [SUBWOOFER LPF] and [THROUGH] is not available.
(Page 25) ­ [POSITION R02] is selected in [FADER] and selectable range is [POSITION R15] to
[POSITION 00]. (Page 22)
Crossover settings
Below are the available setting items for 2-way crossover and 3-way crossover.
Caution Select a crossover type according to how the speakers are connected. (Page 36, 37) If you select a wrong type: · The speakers may be damaged. · The output sound level may be extremely high or low.
SPEAKER SIZE Selects according to the connected speaker size for optimum performance. · The frequency and slope settings are automatically set for the crossover of
the selected speaker. · If [NONE] is selected for the following speaker in [SPEAKER SIZE], the [X ` OVER]
setting of the selected speaker is not available. ­ 2-way crossover: [TWEETER] of [FRONT]/[REAR]/[SUBWOOFER] ­ 3-way crossover: [WOOFER]

ENGLISH 23

AUDIO SETTINGS
X ` OVER (crossover) · [FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the
crossover frequency for the selected speakers (high pass filter or low pass filter). If [THROUGH] is selected, all signals are sent to the selected speakers. · [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency. · [SW LPF PHASE]/[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output. · [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.

2-way crossover setting items

[SPEAKER SIZE] [FRONT]
[REAR]*1 [SUBWOOFER]*2 [X ' OVER] [TWEETER]
[FRONT HPF]
[REAR HPF]*1
*1, *2: (page 25)

[SIZE]

[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/

[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/

[7×10]

[TWEETER]

[SMALL]/[MIDDLE]/[LARGE]/[NONE] (not connected)

[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/ [5×7]/[6×8]/[6×9]/[7×10]/[NONE] (not connected)

[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] (not connected)

[FRQ]
[GAIN LEFT] [GAIN RIGHT] [F-HPF FRQ]
[F-HPF SLOPE] [F-HPF GAIN] [R-HPF FRQ]
[R-HPF SLOPE] [R-HPF GAIN]

[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/ [6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
[­08DB] to [00DB]
[­08DB] to [00DB]
[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [220HZ]/[250HZ]/[THROUGH]
[­06DB]/[­12DB]/[­18DB]/[­24DB]
[­08DB] to [00DB]
[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [220HZ]/[250HZ]/[THROUGH]
[­06DB]/[­12DB]/[­18DB]/[­24DB]
[­08DB] to [00DB]

24 ENGLISH

AUDIO SETTINGS

[SUBWOOFER LPF]*2

[SW LPF FRQ]
[SW LPF SLOPE] [SW LPF PHASE] [SW LPF GAIN]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [220HZ]/[250HZ]/[THROUGH]
[­06DB]/[­12DB]/[­18DB]/[­24DB]
[REVERSE] (180°)/ [NORMAL] (0°)
[­08DB] to [00DB]

3-way crossover setting items

[SPEAKER SIZE]

[TWEETER] [SMALL]/[MIDDLE]/[LARGE]

[MID RANGE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/ [6×8]/[6×9]

[WOOFER]*2 [16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] (not connected)

[X ' OVER]

[TWEETER] [HPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/ [8KHZ]/[10KHZ]/[12.5KHZ]

[SLOPE] [­06DB]/[­12DB]

[PHASE] [REVERSE] (180°)/[NORMAL] (0°)

[GAIN]

[­08DB] to [00DB]

[MID RANGE] [HPF FRQ]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/
[THROUGH]

[HPF SLOPE] [­06DB]/[­12DB]

[LPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/ [8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH]

[LPF SLOPE] [­06DB]/[­12DB]

[PHASE] [REVERSE] (180°)/[NORMAL] (0°)

[GAIN]

[­08DB] to [00DB]

[WOOFER]*2 [LPF FRQ]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/
[THROUGH]

[SLOPE] [­06DB]/[­12DB]

[PHASE] [REVERSE] (180°)/[NORMAL] (0°)

[GAIN]

[­08DB] to [00DB]

*1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR]. (Page 23) *2 Displayed only when [SUBWOOFER SET] is set to [ON]. (Page 21)

ENGLISH 25

AUDIO SETTINGS

Digital Time Alignment settings
Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle. · For more information, see "Determining the value for [DISTANCE] and [GAIN]
of [DTA SETTINGS]".

[DTA SETTINGS] [POSITION]
[DISTANCE]*1 [GAIN]*1 [DTA RESET] [CAR SETTINGS] [CAR TYPE]
[R-SP LOCATION]*2

Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats · [FRONT ALL] is displayed only when [X ' OVER TYPE] is set to
[2-WAY]. (Page 22)
[0CM] to [610CM]: Fine adjust the distance to compensate.
[­8DB] to [0DB]: Fine adjust the output volume of the selected speaker.
[YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels.
Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
[COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/ [MINIVAN(LONG)]: Selects the type of vehicle. ; [OFF]: Not compensating.
Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point). · [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is
selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV]. · [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]
If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set. 1 Determines the center of the currently set
listening position as the reference point. 2 Measures the distances from the reference point
to the speakers. 3 Calculates the differences between the distance
of the furthest speaker (rear speaker) and other speakers. 4 Sets the [DISTANCE] calculated in step 3 for individual speakers. 5 Adjusts [GAIN] for individual speakers.
Example: When [FRONT ALL] is selected as the listening position
*1 Before making an adjustment, select the speaker: When 2-way crossover is selected: [FRONT LEFT]/[FRONT RIGHT]/[REAR LEFT]/[REAR RIGHT]/[SUBWOOFER]: ­ [REAR LEFT], [REAR RIGHT] and [SUBWOOFER] is selectable only if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (Page 24)
When 3-way crossover is selected: [TWEETER LEFT]/[TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER]: ­ [WOOFER] is selectable only if a setting other than [NONE] is selected for [WOOFER] of
[SPEAKER SIZE]. (Page 25) *2 Displayed only when [X ' OVER TYPE] is set to [2-WAY] (page 22) and if a setting other
than [NONE] is selected for [REAR] of [SPEAKER SIZE]. (Page 24)

26 ENGLISH

DISPLAY SETTINGS
Zone identification for brightness settings KD-X462BT:

KD-X368BT:

(Symbolic button)

1 Press and hold .

2 Perform `Select an item (page 3 or 4)' operation to select an

item (see the following table).

3 Repeat step 2 until the desired item is selected/activated or follow the

instructions stated on the selected item.

4 Press

to exit.

To return to the previous setting item, press

.

Default: [XX]

[DISPLAY] [DIMMER]

Dims the illumination. [OFF]: Dimmer is turned off. Brightness changes to [DAY] setting. [ON]: Dimmer is turned on. Brightness changes to [NIGHT] setting. (See "[BRIGHTNESS]" below.) [DIMMER TIME]: Set the dimmer on and off time. 1 Perform `Select an item (page 3 or 4)' operation to adjust the [ON]
time. 2 Perform `Select an item (page 3 or 4)' operation to adjust the
[OFF] time. (Default: [ON]: [PM6:00] ; [OFF]: [AM6:00]) [DIMMER AUTO]: Dimmer turns on and off automatically when you turn off or on the car headlights.*1

[BRIGHTNESS] [TEXT SCROLL]*2 [FORMAT]*3

Sets the brightness for day and night separately. 1 [DAY]/[NIGHT]: Select day or night. 2 Select a zone. (See the illustration on the left column.) 3 [LEVEL 00] to [LEVEL 31]: Set the brightness level.
[SCROLL ONCE]: Scrolls the display information once. ; [SCROLL AUTO]: Repeats scrolling at 5-second intervals. ; [SCROLL OFF]: Cancels.
KD-X462BT: Below information is shown on the supplementary display when Bluetooth device is connected. (Page 30) [BATT/SIGNAL]: Shows the strength of the battery and signal. ; [DATE]: Shows the date.

*1 The illumination control wire connection is required. (Page 36) *2 Some characters or symbols will not be shown correctly (or will be blank). *3 Functionality depends on the type of phone used.

ENGLISH 27

DISPLAY SETTINGS
[COLOR] (for KD-X462BT)

[COLOR] (for KD-X368BT: Symbolic button only)

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

Selects illumination colors for the buttons. · [COLOR 01] to [COLOR 49] · [USER]: The color you have created for [DAY COLOR] or [NIGHT COLOR]
is shown. · [COLOR FLOW01] to [COLOR FLOW03]: Color changes at different
speeds.
Stores your own day and night illumination colors for the buttons. 1 [RED]/[GREEN]/[BLUE]: Select a primary color. 2 [00] to [31]: Select the level. Repeat steps 1 and 2 for all the primary colors. · Your setting is stored to [USER] in [PRESET]. · [NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your
car's headlights.
[ON]: The illumination color of the highlighted zone changes to white color when settings are performed on menu and list search, except in color setting mode. ; [OFF]: Cancels.

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

Selects an illumination color for the symbolic button. · [COLOR 01] to [COLOR 49] · [USER]: The color you have created for [DAY COLOR] or [NIGHT COLOR]
is shown. · [COLOR FLOW01] to [COLOR FLOW03]: Color changes at different
speeds. · Preset color: [CRYSTAL]/[FLOWER]/[FOREST]/[GRADATION]/[OCEAN]/
[RELAX]/[SUNSET]
Stores your own day and night illumination colors for the symbolic button. 1 [RED]/[GREEN]/[BLUE]: Select a primary color. 2 [00] to [31]: Select the level. Repeat steps 1 and 2 for all the primary colors. · Your setting is stored to [USER] in [PRESET]. · [NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your
car's headlights.
[ON]: The illumination color of the symbolic button changes to white color when settings are performed on menu and list search, except in color setting mode. ; [OFF]: Cancels.

28 ENGLISH

REFERENCES

Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently

with a cotton swab. Be careful not to damage the

connector.

Connector (on the reverse

More information

side of the faceplate)

For: ­ Latest firmware updates and latest compatible item list

­ JVC original application

­ Any other latest information

Visit <www.jvc.net/cs/car/>.

Playable files
· Playable audio file for USB mass storage class device: MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)
· Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices. · For detailed information and notes about the playable audio files, visit
<www.jvc.net/cs/car/audiofile/>.

About USB devices
· You cannot connect a USB device via a USB hub. · Connecting a cable whose total length is longer than 5 m may result in abnormal playback. · This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

About iPod/iPhone
· Via USB input terminal: Made for ­ iPod touch (5th and 6th generation) ­ iPod nano (7th generation) ­ iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
· Via Bluetooth: Made for ­ iPod touch (5th and 6th generation) ­ iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
· It is not possible to browse video files on the "Videos" menu in [HEAD MODE]. · The song order displayed on the selection menu of this unit may differ from that of the iPod/
iPhone. · You cannot operate iPod if "JVC" or " " is displayed on iPod. · Depending on the version of the operating system of the iPod/iPhone, some functions may not
operate on this unit.
About Android device
· This unit supports Android OS 4.1 and later. · Some Android devices (with OS 4.1 and later) may not fully support Android Open Accessory
(AOA) 2.0. · If the Android device supports both mass storage class device and AOA 2.0, this unit always
play back via AOA 2.0 as priority.
About Spotify
· Spotify application supports: ­ iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 or later) ­ iPod touch (5th and 6th generation) ­ Android OS 4.0.3 or later
· Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
· Some functions of Spotify cannot be operated from this unit. · For issues using the application, please contact Spotify at <www.spotify.com>.

ENGLISH 29

REFERENCES
About Bluetooth · Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to
connect to this unit. · This unit may not work with some Bluetooth devices. · Signal conditions vary, depending on the surroundings.
Change the display information Each time you press , the display information changes. · If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information
(eg. station name) appears or display will be blank.
KD-X462BT:
Main display

Supplementary display*1

Clock display or Level meter

*1 Date will be replaced with battery and signal strength of the connected Bluetooth device if [FORMAT] is set to [BATT/SIGNAL]. (Page 27)

Source name FM/AM/SW1/SW2

Display information: Main (Supplementary)
Frequency (Date) Frequency (Date) with Music Synchronization Effect*2 back to the beginning
For FM Radio Data System stations only: Station name/Program type (Date) Station name/Program type (Date) with Music Synchronization Effect*2 Radio text (Date) Radio text+ (Radio text+) Song title (Artist) Song title (Date)
Frequency (Date) back to the beginning

Source name USB
iPod USB/iPod BT ANDROID

Display information: Main (Supplementary)
For MP3/WMA/AAC/WAV/FLAC files: Song title (Artist) Song title (Artist) with Music Synchronization Effect*2 Song title (Album title) Song title (Date) File name (Folder name) File name (Date) Playing time (Date) back to the beginning
When [HEAD MODE] is selected (page 10): Song title (Artist) Song title (Artist) with Music Synchronization Effect*2 Song title (Album title) Song title (Date) Playing time (Date) back to the beginning
Source name (Date) Source name (Date) with Music Synchronization Effect*2 back to the beginning

SPOTIFY/SPOTIFY BT BT AUDIO

Context title (Date) Context title (Date) with Music Synchronization Effect*2 Song title (Artist) Song title (Album title) Song title (Date) Playing Time (Date) back to the beginning
Song title (Artist) Song title (Artist) with Music Synchronization Effect*2 Song title (Album title) Song title (Date) Playing time (Date) back to the beginning

AUX

Source name (Date) Source name (Date) with Music

Synchronization Effect*2 back to the beginning

*2 During Music Synchronization Effect, the illumination color or brightness level of the buttons changes and synchronizes with the music level (depending on the color setting made for [PRESET] on page 28).

30 ENGLISH

REFERENCES
KD-X368BT:

Main display

Level meter

Source name FM/AM/SW1/SW2
USB iPod USB/iPod BT ANDROID

Display information: Main
Frequency Frequency with Music Synchronization Effect* Clock back to the beginning
For FM Radio Data System stations only: Station name/Program type Station name/Program type with Music Synchronization Effect* Radio text Radio text+ Radio text+ song title/Radio text+ artist Frequency Clock back to the beginning
For MP3/WMA/AAC/WAV/FLAC files: Song title/Artist Song title/Artist with Music Synchronization Effect* Album title/Artist Folder name File name Playing time Clock back to the beginning
When [HEAD MODE] is selected (page 10): Song title/Artist Song title/Artist with Music Synchronization Effect* Album title/Artist Playing time Clock back to the beginning
Source name Source name with Music Synchronization Effect* Clock back to the beginning

Source name SPOTIFY/SPOTIFY BT
BT AUDIO
AUX

Display information: Main
Context title Context title with Music Synchronization Effect* Song title Artist Album title Playing Time Clock back to the beginning
Song title/Artist Song title/Artist with Music Synchronization Effect* Album title/Artist Playing time Clock back to the beginning
Source name Source name with Music Synchronization Effect* Clock back to the beginning

* During Music Synchronization Effect, the illumination color or brightness level of the symbolic button changes and synchronizes with the music level (depending on the color setting made for [PRESET] on page 28).

ENGLISH 31

TROUBLESHOOTING

Symptom

Remedy

Sound cannot be heard.

· Adjust the volume to the optimum level. · Check the cords and connections.

"MISWIRING CHECK WIRING THEN PWR ON" appears.

Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

"PROTECTING SEND SERVICE" Send the unit to the nearest service center. appears.

General

Source cannot be selected. Check the [SOURCE SELECT] setting. (Page 6)

The unit does not work at all. Reset the unit. (Page 3 or 4)

Correct characters are not displayed.

· This unit can only display uppercase letters, numbers, and a limited number of symbols.
· Depending on the display language you have selected (page 6), some characters may not be displayed correctly.

Radio

· Radio reception is poor. · Static noise while listening
to the radio.

Connect the antenna firmly.

Playback order is not as intended.

The playback order is determined by the file name (USB).

USB/iPod

Elapsed playing time is not correct.

This depends on the recording process earlier (USB).

"NOT SUPPORT" appears and Check whether the track is a playable format.

track skips.

(Page 29)

"READING" keeps flashing. · Do not use too many hierarchical levels and folders. · Reattach the device (USB/iPod/iPhone).

Symptom
"UNSUPPORTED DEVICE" appears.

USB/iPod

"UNRESPONSIVE DEVICE" appears.

"USB HUB IS NOT SUPPORTED" appears.

"CANNOT PLAY" appears.

· The source does not change to "USB" when you connect a USB device while listening to another source.
· "USB ERROR" appears.

The iPod/iPhone does not turn on or does not work.

"LOADING" appears when

you enter search mode by

pressing

.

"NO DEVICE"

Remedy
· Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 29)
· Reattach the USB device.
Make sure the USB device is not malfunction and reattach the USB device.
This unit cannot support a USB device connected via a USB hub.
Connect a USB device that contains playable audio files.
The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device.
· Check the connection between this unit and iPod/iPhone. · Disconnect and reset the iPod/iPhone using hard reset.
This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
Connect a device (USB/iPod/iPhone), and change the source to USB/iPod/iPhone again.

32 ENGLISH

TROUBLESHOOTING

Spotify

ANDROID

Symptom · Sound cannot be heard during playback. · Sound output only from the Android device.
"NO DEVICE" or "READING" keeps flashing. Playback is intermittent or sound skips. "CANNOT PLAY"
"DISCONNECTED" "CONNECTING"
"CHECK APP"

Remedy
· Reconnect the Android device. · Launch any media player application on the Android
device and start playback. · Relaunch the current media player application or use
another media player application. · Restart the Android device. · If this does not solve the problem, the connected Android
device is unable to route the audio signal to unit. (Page 29) · If USB connection does not work, connect the Android device via Bluetooth or through auxiliary input jack.
· Reconnect the Android device. · If USB connection does not work, connect the Android
device via Bluetooth or through auxiliary input jack.
Turn off the power saving mode on the Android device.
· Make sure Android device contains playable audio files. · Reconnect the Android device. · Restart the Android device.
USB is disconnected from the head unit. Please make sure the device is connected properly through USB.
· Connected via USB input terminal: The device is connecting to the head unit. Please wait.
· Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected.
The Spotify application is not connected properly or user is not login. End the Spotify application and restart. Then, log in to your Spotify account.

Bluetooth®

Symptom No Bluetooth device is detected. Pairing cannot be made.
Echo or noise is heard during a phone conversation. Phone sound quality is poor.
Voice calling method is not successful.
Sound is being interrupted or skipped during playback of a Bluetooth audio player.
The connected Bluetooth audio player cannot be controlled.

Remedy
· Search from the Bluetooth device again. · Reset the unit. (Page 3 or 4)
· Make sure you have entered the same PIN code to both the unit and Bluetooth device.
· Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 13)
· Adjust the microphone unit's position. (Page 13) · Check the [ECHO CANCEL] setting. (Page 15)
· Reduce the distance between the unit and the Bluetooth device.
· Move the car to a place where you can get a better signal reception.
· Use voice calling method in a more quiet environment. · Reduce the distance from the microphone when you speak
the name. · Make sure the same voice as the registered voice tag is used.
· Reduce the distance between the unit and the Bluetooth audio player.
· Turn off, then turn on the unit and try to connect again. · Other Bluetooth devices might be trying to connect to the
unit.
· Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)
· Disconnect and connect the Bluetooth player again.

ENGLISH 33

TROUBLESHOOTING

INSTALLATION/CONNECTION

Bluetooth®

Symptom "PLEASE WAIT"
"NOT SUPPORT"
"NO ENTRY"/"NO PAIR"
"ERROR"
"NO INFO"/"NO DATA" "H/W ERROR"
"SWITCHING NG"
The Bluetooth connection between the Bluetooth device and the unit is unstable.

Remedy
The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.
The connected phone does not support Voice Recognition feature or phonebook transfer.
There is no registered device connected/found via Bluetooth.
Try the operation again. If "ERROR" appears again, check if the device supports the function you have tried.
Bluetooth device cannot get the contact information.
Reset the unit and try the operation again. If "H/W ERROR" appears again, consult your nearest service center.
The connected phones might not support phone switching feature.
Delete the unused registered Bluetooth device from the unit. (Page 17)

If you still have troubles, reset the unit. (Page 3 or 4)

Warning · The unit can only be used with a 12 V DC power supply, negative ground. · Disconnect the battery's negative terminal before wiring and mounting. · Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire
(black) to prevent a short circuit. · To prevent short circuit:
­ Insulate unconnected wires with vinyl tape. ­ Be sure to ground this unit to the car's chassis again after installation. ­ Secure the wires with cable clamps and wrap vinyl tape around the wires that come in contact
with metal parts to protect the wires.
Caution · For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer. · Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during
and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot. · Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect
them in parallel. · Connect speakers with a maximum power of more than 50 W. If the maximum power of the
speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (Page 22) · Mount the unit at an angle of less than 30º. · If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key. · Keep all cables away from heat dissipate metal parts. · After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. · If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

34 ENGLISH

INSTALLATION/CONNECTION
Part list for installation

(A) Faceplate (×1)

(B) Trim plate (×1)

Installing the unit (in-dash mounting)

Do the required wiring. (Page 36)

(C) Mounting sleeve (×1) (D) Wiring harness (×1)
(E) Extraction key (×2)
Basic procedure 1 Remove the key from the ignition switch, then disconnect
the terminal of the car battery. 2 Connect the wires properly.
See "Wiring connection" on page 36. 3 Install the unit to your car.
See "Installing the unit (in-dash mounting)". 4 Connect the terminal of the car battery. 5 Press source button to turn on the power. 6 Detach the faceplate and reset the unit within 5 seconds.
(Page 3 or 4)

Hook on the top side
Orientate the trim plate as illustrated before fitting.

Dashboard of your car
Bend the appropriate tabs to hold the sleeve firmly in place.

Installing the unit (without mounting sleeve) 1 Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws (commercially available).

Removing the unit

Use only the specified screws. Using wrong screws might damage the unit.

ENGLISH 35

INSTALLATION/CONNECTION
Wiring connection
Fuse (10 A)

Antenna terminal

IMPORTANT We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.
Vehicle dashboard

Ignition switch
Car fuse block Separate red wire
Make this connection if your vehicle factory wiring harness does not have "12 V ignition switch" wire.
36 ENGLISH

Light blue/yellow

To the steering wheel remote control adapter

Join the same color wires together.

Blue/white: Remote (12 V 350 mA)

Orange/white: Illumination

Yellow: Battery 12 V
Red: Ignition 12 V
Black: Ground Gray: Front speaker/For 3-way crossover: Mid range speaker (right)
Gray/black White: Front speaker/For 3-way crossover: Mid range speaker (left)
White/black Purple: Rear speaker/For 3-way crossover: Tweeter (right)
Purple/black Green: Rear speaker*1/For 3-way crossover: Tweeter (left)
Green/black *1

Blue: To power antenna Blue/white: To amplifier
(Not used) Brown

Factory wiring harness (vehicle) Custom wiring harness (separately purchased)
*1 You can also connect a subwoofer speaker directly using this lead without an external subwoofer amplifier. For setting, see page 23.
Recommended connection

INSTALLATION/CONNECTION
Connecting external components
Microphone input jack (page 13)

Connecting external amplifiers via output terminals

Signal cord (not supplied)

JVC Amplifier*2

Remote wire (not supplied)

To remote lead (blue/white) of the wiring harness. (Page 36)

Output terminals

Output terminals

REAR

:

FRONT

:

SW

:

2-way crossover setting
Rear output Front output Subwoofer output

3-way crossover setting
Tweeter output Mid Range output Woofer output

*2 Firmly connect the ground wire of the amplifier to the car's chassis to avoid damaging the unit.

ENGLISH 37

SPECIFICATIONS

Tuner

FM Frequency Range

87.5 MHz -- 108.0 MHz (50 kHz step)

Usable Sensitivity (S/N = 26 dB)

8.2 dBf (0.71 V/75 )

Quieting Sensitivity (DIN S/N = 46 dB) 17.2 dBf (2.0 V/75 )

Frequency Response (±3 dB)

30 Hz -- 15 kHz

Signal-to-Noise Ratio (MONO)

64 dB

Stereo Separation (1 kHz)

40 dB

AM Frequency Range

Band 1 (AM): 531 kHz -- 1 602 kHz (9 kHz step) Band 2 (SW1): 2 940 kHz -- 7 735 kHz (5 kHz step) Band 3 (SW2): 9 500 kHz -- 10 135 kHz/ 11 580 kHz -- 18 135 kHz (5 kHz step)

Usable Sensitivity (S/N = 20 dB)

AM: 29 dB (28.2 V) SW: 30 dB (32 V)

USB Standard Compatible Devices File System Maximum Supply Current Digital Filter (D/A) Converter Frequency Response (±1 dB) Signal-to-Noise Ratio (1 kHz) Dynamic Range Channel Separation

USB 1.1, USB 2.0 (Full speed) Mass storage class FAT12/16/32 DC 5 V 1.5 A 24 Bit 20 Hz -- 20 kHz 99 dB 93 dB 88 dB

USB

Bluetooth

Auxiliary

USB

MP3 Decode WMA Decode AAC Decode WAV Decode FLAC Decode
Frequency Response (±3 dB) Input Maximum Voltage Input Impedance
Version Frequency Range RF Output Power (E.I.R.P.) Maximum Communication Range Pairing Profile

Compliant with MPEG-1/2 Audio Layer-3 Compliant with Windows Media Audio AAC-LC ".aac", ".m4a" files Linear-PCM FLAC file, up to 24 bit/96 kHz
20 Hz -- 20 kHz 1 000 mV 30 k
Bluetooth 3.0 2.402 GHz -- 2.480 GHz +4 dBm (MAX), Power Class 2 Line of sight approx. 10 m (32.8 ft) SSP (Secure Simple Pairing) HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)

38 ENGLISH

SPECIFICATIONS

Audio

Maximum Output Power
Full Bandwidth Power (at less than 1 % THD) Speaker Impedance Preout Level/Load Preout Impedance

50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 ) 22 W × 4
4  -- 8  4 000 mV/10 k load  600

General

Operating Voltage Installation Size (W × H × D) Net Weight (includes Trimplate, Mounting Sleeve)
Subject to change without notice.

12 V DC car battery 182 mm × 53 mm × 100 mm 0.6 kg

libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
· Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
· Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
· Apple, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
· IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
· SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. · Android is a trademark of Google LLC. · The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
ENGLISH 39



1  2  3    AUX
USB/iPod/ANDROID
Spotify BLUETOOTH®
      /
2



2

3

·    ·

5



·

·

/

/  2

7



9



9



11   :

·

13 ·

21  :

·

27 ·

29

·  ( )   ·  ( 36)

 (RM-RK52):

·

32 ·

·

34

38


·  KD-X462BT  KD-X368BT

·   ( 6)

· [XX]

· ( XX)



KD-X462BT:













 ( )



 BSRC ·



 ·

·  BSRC  ·  BSRC  2



 ( 30)

1  2



 5

 3



KD-X368BT:




   4

 ( )









 SRC-B ·

 VOL +/­ ·  VOL +  15

 *ENTER  ·

·  SRC-B  ·  SRC-B  VOL +/­  2



 ( 31)

1  VOL +/­  2  *ENTER



 5


 (RM-RK52)
 ( 3  4)


 3  4
1
 ( [FACTORY RESET]  [YES],  6) :




KD-X462BT: "CANCEL DEMO" "PRESS" "VOLUME KNOB" 1
 [YES]  2
 "DEMO OFF"






 VOL +  VOL ­ ·  VOL +  15  d  ·
  SOURCE

KD-X368BT: "CANCEL DEMO" "PRESS ENTER" 1  *ENTER
 [YES]  2  *ENTER
 "DEMO OFF"

2

1



2   `  ( 3  4)'     [CLOCK]

3   `  ( 3  4)'

[CLOCK ADJUST]  [CLOCK FORMAT] [12H]  [24H]

4   `  ( 3  4)'

[DATE SET]

5





 5



3

1



2  ` ( 3  4)'  ()

3  2

4





: [XX]

[SYSTEM] [KEY BEEP]

( 3 ) [ON]:  ; [OFF]:

[SOURCE SELECT] [AM SRC]* [SW1 SRC]* [SW2 SRC]* [SPOTIFY SRC]*
[BUILT-IN AUX]* [F/W UPDATE]

[ON]:  AM  ; [OFF]:  ( 7) [ON]:  SW1  ; [OFF]:  ( 7) [ON]:  SW2  ; [OFF]:  ( 7) [ON]:  SPOTIFY/SPOTIFY BT  ; [OFF]:  ( 11) [ON]:  AUX  ; [OFF]:  ( 9)

[UPDATE SYSTEM]

[F/W UP xxxx] [YES]:  ; [NO]:  ()  <http://www.jvc.net/cs/car/>

*

[FACTORY RESET] [CLOCK] [TIME SYNC]
[CLOCK DISPLAY]
[ENGLISH] [ESPANOL]

[YES]:  () ; [NO]:
[ON]:  (CT)   FM ; [OFF]:  [ON]:  ; [OFF]:     [ENGLISH]

6


 3  4

1        FM, AM, SW1  SW2 2  S / T ( H / I  )
()  S / T ( H / I )  "M"         ·  FM   "ST"  "STEREO"   ·  FM  FM

 18  FM  6  AM/SW1/SW2


 (1  6) ()
1  2   `  ( 3  4)'



1



2   `  ( 3  4)'    ( 8)

3    2  /



4






...     (1  6)
() 1    "PRESET MODE"
KD-X462BT:  KD-X368BT: *ENTER 2   `  ( 3  4)'      "MEMORY"

 7



: [XX]

[TUNER SETTING]

[RADIO TIMER]  1 [ONCE]/[DAILY]/[WEEKLY]/[OFF]:  2 [FM]/[AM]/[SW1]/[SW2]:  3 [01]  [18] ( FM)/[01]  [06] ( AM/SW1/ SW2):  4 *1 "M"  - ·  ·  [OFF]  [AM SRC]/[SW1 SRC]/[SW2 SRC]  [SOURCE SELECT] - AM/SW1/SW2   ( 6)

[SSM]

[SSM 01­06]/[SSM 07­12]/[SSM 13­18]:

 18  FM "SSM"  6

[SSM 07­12]/[SSM 13­18]  12

[LOCAL SEEK]

[ON]:  AM/SW1/SW2  ; [OFF]:  · / /


[IF BAND]

[AUTO]:  FM  () ; [WIDE]:  FM

[MONO SET] [ON]:  FM   ; [OFF]:

[NEWS SET]*2 [ON]:  ; [OFF]:

[REGIONAL]*2 [ON]:  "AF" ; [OFF]:

[AF SET]*2

[ON]:   ; [OFF]:

[TI]*2

[ON]:  () ( "TI" )

  AM/SW1/SW2 ; [OFF]:

[PTY SEARCH]*2  PTY ()  PTY

*1  [ONCE]  [WEEKLY]  1 *2  FM

 PTY
[NEWS], [AFFAIRS], [INFO], [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [POP M] (), [ROCK M] (), [EASY M] (), [LIGHT M] (), [CLASSICS], [OTHER M] (), [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [JAZZ], [COUNTRY], [NATION M] (), [OLDIES], [FOLK M] (), [DOCUMENT]

8

AUX
:  ·  [ON]  [BUILT-IN AUX]  [SOURCE SELECT] ( 6)

1  (   )  3.5 .  "L" ()
KD-X462BT:

KD-X368BT:

 AUX  AUX



 3.5 .  "L" ()
2        AUX 3
 3

USB/iPod/ANDROID





 USB

KD-X462BT:

USB

 USB 2.0*1 ()
iPod/iPhone

 USB KD-X368BT:

 iPod/iPhone*1
ANDROID*2
 USB*1 ()

*1  *2  Android  Android
 Android

 9

USB/iPod/ANDROID

 3  4


/*3  *4 *3*5
*3*5





 S / T

 H / I

 S / T

 H / I

 2J / 1K

 J / K

 4B

[TRACK REPEAT]/[FOLDER REPEAT]/[ALL REPEAT] :  MP3/WMA/AAC/

WAV/FLAC

[ONE REPEAT]/[ALL REPEAT]/[REPEAT OFF]

: iPod

 3A

[FOLDER RANDOM]/[ALL RANDOM]/[RANDOM OFF] :  MP3/WMA/AAC/ WAV/FLAC
[SONG RANDOM]/[ALL RANDOM]/[RANDOM OFF] : iPod

*3  ANDROID *4  iPod/ANDROID *5  iPod:  [HEAD MODE]


  USB   5MODE   ·  () ·
   JVC Remote
JVC Remote  JVC  iPhone/iPod ( USB ) : ·  JVC Remote  ·  <http://www.jvc.net/cs/car/>  Bluetooth ( 19)

  iPod USB ( iPod BT)   5MODE  [HEAD MODE]:  iPod  [IPHONE MODE]:  iPod  iPod   /


10

USB/iPod/ANDROID

/
 iPod  [HEAD MODE]  1  2   `  ( 3  4)'    / 3   `  ( 3  4)'

 (  USB )
      KD-X462BT:  KD-X368BT:  VOL +/­
   (  iPod USB  iPod BT )
         (A  Z, 0  9, OTHERS) KD-X462BT:  2J / 1K  KD-X368BT:  2J / 1K ·  "OTHERS"  A  Z, 0  9

·

·



Spotify
:  Spotify  (iPhone/iPod touch)   Spotify ·  [ON]  [SPOTIFY SRC]  [SOURCE SELECT] ( 6)


1    Spotify  2     USB

KD-X462BT:  USB

 iPod/iPhone*

KD-X368BT:  USB

 iPod/iPhone*

3        SPOTIFY
*

 11

Spotify


/
  *2  *3
*3


KD-X462BT:  KD-X368BT:  *ENTER  S*1 / T  2J / 1K
 5   4B  [ALL REPEAT], [ONE REPEAT]*1, [REPEAT OFF]
 3A *1
[ALL RANDOM], [RANDOM OFF]


 d
 H*1 / I  J / K (  ) (  )
(  )

*1  *2    *3


 Spotify...  KD-X462BT:  KD-X368BT: *ENTER
 "SAVED"   "Your Music ()"  "Your Library ()"  Spotify
12

  "REMOVED"   "Your Music ()"  "Your Library ()"  Spotify



1  2   `  ( 3  4)'
 Spotify 3   `  ( 3  4)'
 KD-X462BT:  KD-X368BT:  VOL +/­





BLUETOOTH®

 Bluetooth
BLUETOOTH --
 Bluetooth   ­ Hands-Free Profile (HFP) ­ Advanced Audio Distribution Profile (A2DP) ­ Audio/Video Remote Control Profile (AVRCP) ­ Serial Port Profile (SPP) ­ Phonebook Access Profile (PBAP)
  Bluetooth   ­  (SBC) ­  (AAC)







 ()

  Bluetooth
1     2   ("KD-X4 BT"/ "KD-X3 BT")  Bluetooth
"BT PAIRING"  ·  Bluetooth   (PIN)  3   (A)  (B)    Bluetooth   (A) KD-X462BT:
"" "XXXXXX" "VOL ­ YES" "BACK ­ NO" KD-X368BT: "" "XXXXXX" "ENTER ­ YES" "BACK ­ NO" "XXXXXX"  6
 Bluetooth   KD-X462BT:  KD-X368BT: *ENTER  Bluetooth  (B) KD-X462BT: "" "VOL ­ YES" "BACK ­ NO" KD-X368BT: "" "ENTER ­ YES" "BACK ­ NO"  KD-X462BT:  KD-X368BT: *ENTER ·  "PAIRING" "PIN 0000"   PIN "0000"  Bluetooth
 PIN  ( 18) ·  "PAIRING"  Bluetooth



 ()

 13

BLUETOOTH®
 "PAIRING COMPLETED"   "  "   Bluetooth  KD-X462BT  Bluetooth   ( [FORMAT]  27) ·  Secure Simple Pairing (SSP) ·  ()  ·   Bluetooth
  [DEVICE DELETE]  17 ·  Bluetooth  Bluetooth
 BT AUDIO  Bluetooth    ( 19) ·  Bluetooth    ·  Bluetooth   "" "LOW BATTERY"  ·  Bluetooth

 iPhone/iPod touch  USB  ( Bluetooth)          KD-X462BT:  KD-X368BT: *ENTER : ­  Bluetooth  ­ [AUTO PAIRING]  [ON] ( 18)

BLUETOOTH --
 3  4


: ·  [RING COLOR] ( 16) ·  [AUTO ANSWER]  ( 16) : ·  [RING COLOR] ( 16) ·  Bluetooth




...









KD-X462BT:

KD-X368BT: *ENTER





KD-X462BT:

KD-X368BT: *ENTER





KD-X462BT:

KD-X368BT: *ENTER


 J / K / H / I  J / K / H / I   J / K / H / I

14

BLUETOOTH®


...

...
* 1 [00]  [35] (: [15])  *3







KD-X462BT:

KD-X368BT: *ENTER





KD-X462BT:

KD-X368BT: *ENTER





KD-X462BT:

KD-X368BT: *ENTER



 KD-X462BT:  KD-X368BT:  VOL +/­ *2





*1  *2  VOL +  15 *3   Bluetooth


(  ) (  )
 J / K / H / I
(  )  VOL +*2  VOL ­  (  )



....

1



2   `  ( 3  4)'

  ()

3    2

4





: [XX]

[MIC GAIN]

[LEVEL ­10]  [LEVEL +10] ([LEVEL ­04]):

[NR LEVEL]

[LEVEL ­05]  [LEVEL +05] ([LEVEL 00]):

[ECHO CANCEL] [LEVEL ­05]  [LEVEL +05] ([LEVEL 00]):

 15

BLUETOOTH®



1

  Bluetooth

2   `  ( 3  4)'     ()

3    2



[SETTINGS] [AUTO ANSWER]
[RING COLOR]

: [XX]
[01 SEC]  [30 SEC]:  ( ) ; [OFF]:  [COLOR 01]  [COLOR 49] ([COLOR 08]):   ; [OFF]:





1

  Bluetooth

"()"

·  Bluetooth





"()"

2   `  ( 3  4)'     ()

3    2  /





[RECENT CALL]

( PBAP ) 1
KD-X462BT:  KD-X368BT: VOL +/­
· "<"  ">"  "M"  ·  "NO HISTORY"
 2
KD-X462BT:  KD-X368BT: *ENTER

[PHONEBOOK]

( PBAP ) 1  2J / 1K  (A  Z, 0  9,  OTHERS)
·  "OTHERS"   A  Z, 0  9 2  ` ( 3  4)'  3  ` ( 3  4)'

·  ·  (
  "Ú"  "U")

[DIAL NUMBER]

1  (0  9)  ( , #, +) KD-X462BT:  KD-X368BT:  VOL +/­
2  S / T   1  2
3  KD-X462BT:  KD-X368BT: *ENTER

[VOICE]

   ( ""  17)

16

BLUETOOTH®



1



2

·





 6  (1  6)

1

  Bluetooth

2   `  ( 3  4)'     [RECENT CALL]

[PHONEBOOK]  [DIAL NUMBER]

3   `  ( 3  4)'



KD-X462BT:

KD-X368BT: *ENTER

4     (1  6)

"MEMORY P() "

  [DIAL NUMBER]  2



1

  Bluetooth

2  (1  6)

3

KD-X462BT:

KD-X368BT: *ENTER

 "NO PRESET"

  Bluetooth

1



2   `  ( 3  4)'     ()

3    2  /



4





: [XX]

[BT MODE] [PHONE SELECT]* [AUDIO SELECT]*

 " "  " "

[DEVICE DELETE]

1  ` ( 3  4)'  2  ` ( 3  4)'  [YES]
 [NO]

*  Bluetooth  Bluetooth

 17

BLUETOOTH®

[PIN CODE EDIT] (0000)
[RECONNECT] [AUTO PAIRING] [INITIALIZE] [INFORMATION]

 PIN ( 6 ) 1
KD-X462BT:  KD-X368BT:  VOL +/­ 2  S / T   1  2  PIN  3  KD-X462BT:  KD-X368BT: *ENTER
[ON]:  Bluetooth   ; [OFF]:  [ON]:  Bluetooth  (iPhone/iPod touch)   USB    ; [OFF]:  [YES]:  Bluetooth  (    ) ; [NO]:  [MY BT NAME]:  ("KD-X4 BT"/ "KD-X3 BT") ; [MY ADDRESS]:

  Bluetooth

 Bluetooth  ·  Bluetooth

1



"BLUETOOTH" "CHECK MODE"  "SEARCH NOW USING PHONE"

"PIN IS 0000"

2   ("KD-X4 BT"/"KD-X3 BT")

Bluetooth  3

18

3   (A), (B)  (C)     (A) "PAIRING" "XXXXXX" (  6  ):   Bluetooth  Bluetooth   (B) "PAIRING" "PIN IS 0000":  "0000"  Bluetooth (C) "PAIRING":  Bluetooth
  "PAIRING OK" ""   Bluetooth   "CONNECT NOW USING PHONE"   Bluetooth   "TESTING"
 "PAIRING OK" / "HANDS-FREE OK"*1 / "AUD.STREAM OK"*2 / "PBAP OK"*3 :  *1  Hands-Free Profile (HFP) *2  Advanced Audio Distribution Profile (A2DP) *3  Phonebook Access Profile (PBAP)  30   "PAIRING DELETED"   ·

BLUETOOTH®
BLUETOOTH --
 3  4  BT AUDIO  Bluetooth

 Bluetooth
1        BT AUDIO ( SOURCE  ) ·   BT AUDIO
2  Bluetooth





/

KD-X462BT:  KD-X368BT:  *ENTER  2J / 1K

/ /

 S / T  S / T   4B

[TRACK REPEAT], [ALL REPEAT], [REPEAT OFF]



 3A

[GROUP RANDOM], [ALL RANDOM], [RANDOM OFF]

/  "/"  11


 d  J / K  H / I  H / I
(  )
(  )
(  )


  Bluetooth


 5*


(  )

*  "Play"

  JVC Remote
JVC Remote  JVC  iPhone/iPod ( Bluetooth   USB )  Android ( Bluetooth)

: ·  JVC Remote  ·  <http://www.jvc.net/cs/car/>

1



2   `  ( 3  4)'

( 20)

3    2

4





 19

BLUETOOTH®

: [XX]

[REMOTE APP]

[SELECT]  (IOS  ANDROID)

[IOS]

[YES]:  iPhone/iPod  Bluetooth

 Bluetooth ; [NO]:

 IOS  iPod BT ( iPod USB

iPhone/iPod  USB)

· :

­  iPod BT

USB ­  iPod USB  iPod BT

[ANDROID] [YES]:  Android  Bluetooth ; [NO]:

[ANDROID LIST]*

 Android

[STATUS]

 [IOS CONNECTED]:  iPhone/iPod  Bluetooth  USB [IOS NOT CONNECTED]:  IOS  [ANDROID CONNECTED]:  Android   Bluetooth [ANDROID NOT CONNECTED]:  Android

*  [ANDROID]  [SELECT]  [YES]

 iPhone/iPod  Bluetooth
 iPhone/iPod  Bluetooth         iPod BT ·  iPod/iPhone  iPod/iPhone  USB ( 9) ·  iPhone/iPod  USB  iPod BT
 iPod USB   iPod BT   Bluetooth
  Bluetooth
 (Spotify)  iPhone/iPod touch/ Android  Bluetooth  ·  USB
 Spotify
:  [ON]  [SPOTIFY SRC]  [SOURCE SELECT] ( 6) 1    Spotify  2  Bluetooth ( 13) 3        SPOTIFY ( iPhone/iPod)  SPOTIFY BT
( Android)  ·  Spotify  Spotify  USB ( 11)

20



 3  4

1



2   `  ( 3  4)'     ()

3    2  /



4





[EQ SETTING] [PRESET EQ]
[EASY EQ]

: [XX]

 ·  [USER]  [EASY EQ]  [PRO EQ] [FLAT]/[DRVN 3]/[DRVN 2]/[DRVN 1]/[HARD ROCK]/[HIP HOP]/[JAZZ]/
[POP]/[R&B]/[USER]/[CLASSICAL]  ([DRVN 3]/[DRVN 2]/[DRVN 1])



·  [USER]  [PRESET EQ]

·  [PRO EQ]

[SUB.W SP]*1*2: [00]  [+06]

(: [+03]

[SUB.W]*1:

[­50]  [+10]

[00]

[BASS]:

[LVL­09]  [LVL+09]

[LVL 00]

[MID]:

[LVL­09]  [LVL+09]

[LVL 00]

[TRE]:

[LVL­09]  [LVL+09]

[LVL 00])

[PRO EQ]

 ·  [USER]  [PRESET EQ] ·  [EASY EQ]

[62.5HZ]

[LEVEL ­09]  [LEVEL +09] ([LEVEL 00]):  (  )

[ON]:  ; [OFF]:

[100HZ]/[160HZ]/[250HZ]/[400HZ]/[630HZ]/[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[6.3KHZ]/ [10KHZ]/[16KHZ]

[LEVEL ­09]  [LEVEL +09] ([LEVEL 00]):  ( )

[Q FACTOR] [1.35]/[1.50]/[2.00]:

[AUDIO CONTROL]

[BASS BOOST] [LEVEL +01]  [LEVEL +05]:  ; [OFF]:

[LOUDNESS]

[LEVEL 01]/[LEVEL 02]:   ; [OFF]:

[SUB.W LEVEL]*1 [SPK-OUT]*2

( 3 ) [SUB.W 00]  [SUB.W +06] ([SUB.W +03]):   ( 36)

[PRE-OUT]

[SUB.W ­50]  [SUB.W +10] ([SUB.W 00]):   (SW)   ( 37)

[SUBWOOFER SET]

[ON]:  ; [OFF]:

*1, *2 : ( 22)

 21



[FADER]

( 3 ) [POSITION R15]  [POSITION F15] ([POSITION 00]):

[BALANCE]*3

[POSITION L15]  [POSITION R15] ([POSITION 00]):

[VOLUME ADJUST] [LEVEL ­15]  [LEVEL +06] ([LEVEL 00]):   FM (  )

[AMP GAIN]

[LOW POWER]:  25 (   50 W ) ; [HIGH POWER]:  35

[SPK/PRE OUT]

( 3 )    ( ""  23)

[SPEAKER SIZE] [X ' OVER]

 ( [X ' OVER TYPE])   2   3  ( ""  23)  2

[DTA SETTINGS]  " Digital Time Alignment"  26 [CAR SETTINGS]

[X ' OVER TYPE]

 :  [X ' OVER TYPE]

[2-WAY]

( [3-WAY] ) [YES]:  ; [NO]:

[3-WAY]

( [2-WAY] ) [YES]:  ; [NO]:

[SOUND EFFECT]

[SPACE ENHANCE] ( FM/AM/SW1/SW2) [SMALL]/[MEDIUM]/[LARGE]:  ; [OFF]:

[SND RESPONSE] [LEVEL1]/[LEVEL2]/[LEVEL3]:  ; [OFF]:

[SOUND LIFT]

[LOW]/[MIDDLE]/[HIGH]:  ; [OFF]:

[VOL LINK EQ]

[ON]:   ; [OFF]:

[K2 TECHNOLOGY]

( FM/AM/SW1/SW2  AUX) [ON]:  ; [OFF]:

*1  [SUBWOOFER SET]  [ON]  ( 21) *2  2 :  [SPK/PRE OUT]  [SUB.W/SUB.W]
( 23) *3

22


   [SPK/PRE OUT] (    [X ' OVER TYPE]   [2-WAY]) ( 22)
 [SPK/PRE OUT]

 ( 37)

 [SPK/PRE OUT]
[REAR/REAR] ( ) [SUB.W/SUB.W]



FRONT

REAR   L ():  R (): ()

SW



   ( 36)

 [SPK/PRE OUT] [REAR/REAR] [SUB.W/SUB.W]



L ()

R ()





()

 [SUB.W/SUB.W]: ­  [120HZ]  [SUBWOOFER LPF]  [THROUGH]  ( 25) ­  [POSITION R02]  [FADER]  [POSITION R15]  [POSITION 00]
( 22)

 2  3

 ( 36, 37) : ·  ·
SPEAKER SIZE  ·  ·  [NONE]  [SPEAKER SIZE]  [X ` OVER]
 ­  2 : [TWEETER]  [FRONT]/[REAR]/[SUBWOOFER] ­  3 : [WOOFER]

 23


X ` OVER () · [FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]:
 ()  [THROUGH]  · [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]:    [THROUGH]  · [SW LPF PHASE]/[PHASE]:  · [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]:
24

  2

[SPEAKER SIZE] [FRONT] [REAR]*1 [SUBWOOFER]*2 [X ' OVER] [TWEETER]
[FRONT HPF]
[REAR HPF]*1
*1, *2: ( 25)

[SIZE] [TWEETER]

[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/ [18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]
[SMALL]/[MIDDLE]/[LARGE]/[NONE] ()

[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/ [5×7]/[6×8]/[6×9]/[7×10]/[NONE] ()
[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] ()

[FRQ]
[GAIN LEFT] [GAIN RIGHT] [F-HPF FRQ]
[F-HPF SLOPE] [F-HPF GAIN] [R-HPF FRQ]
[R-HPF SLOPE] [R-HPF GAIN]

[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/ [6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ] [­08DB]  [00DB] [­08DB]  [00DB]
[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [220HZ]/[250HZ]/[THROUGH]
[­06DB]/[­12DB]/[­18DB]/[­24DB] [­08DB]  [00DB]
[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [220HZ]/[250HZ]/[THROUGH]
[­06DB]/[­12DB]/[­18DB]/[­24DB] [­08DB]  [00DB]



[SUBWOOFER LPF]*2

[SW LPF FRQ]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/ [250HZ]/[THROUGH]

[SW LPF SLOPE] [­06DB]/[­12DB]/[­18DB]/[­24DB]

[SW LPF PHASE] [REVERSE] (180°)/ [NORMAL] (0°)

[SW LPF GAIN] [­08DB]  [00DB]

  3

[SPEAKER SIZE]

[TWEETER] [SMALL]/[MIDDLE]/[LARGE]

[MID RANGE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/ [6×8]/[6×9]

[WOOFER]*2 [16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] ()

[X ' OVER]

[TWEETER] [HPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/ [10KHZ]/[12.5KHZ]

[SLOPE] [­06DB]/[­12DB]

[PHASE] [REVERSE] (180°)/[NORMAL] (0°)

[GAIN]

[­08DB]  [00DB]

[MID RANGE] [HPF FRQ]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [THROUGH]

[HPF SLOPE] [­06DB]/[­12DB]

[LPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/ [10KHZ]/[12.5KHZ]/[THROUGH]

[LPF SLOPE] [­06DB]/[­12DB]

[PHASE] [REVERSE] (180°)/[NORMAL] (0°)

[GAIN]

[­08DB]  [00DB]

[WOOFER]*2 [LPF FRQ]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [THROUGH]

[SLOPE] [­06DB]/[­12DB]

[PHASE] [REVERSE] (180°)/[NORMAL] (0°)

[GAIN]

[­08DB]  [00DB]

*1  [SPK/PRE OUT]  [REAR/REAR]  ( 23) *2  [SUBWOOFER SET]  [ON]  ( 21)

 25



 Digital Time Alignment
Digital Time Alignment   ·   " [DISTANCE]  [GAIN]  [DTA SETTINGS]"

[DTA SETTINGS] [POSITION]
[DISTANCE]*1 [GAIN]*1 [DTA RESET] [CAR SETTINGS] [CAR TYPE] [R-SP LOCATION]*2

 () [ALL]:  ; [FRONT RIGHT]:  ; [FRONT LEFT]:  ; [FRONT ALL]:  · [FRONT ALL]  [X ' OVER TYPE]
[2-WAY] ( 22) [0CM]  [610CM]:  [­8DB]  [0DB]:  [YES]:  ([DISTANCE]  [GAIN])  [POSITION]   ; [NO]:   [DTA SETTINGS]
[COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/ [MINIVAN(LONG)]:  ; [OFF]:    () · [DOOR]/[REAR DECK]:  [CAR TYPE]
[OFF], [COMPACT], [FULL SIZE CAR], [WAGON]  [SUV] · [2ND ROW]/[3RD ROW]:  [CAR TYPE]
 [MINIVAN]  [MINIVAN(LONG)]

  [DISTANCE]  [GAIN]  [DTA SETTINGS]
    1
 2  3
 ()   4  [DISTANCE]  3
 5  [GAIN]
  [FRONT ALL]
*1  :  2 : [FRONT LEFT]/[FRONT RIGHT]/[REAR LEFT]/[REAR RIGHT]/[SUBWOOFER]: ­ [REAR LEFT], [REAR RIGHT]  [SUBWOOFER]  [NONE]  [REAR]  [SUBWOOFER]  [SPEAKER SIZE] ( 24)
 3 : [TWEETER LEFT]/[TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER]: ­ [WOOFER]  [NONE]  [WOOFER]
[SPEAKER SIZE] ( 25) *2  [X ' OVER TYPE]  [2-WAY] ( 22)
[NONE]  [REAR]  [SPEAKER SIZE] ( 24)

26


 KD-X462BT:

KD-X368BT:

()

1



2   `  ( 3  4)'     ()

3    2  /



4





: [XX]

[DISPLAY]

[DIMMER]

 [OFF]:   [DAY] [ON]:   [NIGHT] ( "[BRIGHTNESS]" ) [DIMMER TIME]:  1  ` ( 3  4)'  [ON] 2  ` ( 3  4)'  [OFF]
(: [ON]: [PM6:00] ; [OFF]: [AM6:00]) [DIMMER AUTO]: *1

[BRIGHTNESS]

 1 [DAY]/[NIGHT]:  2  () 3 [LEVEL 00]  [LEVEL 31]:

[TEXT SCROLL]*2 [SCROLL ONCE]:  ; [SCROLL AUTO]:  5  ; [SCROLL OFF]:

[FORMAT]*3

KD-X462BT:  Bluetooth ( 30) [BATT/SIGNAL]:  ; [DATE]:

*1  ( 36) *2  () *3

 27


[COLOR] ( KD-X462BT)

[COLOR] ( KD-X368BT: )

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

 · [COLOR 01]  [COLOR 49] · [USER]:  [DAY COLOR]  [NIGHT COLOR]  · [COLOR FLOW01]  [COLOR FLOW03]:
   1 [RED]/[GREEN]/[BLUE]:  2 [00]  [31]:   1  2  ·  [USER]  [PRESET] · [NIGHT COLOR]  [DAY COLOR]
[ON]:    ; [OFF]:

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

 · [COLOR 01]  [COLOR 49] · [USER]:  [DAY COLOR]  [NIGHT COLOR]  · [COLOR FLOW01]  [COLOR FLOW03]:
 · : [CRYSTAL]/[FLOWER]/[FOREST]/[GRADATION]/
[OCEAN]/[RELAX]/[SUNSET]
 1 [RED]/[GREEN]/[BLUE]:  2 [00]  [31]:   1  2  ·  [USER]  [PRESET] · [NIGHT COLOR]  [DAY COLOR]
[ON]:    ; [OFF]:

28









 ()


: ­  ­  JVC ­
 <www.jvc.net/cs/car/>


·  USB: MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)
·  USB : FAT12, FAT16, FAT32     ·  <www.jvc.net/cs/car/audiofile/>

   USB
·  USB  USB ·  5  ·  USB  5   1.5 A

  iPod/iPhone
·  USB: Made for ­ iPod touch (5th  6th generation) ­ iPod nano (7th generation) ­ iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
·  Bluetooth: Made for ­ iPod touch (5th  6th generation) ­ iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X
·  "Videos"  [HEAD MODE]  ·  iPod/iPhone ·  iPod   "JVC"  " "  iPod ·   iPod/iPhone
   Android
·  Android OS 4.1  ·  Android  (OS 4.1 )  Android Open Accessory (AOA) 2.0
 ·  Android  AOA 2.0  AOA 2.0

  Spotify
·  Spotify : ­ iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 ) ­ iPod touch (5th  6th generation) ­ Android OS 4.0.3
·  Spotify
·  Spotify  ·   Spotify  <www.spotify.com>
 29



  Bluetooth
·  Bluetooth   Bluetooth  ·  Bluetooth  ·







·   "NO TEXT", "NO NAME"  ( )



KD-X462BT:



*1



*1  Bluetooth   [FORMAT]  [BATT/SIGNAL] ( 27)

 FM/AM/SW1/SW2

:  ()  ()  () *2    FM : / () / () *2  ()  + (+)  ()  ()  ()



:  ()

USB

 MP3/WMA/AAC/WAV/FLAC:

 ()  () *2

 ()  ()  ()

 ()  ()

iPod USB/iPod BT

 [HEAD MODE]  ( 10):  ()  () *2  ()  ()  ()

ANDROID

 ()  ()  *2

SPOTIFY/SPOTIFY BT

 ()  () *2  ()  ()  ()   ()

BT AUDIO

 ()  () *2  ()  ()  ()

AUX

 ()  ()

*2

*2    ( [PRESET]  28)

30



KD-X368BT:





 FM/AM/SW1/SW2
USB iPod USB/iPod BT ANDROID

:    *     FM : / /  *  + + /+
   MP3/WMA/AAC/WAV/FLAC: / / * /       [HEAD MODE]  ( 10): / / * /      *




:

SPOTIFY/SPOTIFY BT

  *

BT AUDIO

/ / * /

AUX

  *



*    ( [PRESET]  28)

 31









·  ·

 "MISWIRING CHECK WIRING THEN PWR ON"





 "PROTECTING SEND SERVICE"



  [SOURCE SELECT] ( 6)



 ( 3  4)



·
·  ( 6)



·  ·





 (USB)

USB/iPod



 (USB)

 "NOT SUPPORT"

 ( 29)

 "READING"  ·  ·  (USB/iPod/iPhone)

USB/iPod

  "UNSUPPORTED DEVICE"
 "UNRESPONSIVE DEVICE"   "USB HUB IS NOT SUPPORTED"   "CANNOT PLAY"  ·
 "USB"   USB    ·  "USB ERROR"   iPod/iPhone   "LOADING"

  ·  USB
  ( 29) ·  USB   USB    USB   USB  USB
 USB
 USB    USB   USB    ()  USB
·  iPod/iPhone ·  iPod/iPhone
 iPod/iPhone

"NO DEVICE"

 (USB/iPod/iPhone)   USB/iPod/iPhone

32







·  ·
 Android

·  Android  ·    Android  ·
  ·  Android  ·   Android
 ( 29) ·  USB   Android  Bluetooth

ANDROID

 "NO DEVICE"  ·  Android

"READING"

·  USB   Android

 Bluetooth

   Android

"CANNOT PLAY"

·  Android  ·  Android  ·  Android

"DISCONNECTED"

 USB    USB

Spotify

"CONNECTING"

·  USB :
·  Bluetooth: Bluetooth    Bluetooth

"CHECK APP"

 Spotify    Spotify    Spotify





 Bluetooth ·  Bluetooth  ·  ( 3  4)



·  PIN   Bluetooth
·  Bluetooth   ( 13)

 ·  ( 13)  ·  [ECHO CANCEL] ( 15)

Bluetooth®

 ·  Bluetooth



·



·  ·  ·

     Bluetooth

·  Bluetooth ·   ·  Bluetooth

  Bluetooth

·  Bluetooth  Audio/Video Remote Control Profile (AVRCP)  ( )
·  Bluetooth

 33



Bluetooth®

 "PLEASE WAIT"
"NOT SUPPORT" "NO ENTRY"/"NO PAIR" "ERROR"
"NO INFO"/"NO DATA" "H/W ERROR" "SWITCHING NG"  Bluetooth  Bluetooth

   Bluetooth        / Bluetooth    "ERROR"      Bluetooth     "H/W ERROR"      Bluetooth   ( 17)

  ( 3  4)

  /

·  DC 12 V  ·  ·  ()  ()   ()
 · :
­  ­  ­

·
·
·   ()  ·  50 W  50 W
 [AMP GAIN]  ( 22) ·  30º ·   ()
 DC 12 V  ·  ·
 ·


34

  /


(A)  (×1)

(B)  (×1)

   (  )

 ( 36)

(C)  (×1)

(D)  (×1)

(E)  (×2)






1
2   ""  36
3    " ()"
4   5     6   5   ( 3  4)

   ( )
1    2   ( )
 (  )



 35

  /

 (10 A)

   " 12 V" 36







/ /:  (12 V


350 mA)

/:

:  12 V :  12 V
:  : / 3 :  () / : / 3 :  () / : / 3 :  () / : *1/ 3 :  ()
/*1

:
/:   ()

  ()  ( )
*1       23


  /


 ( 13)



 ()





REAR

:

FRONT :

SW

:

 2


 JVC*2

 ()

 (/)   ( 36)

 3


*2

 37

USB

Tuner


FM   (S/N = 26 dB)  (DIN S/N = 46 dB)  (±3 dB)  (MONO)  (1 kHz)
AM
 (S/N = 20 dB)
 USB
   (D/A)  (±1 dB)  (1 kHz)   38

87.5 MHz -- 108.0 MHz ( 50 kHz) 8.2 dBf (0.71 V/75 ) 17.2 dBf (2.0 V/75 ) 30 Hz -- 15 kHz
64 dB
40 dB  1 (AM): 531 kHz -- 1 602 kHz ( 9 kHz)  2 (SW1): 2 940 kHz -- 7 735 kHz ( 5 kHz)  3 (SW2): 9 500 kHz -- 10 135 kHz/ 11 580 kHz -- 18 135 kHz ( 5 kHz) AM: 29 dB (28.2 V) SW: 30 dB (32 V)
USB 1.1, USB 2.0 ()  (Mass storage class)
FAT12/16/32
DC 5 V 1.5 A 24  20 Hz -- 20 kHz
99 dB
93 dB
88 dB

Bluetooth



USB

 MP3  WMA  AAC  WAV  FLAC
 (±3 dB)
   RF (E.I.R.P.)


 MPEG-1/2 Audio Layer-3  Windows Media Audio  AAC-LC ".aac", ".m4a" PCM   FLAC,  24 /96 kHz
20 Hz -- 20 kHz
1 000 mV
30 k
Bluetooth 3.0
2.402 GHz -- 2.480 GHz +4 dBm (), Power Class 2  10  (32.8 ) SSP (Secure Simple Pairing)
HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)






      (  1 % THD)    /

50 W × 4  50 W × 2 + 50 W × 1 (   = 4 ) 22 W × 4
4  -- 8   4 000 mV/10 k  600



    (  ×  × )    (  )

 12 V DC 182 . × 53 . × 100 . 0.6

libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
· Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
· Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
· Apple, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
· IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
· SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. · Android is a trademark of Google LLC. · The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
 39

SOFTWARE LICENSE AGREEMENT
The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software.
The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded.
The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below.
Article 1 General Provision
The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product (hereinafter the "Country")
Article 2 License
1. The license granted under this Agreement shall be the right to use the Licensed Software in the Product.
2. The User shall not duplicate, copy, modify, add, translate or otherwise alter, or lease the Licensed Software and any related documents, whether in whole or in part.
3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.
4. The User shall use the Licensed Software according to the directions described in the operation manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software.
Article 3 Conditions for Grant of License
1. When the User transfers the Product, it may also transfer the license to use the Licensed Software embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.
2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code analysis works in connection with the Licensed Software.
i

Article 4 Right pertaining to the Licensed Software
Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents.
Article 5 Indemnification of Licensor
1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.
2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with certain objective of the Licensed Software.
Article 6 Liability to Third Party
If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause.
Article 7 Confidentiality
The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor.
Article 8 Termination
In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution.
Article 9 Destruction of the Licensed Software
If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination.

Article 10 Protection of Copyright
1. The copyright and all the other intellectual property rights relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.
2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights.
Article 11 Export Restriction
1. It is prohibited to export the Licensed Software and any related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools).
2. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries.
3. The User shall agree that the software will be subject to any and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities).
Article 12 Miscellaneous
1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force.
2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.
3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance.

Important Notice concerning the Software
-jansson
Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
-cJSON
Copyright (c) 2009 Dave Gamble
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
-CMP
The MIT License (MIT) Copyright (c) 2014 Charles Gunyon
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
ii

libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
· Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
· Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
· Apple, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
· IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
· SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. · Android is a trademark of Google LLC. · The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
39

 4 ×  50 ( 4 =  ) 1 ×  50 + 2 ×  50
4 ×  22
 8 --  4  10/  4 000
 600
    12     100 ×   53 ×   182
  0.6



    (THD % 1   )
/
  ( ×  × )       )
( .





MPEG-1/2 Audio Layer-3   Windows Media Audio   ".m4a" ".aac" AAC-LC   PCM
 24/ 96  FLAC
  20 --  20   1 000  30
Bluetooth 3.0  2.480 --  2.402
Power Class 2 (MAX) +4 dBm ( 32.8)  10     (    ) SSP
( ) HFP1.6 (   ) A2DP (/     ) AVRCP1.5 (    ) PBAP
(  ) SPP

MP3  WMA  AAC  WAV  FLAC
( ±3)
   (E.I.R.P.) RF


Bluetooth



USB





  108.0 --   87.5 ( 50 )

  FM

( 75/0.71 V) 8.2 dBf

   ( 26 = S/N)

( 75/2.0 V) 17.2 dBf ( 46 = DIN S/N)

  15 --  30

( ±3)

 64

()

 40

( 1)

:(AM) 1    1 602 --   531
( 9 )
:(SW1) 2    7 735 --   2 940
( 5 )
:(SW2) 3  /  10 135 --   9 500   18 135 --   11 580
( 5 )

  AM

(28.2 V) 29 dB :AM (32 V) 30 dB :SW

   ( 20 = S/N)

( ) USB 2.0 USB 1.1    FAT12/16/32
 1.5 DC  5  24
  20 --  20  99  93  88

USB
       (D/A)  ( ±1)   ( 1)

 38

USB

(13 )

/




(  )

2*JVC

(  )

(/)     (36 )

 3



 2




:

REAR

:

FRONT

:

SW

              ()   2* .

37

( 10)

      " 12  "   .



/


.       .


/


.

( 350  12)  :/

 :/

 12  :
 12  :
 : ( )    : 3  /  : / ( )    : 3  /  :
/ ( )  : 3  /  :
/ ( )  : 3  /1*  :
1*/

    :     :/
)   (

   ()
 )    (
     1*
               .
.  23
    36

35

(   )
      (36 ) .

(1×)    (B)

/

(1×)   (A)



.


       .

(1×)   (D)

(1×)   (C)

(2×)   (E)



(  )   .             1     (   )      2   )
.  (
    .        .

              1
.   .       2 .  36   "  "   .       3 .  "(   )  "   .      4 .         5   5           6
(4  3 ) .

/
 .    DC  12         ·
.            ·      ()    ()         ·
.  ()     :      ·
.         ­ .               ­                   ­
.
     .               ·
.            .         ·         .
.          ()            ·
.      50       .    50       · (22 ) .   [AMP GAIN]
.   30        ·      ()           ·            DC  12
.     .          ·                  ·
.                            ·
.




Bluetooth                    .
.
          .
   Bluetooth       .
"ERROR"     .
.
.      Bluetooth
  .               "H/W ERROR"
.
         .
      Bluetooth  (17 ) .

 "PLEASE WAIT"
"NOT SUPPORT" "NO PAIR"/"NO ENTRY"
"ERROR"
"NO DATA"/"NO INFO" "H/W ERROR"
"SWITCHING NG"   Bluetooth     Bluetooth
.

Bluetooth®

(4  3 ) .

 34







.  Bluetooth    · Bluetooth

(4  3 ) .     ·

.

      PIN      · .   Bluetooth
 Bluetooth         · (13 ) .

    .

(13 ) .     ·      (15 ) .   [ECHO CANCEL]  · .

.   Bluetooth     ·               ·
.

    .

Bluetooth®

.           ·            ·
. .           ·


.

   Bluetooth        ·

.

Bluetooth

.            ·

    Bluetooth      ·

.

.

  Bluetooth        ·



  (AVRCP) /          Bluetooth

      ) .

.

(.

.       Bluetooth    ·


.       Android  ·  Android          ·
.                     ·
.       .     Android  ·
     Android      · .        (29 )
   Android    USB   · .        Bluetooth
.       Android  ·    Android    USB   · .        Bluetooth
 Android        .
     Android     · .
.       Android  · .     Android  ·
   .       USB  .   USB
     :USB      · .    .
.   Bluetooth  :Bluetooth    ·          Bluetooth
.
         Spotify   .      Spotify  .
.  Spotify

      ·
.       · .   Android
"READING"  "NO DEVICE" .
      .     "CANNOT PLAY"
"DISCONNECTED" "CONNECTING"
"CHECK APP"

Spotify

ANDROID

33







     USB     ·
         (29 ) .    .     USB ·

 "UNSUPPORTED DEVICE" .

     USB        "UNRESPONSIVE DEVICE"

.

.

  USB     USB     .

"USB HUB IS NOT SUPPORTED" .

        USB   .  "CANNOT PLAY" .

iPod/USB

       USB  .   USB       . .     USB
             .(    )     USB

    ·
    USB   "USB"    .
.   "USB ERROR" ·

.   iPhone/iPod      ·     iPhone/iPod

     iPhone/iPod      ·

.

.

/iPod                 . iPhone
.

   "LOADING"







.

       (iPhone/iPod/USB)  .  iPhone/iPod/USB

"NO DEVICE"





.          · .      ·

.


 .          .

"MISWIRING CHECK WIRING .   THEN PWR ON"

.

"PROTECTING SEND SERVICE" .



(6 ) .   [SOURCE SELECT]  .

(4  3 ) .

     .

           · .
  (6 )        · .

   .



.

   · .
     · .

.(USB)

     .

.(USB)               .

iPod/USB

.          (29 )

 "NOT SUPPORT"
.

.          · .   "READING" .(iPhone/iPod/USB)      ·

 32

 :



 *
    /  /      /  *

SPOTIFY BT/SPOTIFY BT AUDIO

 *

AUX



               *  28   [PRESET]      )
.(


 :
 *
  ) FM Radio Data System      :(FM
    /   /  /  +  +    *
       +
:FLAC/WAV/AAC/WMA/MP3       /  /        /  *

:(10 )    [HEAD MODE]      /  /
    /  *
 *


:KD-X368BT
  SW2/SW1/AM/FM
USB iPod BT/iPod USB
ANDROID

31

()  :



:FLAC/WAV/AAC/WMA/MP3

USB

   ()   ()

()   ( )   2*

()    ()   ( )



:(10 )    [HEAD MODE]     ()   ()
()   ( )   2*     ()
    ()   ()      2*

iPod BT/iPod USB ANDROID

    ()   ()   ( )   ()   2*    ()    ()
   ()   ()   ()   ( )   2*     ()
    ()   ()      2*

SPOTIFY BT/SPOTIFY BT AUDIO AUX

                2*   28   [PRESET]      )
.(



Bluetooth
      Bluetooth      Bluetooth    · .
.  Bluetooth          · .        ·



.



   "NO NAME" "NO TEXT"           ·

.       (   )

:KD-X462BT



1*



         [BATT/SIGNAL]  [FORMAT]  1* (27 ) . Bluetooth

()  :
2*     ()  ()
  ) FM Radio Data System      :(FM
 ()  /  ()  /  +  ()   2*
()   ()   (+ )    ()

  SW2/SW1/AM/FM

 30

iPhone/iPod
:USB     · Made for
(6th generation  5th) iPod touch ­ (generation 7th) iPod nano ­
X 8 Plus 8 7 Plus 7 SE 6S Plus 6S 6 Plus 6 5C 5S 5 iPhone 4S ­ :Bluetooth   · Made for
(6th generation  5th) iPod touch ­ X 8 Plus 8 7 Plus 7 SE 6S Plus 6S 6 Plus 6 5C 5S 5 iPhone 4S ­ .  [HEAD MODE]  "Videos"         ·                   ·
.   iPhone/iPod  .  iPod      iPod   " "  "JVC"  · .          iPhone/iPod      ·
Android
.     4.1  Android      ·       (  4.1  ) Android    ·
.  2.0  Android Open Accessory (AOA) AOA 2.0  ( ) mass storage      Android     ·
.      AOA 2.0
Spotify
:     Spotify  · (  iOS 8) 7 Plus 7 SE 6S Plus 6S 6 Plus 6 5C 5S 5 iPhone 4S ­
(6th generation  5th) iPod touch ­   Android 4.0.3   ­                  Spotify ·                   .
.    .      Spotify    ·  <www.spotify.com>                ·
.  Spotify




.

(  )


.     .
       ­ :
   JVC   ­    ­ .  <www.jvc.net/cs/car/>


:USB         · (.flac) FLAC (.wav) WAV (.m4a) AAC (.aac) AAC (.wma) WMA (.mp3) MP3
FAT32 FAT16 FAT12 :  USB    ·
.                      ·
.  <www.jvc.net/cs/car/audiofile/>

USB
.   USB     USB    · .      5          ·    1.5     5        USB      ·
.

29

(    :KD-X368BT ) [COLOR]


(KD-X462BT ) [COLOR]

.        [COLOR 49]  [COLOR 01] ·
    [NIGHT COLOR]  [DAY COLOR]    :[USER] · .
      :[COLOR FLOW03]  [COLOR FLOW01] · .
/[GRADATION]/[FOREST]/[FLOWER]/[CRYSTAL] :  · [SUNSET]/[RELAX]/[OCEAN]
.               .      :[BLUE]/[GREEN]/[RED] 1 .    :[31]  [00] 2 .   2  1
.   [PRESET]   [USER]     ·  [NIGHT COLOR]         ·
.   [DAY COLOR]
            :[ON]
 :[OFF]  .            .

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

.      [COLOR 49]  [COLOR 01] ·
    [NIGHT COLOR]  [DAY COLOR]    :[USER] · .
      :[COLOR FLOW03]  [COLOR FLOW01] · .
.              .      :[BLUE]/[GREEN]/[RED] 1 .    :[31]  [00] 2 .   2  1
.   [PRESET]   [USER]     ·  [NIGHT COLOR]         ·
.   [DAY COLOR]
           :[ON]
 .             .   :[OFF]

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

 28

[XX] :

[DISPLAY]

.     .  [DAY]    .    :[OFF]
.  [NIGHT]    .    :[ON] (.  "[BRIGHTNESS]"   )
.          :[DIMMER TIME] .  [ON]     `(4  3 )   '  1 .  [OFF]     `(4  3 )   '  2
([AM6:00] :[OFF]  [PM6:00] :[ON] : )          :[DIMMER AUTO]
1*.

[DIMMER]

.            .      :[NIGHT]/[DAY] 1
(.      ) .   2 .     :[LEVEL 31]  [LEVEL 00] 3

[BRIGHTNESS]

        :[SCROLL ONCE] 2*[TEXT SCROLL]       5   :[SCROLL AUTO]  .
.   :[SCROLL OFF]  .

:KD-X462BT         Bluetooth
(30 ) .   .        :[BATT/SIGNAL]
.    :[DATE]

3*[FORMAT]

(36 ) .        1*
  )               2* .(
.        3*


   Zone  :KD-X462BT

( )

:KD-X368BT

.

1

 (    )      `(4  3 )   '  2

.

     /          2  3

.

.

  4

.



27



[DTA SETTINGS]  [GAIN]  [DISTANCE]

.               1
.          2
. )      3
.      (     3     4 .  [DISTANCE]
.       [GAIN] 5
    [FRONT ALL]  :
:        1* :    2
:[SUBWOOFER]/[REAR RIGHT]/[REAR LEFT]/[FRONT RIGHT]/[FRONT LEFT]         [SUBWOOFER]  [REAR RIGHT] [REAR LEFT] ­ (24 ) .   [SPEAKER SIZE]  [SUBWOOFER]  [REAR]  [NONE]
:    3   :[WOOFER]/[MID RIGHT]/[MID LEFT]/[TWEETER RIGHT]/[TWEETER LEFT]  [WOOFER]  [NONE]          [WOOFER] ­
(25 ) .   [SPEAKER SIZE]   (22 ) ( ) [2-WAY]  [X ' OVER TYPE]       2*
 [SPEAKER SIZE]  [REAR]  [NONE]          (24 ) .


           "  "   .
 "[DTA SETTINGS]  [GAIN]  [DISTANCE]  "     · .

.   ( )         :[FRONT RIGHT]    :[ALL]  :[FRONT ALL]      :[FRONT LEFT]
    [2-WAY]  [X ' OVER TYPE]    ·
(22 ) .   [FRONT ALL]
.         :[610CM]  [0CM]
        :[0DB]  [­8DB] .
 [POSITION]   ([GAIN]  [DISTANCE])  :[YES] .   :[NO]  .
           .  [DTA SETTINGS]
/[SUV]/[MINIVAN]/[WAGON]/[FULL SIZE CAR]/[COMPACT]  :[OFF]  .     :[MINIVAN(LONG)]
.
           .  ( )
       :[REAR DECK]/[DOOR] · [COMPACT] [OFF]    [CAR TYPE]
.   [SUV]  [WAGON] [FULL SIZE CAR]        :[3RD ROW]/[2ND ROW] · .[MINIVAN(LONG)]  [MINIVAN]    [CAR TYPE]

[DTA SETTINGS] [POSITION]
1*[DISTANCE] 1*[GAIN]
[DTA RESET] [CAR SETTINGS]
[CAR TYPE] 2*[R-SP LOCATION]

 26



/[90HZ]/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[250HZ]/[220HZ]/[180HZ]/[150HZ]/[120HZ]/[100HZ]
[THROUGH]

[HPF FRQ] [MID RANGE]

[­12DB]/[­06DB] [HPF SLOPE]

/[6.3KHZ]/[5KHZ]/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ] [LPF FRQ] [THROUGH]/[12.5KHZ]/[10KHZ]/[8KHZ]

[­12DB]/[­06DB] [LPF SLOPE] (0°) [NORMAL]/(180°) [REVERSE] [PHASE]

[00DB]  [­08DB]
/[90HZ]/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[250HZ]/[220HZ]/[180HZ]/[150HZ]/[120HZ]/[100HZ]
[THROUGH]

[GAIN] [LPF FRQ] 2*[WOOFER]

[­12DB]/[­06DB] (0°) [NORMAL]/(180°) [REVERSE]

[SLOPE] [PHASE]

[00DB]  [­08DB]

[GAIN]

.       [REAR/REAR]   [SPK/PRE OUT]   1* (23 )
(21 ) .       [ON]  [SUBWOOFER SET]   2*

/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[180HZ]/[150HZ]/[120HZ]/[100HZ]/[90HZ] [THROUGH]/[250HZ]/[220HZ]

[SW LPF FRQ]

[­24DB]/[­18DB]/[­12DB]/[­06DB] [SW LPF SLOPE]

(0°) [NORMAL] /(180°) [REVERSE] [SW LPF PHASE]

[00DB]  [­08DB] [SW LPF GAIN]

[SUBWOOFER 2*LPF]

 3

[SPEAKER SIZE]

[LARGE]/[MIDDLE]/[SMALL] [TWEETER]

/[4×6]/[18CM]/[17CM]/[16CM]/[13CM]/[12CM]/[10CM]/[8CM] [MID RANGE] [6×9]/[6×8]/[5×7]

( ) [NONE]/[38CM OVER]/[30CM]/[25CM]/[20CM]/[16CM] 2*[WOOFER]

[X ' OVER]

/[6.3KHZ]/[5KHZ]/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ] [HPF FRQ] [TWEETER] [12.5KHZ]/[10KHZ]/[8KHZ]

[­12DB]/[­06DB] [SLOPE]

(0°) [NORMAL]/(180°) [REVERSE] [PHASE]

[00DB]  [­08DB]

[GAIN]

25

 2

/[16CM]/[13CM]/[12CM]/[10CM]/[8CM]

[SIZE]

/[6×8]/[5×7]/[4×6]/[18CM]/[17CM]

[7×10]/[6×9]

) [NONE]/[LARGE]/[MIDDLE]/[SMALL] (

[TWEETER]

/[18CM]/[17CM]/[16CM]/[13CM]/[12CM]/[10CM]/[8CM] ( ) [NONE]/[7×10]/[6×9]/[6×8]/[5×7]/[4×6]

) [NONE]/[38CM OVER]/[30CM]/[25CM]/[20CM]/[16CM] (

/[5KHZ]/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ] [12.5KHZ]/[10KHZ]/[8KHZ]/[6.3KHZ]
[00DB]  [­08DB]
[00DB]  [­08DB]
/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[150HZ]/[120HZ]/[100HZ]/[90HZ]/[80HZ]
[THROUGH]/[250HZ]/[220HZ]/[180HZ]
[­24DB]/[­18DB]/[­12DB]/[­06DB]
[00DB]  [­08DB]
/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[150HZ]/[120HZ]/[100HZ]/[90HZ]/[80HZ]
[THROUGH]/[250HZ]/[220HZ]/[180HZ]
[­24DB]/[­18DB]/[­12DB]/[­06DB]
[00DB]  [­08DB]

[FRQ]
[GAIN LEFT] [GAIN RIGHT] [F-HPF FRQ]
[F-HPF SLOPE] [F-HPF GAIN] [R-HPF FRQ]
[R-HPF SLOPE] [R-HPF GAIN]

[SPEAKER SIZE] [FRONT]
1*[REAR] 2*[SUBWOOFER]
[X ' OVER] [TWEETER]
[FRONT HPF]
1*[REAR HPF]
(25 ) :2* 1*


() X ` OVER   :[LPF FRQ]/[HPF FRQ]/[SW LPF FRQ]/[R-HPF FRQ]/[F-HPF FRQ]/[FRQ] ·
.(    )        .        [THROUGH]
:[LPF SLOPE]/[HPF SLOPE]/[SW LPF SLOPE]/[R-HPF SLOPE]/[F-HPF SLOPE]/[SLOPE] · .
     [THROUGH]         .
           :[PHASE]/[SW LPF PHASE] · .
 :[GAIN]/[SW LPF GAIN]/[R-HPF GAIN]/[F-HPF GAIN]/[GAIN RIGHT]/[GAIN LEFT] · .

 24

:   [SUB.W/SUB.W]  (25 ) .   [THROUGH]     [SUBWOOFER LPF]  [120HZ] ­
 [POSITION R15]         [FADER]  [POSITION R02] ­ (22 ) .  [POSITION 00]

.    3    2
 .
(37 36 ) :      .      · .          ·
SPEAKER SIZE .             .             ·   [X ` OVER]    [SPEAKER SIZE]     [NONE]  ·
.      [SUBWOOFER]/[REAR]/[FRONT]  [TWEETER] : 2  ­
[WOOFER] : 3  ­


[SPK/PRE OUT]    (22 ) (   [2-WAY]  [X ' OVER TYPE]   ) .  [SPK/PRE OUT]
      (37 ) .

(lineout)

SW

REAR

FRONT





 :() L





( ) :() R

 [SPK/PRE OUT]
[REAR/REAR] ( )
[SUB.W/SUB.W]


                (36 ) .



() R

() L





( )



 [SPK/PRE OUT]
[REAR/REAR] [SUB.W/SUB.W]

23



[SOUND EFFECT]

(.  SW2/SW1/AM/FM   ) [SPACE ENHANCE]
      :[LARGE]/[MEDIUM]/[SMALL] .   :[OFF]  .

 .      :[LEVEL3]/[LEVEL2]/[LEVEL1] [SND RESPONSE] .   :[OFF]

       :[HIGH]/[MIDDLE]/[LOW] .   :[OFF]  .

[SOUND LIFT]

              :[ON] .   :[OFF]  .

[VOL LINK EQ]

(.  AUX   SW2/SW1/AM/FM   ) [K2 TECHNOLOGY] .   :[OFF]  .     :[ON]

(21 ) .       [ON]   [SUBWOOFER SET]   1*     [SUB.W/SUB.W]   [SPK/PRE OUT]   : 2  2*
(23 ) .   .         3*

(.      3  )    :([POSITION 00]) [POSITION F15]  [POSITION R15]
.
   :([POSITION 00]) [POSITION R15]  [POSITION L15] .

[FADER] 3*[BALANCE]

       :([LEVEL 00]) [LEVEL +06]  [LEVEL ­15] [VOLUME ADJUST]   ) .     FM
(.

 ) .   25       :[LOW POWER]        50
   :[HIGH POWER]  (.      . 35

[AMP GAIN]

(.      3  )             23   "  "  ) .
(.

[SPK/PRE OUT]

([X ' OVER TYPE]   )        ) .     3    2
(.  23   " "  .    2

[SPEAKER SIZE] [X ' OVER]

 "   "       .  26
      [X ' OVER TYPE]    : .

[DTA SETTINGS] [CAR SETTINGS] [X ' OVER TYPE]

(   [3-WAY]      ) .   :[NO]  .      :[YES]
(   [2-WAY]      ) .   :[NO]  .      :[YES]

[2-WAY] [3-WAY]

 22



.
.   [PRESET EQ]  [USER]    · .  [EASY EQ]         ·

[PRO EQ]

[62.5HZ]
.          :([LEVEL 00])[LEVEL +09]  [LEVEL ­09] (.           )

.   :[OFF]  .        :[ON]

/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ]/[630HZ]/[400HZ]/[250HZ]/[160HZ]/[100HZ] [16KHZ]/[10KHZ]/[6.3KHZ]
.          :([LEVEL 00])[LEVEL +09]  [LEVEL ­09] (.           )

.      :[2.00]/[1.50]/[1.35] [Q FACTOR]

[AUDIO CONTROL]
        :[LEVEL +05]  [LEVEL +01] [BASS BOOST] .   :[OFF]  .

         :[LEVEL 02]/[LEVEL 01] [LOUDNESS] .   :[OFF]  .

(.      3  )  :([SUB.W +03]) [SUB.W +06]  [SUB.W 00]           (36 ) .

2*[SPK-OUT] 1*[SUB.W LEVEL]

 :([SUB.W 00]) [SUB.W +10]  [SUB.W ­50]
           .       (SW)   (37 )

[PRE-OUT]

.   :[OFF]  .       :[ON] [SUBWOOFER SET]

(22 ) : 2* 1*

.  4  3

.

1

 (    )      `(4  3 )   '  2

.

     /          2  3

.

.

  4

.



[XX] :

.            [USER]   [PRO EQ]  [EASY EQ]       ·
.   /[HIP HOP]/[HARD ROCK]/[DRVN 1]/[DRVN 2]/[DRVN 3]/[FLAT]
[CLASSICAL]/[USER]/[R&B]/[POP]/[JAZZ]   ([DRVN 1]/[DRVN 2]/[DRVN 3])
               .

.

.   [PRESET EQ]  [USER]    ·

.  [PRO EQ]         ·

[+03] : )

[+06]  [00] :2*1*[SUB.W SP]

[00]

[+10]  [­50] :1*[SUB.W]

[LVL 00]

[LVL+09]  [LVL­09]

:[BASS]

[LVL 00]

[LVL+09]  [LVL­09]

:[MID]

([LVL 00]

[LVL+09]  [LVL­09]

:[TRE]

[EQ SETTING] [PRESET EQ]
[EASY EQ]

21

Bluetooth  iPod/iPhone
.  iPod/iPhone    Bluetooth
.      iPod BT   .   USB           iPhone/iPod   ·
(9 )  USB     iPod/iPhone   iPod BT       ·
Bluetooth      .  iPod USB      .  iPod BT
Bluetooth
   Bluetooth   Android/iPod touch/iPhone     .  (Spotify)
.     USB       ·
Spotify
:   (6 ) .   [ON]  [SOURCE SELECT]  [SPOTIFY SRC]
.      Spotify  1 (13 ) .  Bluetooth     2 ) SPOTIFY BT  (iPod/iPhone ) SPOTIFY        3
.  (Android  .
(11 ) .   USB           Spotify   ·

BLUETOOTH®

[XX] :

[REMOTE APP]

.       (ANDROID  IOS)    [SELECT]

 USB    Bluetooth       iPod/iPhone :[YES]

[IOS]

.   :[NO]  .

   iPod/iPhone  iPod USB  ) iPod BT     IOS

.      (   USB

:          ·

 USB           iPod BT   ­

.

.  iPod BT    iPod USB   ­

 .    Bluetooth       Android :[YES] [ANDROID] .   :[NO]

.          Android
.       Bluetooth    iPod/iPhone       :[IOS CONNECTED]
.       USB   .       iOS   :[IOS NOT CONNECTED]  Android         :[ANDROID CONNECTED]
.       Bluetooth         Android   :[ANDROID NOT CONNECTED]
.

[ANDROID *LIST]
[STATUS]

.      [YES]   [SELECT]   [ANDROID]   *

 20

     (    )





*.   5    Bluetooth

          "() Play"     * .
               .

JVC Remote
/iPhone    JVC      JVC Remote   ) Android    (USB    Bluetooth  ) iPod
.   (Bluetooth

:   .     JVC Remote       · .  <http://www.jvc.net/cs/car/>     ·

.

1

.       `(4  3 )   '  2

(20 )

.              2  3

.

  4

.



BLUETOOTH®
  -- BLUETOOTH .  4  3           .       Bluetooth      BT AUDIO

Bluetooth
.      (      SOURCE  ) BT AUDIO   1 . BT AUDIO        ·
.         Bluetooth   2

     .   d
.   J / K .   H / I      H / I
.
(    )
(    )
(    )

   .     :KD-X462BT .   *ENTER :KD-X368BT
.   2J / 1K .   S / T .      S / T
.     4B [ALL REPEAT] [TRACK REPEAT]
[REPEAT OFF] .     3A [ALL RANDOM] [GROUP RANDOM]
[RANDOM OFF]   "/    "
.  11

  /     /     /


/

19

.   (C)  (B) (A)          3        :( 6 ) "PAIRING" "XXXXXX" (A) .        Bluetooth     Bluetooth
.  Bluetooth    "0000" :"PAIRING" "PIN IS 0000" (B) .   Bluetooth       :"PAIRING" (C)
   " " "PAIRING OK"          .   Bluetooth
     Bluetooth     "CONNECT NOW USING PHONE"  .
.     "TESTING"
.       / 2*"AUD.STREAM OK" / 1*"HANDS-FREE OK" / "PAIRING OK"
 :3*"PBAP OK"
(HFP)     1* (A2DP)       2* (PBAP)        3*
           "PAIRING DELETED"  30   .
.                    ·

BLUETOOTH®

.( 6 )    PIN  .        1
    :KD-X462BT    VOL +/­ :KD-X368BT .   S / T         2 .  PIN      2  1   .       3
  :KD-X462BT *ENTER :KD-X368BT
          Bluetooth   :[ON]  .            .   :[OFF]
/iPhone )    Bluetooth      :[ON]        USB     (iPod touch
         .
.   :[OFF]  .
       ) Bluetooth   :[YES] .   :[NO]  .    (
/"KD-X4 BT")       :[MY BT NAME]  .("KD-X3 BT"
.       :[MY ADDRESS]

[PIN CODE EDIT] (0000)
[RECONNECT] [AUTO PAIRING]
[INITIALIZE] [INFORMATION]

Bluetooth

.      Bluetooth         .    Bluetooth       ·

.

1

.   "CHECK MODE" "BLUETOOTH"

.     "PIN IS 0000" "SEARCH NOW USING PHONE"

Bluetooth    3   ("KD-X3 BT"/"KD-X4 BT")    2

.

 18

BLUETOOTH®



.

Bluetooth     1

.   (6  1)       2

.        3

  :KD-X462BT

*ENTER :KD-X368BT

.     "NO PRESET"

Bluetooth

.

1

 (    )      `(4  3 )   '  2

.

     /          2  3

.

.

  4

.



[XX] :

.              .       " "     .          " "
       `(4  3 )   '  1 .
   [YES]    `(4  3 )   '  2 .[NO]

[BT MODE] *[PHONE SELECT] *[AUDIO SELECT] [DEVICE DELETE]

      Bluetooth      Bluetooth      * .



.

     1

                 2

.

  .               · .





.  (6  1)       6

.

Bluetooth     1

 [PHONEBOOK] [RECENT CALL]    `(4  3 )   '  2

.  [DIAL NUMBER]

          `(4  3 )   '  3

.

.

  :KD-X462BT

*ENTER :KD-X368BT

.      (6  1)       4

   "MEMORY P(    )"

.

  2   [DIAL NUMBER]            .

17

(.  PBAP        ) .           1
  :KD-X462BT VOL +/­ :KD-X368BT    "M"     ">"    "<" · .                  ·
.   "NO HISTORY" .        2
  :KD-X462BT *ENTER :KD-X368BT

[RECENT CALL]

(.  PBAP        )  9  0 Z  A)    2J / 1K      1
.(OTHERS .     "OTHERS"  9  0  Z  A    ·
.    `(4  3 )   '  2        `(4  3 )   '  3
.

[PHONEBOOK]

             ·
.    ) .           ·
(.    "U"   "Ú"

.  (+ #  )   (9  0)       1     :KD-X462BT    VOL +/­ :KD-X368BT
.   S / T         2 .        2  1
.        3   :KD-X462BT *ENTER :KD-X368BT

[DIAL NUMBER]

                  "  ) .      (.  17   "

[VOICE]

BLUETOOTH®



.

Bluetooth     1

 (    )      `(4  3 )   '  2

.

.              2  3

.



[XX] :

[SETTINGS]

   ( )      :[30 SEC]  [01 SEC] [AUTO ANSWER] .   :[OFF]  .

      :([COLOR 08]) [COLOR 49]  [COLOR 01]  .             .   :[OFF]

[RING COLOR]



   .                 .

.

Bluetooth     1

.  "(  )"

.

  Bluetooth     ·

.  "(  )"

 (    )      `(4  3 )   '  2

.

     /          2  3

.

.



 16



...

.

1

     `(4  3 )   '  2

.  (    )

           2  3

.

.

  4

.



[XX] :

:([LEVEL ­04]) [LEVEL +10]  [LEVEL ­10]        .

[MIC GAIN]

:([LEVEL 00]) [LEVEL +05]  [LEVEL ­05]
.

[NR LEVEL]

:([LEVEL 00]) [LEVEL +05]  [LEVEL ­05]                  .

[ECHO CANCEL]


(    )
(    )
      .J / K / H / I
(    )       VOL ­  2*VOL +
.  (    )

BLUETOOTH®





...

.



  :KD-X462BT



*ENTER :KD-X368BT

.



  :KD-X462BT

*ENTER :KD-X368BT



...

.



  :KD-X462BT

*ENTER :KD-X368BT



.



.            :KD-X462BT
2*    VOL +/­ :KD-X368BT

1*    ([15] : ) [35]  [00]

.



      3*

.          1* .      VOL + 15       2* .      Bluetooth       3*

15

  -- BLUETOOTH .  4  3


:     .     [RING COLOR]          ·
(16 ) .            [AUTO ANSWER]    ·
(16 )
:     [RING COLOR]               ·
(16 ) .   .   Bluetooth             ·

.


.J / K / H / I
.J / K / H / I
      .J / K / H / I



.



  :KD-X462BT *ENTER :KD-X368BT





.

  :KD-X462BT

*ENTER :KD-X368BT





.

  :KD-X462BT *ENTER :KD-X368BT

 ...



BLUETOOTH®
       "PAIRING COMPLETED"           KD-X462BT  .   ""  Bluetooth
.(27   [FORMAT]   )    Bluetooth
.   Secure Simple Pairing (SSP)    · . ()          ·
   Bluetooth              ·  [DEVICE DELETE]           .
.17          Bluetooth      Bluetooth    ·
.       Bluetooth      BT AUDIO
(19 ) .             Bluetooth       ·
.         . "LOW BATTERY" " "     Bluetooth      ·
.  .  Bluetooth          ·

     USB     iPod touch/iPhone   .      (Bluetooth  )
.               :KD-X462BT
*ENTER :KD-X368BT
:          .     Bluetooth ­
(18 ) .   [ON]  [AUTO PAIRING] ­

 14

   Bluetooth
.         1 .    Bluetooth    ( "KD-X3 BT"/"KD-X4 BT")    2
.     "BT PAIRING"      (PIN)             Bluetooth      ·
.  .   (B)  (A)         3 .                Bluetooth
:KD-X462BT (A) "BACK ­ NO" "VOL ­ YES" "XXXXXX" " "
:KD-X368BT "BACK ­ NO" "ENTER ­ YES" "XXXXXX" " " .               6   "XXXXXX" .    Bluetooth
.          :KD-X462BT
*ENTER :KD-X368BT .   Bluetooth
:KD-X462BT (B) "BACK ­ NO" "VOL ­ YES" " "
:KD-X368BT "BACK ­ NO" "ENTER ­ YES" " "
.
  :KD-X462BT *ENTER :KD-X368BT    "0000" PIN        "PIN 0000"  "PAIRING"  ·
.  Bluetooth (18 ) .        PIN         .   Bluetooth           "PAIRING"   ·

BLUETOOTH®
           .       Bluetooth
 -- BLUETOOTH      Bluetooth
(HFP)   ­ (A2DP)     ­ (AVRCP) /      ­
(SPP)    ­ (PBAP)      ­    Bluetooth
(SBC)    ­ (AAC)    ­





(  )



      (  )
.

13

.         "( ) Your Music"      "REMOVED"
.   Spotify   "( ) Your Library"



.

1

.       `(4  3 )   '  2

.  Spotify

.        `(4  3 )   '  3

.

     :KD-X462BT

      VOL +/­ :KD-X368BT

.



Spotify

     .   d
.   H*1 / I .   J / K (    ) (    )
(    )

   :KD-X462BT
.     :KD-X368BT
.   *ENTER .   S*1 / T
.   2J / 1K
.      5 .     4B 1*[ONE REPEAT] [ALL REPEAT]
[REPEAT OFF] .1*     3A [RANDOM OFF] [ALL RANDOM]

  /

2*
3*
3*

.           1*       .   Radio        2*
.         ( ) .Playlists        3*

     ...Spotify  Radio     .
  :KD-X462BT *ENTER :KD-X368BT
 "( ) Your Music"      "SAVED"  .   Spotify   "( ) Your Library"

 12

Spotify
:     (iPod touch/iPhone)       Spotify
.  Spotify       (6 ) .   [ON]  [SOURCE SELECT]  [SPOTIFY SRC]  ·

USB

     .      Spotify  1 .  USB       2
:KD-X462BT
*iPhone/iPod

USB

:KD-X368BT *iPhone/iPod

ANDROID/iPod/USB

/

.   [HEAD MODE]       iPod

.

1

.  /     `(4  3 )   '  2

.       `(4  3 )   '  3

(  USB    )   .
.              :KD-X462BT
.      VOL +/­ :KD-X368BT
(  iPod USB   iPod BT   )     .
.(OTHERS 9  0 Z  A)                    2J / 1K :KD-X462BT    2J / 1K :KD-X368BT
.   "OTHERS"  9  0  Z  A      ·

.

      ·

.

   ·

.      SPOTIFY   3
.            *

11


.    5MODE USB     .
.(Mass Storage )           · .        ·
JVC Remote
/iPhone    JVC      JVC Remote  .   (USB    ) iPod :
.     JVC Remote       · .  <http://www.jvc.net/cs/car/>     ·  Bluetooth
(19 ) .

.    5MODE  (iPod BT ) iPod USB     .    iPod  :[HEAD MODE]
      .iPod     iPod  :[IPHONE MODE]        /
.

ANDROID/iPod/USB

.  4  3

     .      H / I

   .      S / T

.   H / I

.   S / T

.   J / K

.   2J / 1K

.     4B

/WMA/MP3   :[ALL REPEAT]/[FOLDER REPEAT]/[TRACK REPEAT] FLAC/WAV/AAC iPod : [REPEAT OFF]/[ALL REPEAT]/[ONE REPEAT]

.     3A

/MP3   : [RANDOM OFF]/[ALL RANDOM]/[FOLDER RANDOM] /AAC/WMA FLAC/WAV
iPod : [RANDOM OFF]/[ALL RANDOM]/[SONG RANDOM]

 /  3*      4*    5*3*
5*3*

.   ANDROID  3* .   ANDROID/iPod    4* .   [HEAD MODE]       :iPod  5*

 10

USB   KD-X462BT:

ANDROID/iPod/USB
  .
USB

1*USB 2.0  (   )
iPhone/iPod

AUX
:
. (6 ) .   [ON]  [SOURCE SELECT]  [BUILT-IN AUX]  ·



.   (    )       1

 "L"     3.5    (   )

:KD-X462BT

USB   KD-X368BT:

1*iPhone/iPod
2*ANDROID
1*USB  (   )

.            1*      Android       Android   2*
.




     :KD-X368BT

 "L"     3.5    (   )
.      AUX   2 .            3

.

9

    "AF"          :[ON] .   :[OFF]  .
           :[ON] Radio Data
 .        (   ) System .   :[OFF]
               :[ON]     (   "TI" )    SW2/SW1/AM
.   :[OFF]  .
.(   )   PTY      PTY
.

2*[REGIONAL] 2*[AF SET]
2*[TI] 2*[PTY SEARCH]

.      [WEEKLY]  [ONCE]        1* . FM          2*

PTY
[SCIENCE] [CULTURE] [DRAMA] [EDUCATE] [SPORT] [INFO] [AFFAIRS] [NEWS] [LIGHT M] ()  [EASY M] () [ROCK M] () [POP M] () [VARIED]
[SOCIAL] [CHILDREN] [FINANCE] [WEATHER] [OTHER M] () [CLASSICS] [NATION M] () [COUNTRY] [JAZZ] [LEISURE] [TRAVEL] [PHONE IN] [RELIGION]
[DOCUMENT] [FOLK M] () [OLDIES]



[XX] :

[TUNER SETTING]

.               [RADIO TIMER]
      :[OFF]/[WEEKLY]/[DAILY]/[ONCE] 1 .
.     :[SW2]/[SW1]/[AM]/[FM] 2
/SW1/AM  ) [06]  [01]/(FM  ) [18]  [01] 3 .        :(SW2 .       1* 4 .   "M"

.   ( ) Radio Timer    .    ·
  [OFF] SW2/SW1/AM         ·
.   [SOURCE SELECT]  [SW2 SRC]/[SW1 SRC]/[AM SRC] (6 )

    18  :[SSM 13­18]/[SSM 07­12]/[SSM 01­06]     6  .     FM
  12-   .    "SSM"   .   [SSM 13­18]/[SSM 07­12]

[SSM]

 .       SW2/SW1/AM    :[ON] .   :[OFF]
 .     /      · .          /

[LOCAL SEEK]

  FM         :[AUTO]   :[WIDE]  (.      ) .
        FM      .
          FM    :[ON] .   :[OFF]  .
    () News Programme      :[ON] .   :[OFF]  .

[IF BAND]
[MONO SET] 2*[NEWS SET]

 8



.   (6  1)

()

.

1

.         `(4  3 )   '  2



.

1

8   )        `(4  3 )   '  2

.(

     /          2  3

.

.

  4

.




.  4  3

.      SW2  SW1 AM FM    1      (      H / I )    S / T 2
.   ()
 (         H / I )       S / T                "M"
. "STEREO"  "ST"      FM      ·
.   FM       FM         ·
.

.   SW2/SW1/AM  6  FM  18

...       .      (6  1)
() .  "PRESET MODE"           1
  :KD-X462BT *ENTER :KD-X368BT .         `(4  3 )   '  2 .      "MEMORY"

7



 )        :[YES] .   :[NO]  .(
  (CT)           :[ON]  .   (FM    ) FM Radio Data System .   :[OFF]
 .          :[ON] .   :[OFF]
             .
.      [ENGLISH]

[FACTORY RESET] [CLOCK]
[TIME SYNC]
[CLOCK DISPLAY] [ENGLISH] [ESPANOL]

  3

.

1

 (    )      `(4  3 )   '  2

.

.              2  3

.

  4

.



[XX] :

(.      3  ) .   :[OFF]  .       :[ON]
.   :[OFF]  .       AM :[ON] (7 )
.   :[OFF]  .       SW1 :[ON] (7 )
.   :[OFF]  .       SW2 :[ON] (7 )
 :[OFF]  .       SPOTIFY BT/SPOTIFY :[ON] (11 ) .
.   :[OFF]  .       AUX :[ON] (9 )
 )    :[NO]  .       :[YES] .(
         .  <http://www.jvc.net/cs/car/>

[SYSTEM] [KEY BEEP]
[SOURCE SELECT] *[AM SRC]
*[SW1 SRC]
*[SW2 SRC]
*[SPOTIFY SRC]
*[BUILT-IN AUX]
[F/W UPDATE] [UPDATE SYSTEM]
[F/W UP xxxx]

.            *

 6





.  4  3
   1
      [YES]   [FACTORY RESET]  )          :       (6
:KD-X462BT "VOLUME KNOB" "PRESS" "CANCEL DEMO"
.     1 .      [YES]
.        2 .   "DEMO OFF"

(RM-RK52)     (4  3 ) .

       .



:KD-X368BT "PRESS ENTER" "CANCEL DEMO"
.   *ENTER 1 .      [YES]
.   *ENTER   2 .   "DEMO OFF"

    2

.

1

.  [CLOCK]    `(4  3 )   '  2

.      `(4  3 )   '  3

[24H]  [12H] [CLOCK FORMAT]       [CLOCK ADJUST]

.      `(4  3 )   '  4

       [DATE SET]

.

  5

.




.   VOL ­  VOL +  VOL + 15       ·
.
.           d  .        ·           .
.     SOURCE




5



 )     (.




  :KD-X368BT




.   5






.   SRC-B .       ·
.   VOL +/­ .      VOL + 15       ·
.           *ENTER .             .        ·
.     SRC-B · .   2   VOL +/­   SRC-B  ·
(31 ) .
.   VOL +/­    1 .   *ENTER    2




 4












  :KD-X462BT



.   5



 )     (.

3

   .   BSRC .       · .    .             .             .        ·
.     BSRC · .  2         BSRC ·
(30 ) .
.       1 .       2







 2

 ""  ""    .                   · .

3

.                    · 5



.                        ·

.      ·

. /

7

.       2         /

9

.

.

9

.                      11



13

:

.                  · 21

.                   · 27

: .                    ·

29

.              .           ·

.      (     )          ·

    .(36 )                       · .

32

:(RM-RK52)     34

.              · .        .               ·

38

.                     ·

       .    .KD-X368BT  KD-X462BT             ·
(6 ) .        .       ·
.        [XX] · .             (XX ) ·



   1     2
  3  AUX
ANDROID/iPod/USB Spotify
BLUETOOTH®


  /

 2

libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
· Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
· Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
· Apple, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
· IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
· SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. · Android is a trademark of Google LLC. · The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
39





 4 ×  50  ) 1 ×  50 + 2 ×  50
( 4 =   4 ×  22
 8 --  4   10 /  4 000
 600


       %1   )
(   /



    12    100 ×  53 ×  182
 0.6


  ( ×  × )
  )   (

.

MPEG-1/2 Audio Layer-3   Windows Media Audio
".m4a"".aac" AAC-LC   PCM
  96/ 24    FLAC
  20 --  20   1 000   30

MP3   WMA   AAC   WAV   FLAC
( ±3)

Bluetooth 3.0
 2.480 --  2.402
 ( )    +4 2
 ( 32.8)  10
(  ) SSP
(   ) HFP1.6 (   ) A2DP /     ) AVRCP1.5
( (    ) PBAP
(  ) SPP

   (E.I.R.P.)


Bluetooth



USB



 108.0 --  87.5 (   50)
( 75/  0.71) 8.2 dBf
( 75/  2.0) 17.2 dBf
  15 --  30  64  40
:(AM) 1    1 602 --   531
(   9) :(SW1) 2
  7 735 --   2 940 (   5) :(SW2) 3
/  10 135 --   9 500   18 135    11 580
(   5) (  28.2)   29 :AM (  32)   30 :SW
( ) USB 2.0 USB 1.1
    FAT12/16/32
 1.5  5    24
  20 --  20  99  93  88

  FM
   ( 26 = S/N)
( 46 = DIN S/N) ( ±3)   ()     (  1)
  AM
   ( 20 = S/N) USB          (D/A)
( ±1)   (  1)
     38

BSU



(13 )

/




( )

2*JVC

( )

      (36 ) .  (/)



 3



 2




:

REAR

:

FRONT

:

SW

           2* .

37

( 10)


            ." 12   "



/

               .     .


/



(  350

.        12)  :/

 :/

 12  :
 12  :
  :
()    : 3 /  :
/ ()    : 3 /  :
/ ()   : 3 /  :
/ ()   : 3 /1*  :
1*/

   :   :/
)  (

  ()
   (  )
    1*
   .
.23
   36

(  )
   (36 ) .



.


     .

/


(1×)   (B)

(1×)   (A)

(1×)   (D)

(1×)   (C)

(2×)   (E)



(  )   .       1 )       2
     (   )
.(

35

    .    .

         1
.
.    2 .36   " "  .    3
."(  )  "  .    4
.     5 . 5       6
(4  3 )

/
 .   12           ·
.         ·    ()   ()      ·
.    ()   :    ·
.         ­ .           ­              ­
.
   .         ·
.           .       ·
     .       .
 ()           · .
   50        50       · (22 ) .   [AMP GAIN]  .30º        ·
             ·  12            ()
.      .          ·             ·
.                 ·
.




 .Bluetooth             .
         .
   /     .Bluetooth
   .             "ERROR"
.
   Bluetooth    .
 .             "H/W ERROR"
.
.
    Bluetooth    (17 ) .

 "PLEASE WAIT"
"NOT SUPPORT" "NO PAIR"/"NO ENTRY"
"ERROR"
"NO DATA"/"NO INFO" "H/W ERROR"
"SWITCHING NG"   Bluetooth
  Bluetooth .

Bluetooth®

(4  3 ) .

 34




.  Bluetooth    · (4  3 ) .   ·
         · .Bluetooth
         · (13 ) .     Bluetooth
(13 ) .     · (15 ) .[ECHO CANCEL]   ·
.Bluetooth       ·         ·
.
.         ·         ·
.           ·
.
.Bluetooth        ·         · .  .   Bluetooth    ·
  Bluetooth       · ) .(AVRCP) /
.(      .   Bluetooth    ·


.Bluetooth  .

.
.
   .
       .Bluetooth
   Bluetooth
.

Bluetooth®


.Android    ·         ·
.  Android        ·
.     .Android    ·
          ·        Android
(29 ) .   Android   USB     ·
.     Bluetooth
.Android    ·  Android   USB     ·
.     Bluetooth
.Android
.   Android     · .Android    · .Android    ·
  .    USB  .USB
  :USB      · .  .
 .Bluetooth    :Bluetooth   ·     Bluetooth    .
    Spotify        .
     .  Spotify .  Spotify

     ·
.      ·
. Android
 "NO DEVICE"  . "READING"
    .  "CANNOT PLAY"
"DISCONNECTED" "CONNECTING"
"CHECK APP"

Spotify

ANDROID

33




     USB      ·
(29 ) . . USB   ·
.USB    USB
  USB       .USB
     USB    .
 .      USB      .USB    .USB              (   )    .  USB
.iPhone/iPod       ·     iPhone/iPod  ·
.
               .iPhone/iPod .
    (iPhone/iPod/USB)   .  iPhone/iPod/USB


"UNSUPPORTED  .DEVICE"

iPod/USB

"UNRESPONSIVE  .DEVICE"
"USB HUB IS NOT  .SUPPORTED"
."CANNOT PLAY"

    ·    "USB"    USB
.  ."USB ERROR"  ·

  iPhone/iPod  .

 "LOADING"



.



"NO DEVICE"





       ·
. .   ·

.

           .    .

"MISWIRING CHECK  .WIRING THEN PWR ON"

.

"PROTECTING SEND  .SERVICE"



(6 ) .[SOURCE SELECT]

.

(4  3 ) .

    .

       · .    .
  (6 )       ·
.



.

.   ·    ·
.

.(USB)             .

.(USB)

   .

iPod/USB

.       (29 )

 "NOT SUPPORT"     .

.       · . "READING"  .(iPhone/iPod/USB)    ·

 32

 :



*

   /  /     /  *

*

SPOTIFY BT/SPOTIFY BT AUDIO AUX

             *
 [PRESET]     )     .(28


 :
 *
  (  ) Radio Data System   : FM
  /   /  +    *
  + /  +
:FLAC/WAV/AAC/WMA/MP3     /  /
  /  *
:(10 ) [HEAD MODE]       /  /
  /  *
*


:KD-X368BT
  SW2/SW1/AM/FM
USB
iPod BT/iPod USB
ANDROID

31

()  :

:FLAC/WAV/AAC/WMA/MP3    ()   ()
( )   2*   ( )   ()
  ()   ()

:(10 ) [HEAD MODE]      ()   ()
( )   2*  ()   ()

  ()   ()     2*

  ()   ()    ()   2*
 ()   ( )    ()

  ()   ( )
 ()

()   2*  ()


  ()   ()     2*

  USB
iPod BT/iPod USB
ANDROID SPOTIFY BT/SPOTIFY
BT AUDIO AUX

             2* .(28   [PRESET]     )



Bluetooth
 Bluetooth       Bluetooth      · .
.Bluetooth         · .      ·



.



 "NO NAME"  "NO TEXT"           ·

.    (  )

:KD-X462BT


1*



   Bluetooth         1* (27 ) .[BATT/SIGNAL]   [FORMAT]

()  :
2*    ()  ()
  (  ) Radio Data System   : FM
/  ()  /   2*    ()    (+ ) +  ()   ()  ()   ()


  SW2/SW1/AM/FM

 30

iPhone/iPod
:USB     · Made for
(6th generation  5th) iPod touch ­ (7th generation) iPod nano ­
X 8 Plus 8 7 Plus 7 SE 6S Plus 6S 6 Plus 6 5C 5S 5 iPhone 4S ­ :Bluetooth  · Made for
(6th generation  5th) iPod touch ­ X 8 Plus 8 7 Plus 7 SE 6S Plus 6S 6 Plus 6 5C 5S 5 iPhone 4S ­ .[HEAD MODE]   "Videos"        ·               ·
.iPhone/iPod  .iPod   " "  "JVC"    iPod     ·      iPhone/iPod        ·
.
Android
. Android OS 4.1      ·     (  OS 4.1    ) Android   ·
.Android Open Accessory (AOA) 2.0      AOA 2.0         Android    ·
.  AOA 2.0
Spotify
: Spotify  · (  iOS 8 ) 7 Plus 7 SE 6S Plus 6S 6 Plus 6 5C 5S 5 iPhone 4S ­
(6th generation  5th) iPod touch ­   Android OS 4.0.3  ­            Spotify  · .             .  .   Spotify      ·  Spotify           ·
.<www.spotify.com>




.


       .    .

  )

(



        ­ :

 JVC  ­

     ­

.<www.jvc.net/cs/car/>


:    USB      · (.flac) FLAC (.wav) WAV (.m4a) AAC (.aac) AAC (.wma) WMA (.mp3) MP3
FAT32 FAT16 FAT12 :  USB    ·
.                  ·
.<www.jvc.net/cs/car/audiofile/>

USB
.USB     USB     ·       5         ·
.  . 1.5   5   USB       ·

29

(   :KD-X368BT ) [COLOR]


(KD-X462BT ) [COLOR]

.     [COLOR 49]  [COLOR 01] · .[NIGHT COLOR]  [DAY COLOR]      :[USER] ·     :[COLOR FLOW03]  [COLOR FLOW01] ·
. /[FOREST]/[FLOWER]/[CRYSTAL] :   ·
[SUNSET]/[RELAX]/[OCEAN]/[GRADATION]
.         .   :[BLUE]/[GREEN]/[RED] 1 .  :[31]  [00] 2 .   2  1   .[PRESET]  [USER]     ·
    [DAY COLOR]  [NIGHT COLOR]  · .
           :[ON]  .          . :[OFF]

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

.    [COLOR 49]  [COLOR 01] · .[NIGHT COLOR]  [DAY COLOR]      :[USER] ·     :[COLOR FLOW03]  [COLOR FLOW01] ·
.
.       .   :[BLUE]/[GREEN]/[RED] 1 .  :[31]  [00] 2 .   2  1   .[PRESET]  [USER]     ·
    [DAY COLOR]  [NIGHT COLOR]  · .
         :[ON]
. :[OFF]  .

[PRESET]
[DAY COLOR] [NIGHT COLOR] [MENU COLOR]

 28

[XX] :

[DISPLAY]

.
.[DAY]     .  :[OFF]
.[NIGHT]     .  :[ON] (. "[BRIGHTNESS]" )
.     :[DIMMER TIME] .[ON]   `(4  3 )  '    1 .[OFF]   `(4  3 )  '    2
([AM6:00] :[OFF]  [PM6:00] :[ON] :)
        :[DIMMER AUTO] 1*.

[DIMMER]

.      .    :[NIGHT]/[DAY] 1
(.    ) .  2 .   :[LEVEL 31]  [LEVEL 00] 3
 .     :[SCROLL ONCE]  .( 5  )   :[SCROLL AUTO]
. :[SCROLL OFF]
:KD-X462BT
(30 ) . Bluetooth  .    :[BATT/SIGNAL]
.  :[DATE]

[BRIGHTNESS] 2*[TEXT SCROLL]
3*[FORMAT]

(36 ) .      1* .(  )        2*
.      3*


    :KD-X462BT

( )

:KD-X368BT

.     1

)   `(4  3 )  '    2

.(

         2   3

.

.

  4

.



27

[DTA SETTINGS]  [GAIN]  [DISTANCE]

.          1
.        2
.        3 .  ( )  3    [DISTANCE]  4
.    .    [GAIN]  5
 [FRONT ALL]   :
:      1* :  2    :[SUBWOOFER]/[REAR RIGHT]/[REAR LEFT]/[FRONT RIGHT]/[FRONT LEFT]     [SUBWOOFER]  [REAR RIGHT]  [REAR LEFT]  ­  [SUBWOOFER]  [REAR]   [NONE]
(24 ) .[SPEAKER SIZE]
:  3    :[WOOFER]/[MID RIGHT]/[MID LEFT]/[TWEETER RIGHT]/[TWEETER LEFT]   [NONE]         [WOOFER]  ­
(25 ) .[SPEAKER SIZE]  [WOOFER]   (22 ) [2-WAY]   [X ' OVER TYPE]      2*
(24 ) .[SPEAKER SIZE]  [REAR]   [NONE]




              .
 [GAIN]  [DISTANCE]   "     · ."[DTA SETTINGS]

.( )        :[FRONT RIGHT]    :[ALL]  :[FRONT ALL]     :[FRONT LEFT]
 [X ' OVER TYPE]    [FRONT ALL]   ·
(22 ) .[2-WAY]
.     :[610CM]  [0CM]
      :[0DB]  [­8DB] .
 ([GAIN]  [DISTANCE])    :[YES] . :[NO]  .    [POSITION]
          .[DTA SETTINGS]
/[SUV]/[MINIVAN]/[WAGON]/[FULL SIZE CAR]/[COMPACT] .  :[OFF]  .   :[MINIVAN(LONG)]
        .( )
     :[REAR DECK]/[DOOR] ·  [COMPACT]  [OFF]   [CAR TYPE] .[SUV]  [WAGON]  [FULL SIZE CAR]
     :[3RD ROW]/[2ND ROW] · .[MINIVAN(LONG)]  [MINIVAN]   [CAR TYPE]

[DTA SETTINGS] [POSITION]
1*[DISTANCE] 1*[GAIN]
[DTA RESET] [CAR SETTINGS]
[CAR TYPE] 2*[R-SP LOCATION]

 26

/[90HZ]/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[250HZ]/[220HZ]/[180HZ]/[150HZ]/[120HZ]/[100HZ]
[THROUGH]

[HPF FRQ] [MID RANGE]

[­12DB]/[­06DB] [HPF SLOPE]

/[6.3KHZ]/[5KHZ]/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ] [LPF FRQ] [THROUGH]/[12.5KHZ]/[10KHZ]/[8KHZ]

[­12DB]/[­06DB] [LPF SLOPE]

(0°) [NORMAL]/(180°) [REVERSE] [PHASE]

[00DB]  [­08DB]
/[90HZ]/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[250HZ]/[220HZ]/[180HZ]/[150HZ]/[120HZ]/[100HZ]
[THROUGH]

[GAIN] [LPF FRQ] 2*[WOOFER]

[­12DB]/[­06DB] (0°) [NORMAL]/(180°) [REVERSE]

[SLOPE] [PHASE]

[00DB]  [­08DB]

[GAIN]

.[REAR/REAR]    [SPK/PRE OUT]      1* (23 )
.[ON]    [SUBWOOFER SET]      2* (21 )



/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[180HZ]/[150HZ]/[120HZ]/[100HZ]/[90HZ] [THROUGH]/[250HZ]/[220HZ]

[SW LPF FRQ]

[­24DB]/[­18DB]/[­12DB]/[­06DB] [SW LPF SLOPE]

(0°) [NORMAL] /(180°) [REVERSE] [SW LPF PHASE]

[00DB]  [­08DB] [SW LPF GAIN]

[SUBWOOFER 2*LPF]

 3

[SPEAKER SIZE]

[LARGE]/[MIDDLE]/[SMALL] [TWEETER]

/[5×7]/[4×6]/[18CM]/[17CM]/[16CM]/[13CM]/[12CM]/[10CM]/[8CM] [MID RANGE] [6×9]/[6×8]

( ) [NONE]/[38CM OVER]/[30CM]/[25CM]/[20CM]/[16CM] 2*[WOOFER]

[X ' OVER]

/[6.3KHZ]/[5KHZ]/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ] [HPF FRQ] [TWEETER] [12.5KHZ]/[10KHZ]/[8KHZ]

[­12DB]/[­06DB] [SLOPE]

(0°) [NORMAL]/(180°) [REVERSE] [PHASE]

[00DB]  [­08DB]

[GAIN]

25



/[16CM]/[13CM]/[12CM]/[10CM]/[8CM]

[SIZE]

/[6×9]/[6×8]/[5×7]/[4×6]/[18CM]/[17CM]

[7×10]

) [NONE]/[LARGE]/[MIDDLE]/[SMALL] (

[TWEETER]

/[4×6]/[18CM]/[17CM]/[16CM]/[13CM]/[12CM]/[10CM]/[8CM] ( ) [NONE]/[7×10]/[6×9]/[6×8]/[5×7]

) [NONE]/[38CM OVER]/[30CM]/[25CM]/[20CM]/[16CM] (

/[5KHZ]/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ] [12.5KHZ]/[10KHZ]/[8KHZ]/[6.3KHZ]
[00DB]  [­08DB]
[00DB]  [­08DB]
/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[180HZ]/[150HZ]/[120HZ]/[100HZ]/[90HZ] [THROUGH]/[250HZ]/[220HZ]
[­24DB]/[­18DB]/[­12DB]/[­06DB]
[00DB]  [­08DB]
/[80HZ]/[70HZ]/[60HZ]/[50HZ]/[40HZ]/[30HZ] /[180HZ]/[150HZ]/[120HZ]/[100HZ]/[90HZ] [THROUGH]/[250HZ]/[220HZ]
[­24DB]/[­18DB]/[­12DB]/[­06DB]
[00DB]  [­08DB]

[FRQ]
[GAIN LEFT] [GAIN RIGHT] [F-HPF FRQ]
[F-HPF SLOPE] [F-HPF GAIN] [R-HPF FRQ]
[R-HPF SLOPE] [R-HPF GAIN]

[SPEAKER SIZE] [FRONT]
1*[REAR] 2*[SUBWOOFER]
[X ' OVER] [TWEETER]
[FRONT HPF]
1*[REAR HPF]
(25 ) :2* 1*


() X ` OVER    :[LPF FRQ]/[HPF FRQ]/[SW LPF FRQ]/[R-HPF FRQ]/[F-HPF FRQ]/[FRQ] ·
.(      )   .       [THROUGH]    :[LPF SLOPE]/[HPF SLOPE]/[SW LPF SLOPE]/[R-HPF SLOPE]/[F-HPF SLOPE]/[SLOPE] ·
.   .  [THROUGH]                  :[PHASE]/[SW LPF PHASE] ·
.  :[GAIN]/[SW LPF GAIN]/[R-HPF GAIN]/[F-HPF GAIN]/[GAIN RIGHT]/[GAIN LEFT] ·
.

 24

:[SUB.W/SUB.W]    (25 ) .  [THROUGH]  [SUBWOOFER LPF]  [120HZ]   ­  [POSITION R15]     [FADER]  [POSITION R02]   ­
(22 ) .[POSITION 00]

. 3
 (37 36 ) .
:    .    · .          ·
SPEAKER SIZE .        .         · [X ` OVER]    [SPEAKER SIZE]    [NONE]    ·
.  [SUBWOOFER]/[REAR]/[FRONT]  [TWEETER]  :  ­
[WOOFER] : 3  ­


[SPK/PRE OUT]    (22 ) ([2-WAY]   [X ' OVER TYPE]     ) .     [SPK/PRE OUT]
      (37 ) .



SW

REAR

FRONT





      :() L    ( ) :() R

  [SPK/PRE OUT]
[REAR/REAR] ()
[SUB.W/SUB.W]


            (36 ) .



() R

() L







( )



  [SPK/PRE OUT]
[REAR/REAR]
[SUB.W/SUB.W]

23

[SOUND EFFECT]

(.SW2/SW1/AM/FM    ) [SPACE ENHANCE]  .    :[LARGE]/[MEDIUM]/[SMALL]
. :[OFF]

 .     :[LEVEL3]/[LEVEL2]/[LEVEL1] [SND RESPONSE] . :[OFF]

     :[HIGH]/[MIDDLE]/[LOW] . :[OFF]  .

[SOUND LIFT]

         :[ON] . :[OFF]  .

[VOL LINK EQ]

(.AUX  SW2/SW1/AM/FM    ) [K2 TECHNOLOGY] . :[OFF]  .     :[ON]

.[ON]    [SUBWOOFER SET]      1* (21 )
   [SPK/PRE OUT]      :  2* (23 ) .[SUB.W/SUB.W]
.          3*



(. 3      )   :([POSITION 00]) [POSITION F15]  [POSITION R15]
.
  :([POSITION 00]) [POSITION R15]  [POSITION L15] .

[FADER] 3*[BALANCE]

   :([LEVEL 00]) [LEVEL +06]  [LEVEL ­15] [VOLUME ADJUST]   ) .FM
(.

  ) .25      :[LOW POWER]  (.    50       .35     :[HIGH POWER]

[AMP GAIN]

(. 3      )
         (.23   "  " ) .

[SPK/PRE OUT]

  ([X ' OVER TYPE] )      " " ) . 3
(.23
.

[SPEAKER SIZE] [X ' OVER]

 "   "    .26
 [X ' OVER TYPE]      : .
(.[3-WAY]    ) . :[NO]  .    :[YES]
(.[2-WAY]    ) . :[NO]  . 3    :[YES]

[DTA SETTINGS] [CAR SETTINGS] [X ' OVER TYPE]
[2-WAY]
[3-WAY]

 22



.      .[PRESET EQ]   [USER]     · .[EASY EQ]         ·

[PRO EQ]

[62.5HZ]
) .     :([LEVEL 00]) [LEVEL +09]  [LEVEL ­09] (.

. :[OFF]  .     :[ON]

/[4KHZ]/[2.5KHZ]/[1.6KHZ]/[1KHZ]/[630HZ]/[400HZ]/[250HZ]/[160HZ]/[100HZ] [16KHZ]/[10KHZ]/[6.3KHZ]
.     :([LEVEL 00]) [LEVEL +09]  [LEVEL ­09] (.       )

.   :[2.00]/[1.50]/[1.35] [Q FACTOR] [AUDIO CONTROL]

 .     :[LEVEL +05]  [LEVEL +01] [BASS BOOST] . :[OFF]

       :[LEVEL 02]/[LEVEL 01] . :[OFF]  .

[LOUDNESS]

(. 3      ) :([SUB.W +03]) [SUB.W +06]  [SUB.W 00]       (36 ) .

2*[SPK-OUT] 1*[SUB.W LEVEL]

:([SUB.W 00]) [SUB.W +10]  [SUB.W ­50]
      (SW)
(37 ) .

[PRE-OUT]

. :[OFF]  .    :[ON]

[SUBWOOFER SET]

(22 ) : 2* 1*

.4   3

.     1

)   `(4  3 )  '    2

.(

         2   3

.

.

  4

.



[XX] :

.          [EASY EQ]       [USER]  ·
.[PRO EQ] /[JAZZ]/[HIP HOP]/[HARD ROCK]/[DRVN 1]/[DRVN 2]/[DRVN 3]/[FLAT]
[CLASSICAL]/[USER]/[R&B]/[POP]     ([DRVN 1]/[DRVN 2]/[DRVN 3])
.

.

.[PRESET EQ]   [USER]     ·

.[PRO EQ]         ·

[+03] :)

[+06]  [00] :2*1*[SUB.W SP]

[00]

[+10]  [­50] :1*[SUB.W]

[LVL 00]

[LVL+09]  [LVL­09]

:[BASS]

[LVL 00]

[LVL+09]  [LVL­09]

:[MID]

([LVL 00]

[LVL+09]  [LVL­09]

:[TRE]

[EQ SETTING] [PRESET EQ]
[EASY EQ]

21

Bluetooth  iPod/iPhone
.   Bluetooth  iPod/iPhone
.iPod BT        iPhone/iPod      iPhone/iPod    ·
(9 ) .USB         USB    iPod/iPhone     ·   iPod BT     . iPod USB    iPod BT
.Bluetooth
Bluetooth
Android/iPod touch/iPhone   (Spotify)      .   Bluetooth
.    USB        ·
Spotify
: (6 ) .[SOURCE SELECT]  [SPOTIFY SRC]  [ON]
.  Spotify    1 (13 ) .Bluetooth     2 (iPod/iPhone ) SPOTIFY       3
.(Android ) SPOTIFY BT  .
.USB    Spotify    Spotify   · (11 )

BLUETOOTH®

[XX] :

[REMOTE APP]

.  (ANDROID  IOS)   [SELECT]

  Bluetooth    iPod/iPhone   :[YES] . :[NO]  .USB
   iPod USB  ) iPod BT   IOS    .  (USB    iPod/iPhone  :       ·
      iPod BT     ­ .USB
.iPod BT   iPod USB     ­
 .Bluetooth    Android    :[YES] . :[NO]

[IOS] [ANDROID]

.   Android

[ANDROID *LIST]

.    iPod/iPhone      :[IOS CONNECTED]
.USB     Bluetooth   .   IOS    :[IOS NOT CONNECTED]
     :[ANDROID CONNECTED] .Bluetooth    Android
  Android    :[ANDROID NOT CONNECTED]
.

[STATUS]

.[YES]   [SELECT]  [ANDROID] *

 20


(   )


*.5


     Bluetooth

       "() Play"   * .
.

JVC Remote
JVC      JVC Remote   (USB     Bluetooth ) iPod/iPhone
.(Bluetooth ) Android

:     JVC Remote       ·
. .<http://www.jvc.net/cs/car/>      ·

.

    1

.  `(4  3 )  '    2

(20 )

.       2   3

.

  4

.



BLUETOOTH®
 -- BLUETOOTH .4   3
  Bluetooth       BT AUDIO    .

Bluetooth
SOURCE  ) BT AUDIO        1 .(
. BT AUDIO       · .  Bluetooth      2


.d  .J / K  .H / I
.H / I
(   )
(   )
(   )





.    :KD-X462BT .*ENTER  :KD-X368BT .2J / 1K  .S / T
.S / T

 /
    /   /

. 4B



[ALL REPEAT] [TRACK REPEAT] [REPEAT OFF]
. 3A



[ALL RANDOM] [GROUP RANDOM] [RANDOM OFF]

 "/   "  /    .11

19

.      (C)  (B)  (A)   3
   :( 6   ) "XXXXXX" "PAIRING" (A)     Bluetooth       .   Bluetooth .Bluetooth   "0000"  :"PIN IS 0000" "PAIRING" (B) .  Bluetooth    :"PAIRING" (C)
  " " "PAIRING OK"       .Bluetooth
Bluetooth    "CONNECT NOW USING PHONE"    .      .  "TESTING"
.      / 2*"AUD.STREAM OK" / 1*"HANDS-FREE OK" / "PAIRING OK"
 : 3*"PBAP OK"
(HFP)       1* (A2DP)       2* (PBAP)        3*
       "PAIRING DELETED"   30  .
             · .

BLUETOOTH®

.( 6 )     .      1     :KD-X462BT VOL +/­  :KD-X368BT
.   S / T   2        2  1
. .   3    :KD-X462BT *ENTER :KD-X368BT
.:[OFF]  .Blue:[toOoNth]
/iPhone)  Bluetooth      :[ON]      .USB      (iPod touch
. :[OFF]  .
     ) Bluetooth    :[YES] . :[NO]  .(
 .("KD-X3 BT"/"KD-X4 BT")    :[MY BT NAME] .    :[MY ADDRESS]

[PIN CODE EDIT] (0000)
[RECONNECT] [AUTO PAIRING]
[INITIALIZE] [INFORMATION]

Bluetooth

. Bluetooth        . Bluetooth      ·

.

    1

." " "CHECK MODE" "BLUETOOTH"

.   "PIN IS 0000" "SEARCH NOW USING PHONE"

/"KD-X4 BT")        2

. 3  Bluetooth   ("KD-X3 BT"

 18

BLUETOOTH®



.Bluetooth

  1

.(6  1 )       2

.    3

   :KD-X462BT

*ENTER :KD-X368BT

.        "NO PRESET"

Bluetooth

.

    1

)   `(4  3 )  '    2

.(

         2   3

.

.

  4

.



[XX] :

[BT MODE]

.           *[PHONE SELECT]

.      " "   .      " "

*[AUDIO SELECT]

.   `(4  3 )  '    1 [DEVICE DELETE] .[NO]  [YES]  `(4  3 )  '    2

.      Bluetooth   Bluetooth    *



.

     1

            2

.

    .         · .





.(6  1 )     6

.Bluetooth

  1

[RECENT CALL]  `(4  3 )  '    2

.[DIAL NUMBER]  [PHONEBOOK]

    `(4  3 )  '    3

.

.

   :KD-X462BT

*ENTER :KD-X368BT

.(6  1 )         4

.    "MEMORY P(   )"

 2   [DIAL NUMBER]          .

17

(.PBAP       )
.        1    :KD-X462BT VOL +/­ :KD-X368BT
  ">"       "<"   · .      "M"
      "NO HISTORY"   ·
.
.    2    :KD-X462BT
*ENTER :KD-X368BT

[RECENT CALL]

(.PBAP       )  9  0  Z  A)    2J / 1K   1
.(OTHERS
 Z  A       "OTHERS"   · .9  0
.  `(4  3 )  '    2    `(4  3 )  '    3
.

[PHONEBOOK]

           · .

            ·









) .    (."U"   "Ú"

.(+ #  )   (9  0)       1     :KD-X462BT VOL +/­  :KD-X368BT
.   S / T   2 .      2  1
.    3    :KD-X462BT
*ENTER :KD-X368BT

[DIAL NUMBER]

                " ) .
(.17   "

[VOICE]

BLUETOOTH®



.Bluetooth

  1

)   `(4  3 )  '    2

.(

.       2   3

.



[XX] :
       :[30 SEC]  [01 SEC] . :[OFF]  .( )
     :([COLOR 08]) [COLOR 49]  [COLOR 01] . :[OFF]  .

[SETTINGS] [AUTO ANSWER]
[RING COLOR]



  .             .

.Bluetooth

  1

."(  )"



  Bluetooth     ·

.

."(  )"

)   `(4  3 )  '    2

.(

         2   3

.

.



 16



...

.

    1

`(4  3 )  '    2

.(  )

    2   3

.

.

  4

.



[XX] :

[LEVEL +10]  [LEVEL ­10]    :([LEVEL ­04])
.

[MIC GAIN]

:([LEVEL 00]) [LEVEL +05]  [LEVEL ­05]
.

[NR LEVEL]

:([LEVEL 00]) [LEVEL +05]  [LEVEL ­05]
       .

[ECHO CANCEL]

BLUETOOTH®


(   )
(   )
    .J / K / H / I
(   ) 2*VOL +
  VOL ­  .
(   )





...

.



   :KD-X462BT

*ENTER :KD-X368BT



.



   :KD-X462BT

*ENTER :KD-X368BT



...

.



   :KD-X462BT



*ENTER :KD-X368BT

.





.          :KD-X462BT 2* VOL +/­  :KD-X368BT

1*    ([15] :) [35]  [00]

.

       3*

.          1* .   15     VOL +      2*
. Bluetooth      3*

15

  -- BLUETOOTH .4   3


:    (16 ) .[RING COLOR]           ·    [AUTO ANSWER]         ·
(16 ) .
:   .[RING COLOR]             ·
(16 ) .Bluetooth            ·

.


.J / K / H / I
    .J / K / H / I
    .J / K / H / I





...

.



   :KD-X462BT

*ENTER :KD-X368BT





.

   :KD-X462BT *ENTER :KD-X368BT







.

   :KD-X462BT

*ENTER :KD-X368BT



BLUETOOTH®
  ""      "PAIRING COMPLETED"          KD-X462BT  .Bluetooth
.(27   [FORMAT] )  Bluetooth
.(SSP)       · .  ( )      ·        Bluetooth      · .17   [DEVICE DELETE]       . .      Bluetooth   Bluetooth    ·       BT AUDIO     (19 ) .     Bluetooth    .    Bluetooth      ·
.  " "   Bluetooth     ·
."LOW BATTERY" .   Bluetooth      ·

    USB    iPod touch/iPhone    . (Bluetooth )
.           :KD-X462BT *ENTER :KD-X368BT
:       .      Bluetooth   ­
(18 ) .[ON]    [AUTO PAIRING] ­

 14

  Bluetooth
.      1   ("KD-X3 BT" /"KD-X4 BT")        2
.Bluetooth .  "BT PAIRING"     (PIN)         Bluetooth     ·
. .     (B)  (A)   3 .        Bluetooth
:KD-X462BT (A) "BACK ­ NO" "VOL ­ YES" "XXXXXX" " "
:KD-X368BT "BACK ­ NO" "ENTER ­ YES" "XXXXXX" " " .      6       "XXXXXX"  .Bluetooth
.          :KD-X462BT *ENTER :KD-X368BT
.   Bluetooth    :KD-X462BT (B)
"BACK ­ NO" "VOL ­ YES" " " :KD-X368BT
"BACK ­ NO" "ENTER ­ YES" " " .
   :KD-X462BT *ENTER :KD-X368BT
  "0000"        "PIN 0000" "PAIRING"   · .Bluetooth
(18 ) .          .  Bluetooth     "PAIRING"   ·

BLUETOOTH®
       .   Bluetooth
 -- BLUETOOTH
 Bluetooth  (HFP)     ­ (A2DP)     ­ (AVRCP) /      ­
(SPP)    ­ (PBAP)      ­
 Bluetooth   (SBC)    ­ (AAC)    ­





()



   ( )
.

13

.      "(  ) Your Music"     "REMOVED"
.  Spotify   "(  ) Your Library"



.

 1

   `(4  3 )  '    2

.

.Spotify

   `(4  3 )  '    3

.

.

     :KD-X462BT

VOL +/­     :KD-X368BT

.



Spotify


.d
.H*1 / I  .J / K  (   ) (   )
(   )


:KD-X462BT .
:KD-X368BT .*ENTER  .S*1 / T
.2J / 1K
.5     . 4B
1*[ONE REPEAT] [ALL REPEAT] [REPEAT OFF]
.1* 3A  [RANDOM OFF] [ALL RANDOM]

 /


2*     3*
  3*

.     1*       .        2*
.    .       3*

    ...Spotify
.           :KD-X462BT *ENTER :KD-X368BT
 "(  ) Your Music"     "SAVED"  .  Spotify   "(  ) Your Library"

 12

Spotify
:   (iPod touch/iPhone)   Spotify
.Spotify      (6 ) .[SOURCE SELECT]  [SPOTIFY SRC]  [ON]  ·

USB

  .  Spotify    1
.USB      2 :KD-X462BT
*iPhone/iPod

USB

:KD-X368BT *iPhone/iPod

ANDROID/iPod/USB

/

.[HEAD MODE]      iPod

.

 1

. /  `(4  3 )  '    2

.  `(4  3 )  '    3

(USB    )   .
.             :KD-X462BT
VOL +/­     :KD-X368BT
 iPod USB    )     (iPod BT
.
Z  A)        .(OTHERS 9  0
.      2J / 1K  :KD-X462BT 2J / 1K  :KD-X368BT
.9  0  Z  A       "OTHERS"  ·

.

       ·

.

     ·

.SPOTIFY        3
.        *

11


.  5MODE  USB
.       .(Mass Storage Class)       ·
.     ·
JVC Remote
JVC      JVC Remote  .(USB   ) iPod/iPhone    :
    JVC Remote       · .
.<http://www.jvc.net/cs/car/>      ·
(19 ) .Bluetooth

 (iPod BT )  iPod USB    .  5MODE
.   iPod   :[HEAD MODE]    . iPod   iPod   :[IPHONE MODE]      /
.

ANDROID/iPod/USB

.4   3


    .H / I
.H / I  .J / K

   .S / T
.S / T  .2J / 1K
. 4B

/WMA/MP3  : FLAC/WAV/AAC
iPod :

[ALL REPEAT]/[FOLDER REPEAT]/[TRACK REPEAT]
[REPEAT OFF]/[ALL REPEAT]/[ONE REPEAT] . 3A

/WMA/MP3  : [RANDOM OFF]/[ALL RANDOM]/[FOLDER RANDOM] FLAC/WAV/AAC
iPod : [RANDOM OFF]/[ALL RANDOM]/[SONG RANDOM]

 3*/
  4*  5*3*
  5*3*

.ANDROID    3* .ANDROID/iPod     4* .[HEAD MODE]       :iPod  5*

 10

USB    KD-X462BT:

ANDROID/iPod/USB
  .
USB
1*USB 2.0  ( ) iPod/iPhone

AUX
: .
(6 ) .[SOURCE SELECT]  [BUILT-IN AUX]  [ON]  ·



.( )      1

   3.5     ( ) "L"

:KD-X462BT

USB    KD-X368BT:

1*iPhone/iPod   2*ANDROID




   :KD-X368BT

1*USB  ( )
.        1*      Android   Android    2*
.Android

   3.5     ( ) "L"
.AUX        2 .        3
            .

9

         :[ON] 2*[REGIONAL] . :[OFF]  ."AF"

          :[ON]       Radio Data System
. :[OFF]  .

2*[AF SET]

)         :[ON]

2*[TI]

          ("TI"

. :[OFF]  .SW2/SW1/AM

.( ) PTY   2*[PTY SEARCH]     PTY
.

.1   [WEEKLY]  [ONCE]      1* .FM         2*

PTY
[SCIENCE] [CULTURE] [DRAMA] [EDUCATE] [SPORT] [INFO] [AFFAIRS] [NEWS] [EASY M] () [ROCK M] () [POP M] () [VARIED]
[FINANCE] [WEATHER] [OTHER M] () [CLASSICS] [LIGHT M] () [COUNTRY] [JAZZ] [LEISURE] [TRAVEL] [PHONE IN] [RELIGION] [SOCIAL] [CHILDREN]
[DOCUMENT] [FOLK M] () [OLDIES] [NATION M] ()



[XX] :

[TUNER SETTING]

.           [RADIO TIMER]
.        :[OFF]/[WEEKLY]/[DAILY]/[ONCE] 1    :[SW2]/[SW1]/[AM]/[FM] 2
 :(SW2/SW1/AM ) [06]  [01]/(FM ) [18]  [01] 3
.   .  1*  4
.  "M"

.        .   ·
[SOURCE SELECT]  [SW2 SRC]/[SW1 SRC]/[AM SRC]  [OFF]  · (6 ) .SW2/SW1/AM

    :[SSM 13­18]/[SSM 07­12]/[SSM 01­06]

"SSM"   .FM   18   [SSM 13­18]/[SSM 07­12]

   . 6



.  12

[SSM]

 .    SW2/SW1/AM    :[ON] . :[OFF]
/        ·     /   .
.

[LOCAL SEEK]

FM         :[AUTO]  :[WIDE]  (.      ) .       FM
.

[IF BAND]

 .      FM   :[ON] . :[OFF]
 .           :[ON] . :[OFF]

[MONO SET] 2*[NEWS SET]

 8





.(6  1 )

()

.

 1

   `(4  3 )  '    2

.



.

    1

)   `(4  3 )  '    2

.(8

         2   3

.

.

  4

.



.4   3

SW1  AM  FM         1 .SW2
(     H / I  ) S / T  2 .    ()
 H / I    ) S / T        "M"   (    .
   FM        "STEREO"  "ST"  · .
.FM        FM       ·

.SW2/SW1/AM   6  FM   18


....    .(6  1 )
() ."PRESET MODE"         1
   :KD-X462BT *ENTER :KD-X368BT
   `(4  3 )  '    2 .
.   "MEMORY"

7



 )      :[YES] . :[NO]  .(
Clock Time (CT)       :[ON]  .FM Radio Data System       . :[OFF]
         :[ON] . :[OFF]  .
         .
.[ENGLISH]

[FACTORY RESET] [CLOCK]
[TIME SYNC]
[CLOCK DISPLAY] [ENGLISH] [ESPANOL]

   3

.     1

)   `(4  3 )  '    2

.(

.       2   3

.

  4

.



[XX] :

(. 3      ) .  :[OFF]  .     :[ON]

[SYSTEM] [KEY BEEP]

(7 ) . :[OFF]  .   AM  :[ON] (7 ) . :[OFF]  .   SW1  :[ON] (7 ) . :[OFF]  .   SW2  :[ON] . :[OFF]  .   SPOTIFY BT/SPOTIFY  :[ON]
(11 ) (9 ) . :[OFF]  .   AUX  :[ON]

[SOURCE SELECT] *[AM SRC] *[SW1 SRC] *[SW2 SRC]
*[SPOTIFY SRC]
*[BUILT-IN AUX]

[F/W UPDATE] [UPDATE SYSTEM]

 )  :[NO]  .    :[YES] .(
          .<http://www.jvc.net/cs/car/>

[F/W UP xxxx]

.      *

 6



.4   3

   1
:    (6   [YES]  [FACTORY RESET]  )

:KD-X462BT "VOLUME KNOB" "PRESS" "CANCEL DEMO"
.    1 .  [YES]
.      2 ."DEMO OFF"

:KD-X368BT "PRESS ENTER" "CANCEL DEMO"
.*ENTER  1 .  [YES]   .  *ENTER   2
."DEMO OFF"

    2

.

    1

.[CLOCK]  `(4  3 )  '    2

.  `(4  3 )  '    3

[24H]  [12H] [CLOCK FORMAT]    [CLOCK ADJUST]

.  `(4  3 )  '    4

    [DATE SET]

.

  5

.




(RM-RK52)
(4  3 ) .

.



.VOL ­  VOL +       ·     VOL +
.   15
     d   .
 .      ·
.
. SOURCE




5



      ) (.


  :KD-X368BT



        5
.







.SRC-B  .     ·

.VOL +/­  .   15     VOL +      ·

.      *ENTER   .             .      ·

. SRC-B  · .  VOL +/­   SRC-B  ·

(31 ) .



.  VOL +/­  1 . *ENTER  2





 4











:KD-X462BT


        5
.



      ) (.



.BSRC  .     ·

.

.           .             .      ·

. BSRC  · .       BSRC   ·

(30 ) .



.      1 .    2






3



        .            ·
.     .             ·



.            ·

.        ·

./





























/









   .

.         .                  .

 :  .               · .                   ·
: .            ·            .            ·
. .      (    )        ·  .(36 )                 ·
.
:(RM-RK52)     .            ·         .              ·
.  .                 ·

    .KD-X368BT  KD-X462BT             ·
(6 ) .      .       · .    [XX] ·
.        (XX ) ·



2



3



5



   1

    2

   3

7



9

AUX

9

ANDROID/iPod/USB

11

Spotify

13

BLUETOOTH®

21



27



29







32

34

/

38



 2


KD-X368BT / KD-X462BT





© 2018 JVC KENWOOD Corporation

0818DTSMDTJEIN



References

Acrobat Distiller 10.1.16 (Windows)
