Key No. Part Description. Qty. Part No. 1. Pipe Nipple (Pkg CK Series Only). 1. U37-67P. 2. Jet Body. 1. N40-92N. 5. 3/8-16x7/8” Hex Washer Hd. Cap Screws*. 2.

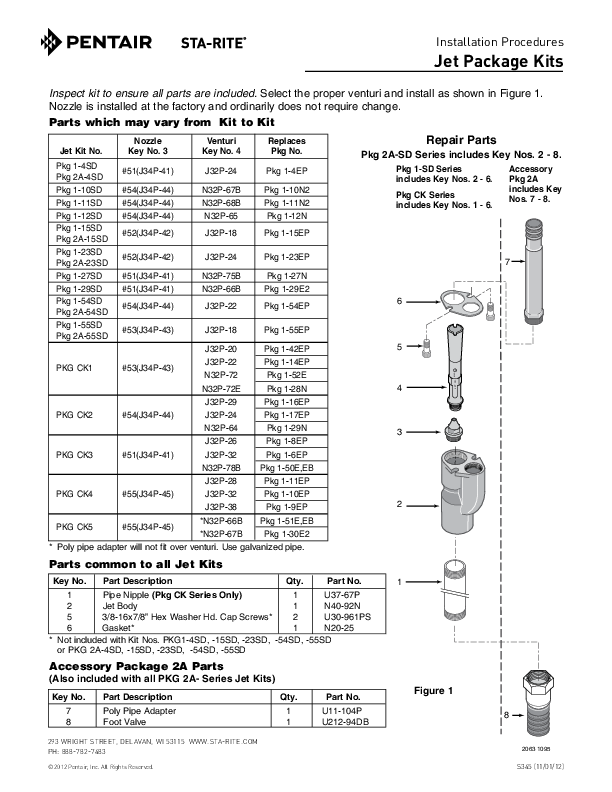

Installation Procedures Jet Package Kits Inspect kit to ensure all parts are included. Select the proper venturi and install as shown in Figure 1. Nozzle is installed at the factory and ordinarily does not require change. Parts which may vary from Kit to Kit Jet Kit No. Nozzle Key No. 3 Venturi Key No. 4 Replaces Pkg No. Pkg 1-4SD Pkg 2A-4SD #51(J34P-41) J32P-24 Pkg 1-4EP Pkg 1-10SD #54(J34P-44) N32P-67B Pkg 1-10N2 Pkg 1-11SD Pkg 1-12SD Pkg 1-15SD Pkg 2A-15SD Pkg 1-23SD Pkg 2A-23SD #54(J34P-44) #54(J34P-44) #52(J34P-42) #52(J34P-42) N32P-68B N32P-65 J32P-18 J32P-24 Pkg 1-11N2 Pkg 1-12N Pkg 1-15EP Pkg 1-23EP Pkg 1-27SD #51(J34P-41) N32P-75B Pkg 1-27N Pkg 1-29SD Pkg 1-54SD Pkg 2A-54SD Pkg 1-55SD Pkg 2A-55SD #51(J34P-41) #54(J34P-44) #53(J34P-43) N32P-66B J32P-22 J32P-18 Pkg 1-29E2 Pkg 1-54EP Pkg 1-55EP J32P-20 Pkg 1-42EP PKG CK1 #53(J34P-43) J32P-22 N32P-72 Pkg 1-14EP Pkg 1-52E N32P-72E Pkg 1-28N J32P-29 Pkg 1-16EP PKG CK2 #54(J34P-44) J32P-24 Pkg 1-17EP N32P-64 Pkg 1-29N J32P-26 Pkg 1-8EP PKG CK3 #51(J34P-41) J32P-32 Pkg 1-6EP N32P-78B Pkg 1-50E,EB J32P-28 Pkg 1-11EP PKG CK4 #55(J34P-45) J32P-32 Pkg 1-10EP J32P-38 Pkg 1-9EP PKG CK5 #55(J34P-45) *N32P-66B *N32P-67B Pkg 1-51E,EB Pkg 1-30E2 * Poly pipe adapter will not fit over venturi. Use galvanized pipe. Repair Parts Pkg 2A-SD Series includes Key Nos. 2 - 8. Pkg 1-SD Series includes Key Nos. 2 - 6. Pkg CK Series includes Key Nos. 1 - 6. Accessory Pkg 2A includes Key Nos. 7 - 8. 7 6 5 4 3 JET NO. J32P- 24 2 Parts common to all Jet Kits Key No. Part Description Qty. Part No. 1 1 Pipe Nipple (Pkg CK Series Only) 1 U37-67P 2 Jet Body 1 N40-92N 5 3/8-16x7/8" Hex Washer Hd. Cap Screws* 2 U30-961PS 6 Gasket* 1 N20-25 * Not included with Kit Nos. PKG1-4SD, -15SD, -23SD, -54SD, -55SD or PKG 2A-4SD, -15SD, -23SD, -54SD, -55SD Accessory Package 2A Parts (Also included with all PKG 2A- Series Jet Kits) Key No. Part Description Qty. Part No. Figure 1 7 Poly Pipe Adapter 1 U11-104P 8 8 Foot Valve 1 U212-94DB 293 WRIGHT STREET, DELAVAN, WI 53115 WWW.sta-rite.COM PH: 888-782-7483 © 2012 Pentair, Inc. All Rights Reserved. 2063 1095 S345 (11/01/12) Shallow Well Installation Suction Port Gasket Jet Body Suction Pipe Install 1" Check Valve in horizontal line if foot valve is not used in well. Capscrew Shallow Well Installation Suction over Drive Suction Port Gasket 1367 1094 Jet Body Suction Pipe Capscrew Shallow Well Installation Drive over Suction Figure 2 Shallow Well 1369 1094 When your pump is installed as a Shallow Well pump (25 feet or less to the drawdown water level*), attach the jet to the pump as shown in Figure 2. Insert the venturi end of the jet in to the larger (suction) port in the pump. Use the gasket and washer head capscrews included with the jet. Tighten the screws evenly and firmly. * The "drawdown water level" is the distance from the pump to water while the pump is running. Deep Well Installation Deep Well Installation Suction over Drive Suction Pipe Drive Pipe Deep Well Installation Drive over Suction Drive Pipe Jet Body Suction Pipe 1368 1094 Figure 3 Deep Well Jet Body TABLE I In-well Pipe Sizes 1370 1094 HP 3/4 1 1-1/2 All Installation Multi-Stage Jet Pump Multi-Stage Jet Pump Multi-Stage Jet Pump Horizontal Jet Pump Suction 1-1/4" 1-1/4" 1-1/4" 1-1/4" Drive 1" 1-1/4" 1-1/4" 1" For long horizontal runs of piping, consult your owner's manual for recommended piping size increase. When your pump is installed as a Deep Well pump (more than 25 feet to the drawdown water level), install the jet in the well as shown in Figure 3. The gasket and capscrews included with the jet package are not needed for a deep well installation. Refer to Figure 4 for typical Deep Well installations and fittings required. Refer to your pump owner's manual or insert sheet WC80-188 for specific performance and depth setting information. 1-1/4" PolyPipe 1-1/4" Poly Pipe Adapter 1-1/4" PolyPipe 1-1/4" PolyPipe 1-1/4" Adapter 1-1/4" Coupling 1 x 1-1/4" Face Bushing 1" Nipple 1-1/4" Poly Pipe Adapter 1-1/4" Steel Pipe 1" PolyPipe 1" Adapter 1" Steel Pipe 1-1/4" Steel Pipe 1-1/4" Steel Pipe 1-1/4" Coupling 1 x 1-1/4" Face Bushing 1" Nipple Poly Pipe 1-1/4" x 1-1136/6410"94 Poly Pipe 1" x 1-11/3464"1094 Figure 4 Typical Deep Well Installations 1363 1094 Steel Pipe 1" x 1-1/4" 1365 1094 Steel Pipe 1-1/4" x 1-1/4"
