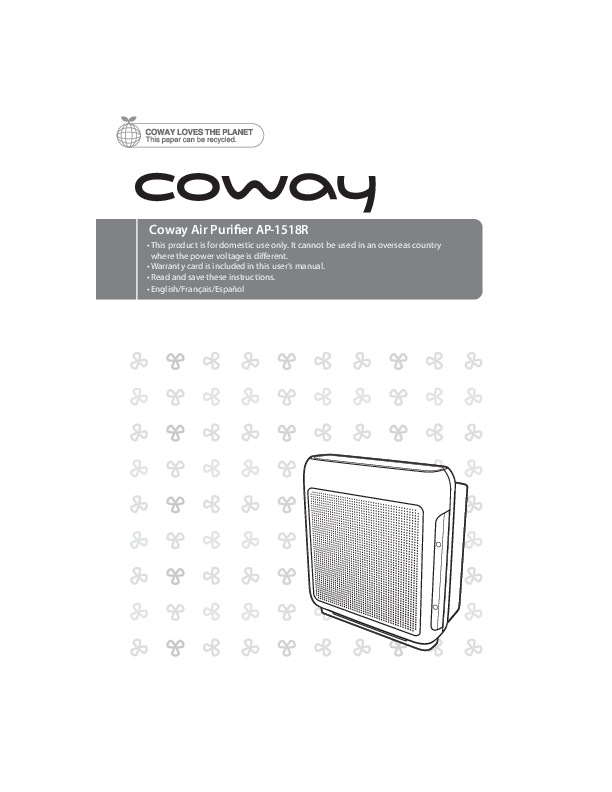

Coway Air Purifier AP-1518R

Features

1. Excellent air purification performance

The True HEPA filter is capable of trapping airborne allergens and contaminants down to 0.3 microns. The unit's filter system has been optimized to remove indoor pollutants fast and effectively.

Diagram description: A visual representation of three stages of air filtration: a coarse filter, a granular filter, and a fine particle filter.

2. Air quality indicator

It shows the indoor air pollution level measured by the dust sensor. The color of air quality indicator changes according to the indoor air pollution level in real time (Blue ➡️ Dark Purple ➡️ Red).

Diagram description: A visual representation of a digital display showing binary code, labeled 'AIR QUALITY'.

3. Filter replacement indicator

The product checks the filter replacement cycle and turns on the relevant indicator, improving customer convenience with regard to filter replacement.

Diagram description: A visual representation of a control panel with indicators labeled 'HEPA', 'ODOR', and 'FILTER RESET'.

4. Timer

The timer feature allows you to control how long you want the air purifier to run before automatically powering off.

Diagram description: A visual representation of timer settings: 'IONIZER (LIGHT 3 sec)', '1hr', '4hr', '8hr'.

Dear Customers

Thank you for using the Coway air purifier. Please read the user's manual to use and maintain the product correctly. If you encounter a problem while using the product, you may easily solve the problem by referring to the user's manual. As this manual contains the product warranty card, please keep it in a safe place.

Safety Precautions

DANGER

Failing to follow the precautions below may result in serious injury or even death.

• Do not use a damaged power plug or loose electric outlet.
• Please connect the power plug to a dedicated grounded electrical outlet for 120 V~, 60 Hz.
• Do not move the product by pulling only the power cord.
• Do not handle the power plug with wet hands.
• Do not forcefully bend the power cord or place it under a heavy object to prevent it from being damaged or deformed.
• Do not repeatedly connect and disconnect the power plug.
• If the electrical outlet is wet, carefully unplug the product and let the electrical outlet dry completely before subsequent use.
• Make sure to unplug the product before repairing, inspecting or replacing a part.
• Remove any dust or water from the power plug.
• Do not plug the product into an electrical outlet or power strip that is being used by several other appliances. Use an electrical outlet dedicated to the product.
• Unplug the system if it is not used for a long time.
• Do not attempt to repair or modify the power cord yourself.
• If the power cord is damaged, do not replace the cord yourself. Call a service center to have it replaced.
• Do not install the product near a heating device.
• Do not install the product in locations exposed to moisture or water (rainwater).
• Do not use the product in areas where flammable gases or combustible materials are used or stored.
• Do not insert sharp objects such as a gimlet into the Air quality sensor.

WARNING

Failing to follow the precautions below may result in considerable physical injury or property damage.

• The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Do not insert fingers or foreign objects into the air inlet or outlet.
• Do not let children hang on to the product or climb on it.
• When removing the front cover, exercise caution that a part of your body or any kind of object does not become stuck in the top part of the product.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.

CAUTION

Failing to follow the precautions below may result in slight physical injury or property damage.

• Do not install the product on a sloped surface.
• Do not apply force or impact to the product.
• When the product is in use, maintain a distance of at least 20 cm from the walls or adjacent objects and 30 to 60 cm above the product.
• Install the product so that no obstacles block the circulation of air around the product.
• Install the air purifier away from strong artificial lighting or direct sunlight.
• Install the air purifier at least 2 m away from electronic appliances such as a TV.
• Do not install the air purifier in a location exposed to direct sunlight.
• Replace the filters according to the filter replacement cycles.
• Clean the Pre-filter with water regularly and dry it completely before use.
• Suitable for use with solid-state speed controls.
• Cleaning and user-maintenance, such as lubrication, may result in fire, electric shock, or injury to persons.
• Unplug or disconnect the appliance from the power supply before servicing.

Parts Name

Front / Rear

Diagram description: Diagram showing the front and rear views of the Coway Air Purifier. The front view highlights the 'Front cover', 'Operation / Indication part', 'Air quality indicator', and 'Air quality sensor'. The rear view shows the 'Handle', 'Air outlet', and 'Power cord'.

Operation / Indication part

Diagram description: Detailed view of the top control panel of the Coway Air Purifier, showing buttons and indicators.

Air Purification Process

Pre-filter

It removes relatively large dust and mold, human hair, pet hair, and so on.

Deodorization filter

Deodorization Filter is particularly effective at trapping odor and harmful gas to keep your place fresh and odor-free.

True HEPA filter

The high-performance composite True HEPA filter effectively removes fine dust and cigarette smoke up to 99.97%.

Diagram description: A visual representation of the three filter stages: 1. Pre-filter (a mesh-like structure), 2. Deodorization filter (a granular texture), 3. True HEPA filter (a dense, layered structure).

How to Use

Before Use

Please check before use!

The product is for 120 V~, 60 Hz only. Make sure to connect the power plug to a grounded electric outlet (120 V~, 60 Hz) dedicated to the product.

Diagram description: Illustration of a power plug being inserted into a grounded electrical outlet.

Filter Installation

Tips:

• Make sure to remove each filter's plastic bag before installing filters.
• The product is for household use. Use the product indoors only.
• When the product is not in use, remove the power plug from the electric outlet.
• When installing filters, check that the front side of filters is in the correct direction.

Order of filters: Pre-filter ➡️ Deodorization filter ➡️ True HEPA filter

Diagram description: Diagrams illustrating the steps for filter installation: 1. Opening the front cover by pulling it. 2. Removing filters from their packaging. 3. Installing filters in the correct order (Pre-filter → Deodorization filter → True HEPA filter), showing how to push the grip firmly for the pre-filter.

Indicators and Buttons

Diagram description: Diagram of the air purifier's top panel showing indicators: Speed indicator (AUTO, 1, 2, 3), Eco mode indicator, Ionizer indicator, Timer indicator (1hr, 4hr, 8hr), Filter replacement indicator (HEPA, ODOR), and Air quality indicator. Buttons include Power, Speed, Ionizer, Timer, Filter Reset.

• 1 Speed indicator: It shows the current fan speed. Each indicator is turned on as per its airflow speed.
• 2 Eco mode indicator: It turns on when Eco mode is activated.
• 3 Ionizer indicator: It shows whether the ionizer is turned on or off.
• 4 Timer indicator: It shows the current time setting for air purification. Each indicator is turned on as per its set timer.
• 5 Filter replacement indicator: Replace the filter when this indicator is on. Refer to filter replacement cycle for each filter.
• 6 Air quality indicator: It displays the current pollution level of the room.

Operation Part

Diagram description: Diagram of the air purifier's top panel highlighting the operation buttons: Power Button, Speed Button, Ionizer Button, Timer Button, Filter Reset Button.

• 1 Power Button: Use this button to turn the air purifier on or off. * To power off, press and hold the power button for one second.
• 2 Speed Button: Use this button to adjust the fan speed. Available settings for the fan speed are Auto→1→2→3→ECO.
• 3 Ionizer button: Use this button to turn the ionizer on or off. * Press and hold the IONIZER button for 3 seconds to turn on or off the contamination indicator.
• 4 Timer Button: Use this button to turn off the air purifier after a predetermined period of time. Available timer settings are 1H, 4H, and 8H.
• 5 Filter Reset Button: When the filter replacement indicator is turned on, replace the concerned filter and press the RESET button.

Adjust Air Quality Sensor

When the product is shipped out, the air quality sensor is set to standard sensitivity. If the pollution level stays at the highest level after 2 hours of operation or stays at the lowest level for more than 1 hour when the air does not seem clean, users can adjust the sensitivity of the air quality sensor as follows.

1. While the air purifier is on, press the airflow speed button and ionizer button for 2 seconds.
2. The speed indicator will flash at 1.0 second intervals with beep. The speed indicator blinks to show the sensor sensitivity.
3. Adjust the sensitivity by pressing the speed button. The speed indicator blinks to show the sensor sensitivity.

   Speed step 1	Speed step 2	Speed step 3
   Sensitive	Standard	Insensitive

   * High sensitivity: If the air purifier indicates a pollution level of 1 for longer than one hour when the actual pollution level is higher.

   * Low sensitivity: If the air purifier continues to indicate the highest pollution level even after running the air purifier for more than two hours.

4. Press the airflow speed button and ionizer button for 2 seconds. The air purifier will then resume normal operations. * The new setting will also be applied if no button is input for 10 seconds.

Diagram description: Diagrams illustrating the process of adjusting the air quality sensor sensitivity, involving pressing buttons for specific durations and observing indicator blinks. Includes a table showing sensitivity levels: Sensitive, Standard, Insensitive.

Cleaning Method

Tips:

• Always unplug the air purifier before cleaning the product.
• Do not use detergents that contain organic solvents (solvent, thinner, etc), bleach, chlorine, or abrasives.
• Do not put the air purifier in water or spray water directly on it.

Cleaning the air quality sensor (every 2 months)

1. Open the air quality sensor cover on the right-hand side of the product. Clean the air inlet and outlet vent and then the air quality sensor with a soft brush or vacuum cleaner.

2. Wet a cotton swab lightly and clean the lens, dust inlet, and dust outlet. Clean them with a dry cotton swab to remove remaining moisture.

* Without regular cleaning, the performance of the air quality sensor deteriorates. * The cleaning cycle differs depending on the operation environment. When using the product in a dusty environment, clean the sensor more often.

Diagram description: Diagrams showing how to clean the air quality sensor, including opening the cover, cleaning the lens with a cotton swab, and identifying air inlet/outlet and dust outlet.

Cleaning the air inlet and outlet (every 2 months)

Clean the air inlet and outlet with a soft brush. * Exercise caution not to have dust fall inside the air purifier. * If covered in dust, run the air purifier in manual mode for 10 minutes to blow the dust off the vent. You may then continue with normal use.

Cleaning the front cover

Separate the front cover from the product and remove the dust attached to the surface with a soft dry brush or cloth. * Use lightly wet cloth if the contamination is serious but do not use abrasives.

Cleaning the product body (every 2 ~ 4 weeks)

Use dry, soft cloth to clean the product. * Use lightly wet cloth if the contamination is serious but do not use abrasives.

Filter Replacement

Tips:

• Check that the 'front' side of filters are in the correct direction.
• To maintain optimal performance of the product, use original Coway filters.
• Always unplug the air purifier before replacing filters.

Filter cleaning and replacement cycles

* Each service life is based on 8-hour use in maximum air speed. * The recommended filter replacement cycles may differ depending on the operating environment.

Resetting the filter replacement indicator

1. Reset indicator blinks when the filter needs to be replaced.
2. Odor LED: Deodorization Filter
   HEPA LED: True HEPA filter
3. The pollution level indicator will not turn on if the filter replacement indicator is activated.
4. After replacing filter, push the Reset button for 2 seconds.

Diagram description: Diagrams showing the control panel during the filter reset process, indicating pressing the Reset button for 2 seconds.

Forcible reset mode

When you have replaced a filter before the filter replacement cycle is reached, you can forcibly reset the filter replacement cycle back to the factory default setting.

1. When the reset function is not activated, press and hold the reset button for 2 seconds.
2. Press the reset button to select the desired filter to forcibly reset.
   Press once : Odor LED (Deodorization Filter)
   Press twice: HEPA LED (True HEPA Filter)
3. After you select the filter to reset, press and hold the reset button for 2 seconds. And then, the accumulated time in electronic time counter is erased.

* If there is no input for 5 seconds in forcible reset mode, the reset mode is cancelled.

Troubleshooting

The air purifier may operate abnormally not because of the product malfunction but because of minor causes or the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the service center just by checking the following. If the problem still persists after you check the following, contact the service center.

Product Specification

Specifications are subject to change without notice.
