User Guide for NIGHT OWL models including: Digital Video Recorder DVR Product Setup
Night Owl BTD21LSA-1610-B 816522024260 0816522024260 1007025137

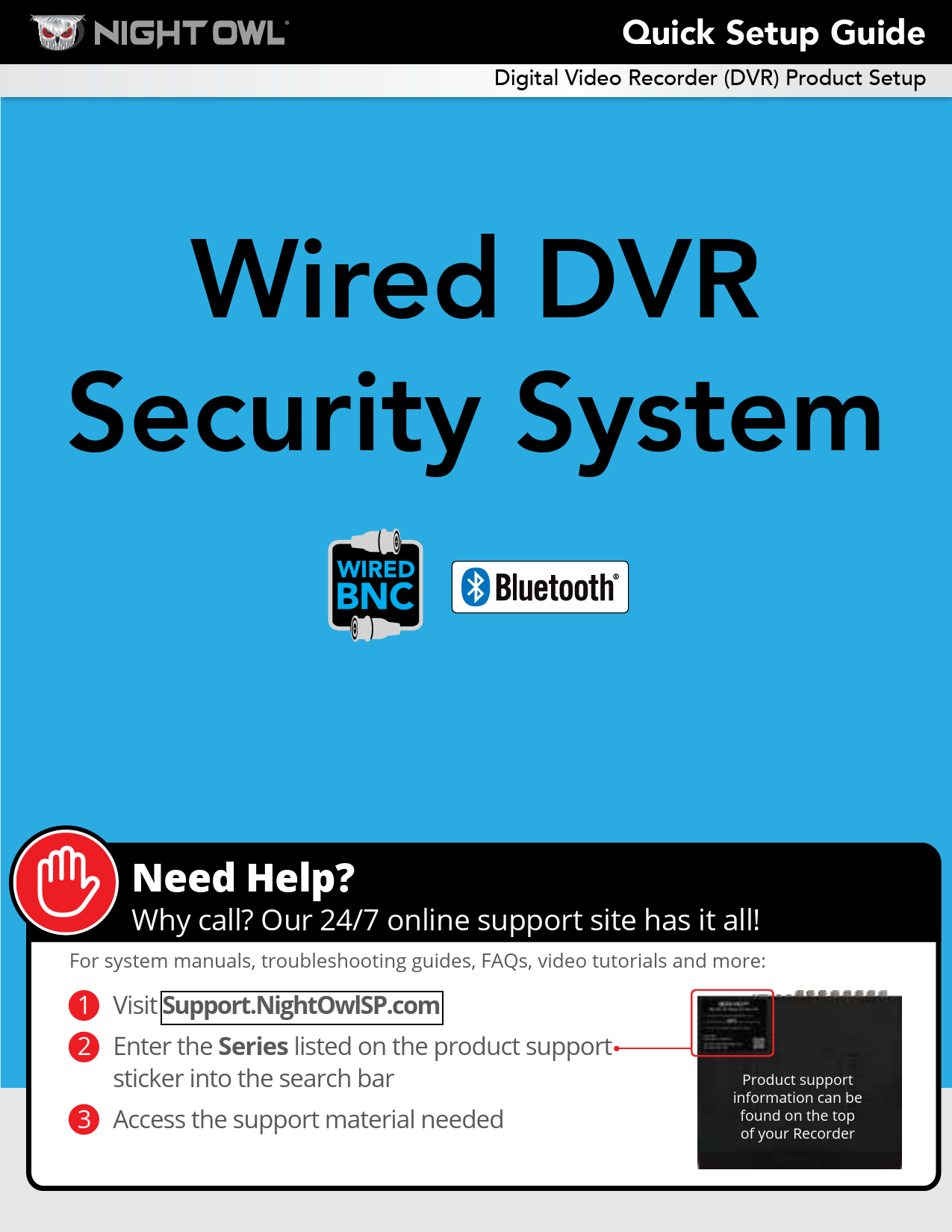

Quick Setup GuiQdeuick Setup Guide Digital Video Recorder (DVR) Product Setup Wired DVR Security System Need Help? Why call? Our 24/7 online support site has it all! For system manuals, troubleshooting guides, FAQs, video tutorials and more: 1 Visit Support.NightOwlSP.com 2 Enter the Series listed on the product support sticker into the search bar 3 Access the support material needed Product support information can be found on the top of your Recorder DVR Hardware Setup Video Follow along as we guide you through the DVR's hardware setup. Step-by-step instructions make it even easier to connect your system! Use the QR Code for easy access to the DVR Hardware Setup Video on Night Owl's YouTube Channel. For more Support Videos, go to Night Owl's YouTube page by typing www.youtube.com/nightowlsp into your web browser. Night Owl Technical Support If you require Technical Support, you should always go to Support.NightOwlSP.com first. With 24/7 access to system manuals, troubleshooting guides, FAQs, video tutorials, and more, you'll have all the support you could need. Still need more support? Before calling Night Owl Technical Support, keep in mind we can only provide phone support if: Your device is running the latest firmware version. Your device is registered. To register your device: Download Night Owl Protect from your Smart Device's App Store. Click "Sign Up" to create an account. or Go to www.no-protect.com and manually register your device. You are in front of the device with it powered on. Thank you for being a Night Owl Customer! Secure, Protect, Connect your world! What's in the Box DVR / Accessories DVR DVR Power Adapter (x1) 6 ft. HDMI (x1) Camera / Accessories 6 ft. Ethernet (x1) USB Mouse (x1) Camera(s) Camera Power Adapter(s) (1 per 4 Cameras) Power Splitter(s) (1 per 4 Cameras) 60 ft. Video/Power Cables (1 per Camera) Mounting Hardware (Varies by Model) Items Not Included Monitor (Not required for Bluetooth® Setup) RESET LAN1 LAN2 LAN3 LAN4 WAN Router / Network Access Point NOTE: If connecting to a TV or Monitor (Not Required), it must have a minimum resolution of 1080p HD. Use all of the included Night Owl accessories. Third-party accessories may not work correctly. DISCLAIMER: The exact components of your system, images, and quantities may vary depending on your model number. While these may vary, this QSG addresses the setup of your DVR and cameras. While we make every effort to provide accurate information, inaccuracies or errors may occur. We reserve the right to make changes, corrections, and/or improvements to the information and to the products, at any time without notice. Step 1: Connecting Your System NOTE: Watch our Recorder Setup Video on YouTube. Option 1: Easy Bluetooth® Wireless Setup With our easy Bluetooth® wireless setup, no TV / Monitor is required. Once your U[UVGOKUEQPPGEVGFWUKPIVJGUVGRUDGNQY[QWECPSWKEMN[PKUJVJGUGVWRTKIJVHTQO the app on your Smart Device. This is the preferred setup method for your system. Please proceed to step 1. NOTE: You may still use a TV / Monitor, it is just not required for initial setup. Option 2: Manual Setup (TV / Monitor) While our easy Bluetooth® wireless setup is preferred, you may still want to locally view your system from a TV / Monitor. The choice is yours based on your setup needs. If you want to connect a TV / Monitor, complete the two steps below then EQPVKPWGVQPKUJEQPPGEVKPI[QWTU[UVGO a b HDMI Plug one end of the included HDMI cable into the HDMI port on the back of the DVR. Plug the other end of the cable into your TV or Monitor. NOTE: To view cameras, TV or Monitor must be tuned to the same input the HDMI is plugged into. USB Plug the USB mouse into the USB port on the back of the DVR. Follow The Steps Below to Continue Setting up your System For Both Options 1 2 63 4 Router / Network Access Point (NOT INCLUDED) FROM CAMERA VIDEO / POWER CABLE To CAMERA ETHERNET Plug one end of the included Ethernet cable into the LAN port on the back of the DVR. NOTE: Night Owl recommends connecting to the Internet for the best user experience. 5 POWER CABLE CONNECTORS POWER SPLITTER CONNECTORS ETHERNET RESET LAN1 LAN2 LAN3 LAN4 WAN Plug the other end of the Ethernet cable into a port on the back of your Router / Network Access Point. NOTE: As long as your DVR is hardwired using Ethernet cabling, you can connect to any working network access point. See your product manual for more details. 6 CAMERA POWER ADAPTER To CAMERA Connect the end of the camera's cable to the end of a video / power cable labeled TO CAMERA ONLY. BEFORE installing, connect and test each camera locally to confirm they function properly. 7 Connect the video / power cable labeled TO DVR ONLY to an open video input on the DVR. NOTE: Make sure you twist and lock BNC connectors. 8 Connect the red female power leads of the video / power cables to the male power splitter ends. POWER SPLITTER SURGE PROTECTOR (NOT INCLUDED) Connect the power splitter to the camera power adapter and plug the adapter into a surge protector or Uninterruptible Power Supply (UPS). POWER Connect the DVR power adapter to the Power Input on the rear of the DVR. SURGE PROTECTOR (NOT INCLUDED) Plug the DVR power adapter into a surge protector or Uninterruptible Power Supply (UPS). Some systems beep upon booting up. NOTE: Make sure the UPS or surge protector is switched ON. Step 2: Download Night Owl Protect 2a If you're a First Time User, download Night Owl Protect from the App Store or Google Play Store onto your Smart Device. If you already have an account skip to Step 3. NOTE: Setup is the same for Smartphone and Tablet. 2b Create and verify your Night Owl Protect account. Proceed to Step 3. 5VGR5[UVGO%QPIWTCVKQP Now that your system's hardware is connected and you have the app setup on your Smart Device, it is time to configure your system. Based on whether you chose Option 1: follow the EstaespysBblueOelotpwoto. itoh®nW1i:reEleasssySeBtulupeotroOopttiho®n 2W: MiraenlueaslsSeSteuptu(TpV / Monitor), NOTE: If complete you the OhBaluvpeettoaiooTtVhn®/ sM1eto:unpEit.oaArscTyoVn/nBeMlcoutenedit,otyrooisuonwtohitll ®rseeqeWusireietrduepfolienr ftsohrsims sSaeteitountpu,abppuptecaarnonbethuesesdcrefoernvaieswyionug. NOTE: If complete you th1e hBaluvLeeotoagoTitnVh®/tosMettouhnpeit.oaArpcTpoVn. /nIfeMcyotoenuditr,oyrdoiesuvnwiocitlel r'seseqeBusliureetedutpofoionrtftohhr®ims isasetnitouonpt,abpuptecaarnonbethuesesdcrefoernvaieswyionug. enabled, you will be asked to allow access. 1 Log in to the app. If your device's Bluetooth® is not enabled, you will be asked to allow access. 2 The app will now use Bluetooth® to find the DVR. Tap "Continue" to add the DVR to your Night Owl Protect account. 2 The app will now use Bluetooth® to find the DVR. Tap "Continue" to add the DVR to your Night Owl Protect account. 3 Take a moment to name your recorder. 3 Take a moment to name your recorder. 4 The app will now pair to the DVR. Once finished, complete the remainder of the Startup Wizard right from the app and begin viewing your cameras. 4 NwiOllTcfTnrohEoome:tmIbfpaettplhehapetebeDlweaVtpithlRolpenilsiavorneenwomdvtipeacbwoaiennirgtdnhtieeenocrtcvetoaihdmefewtteohrDianetsVhgSefRrtyo.IanomOrtuetnturrhncpceeeatWa,mfpyinipoez.iuarsarhdse.dri,ght NOTE: If the DVR is not connected to the Internet, you will not be able to live view the cameras from the app. 5VGR5[UVGO%QPIWTCVKQP Option 2: Manual Setup (TV / Monitor) NOTE: Connecting your system and using the Night Owl Protect App is preferred and offers added security benefits and convenience to your mobile lifestyle. We strongly recommend you connect your DVR to the Internet to UGCTEJHQTVJGNCVGUVTOYCTG-GGRKPI[QWTTOYCTGWRFCVGFKU vital for the overall health of your system. If you are NOT connecting [QWT&84VQVJG+PVGTPGVRNGCUGOCPWCNN[WRITCFGVJGTOYCTGCPF register your device. 1 If you have not already done so, connect your DVR to a TV / Monitor using the provided HDMI cable. Follow the steps in Connecting Your System. 2 You will now begin the Startup Wizard. When you get to the following screen, click "Manual Setup (not recommended)." 3 Proceed through the rest of the Startup Wizard to finish setup. Once complete, click on "Go to Live View" to begin viewing your cameras. Not Connecting to the Internet? Night Owl strongly recommends connecting the DVR to the Internet. If you have decided not to connect, follow the onscreen prompts within the Startup Wizard. Please note that not connecting your DVR means: ;QWOWUVOCPWCNN[WRFCVGVJGFGXKEG UTOYCTGVQVJGNCVGUVXGTUKQPVQTGEGKXG 6GEJPKECN2JQPG5WRRQTV6JGNCVGUVTOYCTGXGTUKQPKUCXCKNCDNGQPVJGFGXKEGoU support page on the Night Owl Support Site. The DVR must be registered to receive Technical Phone Support. You cannot view your system remotely. Resetting your password is a much longer process to ensure security. Need More Help? For system manuals, troubleshooting guides, FAQs, video tutorials and more: Please visit Support.NightOwlSP.com Enter the Series listed on the Product Support Sticker (on top of the DVR) into the Search bar. Access the support material needed. iPhone, iPad, Mac and Mac OS X are registered trademarks of Apple Inc. Windows, Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10 are registered trademarks of Microsoft Corporation in the United States and/or other countries. REV 2104 QSG-BTD-2217macOS Version 10.15.7 (Build 19H1217) Quartz PDFContext Preview
