Quick Start Guide. MHM-97926-PBF, Rev 1.0. April 2020. AMS Asset Monitor. Online Prediction, Protection, and Process. Monitor ...
Quick Start Guide. June 2022. 2. MHM-97926-PBF, Rev. 2.6 ... Quest'ultima Vi farà pervenire una traduzione degli articoli rilevanti nella lingua.

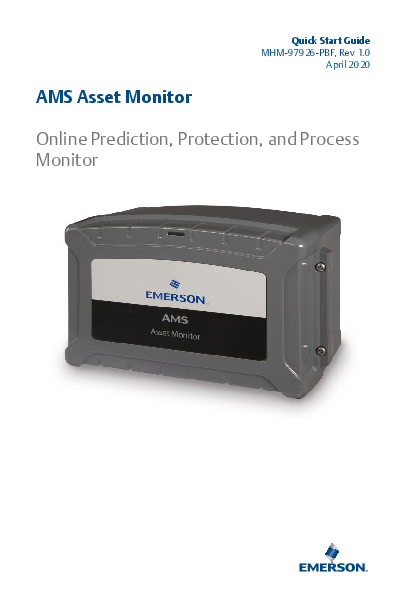

AMS Asset Monitor Quick Start Guide MHM-97926-PBF, Rev 1.0 April 2020 Online Prediction, Protection, and Process Monitor Quick Start Guide April 2020 Copyright © 2020 by Emerson. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Emerson. Disclaimer This manual is provided for informational purposes. EMERSON MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Emerson shall not be liable for errors, omissions, or inconsistencies that may be contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is not all-inclusive and cannot cover all unique situations. Patents The product(s) described in this manual are covered under existing and pending patents. Contents General.......................................................... 5 Minimum hardware requirements..................8 First connection to the AMS Asset Monitor...14 Hazardous location installation.................... 15 Certificates.................................................. 18 2 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide Vermerk zur Installation der Messketten in explosionsgefährdeter Umgebung. Soll die Messkette in explosionsgefährdeter Umgebung installiert werden, so ist auf die Einhaltung der in der Gebrauchsanweisung enthaltenen Installationshinweise zu achten. Sollten dabei sprachliche Schwierigkeiten auftreten, wenden Sie sich bitte an die Herstellerfirma, sie wird Ihnen eine Übersetzung der relevanten Artikel in der Landessprache des Verwendungslandes zukommen lassen. Nota fuq l-installazzjoni tal-ktajjen tal-kejl f'ambjent esploiv Jekk il-katina tal-kejl suppost li tigi installata f'ambjent esploiv, hu importanti li ssegwi l-istruzzjonijiet pertinenti tal-manwal.Jekk issib xi diffikultà bil-lingwa, jekk joghgbok ikkuntattja lill-manifattur biex tikseb traduzz-joni tal -paragrafi rilevanti fil-lingwa mehtiega. Anmärkning beträffande installation av mätkedjorna i explosionsfarlig miljö. Ska mätkedjan installeras i explosionsfarlig miljö, måste de anvisningar följas som ges i instruktionsboken beträffande installationen. Skulle därvid språkproblem uppstå, ber vi dig kontakta det tillverkande företaget som då kommer att sända dig en översättning av de relevanta artiklarna på användningslandets språk. Opomba za namestitev merilne verige v eksplozivno ogrozenem okolju Èe se merilna veriga namesèa v eksplozivno ogrozenem okolju, je potrebno upostevati namestitvena opozorila, ki so v Navodilih za uporabo. Èe se pri tem pojavijo jezikovne tezave, se posvetujte z izdelovalcem; poslali vam bodo prevod ustreznih èlankov v jeziku drzave, kjer se naprava uporablja. Záznam k instalácii meracích reazcov vo výbusnom prostredí Ak má by merací reazec instalovaný vo výbusnom prostredí, treba dba na dodrziavanie pokynov k instalácii, uvedených v návode na pouzitie. V prípade, ze by sa pritom vyskytli jazykové problémy, obráte sa prosím na výrobcu, ktorý Vám zasle preklad relevantných èlánkov v jazyku Vasej krajiny. Nota referente à instalação de cadeias de agrimensor em ambientes potencialmente explosivos Caso a cadeia de agrimensor deva ser instalada em um ambiente potencialmente explosivo, é imprescindível observar e cumprir as indicações de instalação das instruções de serviço. Caso tenha dificuldades idiomáticas, queira entrar em contato com a firma produtora, esta poderá enviar-lhe uma tradução dos capítulos mais importantes no idioma do país onde o produto deverá ser empregado. Wskazówka dotyczca instalacji lañcuchów mierniczych w otoczeniach zagroonych eksplozj Jeoeli lañcuch mierniczy ma byæ zainstalowany w otoczeniu zagroonym eksplozj, naley uwzglêdniæ wskazówki dotyczce instalacji zawarte w instrukcji obslugi. Jeeli w trakcie lektury wstpi jakiekolwiek problemy zwizane ze zrozumieniem tekstu, prosimy zwróciæ siê do producenta, który chêtnie przeoele tlumaczenie konkretnego artykulu w jêzyku danego kraju. Opmerking m.b.t. installatie van elektrische meet circuits in explosiegevaarlijke omgeving Dient de installatie van elektrische meet circuits in een explosiegevaarlijke omgeving te geschieden, moet men toezien dat de in de gebruikshandleiding opgenomen installatieinstructies worden nageleefd. Bij taalkundige problemen gelieve contact op te nemen met de fabrikant, deze zal u vervolgens een vertaling in de taal van het gebruiksland doen toekomen. Pastaba dl matavimo grandins rengimo sprogimo atzvilgiu pavojingoje aplinkoje Jei matavimo grandin turi bti rengta sprogimo atzvilgiu pavojingoje aplinkoje, privaloma laikytis vartotojo instrukcijoje pateikt rengimo nurodym. Jei kilt sunkum dl kalbos, prasome kreiptis gamintojo mon, kuri pateiks Jums reikiamo skyriaus vertim vartotojo valstybs kalb. Nota sull'installazione delle catene per misurazione in ambienti a rischio di esplosioni Nel caso in cui si debbano installare le catene per misurazione in ambienti a rischio di esplosioni, è necessario attenersi alle avvertenze per l'installazione contenute nelle istruzioni d'uso. Per difficoltà di carattere linguistico, rivolgetevi alla ditta produttrice. Quest'ultima Vi farà pervenire una traduzione degli articoli rilevanti nella lingua del paese d'impiego. Megjegyzs a mrláncok robbanásveszlyes környezetben törtn szerelshez. Ha a mrláncot robbanásveszlyes környezetben kell felszerelni, akkor ügyeljen a Használati útmutatóban közölt szerelsi utasítások betartására. Amennyiben nyelvi nehzsgek merülnek fel, szíveskedjen a gyártó céghez fordulni, amely elküldni Önnek a felhasználó ország nyelvre lefordított, erre vonatkozó cikket. Quick Start Guide iii Remarque concernant l'installation des chaînes de mesure dans un environnement présentant un risque d'explosion Si la chaîne de mesure doit être installée dans un environnement présentant un risque d'explosion, il est impératif de veiller à respecter les consignes d'installation contenues dans les instructions de service. S'il devait ce faisant surgir des problèmes linguistiques, veuillez vous adresser à la société fabricante: elle vous fera parvenir une traduction des articles significatifs dans la langue du pays de mise en oeuvre. Huomautus mittausketjun asentamisesta räjähdysalttiissa ympäristössä Jos mittausketju tulee asentaa räjähdysalttiissa ympäristössä, on käyttöohjeessa annettuja asennusohjeita noudatettava. Jos käyttöohjeessa käytetty kieli aiheuttaa ongelmia, kääntykää valmistajayrityksen puoleen. Se toimittaa käyttöönne tarvittavat artikkelit käyttömaan vir alliselle kielelle käännettynä. Juhend mõõdukettide ülespanemiseks plahvatusohtlikus piirkonnas. Kui panna üles mõõdukettid plahvatusohtlikkus piirkonnas, nii tuleb jälgida kasutusjuhendis sisaldatud instalationimärkmeid. Juhul kui tekkivad raskused keelega, siis pöörduge palun tootja poole. Tootja saadab emakeelse tõlge vastavalt artiklile ning maale. Notas sobre la instalación de cadenas de medición en un entorno potencialmente explosivo. Si ha de instalar la cadena de medición en un entorno potencialmente explosivo, deberá respetar las indicaciones sobre la instalación, contenidas en el manual de uso. Si surgieran dificultades lingüísticas, póngase en contacto con la empresa fabricante, que le facilitará una traducción del artículo en la lengua del país donde se emplee. Note on the installation of the measuring chains in an explosive environment If the measuring chain is supposed to be installed in an explosive environment, it is important to follow the pertinent installation instructions in the manual. Should you encounter difficulties with the language, please contact the manufacturer to obtain a translation of the relevant paragraphs into the language required. í á uí á, ooío uà íuo á u ó í áo, o ooío uá íuo , oú oo o oí á o áo oí . á áou uoí ó, oú uuí uá í, ooí oí oo á á . Info vedrørende installation af målekæderne i eksplosionstruede omgivelser Hvis målekæden skal installeres i eksplosionstruede omgivelser, skal installationsanvisningerne i brugsanvisningen følges. Hvis der i denne forbindelse opstår sproglige problemer, bedes De henvende Dem til produktionsfirmaet, som så vil sørge for, at De modtager en oversætelse af den relevante artikel på Deres sprog. Poznámka k instalaci micích etzc v prostedí s nebezpecím výbuchu. Kdyz má být micí etzec (sestávající z cidla a konvertoru) instalován v prostedí s nebezpecím výbuchu, tak je teba respektovat instalacní pokyny, které jsou soucástí návodu k upotebení. Kdyby pi tom doslo k jazykovým potízím, tak prosíme kontaktujte výrobní firmu, která Vám relevantní clánek zasle v jazyku krajiny pouzití. Piezme par mrsanas zu instalsanu sprdziena bstams zons. Ja mrsanas de juzstda sprdzienbstam zonâ, ir jievro lietosanas instrukcij dotie instalsanas nordjumi. Ja rodas kdas valodas grtbas, ldzu griezieties pie izgatavotja firmas, kas Jums nosts nozmgâko nodau tulkojumus lietotja valsts valod. Emerson epro GmbH Jöbkesweg 3 48599 Gronau Germany T +49 2562 709 0 F +49 2562 709 401 www.Emerson.com April 2020 Quick Start Guide 1 General This quick start guide contains first steps in using the AMS Asset Monitor, information about the hazardous location installation, and certificates. For the complete installation guide and other technical documentation, go to https://emerson.com/AMSAssetMonitor and select View Product. For a current firmware file go to https://guardian.emerson.com. Table 1-1: Related documents MHM-97925-PBF MHM-97923-PBF MHM-97924-PBF Installation Guide VI Piezo CHARM Installation Guide AMS Asset Monitor Operating Manual AMS Asset Monitor Table 1-2: Product type and ordering numbers of AMS Asset Monitor, compatible DeltaV hardware, and accessories Hardware AMS Asset Monitor +24 V DC Power Module Address Terminal Screw Block Address Terminal Plug #1 VI Piezo CHARM RTD CHARM Thermocouple/mV input CHARM AI 4 to 20 mA CHARM DI 24 V DC Low-Side Sens (dry contact) CHARM DO 24 V DC High-Side CHAR Standard Terminal Block Thermocouple/mV Terminal Block Relay Output Terminal Block CHARM labeling component Product type number AM 5820-IM AM 5730 KL4502X1-DA1 KL4501X1-BA1 AM 5125 KL3031X1-BA1 KL3032X1-BA1 KL3021X1-BA1 KL3003X1-BA1 KL3002X1-BA1 KL4502X1-BA1 KL4502X1-NA1 KL4502X1-MA1 KL4502X1-VA1 Ordering number SE8701T01-IM SE8701T02-IP KL4502X1-DA1-RS KL4501X1-BA1-RS SE8701V01-PZ SE4303T03-RS SE4303T02-RS SE4303T01-RS SE4301T02-RS SE4302T01-RS SE4501-RS SE4504-RS SE4503-RS KL4502X1-VA1-RS Quick Start Guide 5 Quick Start Guide April 2020 Table 1-2: Product type and ordering numbers of AMS Asset Monitor, compatible DeltaV hardware, and accessories (continued) Hardware Replacement label for labeling component Universal mounting bracket Product type number --- --- Ordering number SE4606T02-RS SE8701UMB DANGER Because the device is electrical equipment, commissioning and service must be performed only by trained and authorized personnel. Maintenance must be carried out only by trained, specialized, and experienced personnel. DANGER The KL4502X1-MA1 CHARM Relay Output Terminal Block may have hazardous live voltages on its output terminals. This terminal block is capable to switch field power of 250 V AC. Ensure that proper safety precautions, such as de-energizing field power, are observed during installation, maintenance, or any time wiring changes are made to the CHARM Relay Output Terminal Block. 1.1 Symbols Note This symbol marks passages that contain important information. CAUTION This symbol marks operations that can lead to malfunctions or faulty measurements, but will not damage the device. DANGER A danger indicates actions that can lead to property damage or personal injury. According to IEC 61010, this symbol means that the documentation of the device must completely be read and understood before installing and commissioning of 6 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide the device. Observe all safety related instructions in this document. Warning, electric shock hazard. According to IEC 61010, this symbol means that this device must be operated with DC voltage. 1.2 Technical support You may need to ship this product for return, replacement, or repair to an Emerson Product Service Center. Before shipping this product, contact Emerson Product Support to obtain a Return Materials Authorization (RMA) number and receive additional instructions. Product Support Emerson provides a variety of ways to reach your Product Support team to get the answers you need when you need them: Phone Email Web Toll free 800.833.8314 (U.S. and Canada) +1.512.832.3774 (Latin America) +63.2702.1111 (Asia Pacific, Europe, and Middle East) ap-sms@emerson.com http://www.emerson.com/en-us/contact-us To search for documentation, visit http://www.emerson.com. To view toll free numbers for specific countries, visit http:// www.emersonprocess.com/technicalsupport. Note If the equipment has been exposed to a hazardous substance, a Material Safety Data Sheet (MSDS) must be included with the returned materials. An MSDS is required by law to be available to people exposed to specific hazardous substances. Quick Start Guide 7 Quick Start Guide April 2020 2 Minimum hardware requirements The AMS Asset Monitor BASE hardware consists of a rugged enclosure with internal electronics designed to support up to 12 CHARMs, an address module, and a +24 V DC Power Module. The BASE unit provides the infrastructure that connects the CHARMs and their field signal to the integrated analytics. For communication and configuration, the AMS Asset Monitor is equipped with three Ethernet interfaces. The following parts are required to connect to the AMS Asset Monitor BASE and to the system: · +24 V DC / 4 A external power supply · PC with one free Ethernet port for a direct one-to-one connection to the AMS Asset Monitor. · The PC must have a compatible web browser installed. Web browser Google Chrome Mozilla Firefox Apple Safari Version 78.0 or later 70 or later 12.1 or later · Ethernet cable (CAT 5 or better) 2.1 Hardware overview and preparation For the first commissioning, the AMS Asset Monitor must have installed at least the +24 V DC Power Module and an address plug. Figure 2-1 provides an overview of the AMS Asset Monitor hardware. 8 MHM-97926-PBF, Rev. 1.0 April 2020 Figure 2-1: Overview AMS Asset Monitor Quick Start Guide A. Ethernet switch with two RJ-45 connectors to daisy chain up to eight AMS Asset Monitors and to connect to an Area Controlled Network (ACN). Speed 100 Mbit B. RJ-45 Ethernet connector for configuration and connection to subsequent systems. Speed 1 Gbit C. Status light D. CHARM baseplate with 12 slots for up to 12 CHARM terminal blocks, 12 CHARMS, and a CHARM labeling component E. Mounting holes F. Door hinge G. Screws holes for securing the door H. Power module slot I. Address plug slot J. External grounding terminal K. Power supply terminals L. Covered. Non-functional. For internal use only. M. microSD Card slot (for future use) N. Reset button with status LED O. Internal grounding terminals +24 V DC Power Module installation and connection 1. Install the +24 V DC Power Module as shown in Figure 2-2. Quick Start Guide 9 Quick Start Guide Figure 2-2: +24 V DC Power Module April 2020 A. Latch in open position B. +24 V DC Power Module C. +24 V DC Power Module slot 2. Connect a +24 V DC power supply. Figure 2-3: Power supply connection A. +24 V DC Power Module slot B. Power supply terminal plug 10 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide Address plug installation Install the CHARM Address Terminal Block and the Address Plug. See Figure 2-1 for the location of the required slot. Figure 2-4: Address Plug A. CHARM Address Terminal Block B. Address Plug C. Latch in open position CHARM installation 1. Select the slot where the CHARM must be installed. CHARMs can be installed in slots 1 to 12. 2. Hook the CHARM Terminal Block into the lower part of the needed slot and push it in. Figure 2-5: CHARM Terminal Block installation Quick Start Guide 11 Quick Start Guide April 2020 The CHARM Terminal Block locks with an audible click. 3. Ensure that the latch of the CHARM Terminal Block is in the open position. If the latch is in the closed position, move it outwards to open it. Figure 2-6: Latch positions A. Latch open B. Latch close 4. Gently push the CHARM straight into the CHARM Terminal Block installed before. The CHARM latch locks with an audible click in the closed position. DANGER Do not try to install a CHARM into a CHARM Terminal Block with keying posts set for another CHARM type. This might damage the terminal block and CHARM. Always reset the keying post settings before installing another CHARM. 12 MHM-97926-PBF, Rev. 1.0 April 2020 Figure 2-7: CHARM Installation Quick Start Guide A. CHARM Terminal Block B. CHARM 5. Wire the CHARM Terminal Block according to the requirements of the installed CHARM. Quick Start Guide 13 Quick Start Guide April 2020 3 First connection to the AMS Asset Monitor Procedure 1. Ensure that the AMS Asset Monitor is powered by a +24 V DC power supply. 2. Open the AMS Asset Monitor. 3. Connect the PC to the AMS Asset Monitor. Use the lower socket of the three RJ-45 sockets (see Hardware overview and preparation). 4. Ensure that the Ethernet settings of the PC aligns to the default IP address of the AMS Asset Monitor. 5. Start your web browser and enter the default AMS Asset Monitor IP address: 169.254.153.110. 6. The web browser indicates an insecure connection. Ignore this warning and continue to connect to the AMS Asset Monitor until you reach the login dialog. Add the certificate, created by the AMS Asset Monitor, to your web browser to enable encrypted communication. 7. Enter user name and password to log into Asset Studio, the web served interface. Credentials for the first login: User name: admin Password: admin The home screen of Asset Studio opens. 8. Configure the AMS Asset Monitor according to the requirements of the assets to be monitored. 14 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide 4 Hazardous location installation Version 1.0 4.1 General installation requirements The AMS Asset Monitor must be solely connected to SELV/PELV electrical circuits to meet the requirements for explosion protection. This also applies to all devices connected to the AMS Asset Monitor. Exceptions are explicitly stated. In version 1.0, the Relay Terminal Block is approved for voltages up to 250 V. An installation in Zone 2 is permitted if the conditions stated in the following chapters are met. Ensure a distance of at least 50 mm between the outer edge of the terminals used for intrinsically safe field installation wiring and all other circuits or wirings. Use wire types and wiring apparatus with a temperature rating 70°C. 4.2 Connection requirements The wire cross-section of the used cables must be within the range of 0.34<F<2.5 mm2. Use ferrules at stranded conductors. Connect the shield of the Ethernet cable to ground at the remote station. Integrate the grounding of all cable shields into to potential equalization system. All used connectors (Ethernet- and power supply terminals) must be locked. Ensure this besides using suitable connectors by using cable glands, suitable for the respective cable diameter approved for the use in potentially explosive atmospheres. Only use the USB port at open field housing, which requires a hazard-free environment. 4.3 Special conditions of safe use 1. The USB port shall only be used in safe area, known to be nonhazardous. 2. The end user shall ensure appropriate earthing upon installation. The transmission resistance for SELV/PELV circuits must not exceed 109 . For the grounding of hazardous live voltages comply with the additional requirements of protective grounding. 3. Electrostatic charging during operation and maintenance has to be excluded. The device shall only be installed in areas where operational and process related electrostatic charges are not present. Quick Start Guide 15 Quick Start Guide April 2020 4. Final acceptance of this equipment when installed is subject to the jurisdiction of the local inspection authority. The DeltaV CHARMs have their own component certification to be assessed within the overall system. The following warnings must be observed: · WARNING: EXPLOSION HAZARD - DO NOT CONNECT OR DISCONNECT WHILE CIRCUITS ARE LIVE UNLESS AREA IS KNOWN TO BE NONHAZARDOUS AVERTISSEMENT: RISQUE D'EXPLOSION- NE PAS CONNECTER OU DECONNECTER TANT QUE LES CIRCUITS SONT SUR TENSION SEULEMENT SI LA ZONE EST CONNU POUR ÉTRE NON DANGEREUX · WARNING: DO NOT USE USB PORT UNLESS THE AREA IS KNOWN TO BE NON-HAZARDOUS AVERTISSEMENT: NE PAS UTILISER PORT USB SEULEMENT SI LA ZONE EST CONNU POUR ÉTRE NON DANGEREUX · WARNING: EXPLOSION HAZARD. DO NOT REMOVE OR REPLACE CHARM MODULES UNLESS POWER HAS BEEN DISCONNECTED OR THE AREA IS FREE OF IGNITIBLE CONCENTRATIONS AVERTISSEMENT: RISQUE D'EXPLOSION. NE PAS ENLEVER OU REMPLACER LES MODULES DE CHARME À MOINS QUE L'ALIMENTATION SOIT DÉCONNECTÉE OU QUE LA ZONE SOIT EXEMPT DE CONCENTRATIONS IGNITIBLES · WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY AVERTISSEMENT: LA SUBSTITUTION DE COMPOSANTS PEUT COMPROMETTRE LA SECURITE INTRINSEQUE 4.4 Technical data, explosion protection The AMS Asset Monitor is checked and certified for the following, if connected to SELV/PELV - electrical circuits for use in potentially explosive atmospheres: IECEx/ATEX/CSA Type of protection Identification IECEx/ATEX CSA Temperature range non-sparking nA in combination with nC and [ic], depending on the installed CHARMs II 3G - Ex nA nC [ic] IIC T4 Gc Class I Div 2, Group A, B, C, D, T4 Class I, Zone 2 Ex/AEx nA nC IIC [ic] T4 Gc -40°C < Tamb < 55°C 16 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide IECEx/ATEX/CSA Standards IECEx ATEX CSA IECEx approval number ATEX approval number CSA approval number IEC 60079-0:2011; Edition 6.0 IEC 60079-15:2010; Edition 4 EN 60079-0:2012 EN 60079-15:2010 CAN/CSA-C22.2 No. 0-10 CAN/CSA-C22.2 No. 61010-1:12 + Amd 1-18 CAN/CSA C22.2 No. 94.2-15 CAN/CSA-C22.2 No. 60079-0:15 CAN/CSA C22.2 No. 60079-0:19 CAN/CSA-C22.2 No. 60079-11:14 CAN/CSA-22.2 No. 60079-15:16 CAN/CSA C22.2 No. 213-17 CAN/CSA-C22.2 No. 60529:16 IEC 60529:2013 + COR2:2015 NEMA ANSI/IEC 60529-2004 (R2011) ANSI/UL 50E (Second Edition) ANSI/UL 61010-1 (Third Edition) ANSI/UL 121201-2017 (Ninth Edition (R2019)) ANSI/UL 60079-0-2019 (Seventh Edition) ANSI/UL 60079-11-2014 (Sixth Edition) ANSI/UL 60079-15-2013 (Fourth Edition (R2017)) IECEx BVS 20.0001X BVS 20 ATEX E 001 X 19CA70218089 4.5 Revision history Version 1.0 Date 30. April 2020 Remarks/Changes Initial version Quick Start Guide 17 Quick Start Guide 5 Certificates April 2020 18 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide Quick Start Guide 19 Quick Start Guide April 2020 20 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide Quick Start Guide 21 Quick Start Guide April 2020 22 MHM-97926-PBF, Rev. 1.0 April 2020 Quick Start Guide Quick Start Guide 23 Quick Start Guide MHM-97926-PBF, Rev. 1.0 April 2020 Emerson 835 Innovation Drive Knoxville, TN 37932 USA T +1 865-675-2400 F +1 865-218-1401 www.Emerson.com Emerson Jöbkesweg 3 48599 Gronau Germany T +49 2562 709 0 F +49 2562 709 401 www.Emerson.com/ams ©2020, Emerson. The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available on request. We reserve the right to modify or improve the designs or specifications of our products at any time without notice. All rights reserved. AMS is a mark of one of the Emerson group of companies. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners.AH XSL Formatter V6.3 MR1 for Windows (x64) : 6.3.2.23978 (2016/03/18 11:26JST) Antenna House PDF Output Library 6.3.762 (Windows (x64))
