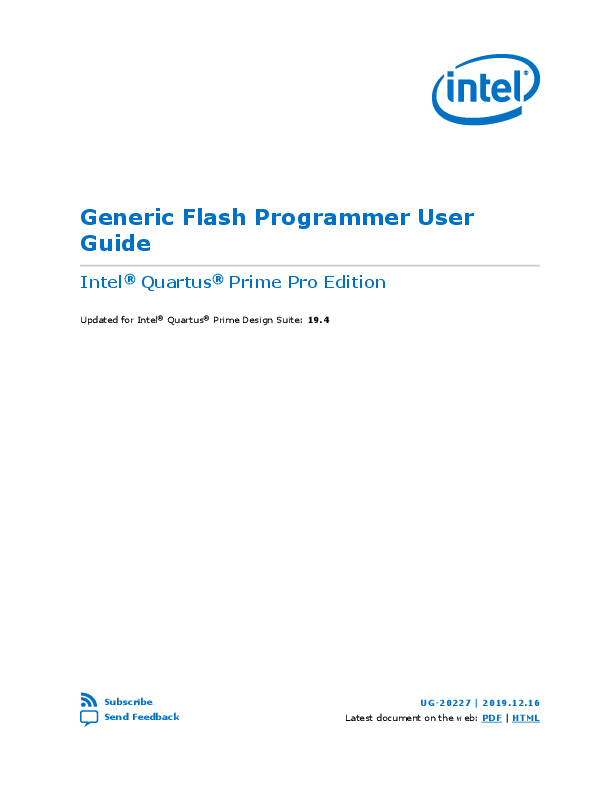

ug-qpp-gen-flash-programmer Generic Flash Programmer User Guide
Intel® Quartus® Prime Pro Edition
Updated for Intel® Quartus® Prime Design Suite: 19.4
Subscribe Send Feedback
UG-20227 | 2019.12.16 Latest document on the web: PDF | HTML
Contents
Contents
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition......................3 1.1. Supported Devices and Configuration Methods...........................................................4 1.2. Quad SPI Flash Byte-Addressing.............................................................................. 4 1.3. Generic Flash Programmer Operation....................................................................... 5 1.3.1. Generic Flash Programming (Programming File Generator).............................. 6 1.3.2. Generic Flash Programming (Convert Programming File Dialog Box)................18 1.4. Generic Flash Programmer Flow Templates (Intel Stratix 10 devices).......................... 28 1.4.1. Initialization Flow Template (Intel Stratix 10 Devices)................................... 28 1.4.2. Program Flow Template (Intel Stratix 10 Devices).........................................29 1.4.3. Erase Flow Template (Intel Stratix 10 Devices).............................................30 1.4.4. Verify/Blank-Check/Examine Flow Template (Intel Stratix 10 Devices)............. 31 1.4.5. Termination Flow Template (Intel Stratix 10 Devices).................................... 31 1.5. Generic Flash Programmer Flow Templates (Intel Arria 10 and Intel Cyclone 10 GX)......32 1.5.1. Initialization Flow Templates (Intel Arria 10 and Intel Cyclone 10 GX)............. 32 1.5.2. Program Flow Template (Intel Arria 10 and Intel Cyclone 10 GX).................... 33 1.5.3. Erase Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)........................ 34 1.5.4. Verify/Blank-Check/Examine Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)........................................................................................35 1.5.5. Termination Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)............... 36 1.5.6. Programming Flow Action Properties...........................................................37 1.6. Generic Flash Programmer Settings Reference......................................................... 39 1.6.1. Device and Pin Options............................................................................. 40 1.6.2. More Security Options Dialog Box...............................................................44 1.6.3. Input Files Tab Settings (Programming File Generator).................................. 45 1.6.4. Output Files Tab Settings (Programming File Generator)................................ 45 1.6.5. Add Partition Dialog Box (Programming File Generator)................................. 46 1.6.6. Bitstream Co-Signing Security Settings (Programming File Generator)............ 47 1.6.7. Convert Programming File Dialog Box......................................................... 47 1.6.8. Compression and Encryption Settings (Convert Programming File)..................48 1.6.9. SOF Data Properties Dialog Box (Convert Programming File)..........................49 1.6.10. Select Devices (Flash Loader) Dialog Box.................................................. 49 1.7. Generic Flash Programmer User Guide Revision History.............................................49 1.8. Generic Flash Programmer Document Archive.......................................................... 50
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 2
Send Feedback
UG-20227 | 2019.12.16 Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition
Figure 1.
This document describes how to use the Generic Flash Programmer. You can use the Generic Flash Programmer to load an FPGA configuration bitstream file into a Quad SPI flash memory device. The Quad SPI flash memory device subsequently loads the configuration data into the target FPGA via Active Serial (AS) configuration. You can optionally enable bitstream compression and encryption security to reduce the size and protect the configuration bitstream files.
Generic Flash Programmer Configuration Example
Intel FPGA
10 pin
PCB
Download Cable
JTAG header
Intel FPGA
10 pin Intel Quartus Prime
Programmer
FPGA Configuration and Flash Programming Data
JIC File Programming
AS Configuration
Quad SPI Flash Memory
The Generic Flash Programmer allows you to send configuration data over a download cable via a JTAG connection to the target FPGA device. The target FPGA then in turn writes the configuration data to the flash memory device. The AS configuration scheme loads the configuration data from the flash memory into the FPGA. For example, this method allows you to configure or reconfigure the FPGA from the flash memory after restoring power to the FPGA after power down.
Related Information · Intel® Arria® 10 Core Fabric and General Purpose I/Os Handbook
· Configuration, Design Security, and Remote System Upgrades in Stratix V Devices · Intel® Stratix® 10 Configuration User Guide · Intel® Quartus® Prime Pro Edition User Guide: Programmer
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, Enpirion, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.1. Supported Devices and Configuration Methods
The Intel® Quartus® Prime Pro Edition Generic Flash Programmer supports the following FPGA and flash memory devices and configuration methods.
Table 1.
Generic Flash Programmer FPGA and Configuration Method Support
Supported Methods
Intel AgilexTM/Intel Stratix® 10 Designs
Intel Arria® 10/Intel Cyclone® 10 GX Designs
Secondary Programming File Generation
· Programming File Generator (recommended)
· Convert Programming File dialog box (Intel Stratix 10 only)
Convert Programming File dialog box
Supported Input Files
· SRAM Object File (.sof)
SRAM Object File (.sof)
· Partial Masked SOF File (.pmsf)
· Partial Reconfiguration Raw Binary File (.rbf)
Supported Flash Programming Output File
JTAG Indirect Configuration File (.jic)
JTAG Indirect Configuration File (.jic)
Supported Configuration Schemes
Active Serial x4
· Active Serial x4 · Active Serial
1.2. Quad SPI Flash Byte-Addressing
Quad SPI flash devices typically support either 3-byte addressing, 4-byte addressing, or both for programming operations. You can only configure Intel FPGAs with a flash memory device with byte addressing that is compatible with the Intel FPGA that you plan to configure.
The following table specifies the byte-addressing compatibility of Intel FPGAs for supported flash memory devices:
Table 2.
Intel FPGA Required Flash Memory Byte Addressing
FPGA Devices
Required Flash Memory Byte Addressing
Intel Agilex devices
4-byte addressing
Intel Stratix 10 devices
4-byte addressing
Intel Cyclone 10 GX devices
4-byte addressing
Intel Arria 10 devices
4-byte addressing
Adding Dummy Clock Cycles
Flash memory devices must read either a 24-bit (3-byte) address, or 32-bit (4-byte) address before the flash device can start receiving data to write to the flash memory, or before outputting the data after the flash memory device receives a read command. Therefore, you must specify (or select a flash memory template that specifies) an appropriate dummy clock cycle value for the flash memory device, as Defining a New Flash Memory Configuration Device on page 14 describes.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 4
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 2.
Reading Configuration Data from Flash (3-Byte and 4-Byte Addressing)
Bit 0
Bit n
Command
4-Bytes Address
4 Dummy Cycles Configuration Data
Command 3-Bytes Address N Dummy Cycles
Configuration Data
3 Dummy Cycles Inserted in Bitstream
Flash Memory Receives Valid Bitstream After This Point
1.3. Generic Flash Programmer Operation
The Generic Flash Programmer facilitates the generation of appropriate secondary programming files, with definition of the connected flash memory device, and the corresponding Program, Erase, Verify, Blank-Check, and Examine flows. You can then add the generated programming files to the Intel Quartus Prime Programmer for correct flash programming implementation in hardware.
You can access settings and controls for the Generic Flash Programmer from the Programmer, Programming File Generator (Intel Agilex and Intel Stratix 10 designs), or Convert Programming File dialog box (Intel Arria 10 and Intel Cyclone 10 GX designs).
These user interfaces allow you to generate required programming files, define the flash programming device, and implement your flash programming flow.
The generic flash programming flow for the Programming File Generator varies from the Convert Programming File flow. Refer to the following configuration steps for the method that you use.
Related Information · Generic Flash Programming (Programming File Generator) on page 6 · Generic Flash Programming (Convert Programming File Dialog Box) on page 18
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 5
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.3.1. Generic Flash Programming (Programming File Generator)
You can use the Programming File Generator to generate the necessary secondary programming files for flash programming with Intel Agilex and Intel Stratix 10 devices.
The .jic secondary programming file allows you to perform JTAG programming via the FPGA Secure Device Manager (SDM) and Factory SDM helper image. The SDM controls secure access to the FPGA, and the Factory SDM helper image enables communication between the JTAG connection and the flash memory serial interface. After generating the files, you use the Intel Quartus Prime Programmer to program the flash, which in turn configures the FPGA via AS configuration.
Figure 3.
Intel Stratix 10 Flash Programming Configuration
Intel FPGA Download Cable
10 pin JTAG header
Intel FPGA
PCB
10 pin Intel Quartus Prime
Programmer
SDM
Factory SDM Helper Image
FPGA Configuration and Flash Programming Data
JIC File Programming
AS Configuration
Quad SPI Flash Memory
Generic Flash Programmer operation includes the following high level steps that this section describes in detail:
1. Step 1: Generate Primary Device Programming File on page 6--use the Intel Quartus Prime Assembler to generate the .sof FPGA configuration file.
2. Step 2: Generate Secondary Programming Files (Programming File Generator) on page 7--use the Programming File Generator to generate the .jic that you program into your flash memory device to store .sof configuration data.
3. Step 3: Program the Flash Memory Device on page 16--use the Intel Quartus Prime Programmer and connected Intel FPGA download cable to program the .jic configuration data into the flash memory device and the .sof into the FPGA via Active Serial JTAG configuration.
1.3.1.1. Step 1: Generate Primary Device Programming File
The Intel Quartus Prime Assembler generates the .sof FPGA configuration file once design compilation is complete. Prior to running the Assembler, you can specify device and pin options that impact the .sof and subsequent .jic file generation.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 6
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 4.
Follow these steps to generate a .sof for use in generic flash programming:
1. Before running the Assembler, click Assignments Device Device & Pin Options to specify options for FPGA configuration pins and other hardware settings that the .sof preserves. The following options are particularly relevant to generic flash programming. For option descriptions, refer to Device and Pin Options on page 40.
· General tab--specify JTAG user code and configuration clock source.
· Configuration tab--specify Active Serial x4 and appropriate Configuration Pin Options for the FPGA. Select Auto for Configuration device voltage, which you specify with precision at a later time.
· Security--specify settings to enable optional authentication and encryption of the configuration bitstream file.(1)
Device & Pin Options Dialog Box (Intel Stratix 10 Design)
2. To generate primary device programming files, click Processing Start Start Assembler, or double-click Assembler on the Compilation Dashboard. The Compiler confirms that prerequisite modules are complete, and launches the Assembler to generate the programming files.
1.3.1.2. Step 2: Generate Secondary Programming Files (Programming File Generator)
You can use the Programming File Generator to generate secondary programming files for alternative device programming methods, such as the .jic for flash programming, .rbf for partial reconfiguration, or .rpd for third-party programmer configuration.
The options available in the Programming File Generator change dynamically, according to your device and configuration mode selection.
(1) Security options not yet available for Intel Agilex devices.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 7
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 5. Programming File Generator
Select Device and Configuration Mode
Select Output Files To Generate, Input File Source, and Configuration Device
Generate Selected Files
1. Generate the primary programming files for your design, as Step 1: Generate Primary Device Programming File on page 6 describes.
2. Click File Programming File Generator. 3. For Device family, select your target device. 4. For Configuration mode, select Active Serial x4. 5. On the Output Files tab, enable the checkbox for generation of the JTAG
Indirect Configuration File (.jic). The Input Files tab is now available. 6. Specify the Output directory and Name for the .jic file you generate. 7. On the Input Files tab, click Add Bitstream and specify the .sof file that
contains the configuration bitstream data. To include raw data, click Add Raw Data and specify a Hexadecimal (Intel-Format) File (.hex) or Binary (.bin) file. To enable bitstream signing or encryption security settings, select the .sof file and click Properties, as Enabling Bitstream Authentication (Programming File Generator) on page 10 describes.(2)
(2) Security options not yet available for Intel Agilex devices.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 8
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 6. Input Files Tab
Figure 7.
8. On the Configuration Device tab, click Add Partition to specify the .sof file that occupies the flash memory partition, as Add Partition Dialog Box (Programming File Generator) on page 46 describes.
Add Flash Partition
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 9
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
9. On the Configuration Device tab, click Add Device to select a supported flash memory device and predefined programming flow. When you select a predefined device, you cannot modify any setting. Alternatively, click <<new device>> to define a new flash memory device and programming flow, as Defining a New Flash Memory Configuration Device on page 14 describes.
10. Click the Select button for Flash Loader and select the device that controls loading of the flash memory device.
11. After you specify all options in Programming File Generator, the Generate button enables. Click Generate to create the files.
Related Information · Input Files Tab Settings (Programming File Generator) on page 45 · Output Files Tab Settings (Programming File Generator) on page 45
1.3.1.2.1. Enabling Bitstream Authentication (Programming File Generator)
Bitstream authentication requires that you generate a first level signature chain (.qky) that includes the root key and one or more design signing keys. The root key enables the base security features and authenticates the design signing key through the public signature chain. The root key stores the SHA-256 or SHA-384 hash of the key in eFuses. You can also optionally enable firmware co-signature capability to require signing the version of configuration firmware that runs on your device. The FPGA device then can only load authenticated firmware.
Note:
Refer to the Intel Stratix 10 Device Security User Guide for step-by-step first level signature chain key generation instructions.(3)
After you specify the .qky in Assembler settings, the Assembler appends the first level signature chain to the configuration .sof that you generate.
Use the Programming File Generator to generate the signed configuration bitstream for an .sof file. The JTAG Indirect Configuration File (.jic) and Raw Programming Data File (.rpd) formats are available for Active Serial (AS) configuration. The Programmer Object File (.pof) and Raw Binary File (.rbf) are available for Avalon® Streaming configuration.
Follow these steps to enable bitstream authentication:
1. Generate a first level signature chain (.qky) that includes the root key and one or more design signing keys, as Intel Stratix 10 Device Security User Guide describes.
2. To add the first level signature chain to a configuration bitstream, click Assignments Device Device and Pin Options Security, and then specify the first level signature chain .qky for the Quartus key file option.
3. To enable more physical device security options, click the More Options button on the Security page. More Security Options Dialog Box on page 44 describes all options.
(3) Security options not yet available for Intel Agilex devices.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 10
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 8. Security Tab (Device and Pin Options)
First Level Signature Chain Enables Authentication
Physical Security Options
Figure 9.
4. Generate primary device programing files in the Assembler, as Step 1: Generate Primary Device Programming File on page 6 describes. The primary device programming file now contains data to enable first level authentication.
5. To optionally enable co-signing device firmware authentication, generate a .jic or .rbf secondary programming file with the following options, as Step 2: Generate Secondary Programming Files (Programming File Generator) on page 7 describes:
a. In Programming File Generator, click the Properties button. The Input File Properties dialog box appears.
Enabling Co-Signing Device Firmware Authentication (Intel Stratix 10 Devices)
my_key.pem co_firm.zip
my_key.qek
b. Set Enable signing tool to On.
c. For Private key file, specify a design signing key Privacy Enhanced Mail Certificates file (.pem) for firmware co-signing. This key can be separate from the FPGA design signing key.
d. For Co-signed firmware, specify a Quartus Co-Signed Firmware file (.zip).
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 11
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
e. Click OK. 6. Use the Programmer to configure the device with the .jic or .rbf.
Related Information · Step 1: Generate Primary Device Programming File on page 6 · Step 2: Generate Secondary Programming Files (Programming File Generator) on
page 7 · Intel Stratix 10 Device Security User Guide
For detailed information on generating device security keys.
Specifying Additional Physical Security Settings (Programming File Generator) Intel Stratix 10 devices can store security and other configuration settings in eFuses. You can enable additional physical security settings in eFuses to extend the level of device security protection.
To specify additional physical device security settings, follow these steps: 1. Click Assignments Device Device and Pin Options Security. 2. On the Security tab, specify the First Level Signature Chain .qky file that
contains the root key and one or more design signing keys for the Quartus key file setting. 3. Click the More Options button and specify any of the following:
Figure 10. More Security Options Dialog Box
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 12
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Table 3.
More Security Options Dialog Box Settings
Option Disable JTAG
Force SDM clock to internal oscillator
Force encryption key update
Disable virtual eFuses Lock security eFuses
Disable HPS debug Disable encryption key in eFuses
Disable encryption key in BBRAM
Description
Values
Disables JTAG command and configuration of the device. Setting this eliminates JTAG as mode of attack, but also eliminates boundary scan functionality.
Disables an external clock source for the SDM. The SDM must use the internal oscillator. Using an internal oscillator is more secure than allowing an external clock source for configuration.
Specifies that the encryption key must update by the frequency that you specify for the Encryption update ratio option. The default ration value is 31:1. Encryption supports up to 20 intermediate keys.
· Off--inactive
· On--active until wipe of containing design
· On sticky--active until next POR
· On check--checks for corresponding blown fuse
Disables the eFuse virtual programming capability.
Causes eFuse failure if the eFuse CRC does not match the calculated value.
Disables debugging through the JTAG interface to access the HPS.
Specifies that the device cannot use an AES key stored in eFuses. Rather, you can provides an extra level of security by storing the AES key in BBRAM.
Specifies that the device cannot use AES key stored in BBRAM. Rather, you can provides an extra level of security when you store the AES key in eFuses.
4. Click OK.
1.3.1.2.2. Enabling Bitstream Encryption (Programming File Generator)
To enable bitstream encryption, you must first generate a first level signature chain (.qky) that enables encryption options in the GUI. Next, you generate the encrypted configuration bitstream in the Assembler. Finally, you generate a secondary programming file that specifies the AES Encryption Key file (.qek) for bitstream decryption.
Follow these steps to enable bitstream encryption:
1. Generate a First Level Signature Chain that includes the root key and one or more design signing keys, as Intel Stratix 10 Device Security User Guide describes.
2. Click Assignments Device Device and Pin Options Security.
3. For the Quartus key file setting, specify the first level signature chain .qky that contains the root key and one or more design signing keys.
4. Turn on Enable programming bitstream encryption, and specify one or more of the following:
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 13
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Table 4.
Assembler Encryption Security Settings
Option Encryption key storage select Encryption update ratio
Enable scrambling More Options
Description
Specifies the location that stores the .qek key file. You can select either Battery Backup RAM or eFuses for storage.
Specifies the ratio of configuration bits compared to the number of key updates required for bitstream decryption. You can select either 31:1 (the key must change 1 time every 31 bits) or Disabled (no update required). Encryption supports up to 20 intermediate keys.
Scrambles the configuration bitstream.
Opens the More Security Options dialog box for specifying additional physical security options.
5. Generate primary device programing files in the Assembler, as Step 1: Generate Primary Device Programming File on page 6 describes.
6. Generate a .jic or .rbf secondary programming file, as Step 2: Generate Secondary Programming Files (Programming File Generator) on page 7 describes:
a. In the Programming File Generator, select the .sof file on the Input Files tab.
b. Click the Properties button. The Input File Properties dialog box appears.
Figure 11. Input File Properties
my_key.pem co_firm.zip
my_key.qek
c. Set Finalize encryption to On. d. Specify the AES 256-bit or 384-bit Encryption key file (.qek) to decrypt the
bitstream in the SDM prior to device configuration. 7. Click OK.
1.3.1.2.3. Defining a New Flash Memory Configuration Device You can define and store the settings for a new flash memory device, based on the programming flow template of an existing supported flash memory device. You can customize and preserve the properties of the new flash memory device as a template for subsequent reuse, and define other flash memory devices based the template.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 14
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
For Intel Agilex and Intel Stratix 10 devices, the Secure Device Manager (SDM) firmware controls the flash programming flows, and you cannot modify these flows. For Intel Arria 10 and Intel Cyclone 10 GX devices, you can modify and preserve the default programming flows, as Modifying Programming Flows on page 25 describes.
When you define a new flash memory device, Intel Quartus Prime software stores the collection of settings in an .xml file automatically in the Custom database directory location that you can specify.
Figure 12. Define New Flash Device (Intel Stratix 10 Example)
Follow these steps to define a new flash memory device:
1. Perform one of the following to generate a .jic file for flash programming:
· Step 2: Generate Secondary Programming Files (Programming File Generator) on page 7
· Step 2: Generate Secondary Programming Files (Convert Programming Files) on page 19
2. For the Configuration Device option, select <<new device>>. The settings on this and other tabs become available.
3. For Programming flow template, select an existing flash memory device template for the new device initial settings, or define a flash programming flow for a different flash memory vendor based on an existing template.
4. Specify the remaining settings on the Configuration Device tab:
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 15
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Table 5.
Configuration Device Tab Settings
Option Device name Device ID Device I/O voltage Device density Total device die Single I/O mode dummy clock
Quad I/O mode dummy clock
Custom database directory
Save as template
Description
Specify a unique name for the flash not already listed in the Name column. The Name must not contain any empty string (space) or special characters (except "_").
Specify the 3-byte ID that the Programmer Auto-Detect operation uses to detect the flash programming device, such as 0x20 0xBB 0x21.
Specify 1.8V or 3.0/3.3V to match your memory device specification.
Select the total density that corresponds with your flash memory device size.
Specify the total number of die for a stacked device (where applicable).
Specify the Fast Read dummy clock cycle for flash device in single I/O protocol. The programming file generation uses this setting to determine if the configuration requires bit shifting to compensate for the actual dummy clock cycle during Active Serial configuration.
Specify the Fast Read dummy clock cycle for flash device in Quad I/O protocol. The programming file generation uses this setting to determine if the configuration requires bit shifting to compensate for the actual dummy clock cycle during Active Serial configuration.
Specifies the location of the .xml file that preserves a flash memory device definition and flow information. The default location is the project directory or current working directory. Note: When you specify a non-default folder for the Custom database
directory location, place the .sof and .jic files in the same folder as the .xml file to avoid missing a defined flash database or corruption of the .jic file.
Enable this option and specify a unique name to save the current flash memory device definition as a template for later use. Programming File Generator saves the template in the Custom database directory. Click the Edit button to delete any templates you save.
5. For supported FPGA devices, optionally modify any of the default programming flows for the flash memory device, as Modifying Programming Flows on page 25 describes.
Note: When you modify a programming flow, all .jic files using this programming flow are affected. For example, you can define a new micron_1gb flow, and then use this device to define the micro_1gb_partA.jic file. Later, you modify themicron_1gb flow, and then use this flow to create micro_1gb_partB.jic. In this example, micro_1gb_partA programming flow reflects the latest modifications to micron_1gb.
1.3.1.3. Step 3: Program the Flash Memory Device
Follow these steps to program the flash memory device using the Intel Quartus Prime Programmer and Intel FPGA download cable over a JTAG connection via Active Serial programming.
1. Generate a .jic file, as Step 2: Generate Secondary Programming Files (Programming File Generator) on page 7 describes.
2. Open the Intel Quartus Prime software, and then click Tools Programmer.
3. In the Programmer, click Hardware Setup, and then select a connected Intel FPGA Download Cable.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 16
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
4. Click Add File, and then select the .jic file you generate in Step 1. Figure 13. JIC Loaded for Flash Programming in Programmer
Flash Memory Device Intel Stratix 10 FPGA
5. Enable the Program/Configure option for the .jic file. The FPGA Device row Program/Configure option automatically enables, and displays the Factory SDM helper image as the FPGA configuration data. This entry indicates that the programming flow first configures the SDM with the Helper Image, which subsequently controls the programming of the flash memory device.
6. Click Start and wait for the progress bar to reach 100%. The programming flow executes according to your specifications in the .jic file.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 17
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.3.2. Generic Flash Programming (Convert Programming File Dialog Box)
In generic flash programming with the Convert Programming File dialog box, you generate the necessary device programming and configuration files, and perform JTAG programming of the flash memory via the Factory default SFL image.
The Factory default SFL image enables communication between the JTAG pins and the flash memory device's serial interface. The SFL is an instance of the Serial Flash Loader Intel FPGA IP that is optimized for this function.
After generating the files, you use the Intel Quartus Prime Programmer to program the flash, which in turn configures the FPGA via AS configuration.
Figure 14.
Flash Programming Configuration (Intel Arria 10 and Intel Cyclone 10 GX Example)
Intel FPGA Download Cable
10 pin JTAG header
Intel FPGA
PCB
10 pin Intel Quartus Prime
Programmer
FPGA Configuration and Flash Programming Data
Factory Default SFL Image
JIC File Programming
AS Configuration
Quad SPI Flash Memory
Generic flash programming with the Convert Programming File dialog box includes the following high level steps that this section describes in detail:
1. Step 1: Generate Primary Device Programming Files on page 18--use the Intel Quartus Prime Assembler to generate the .sof FPGA configuration file.
2. Step 2: Generate Secondary Programming Files (Convert Programming Files) on page 19--use the Convert Programming File dialog box to generate the .jic that you program into your flash memory device to store .sof configuration data.
3. Step 3: Program the Flash Memory Device on page 26--use the Intel Quartus Prime Programmer and connected Intel FPGA download cable to program the .jic configuration data into the flash memory device and the .sof into the FPGA via Active Serial JTAG configuration.
1.3.2.1. Step 1: Generate Primary Device Programming Files
The Intel Quartus Prime Assembler generates the .sof FPGA configuration file once design compilation is complete. Prior to running the Assembler, you can specify device and pin options that impact the .sof and subsequent .jic file generation.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 18
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Follow these steps to generate a .sof file for use in generic flash programming: 1. Before running the Assembler, click Assignments Device Device & Pin
Options to specify options for FPGA configuration pins and other hardware settings that the .sof file preserves. The following options are particularly relevant to generic flash programming. For option descriptions, refer to Device and Pin Options on page 40. · General tab--specify the JTAG user code, configuration clock source, and
options for specific configuration pins. · Configuration tab--specify Active Serial or Active Serial x4 for the FPGA
Configuration scheme. Select Auto for Configuration device I/O voltage, which you can specify with precision at a later time.
Figure 15. Device & Pin Options Dialog Box
2. To generate primary device programming files, click Processing Start Start Assembler. The Compiler confirms that prerequisite modules are complete, and launches the Assembler to generate the programming files.
1.3.2.2. Step 2: Generate Secondary Programming Files (Convert Programming Files)
You can use the Convert Programming File dialog box to generate secondary programming files for alternative device programming methods. For example, generating the .jic file for flash programming, the .rbf file for partial reconfiguration, or the .rpd file for a third-party programmer configuration.
The options available in the Convert Programming File dialog box change dynamically, according to your device and configuration mode selection.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 19
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 16. Convert Programming File Dialog Box
Output Programming File
Configuration Device
Generate Files
Add Files
1. Generate the primary programming files for your design, as Step 1: Generate Primary Device Programming Files on page 18 describes.
2. Click File Convert Programming Files.
3. Under Output programming file, select the JTAG Indirect Configuration File (.jic) as the Programming file type that you generate. The Generic Flash Programmer supports only this file type.
4. Specify the File name and output directory (...) for the .jic file you generate.
5. For the configuration Mode, select Active Serial x4 or Active Serial.
Note: Intel Stratix 10 devices support only Active Serial x4.
6. To specify the Configuration device, click the (...) button to select a supported flash memory device and predefined programming flow. When you select a predefined device, you cannot modify any setting. Alternatively, click <<new device>> to define a new flash memory device and programming flow, as Defining a New Flash Memory Configuration Device on page 14, and Modifying Programming Flows on page 25 describe.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 20
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 17. Configuration Device Dialog Box
7. Under Input files to convert, select the SOF Data item, and then click the Add File button. Specify the .sof file that contains the configuration bitstream data. To include raw data, click Add Hex Data and specify a .hex file.
8. To enable bitstream compression or encryption security settings, select the .sof file and click Properties, as Enabling Bitstream Encryption or Compression for Intel Arria 10 and Intel Cyclone 10 GX Devices on page 22 describes.
9. Select the Flash Loader text, and then click the Add Device button. Select the device that controls loading of the flash device.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 21
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 18. Selecting the Flash Loader Device
10. After you specify all options in the Convert Programming File dialog box, click the Generate button to create the files.
Related Information
· Convert Programming File Dialog Box on page 47
· Compression and Encryption Settings (Convert Programming File) on page 48
1.3.2.2.1. Enabling Bitstream Encryption or Compression for Intel Arria 10 and Intel Cyclone 10 GX Devices
You can optionally enable bitstream file encryption that requires a user-defined 256bit security key to access the configuration bitstream. Alternatively, you can enable bitstream compression to reduces the size of your programming file to minimize file transfer and storage requirements. The compression reduces configuration file size by 30% to 55% (depending on the design). File compression and encryption options are mutually exclusive for Intel Arria 10 and Intel Cyclone 10 GX devices.
Follow these steps to enable bitstream file compression or encryption for Intel Arria 10 and Intel Cyclone 10 GX devices:
1. Generate a .jic file for flash programming, as this document describes.
2. In the Convert Programming File dialog box, select the .sof file under Input files to convert.
3. Click the Properties button. The SOF File Properties: Bitstream Encryption dialog box appears.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 22
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 19. Enabling Bitstream Compression or Encryption (Intel Arria 10 and Intel Cyclone 10 GX Designs)
4. To enable compression, turn on the Compression option. All encryption options disable as these options are mutually exclusive.
5. To enable bitstream file encryption: a. Turn off the Compression option. b. Turn on the Generate encrypted bitstream option. c. Specify options for programming file key decryption, and Security Options, as Compression and Encryption Settings (Convert Programming File) on page 48 describes.
6. Click OK.
Related Information · Compression and Encryption Settings (Convert Programming File) on page 48 · Intel Arria 10 Core Fabric and General Purpose I/Os Handbook
For detailed device security configuration steps. · Intel Cyclone 10 GX Core Fabric and General Purpose I/Os Handbook
For detailed device security configuration steps.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 23
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.3.2.2.2. Defining a New Flash Memory Device
You can define and store the settings for a new flash memory device, based on the programming flow template of an existing supported flash memory device. You can customize and preserve the properties of the new flash memory device for subsequent reuse, and define other flash memory devices based on one you define.
For Intel Stratix 10 devices, the Secure Device Manager (SDM) firmware controls the flash programming flows, and you cannot modify these flows. For Intel Arria 10 and Intel Cyclone 10 GX devices, you can modify and preserve the default programming flows, as Modifying Programming Flows on page 25 describes.
When you define a new flash memory device, Intel Quartus Prime software stores the collection of settings in an .xml file automatically in the Custom database directory location that you can specify.
Figure 20. Define New Flash Device (Intel Arria 10 Example)
Follow these steps to define a new flash memory device: 1. Perform one of the following to generate a .jic file for flash programming:
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 24
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
· Step 2: Generate Secondary Programming Files (Programming File Generator) on page 7
· Step 2: Generate Secondary Programming Files (Convert Programming Files) on page 19
2. For the Configuration Device option, select <<new device>>. The settings on this and other tabs become available.
3. For Programming flow template, select an existing flash memory device template for the new device initial settings. For flash memory device support, refer to Supported Devices and Configuration Methods on page 4.
4. Specify the remaining settings on the Configuration Device tab:
Table 6.
Configuration Device Tab Settings
Option Device name
Device ID
Description
Specify a unique name for the flash not already listed in the Name column. The Name must not contain any empty string (space) or special characters (except "_").
Specify the 3-byte ID that the Programmer Auto-Detect operation uses to detect the flash programming device, such as 0x20 0xBB or 0x21.
Device I/O voltage Device density Total device die Single I/O mode dummy clock
Quad I/O mode dummy clock
Custom database directory
Specify 1.8V or 3.0/3.3V to match your memory device specification.
Select the total density that corresponds with your flash memory device size.
Specify the total number of die for a stacked device (where applicable).
Specify the Fast Read dummy clock cycle for a flash device in single I/O protocol. The programming file generation uses this setting to determine if the configuration requires bit shifting to compensate for the actual dummy clock cycle during Active Serial configuration.
Specify the Fast Read dummy clock cycle for the flash device in Quad I/O protocol. The programming file generation uses this setting to determine if the configuration requires bit shifting to compensate for the actual dummy clock cycle during Active Serial configuration.
Specifies the location of the .xml file that preserves a flash memory device definition and flow information. The default location is the project directory or current working directory. Note: When you specify a non-default folder for the Custom database
directory location, place the .sof and .jic files in the same folder as the .xml file to avoid missing a defined flash database or corruption of the .jic file.
Save as template
Enable this option and specify a unique name to save the current flash memory device definition as a template for later use. Programming File Generator saves the template in the Custom database directory. Click the Edit button to delete any templates you save.
5. For supported FPGA devices, optionally modify any of the default programming flows for the flash memory device, as Modifying Programming Flows on page 25 describes.
1.3.2.2.3. Modifying Programming Flows
You can modify and preserve the flows for Initialization, Program, Erase, Verify/BlankCheck/Examine, and Termination operations for a flash memory device for supported devices. For each operation, you can drag and drop Actions (such as Read Register) into locations in the flow to match the programming requirements of your flash memory device.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 25
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Note:
For Intel Stratix 10 devices, the Secure Device Manager (SDM) firmware controls the flash programming flows, and you cannot modify these flows.
Modifying a programming flow affects all .jic files that use that programming flow.
Follow these steps to modify a default programming flow:
1. Define a new configuration device, as Defining a New Flash Memory Configuration Device on page 14 describes.
2. In the Configuration Device dialog box, click an available Action on the Initialization, Program, Erase, Verify/Blank-Check/Examine, and Termination tabs.
3. With the Action selected, drag the action to an arrow point in the flow graphic. The arrow icon changes to indicate when the placement is legal, at which point you can release the mouse to place the Action in the flow. Alternatively, rightclick in the flow graphic to add, delete, copy, or paste an Action from the menu.
Figure 21. Modifying Initialization Flow
4. To modify the properties of an Action, click the action in the flow graphic. The editable properties appear in the adjacent pane, as Programming Flow Action Properties on page 37 describes.
5. When you are satisfied with the modifications, click Apply. The flow preserves with your new configuration device definition, and applies during the flash device programming.
1.3.2.3. Step 3: Program the Flash Memory Device
Follow these steps to program the flash memory device using the Intel Quartus Prime Programmer and Intel FPGA download cable over a JTAG connection via Active Serial programming.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 26
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1. Generate a .jic file, as Step 2: Generate Secondary Programming Files (Convert Programming Files) on page 19 describes.
2. Open the Intel Quartus Prime software, and then click Tools Programmer. 3. In the Programmer, click Hardware Setup, and then select a connected Intel
FPGA Download Cable. 4. Click Add File, and then select the .jic file you generate at the previous step.
Figure 22. JIC Loaded for Flash Programming in Programmer
Flash Memory Device Intel Arria 10 FPGA
5. Enable the Program/Configure option for the .jic file. The FPGA Device row Program/Configure option automatically enables, and displays the Factory default SFL image as the FPGA configuration data. This entry indicates that the programming flow first configures the FPGA with the SFL image, which subsequently controls the programming of the flash memory device.
6. Click Start and wait for the progress bar to reach 100%. The programming flow executes according to your specifications in the .jic file.
1.3.2.4. Full Erase of Flash Memory Sectors
When performing flash memory erase operations via JTAG and a .jic file, the Intel Quartus Prime Programmer erases only the flash memory sectors that the .jic specifies.
For example, if you specify a .jic file containing only a 13.6Mbits FPGA image on an EPCQ64A device, the Programmer erases only the bottom 13.6Mbits, and does not erase the remaining 50.4Mbits of data.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 27
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
To erase the entire flash memory device contents, do not specify a .jic file for flash programming. Rather, manually add the flash device to the associated FPGA device chain by following these steps: 1. In the Programmer, right-click the target FPGA device, and then click Edit
Attach Flash Device. 2. Select the appropriate flash device from the list. The Factory Default Serial Flash
Loader loads for the FPGA automatically. 3. In the Programmer, enable the Erase checkbox, and click Start to start the erase
operation.
1.4. Generic Flash Programmer Flow Templates (Intel Stratix 10 devices)
For Intel Stratix 10 devices, the Secure Device Manager (SDM) firmware controls the flash programming flows, and you cannot modify the flow templates. Each flow template is identical for all supported flash memory devices for Intel Stratix 10 devices.
The following describe the templates for each programming flow:
Related Information · Initialization Flow Template (Intel Stratix 10 Devices) on page 28 · Program Flow Template (Intel Stratix 10 Devices) on page 29 · Erase Flow Template (Intel Stratix 10 Devices) on page 30 · Verify/Blank-Check/Examine Flow Template (Intel Stratix 10 Devices) on page 31 · Termination Flow Template (Intel Stratix 10 Devices) on page 31
1.4.1. Initialization Flow Template (Intel Stratix 10 Devices)
The Initialization flow template for Intel Stratix 10 devices has the following Actions.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 28
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 23. Initialization Flow Template
1.4.2. Program Flow Template (Intel Stratix 10 Devices)
The Program flow template for Intel Stratix 10 devices has the following Actions.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 29
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 24. Program Flow Template
1.4.3. Erase Flow Template (Intel Stratix 10 Devices)
The Erase flow template for Intel Stratix 10 devices has the following Actions.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 30
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 25. Erase Flow Template
1.4.4. Verify/Blank-Check/Examine Flow Template (Intel Stratix 10 Devices)
The Verify/Blank-Check/Examine flow template for Intel Stratix 10 devices has the following Actions.
Figure 26. Verify/Blank-Check/Examine Flow Template
1.4.5. Termination Flow Template (Intel Stratix 10 Devices)
The Termination flow template for Intel Stratix 10 devices has no actions, as the following figure shows.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 31
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 27. Termination Flow Template
1.5. Generic Flash Programmer Flow Templates (Intel Arria 10 and Intel Cyclone 10 GX)
For supported devices, you can modify and preserve the default programming flows, as Modifying Programming Flows on page 25 describes. The following describe the templates for each programming flow: Related Information · Initialization Flow Templates (Intel Arria 10 and Intel Cyclone 10 GX) on page 32 · Program Flow Template (Intel Arria 10 and Intel Cyclone 10 GX) on page 33 · Erase Flow Template (Intel Arria 10 and Intel Cyclone 10 GX) on page 34 · Verify/Blank-Check/Examine Flow Template (Intel Arria 10 and Intel Cyclone 10
GX) on page 35 · Termination Flow Template (Intel Arria 10 and Intel Cyclone 10 GX) on page 36 · Programming Flow Action Properties on page 37
1.5.1. Initialization Flow Templates (Intel Arria 10 and Intel Cyclone 10 GX)
The Initialization flow template has the following Actions.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 32
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 28. Initialization Flow Template (Micron Example)
Note:
Example and Action properties are for reference only as specific actions vary by flash memory device.
1.5.2. Program Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)
The Program flow template has the following Actions.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 33
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 29. Program Flow Template
Note:
Action properties are for reference only as specific properties vary by application.
1.5.3. Erase Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)
The Erase flow template has the following Actions.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 34
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 30. Erase Flow Template
Note:
Action properties are for reference only as specific properties vary by application.
1.5.4. Verify/Blank-Check/Examine Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)
The Verify/Blank-Check/Examine flow template has the following Actions.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 35
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Figure 31. Verify/Blank-Check/Examine Flow Template
Note:
Action properties are for reference only as specific properties vary by application.
1.5.5. Termination Flow Template (Intel Arria 10 and Intel Cyclone 10 GX)
The Termination flow template has the following Actions.
Figure 32. Termination Flow Template
Note:
Action properties are for reference only as specific properties vary by application.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 36
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.5.6. Programming Flow Action Properties
The available programming flow Actions have the following properties:
Table 7.
Read Register (RR) Action Properties
Symbol
Action
Property
Read Register (RR)
Performs a read operation that returns a list of data register bytes.
Name Command
Data length (byte)
Expected data
Expected data mask
Delay (us) Attempt count
Command-Data (bus width)
Description
Displays the name of the command that executes as part of the Action, such as Read ID and Read flag status register.
Hex value that executes the command, such as 0x70.
Expected length of returned data. To read according to the .jic file, enter the value as JIC.
(Optional) For use with Expected data mask. The following are example entries: · 1 Byte: 0xAB · 2 Bytes: 0xAB 0xCD · 3 Bytes: 0xAB 0xCD 0xEF To compare the actual read back data against the .jic file, enter the value as JIC.
(Optional) Specify this value if you specify the Expected data. The default value is zero. The operation compares the actual read back register values against the expected value and mask value, and reports error on mismatch. The following are example entries: · 1 Byte: 0xFF · 2 Bytes: 0xFF 0xFF
Delay after Command executes.
The number of times to repeat the command. You can use the Expected data, Expected data mask, Delay and Attempt count to create a polling operation on a register value.
Ratio of command to data bus widths.
Table 8.
Write Register (WR) Action Properties
Action
Write Register (WR)
Description
Property
Performs a write operation to a volatile or non-volatile register.
Name Command
Data
Description
Displays the name of the command that executes as part of the Action, such as Write enable or Write status register.
Hex value that executes the command, such as 0x70.
Data that you want to write into the register. If the command doesn't require data (for example, Write Enable), leave this property empty. The following are example entries:
continued...
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 37
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Action
Description
Property
Delay (us) Command-Data (Bus Width)
Description · 1 Byte: 0xAB · 2 Bytes: 0xAB 0xCD Delay after Command executes. Ratio of command to data bus widths.
Table 9.
Write Data (WD) Action Properties
Action Write Data (WD)
Description
Property
Performs a write operation of data into the flash memory.
Name Command
Description
Displays the name of the command that executes as part of the Action, such as Page program.
Hex value that executes the command, such as 0x70.
Address
Specifies the flash memory address that you want to start writing. To flash the .jic file, enter the value as JIC.
Data
Data that you want to program into the flash device.(4) To flash the .jic file, enter the value
as JIC.
Page size (byte)
Page size of this flash memory device. Typical value is 256 for most flash devices.
Addressing mode (byte)
Specifies the number of bytes the flash memory device expects for an address (switch between 3 or 4 bytes). The mode must match the addressing mode that you specify in the Initialization flow.
Delay (us)
Delay after Command executes.
Command-Address- Ratio between command, address, and data bus
Data (bus width)
widths.
Table 10. Read Data (RD) Action Properties
Symbol
Action
Property
Read Data (WD)
Performs a read operation of data from the flash memory.
Name Command
Address
Data length (byte)
Description
Displays the name of the command that executes as part of the Action, such as Read.
Hex value that executes the command, such as 0x70.
Specifies the flash memory address that you want to start reading. To read according to the .jic file, enter the value as JIC.
Expected length of returned data. To read according to the .jic file, enter the value as JIC.
continued...
(4) You can specify the Data value in hex, decimal, or a mixture of both. The max entry cannot exceed 32727. For hex entry, 1 byte (0xAA) equals 5 characters for a max entry of 6553 hex characters. The Data value you specify must match the number of bytes for the page size of 256.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 38
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Symbol
Action
Property
Description
Expected data
(Optional) For use with Expected data mask. The following are example entries: · 1 Byte: 0xAB · 2 Bytes: 0xAB 0xCD · 3 Bytes: 0xAB 0xCD 0xEF To compare the actual read back data against the .jic file, enter the value as JIC.
Expected data mask
If you specify the Expected data mask, then the operation compares the actual read back data against the expected value and mask value, and reports an error on mismatch. If you want to compare against the .jic file, enter the value as
JIC.
Addressing mode (byte)
Specifies the number of bytes the flash memory device expects for an address (switch between 3 or 4 bytes). The mode must match the addressing mode that you specify in the Initialization flow.
Dummy clock cycle
Specifies the number of dummy clock cycles subsequent to the Command.
Delay (us)
Delay after Command executes.
Command-Address- Ratio between command, address, and data bus
Data (bus width)
widths.
Table 11. Erase (E) Action Properties
Symbol Erase (E)
Action
Performs an erase of data from the flash memory.
Property Name
Command
Address
Description
Displays the name of the command that executes as part of the Action, such as Erase sector.
Hex value that executes the command, such as 0x70.
Specifies the flash memory address that you want to start erasing. The address must be aligned with Erase size. If you want to flash the .jic file, enter the value as JIC.
Erase size Addressing mode
Delay Command-Address (Bus Width)
Specifies the erase size (in Bytes).
Specifies the number of bytes the flash memory device expects for an address (switch between 3 or 4 bytes). The mode must match the addressing mode that you specify in the Initialization flow.
Delay after Command executes.
Ratio of command to address bus widths.
1.6. Generic Flash Programmer Settings Reference
The following topics describe Generic Flash Programmer settings.
Related Information · Device and Pin Options on page 40
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 39
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
· Input Files Tab Settings (Programming File Generator) on page 45 · Add Partition Dialog Box (Programming File Generator) on page 46 · Bitstream Co-Signing Security Settings (Programming File Generator) on page 47 · Output Files Tab Settings (Programming File Generator) on page 45 · Convert Programming File Dialog Box on page 47 · Compression and Encryption Settings (Convert Programming File) on page 48 · SOF Data Properties Dialog Box (Convert Programming File) on page 49 · Select Devices (Flash Loader) Dialog Box on page 49
1.6.1. Device and Pin Options
The following tables describe Device & Pin Option settings that impact Generic Flash Programmer. To access, click Assignments Device Device & Pin Options.
General Device Options
Allow you to specify basic device configuration options that are independent of a specific configuration scheme. To access these settings, click Assignments Device Device and Pin Options General.
Table 12. General Device Options
Option
Options Note: Not supported for Intel Stratix
10 devices.
Description
· Auto-restart configuration after error--restarts the configuration process automatically if a data error is encountered. If this option is turned off, you must externally direct the device to restart the configuration process if an error occurs. This option is available for passive serial and active serial configuration schemes.
· Release clears before tri-states--releases the clear signal on registered logic cells and I/O cells before releasing the output enable override on tri-state buffers. If this option is turned off, the output enable signals are released before the clear overrides are released.
· Enable user-supplied start-up clock (CLKUSR)--uses a user-supplied clock on the CLKUSR pin for initialization. When turned off, external circuitry is required to provide the initialization clock on the DCLK pin in the Passive Serial and Passive Parallel Synchronous configuration schemes; in the Passive Parallel Asynchronous configuration scheme, the device uses an internal initialization clock.
· Enable device-wide reset (DEV_CLRn)--enables the DEV_CLRn pin, which allows all registers of the device to be reset by an external source. If this option is turned off, the DEV_CLRn pin is disabled when the device operates in user mode and is available as a user I/O pin.
· Enable device-wide output enable (DEV_OE)--enables the DEV_OE pin when the device is in user mode. If this option is turned on, all outputs on the chip operate normally. When the pin is disabled, all outputs are tri-stated. If this option is turned off, the DEV_OE pin is disabled when the device operates in user mode and is available as a user I/O pin.
· Enable INIT_DONE output--enables the INIT_DONE pin, which allows you to externally monitor when initialization is complete and the device is in user mode. If this option is turned off, the INIT_DONE pin is disabled when the device operates in user mode and is available as a user I/O pin.
continued...
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 40
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Option
Auto usercode JTAG user code In-system programming clamp state
Description
· Enable JTAG Pin Sharing--enables the JTAG pin sharing feature. The JTAGEN pin is enables and becomes a dedicated input pin in user mode. JTAG pins (TDO, TCK, TDI, and TMS pins) are available as test pins when the JTAGEN pin is pull low. JTAG pins are dedicated when the JTAGEN pin is high. If this option is turned off, the JTAGEN pin is disabled when the device operates in user mode and is available as a user I/O pin. JTAG pins are retained as dedicated JTAG pins.
· Enable nCONFIG, nStatus, and CONF_DONE pins--enables the major configuration pins, nCONFIG, nSTATUS, and CONF_DONE pin in user mode. If this option is turned off, the nCONFIG, nSTATUS, and CONF_DONE pins are disabled when the device operates in user mode and are available as user I/O pins.
· Enable OCT_DONE --enables the OCT_DONE pin, which controls whether the INIT_DONE pin is gated by OCT_DONE pin. If this option is turned off, the INIT_DONE pin is not gated by the OCT_DONE pin.
· Enable security bit support--enables the security bit support, which prevents data in a device from being obtained and used to program another device. This option is available for supported device (MAX® II, and MAX V) families.
· Set unused TDS pins to GND--sets the unused temperature sensing diode TSD pins, TEMPDIODEp and TEMPDIODEn to GND in the pin. By default, TSD pins are available for connection to an external temperature sensing device; however, you must manually connect the pins to GND if they are not connected. When turned on, this option updates the information in the .pin file and does not affect FPGA behavior.
· Enable CONFIG_SEL pin--enables the BOOT_SEL pin in user mode. If this option is turned off, the BOOT_SEL pin is disabled when the device operates in user mode and is available as a user I/O pin.
· Enable nCEO pin--enables the nCEO pin. This pin should be connected to the nCE of the succeeding device when multiple devices are being programmed. If this option is turned off, the nCEO pin is disabled when the device operates in user mode and is available as a user I/O pin.
· Enable autonomous PCIe HIP mode--releases the PCIe HIP after periphery configuration, before device core configuration completes. This option only takes effect if CvP mode is disabled.
· Enable the HPS early release of HPS IO--releases the HPS shared I/O bank after the IOCSR programming.
Sets the JTAG user code to match the checksum value of the device programming file. The programming file is a .pof for non-volatile devices, or an .sof for SRAM-based devices. If you turn on this option, the JTAG user code option is not available.
Specifies a hexadecimal number for the device selected for the current Compiler settings. The JTAG user code is an extension of the option register. This data can be read with the JTAG USERCODE instruction. If you turn on Auto usercode, this option is not available.
Allows you to specify the state that the pins take during in-system programming for used pins that do not have an in-system programming clamp state assignment. Unused pins and dedicated inputs must always be tri-stated for in-system programming. Used pins are tri-stated by default during in-system programming, which electrically isolates the device from other devices on the board. At times, however, in order to prevent system damage you may want to specify the logic level for used pins during in-system programming. The following settings are available:
continued...
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 41
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Option Configuration clock source Device initialization clock source
Description
· Tri-state--the pins are tri-stated. · High--the pins drive VCCIO. · Low--the pins drive GND. · Sample and Sustain--the pins drive the level captured during the SAMPLE/
PRELOAD JTAG instruction.
Specifies the clock source for device initialization (the duration between CONF_DONE signal went high and before INIT_DONE signal goes high). For AS x1 or AS x4 configuration mode, you can select either Internal Oscillator or CLKUSR pin only. The DCLK pin is an illegal option for AS mode. In 14 nm device families, only Internal Oscillator or OSC_CLK_1 pins are available.
Specifies the clock source for device initialization (the duration between CONF_DONE signal went high and before INIT_DONE signal goes high). For AS x1 or AS x4 configuration mode, you can select either Internal Oscillator or CLKUSR pin only. The DCLK pin is an illegal option for AS mode. In 14 nm device families, only Internal Oscillator or OSC_CLK_1 pins are available.
Configuration Options
Allow you to specify the configuration scheme, configuration device and pin options, serial clock source, and other options for subsequent device configuration with your programming bitstream. To access these settings, click Assignments Device Device and Pin Options Configuration. Disabled options are unavailable for the current device or configuration mode.
Table 13. Configuration Options
Option
Description
Configuration scheme
Specifies the scheme of configuration for generation of appropriate primary and secondary programming files, such as Active Serial x4. Only options appropriate for the current Configuration Scheme are available.
Configuration Device
Allows you to specify options for an external configuration device that stores and loads configuration data.
· Configuration device I/O voltage--specifies the VCCIO voltage of the configuration pins for the current configuration scheme of the target device. This option is available for supported device families.
· Force VCCIO voltage to be compatible with configuration I/O voltage-- forces the VCCIO voltage of the configuration pins to be the same as the configuration device I/O voltage. If you turn off this option, the VCCIO voltage of the configuration pins may vary depending on the I/O standards used in the I/O banks containing the configuration pins. This option is available for supported device families.
Configuration Pin Options
Enables or disables operation of specific device configuration pins for status monitoring, SEU error detection, CvP, and other configuration pin options.
Generate compressed bitstreams Generates compressed bitstreams and enables bitstream decompression in the target device.
Active serial clock source
Specifies the configuration clock source for Active Serial programming. Options range from 12.5 MHz to 100 MHz.
VID Operation Mode
Enables Voltage IDentification logic in the target device with selected operation mode. The available options are PMBus Master or PMBus Slave.
continued...
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 42
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Option HPS/FPGA configuration order
HPS debug access port
Disable Register Power-Up Initialization
Description
For hard processor system (HPS) configuration, specifies the order of configuration between the HPS and FPGA. The options are HPS First, After INIT_DONE, and When requested by FPGA.
· Disabled--the HPS JTAG is not enabled. · HPS Pins--the HPS JTAG is routed to the HPS dedicated I/O. · SDM Pins--the HPS JTAG is chained to the FPGA JTAG.
Specifies whether the Assembler generates a bit stream with register power-up initialization.
Table 14.
Assembler Security Settings
For Intel Stratix 10 devices, specifies settings for programming bitstream authentication, encryption, scrambling, and other eFuse enabled security options. To access these settings, click Assignments Device Device and Pin Options Security. Disabled options are unavailable for the current device or configuration mode.
Option
Description
Quartus Key File
Specifies the first level signature chain file (.qky) that you generate. This chain includes the root key (.pem) and one or more design signing keys (.pem) required to sign the bitstream and allow access to the FPGA when using authentication or encryption.
Encryption key storage select
Specifies the location that stores the .qek key file. You can select either Battery Backup RAM or eFuses for storage.
Encryption update ratio
Specifies the ratio of configuration bits compared to the number of key updates required for bitstream decryption. You can select either 31:1 (the key must change 1 time every 31 bits) or Disabled (no update required). Encryption supports up to 20 intermediate keys.
Enable scrambling
Scrambles the configuration bitstream.
More Options
Opens the More Security Options dialog box for specifying additional physical security options.
Configuration PIN Dialog Box
For Intel Stratix 10 devices, allows you to enable or disable specific configuration pins. For example, you can enable the CvP_CONFDONE pin, which indicates that the device finished core programming in Configuration via Protocol mode. To access these settings, click Assignments Device Device and Pin Options Configuration Pin Options. Disabled options are unavailable for the current device or configuration mode.
Table 15. Configuration PIN Dialog Box
Option USE PWRMGT_SCL output
Values SDM_1O0|SDM_IO14
Use PWRMGT_SDA output SDM_1O11|SDM_1O12| SDM_1O16
Description
This is a required PMBus interface for the power management when the VID operation mode is the PMBus Master or PMBus Slave mode. Disable this pin for a non-SmartVID device. Intel recommends using the SDM_IO14 pin for this function.
This is a required PMBus interface for the power management when the VID operation mode is the PMBus Master or PMBus Slave mode. Disable this pin for a non-SmartVID device.
continued...
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 43
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Option
Values
Use PWRMGT_ALERT output
SDM_1O0|SDM_1O12
USE CONF_DONE output USE INIT_DONE output
SDM_100, SDM_1010 SDM_1016
SDM_100, SDM_1010 SDM_1016
USE CVPCONF_DONE output
SDM_100, SDM_1010 SDM_1016
USE SEU_ERROR output USE UIB CATTRIP output USE HPS cold nreset Direct to factory image
SDM_100, SDM_1010 SDM_1016
SDM_100, SDM_1010 SDM_1016
SDM_100, SDM_1010 SDM_1016
SDM_100, SDM_1010 SDM_1016
USE DATA LOCK output
SDM_100, SDM_1010 SDM_1016
Description
Intel recommends using the SDM_IO11 pin for this function.
This is a required PMBus interface for the power management that is used only in the PMBus Slave mode. Disable this pin for a non-SmartVID device. Intel recommends using the SDM_IO12 pin for this function.
Implement CONF_DONE using appropriate configuration pin resource.
Enables the INIT_DONE pin, which allows you to externally monitor when initialization is completed and the device is in user mode. If this option is turned off, the INIT_DONE pin is disabled when the device operates in user mode and is available as a user I/O pin.
Enables the CVP_CONFDONE pin, which indicates that the device finished core programming in Configuration via Protocol mode. If this option is turned off, the CVP_CONFDONE pin is disabled when the device operates in user mode and is available as a user I/O pin.
Enables the SEU_ERROR pin for use in single event upset error detection.
Enables UIB_CATTRIP output to indicate an extreme over-temperature conditioning resulted from UIB usage.
An optional reset input that cold resets only the HPS and is configured for bidirectional operation.
If this pin asserted then device loads the factory image as the first image after boot without attempting to load any application image.
Output to indicate DIBs on both die in the same package is ready for data transfer.
1.6.2. More Security Options Dialog Box
Table 16.
More Security Options Dialog Box
For Intel Stratix 10 devices, specifies additional configuration bitstream physical security settings. To access these settings, click Assignments Device Device and Pin Options Security More Settings button. Disabled options are unavailable for the current device or configuration mode.
Option
Description
Values
Disable JTAG
Force SDM clock to internal oscillator
Force encryption key update
Disables JTAG command and configuration of the device. Setting this eliminates JTAG as mode of attack, but also eliminates boundary scan functionality.
Disables an external clock source for the SDM. The SDM must use the internal oscillator. Using an internal oscillator is more secure than allowing an external clock source for configuration.
Specifies that the encryption key must update by the frequency that you specify for the Encryption update ratio option. The default ration value is 31:1. Encryption supports up to 20 intermediate keys.
· Off--inactive
· On--active until wipe of containing design
· On sticky--active until next POR
· On check--checks for corresponding blown fuse
Disable virtual eFuses
Disables the eFuse virtual programming capability.
continued...
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 44
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Option Lock security eFuses
Disable HPS debug Disable encryption key in eFuses
Disable encryption key in BBRAM
(5)
Description
Causes eFuse failure if the eFuse CRC does not match the calculated value.
Disables debugging through the JTAG interface to access the HPS.
Specifies that the device cannot use an AES key stored in eFuses. Rather, you can provides an extra level of security by storing the AES key in BBRAM.
Specifies that the device cannot use AES key stored in BBRAM. Rather, you can provides an extra level of security when you store the AES key in eFuses.
Values
1.6.3. Input Files Tab Settings (Programming File Generator)
The Input Files tab allows you to specify the .sof, .pmsf, or .rbf file that contains the configuration bitstream data required to generate one or more secondary programming files. The Input Files tab and options change dynamically, according to your Output Files tab selections.
The following input file settings are available:
Table 17. Input File Settings
Setting Add Bitstream
Add Raw Data
Remove Properties
Description
Click this button to specify a .sof, .pmsf, or .rbf as input for generation of the secondary programming file you select in Output Files. Depending on the target device, the Intel Quartus Prime software may allow you to add multiple SOF files.
Click this button to specify a .hex or .bin file that contains raw programming data as input for generation of the secondary programming file you select in Output Files.
Removes the file you select from the Input Files tab.
Displays the properties of the item you select in the Input Files tab.
1.6.4. Output Files Tab Settings (Programming File Generator)
The Output Files tab allows you to specify the type of secondary programming file that you want to generate (output) with the Programming File Generator. The Programming File Generator converts a primary programming file (for example, .sof) into a programming file for alternative programming methods (for example, a .jic for flash programming). The Output Files tab and options change dynamically according to your selections.
(5) Security options not yet available for Intel Agilex devices.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 45
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
The following output file options are available:
Table 18. Output File Options
Setting
Description
Device family
Specifies the FPGA device family you are targeting for configuration. Programming File Generator supports only Intel Agilex, Intel Stratix 10, Intel MAX 10, and Intel Cyclone 10 LP devices.
Configuration mode
Specifies the method of FPGA configuration, such as Active Serial x4, AVST x8, AVST x16, or AVST x32. Generic Flash Programmer supports only Active Serial x4.
Output directory and Name
Specifies the name and location of the file you generate. By default, this location is in the top-level project directory.
File Types
Allows you to enable the type of secondary programming file that you want to generate. Generic Flash Programmer supports only JTAG Indirect Configuration File (.jic). The available options include: · JTAG Indirect Configuration File (.jic) · Programmer Object File (.pof) · Raw Binary File for CvP Core Configuration (.rbf) · Raw Binary File for HPS Core Configuration (.rbf) · Raw Binary File for Partial Reconfiguration (.rbf) · Raw Programming Data File (.rpd)
1.6.5. Add Partition Dialog Box (Programming File Generator)
To open in the Programming File Generator, click the Configuration Device tab, select a device from the list, and click Add Partition.
Allows you to specify the attributes of a new partition. The following settings are available:
Table 19. Add Partition Dialog Box Settings
Name Input file Page
Setting
Address Mode
Start address End address
Description
Name that you give to the partition.
Input file to program into the flash partition.
Configuration devices can store multiple configuration bitstreams in flash memory, called pages. CFI configuration devices can store up to eight configuration bitstreams. Intel HyperflexTM devices can store up to four configuration bitstreams, including the factory image. In Intel Hyperflex devices, with the remote system update feature enabled, Page represents the parity.
The options are: · Auto--automatically allocates a block in the flash device to store the data. · Block--specify the start and end address of the flash partition. · Start--specify the start address of the partition. The tool assigns the end
address of the partition based on the input data size.
Specifies the start address of the partition. Only enabled when Address Mode is Block or Start.
Specifies the end address of the partition. Only enabled when Address Mode is Block.
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 46
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.6.6. Bitstream Co-Signing Security Settings (Programming File Generator)
Table 20.
Input File Properties Dialog Box (Programming File Generator)
Allows you to specify options for bitstream authentication, co-signing, and encryption security. To access, select an .sof or .rbf in the Input files tab in the Programming File Generator, and click Properties.
Option
Description
Bootloader
Specifies an ASCII text file in Intel hexadecimal format that contains configuration data for programming a parallel data source, such as a configuration device or a mass storage device. The parallel data source in turn configures an SRAM-based Intel device
Enable signing tool
Enables the signing tool that checks for a required Privacy Enhanced Mail Certificates file (.pem) for the Private key file, and a Quartus Co-Signed Firmware file (.zip) for the Cosigned firmware option.
Private key file
Specifies the private .pem file required to sign the configuration bitstream when using the signing tool. If your .pem is password-protected, you are prompted to enter the password.
Co-signed firmware
Specifies the firmware source (.zip) required to include the signed firmware in the configuration bitstream.
Finalize encryption
Finalizes the configuration bitstream encryption.
Encryption key file
Specifies the Encryption Key File (.qek) required to decrypt the configuration bitstream file.
(6)
1.6.7. Convert Programming File Dialog Box
Allows you to convert or combine one or more secondary programming files that support alternative device configuration schemes, such as flash programming, partial reconfiguration, or remote system update.
Table 21. Convert Programming File Dialog Box Settings
Setting
Description
Programming file type
Allows you to specify a secondary programming file format for conversion of a primary programming file. The Generic Flash Programmer supports only the .jic file type.
Configuration device
Allows you to select a predefined or define a new configuration device. Click the (...) button to define a new device and programming flow.
Mode
Allows you to select the method of device configuration. The Generic Flash Programmer supports only the Active Serial or Active Serial x4 modes.
Output file
Specifies the location of the files that Convert Programming File generates. By default this location is the top-level project directory.
Input files to convert
Specifies one or more primary programming files for conversion or combination into one or more secondary programming files for alternative programming methods.
(6) Security options not yet available for Intel Agilex devices.
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 47
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.6.8. Compression and Encryption Settings (Convert Programming File)
The compression and encryption settings allow you to specify options for compression and encryption key security for the device configuration SRAM Object File (.sof). To access these settings, select the .sof in the Input files to convert list in the Convert Programming File dialog box, and click Properties.
Table 22.
SOF File Properties: Bitstream Encryption Dialog Box (Convert Programming Files)
Allows you to specify options for compression and encryption key security for the device configuration SRAM Object File (.sof). To access, select an .sof in the Input files to convert list in the Convert Programming Files dialog box, and click Properties.
Option
Description
Compression
Applies compression to the bitstream to reduce the size of your programming file. The Intel Quartus Prime Assembler can generate a compressed bitstream image that reduces configuration file size by 30% to 55% (depending on the design). The FPGA device receives the compressed configuration bitstream, and then can decompress the data in real-time during configuration. This option is unavailable whenever Generate encrypted bitstream is enabled.
Enable decompression during partial reconfiguration
Enables the option bit for bitstream decompression during Partial Reconfiguration.
Generate encrypted bitstream
Generates an encrypted bitstream configuration image. You then generate and specify an encryption key file (.ekp) for device configuration. This option is unavailable whenever Compression is enabled.
Enable volatile security key
Allows you to encrypt the .sof file with volatile (enabled) or non-volatile (disabled) security key.
Generate encryption lock file
Specifies the name of the encryption lock file (.elk) that Convert Programming Files generates.
Generate key programming file
Specifies the name of the key programming file (.key) that Convert Programming Files generates.
Use key file
· Key 1 file--specifies the name of Key 1 .key file. · Key 2 file--specifies the name of Key 2 .key file.
Key entry
Specifies the keys for bitstream decryption.
Security options
The following options allow you to enable or disable features that impact device security for the configuration bitstream.
· Disable partial reconfiguration--disables use of partial reconfiguration for the bitstream.
· Disable key-related JTAG instructions--disables use of key-related JTAG instructions for the bitstream.
· Disable other extended JTAG instructions--disables use of other JTAG instructions for the bitstream.
· Force the external JTAG pins into BYPASS mode--forces the external JTAG pins into BYPASS mode.
You can specify Off, Turns On Until the Next Full Configuration, Turns on until the next Power-On-Reset event, Turns on by blowing the corresponding fuses,
Design Security Feature Disclaimer
Acknowledges required acceptance of Design Security Disclaimer.
Related Information
Enabling Bitstream Encryption or Compression for Intel Arria 10 and Intel Cyclone 10 GX Devices on page 22
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 48
Send Feedback
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
1.6.9. SOF Data Properties Dialog Box (Convert Programming File)
Allows you to define flash memory pages that store configuration data. To access from the Convert Programming File dialog box, click the SOF Data item and click the Properties button.
The following settings are available:
Table 23. SOF Data Properties Dialog Box Settings
Pages
Setting
Address mode for selected pages
Start address End address
Description
Configuration devices can store multiple configuration bitstreams in flash memory, called pages. CFI configuration devices can store up to eight configuration bitstreams. Some Intel FPGA devices can store multiple configuration bitstreams, including the factory image.
The options are: · Auto--automatically allocates a block in the flash device to store the data. · Block--specify the start and end address of the flash partition. · Start--specify the start address of the partition. The tool assigns the end
address of the partition based on the input data size.
Specifies the start address of the partition. Only enabled when Address Mode is Block or Start.
Specifies the end address of the partition. Only enabled when Address Mode is Block.
1.6.10. Select Devices (Flash Loader) Dialog Box
Allows you to select the device that controls loading of configuration data into a flash memory device. To access from the Programming File Generator, click the Select button for Flash loader in the Configuration Device tab. To access from the Convert Programming File dialog box, select the Flash Loader item and click Add Device.
The following settings are available:
Table 24. Flash Loader (Select Devices Dialog Box)
Option Device family Device name
Description Specifies the family of the flash loader device. Specifies the name of the flash loader device.
1.7. Generic Flash Programmer User Guide Revision History
Document Version 2019.12.16 2019.09.30
Intel Quartus Prime Version
19.4
19.3
Changes
· Added programming file generation support for Intel Agilex devices. · Noted Intel Agilex security feature limitations.
· Added new "Enabling Bitstream Authentication (Programming File Generator)" topic.
· Added new "Specifying Additional Physical Security Settings (Programming File Generator)" topic.
· Added new "Enabling Bitstream Encryption (Programming File Generator)" topic. continued...
Send Feedback
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 49
1. Generic Flash Programmer User Guide Intel® Quartus® Prime Pro Edition UG-20227 | 2019.12.16
Document Version
2019.06.19 2019.05.15
Intel Quartus Prime Version
19.1 19.1
Changes
· Updated name of "Authentication and Encryption" tab to "Security" tab. · Added footnote about programming file support for Intel Agilex devices. · Described new More Security Settings dialog box. · Updated "Defining a New Flash Memory Configuration Device" for new
default flow template location. · Updated "Device & pin Options" topic to reflect new Security settings
tab. · Updated "Configuration Device Tab" topic to reflect Custom database
directory option. · Referenced compilation support for Intel Agilex devices. · Added "More Security Options Dialog Box" topic. · Added new "Bitstream Co-Signing Security Settings" topic. · Updated "SOF File Properties: Bitstream Encryption Dialog Box" topic. · Added new steps to "Full Erase of Flash Memory Sectors" topic.
Corrected document title.
First public release.
1.8. Generic Flash Programmer Document Archive
If the table does not list a software version, the user guide for the previous software version applies.
Intel Quartus Prime Version
User Guide
19.3
Generic Flash Programmer User Guide
19.1
Generic Flash Programmer User Guide
Generic Flash Programmer User Guide: Intel Quartus Prime Pro Edition 50
Send Feedback
Antenna House PDF Output Library 6.6.1359 (Linux64)
