DIGITAL CAMERA
Reference Manual
•Read this manual thoroughly before using the camera.
•To ensure proper use of the camera, be sure to read “For
Your Safety” (page vi) and “<Important> Notes About
Shockproof, Waterproof, and Dustproof Performance and
Condensation” (page ix).
•After reading this manual, keep it in a readily accessible
place for future reference.
ii
Quick Topic Search
You can return to this page by tapping or clicking in the lower right of any page.
Main Topics
Introduction ............................................................................................................................ iii
Table of Contents................................................................................................................xiii
Parts of the Camera ...............................................................................................................1
Getting Started........................................................................................................................9
Basic Shooting and Playback Operations....................................................................17
Shooting Features................................................................................................................25
Playback Features.................................................................................................................66
Movies ......................................................................................................................................79
Using Location Data Functions .......................................................................................94

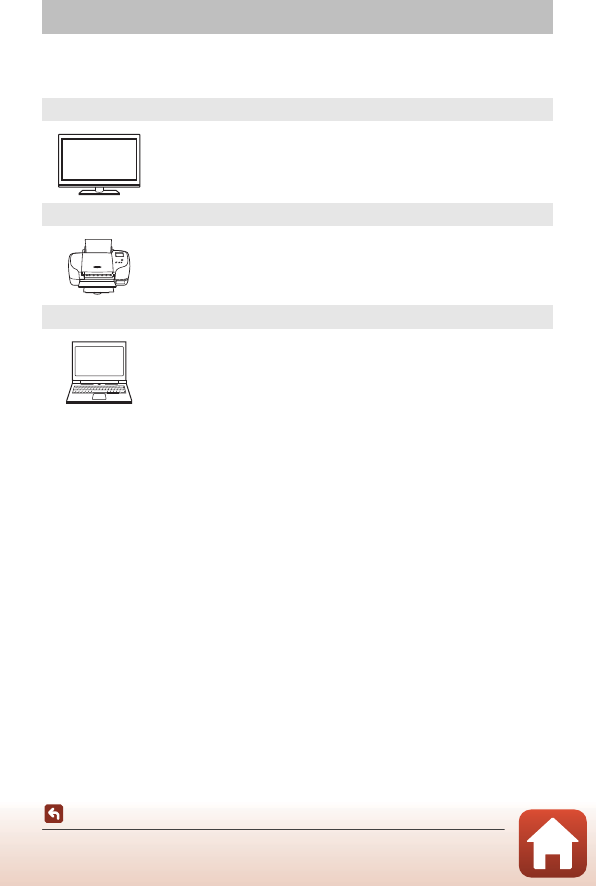

Connecting the Camera to a TV, Printer, or Computer........................................107
Using the Menu..................................................................................................................118
Technical Notes.................................................................................................................. 177
Common Topics
For Your Safety Shockproof and
Waterproof
Selecting a
Shooting Mode
Action Control
Active Guide Editing Images
(Still Images)
Troubleshooting Index
iii
Introduction
Read This First
Introduction
Thank you for purchasing the Nikon COOLPIX W300 digital camera.
Symbols and Conventions Used in This Manual
•Tap or click in the lower right of each page to display “Quick Topic Search”
(Aii).
•Symbols
•SD, SDHC, and SDXC memory cards are referred to as “memory cards” in this
manual.
•The setting at the time of purchase is referred to as the “default setting.”
•The names of menu items displayed on the camera screen, and the names of
buttons or messages displayed on a computer screen appear in bold.
•In this manual, images are sometimes omitted from screen display samples so that
screen indicators can be more clearly shown.
Read This First
Symbol Description
This icon marks cautions and information that should be read before
using the camera.
This icon marks notes and information that should be read before using
the camera.
This icon marks other pages containing relevant information.
iv
Introduction
Read This First
Information and Precautions
Life-Long Learning
As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and
education, continually updated information is available online at the following websites:
•For users in the U.S.A.: http://www.nikonusa.com/
•For users in Europe: http://www.europe-nikon.com/support/
•For users in Asia, Oceania, the Middle East, and Africa: http://www.nikon-asia.com/
Visit these websites to keep up-to-date with the latest product information, tips, answers to
frequently asked questions (FAQs), and general advice on digital imaging and photography.
Additional information may be available from the Nikon representative in your area. Visit the
website below for contact information.
http://imaging.nikon.com/
Use Only Nikon Brand Electronic Accessories
Nikon COOLPIX cameras are designed to the highest standards and include complex
electronic circuitry. Only Nikon brand electronic accessories (including battery chargers,
batteries, Charging AC Adapters, AC adapters and, USB cables) certified by Nikon specifically
for use with this Nikon digital camera are engineered and proven to operate within the
operational and safety requirements of this electronic circuitry.
THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND
MAY VOID YOUR NIKON WARRANTY.
The use of third-party rechargeable Li-ion batteries not bearing the Nikon holographic seal
could interfere with normal operation of the camera or result in the batteries overheating,
igniting, rupturing, or leaking.
For more information about Nikon brand accessories, contact a local authorized Nikon
dealer.
Before Taking Important Pictures
Before taking pictures on important occasions (such as at weddings or before taking the
camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon
will not be held liable for damages or lost profits that may result from product malfunction.
Holographic seal: Identifies this
device as an authentic Nikon product.
v
Introduction
Read This First
About the Manuals
•No part of the manuals included with this product may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form, by
any means, without Nikon’s prior written permission.
•Illustrations and screen content shown in this manual may differ from the actual product.
•Nikon reserves the right to change the specifications of the hardware and software
described in these manuals at any time and without prior notice.
•Nikon will not be held liable for any damages resulting from the use of this product.
•While every effort was made to ensure that the information in these manuals is accurate
and complete, we would appreciate it were you to bring any errors or omissions to the
attention of the Nikon representative in your area (address provided separately).
Comply with Copyright Notices
Under copyright law, photographs or recordings of copyrighted works made with the
camera can not be used without the permission of the copyright holder. Exceptions apply
to personal use, but note that even personal use may be restricted in the case of
photographs or recordings of exhibits or live performances.
Disposing of Data Storage Devices
Please note that deleting images or formatting data storage devices such as memory cards
or built-in camera memory does not completely erase the original image data. Deleted files
can sometimes be recovered from discarded storage devices using commercially available
software, potentially resulting in the malicious use of personal image data. Ensuring the
privacy of such data is the user’s responsibility.
Before discarding a data storage device or transferring ownership to another person, make
sure to reset all of the camera’s settings in Reset all in the setup menu (A119). After
resetting, erase all data in the device using commercial deletion software, or format the
device in Format memory or Format card in the setup menu (A119), then completely
refill it with images containing no private information (for example, images of empty sky).
Care should be taken to avoid injury or damage to property when physically destroying
memory cards.
For the COOLPIX W300, the log data saved on the memory card is handled in the same way
as other data. To erase the log data that is obtained but not stored on the memory card,
select Create log M End all logs M Erase logs.
Conformity Marking
Follow the procedure below to display some of the conformity markings that the camera
complies with.
Press the d button M z menu icon M Conformity marking M k button
vi
Introduction
For Your Safety
To prevent damage to property or injury to yourself or to others, read “For Your Safety”
in its entirety before using this product.
Keep these safety instructions where all those who use this product will read them.
For Your Safety
DANGER
Failure to observe the precautions marked
with this icon carries a high risk of death or
severe injury.
WARNING
Failure to observe the precautions marked
with this icon could result in death or
severe injury.
CAUTION
Failure to observe the precautions marked
with this icon could result in injury or
property damage.
WARNING
•Do not use while walking or operating a vehicle. Failure to observe this
precaution could result in accidents or other injury.
•Do not disassemble or modify this product. Do not touch internal parts
that become exposed as the result of a fall or other accident. Failure to
observe these precautions could result in electric shock or other injury.
•Should you notice any abnormalities such as the product producing
smoke, heat, or unusual odors, immediately disconnect the battery or
power source. Continued operation could result in fire, burns or other injury.
•Do not handle the plug with wet hands. Failure to observe this precaution
could result in fire or electric shock.
•Do not let your skin remain in prolonged contact with this product while it
is on or plugged in. Failure to observe this precaution could result in low-
temperature burns.
•Do not use this product in the presence of flammable dust or gas such as
propane, gasoline or aerosols. Failure to observe this precaution could result in
explosion or fire.
•Do not aim the flash, AF-assist illuminator, LED light, or movie light at the
operator of a motor vehicle. Failure to observe this precaution could result in
accidents.
vii
Introduction
For Your Safety
•Keep this product out of reach of children. Failure to observe this precaution
could result in injury or product malfunction. In addition, note that small parts
constitute a choking hazard. Should a child swallow any part of this product, seek
immediate medical attention.
•Do not entangle, wrap or twist the straps around your neck. Failure to
observe this precaution could result in accidents.
•Do not use batteries, chargers, AC adapters, or USB cables not specifically
designated for use with this product. When using batteries, chargers, AC
adapters, and USB cables designated for use with this product, do not:
-Damage, modify, forcibly tug or bend the cords or cables, place them
under heavy objects, or expose them to heat or flame.
-Use travel converters or adapters designed to convert from one voltage
to another or with DC-to-AC inverters.
Failure to observe these precautions could result in fire or electric shock.
•Do not handle the plug when charging the product or using the AC
adapter during thunderstorms. Failure to observe this precaution could result
in electric shock.
•Do not handle with bare hands in locations exposed to extremely high or
low temperatures. Failure to observe this precaution could result in burns or
frostbite.
CAUTION
•Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens could cause fire or damage to product’s internal parts.
When shooting backlit subjects, keep the sun well out of the frame.
•Turn this product off when its use is prohibited. Disable the record
location data functions. End log recording. Disable wireless features when
the use of wireless equipment is prohibited. The radio-frequency emissions
produced by this product could interfere with equipment onboard aircraft or in
hospitals or other medical facilities.
•Remove the battery and disconnect the AC adapter if this product will not
be used for an extended period. Failure to observe this precaution could result
in fire or product malfunction.
•Do not fire the flash in contact with or in close proximity to the skin or
objects. Failure to observe this precaution could result in burns or fire.
•Do not look directly into the AF-assist illuminator, LED light, or movie
light. This could damage the eyes or result in visual impairment.
viii
Introduction
For Your Safety
•Do not leave the product where it will be exposed to extremely high
temperatures, for an extended period such as in an enclosed automobile
or in direct sunlight. Failure to observe this precaution could result in fire or
product malfunction.
DANGER for Batteries
•Do not mishandle batteries. Failure to observe the following precautions could
result in the batteries leaking, overheating, rupturing, or catching fire:
- Use only rechargeable batteries approved for use in this product.
- Do not expose batteries to flame or excessive heat.
- Do not disassemble.
- Do not short-circuit the terminals by touching them to necklaces, hairpins, or
other metal objects.
- Do not expose batteries or the products in which they are inserted to powerful
physical shocks.
•
Recharge batteries using the specified method.
Failure to observe this precaution
could result in the batteries leaking, overheating, rupturing, or catching fire.
•If battery liquid comes into contact with the eyes, rinse with plenty of
clean water and seek immediate medical attention. Delaying action could
result in eye injuries.
WARNING for Batteries
•Keep batteries out of reach of children. Should a child swallow a battery, seek
immediate medical attention.
•Do not immerse this product in water or expose to rain. Failure to observe
this precaution could result in fire or product malfunction. Immediately dry the
product with a towel or similar object should it become wet.
•Discontinue use immediately should you notice any changes in the
battery, such as discoloration or deformation. Cease charging if they do
not charge in the specified period of time. Failure to observe these precautions
could result in the battery leaking, overheating, rupturing, or catching fire.
•Prior to disposal, insulate battery terminals with tape. Overheating, rupture,
or fire may result should metal objects come into contact with the terminals.
Recycle or dispose of batteries in accord with local regulations.
•If battery liquid comes into contact with a person’s skin or clothing,
immediately rinse the affected area with plenty of clean water. Failure to
observe this precaution could result in skin irritation.
ix
Introduction
<Important> Notes About Shockproof, Waterproof, and Dustproof
Performance and Condensation
•The shockproof, waterproof, and dustproof performance described here do not
guarantee that the camera will remain completely waterproof or free from damage
and trouble under all conditions.
•Do not subject the camera to excessive shock, vibration or pressure by dropping it,
hitting it, or placing a heavy object on it. Failure to observe this precaution could
deform the camera, cause water to seep inside, or damage the airtight seals,
resulting in camera malfunction.
•Your Nikon warranty may not cover troubles caused by water seeping inside the
camera due to improper handling of the camera.
Notes About Shockproof Performance
This camera has passed Nikon’s in-house test (drop test from a height of 240 cm (7 ft
10 in.) on a 5 cm (2 in.) thick plywood panel) compliant with the MIL-STD 810F
Method 516.5-Shock* standard.
Changes in appearance, such as paint peeling off and deformation of the camera, are
not measured in Nikon’s in-house test.
* U.S. Department of Defense test method standard.
This test is defined by preparing 5 cameras and making sure that the test is passed within
5 cameras by dropping in 26 directions (8 corners, 12 edges, and 6 faces) from a height of
122 cm (4 ft).
Notes About Waterproof and Dustproof Performance
The camera is rated equivalent to JIS/IEC waterproof class 8 (IPX8) and JIS/IEC
dustproof class 6 (IP6X) and can shoot images underwater at a depth of 30 m (100 ft)
for up to 60 minutes.*
* This rating indicates that the camera has been designed to withstand the specified water
pressure for the specified period of time when the camera is used according to the
methods defined by Nikon.
- The waterproof performance of this camera was tested in fresh water (swimming
pools, rivers, and lakes) and salt water only.
- The inner portion of this camera is not waterproof. Water seeping inside the camera
could cause the components to rust, resulting in high repair costs or irreparable damage.
- Accessories are not waterproof.
BPrecautions When Cleaning
•Do not puncture the microphone or speaker openings with a sharp implement. If the
inside of the camera is damaged, the waterproof performance will deteriorate.
•Do not use soap, neutral detergents, or chemicals such as benzene for cleaning.
<Important> Notes About Shockproof,
Waterproof, and Dustproof Performance and
Condensation
x
Introduction
<Important> Notes About Shockproof, Waterproof, and Dustproof
Performance and Condensation
Notes About Shockproof, Waterproof, and Dustproof
Performance
•Do not drop the camera, strike it against a hard object such as a rock, or throw it
against a water surface.
•Do not subject the camera to shock when using it underwater.
- Do not subject the camera to water pressure by exposing it to rapids or
waterfalls.
- Do not expose to depths greater than 30 m (100 ft) underwater.
- Make sure not to drop the camera underwater. This camera does not float in
water.
•Do not continuously use the camera underwater for 60 minutes or more.
•Do not insert a wet memory card or battery in the camera.
- Do not open the battery-chamber/memory card slot cover when the camera or
your hands are wet. Doing so may cause water to seep inside the camera or
result in camera malfunction.
•Do not open the battery-chamber/memory card slot cover underwater.
•If moisture such as water droplets
adheres to the outside of the camera or
inside of the battery-chamber/memory
card slot cover, immediately wipe it off
with a soft dry cloth.
- If a foreign substance adheres to the
outside of the camera or inside of the
battery-chamber/memory card slot
cover, immediately remove it with a
blower or a soft cloth.
- If a foreign substance adheres to the
waterproof packing inside the
battery-chamber/memory card slot
cover, remove it with the included
brush. Do not use the included brush
for anything other than cleaning the
waterproof packing.
•Do not leave the camera in cold
conditions or in hot conditions of 40°C
(104°F) or more for a long period of time.
- Doing so could cause deterioration of
the waterproof performance.
- When using the camera underwater, make sure the water temperature is from
0°C to 40°C (32°F to 104°F).
•Do not use the camera at hot springs.
Waterproof packing
xi
Introduction
<Important> Notes About Shockproof, Waterproof, and Dustproof
Performance and Condensation
Before Using the Camera Underwater
Check the items below before using the camera underwater.
•Remove the camera strap for land use.
•Make sure that there are no foreign substances inside the battery-chamber/
memory card slot cover.
•Make sure that the waterproof packing of the battery-chamber/memory card slot
cover is not cracked or deformed.
- Make sure that the waterproof packing is not detached from the camera.
•Make sure that the battery-chamber/memory card slot cover is firmly closed.
- Make sure that the latch indicator indicates the “Close” status.
Notes About Operating Temperature, Humidity, and
Condensation
The operation of this camera has been tested at temperatures from –10°C to +40°C
(14°F to 104°F).
When you use the camera in cold climate regions or at high altitudes, observe the
following precautions.
•Battery performance deteriorates temporarily when cold. Keep the camera and
batteries warm under your clothing before use.
•Camera performance may deteriorate temporarily if it is exposed to extreme cold
for an extended period. For example, the monitor may appear darker than normal
immediately after the camera is turned on, or residual images may be produced.
●Environmental conditions that are likely to cause condensation
Fogging (condensation) may occur on the inside of the monitor or lens when there
are sharp temperature changes or high humidity, such as in the environmental
conditions described below. This is not a camera malfunction or defect.
•The camera is suddenly immersed in cold water after being in a hot place on land.
•The camera is brought to a warm place such as inside a building after being in the
cold outdoors.
•The battery-chamber/memory card slot cover is opened or closed in a high-
humidity environment.
●Reducing condensation
•
Open the battery-chamber/memory card slot cover, put the camera and a commercially-
available desiccant in a container such as a plastic bag, and seal the container.
Condensation is less likely to occur if the humidity inside the camera is reduced.
•Before using the camera underwater, avoid storing it in locations where the camera
may become hot (such as under direct sunlight).
If you submerge the camera underwater while it is hot, the sudden change in
temperature may cause condensation.
xii
Introduction
<Important> Notes About Shockproof, Waterproof, and Dustproof
Performance and Condensation
●Clearing the fogging
•Turn off the camera and open the battery-chamber/memory card slot cover while
in a place where the ambient temperature is stable (avoid places with high
temperature, high humidity, sand, or dust).
To clear the fogging, remove the battery and memory card, and leave the battery-
chamber/memory card slot cover open to allow the camera to adjust to the
ambient temperature.
Inspection and Repair
•If the camera is exposed to shock, it is recommended to consult your retailer or
Nikon-authorized service representative to confirm the waterproof performance
(charged service).
•If the waterproof packing begins to deteriorate, consult your retailer or Nikon-
authorized service representative. The waterproof performance of the waterproof
packing may start to deteriorate after one year.
•If water seeps inside the camera, immediately stop using it and take it to your
Nikon-authorized service representative.
xiii
Table of Contents
Table of Contents
Quick Topic Search ............................................................................................................... ii
Main Topics...................................................................................................................................................................... ii
Common Topics ........................................................................................................................................................... ii
Introduction ........................................................................................................................... iii
Read This First ......................................................................................................................................... iii
Symbols and Conventions Used in This Manual ..................................................................................... iii
Information and Precautions ............................................................................................................................... iv
For Your Safety ....................................................................................................................................... vi
<Important> Notes About Shockproof, Waterproof, and Dustproof Performance
and Condensation................................................................................................................................. ix
Notes About Shockproof Performance......................................................................................................... ix
Notes About Waterproof and Dustproof Performance....................................................................... ix
Notes About Shockproof, Waterproof, and Dustproof Performance .......................................... x
Before Using the Camera Underwater........................................................................................................... xi
Notes About Operating Temperature, Humidity, and Condensation........................................ xi
Inspection and Repair.............................................................................................................................................. xii
Parts of the Camera .............................................................................................................. 1
The Camera Body.................................................................................................................................... 2
The Monitor .............................................................................................................................................. 4
For Shooting.................................................................................................................................................................... 4
For Playback..................................................................................................................................................................... 7
For the Active Guide .................................................................................................................................................. 8
Getting Started....................................................................................................................... 9

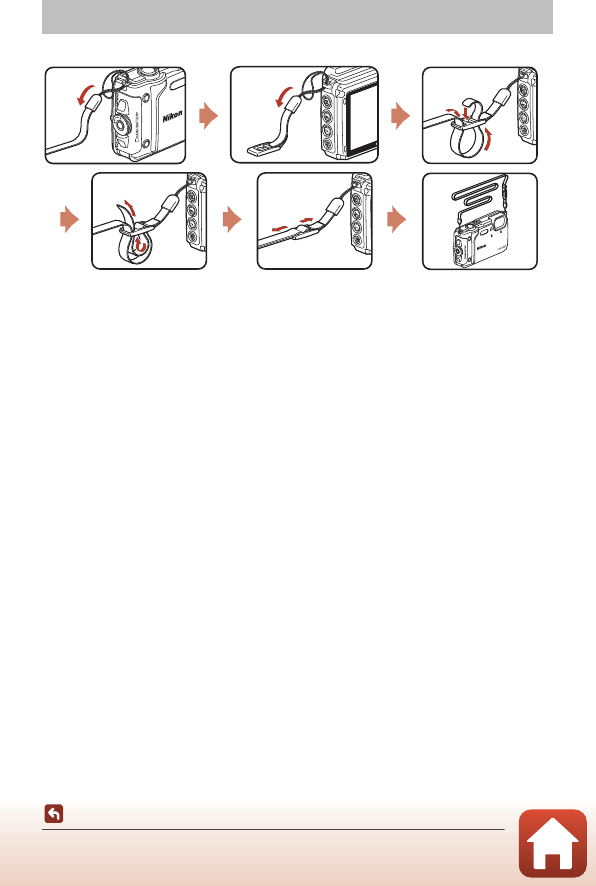

How to Attach the Camera Strap for Land Use.......................................................................... 10
Inserting the Battery and Memory Card....................................................................................... 11
Removing the Battery or Memory Card...................................................................................................... 12
Charging the Battery ........................................................................................................................... 13
Camera Setup......................................................................................................................................... 15
xiv
Table of Contents
Basic Shooting and Playback Operations ................................................................... 17
Shooting Images................................................................................................................................... 18
Recording Movies ..................................................................................................................................................... 20
Using the LED Light................................................................................................................................................. 20
Playing Back Images............................................................................................................................ 21
Deleting Images .................................................................................................................................... 22

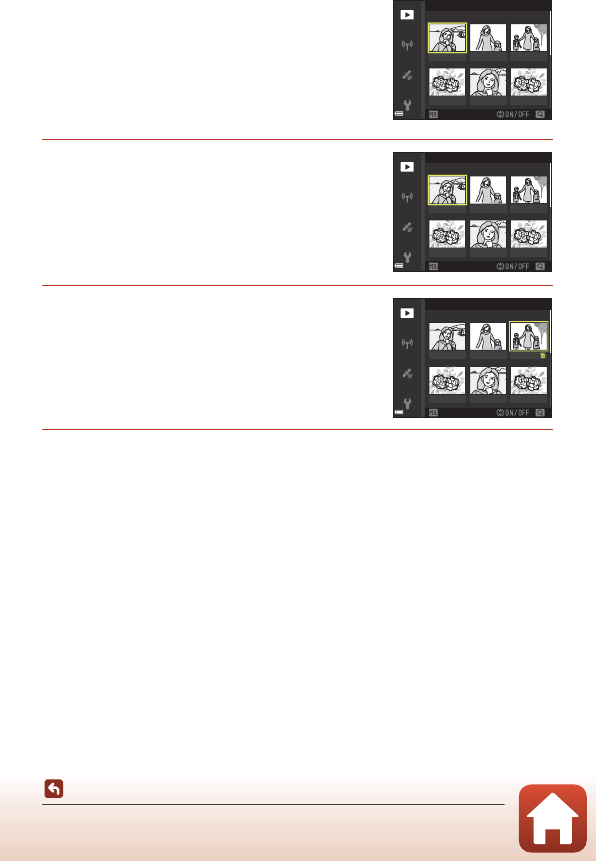

The Image Selection Screen for Deletion .................................................................................................. 23
Action Control........................................................................................................................................ 24
Displaying the Previous or Next Image in Full-frame Playback Mode ..................................... 24
Using Action Menu .................................................................................................................................................. 24
Shooting Features............................................................................................................... 25
Selecting a Shooting Mode............................................................................................................... 26
o (Scene Auto Selector) Mode..................................................................................................... 28
Scene Mode (Shooting Suited to the Shooting Conditions) ................................................ 30
Tips and Notes About Scene Mode............................................................................................................... 31
Shooting with Easy Panorama.......................................................................................................................... 37
Playback with Easy Panorama........................................................................................................................... 39
Creative Mode (Applying Effects When Shooting)................................................................... 40
Smart Portrait Mode (Enhancing Human Faces When Shooting)....................................... 42
Using Smile Timer..................................................................................................................................................... 44
Using Self-Collage..................................................................................................................................................... 45
A (Auto) Mode .................................................................................................................................... 47
Using the Creative Slider ...................................................................................................................................... 47
Setting Shooting Functions with the Multi Selector ............................................................... 49
Flash Mode.............................................................................................................................................. 50
Self-timer ................................................................................................................................................. 52
Macro Mode (Taking Close-up Pictures) ...................................................................................... 54
Exposure Compensation (Adjusting Brightness) ...................................................................... 55
Using the Zoom..................................................................................................................................... 56
Focusing................................................................................................................................................... 57

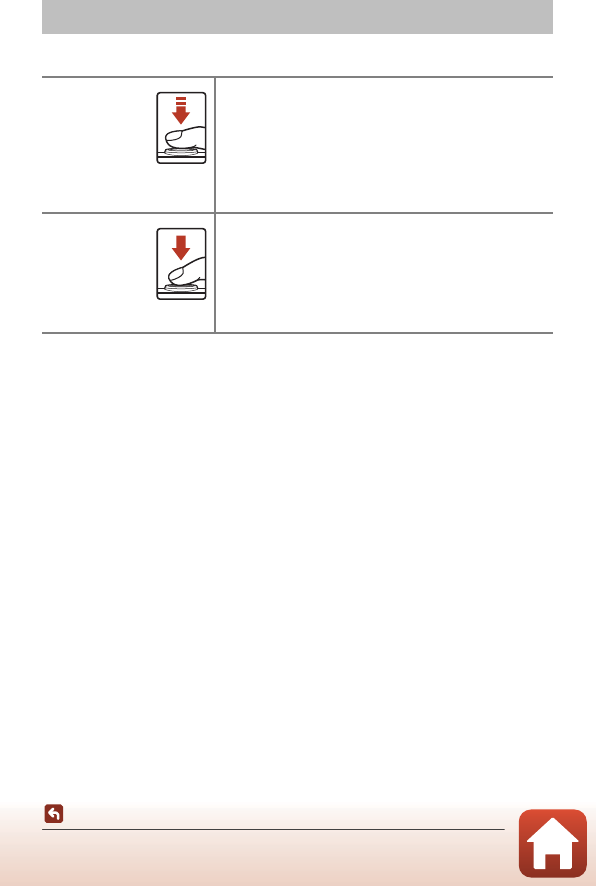

The Shutter-release Button................................................................................................................................. 57
Using Face Detection ............................................................................................................................................. 58
Using Target Finding AF ....................................................................................................................................... 59
Subjects Not Suitable for Autofocus............................................................................................................. 60
Focus Lock..................................................................................................................................................................... 61
Default Settings (Flash, Self-timer, and Macro Mode)............................................................. 62
Functions That Cannot Be Used Simultaneously When Shooting...................................... 64
xv
Table of Contents
Playback Features................................................................................................................ 66
Playback Zoom ...................................................................................................................................... 67
Thumbnail Playback/Calendar Display......................................................................................... 68
List by Date Mode................................................................................................................................. 69
Viewing and Deleting Images in a Sequence............................................................................. 70
Viewing Images in a Sequence......................................................................................................................... 70
Deleting Images in a Sequence ....................................................................................................................... 71
Editing Images (Still Images) ............................................................................................................ 72
Before Editing Images ............................................................................................................................................ 72
Quick Effects: Changing Hue or Mood ........................................................................................................ 72
Quick Retouch: Enhancing Contrast and Saturation .......................................................................... 73
D-Lighting: Enhancing Brightness and Contrast................................................................................... 74
Red-eye Correction: Correcting Red-eye When Shooting with the Flash ............................. 74
Glamour Retouch: Enhancing Human Faces........................................................................................... 75
Data Imprint: Imprinting Information Such as Electronic Compass Heading on
Images.............................................................................................................................................................................. 76
Small Picture: Reducing the Size of an Image......................................................................................... 77
Crop: Creating a Cropped Copy....................................................................................................................... 78
Movies ..................................................................................................................................... 79
Basic Operations of Movie Recording and Movie Playback .................................................. 80
Capturing Still Images While Recording Movies ....................................................................... 84
Shooting Time-lapse Movies............................................................................................................ 85
Recording Superlapse Movies.......................................................................................................... 87
Short Movie Show Mode (Combining Movie Clips to Create Short Movies) .................. 88
Using Special Effects................................................................................................................................................ 90
Operations During Movie Playback ............................................................................................... 91
Editing Movies ....................................................................................................................................... 92
Extracting Only the Desired Portion of a Movie..................................................................................... 92
Saving a Frame from a Movie as a Still Image......................................................................................... 93
Using Location Data Functions ...................................................................................... 94
Operations Available with Location Data Functions ............................................................... 95
Recording the Location Data on the Image................................................................................ 97
Updating the A-GPS File ....................................................................................................................................... 99
Using Altimeter and Depth Gauge.............................................................................................. 100
Recording the Log of Movement Information........................................................................ 101
Starting Log Recording....................................................................................................................................... 101
Ending Log Recording and Saving Logs on a Memory Card...................................................... 103
Displaying Altitude/Depth Logs as a Graph ............................................................................ 104
Displaying the Active Guide .......................................................................................................... 105
xvi
Table of Contents
Connecting the Camera to a TV, Printer, or Computer....................................... 107
Utilizing Images.................................................................................................................................. 108
Viewing Images on a TV .................................................................................................................. 110
Printing Images Without a Computer........................................................................................ 111
Connecting the Camera to a Printer.......................................................................................................... 111
Printing Images One at a Time ...................................................................................................................... 112
Printing Multiple Images ................................................................................................................................... 113
Transferring Images to a Computer (ViewNX-i)...................................................................... 115
Installing ViewNX-i................................................................................................................................................. 115
Transferring Images to a Computer ........................................................................................................... 115
Using the Menu................................................................................................................. 118
Menu Operations............................................................................................................................... 119
The Image Selection Screen............................................................................................................................ 121
Menu Lists ............................................................................................................................................ 122
The Shooting Menu.............................................................................................................................................. 122
The Movie Menu..................................................................................................................................................... 123
The Playback Menu............................................................................................................................................... 124
The Network Menu ............................................................................................................................................... 124
The Location Data Options Menu ............................................................................................................... 125
The Setup Menu ..................................................................................................................................................... 126
The Shooting Menu (The Common Shooting Options)....................................................... 127
Image Mode (Image Size and Quality)...................................................................................................... 127
The Shooting Menu (for A (Auto) Mode)............................................................................... 129
White Balance (Adjusting Hue)...................................................................................................................... 129
Continuous Shooting .......................................................................................................................................... 131
ISO Sensitivity ........................................................................................................................................................... 133
AF Area Mode........................................................................................................................................................... 134
Autofocus Mode ..................................................................................................................................................... 137
The Smart Portrait Menu................................................................................................................. 138
Self-Collage ................................................................................................................................................................ 138
Blink Proof ................................................................................................................................................................... 139
The Movie Menu ................................................................................................................................ 140
Movie Options.......................................................................................................................................................... 140
AF Area Mode........................................................................................................................................................... 144
Autofocus Mode ..................................................................................................................................................... 145
Movie VR ...................................................................................................................................................................... 146
Movie Light ................................................................................................................................................................ 146
Wind Noise Reduction ........................................................................................................................................ 147
Frame Rate.................................................................................................................................................................. 147
xvii
Table of Contents
The Playback Menu........................................................................................................................... 148
Mark for Upload....................................................................................................................................................... 148
Slide Show .................................................................................................................................................................. 149
Protect........................................................................................................................................................................... 150
Rotate Image............................................................................................................................................................. 150
Copy (Copy Between the Memory Card and Internal Memory)............................................... 151
Sequence Display................................................................................................................................................... 152
The Network Menu ........................................................................................................................... 153
Operating the Text Input Keyboard............................................................................................................ 155
The Location Data Options Menu................................................................................................ 156
Location Data Options........................................................................................................................................ 156
Points of Interest (POI) (Recording and Displaying Location Name Information)......... 157
Create Log .................................................................................................................................................................. 158
View Log ...................................................................................................................................................................... 159
Set Clock from Satellite....................................................................................................................................... 159
Electronic Compass .............................................................................................................................................. 160
Altitude/Depth Options..................................................................................................................................... 161
The Setup Menu................................................................................................................................. 162
Time Zone and Date ............................................................................................................................................ 162
Monitor Settings ..................................................................................................................................................... 164
Date Stamp ................................................................................................................................................................ 166
Photo VR ...................................................................................................................................................................... 167
AF Assist ....................................................................................................................................................................... 168
Digital Zoom ............................................................................................................................................................. 168
Sound Settings......................................................................................................................................................... 169
Underwater Flash................................................................................................................................................... 169
Action Control Response................................................................................................................................... 170
Playback Action Control..................................................................................................................................... 170
Auto Off........................................................................................................................................................................ 171
LED Light Timer ....................................................................................................................................................... 171
Format Card/Format Memory........................................................................................................................ 172
Language .................................................................................................................................................................... 172
Image Comment .................................................................................................................................................... 173
Copyright Information ........................................................................................................................................ 174
Charge by Computer........................................................................................................................................... 175
Reset All........................................................................................................................................................................ 176
Conformity Marking.............................................................................................................................................. 176
Firmware Version.................................................................................................................................................... 176
xviii
Table of Contents
Technical Notes................................................................................................................. 177
Notices................................................................................................................................................... 178
Notes About Wireless Communication Functions ................................................................ 180
Notes About Location Data Functions (GPS/GLONASS, Electronic Compass) ............ 183
Caring for the Product ..................................................................................................................... 184
The Camera................................................................................................................................................................ 184
The Battery ................................................................................................................................................................. 185
The Charging AC Adapter................................................................................................................................. 186
Memory Cards.......................................................................................................................................................... 187
Cleaning and Storage....................................................................................................................... 188
Cleaning After Using the Camera Underwater.................................................................................... 188
Cleaning After Using the Camera in Conditions Other than Underwater.......................... 188
Storage.......................................................................................................................................................................... 189
Error Messages.................................................................................................................................... 190
Troubleshooting ................................................................................................................................ 194
File Names............................................................................................................................................ 204
Optional Accessories........................................................................................................................ 206

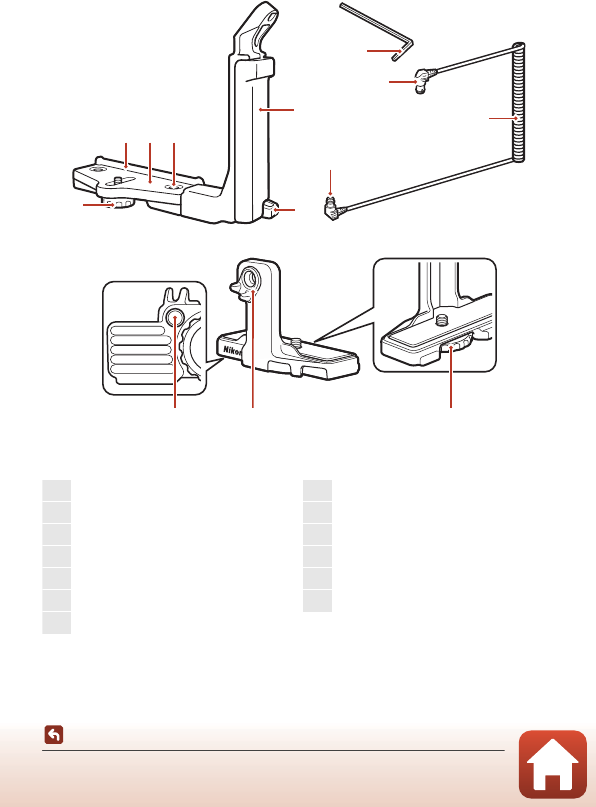

Attaching the Underwater Speedlight..................................................................................................... 207
Specifications ...................................................................................................................................... 211
Memory Cards That Can Be Used................................................................................................................. 216
USER LICENSE AGREEMENT FOR LOCATION NAME DATA.................................................. 218
Index....................................................................................................................................................... 223
1
Parts of the Camera
Parts of the Camera
The Camera Body ...................................................................................................................2
The Monitor..............................................................................................................................4
2
Parts of the Camera
The Camera Body
The Camera Body
8
2
1134
567
9
13
12
10
11
1
Eyelet for camera strap
............................. 10
2Shutter-release button............................ 19
3
Power switch/power-on lamp
............ 15
4Positioning antenna ................................. 98
5Flash.................................................................... 50
6
LED light........................................................... 20
Self-timer lamp ............................................ 52
AF-assist illuminator
Movie light................................................... 146
7Lens
8Microphone (stereo)
9Battery-chamber/memory card slot
cover latch...................................................... 11
10 Battery-chamber/memory card slot
cover latch release..................................... 11
11
Waterproofing packing
.......................ix, xi
12 Micro-USB connector ....................13, 109
13 HDMI micro connector
(Type D)..........................................................109
3
Parts of the Camera
The Camera Body
* In this manual, pressing up, down, left, or right on the multi selector is expressed as H, I,
J, or K.
10
12345 6
1112131415
7
9 8
1Monitor................................................................4
2
Zoom control................................................ 56
f: Wide-angle...................................... 56
g: Telephoto .........................................56
h: Thumbnail playback.................. 68
i: Playback zoom.............................. 67
3Charge lamp.................................................. 13
Flash lamp....................................................... 50
4b (e movie-record) button.............80
5c (playback) button .............................. 21
6k (apply selection) button .............. 119
7Multi selector*............................................119
8l (delete) button ...................................... 22
9d (menu) button ...............................119
10 A (shooting mode) button
................................ 26, 28, 30, 40, 42, 47, 88
11 Tripod socket
12 Speaker
13 r (LED light) button............................... 20
14 V (action) button ..................................... 24
15 q (tool) button ........................................105
4
Parts of the Camera
The Monitor
The information that is displayed on the shooting or playback screen changes
depending on the camera’s settings and state of use.
By default, information is displayed when the camera is turned on and when you
operate the camera, and turns off after a few seconds (when Photo info is set to
Auto info in Monitor settings (A164)).
For Shooting
The Monitor
29m 0s
29m 0s
999
999
10
10
F 2.8
F2.8
1/250
1/250
AF
AF
17
18
1
4
20
19
16
235 6
7
8
9
10
12
11
13
1415
1Shooting mode
................................26, 28, 30, 40, 42, 47, 88
2Flash mode..................................................... 50
3Macro mode .................................................. 54
4Zoom indicator.................................... 54, 56
5Focus indicator ............................................ 19
6Movie options (normal speed movies)
............................................................................ 140
7Movie options (HS movies) ............... 141
8Image mode............................................... 127
9Easy panorama............................................. 37
10 Vibration reduction icon...........146, 167
11 LED light on ................................................... 20
12 Wind noise reduction............................147
13 Underwater flash ......................................169
14 F-number ........................................................ 57
15 Shutter speed ............................................... 57
16 Travel destination icon .........................162
17 Battery level indicator.............................. 19
18 Charging AC adapter connection
indicator
19 Date stamp...................................................166
20 “Date not set” indicator ........................195
5
Parts of the Camera
The Monitor
999
999
F 2.8
F2.8
1/250
1/250
+1.0
+1.0
29m 0s
29m 0s
10
10
400
400
HDR
HDR
5
5
2
2
2
2
10
10
120
120
60
60
27
28
29
35
32 33
30
31
34
36
37
38 39
40 2221 23 24 25 26
41
42
21 Self-timer indicator.................................... 52
22 Self-portrait timer....................................... 52
23 Smile timer ..................................................... 44
24 Self-Collage ..........................................45, 138
25 Pet portrait auto release......................... 34
26 Still image capture (during movie
recording)........................................................ 84
27 ISO sensitivity............................................. 133
28 Soft ...................................................................... 42
29 Active D-Lighting ....................................... 47
30 Foundation makeup................................. 42
31 White balance............................................ 129
32 Skin softening............................................... 42
33 Hue...................................................................... 47
34 Special effects............................................... 90
35 Vividness...................................................42, 47
36 Continuous shooting mode......34, 131
37 Time-lapse movie....................................... 85
38 Multiple exp. Lighten............................... 35
39 Playback speed............................................ 87
40 Hand-held/tripod................................31, 32
41 Backlighting (HDR) .................................... 33
42 Blink proof icon .........................................139
6
Parts of the Camera
The Monitor
* On: A smart device is connected.
Flashing: Waiting to connect with a paired smart device.
40
10
0
-10
30
20
999999
+1.0+1.0
29m 0s29m 0s
15m15m
1010hPa1010hPa
999999 99999999
50
46
45
44
43
47
49
48
61
62
59
60
56
57
58
55
54 53
51
52
43 Focus area (target finding AF)...59, 135
44 Focus area (face detection,
pet detection).....................34, 44, 58, 134
45 Focus area (manual, center)
.....................................................................61, 134
46 Focus area (subject tracking)
..................................................................135, 136
47 Exposure compensation value
................................................................42, 47, 55
48 Remaining movie recording time
....................................................................... 80, 81
49 Number of exposures remaining
(still images)................................................... 19
50 Internal memory indicator.................... 19
51 Compass display (direction gauge)
............................................................................ 160
52 Compass display (compass) ............. 160
53 Log display (altitude/water depth)
.............................................................................101
54 Log display (location data).................101
55 Location data reception ........................ 95
56 Bluetooth communication indicator*
.............................................................................154
57 Wi-Fi communication indicator......153
58 Airplane mode...........................................153
59 Atmospheric pressure...........................100
60 Altitude/water depth.............................100
61 Altimeter/depth gauge........................100
62 Location name information
(POI information)......................................157
7
Parts of the Camera
The Monitor
For Playback
15/11/2017 12:00
15/11/2017 12:00
15m
15m
1010hPa
1010hPa
999/999
999/999
999/999
999/999
9999/9999
9999/9999
29m 0s
29m 0s
29m 0s
29m 0s
24
25
26 27
28
29
12
13
14
10
11
21 3 45 67 8
1718
20 16 15
19
9
21
23
22
1List by date icon.......................................... 69
2Protect icon................................................. 150
3Sequence display (when Individual
pictures is selected)............................. 152
4Glamour retouch icon.............................75
5Quick effects icon....................................... 72
6D-Lighting icon............................................ 74
7Quick retouch icon................................... 73
8Red-eye correction icon......................... 74
9Internal memory indicator
10 Current image number/
total number of images
11 Movie length or elapsed playback
time
12 Image mode............................................... 127
13 Easy panorama............................................. 39
14 Movie options............................................ 140
15 Small picture icon ...................................... 77
16 Crop icon..................................................67, 78
17 Volume indicator........................................ 91
18 Quick effects guide
19
Easy panorama playback guide
Sequence playback guide
Movie playback guide
20 Time of recording
21 Date of recording
22 Charging AC adapter connection
indicator
23 Battery level indicator.............................. 19
24 File number and type............................204
25 Recorded location data indicator
............................................................................... 97
26 Atmospheric pressure...........................100
27 Altitude/water depth.............................100
28 Compass display (compass) ......95, 160
29 Location name information
(POI information)......................................157
8
Parts of the Camera
The Monitor
For the Active Guide
* The horizontal axis of the graph shows the total time during log recording, and the
vertical axis of the graph shows the total variations in altitude/depth during log recording.
The graph updates automatically in 1-second intervals.
31º
23’
15”
15
1010
136º
15’
32”
15/11/2017 15:30
NNE
m
hPa
N
E
Next
15
1010
15/11/2017 15:30
NNE
m
hPa
0
4000
4500
1000
1500
2000
2500
3000
3500 500
Next
0
0
10 20 30 40 50
50
40
30
20
10
0
60
15 1010
15/11/2017 15:30
mhPa
m / m
Next
0
10
15
20
25
30
35 5
0
4000
4500
1000
1500
2000
2500
3000
3500 500
12 345
6
7
8
9
10
11
12
13
14
15 16
17
1Date
2Time
3Location data reception......................... 95
4Log display (location data) ................ 101
5Log display (altitude or water depth)
............................................................................ 101
6Altitude or water depth
7Atmospheric pressure
8Direction
9Latitude and longitude
10 Location name information
(POI information)......................................157
11 Battery level indicator.............................. 19
12 Compass display
13 Altitude icon
14 Depth icon
15 Altimeter
16 Depth gauge
17 Altitude/depth logs graph*
9
Getting Started
Getting Started
How to Attach the Camera Strap for Land Use..........................................................10
Inserting the Battery and Memory Card.......................................................................11
Charging the Battery...........................................................................................................13
Camera Setup ........................................................................................................................15
10
Getting Started
How to Attach the Camera Strap for Land Use
Remove the strap for land use before using the camera underwater.
How to Attach the Camera Strap for Land Use
11
Getting Started
Inserting the Battery and Memory Card
•Press the battery-chamber/memory card slot cover latch release (1) and rotate
the battery-chamber/memory card slot cover latch (2) to open the cover (3).
•With the battery’s positive and negative terminals oriented correctly, move the
orange battery latch (4), and fully insert the battery (5).
•Slide the memory card in until it clicks into place (6).
•Be careful not to insert the battery or memory card upside-down or backward, as
this could cause a malfunction.
•Close the battery-chamber/memory card slot cover (7) and, while pressing it
firmly against the camera so that the red portion on the side of the cover is hidden,
rotate the battery-chamber/memory card slot cover latch until it clicks into place
(8).
Make sure that the cover is securely locked.
•If the write-protect switch of the memory card is locked, you cannot shoot, delete
images, or format the memory card.
•Camera data, including images and movies, can be saved either on a memory card
or in the internal memory. To use the internal memory, remove the memory card.
BNotes About Waterproof and Dustproof Performance
See “Notes About Shockproof, Waterproof, and Dustproof Performance” (Ax) for more
information.
BNotes About Closing the Cover without Getting the Camera Strap’s Cord
Caught
If the camera strap’s cord gets caught in the battery-chamber/memory card slot cover when
it is closed, the cover could be damaged. Before closing the battery-chamber/memory card
slot cover, make sure that the cord does not get caught in it.
Inserting the Battery and Memory Card
1
3
24
5
8
7
6
Battery latch Memory card slot
12
Getting Started
Inserting the Battery and Memory Card
BFormatting a Memory Card
The first time you insert a memory card that has been used in another device into this
camera, make sure to format it with this camera.
•Note that formatting a memory card permanently deletes all images and other
data on the memory card. Be sure to make copies of any images you wish to keep
before formatting the memory card.
•Insert the memory card into the camera, press the d button, and select Format card in
the setup menu (A119).
Removing the Battery or Memory Card
Turn the camera off and make sure that the power-on lamp and screen have turned
off, and then open the battery-chamber/memory card slot cover.
•Move the battery latch to eject the battery.
•Gently push the memory card into the camera to partially eject the memory card.
•Be careful when handling the camera, battery, and memory card immediately after
using the camera, as they may be hot.
13
Getting Started
Charging the Battery
If a plug adapter* is included with your camera, securely connect it to the Charging
AC Adapter. Once the two are connected, attempting to forcibly remove the plug
adapter could damage the product.
* The shape of the plug adapter varies according to the country or region in which the
camera was purchased.
This step can be omitted if the plug adapter comes permanently bonded to the Charging
AC Adapter.
•Charging starts when the camera is connected to an electrical outlet while the
battery is inserted, as shown in the illustration. The charge lamp slowly flashes
while the battery is charging.
•When charging is complete, the charge lamp turns off. Unplug the Charging AC
Adapter from the electrical outlet, and disconnect the USB cable.
Charging time is about 2 hours and 20 minutes for a fully exhausted battery.
•The battery cannot be charged when the charge lamp quickly flashes, possibly due
to one of the reasons described below.
- The ambient temperature is not suited to charging.
- The USB cable or Charging AC Adapter is not properly connected.
- The battery is damaged.
Charging the Battery
12
3
USB cable (included)
Charge lamp
Electrical outlet
Charging AC Adapter
14
Getting Started
Charging the Battery
BNotes About the USB Cable
•Do not use a USB cable other than the UC-E21. Using a USB cable other than the UC-E21
could result in overheating, fire or electric shock.
•Check the shape and direction of the plugs and do not insert or remove the plugs at an
angle.
BNotes About Charging the Battery
•The camera can be operated while the battery is charging, but the charging time
increases.
•If the battery level is extremely low, you may not be able to operate the camera while the
battery is charging.
•Do not, under any circumstances, use another make or model of AC adapter other than
the EH-73P/EH-73PCH Charging AC Adapter, and do not use a commercially available
USB-AC adapter or a battery charger for a mobile phone. Failure to observe this precaution
could result in overheating or in damage to the camera.
15
Getting Started
Camera Setup
1Press the power switch to turn on the camera.
•Use the multi selector to select and adjust settings.
•A language selection screen will be displayed. Use
the multi selector HI to highlight a language
and press the k button to select.
•The language can be changed at any time in the
setup menu (A119) M Language.
2When the dialog on the right is
displayed, follow the instructions below
and press the d button or the
kbutton.
•If you will not establish a wireless connection with
a smart device:
Press the d button and proceed to step 3.
•If you will establish a wireless connection with a smart device:
Press the k button. See the included “SnapBridge Connection Guide” for the setup
procedure.
When you establish a wireless connection using the SnapBridge app, you can
upload images captured with the camera to a smart device or perform remote
photography.
3Use HI to select Yes when prompted to set the camera clock,
and then press the k button.
Camera Setup
Multi selector
k button
(apply selection)
RightLeft
Up
Down
Power switch
d button
Cancel
Language
Use SnapBridge to send photos to your
smart device and share them online.
To skip this screen and set SnapBridge
later from the Network menu, press
MENU.
SetLater
16
Getting Started
Camera Setup
4Highlight your home time zone and
press the k button.
•You can set daylight saving time by pressing H.
When it is turned on, the clock is set one hour
faster and W is displayed above the map. Press I
to turn it off.
5Use HI to select the date format and press the k button.
6Enter the current date and time and
press the k button.
•Use JK to highlight items and HI to change.
•Select the minute field and press the k button to
confirm the setting.
7When the confirmation dialog is displayed, select Yes and press
the k button.
•You can change the time zone, date, and time using the setup menu (A119) M
Time zone and date.
8Read the message about the waterproof function, and press K.
•Confirm the last message and press the k button. The camera switches to the
shooting screen when setup is complete.
•Waterproofing-related messages are displayed in the following situations.
- When turning on and setting the camera for the first time after purchase
- When setting the camera to Underwater scene mode
- When turning the camera on after charging
Back
London, Casablanca
Edit
Date and time
YMDhm
01 01 2017 00 00
17
Basic Shooting and Playback Operations
Basic Shooting and Playback
Operations
Shooting Images...................................................................................................................18
Playing Back Images............................................................................................................21
Deleting Images....................................................................................................................22
Action Control .......................................................................................................................24
18
Basic Shooting and Playback Operations
Shooting Images
o (scene auto selector) mode is used here as an example. In o (scene auto
selector) mode, the camera recognizes the shooting conditions when you frame a
picture, and you can take pictures in accordance with the conditions.
1Hold the camera steady.
•Keep fingers and other objects away from the lens,
flash, AF-assist illuminator, microphone, and
speaker.
•When taking pictures in portrait (“tall”) orientation,
turn the camera so that the flash is above the lens.
2Frame the picture.
•Move the zoom control to change the zoom lens
position.
Shooting Images
Zoom in
Zoom out
19
Basic Shooting and Playback Operations
Shooting Images
•When the camera recognizes the shooting
conditions, the shooting mode icon changes
accordingly.
•Battery level indicator
b: The battery level is high.
B: The battery level is low.
•Number of exposures remaining
C is displayed when no memory card is inserted
in the camera, and images are saved in the
internal memory.
3Press the shutter-release button
halfway.
•To press the shutter-release button “halfway”
means to press and hold the button at the point
where you feel a slight resistance.
•When the subject is in focus, the focus area or
focus indicator is displayed in green.
•When you are using digital zoom, the camera
focuses in the center of the frame and the focus
area is not displayed.
•If the focus area or focus indicator flashes, the
camera is unable to focus. Modify the
composition and try pressing the shutter-release
button halfway again.
4Without lifting your finger, press the
shutter-release button all the way
down.
BNotes About Saving Images or Movies
The indicator showing the number of exposures remaining or the indicator showing the
remaining recording time flashes while images or movies are being saved. Do not open
the battery-chamber/memory card slot cover or remove the battery or memory
card while an indicator is flashing. Doing this could result in loss of data, or in damage to the
camera or the memory card.
40
10
0
-10
30
20
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
1/2501/250 F 2.8F 2.8
20
Basic Shooting and Playback Operations
Shooting Images
CThe Auto Off Function
•When no operations are performed for about one minute, the screen turns off, the camera
enters standby mode, and then the power-on lamp flashes. The camera turns off after
remaining in standby mode for about three minutes.
•To turn the screen back on while the camera is in standby mode, perform an operation
such as pressing the power switch or shutter-release button.
CWhen Using a Tripod
•We recommend using a tripod to stabilize the camera in the following situations:
- When shooting in dim lighting with the flash mode (A49) set to W (off)
- When the zoom is at a telephoto position
•When using a tripod to stabilize the camera during shooting, set Photo VR to Off in the
setup menu (A119) to prevent potential errors caused by this function.
Recording Movies
Display the shooting screen and press the b (e movie-
record) button to start recording a movie. Press the
b(e) button again to end recording.
•If the battery temperature becomes low, the image
size/frame rate of movies may be restricted. Warm
up the battery with your palms, etc. before use.
Using the LED Light
Use the LED light in dark places, etc.
Press and hold down the r (LED light) button to turn
on an LED light. To turn it off, press the r button.
You can also use the LED light when the camera is
turned off.
•Use LED light timer in the setup menu (A119) to
set the amount of time that elapses before the LED
light turns off.
21
Basic Shooting and Playback Operations
Playing Back Images
1Press the c (playback) button
to enter playback mode.
•If you press and hold down the c button
while the camera is turned off, the camera
turns on in playback mode.
2Use the multi selector to select an image to display.
•Press and hold down HIJK to scroll through
the images quickly.
•To play back a recorded movie, press the
kbutton.
•To return to shooting mode, press the A button
or shutter-release button.
•When e is displayed in full-frame playback
mode, you can press the k button to apply an
effect to the image.
•Move the zoom control toward g (i)
in full-frame playback mode to zoom
in on an image.
•In full-frame playback mode, move
the zoom control toward f (h)
to switch to thumbnail playback
mode and display multiple images
on the screen.
Playing Back Images
Display the previous image
Display the next image
15m15m
1010hPa1010hPa
4/44/4
0004. JPG0004. JPG
15/11/2017 15:3015/11/2017 15:30
3.0
3.0
1/20
22
Basic Shooting and Playback Operations
Deleting Images
1Press the l (delete) button to
delete the image currently
displayed on the screen.
2Use the multi selector HI to select the
desired deletion method and press the
k button.
•To exit without deleting, press the d button.
3Select Yes and press the k button.
•Deleted images cannot be recovered.
BDeleting Images Captured Continuously (Sequence)
•Images captured continuously, or with the multiple exp.
lighten, creative mode, or self-collage function, are saved
as a sequence, and only one image in the sequence (the
key picture) is displayed in playback mode (default
setting).
•If you press the l button while a key picture is displayed
for a sequence of images, all images in the sequence are
deleted.
•To delete individual images in a sequence, press the kbutton to display them one at a
time and press the lbutton.
CDeleting the Image Captured While in Shooting Mode
When using shooting mode, press the l button to delete the last image that was saved.
Deleting Images
Current image
Erase selected images
All images
Delete
Erase 1 image?
Yes
No
1/5
1/5
15/11/2017 15:30
15/11/2017 15:30
23
Basic Shooting and Playback Operations
Deleting Images
The Image Selection Screen for Deletion
1Use the multi selector JK to select the
image that you want to delete.
•Move the zoom control (A3) toward g(i) to
switch to full-frame playback, or f(h) to switch
to thumbnail playback.
2Use HI to select ON or OFF.
•When ON is selected, an icon is displayed under
the selected image. Repeat steps 1 and 2 to select
additional images.
3Press the k button to apply the image selection.
•A confirmation dialog is displayed. Follow the on-screen instructions to operate.
Erase selected images
Back
Erase selected images
Back
24
Basic Shooting and Playback Operations
Action Control
The operations described below can be performed by shaking the camera.
Displaying the Previous or Next Image in Full-frame
Playback Mode
In full-frame playback mode, shake the
camera up/down to display the next image,
or forward/backward to display the previous
image (when Playback action control in
the setup menu (A119) is set to On).
•Make sure to hold the camera firmly with
the camera strap around your hand, and
use your wrist to shake the camera as
shown in the illustration.
Using Action Menu
Press the V (action) button to
display the action menu.
•Shake the camera to select an
option listed below, and press
the V button to perform the
operation.
While the action menu is displayed, only the Vbutton, shutter-release button, power
switch, or r (LED light) button can be used.
Action Control
Option Description
Shooting mode selection Select a shooting mode (only restricted to some shooting
modes).
q Start movie recording
Press the V button to record/end a movie.
The b(emovie-record) button cannot be used to end
recording.
K Quick playback Display an image in full-frame playback mode. You can use
action control to play back images.
f Exit Exit the action menu.
Confirm
Scene auto selector
Action menu
25
Shooting Features
Shooting Features
Selecting a Shooting Mode ..............................................................................................26
o (Scene Auto Selector) Mode ....................................................................................28
Scene Mode (Shooting Suited to the Shooting Conditions) ................................30
Creative Mode (Applying Effects When Shooting) ..................................................40
Smart Portrait Mode (Enhancing Human Faces When Shooting) ......................42
A (Auto) Mode....................................................................................................................47
Setting Shooting Functions with the Multi Selector ...............................................49
Flash Mode..............................................................................................................................50
Self-timer.................................................................................................................................52
Macro Mode (Taking Close-up Pictures)......................................................................54
Exposure Compensation (Adjusting Brightness)......................................................55
Using the Zoom ....................................................................................................................56
Focusing ..................................................................................................................................57
Default Settings (Flash, Self-timer, and Macro Mode).............................................62
Functions That Cannot Be Used Simultaneously When Shooting .....................64
26
Shooting Features
Selecting a Shooting Mode
The shooting modes described below are available.
•o Scene auto selector
The camera recognizes the shooting conditions when you frame a picture, and you
can take pictures in accordance with those conditions.
•b Scene mode
Select any one of scene modes based on the shooting conditions, and you can
take pictures with the appropriate settings for those conditions.
•s Creative mode
The camera saves four images with effects and one image without effects
simultaneously in one shot.
•F Smart portrait
Use glamour retouch to enhance human faces during shooting, and use the smile
timer or self-collage function to take pictures.
•M Short movie show
The camera creates a short movie that is up to 30 seconds long (e 1080/30p or
S 1080/25p) by recording and automatically combining multiple movie clips
that are several seconds long.
•A Auto mode
Select this mode to perform general shooting in a variety of shooting conditions.
1When the shooting screen
is displayed, press the
A(shooting mode)
button.
2Use the multi selector HI
to select a shooting mode
and press the k button.
•When scene mode is selected,
press K to select a scene mode
or effect before pressing the
kbutton.
Selecting a Shooting Mode
Scene auto selector
27
Shooting Features
Selecting a Shooting Mode
CHelp Display
The descriptions of functions are displayed while changing the shooting mode or while the
setting screen is displayed.
You can show or hide the descriptions using Help display in Monitor settings in the
setup menu.
28
Shooting Features
o (Scene Auto Selector) Mode
The camera recognizes the shooting conditions when you frame a picture, and you
can take pictures in accordance with those conditions.
When the camera automatically recognizes the shooting conditions, the shooting
mode icon displayed on the shooting screen changes accordingly.
* The camera is switched to underwater mode when it is lowered into water.
BNotes About o (Scene Auto Selector) Mode
•Under some shooting conditions, the camera may not select the desired settings. In this
case, select another shooting mode (A26).
•When the digital zoom is in effect, the shooting mode icon changes to d.
BAfter Taking the Camera Out of the Water
After taking the camera out of water, sometimes it may not automatically switch to another
scene from underwater mode.
Gently brush any water droplets with your hand from the camera or wipe it off with a soft
and dry cloth. See “Cleaning After Using the Camera Underwater” (A188) for more
information on caring for the camera.
CUnderwater Recording of Location Data
See “Underwater Recording of Location Data” (A36) for more information.
o (Scene Auto Selector) Mode
Enter shooting mode M A (shooting mode) button M o (scene auto selector)
mode M k button
ePortrait (for taking close-up portraits of one or two people)
bPortrait (for taking portraits of large numbers of people, or images in which the
background takes up a large portion of the frame)
fLandscape
hNight portrait (for taking close-up portraits of one or two people)
cNight portrait (for taking portraits of large numbers of people, or images in
which the background takes up a large portion of the frame)
gNight landscape
iClose-up
jBacklighting (for taking pictures of subjects other than people)
dBacklighting (for taking portrait pictures)
aUnderwater*
dOther shooting conditions
29
Shooting Features
o (Scene Auto Selector) Mode
Functions Available in o (Scene Auto Selector) Mode
•Flash mode (A50)
•Self-timer (A52)
•Exposure compensation (A55)
•Image mode (A127)
30
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
Select any one of scene modes based on the shooting conditions, and you can take
pictures with the appropriate settings for those conditions.
* The icon of the last scene selected is displayed.
1The camera focuses at infinity.
2The camera focuses on the area in the center of the frame.
3Use of a tripod is recommended, because the shutter speed is slow. Set Photo VR
(A167) to Off in the setup menu when using a tripod to stabilize the camera during
shooting.
4Use of a tripod is recommended because the shutter speed is slow. When Nightscape +
light trails is selected, the camera focuses on the area in the center of the frame. When
Nightscape + star trails or Star trails is selected, the camera focuses at infinity.
Scene Mode (Shooting Suited to the Shooting Conditions)
Enter shooting mode M A (shooting mode) button M b (second icon from the
top*) M K M HI M select a scene M k button
b Portrait (default setting) j Night landscape1, 2 (A32)
c Landscape1, 2 k Close-up (A32)
N Time-lapse movie (A85) u Food (A32)
d Sports2 (A31) m Fireworks show1, 3 (A33)
e Night portrait (A31) o Backlighting2 (A33)
f Party/indoor2 (A31) p Easy panorama (A37)
Z Beach2O Pet portrait (A34)
z Snow2U Multiple exp. Lighten4 (A35)
h Sunset2, 3 u Superlapse movie (A87)
i Dusk/dawn1, 2, 3 C Underwater2 (A36)
31
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
Tips and Notes About Scene Mode
•While the shutter-release button is held all the way down, images are captured
continuously.
•The camera can capture up to about 5 images continuously at a rate of about 7.5 fps
(when Image mode is set to P 4608×3456).
•The frame rate for continuous shooting may become slow depending on the current
image mode setting, the memory card used, or shooting conditions.
•Focus, exposure, and hue for the second and subsequent images are fixed at the values
determined with the first image.
•On the screen displayed when e Night portrait is selected, select u Hand-held or w
Tripod.
•u Hand-held:
-While the e icon on the shooting screen is displayed in green, press the shutter-release
button all the way to capture a series of images which are combined into a single image
and saved.
- Once the shutter-release button is pressed all the way, hold the camera still until a still
image is displayed. After taking a picture, do not turn the camera off before the screen
switches to the shooting screen.
- If the subject moves while the camera is shooting continuously, the image may be
distorted, overlapped, or blurred.
- Continuous shooting may not be possible in certain shooting conditions.
•w Tripod:
- One image is captured at a slow shutter speed when the shutter-release button is
pressed all the way.
- Vibration reduction is disabled even when Photo VR (A167) in the setup menu is set
to On.
•To avoid the effects of camera shake, hold the camera steady. Set Photo VR (A167) to
Off in the setup menu when using a tripod to stabilize the camera during shooting.
dSports
e Night portrait
f Party/indoor
32
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
•On the screen displayed when j Night landscape is selected, select u Hand-held or
w Tripod.
•u Hand-held:
-While the j icon on the shooting screen is displayed in green, press the shutter-release
button all the way to capture a series of images which are combined into a single image
and saved.
- Once the shutter-release button is pressed all the way, hold the camera still until a still
image is displayed. After taking a picture, do not turn the camera off before the screen
switches to the shooting screen.
- The angle of view (i.e., the area visible in the frame) seen in the saved image is narrower
than that seen on the shooting screen.
- Continuous shooting may not be possible in certain shooting conditions.
•w Tripod:
- One image is captured at a slow shutter speed when the shutter-release button is
pressed all the way.
- Vibration reduction is disabled even when Photo VR (A167) in the setup menu is set
to On.
•Macro mode (A54) is enabled and the camera automatically zooms to the closest
position at which it can focus.
•You can move the focus area. Press the k button, use the multi selector HIJK to
move the focus area, and press the k button to apply the setting.
•Macro mode (A54) is enabled and the camera automatically zooms to the closest
position at which it can focus.
•You can adjust hue by using the multi selector HI. The
hue setting is saved in the camera’s memory even after
the camera is turned off.
•You can move the focus area. Press the k button, use
the multi selector HIJK to move the focus area, and
press the k button to apply the setting.
j Night landscape
k Close-up
u Food
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
25m 0s
25m 0s
500
500
33
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
•The shutter speed is fixed at four seconds.
•Exposure compensation cannot be used (A55).
•On the screen displayed when o Backlighting is selected, select ON or OFF to enable
or disable the high dynamic range (HDR) function based on the shooting conditions.
•OFF: The flash fires to prevent the subject from being hidden in shadow.
- Press the shutter-release button all the way to capture one image.
•ON: Use when taking pictures with very bright and dark areas in the same frame.
- When the shutter-release button is pressed all the way, the camera shoots images
continuously and saves the following two images.
-A non-HDR composite image
- An HDR composite image in which the loss of details in highlights or shadows is
minimized
- If there is only enough memory to save one image, an image processed by D-Lighting
(A74) at the time of shooting, in which dark areas of the image are corrected, is the
only image saved.
- Once the shutter-release button is pressed all the way, hold the camera still until a still
image is displayed. After taking a picture, do not turn the camera off before the screen
switches to the shooting screen.
- The angle of view (i.e., the area visible in the frame) seen in the saved image is narrower
than that seen on the shooting screen.
BNotes About HDR
Use of a tripod is recommended. Set Photo VR (A167) in the setup menu to Off when
using a tripod to stabilize the camera.
m Fireworks show
o Backlighting
34
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
•When you point the camera at a dog or cat, the camera detects the face of a dog or cat
and focuses on it. By default, the shutter is automatically released when the face of a dog
or cat is detected (pet portrait auto release).
•On the screen displayed when O Pet portrait is selected, select U Single or
VContinuous.
-U Single: Whenever the face of a dog or cat is detected, the camera captures one image.
-V Continuous: Whenever the face of a dog or cat is detected, the camera captures
three images continuously.
BPet Portrait Auto Release and Self-portrait Timer
The following settings can be set when you press the multi selector J (n).
•Y Pet portrait auto release: The camera automatically releases the shutter when it
detects the face of a dog or cat.
-Pet portrait auto release is set to k after five bursts have been taken.
- You can also release the shutter by pressing the shutter-release button.
•r 5s Self-portrait timer: The shutter is released 5 seconds after you press the shutter-
release button all the way down.
Frame the picture after you press the shutter-release button all the way down.
- See “Self-timer” (A52) for more information.
- The camera focuses on the face of a dog, cat, or human when detected.
- The camera cannot shoot images continuously.
•k: The camera releases the shutter when the shutter-release button is pressed all the
way down.
- The camera focuses on the face of a dog, cat, or human when detected.
BFocus Area
•When the camera detects a face, the face is displayed
inside a yellow border. When the camera acquires focus
on a face displayed inside a double border (focus area),
the double border changes to green. If no faces are
detected, the camera focuses on the subject in the
center of the frame.
•Under some shooting conditions, the face of a dog, cat,
or human may not be detected and other subjects may
be displayed inside a border.
O Pet portrait
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
25m 0s
25m 0s
500
500
35
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
•The camera automatically captures moving subjects at regular intervals, compares each
image and composites only their bright areas, and then saves them as one image. Light
trails such as the flow of car lights or motion of stars are captured.
•On the screen displayed when U Multiple exp. Lighten is selected, select
VNightscape + light trails, W Nightscape + star trails, or S Star trails.
•The screen may turn off during the shooting interval. The power-on lamp flashes while
the screen is off.
•To end shooting before it automatically ends, press the k button.
•When you have obtained the desired trails, end shooting. If you continue shooting, details
in the composited areas may be lost.
•The images automatically saved during shooting and the image composited when
shooting ends are grouped as a sequence, and the image composited when shooting
ends is used as the key picture (A70).
•Vibration reduction is disabled regardless of the Photo VR setting (A167) in the setup
menu.
BNotes About Multiple Exp. Lighten
•The camera cannot capture images when a memory card is not inserted.
•Do not insert a new memory card until shooting ends.
•Use a sufficiently charged battery to prevent the camera from turning off during shooting.
•Exposure compensation cannot be used (A55).
U Multiple exp. Lighten
Option Description
V Nightscape
+ light trails
Use to capture the flow of car lights against a night landscape
background.
•Shots are taken at a shutter speed of 4 seconds every 4 seconds.
When 50 shots are taken, the camera automatically stops shooting.
•For every 10 shots taken, one composite image with trails
overlapped from the start of shooting is automatically saved.
W Nightscape
+ star trails
Use to capture the motion of stars with a night landscape in the frame.
•Shots are taken at a shutter speed of 20 seconds every 25 seconds.
When 300 shots are taken, the camera automatically stops shooting.
•For every 30 shots taken, one composite image with trails
overlapped from the start of shooting is automatically saved.
S Star trails
Use to capture the motion of stars.
•Shots are taken at a shutter speed of 25 seconds every 30 seconds.
When 300 shots are taken, the camera automatically stops shooting.
•For every 30 shots taken, one composite image with trails
overlapped from the start of shooting is automatically saved.
36
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
CTime Remaining
You can check the time remaining until shooting
automatically ends on the screen.
•If you select Underwater, screens about recording of location data and water depth
calibration are displayed followed by messages about waterproofing. The next message is
displayed when you press the multi selector K after reading the messages. When the
shutter-release button is pressed, the camera switches to shooting mode without
displaying any subsequent screens.
•See “<Important> Notes About Shockproof, Waterproof, and Dustproof Performance and
Condensation” (Aix) for more information on shooting underwater.
•Wireless communication is not available when the camera is underwater.
CUnderwater Recording of Location Data
The screen on the right is displayed if you select
Underwater scene mode or select o (scene auto
selector) mode and then submerge the camera
underwater while positioning is being performed or while
location data is being downloaded from a smart device.
If you select Yes and press the k button, the location data
obtained prior to underwater shooting is recorded on the
images to be shot underwater.
C Underwater
10m 0s10m 0s
End recording
Underwater
Yes
No
Do you want to use the location data
last obtained before submerging?
These data will be recorded with
every shot taken until you resurface.
37
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
Shooting with Easy Panorama
* The icon of the last scene selected is displayed.
1Select W Normal or X Wide as
the shooting range and press the
kbutton.
2Frame the first edge of the panorama
scene, and then press the shutter-
release button halfway to focus.
•The zoom position is fixed at wide-angle.
•The camera focuses in the center of the frame.
3Press the shutter-release button all the
way, and then remove your finger from
the shutter-release button.
•KLJI are displayed to indicate the direction of
camera movement.
4Move the camera in one of the four
directions until the guide indicator
reaches the end.
•When the camera detects which direction it is
moving in, shooting begins.
•Shooting ends when the camera captures the
specified shooting range.
•Focus and exposure are locked until shooting
ends.
Enter shooting mode M A (shooting mode) button M b (second icon from
the top*) M K M HI M p (easy panorama) M k button
Normal
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
25m 0s
25m 0s
500
500
Guide
38
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)
Example of Camera Movement
•Using your body as the axis of rotation, move the
camera slowly in an arc, in the direction of the marking
(KLJI).
•Shooting stops if the guide does not reach the edge
within about 15 seconds (when W Normal is
selected) or within about 30 seconds (when X
Wide is selected) after shooting starts.
BNotes About Easy Panorama Shooting
•The range of the image seen in the saved image is narrower than that seen on the screen
at the time of shooting.
•If the camera is moved too quickly or shaken too much, or if the subject is too uniform
(e.g. walls or darkness), an error may occur.
•If shooting is stopped before the camera reaches the half-way point in the panorama
range, a panorama image is not saved.
CImage Size of Easy Panorama
•There are four different maximum image sizes (in pixels), as described below.
When W Normal is set
When X Wide is set
•If more than half of the panorama range is captured but shooting ends before reaching
the edge of the range, the image size becomes smaller.
4800
920
1536
9600
920
1536
39
Shooting Features
Scene Mode (Shooting Suited to the Shooting Conditions)

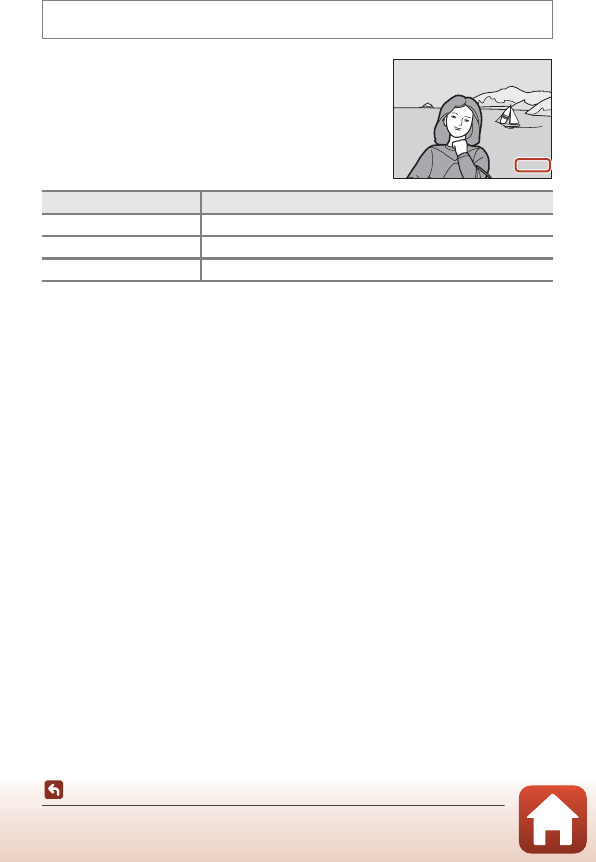

Playback with Easy Panorama
Switch to playback mode (A21), display an image
captured using easy panorama in full-frame playback
mode, and then press the k button to scroll the
image in the direction that was used when shooting.
Playback controls are displayed on the screen during
playback.
Use the multi selector JK to select a control, and then
press the k button to perform the operations
described below.
BNotes About Easy Panorama Images
•The images cannot be edited on this camera.
•This camera may not be able to scroll the playback of, or zoom in on, easy panorama
images captured with another make or model of digital camera.
BNotes About Printing Panorama Images
The entire image may not be able to be printed depending on the printer’s settings.
Additionally, printing may not be possible depending on the printer.
Function Icon Description
Rewind AHold down the k button to rewind scroll playback.
Fast-forward BHold down the k button to fast-forward scroll playback.
Pause E
Pause playback. The operations listed below can be
performed while paused.
CHold down the k button to rewind.
DHold down the k button to scroll.
FResume automatic scrolling.
End GReturn to full-frame playback mode.
15/11/2017 15:30
15/11/2017 15:30
4/4
4/4
15m
15m
1010hPa
1010hPa
40
Shooting Features
Creative Mode (Applying Effects When Shooting)
The camera saves four images with effects and one image without effects
simultaneously in one shot.
•The camera focuses in the center of the frame.
1Press the k button.
•The effect selection screen is displayed.
2Use the multi selector HI to select the
desired effect, and press the k button.
•You can select Variety, Selective color (red),
Selective color (green), Selective color (blue),
Light (default setting), Depth, Memory, Classic,
or Noir.
•The image without effects is displayed on the
upper part of the screen. Four types of images with
effects are displayed on the lower part of the screen.
•Only one type of effect can be applied to a movie. Press JK to select the desired
effect.
3Press the shutter-release button or b (e movie-record) button
to shoot.
•The five saved images are treated as a sequence. One image with an applied effect
is used as the key picture (A70).
Creative Mode (Applying Effects When Shooting)
Enter shooting mode M A (shooting mode) button M s Creative mode M
k button
Select eect
Variety
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
Select eect
Variety
25m 0s
25m 0s
500
500
41
Shooting Features
Creative Mode (Applying Effects When Shooting)
Functions Available in Creative Mode
•Flash mode (A50)
•Self-timer (A52)
•Macro mode (A54)
•Exposure compensation (A55)
•Shooting menu (A127)
42
Shooting Features
Smart Portrait Mode (Enhancing Human Faces When Shooting)
You can take a picture with the glamour retouch function to enhance human faces.
1Press the multi selector K.
2Apply an effect.
•Use JK to select an effect.
•Use HI to adjust the amount of effect.
•You can simultaneously apply multiple effects.
BSkin softening, lFoundation makeup,
QSoft, GVividness, oBrightness (Exp. +/-)
•Select y Exit to hide the slider.
•Press the k button after checking the settings for
all effects.
3Frame the picture and press the shutter-release button.
BNotes About Smart Portrait Mode
The amount of effect may differ between the image on the shooting screen and the saved
image.
CGlamour Retouch Settings
A histogram is displayed when you select Brightness (Exp. +/-). See “Using the Histogram”
(A55) for more information.
Smart Portrait Mode (Enhancing Human Faces
When Shooting)
Enter shooting mode M A (shooting mode) button M F Smart portrait mode
M kbutton
OFF
1
2
3
4
5
Skin softening
Slider
Effect
43
Shooting Features
Smart Portrait Mode (Enhancing Human Faces When Shooting)
Functions Available in Smart Portrait Mode
•Glamour retouch (A42)
•Smile timer (A44)
•Self-Collage (A45)
•Flash mode (A50)
•Self-timer (A52)
•Smart portrait menu (A138)
Using Skin Softening and Foundation Makeup
•When smart portrait mode is set to Skin softening or Foundation makeup and
the camera detects a human face, it processes the image to soften facial skin tones
or adjust facial colors before saving the image (up to three faces).
•You can also save images with the Skin softening effect applied when shooting
in o (scene auto selector) mode, or Portrait or Night portrait scene mode. The
amount of effect cannot be adjusted.
•You can also apply the effects of Skin softening or Foundation makeup in
Glamour retouch in the playback menu after shooting (A75).
BNotes About Skin Softening and Foundation Makeup
•It may take more time than usual to save images after shooting.
•Under some shooting conditions, the desired results may not be achieved, and the effects
may be applied to areas of the image where there are no faces.
44
Shooting Features
Smart Portrait Mode (Enhancing Human Faces When Shooting)
Using Smile Timer
When you press the multi selector J to select aSmile
timer and press the k button, the camera
automatically releases the shutter whenever a smiling
face is detected.
•Set the glamour retouch function before selecting
smile timer (A42).
•When you press the shutter-release button to take a
picture, smile timer is terminated.
BNotes About Smile Timer
•Under some shooting conditions, the camera may be unable to detect faces or smiles
(A58). The shutter-release button can also be used for shooting.
•This function may not be available to use in combination with other functions (A64).
CWhen the Self-timer Lamp Flashes
When using smile timer, the self-timer lamp flashes when the camera detects a face and
flashes quickly immediately after the shutter is released.
Enter shooting mode M A (shooting mode) button M F Smart portrait mode
M k button
Smile timer
45
Shooting Features
Smart Portrait Mode (Enhancing Human Faces When Shooting)
Using Self-Collage
The camera can capture a series of four or nine images
at intervals and save them as a one-frame image (a
collage image).
1Press the multi selector J to select
nSelf-Collage, and press the
kbutton.
•A confirmation dialog is displayed.
•When you press the d button and select
Self-Collage before pressing J, you can
configure the settings for Number of shots,
Interval, and Shutter sound (A138).
•If you want to apply glamour retouch when
shooting, set the effect before selecting self-
collage (A42).
2Take a picture.
•When you press the shutter-release button, a
countdown starts (about five seconds) and the
shutter is automatically released.
•The camera automatically releases the shutter for
the remaining pictures. A countdown starts about
three seconds before shooting.
•The number of shots is indicated by U on the
screen. It is displayed in yellow during shooting and it changes to white after
shooting.
Enter shooting mode M A (shooting mode) button M F Smart portrait mode
M k button
Self-Collage
2
46
Shooting Features
Smart Portrait Mode (Enhancing Human Faces When Shooting)
3On the screen displayed when the camera finishes taking the
number of shots that is set in Number of shots, select Yes and
press the k button.
•The collage image is saved.
•Each captured image is saved as an individual image separate from the collage
image. The images are grouped as a sequence, and a one-frame collage image is
used as the key picture (A70).
•When No is selected, the collage image is not saved.
BNotes About Self-Collage
•If you press the shutter-release button before the camera takes the specified number of
shots, shooting is canceled and the collage image is not saved. The pictures that were
taken before shooting was canceled are saved as individual images.
•This function may not be available to use in combination with other functions (A64).
47
Shooting Features
A (Auto) Mode
Select this mode to perform general shooting in a variety of shooting conditions.
•You can change how the camera selects the area of the frame to focus on by
changing the AF area mode setting (A134). The default setting is Target
finding AF (A59).
Functions Available in A (Auto) Mode
•Creative slider (A47)
•Flash mode (A50)
•Self-timer (A52)
•Macro mode (A54)
•Shooting menu (A127, 129)
Using the Creative Slider
You can adjust the brightness (exposure compensation), vividness, hue, and Active D-
Lighting when shooting.
1Press the multi selector K.
A (Auto) Mode
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton
48
Shooting Features
A (Auto) Mode
2Use JK to select an item.
•F Hue: Adjust the hue (reddish/bluish) of the
entire image.
•G Vividness: Adjust the vividness of the entire
image.
•o Brightness (Exp. +/-): Adjust the brightness of
the entire image.
•J Active D-Lighting: Reduce the loss of details
in highlights and shadows. Select w (High), x (Normal), y (Low) for the
amount of effect.
3Use HI to adjust the level.
•You can preview the results on the screen.
•To set another item, return to step 2.
•Select y Exit to hide the slider.
•To cancel all settings, select P Reset and press
the k button. Return to step 2 and adjust the
settings again.
4Press the k button when setting is complete.
•The settings are applied and the camera returns to the shooting screen.
CCreative Slider Settings
•This function may not be available to use in combination with other functions (A64).
•The settings for brightness (exposure compensation), vividness, hue, and Active
D-Lighting are saved in the camera’s memory even after the camera is turned off.
•See “Using the Histogram” (A55) for more information.
CActive D-Lighting Versus D-Lighting
•The Active D-Lighting option in the shooting menu captures images while reducing loss
of details in highlights, and adjusts the tone when saving images.
•The D-Lighting (A74) option in the playback menu adjusts the tone of saved images.
Brightness (Exp. +/-)
+0.3
-
2.0
+2.0
Slider
Histogram
Brightness (Exp. +/-)
+0.3
-
2.0
+2.0
49
Shooting Features
Setting Shooting Functions with the Multi Selector
When the shooting screen is displayed, you can press the multi selector H(m) J(n)
I(p) K(o) to set the functions described below.
•m Flash mode
The flash mode can be set according to shooting conditions.
•n Self-timer, Self-portrait timer
The camera releases the shutter when the set number of seconds elapses after you
press the shutter-release button.
•p Macro mode
Use macro mode when you take close-up pictures.
•o Exposure compensation
You can adjust overall image brightness.
The functions that can be set vary depending on the shooting mode.
Setting Shooting Functions with the Multi
Selector
50
Shooting Features
Flash Mode
The flash mode can be set according to shooting conditions.
1Press the multi selector H(m).
2Select the desired flash mode (A51)
and press the k button.
•If the setting is not applied by pressing the
kbutton, the selection will be canceled.
CThe Flash Lamp
The status of the flash can be confirmed by pressing the
shutter-release button halfway.
•On: The flash fires when you press the shutter-release
button all the way down.
•Flashing: The flash is charging. The camera cannot
shoot images.
•Off: The flash does not fire when a picture is taken.
Flash Mode
Auto
51
Shooting Features
Flash Mode
Available Flash Modes
BNotes About Shooting with the Flash
When using the flash at the wide-angle zoom position, the area around the image may be
dark depending on the distance to the subject.
This may be improved if you move the zoom control slightly toward the telephoto position.
CThe Flash Mode Setting
•The setting may not be available with some shooting modes (A62).
•The setting applied in A (auto) mode is saved in the camera’s memory even after the
camera is turned off.
CRed-eye Reduction
Pre-flashes are fired repeatedly at low intensity before the main flash, reducing the red-eye
effect. If the camera detects red-eye while saving an image, the affected area is processed to
reduce red-eye before the image is saved.
Note the following when shooting:
•Because pre-flashes are fired, there is a slight lag between when the shutter-release
button is pressed and when the image is shot.
•More time than usual is required to save images.
•Red-eye reduction may not produce the desired results in some situations.
•In rare cases, red-eye reduction may be applied to areas of an image unnecessarily. In
these cases, select another flash mode and take the picture again.
UAuto
The flash fires when necessary, such as in dim lighting.
•The flash mode indicator is only displayed immediately after setting on the
shooting screen.
VAuto with red-eye reduction
Reduce red-eye in portraits caused by the flash.
WOff
The flash does not fire.
•We recommend using a tripod to stabilize the camera when shooting in dark
surroundings.
XFill flash
The flash fires whenever a picture is taken. Use to “fill-in” (illuminate) shadows
and backlit subjects.
YSlow sync
Suited to evening and night portraits that include background scenery. The flash
fires when necessary to illuminate the main subject; slow shutter speeds are
used to capture background at night or under dim lighting.
52
Shooting Features
Self-timer
The camera releases the shutter when the set number of seconds elapses after you
press the shutter-release button.
Set Photo VR (A167) to Off in the setup menu when using a tripod to stabilize the
camera during shooting.
1Press the multi selector J(n).
2Select the number of seconds until the
shutter is released, and press the
kbutton.
•n10s (10 seconds): Use on important occasions,
such as weddings.
•n2s (2 seconds): Use to prevent camera shake.
•r5s (5 seconds, self-portrait timer): Use for self-
portraits.
•If the setting is not applied by pressing the kbutton, the selection will be
canceled.
3Frame the picture and press the shutter-release button halfway.
•When using n10s (10 seconds) or n2s (2 seconds), make sure that the subjects
are in focus.
•When using r5s (5 seconds, self-portrait timer), press the shutter-release button all
the way down in step 4, and then frame the picture.
4Press the shutter-release button
all the way down.
•Countdown starts. The self-timer lamp
flashes and then glows steadily about
one second before the shutter is
released.
•When the shutter is released, the self-
timer is set to OFF.
•To stop the countdown, press the
shutter-release button again.
Self-timer
Self-timer
9
9
53
Shooting Features
Self-timer
CFocus and Exposure When Shooting with the Self-timer
•n10s, n2s: The focus and exposure are locked when you press the shutter-release
button all the way down.
•r5s: The focus and exposure are set right before the shutter is released.
CThe Self-timer Setting
The setting may not be available with some shooting modes (A62).
54
Shooting Features
Macro Mode (Taking Close-up Pictures)
Use macro mode when you take close-up pictures.
1Press the multi selector I(p).
2Select ON and press the k button.
•If the setting is not applied by pressing the
kbutton, the selection will be canceled.
3Move the zoom control to set the zoom
ratio to a position where F and the
zoom indicator are displayed in green.
•When the zoom ratio is set to a position where the zoom indicator is displayed in
green, the camera can focus on subjects as close as approximately 10 cm (4 in.)
from the lens.
When the zoom is at the position where G is displayed, the camera can focus on
subjects as close as approximately 1 cm (0.4 in.) from the lens.
CThe Macro Mode Setting
•The setting may not be available with some shooting modes (A62).
•For A (auto) mode, the applied setting is saved in the camera’s memory even after the
camera is turned off.
Macro Mode (Taking Close-up Pictures)
Macro mode
40
55
Shooting Features
Exposure Compensation (Adjusting Brightness)
You can adjust overall image brightness.
1Press the multi selector K(o).
2Select a compensation value and press
the k button.
•To brighten the image, set a positive (+) value.
•To darken the image, set a negative (–) value.
•The compensation value is applied, even without
pressing the k button.
•When the shooting mode is smart portrait mode,
the glamour retouch screen is displayed instead of
the exposure compensation screen (A42).
•When the shooting mode is A (auto) mode, the
creative slider is displayed instead of the exposure compensation screen (A47).
CExposure Compensation Value
•Exposure compensation cannot be used in the following scene modes:
-Night sky (150 minutes) or Star trails (150 minutes) in Time-lapse movie
-Fireworks show
-Multiple exp. Lighten
•When the exposure compensation is set while using the flash, the compensation is
applied to both the background exposure and the flash output.
CUsing the Histogram
A histogram is a graph showing the distribution of tones in the image. Use as a guide when
using exposure compensation and shooting without the flash.
•The horizontal axis corresponds to pixel brightness, with dark tones to the left and bright
tones to the right. The vertical axis shows the number of pixels.
•Increasing the exposure compensation value shifts the tone distribution to the right, and
decreasing it shifts the tone distribution to the left.
Exposure Compensation (Adjusting Brightness)
Exposure compensation
+
0.3
-
2.0
+
2.0
Histogram
56
Shooting Features
Using the Zoom
When you move the zoom control, the zoom lens
position changes.
•To zoom in: Move toward g
•To zoom out: Move toward f
When you turn the camera on, the zoom moves to the
maximum wide-angle position.
•A zoom indicator is displayed on the shooting screen
when the zoom control is moved.
•Digital zoom, which allows you to further magnify the
subject up to approximately 4× (when Movie options
(A140) is set to d 2160/30p (4K UHD) or
c2160/25p (4K UHD), up to approximately 2×) the
maximum optical zoom ratio, can be activated by moving and holding the zoom
control toward g when the camera is zoomed in to the maximum optical zoom
position.
CDigital Zoom
The zoom indicator changes to blue when the digital zoom is activated, and it changes to
yellow when the zoom magnification is increased further.
•Zoom indicator is blue: Image quality is not noticeably reduced by using the Dynamic Fine
Zoom.
•Zoom indicator is yellow: There may be cases in which image quality is noticeably
reduced.
•The indicator remains blue across a wider area when the image size is smaller.
Using the Zoom
Zoom in
Zoom out
Optical
zoom
Digital
zoom
57
Shooting Features
Focusing
The Shutter-release Button
Focusing
Press halfway
To press the shutter-release button “halfway” means to
press and hold the button at the point where you feel a
slight resistance.
•Focus and exposure (shutter speed and f-number) are
set when you press the shutter-release button halfway.
Focus and exposure remain locked while the button is
pressed halfway.
•The focus area varies depending on the shooting mode.
Press all the
way
To press the shutter-release button “all the way” means to
press the button down completely.
•The shutter is released when the shutter-release button
is pressed all the way.
•Do not use force when pressing the shutter-release
button, as this may result in camera shake and blurred
images. Press the button gently.
58
Shooting Features
Focusing
Using Face Detection
In the following settings, the camera uses face
detection to automatically focus on human faces.
•o (scene auto selector) mode (A28)
•Portrait or Night portrait scene mode (A30)
•Smart portrait mode (A42)
•When AF area mode (A134) in A (auto) mode
(A47) is set to Face priority.
If the camera detects more than one face, a double
border is displayed around the face that the camera focuses on, and single borders
are displayed around the other faces.
If the shutter-release button is pressed halfway when no faces are detected:
•In o (scene auto selector) mode, the focus area changes depending on the
shooting conditions that the camera recognizes.
•In Portrait and Night portrait scene modes or in smart portrait mode, the
camera focuses in the center of the frame.
•In A (auto) mode, the camera selects the focus area containing the subject
closest to the camera.
BNotes About Face Detection
•The camera’s ability to detect faces depends on a variety of factors, including the direction
in which the faces are looking.
•The camera cannot detect faces in the following situations:
- When faces are partially hidden by sunglasses or otherwise obstructed
- When faces take up too much or too little of the frame
CFace Detection During Movie Recording
When AF area mode (A144) in the movie menu is set to Face priority, the camera
focuses on human faces during movie recording. If the b (e movie-record) button is
pressed when no faces are detected, the camera focuses on the area in the center of the
frame.
40
10
0
-10
30
20
15m15m
1010hPa1010hPa
25m 0s25m 0s
500500
59
Shooting Features
Focusing
Using Target Finding AF
When AF area mode (A134) in A (auto) mode is set to Target finding AF, the
camera focuses in the manner described below when you press the shutter-release
button halfway.
•The camera detects the main subject and focuses
on it. When the subject is in focus, the focus area is
displayed in green. If a human face is detected, the
camera automatically sets focus priority on it.
•If no main subject is detected, the camera
automatically selects one or more of the nine focus
areas containing the subject closest to the camera.
When the subject is in focus, the focus areas that are
in focus are displayed in green.
BNotes About Target Finding AF
•Depending on shooting conditions, the subject that the camera determines to be the
main subject may vary.
•The main subject may not be detected when using certain White balance settings.
•The camera may not detect the main subject appropriately in the following situations:
- When the subject is very dark or bright
- When the main subject lacks clearly defined colors
- When the shot is framed so that the main subject is on the edge of the screen
- When the main subject is composed of a repeating pattern
1/250
1/250
F 2.8
F 2.8
Focus areas
1/250
1/250
F 2.8
F 2.8
Focus areas
60
Shooting Features
Focusing
Subjects Not Suitable for Autofocus
The camera may not focus as expected in the following situations. In rare cases, the
subject may not be in focus despite the fact that the focus area or the focus indicator
is displayed in green:
•Subject is very dark
•Objects of sharply differing brightness are included in the shooting conditions (e.g.
the sun behind the subject makes that subject appear very dark)
•No contrast between the subject and surroundings (e.g. a portrait subject wearing
a white shirt is standing in front of a white wall)
•Several objects are at different distances from the camera (e.g. the subject is inside
a cage)
•Subjects with repeating patterns (window blinds, buildings with multiple rows of
similarly shaped windows, etc.)
•Subject is moving rapidly
In the situations noted above, try pressing the shutter-release button halfway to
refocus several times, or focus on another subject positioned at the same distance
from the camera as the actual desired subject, and use focus lock (A61).
61
Shooting Features
Focusing
Focus Lock
Focus lock shooting is recommended when the camera does not activate the focus
area that contains the desired subject.
1Set AF area mode to Center in A (auto) mode (A134).
2Position the subject in the
center of the frame and press
the shutter-release button
halfway.
•The camera focuses on the subject and
the focus area is displayed in green.
•Exposure is also locked.
3Without lifting your finger, recompose
the picture.
•Make sure to maintain the same distance between
the camera and the subject.
4Press the shutter-release button all the
way down to take the picture.
1/250
1/250
F 2.8
F 2.8
1/250
1/250
F 2.8
F 2.8
62
Shooting Features
Default Settings (Flash, Self-timer, and Macro Mode)
The default settings for each shooting mode are listed below.
Default Settings (Flash, Self-timer, and Macro
Mode)
Flash
(A50)
Self-timer
(A52)
Macro mode
(A54)
o (scene auto selector) U1Off Off2
Scene modes
b (portrait) VOff Off3
c (landscape) W3Off4Off3
N (time-lapse movie) W3Off Off3
d (sports) W3Off3Off3
e (night portrait) V5Off Off3
f (party/indoor) V6Off Off3
Z (beach) UOff Off3
z (snow) UOff Off3
h (sunset) W3Off Off3
i (dusk/dawn) W3Off4Off3
j (night landscape) W3Off4Off3
k (close-up) WOff On3
u (food) W3Off On3
m (fireworks show) W3Off3Off3
o (backlighting) X/W7Off Off3
p (easy panorama) W3Off3Off3
O (pet portrait) W3Y8Off
U (multiple exp. Lighten) W3n2s Off3
u (superlapse movie) W3Off Off
C (underwater) WOff Off
s (creative mode) UOff Off
F (smart portrait) U9Off10 Off3
M (short movie show) W3Off Off
A (auto) UOff Off
63
Shooting Features
Default Settings (Flash, Self-timer, and Macro Mode)
1The camera automatically selects the flash mode appropriate for the shooting conditions
it has selected. W (off) can be selected manually.
2Cannot be changed. The camera enters macro mode when i is selected.
3Cannot be changed.
4r5s Self-portrait timer cannot be used.
5Cannot be changed. The flash mode setting is fixed at fill flash with red-eye reduction
when Tripod is set.
6May switch to slow sync with red-eye reduction flash mode.
7Flash is fixed at X (fill flash) when HDR is set to OFF, and is fixed at W (off) when HDR is
set to ON.
8Y Pet portrait auto release and r5s Self-portrait timer can be used (A34). n10s
or n2s cannot be used.
9Cannot be used when Blink proof is set to On.
10 a Smile timer (A44) and n Self-Collage (A45) can be used in addition to n10s,
n2s, or r5s Self-portrait timer.
64
Shooting Features
Functions That Cannot Be Used Simultaneously When Shooting
Some functions cannot be used with other menu settings.
Functions That Cannot Be Used Simultaneously
When Shooting
Restricted function Setting Description
Flash mode
Continuous (A131) When a setting other than Single is
selected, the flash cannot be used.
Blink proof (A139) When Blink proof is set to On, the flash
cannot be used.
Underwater flash
(A169)
When Underwater flash is set to On,
Auto with red-eye reduction cannot
be selected. If Auto with red-eye
reduction was selected beforehand, the
setting changes to Auto.
Self-timer AF area mode (A134) When Subject tracking is selected, the
self-timer cannot be used.
Macro mode AF area mode (A134) When Subject tracking is selected,
macro mode cannot be used.
Image mode Continuous (A131)
Image mode is set as follows depending
on the continuous shooting setting:
•Pre-shooting cache: M (image size:
1280 × 960 pixels).
•Continuous H: 120 fps: O (image
size: 640 × 480 pixels)
•Continuous H: 60 fps: M (image
size: 1280 × 960 pixels)
White balance Hue (using the creative
slider) (A47)
When hue is adjusted using the creative
slider, White balance in the shooting
menu cannot be set. To set White
balance, select P in the creative slider
setting screen to reset the brightness,
vividness, hue, and Active D-Lighting.
Continuous Self-timer (A52)
When the self-timer is used, a single shot
is taken even if Pre-shooting cache has
been set.
ISO sensitivity Continuous (A131)
When Pre-shooting cache, Continuous
H: 120 fps, or Continuous H: 60 fps is
selected, ISO sensitivity is fixed at Auto.
65
Shooting Features
Functions That Cannot Be Used Simultaneously When Shooting
BNotes About Digital Zoom
•Depending on the shooting mode or the current settings, digital zoom may not be
available (A168).
•When digital zoom is in effect, the camera focuses in the center of the frame.
AF area mode
Hue (using the creative
slider) (A47)
When hue is adjusted using the creative
slider in Target finding AF mode, the
camera does not detect the main subject.
To detect the main subject, select P in
the creative slider setting screen to reset
the brightness, vividness, hue, and Active
D-Lighting.
White balance (A129)
When a setting other than Auto is
selected for White balance in Target
finding AF mode, the camera does not
detect the main subject.
Blink proof
Smile timer (A44) When Smile timer is set, Blink proof is
disabled.
Self-Collage (A45) When Self-Collage is set, Blink proof is
disabled.
Date stamp
Continuous (A131)
When a setting other than Single is
selected, date and time cannot be
stamped on images.
Blink proof (A139) When Blink proof is set to On, date and
time cannot be imprinted on images.
Photo VR
Flash mode (A50) If the flash fires when On (hybrid) is
selected, the setting is fixed at On.
Self-timer (A52) If the self-timer is used when On (hybrid)
is selected, the setting is fixed at On.
Continuous (A131)
If Continuous is set to any setting other
than Single when On (hybrid) is
selected, the setting is fixed at On.
ISO sensitivity (A133)
If ISO sensitivity is set to Fixed range
auto or ISO 400 or higher when On
(hybrid) is selected, the setting is fixed at
On.
Digital zoom AF area mode (A134) When Subject tracking is selected,
digital zoom cannot be used.
Restricted function Setting Description
66
Playback Features
Playback Features
Playback Zoom......................................................................................................................67
Thumbnail Playback/Calendar Display.........................................................................68
List by Date Mode ................................................................................................................69
Viewing and Deleting Images in a Sequence.............................................................70
Editing Images (Still Images) ............................................................................................72
67
Playback Features
Playback Zoom
Moving the zoom control toward g(i playback
zoom) in full-frame playback mode (A21) zooms in
on the image.
•You can change the magnification rate by moving the zoom control toward
f(h) or g(i).
•To view a different area of the image, press the multi selector HIJK.
•When a zoomed image is displayed, press the k button to return to full-frame
playback mode.
CCropping Images
When a zoomed image is displayed, you can press the d button to crop the image to
include only the visible portion and save it as a separate file (A78).
Playback Zoom
15m
15m
1010hPa
1010hPa
4/4
4/4
0004. JPG
0004. JPG
15/11/2017 15:30
15/11/2017 15:30
3.0
3.0
g
(i)
f
(h)
Image is zoomed in.Full-frame Playback
Displayed area
guide
68
Playback Features
Thumbnail Playback/Calendar Display
Moving the zoom control toward f (h thumbnail
playback) in full-frame playback mode (A21)
displays images as thumbnails.
•You can change the number of thumbnails displayed by moving the zoom control
toward f(h) or g(i).
•While using thumbnail playback mode, press the multi selector HIJK to select
an image and then press the k button to display that image in full-frame playback
mode.
•While using calendar display mode, press HIJK to select a date and then press
the k button to display the images captured on that day.
BNotes About Calendar Display
Images captured when the camera’s date is not set are treated as images captured on
January 1, 2017.
Thumbnail Playback/Calendar Display
15m15m
1010hPa1010hPa
4/44/4
0004. JPG0004. JPG
15/11/2017 15:3015/11/2017 15:30
1/20
Sun Mon Tue Wed Thu Fri Sat
2017
11
1
30
3 0
3029
2 9
2928
2 8
2827
2 7
2726
2 6
26
25
2 5
2524
2 4
24
23
2 3
2322
2 2
2221
2 1
2120
2 0
2019
1 9
19
18
1 8
1817
1 7
17
16
1 6
1615
1 5
1514
1 4
1413
1 3
1312
1 2
12
11
1 1
1110
1 0
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Thumbnail PlaybackFull-frame Playback Calendar Display
g
(i)
f
(h)
g
(i)
f
(h)
69
Playback Features
List by Date Mode
Use the multi selector HI to select a date and then
press the k button to play back the images captured
on the selected date.
•Functions in the playback menu (A148) can be
used for the images in the selected shooting date
(except Copy).
•The following operations are available while the
shooting date selection screen is displayed.
-d button: The functions listed below are
available.
•Slide show
•Protect*
* The same settings can be applied to all images captured on the selected date.
-l button: Deletes all images captured on the selected date.
BNotes About List by Date Mode
•Up to the most recent 29 dates can be selected. If images exist for more than 29 dates, all
images saved earlier than the most recent 29 dates will be combined under Others.
•Up to the 9,000 most recent images can be displayed.
•Images captured when the camera’s date is not set are treated as images captured on
January 1, 2017.
List by Date Mode
Press the c button (playback mode) M c button M C List by date M
kbutton
20/11/2017
15/11/2017
10/11/2017
05/11/2017
3
2
1
10
List by date
70
Playback Features
Viewing and Deleting Images in a Sequence
Viewing Images in a Sequence
Images captured continuously, or with the multiple exp. lighten, creative mode, or
self-collage function, are saved as a sequence.
One image in a sequence is used as the key picture to
represent the sequence when displayed in full-frame
playback mode or thumbnail playback mode.
To display each image in the sequence individually,
press the k button.
After pressing the k button, the operations listed
below are available.
•To display the previous or next image, press the
multi selector JK.
•To display images that are not included in the
sequence, press H to return to the key picture
display.
•To display images in a sequence as thumbnails, or to
play them back in a slide show, set Sequence
display options (A152) to Individual pictures in the playback menu.
BSequence Display Options
Images captured with cameras other than this camera cannot be displayed as a sequence.
CPlayback Menu Options Available When Using Sequence
•When images in a sequence are displayed in full-frame playback mode, press the d
button to select functions in playback menu (A148).
•If you press the d button when a key picture is displayed, the following settings can be
applied to all images in the sequence:
- Mark for upload, Protect, Copy
Viewing and Deleting Images in a Sequence
1/5
1/5
15/11/2017 15:30
15/11/2017 15:30
1/5
1/5
15/11/2017 15:30
15/11/2017 15:30
Back
71
Playback Features
Viewing and Deleting Images in a Sequence
Deleting Images in a Sequence
When the l (delete) button is pressed for images in a sequence, the images that are
deleted vary depending on how the images are displayed.
•When the key picture is displayed:
•When images in a sequence are displayed in full-frame playback mode:
-Current image: All images in the displayed sequence are deleted.
-Erase selected images: When a key picture is selected on the erase
selected images screen (A23), all images in that
sequence are deleted.
-All images: All images on the memory card or in the internal
memory are deleted.
-Current image: The image currently displayed is deleted.
-Erase selected images: Images that are selected in the sequence are
deleted.
-Entire sequence: All images in the displayed sequence are deleted.
72
Playback Features
Editing Images (Still Images)
Before Editing Images
You can easily edit images on this camera. Edited copies are saved as separate files.
Edited copies are saved with the same shooting date and time as the original.
CRestrictions on Image Editing
•An image can be edited up to 10 times. A still image created by editing a movie can be
edited up to 9 times.
•You may not be able to edit images of a certain size or with certain editing functions.
Quick Effects: Changing Hue or Mood
1Display the image to which you want to
apply an effect in full-frame playback
mode and press the k button.
2Use the multi selector HIJK to
select the desired effect and press the
k button.
•Move the zoom control (A3) toward g(i) to
switch to full-frame playback or f(h) to switch
to thumbnail playback.
•To exit without saving the edited image, press the
d button.
3Select Yes and press the k button.
•An edited copy is created.
Editing Images (Still Images)
Type Description
Painting/Photo illustration/Soft portrait/
Portrait (color + B&W)/Fisheye/
Cross screen/Miniature effect
Processes images with a variety of effects.
Fog removal Reduces blurring of images caused by
underwater shooting.
15m
1010hPa
1010hPa
0004. JPG
0004. JPG
15/11/2017 15:30
15/11/2017 15:30
Quick eects
Cancel
Painting Photo
illustration
Soft portrait
Portrait
(color + B&W)
Fisheye Cross screen
Check
73
Playback Features
Editing Images (Still Images)
Quick Retouch: Enhancing Contrast and Saturation
Use the multi selector HI to select the
desired effect level and press the k button.
•The edited version is displayed on the right.
•To exit without saving the copy, press J.
Press the c button (playback mode) M Select an image M d button M
Quick retouch M k button
Quick retouch
Normal
Amount
74
Playback Features
Editing Images (Still Images)
D-Lighting: Enhancing Brightness and Contrast
Use the multi selector HI to select OK and
press the k button.
•The edited version is displayed on the right.
•To exit without saving the copy, select Cancel and press
the k button.
Red-eye Correction: Correcting Red-eye When
Shooting with the Flash
Preview the result and press the k button.
•To exit without saving the copy, press the multi
selector J.
BNotes About Red-eye Correction
•Red-eye correction can only be applied to images when red-eye is detected.
•Red-eye correction can be applied to pets (dogs or cats) even if their eyes are not red.
•Red-eye correction may not produce the desired results in some images.
•In rare cases, red-eye correction may be applied unnecessarily to other areas of the image.
Press the c button (playback mode) M Select an image M d button M
D-Lighting M k button
Press the c button (playback mode) M Select an image M d button M
Red-eye correction M k button
D-Lighting
OK
Cancel
Red-eye correction
SaveBack
75
Playback Features
Editing Images (Still Images)
Glamour Retouch: Enhancing Human Faces
1Use the multi selector HIJK to
select the face that you want to retouch
and press the k button.
•When only one face is detected, proceed to step 2.
2Use JK to select the effect, use HI
to select the effect level, and press the
kbutton.
•You can simultaneously apply multiple effects.
Adjust or check the settings for all effects before
pressing the k button.
F Small face, B Skin softening,
lFoundation makeup, m Glare reduction,
E Hide eye bags, A Big eyes, G Whiten eyes, n Eye shadow,
oMascara, H Whiten teeth, p Lipstick, D Redden cheeks
•Press the d button to return to the screen for selecting a person.
3Preview the result and press the
kbutton.
•To change the settings, press J to return to step 2.
•To exit without saving the edited image, press the
d button.
Press the c button (playback mode) M Select an image M d button M
Glamour retouch M k button
Subject selection
Back
Small face
Back
Preview
Save
76
Playback Features
Editing Images (Still Images)
4Select Yes and press the k button.
•An edited copy is created.
BNotes About Glamour Retouch
•Only one face at a time can be edited. To retouch another face in the same image, select
the edited copy of the image and make additional changes.
•Depending on the direction in which faces are looking, or the brightness of faces, the
camera may be unable to accurately detect faces, or the glamour retouch function may
not perform as expected.
•If no faces are detected, a warning is displayed and the screen returns to the playback
menu.
•The glamour retouch function is available only for images captured at an ISO sensitivity of
1600 or lower, and the image size of 640 × 480 or larger.
Data Imprint: Imprinting Information Such as Electronic
Compass Heading on Images
Use the multi selector HI to select OK and
press the k button.
•The following recorded information is imprinted
on images.
- Electronic compass heading
-Date and time
- Altitude or water depth
- Atmospheric pressure
- Latitude and longitude
•To exit without saving the copy, select Cancel and press the k button.
BNotes About Data Imprint
•Only the information recorded on images is imprinted on the images.
•The information may not be displayed properly if the image size is small.
Press the c button (playback mode) M Select an image M d button M
Data imprint M k button
Yes
No
Save OK?
Data imprint
OK
Cancel
15/11/2017 15:30
15m 1010hPa
E136° 15’ 32”N31° 23’ 15”
NNE
77
Playback Features
Editing Images (Still Images)
Small Picture: Reducing the Size of an Image
1Use the multi selector HI to select
the desired copy size and press the
kbutton.
•For images captured at an image mode setting of
l 4608×2592, only 640×360 is displayed, and
for those of s 3456×3456, only 480×480 is
displayed.
2Select Yes and press the k button.
•An edited copy is created (compression ratio of
approximately 1:8).
Press the c button (playback mode) M Select an image M d button M
Small picture M k button
Small picture
320×240
160×120
640×480
Yes
No
Create small picture le?
78
Playback Features
Editing Images (Still Images)
Crop: Creating a Cropped Copy
1Move the zoom control to enlarge the image (A67).
2Adjust the image so that only the
portion that you want to keep is
displayed, and then press the d
(menu) button.
•Move the zoom control toward g(i) or f(h)
to adjust the magnification rate. Set a
magnification rate at which u is displayed.
•Use the multi selector HIJK to scroll to the portion of the image that you want
to display.
3Confirm the area that you want to keep,
and press the k button.
4Select Yes and press the k button.
•An edited copy is created.
CImage Size
•The aspect ratio (horizontal and vertical) of the cropped copy is the same as the original.
•When the image size of the cropped copy is 320 × 240 or smaller, the image is displayed at
a smaller size during playback.
3.0
3.0
Trim
Back Save
Save this image as
displayed?
Yes
No
79
Movies
Movies
Basic Operations of Movie Recording and Movie Playback..................................80
Capturing Still Images While Recording Movies.......................................................84
Shooting Time-lapse Movies............................................................................................85
Recording Superlapse Movies .........................................................................................87
Short Movie Show Mode (Combining Movie Clips to Create Short Movies)...88
Operations During Movie Playback...............................................................................91
Editing Movies.......................................................................................................................92
80
Movies
Basic Operations of Movie Recording and Movie Playback
1Display the shooting screen.
•Check the remaining amount of movie recording
time.
•It is recommended that you display the movie
frame that indicates the area that will be recorded
in a movie (A81).
2Press the b (e movie-record) button
to start movie recording.
•The focus area for autofocus differs depending on
the setting of AF area mode (A144).
•Press the k button to pause recording, and press
the k button again to resume recording (except
when an HS movie option is selected in Movie
options). Recording automatically ends if it
remains paused for about five minutes.
•You can capture a still image by pressing the
shutter-release button while recording a movie
(A84).
3Press the b (e) button again to end recording.
4Select a movie in full-frame playback
mode and press the k button to play it
back.
•An image with a movie options icon is a movie.
Basic Operations of Movie Recording and
Movie Playback
40
10
0
-10
30
20
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
Remaining movie
recording time
Movie frame
14m30s
14m30s
AE-LAE-L
15/11/2017 15:30
15/11/2017 15:30
0010. MP4
0010. MP4
10s
10s
15m
15m
1010hPa
1010hPa
Movie options
81
Movies
Basic Operations of Movie Recording and Movie Playback
Movie Frame
•Set Photo info in Monitor settings (A164) in the setup menu to Movie
frame+auto info to display the movie frame. Check the range of a movie in a
frame before movie recording.
•The area that is recorded in a movie varies depending on the settings of Movie
options or Movie VR, etc. in the movie menu.
Exposure
When the multi selector K is pressed during movie recording, the exposure is locked.
To unlock, press K again.
Maximum Movie Recording Time
Individual movie files cannot exceed 4 GB in size or 29 minutes in length, even when
there is sufficient free space on the memory card for longer recording.
•The remaining recording time for a single movie is displayed on the shooting
screen.
•The actual remaining recording time may vary depending on the movie content,
subject movement, or type of memory card.
•Memory cards with an SD Speed Class rating of 6 or faster are recommended for
recording movies (when recording 4K UHD movies at an image size/frame rate of
d 2160/30p or c 2160/25p, cards rated UHS Speed Class 3 or faster are
recommended). When using a memory card with a lower Speed Class rating,
movie recording may stop unexpectedly.
BCamera Temperature
•The camera may become hot when recording movies for an extended period of time or
when the camera is used in a hot area.
•If the inside of the camera becomes extremely hot when recording movies, the camera
will automatically stop recording.
The amount of time remaining until the camera stops recording (B10s) is displayed.
After the camera stops recording, it turns itself off.
Leave the camera off until the inside of the camera has cooled.
82
Movies
Basic Operations of Movie Recording and Movie Playback
Notes About Movie Recording
BNotes About Saving Images or Movies
•The indicator showing the number of exposures remaining or the indicator showing the
remaining recording time flashes while images or movies are being saved. Do not open
the battery-chamber/memory card slot cover or remove the battery or memory
card while an indicator is flashing. Doing this could result in loss of data, or in damage to
the camera or the memory card.
•When using the camera's internal memory, recording movies may take some time.
•Depending on the file size of a movie, it may not be possible to record the movie in the
internal memory or copy it from a memory card to the internal memory.
BNotes About Recording at Low Temperature
When the battery temperature is below 0°C (32°F), movies with the size/frame rate set to
d 2160/30p (4K UHD), c 2160/25p (4K UHD), e 1080/60p, f 1080/50p,
h HS 480/4×, a HS 480/4×, j HS 1080/0.5×, or Y HS 1080/0.5× cannot be
recorded.
•If the battery temperature goes below 0°C (32°F) before you start recording, the size/frame
rate of the movie switches to e 1080/30p or S 1080/25p.
•If the size/frame rate of the movie is set to d 2160/30p (4K UHD), c 2160/25p (4K
UHD), e 1080/60p, f 1080/50p, h HS 480/4×, a HS 480/4×, j HS
1080/0.5×, or Y HS 1080/0.5× and the battery temperature goes below 0°C (32°F)
while recording, the camera may stop recording and turn off automatically. The recorded
movie is saved.
BNotes About Recorded Movies
•There may be some degradation in image quality when digital zoom is used.
•The sounds of zoom control operation, zoom, autofocus lens drive movement, movie
vibration reduction, and aperture operation when brightness changes may be recorded.
•The following phenomena may be seen on the screen while recording movies. These
phenomena are saved in the recorded movies.
- Banding may occur in images under fluorescent, mercury-vapor, or sodium-vapor lighting.
- Subjects that move quickly from one side of the frame to the other, such as a moving
train or car, may appear skewed.
- The entire movie image may be skewed when the camera is panned.
- Lighting or other bright areas may leave residual images when the camera is moved.
•Depending on the distance to the subject or the amount of zoom applied, colored stripes
may appear on subjects with repeating patterns (fabrics, lattice windows, etc.) during
movie recording and playback. This occurs when the pattern in the subject and the layout
of the image sensor interfere with each other; it is not a malfunction.
BNotes About Vibration Reduction During Movie Recording
•When Movie VR (A146) in the movie menu is set to On (hybrid), the angle of view (i.e.,
the area visible in the frame) becomes narrower during movie recording.
•When using a tripod to stabilize the camera during shooting, set Movie VR to Off to
prevent potential errors caused by this function.
83
Movies
Basic Operations of Movie Recording and Movie Playback
BNotes About Autofocus for Movie Recording
Autofocus may not perform as expected (A60). Should this occur, try the following:
1. Set AF area mode to Center and Autofocus mode to Single AF (default setting) in the
movie menu before starting movie recording.
2. Frame another subject (positioned at the same distance from the camera as the intended
subject) in the center of the frame, press the b (e movie-record) button to start
recording, and modify the composition.
84
Movies
Capturing Still Images While Recording Movies
If the shutter-release button is pressed all the way
while recording a movie, one frame is saved as a still
image. Movie recording continues while the still image
is being saved.
•A still image can be captured when y is displayed
on the screen. When z is displayed, a still image
cannot be captured.
•The size of the captured still image is determined by
the movie image size (A140).
BNotes About Capturing Still Images During Movie Recording
•Still images cannot be saved during movie recording in the following situations:
- When movie recording is paused
- When the remaining movie recording time is less than five seconds
- When Movie options (A140) is set to d 2160/30p (4K UHD), c 2160/25p (4K
UHD), g 480/30p, W 480/25p, or HS movie
•The frames of a movie that were recorded when a still image was being captured may not
play back smoothly.
•The sounds of operating the shutter-release button when saving a still image may be
heard in the recorded movie.
•If the camera moves when the shutter-release button is pressed, the image may be
blurred.
Capturing Still Images While Recording Movies
14m30s
14m30s
AE-LAE-L
85
Movies
Shooting Time-lapse Movies
The camera can automatically capture still images at a specified interval to create
time-lapse movies that are approximately 10 seconds long.
•When the Frame rate setting of the movie menu is set to 30 fps (30p/60p),
300 images are captured and saved with e 1080/30p. When set to 25 fps
(25p/50p), 250 images are captured and saved with S 1080/25p.
* The icon of the last scene selected is displayed.
1Suited for recording the movement of stars. The focus is fixed at infinity.
2Star movement appears as lines of light due to image processing. The focus is fixed at
infinity.
1Use the multi selector HI to select a
type, and press the k button.
Shooting Time-lapse Movies
Enter shooting mode M A (shooting mode) button M b (second icon from
the top*) M K M HI M N (time-lapse movie) M k button
Type (required shooting time) Interval time
30 fps (30p/60p) 25 fps (25p/50p)
O Cityscape (10 minutes)
(default setting) 2 s 2.4 s
P Landscape (25 minutes) 5 s 6 s
Q Sunset (50 minutes) 10 s 12 s
R Night sky (150 minutes)130 s 36 s
S Star trails (150 minutes)230 s 36 s
Landscape (25 minutes)
86
Movies
Shooting Time-lapse Movies
2Select whether or not to fix exposure
(brightness), and press the k button
(except R and S).
•When AE-L on is selected, the exposure used for
the first image is used for all images. When the
brightness changes drastically like at dusk, AE-L
off is recommended.
3Stabilize the camera by using a tool such as a tripod.
4Press the shutter-release button to
capture the first image.
•Set exposure compensation (A55) before
releasing the shutter for the first image. Exposure
compensation cannot be changed after the first
image is captured. Focus and hue are fixed when
the first image is captured.
•The shutter is automatically released for the
second and subsequent images.
•The screen may turn off while the camera is not capturing images.
•Shooting ends automatically when 300 or 250 images are captured.
•Press the k button to end shooting before the required shooting time elapses and
create a time-lapse movie.
•Sound and still images cannot be saved.
BNotes About Time-lapse Movie
•The camera cannot capture images if a memory card is not inserted. Do not exchange the
memory card until shooting is complete.
•Use a sufficiently charged battery to prevent the camera from turning off unexpectedly.
•Time-lapse movies cannot be recorded by pressing the b (e movie-record) button.
•Vibration reduction is disabled regardless of the Photo VR setting (A167) in the setup
menu.
AE-L o
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
25m 0s
25m 0s
25m 0s
25m 0s
500
500
87
Movies
Recording Superlapse Movies
The camera records movies and saves them in fast motion (e 1080/30p or
S1080/25p). Use to record a movie while moving the camera. The camera
compresses the time of changes in the subject and saves the movie.
* The icon of the last scene selected is displayed.
1Use the multi selector HI to select a
playback speed, and press the
kbutton.
•At the default setting of 6×, a movie recorded for
six minutes is played back as a one-minute movie.
•If an individual movie file reaches 4 GB in size or
the recording time exceeds 29 minutes, recording
ends automatically.
2Press the b (e movie-record) button
to start recording.
•The focus area for autofocus differs depending on
the setting of AF area mode (A144). The default
setting is Face priority.
•You can check the recording time and playback
time on the screen.
•It is recommended that you display the movie
frame that indicates the area that will be recorded
in a movie (A164).
•Sound is not recorded.
CShooting Still Images
•A still image (l 4608×2592) can be captured if you press the shutter-release button
before pressing the b (e movie-record) button.
•You can shoot still images while recording movies (A84).
Recording Superlapse Movies
Enter shooting mode M A (shooting mode) button M b (second icon from
the top*) M K M HI M u (superlapse movie) M k button
6×
01m 0s
01m 0s
06m 0s
06m 0s
Recording time
Playback time
88
Movies
Short Movie Show Mode (Combining Movie Clips to Create Short Movies)
The camera creates a short movie that is up to 30 seconds long (e 1080/30p or
S 1080/25p) by recording and automatically combining multiple movie clips that
are several seconds long.
1
Press the
d
(menu) button and
configure the settings for recording movies.
•Number of shots: Set the number of movie clips
that the camera records and the recording time for
each movie clip. By default, the camera records 15
movie clips that are 2 seconds each to create a 30-
second short movie.
•Special effects (A90): Apply various effects to
movies when shooting. Effects can be changed for each movie clip.
•Background music: Select the background music. You can preview it by moving
the zoom control (A3) toward g(i).
•After the settings are complete, press the d button or shutter-release button to
exit the menu.
2Press the b (e movie-record) button
to record a movie clip.
•The camera automatically stops recording the
movie clip when the time specified in step 1 elapses.
•Movie clip recording can be paused temporarily.
See “Pausing Movie Recording” (A89).
3Check the recorded movie clip, or
delete it.
•To check it, press the k button.
•To delete it, press the l button. The last recorded
movie clip or all movie clips can be deleted.
•To continue recording movie clips, repeat the
operation in step 2.
•To change the effects, return to step 1.
Short Movie Show Mode (Combining Movie
Clips to Create Short Movies)
Enter shooting mode M A (shooting mode) button M M Short movie show
mode M k button
Number of shots
Special eects
Background music
End recording
40
10
0
-10
30
20
15m15m
1010hPa1010hPa
25m 0s25m 0s
500500
0
15
40
10
0
-10
30
20
Preview
15m
15m
1010hPa
1010hPa
24m36s
24m36s
500
500
15
12
Number of movie clips
recorded
89
Movies
Short Movie Show Mode (Combining Movie Clips to Create Short Movies)
4Save the short movie show.
•The short movie show is saved when the camera finishes recording the specified
number of movie clips.
•To save a short movie show before the camera finishes recording the specified
number of movie clips, press the d button when the shooting standby screen is
displayed, and then select End recording.
•Movie clips are deleted when a short movie show is saved.
Operations During Movie Clip Playback
To adjust the volume, move the zoom control while a
movie clip is playing (A3).
Playback controls are displayed on the screen.
The operations described below can be performed by
using the multi selector JK to select a control and
then pressing the k button.
BNotes About Recording a Short Movie Show
•The camera cannot record movies if a memory card is not inserted.
•Do not exchange the memory card until a short movie show is saved.
CPausing Movie Recording
•A still image (l 4608×2592) can be captured if you press the shutter-release button
when the shooting standby screen is displayed.
•You can pause movie recording and play back images or enter other shooting modes to
take pictures. Movie recording resumes when you enter short movie show mode again.
Function Icon Description
Rewind AHold down the k button to rewind the movie.
Fast-forward BHold down the k button to fast-forward the movie.
Pause E
Pause playback. The operations listed below can be
performed while paused.
CRewind the movie one frame. Hold down the
kbutton for continuous rewinding.
DAdvance the movie one frame. Hold down the
kbutton for continuous advancing.
FResume playback.
End playback GReturn to the shooting screen.
End recording pSave the short movie show using the recorded movie clips.
10s
10s
Playback controls
90
Movies
Short Movie Show Mode (Combining Movie Clips to Create Short Movies)
Functions Available in Short Movie Show Mode
•Self-timer (A52)
•Macro mode (A54)
•Exposure compensation (A55)
•Short movie show menu (A88)
•Movie options menu (A140)
Using Special Effects
Apply effects to images during shooting.
•When Selective color or Cross process is selected,
use the multi selector HI to select the desired
color, and press the k button to apply the color.
Enter shooting mode M A (shooting mode) button M M Short movie show
mode M k button M d button M Special effects M k button
Type Description
OSoft Softens the image by adding a slight blur to the entire image.
PNostalgic sepia Adds a sepia tone and reduces the contrast to simulate the
qualities of an old photograph.
FHigh-contrast mono. Creates a black-and-white photograph with a strong
contrast.
ISelective color Keeps only a selected color and makes other colors black-
and-white.
l Pop Increases the color saturation of the entire image to create a
bright look.
o Cross process Gives the image a mysterious appearance based on a specific
color.
m Toy camera effect 1 Gives the entire image a yellowish hue and darkens the
image periphery.
n Toy camera effect 2 Decreases the color saturation of the entire image and
darkens the image periphery.
k Off (default setting) No effect is applied to the image.
Selective color
Save
91
Movies
Operations During Movie Playback
To adjust the volume, move the zoom control while a
movie is playing (A3).
Playback controls are displayed on the screen.
The operations described below can be performed by
using the multi selector JK to select a control and
then pressing the k button.
Operations During Movie Playback
Function Icon Description
Rewind AHold down the k button to rewind the movie.
Fast-forward BHold down the k button to fast-forward the movie.
Pause E
Pause playback. The operations listed below can be
performed while paused.
CRewind the movie one frame. Hold down the
kbutton for continuous rewinding.
DAdvance the movie one frame. Hold down the
kbutton for continuous advancing.
FResume playback.
IExtract the desired portion of a movie and save it
as a separate file.
HExtract a single frame of a movie and save it as a
still image.
End GReturn to full-frame playback mode.
Volume indicator
When paused
92
Movies
Editing Movies
Extracting Only the Desired Portion of a Movie
The desired portion of a recorded movie can be saved as a separate file.
1Play back a desired movie and pause at the start point of the
portion that you want to extract (A91).
2Use the multi selector JK to select
the I control, and then press the
kbutton.
3Use HI to select M (choose start
point).
•Use JK to move the start point.
•To cancel editing, select O (back), and press the
k button.
4Use HI to select N (choose end
point).
•Use JK to move the end point.
•To preview the specified portion, select G and
then press the k button. Press the k button
again to stop previewing.
5Use HI to select m (save) and press
the k button.
•Follow the instructions on the screen to save the
movie.
Editing Movies
1m30s
1m30s
Choose start point
1m 0s
1m 0s
Choose end point
30s
30s
Save
30s
30s
93
Movies
Editing Movies
BNotes About Movie Editing
•Use a sufficiently charged battery to prevent the camera from turning off during editing.
When the battery level indicator is B, movie editing is not possible.
•A movie that was created by editing cannot be edited again.
•The actual trimmed portion of a movie may differ slightly from the portion selected using
the start and end points.
•Movies cannot be trimmed so that they are less than two seconds long.
Saving a Frame from a Movie as a Still Image
The desired frame of a recorded movie can be extracted and saved as a still image.
•Pause a movie and display the frame to be extracted
(A91).
•Use the multi selector JK to select the Hcontrol
and press the k button.
•Select Yes when a confirmation dialog is displayed,
and press the k button to save the image.
•The image quality of the saved still image is normal
(compression ratio of approximately 1:8). The image
size is determined by the original movie image size
(A140).
BRestrictions on Extracting Still Images
Still images cannot be extracted from a movie recorded with g 480/30p, W 480/25p,
or HS movies.
1m30s
1m30s
1m30s
1m30s
Copy this frame as a still image?
Yes
No
94
Using Location Data Functions
Using Location Data Functions
Operations Available with Location Data Functions...............................................95
Recording the Location Data on the Image................................................................97
Using Altimeter and Depth Gauge.............................................................................. 100
Recording the Log of Movement Information........................................................ 101
Displaying Altitude/Depth Logs as a Graph ............................................................ 104
Displaying the Active Guide.......................................................................................... 105
95
Using Location Data Functions
Operations Available with Location Data Functions
When Use built-in location data in Location data options in the z (location data
options) menu (A119) is set to On, the camera starts receiving signals from the
positioning satellites.
Location data reception can be checked on the shooting
screen.
•n or o: Signals are being received from four or more
satellites, or from three satellites, and location data is being
obtained.
•z: Signals are being received, but location data cannot be
obtained.
•y: Signals are not received.
Recording the Shooting Location Data on the Image
•When shooting while positioning is being performed, the obtained location data
(latitude and longitude) are recorded on the images to be shot.
•The recorded location data can be checked on a map by using ViewNX-i after
transferring images to a computer.
•When Compass display in Electronic compass in the location data options
menu is set to On, the approximate direction of shooting is also recorded.
Recording the Log
•When selecting Start all logs in Create log in the location data options menu,
while positioning is being performed, the location data, altitude, and water depth
data of places you visit with the camera is recorded at the certain interval.
•Recorded logs (movement information such as location data, altitude, or water
depth) can be saved on a memory card by selecting Create log to stop recording
and then selecting Save logs.
•You can view location logs saved on the memory card by using software that can
display log data such as ViewNX-i.
•The altitude and water depth logs saved on the memory card can be displayed as a
graph by selecting Altitude/depth logs in View log in the location data options
menu.
•You can check the graphs of the currently recording altitude and water depth logs
on the active guide (A105).
Operations Available with Location Data
Functions
0
-10
15m
15m
1010hPa
1010hPa
96
Using Location Data Functions
Operations Available with Location Data Functions
Displaying POI Information
•When Embed POI in Points of interest (POI) in the location data options menu
is set to On while the camera is positioning, the nearest location name information
for the current position is also recorded on the images to be captured.
•When Display POI in the location data options
menu is set to On while the camera is positioning,
the nearest location name information for the
current position is displayed on the shooting screen
and active guide, and the location name
information recorded on the image is displayed on
the playback screen.
40
10
0
-10
30
20
25m 0s25m 0s
500500
15m15m
1010hPa1010hPa
97
Using Location Data Functions
Recording the Location Data on the Image
Set Time zone and date (A162) correctly before using the location data functions.
1Set Use built-in location data to On.
•After the settings are complete, press the d
button or shutter-release button to exit the menu.
•To receive signals easily, operate in an open-air
area.
2Check the location data reception on
the shooting screen.
•n or o: Signals are being received from four or
more satellites, or from three satellites, and
location data is being obtained. The location data
is recorded on the image.
•z: Signals are being received, but location data
cannot be obtained. The location data is not
recorded on the image.
•y: Signals cannot be received from the satellites,
and location data cannot be obtained. The location data is not recorded on the
image.
3Shoot images while positioning is being performed.
•The location data is recorded on shot images.
•z is displayed on images with recorded location data in the camera’s playback
screen (A7).
•The recorded location data can be checked on a map by using ViewNX-i after
transferring images to a computer (A115).
Recording the Location Data on the Image
Press the d button M z menu icon M Location data options M k button
Use built-in location data
On
O
40
10
0
-10
30
20
25m 0s25m 0s
500500
15m15m
1010hPa1010hPa
Location data reception
98
Using Location Data Functions
Recording the Location Data on the Image
BNotes About Location Data Functions
•Before using the location data functions, read “Notes About Location Data Functions
(GPS/GLONASS, Electronic Compass)” (A183).
•It takes a few minutes to obtain location data when positioning is performed for the first
time, when positioning cannot be performed for a long period of time, or just after the
battery is replaced.
Using the latest A-GPS file can shorten the time needed to obtain the location data (A156).
•Positions of the positioning satellites change constantly.
You may not be able to determine the position or it may take some time depending on
your location and the time.
To use the location data functions, use the camera in an open-air area with few obstacles
in the sky. Signal receiving will be smoother if the positioning antenna (A2) is facing the
sky.
•The following locations which block or reflect signals may result in failed or inaccurate
positioning.
-Inside buildings or underground locations
- Between high-rise buildings
- Under overpasses
-Inside tunnels
- Near high-voltage electrical power lines
- Between clusters of trees
-Underwater
•Using a mobile phone of 1.5 GHz band near this camera may disrupt positioning.
•When carrying this camera around while positioning, do not place it in a metal bag.
Positioning cannot be performed if the camera is covered with metal materials.
•When there is a significant difference in the signals from the positioning satellites, there
could be a deviation of up to several hundred meters.
•Be aware of your surroundings and watch your step when positioning.
•The shooting date and time that is displayed when playing back images is determined by
the camera’s internal clock at the time of shooting.
The time at which location data is obtained will be recorded on images, but it will not be
displayed on the camera.
•The location data for the first frame will be recorded on a series of images shot using
continuous shooting.
BBattery Drain While Recording Location Data and Log Recording
•When Use built-in location data is set to On, record location data functions will
continue to operate at the specified interval for approximately six hours even after the
camera is turned off. Also, record location data functions and log recording function will
continue to operate while recording logs (A101) even after the camera is turned off.
•When Use built-in location data is set to On or while recording logs, the battery power
will drain faster than usual. Confirm the battery level especially when recording a log using
Start all logs or Start location log.
99
Using Location Data Functions
Recording the Location Data on the Image
Updating the A-GPS File
Using the latest A-GPS file can shorten the time needed to obtain the location data.
1Download the latest A-GPS file to the computer from the
website below.
•http://nikonimglib.com/agps3/
2Use a card reader or other device to copy the downloaded file to
the “NCFL” folder of the memory card.
•The “NCFL” folder is located directly under the memory card root directory. If the
memory card does not have an “NCFL” folder, create a new “NCFL” folder directly
under the memory card root directory.
3Insert the memory card containing the copied file into the camera.
4Turn on the camera.
5Press the d (menu) button to display the location data options
menu, and use the multi selector to select Location data options.
6Select Update A-GPS file, and update the file.
•About two minutes are needed to update the A-GPS file.
BNotes About Updating A-GPS File
•The A-GPS file is disabled when a position is determined for the first time after the camera
is purchased. The A-GPS file becomes active from the second operation for determining a
location.
•The validity period of the A-GPS file can be checked on the update screen. If the validity
period has expired, it is displayed in gray.
•Once the validity period of the A-GPS file has expired, positioning for the location data will
not become faster. Updating of the A-GPS file before using the location data functions is
recommended.
100
Using Location Data Functions
Using Altimeter and Depth Gauge
You can check the atmospheric pressure as well as the altitude or water depth of the
current position on the screen, and record the displayed values to the captured
images.
•The altitude, water depth, and atmospheric pressure that are recorded on images
can be imprinted on the images by using Data imprint (A76) in the playback
menu.
•Captured images and related logs can be displayed if you use the altitude or water
depth log recording functions (A104).
BNotes About Altimeter and Depth Gauge
•Use Alt./depth correction in Altitude/depth options (A161) in the location data
options menu to correct the altitude or water depth in advance. Before using the camera
underwater, make sure to adjust the data to 0 m (0 ft) at the surface of water.
•Do not use the altimeter or depth gauge in this camera for specialized applications such
as mountain climbing or underwater diving. The displayed information is intended as a
general guide only.
•Since the altitude is calculated using the camera's internal barometer, the data may not be
displayed correctly in some climate conditions.
•When the scale of the depth gauge display exceeds 25 m (82 ft), the depth gauge display
turns orange. When the scale of the depth gauge display exceeds 30 m (98 ft), the depth
gauge display turns red.
CAltitude or Water Depth
•The altimeter or depth gauge can be displayed when
Altimeter/depth gauge in Altitude/depth options in
the location data options menu is set to On (default
setting).
•The depth gauge and water depth are displayed when
you select Underwater scene mode, or select o(scene
auto selector) mode and then submerge the camera
underwater. If the camera is not being used underwater
when Underwater is selected, the depth gauge display
is fixed at 0 m (0 ft).
•The display range of the altitude is -300 m to +4500 m
(-984 ft to +14,760 ft), and the display range of the water
depth is 0 m to 35 m (0 ft to 114 ft).
•When altitude or water depth is corrected, i is displayed next to the altitude or water
depth.
Using Altimeter and Depth Gauge
40
10
0
-10
30
20
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
Atmospheric
pressure
Altitude or
water depth
Altimeter or depth gauge
101
Using Location Data Functions
Recording the Log of Movement Information
Starting Log Recording
1Use the multi selector HI to select
the type of log to record, and press the
kbutton.
•Start all logs: Location, altitude, and water depth
logs are recorded.
•Start location log: A location log is recorded.
•Start depth log: A water depth log is recorded.
2Select the intervals of log recording,
and press the k button.
•The intervals that can be set vary depending on
the type of log that is recorded.
3Select the duration of the log recording,
and press the k button.
•The time that can be set varies depending on the
type of log that is recorded.
•Log recording starts. Press the d button to exit
the menu.
•D is displayed on the shooting screen during
log recording (A6).
•Log recording automatically ends when the specified time elapses, and the log data
is temporarily recorded on the camera. Save the log data on a memory card when
log recording is complete (A103).
Recording the Log of Movement Information
Press the d button M z menu icon M Create log M k button
Create log
Start all logs
End all logs
Start location log
End location log
Start depth log
End depth log
Log interval
15 s
30 s
1 min
3 min
5 min
10 min
Start log
Log data for next 6 hrs
Log data for next 12 hrs
Log data for next 24 hrs
Log data for next 72 hrs
102
Using Location Data Functions
Recording the Log of Movement Information
BNotes About Log Recording
•If the date and time are not set, the log cannot be recorded.
•When recording all logs or a water depth log, correct the altitude or water depth using
Alt./depth correction in Altitude/depth options (A161) in the location data options
menu before log recording starts.
•Use a sufficiently charged battery to prevent the camera from turning off during log
recording. When the battery power becomes exhausted, log recording ends.
While location logs are recorded, the battery is exhausted much faster. Exercise caution
regarding the remaining battery level.
•Log data cannot be recorded while the camera is not positioning, even if log recording
has already started.
•Even when the camera is turned off, log recording is continuously performed until the
preset time has elapsed if there is still time remaining for log recording.
•Log recording ends due to the operations below even when there is time remaining for
log recording.
- The battery is removed
-Use built-in location data in Location data options is set to Off (except when
Start depth log is used to start recording a depth log).
-Reset all in the setup menu is performed
- The setting of the internal clock (time zone or date and time) is changed
- An option to end log recording is selected in Create log in the location data options
menu (A103)
•Log recording is paused during the operations below.
- During continuous shooting
- During movie recording
- When connected with a USB cable or HDMI cable
Log recording is resumed when the above operations are finished.
•The log data is temporarily saved in the camera. New logs cannot be recorded if the log
data remains in the camera. After recording log data, save it on a memory card (A103).
103
Using Location Data Functions
Recording the Log of Movement Information
Ending Log Recording and Saving Logs on a Memory
Card
Recorded logs must be saved on a memory card in order to display them as a graph.
1When log recording is completed,
select the log to end and press the
kbutton.
•You can select the log to end recording before the
specified time duration elapses.
2Select Save logs, and press the
kbutton.
•The log data is saved on a memory card.
•To check if the log data was saved to the memory
card, select View log in the location data options
menu.
BNotes About Log Data
•No log data is saved if the camera is unable to calculate any location data between the
time that log recording starts and ends.
•See “Log Data Saved on Memory Cards” (A205) for more information.
CTo Erase Log Data
•To erase the log data that is temporarily saved in the camera, select Erase logs in step 2.
•To erase the log data that is saved on the memory card, select Location logs or Altitude/
depth logs in View log (A159), and press the l button.
CLocation Log Data
Log data is NMEA format-compliant. However, the log data is not guaranteed to display in all
NMEA format-compliant software or cameras.
Press the d button M z menu icon M Create log M k button
Create log
Start all logs
End all logs
Start location log
End location log
Start depth log
End depth log
Create log
Save logs
Erase logs
104
Using Location Data Functions
Displaying Altitude/Depth Logs as a Graph
•Select a log (date) that you want to display and
press the k button to display the altitude or water
depth data as a graph.
- The horizontal axis of the graph shows the total
time of log recording, and the vertical axis of the
graph shows the total variations in altitude/
depth during log recording.
- If images were captured while the log was being
recorded, they are displayed as thumbnails, and
shooting points are displayed on a graph.
•Press the l button when the log list screen is
displayed to delete the selected log or all saved
altitude/depth logs.
•The operations described below can be performed while a graph is displayed.
Displaying Altitude/Depth Logs as a Graph
Press the d button M z menu icon M View log M kbutton M
Altitude/depth logs M k button
Operation Description
d button Return to the log list screen.
Multi selector
Use JK to move the yellow selection area.
•The yellow selection area is displayed when the camera obtains
more than 30 recorded logs.
Zoom control
Move toward g (i) to zoom in on the area inside the selection area.
•Use JK to move the displayed area.
•Move toward f (h) to return to the full graph display.
k button
Thumbnail images are selected, and operations described below can
be performed.
Multi selector
Use JK to switch the selected image.
•The shooting point of the selected image
changes to yellow on the graph.
Zoom control
•g (i): Display the selected image in full-frame
playback mode.
Use JK to display the previous or next image.
•f (h): Return to the graph display.
k button Return to the graph operation screen.
010 20 30 40 50 60
20
0
40
60
80
100
0
15/11/2017 [2] 15:30
m / m
Selection area
Shooting point
Thumbnail playback
105
Using Location Data Functions
Displaying the Active Guide
Press the q (tool) button to display the active guide,
which allows you to check location data that is currently
being obtained.
You can switch the displayed information by pressing the k button while the active
guide is displayed.
1Water depth is displayed when using Underwater scene mode or when the camera
detects that it is underwater.
2A graph of the altitude log or water depth log currently being recorded is displayed.
When the camera detects that it is underwater, a graph of the water depth log is
displayed. When the altitude log or water depth log is not being recorded, a graph is not
displayed.
•To exit the active guide, press the q button.
•To switch to shooting mode from the active guide, press the shutter-release
button, A button, or b (e) button.
BNotes About the Active Guide
•The active guide cannot be displayed during shooting or while the action menu is
displayed.
•Some information cannot be displayed when the camera detects that it is underwater.
Displaying the Active Guide
31º
23’
15”
15
1010
136º
15’
32”
15/11/2017 15:30
NNE
m
hPa
N
E
Next
0
0
10 20 30 40 50
50
40
30
20
10
0
60
15 1010
15/11/2017 15:30
mhPa
m / m
Next
15
1010
15/11/2017 15:30
NNE
m
hPa
0
4000
4500
1000
1500
2000
2500
3000
3500 500
Next
Location data display Altitude display or water
depth display1Altitude log display or
water depth log display2
106
Using Location Data Functions
Displaying the Active Guide
BNotes About Using the Electronic Compass
•Before using the electronic compass, read “Notes About Location Data Functions (GPS/
GLONASS, Electronic Compass)” (A183).
•The electronic compass and heading are not displayed when the camera lens is facing
upwards.
•Do not use the electronic compass in this camera for mountain climbing and other
specialized applications. The displayed information is intended as a general guide only.
•Direction may not be measured correctly near the following objects:
magnets, metals, electrical motors, electrical home appliances or electrical power cables.
•Direction may not be measured correctly in the following places:
in automobiles, trains, ships, airplanes, inside buildings or in underground malls
•Direction may not be measured correctly if the location data cannot be obtained.
107
Connecting the Camera to a TV, Printer, or Computer
Connecting the Camera to a TV,
Printer, or Computer
Utilizing Images ................................................................................................................. 108
Viewing Images on a TV..................................................................................................110
Printing Images Without a Computer........................................................................ 111
Transferring Images to a Computer (ViewNX-i) ..................................................... 115
108
Connecting the Camera to a TV, Printer, or Computer
Utilizing Images
In addition to using the SnapBridge app to enjoy the captured images, you can also
utilize the images in various ways by connecting the camera to the devices described
below.
Utilizing Images
Viewing Images on a TV
Images and movies captured with the camera can be viewed on a TV.
Connection method: Connect a commercially available HDMI cable
to the TV’s HDMI input jack.
Printing Images Without a Computer
If you connect the camera to a PictBridge-compatible printer, you can
print images without using a computer.
Connection method: Connect the camera directly to the printer’s USB
port with the USB cable.
Transferring Images to a Computer (ViewNX-i)
You can transfer images and movies to a computer for viewing and
editing.
Connection method: Connect the camera to the computer’s USB port
with the USB cable.
•Before connecting to a computer, install ViewNX-i on the
computer.
109
Connecting the Camera to a TV, Printer, or Computer
Utilizing Images
BNotes About Connecting Cables to the Camera
•Make sure to turn the camera off before openning the cover. Check there are no water
droplets. If there are water droplets, wipe the camera with a soft dry cloth.
•Make sure to turn the camera off before connecting or disconnecting cables. Check the
shape and direction of the plugs and do not insert or remove the plugs at an angle.
•Make sure that the camera battery is sufficiently charged. If the EH-62F AC Adapter
(available separately) is used, this camera can be powered from an electrical outlet. Do
not, under any circumstances, use an AC adapter other than the EH-62F. Failure to observe
this precaution could result in overheating or damage to the camera.
•For information about the connection methods and subsequent operations, refer to the
documentation included with the device in addition to this document.
1
3
2
Insert the plug.
HDMI micro connector (Type D)
Open the battery-chamber/
memory card slot cover.
Micro-USB connector
110
Connecting the Camera to a TV, Printer, or Computer
Viewing Images on a TV
1Turn off the camera and connect it to the TV.
•Check the shape and direction of the plugs and do not insert or remove the plugs at
an angle.
2Set the TV’s input to external input.
•See the documentation provided with your TV for details.
3Press and hold down the c (playback)
button to turn on the camera.
•Images are displayed on the TV.
•The camera screen does not turn on.
•To play back movies that were saved using
d2160/30p (4K UHD) or c 2160/25p
(4K UHD) in 4K UHD quality, use a TV and HDMI
cable that support 4K.
Viewing Images on a TV
HDMI micro connector (Type D)
to HDMI jack
111
Connecting the Camera to a TV, Printer, or Computer
Printing Images Without a Computer
Users of PictBridge-compatible printers can connect the camera directly to the printer
and print images without using a computer.
Connecting the Camera to a Printer
1Turn on the printer.
2
Turn off the camera and connect it to the printer using the USB cable.
•Check the shape and direction of the plugs and do not insert or remove the plugs at
an angle.
3The camera is automatically turned on.
•The PictBridge startup screen (1) is displayed on the camera screen, followed by
the Print selection screen (2).
BIf the PictBridge Startup Screen Is Not Displayed
When Auto is selected for Charge by computer (A175), it may be impossible to print
images with direct connection of the camera to some printers. If the PictBridge startup
screen is not displayed after the camera is turned on, turn the camera off and disconnect the
USB cable. Set Charge by computer to Off and reconnect the camera to the printer.
Printing Images Without a Computer
Print selection
No. 32 32
15/11/2017
12
112
Connecting the Camera to a TV, Printer, or Computer
Printing Images Without a Computer
Printing Images One at a Time
1Use the multi selector JK to select the
desired image and press the k button.
•Move the zoom control toward f(h) to switch
to thumbnail playback or g(i) to switch to full-
frame playback.
2Use HI to select Copies and press the
k button.
•Use HI to set the desired number of copies (up
to nine) and press the k button.
3Select Paper size and press the
kbutton.
•Select the desired paper size and press the
kbutton.
•To print with the paper size setting configured on
the printer, select Default.
•The paper size options available on the camera
vary depending on the printer that you use.
4Select Start print and press the
kbutton.
•Printing starts.
Print selection
No. 32 32
15/11/2017
PictBridge
1
prints
Start print
Copies
Paper size
PictBridge
4
prints
Start print
Copies
Paper size
PictBridge
4
prints
Start print
Copies
Paper size
113
Connecting the Camera to a TV, Printer, or Computer
Printing Images Without a Computer
Printing Multiple Images
1When the Print selection screen is
displayed, press the d (menu)
button.
2Use the multi selector HI to select
Paper size and press the k button.
•Select the desired paper size and press the
kbutton.
•To print with the paper size setting configured
on the printer, select Default.
•The paper size options available on the camera
vary depending on the printer that you use.
•To exit the print menu, press the d button.
3Select Print selection or Print all
images, and press the k button.
Print selection
No. 32 32
15/11/2017
Print menu
Print selection
Print all images
Paper size
Print menu
Print selection
Print all images
Paper size
114
Connecting the Camera to a TV, Printer, or Computer
Printing Images Without a Computer
Print selection
Select images (up to 99) and the number of
copies (up to 9) of each.
•Use the multi selector JK to select
images, and use HI to specify the
number of copies to be printed.
•Images selected for printing are indicated
by M and the number of copies to be
printed. To cancel the print selection, set
the number of copies to 0.
•Move the zoom control toward g(i) to switch to full-frame playback or
f(h) to switch to thumbnail playback.
•Press the k button when setting is complete. When the screen for
confirming the number of print copies is displayed, select Start print and
press the k button to start printing.
Print all images
One copy each of all images saved in the internal memory, or on the memory
card, is printed.
•When the screen for confirming the number of print copies is displayed,
select Start print and press the k button to start printing.
Print selection
5
11
3
Back
115
Connecting the Camera to a TV, Printer, or Computer
Transferring Images to a Computer (ViewNX-i)
Installing ViewNX-i
ViewNX-i is Nikon software that enables you to transfer images and movies to your
computer for viewing and editing.
To install ViewNX-i, download the latest version of the ViewNX-i installer from the
following website and follow the on-screen instructions to complete installation.
http://downloadcenter.nikonimglib.com
For system requirements and other information, see the Nikon website for your region.
Transferring Images to a Computer
The items displayed on your computer screen may change when you update the
version of your operating system or software.
1Prepare a memory card that contains images.
You can use any of the methods below to transfer images from the memory card to a
computer.
•SD memory card slot/card reader: Insert the memory card into the card slot of
your computer or the card reader (commercially available) that is connected to the
computer.
•Direct USB connection: Turn the camera off and ensure that the memory card is
inserted in the camera. Connect the camera to the computer using the USB cable.
The camera automatically turns on.
To transfer images that are saved in the camera’s internal memory, remove the
memory card from the camera before connecting it to the computer.
BNotes About Connecting the Camera to a Computer
Disconnect all other USB-powered devices from the computer. Connecting the camera and
other USB-powered devices to the same computer simultaneously may cause a camera
malfunction or excessive power supply from the computer, which could damage the
camera or memory card.
Transferring Images to a Computer (ViewNX-i)
116
Connecting the Camera to a TV, Printer, or Computer
Transferring Images to a Computer (ViewNX-i)
If a message is displayed prompting you to choose a program, select Nikon Transfer 2.
•When using Windows 7
If the dialog shown on the right is
displayed, follow the steps below to
select Nikon Transfer 2.
1Under Import pictures and
videos, click Change program. A
program selection dialog will be
displayed; select Nikon Transfer 2
and click OK.
2 Double-click the Nikon Transfer 2 icon.
•When using Windows 10 or Windows 8.1
If the dialog shown on the right is displayed, click
the dialog and then click Import File/Nikon
Transfer 2.
•When using OS X or macOS
If Nikon Transfer 2 does not automatically start, launch the Image Capture
application that comes bundled with Mac while the camera and your computer are
connected, and select Nikon Transfer 2 as the default application to open when the
camera is connected to your computer.
If the memory card contains a large number of images, it may take a while for Nikon
Transfer 2 to start. Wait until Nikon Transfer 2 starts.
BNotes About Connecting the USB Cable
Operation is not guaranteed if the camera is connected to the computer via a USB hub.
CUsing ViewNX-i
Consult online help for more information.
117
Connecting the Camera to a TV, Printer, or Computer
Transferring Images to a Computer (ViewNX-i)
2After Nikon Transfer 2 starts, click Start Transfer.
•Image transfer begins. When image transfer is complete, ViewNX-i starts and the
transferred images are displayed.
3Terminate the connection.
•If you are using a card reader or card slot, choose the appropriate option in the
computer operating system to eject the removable disk corresponding to the
memory card and then remove the memory card from the card reader or card slot.
•If the camera is connected to the computer, turn the camera off and disconnect the
USB cable.
Start Transfer
118
Using the Menu
Using the Menu
Menu Operations...............................................................................................................119
Menu Lists ............................................................................................................................122
The Shooting Menu (The Common Shooting Options) ......................................127
The Shooting Menu (for A (Auto) Mode)............................................................... 129
The Smart Portrait Menu ................................................................................................ 138
The Movie Menu................................................................................................................140
The Playback Menu........................................................................................................... 148
The Network Menu ........................................................................................................... 153
The Location Data Options Menu ...............................................................................156
The Setup Menu.................................................................................................................162
119
Using the Menu
Menu Operations
You can set the menus listed below by pressing the d (menu) button.
•A Shooting menu1, 2
•D Movie menu1
•G Playback menu3, 4
•J Network menu
•z Location data options menu
•z Setup menu
1Press the d button when the shooting screen is displayed.
2Menu icons and available setting options vary depending on the shooting mode.
3Press the d button when the playback screen is displayed.
4Menu icons and available setting options vary depending on the playback mode.
1Press the d (menu) button.
•The menu is displayed.
2Press the multi selector J.
•The current menu icon is
displayed in yellow.
3Select a menu icon and
press the k button.
•The menu options become
selectable.
Menu Operations
Shooting menu
Image mode
White balance
Continuous
ISO sensitivity
AF area mode
Autofocus mode
Menu icons
Time zone and date
Monitor settings
Date stamp
Photo VR
AF assist
Digital zoom
Set up
120
Using the Menu
Menu Operations
4Select a menu option and
press the k button.
•Certain menu options cannot be
set depending on the current
shooting mode or the state of the
camera.
5Select a setting and press
the k button.
•The setting you selected is
applied.
•When you are finished using the
menu, press the d button.
•When a menu is displayed, you
can switch to shooting mode by
pressing the shutter-release button, A button, or b (e) button.
Time zone and date
Monitor settings
Date stamp
Photo VR
AF assist
Digital zoom
Date stamp
Date
O
Date and time
121
Using the Menu
Menu Operations
The Image Selection Screen
When an image selection screen such as the one
shown on the right is displayed while operating the
camera menu, follow the procedures described below
to select the images.
1Use the multi selector JK to select the
desired image.
•Move the zoom control (A3) toward g(i) to
switch to full-frame playback, or f(h) to switch
to thumbnail playback.
•Only one image can be selected for Rotate
image. Proceed to step 3.
2Use HI to select ON or OFF.
•When ON is selected, an icon is displayed under
the selected image. Repeat steps 1 and 2 to select
additional images.
3Press the k button to apply the image selection.
•When a confirmation dialog is displayed, follow the on-screen instructions to
operate.
Erase selected images
Back
Erase selected images
Back
Erase selected images
Back
122
Using the Menu
Menu Lists
The Shooting Menu
Common Options
For A (Auto) Mode
For Smart Portrait Mode
Menu Lists
Enter shooting mode M d button
Option Default setting A
Image mode P 4608×3456 127
Option Default setting A
White balance Auto 129
Continuous Single 131
ISO sensitivity Auto 133
AF area mode Target finding AF 134
Autofocus mode Pre-focus 137
Option Default setting A
Self-Collage -138
Blink proof Off 139
123
Using the Menu
Menu Lists
The Movie Menu
Enter shooting mode M d button M D menu icon M k button
Option Default setting A
Movie options e 1080/30p or S 1080/25p 140
AF area mode Face priority 144
Autofocus mode Single AF 145
Movie VR On (hybrid) 146
Movie light Off 146
Wind noise reduction Off 147
Frame rate -147
124
Using the Menu
Menu Lists
The Playback Menu
1Select an image on the image selection screen. See “The Image Selection Screen”
(A121) for more information.
2Edited images are saved as separate files. Some images may not be edited.
The Network Menu
Press the c button (playback mode) M d button
Option A
Mark for upload1148
Quick retouch273
D-Lighting274
Red-eye correction274
Glamour retouch275
Data imprint276
Slide show 149
Protect1150
Rotate image1150
Small picture277
Copy 151
Sequence display 152
Press the d button M J menu icon M k button
Option A
Airplane mode 153
Connect to smart device 153
Send while shooting 153
Wi-Fi 153
Bluetooth 154
Restore default settings 154
125
Using the Menu
Menu Lists
The Location Data Options Menu
Press the d button M z menu icon M k button
Option A
Location data options 156
Points of interest (POI) 157
Create log 158
View log 159
Set clock from satellite 159
Electronic compass 160
Altitude/depth options 161
126
Using the Menu
Menu Lists
The Setup Menu
Press the d button M z menu icon M k button
Option A
Time zone and date 162
Monitor settings 164
Date stamp 166
Photo VR 167
AF assist 168
Digital zoom 168
Sound settings 169
Underwater flash 169
Action control response 170
Playback action control 170
Auto off 171
LED light timer 171
Format card/Format memory 172
Language 172
Image comment 173
Copyright information 174
Charge by computer 175
Reset all 176
Conformity marking 176
Firmware version 176
127
Using the Menu
The Shooting Menu (The Common Shooting Options)
Image Mode (Image Size and Quality)
Select the combination of image size and compression ratio to be used when saving
images.
The higher the image mode setting, the larger the size at which it can be printed, and
the lower the compression ratio, the higher the quality of the images, but the number
of images that can be saved is reduced.
The setting is also applied to other shooting modes.
* The numerical values indicate the number of pixels that are captured.
Example: P 4608×3456 = approx. 16 megapixels, 4608 × 3456 pixels
BNotes About Printing Images at 1:1 Aspect Ratio
Change the printer setting to “Border” when printing images at a 1:1 aspect ratio. Some
printers may not be able to print images at a 1:1 aspect ratio.
BNotes About Image Mode
•Image mode cannot be set in the following shooting modes:
-Time-lapse movie, Easy panorama, and Superlapse movie scene modes
- Short movie show mode
•This function may not be available to use in combination with other functions (A64).
The Shooting Menu (The Common Shooting
Options)
Enter shooting mode M d button M Image mode M k button
Option* Compression ratio Aspect ratio
(horizontal to vertical)
Q 4608×3456PApprox. 1:4 4:3
P 4608×3456 (default setting) Approx. 1:8 4:3
R 3264×2448 Approx. 1:8 4:3
r 2272×1704 Approx. 1:8 4:3
q 1600×1200 Approx. 1:8 4:3
O 640×480 Approx. 1:8 4:3
l 4608×2592 Approx. 1:8 16:9
s 3456×3456 Approx. 1:8 1:1
128
Using the Menu
The Shooting Menu (The Common Shooting Options)
CNumber of Images That Can Be Saved
•The approximate number of images that can be saved can be checked on the screen
when shooting (A19).
•Note that due to JPEG compression, the number of images that can be saved may vary
greatly depending on the image content, even when using memory cards with the same
capacity and the same image mode setting. In addition, the number of images that can be
saved may vary depending on the make of the memory card.
•If the number of exposures remaining is 10,000 or more, the number of exposures
remaining display shows “9999.”
129
Using the Menu
The Shooting Menu (for A (Auto) Mode)
White Balance (Adjusting Hue)
Adjust white balance to suit the light source or weather conditions in order to make
the colors in images match what you see with your eyes.
BNotes About White Balance
•Set the flash to W (off) when white balance is set to any setting other than Auto or Flash
(A50).
•This function may not be available to use in combination with other functions (A64).
The Shooting Menu (for A (Auto) Mode)
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton M d button M White balance M k button
Option Description
aAuto
(default setting) White balance is automatically adjusted.
bPreset manual Use when the desired result is not achieved with Auto,
Incandescent, etc. (A130).
cDaylight Use under direct sunlight.
dIncandescent Use under incandescent lighting.
eFluorescent Use under fluorescent lighting.
fCloudy Use under overcast skies.
gFlash Use with the flash.
130
Using the Menu
The Shooting Menu (for A (Auto) Mode)
Using Preset Manual
Follow the procedures described below to measure the white balance value under
the lighting used during shooting.
1Place a white or gray reference object under the lighting that
will be used during shooting.
2Use the multi selector HI to select
Preset manual in the White balance
menu, and press the k button.
•The lens extends to the zoom position for
measurement.
3Select Measure.
•To apply the last measured value, select Cancel
and press the k button.
4Frame the white or gray reference
object in the measuring window, and
press the k button to measure the
value.
•The shutter is released and measurement is
complete (no image is saved).
BNotes About Preset Manual
A white balance value for flash lighting cannot be measured with Preset manual. When
shooting using the flash, set White balance to Auto or Flash.
Daylight
Daylight
Incandescent
Incandescent
Fluorescent
Fluorescent
Cloudy
Cloudy
Auto
Auto
Preset manual
White balance
Measure
Cancel
Preset manual
Measure
Cancel
Preset manual
Measuring window
131
Using the Menu
The Shooting Menu (for A (Auto) Mode)
Continuous Shooting
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton M d button M Continuous M k button
Option Description
USingle
(default setting)
One image is captured each time the shutter-release button
is pressed.
k Continuous H
While the shutter-release button is held all the way down,
images are captured continuously.
•The camera can capture up to about 5 images
continuously at a rate of about 7.5 fps (when Image
mode is set to P 4608×3456).
m Continuous L
While the shutter-release button is held all the way down,
images are captured continuously.
•The camera can capture up to about 10 images
continuously at a rate of about 2.3 fps (when Image
mode is set to P 4608×3456). When you continue to
hold the shutter-release button all the way down, the
speed decreases.
q Pre-shooting cache
Pre-shooting cache shooting begins when the shutter-
release button is pressed halfway. When the shutter-release
button is pressed all the way down, the camera saves the
current image as well as the images captured immediately
before the button is pressed (A132). Pre-shooting cache
makes it easy to capture perfect moments.
•The camera can capture up to about 25 images
continuously at a rate of about 20 fps (including a
maximum of 5 images captured in the pre-shooting
cache).
•Image mode is fixed at M (image size: 1280 × 960 pixels).
n Continuous H:
120 fps
Each time the shutter-release button is pressed all the way
down, images are captured continuously at a high speed
rate.
•The camera can capture up to about 50 images
continuously at a rate of about 120 fps.
•Image mode is fixed at O (image size: 640 × 480 pixels).
j Continuous H:
60 fps
Each time the shutter-release button is pressed all the way
down, images are captured continuously at a high speed
rate.
•The camera can capture up to about 25 images
continuously at a rate of about 60 fps.
•Image mode is fixed at M (image size: 1280 × 960 pixels).
132
Using the Menu
The Shooting Menu (for A (Auto) Mode)
BNotes About Continuous Shooting
•Focus, exposure and white balance are fixed at the values determined with the first shot in
each series.
•It may take some time to save the images after shooting.
•When ISO sensitivity increases, noise may appear in captured images.
•The frame rate may become slower depending on the current image mode setting,
memory card type or shooting conditions.
•When using Pre-shooting cache, Continuous H: 120 fps, or Continuous H: 60 fps,
banding or variance in brightness or hue may occur in images that were captured under
lighting that flashes quickly at high speeds, such as fluorescent, mercury-vapor, or
sodium-vapor lighting.
•This function may not be available to use in combination with other functions (A64).
CPre-shooting Cache
When the shutter-release button is pressed halfway or all the way down, images are saved
as described below.
•The pre-shooting cache icon (Q) on the shooting screen changes to green while the
shutter-release button is pressed halfway.
Images saved before pressing all
the way
Images saved by pressing all
the way
Press down halfway Press down all the way
133
Using the Menu
The Shooting Menu (for A (Auto) Mode)
ISO Sensitivity
A higher ISO sensitivity allows darker subjects to be captured. Additionally, even with
subjects of similar brightness, pictures can be taken at faster shutter speeds, and
blurring caused by camera shake and subject movement can be reduced.
•When a higher ISO sensitivity is set, images may contain noise.
BNotes About ISO Sensitivity
This function may not be available to use in combination with other functions (A64).
CISO Sensitivity Display on the Shooting Screen
•When Auto is selected, E is displayed when the ISO sensitivity increases.
•When Fixed range auto is selected, the maximum value for ISO sensitivity is
displayed.
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton M d button M ISO sensitivity M k button
Option Description
a Auto
(default setting)
Sensitivity is automatically selected from the range of ISO 125
to 1600.
I Fixed range auto Select the range in which the camera automatically adjusts
ISO sensitivity, from ISO 125-400 or ISO 125-800.
125, 200, 400, 800, 1600,
3200, 6400 Sensitivity is locked at the specified value.
134
Using the Menu
The Shooting Menu (for A (Auto) Mode)
AF Area Mode
Use this option to determine how the camera selects the focus area for autofocus
when shooting still images.
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton M d button M AF area mode M k button
Option Description
aFace priority
When the camera detects a
human face, it focuses on that
face.
See “Using Face Detection”
(A58) for more information.
When framing a composition
with no human subjects or
detected faces, the camera
automatically selects one or
more of the nine focus areas
containing the subject closest
to the camera when the
shutter-release button is
pressed halfway.
xManual
Use the multi selector
HIJK to move the focus
area to where you want to
focus.
•To use the multi selector to
configure the flash mode or
other settings, press the k
button. To return to moving
the focus area, press the k
button again.
40
10
0
-10
30
20
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
Focus area
1/2501/250 F 2.8F 2.8
Focus areas
Scope of movable
focus area
Focus area
135
Using the Menu
The Shooting Menu (for A (Auto) Mode)
BNotes About AF Area Mode
•When digital zoom is in effect, the camera focuses on the area in the center of the frame
regardless of the AF area mode setting.
•This function may not be available to use in combination with other functions (A64).
CAF Area Mode for Movie Recording
AF area mode for movie recording can be set with AF area mode (A144) in the movie
menu.
yCenter
The camera focuses on the
subject in the center of the
frame.
s Subject tracking
Use this function to take
pictures of moving subjects.
Register the subject on which
the camera focuses. The focus
area automatically moves to
track the subject. See “Using
Subject Tracking” (A136) for
more information.
M Target finding AF
(default setting)
When the camera detects the
main subject, it focuses on that
subject.
See “Using Target Finding AF”
(A59) for more information.
Option Description
40
10
0
-10
30
20
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
Focus area
40
10
0
-10
30
20
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
Start
1/250
1/250
F 2.8
F 2.8
Focus areas
136
Using the Menu
The Shooting Menu (for A (Auto) Mode)
Using Subject Tracking
1Register a subject.
•Align the subject that you want to track with the
border in the center of the frame and press the
kbutton.
•When the subject is registered, a yellow border
(focus area) is displayed around it and the camera
begins tracking the subject.
•If the subject cannot be registered, the border is
displayed in red. Change the composition and try
registering the subject again.
•To cancel subject registration, press the k button.
•If the camera can no longer track the registered subject, the focus area disappears.
Register the subject again.
2Press the shutter-release button all the
way to take the picture.
•If the shutter-release button is pressed while the
focus area is not displayed, the camera focuses on
the subject in the center of the frame.
BNotes About Subject Tracking
•If you perform operations such as zooming while the camera is tracking the subject, the
registration is canceled.
•Subject tracking may not be possible in certain shooting conditions.
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton M d button M AF area mode M k button M s Subject tracking
M k button M d button
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
500
500
25m 0s
25m 0s
Start
1/250
1/250
F 2.8
F 2.8
137
Using the Menu
The Shooting Menu (for A (Auto) Mode)
Autofocus Mode
Set how the camera focuses when shooting still images.
CAutofocus Mode for Movie Recording
Autofocus mode for movie recording can be set with Autofocus mode (A145) in the
movie menu.
Enter shooting mode M A (shooting mode) button M A (auto) mode M
kbutton M d button M Autofocus mode M k button
Option Description
ASingle AF The camera focuses only when the shutter-release button is
pressed halfway.
BFull-time AF
The camera always focuses even if the shutter-release button
is not pressed halfway. The sound of lens drive movement is
heard while the camera focuses.
a Pre-focus
(default setting)
Even if the shutter-release button is not pressed halfway, the
camera focuses when subject movement is detected or
when the composition of the framed image is significantly
changed.
138
Using the Menu
The Smart Portrait Menu
•See “Image Mode (Image Size and Quality)” (A127) for information about Image
mode.
Self-Collage
The Smart Portrait Menu
Enter shooting mode M A (shooting mode) button M F Smart portrait mode
M k button M d button M Self-Collage M k button
Option Description
Number of shots
Set the number of shots that the camera automatically
captures (number of captured images for an aggregated
image).
•4 (default setting) or 9 can be selected.
Interval Set the interval time between each shot.
•Short, Medium (default setting), or Long can be selected.
Shutter sound
Set whether to activate the shutter sound when shooting
with the self-collage function.
•Standard, SLR, Magic (default setting), or Off can be
selected.
•The setting that is specified for Shutter sound in Sound
settings in the setup menu is not applied to this setting.
139
Using the Menu
The Smart Portrait Menu
Blink Proof
BNotes About Blink Proof
This function may not be available to use in combination with other functions (A64).
Enter shooting mode M A (shooting mode) button M F Smart portrait mode
M k button M d button M Blink proof M k button
Option Description
y On
The camera automatically
releases the shutter twice with
every shot and saves one image
in which the subject’s eyes are
open.
•If the camera saved an image
in which the subject’s eyes
may have been closed, the
dialog shown on the right is
displayed for a few seconds.
•The flash cannot be used.
Off (default setting) Turns the blink proof off.
A blink was detected in the
picture just taken.
140
Using the Menu
The Movie Menu
Movie Options
Select the desired movie option to record. Select normal speed movie options to
record at normal speed, or HS movie options (A141) to record in slow or fast motion.
The movie options that can be selected vary depending on the Frame rate setting
(A147).
•Memory cards with an SD Speed Class rating of 6 or faster are recommended for
recording movies (A216). Memory cards with a UHS Speed Class rating of 3 or
faster are recommended when recording 4K UHD movies at an image size/frame
rate of d 2160/30p or c 2160/25p.
Normal Speed Movie Options
The Movie Menu
Enter shooting mode M d button M D menu icon M Movie options M
kbutton
Option (Image size/
Frame rate, File format) Image size Aspect ratio
(horizontal to vertical) Max. recording time
d
c
2160/30p (4K UHD)
2160/25p (4K UHD) 3840 × 2160 16:9 Approx. 7 minutes
Approx. 8 minutes
e
S
1080/30p
1080/25p
(default setting)
1920 × 1080 16:9 Approx. 27 minutes
Approx. 29 minutes
e
f
1080/60p
1080/50p 1920 × 1080 16:9 Approx. 13 minutes
Approx. 16 minutes
f
V
720/30p
720/25p 1280 × 720 16:9 Approx. 29 minutes
g
W
480/30p
480/25p 640 × 480 4:3 Approx. 29 minutes
141
Using the Menu
The Movie Menu
HS Movie Options
Recorded movies are played back in fast or slow motion.
See “Recording Movies in Slow Motion and Fast Motion (HS Movie)” (A143).
* While recording movies, the camera can be switched between normal speed movie
recording and slow motion or fast motion movie recording. The maximum recording
time shown here refers only to the portion of the movie that is recorded in slow motion
or fast motion.
BNotes About HS Movie
•Sound is not recorded.
•Zoom position, focus, exposure, and white balance are locked when movie recording
starts.
Option
Image size
Aspect ratio
(horizontal to vertical)
Description
h
aHS 480/4× 640 × 480
4:3
1/4-speed slow motion movies
•Max. recording time*: 15 seconds
(playback time: 1 minute)
j
YHS 1080/0.5× 1920 × 1080
16:9
2× speed fast motion movies
•Max. recording time*: 2 minutes
(playback time: 1 minute)
142
Using the Menu
The Movie Menu
CPlaying Back in Slow Motion and Fast Motion
When recording at normal speed:
When recording at h/a HS 480/4×:
Movies are recorded at 4× normal speed.
They are played back in slow motion at 4× slower speed.
When recording at j/Y HS 1080/0.5×:
Movies are recorded at 1/2 normal speed.
They are played back in fast motion at 2× faster speed.
Recording
time 10 s
Playback
time 10 s
Recording
time 10 s
Slow motion playback
Playback
time 40 s
Recording
time 10 s
Fast motion playback
Playback
time 5 s
143
Using the Menu
The Movie Menu
Recording Movies in Slow Motion and Fast Motion (HS Movie)
Movies recorded using HS movie can be played back in slow motion at 1/4 of the
normal playback speed, or in fast motion at twice the normal playback speed.
1Use the multi selector HI to select an
HS movie option (A141) and press the
k button.
•After applying the option, press the d button to
return to the shooting screen.
2Press the b(emovie-record) button
to start recording.
•The camera starts recording an HS movie.
•The camera switches between normal speed
movie recording and HS movie recording each
time the k button is pressed.
•The movie options icon changes when switching
between HS movie recording and normal speed
movie recording.
•When the maximum recording time for HS movies (A141) is reached, the camera
automatically switches to normal speed movie recording.
3Press the b(e) button to end recording.
Enter shooting mode M d button M D menu icon M Movie options M
kbutton
1080/30p
2160/30p
1080/60p
720/30p
HS 480/4×
Movie options
480/30p
5 s
5s
144
Using the Menu
The Movie Menu
AF Area Mode
Use this option to determine how the camera selects the focus area for autofocus
during movie recording.
BNotes About AF Area Mode for Movie Recording
AF area mode is set to focus on the center in the following situations even when Face
priority is selected.
•When Autofocus mode in the movie menu is set to Single AF and no faces are detected
before pressing the b (e) button
•When an HS movie option is selected in Movie options
•When Movie VR is set to On (hybrid) and Movie options is set to e 1080/60p or
f 1080/50p
Enter shooting mode M d button M D menu icon M AF area mode M
kbutton
Option Description
a Face priority
(default setting)
When the camera detects a human face, it focuses on that face.
See “Using Face Detection” (A58) for more information.
y Center The camera focuses on the subject in the center of the frame.
145
Using the Menu
The Movie Menu
Autofocus Mode
Set how the camera focuses when recording movies.
BNotes About Autofocus Mode
When an HS movie option is selected in Movie options, the setting is fixed at Single AF.
Enter shooting mode M d button M D menu icon M Autofocus mode M
kbutton
Option Description
A Single AF
(default setting)
Focus is locked when movie recording starts.
Select this option when the distance between the camera
and the subject will remain fairly consistent.
B Full-time AF
The camera focuses continuously.
Select this option when the distance between the camera
and subject will change significantly during recording. The
sound of the camera focusing may be heard in the recorded
movie. Use of Single AF is recommended to prevent the
sound of the camera focusing from interfering with
recording.
146
Using the Menu
The Movie Menu
Movie VR
Select the vibration reduction setting used when recording movies.
Set to Off when using a tripod to stabilize the camera during shooting.
BNotes About Movie VR
•When Movie options is set to d 2160/30p (4K UHD), c 2160/25p (4K UHD), or HS
movie, On (hybrid) cannot be selected.
•When Superlapse movie is selected, the setting is fixed at On (hybrid).
•Vibration reduction may be unable to completely eliminate the effects of camera shake in
some situations.
Movie Light
Enable or disable the movie light that assists recording in dark places.
CThe LED Light During Movie Recording
You can press the r (LED light) button while recording movies to turn on or off the LED light
that has the same brightness as the movie light, regardless of the Movie light setting (A20).
Enter shooting mode M d button M D menu icon M Movie VR M kbutton
Option Description
V On (hybrid)
(default setting)
Performs optical compensation for camera shake using lens shift
VR and simultaneously performs electronic VR using image
processing. The angle of view (i.e., the area seen in the frame)
becomes narrower.
g On Performs compensation for camera shake using lens shift VR.
Off Compensation is not performed.
Enter shooting mode M d button M D menu icon M Movie light M
kbutton
Option Description
On The movie light turns on automatically for lighting when movie
recording starts.
Off
(default setting)
The movie light does not turn on. If the LED light is on, it turns
off when movie recording starts.
147
Using the Menu
The Movie Menu
Wind Noise Reduction
Frame Rate
Select the frame rate used when recording movies. When the frame rate setting is
switched, options that can be set in Movie options (A140) change.
Enter shooting mode M d button M D menu icon M Wind noise reduction
M kbutton
Option Description
Y On
Reduces the sound that is produced when wind passes over the
microphone during movie recording. Other sounds may
become difficult to hear during playback.
Off (default setting) Wind noise reduction is disabled.
Enter shooting mode M d button M D menu icon M Frame rate M
kbutton
Option Description
30 fps (30p/60p) Suited for playback on a TV using the NTSC standard.
25 fps (25p/50p) Suited for playback on a TV using the PAL standard.
148
Using the Menu
The Playback Menu
•See “Editing Images (Still Images)” (A72) for information about image editing
functions.
Mark for Upload
Select still images in the camera and upload them to a smart device that has a wireless
connection established with the SnapBridge app.
On the image selection screen (A121), select or deselect images to upload.
•Movies cannot be selected. To upload movies to a smart device, use the
SnapBridge app.
•Note that when you select Reset all (A176) in the setup menu or Restore
default settings (A154) in the network menu, the Mark for upload settings that
you made are canceled.
The Playback Menu
Press the c button (playback mode) M d button M Mark for upload M
kbutton
149
Using the Menu
The Playback Menu
Slide Show
Play back images one by one in an automated “slide show.” When movie files are
played back in the slide show, only the first frame of each movie is displayed.
1Use the multi selector HI to select
Start and press the k button.
•The slide show begins.
•To change the interval between images, select
Frame intvl, press the k button, and specify the
desired interval time before selecting Start.
•To repeat the slide show automatically, select
Loop and press the k button before selecting
Start.
•The maximum playback time is up to about 30 minutes even if Loop is enabled.
2End or restart the slide show.
•The screen shown on the right is displayed after
the slide show ends or is paused. To exit the show,
select G and then press the k button. To
resume the slide show, select F and then press
the k button.
Operations During Playback
•Use the multi selector JK to display the previous/next image. Press and hold
down JK to rewind/fast-forward images quickly.
•Press the k button to pause or end the slide show.
Press the c button (playback mode) M d button M Slide show M k button
Slide show
Start
Frame intvl
Loop
Pause
150
Using the Menu
The Playback Menu
Protect
The camera protects selected images from accidental deletion.
Select images to protect or cancel protection from the image selection screen
(A121).
Note that formatting the memory card or the camera’s internal memory permanently
deletes all data including protected files (A172).
Rotate Image
Specify the orientation in which saved images are displayed during playback. Still
images can be rotated 90 degrees clockwise or 90 degrees counterclockwise.
Select an image from the image selection screen (A121). When the Rotate image
screen is displayed, press the multi selector JK to rotate the image 90 degrees.
Press the k button to finalize display orientation, and save orientation information
with the image.
Press the c button (playback mode) M d button M Protect M k button
Press the c button (playback mode) M d button M Rotate image M
kbutton
Rotate image
Rotate
Back
Rotate image
Rotate
Back
Rotate image
Rotate
Back
Rotate 90 degrees
counterclockwise
Rotate 90 degrees
clockwise
151
Using the Menu
The Playback Menu
Copy (Copy Between the Memory Card and Internal Memory)
Images can be copied between a memory card and the internal memory.
•When a memory card that contains no images is inserted and the camera is
switched to playback mode, Memory contains no images. is displayed. In that
case, press the d button to select Copy.
1Use the multi selector HI to select a
destination option to which images are
copied and press the k button.
2Select a copy option and press the
kbutton.
•When you choose Selected images, use the image
selection screen to specify images (A121).
•When you choose the Card to camera option, All
images is not available.
BNotes About Copying Images
•Only files in formats that this camera can record can be copied.
•Operation is not guaranteed with images captured with another make of camera or that
have been modified on a computer.
CCopying Images in a Sequence
•If you select a key picture of a sequence in Selected images, all images in the sequence
are copied.
•If you press the d button while images in a sequence are displayed, only the Card to
camera copy option is available. All images in the sequence are copied if you select
Current sequence.
Press the c button (playback mode) M d button M Copy M k button
Card to camera
Camera to card
Copy
Camera to card
Selected images
All images
152
Using the Menu
The Playback Menu
Sequence Display
Select the method used to display images in the sequence (A70).
Settings are applied to all sequences, and the setting is saved in the camera’s memory
even after the camera is turned off.
Press the c button (playback mode) M d button M Sequence display M
kbutton
Option Description
Q Individual pictures Displays each image in a sequence individually.
Fis displayed on the playback screen.
C Key picture only
(default setting) Displays only the key picture for images in a sequence.
153
Using the Menu
The Network Menu
Configure the wireless network settings to connect the camera and a smart device.
The Network Menu
Press the d button M J menu icon M k button
Option Description
Airplane mode Select On to turn off all wireless connections.
Connect to smart device
Select when using the SnapBridge app to pair a smart device
with the camera. See the included “SnapBridge Connection
Guide” for more information.
•You may not be able to select this setting while a wireless
connection is established.
Send while shooting Set the conditions for automatically sending images to a
smart device.
Wi-Fi
Network
settings
SSID*: Change the SSID. Set a 1- to 32-character alphanumeric
SSID.
Auth./encryp.: Select whether or not to encrypt the
communications between the camera and the connected
smart device.
Communications are not encrypted when Open is selected.
Password*: Set the password. Set an 8- to 36-character
alphanumeric password.
Channel: Select the channel used for wireless connections.
Subnet mask: Use the default setting (255.255.255.0)
under normal conditions.
DHCP server IP address: Use the default setting
(192.168.0.10) under normal conditions.
Current
settings Display the current settings.
154
Using the Menu
The Network Menu
* See “Operating the Text Input Keyboard” (A155) for information on how to enter
alphanumeric characters.
Bluetooth
Connection Select Disable to turn off Bluetooth communication.
Paired
devices
Change the smart device to connect with, or delete the
pairing with the smart device. This camera can be paired with
up to five smart devices, but can connect to only one device
at a time.
Send while
off
Set whether or not to allow the camera to communicate with
the smart device when the camera is off or in standby mode
(A20).
Restore default settings
Restore all network menu settings to their default values. You
may not be able to select this setting while a wireless
connection is established.
Option Description
155
Using the Menu
The Network Menu
Operating the Text Input Keyboard
Character Input for SSID, Password, Image Comment, and Copyright Information
•Use the multi selector HIJK to select
alphanumeric characters. Press the k button to
enter the selected character in the text field and
move the cursor to the next space.
•To move the cursor in the text field, select N or O
on the keyboard, and press the k button.
•To delete one character, press the l button.
•To apply the setting, select P on the keyboard and
press the k button.
Character Input for Channel, Subnet Mask, and DHCP Server IP Address
•Use the multi selector HI to set the numbers. To
move to the next digit, press K or the k button. To
return to the previous digit, press J.
•To apply the setting, select the last digit and press
the k button.
Back
SSID
Delete
Text field
Keyboard
192
.
168
..
010
Edit
DHCP server IP address
156
Using the Menu
The Location Data Options Menu
Location Data Options
The Location Data Options Menu
Press the d button M z menu icon M Location data options M k button
Option Description
Use built-in location data
When set to On, signals are received from the positioning
satellites, and positioning starts (A97).
•Default setting: Off
Download from device
Select Yes to add location data from a smart device to the
images that you take. Enable the location data functions of
the SnapBridge app.
•Default setting: No
•When Use built-in location data is set to On and the
camera is positioning, the location data functions built in
the camera is prioritized.
Position
Display the obtained location data.
•The data is not updated while it is being displayed. To
update it, perform Position again.
Update A-GPS file
A memory card is used to update the A-GPS (assist GPS) file.
Using the latest A-GPS file can shorten the time needed to
obtain the location data.
•See “Updating the A-GPS File” (A99) for more
information.
Erase location data
The location data and POI information recorded on images
are erased. Before pressing the d button, select the
images with the location data or POI information that you
want to delete.
•The deleted location data or POI information cannot be
recovered.
•The location data of images captured with cameras
other than this camera cannot be erased.
157
Using the Menu
The Location Data Options Menu
Points of Interest (POI) (Recording and Displaying
Location Name Information)
Configure the POI (points of interest, location name information) settings.
CPOI Display
•If there is no location name information at the set display level, the location name
information may not be displayed or “---” may be displayed.
•Location name information is not displayed when location data is being downloaded
from a smart device. Also, location name information is not recorded to captured images.
•Certain landmark names may not be registered, or the landmark name may be different.
Press the d button M z menu icon M Points of interest (POI) M k button
Option Description
Embed POI
Set whether or not to record the location name information on
the images to be shot.
•Default setting: Off
•The location name information can be recorded on both still
images and movies.
Display POI
Set whether or not to display the location name information on
the screen (A6, 7, 8).
•If Embed POI was set to On when an image was captured, the
location name information for the image is displayed on the
playback screen.
•Default setting: Off
Level of detail
Set the display level of the location name information. A higher
display level shows more detailed regional information.
•When set to level 1: country names are displayed.
•When set to levels 2 to 5: the information displayed varies
depending on the country.
•When set to level 6: landmark names (facilities) are displayed.
Edit POI
Before pressing the d button, select the image to change the
location name information.
•Update POI: The location name information recorded on the
image can be changed.
- When level 6 is selected, press the multi selector JK to
change the landmark name.
- To change the POI information level, press the multi selector
HI.
•Remove POI: The location name information recorded on the
image is deleted.
158
Using the Menu
The Location Data Options Menu
Create Log
Start or stop recording logs, and save them (A101).
1Cannot be selected if there is a log that has not been saved. Select End all logs, End
location log, or End depth log, and save or delete the log.
2Cannot be selected when Use built-in location data in the location data options menu
is set to Off.
Press the d button M z menu icon M Create log M k button
Option Description
Start all logs1, 2 The camera records location, altitude, and water depth logs.
•Log recording starts when you select a log interval and log
duration.
Start location log1, 2 The camera records a location log.
•Log recording starts when you select a log interval and log
duration.
Start depth log1The camera records a water depth log.
•Log recording starts when you select a log interval and log
duration.
159
Using the Menu
The Location Data Options Menu
View Log
Check or erase the log data saved on the memory card using Create log (A158).
Set Clock from Satellite
Signals from the positioning satellites are used to set the date and time of the
camera’s internal clock. Check the positioning status before setting the clock using
this option.
BNotes About Set Clock from Satellite
•To set the camera's internal clock, positioning must have been done successfully (A95).
•Date/time adjustment by Set clock from satellite is set according to the time zone set in
Time zone and date (A162) in the setup menu. Check the time zone before setting Set
clock from satellite.
•The date/time set using Set clock from satellite is not as accurate as radio clocks. Use
Time zone and date in the setup menu to set the time if it is not accurate when set using
Set clock from satellite.
Press the d button M z menu icon M View log M kbutton
Option Description
Location logs
A list of logs (dates) is displayed.
•Press the l (delete) button to delete the selected log or
all saved location logs.
•You can view location logs by using software that can display
log data such as ViewNX-i (A115).
Altitude/depth logs
Select a log (date) that you want to display and press the
kbutton to display the altitude or water depth data as a
graph (A104).
•Press the l (delete) button to delete the selected log or
all saved altitude/depth logs.
Press the d button M z menu icon M Set clock from satellite M k button
160
Using the Menu
The Location Data Options Menu
Electronic Compass
BNotes About Using the Electronic Compass
See “Notes About Using the Electronic Compass” (A106) for more information.
Press the d button M z menu icon M Electronic compass M k button
Option Description
Compass display
Set whether or not to display a compass on the shooting screen.
•Default setting: Off
•The direction the camera is pointing is displayed based on
measured direction information.
•When the camera lens faces downward, the compass display
switches to a circle compass with a red arrow that points north.
- Display style: north, east, south, and west
- Display range: 16 cardinal points
•The direction measured by the electronic compass can be
imprinted on images using Data imprint in the playback menu
(A76).
Compass correction
Correct the compass when the compass direction is not displayed
correctly.
When the screen shown on the
right is displayed, swing the
camera to draw a figure eight in
the air while turning your wrist to
face the camera forward and
backward, side to side, or up and
down.
Compass correction
Move camera in a figure eight.
161
Using the Menu
The Location Data Options Menu
Altitude/Depth Options
BNotes About Altitude/Depth Options
•To correct the altitude or water depth using Use location data in Alt./depth
correction, Use built-in location data in Location data options in the location data
options menu must be set to On, and also positioning must have been performed based
on signals received from four or more satellites (A95).
•When Altimeter/depth gauge is set to On, the altimeter or depth gauge, altitude or
water depth, and the atmospheric pressure are displayed even if Hide info is selected for
Photo info in Monitor settings in the setup menu (A119).
Press the d button M z menu icon M Altitude/depth options M k button
Option Description
Altimeter/depth gauge
Set whether or not to display the altimeter or depth gauge
on the shooting screen.
•Default setting: On
Alt./depth correction
The altitude or water depth value is corrected.
•Use location data: The altitude is corrected using the
record location data function.
- When the confirmation dialog is displayed, select Yes
and press the k button. The altitude is corrected
using the displayed value.
- The data is not corrected underwater.
•Correct manually: Enter the altitude or water depth to
correct the data.
-Use the multi selector HI to change the value and
use JK to change the input position of the digits.
- When the cursor is positioned on the rightmost digit,
press the k button to set this value.
•Reset: The correction set using Use location data or
Correct manually is canceled.
- When the correction cancellation dialog is displayed,
select Yes and press the k button. The corrected
value is canceled.
Altitude/depth units Set the unit of distance for displaying altitude or water
depth to m (meters) (default setting) or ft (feet).
162
Using the Menu
The Setup Menu
Time Zone and Date
Set the camera clock.
*Can be set only when Sync with smart device is set to Off.
The Setup Menu
Press the d button M z menu icon M Time zone and date M k button
Option Description
Sync with smart
device
Select On to synchronize the date and time setting with a smart
device. Enable the clock synchronization function of the SnapBridge
app.
Date and time*
•Select a field: Press the multi
selector JK.
•Edit the date and time: Press
HI.
•Apply the setting: Select the
minute field setting and press the
kbutton.
Date format Select Year/Month/Day, Month/Day/Year, or Day/Month/Year.
Time zone*
Set time zone and daylight saving time.
•When Travel destination (x) is set after having set the home
time zone (w), the time difference between the travel destination
and the home time zone is automatically calculated, and the date
and time are saved for the selected region.
YMDhm
01 01 2017 00 00
Edit
Date and time
163
Using the Menu
The Setup Menu
Setting the Time Zone
1Use the multi selector HI to select
Time zone and press the k button.
2Select w Home time zone or x Travel
destination and press the k button.
•The date and time displayed on the screen
changes depending on whether the home time
zone or travel destination is selected.
3Press K.
4Use JK to select the time zone.
•Press H to enable daylight saving time function,
and W is displayed. Press I to disable the daylight
saving time function.
•Press the k button to apply the time zone.
•If the correct time is not displayed for the home or
travel destination time zone setting, set the
appropriate time in Date and time.
15/11/2017 15:30
London, Casablanca
Time zone and date
Time zone
Date format
Date and time
Sync with smart device
15/11/2017 15:30
London, Casablanca
Home time zone
Travel destination
Time zone
15/11/2017 15:30
London, Casablanca
Home time zone
Travel destination
Time zone
10:30 –05:00
New York, Toronto, Lima
Back
164
Using the Menu
The Setup Menu
Monitor Settings
Photo Info
Press the d button M z menu icon M Monitor settings M k button
Option Description
Photo info Set whether or not to display information on the screen.
Help display
The descriptions of functions are displayed while changing the
shooting mode or while the setting screen is displayed.
•Default setting: On
Image review
Set whether or not to display the captured image immediately after
shooting.
•Default setting: On
Brightness Adjust the brightness.
•Default setting: 3
Shooting mode Playback mode
Show info
Auto info
(default setting)
The same information as shown in Show info is displayed, and it is
hidden as shown in Hide info if no operations are performed for a
few seconds. The information is displayed again when an operation is
performed.
Hide info
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
25m 0s
25m 0s
500
500
15m
15m
1010hPa
1010hPa
4/4
4/4
0004. JPG
0004. JPG
15/11/2017 15:30
15/11/2017 15:30
40
10
0
-10
30
20
15m
15m
1010hPa
1010hPa
165
Using the Menu
The Setup Menu
Framing
grid+auto info
In addition to the information
shown in Auto info, a framing
grid is displayed to help frame
pictures.
The framing grid is not displayed
while recording movies.
Same as Auto info.
Movie
frame+auto info In addition to the information
shown in Auto info, a frame is
displayed before movie
recording begins that represents
the area that will be captured
when recording movies.
The movie frame is not displayed
while recording movies.
Same as Auto info.
Shooting mode Playback mode
40
10
0
-10
30
20
15m15m
1010hPa1010hPa
25m 0s25m 0s
500500
15m
15m
1010hPa
1010hPa
4/4
4/4
0004. JPG
0004. JPG
15/11/2017 15:30
15/11/2017 15:30
40
10
0
-10
30
20
15m15m
1010hPa1010hPa
25m 0s25m 0s
500500
15m
15m
1010hPa
1010hPa
4/4
4/4
0004. JPG
0004. JPG
15/11/2017 15:30
15/11/2017 15:30
166
Using the Menu
The Setup Menu
Date Stamp
The shooting date and time can be stamped on
images when shooting.
BNotes About Date Stamp
•Stamped date and time form a permanent part of image data and cannot be deleted. The
date and time cannot be stamped on images after they have been captured.
•The date and time cannot be stamped in the following situations:
- When the scene mode is set to Sports, Night portrait (when set to Y Hand-held),
Night landscape (when set to Y Hand-held), Backlighting (when HDR is set to
o), Easy panorama, Pet portrait (when set to Continuous), or Multiple exp.
Lighten
-Creative mode
- When Blink proof (A139) is set to On
- When the continuous shooting setting (A131) is set to a setting other than Single
- When recording movies
- When saving still images during movie recording
- When creating still images by editing movies
•The stamped date and time may be difficult to read when using a small image size.
Press the d button M z menu icon M Date stamp M k button
Option Description
fDate Date is stamped on images.
SDate and time Date and time are stamped on images.
Off (default setting) Date and time are not stamped on images.
15.11.2017
15.11.2017
167
Using the Menu
The Setup Menu
Photo VR
Select the vibration reduction setting used when shooting still images.
Set to Off when using a tripod to stabilize the camera during shooting.
BNotes About Photo VR
•After turning on the camera or after switching from playback mode to shooting mode,
wait until the shooting screen is ready before taking pictures.
•Images on the screen may be displayed blurry immediately after shooting.
•Vibration reduction may be unable to completely eliminate the effects of camera shake in
some situations.
•When the shutter speed is extremely slow, images cannot be compensated using image
processing even when On (hybrid) is set.
Press the d button M z menu icon M Photo VR M k button
Option Description
VOn (hybrid)
Performs optical compensation for camera shake using the
lens shift method. Under the following conditions, also
performs electronic VR using image processing.
•Flash: Does not fire
•Shutter speed: Slower than 1/30 second at the maximum
wide-angle position and 1/60 second at the maximum
telephoto position
•Self-timer: k
•Continuous setting: Single
•ISO sensitivity: ISO 200 or lower
It may take more time than usual to save images after
shooting.
gOn (default setting)
Compensation for camera shake is performed using lens shift VR.
Off Compensation is not performed.
168
Using the Menu
The Setup Menu
AF Assist
Digital Zoom
BNotes About Digital Zoom
•Digital zoom cannot be used in the following shooting modes:
-Portrait, Night sky and Star trails in Time-lapse movie, Night portrait, Night
landscape, Backlighting (when HDR is set to o), Easy panorama, Pet portrait,
Nightscape + star trails and Star trails in Multiple exp. Lighten, or Underwater
scene mode
-Creative mode
- Smart portrait mode
•Digital zoom cannot be used in other shooting modes when using certain settings
(A65).
Press the d button M z menu icon M AF assist M k button
Option Description
a Auto
(default setting)
The AF-assist illuminator automatically lights up when you
press the shutter-release button under dim lighting. The
illuminator has a range of about 3.0 m (9 ft 10 in.) at the
maximum wide-angle position and about 3.0 m (9 ft 10 in.) at
the maximum telephoto position.
•The AF-assist illuminator may not light depending on the
position of the focus area or the shooting mode.
Off The AF-assist illuminator does not light.
Press the d button M z menu icon M Digital zoom M k button
Option Description
On (default setting) Digital zoom is enabled.
Off Digital zoom is disabled.
169
Using the Menu
The Setup Menu
Sound Settings
Underwater Flash
Select On when shooting underwater using an SB-N10 underwater speedlight
(available separately) (A207). The default setting is Off.
BNotes About Underwater Flash
This function may not be available to use in combination with other functions (A64).
Press the d button M z menu icon M Sound settings M k button
Option Description
Button sound
When On (default setting) is selected, the camera produces
one beep when operations are performed, two beeps when
focus is acquired on the subject, and three beeps when an
error occurs. The welcome screen sound is also produced.
•Sounds are disabled when using Pet portrait scene
mode.
Shutter sound
When On (default setting) is selected, the shutter sound is
produced when the shutter is released.
•The shutter sound is not produced when recording
movies or when using Pet portrait or Easy panorama
scene mode.
Press the d button M z menu icon M Underwater flash M k button
170
Using the Menu
The Setup Menu
Action Control Response
Set the sensitivity of the operation performed when shaking the camera (action
control) (A24). When this option is set to High, the operation is performed even if
the camera shake movement is small. When this option is set to Low, the operation is
performed if the camera shake movement is large. The default setting is Medium.
BNotes About Action Control Response
When viewing images with Quick playback of action control or in full-frame playback
mode, operation response of selecting images is fixed.
Playback Action Control
BNotes About Playback Action Control
When Playback action control is set to On, the displayed images are not rotated
automatically even if the orientation of the camera is changed.
Press the d button M z menu icon MAction control response M k button
Press the d button M z menu icon MPlayback action control M k button
Option Description
On (default setting) An image can be selected by shaking the camera in full-frame
playback mode.
Off The image cannot be selected by shaking the camera.
171
Using the Menu
The Setup Menu
Auto Off
Set the amount of time that elapses before the camera enters standby mode (A20).
You can select 30 s, 1 min (default setting), 5 min, or 30 min.
CSetting the Auto Off Function
The time that passes before the camera enters standby mode is fixed in the following
situations:
•When a menu is displayed: 3 minutes (when auto off is set to 30 s or 1 min)
•When shooting using Pet portrait auto release (A34): 5 minutes (when auto off is set
to 30 s or 1 min)
•When shooting using Smile timer (A44): 5 minutes (when auto off is set to 30 s or 1
min)
•When the EH-62F AC Adapter is connected: 30 minutes
•When an HDMI cable is connected: 30 minutes
•When waiting for connecting with Connect to smart device: 30 minutes
LED Light Timer
Set the amount of time that elapses before the LED light (A2) turns off.
You can select 3 min, 5 min (default setting), or 10 min.
Press the d button M z menu icon M Auto off M k button
Press the d button M z menu icon M LED light timer M k button
172
Using the Menu
The Setup Menu
Format Card/Format Memory
Use this option to format a memory card or the internal memory.
Formatting the memory cards or internal memory permanently deletes all
data. Data that has been deleted cannot be recovered. Make sure to save
important images to a computer before formatting.
Formatting a Memory Card
•Insert a memory card into the camera.
•Select Format card in the setup menu and then press the k button.
Formatting the Internal Memory
•Remove the memory card from the camera.
•Select Format memory in the setup menu and then press the k button.
To start formatting, select Format on the screen that is displayed and press the
kbutton.
•Do not turn the camera off or open the battery-chamber/memory card slot cover
during formatting.
•You may not be able to select this setting while a wireless connection is
established.
Language
Select a language for display of camera menus and messages.
Press the d button M z menu icon M Format card/Format memory M
kbutton
Press the d button M z menu icon M Language M k button
173
Using the Menu
The Setup Menu
Image Comment
Attach a comment that was previously registered to images that will be captured.
You can imprint the attached comment to images that will be sent to a smart device
using the SnapBridge app. See SnapBridge app online help for more information.
You can also check the attached comment using ViewNX-i metadata.
CImage Comments Display
Image comments are not displayed even if images are played back on the camera.
Press the d button M z menu icon M Image comment M k button
Option Description
Attach comment
A comment registered with Input
comment is attached to images.
•Select Attach comment, press K,
and set the check box to on (w).
When you press the k button, the
setting is enabled, and the
comment will be attached to the
images captured afterwards.
Input comment
You can register a comment of up to 36 alphanumeric characters.
•Select Input comment, press K, and the input screen is displayed.
See “Operating the Text Input Keyboard” (A155) for information
about the input method.
Set Conrm
Image comment
Input comment
XXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
Attach comment
174
Using the Menu
The Setup Menu
Copyright Information
Attach the copyright information that was previously registered to images that will be
captured.
You can imprint the attached copyright information to images that will be sent to a
smart device using the SnapBridge app. See SnapBridge app online help for more
information.
You can also check the attached copyright information using ViewNX-i metadata.
BNotes About Copyright Information
•To prevent illegal use of artist names and copyright owner names when lending or
transferring ownership of the camera, make sure to disable the Attach copyright info
setting. Also, make sure that the artist name and copyright owner name are blank.
•Nikon is not responsible for any kind of trouble or damage resulting from the use of
Copyright information.
CCopyright Information Display
Copyright information is not displayed even if images are played back on the camera.
Press the d button M z menu icon M Copyright information M k button
Option Description
Attach copyright
info
Copyright information registered
with Artist and Copyright is
attached to images.
•Select Attach copyright info,
press K, and set the check box to
on (w). When you press the
kbutton, the setting is enabled,
and the copyright information
will be attached to the images
captured afterwards.
Artist
You can register an artist name of up to 36 alphanumeric characters.
•Select Artist, press K, and the input screen is displayed. See
“Operating the Text Input Keyboard” (A155) for information
about the input method.
Copyright
You can register a copyright owner name of up to 54 alphanumeric
characters.
•Select Copyright, press K, and the input screen is displayed. See
“Operating the Text Input Keyboard” (A155) for information
about the input method.
Set Conrm
Copyright information
Artist
Copyright
Attach copyright info
XXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
175
Using the Menu
The Setup Menu
Charge by Computer
BNotes About Charging with a Computer
•When connected to a computer, the camera turns on and starts charging. If the camera is
turned off, charging stops.
•About 4 hours and 10 minutes are required to charge a fully exhausted battery. Charging
time increases when images are transferred while the battery is charging.
•The camera turns off automatically if there is no communication with the computer for 30
minutes after the battery has finished charging.
BWhen the Charge Lamp Quickly Flashes
Charging cannot be performed, possibly due to one of the reasons described below.
•The ambient temperature is not suited to charging. Charge the battery indoors with an
ambient temperature of 5°C to 35°C (41°F to 95°F).
•The USB cable is not connected correctly or the battery is faulty. Make sure the USB cable
is connected correctly or replace the battery if necessary.
•The computer is in sleep mode and is not supplying power. Wake up the computer.
•The battery cannot be charged because the computer cannot supply power to the
camera due to the computer’s settings or its specifications.
Press the d button M z menu icon M Charge by computer M k button
Option Description
a Auto
(default setting)
When the camera is connected to a computer that is running
(A108), the battery inserted into the camera is automatically
charged using power supplied by the computer.
Off The battery inserted into the camera is not charged when the
camera is connected to a computer.
176
Using the Menu
The Setup Menu
Reset All
When Reset is selected, the camera’s settings are restored to their default values.
•Some settings, such as Time zone and date or Language, are not reset.
•You may not be able to select this setting while a wireless connection is
established.
CResetting File Numbering
To reset file numbering to “0001”, delete all images saved on the memory card or in the
internal memory (A22) before selecting Reset all.
Conformity Marking
View some of the conformity markings that the camera complies with.
Firmware Version
View the current camera firmware version.
•You may not be able to select this setting while a wireless connection is
established.
Press the d button M z menu icon M Reset all M k button
Press the d button M z menu icon M Conformity marking M k button
Press the d button M z menu icon M Firmware version M k button
177
Technical Notes
Technical Notes
Notices...................................................................................................................................178
Notes About Wireless Communication Functions ................................................ 180
Notes About Location Data Functions (GPS/GLONASS, Electronic Compass)
.... 183
Caring for the Product.....................................................................................................184
The Camera................................................................................................................. 184
The Battery.................................................................................................................. 185
The Charging AC Adapter......................................................................................186
Memory Cards............................................................................................................187
Cleaning and Storage ......................................................................................................188
Cleaning After Using the Camera Underwater ..............................................188
Cleaning After Using the Camera in Conditions Other than Underwater
...188
Storage .........................................................................................................................189
Error Messages ................................................................................................................... 190
Troubleshooting................................................................................................................194
File Names............................................................................................................................204
Optional Accessories........................................................................................................206
Attaching the Underwater Speedlight.............................................................. 207
Specifications...................................................................................................................... 211
Memory Cards That Can Be Used........................................................................216
USER LICENSE AGREEMENT FOR LOCATION NAME DATA..................................218
Index ......................................................................................................................................223
178
Technical Notes
Notices
Notices for Customers in the U.S.A.
IMPORTANT SAFETY INSTRUCTIONS -
SAVE THESE INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
For connection to a supply not in the U.S.A., use an attachment plug adapter of the
proper configuration for the power outlet if needed.
The power supply unit is intended to be correctly orientated in a vertical or floor
mount position.
Federal Communications Commission (FCC) Radio Frequency Interference
Statement
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC rules. These limits are
designed to provide reasonable
protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/television technician for help.
CAUTIONS
Modifications
The FCC requires the user to be notified that any changes or modifications made to
this device that are not expressly approved by Nikon Corporation may void the user’s
authority to operate the equipment.
Interface Cables
Use the interface cables sold or provided by Nikon for your equipment. Using other
interface cables may exceed the limits of Class B Part 15 of the FCC rules.
Notices
179
Technical Notes
Notices
Notice for Customers in the State of California
WARNING
Handling the cord on this product will expose you to lead, a chemical known to the
State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
Nikon Inc.,
1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
Tel: 631-547-4200
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Notices for Customers in Europe
CAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
This symbol indicates that electrical and electronic equipment is to be
collected separately.
The following apply only to users in European countries:
•This product is designated for separate collection at an appropriate
collection point. Do not dispose of as household waste.
•Separate collection and recycling helps conserve natural resources and
prevent negative consequences for human health and the environment that might
result from incorrect disposal.
•For more information, contact the retailer or the local authorities in charge of waste
management.
This symbol on the battery indicates that the battery is to be collected
separately.
The following apply only to users in European countries:
•All batteries, whether marked with this symbol or not, are designated
for separate collection at an appropriate collection point. Do not
dispose of as household waste.
•For more information, contact the retailer or the local authorities in charge of waste
management.
180
Technical Notes
Notes About Wireless Communication Functions
Restrictions on Wireless Devices
The wireless transceiver included in this product conforms to wireless regulations in
the country of sale and is not for use in other countries (products purchased in the EU
or EFTA can be used anywhere within the EU and EFTA). Nikon does not accept
liability for use in other countries. Users who are unsure as to the original country of
sale should consult with their local Nikon service center or Nikon-authorized service
representative. This restriction applies to wireless operation only and not to any other
use of the product.
Security
Although one of the benefits of this product is that it allows others to freely connect
for the wireless exchange of data anywhere within its range, the following may occur
if security is not enabled:
•Data theft: Malicious third-parties may intercept wireless transmissions to steal user
IDs, passwords, and other personal information.
•Unauthorized access: Unauthorized users may gain access to the network and alter
data or perform other malicious actions. Note that due to the design of wireless
networks, specialized attacks may allow unauthorized access even when security is
enabled. Nikon is not responsible for data or information leaks that may occur
during data transfer.
•Do not access networks that you are not permitted to use, even if they are
displayed on your smartphone or tablet. Doing so may be regarded as
unauthorized access. Only access networks that you are permitted to use.
Personal Information Management and Disclaimer
•User information registered and configured on the product, including wireless LAN
connection settings and other personal information, is susceptible to alteration
and loss resulting from operational error, static electricity, accident, malfunction,
repair or other handling. Always keep separate copies of important information.
Nikon is not responsible for any direct or indirect damages or lost profits resulting
from alteration or loss of content that is not attributable to Nikon.
•Before discarding this product or transferring it to another owner, perform Reset
all in the setup menu (A119) to delete all user information registered and
configured with the product, including wireless LAN connection settings and other
personal information.
•Nikon is not responsible for any damages resulting from unauthorized use of this
product by third parties in the event that the product is stolen or lost.
Notes About Wireless Communication
Functions
181
Technical Notes
Notes About Wireless Communication Functions
Precautions when Exporting or Carrying This Product Abroad
This product is controlled by the United States Export Administration Regulations
(EAR). The permission of the United States government is not required for export to
countries other than the following, which as of this writing are subject to embargo or
special controls: Cuba, Iran, North Korea, Sudan, and Syria (list subject to change).
Notice for Customers in the U.S.A. and Canada
Federal Communications Commission (FCC) and Industry of Canada (IC)
Declaration of Conformity
This device complies with Part 15 of FCC Rules and Industry Canada’s licence-exempt
RSSs. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC/IC RF Exposure Statement
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
The available scientific evidence does not show that any health problems are
associated with using low power wireless devices. There is no proof, however, that
these low power wireless devices are absolutely safe. Low power Wireless devices
emit low levels of radio frequency energy (RF) in the microwave range while being
used. Whereas high levels of RF can produce health effects (by heating tissue),
exposure of low-level RF that does not produce heating effects causes no known
adverse health effects. Many studies of low-level RF exposures have not found any
biological effects. Some studies have suggested that some biological effects might
occur, but such findings have not been confirmed by additional research. This
product has been tested and found to comply with FCC/IC radiation exposure limits
set forth for an uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules.
Please refer to the SAR test report that was uploaded to FCC website.
Notice for Customers in Europe
Declaration of Conformity (Europe)
Hereby, Nikon Corporation declares that the radio equipment type COOLPIX W300 is
in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address: http://imaging.nikon.com/support/pdf/DoC_W300.pdf.
•Maximum output power: 11.3 dBm (EIRP)
•Operating frequency:
- Wi-Fi: 2412–2462 MHz (1–11 channels)
- Bluetooth: 2402–2480 MHz
- Bluetooth Low Energy: 2402–2480 MHz
182
Technical Notes
Notes About Wireless Communication Functions
Notice for Customers in Singapore
This device complies with radio-frequency regulations.
Complies with
IMDA Standards
DA103423
183
Technical Notes
Notes About Location Data Functions (GPS/GLONASS, Electronic Compass)
Location name data of this camera
Before using the location data functions, make sure to read “USER LICENSE
AGREEMENT FOR LOCATION NAME DATA” (A218) and agree to the terms.
•The location name information (Points of Interest: POI) will not be updated.
•Use the location name information only as a guide.
•The location name information (Points of Interest: POI) of the People’s Republic of
China (“China”) and the Republic of Korea is not provided for the COOLPIX W300.
Notes about record location data functions and log recording
•When Use built-in location data in Location data options in the location data
options menu is set to On or while recording logs, record location data functions
and log recording will continue to operate even after the camera is turned off
(A95).
•An individual may be identified from still images or movies that have been
recorded with location data. Observe caution when you transfer still images or
movies recorded with location data, or log files to a third party or upload them to a
network such as the Internet where the public can view them. Make sure to read
“Disposing of Data Storage Devices” (Av).
Notes about measurement functions
The COOLPIX W300 is a camera. Do not use this camera as a navigation device or
measuring instrument.
•Use information (such as direction, altitude and water depth) measured by the
camera as a guideline only. Do not use this information for navigation of an
airplane, car, and person or land survey applications.
•When you use the camera for mountain climbing, trekking, or underwater, make
sure to take a map, navigation device, or measuring instrument separately.
Using the camera overseas
•Before taking the camera with location data functions overseas for travel, consult
your travel agency or embassy of the country you are visiting to confirm whether
there is any restriction on use.
For example, you cannot record location data logs without permission from the
government in China.
Set Use built-in location data to Off.
•The location data may not function properly in China and on the borders between
China and neighboring countries (as of December 2014).
Notes About Location Data Functions (GPS/
GLONASS, Electronic Compass)
184
Technical Notes
Caring for the Product
Observe the precautions described below in addition to the warnings in “For Your
Safety” (Avi–viii) and “<Important> Notes About Shockproof, Waterproof, and
Dustproof Performance and Condensation” (Aix) when using or storing the device.
The Camera
Do Not Apply Strong Impact to the Camera
The product may malfunction if subjected to strong shock or vibration. In addition, do not
touch or apply force to the lens.
Avoid Sudden Changes in Temperature
Sudden changes in temperature, such as when entering or leaving a heated building on a
cold day, can cause condensation to form inside the device. To prevent condensation, place
the device in a carrying case or a plastic bag before exposing it to sudden changes in
temperature.
Keep Away from Strong Magnetic Fields
Do not use or store this device in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fields. Doing so could result in loss of data or camera
malfunction.
Do Not Point the Lens at Strong Light Sources for Extended Periods
Avoid pointing the lens at the sun or other strong light sources for extended periods when
using or storing the camera. Intense light may cause the image sensor to deteriorate or
produce a white blur effect in photographs.
Turn the Product Off Before Removing or Disconnecting the Power Source or
Memory Card
Do not remove the battery while the product is on, or while images are being saved or
deleted. Forcibly cutting power in these circumstances could result in loss of data or in
damage to the memory card or internal circuitry.
Notes About the Monitor
•Monitors (including electronic viewfinders) are constructed with extremely high precision;
at least 99.99% of pixels are effective, with no more than 0.01% being missing or defective.
Hence while these displays may contain pixels that are always lit (white, red, blue, or
green) or always off (black), this is not a malfunction and has no effect on images recorded
with the device.
•Images in the monitor may be difficult to see under bright lighting.
•Do not apply pressure to the monitor, as this could cause damage or malfunction. Should
the monitor break, care should be taken to avoid injury caused by broken glass and to
prevent the liquid crystal from the display touching the skin or entering the eyes or
mouth.
Caring for the Product
185
Technical Notes
Caring for the Product
The Battery
Precautions for Use
•Note that the battery may become hot after use.
•Do not use the battery at ambient temperatures below -10°C (-14°F) or above 40°C (104°F)
as this could cause damage or malfunction.
•If you notice any abnormalities such as excessive heat, smoke, or an unusual smell coming
from the battery, immediately discontinue use and consult your retailer or Nikon-
authorized service representative.
•After removing the battery from the camera or optional battery charger, put the battery in
a plastic bag, etc. in order to insulate it.
Charging the Battery
Check the battery level before using the camera and replace or charge the battery if
necessary.
•Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F)
before use.
•A high battery temperature may prevent the battery from charging properly or
completely, and may reduce battery performance. Note that the battery may become hot
after use; wait for the battery to cool before charging.
When charging the battery inserted into this camera using the Charging AC Adapter or a
computer, the battery is not charged at battery temperatures below 0°C (32°F) or above
45°C (113°F).
•Do not continue charging once the battery is fully charged as this will result in reduced
battery performance.
•The battery temperature may increase during charging. However, this is not a
malfunction.
Carrying Spare Batteries
Whenever possible, carry fully charged spare batteries when taking pictures on important
occasions.
Using the Battery When Cold
On cold days, the capacity of batteries tends to decrease. If an exhausted battery is used at a
low temperature, the camera may not turn on. Keep spare batteries in a warm place and
exchange as necessary. Once warmed, a cold battery may recover some of its charge.
Battery Terminals
Dirt on the battery terminals may prevent the camera from functioning. Should the battery
terminals become dirty, wipe them off with a clean, dry cloth before use.
186
Technical Notes
Caring for the Product
Charging an Exhausted Battery
Turning the camera on or off while an exhausted battery is inserted in the camera may result
in reduced battery life. Charge the exhausted battery before use.
Storing the Battery
•Always remove the battery from the camera or optional battery charger when it is not
being used. Minute amounts of current are drawn from the battery while it is in the
camera, even when not in use. This may result in excessive battery drain and complete
loss of function.
•Recharge the battery at least once every six months and completely exhaust it before
returning it to storage.
•Put the battery in a plastic bag, etc. in order to insulate it and store it in a cool place. The
battery should be stored in a dry location with an ambient temperature of 15°C to 25°C
(59°F to 77°F). Do not store the battery in hot or extremely cold locations.
Battery Life
A marked drop in the time a fully charged battery retains its charge, when used at room
temperature, indicates that the battery needs to be replaced. Purchase a new battery.
Recycling Used Batteries
Replace the battery when it no longer holds a charge. Used batteries are a valuable resource.
Please recycle used batteries in accordance with local regulations.
The Charging AC Adapter
•The EH-73P/EH-73PCH Charging AC Adapter is for use only with compatible devices. Do
not use with another make or model of device.
•Do not use any USB cable other than the UC-E21. Using a USB cable other than the UC-E21
could result in overheating, fire or electric shock.
•Do not, under any circumstances, use another make or model of AC adapter other than
the EH-73P/EH-73PCH Charging AC Adapter, and do not use a commercially available
USB-AC adapter or a battery charger for a mobile phone. Failure to observe this precaution
could result in overheating or in damage to the camera.
•The EH-73P/EH-73PCH is compatible with AC 100–240 V, 50/60 Hz electrical outlets. When
using in other countries, use a plug adapter (commercially available) as necessary. For
more information about plug adapters, consult your travel agency.
187
Technical Notes
Caring for the Product
Memory Cards
Precautions for Use
•Use only Secure Digital memory cards (A216).
•Be sure to follow the precautions described in the documentation included with the
memory card.
•Do not put labels or stickers on memory cards.
Formatting
•Do not format the memory card using a computer.
•The first time you insert a memory card that has been used in another device into this
camera, be sure to format it with this camera. We recommend formatting new memory
cards with this camera before using them with this camera.
•Note that formatting a memory card permanently deletes all images and other
data on the memory card. Be sure to make copies of any images you wish to keep
before formatting the memory card.
•If the message Card is not formatted. Format card? is displayed when the camera is
turned on, the memory card must be formatted. If there is data that you do not want to
delete, select No. Copy the necessary data to a computer, etc. If you want to format the
memory card, select Yes. The confirmation dialog will be displayed. To start formatting,
press the k button.
•Do not perform the following during formatting, while data is being written to or deleted
from the memory card, or during data transfer to a computer. Failure to observe this
precaution could result in the loss of data or in damage to the camera or memory card:
- Open the battery-chamber/memory card slot cover to remove/insert the battery or
memory card.
-Turn off the camera.
- Disconnect the AC adapter.
188
Technical Notes
Cleaning and Storage
Cleaning After Using the Camera Underwater
Follow the procedure below to rinse the camera with fresh water within 60 minutes after
using it underwater or at the beach.
1. Keep the battery-chamber/memory
card slot cover closed and wash off
the camera with fresh water.
Immerse the camera in a shallow basin filled
with fresh water for 10 minutes.
•Immerse the camera in fresh water and
shake it sufficiently in the water to
remove any foreign substances from
the camera.
•When the camera is immersed in the
water, a few air bubbles may come out from the water drain holes of the camera
such as openings in the microphone or speakers. This is not a malfunction.
2. Wipe off water droplets with a soft cloth and dry the camera in a well-
ventilated and shady place.
•Place the camera on a dry cloth to dry it.
•Do not dry the camera with hot air from a hair dryer or clothes dryer.
3. After making sure that there are no water droplets on the camera, open
the battery-chamber/memory card slot cover and use a soft dry cloth to
gently wipe off any water or sand remaining on the waterproof packing or
inside the camera.
•If the cover is closed when the inside is wet, this could cause condensation or a
malfunction.
Cleaning After Using the Camera in Conditions Other
than Underwater
Use a blower to remove any dust or lint that adheres to the lens, monitor, or camera body.
To remove fingerprints or other stains that cannot be removed with a blower, gently wipe
the parts with a soft dry cloth. If you wipe with too much pressure or with a rough cloth, it
may damage the camera or cause a malfunction.
Cleaning and Storage
189
Technical Notes
Cleaning and Storage
Storage
If you do not intend to use the camera for an extended period, remove the battery and
avoid storing the camera in any of the following types of locations:
•Places that are poorly ventilated or subject to humidity of over 60%
•Places exposed to temperatures above 50°C (122°F) or below –10°C (14°F)
•Places next to equipment that produces strong electromagnetic fields, such as
televisions or radios
To prevent mold or mildew, take the camera out of storage at least once a month,
and turn it on and release the shutter a few times before putting it away again.
Completely exhaust the battery before storing it, and recharge it at least once every
six months. Also, place the battery in a container such as plastic bag in order to
insulate it, and store it in a cool place.
190
Technical Notes
Error Messages
Refer to the table below if an error message is displayed.
Error Messages
Display Cause/Solution A
Battery temperature is
elevated. The camera will
turn off. The camera turns off automatically. Wait until the
camera or battery temperature has cooled
before resuming use.
–
The camera will turn off to
prevent overheating.
The battery is cold. Frame
size/rate set to 1080/30p.
The battery temperature is below 0°C (32°F). If you
want to continue recording movies with the size/
frame rate set to d 2160/30p (4K UHD), c
2160/25p (4K UHD), e 1080/60p,
f1080/50p, h HS 480/4×, a
HS 480/4×, j HS 1080/0.5×, or
YHS 1080/0.5×, remove the battery from the
camera and warm it up with your palms, etc.
before use.
82
The battery is cold. Frame
size/rate set to 1080/25p.
The battery is cold, limiting
access to some features.
Battery exhausted.
•Charge the battery.
•The battery temperature went below 0°C
(32°F) while recording movies with the size/
frame rate set to d 2160/30p (4K UHD),
c 2160/25p (4K UHD), e 1080/60p,
f 1080/50p, h HS 480/4×,
a HS 480/4×, j HS 1080/0.5×, or
Y HS 1080/0.5×. The camera stops
recording and automatically turns off. To
continue recording, change the movie
options. If you want to continue recording
movies with the size/frame rate set to
d2160/30p (4K UHD), c 2160/25p
(4K UHD), e 1080/60p, f 1080/50p,
h HS 480/4×, a HS 480/4×,
j HS 1080/0.5×, or Y HS 1080/0.5×,
remove the battery from the camera and
warm it up with your palms, etc. before use.
11, 13,
185
82
Memory card is write
protected. The write-protect switch is locked. Unlock it. –
This card cannot be used.
An error occurred while accessing the memory card.
•Use an approved memory card.
•Check that the terminals are clean.
•
Confirm that the memory card is correctly inserted.
11, 216
This card cannot be read.
191
Technical Notes
Error Messages
Card is not formatted.
Format card?
The memory card has not been formatted for
use in the camera.
Formatting deletes all data saved on the
memory card. If you need to keep copies of any
images, make sure to select No and save the
copies to a computer or other medium before
formatting the memory card. Select Yes and
press the k button to format the memory card.
187
Out of memory. Delete images or insert a new memory card. 11, 22
Image cannot be saved.
An error occurred while saving the image.
Insert a new memory card or format the memory
card or internal memory.
172
The camera has run out of file numbers.
Insert a new memory card or format the memory
card or internal memory.
172
There is insufficient space to save the copy.
Delete images from the destination. 22
Save previously recorded
data as a time-lapse movie?
The camera turned off while recording a time-
lapse movie.
•Select Yes to create a time-lapse movie with the
previously captured images.
•Select No to delete the incomplete data.
–
Image cannot be modified. Check that the images can be edited. 72, 199
Cannot record movie.
A time-out error occurred while saving the
movie on the memory card.
Select a memory card with a faster write speed.
82, 216
Memory contains no
images.
There are no images in the internal memory or
on the memory card.
•Remove the memory card to play back images
in the internal memory.
•To copy the images saved in the camera’s
internal memory to the memory card, press
the d button to select Copy in the
playback menu.
12
151
File contains no image data.
The file was not created or edited with this camera.
The file cannot be viewed on this camera.
View the file using a computer or the device
used to create or edit this file.
–
All images are hidden. There are no images available for a slide show,
etc. 149
Display Cause/Solution A
192
Technical Notes
Error Messages
This image cannot be
deleted.
The image is protected.
Disable protection. 150
Failed to set clock from
satellite.
The camera clock was not set correctly.
Change the location or time and determine the
location again.
–
No A-GPS file found on card.
An A-GPS file that can be updated is not found
on the memory card.
Check the following items:
•Whether the memory card is inserted
•Whether the A-GPS file is saved on the
memory card
•Whether the A-GPS file saved on the memory
card is more recent than the A-GPS file saved
in the camera
•Whether the A-GPS file is still valid
–
Update failed.
Unable to update A-GPS file.
The A-GPS file may be corrupted. Download the
file from the website once more.
99
Cannot save to card.
A memory card is not inserted.
Insert a memory card. 11
No log data can be recorded. 103
The maximum number of log data events that
can be saved per day has been exceeded.
•Location logs: Up to 36 log data events per day
•Altitude and water depth logs: Up to 34 log
data events each per day
205
The maximum number of log data events that can
be saved in one memory card has been exceeded.
•Location logs: Up to 100 log data events
•Altitude log and water depth log: Combined
total of up to 100 log data events
Replace the memory card with a new one or
delete log data that is no longer required from
the memory card.
103,
205
Unable to correct compass.
The camera is unable to calibrate the electronic
compass.
Swing the camera to draw a figure eight in the
air outdoors while turning your wrist to face the
camera forward and backward, side to side, or up
and down.
160
Turn the camera off and then
on again.
If the error persists, contact your retailer or
Nikon-authorized service representative. 194
Display Cause/Solution A
193
Technical Notes
Error Messages
* See the documentation provided with your printer for further guidance and information.
Communications error
An error occurred while communicating with
the printer.
Turn the camera off and reconnect the USB
cable.
111
System error
An error occurred in the camera’s internal
circuitry.
Turn the camera off, remove and reinsert the
battery, and turn the camera on. If the error
persists, contact your retailer or Nikon-
authorized service representative.
194
Printer error: check printer
status.
After solving the problem, select Resume and
press the k button to resume printing.* –
Printer error: check paper. Load the specified size of paper, select Resume,
and press the k button to resume printing.* –
Printer error: paper jam. Remove the jammed paper, select Resume, and
press the k button to resume printing.* –
Printer error: out of paper. Load the specified size of paper, select Resume,
and press the k button to resume printing.* –
Printer error: check ink.
There is a problem with the printer’s ink.
Check the ink, select Resume, and press the
kbutton to resume printing.*
–
Printer error: out of ink. Replace the ink cartridge, select Resume, and
press the k button to resume printing.* –
Printer error: file corrupt.
There is a problem with the image file to be
printed.
Select Cancel and press the k button to cancel
printing.
–
Display Cause/Solution A
194
Technical Notes
Troubleshooting
If the camera fails to function as expected, check the list of common problems below
before consulting your retailer or Nikon-authorized service representative.
Power, Display, Settings Issues
Troubleshooting
Problem Cause/Solution A
The camera is on but
does not respond.
•Wait for recording to end.
•If the problem persists, turn the camera off.
If the camera does not turn off, remove and reinsert
the battery or batteries or, if you are using an AC
adapter, disconnect and reconnect the AC adapter.
Note that although any data currently being
recorded will be lost, data that have already been
recorded will not be affected by removing or
disconnecting the power source.
–
The camera cannot be
turned on.
•The battery is exhausted.
•The power switch is enabled a few seconds after
the battery is inserted. Wait a few seconds before
pressing the power switch.
11, 13,
185
–
The camera turns off
without warning.
•The camera automatically turns off to save power
(auto off function).
•The camera and battery may not work properly at
low temperatures.
•If the size/frame rate of the movie is set to
d2160/30p (4K UHD), c 2160/25p (4K
UHD), e 1080/60p, f 1080/50p, h HS
480/4×, a HS 480/4×, j HS 1080/0.5×, or
Y HS 1080/0.5× and the battery temperature
goes below 0°C (32°F) while recording, the camera
stops recording and turns off automatically.
•The inside of the camera has become hot. Leave
the camera off until the inside of the camera has
cooled, and then try turning it on again.
20
185
–
–
The monitor is blank.
•The camera is off.
•The camera automatically turns off to save power
(auto off function).
•The camera is connected to a TV or computer.
•The camera is shooting in Time-lapse movie or
Multiple exp. Lighten scene mode.
15
20
–
–
The camera becomes
hot.
The camera may become hot when used for an extended
period of time such as to shoot movies, or when used in a
hot environment; this is not a malfunction.
–
195
Technical Notes
Troubleshooting
The battery inserted in
the camera cannot be
charged.
•Confirm all connections.
•When connected to a computer, the camera may
not charge for any of the reasons described below.
-Off is selected for Charge by computer in the
setup menu.
- Battery charging stops if the camera is turned off.
- Battery charging is not possible if the camera’s
display language and date and time have not
been set, or the date and time were reset after
the camera’s clock battery was exhausted. Use
the Charging AC Adapter to charge the battery.
- Battery charging may stop when the computer
enters sleep mode.
- Depending on the computer specifications,
settings, and status, battery charging may not
be possible.
13
119,
175
–
15
–
–
The LED light does not
turn on.
•The battery is exhausted.
•Disconnect the HDMI cable or USB cable.
11, 13,
185
109
The LED light suddenly
turns off.
•The LED light timer function was on.
•The battery is exhausted.
•If the LED light turns off after movie recording
starts, set Movie light to On, or press and hold
down the r (LED light) button.
171
11, 13,
185
20, 146
The monitor is hard to
see.
•The surroundings are too bright.
- Move to a darker place.
•Adjust the screen brightness.
–
164
O flashes on the
screen.
•If the camera clock has not been set, O flashes on
the shooting screen, and images and movies
saved before the clock is set are dated “00/00/
0000 00:00” and “01/01/2017 00:00” respectively.
Set the correct time and date for Time zone and
date in the setup menu.
•The camera clock is not as accurate as ordinary
watches or clocks. Periodically compare the time
of the camera clock with that of a more accurate
timepiece and reset as required.
4, 162
Date and time of
recording are not
correct.
No information
displayed on the screen.
Hide info is selected for Photo info in Monitor
settings in the setup menu. 164
Date stamp not
available.
Time zone and date has not been set in the setup
menu. 162
Problem Cause/Solution A
196
Technical Notes
Troubleshooting
Shooting Issues
Date not stamped on
images even when
Date stamp is enabled.
•The current shooting mode does not support
Date stamp.
•The date cannot be stamped on movies.
166
Screen for setting time
zone and date is
displayed when the
camera is turned on.
The clock battery is exhausted; all settings were
restored to their default values. Configure the
camera settings again.
•The internal clock battery is used to power the
camera clock and to retain certain settings.
Charging time of the clock battery takes about 10
hours when you insert the battery into the camera
or connect the AC adapter (available separately) to
the camera, and the clock battery operates for
several days even after the camera battery is
removed.
–
The camera settings
reset.
The camera makes
sound.
When Autofocus mode is set to Full-time AF or
while in some shooting modes, the camera may
produce an audible focusing sound.
26, 137,
145
Problem Cause/Solution A
Cannot switch to
shooting mode. Disconnect the HDMI cable or USB cable. 109
Cannot take pictures or
record movies.
•When the camera is in playback mode, press
the Abutton, shutter-release button, or
b(e) button.
•When menus are displayed, press the d button.
•The flash is charging while the flash lamp is
flashing.
•The battery is exhausted.
2, 21
119
50
11, 13,
185
The camera cannot
focus.
•The subject is too close. Try shooting using scene
auto selector mode, Close-up scene mode, or
macro mode.
•The subject is hard to focus on.
•Turn on the LED light.
•Set AF assist in the setup menu to Auto.
•Turn the camera off and then on again.
26, 28,
32, 49,
54
60
20
168
–
Problem Cause/Solution A
197
Technical Notes
Troubleshooting
Images are blurred.
•Use the flash.
•Increase the ISO sensitivity value.
•Enable Photo VR when shooting still images.
Enable Movie VR when recording movies.
•Use a tripod to stabilize the camera (using the self-
timer at the same time is more effective).
50
133
146,
167
52
Bright specks appear in
images captured with
flash.
The flash is reflecting off particles in the air. Set the
flash mode setting to W (off). 50
Flash does not fire.
•The flash mode is set to W (off).
•A scene mode that restricts the flash is selected.
•A function that restricts the flash is enabled.
50
62
64
Digital zoom cannot be
used.
•Digital zoom is set to Off in the setup menu.
•Digital zoom cannot be used with certain
shooting modes.
168
65, 168
Image mode not
available. A function that restricts Image mode is enabled. 64
Movie options not
available.
The battery temperature is below 0°C (32°F). If you want
to continue recording movies with the size/frame rate set
to
d
2160/30p
(4K UHD),
c
2160/25p
(4K UHD),
e
1080/60p
,
f
1080/50p
,
h
HS 480/4×
,
a
HS 480/4×
,
j
HS 1080/0.5×
, or
Y
HS 1080/0.5×
, remove the battery from the
camera and warm it up with your palms, etc. before use.
82
No sound when the
shutter is released.
Off is selected for Shutter sound in Sound settings
in the setup menu. No sound is produced with some
shooting modes, even when On is selected.
169
AF-assist illuminator
does not light.
Off is selected for the AF assist option in the setup
menu. AF-assist illuminator may not light depending
on the position of the focus area or shooting mode,
even when Auto is selected.
168
Images appear smeared. The lens is dirty. Clean the lens. 188
Colors are unnatural. White balance or hue is not adjusted properly. 32, 47,
129
Problem Cause/Solution A
198
Technical Notes
Troubleshooting
Randomly spaced
bright pixels (“noise”)
appear in image.
The subject is dark and the shutter speed is too slow
or ISO sensitivity is too high. Noise can be reduced by:
•Using the flash
•Specifying a lower ISO sensitivity setting
50
133
Images are too dark
(underexposed).
•The flash mode is set to W (off).
•The flash window is blocked.
•The subject is beyond the range of the flash.
•Adjust exposure compensation.
•Increase ISO sensitivity.
•The subject is backlit. Select Backlighting scene
mode or set the flash mode setting to X (fill flash).
50
18
212
55
133
33, 50
Images are too bright
(overexposed). Adjust exposure compensation. 55
Unexpected results
when flash set to V
(auto with red-eye
reduction).
Use any shooting mode other than Night portrait,
and change the flash mode to any setting other than
V (auto with red-eye reduction) and try taking the
picture again.
50, 62
Skin tones are not
softened.
•Under some shooting conditions, facial skin tones
may not be softened.
•For images containing four or more faces, try
using Skin softening in Glamour retouch in the
playback menu.
43
75
Saving images takes
time.
It may take more time to save images in the following
situations:
•When the noise reduction function is in operation,
such as when shooting in a dark environment
•When the flash mode is set to V (auto with red-
eye reduction)
•
When capturing images in the following scene modes:
-Hand-held in Night portrait
-Hand-held in Night landscape
-HDR is set to ON in Backlighting
-Easy panorama
•When the skin softening function is applied while
shooting
•When using continuous shooting mode
–
51
31
32
33
37
43
131
A ring-shaped belt or
rainbow-colored stripe
appears on the screen
or images.
When shooting with backlighting or when a very
strong light source (such as sunlight) is in the frame,
a ring-shaped belt or rainbow-colored stripe
(ghosting) may occur. Change the position of the
light source, or frame the picture so that the light
source does not enter the frame, and try again.
–
Problem Cause/Solution A
199
Technical Notes
Troubleshooting
Playback Issues
Location Data Functions
Problem Cause/Solution A
File cannot be played
back.
•
This camera may not be able to play back images
saved with another make or model of digital camera.
•This camera cannot play back movies recorded
with another make or model of digital camera.
•This camera may not be able to play back data
edited on a computer.
–
Cannot zoom in on
image.
•Playback zoom cannot be used with movies.
•When zooming in on a small-sized image, the
zoom ratio shown on the screen may differ from
the actual zoom ratio of the image.
•
This camera may not be able to zoom in on images
captured with another make or model of digital camera.
–
Cannot edit image.
•Some images cannot be edited. Images that have
already been edited may not be edited again.
•There is not enough free space on the memory
card or in the internal memory.
•This camera is unable to edit images captured
with other cameras.
•Editing functions used for images are not available
for movies.
39, 72
–
–
–
Cannot rotate image.
•This camera cannot rotate images captured with
another make or model of digital camera.
•
Images edited using
Data imprint
cannot be rotated.
–
76
Problem Cause/Solution A
Unable to identify the
location or it takes time
to identify the location.
•The camera may not be able to identify the
location in some shooting environments. To use
the location data functions, use the camera as
much as possible in an open-air area.
•
When positioning is performed for the first time, when
positioning cannot be performed for about two hours,
it takes a few minutes to obtain the location data.
98
Unable to record
location data on shot
images.
When z or y is displayed on the shooting screen,
the location data is not recorded. Before shooting
images, check the location data reception.
95
Difference between the
actual shooting location
and recorded location
data.
The obtained location data may deviate in some shooting
environments. When there is a significant difference in
the signals from the positioning satellites, there could be
a deviation of up to several hundred meters.
98
200
Technical Notes
Troubleshooting
The recorded location
name is different from
the intended one or is
not displayed.
The desired landmark name may not be registered,
or a different landmark name may be registered. –
Unable to update the A-
GPS file.
•Check the following items:
- Whether the memory card is inserted
- Whether the A-GPS file is saved on the memory card
- Whether the A-GPS file saved on the memory
card is more recent than the A-GPS file saved in
the camera
- Whether the A-GPS file is still valid
•The A-GPS file may be corrupted. Download the
file from the website once more.
–
99
Unable to turn off the
altimeter or depth
gauge.
When
On
is selected for
Altimeter/depth gauge
in
Altitude/depth options
in the location data options
menu, the altimeter or depth gauge is always displayed
regardless of
Monitor settings
in the setup menu.
To turn off the altimeter or depth gauge, set the
Altimeter/depth gauge to Off.
161
The altitude/water depth
and atmospheric pressure
icons remain displayed on
the shooting screen.
Hide info is selected for Photo info in Monitor
settings in the setup menu. 164
Unable to display the
altimeter or depth
gauge even when
Altimeter/depth
gauge is set to On.
Even when Altimeter/depth gauge is set to On,
the altimeter or depth gauge is not displayed in the
following situations:
•When the shutter-release button is pressed halfway
•
During shooting in the
Easy panorama
scene mode
•Creative mode
•During movie recording
•When a subject is registered using Subject
tracking in AF area mode
•When a message is being displayed
–
37
40
80
134
–
Water depth shows 0 m
The water depth will be displayed as 0 m if the
camera is not submerged underwater when the
Underwater scene mode is selected.
36
Unable to select Use
location data of Alt./
depth correction in
the location data
options menu.
•Off is selected for Use built-in location data in
the location data options menu.
•This function cannot be selected unless signals are
received from four or more satellites and
positioning has been performed.
•The camera is submerged underwater. This function
cannot be selected during underwater shooting.
156
95
–
Problem Cause/Solution A
201
Technical Notes
Troubleshooting
Unable to select Create
log in the location data
options menu.
The camera clock has not been set.
Set date and time. 162
Unable to select Start
all logs or Start
location log.
•Off is selected for Use built-in location data in
the location data options menu.
•The camera is recording log data. To record a new
log, select End all logs or End location log, and
end the log currently being recorded.
156
103,
158
Unable to save log data.
•
Make sure that a memory card is inserted in the camera.
•Up to 36 log data events for location logs can be
recorded per day whereas up to 34 log data
events each for altitude logs and water depth logs
can be recorded per day.
•The total number of log data events that can be
saved on a single memory card is 200, which
includes up to 100 log data events for location logs
and up to 100 log data events for a combined total
of altitude logs and water depth logs. Delete log
data that is no longer required from a memory card
or replace the memory card with a new one.
11, 103,
205
Unable to select Set
clock from satellite in
the location data
options menu.
Off is selected for Use built-in location data in the
location data options menu. 156
Problem Cause/Solution A
202
Technical Notes
Troubleshooting
External Device Issues
Problem Cause/Solution A
Cannot establish a
wireless connection
with a smart device.*
•When establishing a wireless connection for the
first time, follow the instructions in the included
“SnapBridge Connection Guide” and pair.
•If the devices are paired, follow the instructions in
the included “SnapBridge Connection Guide” to
unpair and then re-pair.
•Check the Network menu settings in the camera.
-Set Airplane mode to Off.
-Set Bluetooth M Connection to Enable.
•If the camera is paired with two or more smart
devices, select the smart device you want to
connect in Network menu M Paired devices in
the camera.
•Use a sufficiently charged battery.
•Insert a memory card with sufficient free space
into the camera.
•Disconnect the HDMI cable or USB cable.
•Enable Bluetooth, Wi-Fi, and the location data
functions on the smart device.
•Enable Auto link in the y Connect tab in the
SnapBridge app. If it is disabled, Remote
photography and Download selected
pictures can be used, but images cannot be
downloaded automatically.
–
Cannot upload images
to a smart device that
has a wireless
connection established
with the SnapBridge
app.*
•Perform the operations described below when
uploading automatically.
-Set Still images in Network menu M Send
while shooting in the camera to Yes.
-Enable Auto link in the y Connect tab in the
SnapBridge app.
-Turn on Auto download in the y Connect
tab in the SnapBridge app.
-If Network menu M Bluetooth M Send
while off in the camera is set to Off, turn on the
camera or change the setting to On.
•Insert a memory card into the camera. Images
saved in the internal memory cannot be
uploaded.
•You may not be able to upload images or
uploading may be canceled while the camera is
being operated.
153
–
–
154
11
–
203
Technical Notes
Troubleshooting
* See the included “SnapBridge Connection Guide” and SnapBridge online help.
Cannot perform remote
photography from a
smart device that has a
wireless connection
established with the
SnapBridge app.*
•Remote photography cannot be performed when
a memory card is not inserted into the camera.
Insert a memory card.
•You may not be able to perform remote
photography while the camera is being operated.
–
Cannot download still
images at the original
size in the SnapBridge
app.*
For Bluetooth connections, the image size
downloaded is restricted to 2 megapixels. To
download still images at the original size, switch
Download selected pictures in the SnapBridge
app to a Wi-Fi connection.
–
Images saved in the
camera are not
displayed on a
connected smart device
or computer.
If the number of images saved on a memory card in
the camera exceeds 10,000, images captured
thereafter may not be displayed in a connected device.
•
Reduce the number of images saved on the memory
card. Copy the necessary images to a computer, etc.
–
Images are not
displayed on TV.
•A computer or printer is connected to the camera.
•The memory card contains no images.
•Remove the memory card to play back images in
the internal memory.
–
–
12
Nikon Transfer 2 does
not start when the
camera is connected to
a computer.
•The camera is off.
•The battery is exhausted.
•The USB cable is not correctly connected.
•The camera is not recognized by the computer.
•The computer is not set to start Nikon Transfer 2
automatically. For more information about
Nikon Transfer 2, refer to help information
contained in ViewNX-i.
–
109, 175
109, 115
–
–
The PictBridge screen is
not displayed when the
camera is connected to
a printer.
With some PictBridge-compatible printers, the
PictBridge startup screen may not be displayed and
it may be impossible to print images when Auto is
selected for Charge by computer in the setup
menu. Set Charge by computer to Off and
reconnect the camera to the printer.
119,
175
Images to be printed
are not displayed.
•The memory card contains no images.
•Remove the memory card to print images in the
internal memory.
–
12
Cannot select paper size
with the camera.
The camera cannot be used to select the paper size in the
following situations, even when printing from a PictBridge-
compatible printer. Use the printer to select the paper size.
•The printer does not support the paper sizes
specified by the camera.
•The printer automatically selects the paper size.
–
Problem Cause/Solution A
204
Technical Notes
File Names
Images or movies are assigned file names as follows.
File name: DSCN
0001
.JPG
(1) (2) (3)
File Names
(1) Identifier
Not shown on the screen of the camera.
•DSCN: Original still images, movies, still images created by the
movie editing function
•SSCN: Small picture copies
•RSCN: Cropped copies
•FSCN: Images created by an image editing function other than
crop and small picture, movies created by the movie editing
function
(2) File number Assigned in ascending order, starting with “0001” and ending with
“9999.”
(3) Extension
Indicates file format.
•.JPG: Still images
•.MP4: Movies
205
Technical Notes
File Names
CLog Data Saved on Memory Cards
The log data is saved in the “NCFL“ folder.
•Location logs: Up to 36 files can be recorded a day and up to 100 files can be
recorded on a memory card.
•Altitude/water depth logs: Up to 34 files can be recorded each per day and a
combined total of 100 files can be recorded on a memory card.
(1) Date
Date (last two digits of the year, and the month and day in
YYMMDD format) on which the log recording was started is
assigned automatically.
(2) Identification
number
To manage log data events that are recorded on the same date,
ID numbers are assigned automatically in an ascending order,
starting from “0”, in the order in which they are recorded.
•Location logs: A total of 36 alphanumeric characters consisting
of the numbers 0 to 9 or the letters A to Z.
•Altitude/water depth logs: A total of 34 alphanumeric
characters consisting of the numbers 0 to 9 or the letters A to Z
except I and O.
(3) Extension
Signifies the file type
.LOG Location logs
.LGA Altitude logs
.LGB Water depth logs
File name : N171115 0 .LOG
(1) (2) (3)
206
Technical Notes
Optional Accessories
Availability may vary with country or region.
See our website or brochures for the latest information.
Optional Accessories
Battery charger
MH-65 Battery Charger
Charging time is about 2 hours and 30 minutes for a fully exhausted
battery.
AC adapter
EH-62F AC Adapter
(connect as shown)
Make sure that the power connector cable is fully inserted in the
power connector slot before inserting the AC adapter into the
battery chamber.
•While using the AC adapter, the battery-chamber/memory card
slot cover cannot be closed. Do not pull the cord of the AC
adapter.
If the cord is pulled, the connection between the camera and
power source is interrupted, and the camera turns off.
Underwater
speedlight
SB-N10 Underwater Speedlight
To attach it to the COOLPIX W300, you need an SR-CP10A
underwater fiber-optic cable adapter (available separately), an SC-
N10A underwater fiber-optic cable (available separately), and an
SK-N10A underwater bracket (available separately). See “Attaching
the Underwater Speedlight” (A207) for attachment instructions.
1
3
24
5
207
Technical Notes
Optional Accessories
Attaching the Underwater Speedlight
You can use an SB-N10 underwater speedlight attached to the COOLPIX W300 to
shoot underwater with flash. Set Underwater flash (A169) in the setup menu to
On when shooting.
123
6
7
8
4
5
9
10
13 12 11
SK-N10A underwater bracket
(available separately)
SC-N10A underwater fiber-optic
cable (available separately)
SR-CP10A underwater fiber-optic cable adapter (available separately)
1Mounting guide
2Stay
3Grip lock screw
4Grip
5Strap hook
6Case/adapter lock screw
7M4 hex key
8Connector (connects to SB-N10)
9Cable
10 Connector (connects to SR-CP10A)
11 Camera lock screw
12 Fiber-optic connector
13 Adapter lock screw socket
208
Technical Notes
Optional Accessories
Make sure to turn off the camera and underwater speedlight before attaching.
1Attach the camera to the underwater
fiber-optic cable adapter.
•Align the camera lock screw of the cable adapter
with the tripod socket of the camera, and securely
tighten the screw.
BNotes
Make sure to properly thread the camera lock screw
of the adapter in the tripod socket of the camera,
and do not apply excessive force when tightening.
Otherwise, you may damage the tripod socket.
2Attach the underwater speedlight to
the grip of the underwater bracket.
•Securely tighten the mounting bolt of the
underwater speedlight.
3With the camera secured, attach the
cable adapter to the underwater
bracket.
•Align the case/adapter lock screw of the bracket
with the cable adapter lock screw socket, and
tighten the screw lightly so that the adapter and
bracket can move.
1
2
12
3
1
2
209
Technical Notes
Optional Accessories
4Attach the underwater fiber-optic
cable to the cable adapter.
•Connect the end of the cable with the longer
straight section (the end that connects to SR-
CP10A) to the cable adapter’s fiber-optic
connector.
•After connecting, pass the cable through the
adapter’s two cable holders.
5Slide the cable adapter that is attached
to the camera and cable until it
contacts the stay mounting guide.
•Make sure that the cable does not come loose
from the cable holders.
6Fully tighten the case/adapter lock
screw of the bracket to secure the
cable adapter.
7Pass the underwater fiber-optic cable
through the grip of the bracket, from
bottom to top.
210
Technical Notes
Optional Accessories
8Open the sensor cover of the
underwater speedlight.
9Connect one end of the cable (the end
that connects to SB-N10) to the
underwater speedlight’s fiber-optic
connector.
•To detach the underwater speedlight or camera from the underwater bracket,
perform the above procedure in reverse.
211
Technical Notes
Specifications
Nikon COOLPIX W300 Digital Camera
Specifications
Type Compact digital camera
Number of effective pixels 16.0 million (Image processing may reduce the number of
effective pixels.)
Image sensor 1/2.3-in. type CMOS; approx. 16.79 million total pixels
Lens NIKKOR lens with 5× optical zoom
Focal length 4.3–21.5 mm (angle of view equivalent to that of 24–
120 mm lens in 35mm [135] format)
f/-number f/2.8–4.9
Construction 12 elements in 10 groups (2 ED lens elements)
Digital zoom magnification Up to 4× (angle of view equivalent to that of approx.
480 mm lens in 35mm [135] format)
Vibration reduction Lens shift and electronic VR
Autofocus (AF) Contrast-detect AF
Focus range
•[W]: Approx. 50 cm (1 ft 8 in.)–∞,
[T]: Approx. 50 cm (1 ft 8 in.)–∞
•Macro mode: Approx. 1 cm (0.4 in.)–∞ (wide-angle
position)
(All distances measured from center of front surface of lens)
Focus-area selection Face priority, manual with 99 focus areas, center, subject
tracking, target finding AF
Monitor
7.5 cm (3-in.), approx. 921k-dot, wide viewing angle TFT
LCD with anti-reflection coating and 5-level brightness
adjustment
Frame coverage
(shooting mode)
Approx. 97% horizontal and vertical (compared to actual
picture)
Frame coverage
(playback mode)
Approx. 100% horizontal and vertical (compared to actual
picture)
Storage
Media Internal memory (approx. 99 MB), SD/SDHC/SDXC memory
card
File system DCF and Exif 2.31 compliant
File formats
Still images: JPEG
Movies: MP4 (Video: H.264/MPEG-4 AVC, Audio: AAC
stereo)
212
Technical Notes
Specifications
Image size
Still images
16 M (High) 4608×3456P, 16 M 4608×3456,
8M3264×2448, 4 M 2272×1704, 2 M 1600×1200,
VGA 640×480, 16:9 12 M 4608×2592, 1:1 3456×3456
Movies12160/30p (4K UHD), 2160/25p (4K UHD), 1080/30p,
1080/25p, 1080/60p, 1080/50p, 720/30p, 720/25p,
480/30p, 480/25p, HS 480/4×, HS 1080/0.5×
ISO sensitivity
(Standard output
sensitivity)
•ISO 125–1600
•ISO 3200, 6400 (available when using Auto mode)
Exposure
Metering mode Matrix, center-weighted (digital zoom less than 2×), spot
(digital zoom 2× or more)
Exposure control Programmed auto exposure and exposure compensation
(–2.0 – +2.0 EV in steps of 1/3 EV)
Shutter Mechanical and CMOS electronic shutter
Speed
•1/1500–1 s
•1/4000 s (maximum speed during high-speed
continuous shooting)
•25 s (Star trails in Multiple exp. Lighten scene mode)
Aperture Electronically-controlled preset aperture (–1 AV) and ND
filter (–2 AV) selections
Range 3 steps (f/2.8, f/4.1, f/8.2 [W])
Self-timer •10 s, 2 s
•5 s (self-portrait timer)
Flash
Range (approx.)
(ISO sensitivity: Auto)
[W]: 0.5–5.2 m (1 ft 8 in.–17 ft)
[T]: 0.5–4.5 m (1 ft 8 in.–14 ft)
Flash control TTL auto flash with monitor preflashes
Interface
USB connector
Micro-USB connector (Do not use any USB cable other than
the included UC-E21 USB Cable.), Hi-Speed USB
•Supports Direct Print (PictBridge)
HDMI output connector HDMI micro connector (Type D)
Wi-Fi (Wireless LAN)
Standards IEEE 802.11b/g (standard wireless LAN protocol)
Operating frequency 2412–2462 MHz (1-11 channels)
Maximum output
power 11.3 dBm (EIRP)
Authentication Open system, WPA2-PSK
213
Technical Notes
Specifications
Bluetooth
Communication
protocols Bluetooth Specification Version 4.1
Operating frequency Bluetooth: 2402–2480 MHz
Bluetooth Low Energy: 2402–2480 MHz
Electronic compass
16 cardinal points (position correction using 3-axis
acceleration sensor, automatic correction for the deviated
angle, and automatic offset adjustment)
Location data
•GPS
Receiving frequency: 1575.42 MHz
Geodetic system: WGS 84
•GLONASS
Receiving frequency: 1598.0625 - 1605.3750 MHz
Geodetic system: WGS 84
Barometer Display range: Approx. 500 - 4600 hPa
Altimeter Display range: Approx. −300 - +4500 m (−984 - +14,760 ft)
Depth gauge Display range: Approx. 0 - 35 m (0 - 114 ft)
Supported languages
Arabic, Bulgarian, Chinese (Simplified and Traditional),
Czech, Danish, Dutch, English, Finnish, French, German,
Greek, Hindi, Hungarian, Indonesian, Italian, Japanese,
Korean, Norwegian, Persian, Polish, Portuguese (European
and Brazilian), Romanian, Russian, Serbian, Spanish,
Swedish, Thai, Turkish, Ukrainian
Power sources One EN-EL12 Rechargeable Li-ion Battery (included)
EH-62F AC Adapter (available separately)
Charging time Approx. 2 h 20 min (when using EH-73P/EH-73PCH
Charging AC Adapter and when no charge remains)
Battery life2
Still images Approx. 280 shots when using EN-EL12
Movie recording (actual
battery life for recording)
3
Approx. 1 h (1080/30p) when using EN-EL12
Approx. 1 h (1080/25p) when using EN-EL12
LED light Built-in
Tripod socket 1/4 (ISO 1222)
Dimensions (W × H × D) Approx. 111.5 × 66.0 × 29.0 mm (4.4 × 2.6 × 1.2 in.)
(excluding projections)
Weight Approx. 231 g (8.2 oz) (including battery and memory card)
Operating environment
Temperature −10°C - +40°C (14°F - 104°F) (for land use)
0°C - 40°C (32°F - 104°F) (for underwater use)
Humidity 85% or less (no condensation)
214
Technical Notes
Specifications
•All measurements are performed in conformity with Camera and Imaging Products
Association (CIPA) standards or guidelines.
1When the battery temperature is below 0°C (32°F), movies with the size/frame rate set to
2160/30p (4K UHD), 2160/25p (4K UHD), 1080/60p, 1080/50p, HS 480/4×, or HS 1080/0.5×
cannot be recorded.
2Battery life does not reflect the use of SnapBridge and the LED light and may vary with the
conditions of use, including temperature, the interval between shots, and the length of
time that menus and images are displayed.
3Individual movie files cannot exceed 4 GB in size or 29 minutes in length. When Movie
options is set to 1080/30p, it cannot exceed 27 minutes in length. Recording may end
before this limit is reached if camera temperature becomes elevated.
4Dropped from a height of 240 cm (7 ft 10 in.) onto a surface of 5 cm (2 in.) thick plywood
(changes in appearance, such as paint peeling off and deformation of the drop shock
portion and waterproof performance are not subject to the test).
These tests do not guarantee that the camera will be free from damage or trouble under
all conditions.
Waterproof
JIS/IEC protection class 8 (IPX8) equivalent (under our
testing conditions)
Capacity to shoot images underwater up to a depth of 30 m
(100 ft) and for 60 minutes
Dustproof JIS/IEC protection class 6 (IP6X) equivalent (under our
testing conditions)
Shockproof Cleared our testing conditions4 compliant with MIL-STD
810F Method 516.5-Shock
215
Technical Notes
Specifications
EN-EL12 Rechargeable Li-ion Battery
EH-73P/EH-73PCH Charging AC Adapter
The symbols on this product represent the following:
D AC, E DC, F Class II equipment (The construction of the product is double-insulated.)
•Nikon will not be held liable for any errors this manual may contain.
•The appearance of this product and its specifications are subject to change without notice.
Type Rechargeable lithium-ion battery
Rated capacity DC 3.7 V, 1050 mAh
Operating temperature 0°C–40°C (32°F–104°F)
Dimensions (W × H × D) Approx. 32 × 43.8 × 7.9 mm (1.3 × 1.7 × 0.3 in.)
Weight Approx. 22.5 g (0.8 oz)
Rated input AC 100–240 V, 50/60 Hz, MAX 0.14 A
Rated output DC 5.0 V, 1.0 A
Operating temperature 0°C–40°C (32°F–104°F)
Dimensions (W × H × D)
Approx. 55 × 22 × 54 mm (2.2 × 0.9 × 2.2 in.) (excluding
plug adapter)
For Argentina: Approx. 55 × 63 × 59 mm (2.2 × 2.5 × 2.4 in.)
For Brazil: Approx. 55 × 67 × 59 mm
For India: Approx. 55 × 63.5 × 59 mm
Weight
Approx. 51 g (1.8 oz) (excluding plug adapter)
For Argentina and India: Approx. 76 g (2.7 oz)
For Brazil: Approx. 73 g
216
Technical Notes
Specifications
Memory Cards That Can Be Used
The camera supports SD, SDHC, and SDXC memory cards.
•The camera also supports SDHC and SDXC cards compliant with UHS-I.
•Memory cards with an SD Speed Class rating of 6 or faster are recommended for
recording movies (when recording 4K UHD movies at an image size/frame rate of
d 2160/30p or c 2160/25p, cards rated UHS Speed Class 3 or faster are
recommended). When using a memory card with a lower Speed Class rating,
movie recording may stop unexpectedly.
•If you use a card reader, make sure that it is compatible with your memory card.
•Contact the manufacturer for information on features, operation, and limitations
on use.
Trademark Information
•Windows is either a registered trademark or trademark of Microsoft Corporation in
the United States and/or other countries.
•The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Nikon Corporation is under
license.
•Apple®, App Store®, the Apple logos, Mac, OS X, macOS, iPhone®, iPad®, iPod touch®
and iBooks are trademarks or registered trademarks of Apple Inc., in the U.S. and
other countries.
•Android and Google Play are trademarks or registered trademarks of Google Inc.
The Android robot is reproduced or modified from work created and shared by
Google and used according to terms described in the Creative Commons 3.0
Attribution License.
•iOS is a trademark or registered trademark of Cisco Systems, Inc., in the United
States and/or other countries and is used under license.
•Adobe, the Adobe logo, Acrobat, and Reader are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
•SDXC, SDHC, and SD Logos are trademarks of SD-3C, LLC.
•PictBridge is a trademark.
•HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing, LLC.
•Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi
Alliance.
217
Technical Notes
Specifications
•All other trade names mentioned in this manual or the other documentation
provided with your Nikon product are the trademarks or registered trademarks of
their respective holders.
AVC Patent Portfolio License
This product is licensed under the AVC Patent Portfolio License for the personal
and non-commercial use of a consumer to (i) encode video in compliance with
the AVC standard (“AVC video”) and/or (ii) decode AVC video that was encoded
by a consumer engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC video. No license is
granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, L.L.C.
See http://www.mpegla.com.
FreeType License (FreeType2)
•Portions of this software are copyright © 2012 The FreeType Project
(http://www.freetype.org). All rights reserved.
MIT License (HarfBuzz)
•Portions of this software are copyright © 2017 The HarfBuzz Project
(http://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic
accessory has been designed to connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect wireless performance.
218
Technical Notes
USER LICENSE AGREEMENT FOR LOCATION NAME DATA
The location name data that is stored in this digital camera (“Data”) is provided for your
personal, internal use only and not for resale. It is protected by copyright, and is subject to
the following terms and conditions which are agreed to by you, on the one hand, and Nikon
Corporation (“Nikon”) and its licensors (including their licensors and suppliers) on the other
hand.
Terms and Conditions
Personal Use Only. You agree to use this Data together with this digital camera and the
image data taken by the digital camera for the solely personal, non-commercial purposes for
which you were licensed, and not for service bureau, time-sharing or other similar purposes.
Accordingly, but subject to the restrictions set forth in the following paragraphs, you agree
not to otherwise reproduce, copy, modify, decompile, disassemble or reverse engineer any
portion of this Data, and may not transfer or distribute it in any form, for any purpose, except
to the extent permitted by mandatory laws.
Restrictions. Except where you have been specifically licensed to do so by Nikon, and
without limiting the preceding paragraph, you may not (a) use this Data with any products,
systems, or applications installed or otherwise connected to or in communication with
vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet
management or similar applications; or (b) with or in communication with any positioning
devices or any mobile or wireless-connected electronic or computer devices, including
without limitation cellular phones, palmtop and handheld computers, pagers, and personal
digital assistants or PDAs.
Warning. The Data may contain inaccurate or incomplete information due to the passage of
time, changing circumstances, sources used and the nature of collecting comprehensive
geographic data, any of which may lead to incorrect results.
No Warranty. This Data is provided to you “as is,” and you agree to use it at your own risk.
Nikon and its licensors (and their licensors and suppliers) make no guarantees,
representations or warranties of any kind, express or implied, arising by law or otherwise,
including but not limited to, content, quality, accuracy, completeness, effectiveness,
reliability, fitness for a particular purpose, usefulness, use or results to be obtained from this
Data, or that the Data or server will be uninterrupted or error-free.
Disclaimer of Warranty: NIKON AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND
SUPPLIERS) DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE,
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. Some
States, Territories and Countries do not allow certain warranty exclusions, so to that extent
the above exclusion may not apply to you.
USER LICENSE AGREEMENT FOR LOCATION
NAME DATA
219
Technical Notes
USER LICENSE AGREEMENT FOR LOCATION NAME DATA
Disclaimer of Liability: NIKON AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND
SUPPLIERS) SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION
ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT
FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT,
REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE TERMS OR
CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY,
EVEN IF NIKON OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. Some States, Territories and Countries do not allow certain liability exclusions or
damages limitations, so to that extent the above may not apply to you.
Export Control. You agree not to export from anywhere any part of the Data or any direct
product thereof except in compliance with, and with all licenses and approvals required
under, applicable export laws, rules and regulations, including but not limited to the laws,
rules and regulations administered by the Office of Foreign Assets Control of the U.S.
Department of Commerce and the Bureau of Industry and Security of the U.S. Department
of Commerce. To the extent that any such export laws, rules or regulations prohibit Nikon
and its licensors from complying with any of its obligations hereunder to deliver or
distribute Data, such failure shall be excused and shall not constitute a breach of this
Agreement.
Entire Agreement. These terms and conditions constitute the entire agreement between
Nikon (and its licensors, including their licensors and suppliers) and you pertaining to the
subject matter hereof, and supersedes in their entirety any and all written or oral
agreements previously existing between us with respect to such subject matter.
Governing Law. The above terms and conditions shall be governed by the laws of the Japan,
without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations
Convention for Contracts for the International Sale of Goods, which is explicitly excluded;
provided that in the event that the laws of the Japan is not deemed applicable to this
Agreement for any reason in the country where you obtained the Data, this Agreement shall
be governed with the laws of the country where you obtained the Data. You agree to
submit to the jurisdiction of Japan for any and all disputes, claims and actions arising from or
in connection with the Data provided to you hereunder.
220
Technical Notes
USER LICENSE AGREEMENT FOR LOCATION NAME DATA
Government End Users. If the Data supplied by HERE is being acquired by or on behalf of the
United States government or any other entity seeking or applying rights similar to those
customarily claimed by the United States government, the Data is a "commercial item" as
that term is defined at 48 C.F.R. ("FAR") 2.101, is licensed in accordance with the End-User
Terms under which this Data was provided, and each copy of the Data delivered or
otherwise furnished shall be marked and embedded as appropriate with the following
"Notice of Use," and shall be treated in accordance with such Notice:
If the Contracting Officer, federal government agency, or any federal official refuses to use
the legend provided herein, the Contracting Officer, federal government agency, or any
federal official must notify HERE prior to seeking additional or alternative rights in the Data.
Notices related to licensed software copyright holders.
•Location name data for Japan
•Location name data except for Japan
© ZENRIN CO., LTD. All rights reserved.
This service uses POI data of ZENRIN CO., LTD.
“ZENRIN” is a registered trademark of ZENRIN CO., LTD.
© 2017 HERE All Rights Reserved
NOTICE OF USE
CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME:
HERE
CONTRACTOR (MANUFACTURER/ SUPPLIER) ADDRESS:
425 West Randolph Street, Chicago, Illinois 60606
This Data is a commercial item as defined in
FAR 2.101 and is subject to the End-User
Terms under which this Data was provided.
© 2017 HERE All Rights Reserved
221
Technical Notes
USER LICENSE AGREEMENT FOR LOCATION NAME DATA
Austria: Bundesamt für Eich- und Vermessungswesen
Belgium: - Distribution & Copyright CIRB
Croatia/Cyprus/Estonia/Latvia/Lithuania/Moldova/Poland/Slovenia/Ukraine: EuroGeographics
Denmark: Contains data that is made available by the Danish Geodata Agency (FOT) Retrieved by HERE 01/
2014
Finland: Contains data from the National Land Survey of Finland Topographic Database 06/2012. (Terms of
Use available at
(
http://www.maanmittauslaitos.fi/en/NLS_open_data_licence_version1_20120501
)
).
Contains data that is made available by Itella in accordance with the terms available at
(
http://www.itella.fi/
liitteet/palvelutjatuotteet/yhteystietopalvelut/
uusi_postal_code_services_service_description_and_terms_of_use.pdf
)
. Retrieved by HERE 09/2013
France: source: IGN 2009 – BD TOPO
Germany: Die Grundlagendaten wurden mit Genehmigung der zuständigen Behörden entnommen
Contains content of „ BayrischeVermessungsverwaltung –
(
www.geodaten.bayern.de
)
“, licensed in accordance
with
(
http://creativecommons.org/licenses/by/3.0/legalcode
)
Contains content of “LGL,
(
www.lgl-bw.de
)
“, licensed in accordance with
(
http://creativecommons,.org/
licenses/by/3.0/legalcode
)
Contains content of “Stadt Köln – offenedaten-koeln.de”, licensed in accordance with
(
http://
creativecommons.org/licenses/by/3.0/legalcode
)
Contains Content of “Geoportal Berlin / ATKIS Basis-DLM”, licensed in accordance with
(
http://
www.stadtentwicklung.berlin.de/geoinformation/download/nutzIII.pdf
)
Contains Content of “Geoportal Berlin / Karte von Berlin 1:5000 (K5-Farbausgabe)”, licensed in accordance with
(
http://www.stadtentwicklung.berlin.de/geoinformation/download/nutzIII.pdf
)
Great Britain: Contains Ordnance Survey data Crown copyright and database right 2010
Contains Royal Mail data Royal Mail copyright and database right 2010
Greece: Copyright Geomatics Ltd.
Italy: La Banca Dati Italiana è stata prodotta usando quale riferimento anche cartografia numerica ed al tratto
prodotta e fornita dalla Regione Toscana.
Contains data from Trasporto Passeggeri Emilia-Romagna- S.p.A.
Includes content of Comune di Bologna licensed under
(
http://creativecommons.org/licenses/by/3.0/
legalcode
)
and updated by licensee July 1, 2013.
Includes content of Comune di Cesena licensed under
(
http://creativecommons.org/licenses/by/3.0/
legalcode
)
and updated by licensee July 1, 2013.
Includes contents of Ministero della Salute, and Regione Sicilia, licensed under
(
http://www.formez.it/iodl/
)
and
updated by licensee September 1, 2013.
Includes contents of Provincia di Enna, Comune di Torino, Comune di Pisa, Comune di Trapani, Comune di
Vicenza, Regione Lombardia, Regione Umbria, licensed under
(
http://www.dati.gov.it/iodl/2.0/
)
and updated
by licensee September 1, 2013.
Includes content of GeoforUs, licensed in accordance with
(
http://creativecommons.org/licenses/by/3.0/
legalcode
)
.
Includes content of Comune di Milano, licensed under
(
http://creativecommons.org/licenses/by/2.5/it/
legalcode
)
and updated by licensee November 1, 2013.
Includes content of the “Comunità Montana della Carnia”, licensed under
(
http://www.dati.gov.it/iodl/2.0/
)
and
updated by licensee December 1, 2013.
Includes content of “Agenzia per la mobilità” licensed under
(
http://creativecommons.org/licenses/by/3.0/
legalcode
)
and updated by licensee January 1, 2014.
Includes content of Regione Sardegna, licensed under
(
http://www.dati.gov.it/iodl/2.0/
)
and updated by
licensee May 1, 2014.
Includes content of CISIS, licensed under
(
http://creativecommons.org/licenses/by/2.5/legalcode
)
.
Norway: Copyright 2000; Norwegian Mapping Authority
Includes data under the Norwegian licence for Open Government data (NLOD), available at
(
http://
data.norge.no/nlod/en/1.0
)
Contains information copyrighted by Kartverket, made available in accordance with
(
http://
creativecommons.org/licenses/by/3.0/no/
)
.
222
Technical Notes
USER LICENSE AGREEMENT FOR LOCATION NAME DATA
Contains data under the Norwegian licence for Open Government data (NLOD) distributed by Norwegian
Public Roads Administration (NPRA)
Portugal: Source: IgeoE – Portugal
Spain: Información geográfica propiedad del CNIG
Contains data that is made available by the Generalitat de Catalunya Government in accordance with the
terms available at
(
http://www.gencat.cat/web/eng/avis_legal.htm
)
. Retrieved by HERE 05/2013.
Contains content of Centro Municipal de Informatica – Malaga, licensed in accordance with
(
http://
creativecommons.org/licenses/by /3.0/legalcode
)
.
Contains content of Administración General de la Comunidad Autónoma de Euskadi, licensed in accordance
with
(
http://creativecommons.org/licenses/by/3.0/legalcode
)
Contains data made available by the Ayuntamiento de Santander, licensed in accordance with
(
http://
creativecommons.org/licenses/by/3.0/es/legalcode.es
)
Contains data of Ajuntament de Sabadell, licensed per
(
http://creativecommons.org/licences/by/3.0/
legalcode
)
, updated 4/2013
Sweden: Based upon electronic data National Land Survey Sweden.
Contains public data, licensed under Go Open v1.0, available at
(
http://data.goteborg.se/goopen/
Avtal%20GoOpen%201.0.0.pdf
)
Switzerland: Topografische Grundlage: Bundesamt für Landestopographie
United Kingdom: Contains public sector information licensed under the Open Government Licence v1.0
(see for the license
(
http://www.nationalarchives.gov.uk/doc/open-government-licence/
)
)
Adapted from data from the office for National Statistics licensed under the Open Government Licence v.1.0
Canada: This data includes information taken with permission from Canadian authorities, including © Her
Majesty, Queen's Printer for Ontario, Canada Post, GeoBase, Department of Natural Resources
Canada. All rights reserved.
Mexico: Fuente: INEGI (Instituto Nacional de Estadística y Geografía.)
United States: ©United States Postal Service 2013. Prices are not established, controlled or approved by
the United States Postal Service. The following trademarks and registrations are owned by the USPS: United
States Postal Service, USPS, and ZIP+4.
Includes data available from the U.S. Geological Survey.
Australia: Copyright. Based on data provided under license from PSMA Australia Limited
(www.psma.com.au).
Product incorporates data which is 2013 Telstra Corporation Limited, Intelematics Australia Pty Ltd and
HERE International LLC.
Nepal: Copyright Survey Department, Government of Nepal.
Sri Lanka: This product incorporates original source digital data obtained from the Survey Department of Sri
Lanka
2009 Survey Department of Sri Lanka
The data has been used with the permission of the Survey Department of Sri Lanka
Israel: Survey of Israel data source
Jordan: Royal Jordanian Geographic Centre.
Mozambique: Certain Data for Mozambique provided by Cenacarta 2013 by Cenacarta
Nicaragua: The Pacific Ocean and Caribbean Sea maritime borders have not been entirely defined.
Northern land border defined by the natural course of the Coco River (also known as Segovia River or Wangki
River) corresponds to the source of information available at the moment of its representation.
Réunion: source: IGN 2009 - BD TOPO
Ecuador: INSTITUTO GEOGRAFICO MILITAR DEL ECUADRO
AUTORIZACION N° IGM-2011-01- PCO-01 DEL 25 DE ENERO DE 2011
Guadeloupe: source: IGN 2009 - BD TOPO
Guatemala: Aprobado por el INSTITUTO GEOGRAFICO NACIONAL – Resolución del IGN No 186-2011
French Guiana: source: IGN 2009 - BD TOPO
Martinique: source: IGN 2009 - BD TOPO
223
Technical Notes
Index
Symbols
o Scene auto selector mode
............................................................... 18, 26, 28
C Scene mode................................... 26, 30
s Creative mode.......................... 26, 40
F Smart portrait mode ............... 26, 42
M Short movie show mode ....... 26, 88
A Auto mode................................... 26, 47
c Playback mode..................................... 21
C List by date mode............................... 69
i Playback zoom ............................... 21, 67
f (Wide-angle)..................................... 3, 56
h Thumbnail playback................ 21, 68
g (Telephoto) .......................................... 3, 56
r LED light button ........................ 2, 3, 20
V Action button................................... 3, 24
k Apply selection button ............ 3, 119
c Playback button.............................. 3, 21
l Delete button.................................... 3, 22
A Shooting mode button............ 3, 26
q Tool button...................................... 3, 105
b (e Movie-record) button........ 3, 20
d Menu button.............................. 3, 119
n Self-timer.......................................... 49, 52
m Flash mode ...................................... 49, 50
p Macro mode.................................. 49, 54
o Exposure compensation
..................................................... 42, 47, 49, 55
A
AC adapter........................................ 109, 206
Action control .............................................. 24
Action control response .......... 126, 170
Active D-Lighting ....................................... 47
Active guide .......................................... 8, 105
AF area mode .......... 122, 123, 134, 144
AF assist.............................................. 126, 168
AF-assist illuminator...................................... 2
A-GPS file ......................................................... 99
Airplane mode ............................... 124, 153
Altimeter ........................................................ 100
Altitude ........................................................... 100
Altitude log....................................... 101, 104
Altitude/depth options ............. 125, 161
App....................................................................... 15
Atmospheric pressure ........................... 100
Auto flash ......................................................... 51
Auto mode ............................................ 26, 47
Auto off....................................... 20, 126, 171
Auto with red-eye reduction ............... 51
Autofocus................................. 60, 137, 145
Autofocus mode..... 122, 123, 137, 145
B
Background music..................................... 88
Backlighting o.................................... 30, 33
Battery ..................................................... 11, 213
Battery charger.......................................... 206
Battery level..................................................... 19
Battery-chamber/memory card slot
cover............................................ 2, 11, 13, 109
Beach Z.......................................................... 30
Blink proof......................................... 122, 139
Bluetooth........................................... 124, 154
Brightness..................................................... 164
Button sound .............................................. 169
C
Calendar display.......................................... 68
Capturing still images while recording
movies............................................................... 84
Charge by computer.................. 126, 175
Charge lamp.............................................. 3, 13
Charging AC adapter ..................... 13, 215
Index
224
Technical Notes
Index
Close-up k........................................... 30, 32
Compression ratio ................................... 127
Computer........................................... 108, 115
Conformity marking ................... 126, 176
Connect to smart device.......... 124, 153
Continuous shooting.................. 122, 131
Copy ...................................................... 124, 151
Copyright information .............. 126, 174
Create log....................... 95, 101, 125, 158
Creative mode..................................... 26, 40
Creative slider............................................... 47
Crop............................................................ 67, 78
D
Data imprint ....................................... 76, 124
Date and time..................................... 15, 162
Date format.......................................... 16, 162
Date stamp....................................... 126, 166
Daylight saving time ...................... 16, 163
Delete......................................................... 22, 71
Depth gauge............................................... 100
Digital zoom............................ 56, 126, 168
Direct print ......................................... 108, 111
D-Lighting............................................ 74, 124
Dusk/dawn i.............................................. 30
E
Easy panorama p............................. 30, 37
Easy panorama playback........................ 39
Editing images .............................................. 72
Electronic compass...................... 125, 160
End recording............................................... 89
Exposure compensation
..................................................... 42, 47, 49, 55
Extracting still images...................... 91, 93
Eyelet for camera strap............................... 2
F
Face detection .............................................. 58
Face priority..................................... 134, 144
File names.................................................... 204
Fill flash .............................................................. 51
Fireworks show m............................. 30, 33
Firmware version .......................... 126, 176
Fixed range auto....................................... 133
Flash............................................................... 2, 50
Flash lamp.................................................. 3, 50
Flash mode............................................ 49, 50
Flash off ............................................................. 51
F-number.......................................................... 57
Focus............ 19, 57, 134, 137, 144, 145
Focus area.................................................. 6, 19
Focus indicator ............................................... 4
Focus lock ........................................................ 61
Food u...................................................... 30, 32
Format internal memory.......... 126, 172
Format memory cards....... 12, 126, 172
Formatting............................................ 12, 172
Foundation makeup................................. 43
Frame rate......................................... 123, 147
Full-frame playback.................................... 21
Full-time AF...................................... 137, 145
Functions that cannot be used
simultaneously............................................. 64
G
Glamour retouch .................... 42, 75, 124
H
HDMI cable........................................ 108, 110
HDMI micro connector................... 2, 109
HDR ...................................................................... 33
Help display ................................................ 164
High-speed continuous ........................ 131
Histogram......................................................... 55
HS movie............................................ 141, 143
Hue...................................................................... 47
I
Image comment ........................... 126, 173
225
Technical Notes
Index
Image mode..................................... 122, 127
Image review .............................................. 164
Internal memory........................................... 11
Internal memory indicator ....................... 6
Interval ............................................................ 138
ISO sensitivity................................... 122, 133
L
Landscape c................................................ 30
Language ........................................... 126, 172
LED light...................................................... 2, 20
LED light timer ................................ 126, 171
Lens.............................................................. 2, 211
List by date mode ...................................... 69
Location data................................................. 97
Location data options ....... 95, 125, 156
Location data options menu
.................................................................. 119, 156
M
Macro mode......................................... 49, 54
Mark for upload............................. 124, 148
Memory card............................ 11, 187, 216
Memory card slot ......................................... 11
Microphone (stereo)..................................... 2
Micro-USB connector
........................................... 2, 13, 109, 111, 115
Monitor........................................................... 3, 4
Monitor settings............................ 126, 164
Movie editing........................................ 92, 93
Movie light ....................................... 123, 146
Movie menu ..................................... 119, 140
Movie options ................................ 123, 140
Movie playback.................................... 21, 80
Movie recording.................................. 20, 80
Movie VR............................................ 123, 146
Multi selector ......................................... 3, 119
Multiple exp. Lighten U............... 30, 35
N
Network menu................................ 119, 153
Night landscape j........................... 30, 32
Night portrait e................................. 30, 31
Number of exposures remaining
..................................................................... 19, 128
Number of shots.............................. 88, 138
O
Optical zoom......................................... 18, 56
Optional accessories.............................. 206
P
Paper size............................................. 112, 113
Party/indoor f................................... 30, 31
Pet portrait auto release......................... 34
Pet portrait O..................................... 30, 34
Photo info..................................................... 164
Photo VR............................................. 126, 167
PictBridge ........................................... 108, 111
Playback ........................................... 21, 70, 91
Playback action control ... 24, 126, 170
Playback menu............................... 119, 148
Playback mode.............................................. 21
Playback zoom..................................... 21, 67
POI information ........................................... 96
Points of interest (POI)....... 96, 125, 157
Portrait b........................................................ 30
Power switch/power-on lamp....... 2, 15
Preset manual............................................. 130
Pre-shooting cache...................... 131, 132
Pressing halfway ................................. 19, 57
Print............................................. 108, 112, 113
Printer ................................................... 108, 111
Protect................................................. 124, 150
Q
Quick effects.................................................. 72
Quick retouch.................................... 73, 124
226
Technical Notes
Index
R
Rechargeable Li-ion battery.............. 215
Recording slow motion movies
.................................................................. 141, 143
Red-eye correction......................... 74, 124
Remaining movie recording time
....................................................................... 80, 81
Reset all............................................... 126, 176
Restore default settings ........... 124, 154
Rotate image................................... 124, 150
S
Scene auto selector mode ........... 26, 28
Scene mode .......................................... 26, 30
SD memory card.................... 11, 187, 216
Self-collage............................... 45, 122, 138
Self-portrait timer........................................ 52
Self-timer ................................................. 49, 52
Self-timer lamp ....................................... 2, 52
Send while shooting................... 124, 153
Sequence display ................. 70, 124, 152
Set clock from satellite............... 125, 159
Setup menu...................................... 119, 162
Shooting .................................................. 18, 26
Shooting menu .............................. 119, 129
Shooting mode ............................................ 26
Short movie show menu....................... 88
Short movie show mode............... 26, 88
Shutter sound................................. 138, 169
Shutter speed................................................ 57
Shutter-release button ....................... 2, 19
Single AF............................................. 137, 145
Single-frame shooting ........................... 131
Skin softening............................................... 43
Slide show......................................... 124, 149
Slow sync.......................................................... 51
Small picture ...................................... 77, 124
Smart portrait menu.................... 119, 138
Smart portrait mode........................ 26, 42
Smile timer ..................................................... 44
SnapBridge app............................................ 15
Snow z........................................................... 30
Soft ...................................................................... 42
Sound settings ............................... 126, 169
Speaker ................................................................. 3
Special effects...................................... 88, 90
Sports d.................................................. 30, 31
Strap..................................................................... 10
Strap for land use......................................... 10
Subject tracking ............................. 135, 136
Sunset h........................................................ 30
Superlapse movie u....................... 30, 87
Sync with smart device......................... 162
T
Target finding AF............................. 59, 135
Telephoto................................................ 18, 56
Thumbnail playback ......................... 21, 68
Time difference.......................................... 163
Time zone............................................. 16, 162
Time zone and date............ 15, 126, 162
Time-lapse movie N....................... 30, 85
Tripod socket.......................................... 3, 213
TV............................................................. 108, 110
U
Underwater C..................................... 30, 36
Underwater flash .............. 126, 169, 207
USB cable.......................... 13, 108, 111, 115
V
View log................................... 104, 125, 159
ViewNX-i.......................................................... 115
Vividness ................................................. 42, 47
Volume............................................................... 91
W
Water depth................................................. 100
Water depth log ............................ 101, 104
White balance................................. 122, 129
227
Technical Notes
Index
Wide-angle............................................. 18, 56
Wi-Fi....................................................... 124, 153
Wind noise reduction................ 123, 147
Z
Zoom ......................................................... 18, 56
Zoom control................................... 3, 18, 56
Zooming in/out ........................................... 56
CT7E02(11)
6MQA6411-02
No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORATION.
