DIGITAL CAMERA
Instruction Manual
SZ-17
Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please
read these instructions carefully to enjoy optimum performance and a longer service life. Keep this
manual in a safe place for future reference.
We recommend that you take test shots to get accustomed to your camera before taking important
photographs.
In the interest of continually improving products, Olympus reserves the right to update or modify
information contained in this manual.
2
EN
Checking the contents of the box
or
Digital camera Strap Lithium Ion
Battery
(LI-50B)
USB-AC adapter
(F-2AC)
USB cable
(CB-USB8)
OLYMPUS Setup
CD-ROM
Names of Parts
Names of Parts
3
2
1
4
6
5
7
8
9
11
10
1 Strap eyelet
2
Connector cover
3 Multi-connector
4 HDMI micro connector
5 Microphone
6

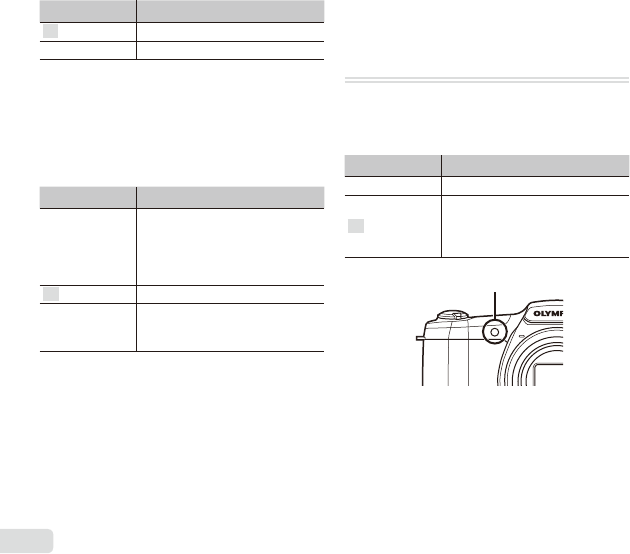

Self-timer lamp/AF illuminator
7
Battery/card cover
8
Battery/card cover lock
9 Flash
10
Lens
11
Tripod socket
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
3
EN
27
8
9
12
11
10
3
6
1
4
5
1 Flash switch
2
Speaker
3 Zoom lever
4 Shutter button
5 Indicator lamp
6 n button
7 Monitor
8 R button (record movies)
9 q button (switching between
shooting and playback)
10 Arrow pad
INFO (changing information
display)
# ( ash)
Y (self-timer)
(erase)
11 A button (OK)
12 button
Attaching the camera strap
Attaching the camera strap
Pull the strap tight so that it does not come
loose.
Arrow pad
H (left)
G (down)
F (up)
I (right)
FGHI instruct to press the up/down/left/right
arrow pad.
4
EN
Inserting and removing the
battery and card (commercially
available)
1 Follow Steps 1 and 2 to open
the battery/card cover.
2
1
Battery/card
cover lock
Battery/card cover
Turn off the camera before opening the battery/
card cover.
2 Insert the battery while sliding the
battery lock knob in the direction
of the arrow.
Battery lock knob
Insert the battery as illustrated with the C mark
toward the battery lock knob.
Damage to the battery exterior (scratches, etc.)
may produce heat or an explosion.
Slide the battery lock knob in the direction of the
arrow to unlock, and then remove the battery.
3 Insert the card straight until it
clicks into place.
Write-protect switch
Always use SD/SDHC/SDXC/Eye-Fi/FlashAir
(with Wireless LAN function) card with this
camera. Do not insert other types of memory
cards. “Using the card” (p. 70)
Do not touch the metallic parts of the card directly.
To remove the card
To remove the card
12
Press the card in until it clicks and comes out slightly,
then remove the card.
5
EN
4 Follow Steps 1 and 2 to close
the battery/card cover.
2
1
When using the camera, be sure to close and
lock the battery/card cover.
Charging the battery
Connect the USB cable and USB-AC adapter to the
camera and charge the battery.
For charging the battery abroad, see “Using your
charger and USB-AC adapter abroad” (p. 70).
The battery is not fully charged at shipment. Before
use, be sure to charge the battery until the indicator
lamp turns off (up to 3 hours).
Connecting the camera
Connecting the camera
AC outlet
USB cable
(supplied)
Connector cover
Multi-connector
Indicator lamp
On: Charging
Off: Charged
6
EN
When to charge the batteries
When to charge the batteries

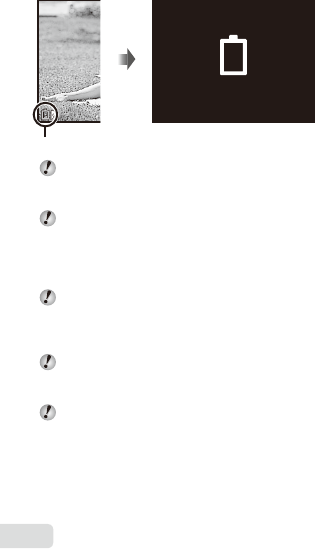

Charge the battery when the error message shown
below appears.
Battery Empty
Error message
Flashes in red
Never use any cable other than supplied or
Olympus-designated USB cable. This may cause
smoking or burning.
The included F-2AC USB-AC adapter (hereafter
referred to as USB-AC adapter) differs
depending on the region where you purchased
the camera. If you received a plug-in type USB-
AC adapter, plug it directly into AC outlet.
The included USB-AC adapter has been
designed to be used for charging and playback.
Do not take pictures while the USB-AC adapter
is connected to the camera.
Be sure to unplug the power plug of the USB-AC
adapter from the wall outlet when the charging is
complete or the playback ends.
For details on the battery, see “Battery Handling
Precautions” (p. 78). For details on the USB-AC
adapter, see “USB-AC adapter” (p. 79).
If the indicator lamp does not light, check the USB
cable and USB-AC adapter connections.
The battery can be charged while the camera is
connected to the computer via USB. The charging
time varies depending on the performance of the
computer. (There may be cases in which it takes
approx. 10 hours.)
7
EN
Turning on the camera and
making the initial settings
When you turn on the camera for the rst time, a
screen appears enabling to set the language for the
menus and messages displayed in the monitor, and
the date and time.
To change the selected date and time, see “Setting
the date and time d [X]” (p. 46).
1 Press the n button to turn
on the camera, press FGHI
of the arrow pad to select your
language and press the A button.
2 Press FG of the arrow pad to
select the year for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..2013
Date and time setting
screen
3 Press I of the arrow pad to save
the setting for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..2013
4 As in Steps 2 and 3, press
FGHI of the arrow pad to
set [M] (month), [D] (day), [Time]
(hours and minutes), and [Y/M/D]
(date order), and then press the
A button.
For precise time setting, press the A button as
the time signal strikes 00 seconds.
5 Press HI of the arrow pad to
select time zone and then press
the A button.
Use FG to turn daylight saving time
([Summer]) on or off.
Seoul
Tokyo
’13.02.26 12:30
Summer
MENU
Back
8
EN
Learning how to use the
camera
Press the n button to turn on the camera and
enter the standby mode. (Press the n button
again to turn off the camera.)
Select the shooting mode, and press the shutter
button to shoot a still image.
To shoot a movie, press the R button.
Set the shooting functions using the function
menu or the setup menu.
To view images, press the q button to switch to
playback mode.
To return to standby mode, press the q button
again, or press the shutter button halfway down
and then release it.
Press and hold the q button while the camera is
turned off to start up the camera in the playback
mode.
In this case, pressing the q button again sets
the camera to the standby mode.
Shooting still images
1 Press the n button to turn on
the camera.
2 Select the shooting mode. (p. 13)
3 Hold the camera and compose the
shot.
When holding the camera, take care not to cover
the ash, microphone or other important parts
with your ngers, etc.
Take care so that the ash window is not
exposed to ngerprints or dirt.
9
EN

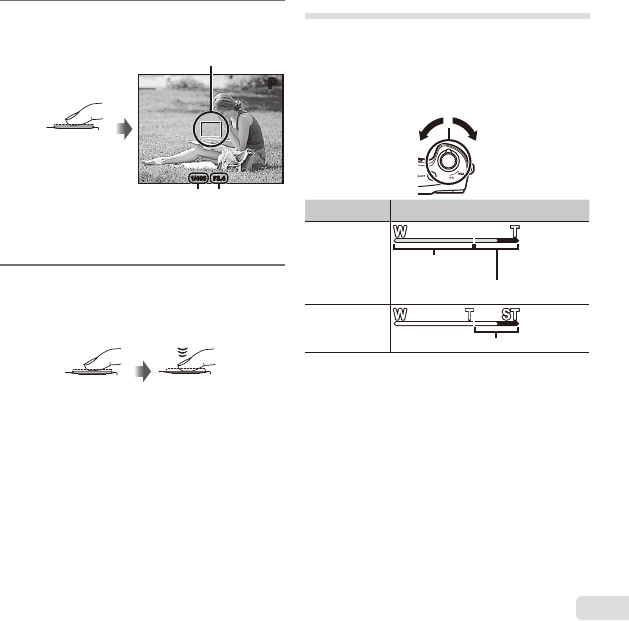

4
Press the shutter button halfway
down to focus.
Press
halfway
P
F3.4F3.41/4001/400
PP
AF target mark
Shutter
speed
Aperture
value
The camera was unable to focus if the AF
target mark ashes red. Try focusing again.
5 To take the picture, gently press
the shutter button all the way
down while being careful not to
shake the camera.
Press
halfway
Press fully
Using the zoom
Turning the zoom lever adjusts the shooting range.
Turn the zoom lever as far as it will go to speed up
the zoom operation, and turn it partway for a slow
zoom operation (not applicable when shooting a
movie).
W side T side
Image size Zoom bar
16M
Super-resolution zoom*1
Optical zoom
Other
*2
*1 For Super-resolution zoom, see [Super-Res Zoom]
(p. 34).
*2 Due to increased processing of the pixel
counts, the image quality will not degrade. The
magni cation ratio changes depending on the
image size setting.
10
EN
Using the ash
The ash functions can be selected to best match the
shooting conditions.
1 Slide the ash switch to raise the
ash.
To turn off the ash
To turn off the ash
Press the ash down back into the camera.
2 Press I.
PP
Flash Auto
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
16
M
:34
3 Use HI to select the setting
option, and press the A button
to set.
Option Description
Flash Auto The ash res automatically in
low-light or backlight conditions.
Redeye
Pre- ashes are emitted to reduce
the occurrence of red eye in your
photos.
Fill In The ash res regardless of the
available light.
Flash Off The ash does not re.
11
EN
Using the self-timer
After the shutter button is pressed all the way down,
the picture is taken after a short delay.
1 Press G.
PP
1212
22
Y Off
MENUMENU
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16
M
:34
2 Use HI to select the setting
option, and press the A button
to set.
Option Description
Y Off The self-timer is deactivated.
Y 12 sec
The self-timer lamp turns on for
approx. 10 seconds, then blinks
for approx. 2 seconds, and then
the picture is taken.
Y 2 sec
The self-timer lamp blinks for
approx. 2 seconds, then the
picture is taken.
Auto
Release
*1
When your pet (cat or dog) turns
its head towards the camera, its
face is recognized and the picture
is taken automatically.
*1 [Auto Release] is displayed only when the
mode is [U] or [t].
To cancel the self-timer after it starts
To cancel the self-timer after it starts
Press the button.
12
EN
Shooting screen displays
F3.4F3.41/1001/100
DATE
44
N
ORM
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16
M
4:3
PP
0:340:34
1
10
161819
20 17 1113
21
23
24
22
252627
121415
zz
2
3
4
5
6
7
8
9
When the shutter button is pressed halfway
down
Reading a histogram
Reading a histogram
If the peak lls too much of the frame,
the image will appear mostly white.
If the peak lls
too much of the
frame, the image
will appear mostly
black.
The green section
shows luminance
distribution within the
screen’s center.
Switching the displays
Switching the displays
The displays change in the order of Normal
Detailed No info. each time F (INFO) is
pressed.
No. Name Normal Detailed No info.
1 Shooting mode RR
2 Flash RR
3 Self-timer RRR
4 Exposure
compensation RR
5 White balance RR
6 ISO sensitivity RR
7 Drive RR
8 Image size (still
images) RR
9 Aspect RR
10 Recording with
sound/wind noise
reduction
RR
11 Image size (movies) RR
12 Movie recording
length RR
13 Movie recording
icon RR
14 World time R
15 Image stabilization R
16 Metering R
17 Date stamp RR
18 Compression RR
19 Number of storable
still pictures RR
20 Current memory RR
21 Battery check RR
22 Histogram R
23 AF target mark RRR
24 Grid Guide R
25 Aperture value RRR
26 Shutter speed RRR
27 Camera shake
warning RRR
13
EN
Selecting the shooting mode
The default settings of the function are highlighted in .
Shooting mode Submode
P (P mode)
M (M mode)
Q (Q mode) Recommended/Set 1/Set 2/Set 3
a (Super Macro mode)
( mode)
B Portrait
/
F Landscape/i Hand-Held Starlight/
G Night Scene/
M Night+Portrait/C Sport/N Indoor/R Self Portrait/S Sunset/
X Fireworks/V Cuisine/d Documents/q Beach & Snow/
U Pet Mode - Cat/t Pet Mode - Dog/h Backlight HDR
P (P mode) Pop Art/Pin Hole/Fish Eye/Soft Focus/Punk/Sparkle/Watercolor/
Re ection/Miniature/Fragmented/Dramatic
p (Panorama mode) Auto/Manual
(Photo with A Clip mode) /////
“List of settings available in each shooting mode” (p. 65), “List of settings” (p. 66), “List of P settings”
(p. 68)
In certain shooting modes, the camera may take a few moments for image processing after taking a picture.
14
EN
1 Press H of the arrow pad in the
standby mode screen to select
shooting mode.
To select the Q, , P, p and
submodes, press G of the arrow pad rst to
display the submodes, then press HI of the
arrow pad to select the submode, and press the
Q button.
MENUMENU
16
M
Scene Mode
4:3
To select a submode
To select a submode
MENUMENU
16
M
Portrait
4:3
N
ORM
44
16
M
4:3
0:340:34
Icon indicating the submode that is set
Learning about the shooting
modes
P (P mode)
The camera will select the appropriate
aperture value and shutter speed for
the subject. Changes can also be made
to various shooting settings, such as
exposure compensation, as needed.
M (M mode)
The camera will automatically select the
optimal shooting mode for the scene.
The shooting condition is decided by
the camera and settings cannot be
changed, excepting some functions.
Q (Q mode)
You can shoot with Beauty Fix effects.
1 Point the camera toward the
subject. Check the frame
appearing around the face
detected by the camera, and then
press the shutter button to take
the picture.
15
EN
2 To save the image, select [OK] on
the review screen and press the
Q button. To retouch the image
additionally, select [Beauty Fix].
OK
Beauty Fix
MENU
Back
Beauty Fix
Beauty Fix
1 Use FGHI to select a retouching item, and
press the Q button.
MENU
Off
Eye Color Back
2 Check the retouched effects on the review screen,
then press the Q button to start the retouch
process and save.
Settings for Beauty Fix can be registered.
Depending on the picture, the editing may not be
effective.
a (Super Macro mode)
Images can be taken from up to 3cm
away from the subject.
( mode)
You can shoot with the best mode
for the subject and shooting scene.
The best shooting settings for various
scenes are pre-programmed as
submodes. Note that functions may be
limited in some modes.
Refer to the descriptions displayed on
the submode selection screen, and
select the desired submode.
P (P mode)
You can shoot with special effects.
Refer to the sample images displayed
on the submode selection screen, and
select the desired submode.
The best shooting settings for each
effect are pre-programmed, so some
function settings cannot be changed.
Note that some effects may not be applied to
movies.
16
EN
p (Panorama mode)
You can shoot and combine multiple
images to create an image with a wide
angle of view (panoramic image).
Submenu Application
Auto
Panorama images are
automatically combined just
by swinging the camera in the
shooting direction.
Manual
Three frames are taken and
combined by the camera. The
user composes the shots using
the guide frame and manually
releases the shutter.
Move the camera as if rotating it around a vertical
axis through the center of the lens to take better
panorama images.
Taking pictures with [Auto]
Taking pictures with [Auto]
1 Select [Auto] in the submenu, and use HI to
select the angle of view (STD:180°, FULL:360°)
and then press the A button.
2 Point the camera to the start position.
3 Press the shutter button to begin shooting.
Guide
MENU
Cancel
OK
Save
AUTO
FULL
4 Start panning. When the arrow reaches the end of
the guide, recording ends automatically.
The camera automatically processes the
images and the combined panorama image is
displayed.
To stop shooting in the middle, press the
shutter button or A button. If the camera
pauses for a while, shooting automatically
nishes.
If the message [Image was not created.] is
displayed, shoot again.
To cancel the panorama function, press the
button.
If the shutter does not automatically release, try
[Manual].
17
EN
Taking pictures with [Manual]
Taking pictures with [Manual]
1 Use FGHI to specify at which edge the next
picture is to be connected.
MANUALMANUAL
Direction for
combining frames
2 Press the shutter button to take the rst frame.
3 Compose the next shot so that the edge of the
rst frame displayed faintly on the screen overlaps
the subject of the second frame, and press the
shutter button.
To combine only two frames, press the A button.
4 Repeat step 3 to take a third frame. The camera
automatically combines the frames into a single
panorama image.
(Photo with
A
Clip mode)
When shooting a still image, a
movie clip that includes before and
after the shutter release is recorded
simultaneously.
Submenu Description
7 sec / 3 sec
5 sec / 3 sec
3 sec / 3 sec
7 sec / 0 sec
5 sec / 0 sec
3 sec / 0 sec
Shooting may not be available in the following
conditions; right after entering the shooting mode
(such as right after turning power on) or right after
a picture is shot.
The image size of the movie is set to VGA.
18
EN
Viewing images
1 Press the q button.
Number of frames/
Total number of images
12:30’12/10/26’13/02/26 12:30
4/304/30
Playback image
Pictures taken using Q mode or sequential
shooting function are displayed as a group.
Turn the zoom lever to the T side to play back
the image in the group.
2 Use HI to select an image.
Displays
previous
Displays
next image
Hold I to fast forward and hold H to reverse.
Press the q button again to return to the
shooting screen.
To play sound recordings
To play sound recordings
To play sound recorded with an image, select the
image and press the A button.
Press FG to adjust volume.
Index view and close-up view
Index view enables quick selection of a desired
image. Close-up view (up to 10× magni cation)
allows checking of image details.
1 Turn the zoom lever.
12:30
4/304/30
12:30’13/02/26 12:30
4/304/30
WT
W
T
’13/02/26 12:30
Single-image view Close-up view
Index view
’13/02/26 12:30
19
EN
To select an image in index view
To select an image in index view
Use FGHI to select an image, and press the A
button to display the selected image in single-image
view.
To scroll an image in close-up view
To scroll an image in close-up view
Use FGHI to move the viewing area.
Playing back panorama images
Panorama images that were combined together using
[Auto] or [Manual] can be scrolled for viewing.
1 Select a panorama image during
playback.
4/304/30
OK
Replay ’13/02/26 12:30
2 Press the A button.
Viewing area
To control panorama image playback
To control panorama image playback
Stop playback: Press the button.
Pause: Press the A button.
Control while paused
Press FGHI to scroll the image in the direction
of the pressed button.
Turn the zoom lever to enlarge/shrink the image.
Press the A button to restart scrolling.
Playing back grouped images
With Q, Sequential or Photo with A Clip, the
taken images are displayed as a group during
playback.
T side Expands (except for Photo with
A Clip).
Select the image and press the
A button to display the images
respectively.
• Use HI to view the previous/
next frame.
A button
Playback/pauses playback.
20
EN
Sequential images frame
Sequential images frame
The sequentially shot images are played back
automatically.
Expand to view the images in index view.
Sequential images frame
ExpandExpand
4/304/30
’13/02/26 12:30
T
PlayPlay
OK
(Photo with
(Photo with
A
A
Clip) frame
Clip) frame

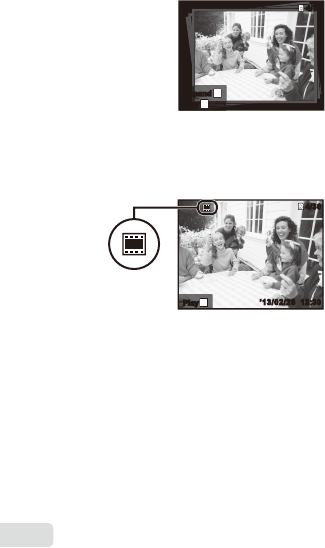

The movie clip and the still images are played
back.
frame
PlayPlay
OK
’13/02/26’13/02/26 12:3012:30
4/30
4/30
21
EN
Playback mode display
Normal No. Name Normal Detailed No info.
1 Battery check R
2 Photo with
movie clip RRR
3 Eye-Fi transfer
data RR
4 Protect RR
5 Adding sound RR
6 Upload order RR
7 Print
reservation/
number of
prints
RR
8 Current
memory RR
9 Frame number/
total number of
images
RR
10 Compression R
11 Shutter speed R
12
Shooting mode
R
13 ISO sensitivity R
14 Aperture value R
15 Histogram R
16 Exposure
compensation R
17 Shooting
submode R
18 White balance R
19 Image size R
20 File name R
21 Recording
date and time RR
22 Grouped
images RRR
4/304/30
1010
12:30’13/02/26’13/02/26 12:30
98
342 5 76
21
22
Still image
Detailed
4/304/30
1010
100-0004
2.0
1/1000
4608 3456
AUTO
WB
100
ISO
N
ORM
1
MAGIC
’13/02/26 12:30
F3.9
2.0F3.91/1000
100
ISO
MAGIC
’13/02/26 12:30
1
N
ORM
AUTO
WB
4608 3456
100-0004
1 98342 5 76 1211 1310 14
16
19
18
21
1
5
17
20
22
No information
2
22
Switching the displays
Switching the displays
The displays change in the order of Normal Detailed
No info. each time F (INFO) is pressed.
22
EN
Erasing images during playback

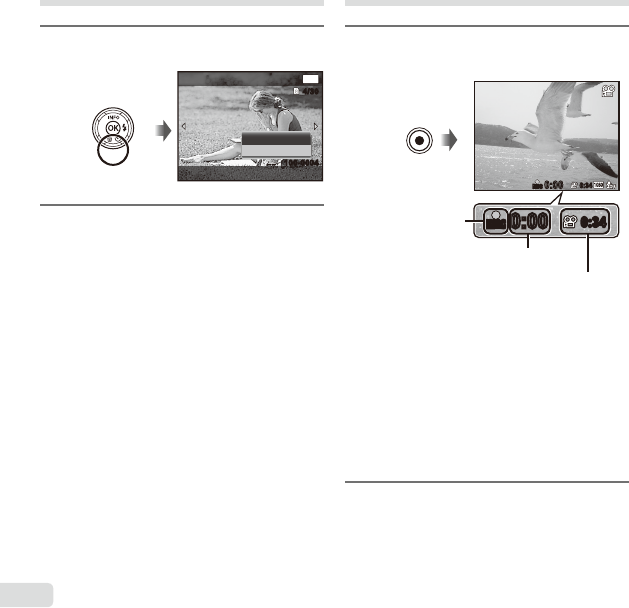

1 Display the image you want to
erase and press G ().
Erase
MENU
Erase
Cancel
4/304/30
Back
100-0004100-0004
2 Press FG to select [Erase], and
press the A button.
Grouped images are erased as a group. If you
want to delete images from the grouped images,
you can expand the group and delete the images
individually.
Multiple images or all images can be erased at a
time (p. 38).
Shooting movies
1 Press the R button to start
recording.
0:00
RECREC
0:00
0:340:34
0:000:00
RECREC
0:340:34
Lights up red when
recording
Recording time
Recording length (p. 72)
The movie is shot in the set shooting mode.
Note that the shooting mode effects may not
be obtained for some shooting modes.
Sound is also recorded.
When using a camera with a CMOS image
sensor, moving objects may appear distorted
due to the rolling shutter phenomenon. This
is a physical phenomenon whereby distortion
occurs in the lmed image when shooting a
fast-moving subject or due to camera shaking.
In particular, this phenomenon becomes more
noticeable when using a long focal length.
2 Press the R button again to stop
recording.
23
EN
Playing back movies
Select a movie, and press the A button.
00:12/00:3400:12/00:34
During playback
Movie
12:3012:30
4/304/30
OK
Movie PlayMovie Play ’13/02/26
’13/02/26
Pausing and
restarting
playback
Press the A button to pause
playback. During pause, fast
forward or reverse, press the A
button to restart playback.
Fast forward
Press I to fast forward. Press
I again to increase the fast
forward speed.
Rewind
Press H to rewind. Press H
again to increase the rewind
speed.
Adjusting the
volume Use FG to adjust the volume.
Operations while playback is paused
Operations while playback is paused
During pause
00:14/00:3400:14/00:34
Elapsed time/
Total shooting time
Cueing
Use F to display the rst frame
and press G to display the last
frame.
Advancing and
rewinding one
frame at a time
Press I or H to advance or
rewind one frame at a time. Hold
I or H pressed for continuous
advance or rewind.
Resuming
playback
Press the A button to resume
playback.
To stop movie playback
To stop movie playback
Press the button.
To play back movies on the computer, the supplied
PC software is recommended. For the rst use
of the PC software, connect the camera to the
computer, then launch the software.
24
EN
Menu settings
For details, refer to “List of settings available in each shooting mode” (p. 65).
Function menu
PP
MENUMENU
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16
M
Program Auto
4:3
6
7
3
2
1
5
4
8Setup menu (p. 28)
Function menu
Function menu
1 Flash 5 ISO sensitivity
2 Self-timer 6 Drive
3 Exposure compensation 7 Image Size
4 White balance 8 Aspect

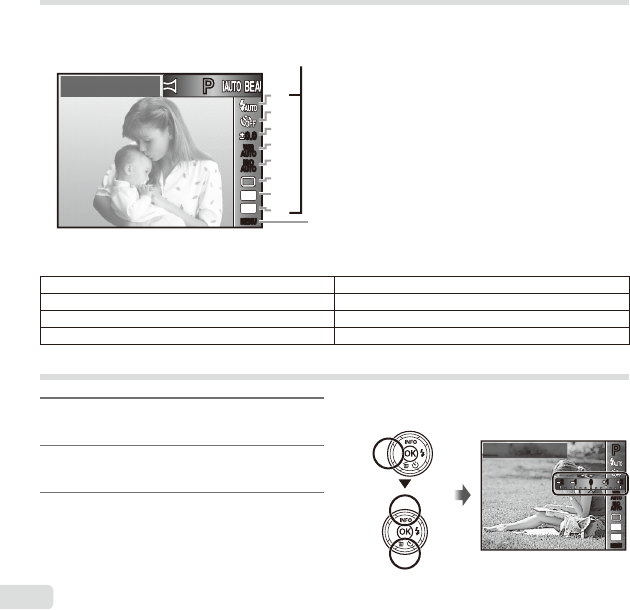

Using the function menu
1 Use H of the arrow pad to display
the function menu.
2 Use FG of the arrow pad to
select the function to be set.
3 Use HI of the arrow pad to
select the setting value, and then
press the A button to enter the
setting.
Example: Exposure compensation
Exposure Comp.
PP
00
± 0.0
11 2222 11
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
16
M
:34
25
EN
Flash Sets the ash ring method.
_Flash Auto The ash res automatically in low-light or backlight conditions.
! Redeye Pre- ashes are emitted to reduce the occurrence of red eye in your photos.
# Fill In The ash res regardless of the available light.
$Flash Off The ash does not re.
Self-timer Sets the time after the shutter button is pressed until the picture is taken.
bY Off The self-timer is deactivated.
c Y 12 sec The self-timer lamp turns on for approx. 10 seconds, then blinks for approx.
2 seconds, and then the picture is taken.
dY 2 sec The self-timer lamp blinks for approx. 2 seconds, then the picture is taken.
Auto Release When your pet (cat or dog) turns its head towards the camera, its face is recognized
and the picture is taken automatically.
Exposure
compensation
Compensates the brightness (appropriate exposure) adjusted by the camera.
–2.0 to +2.0 Value Set a larger negative (–) value to adjust darker, or a larger positive (+) value to
adjust brighter.
White balance Sets an appropriate color scheme for the light of the shooting scene.
eWB Auto The camera automatically adjusts the white balance.
fSunny Suitable for shooting outdoors under a clear sky.
gCloudy Suitable for shooting outdoors under a cloudy sky.
hIncandescent Suitable for shooting under tungsten lighting.
Fluorescent Suitable for shooting under white uorescent lighting.
One Touch 1 For manually adjusting the white balance according to the light when shooting. Set
a piece of white paper or other white object so that it lls the entire screen, and
press the button to set the white balance. For how to register one touch white
balance, see “Registering one touch white balance” (p. 27).
One Touch 2
26
EN
ISO sensitivity Sets the ISO sensitivity.
lISO Auto The camera automatically sets the sensitivity with priority on image quality.
mHigh ISO
Auto
The camera automatically sets the sensitivity with priority on minimizing blur caused
by a moving subject or by camera shake.
Q to PValue Set a smaller value to reduce noise in the picture, or a larger value to reduce blur.
Drive Sets the sequential shooting function.
oSingle One frame is shot each time the shutter button is pressed.
Sequential 1 The camera takes sequential shots at approximately 1.5 frames/sec.
Sequential 2 The camera takes up to 3 sequential shots at approximately 3 frames/sec.
cHigh-Speed1 The camera takes up to 28 sequential shots at approximately 10 frames/sec.
dHigh-Speed2 The camera takes up to 28 sequential shots at approximately 30 frames/sec.
Image size Sets the number of recording pixels.
4608×3456 Suitable for printing pictures over A3 (11×17 in.).
43200×2400 Suitable for printing pictures up to A3 (11×17 in.).
31920×1440 Suitable for printing pictures up to A4 size (8.5×11 in.).
7640×480 Suitable for using pictures on emails.
Aspect Sets the horizontal-to-vertical ratio of images.
u4:3
Change the horizontal-to-vertical ratio when taking pictures.
v16:9
w3:2
x1:1
In certain shooting modes, some functions cannot be set. Refer to “List of settings available in each shooting
mode” (p. 65).
Examples of image size when the aspect ratio is 4:3.
27
EN
Registering one touch white balance
Registering one touch white balance
Select [ One Touch 1] or [ One Touch 2], face the camera toward a piece of white paper or other white
object, and press the button.
The camera releases the shutter and the white balance is registered. When the white balance was
previously registered, the registered data is updated.
The registered white balance data will not be cleared by turning off the power.
Perform this procedure under the light where the pictures will be actually taken.
When the camera settings are changed, the white balance must be registered again.
When the white balance cannot be registered, check that the white paper lls the screen, and then
perform the procedure again.
28
EN
Setup menu
Setup menu
MENU
Camera Menu 1
ResetReset
Compression Normal
Back
ESP
OnImage Stabilizer
Shadow Adjust
AF Mode
Digital Zoom
ESP/
Auto
Face/iESP
Off
d
0
c
a
b
e
9
9 Camera Menu 1 p. 30
z
Reset
Compression
Shadow Adjust
AF Mode
ESP/n
Digital Zoom
Image Stabilizer (Still images)
0 Camera Menu 2 p. 32
z
AF Illuminat.
Rec View
Pic Orientation
Icon Guide
Date Stamp
Super-Res Zoom
a Movie Menu p. 35
A
Image Size
IS Movie Mode
R (Movie sound recording)
Wind Noise Setting
b Playback Menu p. 36
q
Slideshow
Edit
Erase
Print Order
R (Protect)
Upload Order
FlashAir
c
Settings Menu 1 p. 40
d
Memory Format/Format
Backup
Eye-Fi
USB Connection
q Power On
KeepzSettings
Sound Settings
d Settings Menu 2 p. 42
d
File Name
Pixel Mapping
s (Monitor)
TV Out
Power Save
l (Language)
X (Date/time)
e Settings Menu 3 p. 47
d
World Time
Beauty Settings
29
EN
Using the setup menu
Press the button during shooting or playback to display the setup menu.
The setup menu provides access to a variety of camera settings, such as shooting and playback functions,
time and date settings, and display options.
3 Use FG to select the desired
submenu 1 and then press the A
button.
MENU
Settings Menu 2 Back
File Name Reset
TV Out
XX ’13.02.26 12:30
English
Power Save OffOff
Pixel Mapping
Submenu 2
MENU
Settings Menu 2 Back
File Name Reset
TV Out
XX’13.02.26 12:30
English
Power SavePower Save
Pixel Mapping
On
Off
4 Use FG to select the desired
submenu 2 and then press the A
button.
Once a setting is selected, the display returns
to the Submenu 1.
There may be additional operations.
MENU
Settings Menu 2 Back
File Name Reset
TV Out
XX ’13.02.26 12:30
English
Power SavePower Save OnOn
Pixel Mapping
5 Press the button to
complete the setting.
1 Press the button.
The setup menu is displayed.
Reset
ESP
OnImage Stabilizer
Compression
Shadow Adjust
AF Mode
Digital Zoom
ESP/
Normal
Auto
Face/iESP
Off
Camera Menu 1
MENU
Back
2 Press H to select the page tabs.
Use FG to select the desired
page tab and press I.
MENU
Settings Menu 2 Back
File Name Reset
TV Out
XX ’13.02.26 12:30
English
Power SavePower Save OffOff
Pixel Mapping
Page tab
MENU
Settings Menu 2 Back
File Name Reset
TV Out
XX ’13.02.26 12:30
English
Power SavePower Save OffOff
Pixel Mapping
Submenu 1
30
EN
The default settings of the function are highlighted
in .
For the operation method, refer to “Using the setup
menu” (p. 29).
z Camera Menu 1
Restoring the shooting functions
Restoring the shooting functions
to the default settings
to the default settings
z
z
[Reset]
[Reset]
Submenu 2 Application
Yes
Restores the following menu
functions to the default settings.
• Shooting mode
• Flash
• Self-timer
• Exposure compensation
• White balance
• ISO sensitivity
• Drive
Image Size (still images)
• Aspect
Camera Menu 1, Camera Menu
2 and Movie Menu Functions
No The settings will not be changed.
Selecting the image quality for still
Selecting the image quality for still
images
images
z
z
[Compression]
[Compression]
Submenu 2 Application
Fine Shooting at high quality.
Normal Shooting at normal quality.
“Number of storable pictures (still images)/
Recording length (movies) in the internal memory
and cards” (p. 72)
Brightening the subject against
Brightening the subject against
backlight
backlight
z
z
[Shadow Adjust]
[Shadow Adjust]
Submenu 2 Application
Auto
Automatically On when a
compatible shooting mode is
selected.
Off The effect is not applied.
On
Shoot with automatic adjustment
to brighten an area that has
become darker.
When [ESP/n] is set to [n], [Shadow Adjust] is
automatically xed to [Off].
31
EN
Selecting the focusing area
Selecting the focusing area
z
z
[AF Mode]
[AF Mode]
Submenu 2 Application
Face/iESP
The camera focuses
automatically. (If a face is
detected, it is shown by a white
frame*1; when the shutter button is
pressed halfway and the camera
focuses, the frame turns to
green*2. If no face is detected, the
camera chooses a subject in the
frame and focuses automatically.)
Spot
The camera focuses on the
subject located within the AF
target mark.
AF Tracking
The camera tracks the subject
movement automatically to focus
on it continuously.
*1 For some subjects, the frame may not appear or
may take some time to appear.
*2 If the frame blinks in red, the camera cannot focus.
Try refocusing on the subject.
[AF Tracking] is enabled in the optical zoom area.
To focus on a moving subject
To focus on a moving subject
continuously (AF Tracking)
continuously (AF Tracking)
1 Hold the camera to align the AF target mark on
the subject and press the A button.
2 When the camera recognizes the subject, the
AF target mark automatically tracks the subject
movement to focus on it continuously.
3 To cancel the tracking, press the A button.
Depending on the subjects or the shooting
conditions, the camera may be unable to lock the
focus or fail to track the subject movement.
When the camera fails to track the subject
movement, the AF target mark changes to red.
Selecting the method for
Selecting the method for
measuring the brightness
measuring the brightness
z
z
[ESP/
[ESP/
n
n
]
]
Submenu 2 Application
ESP
Shoots to obtain a balanced
brightness over the entire screen
(Meters the brightness at the
center and surrounding areas of
the screen separately).
5 (spot)
Shoots the subject at the center
during backlighting (Meters the
brightness at the center of the
screen).
When set to [ESP], the center may appear dark
when shooting against strong backlighting.
32
EN
Shooting at higher magni cations
Shooting at higher magni cations
than optical zoom
than optical zoom
z
z
[Digital Zoom]
[Digital Zoom]
Submenu 2 Application
Off Disable digital zoom.
On Enable digital zoom.
The option selected for [Digital Zoom] affects the
appearance of the zoom bar. (p. 34)
Reducing the blur caused by the
Reducing the blur caused by the
camera shake when shooting
camera shake when shooting
z
z
[Image Stabilizer]
[Image Stabilizer]
Submenu 2 Application
Off
The image stabilizer is
deactivated.
This is recommended for shooting
when the camera is xed in place
on a tripod or other stable surface.
On The image stabilizer is activated.
While Exposing
Image stabilization is activated
when the shutter button is
pressed all the way down.
While [Image Stabilizer] is active, camera may
sound during image stablization.
Images may not be stabilized if camera shake is
too severe.
When the shutter speed is extremely slow, such
as when taking pictures at night, [Image Stabilizer]
may not be as effective.
z Camera Menu 2
Using the assist lamp for shooting
Using the assist lamp for shooting
a dark subject
a dark subject
z
z
[AF Illuminat.]
[AF Illuminat.]
Submenu 2 Application
Off The AF illuminator is not used.
On
When the shutter button is
pressed halfway down, the
AF illuminator turns on to aid
focusing.
AF illuminator
33
EN
Viewing the image immediately
Viewing the image immediately
after shooting
after shooting
z
z
[Rec View]
[Rec View]
Submenu 2 Application
Off
The image being recorded is
not displayed. This allows the
user to prepare for the next shot
while following the subject in the
monitor after shooting.
On
The image being recorded is
displayed. This allows the user to
make a brief check of the image
that was just taken.
Automatically rotating images
Automatically rotating images
shot with the camera in a vertical
shot with the camera in a vertical
position during playback
position during playback
z
z
[Pic Orientation]
[Pic Orientation]
During shooting, the [y] (p. 38) setting on the
playback menu is set automatically.
This function may not work properly if the camera
is facing up or down during shooting.
Submenu 2 Application
Off
Information about the vertical/
horizontal orientation of the
camera during shooting is not
recorded with images. Images
shot with the camera in a vertical
position are not rotated during
playback.
On
Information about the vertical/
horizontal orientation of the
camera during shooting is
recorded with images. Images
are automatically rotated during
playback.
Displaying icon guides
Displaying icon guides
z
z
[Icon Guide]
[Icon Guide]
Submenu 2 Application
Off No icon guide is displayed.
On
The explanation of the selected
icon will be displayed when a
shooting mode or function menu
icon is selected (position the
cursor on the icon for a while to
display the explanation).
Icon guide
MENUMENU
0.00.0
16
M
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PP
Program Auto
Functions can be
changed manually.
4:3
Imprinting the date of recording
Imprinting the date of recording
z
z
[Date Stamp]
[Date Stamp]
Submenu 2 Application
Off Do not imprint the date.
On Stamp new photographs with the
date of recording.
When the date and time are not set, [Date Stamp]
cannot be set. “Turning on the camera and making
the initial settings” (p. 7)
The date stamp can not be deleted.
When drive settings are set to other than [o],
[Date Stamp] cannot be set.
34
EN
Shooting larger pictures than when using optical zoom with low
Shooting larger pictures than when using optical zoom with low
degrading of image quality
degrading of image quality
z
z
[Super-Res Zoom]
[Super-Res Zoom]
Submenu 2 Application
Off Disable super-resolution zoom.
On Enable super-resolution zoom.
[Super-Res Zoom] is available only when [Image Size] is set to [].
Super-resolution zoom Digital zoom Image size Zoom bar
On Off 16M
Super-resolution zoom
Off On
16M
Digital zoom
Other
*1
On On 16M
Super-resolution zoom
Digital zoom
*1 Due to increased processing of the pixel counts, the image quality will not degrade. The magni cation ratio
changes depending on the image size setting.
Photographs taken with the zoom bar displayed in red may appear “grainy”.
35
EN
A Movie Menu
Selecting the image size for
Selecting the image size for
movies
movies
A
A
[Image Size]
[Image Size]
Submenu 2 Application
1080p
720p
VGA (640×480)
HS 120fps*1
(640×480)
HS 240fps*1
(320×240)
Select the image quality based on
the image size and frame rate.
*1 HS: Film quickly moving subjects for slow-motion
playback.
Only available in P mode.
“Number of storable pictures (still images)/
Recording length (movies) in the internal memory
and cards” (p. 72)
Reducing the blur caused by the
Reducing the blur caused by the
camera shake when shooting
camera shake when shooting
A
A
[IS Movie Mode]
[IS Movie Mode]
Submenu 2 Application
Off
The image stabilizer is
deactivated. This is recommended
for shooting when the camera is
xed in place on a tripod or other
stable surface.
On The image stabilizer is activated.
Images may not be stabilized if camera shake is
too severe.
In HS movie mode, this setting is xed to [Off].
Recording sound when shooting
Recording sound when shooting
movies
movies
A
A
[
[
R
R
]
]
Submenu 2 Application
Off No sound is recorded.
On Sound is recorded.
Sound is not recorded when an HS movie mode
is selected.
Reduce wind noise in the recorded
Reduce wind noise in the recorded
sound when recording movie
sound when recording movie
A
A
[Wind Noise Setting]
[Wind Noise Setting]
Submenu 2 Application
Off Disable Wind Noise Reduction.
On Uses Wind Noise Reduction.
36
EN
q Playback Menu
Playing back images automatically
Playing back images automatically
q
q
[Slideshow]
[Slideshow]
Submenu 2 Submenu 3 Application
BGM
Off/Cosmic/
Breeze/
Mellow/
Dreamy/
Urban
Selects the
background music
options.
Type
Normal/
Fader/
Zoom
Selects the type of
transition effect used
between slides.
Start Starts the slideshow.
During a slideshow, press I to advance one
frame, H to go back one frame.
Press the button or the A button to stop
the slideshow.
Changing the image size
Changing the image size
q
q
[
[
Q
Q
]
]
This saves a high-resolution image as a separate
image with a smaller size for use in e-mail
attachments and other applications.
Submenu 1 Submenu 2 Submenu 3
Edit Qn
1 Use HI to select an image.
2 Use FG to select an image size and press the
A button.
The resized image is saved as a separate
image.
Cropping image
Cropping image
q
q
[
[
P
P
]
]
Submenu 1 Submenu 2
Edit P
1 Use HI to select an image, and press the A
button.
2 Use the zoom lever to select the size of the
cropping frame, and use FGHI to move the
frame.
MENU
Back
Cropping frame
3 Press the A button after you have selected the
area to trim.
The edited image is saved as a separate
image.
Adding sound to still images
Adding sound to still images
q
q
[
[
R
R
]
]
Submenu 1 Submenu 2
Edit R
37
EN
1 Use HI to select an image.
2 Aim the microphone toward the sound source.
Microphone
3 Press the A button.
Recording starts.
The camera adds (records) sound for approx.
4 seconds while playing back the image.
Retouching faces on still images
Retouching faces on still images
q
q
[Beauty Fix]
[Beauty Fix]
Submenu 1 Submenu 2
Edit Beauty Fix
Depending on the picture, the editing may not be
effective.
1 Use HI to select an image, and press the
Q button.
2 Use FG to select a retouching item, and press
the Q button.
3 To save the image, select [OK] on the review
screen and press the Q button. To retouch the
image additionally, select [Beauty Fix].
The retouched image is saved as a separate
image.
OK
Beauty Fix
MENU
Back
The [Image Size] of the retouched image is limited
to [3] or lower.
Beauty Fix
Beauty Fix
1 Select a retouching item and retouching level, and
press the A button.
MENU
Off
Eye Color Back
2 Press the Q button on the review screen.
Brightening areas that are dark
Brightening areas that are dark
due to backlight or other reasons
due to backlight or other reasons
q
q
[Shadow Adj]
[Shadow Adj]
Submenu 1 Submenu 2
Edit Shadow Adj
1 Use HI to select an image, and press the A
button.
The edited image is saved as a separate image.
Depending on the picture, the editing may not be
effective.
The retouching process may lower the image
resolution.
38
EN
Retouching red eyes in ash
Retouching red eyes in ash
shooting
shooting
q
q
[Redeye Fix]
[Redeye Fix]
Submenu 1 Submenu 2
Edit Redeye Fix
1 Use HI to select an image, and press the A
button.
The edited image is saved as a separate
image.
Depending on the picture, the editing may not be
effective.
The retouching process may lower the image
resolution.
Rotating images
Rotating images
q
q
[
[
y
y
]
]
Submenu 1 Submenu 2
Edit y
1 Use HI to select an image.
2 Press the A button to rotate the image.
3 If necessary, repeat Steps 1 and 2 to make
settings for other images, and press the
button.
The new picture orientations will be saved even
after the power is turned off.
Erasing images
Erasing images
q
q
[Erase]
[Erase]
Submenu 2 Application
All Erase All images in the internal memory
or card will be erased.
Sel. Image Images are individually selected
and erased.
Erase Deletes the image displayed.
Erase Group All images in the group are
erased.
When erasing pictures in the internal memory, do
not insert the card into the camera.
Protected images cannot be erased.
To individually select and erase images
To individually select and erase images
[Sel. Image]
[Sel. Image]
1 Use FG to select [Sel. Image], and press the
A button.
2 Use FGHI to select the image to be erased,
and press the A button to add a R mark to the
image.
Turn to the T end to return to the single frame
display.
R mark
Sel. Image (1)
Erase/Cancel
OK
MENU
4/30
39
EN
3 Repeat Step 2 to select the images to be erased,
and then press the button to erase the
selected images.
4 Use FG to select [Yes], and press the A
button.
The images with a R mark are erased.
To erase all images [All Erase]
To erase all images [All Erase]
1 Use FG to select [All Erase], and press the
A button.
2 Use FG to select [Yes], and press the A
button.
Saving print settings to the image
Saving print settings to the image
data
data
q
q
[Print Order]
[Print Order]
“Print Reservations” (p. 55)
Print reservation can be set only for still images
that are recorded to the card.
Protecting images
Protecting images
q
q
[
[
R
R
]
]
Protected images cannot be erased by [Erase]
(p. 22, 38), [Sel. Image] (p. 38), [Erase Group] (p. 38),
or [All Erase] (p. 38), but all images are erased by
[Memory Format]/[Format] (p. 40).
1 Use HI to select an image.
2 Press the A button.
Press the A button again to cancel the
settings.
3 If necessary, repeat Steps 1 and 2 to protect
other images, and press the button.
If you protect the grouped images, all images in the
group will be protected at once.
Setting images to upload to
Setting images to upload to
Internet using OLYMPUS Viewer 3
Internet using OLYMPUS Viewer 3
q
q
[Upload Order]
[Upload Order]
1 Use HI to select an image.
2 Press the A button.
Press the A button again to cancel the
settings.
3 If necessary, repeat Steps 1 and 2 to make
settings for other images, and press the
button.
Only JPEG les can be ordered.
For details on OLYMPUS Viewer 3, refer to
“Installing the PC software and registering user”
(p. 49).
For details on uploading images, refer to
OLYMPUS Viewer 3 “Help”.
40
EN
Connecting to Smartphone
Connecting to Smartphone
q
q
[FlashAir]
[FlashAir]
Using the FlashAir (with Wireless LAN function)
card (commercially available), you can connect the
camera to a Wi-Fi enabled smartphone or PC and
view or import images from the FlashAir card.
When using a FlashAir card, read the FlashAir card
instruction manual carefully, and comply with the
instructions.
Submenu 2 Application
Start/Stop Connect to or disconnect from
Wi-Fi.
Starting option [Manual Start] or [Auto Start] can
be selected.
The camera will not go into sleep mode while
connected to Wi-Fi.
Smartphone application is available.
http://olympuspen.com/OIShare/
Before use, refer to “FlashAir/Eye-Fi card” (p. 70).
d Settings Menu 1
Erasing data completely
Erasing data completely
d
d
[Memory Format]/
[Memory Format]/
d
d
[Format]
[Format]
Before formatting, check that no important data is
left in the internal memory or card.
Cards must be formatted with this camera before
rst use or after being used with other cameras or
computers.
Be sure to remove the card before formatting the
internal memory.
Submenu 2 Application
Yes
Completely erases the image data
in the internal memory or card
(including protected images).
No Cancels formatting.
Copying images in the internal
Copying images in the internal
memory to the card
memory to the card
d
d
[Backup]
[Backup]
Submenu 2 Application
Yes Backs up image data in the
internal memory to the card.
No Cancels the backup.
Using an Eye-Fi card
Using an Eye-Fi card
d
d
[Eye-Fi]
[Eye-Fi]
Submenu 2 Application
All Transfers all images.
Sel. Image Transfers only selected image.
Off Disable Eye-Fi communication.
41
EN
When using an Eye-Fi card, read the Eye-Fi card
instruction manual carefully, and comply with the
instructions.
This camera does not support the Eye-Fi card’s
Endless mode.
Before use, refer to “FlashAir/Eye-Fi card” (p. 70).
Selecting a method for connecting
Selecting a method for connecting
the camera to other devices
the camera to other devices
d
d
[USB Connection]
[USB Connection]
Submenu 2 Application
Auto
Set to select the connection
method each time the camera is
connected to another device.
Storage
Connect camera as a card reader.
MTP
For Windows Vista/Windows 7/
Windows 8, connect camera as a
portable device.
Print Select when connecting to a
PictBridge-compatible printer.
When using the supplied software, select [Storage].
Refer to “Connecting with a computer” (p. 48) for the
connection method with a computer.
Turning on the camera with the
Turning on the camera with the
q
q
button
button
d
d
[
[
q
q
Power On]
Power On]
Submenu 2 Application
No
The camera is not turned on. To
turn on the camera, press the
n button.
Yes
Press and hold the q button
to turn the camera on in the
playback mode.
Saving the mode when the camera
Saving the mode when the camera
is turned off
is turned off
d
d
[Keep
[Keep
z
z
Settings]
Settings]
Submenu 2 Application
Yes
The shooting mode is saved
when the camera is turned off and
is reactivated the next time the
camera is turned on.
No
The shooting mode is set to P
mode when the camera is turned
on.
42
EN
Selecting the camera sound and
Selecting the camera sound and
its volume
its volume
d
d
[Sound Settings]
[Sound Settings]
Submenu 2 Submenu 3 Application
Sound Type 1/2/3
Selects the camera
sounds (operation
sounds, shutter sound,
and warning sound).
Volume 0/1/2/3/4/5
Selects the operation
volume of camera
buttons.
q Volume 0/1/2/3/4/5 Selects the image
playback volume.
d Settings Menu 2
Resetting the le names of
Resetting the le names of
pictures
pictures
d
d
[File Name]
[File Name]
Month: 1 to C
(A=October,
B=November,
C=December)
Day: 01 to 31
Pmdd
Folder name Folder name File name
DCIM 100OLYMP
999OLYMP
Automatic
numbering
Automatic
numbering
43
EN
Submenu 2 Application
Reset
This resets the sequential number
for the folder name and le name
whenever a new card is inserted.*1
This is useful when grouping
images on separate cards.
Auto
Even when a new card is inserted,
this continues the numbering for
the folder name and le name
from the previous card. This is
useful for managing all image
folder names and les names with
sequential numbers.
*1 The number for the folder name is reset to 100,
and the one for the le name is reset to 0001.
Adjusting the image processing
Adjusting the image processing
function
function
d
d
[Pixel Mapping]
[Pixel Mapping]
This function has already been adjusted at factory
shipping, and no adjustment is needed right
after purchase. Approximately once a year is
recommended.
For best results, wait at least one minute after
taking or viewing pictures before performing pixel
mapping. If the camera is turned off during pixel
mapping, be sure to perform it again.
To adjust the image processing function
To adjust the image processing function
Press the A button when [Start] (Submenu 2) is
displayed.
The check and adjustment of the image
processing function starts.
Adjusting the brightness of the
Adjusting the brightness of the
monitor
monitor
d
d
[
[
s
s
]
]
To adjust the monitor brightness
To adjust the monitor brightness
1 Use FG to adjust the brightness while viewing
the screen, and then press the A button.
MENU
Back
s
44
EN
Playing back images on a TV
Playing back images on a TV
d
d
[TV Out]
[TV Out]
The TV video signal system varies depending on the countries and regions. Before viewing camera
images on your TV, select the video output according to your TV’s video signal type.
Submenu 2 Submenu 3 Application
NTSC/PAL
NTSC Connecting the camera to a TV in North America, Taiwan, Korea,
Japan, and so on.
PAL Connecting the camera to a TV in European countries, China, and
so on.
HDMI Out
480p/576p
720p
1080i
Set the signal format to be given priority. If the TV setting does not
match, it is changed automatically.
HDMI Control Off Operate with the camera.
On Operate with the TV remote control.
The factory default settings differ according to the region where the camera is sold.
To play back camera images on a TV
To play back camera images on a TV
Connection via AV cable
1 Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).
2 Connect the TV and camera.
Connection via HDMI cable
1 On the camera, select the digital signal format that will be connected ([480p/576p]/[720p]/[1080i]).
2 Connect the TV and camera.
3 Turn on the TV, and change “INPUT” to “VIDEO (an input jack connected to the camera)”.
4 Turn on the camera, and use FGHI to select the image for playback.
When the camera is connected to the computer by the USB cable, do not connect the HDMI cable to the
camera.
45
EN
Connect to the TV video
input jack (yellow) and
audio input jack (white).
Connect to the HDMI
connector on the TV.
HDMI micro connector
(type D)
HDMI cable
AV cable
(sold separately: CB-AVC3)
Multi-connector
For details on changing the input source of the TV, refer to the TV’s instruction manual.
When the camera and TV are connected by both an AV cable and an HDMI cable, the HDMI cable will take
priority.
Depending on the TV’s settings, the displayed images and information may become cropped.
To operate images with the TV remote control
To operate images with the TV remote control
1 Set [HDMI Control] to [On], and turn off the camera.
2 Connect the camera and TV with an HDMI cable. “Connection via HDMI cable” (p. 44)
3 First turn on the TV, and then turn on the camera.
Operate by following the operation guide that is displayed on the TV.
With some TVs, operations cannot be performed with the TV remote control even though the operation guide
is displayed on the screen.
If operations cannot be performed with the TV remote control, set [HDMI Control] to [Off] and operate using
the camera.
46
EN
Saving battery power between
Saving battery power between
shots
shots
d
d
[Power Save]
[Power Save]
Submenu 2 Application
Off Cancels [Power Save].
On
When the camera is not being
used for approx. 10 seconds, the
monitor automatically turns off to
save battery power.
To resume standby mode
To resume standby mode
Press any button.
Changing the display language
Changing the display language
d
d
[
[
l
l
]
]
Submenu 2 Application
Languages
The language for the menus and
error messages displayed on the
monitor is selected.
Setting the date and time
Setting the date and time
d
d
[
[
X
X
]
]
1 Press FG of the arrow pad to select the year
for [Y].
2 Press I of the arrow pad to save the setting
for [Y].
3 As in Steps 1 and 2, press FGHI of the
arrow pad to set [M] (month), [D] (day), [Time]
(hours and minutes), and [Y/M/D] (date order),
and then press the A button.
For precise time setting, press the A button as the
time signal strikes 00 seconds.
To check the date and time
To check the date and time
Press the INFO button while the camera is turned off.
The current time is displayed for approx. 3 seconds.
47
EN
d Settings Menu 3
Choosing home and alternate time
Choosing home and alternate time
zones
zones
d
d
[World Time]
[World Time]
You will not be able to select a time zone using
[World Time] if the camera clock has not rst been
set using [X].
Submenu 2 Submenu 3 Application
Home/
Alternate
x
The time in the home
time zone (the time
zone selected for x in
submenu 2).
z
The time in the travel
destination time zone
(the time zone selected
for z in submenu 2).
x*1 Select the home time
zone (x).
z*1, 2
Select the travel
destination time zone
(z).
*1 In areas where daylight saving time is in effect, use
FG to turn daylight saving time ([Summer]) on.
*2 When you select a time zone, the camera
automatically calculates the time difference
between the selected zone and the home
time zone (x) to display the time in the travel
destination time zone (z).
Registering the settings for Beauty
Registering the settings for Beauty
Fix
Fix
d
d
[Beauty Settings]
[Beauty Settings]
Depending on the picture, the editing may not be
effective.
1 Use FG to select a retouching setting, and
press the Q button.
2 Press the shutter button to take a portrait picture.
Take a portrait picture.
The image is not saved.
3 Select a retouching item and retouching level, and
press the A button.
MENU
Off
Eye Color Back
4 Press the Q button on the review screen to save
the image.
Registration is complete.
48
EN
Connecting with a computer
When [USB Connection] is set to [Auto], connect the
camera and the computer, select [Storage] or [MTP]
at the screen for selecting the connection method,
and then press the A button.
System requirements
System requirements
Windows : Windows XP SP3
Windows Vista SP2
Windows 7 SP1
Windows 8
Macintosh : Mac OS v10.5-v10.8
Even if a computer has USB ports, proper
operation is not guaranteed in the following cases:
Computers with USB ports installed using an
expansion card, etc.
Computers without a factory-installed OS and
home-built computers
When the computer does not support SDXC
cards, a message may appear urging to format
the internal memory or card. (Formatting will
completely erase all images, so do not format.)
Set [USB Connection] in the setup menu of the
camera beforehand. (p. 41)

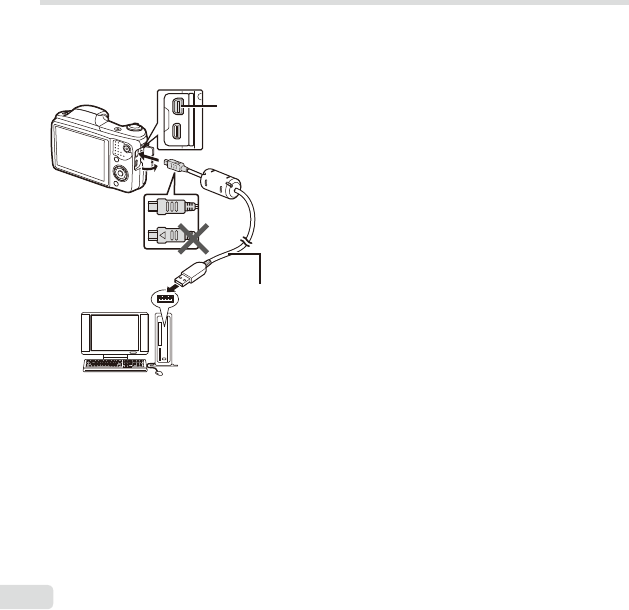

Connecting the camera
Connecting the camera
USB cable
(supplied)
Multi-connector
49
EN
Installing the PC software and
registering user
Windows
Windows
1 Insert the supplied CD in a CD-
ROM drive.
Windows XP
A “Setup” dialog will be displayed.
Windows Vista/Windows 7/Windows 8
An Autorun dialog will be displayed. Click
“OLYMPUS Setup” to display the “Setup” dialog.
If the “Setup” dialog is not displayed, select “My
Computer” (Windows XP) or “Computer” (Windows
Vista/Windows 7) from the start menu. Double-click
the CD-ROM (OLYMPUS Setup) icon to open the
“OLYMPUS Setup” window and then double-click
“Launcher.exe”.
If a “User Account Control” dialog is displayed,
click “Yes” or “Continue”.
2 Register your Olympus product.
Click the “Registration” button and follow the
on-screen instructions.
To register the camera must be connected to
the computer. “Connecting the camera” (p. 48)
If nothing is displayed on the camera screen
even after connecting the camera to the
computer, the battery may be exhausted.
Charge the battery and then connect the
camera again.
3 Install OLYMPUS Viewer 3.
Check the system requirements before
beginning installation.
Click the “OLYMPUS Viewer 3” button and
follow the on-screen instructions to install the
software.
50
EN
OLYMPUS Viewer 3
Operating
System
Windows XP SP3
Windows Vista SP2
Windows 7 SP1
Windows 8
Processor
Pentium 4 1.3 GHz or better (Core 2
Duo 2.13 GHz or better required for
movies)
RAM 1GB or more (2GB or more
recommended)
Free Hard
Drive Space 3GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 65,536 colors (16,770,000
colors recommended)
See online help for information on using the
software.
4 Install the camera manual.
Click the “Camera Instruction Manual” button
and follow the on-screen instructions.
Macintosh
Macintosh
1 Insert the supplied CD in a CD-
ROM drive.
Double-click the CD (OLYMPUS Setup) icon
on the desktop.
Double-click the “Setup” icon to display the
“Setup” dialog.
2 Install OLYMPUS Viewer 3.
Check the system requirements before
beginning installation.
Click the “OLYMPUS Viewer 3” button and
follow the on-screen instructions to install the
software.
You can register via “Registration” in
OLYMPUS Viewer 3 “Help”.
51
EN
OLYMPUS Viewer 3
Operating
System Mac OS X v10.5–v10.8
Processor
Intel Core Solo/Duo 1.5 GHz or better
(Core 2 Duo 2 GHz or better required
for movies)
RAM 1GB or more (2GB or more
recommended)
Free Hard
Drive Space 3GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 32,000 colors (16,770,000
colors recommended)
Other languages can be selected from the
language combo box. For information on using the
software, see online help.
3 Copy the camera manual.
Click the “Camera Instruction Manual” button to
open the folder containing the camera manuals.
Copy the manual for your language to the
computer
.
52
EN
Direct printing (PictBridge)
By connecting the camera to a PictBridge-compatible
printer, you can print images directly without using a
computer.
To nd out if your printer supports PictBridge, refer to
the printer’s instruction manual.
The printing modes, paper sizes, and other
parameters that can be set with the camera vary
depending on the printer that is used. For details,
refer to the printer’s instruction manual.
For details on the available paper types, loading
paper, and installing ink cassettes, refer to the
printer’s instruction manual.
In the setup menu, set [USB Connection] to [Print].
[USB Connection] (p. 41)
Printing images at the printer’s
standard settings [Easy Print]
1 Display the image to be printed on
the monitor.
“Viewing images” (p. 18)
2 Turn on the printer, and then
connect the printer and camera.
USB cable
(supplied)
I (right)
Multi-connector
3 Press I to start printing.
4 To print another image, use HI
to select an image, and press the
A button.
To exit printing
To exit printing
After a selected image is displayed on the screen,
disconnect the USB cable from the camera and
printer.
53
EN
Changing the printer’s settings
for printing [Custom Print]
1 Display the image to be printed on
the monitor.
“Viewing images” (p. 18)
2 Turn on the printer, and then
connect the printer and camera.
3 Press the A button.
4 Use FG to select the print mode,
and press the A button.
Submenu 2 Application
Print This prints the image selected
in Step 8.
All Print This prints all images stored in the
internal memory or card.
Multi Print
This prints one image in a multiple
layout format.
All Index
This prints an index of all images
stored in the internal memory
or card.
Print Order*1 This prints images based on the
print reservation data on the card.
*1 [Print Order] is available only when print
reservations have been made. “Print Reservations”
(p. 55)
5 Use FG to select [Size]
(Submenu 3), and press I.
If the [Printpaper] screen is not displayed, the
[Size], [Borderless], and [Pics/Sheet] are set to
the printer’s standard.
MENU
Printpaper
Size Borderless
Back
Standard Standard
6 Use FG to select the
[Borderless] or [Pics/Sheet]
settings, and press the A button.
Submenu 4 Application
Off/
On*1
The image is printed with a border
around it ([Off]).
The image is printed to ll the
entire paper ([On]).
(The number
of images per
sheet varies
depending on
the printer.)
The number of images per sheet
([Pics/Sheet]) is selectable only
when [Multi Print] is selected in
Step 4.
*1 The available settings for [Borderless] vary
depending on the printer.
If [Standard] is selected in Steps 5 and 6, the
image is printed at the printer’s standard settings.
54
EN
7 Use HI to select an image.
8 Press F to make a print
reservation for the current image.
Press G to make the detailed
printer settings for the current
image.
To make the detailed printer settings
To make the detailed printer settings
1 Use FGHI to select the setting, and press the
A button.
Submenu 5 Submenu 6 Application
<X0 to 10 This selects the number
of prints.
Date With/
Without
Selecting [With] prints
the images with the date.
Selecting [Without] prints
the images without the
date.
File Name With/
Without
Selecting [With] prints
the le name on the
image.
Selecting [Without] does
not print any le name on
the image.
P
(Proceeds
to the
setting
screen.)
This selects a portion of
the image for printing.
To crop an image [
To crop an image [
P
P
]
]
1 Use the zoom lever to select the size of the
cropping frame, use FGHI to move the frame,
and then press the A button.
MENU
Back
Cropping frame
2 Use FG to select [OK], and press the A button.
9 If necessary, repeat Steps 7 and 8
to select the image to be printed,
make the detailed settings, and
set [Single Print].
10
Press the A button.
Print
Cancel
MENU
Print Back
55
EN
11
Use FG to select [Print], and
press the A button.
Printing starts.
When [Option Set] is selected in [All Print]
mode, [Print Info] screen is displayed.
When printing is nished, the [Print Mode
Select] screen is displayed.
Multi Print
Print Order
All Index
All Print
PrintPrint
MENU
Print Mode Select Back
To cancel printing
To cancel printing
1 Press the button while [Do Not Remove
USB Cable] is displayed.
2 Select [Cancel] using FG and then press the
A button.
12
Press the button.
13
When the message [Remove USB
Cable] is displayed, disconnect
the USB cable from the camera
and printer.
Print Reservations
In print reservations, the number of prints and date
imprint option are saved in the image on the card.
This enables easy printing at a printer or print shop
supporting DPOF by using only the print reservations
on the card without a computer or a camera.
Print reservations can be set only for the images
stored on the card.
DPOF reservations set by another DPOF device
cannot be changed by this camera. Make changes
using the original device. Making new DPOF
reservations with this camera will erase the
reservations made by the other device.
DPOF print reservations can be made for up to 999
images per card.
Single-frame print reservations
[
<
]
1 Display the setup menu.
“Using the setup menu” (p. 29)
2 From the playback menu q,
select [Print Order] and then
press the A button.
56
EN
Reserving one print each of all
images on the card [
U
]
1 Follow Steps 1 and 2 in [<] (p. 55).
2 Use FG to select [U], and
press the A button.
3 Follow Steps 5 and 6 in [<].
Resetting all print reservation
data
1 Follow Steps 1 and 2 in [<] (p. 55).
2 Select either [<] or [U], and
press the A button.
3 Use FG to select [Reset], and
press the A button.
3 Use FG to select [<], and press
the A button.
4/304/30
0
OK
Print
Print Order
N
ORM
100-0004
’13/02/26 12:30
N
ORM
100-0004
’13/02/26 12:30
34564608 34564608
4 Use HI to select the image for
print reservation. Use FG to
select the quantity. Press the A
button.
5 Use FG to select the [X] (date
print) screen option, and press
the A button.
Submenu 2 Application
No This prints the image only.
Date This prints the image with the
shooting date.
Time This prints the image with the
shooting time.
6 Use FG to select [Set], and
press the A button.
57
EN
Resetting the print reservation
data for selected images
1 Follow Steps 1 and 2 in [<] (p. 55).
2 Use FG to select [<], and press
the A button.
3 Use FG to select [Keep] and
press the A button.
4 Use HI to select the image with
the print reservation you want to
cancel. Use FG to set the print
quantity to “0”.
5 If necessary, repeat Step 4, and
then press the A button when
nished.
6 Use FG to select the [X] (date
print) screen option, and press
the A button.
The settings are applied to the remaining
images with the print reservation data.
7 Use FG to select [Set], and
press the A button.
58
EN
Usage Tips
If the camera does not work as intended, or if an
error message is displayed on the screen, and you
are unsure of what to do, refer to the information
below to x the problem(s).
Troubleshooting
Battery
Battery
“The camera does not work even when batteries
are installed”.
Insert recharged batteries in the correct
direction.
“Inserting and removing the battery and card
(commercially available)” (p. 4), “Charging the
battery” (p. 5)
Battery performance may have been reduced
temporarily due to low temperature. Take the
batteries out of the camera, and warm them by
putting them in your pocket for a while.
Card/Internal memory
Card/Internal memory
“An error message is displayed”.
“Error message” (p. 60)
Lens
Lens
“The lens has fogged up from the inside”.
It is likely that there is a high level of moisture
inside the camera. Before using the camera
again, remove the battery and memory card
and dry fully with the battery/card cover open.
Shutter button
Shutter button
“No picture is taken when the shutter button is
pressed”.
Cancel sleep mode.
To save battery power, the camera
automatically goes into sleep mode and the
monitor turns off if there is no operation for
3 minutes when the camera is turned on. No
picture is taken even if the shutter button is
fully pressed in this mode. Operate the zoom
lever or other buttons to restore the camera
from sleep mode before taking a picture. If
the camera is left for another 5 minutes, it
automatically turns off. Press the n
button to turn the camera on.
Press the q button to switch to the shooting
mode.
Wait until #( ash charge) stops blinking
before taking pictures.
With prolonged camera use, the internal
temperature may increase, resulting in
automatic shutdown. If this occurs, wait until the
camera has suf ciently cooled.
The camera’s external temperature may also
increase during use, however this is normal and
does not indicate malfunction.
59
EN
Monitor
Monitor
“Dif cult to see”.
Condensation may have occurred. Turn off
the power, and wait for the camera body
to become acclimated to the surrounding
temperature and dry out before taking pictures.
“The light is caught in the picture”.
Shooting with ash in dark situations results in
an image with many ash re ections on dust
in the air.
Date and time function
Date and time function
“Date and time settings return to the default
setting”.
If the batteries are removed and left out of the
camera for about 3 days
*1
, the date and time
settings return to the default setting, and must
be reset.
*1 The time until the date and time settings
return to the default setting varies depending
on how long the batteries have been loaded.
“Turning on the camera and making the initial
settings” (p. 7)
Miscellaneous
Miscellaneous
“The camera makes a noise when taking
pictures”.
The camera may activate the lens and make a
noise even if no operation is performed. This
is because the camera automatically performs
actions of auto focus as far as it is ready to
shoot.
60
EN
Error message
When one of the messages below is displayed on
the monitor, check the corrective action.
Error message Corrective action
Card Error
Card problem
Insert a new card.
Write Protect
Card problem
The card write-protect switch is
set to the “LOCK” side. Release
the switch.
Memory Full
Internal memory problem
Insert a card.
Erase unwanted images.*1
Card Full
Card problem
Replace the card.
Erase unwanted images.*1
Card Setup
Format
Power Off
Card problem
Use FG to select [Format],
and press the A button. Next,
use FG to select [Yes], and
press the A button.*2
Memory Setup
Memory Format
Power OffPower Off
Internal memory problem
Use FG to select [Memory
Format], and press the
A button. Next, use FG to
select [Yes], and press the A
button.*2
Error message Corrective action
No Picture
Internal memory/Card
problem
Take pictures before viewing
them.
Picture Error
Problem with selected image
Use photo retouch software,
etc. to view the image on a
computer. If the image still
cannot be viewed, the image le
is corrupted.
The Image
Cannot Be
Edited
Problem with selected image
Use photo retouch software, etc.
to edit the image on a computer.
Battery Empty
Battery problem
Charge the battery.
No Connection
Connection problem
Connect the camera and
computer or printer correctly.
No Paper
Printer problem
Load paper into the printer.
No Ink
Printer problem
Re ll the ink in the printer.
*1 Before erasing important images, download them
to a computer.
*2 All data will be erased.
61
EN
Error message Corrective action
Jammed
Printer problem
Remove the jammed paper.
Settings
Changed*3
Printer problem
Return to the status where the
printer can be used.
Print Error
Printer problem
Turn off the camera and printer,
check the printer for any
problems, and then turn the
power on again.
Cannot Print*4
Problem with selected image
Use a computer to print.
*3 This is displayed, for instance, when the printer’s
paper tray has been removed. Do not operate
the printer while making the print settings on the
camera.
*4 This camera may be unable to print images taken
by other cameras.
62
EN
Shooting tips
When you are unsure of how to take a picture that
you envision, refer to the information below.
Focusing
“Focusing on the subject”
Taking a picture of a subject not in the
center of the monitor
After focusing on an object at the same
distance as the subject, compose the shot, and
take the picture.
Pressing the shutter button halfway (p. 9)
Set [AF Mode] (p. 31) to [Face/iESP]
Taking a picture in [AF Tracking] mode (p. 31)
The camera tracks the subject movement
automatically to focus on it continuously.
Taking a picture of a shadowy subject
Using the AF illuminator makes focusing
easier. [AF Illuminat.] (p. 32)
Taking a picture of subjects where
autofocus is dif cult
In the following cases, after focusing on an
object (by pressing the shutter button halfway
down) with high contrast at the same distance
as the subject, compose the shot, and take
the picture.
Subjects with low contrast
When extremely bright objects
appear in the center of the
monitor
Object with no vertical lines*1
When objects are at different
distances
Fast-moving object
The subject is not in the
center of the frame
*1 It is also effective to compose the shot by holding
the camera vertically to focus, and then returning
to the horizontal position to take the picture.
63
EN
Camera shake
“Taking pictures without camera shake”
Taking pictures using [Image Stabilizer]
(p. 32)
The image pickup device*1 shifts to correct for
camera shake even if the ISO sensitivity is not
increased. This function is also effective when
taking pictures at a high zoom magni cation.
*1
A device that takes light received through the
lens and converts it into electric signals.
Shooting movies using [IS Movie Mode]
(p. 35)
Select [C Sport] in the scene mode (p. 13)
The [C Sport] mode uses a fast shutter speed
and can reduce the blur incurred by a moving
subject.
Taking pictures at a high ISO sensitivity
If a high ISO sensitivity is selected, pictures
can be taken at a high shutter speed even at
locations where a ash cannot be used.
“ISO sensitivity” (p. 26)
Exposure (brightness)
“Taking pictures with the right brightness”
Taking pictures of a subject against a
backlight
Faces or backgrounds are bright even when
shot against backlight.
[Shadow Adjust] (p. 30)
[h Backlight HDR] (p. 13)
Taking pictures using [Face/iESP] (p. 31)
Appropriate exposure is obtained for a face
against backlight, and the face is brightened.
Taking pictures using [n] for [ESP/n]
(p. 31)
Brightness is matched with a subject in the
center of the screen and the image is not
affected by background light.
Taking pictures using [Fill In] (p. 25) ash
A subject against backlight is brightened.
Taking pictures of a white beach or snow
scene
Select [q Beach & Snow] in the scene mode
(p. 13).
Taking pictures using exposure
compensation (p. 25)
Adjust the brightness while viewing the screen
for taking the picture. Normally, taking pictures
of white subjects (such as snow) results in
images that are darker than the actual subject.
Use the exposure compensation to adjust in
the positive (+) direction to express whites as
they appear. When taking pictures of black
subjects, on the other hand, it is effective to
adjust in the negative (-) direction.
64
EN
Color hue
“Taking pictures with colors at the same shade as
they appear”
Taking pictures by selecting white balance
(p. 25)
Best results in most environments can
normally be obtained with the [WB Auto]
setting, but for some subjects, you should try
experimenting with different settings. (This
is especially true for sunshade under a clear
sky, mixed natural and arti cial light settings,
and so on.)
Image quality
“Taking sharper pictures”
Taking pictures with the optical zoom or
super-resolution zoom
Avoid using digital zoom (p. 32) to take pictures.
Taking pictures at a low ISO sensitivity
If the picture is taken with a high ISO
sensitivity, noise (small colored spots and
color unevenness that were not in the original
image) can occur, and the image can appear
grainy.
“ISO sensitivity” (p. 26)
Batteries
“Making batteries last longer”
Set [Power Save] (p. 46) to [On]
Playback/Editing tips
Playback
“Playing images in the internal memory and card”
Remove the card and display the images in
internal memory
“Inserting and removing the battery and
card (commercially available)” (p. 4)
“Viewing images with high picture quality on a
high-de nition TV”
Connect the camera to the TV using an
HDMI cable (sold separately)
“Playing back images on a TV d [TV Out]”
(p. 44)
Editing
“Erasing the sound recorded to a still image”
Record over the sound with silence when
playing back the image
“Adding sound to still images q [R]” (p. 36)
65
EN
List of settings available in each shooting mode
For details on , refer to “List of settings” (p. 66).
For details on shaded areas, refer to “List of P settings” (p. 68).
PMQ a P p
Zoom RRR RRR
Flash R*1 *1 RR
Self-timer *1 *1 *1 *1 *1 *1 *1
Exposure
Compensation R––
RRR
White balance R––
RRR
ISO sensitivity R––
R––
R
Drive R––
R–––
Image Size RR *1 RR ––
Aspect RRRRR
Reset RRRRRRR
Compression RRRRRRR
Shadow Adjust RRR ––
R
AF Mode R––––
*1
ESP/nR––
RRRR
Digital Zoom RR––––
Image Stabilizer RRRRRRR
AF Illuminat. RRR RR
Rec View RRRRRRR
Pic Orientation RRRRRRR
Icon Guide RRRRRRR
Date Stamp RR R––
R
Super-Res Zoom R––––––
*1 Some functions cannot be set.
66
EN
List of
settings
BF
iGMCNRSX
Zoom RRRRRRR RR
Flash *1 –––
*1 *1 *1 *1 ––
Self-timer *1 *1 *1 *1 *1 *1 *1 *1 *1 *1
Exposure
compensation ––––––––––
White balance –––––––
ISO sensitivity –––––––
Drive –––––
*1 ––––
Image Size RR *1 RRRRRRR
Aspect RRRRRRRRRR
Reset RRRRRRRRRR
Compression RRRRRRRRRR
Shadow Adjust RR –––
RRRR
AF Mode RR RRRR R
ESP/nRR RRRR RR
Digital Zoom RR RRRR RR
Image Stabilizer RRRRRRRRRR
AF Illuminat. RRRRRRRRR
Rec View RRRRRRRRRR
Pic Orientation RRRRRRRRRR
Icon Guide RRRRRRRRRR
Date Stamp RRRRRRRRRR
Super-Res Zoom –––––––
*1 Some functions cannot be set.
67
EN
Vd
qUth
Zoom RRRRRR
Flash *1 *1 –––
Self-timer *1 *1 *1 RR *1
Exposure
compensation ––––––
White balance
ISO sensitivity
Drive – – – – – –
Image Size RRRRR *1
Aspect RRRRRR
Reset RRRRRR
Compression RRRRRR
Shadow Adjust RRRRR
AF Mode RRR ––
R
ESP/nRRRRRR
Digital Zoom RRRRR
Image Stabilizer RRRRRR
AF Illuminat. RRR ––
R
Rec View RRRRRR
Pic Orientation RRRRRR
Icon Guide RRRRRR
Date Stamp RRRRRR
Super-Res Zoom
*1 Some functions cannot be set.
68
EN
List of
P
settings
Pop Art Pin Hole Fish Eye Soft Focus Punk Sparkle
Exposure
compensation RR RRR
White balance RR RR
Watercolor Re ection Miniature
Fragmented
Dramatic
Exposure
compensation RRRRR
White balance RRRRR
69
EN
Appendix
Camera care
Exterior
Wipe gently with a soft cloth. If the camera is very
dirty, soak the cloth in mild soapy water and wring
well. Wipe the camera with the damp cloth and
then dry it with a dry cloth. If you have used the
camera at the beach, use a cloth soaked in clean
water and wrung well.
Monitor
Wipe gently with a soft cloth.
Lens
Blow dust off the lens with a commercial blower,
then wipe gently with a lens cleaner.
Do not use strong solvents such as benzene or
alcohol, or chemically treated cloth.
Mold may form on the lens surface if the lens is
left dirty.
Battery/USB-AC adapter
Wipe gently with a soft, dry cloth.
Storage
When storing the camera for extended periods,
remove the battery, USB-AC adapter and card, and
keep in a cool, dry place that is well ventilated.
Periodically insert the battery and test the camera
functions.
Avoid leaving the camera in places where
chemical products are handled since this may
result in corrosion.
Using a separately sold USB-AC
adapter
The USB-AC adapter F-3AC (sold separately) can
be used with this camera. Do not use any USB-AC
adapter other than the dedicated one. When using
F-3AC, be sure to use the USB cable included with
this camera.
Do not use any other USB-AC adapter with this
camera.
Using a separately sold
charger
A charger (UC-50: sold separately) can be used to
charge the battery.
70
EN
Using your charger and USB-AC
adapter abroad
The charger and USB-AC adapter can be used in
most home electrical sources within the range of
100 V to 240 V AC (50/60Hz) around the world.
However, depending on the country or area you
are in, the AC wall outlet may be shaped differently
and the charger and USB-AC adapter may require
a plug adapter to match the wall outlet. For details,
ask at your local electrical shop or travel agent.
Do not use travel voltage converters as they could
damage your charger and USB-AC adapter.
Using the card
Cards compatible with this camera
Cards compatible with this camera
SD/SDHC/SDXC/Eye-Fi/FlashAir
(with Wireless LAN function) card
(commercially available)
(for compatibility card details, visit
the Olympus website.)
This camera can be used without a card by storing
images in its internal memory.
FlashAir/Eye-Fi card
“FlashAir” SD cards have built-in wireless LAN and
cannot be formatted. Use the software supplied
with the FlashAir card to format the card.
Use the FlashAir or Eye-Fi card in compliance with
the laws and regulations of the country where the
camera is used. Remove the FlashAir or Eye-Fi
card from the camera or disable the card functions
in airplanes and other locations where use is
prohibited.
The FlashAir/Eye-Fi card may become hot during
use.
When using a FlashAir/Eye-Fi card, the battery
may run out faster.
When using a FlashAir/Eye-Fi card, the camera
may function more slowly.
SD/SDHC/SDXC card write-protect switch
SD/SDHC/SDXC card write-protect switch
The SD/SDHC/SDXC card body has a write-protect
switch.
If you set the switch to the “LOCK” side, you will not
be able to write to the card, delete data or format.
Return the switch to enable writing.
LOCK
Format
Format
Cards must be formatted with this camera before
rst use or after being used with other cameras or
computers.
71
EN
Checking the image saving location
Checking the image saving location
The memory indicator shows whether the internal
memory or card is being used during shooting and
playback.
Current memory indicator
v: Internal memory is being used
w: Card is being used
Even if [Memory Format]/[Format], [Erase],
[Sel. Image], or [All Erase] is performed, the
data in the card is not completely erased. When
disposing of the card, damage the card to
prevent the disclosure of personal data.
Switching between a card and internal memory is
not available.
When using the internal memory, remove the
card rst.
Readout/recording process of the card
Readout/recording process of the card
During shooting, the current memory indicator lights
up in red while the camera is writing data. Never
open the battery/card cover or unplug the USB cable.
This can not only damage the image data but also
render the internal memory or card unusable.
72
EN
Number of storable pictures (still images)/Recording length (movies) in the internal
Number of storable pictures (still images)/Recording length (movies) in the internal
memory and cards
memory and cards
The gures for the number of storable still pictures and recording length are approximate. The actual
capacity varies with shooting conditions and the card used.
Still pictures
Still pictures
*1
*1
Image Size Compression Number of storable pictures
Internal memory SD/SDHC/SDXC card (4GB)
4608×3456 L4 460
M9 880
4 3200×2400 L9 910
M17 1,630
3 1920×1440 L29 2,800
M57 5,480
7 640×480 L228 20,110
M419 40,230
*1 Examples of image size when the aspect ratio is 4:3.
Movies
Movies
Image Size
Recording length
Internal memory SD/SDHC/SDXC card (4GB)
With sound Without sound With sound Without sound
C 1920×1080*1 15 sec. 16 sec. 27 min. 29 min.
D 1280×720*1 29 sec. 32 sec. 52 min. 57 min.
E 640×480 1 min. 15 sec. 1 min. 33 sec. 133 min. 167 min.
y 640 x 480*2 24 sec. 43 min.
z 320 x 240*2 36 sec. 64 min.
*1 The recording length is up to 29 minutes in the HD quality speci ed.
*2 The recording length is up to 20 sec. in the HS quality speci ed.
The maximum le size of a single movie is 4GB, regardless of the capacity of the card.
Increasing the number of pictures that can be taken
Increasing the number of pictures that can be taken
Either erase unwanted images, or connect the camera to a computer or other device to save the images, and
then erase the images in the internal memory or card.
[Erase] (p. 22, 38), [Sel. Image] (p. 38), [All Erase] (p. 38), [Erase Group] (p. 38), [Memory Format]/[Format] (p. 40)
73
EN
Trademarks
Trademarks
Microsoft and Windows are registered trademarks of
Microsoft Corporation.
Macintosh is a trademark of Apple Inc.
SDXC Logo is a trademark of SD-3C, LLC.
Eye-Fi is a registered trademark of Eye-Fi, Inc.
FlashAir is a trademark of Toshiba Corporation.
Powered by ARCSOFT.
All other company and product names are registered
trademarks and/or trademarks of their respective owners.
THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
AND NONCOMMERCIAL USE OF A CONSUMER TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC
STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE
AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO
LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION MAY BE
OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.
MPEGLA.COM
The software in this camera may include third party
software. Any third party software is subject to the
terms and conditions, imposed by the owners or
licensors of that software, under which software is
provided to you.
Those terms and other third party software notices,
if any, may be found in the software notice PDF le
stored within the accompanying CD-ROM or at
http://www.olympus.co.jp/en/support/imsg/
digicamera/download/notice/notice.cfm
The standards for camera le systems referred to in this
manual are the “Design rule for Camera File system/
DCF” standards stipulated by the Japan Electronics and
Information Technology Industries Association (JEITA).
74
EN
SPECIFICATIONS
Camera
Camera
Product type : Digital camera (for shooting and displaying)
Recording system
Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system
(DCF))
Applicable
standards
:Exif 2.3, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge
Sound with
still pictures
:Wave format
Movie : MOV H.264 linear PCM
Memory : Internal memory, SD/SDHC/SDXC (supports UHS-I)/Eye-Fi/
FlashAir (with Wireless LAN function) card
No. of effective pixels : 16,000,000 pixels
Image pickup device : 1/2.3” CMOS (primary color lter)
Lens : Olympus lens 4.5 to 108.0 mm, f3.0 to 6.9.
(Equivalent to 25 to 600 mm on a 35 mm lm.)
Photometric system : Digital ESP metering, spot metering system
Shutter speed : 4 to 1/2000 sec.
Shooting range : 0.1 m (0.3 ft.) to (W), 0.4 m (1.3 ft.) to (T) (Normal)
0.03 m (0.1 ft.) to (super macro mode)
Monitor : 3.0” TFT color LCD display, 460,000 dots
Connector : Multi-connector (DC-IN jack, USB connector, A/V OUT jack)/
HDMI micro connector (type D)
Automatic calendar
system
:2000 up to 2099
Operating
environment
Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/
-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Humidity : 30 % to 90 % (operation)/10 % to 90 % (storage)
Power supply : One Olympus lithium ion battery (LI-50B) or separately sold USB-AC adapter
75
EN
Dimensions : 107.9 mm (W) × 69.7 mm (H) × 39.9 mm (D)
(4.2 × 2.7 × 1.6 in.) (excluding protrusions)
Weight : 227 g (8.0 oz) (including battery and card)
Lithium ion battery (LI-50B)
Lithium ion battery (LI-50B)
Product type : Lithium ion rechargeable battery
Model No. : LI-50BA/LI-50BB
Standard voltage : DC 3.7 V
Standard capacity : 925 mAh
Battery life : Approx. 300 full charges (varies on usage)
Operating
environment
Temperature : 0 °C to 40 °C (32 °F to 104 °F) (charging)
USB-AC adapter (F-2AC)
USB-AC adapter (F-2AC)
Model No. : F-2AC-1B/F-2AC-2B
Power requirements : AC 100 to 240 V (50/60 Hz)
Output : DC 5 V, 500 mA
Operating
environment
Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/
-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Design and speci cations subject to change without notice.
HDMI, the HDMI Logo and High-De nition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing, LLC.
76
EN
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS
SERVICE PERSONNEL.
An exclamation mark enclosed in
a triangle alerts you to important
operating and maintenance
instructions in the documentation
provided with the product.
DANGER If the product is used without
observing the information given
under this symbol, serious injury
or death may result.
WARNING
If the product is used without
observing the information given
under this symbol, injury or
death may result.
CAUTION If the product is used without
observing the information
given under this symbol, minor
personal injury, damage to the
equipment, or loss of valuable
data may result.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL
SHOCK, NEVER DISASSEMBLE, EXPOSE THIS
PRODUCT TO WATER OR OPERATE IN A HIGH
HUMIDITY ENVIRONMENT.
General Precautions
General Precautions
Read All Instructions — Before you use the product, read all
operating instructions. Save all manuals and documentation
for future reference.
CleaningAlways unplug this product from the wall outlet
before cleaning. Use only a damp cloth for cleaning. Never
use any type of liquid or aerosol cleaner, or any type of
organic solvent to clean this product.
Attachments — For your safety, and to avoid damaging the
product, use only accessories recommended by Olympus.
Water and Moisture — For precautions on products with
weatherproof designs, read the weatherproo ng sections.
Location — To avoid damage to the product, mount the product
securely on a stable tripod, stand, or bracket.
Power Source — Connect this product only to the power
source described on the product label.
Lightning — If a lightning storm occurs while using a USB-AC
adapter, remove it from the wall outlet immediately.
Foreign Objects — To avoid personal injury, never insert a
metal object into the product.
Heat — Never use or store this product near any heat source
such as a radiator, heat register, stove, or any type of
equipment or appliance that generates heat, including stereo
ampli ers.
Handling the Camera
Handling the Camera
WARNING
• Do not use the camera near ammable or explosive gases.
• Do not use the ash and LED (including AF illuminator) on
people (infants, small children, etc.) at close range.
You must be at least 1 m (3 ft.) away from the faces of your
subjects. Firing the ash too close to the subject’s eyes could
cause a momentary loss of vision.
77
EN
• Keep young children, infants, and animals such as pets
away from the camera.
Always use and store the camera out of the reach of young
children and infants to prevent the following dangerous
situations which could cause serious injury:
Becoming entangled in the camera strap, causing
strangulation.
Accidentally swallowing the battery, cards or other small
parts.
Accidentally ring the ash into their own eyes or those of
another child.
Accidentally being injured by the moving parts of the
camera.
• Do not look at the sun or strong lights with the camera.
• Do not use or store the camera in dusty or humid places.
• Do not cover the ash with a hand while ring.
• Use SD/SDHC/SDXC memory cards, Eye-Fi cards or
FlashAir cards only. Never use other types of cards.
If you accidently insert another type of card into the camera,
contact an authorized distributor or service center. Do not try to
remove the card by force.
• If you nd that the USB-AC adapter is extremely hot or
notice any unusual odors, noise, or smoke around it,
unplug the power plug from wall outlet immediately and
stop using it. Then, contact an authorized distributor or
service center.
CAUTION
• Stop using the camera immediately if you notice any
unusual odors, noise, or smoke around it.
Never remove the batteries with bare hands, which may
cause a re or burn your hands.
Never hold or operate the camera with wet hands.
This may cause overheating, exploding, burning, electrical
shocks, or malfunctions.
• Do not leave the camera in places where it may be subject
to extremely high temperatures.
Doing so may cause parts to deteriorate and, in some
circumstances, cause the camera to catch re. Do not use
the charger or USB-AC adapter if it is covered (such as a
blanket). This could cause overheating, resulting in re.
• Handle the camera with care to avoid getting a low-
temperature burn.
When the camera contains metal parts, overheating can
result in a low-temperature burn. Pay attention to the
following:
When used for a long period, the camera will get hot. If you
hold on to the camera in this state, a low-temperature burn
may be caused.
In places subject to extremely cold temperatures, the
temperature of the camera’s body may be lower than the
environmental temperature. If possible, wear gloves when
handling the camera in cold temperatures.
• Be careful with the strap.
Be careful with the strap when you carry the camera. It could
easily catch on stray objects and cause serious damage.
To protect the high-precision technology contained in this
product, never leave the camera in the places listed below, no
matter if in use or storage:
Places where temperatures and/or humidity are high or go
through extreme changes. Direct sunlight, beaches, locked cars,
or near other heat sources (stove, radiator, etc.) or humidi ers.
In sandy or dusty environments.
Near ammable items or explosives.
In wet places, such as bathrooms or in the rain. When using
products with weatherproof designs, read their manuals as well.
In places prone to strong vibrations.
Never drop the camera or subject it to severe shocks or vibrations.
When attaching the camera to or removing it from a tripod,
rotate the tripod screw, not the camera.
Before transporting the camera, remove a tripod and all other
non-OLYMPUS accessories.
Do not touch electric contacts on cameras.
Do not leave the camera pointed directly at the sun. This may
cause lens or shutter curtain damage, color failure, ghosting on
the image pickup device, or may possibly cause res.
Do not push or pull severely on the lens.
Before storing the camera for a long period, remove the
batteries. Select a cool, dry location for storage to prevent
condensation or mold from forming inside the camera. After
storage, test the camera by turning it on and pressing the
shutter button to make sure that it is operating normally.
78
EN
The camera may malfunction if it is used in a location where
it is subject to a magnetic/electromagnetic eld, radio waves,
or high voltage, such as near a TV set, microwave, video
game, loud speakers, large monitor unit, TV/radio tower, or
transmission towers. In such cases, turn the camera off and on
again before further operation.
Always observe the operating environment restrictions
described in the camera’s manual.
Battery Handling Precautions
Battery Handling Precautions
Follow these important guidelines to prevent
batteries from leaking, overheating, burning,
exploding, or causing electrical shocks or burns.
DANGER
The camera uses a lithium ion battery speci ed by Olympus.
Charge the battery with the speci ed USB-AC adapter or
charger. Do not use any other USB-AC adapters or chargers.
Never incinerate or heat batteries in microwaves, on hot
plates, or in pressure vessels, etc.
Never leave the camera on or near electromagnetic devices.
This may cause overheating, burning, or exploding.
Do not connect terminals with any metallic objects.
Take precautions when carrying or storing batteries to prevent
them from coming into contact with any metal objects such as
jewelry, pins, fasteners, keys, etc.
The short circuit may cause overheating, exploding, or burning,
which burn or damage you.
Never store batteries where they will be exposed to direct
sunlight, or subjected to high temperatures in a hot vehicle,
near a heat source, etc.
To prevent causing battery leaks or damaging their terminals,
carefully follow all instructions regarding the use of batteries.
Never attempt to disassemble a battery or modify it in any
way, solder, etc.
If battery uid gets into your eyes, ush your eyes immediately
with clear, cold running water and seek medical attention
immediately.
Always store batteries out of the reach of small children. If a
child accidentally swallows a battery, seek medical attention
immediately.
If you cannot remove the battery from the camera, contact an
authorized distributor or service center. Do not try to remove
the battery by force.
Damage to the battery exterior (scratches, etc.) may produce
heat or an explosion.
WARNING
Do not wet batteries with uid such as water or seawater.
To prevent batteries from leaking, overheating, or causing a
re or explosion, use only batteries recommended for use with
this product.
Insert the battery carefully as described in the operating
instructions.
If rechargeable batteries have not been recharged within the
speci ed time, stop charging them and do not use them.
Do not use a battery if it is cracked or broken.
If a battery leaks, has unusual odor, becomes discolored or
deformed, or becomes abnormal in any other way during
operation, stop using the camera, and keep away from re
immediately.
If a battery leaks uid onto your clothing or skin, remove the
clothing and ush the affected area with clean, running cold
water immediately. If the uid burns your skin, seek medical
attention immediately.
Never subject batteries to strong shocks or continuous
vibration by dropping or hitting.
This may cause exploding, overheating, or burning.
CAUTION
Before loading, always inspect the battery carefully for leaks,
discoloration, warping, or any other abnormality.
The battery may become hot during prolonged use. To avoid
minor burns, do not remove it immediately after using the
camera.
Always unload the battery from the camera before storing the
camera for a long period.
Leaking and overheating may cause re, injury, or malfunction.
When storing the battery for a long period, select a cool
location for storage.
This camera uses one Olympus lithium ion battery. Use the
designated battery. There is a risk of explosion if the battery is
replaced with the incorrect battery type.
Power consumption by the camera varies depending on which
functions are used.
During the conditions described below, power is consumed
continuously and the battery becomes exhausted quickly.
The zoom is used repeatedly.
The shutter button is pressed halfway repeatedly in shooting
mode, activating the auto focus.
A picture is displayed on the monitor for an extended period
of time.
The camera is connected to a printer.
79
EN
Using an exhausted battery may cause the camera to turn off
without displaying the battery level warning.
The Olympus lithium ion battery is designed to be used only for
the Olympus digital camera.
Do not use the battery to other devices.
If the battery’s terminals get wet or greasy, camera contact failure
may result. Wipe the battery well with a dry cloth before use.
Always charge a battery when using it for the rst time, or if it
has not been used for a long period.
When operating the camera with battery power at low
temperatures, try to keep the camera and spare battery
as warm as possible. A battery that has run down at low
temperatures may be restored after it is warmed at room
temperature.
Before going on a long trip, and especially before traveling
abroad, purchase extra batteries. A recommended battery may
be dif cult to obtain while traveling.
Please recycle batteries to help save our planet’s resources.
When you throw away dead batteries, be sure to cover their
terminals and always observe local laws and regulations.
USB-AC adapter
USB-AC adapter
The included USB-AC adapter F-2AC is designed to be used
only with this camera. Other cameras cannot be charged with
this USB-AC adapter.
Do not connect the included USB-AC adapter F-2AC to
equipment other than this camera.
For plug-in type USB-AC adapter:
The included USB-AC adapter F-2AC is intended to be
correctly orientated in a vertical or oor mount position.
Use Only Dedicated Rechargeable Battery,
Use Only Dedicated Rechargeable Battery,
Battery Charger and USB-AC adapter
Battery Charger and USB-AC adapter
We strongly recommend that you use only the genuine Olympus
dedicated rechargeable battery, battery charger and USB-AC
adapter with this camera. Using a non-genuine rechargeable
battery, battery charger and/or USB-AC adapter may result
in re or personal injury due to leakage, heating, ignition or
damage to the battery. Olympus does not assume any liability
for accidents or damage that may result from the use of a
battery, battery charger and/or USB-AC adapter that are not
genuine Olympus accessories.
Monitor
Monitor
Do not push the monitor forcibly; otherwise the image may
become vague, resulting in a playback mode failure or damage
to the monitor.
A strip of light may appear on the top/bottom of the monitor, but
this is not a malfunction.
When a subject is viewed diagonally in the camera, the
edges may appear zigzagged on the monitor. This is not a
malfunction; it will be less noticeable in playback mode.
In places subject to low temperatures, the monitor may take a
long time to turn on or its color may change temporarily. When
using the camera in extremely cold places, it is a good idea to
occasionally place it in a warm place. The monitor exhibiting
poor performance due to low temperatures will recover in
normal temperatures.
The monitor of this product is manufactured with high-quality
accuracy, however, there may be a stuck or dead pixel on the
monitor. These pixels do not have any in uence on the image
to be saved. Because of the characteristics, the unevenness
of the color or brightness may also be found depending on the
angle, but this is due to the structure of the monitor. This is not
a malfunction.
Legal and Other Notices
Legal and Other Notices
Olympus makes no representations or warranties regarding
any damages, or bene t expected by using this unit lawfully,
or any request from a third person, which are caused by the
inappropriate use of this product.
Olympus makes no representations or warranties regarding
any damages or any bene t expected by using this unit
lawfully which are caused by erasing picture data.
Disclaimer of Warranty
Disclaimer of Warranty
Olympus makes no representations or warranties, either
expressed or implied, by or concerning any content of these
written materials or software, and in no event shall be liable
for any implied warranty of merchantability or tness for any
particular purpose or for any consequential, incidental or
indirect damages (including but not limited to damages for loss
of business pro ts, business interruption and loss of business
information) arising from the use or inability to use these
written materials or software or equipment. Some countries do
not allow the exclusion or limitation of liability for consequential
or incidental damages or of the implied warranty, so the above
limitations may not apply to you.
Olympus reserves all rights to this manual.
80
EN
Warning
Warning
Unauthorized photographing or use of copyrighted material
may violate applicable copyright laws. Olympus assumes no
responsibility for unauthorized photographing, use or other acts
that infringe upon the rights of copyright owners.
Copyright Notice
Copyright Notice
All rights reserved. No part of these written materials or this
software may be reproduced or used in any form or by any
means, electronic or mechanical, including photocopying and
recording or the use of any type of information storage and
retrieval system, without the prior written permission of Olympus.
No liability is assumed with respect to the use of the information
contained in these written materials or software, or for damages
resulting from the use of the information contained therein.
Olympus reserves the right to alter the features and contents of
this publication or software without obligation or advance notice.
FCC Notice
FCC Notice
Radio and Television Interference
Changes or modi cations not expressly approved by the
manufacturer may void the user’s authority to operate this
equipment. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
Adjust or relocate the receiving antenna.
Increase the distance between the camera and receiver.
Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
Consult your dealer or an experienced radio/TV technician for
help. Only the OLYMPUS-supplied USB cable should be used to
connect the camera to USB enabled personal computers (PC).
Any unauthorized changes or modi cations to this equipment
would void the user’s authority to operate it.
For customers in North and South America
For customers in North and South America
For customers in USA
Declaration of Conformity
Model Number: SZ-17
Trade Name: OLYMPUS
Responsible Party:
Address: 3500 Corporate Parkway, P.O. Box 610,
Center Valley, PA 18034-0610, U.S.A.
Telephone Number: 484-896-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
For customers in CANADA
This Class B digital apparatus complies with Canadian ICES-
003. CAN ICES-3(B)/NMB-3(B)
OLYMPUS WORLDWIDE LIMITED WARRANTY -
IMAGING PRODUCTS
Olympus warrants that the enclosed Olympus® imaging
product(s) and related Olympus® accessories (individually
a “Product” and collectively the “Products”) will be free from
defects in materials and workmanship under normal use and
service for a period of one (1) year from the date of purchase.
If any Product proves to be defective within the one-year
warranty period, the customer must return the defective Product
to any of Olympus Service Centers, following the procedure
set forth below (See “WHAT TO DO WHEN SERVICE IS
NEEDED”).
Olympus, at its sole discretion, will repair, replace, or adjust
the defective Product, provided that Olympus investigation and
factory inspection disclose that (a) such defect developed under
normal and proper use and (b) the Product is covered under this
limited warranty.
Repair, replacement, or adjustment of defective Products shall
be Olympus’s sole obligation and the customer’s sole remedy
hereunder.
81
EN
The customer is liable and shall pay for shipment of the
Products to the Olympus Service Center.
Olympus shall not be obligated to perform preventive
maintenance, installation, deinstallation, or maintenance.
Olympus reserves the right to (i) use reconditioned, refurbished,
and/or serviceable used parts (that meet Olympus’s quality
assurance standards) for warranty or any other repairs and (ii)
make any internal or external design and/or feature changes
on or to its products without any liability to incorporate such
changes on or to the Products.
WHAT IS NOT COVERED BY THIS LIMITED
WARRANTY
Excluded from this limited warranty and not warranted by
Olympus in any fashion, either express, implied, or by statute,
are:
(a) products and accessories not manufactured by Olympus
and/or not bearing the “OLYMPUS” brand label (the
warranty coverage for products and accessories of other
manufacturers, which may be distributed by Olympus, is the
responsibility of the manufacturers of such products and
accessories in accordance with the terms and duration of
such manufacturers’ warranties);
(b) any Product which has been disassembled, repaired,
tampered with, altered, changed, or modi ed by persons
other than Olympus’s own authorized service personnel
unless repair by others is made with the written consent of
Olympus;
(c) defects or damage to the Products resulting from wear,
tear, misuse, abuse, negligence, sand, liquids, impact,
improper storage, nonperformance of scheduled operator
and maintenance items, battery leakage, use of non-
“OLYMPUS” brand accessories, consumables, or supplies,
or use of the Products in combination with non-compatible
devices;
(d) software programs;
(e) supplies and consumables (including but not limited to
lamps, ink, paper, lm, prints, negatives, cables and
batteries); and/or
(f) Products which do not contain a validly placed and recorded
Olympus serial number, unless they are a model on which
Olympus does not place and record serial numbers.
EXCEPT FOR THE LIMITED WARRANTY SET FORTH
ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER
REPRESENTATIONS, GUARANTIES, CONDITIONS, AND
WARRANTIES CONCERNING THE PRODUCTS, WHETHER
DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING
UNDER ANY STATUTE, ORDINANCE, COMMERCIAL
USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED
TO ANY WARRANTY OR REPRESENTATION AS TO THE
SUITABILITY, DURABILITY, DESIGN, OPERATION, OR
CONDITON OF THE PRODUCTS (OR ANY PART THEREOF)
OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR
FITNESS FOR A PARTICULAR PURPOSE, OR RELATING
TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT,
OR OTHER PROPRIETARY RIGHT USED OR INCLUDED
THEREIN.
IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF
LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF
THIS LIMITED WARRANTY.
SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR
LIMITATION OF WARRANTIES AND/OR LIMITATION OF
LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS
MAY NOT APPLY.
THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR
ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM
STATE TO STATE.
THE CUSTOMER ACKNOWLEDGES AND AGREES THAT
OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY
DAMAGES THAT THE CUSTOMER MAY INCUR FROM
DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT
DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA
LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE,
WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT
(INCLUDING NEGLIGENCE AND STRICT PRODUCT
LIABILITY) OR OTHERWISE. IN NO EVENT SHALL
OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND
(INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR
LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE
OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH
POTENTIAL LOSS OR DAMAGE.
82
EN
Representations and warranties made by any person, including
but not limited to dealers, representatives, salespersons, or
agents of Olympus, which are inconsistent or in con ict with
or in addition to the terms of this limited warranty, shall not be
binding upon Olympus unless reduced to writing and approved
by an expressly authorized of cer of Olympus.
This limited warranty is the complete and exclusive statement of
warranty which Olympus agrees to provide with respect to the
Products and it shall supersede all prior and contemporaneous
oral or written agreements, understandings, proposals, and
communications pertaining to the subject matter hereof.
This limited warranty is exclusively for the bene t of the original
customer and cannot be transferred or assigned.
WHAT TO DO WHEN SERVICE IS NEEDED
The customer must transfer any image or other data saved on
a Product to another image or data storage medium and/or
remove any lm from the Product prior to sending the Product to
Olympus for service.
I
N NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR
SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA
SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR
ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY
IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE
FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS
LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED
(INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT,
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES,
LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT
OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE
POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.
Package the Product carefully using ample padding material to
prevent damage in transit and either deliver it to the Authorized
Olympus Dealer that sold you the Product or ship it postage
prepaid and insured to any of our Olympus Service Centers.
When returning Products for service, your package should
include the following:
1 Sales receipt showing date and place of purchase.
2 Copy of this limited warranty bearing the Product serial
number corresponding to the serial number on the
Product (unless it is a model on which Olympus does not
place and record serial numbers).
3 A detailed description of the problem.
4 Sample prints, negatives, digital prints (or les on disk) if
available and related to the problem.
When service is completed, the Product will be returned to you
postage prepaid.
WHERE TO SEND PRODUCT FOR SERVICE
See “WORLDWIDE WARRANTY” for the nearest service center.
INTERNATIONAL WARRANTY SERVICE
International warranty service is available under this warranty.
For customers in Europe
For customers in Europe
“CE” mark indicates that this
product complies with the European
requirements for safety, health,
environment and customer protection.
“CE” mark cameras are intended for
sales in Europe.
This symbol [crossed-out wheeled
bin WEEE Annex IV] indicates
separate collection of waste electrical
and electronic equipment in the EU
countries.
Please do not throw the equipment into
the domestic refuse.
Please use the return and collection
systems available in your country for
the disposal of this product.
This symbol [crossed-out wheeled
bin Directive 2006/66/EC Annex II]
indicates separate collection of waste
batteries in the EU countries.
Please do not throw the batteries into
the domestic refuse. Please use the
return and collection systems available
in your country for the disposal of the
waste batteries.
83
EN
Provisions of warranty
1 If this product proves to be defective, although it has been
used properly (in accordance with the written Handling
Care and Operating instructions supplied with it), during the
applicable national warranty period and has been purchased
from an authorized Olympus distributor within the business
area of Olympus Europa SE & Co. KG as stipulated on
the website: http://www.olympus.com this product will be
repaired, or at Olympus’s option replaced, free of charge. To
claim under this warranty the customer must take the product
before the end of the applicable national warranty period to
the dealer where the product was purchased or any other
Olympus service station within the business area of Olympus
Europa SE & Co. KG as stipulated on the website: http://
www.olympus.com.
During the one year period of the World Wide Guarantee the
customer may turn the product in at any Olympus service
station. Please notice that not in all countries such Olympus
service station exists.
2 The customer shall transport the product to the dealer or
Olympus authorized service station at his own risk and shall
be responsible for any costs incurred in transporting the
product.
Provisions of Guarantee
1 “OLYMPUS IMAGING CORP.” grants a one year World Wide
Guarantee. This worldwide Guarantee must be presented
at an Olympus authorized repair service station before any
repair can be made under conditions of this Guarantee. This
Guarantee is valid only if the Guarantee Certi cate and proof
of purchase are presented at the Olympus repair service
station. Please note that this Guarantee is in addition to and
does not affect the customer’s legal warranty rights under the
applicable national legislation governing the sale of consumer
goods mentioned above.
2 This Guarantee does not cover the following and the
customer will be required to pay repair charge, even for
defects occurring within the Guarantee period referred to
above.
a. Any defect that occurs due to mishandling (such as an
operation performed that is not mentioned in the Handling
Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modi cation, cleaning,
etc. performed by anyone other than Olympus or an
Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall,
shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to re, earthquake,
ood damage, thunderbolt, other natural disasters,
environmental pollution and irregular voltage sources.
e. Any defect that occurs due to careless or improper
storage (such as keeping the product under conditions
of high temperature and humidity, near insect repellents
such as naphthalene or harmful drugs, etc.), improper
maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the
inside of the product casing.
h. When the Guarantee Certi cate is not returned with the
product.
i. When any alterations whatsoever are made to the
Guarantee Certi cate regarding the year, month and date
of purchase, the customer’s name, the dealer’s name, and
the serial number.
j. When proof of purchase is not presented with this
Guarantee Certi cate.
3 This Guarantee applies to the product only; the Guarantee
does not apply to any other accessory equipment, such as
the case, strap, lens cap and batteries.
4 Olympus’s sole liability under this Guarantee shall be limited
to repairing or replacing the product. Any liability under the
Guarantee for indirect or consequential loss or damage of
any kind incurred or suffered by the customer due to a defect
of the product, and in particular any loss or damage caused
to any lenses, lms, other equipment or accessories used
with the product or for any loss resulting from a delay in repair
or loss of data, is excluded. Compelling regulations by law
remain unaffected by this.
Notes regarding Guarantee maintenance
1 This Guarantee will only be valid if the Guarantee Certi cate
is duly completed by Olympus or an authorized dealer or
other documents contain suf cient proof. Therefore, please
make sure that your name, the name of the dealer, the
serial number and the year, month and date of purchase
are all completed or the original invoice or the sales receipt
(indicating the dealer’s name, the date of purchase and
product type) is attached to this Guarantee Certi cate.
Olympus reserves the right to refuse free-of-charge service
if neither Guarantee Certi cate is completed nor the above
document is attached or if the information contained in it is
incomplete or illegible.
2 Since this Guarantee Certi cate will not be re-issued, keep it
in a safe place.
* Please refer to the list on the web site: http://www.olympus.
com for the authorized international Olympus service
network.
84
EN
For customers in Asia
For customers in Asia
Provisions of warranty
1 lf this product proves to be defective, although it has been
used properly (in accordance with the written Handling Care
and Operating instructions supplied with it), during a period
of up to one year from the date of purchase this product
will be repaired, or at Olympus’s option replaced, free of
charge. To claim under warranty the customer must take the
product and this Warranty certi cate before the end of the
one year warranty period to the dealer where the product was
purchased or any Olympus authorized service station listed in
the instructions and request the necessary repairs.
2 The customer shall transport the product to the dealer or
Olympus authorized service station at his own risk and shall
be responsible for any costs incurred in transporting the
product.
3 This warranty does not cover the following and the customer
will be required to pay repair charge, even for defects
occurring within the one year period referred to above.
a. Any defect that occurs due to mishandling (such as an
operation performed that is not mentioned in the Handling
Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modi cation, cleaning,
etc. performed by anyone other than Olympus or an
Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall,
shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to re, earthquake,
ood damage, thunderbolt, other natural disasters,
environmental pollution and irregular voltage sources.
e. Any defect that occurs due to careless or improper
storage (such as keeping the product under conditions
of high temperature and humidity, near insect repellents
such as naphthalene or harmful drugs, etc.), improper
maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the
inside of the product casing.
h. When this Warranty Certi cate is not returned with the
product.
i. When any alterations whatsoever are made to the
Warranty Certi cate regarding the year, month and date of
purchase, the customer’s name, the dealer’s name, and
the serial number.
j. When proof of purchase is not presented with this
Warranty Certi cate.
4 This Warranty applies to the product only; the Warranty does
not apply to any other accessory equipment, such as the
case, strap, lens cap and batteries.
5 Olympus’ sole liability under this warranty shall be limited to
repairing or replacing the product and any liability for indirect
or consequential loss or damage of any kind incurred or
suffered by the customer due to a defect in the product, and
in particular any loss or damage caused to any lm or lenses
or other equipment or accessories used with the product or
for any loss resulting from delay in repair, is excluded.
Notes;
1 This Warranty is in addition to and does not affect the
customer’s statutory right.
2 lf you have any queries regarding this Warranty, call any
of the Olympus authorized service stations listed in the
instructions.
Notes regarding warranty maintenance
1 This Warranty will only be valid if the Warranty Certi cate is
duly completed by Olympus or the dealer. Make sure that
your name, the name of the dealer, the serial number and the
year, month and date of purchase are all completed.
2 Since this Warranty Certi cate will not be re-issued, keep it in
a safe place.
3 Any request for repair by a customer in same country where
the product was purchased shall be subject to the terms
of the warranty issued by the Olympus distributor in that
country. Where the local Olympus distributor does not issue a
separate warranty or where the customer is not in the country
where the product was purchased the terms of this worldwide
warranty shall apply.
4 Where applicable, this Warranty is valid worldwide. The
Olympus authorized service stations listed in this Warranty
will gladly honor it.
* Please refer to the appended list for the authorized
international Olympus service network.
Disclaimer of Warranty
Olympus makes no representations or warranties, either
expressed or implied, by or concerning any content if these
written materials or software, and in no event shall be liable
for any implied warranty of merchantability or tness for any
particular purpose or for any consequential, incidental or
indirect damages (including but not limited to damages for loss
of business pro ts, business interruption and loss of business
information) arising from the use of inability to use these written
materials or software. Some states do not allow the exclusion or
limitation of liability for consequential or incidental damages, so
the above limitations may not apply to you.
WC406301

Navigation menu
