orativo Lanix de C V LX8 LX8 User Manual Content
Corporativo Lanix S.A. de C.V. LX8 Content
Users Manual
-1-
Content
1 General Information ................................................................................................................................................. 4
1.1 Profile .............................................................................................................................................................. 4
1.2 Safety Information .......................................................................................................................................... 4
1.3 Safety warning and Attentions ........................................................................................................................ 5
2 Your phone ................................................................................................................................................................. 7
2.1 Phone overview ............................................................................................................................................... 7
2.2 Functions of Keys ........................................................................................................................................... 8
2.3 Technical specifications .................................................................................................................................. 9
3 Getting started ......................................................................................................................................................... 10
3.1 Installing the SIM Card and the Battery ....................................................................................................... 10
3.2 Installing T-Flash Card .................................................................................................................................. 12
3.3 Charging the Battery ..................................................................................................................................... 12
3.4 Powering On/Off the Mobile Phone ............................................................................................................. 15
3.5 Linking to the Network ................................................................................................................................. 15
3.6 Dialing Calls ................................................................................................................................................. 15
3.7 Using the Headset ......................................................................................................................................... 16
-2-
4 Input method ........................................................................................................................................................... 16
4.1 Icons for Input Methods ................................................................................................................................ 17
4.2 To Shift Entry Methods ................................................................................................................................. 17
4.3 Numeric Input ............................................................................................................................................... 17
4.4 English input and numeric input: .................................................................................................................. 17
4.5 Inserting a Symbol ........................................................................................................................................ 18
5 Using the menu ........................................................................................................................................................ 18
5.1 Call center ..................................................................................................................................................... 18
5.2 STK ............................................................................................................................................................... 20
5.3 Fun ................................................................................................................................................................ 20
5.4 File manager .................................................................................................................................................. 20
5.5 Extras ............................................................................................................................................................ 21
5.6 Phonebook..................................................................................................................................................... 21
5.7 Messaging ..................................................................................................................................................... 22
5.8 Services ......................................................................................................................................................... 24
5.9 Organizer ....................................................................................................................................................... 25
5.10 Multimedia .................................................................................................................................................... 26
5.11 Media player ................................................................................................................................................. 27
-3-
5.12 Settings .......................................................................................................................................................... 27
6 Appendix .................................................................................................................................................................. 33
-4-
1 General Information
1.1 Profile
Please read this pamphlet carefully in order to make your phone in perfect condition.
Our company may change this mobile phone without prior written notice and reserves the final right to
interpret the performance of this mobile phone.
Due to different software and network operators, display on your phone may be different, refer to your
phone for details.
1.2 Safety Information
If your phone has lost or been stolen, notify the telecommunication office the SIM card is disabled
(network support is required). This can avoid economic loss caused by unauthorized use.
Please take measures as following to avoid your phone being unauthorized use:
· Set PIN code of SIM card
· Set phone password
-5-
1.3 Safety warning and Attentions
Safety warning
ROAD SAFETY COMES FIRST
Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving.
In some countries, dialing or receiving calls while driving is illegal!
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky.
Please make sure that your mobile phone is powered off in flight.
SWITCH OFF BEFORE ENTERING RISKY AREAS
Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off
your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical
plant or a place where a blasting process is under way.
OBSERVE ALL SPECIAL REGULATIONS
Follow any special regulations in force in any area such as hospitals and always switch off your phone
whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile
phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices,
as it may cause interference to such apparatuses.
INTERFERENCE
The conversation quality of any mobile phone may be affected by radio interference. An antenna is built
inside the mobile phone and located below the microphone. Do not touch the antenna area during a
conversation, lest that the conversation quality deteriorate.
-6-
QUALIFIED SERVICE
Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on
your own may bring great danger and violates the warranty rules.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries.
USE SENSIBLY
Use only in a normal and proper manner.
EMERGENCY CALLS
Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then press the Dial key.
Give your location and state your situation briefly. Do not end the call until told to do so.
Note: Just like all other mobile phones, this mobile phone does not necessarily support all the features
described in this manual due to network or radio transmission problems. Some networks even do not support
the emergency call service. Therefore, do not rely solely on the mobile phone for critical communications
such as first aid. Please consult the local network operator.
Precautions
This mobile phone is well designed with fine art. Please exercise special care when using it. The following
suggestions will help your mobile phone survive the warranty period and extend its service life:
Keep the mobile phone and all its fittings beyond children's reach.
Keep the mobile phone dry. Keep away from rain, moisture, liquid or other substances that may corrode
electronic circuits.
Do not use or store the mobile phone in dusty places, lest that active parts of the mobile phone be damaged.
-7-
Do not store the mobile phone in a high-temperature place. High temperature will shorten the life of
electronic circuits and damage the battery and some plastic parts.
Do not store the mobile phone in a chilly place. Otherwise, moistures will be formed inside the mobile
phone to damage electronic circuits when the mobile phone is moved to a constant temperature place.
Do not throw, knock or shock the mobile phone, as that will destroy the internal circuits and high-precision
components of the mobile phone.
2 Your phone

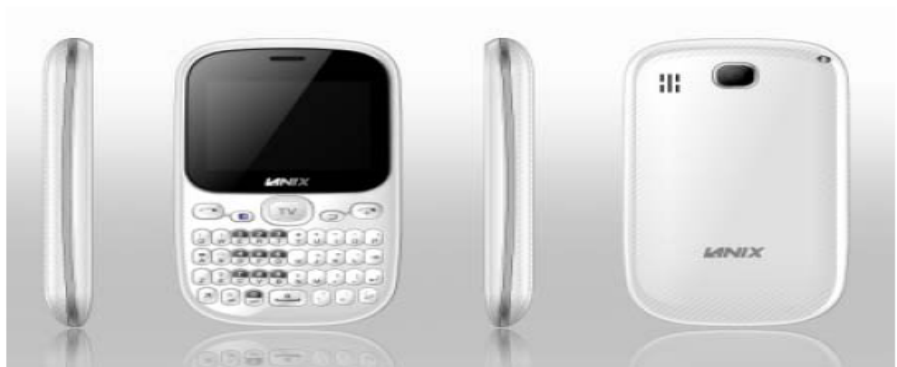

2.1 Phone overview
-8-
2.2 Functions of Keys
The mobile phone provides the following keys:
Dial key
Press it to originate a call by entering the called number or selecting a contact from the phonebook; or
press it to receive an incoming call; or press it in standby state to show the latest call records
End key
Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and return to the
standby state; or hold it for two or three seconds to power on or off the mobile phone.
Left and right soft key
The bottom line on the screen displays the functions of the Left and Right soft key.
Direction key
Press them to scroll the options when browsing a function list. In edit state, press direction keys to
navigate.
OK key
Press it to confirm your selection. In idle screen, press it can access dial-pad interface.
Delete key
Press it to delete a character before cursor.
Linefeed
This key helps to switch to another line when the interface is in the edit interface.
Shift key
Press this key to switch between input methods.
Space key
-9-
Press it in the edit interface to get a blank.
Sym key
Press it in the edit interface to input a symbol.
Alt key
In edit interface, press it to input an alternative symbol or number.
Facebook key
In idle screen, press it can log on Facebook.
Number keys, letters
Press number keys or letter keys to in input or edit state to input numbers or letters;
2.3 Technical specifications
Phone
Dimensions (W×D×H):
Weight:
Lithium battery
Rated capacity:
Continuous standby duration: (Relates to network status)
Continuous conversation duration: (Relates to network status)
Please refer to their labels for other data related to the battery and the charger.
115X61X13 mm
80g
1000mAh
240hours
3hours
-10-
3 Getting started
3.1 Installing the SIM Card and the Battery
A SIM card carries useful information, including your mobile phone number, PIN (Personal Identification
Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI (International Mobile
Subscriber Identity), network information, contacts data, and short messages data.
Note:
After powering off your mobile phone, wait for a few seconds before removing or inserting a SIM card.
Handling prudently while installing or taking out SIM card, as friction or bending may damage SIM card.
Properly keep the mobile phone and its fittings such as the SIM card beyond children's reach.
Installation
Hold the End key for a while to power off the mobile phone
Take the back cover above the battery away.
Take the battery away.
Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the
notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further
pushed in.
With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the
battery down until it locks into place.
Using code
The mobile phone and the SIM card supports sorts of passwords, in order to prevent the phone and the
SIM card from being misused. When you are prompted to input any of the codes mentioned below, just input
-11-
the correct code and then press the OK key. If you input a wrong code, press the Right soft key to clear it and
then input the correct code.
Phone lock code
The phone lock code may be set to prevent your mobile phone from being misused. In general, this code
is provided along with the mobile phone by the manufacturer. The initial phone lock code is set to 0000 by
the manufacturer. If the phone lock code is set, you need to input the phone lock code when powering on the
mobile phone.
PIN
The PIN (Personal identification number, 4 to 8 digits) code prevents your SIM card from being used by
unauthorized people. In general, the PIN is supplied with SIM card by the network operator. If PIN check is
enabled, you need to input the PIN each time when you power on your mobile phone. The SIM card will be
locked if you input wrong PIN code for three times.
Unlocking methods as follows:
-Input the correct PUK according to the screen tips to unlock the SIM card.
-Then input the new PIN and press the OK key.
-Input the new PIN again and then press the OK key.
-If the input PUK is correct, the SIM card will be unlocked and the PIN will be reset.
Note: The SIM card will be locked if you input wrong PIN code for three times. To unlock the SIM card,
you need to input the PUK. In general, the PUK can be obtained from the network operator.
PUK
The PUK code (Personal Unlocking Key) is required to change a blocked PIN. It is supplied with SIM
card. If not, contact your network operator. If you input wrong PUK code for 10 times, SIM card will be
-12-
invalid. Please contact the network operator to replace the SIM card.
Barring code
A barring code is required for setting the call barring function. You can obtain this code from the
network operator to set the call barring function.
3.2 Installing T-Flash Card
The T-Flash card is a pluggable mobile storage card inside the mobile phone.
To install the T-Flash card, place indented side downward, insert the card into the card slot.
To remove the T-flash card, take the card out.
Note:
1. The mobile phone cannot automatically identify the T-flash card being inserted when the mobile phone is
powered on. You must power off the mobile phone and then power it on, so that the phone can identify the
T-Flash card.
2. The T-Flash card is a miniature object. Keep it out of the reach of children for fear that children swallow
it!
3.3 Charging the Battery
The lithium battery delivered with the mobile phone can be put into use immediately after being
unpacked.
Battery level indication:
Your mobile phone can monitor and display the battery state.
Normally the remaining energy of the battery is indicated by the battery level icon at the upper right
corner of the display screen.
-13-
When the battery energy is insufficient, the mobile phone prompts "Battery low". If you have set an
alert tone, an alert tone will be given off when the battery level is too low.
A charging animation appears when the battery is being charged. When the charging is complete, the
animation disappears.
Using a travel adapter:
Install the battery into the mobile phone before charging the battery.
Connect the adapter of the travel charger with the charging slot in the mobile phone. Ensure that the
adapter is fully inserted.
Insert the plug of the travel charger to an appropriate power outlet.
During the charging, the battery level grids in the battery icon keep flickering till the battery is fully
charged.
It is normal of the battery to become hot during the charging period.
The battery icon does no longer flicker when the charging process ends.
Note:
Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB cable are inserted
in the right direction. Inserting them in a wrong direction may cause charging failure or other problems.
Before the charging, ensure that the standard voltage and frequency of the local mains supply match the
rated voltage and power of the travel charger.
Using the Battery
The performance of a battery is subject to multiple factors: radio network configuration, signal strength,
ambient temperature, chosen functions or settings, phone fittings, and the voice, data or other application
mode you choose to use.
-14-
To guarantee the optimal performance of your battery, please stick to the following rules:
Use only the battery provided by the vendor. Otherwise, damages or even injuries could be caused
during the charging.
Power off the mobile phone before removing the battery.
The charging process lasts a longer time for a new battery or a battery not in use for long. If the battery
voltage is too low to enable the mobile phone to be powered on, charge the battery for a longer time. In
this case, the battery icon does not flicker until a long time after the battery enters the charge status.
During the charging, ensure the battery is placed in a room temperature environment or in an
environment close to room temperature.
Immediately stop using the battery if the battery produces odor, overheats, cracks, distorts or has other
damage, or if the electrolyte leaks.
The battery wears out with use. A longer charging time is required as the battery is put into use for a
long time. If the total conversation duration decreases but the charging time increases even though the
battery is properly charged, purchase a standard battery from the OEM or use a battery approved by
our company. Using any poor-quality fittings will cause harm to your mobile phone or even incur
danger!
Note: To guarantee your personal safety and protect the environment, do not litter the battery! Return the old
battery to the mobile phone manufacturer or place it in specified battery reclamation areas. Do not litter any
battery with other rubbish.
Warning: Short-circuits of the battery may cause explosion, fire, personal injury or other severe
consequences!
-15-
3.4 Powering On/Off the Mobile Phone
Hold the End key for a while to power on the mobile phone. A power-on animation appears on the display
screen.
Input the phone lock code and press the OK key if the mobile phone prompts you to input the phone lock
code. The original code is 0000.
Input the PIN and press the OK key if the mobile phone prompts you to input the PIN. The PIN is provided
by the network operator for new opening SIM card.
Enter the standby interface.
To power off the mobile phone, hold the End key for a while.
3.5 Linking to the Network
After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches
for an available network. After finding a network, the mobile phone enters the standby state. When the
mobile phone is registered in the network, the name of the network operator is displayed on the screen. Then
you can dial or receive a call.
3.6 Dialing Calls
In the standby interface, press number keys to input the area code and the telephone number, and then press
the Dial key to dial a call. To end the call, press the End key.
Dialing a call to a number in the phonebook
Enter the phonebook and use the up or down direction keys to find the telephone number you want to call.
Press the Dial key. The mobile phone automatically dials the chosen telephone number.
-16-
Redialing the last number
In the standby interface, press the dial key to show the dialed calls.
Press the up or down direction keys to select a number you want to dial and then press the Dial key.
Answering incoming calls
Press the Dial key or the Left soft key to answer an incoming call.
Press the End key to end the current conversation.
To reject an incoming call, press the End key or the Right soft key.
Note: If the caller can be identified, the mobile phone will present the calling number. If the calling number
exists in the phonebook, the mobile phone will present both the name and the phone number of the caller. If
the caller cannot be identified, the mobile phone will present the calling number only. You can answer an
incoming call when using a function list or browsing the phonebook.
3.7 Using the Headset
It would enter headset mode automatically when you insert headset to the slot. Make sure of inserting it at the
bottom of the slot, or you can’t use it normally.
4 Input method
This mobile phone provides two input methods, including English input and numeric input. You can use
these input methods when editing the phonebook, short messages, files and greeting text.
-17-
4.1 Icons for Input Methods
After you enter an edit window such as a window for editing the phonebook, short messages or the
memorandum, an icon is displayed to indicate the current input method:
Numeric input:“123”
English input in upper case:“ABC”
English input in lower case：“ abc”
4.2 To Shift Entry Methods
Press shift key to switch between input methods.
4.3 Numeric Input
You can input numbers with the numeric input method. Press a number key to input the corresponding
number.
4.4 English input and numeric input:
The keyboards for English input and numeric input are defined in the following table:
Key
Character or Function
Remarks
Number key 1
E1
Number key 2
R2
Number key 3
T3
Number key 4
D4
Number key 5
F5
Number key 6
G6
-18-
Number key 7
C7
Number key 8
V8
Number key 9
B9
Number key 0
0
* key
Y*
# key
N#
English input:
To input a blank, press Space.
To clear wrong inputs, press the delete key.
4.5 Inserting a Symbol
Press the sym key to enter the Select symbol interface and select a symbol you want.
5 Using the menu
5.1 Call center
Missed Calls
You can view a list of the latest missed calls.
Note: When the mobile phone indicates that some calls are missed, you can select Read to enter the missed
-19-
calls list. Navigate to a missed call and then press the Dial key to dial the number that originated that call.
Dialed Calls
You can view the latest dialed calls. Choose dialed calls and then select a dialed call to delete, save, dial, or
edit (or send a short message to it).
Received Calls
You can view the latest received calls. Choose received calls and then select a received call to delete, save,
dial, or edit (or send a short message to it).
Delete call logs
You can delete the latest call records. Choose Delete call logs and then select to delete all the numbers in the
call history, or delete only the numbers in the missed calls list, the dialed calls list or the received calls list.
Call timers
Choose call timers to view the last call time, the total time of all dialed calls and the total time of all received
calls, and/or to reset all the time.
Call Cost
Choose call cost to view the cost of the last call and the cost of all calls, reset the call cost, modify the
maximum cost allowed, and/or set the call tariff.
Note: The call cost function relates to the SIM card. Some SIM cards do not support this function. The PIN2
is provided by the network operator. To obtain the PIN2, contact the network operator.
-20-
GPRS counter
You can view the data of last sent, last received, all sent and all received.
5.2 STK
STK service is the tool kit of SIM card. This phone supports the service function .The specific items are
depended by SIM card and network. Service menu will be auto added to the phone menu when supported by
network and SIM card.
5.3 Fun
Games
A game named Snake is embedded in the phone. For specific operation, please refer to ‘help’ option of the
game.
5.4 File manager
The phone provides a certain space for users to manage files and supports the T-Flash card. The capacity of
the T-Flash card is selectable. You can use the file manager to conveniently manage various directories and
files on the phone and the T-Flash card.
Open
Choose File manager to enter the root directory of the memory. The root directory will list the default
folders, new folders and user files. When the mobile phone is powered on for the first time or when you have
not changed the directory, the root directory contains the default folders only.
-21-
Format
You can use this function to format all the data in the memory. The system will re-create a default folder. The
formatted data cannot be recovered. Therefore, think twice before using the formatting function.
Details
You can view Memory card Details.
5.5 Extras
Calculator
The calculator can add, subtract, multiply and divide. To use the calculator:
Press the up, down, left and right key to select ＋, －, ×, ÷, ＝ respectively.
Press left soft key to delete the figure.
E-book reader
E-book reader enables you to read TXT file. Through the USB connecting line putting files to E-book folder
of phone or T-Flash card. After finishing downloading, you can find the folder and open the E-book to read
text directly.
Electric Torch
Select on/off the torch as per your need.
5.6 Phonebook
The mobile phone can store up to 500 telephone numbers. The number of telephone numbers that an
-22-
SIM card can store depends on the storage capacity of the SIM card. The telephone numbers stored in the
mobile phone and in the SIM cards form a phonebook. A name stored in the mobile phone can have at most
four telephone numbers.
After selecting a telephone number in the phonebook, select Options to perform the following
operations:
View: View the content of the telephone number.
Sent text message: sent text message to this number.
Sent multimedia message: sent multimedia message to this number.
Call: call the current number of the SIM1.
Edit: Edit the telephone number and name.
Delete: Delete the telephone number from the phonebook.
Copy: Duplicate the telephone number from the mobile phone to the SIM card or from the SIM card to
the mobile phone.
Send business card: To send the record through message, multimedia message, Email or Bluetooth.
Add to Blacklist: Add the selected number to blacklist.
Mark several: Mark several phone numbers at a time so that you can perform a same operation on them.
Phonebook setting: To set some parameters of phonebook.
5.7 Messaging
If the short message memory is full, a blinking SMS icon appears on the top of the screen. To normally
receive short messages, you need to delete some of the existing short messages.
-23-
Write message
Access this menu to create a text message or multimedia message.
Inbox
Received messages are listed in this menu.
Drafts
Draft messages are listed in this menu.
Outbox
The messages which are sent failed are stored in the Outbox.
Sent messages
The messages which are sent are stored in here.
Email
You can read your email messages and compose new messages through this menu. The email function
supports many of the most popular email services, including Gmail, Yahoo, Hotmail, 163, QQ, 126, Sohu,
sina, etc.
*Inbox: New email you’ve received.
*Outbox: The email you’ve sent.
*Sent: The message you’ve sent to others.
*Drafts: The Emails you haven’t finished were stored there.
-24-
Broadcast Message
This network service enables you to receive a variety of text messages, such as broadcast messages about
weather forecast or road conditions. At present, few networks provide this service. Please consult the network
operator.
Receive mode: Set it to On to enable or Off to disable cell broadcast service.
Channel settings: Select receiving some types of cell broadcast messages or edit/delete some channel
numbers.
Languages: Select the language in which cell broadcast messages are displayed. The selected language,
however, may not be supported by the network operator.
Read message: View cell broadcast messages.
Templates
Ten text templates are embedded in the phone. They can be used to create a new message.
Message settings
You can set the parameters about SMS and MMS through this function.
5.8 Services
Licence manager
Log on Licence manager through a web.
-25-
Facebook
Log on Facebook through a web page.
Opera
Log on Opera through a web page.
WhatsApp
Log on WhatsApp through a web page.
5.9 Organizer
Calendar
Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments,
etc. Days with events entered will be marked.
Tasks
Choosing Date, call or anniversary to create new memo, which you can view, add, edit, delete, delete overdue
task, delete all, jump to date, send route and saved as file. If you have set the alarm for the memo, alarm will
sound when time is up, the content of memo will display at the same time.
Alarm
Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as needed.
For each alarm clock, the ringing time can be set.
-26-
World clock
Access this menu to view time of main cities in various time zones.
5.10 Multimedia
TV
You are able to access this menu to watch mobile TV programs. Before you watch TV programs, you’d better
select the right area. Then you can search available channels and select channel to play. In the playing
interface, you can press up or down direction key to tune sound volume.
Camcorder
The phone is provided with a camera, which supports the photographing functions. Roll the phone to align
the camera to the picture and then press OK key to capture photos. In the capture interface, you can press
down direction key to switch to video recorder.
Image viewer
You can view the pictures or images through this function.
Sound recorder
The phone support WAV and AMR. The AMR takes the compression algorithm. So in the same memory
condition, it has longer recording time than WAV.
-27-
FM radio
You can use the application as a traditional FM radio with automatic tuning and saved channels. In FM radio
interface, up or down direction key to search channels manually, OK key to play/pause the playing process of
the current channel, left or right direction key to enable auto search. You can press I/- or U/+ key to tune
volume.
5.11 Media player
Use this function to play audio player and video files. By pressing the direction key can you control the
playing: play/pause（up direction key）, stop (down direction key), switch to last s/next（press left or right
direction key）, fast forward (press and hold right direction key) and rewind (press and hold left direction key),
you can press I/- or U/+ key to tune volume, press # key to switch to full screen play.
5.12 Settings
Profiles
The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the
specific events and environments.
Customize the user profiles according to your preference and then activate the user profiles. The user profiles
fall into five scenarios: General, Silent, Meeting, Outdoor and My style.
When you insert an earpiece to the mobile phone, the mobile phone automatically enters the Headset mode.
There is no option for activating the Headset mode on the screen. For details on operation, refer to General.
If you set Headset > Customize > Answer mode to Auto, incoming calls will be automatically answered.
-28-
5.12.1.1 Activate
Select Activate to activate the selected mode.
5.12.1.2 Customize
After choosing one of the above five modes, select Customize to edit the following items: Alert type, Ring
type, Ringtone, ringtone volume, message ringtone, keypad tone, power on/off tone, etc.
5.12.1.3 Reset
Use this function to restore factory settings of user profile.
Phone Settings
Time and date: set time zone, time/date, format or update the time and date with time zone.
Note: If you remove the battery from the mobile phone or if the battery energy was exhausted a long time ago,
you may need to reset the date and time when re-inserting the battery or powering on the mobile phone after
recharging.
Schedule power on/off: Set the time when the mobile phone will be automatically powered on or off.
Language: Select the display language for the mobile phone.
Pref. input method: Select an input method as preferred input method as per your need.
Dedicated key: Customize the shortcut functions of the Up, Down, Left, and Right direction keys. In the
standby interface, you can press a direction key to directly enter the function menu corresponding to that
direction key.
Auto update time: Activate or deactivate this function as per your need.
Flight mode: when this function is engaged, it will suspend many of the device's signal transmitting
functions – thereby disabling the device's capacity to place or receive calls or text messages– while still
permitting use of other functions that do not require signal transmission (e.g., games, built-in camera,
-29-
MP3 player.)
Display
Users can access this item to set wallpaper, screen auto lock, power on/off display, show date and time
display and LCD backlight etc.
Call center
5.12.1.4 Call settings
Caller ID: You can select the ID set by the network. By default, the ID set by the network is chosen.
Call waiting: After you choose Activate, the mobile phone will contact the network. A moment later, the
network will make a response and send a message to acknowledge your operation. If the call waiting
function is activated, the network will alert you and the mobile phone screen will display the incoming
call number if others are calling you while you are already in a conversation.
Call divert: this network function enables you to forward incoming calls to another number you have
previously specified.
Call barring: The call barring function enables you to bar calls as needed. When setting this function,
you need to use a network barring code, which can be obtained from the network operator. If the code is
wrong, an error message will be prompted on the screen. After selecting a call barring option, continue to
select Activate or Deactivate. The mobile phone will prompt you to input the call barring code and then
contact the network. A moment later, the network will make a response and send the operation results to
the mobile phone.
Group list: This function requires network support. For details, consult the local network operator.
-30-
5.12.1.5 Advanced settings
Blacklist: He or she can’t call you if you set the blacklist status to on and add his or her number to
blacklist.
Auto redial: Set it to On or Off to enable or disable auto redial. If you set Auto redial to On, the mobile
phone will automatically redial the number a moment later if the called party does not reply. In the auto
redial period, you cannot dial other numbers. To end the auto redial process, press the End key.
Note: This function requires support from the network operator to which the SIM card is registered.
Call time display: To display call time or not in a call.
Call time reminder: To set single or periodic tone in a call to make you know the time.
Auto quick end: this function enables you to end a call at a preset time.
Reject by SMS: Reject an incoming call and reply the caller a short message.
Connect notice: Once this function is enabled, the phone would vibrate to remind you when a call is
connected.
Answer mode: Set answer mode as per your need.
Connectivity
5.12.1.6 Bluetooth
With Bluetooth, you can make a wireless connection to other compatible devices, such as mobile phones,
computers, headsets and car kits. You can use the Bluetooth to send images, video clips, music, sound clips
and notes, and transfer files from your compatible pc.
5.12.1.7 Data accounts
Access this interface to set Data account related parameters.
-31-
5.12.1.8 WLAN
Access the WLAN function on your phone. From there, activate WLAN to find wireless networks.
Click the wireless network that displays the strongest signal. If you try to access a secured connection, you
will be prompted to enter a password.
Once connected, open your mobile web browser. You can now surf the Internet through your cell phone.
Network Settings
Contact the network operator to obtain the following network services:
Network selection: Set Network selection mode to Automatic or Manual. Automatic is recommended.
When Network selection mode is set to Automatic, the mobile phone will prefer the network where the
SIM card is registered. When Network selection mode is set to Manual, you need to select the network
operator's network where the SIM card is registered.
Preferences: Select the preferred networks. By default, the network where the current SIM card is
registered will be displayed.
GPRS transfer pref.: Select one of them as per your need.
Security Settings
This function provides you with related settings about safety use
SIM security
PIN lock: You can set PIN status and modify PIN through this function. The PIN (Personal
identification number, 4 to 8 digits) code prevents your SIM card from being used by unauthorized
people. In general, the PIN is supplied with SIM card by the network operator. If PIN check is enabled,
you need to input the PIN each time when you power on your mobile phone. The SIM card will be
-32-
locked if you input wrong PIN code for three times.
Change PIN: To change PIN code of SIM card.
Change PIN2: You are able to modify PIN2 through this function. The PIN2 code (4 to 8 digits),
supplied with SIM card, is required to access some functions such as “fixed dialing number”. Please
contact the network operator to verify whether your SIM card supports these functions. If you input
wrong PIN2 for three times, the PIN2 will be locked.
Phone security
Phone lock: The function enables you to lock/unlock the phone. Once this function is enabled, correct
password is required when the phone is locked. The password is 4 to 8 digits.
Change password: To change phone password.
Certificate manager：Show a list of certificates.
Shortcuts
You can set some most used menus as shortcut functions through this item.
Add: You can select a menu and add it to shortcuts list.
Edit: A menu would become the first one in the shortcuts list if you edit it.
Delete: Select a menu and delete it from shortcuts list.
Delete all: The shortcuts list would become empty if you delete all.
Change order: change the order of menus.
Notification settings
Select on/off messaging, Email and downloads notification service as per your need.
-33-
Restore Settings
Use this function to restore factory settings. The preset password is 0000.
6 Appendix
Appendix 1：Troubleshooting
If you find exceptions when operating the mobile phone, restore the factory settings and then refer to the
following table to solve the problem. If the problem persists, contact the distributor or service provider.
Fault
Cause
Solution
SIM card error
The SIM card
is damaged.
Contact your network service provider
The SIM card
is not in
position.
Check the SIM card
The metal
face of the
SIM card is
polluted.
Clean the SIM card with a clean cloth
-34-
Poor received
signal quality
Signals are
obstructed.
For instance,
radio waves
cannot be
effectively
transmitted
nearby a high
building or in
a basement.
Move to a place where signals can be effectively transmitted
Line
congestions
occur when
you use the
mobile phone
in high-traffic
hours
Avoid using the mobile phone in high-traffic hours
-35-
The mobile
phone cannot
be powered on
The battery
energy is
exhausted.
Charge the battery
Calls cannot be
dialed
Call barring is
activated
Cancel call barring
The mobile
phone cannot
connect the
network
The SIM card
is invalid
Contact your network service provider
-36-
The mobile
phone is not
in a service
area of the
GSM network
Move to the network operator's service area
The signal is
weak
Move to a place where the signal quality is high
The battery
cannot be
charged
The charging
voltage does
not match the
voltage range
indicated on
the charger
Ensure the charging voltage matches the voltage range
indicated on the charger
An improper
charger is
used
Use the charger specially designed for the mobile phone
Poor contact
Ensure the charger plug is in good contact with the mobile
phone
Warning
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
SAR tests are conducted using standard operating positions accepted by the FCC with the
phone transmitting at its highest certified power level in all tested frequency bands, although
the SAR is determined at the highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value, in general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a new model phone is a available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the exposure limit established by the FCC, Tests for each
phone are performed in positions and locations (e.g. at the ear and worn on the body)as
required by the FCC.
For body worn operation, this model phone has been tested and meets the FCC RF exposure
guidelines when used with an accessory designated for this product or when used with an accessory that
Contains no metal and that positions the handset a minimum of 1.5 cm from the body.
Non-compliance with the above restrictions may result in violation of RF exposure guidelines.
This device complies with part 15B FCC rules. Operation is subject to the following two conditions: (1
) this device may not cause harmful interference (2) this device must accept any interference, including inter
ference that may cause undesired operation.” WARNING:Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user's authority to operate the equipment
