orativo Lanix de C V X110 smart phone User Manual Elite G6

1

USER MANUAL

Model: Ilium X110

Brand: LANIX

FCC ID: ZC4X110

2

Safety Information ................................................................................................................................................................ 4

Introduction .......................................................................................................................................................................... 7

SIM/SD card and battery Installation Guide ........................................................................................................................... 7

Call Functions....................................................................................................................................................................... 9

Internet Browser .................................................................................................................................................................. 11

Messaging .......................................................................................................................................................................... 13

Notifications Bar ................................................................................................................................................................. 15

Contacts ............................................................................................................................................................................. 16

Bluetooth & Wi-Fi................................................................................................................................................................ 19

Downloads ......................................................................................................................................................................... 21

Gmail ................................................................................................................................................................................. 21

Clean Master ...................................................................................................................................................................... 23

Clean the phone memory garbage ...................................................................................................................................... 23

WPS office kinqsoft............................................................................................................................................................. 24

Play Store ........................................................................................................................................................................... 24

Camera .............................................................................................................................................................................. 25

Gallery................................................................................................................................................................................ 28

Music ................................................................................................................................................................................. 29

FM Radio ........................................................................................................................................................................... 30

Sound Recorder ................................................................................................................................................................. 32

File Manager ...................................................................................................................................................................... 33

Calendar ............................................................................................................................................................................ 33

Alarm Clock ........................................................................................................................................................................ 34

Calculator ........................................................................................................................................................................... 35

Flashlight ............................................................................................................................................................................ 35

3

Notebook ............................................................................................................................................................................ 36

Hangouts ............................................................................................................................................................................ 36

Facebook ........................................................................................................................................................................... 36

Google ............................................................................................................................................................................... 37

Storage............................................................................................................................................................................... 42

4

No part of this publication may be quoted, reproduced,

translated or used in any form or by any means, electronic

or mechanical, including photocopying and microfilm,

without the prior written permission of LANIX Corporation.

LANIX Corporation reserves the right to make modifications on

print errors or update specifications in this guide without prior

notice.

Safety Information

Please carefully read the terms below:

Use Safely

Do not use the phone in situations where it might cause

danger.

Transportation Safety

Please observe all transportation laws and regulations.

5

Please drive with both hands on the wheel.

Hospital Safety

Please follow hospital rules and limitations.

Please turn off your mobile phone when near medical

instruments.

Airport Safety

Remember to follow all airport and flight safety regulations.

Please do not use your phone during flight.

Chemical Warning

Do not use your mobile phone around fuels or chemicals.

Temperature Warning

Do not subject your phone to extreme temperature conditions.

Water Hazard

Your phone is not waterproof. Keep it away from water and

liquids.

Emergency Calls

6

Make sure your mobile phone is switched on and in a service

area. In home screen, tap the phone key and dial the

emergency number.

Accessories and Batteries

Use only Blu authorized batteries and accessories.

Information Backup

Remember to keep a written record of all important

information.

7

Introduction

SIM/SD card and battery Installation Guide

Installation of the SIM Cards

Advisory: Please keep the SIM card out of the reach of

children. The SIM card and its contact are easily damaged due

to scratching or bending. Please be cautious when carrying,

installing or taking out the SIM card. BN: Contact your cellular

phone service provider directly to obtain the SIM card.

To insert SIM card:

1. Remove the rear cover. Insert the SIM card.

2. Insert the SD card. (For additional storage capacity)

3. Insert the battery, replace the rear cover, and power on.

Charging The Battery

When you first get your new phone you‟ll need to charge the

battery.

1. Connect the adapter to the charger jack. Ensure that the

adapter is inserted with the correct orientation. Do not force

the connector into the charger jack.

2. Connect the charger to a standard AC wall outlet.

8

3. Disconnect the charger when the battery is fully charged.

Power On and Off

On - Please ensure the SIM card has been properly inserted

into the phone. Long press the Power key to switch on the

phone.

Off - In standby mode, long press on Power key until an

options menu appears. Select Power Off in the pop-up prompt

to switch off the phone.

Waking Up Your Phone

1. You may Press Power Key to activate your screen display.

2. Drag up the icon.

NOTE: If you have set an unlock pattern, PIN or password for your

phone, you‟ll need to draw the pattern or enter the PIN/password to

unlock your screen. For further information regarding password

locks, password revision and other functions please enter the

security settings of the phone.

Switching to Sleep Mode

To save battery power, Sleep Mode suspends your device to a

low-power-consumption state while the display is off. Your

9

device also goes into Sleep Mode by itself when the display is

automatically turned off after a certain period of time. You can

start sleep mode by the following method.

Press Power Key to switch to Sleep Mode.

Home Screen

In the Home screen, besides the shortcut icon is displayed,

you can also set your own wallpaper, add the widgets or

application shortcuts you need, or remove them as you like.

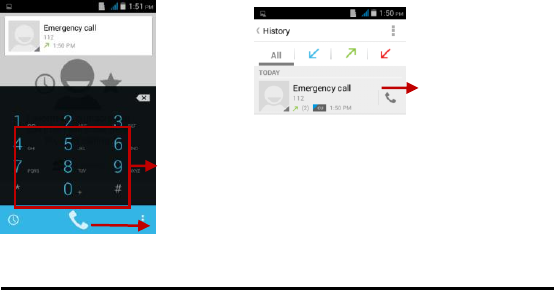

Call Functions

At the dial keyboard, enter the phone number and then click

the dial key. If dialing an extension, you may click the dial pad

icon in the bottom of the screen to open the interface and enter

the number of the extension. You may also press and hold the

0 key to add a (+) sign when adding an international dialing

prefix.

10

Call Logs

Every telephone number called and received will be saved in

the phones call history. All numbers in the call log can be

dialed directly by clicking the number and select REDIAL on

the screen. When the number appears on the list, click it and

select DETAILS to view details. To clear all the call history,

press the menu key and select Clear call history. You may

remove one or multiple calls.

Dial pad

Dial key

Tap number and

select Redial to dial

11

Call Options

There are different options that can be used in the call history

and dialing interface. You may tap the option icon( ) while in

the dial interface and adjust speed dial and call settings.

Telcel

Internet Browser

Menu Functions

Backward

• Click the backward icon in the browser will return the user to

the previous page.

Options

Search for

Content Area

12

Forward

• Click the forward icon in the browser will move to a web page

after the current page.

Windows

• View all windows open by clicking the windows icon in the

browser.

Bookmarks

• Click the save to Bookmarks option to save to Bookmarks.

More

Find on page: Search current page.

Share page: Select to share the current page.

Bookmarks/History: Show your browsing history and view the

most visited pages.

Settings: Contains a variety of browser settings.

13

Messaging

You may use this function to exchange text messages and

multimedia messages with your family and friends. The

messages to and from the same contact or phone number will

be saved into a single conversation so you may see the entire

message history conveniently.

Click menu to access

the internet browser

options

14

Send an SMS

Application Menu » Messaging » New message icon( )

 Click the contact icon to add text message recipient

 Compose Text Message and click Send

Send an MMS

When creating message, the default message style is SMS.

The message will automatically convert to MMS when adding

an attachment.

 Click the attachment icon ( )in the messaging interface.

 Click to add attachments and create an MMS message.

Attachment buttons

Add Recipient

Text message entry field

15

Notifications Bar

The notification bar is located on the top of the screen which

contains useful and important information regarding your

phone and the applications that are installed. On the

notification bar, several icons will appear such as signal bar,

battery indicator, data indicator and Bluetooth. You may flick

the status bar downwards from across the top of the screen to

open the Notification Panel to display any pending

notifications or actions.

Pending Notifications

and Applications

Quick Notification

Settings

Quick Settings menu

buttons

16

Notification Settings

The notification settings window provides shortcuts to different

phone settings for quick access. Click on any of the shortcut

notification icons to power on or off.

Note: To remove pending notifications, drag down the

notification bar and click the clear notification icon on the under

right hand part of the screen (3 horizontal lines). The

notification settings menu is located by dragging down the

notification bar and is located on the upper right hand part of

the screen next to the battery icon.

Contacts

 You can add contacts on your phone, you can enter the

name or number to find the contact. The default display

is the phone contacts and SIM card contacts.

 The contacts are organized alphabetically by default.

17

 Click the option icon and select Search to enter the

contact search interface. Any numbers or letters

associated with any of the contacts saved in the list will

be shown in the search results.

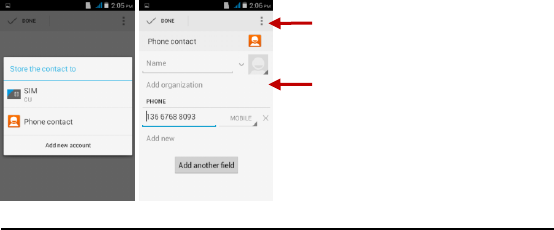

Add New Contact

 Click the add contact icon ( ) to add contact.

 Select to save your contacts to your Google account, the

phone or the SIM card.

Add Contact

Find Contact

Menu

18

 You may enter different contact details which include

adding a picture, name, telephone number, group,

address, and email among other options.

Click to finish and save contact.

Delete Contact

 Click on the Contacts icon to enter the phonebook.

 Click the menu key to access the Contacts menu.

 Click on Delete contact and scroll to select which

contact(s) you wish to delete.

Note: You may also search for an individual contact in the

phonebook. Once the contact is found click the contact name

Contact information

entry field

Option menu button

19

to enter the contact profile, press the menu key to bring up the

contact menu and select delete to eliminate from the

phonebook.

Import / Export Contacts

The phone allows you to import and export contacts to

synchronize information between different storage types that

include the SIM card, Gmail account and your phone.

To import or export contacts:

1. Press the Contacts icon to enter the phonebook.

2. Press the menu key and select Import / Export.

3. Select the source you want to copy the contacts from. Once

selected click next and select the destination where you want

the contact to be copied to then select the desired contacts to

be copied.

Bluetooth & Wi-Fi

Bluetooth is a short-range wireless communications

technology that devices can use to exchange information and

connect to different types of devices which include headsets

20

and other devices.

Power on Bluetooth

Settings » Bluetooth and select to power on Bluetooth.

 The icon will appear in the notification bar. The

Bluetooth will then start to scan for all visible Bluetooth

devices within its range and will display in a list.

 In Bluetooth settings, all the devices found will

displayed in a list.

Power on WI-Fi

Settings » WI-Fi and select ON to power on WI-Fi

 Click on the desired WI-Fi network to be connected.

Note: Unsecured networks can be connected to directly - secured networks require a password or credentials prior to

connection.

List of available Bluetooth devices

Note: The maximum detecting time of the

phone is 2 minutes.

21

Downloads

The download section of the phone keeps sorted all of the files

that have been downloaded on the phone. The section can

display the download by date or by size. To clear the file from

the list, long press on the file and then select the delete icon.

Gmail

List of available networks and the network

connection screen

List of available downloads sorted by date

22

Gmail is Google‟s free email service. To access the Gmail

program, click the applications menu and click on the Gmail

icon and either sign in with your existing account or create a

new one.

Note: In order to keep accounts streamlined with Google

services, your Gmail account user name and password will be

used for some Google programs which include: Google Play

Store, Google Drive, Google +, Google Photos, and Google

Wallet.

The Gmail inbox is separated by default in

three different categories.

These categories include primary inbox, social

inbox where all your Facebook, Twitter, and

social media emails are separated to and your

Promotions inbox where all your commercial

emails are separated.

You may add or delete other categories in

Gmail settings

23

Clean Master

Clean the phone memory garbage

24

WPS office kinqsoft

Play Store

Google Play allows you to download music, movies, and

games directly to your device. To access the Google Play

Store, click on the applications menu and then the Play Store

icon.

Add a new profile

25

Camera

Prior to use: Insert SD card before using the camera or video camera. All photos or videos taken by the phone are typically

stored in the memory card for large storage capacity of images and videos.

Open Camera

Click the Applications Menu » Camera

 Switch to video mode if you want to record videos.

Note: You may place a camera shortcut icon on any of the

screens

 Front/Rear Camera to switch to Front or Rear Camera

Search and select between

different Play Store categories

26

Take Pictures

 Aim the object that the picture will be taken.

 Press the Shutter button on the screen to capture image.

 After taking the picture, the file will be saved in the

cameras gallery folder.

 You can view the photos by clicking the preview box

button.

You may adjust various settings for the camera by pressing

Menu while in the camera interface.

When in the standard camera mode, you can switch to video to

record or click the preview box to enter the gallery.

27

Select between Camera &

Video

Switch Front or Rear Camera

28

Gallery

Open Images

Applications Menu » Gallery

Share Pictures

You may share pictures by sending them through different

types of installed applications. You may also send pictures

through the MMS message function by attaching a picture and

also via Bluetooth.

Adjust Image

Press Menu and select edit to adjust images: You may select

Pictures and videos are

stored in albums

29

from different effects that may include: Vintage, Black and

White, Instant, Latte, Blue, X-Process, Crop, Rotate, Mirror,

Straighten, Vignette, Contrast, Exposure, Auto color, Shadows,

Vibrancy, among other settings that can be used to adjust

picture images.

Crop Pictures

Click menu and crop to adjust the size of the picture. Once the

picture appears, pinch your fingers in or out to adjust the size.

To keep an images proportion, please hold down any of the

four corners of the image and adjust accordingly.

Music

Open Music

Application Menu » Music

30

Search Music

You may choose to search for music from media folder through

artist name, song name, album name.

The following formats are available: AMR, MIDI and MP3.

FM Radio

Through this function, you may listen to FM radio on the device.

The FM radio uses the wired headphones as an antenna in

order to receive signal. Before using this function, connect the

original equipment headphones that came with the phone.

Song Status

Track Controls

Playback Settings

31

Open FM radio

Press the FM Radio icon to open the application.

Click Search to scan FM channels automatically then click to

add any of your favorite radio stations.

FM Radio as Background

Click on the Home key to move the FM Radio to the

background.

Radio Options

Add Favorite Radio

Stations

Scan

32

Sound Recorder

The Sound Recorder can record voice or any audio.

You may send any recorded audio via Bluetooth or MMS and

also have the option to select recording mode or voice quality.

The recorder uses 3GPP format.

Record

 Keep the phone‟s microphone near the sound source.

 Click the record button to record the audio.

 Click the stop button to stop recording the audio.

Recording

Controls

Recording Time

33

File Manager

The file manager allows you to search and organize your

stored phone files conveniently and efficiently through one

program.

Calendar

The calendar helps keep track of your life‟s most important

moments in one application.

Scroll and search through the File

Manager for stored phone files.

You may also search or add new

folders from the File Manager

interface

34

Alarm Clock

Click on the Clock icon then click the alarm tab to enter the

alarm clock set interface. This option allows you to add and

edit alarms.

Tap the top of the screen icon can be switched to the

countdown and stopwatch functions from the clock interface.

Long press the specific day

or hour you wish to enter a

new event to

35

Calculator

Press the number keys 0-9 to enter you need to calculate, such as +, -, ×, ÷;

press <on the right options> Clear the last input or results. The results

obtained by the = key.

Note: This calculator accuracy is limited, there is an error, especially when it

is inseparable.

Flashlight

Open the closed flashlight

Click to add, edit or delete

alarms

36

Notebook

Important notes can mark alerts

Add matters

Hangouts

Hangouts menu features require network Follow the prompts to register

Facebook

Facebook menu features require network Follow the prompts to register

Add Content

Options matters title

37

Google

Google menu features require network Follow the prompts Settings

Wireless & Networks

Wi-Fi

 Settings » Wi-Fi to power on. When on, the Wi-Fi will

automatically search for available networks. Any

unsecured network can be used directly and any

secured network requires a password or credentials

prior to connection.

Bluetooth

 Power on Bluetooth. Once on, Bluetooth will automatically

scan for any nearby open devices. Click to connect

device

Data Usage

 Mobile and Wi-Fi Data Usage

More

 Tethering, Portable Hotspot, VPN, APN

 Airplane Mode

38

Note: When in flight mode, all network connections will turn off

automatically.

Device

Display

Brightness level, When device is rotated, Wallpaper,

Sleep,Font size

Sound & notification

This option sets the phone ring tone settings for receiving calls

and notifications. Some of the settings include:

 Vibrate, volume, ring tones, default notification sound, dial

pad touch tones, and touch feedback or tones

Storage

 View the phone memory usage.

Battery

 General power usage

Apps

 Manage applications - Manage and delete installed

applications.

 Running Applications- Press the „Stop‟ button to stop any

39

of the applications listed and removes from the running

apps list.

Personal

Location

 Location Mode – Use GPS,wi-fi or mobile networks to

determine your location.App location permissions.

 Recent Location Requests-request location app recently.

Security

Set up screen locks: Use swipe, voice unlock, pattern, PIN or

password to lock the screen. When power on your phone or

unlock touch screen devices you will be required to input

pattern/PIN/password/voice, and etc. The following is the

introduction function

 Pattern: The first time there will be simple unlock

instructions and examples. Click “next step” to continue

the security pattern step.

 PIN: Enter PIN number to unlock the screen.

 Password: Use password to unlock the screen

You may stop the security feature at any time.

40

Set up SIM card PIN lock

 SIM card PIN (Personal Identification Number) is used to

prevent unauthorized use of SIM card.

To change a blocked PIN code, you will need to unlock the SIM

lock then go to the Change Password screen. The phone will

automatically prompt you enter the old PIN code and ask to

enter a new PIN code twice. The phone will then prompt you

that the change was successful. If you enter the PIN incorrectly

three times, the SIM and PIN codes will be automatically

locked. You will need the PUK code to unlock the phone which

is available through your service provider. If you enter the PUK

code incorrectly 10 times, the SIM card will be permanently

locked. Please see your service provider for a new SIM card.

 Password visible – Make the password visible when it‟s

typed.

 Use security credentials - Allow applications to visit

security credentials or other credentials.

41

Accounts

 Add an account.

Language and Input

 Language – Change the language of the phone.

 Personal Dictionary - Add or delete words to the personal

dictionary.

 Keyboard Settings – Haptic vibration, Haptic tones,

Capitalizing, Inputting words, Predictive text function,

Auto-Text, Input keyboard method.

Backup & reset

 DRM reset – Deletes all DRM licenses.

 Factory data reset - Erases all data on phone.

System

Date & Time

 Date and Time adjustment.

 Time Zone - Select Time Zone according to where your

location.

 Select Date Format - There are 3 kinds of formats you can

42

choose from: Month-Day-Year, Day-Month-Year and

Year-Month-Day, and Year-Month-Day which is the default

setting.

Schedule Power On & Off

 Schedule power on and off

Accessibility

 Power button ends call and auto rotate screen

 Speak Passwords and large text

Printing

 Power on and off Cloud print.TO use Cloud print,you need

to add a Google account to your device.

About Phone

 Phone information status and firmware updates.

Storage

Connect the phone with the USB cable provided. Once

connected, a connection interface will appear. In the

connection mode interface, select MTP and turn on from

the connection screen to be able to transfer files. You

43

may also select other storage options that are available.

44

FCC

FCC RF Exposure Information and Statement

The SAR limit of USA (FCC) is 1.6 W/kg averaged over

on one gram of tissue.

Device types: lium X110 (FCCID: ZC4X110) has also

been tested against this SAR limit. The highest SAR

value reported under this standard during product

certification for use at the ear is 0.804 W/kg and when

properly worn on the body is 1.221 W/kg. This device

was tested for typical body-worn operations. To comply

with RF exposure requirements, a minimum separation

distance of 1.0 cm must be maintained between the

user‟s body and the handset, including the antenna.

Third-party belt-clips, holsters, and similar accessories

used by this device should not contain any metallic

components. Body-worn accessories that do not meet

these requirements may not comply with RF exposure

requirements and should be avoided. Use only the

45

supplied or an approved antenna.

The use of belt clips, holsters and similar accessories

should not contain metallic components in its assembly.

The use of accessories that do not satisfy these

requirements may not comply with FCC RF exposure

requirements, and should be avoided.

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2)

this device must accept any interference received,

including interference that may cause undesired

operation.

NOTE: The manufacturer is not responsible for any radio

or TV interference caused by unauthorized modifications

to this equipment. Such modifications could void the

user‟s authority to operate the equipment .This

equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of

46

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

47

- Consult the dealer or an experienced radio/TV

technician for help.

The user‟s manual or instruction manual for an

intentional or unintentional radiator shall caution the user

that changes or modifications not expressly approved by

the party responsible for compliance could void the

user's authority to operate the equipment. In cases

where the manual is provided only in a form other than

paper, such as on a computer disk or over the Internet,

the information required by this section may be included

in the manual in that alternative form, provided the user

can reasonably be expected to have the capability to

access information in that form

orativo Lanix de C V X110 smart phone User Manual Elite G6

Corporativo Lanix S.A. de C.V. smart phone Elite G6

Manual

Navigation menu

Namespaces

Views

Navigation
